DF60A8500HG - Wardrobe SAMSUNG - Free user manual and instructions

Type	Clothing Care System (AIRDRESSER)
Model	DF60A8500HG
Dimensions (H x W x D)	1850 x 445 x 632 mm

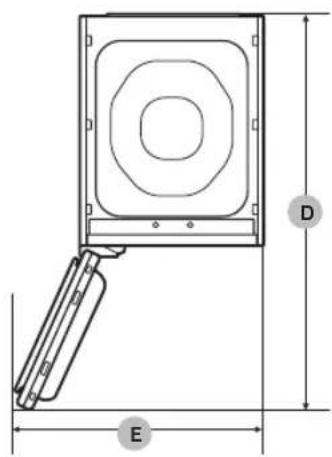

Depth with door open	1001 mm
Width with door open	618 mm
Weight	85 kg
Rated power	1700-2000 W
Voltage / Frequency	220-240 V / 50 Hz
Fuse (main PBA)	Tube type, 250 V / 12 A, high breaking capacity
Refrigerant	R-134a (GWP = 1430), 0.15 kg
Cycles	Clothing Care: Daily Care, School Wear, Denim, Babywear, Bedding, Toys, Winter Coat, Wool/Knit, Suit, Down Jackets, Outdoor, Delicates, Quick, Blouses, Fur/Leather, Accessories, Mask Sanitize, Self Clean; Drying: AI Dry, Quick, Blouses, Down Jackets, Time Dry (1/2/3), Room Care (2/4)
Special functions	Sanitize, Keep Fresh, Delay End, Child Lock, Smart Control (Wi-Fi, SmartThings app)
Accessories included	Shelf, Water tray, Air hanger, Weight kit (applicable models), Regular hanger kit (applicable models), Anti-tip strap, Rear levelling feet
Water tank capacity	Refill Tank: approx. 1.4 L (MAX line); Drain Tank: similar capacity
Fresh Finish compartment	For dryer sheet or perfumed cotton pad
Cleaning	Clean lint filter before/after each load; clean air filter regularly; descale when notified
Safety features	Child Lock, anti-tip strap, grounding, thermal cut-out protection
Wi-Fi connectivity	2.4 GHz, max transmitter power 20 dBm
Warranty	Refer to local Samsung service center

Frequently Asked Questions - DF60A8500HG SAMSUNG

What is the maximum capacity of the Refill Tank?

The Refill Tank holds up to approximately 1.4 liters (fill to the MAX line).

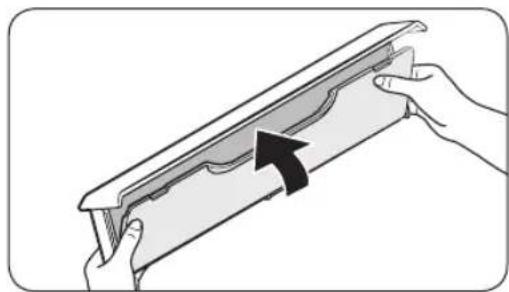

How do I use the Fresh Finish™ compartment?

Slide out the Fresh Finish™ compartment inside the product. Insert a dryer sheet or a cotton pad sprayed with perfume 4-5 times. Close the cover, reinsert, and run your chosen cycle.

What should I do when the 'Descaling Required' message appears?

Remove all items, empty both tanks, dilute a descaling agent (for coffee machines) with water, fill the Refill Tank to MAX, and run the descaling cycle by tapping and holding Drying and Delay End for 3 seconds, then follow on-screen instructions.

Can I use the AIRDRESSER to dry leather items?

No, leather, fur, feather, velvet, silk, and items containing rubber or sponge should not be dried. Use only the Fur/Leather cycle for 100% natural leather items (Clothing Care mode).

What does the 'Keep Fresh' function do?

Keep Fresh keeps items fresh for up to 24 hours after a cycle ends by periodically circulating air. It turns off if you open the door or power off.

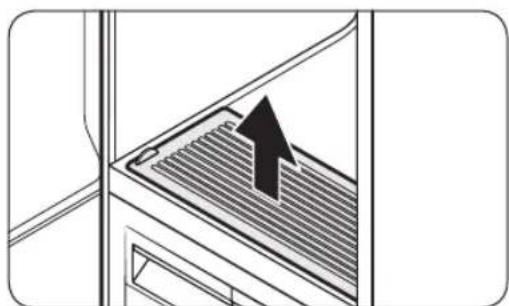

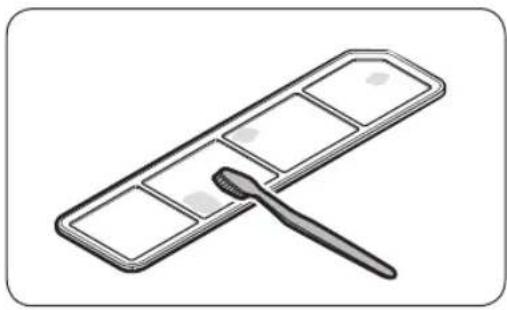

How often should I clean the lint filter?

Clean the lint filter before or after each load using a brush and running water. Dry it completely in a shaded area before reinserting.

What should I do if the product makes unusual noises?

Normal sounds include compressor operation, air circulation, steam generation, and water pumping. If noises become louder or persistent, contact a Samsung service center.

How do I connect the AIRDRESSER to Wi-Fi?

Open the SmartThings app, tap Add, and follow on-screen instructions. Alternatively, on the product, tap Power, then tap and hold Smart Control to enter AP mode, then authenticate via the app.

What is the recommended ambient temperature for installation?

The ambient temperature should be between 10°C and 35°C. Avoid direct sunlight and freezing conditions.

Can I use the AIRDRESSER to remove pet hair?

No, the product may not remove pet hair. It is designed for refreshing, deodorizing, and gently drying textiles.

USER MANUAL DF60A8500HG SAMSUNG

Clothing Care System

(AIRDRESSER)

User manual

DF60*8****G

DC68-04297K-01

SAMSUNG

Contents

Safety information 4

What you need to know about the safety instructions 4

Important safety symbols 4

Important safety precautions 5

General warnings 6

Electrical warnings 8

Installation warnings 9

Cleaning warnings 9

Before you start 10

Installation 10

Turning on Wi-Fi (for network models only) 12

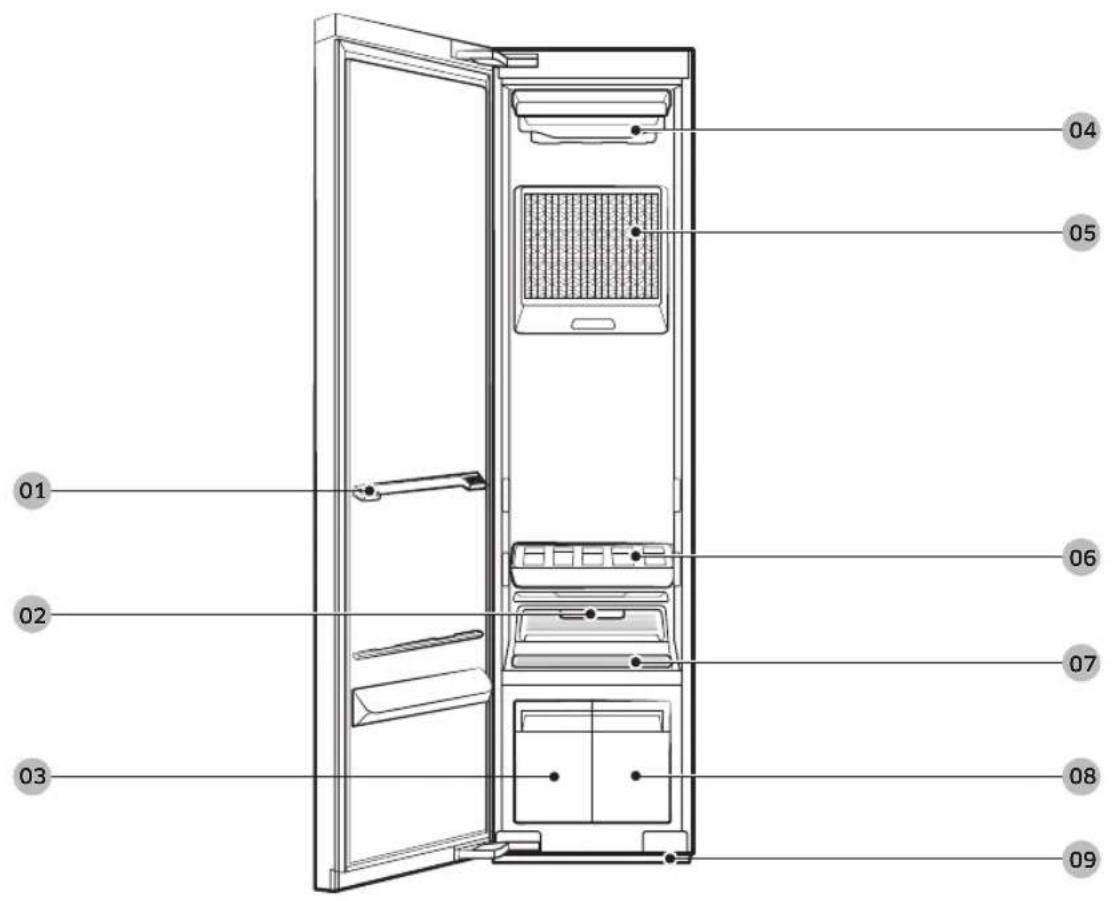

Product overview 13

Control panel 15

Cycle overview 17

Fabric care guide 19

Fabric care chart 21

Smart control 24

Product and accessory use 27

Using a cycle 27

Using the accessories 28

Cleaning and maintenance 35

Exterior 35

Water tanks 36

Water tray 37

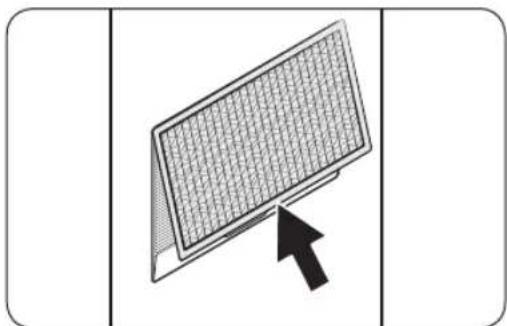

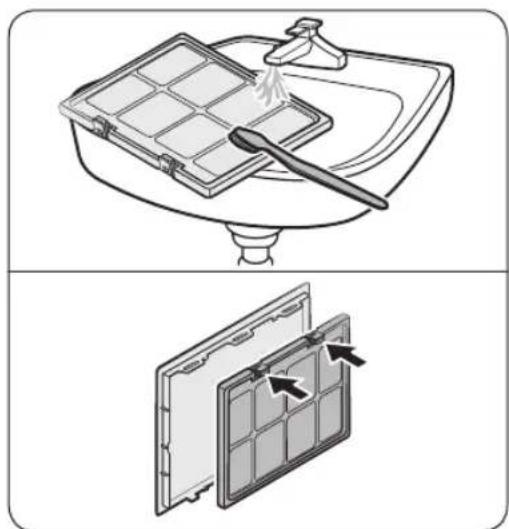

Air filter 38

Lint filter 39

Descaling 40

Moving the product to another location 41

Troubleshooting 42

Notification messages 42

Checkpoint 43

English2

Specifications 45

Specification sheet 45

Safety information

Congratulations on your new Samsung product. This manual contains important information on the installation, use and care of your product. Please take some time to read this manual to take full advantage of your product's many benefits and features.

What you need to know about the safety instructions

Please read this manual thoroughly to ensure that you know how to safely and efficiently operate the extensive features and functions of your new product. Please store the manual in a safe location close to the product for future reference. Use this product only for its intended purpose as described in this instruction manual. Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution and care when installing, maintaining and operating your product. Because the following operating instructions cover various models, the characteristics of your product may differ slightly from those described in this manual and not all warning signs may be applicable. If you have any questions or concerns, contact your nearest service centre or find help and information online at www.samsung.com.

Important safety symbols

What the icons and signs in this user manual mean:

WARNING

Hazards or unsafe practises that may result in severe personal injury, death and/or property damage.

CAUTION

Hazards or unsafe practises that may result in personal injury and/or property damage.

CAUTION

Hot surface

NOTE

Indicates that a risk of personal injury or material damage exists.

These warning signs are here to prevent injury to yourself and others.

Please follow them explicitly.

After reading this manual, store it in a safe place for future reference.

Read all instructions before using the product.

As with any equipment that uses electricity and moving parts, potential hazards exist. To safely operate this product, familiarise yourself with its operation and exercise care when using it.

English4

Important safety precautions

WARNING

To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following:

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
3. Children should be supervised to ensure that they do not play with the appliance.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Safety information

1. CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
2. This appliance is intended to be used in household and similar applications such as:

–staff kitchen areas in shops, offices and other working environments;
-farm houses;
-by clients in hotels, motels and other residential type environments;
—bed and breakfast type environments.

1. WARNING: This appliance is intended only for drying textiles washed in water.

General warnings

WARNING

• To avoid electric shock, fire, and/or death, make sure the product is properly installed and grounded as described in this manual before using the product.
• Only use the product for its intended purposes. Damage incurred from using the product for purposes other than those specified in this manual are not covered by the warranty.
• To avoid physical injury and/or product damage, do not climb, stand, or hang on the product.
• Do not disassemble or modify the product in any way.
• Do not allow children to play in, on, or around the product. Close supervision of children is necessary at all times.
• To avoid fire, physical injury, and/or death, keep all packaging material away from children and properly remove and dispose all packaging material.
• Do not touch or operate the product with wet hands.
  • To avoid electric shock and/or fire, keep all animals or other foreign objects out of the product.
• If you hear strange noises, smell strange odours, and/or detect smoke from the product, immediately unplug the product.
• Do not place heavy or dangerous objects in, on, or around the product.

English6

- To avoid electric shock, fire, and/or death, do not repair or replace any part of the product or attempt any servicing unless specifically recommended in the user manual or in published user-repair instructions that you understand and have the skills to carry out.

• Take out all personal belongings (electric devices, lighters, matchboxes, and so on) from pockets.

- To avoid fire and/or explosions, do not dry items that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, cooking oils, or other flammable or explosive substances.

- The product is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the product by a person responsible for their safety.

- Before disposing of the product, remove the door to the drying compartment, and cut off the power plug to prevent reuse.

- Do not touch or disassemble the electrical outlet of the product. In the event of a gas leak, make sure to ventilate the location and immediately contact a Samsung service centre.

- To avoid damaging the glass panel, make sure to protect the front at all times.

- To avoid physical injury and/or product damage, do not step on the tank doors.

- Do not put hands, feet, other body parts, or metal objects under the product.

- Do not use other products to dry the interior. Do not use candles to remove interior odours.

- Do not open the door while the product is operating. Opening the door while the product is operating will affect product performance and may cause condensation to damage flooring.

- Do not drink the water from the Refill Tank or the Drain Tank.

- Clean the lint filter before or after each load.

- Do not use fabric softeners or other products to eliminate static unless recommended by the manufacturer of the fabric softeners or products.

- Keep fingers out of pinch point areas. Use caution when closing the door when children are nearby.

- Do not use the product to dry items containing foam rubber or other rubber-textured items.

- To avoid product damage, excessive noise, or fire, do not insert objects into the steam nozzle.

- Do not place your hands or body near the steam nozzle during operation. The hot steam can cause an injury.

- Do not open the door during operation. The high internal temperature can cause an injury.

- If a problem occurs during steam process, stop the product immediately and remove all items from the product. If items are not removed immediately, they will stay damp, causing damage to the fabric or smell.

- Before placing the clothing into the product, make sure to empty all pockets.

- Contains fluorinated greenhouse gases.

Hermetically sealed equipment. Do not vent gases into the atmosphere. -Refrigerant (Type): R-134a (GWP = 1430)

- Refrigerant (Charging): 0.15 kg, 0.214 tCO _2 e

Safety information

Electrical warnings

WARNING

• Regularly remove all foreign substances such as dust or water from the power plug terminals and contact points using a dry cloth.
• Unplug the power plug and clean it with a dry cloth.
• To avoid risk of electric shock, always unplug the product before disassembly or repair.
• Do not pull the power cord when unplugging the power plug. To unplug the power plug, firmly pull the power plug straight out.
• To avoid electric shock, do not use an extension cord.
• Do not use a damaged power cord or power plug. Do not attempt to repair, disassemble, or modify the power cord or power plug. For any repairs, contact your nearest Samsung service centre.
• Plug the power cord into a wall socket that meets local electrical specifications. Use the socket for this appliance only, and do not use an extension cord.
• When moving the product, make sure to keep the power cord protected at all times.
• To avoid electric shock, fire, serious injury, product damage, and/or death, the product must be plugged into a properly grounded outlet. Make sure the wall outlet and circuit are checked by a qualified electrician.
• The product must be equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
• The product must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current.
• Before using, make sure there is dedicated, grounded electrical-outlet rated for use with this product. It is the owner's responsibility to replace a standard 2-prong wall outlet with a standard 3-prong outlet.
• To avoid electric shock, properly ground the product that conforms to all governing codes and ordinances. Follow the instructions in the user manual.
• The product must be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate. This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires.
• Connect to a properly rated, protected, and sized power circuit to avoid electrical overload. Improper power circuits can melt, creating electric shock or fire.
• Do not, under any circumstances, cut or remove the ground prong from the power cord. To prevent personal injury or product damage, the electrical power cord must be plugged into a properly grounded outlet.
• Do not use a multi socket outlet which is not properly grounded (portable). Upon using a properly-grounded multi socket outlet (portable), use a product with the current capacity of 15 A or higher alone. Failure to do so may result in electric shock or fire due to the heat of multi socket outlet. The power may be shut off when the circuit breaker is operated.
• The product must be connected to a grounded metal, permanent wiring system or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the appliance. Electric shock can result if the product is not properly grounded.

English8

- Improper connection of the equipment grounding conductor can result in electric shock. Check with a qualified electrician or service person if you are in doubt that the product is properly grounded.

Installation warnings

WARNING

• Only install the product in a stable, well-floored location. Do not install the product in locations prone to vibrations or where the product may tip over, such as ships or airplanes. Contact a Samsung service centre if you are unsure of the installation location.
• Do not install the product in locations exposed to the weather or temperatures below freezing. If the product was shipped in or at temperatures below freezing, allow the product to warm before installing.
• To avoid electric shock, fire, serious injury, product damage, and/or death, do not install the product in humid locations (such as a bathroom or sauna).
• To avoid fire, smoke, and/or product damage, do not install the product near other heat sources (such as a stove or heater).
• To avoid fire or smoke and/or product damage, do not place candles or other flammables on, in, or around the product.
• To avoid physical injury and/or product damage, contact a Samsung service centre before moving the product.
• Install the product where the power plug is easily accessible. To avoid electric shock and/or fire, unplug the product when not in use.
• If the installation location has been flooded, do not go near the product and immediately contact a Samsung service centre.
• To avoid fire, smoke, and/or product damage, remove all protective film from the product.
  • To prevent product damage and/or physical injury, have at least two people move the product.

Cleaning warnings

WARNING

• To avoid electric shock, do not use sharp objects to operate or clean the product.
• Do not spray water directly onto the product when cleaning it.
• Do not use bleaching agents on the exterior of the product. Bleaching agents may discolour the exterior.
• Wipe the interior with a dry cloth after use.
  • After using the product, wipe its inner side with a dry cloth.

- The product could be stained by contamination such as long hair or due to dust and water drops that may form inside.

- If contamination (detergent, dirt, food residue, etc.) has accumulated in the product or any accessories, unplug the power cable and then wipe the contaminated area with a soft, wet cloth.

Do not expose the product or the accessory to cleaning or bleaching agents or apply these to the product or accessory.

- Otherwise, this may result in discoloration, deformation, damage, or rust.

Before you start

Installation

Install the product according to the instructions in this manual and local codes.

Installing the product

1. Select a solid, level location with adequate space for the following clearances.

Top 25 mm
Sides 14 mm
Rear 15 mm

• If the minimum clearances are not met, performance will decrease due poor ventilation and condensation may occur on the product exterior.
• Do not install the product in direct sunlight or hot and cold places. The ambient temperature must be between 10 °C - 35 °C. If the ambient temperature is too high or too low, the product may not operate normally, or performance may decrease.

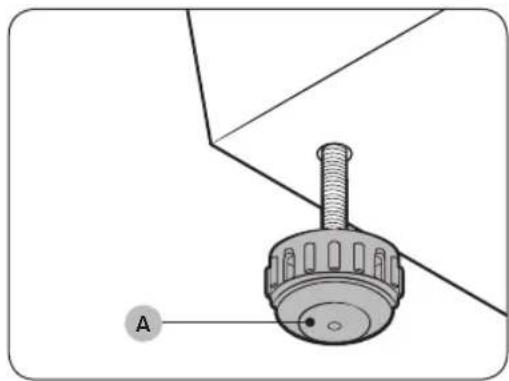

Technical diagram of a mechanical component with labeled point A (no text or symbols beyond label)

1. Turn the levelling feet (A) clockwise or counterclockwise to adjust the height until the product is level.

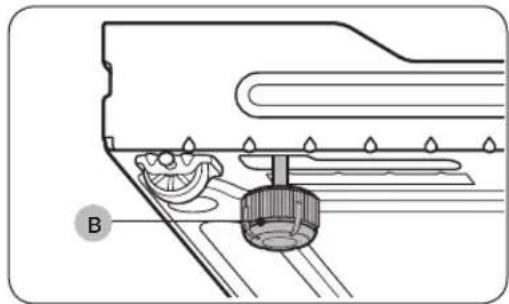

Technical diagram of a mechanical assembly with labeled component B (no text or symbols present)

NOTE

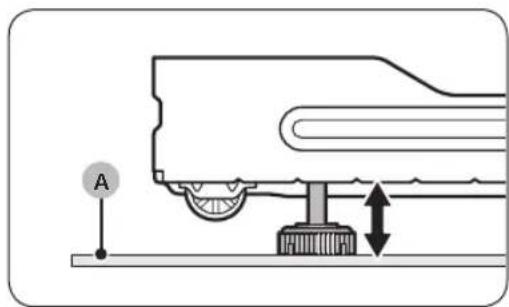

If the product wobbles or if you want to raise the height of the rear side, assemble the provided rear levelling feet (B) on the bottom-rear sides of the product.

English10

Two technical diagrams showing a mechanical component with an arrow indicating direction, no text or symbols present.

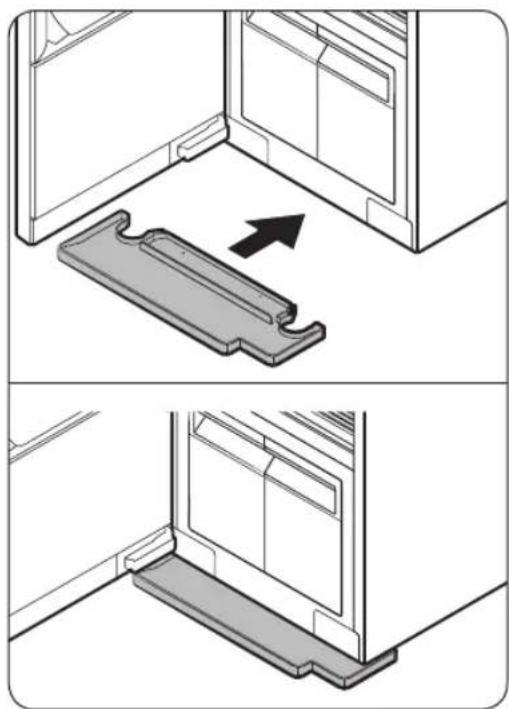

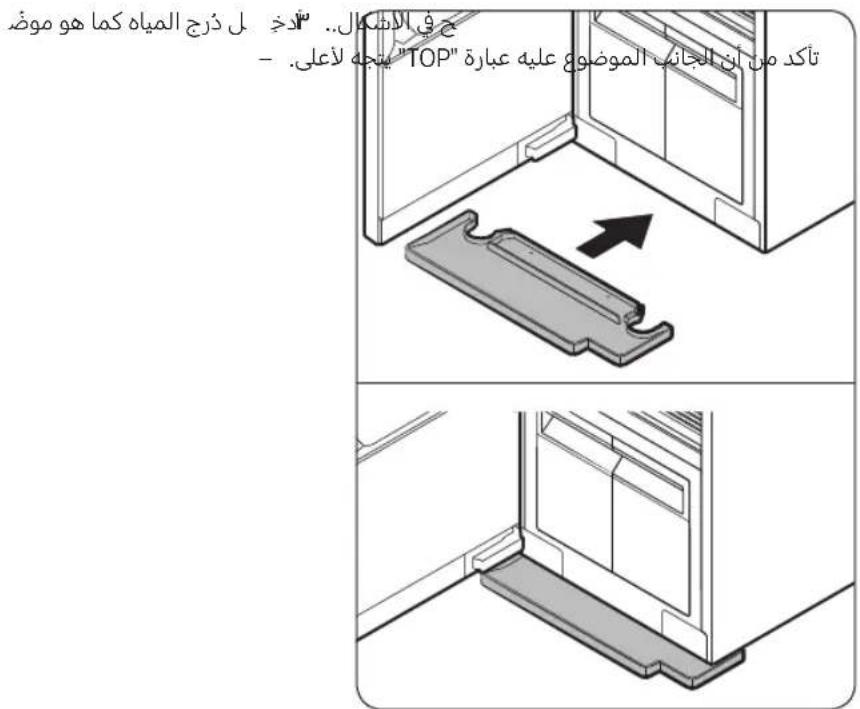

1. Insert the water tray as shown in the figures. -Make sure the side marked 'TOP' is facing upward.

Mechanical assembly diagram showing a wheel and base with directional arrows indicating motion (no text or symbols)

NOTE

If AIRDRESSER is placed on a carpet (A), you may not be able to insert the tray. In this case, assemble the provided rear levelling feet on the bottom-rear side of AIRDRESSER to raise it from the carpet (A), and then insert the tray.

1. Plug in the product to a 230 V / 50 Hz grounded outlet.

If you do not have grounded outlets, contact a Samsung service centre for alternative methods to ground the product.

NOTE

• After installing the product, you must wait at least 2 hours before using it.
- The product consumes more water the first time the product is used. You may have to fill the Refill Tank more than one time.
- Connecting the power cord to a multi socket outlet causes voltage drop which may lead to abnormal operations.

Before you start

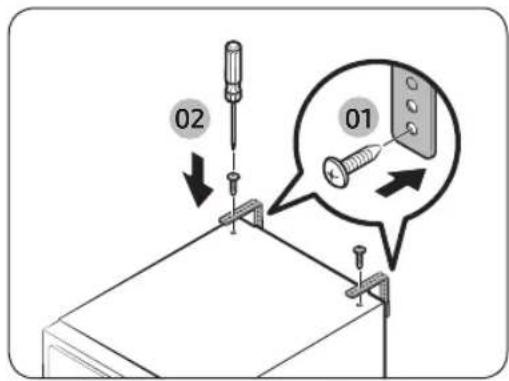

Securing AIRDRESSER with the anti-tip strap (optional)

AIRDRESSER may tip-over by external force or children. If necessary, use the anti-tip strap to secure AIRDRESSER and prevent tip-over. (Refer to the figure.)

CAUTION

You must unplug the product before securing AIRDRESSER with the anti-tip strap.

NOTE

• Use the provided screw to fasten the anti-strap to a wall.
• Use the screws fastened on top of AIRDRESSER to fasten the anti-strap to AIRDRESSER.

Setting the language

When you turn on the product for the first time after the installation, the language selection screen appears on the control panel display. Follow the instructions to select the language.

1. Tap < or > to select a language.
2. Tap and hold to save the selected language.

NOTE

• Language setting may not be applicable in some countries.
- To change the language afterward, tap and hold < and > for 3 seconds, and then follow the above instructions.

Turning on Wi-Fi (for network models only)

Turning on Wi-Fi consumes more energy. Under an environment where Wi-Fi is frequently turned on, actual energy consumption can be greater than the values in the specification sheet section.

1. Tap to turn on AIRDRESSER.
2. Tap and hold Smart Control.

a. AIRDRESSER enters AP mode and connects to your smartphone.

b. Tap Smart Control to authenticate your AIRDRESSER.

c. Once the authentication process is complete, your AIRDRESSER is successfully connected to the app.

NOTE

You can tap and hold Sanitize and Smart Control simultaneously for 3 seconds to enter the Wi-Fi screen, and then tap to disconnect or re-connect to the Wi-Fi.

English12

Product overview

01 Shelf holder

04 Air hole

07 Lint filter

02 Fresh Finish™

05 Air filter

08 Refill tank

03 Drain tank

06 Shelf

09 Water tray

Before you start

English

Accessories

Isometric line drawing of a rectangular tray with three horizontal slats (no text or symbols)

Technical line drawing of a mechanical part with two curved notches (no text or symbols)

Technical line drawing of a mechanical component with two clamps (no text or symbols)

Shelf Water tray Air hanger

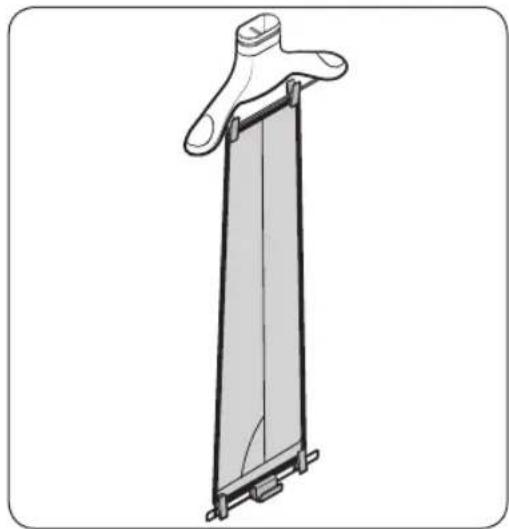

Weight kit (applicable models only)

Regular hanger kit (applicable models only)

User manual

Simple line drawing of a ruler with measurement markings (no text or numbers)

Anti-tip strap Screw (for anti-tip strap) Screw anchor (for anti-tip strap)

Rear levelling feet

English14

Control panel

01 Display

Displays the selected cycle and estimated time remaining.The icon appears on the top-left corner of the display for the top three recommended cycles.

Before you start

02 Cycles
	Clothing Care	You can select a desired Clothing Care cycle.Tap this button, and then tap or to select the specific cycle you want to use.
	Drying	You can select a desired Drying cycle.Tap this button, and then tap or to select a desired Drying cycle.
	NOTEFor more information about the cycles, see page 17.
03 Sanitize	Use this function to sanitize items more thoroughly.This option is available for the School Wear, Denim, Babywear, Bedding, Toys, Daily Care cycles.
04 Keep Fresh	Tap to turn Keep Fresh on or off. You can keep items fresh if you will not be able to immediately take items out after a cycle has finished.NOTEKeep Fresh stays on up to 24 hours after a cycle has finished.Turning off the power or opening the door turns Keep Fresh off.
05 Delay End	Tap to turn Delay End on, and then tap or to increase the end time (from 1-24 hours).NOTESome end times may not be available depending on the selected cycle.Depending on the items and environment, the actual end time may be different than the set time.
06 Child Lock (3sec)	Tap and hold for 3 seconds to turn Child Lock on or off. Child Lock deactivates all buttons exceptNOTEWhen Child Lock is on, it will remain on until you turn it off.
07 Smart Control	Tap to turn Smart Control on or off. For more information about Smart control, see page 24.
08 Start/Pause ||	Tap to start or pause the product.
09 Power ⏻	Tap to turn the power on or off.

English16

Cycle overview

Clothing Care cycles

Cycle Description
Daily Care For refreshing your everyday wear.
School Wear For school uniforms that cannot be washed or dried daily.
Denim For refreshing denim items without any concerns about dye bleeding.
Babywear For refreshing and sanitizing baby clothes.
Bedding For refreshing and sanitizing lightweight beddings.
Toys For refreshing and sanitizing toys that cannot be washed in a washing machine.
Winter Coat	For the coats made of wool blended fabrics.Follow all item care labels.For best results, use for only one item.
Wool/Knit	For woollen or knit items.To avoid deforming items, neatly fold items and lay on the shelf.
Suit	For refreshing woollen suits.Put the jacket in the middle air hole and trousers on the right air hole. For best results, use with the weight kit.
Down Jackets	To fluff heavy, down-filled jackets that have been stored for a long time.To prevent blocking air circulation, hang only one item in the middle air hole.
Outdoor For outdoor or active wear.
Delicates	For delicate fabric items such as chiffon, lace, and items with decorations.For rayon, you must use this cycle.
Quick To quickly refresh items with light odours and wrinkles.
Blouses	For refreshing blouses or summer dress (such as sleeveless dress, short sleeve dress with thin fabric).
Fur/Leather	Eliminates moisture and dust from fur and leather items.Operating noise may be louder during this cycle.Follow all item care labels.For best results, use for only one item.Make sure fur items are dry before using this cycle.
Accessories For accessories such as hats and gloves, etc.
Mask Sanitize For refreshing and sanitizing disposable face masks.

Before you start

Cycle Description
Self Clean	Automatically clean the inside of the product.Make sure the product is empty.For best results and optimal cleaning, do not stop the cycle or open the door before Self Clean is complete.This cycle does not eliminate mold.

Drying cycles

CAUTION

Do not use any of the following items for Drying cycles.

• Leather, fur, feather, velvet, silk.
- Any items containing rubber or sponge.
- Items made of wool blended fabrics, water-repellent fabrics, silk-blended, or hemp-blended fabric.
- Fur blankets with fur length exceeding 1 cm, wool blankets, carpets, mattresses.
- Lingerie with laces, pantyhose, stockings.

NOTE

Drying results may vary depending on thickness of the items.

Cycle Description
Al Dry	AIRDRESSER automatically sets the time to dry items.Using Al Dry causes the Drain Tank to fill quickly.Al Dry may not dry excessively wet items and large or bulky items well. If items are not dry, run the cycle again.
Quick For quickly drying lightweight items such as a shirt.
Blouses	For delicate items such as chiffon, lace, and items with decorations.You must use this cycle for the items made of rayon.
Down Jackets	For drying and fluffing heavy, down-filled jackets.To prevent blocking air circulation, hang only one item in the middle air hole.
Time Dry (1/2/3)	You can set the desired time to dry items.Time Dry may not dry excessively wet items and large or bulky items well. If items are not dry, run the cycle again.
Room Care (2/4)	For dehumidifying the surrounding area. You can select 2 or 4 hours.Make sure the product is empty when using Room Care.The indoor temperature may increase.

English18-

Fabric care guide

• Fabrics have different care management depending on how they were processed and finished. This fabric care guide does not cover all materials and therefore use it for just a reference. Make sure to check the care label on your clothing before using with AIRDRESSER to prevent any damage.
• Do not put items that are not colourfast, are heat-sensitive, or are not suitable for washing with water in the Clothing Care or Sanitize cycles. Do a water blot test on a small, inconspicuous spot (an inside seam) to determine if the fabric is colourfast. For further assistance, consult the clothing manufacturer, a dry-cleaning professional, or a more detailed fabric care guide.

Cycle category

Refer to the following table to check specific cycles included in each category stated in the Fabric care guide table.

Category Cycles
Clothing Care cycle	Daily Care, Quick, Wool/Knit, Down Jackets, Winter Coat, Blouses, Fur/Leather
Sanitize cycles School Wear, Denim, Babywear, Bedding, Toys, Mask Sanitize
Drying cycles	AI Dry, Quick, Delicates, Blouses, Down Jackets, Time Dry (1/2/3), Room Care (2/4)

Fabric care guide table

Natural fibres - vegetable fibres

Fabric	Cycles				Clothes / Remarks
	Clothing Care		Sanitize Drying
	Reducing wrinkles	Deodorising
Cotton ●	● ●				Towels, socks, underwear, jeans, sportswear, t-shirts, blanketsWrinkles on 100 % cotton fabrics may remain. Iron after cycle if desired.
Linen, hemp, ramie		● ● ●			Summer clothes, tableclothsSome wrinkles may remain. Make sure fabrics are washable/hand washable before using the Clothing Care or Sanitize cycles. Lay delicate clothes on shelf.Do not use starched clothes.
Rayon ●	● ● Suit lining, blouses, neckties, pyjamas

● = Possible / ※ = Check care label

Before you start

Natural fibres - animal fibres

Fabric	Cycles				Clothes / Remarks
	Clothing Care		Sanitize Drying
	Reducing wrinkles	Deodorising
Alpaca, camel hair, cashmere	✕	✕			Coats, suitsLay knitwears on the shelf. Alpaca and camel hair shrink in hot water.
		✕			Scarves, knitwearLay knitwears on the shelf. Alpaca and camel hair shrink in hot water.
Fur, leather					Coats, scarves* Only use Fur/Leather cycle. Leather must be 100 % natural leather (No artificial leather)
Silk					Silk neckties, ribbons, scarves, blousesSilk fabrics are not suitable for AIRDRESSER.
Wool		✕		●	Sweaters, knitwearLay knitwears on the shelf. Some wool shrinks when washed in hot water. Make sure fabrics are washable/hand washable before using the Clothing Care cycle.* Wool/Knit cycle is recommended.
	● ● × ●				Winter coat, suitsLay knitwears on the shelf. Some wool shrinks when washed in hot water. Make sure fabrics are washable/hand washable before using the Clothing Care or Sanitize cycles.* Winter Coat or Suit cycle is recommended.

● = Possible / ✗ = Check care label

Artificial fibres

Fabric	Cycles				Clothes / Remarks
	Clothing Care		Sanitize Drying
	Reducing wrinkles	Deodorising
Acetate ●	● ● ● Suit	ining, blouses, neckties, pyjamas
Acrylic ●	● ●				Thermal underwear, knitwearLay clothes on shelf.
Nylon		● ● ●			Stockings, lingerieLay clothes on shelf.
	● ● ● Sportswear
Polyurethane ●	● ● ●				Stretchable clothing (containing less than 5 %)If the item contains more then 5 % polyurethane (ex. Swimwear), check the care label.
Polyester	●	●	●	●	Outdoor wear, sports wear, T-shirts, shirts, blouses

● = Possible / ✗ = Check care label

English20-

Fabric care chart

The following table contains some of the symbols that may help you choose appropriate items for AIRDRESSER. The use of symbols ensures consistency among garment manufacturers of domestic and imported items.

Follow care label directions to maximize garment life and reduce laundering problems.

NOTE

* : Some clothing that does not recommend washing (such as fur or leather fabrics) can be used with AIRDRESSER. Please refer to the fabric care guide.

**: Use the rack for items with this symbol on the fabric care label.

Washing

Symbol Meaning Use with AIRDRESSER
	95 °C boil wash. O*
	60 °C coloured wash. O*
	60 °C coloured wash. ("Easy care" coloured wash) O*
	40 °C coloured wash. O
	40 °C mild wash. O
	40 °C very mild wash. O
	30 °C fine wash. O
	30 °C mild fine wash. O
	30 °C very mild fine wash. O
	Hand wash. O
	Do not wash. O*

NOTE

The numbers in the wash tub specify the maximum washing temperatures in degrees Celsius which must not be exceeded.

English

Before you start

Drying

Symbol Meaning Use with AIRDRESSER
	Tumble drying / Drying at a temperature of 80 °C with a normal drying process.	O
	Tumble drying / Drying at a temperature of 60 °C with a mild drying process.	O
	Do not tumble dry O*
	Line drying. O
	Drip line drying. O
	Flat drying. O**
	Drip flat drying. O**
	Line drying in the shade. O
	Drip line drying in the shade. O
	Flat drying in the shade. O**
	Drip flat drying in the shade. O**

NOTE

• The dots indicate the drying level of the dryer.
- The lines indicate the type and place of the drying.

English22

Ironing

Symbol Meaning Use with AIRDRESSER
	Iron at maximum sole plate temperature of 200 °C. O
	Iron at maximum sole plate temperature of 150 °C. O
	Iron at maximum sole plate temperature of 110 °C.Caution when using steam irons (work without steam).	O*
	Do not iron. O*

NOTE

The dots indicate the temperature ranges for ironing (regulator, steam, travel irons and ironing machines).

Professional care

Symbol Meaning Use with AIRDRESSER
P	Professional dry-cleaning in perchloroethylene and/or hydrocarbons (heavy benzines) with normal process.	O
P	Professional dry-cleaning in perchloroethylene and/or hydrocarbons (heavy benzines) with gentle process.	O
F	Professional dry-cleaning in hydrocarbons (heavy benzines) with normal process.	O
F	Professional dry-cleaning in hydrocarbons (heavy benzines) with gentle process.	O
X	Do not dry-clean. O
W	Professional wet-cleaning. O
W	Mild professional wet-cleaning. O*
W	Very mild professional wet-cleaning. O*
X	Do not wet-clean. O*

NOTE

• The letters in a circle indicate the solvents (P, F) used in dry cleaning or wet cleaning (W).
• Generally, the line under the symbol indicates a milder treatment (e.g. gentle cycle for easy-care items). The double line indicates care levels with particularly gentle treatment.

English

Before you start

Smart control

Wi-Fi connection

• Recommended encryption methods are WPA/TKIP and WPA2/AES. Newly developed Wi-Fi protocols or unapproved Wi-Fi protocols are not supported.
  • The reception sensitivity of a wireless network may be affected by surrounding wireless environments.
• If your Internet provider has registered the MAC address of your PC or the modem module for permanent use, your Samsung AIRDRESSER may fail to connect to the Internet. If this is the case, contact your Internet provider
• The Internet firewall may interrupt your Internet connection. If this happens, contact your Internet provider.
• If Internet failure continues after following the measurement of your Internet provider, contact a local Samsung retailer or service centre.

Downloading the app

On an app market (Google Play Store, Apple App Store, Samsung Galaxy Apps), search for the SmartThings app, and then download and install the app on your device.

NOTE

- SmartThings may not be compatible on some tablets or smartphones.

• The recommended Android OS is 6.0 or higher (with minimum 2 GB or RAM).
• The supported display resolutions for Android are 1280 x 720 (HD), 1920 X 1080 (FHD), 2560 x 1440 (WQHD).
  The recommended iOS is 10.0 or higher (iPhones must be iPhone 6 or higher).
  The supported display resolutions for apple devices are 1334 X 750, 1920 x 1080.

- The app is subject to change without notice for improved performance.

Log in

You must first log into SmartThings with your Samsung account. To create a new Samsung account, follow the instructions on the app. You don't need a separate app to create your account.

NOTE

If you have a Samsung account, use the account to log in. A registered Samsung smartphone user automatically logs in.

Registering your appliance to SmartThings

1. Make sure your smartphone is connected to a wireless network. If not, go to Settings, turn on the wireless connection, and then select an AP (Access Point).
2. Open SmartThings on your smartphone.
3. If a message of "A new device is found.", select Add.
4. If no message appears, select + and select your appliance in a list of devices available. If your appliance is not listed, select Device Type > Specific Device Model, and then add your appliance manually.
5. Follow the onscreen instructions to complete registration.

English24

SmartThings overview

Category Function Description
Monitoring	Cycle Status	You can check the current cycle and options, and the remaining cycle time.
	Smart Control	The Smart Control status is shown for AIRDRESSER.
	Energy Monitoring	You can monitor the energy consumption status.
Control Start / Pause / Cancel		Select a cycle and necessary options, and then select Start / Pause / Cancel to start an operation, to stop temporarily, or to cancel the current operation.
Notification Cycle Completed		Notifies you the current cycle is complete.
AIRDRESSER functions	Care Recipe	Select the fabric type and options and get recommendations for the most suitable cycle.
	My Closet	By inputting clothing information (such as fabric material), you can add your clothes to the app and get recommended cycles and a care history.
	Special Cycle Management	You can save up to 9 cycles and you can delete or change the order of the cycles.
	HomeCare Manager	Get advice to help you keep your AIRDRESSER in perfect condition. Check your cycle usage patterns, energy consumption, and get alerts for product maintenance.

Before you start

Open Source Announcement

The software included in this product contains open source software. You may obtain the complete corresponding source code for a period of three years after the last shipment of this product by sending an email to mailto:[e-mail].

It is also possible to obtain the complete corresponding source code in a physical medium such as a CD-ROM; a minimal charge will be required.

The following URL http://opensource.samsung.com/opensource/SMART_AT_051/seq/0 leads to the download page of the source code made available and open source license information as related to this product. This offer is valid to anyone in receipt of this information.

NOTE

Hereby, Samsung declares that this radio equipment is in compliance with Directive 2014/53/EU and with the relevant statutory requirements in the UK. The full text of the EU declaration of conformity and the UK declaration of conformity is available at the following internet address: The official Declaration of conformity may be found at http://www.samsung.com, go to Support > Support Home and enter the model name.

Wi-Fi max transmitter power : 20 dBm at 2.412 GHz - 2.472 GHz

English26

Product and accessory use

Using a cycle

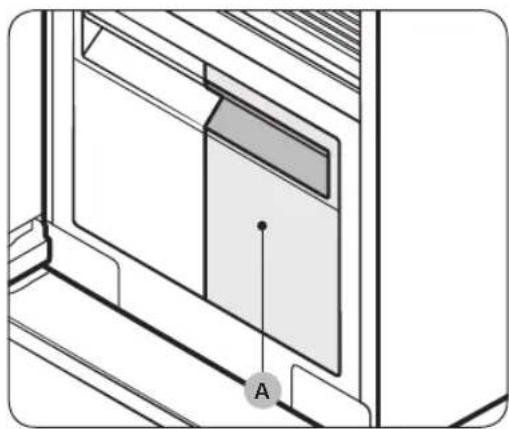

Technical line drawing of a door frame with a labeled component 'A' (no text or symbols beyond label)

1. Make sure the Refill Tank (A) is filled with water.

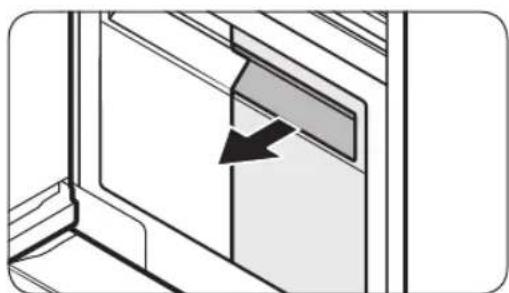

Technical line drawing of a door frame with a labeled component (B), no readable text or symbols present.

1. Make sure the lint filter (B) is clean.
2. Input clothes as instructed in the Using the accessories section.
3. Tap ⏻
4. Select a cycle.

- Tap Clothing Care or Drying, and then tap < or > to select the desired cycle.

1. Select options if necessary. -Sanitize, Keep Fresh, Delay end.
2. Tap and hold for 3 seconds.

Usage guidelines

Before use

• This product cannot be used to clean items. For best results, wash and dry all items before using the product.
• Before using the product, we recommend washing items with strong odours or items that have been stored for a long time.
• Separate items by odour strength.
• Check all clothing or item labels before using the product.
• Before placing the clothing into the product, make sure to empty all pockets.
• Do not use the product as a storage closet.
  • The product may not remove pet hair.

During use

- Make sure items are not touching the bottom of the product. If necessary, use the shelf to stop items that are hung from touching the bottom of the product.

Product and accessory use

• Hissing noises may occur during a steam process.
• If you need to stop a cycle before it will finish, make sure to run the Drying cycle.
• Operating time depends on the environment and type of items.
  • If used consecutively, the product may display a different operating time than what will occur.
• Do not open the door while the product is operating.

After use

• The amount of wrinkles removed may vary depending on the fabric type.
• Remove items immediately after a cycle has finished. If you cannot remove items immediately, use Delay end or Keep Fresh.
• When removing items, hold both the items and the hanger.

Using the accessories

Air hangers

Use the provided Air hangers for items such as jackets, sportscoats, and blazers.

NOTE

• Make sure the interior and exterior of the hangers are clean and free of foreign matter.
• Do not use hangers for knits, wools, lingerie.
• The maximum lengths of items must be 110 cm for tops and 100 cm for bottoms.
  • Depending on the type or size of the fabric, unwanted wrinkles may form on the neck of your clothing.

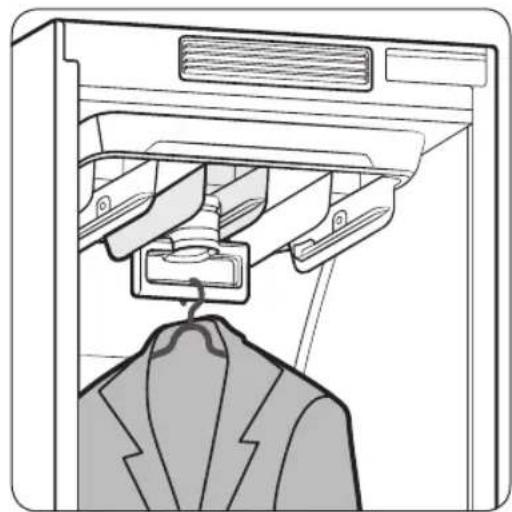

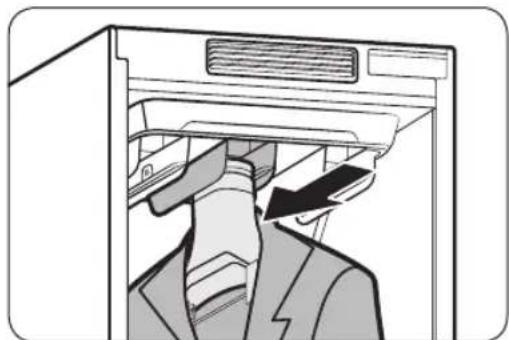

Diagram of a person inserting a device into a machine (no text or symbols visible)

To use the Air hangers

1. Hang items on hangers in the same direction.
   To prevent items from falling off the hangers, make sure to button all buttons and zip all zippers.
   -Make sure all items are hung flatly. Make sure the hanger clips do not protrude outward.
2. Slide the hangers into the air holes until you hear a clicking sound.
   -Make sure hangers are facing the same direction.
3. If the Air hangers are not properly inserted into the air hole, vibrations and noises may occur.

NOTE

For best results, avoid hanging longer items from the middle hole.

English28

Regular hanger kit (applicable models only)

You can use the regular hanger kit to use regular hangers to hang your items. However, for best results, we recommend using the Air hangers.

NOTE

• Use hangers that will not be deformed by heat.
• Make sure the interior and exterior of the hangers are clean and free of foreign matter.
• Do not use plastic/silicone/wooden hanger and hangers with adhesive.
• Do not use hangers from laundry that may become rusty.

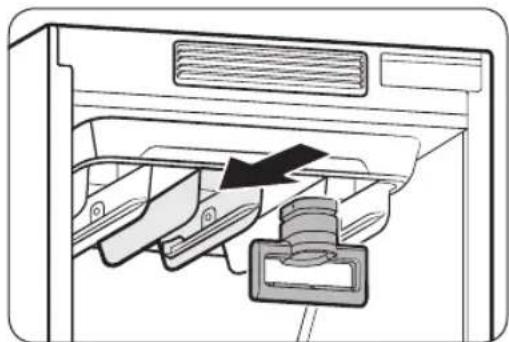

Diagram of a refrigerator interior showing drawer, drawer holder, and handle mechanism (no text or symbols)

To use the regular hanger kit

1. Hang items on hangers in the same direction.
   -To prevent items from falling off the hangers, make sure to button all buttons and zip all zippers.
   -Make sure all items are hung flatly. Make sure the hanger clips do not protrude outward.

2. Slide the regular-hanger kit into the air holes until you hear a clicking sound, and then hang the hangers on the regular-hanger kit.

3. Make sure hangers are facing the same direction.
   -If the regular-hanger kit is not properly inserted into the air hole, vibrations and noises may occur.

NOTE

For best results, avoid hanging longer items from the middle hole.

Line drawing of a garment hanger hanging from a rack, with no text or symbols present

Product and accessory use

Weight kit (applicable models only)

NOTE

• Make sure the trousers or weight kit does not touch the bottom of the product.
• The maximum length of trousers must be 100 cm.

Technical line drawing of a vertical mechanical component with mounting brackets (no text or symbols)

To use the weight kit

1. Clip the bottom of the trousers to the Air hanger.
2. Clip the other end of the trousers to the weight kit.
3. Slide the Air hanger into the air holes until you hear a clicking sound.

NOTE

For sharper creases, spread out the trousers by moving the clips outward.

Shelf

Use the provided shelf for items that cannot be used with hangers.

NOTE

• Only place clothes or clothing accessories. Do not put heavy items or use the shelf to store any other objects
• Make sure children do not sit or climb on the shelf.
  • Make sure items do not hang off the front, back, or sides of the shelf, or hang through the shelf grates.
• Do not stack items on top of other items.

To use the shelf

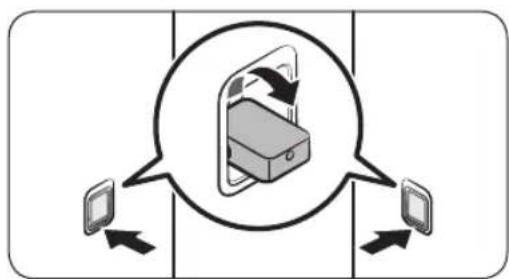

1. On the side walls, press the bottom part of the shelf holders to turn them out.

English30-

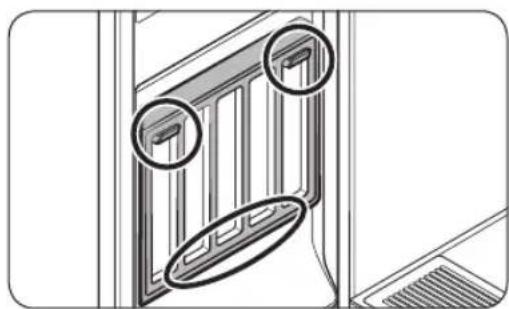

Diagram showing a rectangular object with internal compartments and two hanging objects below, no text or symbols present

1. Place the shelf on the shelf holders. Make sure the grooves on the shelf are firmly sitting on the holder.

NOTE

A gap between the sides of shelf and the side walls is normal.

Diagram of a door frame with two circular annotations highlighting the window edges (no text or symbols present)

Store the shelf on the door when not in use. Place the shelf on the bottom holder, and then hang it on the top holders.

Refill Tank

NOTE

• Before using the product, make sure there is water in the Refill Tank.
• The product consumes more water the first time the product is used.
• It is recommended to use filtered water.
• If you are not going to use the product for a long time, empty the Refill Tank.
• A full Refill Tank lasts approximately 4 cycles.
• Fill the Refill Tank with water only. Putting any other liquids, such as detergent or fabric softener, may cause a problem.
• Do not use the water in the Drain Tank to fill the Refill Tank.

Diagram of a door with an arrow indicating direction, no text or symbols present

1. Pull out the Refill Tank.

Product and accessory use

Isometric line drawing of a rectangular device with a handle and circular button (no text or symbols)

1. Open the back cover, fill to the MAX line.
2. Reinsert the Refill Tank.

Drain Tank

Before using the product or if you are not going to use the product for a long time, make sure to empty the Drain Tank.

Diagram of a door with an arrow indicating direction, no text or symbols present

To empty the Drain Tank

1. Pull out the Drain Tank.
2. Empty the tank.
3. Reinsert the Drain Tank.

English32

Fresh Finish™

Use the Fresh Finish™ compartment to give your clothes a laundry fresh smell.

NOTE

• Insert a dryer sheet into the Fresh Finish™ compartment or spray your desired perfume 4-5 times on a cotton pad and insert into the Fresh Finish™ compartment. The strength of the scent diffused will differ depending on what is inserted and the scent may remain inside the AIRDRESSER after the cycle is complete.
  • After the cycle is complete, remove the dryer sheet or cotton pad and dispose of it.

How to use Fresh Finish™

Diagram of a mechanical component with an arrow indicating direction, showing layered structure (no text or symbols)

1. Slide out the Fresh Finish™ compartment from the inside of the AIRDRESSER.

1. Insert a dryer sheet or perfumed cotton pad into the Fresh Finish™ compartment.

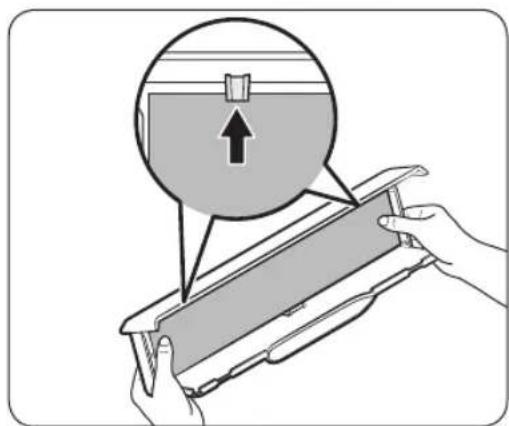

Illustration of hands holding a decorative frame with an arrow indicating direction (no text or symbols)

1. Close the cover until you hear it click into place.

Product and accessory use

English

Diagram showing a mechanical component with an arrow indicating direction, no text or symbols present

1. Insert back into the AIRDRESSER and run chosen cycle.

NOTE

• If you use a dryer sheet or perfumed cotton pad, the scent may remain inside the AIRDRESSER after the cycle is complete.
• Dryer sheets and cotton pads are not provided with the AIRDRESSER.
• The effectiveness of Fresh Finish™ cannot be guaranteed since it depends on what is inserted into the Fresh Finish™ compartment.

English34

Cleaning and maintenance

CAUTION

• Unplug the product before cleaning it.
• Do not use abrasive or flammable cleaners.
• Do not spray water directly onto the product when cleaning it.

Exterior

Simple line drawing of a rectangular cabinet with a triangular handle attached to one side (no text or symbols)

Use a smooth cloth to clean the exterior. For stubborn stains, use a damp cloth and then wipe dry.

Cleaning and maintenance

Water tanks

Clean both tanks on a regular basis. Completely dry before reinserting.

Illustration of two rectangular storage compartments with a paper clip emerging from them (no text or symbols)

Use a damp cloth to clean the exterior.

Technical line drawing of a mechanical device with a handle and lever (no text or symbols)

Use a soft brush to clean the interior.

Technical line drawing of a mechanical latch or bracket assembly (no text or symbols)

Use a soft brush to clean the tanks' inlet and outlet.

English36

Water tray

NOTE

• Empty the water tray on a regular basis.
- Make sure to reinsert the water tray after emptying the water.

Two technical diagrams showing a mechanical component being inserted into a room, with an arrow indicating direction (no text or symbols present)

Correctly insert the water tray as shown in the figures. • Make sure the side with 'TOP' is facing up.

Cleaning and maintenance

Air filter

If you frequently use the product for heavy items or items that accumulate a large amount of dust, we recommend cleaning the Air Filter frequently.

Diagram of a grid-patterned panel with a black arrow pointing downward (no text or symbols)

To clean the Air filter

1. Hold the bottom of the cover and pull out.

Diagram of a solar panel with arrows indicating internal structure (no text or symbols)

1. While pressing the two hooks on the upper part of the filter, pull to remove.

Illustration of a kitchen sink with a tray holding a spoon and a lid, showing the process (no text or symbols)

1. Use a brush and running water to clean the filter.

2. Completely dry the filter in a shaded area and reinsert the filter.

English38-

Diagram of a screen with grid pattern and an arrow pointing to it (no text or symbols)

1. Insert the top of the cover into the product, and then push the cover.

Lint filter

• For best results, clean the lint filter before or after using the product.
• Replace a damaged lint filter with a new lint filter.

Diagram of a refrigerator interior with ventilation grilles and an upward arrow indicating airflow direction (no text or symbols)

To clean the lint filter

1. Open the cover.

Diagram of a kitchen appliance with a black arrow pointing to a lid (no text or symbols)

1. Remove the lint filter.

Cleaning and maintenance

Illustration of a dental tool applying material to a rectangular dental tray (no text or symbols)

1. Use a brush and running water to clean the lint filter. Completely dry the lint filter in a shaded area.

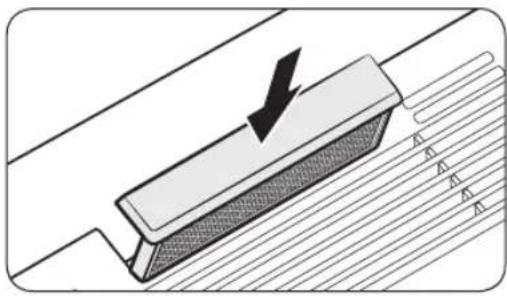

2. Reinsert the lint filter, and then close the cover.

Descaling

Using the steam function causes limestone accumulation and deposition throughout the internal water circulation system due to calcium contents of water. To prevent this, perform descaling regularly to increase the performance and lengthen the lifespan of the product. If you do not perform descaling immediately after getting the notification message, some functions may be restricted for use and may cause performance decrease or even shortens the lifespan of the product.

1. When the Descaling Required. Check the manual message appears on the display, remove all items from the product and then tap and hold Drying and Delay End for 3 seconds.

2. Empty the Refill Tank and the Drain Tank.

3. Dilute a descaling agent with water as recommended by the manufacturer of a descaling agent.

4. Fill the Refill Tank with the diluted descaling agent up to the MAX line. -The maximum capacity of the Refill Tank is 1.4 litre.

5. Tap and hold Del start descaling.

6. If the Empty the Drain tank message appears on the display during descaling, empty the Drain Tank.

7. When the Check the Refill & Drain tanks message appears on the display, empty both the Refill Tank and the Drain Tank, and then rinse them thoroughly.

8. Fill the Refill Tank with clean water up to the MAX line, and then insert the Refill Tank and the Drain Tank. Tap ▷ II

9. When descaling is complete, empty the Drain Tank and fill the Refill Tank with water. You can use AIRDRESSER once you finish all these steps.

NOTE

• Vibration and noise may occur during the descaling process; this is normal, and there is no problem with the product.
• You may see the Add water to Refill tank message when you use the product the first time after descaling. This is normal. Fill the Refill Tank with water and tap to resume.
• Bubbles may form if the descaling agent is not rinsed thoroughly. Make sure to rinse the Refill Tank and the Drain Tank thoroughly after descaling.
• Use a descaling agent dedicated for coffee machines.
• Do not use a descaling agent for other machines such as washing machine.
• Do not use laundry detergent or fabric softener for descaling.

English40-

Moving the product to another location

• There are two wheels underneath the product to assist moving it.
• To prevent the product from tipping over when moving the product, we recommend pushing the middle of the product. Do not push the top or the bottom.
• Empty the Refill Tank and the Drain Tank before moving the product to another location. If the tanks are not emptied, water can spill while moving the product.

Troubleshooting

Notification messages

Message Action
Add water to Refill tank	Check if the Refill Tank has enough waterFill the water up to the MAX line, reinsert the Refill Tank, and then tap ▷b start.Check if the Refill Tank is properly inserted.-Properly insert the Refill Tank, and then tap ▷d start.
Empty the Drain tank	Check if the Drain Tank is full.Empty the Drain Tank, reinsert the Drain Tank, and then tap ▷l to start.Check if the Drain Tank is properly inserted.Properly insert the Drain Tank, and then tap ▷d start.
Close door & start again	Check if the door is open.-Make sure the door is closed, and then tap ▷d start.
Open the door & check inside	Check if the door is open and if Child Lock is onMake sure the door is closed, and then tap ▷l to start. Make sure children or pets are not in the product.The control panel is locked when Child Lock is on.Tap and hold Delay End for 3 seconds to turn off the Child Lock.
Connect to Wi-Fi network or check your router	Check if the router is off.Turn the router on, and then connect to the Internet.

NOTE

If a problem persists, contact a local Samsung service centre.

English42

Checkpoint

Problem Action
The product does not turn on.	Tap turn the product on.Make sure the power cord is properly plugged in.Make sure the circuit breaker is on.Make sure the power cord is plugged into a power outlet rated for this product.
The product does not operate.	Make sure the door is closed, and then tap ||If you hear water flowing or boiling sounds, the product is preparing for a steam process. This is normal.Make sure Child Lock is off.The product may not operate if you have used any liquid other than water. Please contact a Samsung service centre.
The product makes sounds.	The product may generate sounds when the compressor operates. This is normal.The product may generate sounds when it circulates air. This is normal.The product may generate sounds before and during a steam process. This is normal.The product may generate sounds to pump out and drain the water. This is normal.When opening the door, sounds may come from the Refill Tank when the water is flowing through the pipe. This is normal.If noises become louder, contact a Samsung service centre.
The control panel does not work.	After plugging in the product, wait for a moment and try again. The control panel will respond 10 seconds after the power cord has been plugged in.Clean the control panel and try again. If the problem continues, contact a Samsung service centre.
The product vibrates.	Make sure the product is installed on a solid, level surface.Make sure the product is level.
The Refill Tank is empty after one use.	The product consumes more water the first time the product is used. This is normal.
Steam or air is coming out from the door.	Make sure there are no items caught in the door.Make sure the door is properly closed.
Operation time continues to increase.	Wet items may take longer to dry. Operation time can increase depending on the quantity and moisture level of the items.

Troubleshooting

Problem Action
Items are wet after a cycle.	Make sure the lint filter is clean and properly inserted.Make sure the door gasket is not damaged or items are not caught on the door. If the door gasket is damaged, unplug the power cord and contact a Samsung service centre.
Items are not deodorised.	Wash items with strong odours or items that have been stored for a long time.Wash items contaminated by oils.Large items such as down-filled jackets may not be deodorised well. Put large items by themselves and run an additional cycle if necessary.Do not put items with strong odour with other items. Separate items by odour strength.Make sure the lint filter and both tanks are clean.
Wrinkles are not removed.	Iron items that have been stored for a long time.
Smoke comes out from the product when the door is opened.	Some cycles generate steam that may appear to be smoke. This is normal.

English44-

Specifications

Specification sheet

“*” Asterisk(s) means variant model and can be varied (0-9) or (A-Z).

Simple line drawing of a refrigerator with a circular label labeled 'A' on the side (no text or symbols on the refrigerator itself)

Type		Clothing Care System (AIRDRESSER)
		DF60A8****G
Dimensions(mm)	A. Height 1850
	B. Width 445
	C. Depth 632
	D. Depth with door open 1001
	E. Width with door open 618
Rated power		220-240 V / 50 Hz1700-2000 W
Fuse(Fixed fuse in main PBA)	Tube type	250 V / 12 A
	High breaking capacity type
Weight (kg) 85.0

Memo

Memo

SAMSUNG

QUESTIONS OR COMMENTS?

COUNTRY CALL OR VISIT US ONLINE AT
U.A.E 800-SAMSUNG (800 - 726 7864)	www.samsung.com/ae/support (English)www.samsung.com/ae_ar/support (Arabic)
KUWAIT 183-CALL (183-2255)	www.samsung.com/ae/support (English)www.samsung.com/ae_ar/support (Arabic)
QATAR 800-CALL (800-2255)	www.samsung.com/ae/support (English)www.samsung.com/ae_ar/support (Arabic)
OMAN 800-SAM CS (800-72627)	www.samsung.com/ae/support (English)www.samsung.com/ae_ar/support (Arabic)
BAHRAIN 8000-GSAM (8000-4726)	www.samsung.com/ae/support (English)www.samsung.com/ae_ar/support (Arabic)

Technical diagram of a mechanical component with labeled point A (no text or symbols beyond label)

ملحوظة

Technical diagram of a mechanical assembly with labeled component B (no text or symbols present)

Mechanical diagram showing a vehicle wheel and base with directional arrows indicating motion (no text or symbols)

1. خزان التصريف

7.الرف

1. ذرج المياه

Fresh Finish™ ·Γ

1. فلتر الهواء

٨ خزان ملء المياه

- حامل الأرفف

1. الفتحة الهوائية

V. فلتر النسالة

العربيya

قبلできて الاستخدام

الملحقات

Technical line drawing of a mechanical component with two clamps (no text or symbols)

Technical line drawing of a mechanical part with two curved notches (no text or symbols)

Isometric line drawing of a rectangular tray with parallel slots (no text or symbols)

Simple line drawing of a ruler with measurement markings (no text or numbers visible)

ملحوظة

Technical line drawing of a door frame with a labeled component 'A' (no text or symbols beyond label)

الصفرية

Illustration of a person inserting a device into a machine (no text or symbols visible)

ملحوظة

Diagram showing a container with liquid and two hanging objects, no text or symbols present

Technical line drawing of a door frame with two circular annotations highlighting features (no text or symbols present)

خزان ملء المياه

ملحوظة

Diagram of a mechanical component with an arrow indicating direction, showing layered structure (no text or symbols)

Illustration of hands holding a decorative frame with an arrow indicating direction (no text or symbols)

Diagram of a mechanical component with an arrow indicating force or direction, showing a stepped surface and diagonal grooves (no text or symbols)

ملحوظة

Simple line drawing of a rectangular box with a triangular object on the side, no text or symbols present.

العربيya ٢٦

خزانات المياه

Illustration of two rectangular storage compartments with a paper clip emerging from them (no text or symbols)

Technical line drawing of a mechanical device with a handle and lever (no text or symbols)

Technical line drawing of a mechanical clamp securing a bracket (no text or symbols)

العربية

التنظيف والصيانة

دَرْج المياه

ملحوظة

أفرغ ذ

Diagram of a solar panel with heat exchanger and cooling fins, showing heat flow direction (no text or symbols)

Simple line drawing of a refrigerator with a circular label labeled 'A' on the side (no text or symbols on the refrigerator itself)
