USER MANUAL VF02058 VirtuFit

Line drawing of a mechanical exercise setup with roller and lever components (no text or symbols)

USER MANUAL

TOOLKIT

2 (1x)

5 (1x)

Simple line drawing of a mechanical rod or lever with two arms and a central shaft, labeled with number 3 (1x) in green circle (no text or symbols on the object itself)

6 (1×)

Simple line drawing of a rectangular prism with no text or symbols

7 (4×)

8 (1×)

9 (1x)

10 (4×)

11 (2×)

12 (4×)

13 (1×)

14 (4x)

15 (2×)

16 (4x)

17 (1x)

# DESCRIPTION QTY.

1 Front Incline Frame 1

2 Adjustive Frame 1

3 Seat Frame 1

4 Bottom Foam Tube 1

5 Top Foam Tube 1

6 Seat 1

7 Foam Roller 4

8 Knob 1

9 Quick Pin 1

# DESCRIPTION QTY.

10 Round Plug 19mm 4

11 Square Plug 35mm 2

12 Round End Cap 38mm 4

13 Hex Bolt M10*55mm 1

14 Bolt M6*15mm 4

15 Washer M10 2

16 Washer M6 4

17 Nylon Nut M10 1

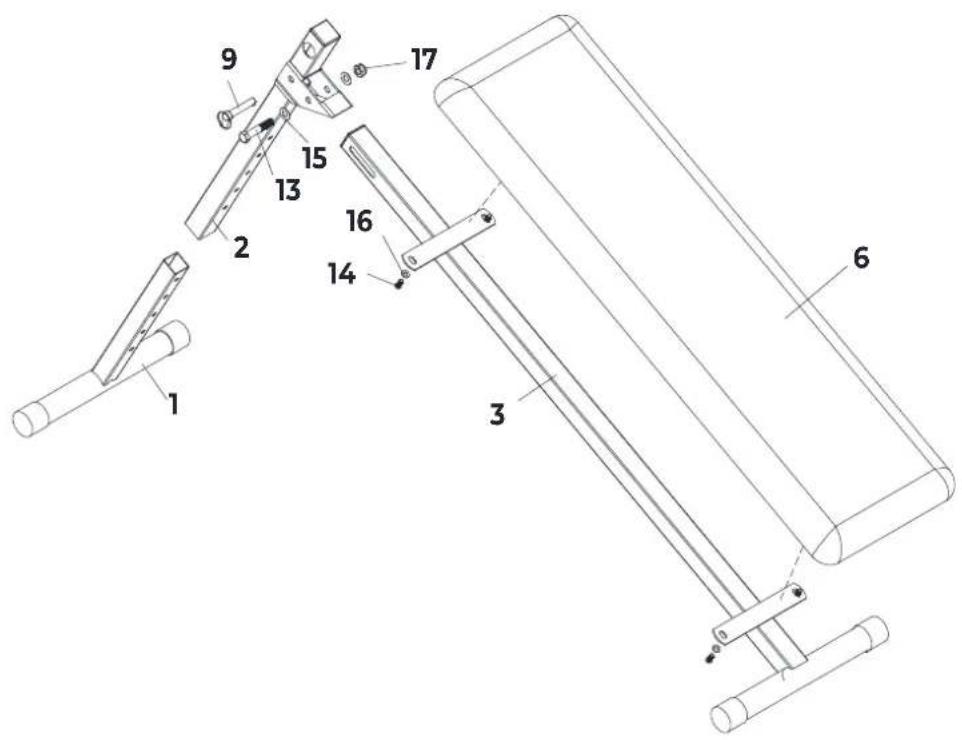

STEP 01

Technical diagram of a mechanical assembly with numbered components for identification

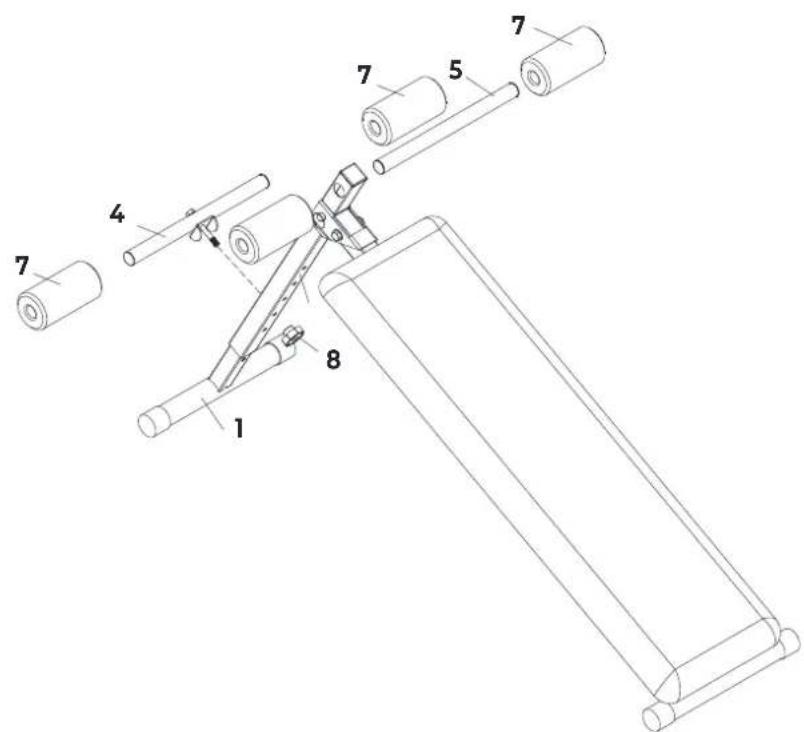

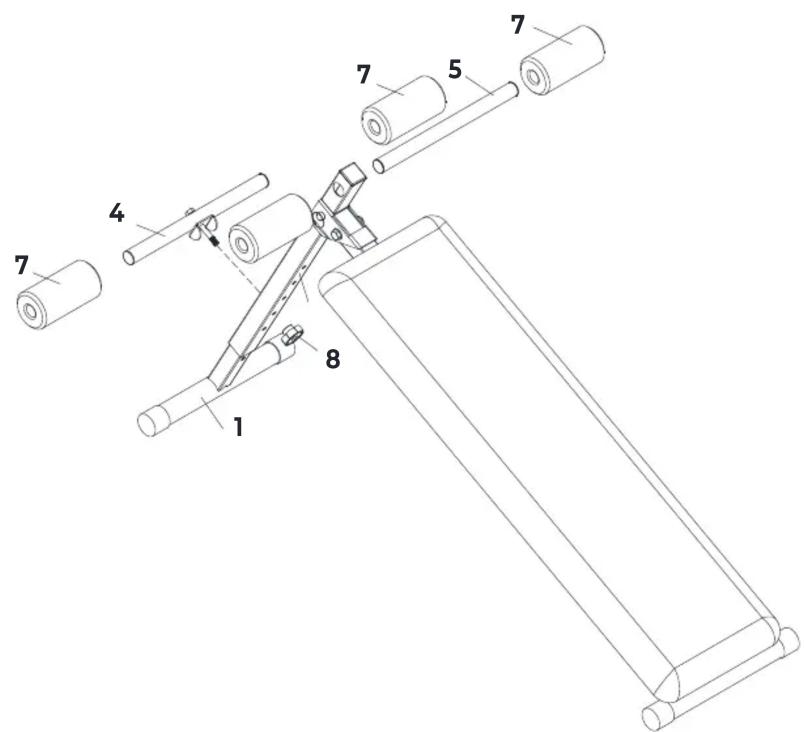

STEP 02

Technical diagram of a mechanical assembly with numbered components, likely for assembly or maintenance instructions.

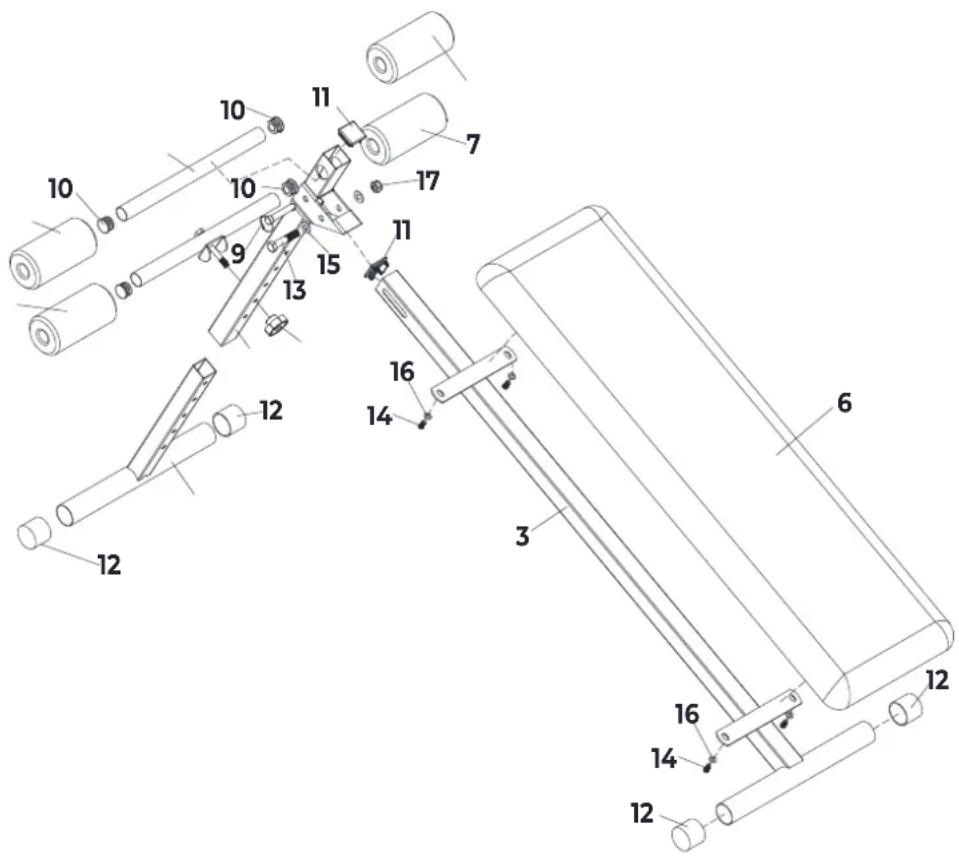

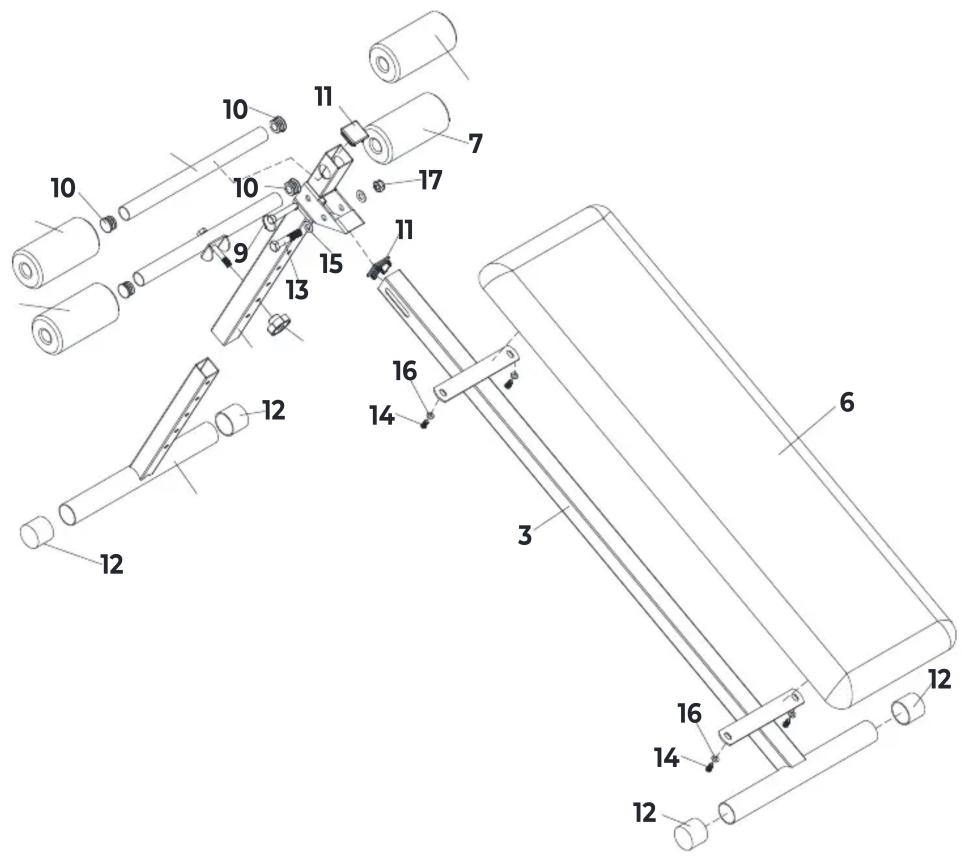

TECHNICAL DRAWING

Technical diagram of a mechanical assembly with numbered components, likely for assembly or maintenance instructions.

COMPANY INFORMATION

For an ongoing service request or to purchase parts, please visit; [e-mail]. Always state the service number (ITS number) with a question about the current application for a quick and efficient settlement. A service request must always be submitted via the service form. So the request not to request service via [e-mail].

Do you have a problem with your VirtuFit fitness equipment and would you like to submit a service request? Then scan the QR code on the right and fill in our service form.
