Product Type	Makeup Mirror with LED Lighting
Model	VT-8701
Dimensions (H x W x D)	700 x 500 x 35 mm
Weight	Approx. 4.5 kg
Power Consumption	25 W
Luminous Flux	750 lm
Beam Angle	120°
Color Rendering Index (CRI)	>80
Color Temperature	Adjustable (cool white to warm white) via touch
Voltage / Frequency	AC 200-240V, 50/60Hz
IP Rating	IP44
Demister Pad	Yes, 450 x 250 mm
Body Material	Iron
Touch Switch	Yes (on/off and color temperature change)
Installation Type	Wall-mounted
Suitable Zones	Bathroom zone 2 and outside zones
Light Source	Non-replaceable LED
Warranty	2 years
Cleaning	Wipe with soft cloth; avoid harsh solvents
Safety	Installation by certified electrician; disconnect power before maintenance

Frequently Asked Questions - VT-8701 V-TAC

How to turn on/off the mirror light?

The mirror features a touch sensor. A simple touch on the sensor toggles the light on and off.

How to change the color temperature?

Press and hold the touch sensor to cycle between cool white and warm white. This feature is available only on model VT-8701 and VT-8602.

Can I install this mirror in the shower?

No. The mirror is rated IP44, suitable only for zone 2 (area stretching 60cm outside the bath or shower) and outside zones. Do not install inside the bath or shower (zone 0).

What is the demister pad for?

The built-in demister pad heats the mirror surface to prevent fogging, ensuring a clear reflection even in steamy bathroom conditions.

Is the LED bulb replaceable?

No, the LED light source is non-replaceable. When it reaches the end of its life, the entire mirror unit must be replaced.

How do I clean the mirror?

Disconnect power first. Use a soft cloth to wipe the surface. Avoid harsh chemical solvents that may damage the finish.

What tools are needed for installation?

You will need a Philips head screwdriver, a drill, and rawl plugs. The mirror comes with mounting screws. A padded surface is recommended to avoid scratches.

Can I use this mirror with a dimmer?

The mirror does not support external dimming. It operates at full brightness with touch control for on/off and color temperature only.

What is the warranty period?

V-TAC offers a 2-year warranty from the date of purchase against manufacturing defects. It does not cover damage from incorrect installation or abnormal wear.

Why is the mirror not turning on?

Check that the power supply is connected and switched on. Ensure the touch sensor is clean and dry. If still not working, consult a certified electrician.

USER MANUAL VT-8701 V-TAC

WEEE Number: 80133970

INSTALLATION INSTRUCTION MIRROR LIGHTS

Two modern wall mirrors: one with a vertical light beam on the left, and another with a circular light beam on the right (no text or symbols visible)

2 YEARS WARRANTY*

TECHNICAL DATA:

Anti-fog

MODEL	WATTS	LUMENS	BEAM ANGLE	CRI	VOLTAGE/FREQUENCY	UNIT SIZE	IP RATING	DEMISTER PAD	BODY TYPE
VT-8505	17W	600LM	120°	>80	AC:200–240V, 50/60Hz	H500xW390xD35mm	IP44	330×160mm	Iron
VT-8700	30W	750LM	120°	>80	AC:200–240V, 50/60Hz	H700xW500xD35mm	IP44	450×250mm	Iron
VT-8701	25W	750LM	120°	>80	AC:200–240V, 50/60Hz	H700xW500xD35mm	IP44	450×250mm	Iron
VT-8800	38W	700LM	120°	>80	AC:200–240V, 50/60Hz	H800xW600xD35mm	IP44	560×330mm	Iron
VT-8601	25W	750LM	120°	>80	AC:200–240V, 50/60Hz	øD:600xD35mm	IP44	Dia360mm	Iron
VT-8602	25W	750LM	120°	>83	AC:220–240V, 50Hz	øD:600xD35mm	IP44	Dia360mm	Iron

WARNING!

1. Please make sure to turn off the power before starting the installation.
2. Proper grounding should be ensured throughout the installation.
3. The light source of this luminaire is not replaceable, when the light source reaches its end of life the whole luminaire should be replaced.
4. Installation should only be done by a certified electrician.

This marking indicates that this product should not be disposed of with other household wastes.

Caution, risk of electric shock.

INTRODUCTION & WARRANTY

Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before starting the installation and keep this manual handy for future reference. If you have any another query, please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at the best. The warranty is valid for 2 years from the date of purchase. The warranty does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no warranty against damage to any surface due to incorrect removal and installation of the product. The products are suitable for 10-12 Hours Daily operation. Usage of product for 24 Hours a day would void the warranty. This product is warranted for manufacturing defects only.

Multi-Language Manual QR CODE

Please scan the QR code to access the manual in multiple languages.

IMPORTANT SAFETY INFORMATION

• Please read these instruction carefully before attempting to install this product. It is advisable to keep these instructions in a safe place for future reference.
• We recommend that you consult a qualified electrician. All electrical installation must be carried out in accordance with the current IEE wiring regulations (BS7671) and the latest relevant building regulations.
• This product must not be modified, if any modifications are made, it may invalidate the warranty and may render the product unsafe.
• This product is for indoor use only.

COMPONENTS TOOLS REQUIRED

Illustration of four different mechanical components: a door, a test tube, a screw, and a document (no text or symbols present)

Illustration of four different types of screwdrivers and a drill press tool (no text or symbols present)

SAFETY INSTRUCTIONS

1. Installation should only be done by a certified electrician.
2. Before commencing installation or maintenance, isolate the main electrical supply for appropriate circuit at the fuse board.
3. This product is only suitable for connecting to a 240V 50Hz supply.
4. The mirror light should be mounted onto a secure surface.
5. When installing, please take care to avoid water pipes, joints, and electrical cables.
6. This product has a rating of IP44.
7. Do not exceed or stretch cables.

PRODUCT OVERVIEW

• This illuminated LED mirror is a sleek addition to any bathroom, providing beautiful lighting.
• The mirror light features stylish soft-edge corners, as well as an illuminated front face, which is perfect for everyday tasks.
• The mirror light is built-in with demister pad which guarantees that the mirror light will always stay perfectly clear.

TYPES OF BATHROOM LIGHTING ZONES:

0 - Inside the bath or shower. Must be SELV (12V Max) due to water submersion. Minimum rating of IP67.
1 - 225cm above the bath or shower. Minimum rating of IP44.
2 - The area stretching to 60cm outside the bath or shower, and 60cm from the water outlet of the sink. An IP Rating of at least IP44 is required.
Outside Zones - Anywhere outside zones 0, 1 and 2, where water jets are not used for cleaning purposes, the general rules of BS7671 apply.

NOTE: V-TAC Mirror Lights are IP44 rated and suitable for installation in zone 2 and the outside zones ONLY.

INSTALLATION INSTRUCTIONS

Pure diagram of a rectangular frame with four circular holes and directional arrows, no text or symbols present.

Step 1: Lay the mirror face down and remove the screws with a Philips head screw driver.

Note: Be careful to lay the mirror on a padded surface, that will not cause any scratches or abrasions.

Step 2: Carefully separate the back box from the glass mirror and pierce the rubber grommet.

Note: The rubber grommet will isolate and trap any steam to ensure the mirror remains protected.

ITEM NO	A(mm)	B(mm)
VT-8505	200 300
VT-8700VT-8701	300 500
VT-8800	400 600
VT-8601VT-8602	268 268

Note: Be careful before drilling to avoid any wiring or water pipes.

Step 3: Carefully mark your desired position for the mirror using the dimensions shown above. Then proceed to drill the holes for the Rawl plugs and screws.

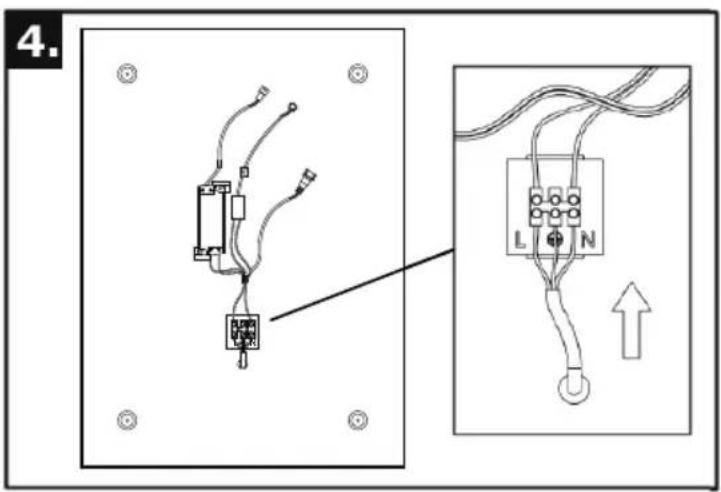

Step 4: Thread a 3-core mains cable through the rubber grommet in the back box and connect it to the junction box.

Note: Please refer to the wiring diagram as shown below.

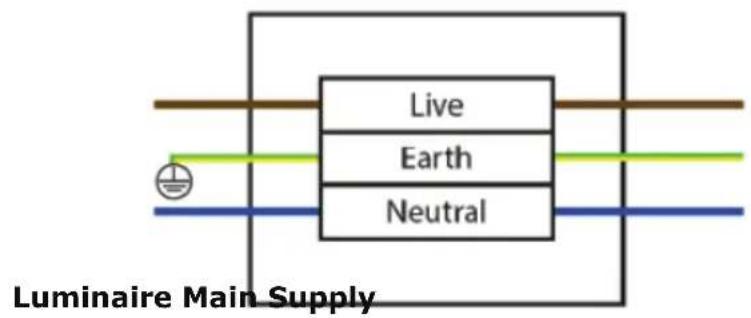

WIRING DIAGRAM

Live Supply can be Red or Brown. Earth Supply is Green and Yellow. Neutral Supply can be Blue or Black.

Technical line drawing of a mechanical assembly with a bracket and mounting base (no text or symbols)

Step 5: Insert the Rawl plugs into the pre-drilled holes and then secure the back box to the wall using the four screws provided.

Step 6: Connect the male and felmale connectors for the demister pad and LED, proceed to slot the glass panel over the back box. Finally, re-insert the screw to fasten the two parts together.

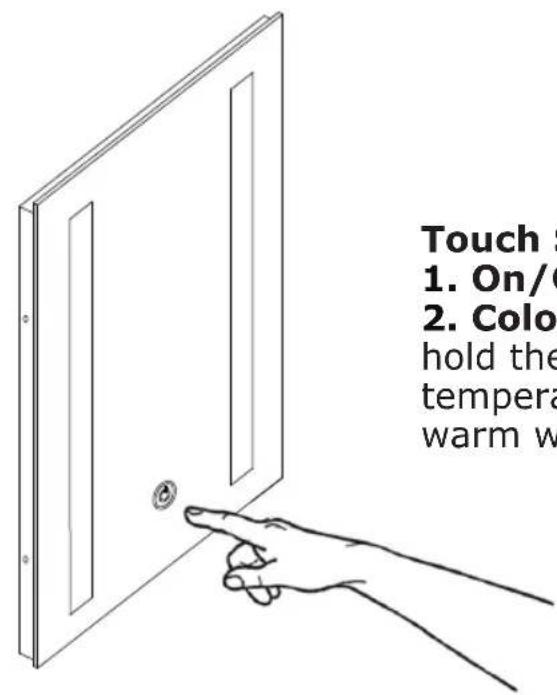

TOUCH SWITCH AND CCT CHANGING OPERATIONS: (Applicable only for Model No.VT-8701 & VT-8602)

Touch Sensor

1. On/Off - Touch to turn the light ON/OFF
2. Colour Temperature - Press and hold the bottom to change the colour temperature between cool white and warm white.

Note: The touch switch and CCT changing operation is only designed for VT-8701 and VT-8602. The other models [VT-8505, VT-8700, VT-8800, VT-8601] work with a normal switch.

MAINTENANCE & CAREFULLY

1. Ensure that the power is disconnected prior to cleaning.
2. To keep the finish of this product, wipe out with soft cloth periodically.
3. Do not use harsh chemical solvents, this may dis-colour or damage the finish.
4. Do not over-tighten screw on the terminal block
