Product Type	Rackmount Power Distribution Unit (PDU)
Model	PD-2015R-HH-NS
Brand	Middle Atlantic
Mounting	Horizontal or vertical; reversible adjustable mounting ears (0° or 90°)
Depth	4 inches (shallow)
Total Outlets	20 (10 front switched, 10 rear always on)
Power Capacity	15 Amps, 120V AC, 60Hz
Power Cord	9 ft (2.7 m) SignalSAFE™, NEMA 5-15P plug, 14/3 AWG
Switch	Illuminated switch/combination breaker for front 10 outlets only
Circuit	Single circuit
Sequencing	Not available on this model
Surge Protection	None (basic model)
Construction	18-gauge steel, black powder coat finish
Rack Space	1U
Certifications	ETL listed to UL 1419, UL 60950-1, UL 60065; CSA 60950-1, CSA C22.2 No. 60065; GREENGUARD Gold Certified
Weight	Approximately 5 lbs (2.3 kg) based on similar models
Dimensions (W x D x H)	19" x 4" x 1.75" (rack width, depth, height)
Maximum Derated Load	12 Amps (for 15A models)
Warranty	3 years
ISO Certification	Manufactured by ISO 9001 registered company
Maintenance	No user-serviceable parts; keep clean with dry cloth; do not expose to moisture
Safety	Do not exceed rated load; use only in dry indoor environments; ensure proper grounding

Frequently Asked Questions - PD-2015R-HH-NS Middle Atlantic

What is the PD-2015R-HH-NS?

It is a rackmount power distribution unit (PDU) by Middle Atlantic with 20 outlets, designed for horizontal or vertical mounting in a 1U space.

How many outlets does it have and how are they configured?

It features 20 total outlets: 10 on the front that are switched via an illuminated switch/breaker, and 10 on the rear that are always on.

What is the power rating of this PDU?

It operates on 120V AC, 60Hz, with a 15 Amp circuit and a maximum derated load of 12 Amps.

Can it be mounted in different orientations?

Yes, the mounting ears are reversible and adjustable, allowing installation at 0° (standard) or 90° (sideways) both horizontally and vertically.

Does it include surge protection?

No, the PD-2015R-HH-NS is a basic model without surge protection. Other models in the series offer 2-stage surge protection with remote notification.

What type of power cord does it use?

It comes with a 9-foot SignalSAFE™ power cord, NEMA 5-15P plug, 14/3 AWG, designed to minimize AC magnetic field effects.

Is there sequencing available?

No, this model does not have sequencing. Sequencing is available on select models like the PDS-1615R with three channels.

What certifications does it have?

It is ETL listed to UL 1419, UL 60950-1, UL 60065, CSA 60950-1, CSA C22.2 No. 60065, and is GREENGUARD Gold Certified.

What is the warranty period?

Middle Atlantic provides a 3-year warranty against defects in materials and workmanship under normal use.

Can it be used with different plug types?

The unit ships with a NEMA 5-15P plug. For other plug types, consider different models or use an adapter (ensure compliance with local codes).

USER MANUAL PD-2015R-HH-NS Middle Atlantic

EXCEPTIONAL SUPPORT & PROTECTION™

Designed to optimize space and efficiency in power management, this rackmount power distribution system provides up to 20 total outlets within a shallow depth

Features

• Versatile design allows for the unit to be mounted either horizontally or vertically in the rack
• Shallow 4" depth
• Up to 20 total outlets (on the front and rear)
• Select models include sequencing
• 9' SignalSAFETM power cord minimizes the effects of AC magnetic fields
• Select models include 2-stage surge protection with remote status notification
• Reversible, adjustable mounting ears provide flexible installation options with either 00 or 900 mounting
• Outlets are oriented in various directions to accommodate plugs of different shapes, sizes and orientations

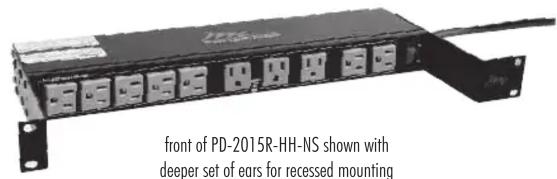

front of PD-2015R-NS with standard mounting ears
PD-2015R-HH-NS with ears rotated for sideways mounting

Architects' and Engineers' Specifications

Multi-Mount rackmount power distribution unit shall be Middle Atlantic Products model # PD-____ (refer to chart), with ____ power capacity (refer to chart). Rackmount power distribution unit shall operate on 120 volt AC/60Hz current. Rackmount power distribution unit shall include 9'____(refer to chart) SignalSAFETM power cord with ____ plug (refer to chart), ____(8, 10) rear outlets, 10 front outlets, and 15 Amp power switch located on the power strip's front (PD-2015R-HH-NS only). Rackmount power distribution shall be available with remote notification of 2-stage surge protection (refer to chart). Rackmount power distribution shall be available three channels of sequencing (two outlets per channel, six total), include adjustable sequencing delays of up to six seconds, and the option of local or remote control (refer to chart). Rackmount power distribution unit shall occupy one rackspace and be constructed of 18-gauge phosphate pre-treated steel with a black powder coat finish. Rackmount power distribution unit shall be ETL listed to UL standard 1419, UL 60950-1 and UL 60065 in the US; CSA standard 60950-1, and CSA C22.2 No. 60065 in Canada.

Rackmount power strip shall be GREENGUARD Indoor Air Quality Certified and GREENGUARD Gold Certified. Rakmount power strip shall be manufactured by an ISO 9001 registered company. Rackmount power strip shall be warranted to be free from defects in materials and workmanship under normal use and conditions for a period of 3 years.

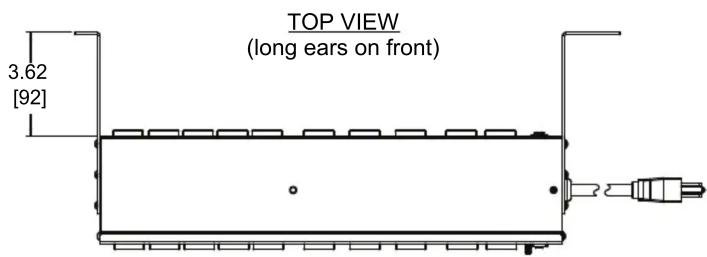

TOP VIEW

PD-2015R-HH-NS

SIDE VIEW

REAR VIEW
(PD-2015R-NS)

PD-2015R-NS

REAR VIEW

SIDE VIEW
(long ears for sideways mounting)

TOP VIEW
(short ears on front)

SIDE VIEW
(short ears for sideways mounting)

All dimensions in inches unless otherwise noted [All dimensions in brackets are millimeters]

Multi-Mount basic dimensions

All dimensions in inches unless otherwise noted [All dimensions in brackets are millimeters]

Part # Circuit Sequencing Power Switch Surge & Spike Protection # of Outlets Power Cord
PD-1815R-RN One	15 Amp -- 2-stage with remote notification 18 (10 front, 8 rear), always on, breaker 14/3 NEMA 5-15P
PD-1820R-RN One	20 Amp -- 2-stage with remote notification 18 (10 front, 8 rear), always on, breaker 12/3 NEMA 5-20P
PD-2015R-NS One	5 Amp --- 20 (10 front, 10 rear), always on, breaker 14/3 NEMA 5-15P
PD-2015R-HH-NS	One 15 Amp -		Illuminated switch/combo breaker for front 10 outlets only	-	20 (10 swithced), rear always on, breaker	14/3 NEMA 5-15P
PD-2020R-NS One	20 Amp --- 20 (10 front, 10 rear), always on, breaker 12/3 NEMA 5-20P
PDS-1615R	One 15 Amp	3-step	-	2-stage with remote notification	16 (10 always on, 6 sequenced)	14/3 NEMA 5-15P
PDS-1620R-NS	One 20 Amp	3-step	-	-	16 (10 always on, 6 sequenced)	12/3 NEMA 5-20P

Maximum Derated Load (North America) for 15 Amp Models: 12 Amps

for 20 Amp Models: 16 Amps
