Product Type	Ceiling Fan
Brand	KDK
Model	50GSC
Diameter	50 inches (127 cm)
Voltage	220-240 V ~ 50 Hz
Motor Type	AC Induction
Speed Settings	3 speeds (Low, Medium, High)
Reversible	Yes (Summer/Winter mode)
Control Method	Pull chain or optional wall controller
Blade Material	ABS plastic with wooden finish
Motor Housing Material	Steel
Weight	Approx. 8.5 kg
Airflow	Approx. 220 m³/min
Power Consumption	75 W (max speed)
Noise Level	< 45 dB
Warranty	2 years
Mounting	Ceiling mount (included)
Rod Length	25 cm (optional extension rods available)
Cleaning	Wipe with damp cloth; do not use harsh chemicals
Safety Features	Overheat protection, safety cable included
Spare Parts Availability	Baldes, pull chains, switches, and motor parts available
Reparability	Designed for easy repair; user can replace blades and pull chain

Frequently Asked Questions - 50GSC KDK

What is the recommended ceiling height for installing the KDK 50GSC fan?

The fan should be installed with blades at least 2.3 meters (7.5 feet) above the floor for optimal airflow and safety.

Can I use the fan with a sloped ceiling?

Yes, the fan can be mounted on sloped ceilings up to 45 degrees using an optional sloped ceiling adapter.

How do I clean and maintain the fan?

Turn off the fan and wipe blades with a soft damp cloth. Avoid abrasive cleaners. Check screws periodically and tighten if necessary.

Does the fan come with a remote control?

No, the standard model operates via pull chain. An optional wall controller or remote control kit can be purchased separately.

How do I reverse the fan direction?

Locate the reversing switch on the motor housing. Flip the switch while the fan is off to change from summer (counterclockwise) to winter (clockwise) mode.

What is the warranty period for the KDK 50GSC?

The fan comes with a 2-year warranty covering manufacturing defects. Proof of purchase is required.

Can I install the fan myself?

Installation is recommended by a qualified electrician. The package includes mounting hardware and instructions, but electrical work should be done professionally.

Why is the fan wobbling after installation?

Ensure blades are correctly aligned and screws tight. Use the included balancing kit to adjust. If wobbling persists, check the ceiling mount stability.

What is the maximum wattage of the light kit compatible?

The fan supports light kits up to 60 W (incandescent) or equivalent LED. Check compatibility before installation.

How do I troubleshoot if the fan does not start?

Check that power is on, the pull chain is pulled, and the reversing switch is not in neutral. If still not working, consult a technician.

USER MANUAL 50GSC KDK

KDK Company, Division of PES

Head Office : 4017, Takaki-cho, Kasugai, Aichi, Japan

Printed in Japan

Impreso en el Japón

พิมพ์ที่อยู่ปน

proble في الابان

45GSC 60GTC

•

INSTALLATION CAUTIONS

PRECAUCIONES A TOMARSE AL HACER LA INSTALACION

In The Kingdom of Saudi Arabia, this Ian is to be installed so that the blades are more than 2.3m above the floor in compliance with Saudi Arabian standard.

[25GSC, 30GSC, 35GSC]

[40GSC, 45GSC, 50GSC, 60GSC 45GTC, 50GTC, 60GTC]

1	Frame	Armazón	###	الإNPAR
2	Nut	Tuerca	###	###
3	Motor	Motor	###	###
4	Motor support	Soporte del motor	###	###
5	Blade	Cuchilla	###	###
6	Power cord	Cordón de la corriente	###	###
7	Fitting hole 8	Agujero de montaje 8	###	###
8	Fitting hole 4	Agujero de montaje 4	###	###

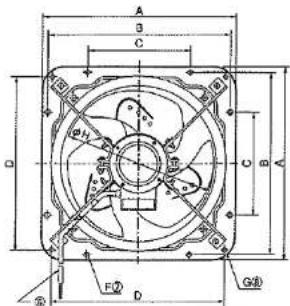

Model Modeloالنوبيل	A	B	C	D	E	F	G	H
25GSC	327	298	165	—	171	10 dia.	—	250 dia.
30GSC	378	349	210	—	200	10 dia.	—	300 dia.
35GSC	467	434	250	—	236	12 dia.	—	350 dia.
40GSC	518	485	280	460	274	12 dia.	12 dia.	400 dia.
45GSC	570	540	320	—	297	12 dia.	—	450 dia.
50GSC	659	620	355	560	315	15 dia.	15 dia.	500 dia.
60GSC	760	720	400	650	320	15 dia.	15 dia.	620 dia.
45GTC	570	540	320	—	297	12 dia.	—	450 dia.
50GTC	659	620	355	560	304	15 dia.	15 dia.	500 dia.
60GTC	760	720	400	650	320	15 dia.	15 dia.	620 dia.

During installation and carrying work, take special care not to deform the blade. If the blade is deformed, troubles such as unbalance or vibration may occur.

[25GSC, 30GSC, 35GSC]

1. Loosen the blade setscrew to remove the blade.

2. Afloje el tornillo de sujeción de cuchilla para remover la cuchilla.

3. ٤٠٣٥٢٣٥٣٣ وَمُدْرَهِبُّةٍ مُدْرَهِبُّةٍ مُدْرَهِبُّةٍ مُدْرَهِبُّةٍ مُدْرَهِبُّةٍ مُدْرَهِبُّةٍ مُدْرَهِبُّةٍ مُدْرَهِبُّةٍ مُمْتَّاً أَحْل بِرْغَيَّ تَنْبِيْت رِيمَّة لِنْرَعَ الْرِيمَّةٍ

4. Remove the wiring cover setscrew and exchange the yellow and red wires according to the wiring diagram.

5. Remueva el tornillo de la cubierta de alambrado y efectue el intercambio de los alambres amarillo y rojo de acuerdo con el diagrama de alambrado. Después de esto, vuelva a instalar la cubierta de alambrado en la posición original.

6. กองทะบุตวะรุพของตลับสายไฟแล้วดับเปลี่ยนสายไฟสีเหลืองกับสีแจงตามภาพอธิบายการเดินสายไฟ

7. أَنْزَعِ بِرْغَي تُفْبِتْ غطاء أَسْلَكَ التوصیل وَبِدَلَ الْأَسْلَكَ الصفراء وَالخمراء قِبما بِنِها طِبقا لِل رسمَّ التخطيطي لُنوصیل الْأَسْلَكَ.

[40GSC, 45GSC, 50GSC, 60GSC]

1. Loosen the hexagonal nut to remove the blade. (For 40GSC. Loosen the blade setscrew)
2. Afloje la tuerca hexagonal para remover la cuchilla. (Para 40GSC, afloje el tornillo de sujeción de la cuchilla)
3. ไขตะบูเกลียวหัวใหญ่เพื่อถอดใบพัต (สำหรับ 40GSC ไขตะบูทางชุดของใบพัต)
   . . فك الصمولة السداسية و ذلك لنزع ريشة المروحة. (للموديل 40GSC، فلك برفي ثنيست الريشه).
4. Remove the two (2) wiring box setscrews and exchange the yellow and red wires according to the wiring diagram. After exchanging, re-install the wiring box in its original position.
5. Remueva los dos (2) tornillos de la caja de alambrado y cambie los alambres amarillo y rojo uno con el otro de acuerdo con el diagrama de alambrado. Después de esto, vuelva a instalar la caja de alambrado en la posición original.

6. ดอตะบุควชุด 2 ตัวของหลับสายไฟออก แล้วดับเปลี่ยนสายไฟ สิเหลืองกับตันตงตามภาพอธิบายการเดินสายไฟหลังจากสับเปลี่ยน แล้วอิตลลัยสายไฟเข้าไปในตําแหน่งเติม

7. أسرغ بргيئى (١) تثبیت صندوق أسلاک التوصیل نُم بدل الأسلام Pharmaceuticals و الحمراء فيه ينها و ذلك حسب مخطط åسلات التوصیل ب Equipment ذلك، أحمد تركیب صندوق أسلاک التوصیل إلى مکانه الأصلی

8. Mount the blade in reverse position and tighten securely with the hexagonal nut.

9. Instale la cuchilla en la posición inversa y apriétela completamente con la tuerca hexagonal.
10. ยกใบพัตกลับตําแหนดและยืดไหผนตามวยตร์เกลี่ยวหัวใหญ่

Wiring Diagram

[45GTC, 50GTC, 60GTC]

1. Reverse two of the three wires for the power supply.
2. Invierta dos de los tres alambres de la fuente de alimentación

3. ล้อสายไฟ 2 สายในรํานวน 3 สายเพื่อให้จ่ายกําลังไฟฟ้า

4. أعكس سلكين من الأسلامك الثالثة لترتيب الطاقة

If the power cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
