25RLF - Household Fan KDK - Free user manual and instructions

Product Type	Wall-mounted Ventilation Fan
Brand	KDK
Model	25RLF
Color	White

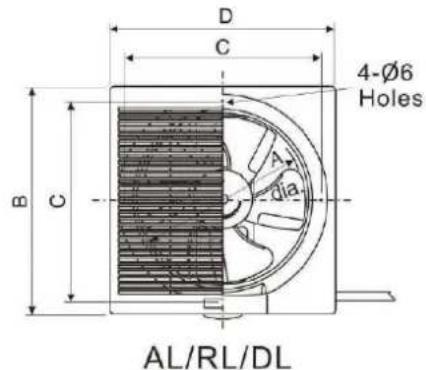

Dimensions (W x H x D)	300 x 300 x 150 mm
Weight	2.0 kg
Mounting	Wall mount (from inside to outside)
Power Supply	220-240 V ~ 50/60 Hz
Power Consumption	25 W
Airflow	150 m³/h
Noise Level	35 dB(A)
Motor Type	Induction motor
Fan Blade Material	Plastic (resin)
Body Material	Painted steel
Safety Features	Thermal fuse, overload protection, all-pole disconnection (3 mm contact separation)
Cleaning	Use damp cloth; do not immerse blade in hot water >60°C; avoid water on motor; no petrol, benzene, thinner
Installation	Must be installed by a qualified technician
Disconnection	Use a device with contact separation of at least 3 mm in all poles
Warranty	1 year
Accessories Included	None

Frequently Asked Questions - 25RLF KDK

How do I clean the KDK 25RLF fan?

Disconnect the power supply and wait for the blade to stop. Wipe the exterior with a damp cloth. Do not allow water to contact the motor or switches. Do not use petrol, benzene, thinner, or immerse the blade in hot water above 60°C. Wearing plastic gloves is recommended.

Can I install the fan myself?

No, this fan must be installed by a qualified technician to avoid risk of falling or electrical hazard. Improper installation may cause the fan to drop down.

What power supply does the 25RLF require?

The fan operates on 220-240 V AC, 50/60 Hz. Ensure a proper disconnection device with at least 3 mm contact separation on all poles is used.

How do I disconnect the fan before cleaning?

Always disconnect the power supply by switching off the circuit breaker or unplugging the fan. Ensure the blade is completely stationary before starting any cleaning or maintenance.

Is this fan suitable for kitchen or cooking areas?

No, this fan is prohibited to install over cooking equipment. It should not be used where it may be exposed to grease or high heat.

Is the fan suitable for bathroom or humid areas?

The manual does not specifically rate the fan for bathroom use. It is designed for wall mounting from inside a room to outside. Avoid installing in areas with excessive humidity unless specified.

What is the noise level of the KDK 25RLF?

The typical noise level is approximately 35 dB(A), which is quiet for domestic ventilation. Actual noise may vary by installation.

What should I do if the supply cord is damaged?

The cord must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid hazard. Do not attempt to repair it yourself.

Does the fan come with a warranty?

Typically, KDK offers a 1-year warranty against manufacturing defects. Check with your retailer for exact terms.

Where can I find replacement parts for the 25RLF?

Contact KDK authorized service centers or visit the official KDK website for genuine replacement parts. Use only parts recommended by the manufacturer.

USER MANUAL 25RLF KDK

Before operating this product, please read the instructions completely.

The following explanations must always be observed in order to prevent harm to users or other people and prevent damage to property.

The following displays are classified and explained to what extent harm or damage occurs when the display details are ignored and the unit in question is wrongly used.

This indication means: Must be treated seriously that this may result in death or serious injury.

The types of details to be observed are classified and explained in the following illustrated display. (Below are the series of illustrated displays)

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

■ Prohibit to install this fan over cooking equipment.

No la use encima de equipos de cocción. 禁止將本換氣扇裝在烹調設備上方。

This fan can be mounted in outside walls from inside of room.

For this fan, precautions must be taken to avoid the back-flow of gases into the room from the open-flue of gas or other fuel-burning appliances.

Use a device for disconnection from the supply, having a contact

separation of at least 3mm in all poles in accordance with the wiring rule. (Except 07 model)

This fan must be installed by a qualified technician Otherwise, it possible to dropped down.

Caution
Precaucion
注意
قَتَبِيَهُ

■ Disconnect the power supply until blade is stationary before cleaning and maintenance.

Do not allow water to contact electrical part such as motors or switches

Never use petrol, benzene, thinner or any other such chemicals for cleaning the ventilating fan.

Do not immerse blade or other resin parts in hot water over 60°C.

If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

■ Wear plastic gloves during cleaning may avoid accidents.
