USER MANUAL HyDrive HL210 Hartke

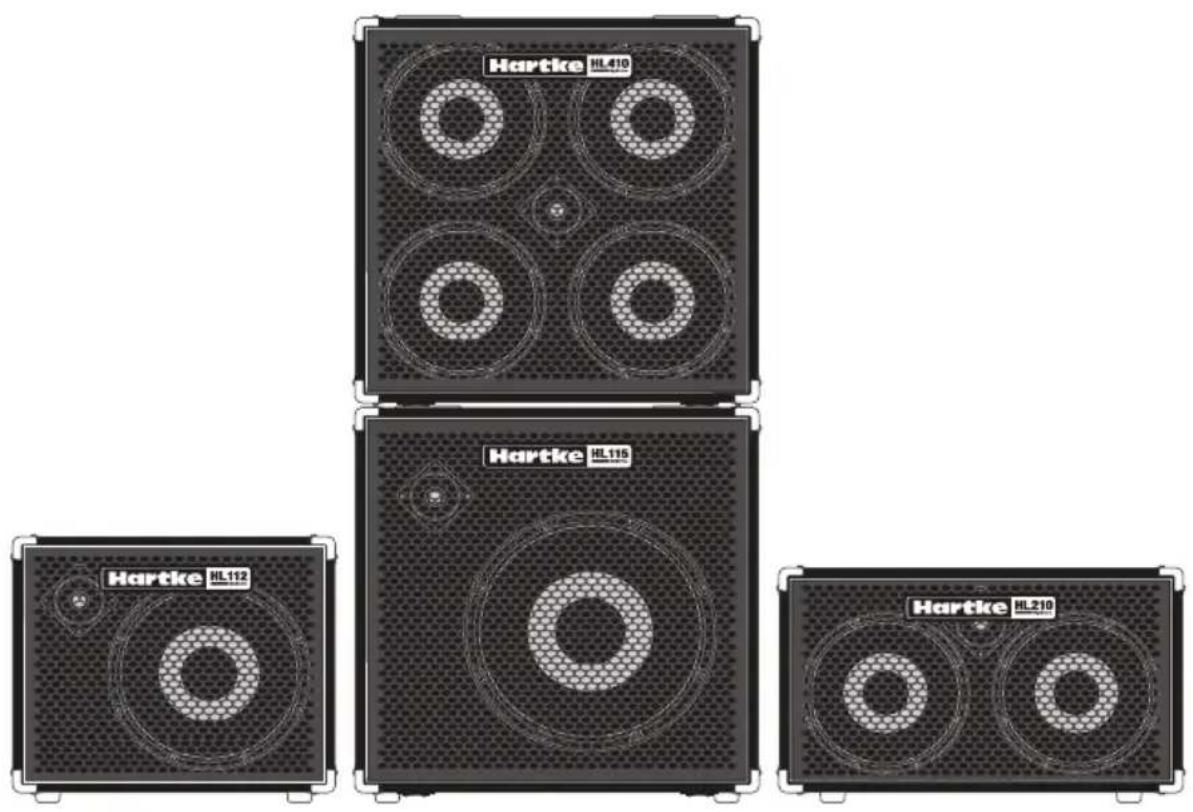

HyDrive HL Series Bass Cabinets

Owner's Manual

If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.

Private household in the 28 member states of the EU, in Switzerland and Norway may return their used electronic products free of charge to designated collection facilities or to a retailer (if you purchase a similar new one).

For Countries not mentioned above, please contact your local authorities for a correct method of disposal. By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health.

Hartke

©2021, V1.1

278-B Duffy Ave

Hicksville, NY 11801

Phone: [phone]

www.hartke.com

Introduction

We appreciate your business and congratulate you on purchasing a Hartke HL Series cabinet.

Welcome to the Hartke family! Before you plug in and start playing we suggest you take a seat and read through this quickstart guide.

The HyDrive HL series is our first generation of lightweight bass speaker enclosures featuring Hartke's patented HyDrive hybrid cone bass speakers with Neodymium magnets.

HyDrive speakers are constructed using an outside curved Kevlar®-loaded paper cone which produces solid low frequencies and an inside anodized aluminum cone to supply smooth mids and an extended high-end. This cutting edge design reproduces more of the bass guitar's fundamental frequency, providing a clean sound with a massive low end suitable for any type of musical genre.

With proper care and operation, your HyDrive cabinet will operate trouble free for many years. We recommend you record your serial number in the space provided below for future reference and keep a copy of the sales receipt as proof of warranty. The cabinet's serial number can be found on the jack panel.

Serial number: ____

Date of purchase: ____

NOTE: Should your Hartke Cabinet ever require servicing, a Return Authorization (RA) number is necessary. Without this number, the unit will not be accepted. If purchased in the United States, please call Hartke at 1-800-372-6766 for a Return Authorization number prior to shipping. Please retain the original packing materials and, if possible, return the unit in its original carton.

If purchased outside the United States please contact your local distributor for warranty information.

Connecting the HL Cabinet

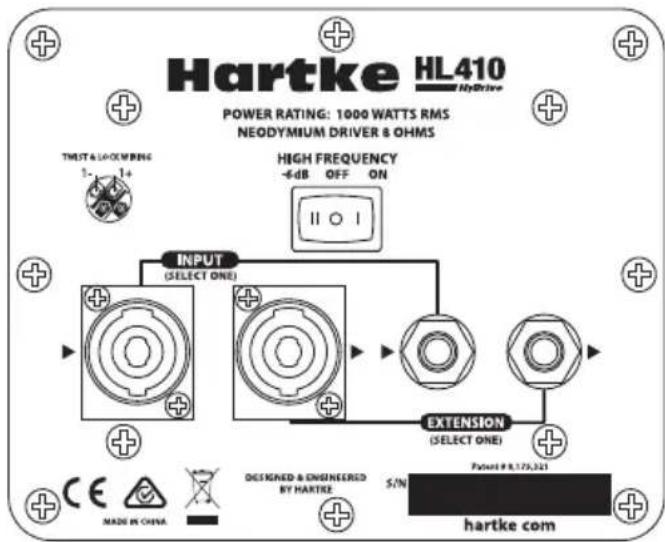

The HyDrive HL Cabinets feature two 1/4" and two twist-and-lock connectors wired in parallel. Each connector can be used as an input from an amplifier or as a pass through to an additional speaker cabinet.

When connecting an HL series cabinet to another extension cabinet be sure to check the manufacturer's recommended impedance for the amplifier to avoid any damage. Read the section "About Impedance" for more information on connecting multiple speakers together.

Hartke HL410 HYDRIVE POWER RATING: 1000 WATTS RMS NEODYMIUM DRIVER & OHMS HIGH FREQUENCY -6 dB OFF ON INPUT (SELECT ONE) EXTENSION (SELECT ONE) DESIGNED & ENGINEERED BY HARTKE S/N Pilot (R.173,323) hartke com TMST & LOCKING 1 - 1+ CE MADE IN CHINA

NOTE: Never connect more than one amplifier to a HyDrive HL series enclosure. This will damage the speaker cabinet and void the warranty.

NOTE: Use only unshielded speaker wire with a gauge of 12 – 18 AWG. Do not use shielded instrument cables when connecting an amplifier to a speaker cabinet or when connecting an extension cabinet.

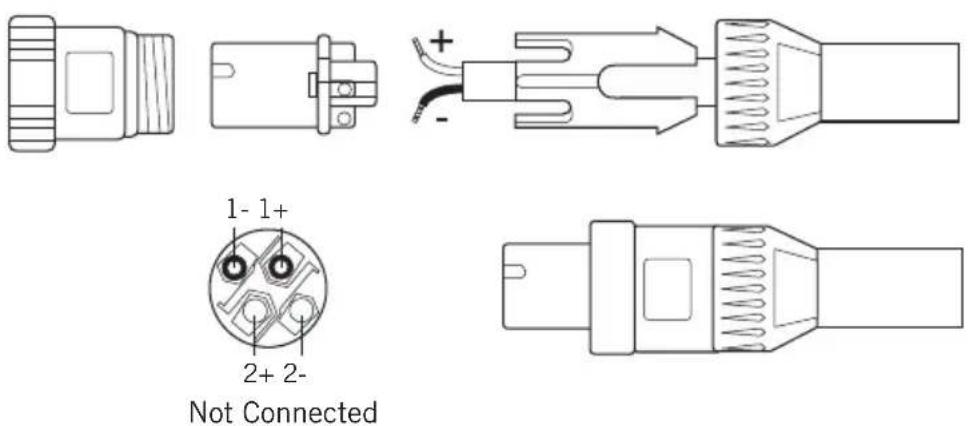

Use a standard 2-conductor cable, wired to pins 1+ and 1-, when connecting an amplifier to a Hydrive HL cabinet

1- 1+ 2+ 2- Not Connected

Using The High Frequency Level Control

The HyDrive HL cabinet has a control used to adjust the level of the 1" tweeter. The switch has three positions, ON, -6dB and OFF. When the switch is set to OFF, the tweeter is completely out of the circuit and off. Setting the switch to -6dB, will attenuate the tweeter by 6dB. When set to ON, you get the full level of the high-frequency tweeter.

About Impedance

Basically, impedance is the amount of current that will flow through a speaker at a certain voltage. It is measured in Ohms ( ). The actual impedance of a speaker is not constant across all frequencies. So, for convenience we use the term “nominal impedance”, which refers to the impedance that a speaker presents to an amplifier at a reference frequency.

A speaker typically has an impedance rating of 4Ω, 8Ω, or 16Ω. Generally, the lower the impedance of a speaker, the more power will be produced by the connected amplifier. For example, a 4Ω speaker will pull more power from your amplifier than an 8Ω speaker. If you connect a speaker with an impedance lower than the amplifier's output rating (minimum impedance), the amplifier can overheat and damage the power amplifier circuit. It is important to learn how to connect multiple speaker cabinets safely without damaging the speakers or your amplifier.

Here is a simple rule of impedance: When two speakers with the same impedance are wired in parallel, the total system impedance is cut in half, and when two speakers with the same impedance are wired in series, the total impedance is the sum of the speakers individual impedance.

Hartke HyDrive HL speaker cabinet input jacks are parallel connections. The formula to calculate the total impedance of a parallel speaker system is:

$$ 1 / \mathrm{Rt} = 1 / \mathrm{R1} + 1 / \mathrm{R2} + 1 / \mathrm{R3} + \dots 1 / \mathrm{Rn} $$

(R is the rated impedance of a speaker cabinet)

If all speakers have the same impedance, the total impedance will be equal to the impedance of a single speaker divided by the total number of speakers. For example, if you have two 4Ω speakers connected in parallel, the total impedance is 4 divided by 2, or 2Ω. You should be careful when connecting speakers in parallel to an amplifier. The impedance can quickly fall below safe levels. This is especially true when connecting speakers in parallel to an amplifier that is set to operate in bridge mode.

Typical Parallel Speaker Impedance Calculations:

$$ \begin{array}{l} 1 6 \Omega + 1 6 \Omega = 8 \Omega \ 8 \Omega + 8 \Omega = 4 \Omega \ 4 \Omega + 4 \Omega = 2 \Omega \ 4 \Omega + 8 \Omega = 2. 7 \Omega \ 8 \Omega + 1 6 \Omega + 1 6 \Omega = 4 \Omega \ \end{array} $$

Specifications

HL410

Description 4 x 10" Bass Cabinet

Power Handling 1000 Watts RMS

Impedance 8 Ohms

LF Drivers 250 watt, 10", paper/aluminum hybrid cones with neodymium magnets

HF Driver 1" Tweeter

HF level control 3-position switch (0,-6dB, Off)

Frequency Response 45Hz - 17kHz -3dB

-10dB LF Response 30Hz

Inputs 2 x Twist & Lock, 2 x 1/4" (wired in parallel)

Cabinet Type Dual chamber, sealed

Cabinet Construction Solid kiln dried lightweight plywood, extensive bracing, dado joinery, textured paint finish

Grille Black perforated steel

Weight45.4lb

20.6kg

Dimensions (H/W/D)

24.6" x 24" x 15"

626mm x 612mm x 383mm

HL115

Description 1 x 15" Bass Cabinet

Power Handling 500 Watts RMS

Impedance 8 Ohms

LF Drivers 500 watt, 15", paper/aluminum hybrid cones with neodymium magnets

HF Driver 1" Tweeter

HF level control 3-position switch (0,-6dB, Off)

Frequency Response 35Hz - 17kHz -3dB

-10dB LF Response 20Hz

Inputs 2 x Twist & Lock, 2 x 1/4" (wired in parallel)

Cabinet Type Vented

Cabinet Construction Solid kiln dried lightweight plywood, extensive bracing, dado joinery, textured paint finish

Grille Black perforated steel

Weight39.2lb

17.8kg

Dimensions (H/W/D)

24.6" x 24" x 15"

626mm x 612mm x 383mm

Specifications

HL210

Description 2 x 10" Bass Cabinet

Power Handling 500 Watts RMS

Impedance 8 Ohms

LF Drivers 250 watt, 10", paper/aluminum hybrid cones with neodymium magnets

HF Driver 1" Tweeter

HF level control 3-position switch (0,-6dB, Off)

Frequency Response 50Hz - 17kHz -3dB

-10dB LF Response 35Hz

Cabinet Type Sealed

Cabinet Construction Solid kiln dried lightweight plywood, extensive bracing, dado joinery, textured paint finish

Grille Black perforated steel

Weight27.5lb

12.5kg

Dimensions (H/W/D) 14.6" x 24" x 15"

372mm x 612mm x 383mm

HL112

Description 1 x 12" Bass Cabinet

Power Handling 300 Watts RMS

Cabinet Impedance 8 Ohms

LF Drivers 300 watt, 12", paper/aluminum hybrid cones with neodymium magnets

HF Driver 1" Tweeter

HF level control 3-position switch (0,-6dB, Off)

Frequency Response 35Hz - 17kHz -3dB

-10dB LF Response 25Hz

Cabinet Type Vented

Cabinet Construction Solid kiln dried lightweight plywood, extensive bracing, dado joinery, textured paint finish

Grille Black perforated steel

Weight24.9lb

11.3kg

Dimensions (H/W/D) 16.5" x 19.2" x 15"

421.5mm x 489mm x 383mm

At Hartke we are continually improving our products, therefore specifications and images are subject to change without notice.
