Product Type	Coaxial Speaker
Model	Z46CX
Brand	Phoenix Gold
Series	Z-Series
Cone Material	High-quality polypropylene
Surround Material	Butyl rubber
Tweeter Type	Ferrofluid filled
Mounting Design	Shallow mount, flush profile
Included Accessories	2 speakers, 2 grilles, mounting template, 8 screws, user manual
Warranty	1 year limited (USA only)
Installation Template	Supplied for hole cutting
Grille Type	Detachable grille

Frequently Asked Questions - Z46CX PHOENIX GOLD

What size is the Z46CX speaker?

The Z46CX is a 4-inch coaxial speaker. Exact diameter is not specified in the manual, but it is part of the Z-Series which includes models like Z4CX (4-inch) and Z46CX, likely 4x6 inches oval? Actually Z46CX suggests a 4x6 inch oval shape. Use the supplied template for precise cutting.

What is the power handling of the Z46CX?

The manual does not specify power handling. For similar Phoenix Gold coaxial speakers, typical RMS is 40-60 watts and peak 120-150 watts. Check the product specifications elsewhere or contact support.

How do I install the Z46CX speakers?

Turn off the audio system. Use the supplied template to mark and cut the correct diameter hole. Drill four pilot holes for mounting screws. Separate the grille from the frame. Insert the speaker and grille, then affix with the provided screws. Finally, replace the grille into the frame.

What wiring precautions should I take?

Ensure the audio system is off before connecting. Protect wires from sharp edges and use rubber grommets when passing through metal. Connect positive to positive and negative to negative for proper phasing. Secure all terminals from touching the chassis or each other to avoid damage.

Does the Z46CX come with speaker wire?

The manual notes that speaker wire included is only for connecting the tweeter to the speaker. Additional wiring is required to connect the speaker to the audio source or amplifier.

What is the warranty period for the Z46CX?

Phoenix Gold provides a 1-year limited warranty from the original purchase date for defects in materials and workmanship. This warranty is valid only for the original purchaser from an authorized US dealer. International customers should contact their local reseller.

Can I drill mounting holes with the speaker in place?

No. Drilling with the speaker installed can allow metal shavings to damage the voice coil and void the warranty. Always drill the pilot holes before inserting the speaker.

What type of tweeter does the Z46CX use?

It uses a ferrofluid-filled tweeter. Ferrofluid enhances thermal contact for better reliability and provides optimum damping for the voice coil.

Are the speaker grilles included?

Yes, the package includes two Phoenix Gold speaker grilles that fit over the speakers. The grille is detachable from the frame for installation.

How can I contact Phoenix Gold support?

In the US, email [e-mail] or call 1-800-477-2267 (East Coast). In Europe, email [e-mail]. The address is 15500 Lightwave Drive, Suite 202, Clearwater, Florida 33760.

USER MANUAL Z46CX PHOENIX GOLD

Close-up of a mechanical component with a central circular feature and concentric rings (no visible text or symbols)

Z-Series Coaxial Speakers

Z-Series Haut-parleurs coaxiaux Z-Series Altavoces Coaxiales

Models: Z4CX - Z5CX - Z65CX - Z46CX - Z57CX - Z69CX

FEATURES

Shallow Mount Design - Flush profile tweeter and a compact basket design for easy installation

Z-Series Cone - High-quality polypropylene cone material for great sounding audio

Butyl Rubber Surround - Excellent durability for prolonged performance and improved lateral cone stability

Ferrofluid Filled Tweeter - Enables enhanced thermal contact for improved reliability and optimum damping for the voice coil

CARACTÉRISTIQUES

Ensure the audio system is turned off before making any connections to the amplifier, speakers or source unit. Failure to do so could result in permanent damage to the audio system.

When wiring the speakers ensure that the wire is protected from sharp objects and always use rubber grommets when wiring through metal panels. Ensure all terminals and connections are protected from the vehicle chassis and from each other as failure to do so could result in permanent damage to the audio system.

When connecting the speakers to the source unit or amplifiers ensure you connect the positive and negative output wire from the source unit to the corresponding speaker terminals. This will ensure the audio system will be in phase.

1. Ensure there is adequate clearance and depth for the speaker to be mounted.
2. Use the supplied template to mark out & cut the correct diameter hole.
3. Drill four holes for the mounting screws.
4. Separate the grille from the frame
5. Insert the speaker and grille and affix with the screws provided
6. Complete installation by replacing the grille into the grille frame.

CONTENTS

2 x Phoenix Gold Coaxial Speakers
2 x Phoenix Gold Speaker Grilles
1 x Mounting Template
8 x Mounting Screws
1 x User Manual

NOTE

Speaker Wire included with the component speaker system will only connect the tweeter to the speaker, additional wiring is needed to connect to the audio system.

WARNING

Do not drill mounting holes with speaker in place as this could allow drill shavings to damage the voice coil and void the speaker warranty.

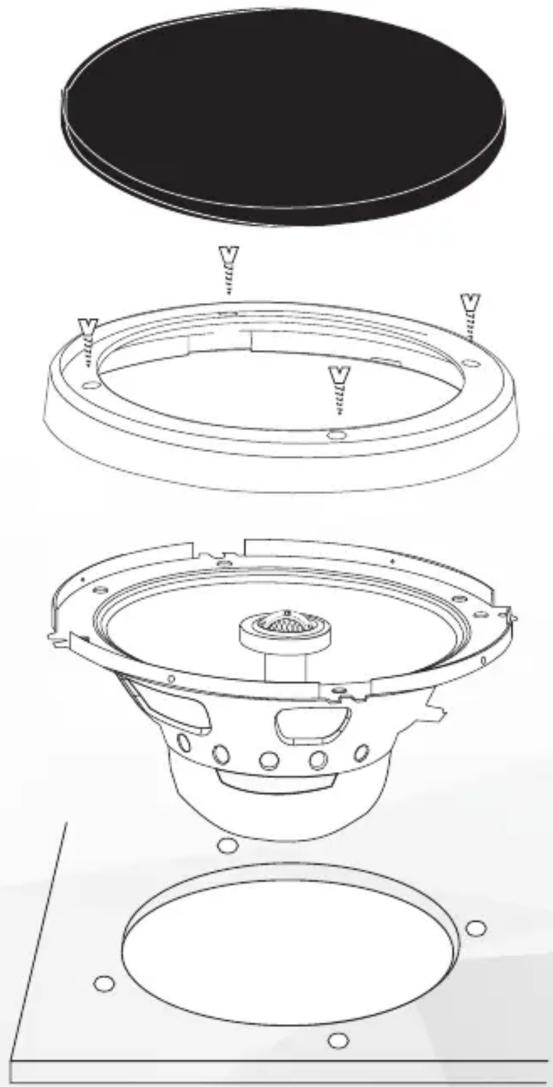

Exploded view diagram of a speaker or fan assembly showing top, front, side, and internal components (no text or labels)

WARNING:

Audio Systems can produce sound levels over 135dB. Continuous exposure to sound pressure levels over 100dB may cause permanent hearing loss. Please watch for emergency vehicles as warning signals may not be heard.

Phoenix Gold Product Warranty

LIMITED WARRANTY

Phoenix Gold warrants this product to be free of defects in materials and workmanship for a period of one (1) years from the original date of purchase. This warranty is not transferable and applies only to the original purchaser from an authorized Phoenix Gold dealer in the United States of America only. Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction, Phoenix Gold will (at its discretion), repair or replace the defective product with new or remanufactured product at no charge. Damage caused by the following is not covered under warranty: accident, misuse, abuse, product modification or neglect, failure to follow installation instructions, unauthorized repair attempts, misrepresentations by the seller. This warranty does not cover incidental or consequential damages and does not cover the cost of removing or reinstalling the unit(s). Cosmetic damage due to accident or normal wear and tear is not covered under warranty.

INTERNATIONAL WARRANTIES:

Products purchased outside the United States of America are covered only by that country's Authorized Phoenix Gold reseller and not by Phoenix Gold. Consumers needing service or warranty information for these products must contact that country's reseller for information.

email - [e-mail] (US)

tel - 1-800-477-2267 (East Coast)

email - [e-mail] (Europe)

15500 Lightwave Drive, Suite 202

Clearwater, Florida 33760

Woolmer Way, Bordon, Hampshire,

GU35 9QE, United Kingdom

Phoenix Gold is a Power Brand of AAMP Global
