USER MANUAL MKS-R1620 SONY

Operating Instructions

Table of Contents

Overview.... 3

Features 3

Button Function Settings ....3

System Connection Example 4

Locations and Functions of Parts.... 5

Front Panel 5

Rear Panel 7

Status Display Window (MKS-R1630) 8

Preparations.... 13

Notes on Installation ....13

Setting Up the Unit 13

Connections with System Controllers ....13

Key Label Indications 13

Configuring Using the Buttons 15

Operations.... 16

Configuring Using a System Controller and Web Menu ....16

Pinned Buttons, Selection Buttons, and Function Buttons ....16

Switching Between Source Selection Mode and Destination Selection Mode ....17

Switching Crosspoints ....17

Assigning a Source/Destination to a Selection Button (Assign) 18

Switching a Different Source for Each Level (Breakaway) 19

Switching Multiple Crosspoints Simultaneously (Salvo) 21

Take Mode 21

Pages and Page Groups ......22

Switching and Monitoring Two Sources (Chop) .....22

Preventing Source Switching for Destinations (Protect) 23

Preventing Accidental Operation (Lock) 23

Monitoring Destinations ......23

Level Control 24

Retrace Function ......24

Linkage Function 24

Web Menu.... 25

Displaying the Web Menu 25

Screen Configuration 25

Panel Table Page ......26

Source Reentry Lists Page 26

Salvo Table Page 27

Available Src/Dest Page 27

Control Area Page 27

Alias Name Lists Page 28

Default Controls Page 28

Operation Settings Page 28

Display Settings Page 29

Retrace Settings Page 30

Linkage Settings Page 31

Page Group Settings Page 31

Network Settings Page 32

Remote Maintenance Page 32

Time Settings Page 33

System Page 33

CSV 34

Usage Precautions 35

Error/Warning Messages 36

Specifications 38

Overview

The MKS-R3210/R1620/R1630 is a remote control panel that connects to a PWS-100NM1/110NM1 running IP Live System Manager (system controller) to switch the routing of video signals and audio signals. You can use the selection buttons on this unit to switch the source/destination of signals of Networked Media Interface devices or to switch the source/destination of a routing switcher.

Features

Large buttons that display functions in different colors

Employs large selection buttons on the front panel designed for easy operation. Selection buttons light up green or amber, dimly or brightly to show their functions and the currently selected source and destination.

You can set the button color and brightness in the web menu to suit the operating environment to make the buttons more visible.

Buttons to select sources and destinations

All selection buttons on the front panel can be used as source selection buttons or destination selection buttons according to settings in the web menu. The current setting can be easily discerned by the color of the button when lit.

Display of switch names using key labels

The source or destination name, set using the web menu, can be shown on a key label on each button. Key labels are interchangeable.

Controllable up to 128 levels ¹⁾

Up to 128-level (128 signals) control is supported using settings configured using the web menu.

1) Levels

To handle different kinds of signals simultaneously, it is necessary to use a routing switcher for each type of signal. For example, a recording to be made on a VTR requires the use of five signal levels: video, audio 1, audio 2, timecode and remote control signals. These are collectively referred to as levels.

Different sources for each level are selectable (breakaway function)

You can select and display different sources for each level using the breakaway function.

Monitor function to watch the selection status or other outputs

When a destination you wish to monitor is set as a monitor destination, the source automatically switches to the same source as the monitor destination when the monitor function is set to ON.

Switching between two sources alternately (chop function)

The chop function automatically switches between two sources alternately at a specified interval.

Switching of multiple crosspoints using a single operation (salvo function)

When multiple crosspoints have been selected and a salvo is defined beforehand using the web menu, all the crosspoints set for the salvo can be switched by pressing one button.

Self-diagnostics function

The unit automatically performs self-diagnostics, such as communications status checks. The diagnostics results appear in the display window.

System redundancy support

The unit features dual power supplies and networks to support system redundancy.

Display window for each selection button (MKS-R1620/R1630)

On the MKS-R1620, a display window is assigned to each selection button. On the MKS-R1630, the selection buttons themselves are display windows. Each selection button has a 2-line, 6-character (3 full-width character) display window. The source name is displayed in the display window of source selection buttons, and the destination name is displayed in the display window of destination selection buttons.

Status display function (MKS-R3210/R1620)

The currently selected source name, destination name, and any error messages are displayed.

Status display function using a 2-inch color LCD (MKS-R1630)

A large LCD display shows source names, destination names, errors, levels, and other information.

Button Function Settings

The selection buttons can be used as either source selection buttons or destination selection buttons. You can define the function of each button using the web menu. The settings are made for each button. A source selection button can select the input signal assigned to a button upon your merely pressing that button.

System Connection Example

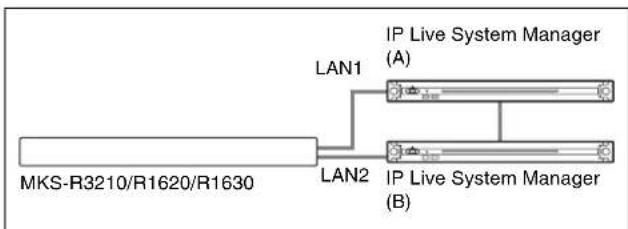

Dual LAN redundancy system connection

Single LAN redundancy system connection

Locations and Functions of Parts

Front Panel

MKS-R3210/R1620

MKS-R3210

MKS-R1620

① STATS (status) button/lamp

Pinned button assigned with the Status function.

For details about the Status function, see "Status function" (page 16).

On the MKS-R3210, this button (top left button) lights up blue when the beacon function is executed on the system controller.

②MONI (monitor) button/lamp

Pinned button assigned with the Monitor function.

For details about the Monitor function, see "Monitor function" (page 16).

③ Preset display window

This window normally shows the destination name to be controlled.

If an error occurs, an error message appears.

When you turn the selector knob, the name selected with the knob appears highlighted for about 5 seconds.

④ PROT (protect) button/lamp

Pinned button assigned with the Protect function.

For details about the Protect function, see "Protect function" (page 16).

⑤ LOCK (CHOP) button/lamp

Pinned button assigned with the Lock (Chop) function.

For details about the Lock (Chop) function, see "Lock (Chop) function" (page 16).

⑥ Selection buttons

You can assign a source, destination, or some functions to these buttons.

For details, see "Pinned Buttons, Selection Buttons, and Function Buttons" (page 16).

⑦ Selector knob

When you turn the knob with the DEST lamp lit green, source names appear in sequence in the preset display window.

When the DEST lamp is lit amber, destination names appear.

You can limit the names available for selection to the following using the web menu.

• Sources and destinations can be limited using the Available Source/Destination tables and Control Area (page 27).
• To avoid any problem caused by the knob being accidentally pressed, the function that is activated when this knob is pressed can be disabled (page 28).

⑧ ASSGN (assign) button/lamp

Pinned button assigned with the Assign function.

For details about the Assign function, see "Assign function" (page 16).

On the MKS-R1620, this button (top left button) lights up blue when the beacon function is executed on the system controller.

⑨ DEST (destination) button/lamp

Pinned button assigned with the Source, Destination/Level function.

For details about the Source, Destination/Level function, see "Source, Destination/Level function" (page 16).

⑩ Selection button display window

The selection button display window shows the names configured for the selection buttons.

① STATS, DISP (status display) button

Pinned button assigned with the Status function.

For details about the Status function, see "Status function" (page 16).

When it is pressed, the display mode of the status display window is switched.

On the MKS-R1630, this button (top left button) lights up blue when the beacon function is executed on the system controller.

For details about display switching, see "Display transition" (page 12).

②SRC,DEST/LEVEL button

Pinned button assigned with the Source, Destination/Level function.

For details about the Source, Destination/Level function, see "Source, Destination/Level function" (page 16).

③PG UP/GP UP (Page Up/Page Group Up) button

Pinned button assigned with the Page Up/Group Up function.

For details about the Page Up/Group Up function, see "Page Up/Group Up function and Page Down/Group Down function" (page 16).

④ASSGN (Assign) button

Pinned button assigned with the Assign function.

For details about the Assign function, see "Assign function" (page 16).

⑤Status display window

The display shows the status of a source, destination, level, and operation mode.

For details about the content displayed in the status display window, see "Status Display Window (MKS-R1630)" (page 8).

⑥ Selection buttons with display

You can assign a source, destination, or some functions to these buttons.

For details, see "Pinned Buttons, Selection Buttons, and Function Buttons" (page 16).

⑦ SHIFT button

Pinned button assigned with the shift function.

For details about the shift function, see "Shift function" (page 17).

⑧ PROT (Protect) button

Pinned button assigned with the Protect function.

For details about the Protect function, see "Protect function" (page 16).

⑨ ENTRY button

Pinned button assigned with the Entry function.

For details about the Entry function, see "Entry function" (page 16).

⑩ PG DN/GP DN (Page Down/Page Group Down) button

Pinned button assigned with the Page Down/Group Down function.

For details about the Page Down/Group Down function, see "Page Up/Group Up function and Page Down/Group Down function" (page 16).

⑪ LOCK (CHOP) button

Pinned button assigned with the Lock (Chop) function.

For details about the Lock (Chop) function, see "Lock (Chop) function" (page 16).

⑫ Selector knob

When the SRC, DEST/LEVEL button is lit up green, turning this knob selects a source. When the SRC, DEST/LEVEL button is lit up amber, turning this knob selects a destination. You can limit the names available for selection to the following using the web menu.

• Sources and destinations can be limited using the Available Source/Destination tables and Control Area (page 27).
• To avoid any problem caused by the knob being accidentally pressed, the function that is activated when this knob is pressed can be disabled (page 28).

Rear Panel

MKS-R3210/R1620/R1630

① Ground terminal

For signal grounding.

② LAN1 (PoE) port

Connect to the network with system controller connected (network 1). This port accepts power using PoE.

CAUTION for LAN port

The LAN port of this unit is to be connected only to devices whose power feeding meets the requirements for SELV (Safety Extra Low Voltage) and complies with Limited Power Source according to IEC 60950-1.

CAUTION

When you connect the LAN cable of the unit to a peripheral device, a shielded-type cable is strongly recommended to prevent malfunction due to radiation noise and electrostatic noise.

③ LAN2 port

Connect to the network with the system controller connected (network 2).

CAUTION for LAN port

For safety, do not connect the connector for peripheral device wiring that might have excessive voltage to the following port:

• LAN2 port

Notes

• When you connect the LAN cable of the unit to a peripheral device, a shielded-type cable is strongly recommended to prevent malfunction due to radiation noise and electrostatic noise.
• If a redundancy configuration is not used on the network, use the LAN1 port.

④ DC IN connector

Connect to the supplied AC adapter.

Status Display Window (MKS-R1630)

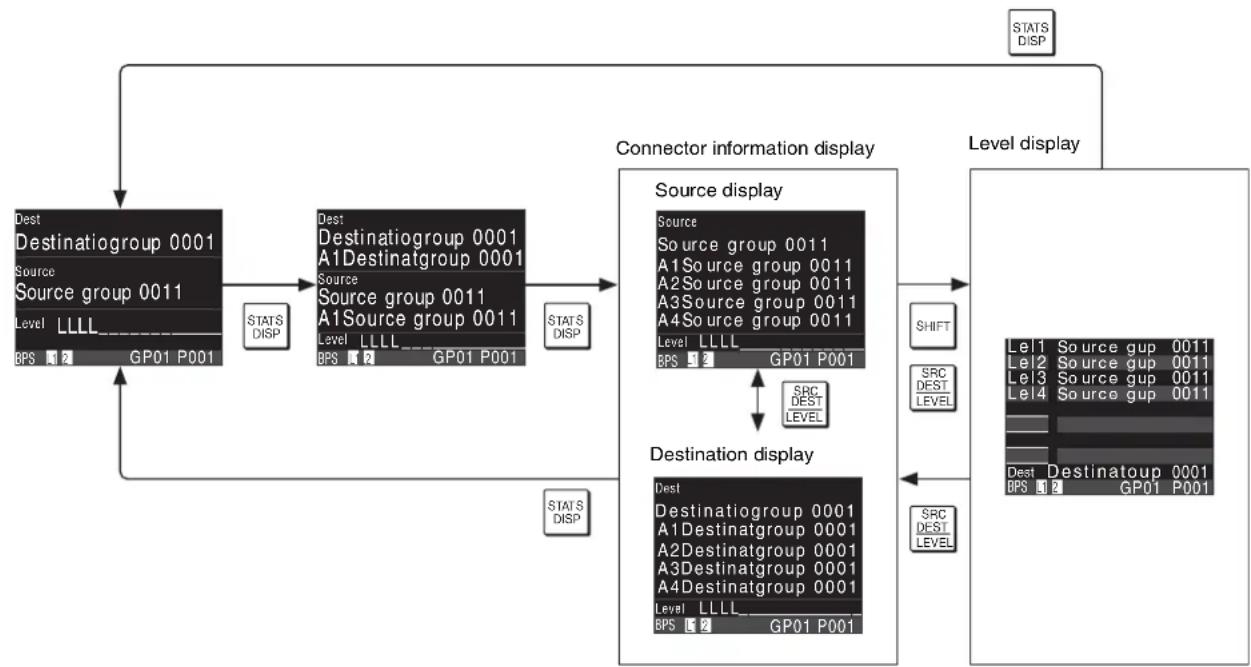

The display in the status display window varies depending on the display mode. The display mode is automatically determined when the selection method is selected. It is changed by pressing the STATS, DISP button.

Icons

The icons shown below appear depending on the operation status.

Other§	When protected on another station
Self§	When protected on this unit
CHOP	Chop mode
	Lock mode
BPS	BPS selection method
MD	MD selection method
L1	LAN1 Ethernet connection (lit red when connection error occurs)
L2	LAN2 Ethernet connection (lit red when connection error occurs)
Source	Source information display
Dest	Destination information display
Preset	Preset information display
Level	Level information display

Immediate switching display mode

This mode is the immediate switching mode for the BPS selection method or MD selection method.

Preset display mode

This mode is the preset switching mode for the BPS selection method or MD selection method.

Level display mode

Source/destination information display Source display

Destination display

Changing the display position

The display position of the sources and destinations can be changed using the web menu.

Immediate switching display mode Preset display mode

Warning display

Operation information display

Displays the following information for about 5 seconds if an error occurs during operation.

Protection: Target object is protected.

No Level: Indicates an operation of a destination without a level set by the system controller.

No Destination: Target destination for operation is not listed in [Available Destination].

No Source: Target source for operation is not listed in [Available Source].

Salvo: Salvo operation executed.

Display transition BPS display mode

Preset display mode

Preparations

Notes on Installation

For installing the unit in a 19-inch rack

When installing in a 19-inch rack, use binding-head screws (+B5×10, 7-682-575-04).

For use in an OB van

When the unit is to be used in an OB van, be sure to bind the cables to a rack strut to avoid having the weight of cables add to vibration shock to the connector on the side panel during transport.

Setting Up the Unit

First, configure the network preferences using the buttons on the unit. For details about network preferences, refer to the Installation Manual.

You can enter the IP address specified for the unit in a web browser to display the web menu. Use the web menu to configure detailed settings.

Connections with System Controllers

A remote control panel can be connected in a single system connection or in a redundancy system connection. Several modes are supported for redundancy system connections.

Single system connection

A single system connection is the simplest connection type. Use LAN1.

Dual LAN redundancy system connection

A dual system redundancy structure uses both LAN1 and LAN2 of the remote control panel.

Operation will continue in the event of a single system switch failure.

Note

When using a dual LAN1 and LAN2 system connection, do not use IP addresses for the same segment.

Single LAN redundancy system connection

A single system redundancy structure uses only LAN1 of the remote control panel.

The wiring for LAN1 only is connected, but the panel connects to both system A and system B. This configuration

is useful if you want to reduce the LAN cable wiring or if there are no available ports on a switch. Use LAN1.

Key Label Indications

It is recommended to write the source, destination, or level name on labels (called key labels), and attach them to the source/destination selection buttons. Then you can see at a glance what functions you have assigned to each button.

Making a key label

1 Copy the key label guide shown below onto a sheet of OHP paper. 2 Write the name on the copied paper. 3 Cut the paper to the button size as shown in the diagram.

Key label guide

For a large button (13 × 13 mm)

For a small button (10 × 10 mm)

Attaching a key label

Attach the key labels to the buttons using the following procedure.

1 Grip the holes on the button sides with the key-top puller and remove the button.

2 Grip the slots on the sides of the white button cap with the key-top puller, so that the cap flexes slightly, and remove the cap.

3 Insert the key label, and replace the button cap. 4 Replace the button in its original location.

For details about the key-cap puller (part number: 4-592-036-01), consult your Sony representative.

Configuring Using the Buttons

Basic settings of the unit can be configured using the web menu, but the following settings can also be configured directly on the unit. The following items can be set on the unit by turning the power on while pressing a combination of source/destination selection buttons, as described below.

Number of the source/destination selection buttons

MKS-R3210

MKS-R1620

MKS-R1630

Setting the default IP address

Simultaneously press buttons 1 and 2, then turn the power on.

For details about the IP address setting, refer to the Installation Manual.

Resetting the software

Press and hold the bottom two function buttons (PROT button and LOCK (CHOP) button by default on the MKS-R3210/R1620, or PROT button and ENTRY button by default on the MKS-R1630) simultaneously for three seconds or longer until "RESET" appears on the preset display window. The display counts down from 3 to 2 to 1 before the reset starts. After the display reaches 1, the software is reset, and the unit returns to the same status as when power is first turned on. During the reset, the four function buttons on the left side of the front panel light up white in sequence.

MKS-R3210/R1620

MKS-R1630

Note

On the MKS-R3210/R1620, press the LOCK (CHOP) button and then press the PROT button. If you press the PROT button before the LOCK (CHOP) button, the panel restarts in the protected state.

On the MKS-R1630, first press the PROT button so that the panel is in the protected state, then simultaneously press the PROT button and ENTRY button. If you press the PROT button before the ENTRY button, or vice versa, so that they are not simultaneous, the unit restarts with the panel not in the protected state.

If you simultaneously press the PROT and ENTRY button without first placing the panel in the protected state using the PROT button, the panel restarts in the protected state.

Operations

Note

This section describes typical operation on the MKS-R1620. For other models, substitute the button names and other items corresponding to your model.

Configuring Using a System Controller and Web Menu

Before switching signals with this unit, perform the following configuration using the system controller and web menu.

Settings using the system controller

1 Set the source names.

The list of registered source names is called the source table.

2 Set the destination names.

The list of registered destination names is called the destination table.

Settings using the web menu

1 Assign the source and destination selection buttons of the unit on the [Panel Table] page (page 26). 2 Set the salvo names on the [Salvo Table] page (page 27). The list of registered salvo names is called the salvo table. 3 Set the levels to control in [Level Settings] on the [Default Control] page (page 28). 4 Set the available sources/destinations to limit the input/output selection on the [Available Src/Dest] page (page 27).

Pinned Buttons, Selection Buttons, and Function Buttons

The buttons on this unit include pinned buttons without an assigned page and selection buttons for assigning to each page. You can assign a function to a pinned button. You can assign a source, destination, and some functions to selection buttons. Assignment is configured on the [Panel Table] page of the web menu.

For details about pages, see “Pages and Page Groups” (page 22). For details about assignment, see “Panel Table Page” (page 26) in the web menu section.

Function buttons

Function buttons are pinned buttons and selection buttons to which a function has been assigned.

For details about assignment, see "Panel Table Page" (page 26) in the web menu section.

The following functions can be assigned.

Monitor function

This function can be assigned to any button, and a button assigned with the Monitor function becomes a MONI button. For details about the MONI button, see "Monitoring Destinations" (page 23).

Status function

This function can be assigned to a pinned button only, and a button assigned with the Status function becomes a STATUS button. The STATUS button flashes red when an error occurs. On the MKS-R1630, when this button is pressed, the display mode of the status display window is switched.

For details about display switching, see "Display transition" (page 12).

Protect function

This function can be assigned to any button, and a button assigned with the Protect function becomes a PROT button. For details about the PROT button, see "Preventing Source Switching for Destinations (Protect)" (page 23).

Lock (Chop) function

This function can be assigned to any button, and a button assigned with the Lock (Chop) function becomes a LOCK (CHOP) button.

For details about the LOCK (CHOP) button, see "Preventing Accidental Operation (Lock)" (page 23) and "Switching and Monitoring Two Sources (Chop)" (page 22).

Assign function

This function can be assigned to a pinned button only, and a button assigned with the Assign function becomes an ASSGN button.

For details about using the ASSGN button, see "Assigning a Source/Destination to a Selection Button (Assign)" (page 18).

Source, Destination/Level function

This function can be assigned to any button, and a button assigned with the Source, Destination/Level function becomes a SRC,DEST/LEVEL button.

For details about the SRC,DEST/LEVEL button, see "Switching Between Source Selection Mode and Destination Selection Mode" (page 17). For details about the Level function, see "Switching the source for each level" (page 20).

Entry function

This function can be assigned to any button, and a button assigned with the Entry function becomes an ENTRY button. For details about the ENTRY button, see "Switching between BPS (button per source) selection method and MD (multi destination) selection method" (page 17).

Page Up/Group Up function and Page Down/Group Down function

These functions can be assigned to any button. A button assigned with the Page Up/Group Up function becomes a PG UP/GP UP button. A button assigned with the Page Down/Group Down function becomes a PG DN/GP DN button.

For details about the PG UP/GP UP button and PG DN/GP DN button, see "Pages and Page Groups" (page 22).

Group Up function and Group Down function

These functions can be assigned to any button. A button assigned with the Group Up function becomes a GP UP

button. A button assigned with the Group Down function becomes a GP DN button.

For details about the GP UP button and GP DN button, see "Pages and Page Groups" (page 22).

Group Jump function

This function can be assigned to any button, and a button assigned with the Group Jump function becomes a GP JUMP button.

For details about the GP JUMP button, see "Pages and Page Groups" (page 22).

Take function

This function can be assigned to any button, and a button assigned with the Take function becomes a TAKE button.

For details about the TAKE button, see "Take Mode" (page 21).

Level function

This function can be assigned to a pinned button only, and a button assigned with the Level function becomes a LEVEL button. When a LEVEL button is pressed, the specified level becomes active. It is lit green when all specified levels are active.

For details about the LEVEL button, see "Level Control" (page 24).

Shift function

This function can be assigned to any button, and a button assigned with the shift function becomes a SHIFT button. Used for level selection using the SRC,DEST/LEVEL button and when switching groups using the PG UP/GP UP and PG DN/GP DN buttons.

Switching Between Source Selection Mode and Destination Selection Mode

You can switch between source selection mode and destination selection mode by pressing the SRC,DEST/LEVEL button.

Destination selection mode

1 Press the SRC,DEST/LEVEL button to make the SRC,DEST/LEVEL button light up bright amber.

The names of destinations are displayed in the display window on selection buttons assigned with a source/destination or a destination only. The names of sources are displayed in the display window on selection buttons assigned with a source only.

Source selection mode

1 Press the SRC, DEST/LEVEL button to make the SRC, DEST/LEVEL button light up bright green.

The names of sources are displayed in the display window on selection buttons assigned with a source/destination or a source only. The display configured on the [Display Settings] page of the web menu is displayed on selection buttons assigned with a destination only.

Switching between BPS (button per source) selection method and MD (multi destination) selection method

Crosspoints can be switched using the BPS selection method or MD selection method. For details about switching the selection method, see "Enable Mode" (page 29) in

"Operation Settings Page" in the web menu section. You can select BPS Only, MD Only, or BPS/MD.

When BPS/MD is selected, you can switch the selection method by pressing the ENTRY button. When BPS Only is selected, you can switch to MD Only, and vice versa.

To set BPS and MD for each page group, configure settings as described in "Page Group Settings Page" (page 31) in the web menu section.

Switching the control destination

The control destination can be switched at startup, when switching pages, when switching page groups, when a selection button assigned with a destination is pressed, or when a selection is made using the selector knob.

At startup or when switching pages

Configure settings as described in "Default Controls Page" (page 28) in the web menu section.

When switching page groups

Configure settings as described in "Page Group Settings Page" (page 31) in the web menu section.

Switching using selection buttons

In the BPS (button per source) selection method in destination selection mode, or in the MD (multi destination) selection method in source selection mode, press a selection button assigned with a destination to make that destination the control destination.

In the BPS (button per source) selection method in source selection mode, press a selection button assigned with a destination only to make that destination the control destination.

Switching using the selector knob

1. Activate destination selection mode as described in "Switching Between Source Selection Mode and Destination Selection Mode" (page 17). 2. Turn the selector knob to select a destination.

The preset display window is highlighted ([Preset] in the status display window on the MKS-R1630). Turn the knob until the destination you want to select is displayed in the preset display window.

3. Press the selector knob.

The selected destination becomes the control destination, and source selection mode is activated.

Switching Crosspoints

The source names and destination names for the selection buttons on the front panel are configured using the web menu. Using these buttons, you can select a source and destination for switching a crosspoint. You can also select and switch a crosspoint using the selector knob.

Changing the selection method

You can change the selection method as described in "Switching between BPS (button per source) selection method and MD (multi destination) selection method" (page 17).

BPS (Button Per Source) selection method

In the BPS selection method, you press destination and source selection buttons on which the corresponding signals have been assigned to switch the crosspoint.

On the MKS-R1630, the status display window is in BPS mode.

1. Set the control destination as a destination for switching a crosspoint as described in "Switching the control destination" (page 17). 2. Set source selection mode as described in "Switching Between Source Selection Mode and Destination Selection Mode" (page 17). 3. Select a source.

To select using a selection button, press a selection button assigned with the source to be switched to switch the crosspoint.

To select using the selector knob, turn the selector knob so that the preset display window is highlighted ([Preset] in the status display window on the MKS-R1630). Select the source to switch in the preset display window, press the selector knob to switch the crosspoint to the selected source.

Status display of selection buttons

The control destination and the source corresponding to the control destination are lit brightly, while the other selection buttons are lit dimly. For details about setting the display color, see "Display Settings Page" (page 29) in the web menu section.

MD (Multi Destination) selection method

In the MD selection method, a source and destination are assigned to one selection button. You can switch a crosspoint by pressing the selection button.

On the MKS-R1630, the status display window is in MD mode.

Note

In the MD selection method, both a source and destination must be assigned to a selection button. If a selection button is assigned with only a source or destination, the button operates as in the BPS selection method.

Switching directly (immediate switching mode)

1 Press a selection button.

The crosspoint set on the pressed button is switched.

Switching using the selector knob

1 Turn the selector knob to display the source to be switched in the preset display window ([Preset] in the status display window on the MKS-R1630). 2 Press the selector knob.

The crosspoint of the displayed source and destination is switched.

Status display of selection buttons

The destination and source assigned to selection buttons are lit brightly when connected, and lit dimly when not connected. For details about setting the display color, see "Display Settings Page" (page 29) in the web menu section.

Assigning a Source/Destination to a Selection Button (Assign)

You can assign sources and destinations to selection buttons on the [Panel Table] page of the web menu. You can also assign sources and destinations from the panel of the unit. The permissions for assigning sources and destinations from the panel are configured on the [Operation Settings] page of the web menu.

Notes

• You cannot assign to a selection button to which a function has been configured. To make an assignment, cancel the function assignment and then assign a source or destination.
• The ASSGN button and SRC, DEST/LEVEL button must be assigned beforehand using the web menu.

The following numbers are assigned to the selection buttons in the web menu.

Assigning a source to a selection button

1. Set source selection mode as described in "Switching Between Source Selection Mode and Destination Selection Mode" (page 17). 2. Turn the selector knob to display the source name to be set in the preset display window ([Preset] in the status display window on the MKS-R1630). 3. Press and hold the ASSGN button, and press the selection button of the source you want to set.

The ASSGN button is lit bright green while it is pressed. The assigned source name appears on the selection button.

When the ASSGN button is released, it returns to being lit dim green, and the preset display window returns to its state preceding step 2.

Note

When the same source as the source assigned to a selection button is assigned, the source assignment of the selection button is cleared.

Assigning a destination to a selection button

1. Set destination selection mode as described in "Switching Between Source Selection Mode and Destination Selection Mode" (page 17). 2. Turn the selector knob to display the destination name to be set in the preset display window ([Preset] in the status display window on the MKS-R1630). 3. Press and hold the ASSGN button, and press the selection button of the destination you want to set.

The ASSGN button is lit bright green while it is pressed. The assigned destination name appears on the selection button.

When the ASSGN button is released, it returns to being lit dim green, and the preset display window returns to its state preceding step 2.

Note

When the same destination as the destination assigned to a selection button is assigned, the destination assignment of the selection button is cleared.

To set a selection button to "No Assign"

When a selection button is set to "No Assignment," the source or destination assignment is cleared.

Notes

• [Enable No Assignment] must be executed on the [Operation Settings] page of the web menu. When executed, all source, destination, and function assignments are cleared.
• The assignment of function buttons cannot be set to "No Assign."

1 Press the ASSGN button. 2 Press and hold the ASSGN button, and press the selection button you want to set to "No Assign" for 3 seconds.

The assignment is cleared, and the selection button lamp turns off.

The ASSGN button is lit bright green while it is pressed.

When the ASSGN button is released, it returns to being lit dim green.

Switching a Different Source for Each Level (Breakaway)

When switching sources, a different source can be switched for each level. This is called the breakaway function.

When the break-away function is used, the display of the source/destination selection buttons and level selection buttons is different from the basic operation. When IN001 to IN016 are assigned to selection buttons 1 to 16 in the BPS selection method, the display changes as follows.

When the breakaway function is not used

The following is displayed when a single source is selected for all levels.

Level Source Destination

LEVEL 1 IN 11 OUT 3

LEVEL 2 IN 11 OUT 3

LEVEL 3 IN 11 OUT 3

Source, destination, and level display

When the breakaway function is used

The following is displayed when different sources are selected for each level.

Level Source Destination

LEVEL 1 IN 11 OUT 3

LEVEL 2 IN 14 OUT 3

LEVEL 3 IN 16 OUT 3

Breakaway function display (single-level mode)

Display when level 1 is selected

Change the level to Level 3.

Source of the selected level: IN16 (bright green)

Note

Buttons may light up in another color, depending on the [Breakaway Display Mode] and [Breakaway Color] settings in the web menu.

Selection button display when the breakaway function is used (BPS selection method)

When a single level is selected, the breakaway function is not used, and the sources with the selected level light up brightly in the color configured using [Display Settings] > [Color Settings] in the web menu. When LEVEL1 is selected, the IN11 display is lit brightly. When LEVEL3 is selected, IN16 is lit brightly.

When multiple levels are selected, the display changes according to the [Display Settings] > [Breakaway] setting in the web menu.

When LEVEL1, LEVEL2, and LEVEL3 are selected and [Breakaway] is set to [Top Level], the LEVEL1 (top level among the selected levels) source IN11 display is lit brightly in the color specified using [Breakaway Color]. When set to [All Level], the LEVEL1 (top level among the selected levels) source IN11 display is lit brightly in the color specified using [Color Settings], and the other sources IN14 and IN16 are lit brightly in the color specified using [Breakaway Color].

Switching the source for each level

The SRC,DEST/LEVEL button and SHIFT must be assigned beforehand using the web menu.

1 Press the SHIFT button.

2 Press the SRC,DEST/LEVEL button to set level selection mode.

The SRC,DEST/LEVEL button lights up red.

MKS-R1620

MKS-R1630

On the MKS-R1620, levels are assigned to the eight selection buttons on the left. On the MKS-R1630, levels are assigned to the eight selection buttons along the top. Enabled level selection buttons are lit.

On the MKS-R1620, the five selection buttons on the right become the SRC, DEST/LEVEL, Def, Sys, UP, and DOWN buttons. On the MKS-R1630, the five selection buttons on the lower right become the

SRC, DEST/LEVEL, Def, Sys, UP, and DOWN buttons.

Def button: Enable the levels defined on the [Default Control] page in the web menu.

Sys button: Enable the levels that are enabled on the system controller.

UP/DOWN buttons: Display the previous/next level.

3 Press a selection button to select the level.

There are two selection methods: single mode and multi mode.

In single mode, only one level is selected. Press a selection button to enable that level. All other levels become disabled.

In multi mode, multiple levels can be selected. Press multiple selection buttons. The selected levels are all enabled. Pressing the selection button of an enabled level will disable that level.

You can change the selection method on the [Default Control] page in the web menu.

4 Press the SRC, DEST/LEVEL button to exit level selection mode.

5 Select a source.

6 Repeat from step 1 for other levels.

About levels

A routing switcher system switches multiple signals for one destination using the level function. Different kinds of signals, such as 4K video, HD video, audio, etc. are assigned to different levels, and the type of signal to switch is controlled using levels.

Switching Multiple Crosspoints Simultaneously (Salvo)

You can switch multiple crosspoints by pressing a single selection button configured beforehand in the web menu.

This is called the salvo function.

The unit supports local salvo and snapshot salvo.

Local salvo

This salvo is managed by the remote control panel. It supports crosspoint switching that is unrelated to the control destination and switching using a destination offset local salvo. Up to 512 crosspoints can be set for a button.

Snapshot salvo

This salvo is managed by a system controller. It is used to perform salvo switching common to two or more remote panels.

Destination offset local salvo

A destination offset local salvo switches a destination calculated by adding an offset value to the control destination. For example, if the control destination is 0015 and the offset value is 2, the crosspoint for destination 0017 is switched.

The following usage is supported by a destination offset local salvo.

Example 1

To assign a source (audio source 0007, for example) of a level to multiple sources of another level (video sources 0001 and 0005, for example)

Source for each level Destination offset salvo setting
Salvo ID	Level 1 Level 2 Salvo name	Offset Source Level
0001	0001 0007 IN001 0 0001	10000000
		0 0007 01000000
0005	0005 0007 IN005 0 0005	10000000
		0 0007 01000000

Example 2

To set a pair of crosspoints (multiple audio channels, video key signal, for example)

Destination offset salvo setting
Salvo name Offset Source Level
IN001 0	0001	10000000
	1	0002	10000000
IN003 0	0003	10000000
	1	0004	10000000

Executing a salvo

1. Set the control destination as the base destination as described in "Switching the control destination" (page 17).

This is not required if the salvo does not include a destination offset local salvo.

2. Assign a salvo to a source in the web menu as described in "Salvo Table Page" (page 27).

3. Assign the source from step 2 to a selection button. When you press the selection button assigned with the salvo function, all the crosspoints configured in the salvo are switched.

Take Mode

The method for issuing a Take to switch crosspoints can be set to "Immediate," "Preset," or "Preset2" on the Operation Setting page of the web menu. To set for each page group, configure settings as described in "Page Group Settings Page" (page 31) in the web menu section.

Immediate: Immediate Take mode

In BPS mode, the Take function is executed at the moment the source selection button is pressed. In MD selection mode, the Take function is executed at the moment when the button with the assigned source is pressed.

Preset: Preset Take mode

After a source selection button (BPS selection mode) or button with assigned source (MD selection mode) is pressed, the selected source is stored as the preset source and the button becomes a TAKE button after a few seconds. The Take function is executed when the TAKE button is pressed with the source stored as the preset source.

Preset 2: Preset 2 Take mode

In Preset 2 Take mode, the button does not become a TAKE button. All other actions are the same as for Preset Take mode.

• In Preset Take mode or Preset 2 Take mode, you can check which source is stored as the preset source in [Preset] in the status display window (MKS-R1630 only). In Preset Take mode or Preset 2 Take mode, the bottom of the display window of the source selection button set with the preset source is displayed highlighted.
• The TAKE button can be assigned to a button as described in "Panel Table Page" (page 26) in the web menu section.
• You can configure settings so that the same action will occur when the selector knob is pressed as when the TAKE button is pressed as described in "Operation Settings Page" (page 28) in the web menu section.

Note

[Preset] and [Preset2] are not supported on the MKS-R3210.

Pages and Page Groups

In the BPS selection method and MD selection method, you can assign multiple functions to selection buttons using the web menu. The unit controls crosspoint switching according to these settings. One set of settings is made per setting page using the web menu, and up to 64 sets (64 pages) of settings can be configured. A page name is assigned to each page. Pages can also be grouped, and a group name can be assigned to each group. Up to 64 groups can be configured. A single page can also be registered in multiple groups. The page to be displayed when the unit is turned on can be set using the web menu.

Switching a page or page group

To switch the page, press the PG UP/GP UP or PG DN/GP DN button.

To switch the page group, press the SHIFT button and then press the PG UP/GP UP or PG DN/GP DN button.

Switching the page group can also be performed by pressing the GP UP, GP DN, or GP JUMP button.

The button to use must be assigned beforehand using the web menu.

Note

On the MKS-R3210, functions cannot assigned to the PG UP/GP UP, PG DN/GP DN, GP UP, GP DN, and GP JUMP buttons.

Switching pages

To display the next page, press the PG UP/GP UP button. To display the previous page, press the PG DN/GP DN button.

The pressed button momentarily lights up bright green, and the page is switched.

Switching page groups

To display the next page group, press the GP UP button, or press the SHIFT button and then the PG UP/GP UP button. To display the previous page group, press the GP DN button, or press the SHIFT button and then the PG DN/GP DN button.

To display a specific page group, press the GP JUMP button configured for that page group.

Switching and Monitoring Two Sources (Chop)

Two sources can be switched alternately at a specified interval automatically. The chop function can also be used when using the salvo function. The source switching interval can be adjusted with the selector knob.

Switching sources

1 Set the control destination as a destination for switching a crosspoint as described in "Switching the control destination" (page 17). 2 Set source selection mode as described in "Switching Between Source Selection Mode and Destination Selection Mode" (page 17). 3 Press a selection button to select source 1. 4 Press and hold the LOCK (CHOP) button for three seconds or longer. The button lights up bright green. 5 Press a selection button to select source 2. Source 1 and 2 are switched alternately.

The method for selecting a destination or source varies depending on the selection method. If a selection button for which a salvo has been set is pressed, the salvo chop is executed.

Terminating chop

Press the LOCK (CHOP) button.

Adjusting the chop interval

Turn the selector knob. Turning it clockwise makes the interval longer, and counterclockwise makes it shorter.

Preventing Source Switching for Destinations (Protect)

When protection is set, switching of the source for the protected destination is disabled.

Setting protection

1. Select a destination to be protected. 2. Press the PROT button.

The PROT button lights up green, and protection mode is activated. Switching of the crosspoint for the destination specified in step 1 is disabled.

Releasing protection

Protection can be released only on the unit on which the protection was set. Normally, the protection on other units cannot be released.

1. Select a destination whose protection is to be released. 2. Press the PROT button.

The PROT button lamp turns off, and the protection is released.

Protection set on another remote control panel

If you select a destination for which protection has been set on another remote control panel, the pressed button and the PROT button light up red.

Note

When [Protect Mode] is set to [Occupy] in the web menu, switching is possible without releasing the protection, if protection is set, on the currently operating remote control panel (switching is not possible on other remote control panels when protected). Set [Protect Mode] to [Protect] for normal operation.

PROT button (lit red) Destination selection buttons

Preventing Accidental Operation (Lock)

When the panel is locked, accidental switching of crosspoints is avoided.

When the MKS-R3210/R1620 is locked, "Lock" and the IP addresses of LAN1 and LAN2 appear in sequence in the preset display window.

On the MKS-R1630, the (lock icon) appears in the status display window. Press the STATS, DISP button to display the network settings and version information in sequence.

Locking the panel

1 Press the LOCK (CHOP) button.

The LOCK (CHOP) button lights up red (lock mode). All buttons other than the LOCK (CHOP) button are disabled.

Releasing the lock

1 Press the LOCK (CHOP) button.

The LOCK (CHOP) button lamp turns off, and lock mode is released.

Monitoring Destinations

When you specify a destination to be monitored using IP Live System Manager or the web menu, the control destination automatically selects the same source as the destination you wish to monitor when the MONI button is pressed.

1 Set the destination you want to monitor in [Destination Monitoring] in IP Live System Manager. 2 Set the MONI button configured for the destination you want to monitor in the web menu. 3 Press the MONI button.

The source for the pressed control destination is linked to the source of the destination you want to monitor.

Level Control

You can assign levels to selection buttons, and use them as LEVEL selection buttons.

MKS-R3210

MKS-R1620

This function displays the source name of a source by virtually connecting (trunk) crosspoint matrix spaces and tracing the crosspoint status.

• The settings are configured using [Retrace Settings] in the web menu.
• Up to 512 retrace trunks can be configured.
• A retrace can comprise up to five steps.
• When [Display Mode] is set to [Prompt], the retrace function is not available.
• You can check the retrace status by selecting [Available Src/Dest] > [Destination] in the web menu.

Linkage Function

This function links multiple remote control panels so that they operate as a single control panel.

You can combine remote control panels in a group and link them by setting one panel as the parent panel and the others as child panels.

• On devices that operate together as parent/child, the control destination, control panel, lock state, and preset sources are shared.
• The settings are configured using [Linkage Settings] in the web menu.
• Up to 10 child devices can be configured for a single parent device.
• The operation of a mixture of MKS-R3210/R1620/R1630/R4020 devices can be linked.

Configuring a child device

1 On the device to set as a child, select the [Child] radio button under [Linkage Settings] in the web menu, and set the IP address of the parent. In systems with network redundancy, set Parent IP Address 1 and 2. On systems without network redundancy, set Parent IP Address 1.

When a child of the parent is authorized, a green ○ mark and "Authorized" are displayed. If not authorized, a gray ○ mark and "Not authorized" are displayed.

If information sharing with the parent is enabled, a green ○ mark and "Shared" are displayed. If information sharing is disabled, a gray ○ mark and "Not shared" are displayed.

Configuring a parent device

1 On the device to set as a parent, select the [Parent] radio button under [Linkage Settings] in the web menu. 2 Information for devices configured as child devices (Name, IP Address1, IP Address2, Authorization, Share, User, Model, Description) is displayed in the list under [Linkage Settings] in the web menu. Check the displayed contents, select the child devices and click the [Authorized] button to authorize the device.

Note

Control of child devices from a parent device is always supported, regardless of the authorization setting, but control from a child device that is not authorized is not supported.

3 Set [Salvo Table], [Available Src/Dest], [Control Area], and [Default Controls] > [Level Settings] (excluding [Level Mode]) on the parent device in the web menu. Copy the settings to the child devices using the [Copy Config] button under [Linkage Settings] in the web menu. 4 To link pages between parent and child, set [Default Controls] > [Startup Page] and [Destination Settings], [Operation Settings] > [BPS/MD Take Mode], [Preset Mode], [Panel Layout], [Enable Src/Dest Page Interlock], and [Page Group Settings] on the parent device in the web menu, and set [Linkage Settings] > [Copy Cfg+Page] button on the child device, and enable [Enable Page Link].

Notes

• If there is a mismatch in the above settings on parent and child devices, the intended operations may not be possible.
• If an MKS-R3210 is a parent device, the page link cannot be enabled. If an MKS-R3210 is a child device, the page link function can be enabled but the MKS-R3210 cannot be linked.

Web Menu

Various settings of the unit are configured using the web menu.

Displaying the Web Menu

Enter the IP address of the unit in a web browser on a computer to display the web menu.

https://(IP address of unit)/

The default user name and password are given below.

- User name: admin

- Password: MKSRadmin1 (default password)

You can change the password on the [System] page in the web menu.

The recommended web browser is Google Chrome (for Windows).

When logging in for the first time, the password setup dialog appears. Set a password.

You can check the default IP address by simultaneously pressing buttons 1 and 2, then turning the power on.

The used IP address is displayed in the preset display window on the MKS-R3210/R1620 by pressing the LOCK (CHOP) button to lock the device. It is displayed in the status display window on the MKS-R1630 by pressing the LOCK (CHOP) button to lock the device and pressing the STATS, DISP button multiple times.

If a security warning is displayed

When displaying the web menu of the MKS-

R3210/R1620/R1630, the following security warning may appear.

If the IP address of the MKS-R3210/R1620/R1630 is 192.168.0.100

1 Click [Advanced].

The following screen appears.

2 Click [Proceed to 192.168.0.100 (unsafe)], and enter your user name and password.

The web menu appears.

Note

This security warning appears if there is a potential security risk, such as, depending on the operating environment, unauthorized third parties on the network may be able to access the unit.

For example, unauthorized access to the unit is possible in a network environment where network devices can connect to the network without the permission of the administrator, or in an environment where network devices, such as a computer, connected to the network can be used without permission.

When connecting the unit to the network, be sure to confirm that the network is protected securely.

Screen Configuration

The following buttons are displayed at the top of the web menu screen.

Menu: Displays a list of menu categories.

Info: Displays the system version.

Error: Displays the details for an error when an error occurs.

Search: Searches the list of configuration items and displays the corresponding configuration page.

Reboot: Reboots the unit. Not displayed by default. To display the button, click the [Tools] button and select [Enable power button].

Tools: Contains the following items.

- Refresh: Updates the web menu display with the latest status information.

- Enable power button: Displays the [Reboot] button in the web menu, used for rebooting the unit.

- Download logs: Downloads the logs from the unit.

Note

If you enter the following address in a web browser, maintenance mode enable/disable menu items are added to the Tools menu. https://(IP address of unit)/ns-panel/?maintenance=show

- Enable maintenance mode: Enables maintenance mode for accessing the status of the unit.

- Disable maintenance mode: Switches the unit from maintenance mode back to normal operation mode.

Help: Contains the following items.

- Update system: Uploads an updater and updates the system.

• User Manual: Displays the Operating Instructions (PDF).
• About Web Menu: Displays information relating to the web menu.

Note

When communication between the browser and remote control panel is disconnected, an error dialog appears. Also, communication between the browser and remote control panel is disconnected when is displayed at the top right of the web menu screen. Reconnect from the browser.

Panel Table Page

Use to assign functions to pinned buttons and to assign connectors or functions to selection buttons.

Setting pinned buttons

1 Select the [Pinned Button] radio button. 2 Click the pinned button you want to set in the panel diagram. Alternatively, double-click a row in the list, or select the row and click the [Edit] button.

3 Select the function to assign to the button in the dialog.

No Assign: Select to assign no function to the pinned button.

Monitor: Set the Monitor function. Also, set the destination number to monitor.

Status: Set the Status function.

Protect: Set the Protect function.

Lock (Chop): Set the Lock (Chop) function.

Assign: Set the Assign function.

Source, Destination/Level: Set the Source, Destination/Level function.

Entry: Set the Entry function.

Take: Set the Take function (MKS-R1620/R1630 only).

Shift: Set the Shift function (MKS-R1620/R1630 only).

Page Up/Group Up: Set the Page Up/Group Up function (MKS-R1620/R1630 only).

Page Down/Group Down: Set the Page Down/Group Down function (MKS-R1620/R1630 only).

Group Up: Set the Group Up function (MKS-R1620/R1630 only).

Group Down: Set the Group Down function (MKS-R1620/R1630 only).

Group Jump: Set the Group Jump function (MKS-R1620/R1630 only). Also, set the page group number to display and the name to display on a button when the button is pressed.

For details about Page Up/Group Up and Page Down/Group Down, see “Pages and Page Groups” (page 22).

4 Click the [Apply] button.

5 Repeat steps 2 to 4 until finished the configuration.

6 Click the [Save] button.

Setting selection buttons

1 Select the [Select Button] radio button.

2 On the MKS-R1620/R1630, select the page number you want to set, and specify a page name as required.

3 Click the selection button you want to set in the panel diagram. Alternatively, double-click a row in the list or select the row and click the [Edit] button.

4 Set the function to assign to the button in the dialog. No Assign: Select to assign no function to the button.

Xpt: Set the source number to assign to a source and the destination number to assign to a destination. You can set either or both. When [Color Settings] is set to [Button] on the "Display Settings Page" (page 29), you can set separate colors for sources and destinations.

Level: Set the Level function. Also, set the level to enable and the name to display on a button when the button is pressed.

Monitor: Set the Monitor function. Also, set the destination number to monitor.

Protect: Set the Protect function.

Lock (Chop): Set the Lock (Chop) function.

Source, Destination/Level: Set the Source, Destination/Level function.

Entry: Set the Entry function.

Take: Set the Take function (MKS-R1620/R1630 only).

Shift: Set the Shift function (MKS-R1620/R1630 only).

Page Up/Group Up: Set the Page Up/Group Up function (MKS-R1620/R1630 only).

Page Down/Group Down: Set the Page Down/Group Down function (MKS-R1620/R1630 only).

Group Up: Set the Group Up function (MKS-R1620/R1630 only).

Group Down: Set the Group Down function (MKS-R1620/R1630 only).

Group Jump: Set the Group Jump function (MKS-R1620/R1630 only). Also, set the page group number to display and the name to display on a button when the button is pressed.

5 Click the [Apply] button.

6 Repeat steps 3 to 5 until finished the configuration.

7 Click the [Save] button.

Source Reentry Lists Page

Use to associate the monitor target destination of the destination monitor function with a source in the reentry table. Configuring a reentry table allows you to execute the destination monitor function when a source selection button is pressed. You can specify up to 128 reentry tables.

Note

This setting is not required when [Destination Monitoring] is configured in IP Live System Manager v2.3.0 and later.

1 Double-click an ID to set, or select the ID and click the [Edit] button.

2 Enter a source number and destination number in the dialog.

Source Port Number: Enter a source number to associate with the monitor target destination.

Monitor Target Number: Enter the number of the monitor target destination of the destination monitor function.

3 Click the [Apply] button.

Salvo Table Page

Use to configure a salvo for switching multiple crosspoints at the same time.

A salvo can be a snapshot salvo in which switching crosspoint settings are registered in a system controller, or a local salvo where settings are registered in each remote control panel.

[◆] is displayed in list view for each snapshot salvo.

Setting a snapshot salvo

1 Double-click an ID to set in [Salvo Table], or select the ID and click the [Edit] button. 2 Set [Mode] to [Snapshot] in the dialog. 3 Enter [Snapshot ID] and [Assigned Source] settings. 4 Click the [Apply] button.

Setting a local salvo

1 Double-click an ID to set in [Salvo Table], or select the ID and click the [Edit] button. 2 Set [Mode] to [Local] in the dialog. 3 Enter [Name] and [Assigned Source] settings. 4 Click the [Apply] button.

Add the crosspoints to be switched to a local salvo.

1 Click the [+] button in [Xpt Table]. 2 To directly specify a destination to switch, select [Destination] in the [Mode] dialog and set a destination. To specify the destination to switch using a control destination offset, select [Offset] and specify an offset value. 3 Set the source to switch. 4 Set the level for issuing the switch command. 5 Set [Delay Cnt].

[Delay Cnt] is the execution delay time in 10 msec units. When a value of 1 or higher is set, the specified crosspoint switch command is issued after the specified time has elapsed when a button is pressed.

6 Click the [Apply] button.

Available Src/Dest Page

Use to set the range of sources/destinations available for selection on the unit.

Adding a selectable source/destination

1 Click the [+] button for [Available Source] or [Available Destination]. 2 Specify the range of sources or destinations to enable in the dialog. To specify a single source/destination, enter a value in either [From] or [To].

3 Click the [Apply] button.

The specified source/destination is added to the list in [Available Source] or [Available Destination].

The sources/destinations displayed in these lists are available for selection from the unit.

4 Repeat steps 1 to 3 until finished the configuration.

5 Click the [Save] button.

Deleting a source/destination

1 Select a row to delete in [Available Source] or [Available Destination]. 2 Click the [-] button. 3 Repeat steps 1 and 2 until finished deleting. 4 Click the [Save] button.

Use to set the range of sources available for selection for the specified destination.

Example settings

No. Source range Destination range
1 0001 to 3	000 0001 to 3000
2 5001 to 8	000 0001 to 3000
3 5001 to 8	000 5001 to 8000

The selectable range for the above settings is shown below.

When a destination outside the range limit is selected, sources 1 to 9999 are available for selection. In this example, sources 0001 to 9999 are available for selection for destination 3001.

The sources in the range containing the selected destination are all enabled. In this example, sources 0001 to 3000 and 5001 to 8000 are available for selection for destination 0001.

Adding a range

1 Click the [+] button. 2 Enter a source range and destination range in the dialog. 3 Click the [Apply] button.

The specified settings are displayed in the list. Selecting a row in the list displays a blue rectangle covering the range available for selection.

Alias Name Lists Page

Displays alias names sent from the system controller. Select [Source] or [Destination] to display the list of alias names for sources or destinations, respectively.

Default Controls Page

Use to set the operation levels and default destination of the unit.

Default Page

Startup Page

(Not available on the MKS-R3210)

Set the page to display after power is turned on.

Note

Set the pages to include in the page group to use on the "Page Group Settings Page" (page 31).

Destination Settings

Control Destination

Set the destination that is selected when power is turned on.

Enable set control destination by page

(Not available on the MKS-R3210)

If you configure a destination for each page and then switch pages, this enables the function to change the control destination to the configured destination for that page.

Level Settings

Level Mode

(Not available on the MKS-R3210)

Select level selection mode.

Single: Only one level can be selected. When a selection button is pressed, only that level is enabled, and other selected levels are de-selected.

Multi: Multiple levels can be selected. The levels for a pressed selection button are all selected. When a selected button is pressed, the levels of that button are de-selected.

Use Level Type

Select the levels to use in the unit.

System: Use the levels specified by the system controller.

Local: Place a check mark in levels to set the levels used by [Control Level].

Operation Settings Page

Use to configure settings relating to the operation of the remote control panel.

Mode Settings

Protect Mode

Set the operation mode when protection is applied. The PROT lamp action is the same when either mode is selected.

Protect: Crosspoint switching is disabled when protection is applied.

Occupy: Crosspoint switching of protected remote control panels only is enabled when protection is applied.

Salvo Protect

This selects the process if salvo switching is executed while destinations are protected.

Partial Protect: Switch only unprotected destinations.

Full Protect: Do not perform salvo switching if any one of the destinations is protected. Select this mode if a problem would occur if any one location does not switch.

Button Link: Do not perform salvo switching if the PROT lamp on the panel is lit.

Note

When [Protect Mode] is set to [Occupy] in the web menu to enable local protection, salvo switching is not restricted by the [Salvo Protect] setting.

BPS/MD Take Mode

(Not available on the MKS-R3210)

Select the Take operation for the BPS selection method and MD selection method.

Immediate: Immediate Take mode

Preset: Preset Take mode

Preset 2: Preset 2 Take mode

For details about each mode, see "Take Mode" (page 21).

Preset Mode

(Not available on the MKS-R3210)

Set the items displayed in [Preset] in the status display window.

The content displayed in [Preset] in the status display window is also executed when the crosspoint switching operation is executed (Take operation) using normal button operation.

The following items set what is displayed in [Preset] in the status display window after the Take operation.

Status: Displays the last executed source.

Previous: Displays the source that was selected by the control destination immediately before execution.

Enable Chop

Enable the chop function.

Enable Source Assignment

Press the [Assign] button, and enable assignment of sources to selection buttons on the panel.

Enable Destination Assignment

Press the [Assign] button, and enable assignment of destinations to selection buttons on the panel.

Enable No Assignment

Clear the assignment of all sources and destinations on the selection buttons on the panel using the [Assign] button.

Enable Src/Dest Page Interlock

When enabled, the selection button display page is common to both source selection mode and destination selection mode. When disabled, the display pages are separate in source selection mode and destination selection mode.

Skip Empty Page When Page Up/Down

This setting is enabled when [Enable Src/Dest Page Interlock] is disabled.

When switching pages, skip a page in source selection mode if it has no button assigned with a source, and skip a page in destination selection mode if it has no button assigned with a destination.

Panel Layout

Enable Mode

Select the source/destination selection method.

BPS Only: Use the BPS (Button Per Source) selection method only.

MD Only: Use the MD (Multi Destination) selection method only.

BPS/MD: Use both the BPS selection method and MD selection method.

Default Panel Layout

Select the selection method to use after power is turned on when [Enable Mode] is set to [BPS/MD].

BPS: Use the BPS selection method.

MD: Use the MD selection method.

Button Operations

Enable Circular (Start ⇄ End) Page Select

(Not available on the MKS-R3210)

Enable looping between the start page and end page when switching pages using the Page Up button or Page Down button, and between top level and bottom level when switching levels using the Up/Down buttons in level selection mode.

Enable Circular (Start ⇔ End) Page Group Select (Not available on the MKS-R3210)

Enable looping between the start page group and end page group when switching page groups using the Page Group Up button or Page Group Down button.

Enable Rotary Push Switch

Enable the push button operation of the selector knob.

Normally, the TAKE function is assigned. However, you can disable the selector knob so that touching the selector knob accidentally does not trigger crosspoint switching.

Enable Circular (Start ⇔ End) Src/Dest Port Select

Enable looping between the start selection option and end selection option when selecting a source/destination using the selector knob.

Display Settings Page

Use to configure settings relating to the display of the remote control panel.

Display Settings

Display Mode

Select the operation mode of the selection buttons when they are lit.

Status: Status display mode. Turn on the button for the currently selected source based on the latest crosspoint information. This mode is useful for reflecting the latest status in the button lamps when switching from another panel.

Prompt: Immediate lighting mode. Pressed buttons light up immediately independently of the crosspoint information.

Prompt and Status: Pressed buttons light up immediately independently of the crosspoint information. Five seconds after the last button operation, the button for the currently selected source lights up based on the latest crosspoint information.

Color Settings

Set the color of selection buttons.

Button: Use the colors specified for the remote control panel. For details about the color setting, see "Panel Table Page" (page 26) in the web menu section.

System: Use the colors specified by the system controller.

Local: Use the standard colors of the remote control panel (source: green, destination: amber).

Sub LCD Color

When [Color Settings] is set to [System] or [Button], this sets the color of the display window of the MKS-R1620.

Fixed: Use green for sources, and amber for destinations.

Coupled: Use the same colors as the source/destination selection buttons.

Font Size

Not used.

Short Format

Use to set the method for omitting characters when the name of a button is truncated.

From First: Truncate trailing characters that cannot be displayed, displaying the start of the character string.

First+Last: Truncate mid characters, displaying the start and end of the character string.

New Line

(Not available on the MKS-R3210)

Sets the position of a line break in the connector name displayed on operation buttons.

Disable: Line break is not used.

Enable: Add line break at the position where a "I" (vertical bar) character is entered.

Brightness Level

Set the brightness of the operation buttons and display windows using 5 gradations: 1 (dark) to 5 (bright). Select the brightness according to the operating environment.

Brightness Level (Status Display)

(Enabled only on MKS-R1630)

Set the brightness of the status display windows using 5 gradations: 1 (dark) to 5 (bright). Select the brightness according to the operating environment.

Destination Key Display Mode

(Not available on the MKS-R3210)

Changes the display of operation buttons for which only a destination is configured.

Destination Name: Display the destination name, regardless of the source/destination selection mode state.

XPT Source Name: Display the crosspoint status (source name) in source selection mode, and displays the destination name in destination selection mode.

- “...” is displayed when a crosspoint is not connected.

- Displays the topmost level in level breakaway state.

- Displays the source with the lowest number if multiple sources exist.

Both (2-Line Display): In source selection mode, display the source name/destination name on two lines. In destination selection mode, display the destination name. The source/destination display position is determined by the [Dest Position (Status & Dest Key)] setting. The inverted display position is determined by the [Invert Display Position] setting.

Invert Display Position (Dest Key)

(Not available on the MKS-R3210)

When [Both (2-Line Display)] is selected in [Destination Key Display Mode] to display the source name and destination name on two lines in the MKS-R1620 display window or MKS-R1630 selection button, this sets which line is displayed inverted.

Top: Invert the top line.

Bottom: Invert the bottom line.

Dest Position (Status & Dest Key)

(Not available on the MKS-R3210)

When [Both (2-Line Display)] is selected in [Destination Key Display Mode] to display the source name and destination name on two lines in the MKS-R1620 display window or

MKS-R1630 selection button, this sets which line displays the destination.

Also, when displaying the source name and destination name on two lines in the MKS-R1630 status display window, this sets which line displays the destination.

Top: Display the destination on the top line.

Bottom: Display the destination on the bottom line.

Breakaway

Breakaway Display Mode

Top Level: Display the crosspoints of the top level only.

All Level: Display the crosspoints of all levels.

Breakaway Color

Set the color of buttons when a different source is selected for each level (or color displayed in button block on the MKS-1620).

Same as Color Settings: Display the color configured using [Color Settings] in [Display Settings].

1: Displays white.

2: Displays amber.

3: Displays yellow.

4: Displays green.

5: Displays purple.

6: Displays light blue.

7: Displays dark blue.

8: Displays pink.

Alias Priority

Main LCD

Display Priority #1 to #5

(Enabled only on MKS-R1630)

Set whether the base name or alias name has priority for display as the connector name in the status display window.

The status display window has several display modes, and up to five connector names can be displayed in each display mode.

BASE: Display the base name.

1 to 8: Display the Alias1 to Alias8 name.

Sub LCD

Display Priority

Select the base name or alias name for the connector names to display in the display window and preset display window.

BASE: Display the base name.

1 to 8: Display the Alias1 to Alias8 name.

2-Line Display

Display Priority

(Not available on the MKS-R3210)

Select the base name or alias name for the connector names to display on the selection button for 2-line display.

BASE: Display the base name.

1 to 8: Display the Alias1 to Alias8 name.

Retrace Settings Page

Use to configure the function for tracing the crosspoint status display and to display the source names of sources.

1 Enter data in the [Retrace Settings] table.

2 Press the [+] icon in [Retrace Settings] to open the [Retrace] dialog. 3 Enter the destination and source combination and levels to trace. 4 Press [Apply] to save the settings. To cancel the registration, press [Cancel].

Linkage Settings Page

Use to configure the panel link function to link multiple remote control panels.

You can combine remote control panels in a group and link them by setting one panel as the parent panel and the others as child panels.

Stand Alone

Select to use a remote control panel in standalone mode.

Child

Select to use a remote control panel as a child panel using the panel link function.

Authorized: Displays the authorization state from the parent. "O" is displayed in green when authorized ("Not authorized" is displayed when not authorized).

Shared: Displays the status of data sharing with the parent. Displayed in green when data is shared successfully (“Not shared” is displayed when data is not shared).

• Parent IP Address 1: Set the IP address of the LAN1 side on the parent device. "O" is displayed in green on the right when communication is established with the parent on LAN1.
• Parent IP Address 2: Set the IP address of the LAN2 side on the parent device. "O" is displayed in green on the right when communication is established with the parent on LAN2.

Note

Parent IP Address 1 and 2 are settings for a redundancy configuration. Specify different IP addresses for the same parent device.

Parent

Select the remote control panel to use as the parent when using the panel link function. The name, IP address, and other information of the remote control panels that can be configured as the parent device are displayed in a list.

Enable Page Link

Enable page link to always show the same page between parent and child.

Copy Config button

Copy the settings required by the panel link function to a child selected in the list.

The Salvo Table, Available Src/Dest, and Control Area items are copied. Copy these settings to each child device after configuring them on the parent device.

Copy Cfg+Page button

Copy the settings required for page link by the panel link function to a child device selected in the list. The items that are copied comprise [Default Controls], [Operation Settings] > [BPS/MD Take Mode], [Preset Mode], [Panel Layout], [Enable Src/Dest Page Interlock], and [Page Group Settings] in the web menu. Copy these settings to each child device after configuring them on the parent device.

Verify Config button

Verify that the settings required by the panel link function were copied to a child device selected in the list. The results are displayed in [Config] and [Page].

Authorized button

Authorize the device selected in the list as a child device. Authorize a child device to enable the panel link function.

Note

Control of child devices from a parent device is always supported, regardless of the authorization setting, but control from a child device that is not authorized is not supported.

Deauthorized button

Deauthorize the child device selected in the list.

Page Group Settings Page

(Not available on the MKS-R3210)

Use to register consecutive pages on the [Panel Table] page as a page group.

Setting a page group

1 Double-click a group number to set. Alternatively, select the row and click the [Edit] button. 2 Specify the group name in the dialog. Place a check mark in [Enable Group] for the page group to use. 3 Specify the pages to include in the page group in [Use Pages]. 4 Specify the first page within the page group to display after switching to the page group in [Top Page]. To display the same page when returning to a page group as the page displayed when leaving the page group, set [First Page] to [HOLD]. 5 Specify the destination to use in the page group to set in [Control Dest]. To switch the control destination to a specified destination after switching to the page group, enable [Set control destination by group]. To switch the source of the specified destination to the same source when returning to a page group as the source connected when leaving the page group, enable [Back XPT of control destination by group]. 6 To execute [Salvo] automatically when switching to the page group to set, enable [Execute Salvo] and set the salvo ID you want to execute. 7 Specify the Take mode in the page group to set. [Local] uses the [Operation Settings] settings. Otherwise, the specified mode is used. For details, see "Take Mode" (page 21). 8 Specify [BPS/MD] in the page group to set. [Local] uses the [Operation Settings] settings. Otherwise, the specified mode is used.

For details, see "Switching between BPS (button per source) selection method and MD (multi destination) selection method" (page 17).

9 To change the initial value of LEVEL after switching to the page group to set, enable [Set group level to current level] and specify [Level].

10 Specify the color of the GP JUMP button in [Button Color], and specify the lighting method of the GP JUMP button in [Button Tally].

STATUS: Lit brightly while switching to the specified page group, and lit dimly when not switching.

HIGH: Always lit brightly.

LOW: Always lit dimly.

Note

A GP JUMP button configured for a page group for which [Enable Group] is disabled is not lit, regardless of the settings.

11 Click the [Apply] button.

Network Settings Page

Use to configure settings related to the network.

LAN Settings

Enable Redundancy

Select to enable redundancy using LAN1 and LAN2.

If a redundancy configuration is not used, use the LAN1 port.

Automatic IP address assignment (DHCP) - Using both LAN1 and LAN2

Automatically obtain IP addresses of the remote control panel, system controller, and NTP server.

When a check mark is placed in [Enable Redundancy], redundancy dual LAN connection is used.

Manual IP address assignment (Static IP) - Using both LAN1 and LAN2

Set the IP address manually.

When a check mark is placed in [Enable Redundancy], set [LAN1] and [LAN2]. The connection becomes a redundancy dual LAN connection.

When there is no check mark, set [LAN1]. The connection becomes a single system connection.

Manual IP address assignment (Static IP) - Using only LAN1

Set the IP address manually.

When a check mark is placed in [Enable Redundancy], set [LAN1] and the IP address of the redundancy connection destination. The connection becomes a redundancy single LAN connection.

When there is no check mark, set [LAN1]. The connection becomes a single system connection.

LAN1, LAN2, LAN1 (Secondary)

Configure network settings for LAN1, LAN2, and LAN1 (Secondary).

When check marks are placed in [Enable Redundancy] and [Manual IP address assignment (Static IP)] > [Using both LAN1 and LAN2], configure LAN2 network settings.

When check marks are placed in [Enable Redundancy] and [Manual IP address assignment (Static IP)] > [Using only LAN1], configure the IP address settings in [System Controller] and [NTP Server] for LAN1 (Secondary). IP Address: IP address

Subnet mask: Subnet mask

Default Gateway: Default gateway

System Controller: IP address of system controller

NTP Server: IP address of NTP server

LEO: Not used.

System Controller Protocol

Select to use the TCP protocol or TLS protocol for communication with the system controller.

LEO Protocol

Not used.

Note

The [LAN Settings] configuration is applied when the [Apply] button is clicked.

Remote Maintenance Page

Use to configure settings related to SNMP.

SNMP Settings

Enable SNMPv1

Place a check mark in the checkbox to use SNMP v1.

Enable SNMPv2c

Place a check mark in the checkbox to use SNMP v2c.

Common

Contact Information: Enter contact information for the administrator.

System Name: Enter the name for management.

System Location: Enter location information for management.

SNMPv1/SNMPv2c

Community Name (Read Only): Set the community name for retrieving read-only information.

Allowed Host: Configure settings for hosts with permission to connect.

- NONE: Block access from all IP addresses.

- Specified: Allow access from specific IP addresses.

- ANY: Allow access from all IP addresses.

Allowed Host1: Set the IP address with permission to connect when [Allowed Host] is set to [Specific].

LAN1, LAN2: Select the LAN to use by the host specified in [Allowed Host1].

Allowed Host2: Set the IP address with permission to connect when [Allowed Host] is set to [Specific].

LAN1, LAN2: Select the LAN to use by the host specified in [Allowed Host2].

Trap

Enable Trap: Place a check mark in the checkbox to enable sending of traps.

Community Name (trap): Set the community name used when sending traps.

Send Authentication trap: Place a check mark in the checkbox to send authentication traps. Click the [+] button to open the [SNMP Trap] dialog.

SNMP Trap dialog: Specify the destination host for sending traps.

SNMP Version: Select [v1] or [v2c] as the SNMP trap version.

NIC: Select [LAN1] or [LAN2] for the LAN on which to send traps.

Target IP Address: Specify the IP address of the host to which to send traps.

[Apply] button: Click to configure the SNMP trap and close the [SNMP Trap] dialog.

Apply & Send Test Trap button

Click to configure the SNMP settings and send a test trap.

Apply button

Click to configure the SNMP settings.

Syslog Settings

Enable SYSLOG

Place a check mark in the checkbox to use Syslog.

LAN1

IP Address

Specify the IP address of the Syslog server connection from LAN1.

LAN2

IP Address

Specify the IP address of the Syslog server connection from LAN2.

Note

If a check mark is not placed in [Enable Redundancy] on the [Network Settings] page, logs are not sent from LAN2.

Severity

Specify the Syslog severity level.

Note

Logs with the specified severity level and higher importance levels will be sent.

Apply button

Click to configure the Syslog settings.

Time Settings Page

Use to configure settings related to the date and time.

Time Zone Settings

Time Zone

Set the time zone.

Date and Time Settings

Set time automatically

Automatically set the time using an NTP server. Configure the NTP server settings on the [Network Settings] page.

After communication with the NTP server is terminated, the communication result with the server is displayed. If successful, [x] is displayed. If unsuccessful, [-] is displayed.

Time setting

Use to set the date and time manually.

Notes

• The [Date and Time Settings] configuration is applied when the [Apply] button is clicked.
• If the time is not set correctly on the unit, the communication with the system controller or a web browser may not be performed correctly.

System Page

Use to configure settings related to the system.

Error Settings

Enable DC In Error

Enable output of DC IN power supply errors.

System Settings

Name: Enter the name of the remote control panel.

User: Enter the user name of the remote control panel.

Description: Enter a description of the remote control panel.

Password Settings

Use to change the password for the admin user for accessing the web menu.

Old Password: Enter the old password.

New Password: Enter the new password.

Verify: Enter the new password again.

Click the [Change] button to update the password.

Notes

• The password "MKSRadmin1" is configured by factory default.
• The user name (admin) cannot be changed.
• The password is reset to the factory default when the software is reset using [Reset all settings].
• The [Name], [User], and [Description] settings are applied when changes are confirmed.

Save the user settings status.

Save: Save the current settings status to the backup region with a new name.

Restore: Restore the specified settings status saved in the backup region.

Export/Import settings

Export: Download the current settings status as a binary file. Import: Upload a configuration file from a web browser.

Reset all settings

Restore all menu settings to their default state.

Notes

• Changed passwords are restored to the default state, and the password setup dialog will be displayed the next time you log in.
• The network settings of the remote control panel are also reset.

CSV

Importing and exporting of the following CSV files is supported in [Panel Table], [Salvo Table], [Page Group Settings], [Retrace Settings], and [Source Reentry Lists]. The supported character code set is UTF-8.

The delimiter character is a comma (,). If data includes a comma, the data must be enclosed by double quotation characters (").

Example: abc,d → "abc,d"

If data includes a double quotation character ("), the data must be enclosed by double quotation characters (") and the characters escaped with another double quotation character (").

Example: a"b"c → "a""b""c"

Source Reentry List CSV format

Syntax

, ,

Description

ID: 1 to 128

SrcNum: 1 to 9999 (source number)

TargetDest: 1 to 9999 (target destination to monitor)

Retrace Settings CSV format

Syntax

Description

No: 1 to 512

SrcNum: 1 to 9999 (source number)

DestNum: 1 to 9999 (destination number)

LevelList: 'SYSTEM' or level list (such as "1 2 3 4")

PageGroup CSV format

Syntax

Description

ID: Number

EnableGp: 'ENABLE' or empty (")

GpName: Page group name

UsePages: Page list (such as "1 2 3 4")

TopPage: Page included in the page list

FirstPage: 'HOLD' or 'TOP'

DestNum: 1 to 9999 (destination number)

SetDestByGp: 'SET' or empty (")

BackXPT: 'BACK' or empty (")

Salvo: Salvo ID of 1 to 512 to execute a salvo, or empty (") to not execute a salvo.

Take: 'LOCAL', 'IMMEDIATE', 'PRESET', 'PRESET2'

Layout: 'LOCAL', 'BPS', 'MD'

Tally: 'STATUS', 'HIGH', 'LOW'

Color: 1 to 9 (color number)

LevelList: Level list (such as "1 2 3 4") to change level, or empty (") to not change level

Salvo XPT CSV format

Syntax (DEST)

DEST, , , ,

Syntax (OFFSET)

OFFSET, , , ,

Description

DestNum: 1 to 9999 (destination number)

OffsetNum: 1 to 9999 (offset value)

SrcNum: 1 to 9999 (source number)

LevelList: 'SYSTEM', empty ("), or level list (such as "1 2 3 4")

DelayCount: 0 to 200 (Delay value)

SalvoTable CSV format

Syntax (Snapshot SALVO)

SALVO, ,SNAPSHOT, ,

Syntax (Local SALVO)

SALVO, ,LOCAL, ,

Syntax (DEST using salvo XPT of Local SALVO)

XPT, ,DEST, , , ,

Syntax (OFFSET using salvo XPT of Local SALVO)

XPT, ,OFFSET, , , ,

Description

SalvoNum: 1 to 512 (Salvo ID)

SalvoName: [Salvo] name (Local Salvo only)

SnapShotId: 1 to 4096 (system controller snapshot ID)

SrcNum: 1 to 9999 (source number)

DestNum: 1 to 9999 (destination number)

OffsetNum: 1 to 9999 (offset value)

SrcNum: 1 to 9999 (source number)

LevelList: 'SYSTEM', empty ("), or level list (such as "1 2 3 4")

DelayCount: 0 to 200 (Delay value)

Panel Table CSV format

Syntax (page name, not required on MKS-R3210)

NAME, ,

Syntax (button layout, MKS-R4020 only)

LAYOUT, ,

Syntax (pinned button assignment)

PINNED, ,NONE

PINNED, ,

Syntax (selection button assignment)

, , NONE

, ,

, , XPT, , ,

,

Syntax (FUNC-FORMAT)

MONI,

LEVEL_SEL, ,

GPJUMP, ,

Description

PageNum: 1 to 64 (page number)

KeyNum: 1 to 40 (button number, maximum value varies depending on the model)

ButtonType: 'PINNED' or empty ("")

SrcNum: 1 to 9999 (source number)

DestNum: 1 to 9999 (destination number)

SrcColorNum: 1 to 9 (color number)

DestColorNum: 1 to 9 (color number)

FuncName: 'STAT', 'PROT', 'LOCK_CHOP', 'ASSGN', 'SRC_DEST_LV', 'PGUP_GPUP', 'PGDN_GPDN', 'GPDN', 'GPUP', 'GPDN'

ButtonName: Button name

GroupName: Page group name

LevelList: 'SYSTEM', empty (""), or level list (such as "1 2 3 4")

Usage Precautions

On condensation

If the unit is suddenly taken from a cold to a warm location, or if ambient temperature suddenly rises, moisture may form on the outer surface of the unit and/or inside of the unit. This is known as condensation. If condensation occurs, turn off the unit and wait until the condensation clears before operating the unit. Operating the unit while condensation is present may damage the unit.

About the LCD panels

The LCD panel fitted to this unit is manufactured with high precision technology, giving a functioning pixel ratio of at least 99.99%. Thus a very small proportion of pixels may be "stuck", either always off (black), always on (red, green, or blue), or flashing. In addition, over a long period of use, because of the physical characteristics of the liquid crystal display, such "stuck" pixels may appear spontaneously.

These problems are not a malfunction.

About the life expectancy of parts

The life expectancy of the AC adapter and the electrolytic capacitor is about 5 years under normal operating temperatures and normal usage (8 hours per day; 25 days per month).

If usage exceeds the above normal usage frequency, the life expectancy may be reduced correspondingly.

About network security

SONY WILL NOT BE LIABLE FOR DAMAGES OF ANY KIND RESULTING FROM A FAILURE TO IMPLEMENT PROPER SECURITY MEASURES ON TRANSMISSION DEVICES, UNAVOIDABLE DATA LEAKS RESULTING FROM TRANSMISSION SPECIFICATIONS, OR SECURITY PROBLEMS OF ANY KIND.

Depending on the operating environment, unauthorized third parties on the network may be able to access the unit. When connecting the unit to the network, be sure to confirm that the network is protected securely.

From a safety standpoint, when using the unit connected with the network, it is strongly recommended to access the Control window via a Web browser and change the access limitation settings from the factory preset values (page 33). Changing the password regularly is also recommended.

Do not browse any other website in the Web browser while making settings or after making settings. Since the login status remains in the Web browser, close the Web browser when you complete the settings to prevent unauthorized third parties from using the unit or harmful programs from running.

Error/Warning Messages

If trouble occurs on the unit, the status lamp lights up red and an error/warning message is displayed in the preset display window (MKS-R3210/R1620) or in the mode information area of the status display window (MKS-R1630).

Warning messages disappear after being displayed for about 2 seconds.

Error messages

Message(MKS-R3210/R1620)	Message(MKS-R1630)	Description Solution
PfHw PF FPGA Err The	PIF FPGA is not operating. Check the hardware.
DdrHw PF DDR Err The	PIF DDR SDRAM is not operating. Check the hardware.
KyHw KY FPGA Err The	KY FPGA is not operating. Check the hardware.
PfRcv Started PF Recovery	The PIF FPGA started in recovery mode. Check the hardware.
HTemp	High Temperature	The temperature exceeds the rated range.	Check the installation environment.
KyRcv	Started KY Recovery	The KY FPGA started in recovery mode.	Check the hardware.
KyEr	Unknown KY Board	The KY board model name is unknown.	Check the hardware.
SwRcv	Started SW Recovery	The software started in recovery mode.	Check the hardware.
LinkEr	Network Linkdown	Non-redundancy mode: The LAN1 link is down.Redundancy mode: The LAN1/LAN2 links are down.	Check the network settings and connections.
DhcpEr	DHCP Server Lost	Non-redundancy mode: The lease file of LAN1 does not exist.Redundancy mode: The lease files of both LAN1/LAN2 do not exist.	Check the network settings and connections.
ComEr	Communication Err	Non-redundancy mode: Connection with the system controller was lost in a Primary connection.Redundancy mode: Connection with both system controllers was lost in a Primary/Secondary connection.	Check the network settings and connections. Also, check that the date and time are set correctly.
ConfEr	Panel Config Err	A configuration error occurred.	Reset the settings or load a user settings status file.
DhcpCf	DHCP Conf Err	Non-redundancy mode: The required information from the lease file of LAN1 could not be loaded.Redundancy mode: The required information from the lease files of both LAN1/LAN2 could not be loaded.	Check the network settings and connections.

Warning messages

Message(MKS-R3210/R1620)	Message(MKS-R1630)	Description Solution
Load... Loading... Display does not change: The required information from the system controller cannot be loaded			Check the network settings and connections.
DCinEr DCin Lost A power supply is not connected to the DC IN connector.			Check the AC adapter.
TimeEr Time Sync Err A time synchronization error occurred. Check the network settings and connections.
L1Link LAN1 Linkdown The LAN1 link is down. Check the network settings and connections.
L1Dhcp	LAN1 DHCP Srv Lost	The lease file of LAN1 does not exist.	Check the network settings and connections.
L1ComE LAN1 Comm Err The system controller is in Disconnected or Connecting state in a Primary connection.			Check the network settings and connections.
L1Pant LAN1 Parent Lost Could not connect to the LAN1 parent device when panel link is set.			Check the network and device connections and settings.
L2Link LAN2 Linkdown Non-redundancy mode: This error does not occur.Redundancy mode: The LAN2 link is down.			Check the network settings and connections.
L2Dhcp LAN2 DHCP Srv Lost Non-redundancy mode: This error does not occur.Redundancy mode: The LAN2 lease file does not exist.			Check the network settings and connections.
L2ComE LAN2 Comm Err Non-redundancy mode: This error does not occur.Redundancy mode: The system controller is in Disconnected or Connecting state in a Secondary connection.			Check the network settings and connections.
L2Pant LAN2 Parent Lost Non-redundancy mode: This error does not occur.Redundancy mode: Could not connect to the LAN2 parent device when panel link is set.			Check the network and device connections and settings.

If an error persists after taking the appropriate actions above, contact your Sony service or sales representative.

Specifications

General

Power requirements 37 V to 57 V (PoE), 12 V DC
Current consumption 0.3 A to 0.2 A (PoE), 0.7 A DC
Operating temperature	5 °C to 40 °C (41 °F to 104 °F)
Recommended temperature for performance	10 °C to 35 °C (50 °F to 95 °F)
Storage temperature	-20 °C to +60 °C (-4 °F to +140 °F)
Storage humidity 5% to 80% (relative humidity)
Dimensions (width / height / depth, excluding protrusions)	440 × 43.6 × 90 mm(17 3/8 × 1 3/4 × 3 5/8 inches)
Mass MKS-R3210: Approx. 1.2 kg (2 lb 10 oz)
	MKS-R1620: Approx. 1.3 kg (2 lb 14 oz)
	MKS-R1630: Approx. 1.3 kg (2 lb 14 oz)

Control connectors

LAN1 port IEEE802.3at Type 1, RJ-45, 1000BASE-T compliant

LAN2 port RJ-45, 1000BASE-T compliant

Supplied accessories

AC adapter (1)

Before Using This Unit (1)

Optional accessories

Power cord for AC adapter

For customers in the U.S.A.: Part No. 1-846-101-22 (125 V, 7 A, 2.0 m)

For customers in Europe: Part No. 1-846-102-81 (250 V 2.5 A, 2.0 m)

Design and specifications are subject to change without notice.

Note

• Always verify that the unit is operating properly before use. SONY WILL NOT BE LIABLE FOR DAMAGES OF ANY KIND INCLUDING, BUT NOT LIMITED TO, COMPENSATION OR REIMBURSEMENT ON ACCOUNT OF THE LOSS OF PRESENT OR PROSPECTIVE PROFITS DUE TO FAILURE OF THIS UNIT, EITHER DURING THE WARRANTY PERIOD OR AFTER EXPIRATION OF THE WARRANTY, OR FOR ANY OTHER REASON WHATSOEVER.
• SONY WILL NOT BE LIABLE FOR CLAIMS OF ANY KIND MADE BY USERS OF THIS UNIT OR MADE BY THIRD PARTIES.
• SONY WILL NOT BE LIABLE FOR THE TERMINATION OR DISCONTINUATION OF ANY SERVICES RELATED TO THIS UNIT THAT MAY RESULT DUE TO CIRCUMSTANCES OF ANY KIND.
