Product Type	Karaoke System
Brand	Samsung
Model	MAX-KX75
Dimensions (W x H x D)	Approx. 430 x 150 x 300 mm
Weight	Approx. 5.5 kg
Power Supply	AC 110-240V, 50/60 Hz
Power Consumption	Approx. 60 W
Built-in Speakers	2-way speaker system (2 x 5 inch woofer, 2 x 1 inch tweeter)
Microphone Inputs	2 x 6.3 mm (1/4 inch) jacks
Audio Inputs	AUX (3.5 mm), USB, Bluetooth
Audio Outputs	Headphone (3.5 mm), Line Out (RCA)
Disc Playback	DVD, CD, DVD±R/RW
Karaoke Features	Echo control, key control, vocal cancel, scoring function
USB Playback	MP3, WMA, WAV, AVI, DivX
Bluetooth Version	4.2
Display	LED display with track and time info
Remote Control	Yes, included
Accessories Included	2 microphones, remote control, user manual, power cord
Care & Cleaning	Wipe with a dry, soft cloth. Do not use liquids or abrasive cleaners.
Safety	Use only in dry indoor locations. Do not open the device. Avoid moisture.
Spare Parts & Repairability	Contact Samsung support or authorized service centers for spare parts and repairs.

Frequently Asked Questions - MAX-KX75 SAMSUNG

How do I connect a microphone to the MAX-KX75?

Plug a standard 6.3mm (1/4 inch) microphone cable into one of the two MIC inputs on the front panel. The system will automatically detect the microphone.

Can I play music from a USB flash drive?

Yes, insert a USB flash drive into the USB port. The system supports MP3, WMA, WAV, AVI, and DivX formats. Use the remote or front panel controls to select files.

How do I adjust the echo effect for karaoke?

Press the ECHO button on the remote control or front panel, then rotate the control knob or use the +/- buttons to increase or decrease the echo level.

Why is there no sound from the speakers?

Ensure the system is powered on and the volume is turned up. Check if the MUTE function is disabled. Also verify that the correct input source is selected (e.g., DVD, USB, Bluetooth). For microphone, make sure it is fully inserted and the mic volume is not at zero.

Can I connect my smartphone via Bluetooth?

Yes, enable Bluetooth on your smartphone and search for MAX-KX75. Select it to pair. Once connected, you can stream music or use karaoke apps.

How do I use the vocal cancel feature?

Press the VOCAL CANCEL button on the remote. This reduces the original vocal track in stereo audio, allowing you to sing along. Note that it works best with stereo recordings.

What types of discs can I play?

The system plays DVD, CD, DVD±R/RW discs. It does not support Blu-ray discs.

How do I set the key control for singing?

Press the KEY CONTROL button on the remote. Use the +/- buttons to raise or lower the pitch in semitone steps. This helps adjust the song to your vocal range.

Is there a score function for karaoke?

Yes, the SCORE function evaluates your singing based on pitch and rhythm. It displays a score on the screen after each song. Activate it via the remote control.

How do I clean and maintain the system?

Unplug the system before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use liquid or abrasive cleaners. Keep the ventilation slots free of dust.

USER MANUAL MAX-KX75 SAMSUNG

THIS APPLIANCE IS MANUFACTURED BY:

MAX-KX75

SAMSUNG

ELECTRONICS

Instruction Manual

Safety Warnings Precautions

CLASS 1 LASER PRODUCT

KLASSE 1 LASER PRODUCT

LUOKAN 1 LASER LAITE

KLASS 1 LASER APPARAT

PRODUCTO LASER CLASE 1

CLASS 1 LASER PRODUCT

This Compact Disc player is classified as a CLASS 1 LASER product.

Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

CAUTION-INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED, AVOID EXPOSURE TO BEAM.

This symbol indicates that dangerous voltage which

can cause electric shock is present inside this unit.

This symbol alerts you to important operating and

maintenance instructions accompanying the unit.

WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

This marking shown on the product or its literature, indicates that it should not

be disposed with other household wastes at the end of its working life.

to prevent possible harm to the environment of human health from uncontrolled waste disposal, please separate this from other types of waste and recycle it.

responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this

product, or their local government office, for details of where and how they

can take this item for environmentally safe recycling.

business users should contact their conditions of the purchase contract

This product should not be mixed with other commercial wastes for disposal.

3D diagram of a cylindrical object inside a transparent enclosure with dimension labels (no text or symbols)

Ensure that the AC power supply in your house complies with the identification sticker located on the back of your player. Install your player horizontally, on a suitable base (furniture), with enough space around it for ventilation (3-4-inches). Make sure the ventilation slots are not covered. Do not slack anything on top of the player. Do not place the player on amplifiers or other equipment which may become hot. Before moving the player, ensure the disc tray is empty. This player is designed for continuous use. Switching off the DVD player to the stand by mode does not disconnect the electrical supply. In order to disconnect the player completely from the power supply, remove the main plug from the wall outlet, especially when kit unused for a long period of time.

Simple line drawing of a device on a desk with raindrops and a lightning bolt above (no text or symbols)

During thunderstorms, disconnect AC main plug from the wall outlet.

Voltage peaks due to lightning could damage the unit.

Illustration of a windmill with a cross mark, set against a grid background (no text or symbols)

Do not expose the unit to direct sunlight or other heat sources.

This could lead to overheating and malfunction of the unit.

Protect the player from moisture(l.e. vases), and excess

heat(e.g.,replace) or equipment creating strong magnetic or electric

folds (i.e. speakers...). Disconnect the power cable from the AC supply

He played natural cats. Your prayer is half Use of this product is (by personal run any)

Condensation may occur if your player or disc have been stored in cold.

temperatures

If transporting the player during the winter, wait approximately 2 hours

until the unit has reached room temperature before using

The battery used with this product contain chemicals that are harmful to the environment.

Do not dispose of batteries in the general household trash.

Features

○ Multi-Disc Playback & FM Tuner, USB HOST.

The MAX-KX75 combines the convenience of multi-disc playback capability, including DVD-VEDIO, CD, MP3-CD, CD-R, CD-RW, DivX, JPEG and DVD-R/RW, with a sophisticated FM tuner, USB HOST all in a single player.

TV Screen Saver Function

If the main unit remains in Stop mode for 3 minutes, the Samsung logo appears on TV screen. The MAX-KX75 automatically switches itself into the power saving mode after 20 minutes in the screen saver mode.

Power Saving Function

The MAX-KX75 automatically shuts itself off after 20 minutes in the stop mode.

Customized TV Screen Display

The MAX-KX75 allows you to select your favorite image during JPEG, DVD playback and set it as your background wallpaper.

USB Host support

You can enjoy media files such as pictures, movies and music saved on an MP3 player, digital camera or USB memory stick by connecting the storage device to the USB port of the Home Theater.

HDMI

HDMI transmits DVD video and audio signals simultaneously, and provides a clearer picture.

Contents

PREPARATION

Safety Warnings	1
Precautions	2
Features	3
Notes on Discs	5
Description	7

CONNECTIONS

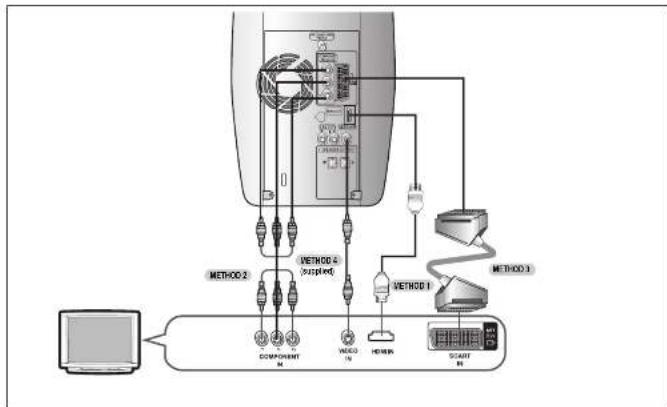

Connecting the video Out to your TV	12
FDMI Function	14

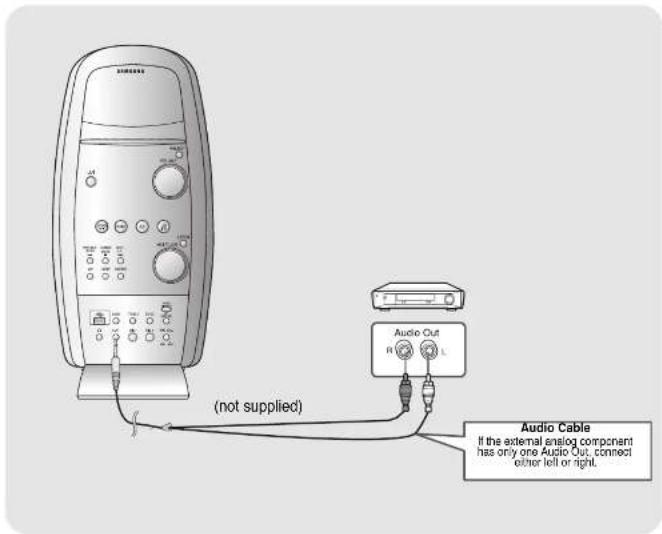

Connecting External Components	15
Connecting the FM Attitudes	16
Setting the Crack	17
Before Reading the User's Manual	18

OPERATION

Disc Playback	19
MPS/WAV-CD Playback	20
DxL Playback	21
Playing Motor Fees using the USB Iconic	22
Deploying Disc Information	23
Fam/Slow Playback	26
Slapping BusinessSongs	27
Step Function	27
Angle Function	28
Repeat Playback	29
A/B Repeat playback	31
Zoom Function	32
JPEG File Playback	32
Specting Audio/Satellite Language	33
Having Directly to a Scanning	34
Using Disc Genre	35
Title: Music	36

SETUP

Getting the Language	37
Language Code List	38
Setting TV Screen Type	39
Setting Parental Content (Firing Level)	41
Setting the Password	42
Setting the Wallpaper	43
Setting the DRC Dynamic Range Compression	45
AV SYNC Strip	46
Playing DVD-OK Discs	47
Getting the Shadow	48
Pereerring Accommodation Music	49
Priority Playing Accommodation Music	50
Favorite Song Function	51
Search Song Function	53
Tempo Control	58
Make-Pomate Key Control	59
Getting the Stars	60
Setting the Fares	61
Getting the Average Score	62

RADIO OPERATION

Listening to Radio	63
Rescelling Stations	54

MISCELLANEOUS

Timer Function	66
Canceling the Timer	68
POWER SOUND and Sound Field (DSP/EO) Function	67
Sleep Timer Function / Mute Function	68
DEMO Function / DIMMER Function/ECO Function	66
Basel/Grade Level Function	70
Connecting Earphones&Olephone(option)	71
Key Control	71
Controls on Vordering and Storing Classes	72
Before Calling for Service	73
Specifications	75
USB Feature Supported Player	78
Roles on Terminology	77

Notes on Discs

DVD (Digital Versatile Disc) offers fantastic audio and video, thanks to Dolby Digital surround sound and MPEG-2 video compression technology. Now you can enjoy these realistic effects in the home, as if you were in a movie theater or concert hall.

DVD players and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play. The Region Number for this player is given on the rear panel of the player. (Your DVD player will only play DVDs that are labeled with identical region codes.)

playable Discs

Disc Type	Disc/Video(Max)	Playoff Signals
DVD-VIDEO	DVD	Video	12cm	Approx. 240 min. (single-sided)
				Approx. 480 min. (couple-sided)
			8cm	Approx. 80 min. (single-sided)
				Approx. 160 min. (couple-sided)
AUDIO-CD	DISC	Audio	12cm	74 min.
			8cm	20 min.
DvX	DVX	Audio + Video	12cm	74 min.
			8cm	20 min.

Do not use the following types of disc!

- LD, CD-G, CD-I, CD-ROM and DVD-ROM discs cannot be played on this player. If such discs are played, a message appears on the TV screen. - DVD discs purchased abroad may not play on this player. If such discs are played, a message appears on the TV screen.

Copy Protection

- Many DVD discs are encoded with copy protection. Because of this, you should only connect your DVD player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected DVD discs. - This product incorporates copyright protection technology that is protected by methods claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Disc Recording Format

This product does not support Secure (DRM) Media files.

CD-R Discs

• Some CD-R discs may not be playable depending on the disc recording device (CD-Recorder or PC) and the condition of the disc.
  • Use a 650MB/74 minute CD-R disc.
  Do not use CD-R discs over 700MB/60 minute as they may not be playback.
• Some CD-RW (Rewritable) media, may not be playable.
• Only CD-Rs that are properly "closed" can be fully played. If the session is closed but the disc is left open, you may not be able to fully play the disc.

CD-R MP3 Discs

• Only CD-R discs with MP3 files in ISO 9660 or Joliet format can be played.
• MP3 file names should be 8 characters or less in length and contain no blank spaces or special characters (./=+).
• Use discs recorded with a compression/decompression data rate greater than 128Kbps.
• Only files with the 'mp3' and extensions can be played.
• Only a consecutively written multisession disc can be played. If there is a blank segment in the Multisession disc, the disc can be played only up to the blank segment.
• If the disc is not closed, it will take longer to begin playback and not all of the recorded files may be played.
• For files encoded in Variable Bit Rate (VBR) format, i.e. files encoded in both low bit rate and high bit rate (e.g., 32Kbps \~ 320Kbps), the sound may skip during playback.
  • A maximum of 500 tracks can be played per CD.
  • A maximum of 300 folders can be played per CD.

CD-R JPEG Discs

• Only files with the "jpg" extensions can be played
• If the disc is not closed, it will take longer to start playing and not all of the recorded tiles may be played.
• Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played.
• JPEG file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +).
• Only a consecutively written multisession disc can be played. If there is a blank segment in the multisession disc, the disc can be played only up to the blank segment.
  • A maximum of 9,999 images can be stored on a single CD.
• When playing a Kodak/Fuji Picture CD, only the JPEG files in the picture folder can be played.
• Picture discs other than Kodak/Fuji Picture CDs may take longer to start playing or may not play at all.

DVD R/RW, CD-R/RW DivX Discs

• Since this product only provides encoding formats authorized by DivX Networks, Inc., a DivX file created by the user might not play.
• Software updates for incompatible formats are not supported.
  (Example : QPEL, GMC, resolution higher than 800 x 600 pixels, etc.)
• Sections with a high frame rate might not be played while playing a DivX file.
• For more information about the formats authorized by DivX Networks, Inc., please visit "www.divxnetworks.net".

Description

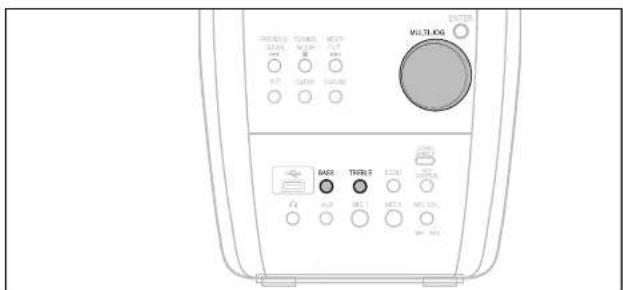

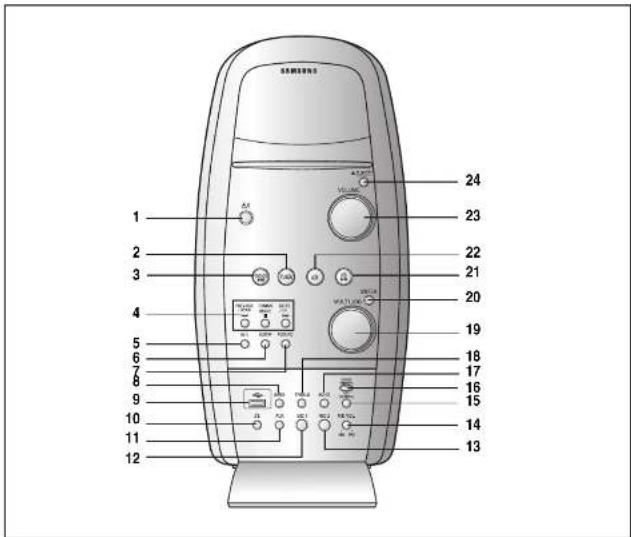

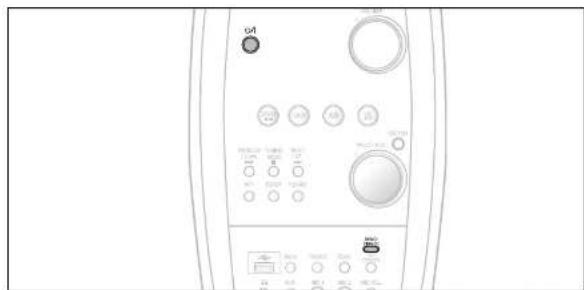

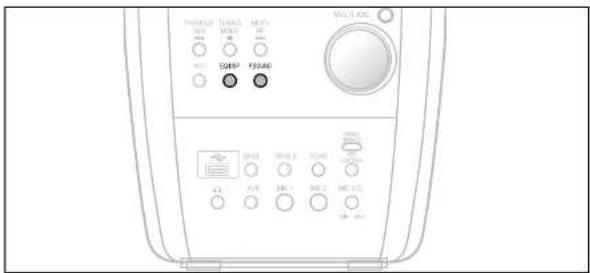

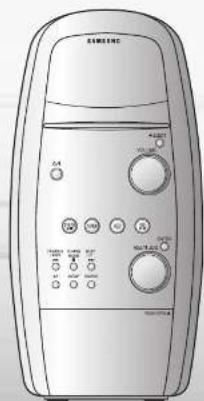

—Front Panel—

1. STANDBY/ON/ECO
2. TUNER BUTTON
3. DVD-OK BUTTON
4. SEARCH FUNCTION BUTTONS
   TUNING MODE OR STOP BUTTON
5. MUTE
6. EQ/DSP
7. POWER SOUND
8. BASS
9. USD HOST JACK
10. USB HOS
11. PHONES
12. PHONES
13. AUX
14. AUX
15. MIC 1
16. MIC 1
17. MIC 2
18. MIC VOLUME

- You can use MULTI JOG KNOB to instead of SEARCH BUTTON on the main set and the
remote control.
15. KEY CONTROL
16. DEMO/DIMMER
17. ECHO
16. TREBLE
19. MULTI JOG
20. ENTER
21. USB
22. AUX
23. VOLUME 24. EFFECT
24. EJECT BUTTON

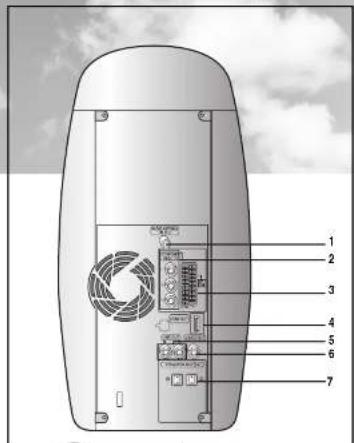

—Rear Panel—

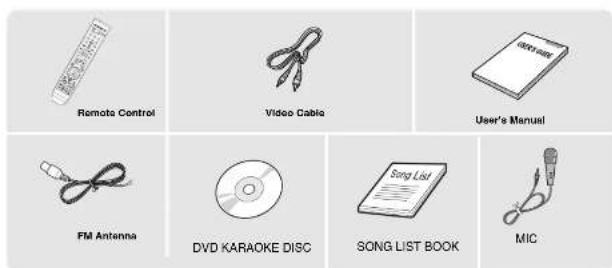

Accessories

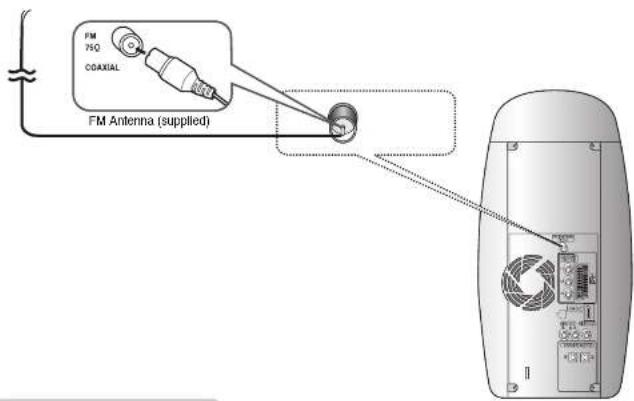

1. FM Antenna Connector
2. Component Video Output Connectors
Connect a TV with component vide input lacks to
these lacks
3. SCART JACK
4. HDMI OUT
5. LINE OUT
6. Video Output Connector
Connect the TV's video input jacks (VIDEO IN) to
the VIDEO OUT connector.

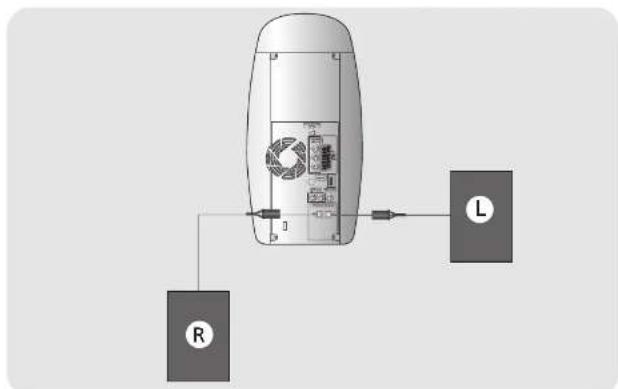

7. 2.0 Channel Speaker Output
Terminals

Description

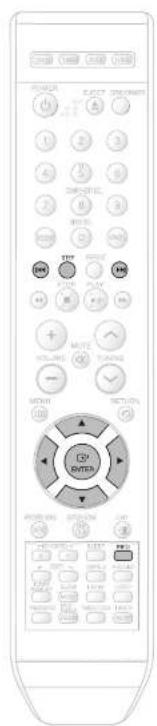

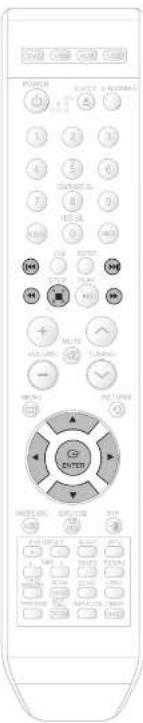

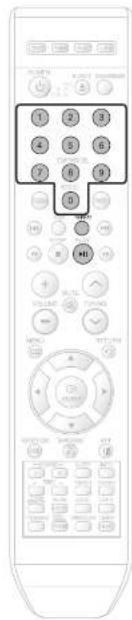

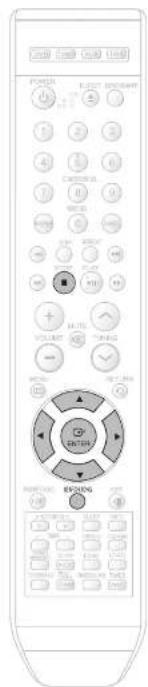

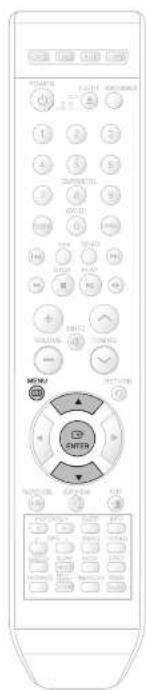

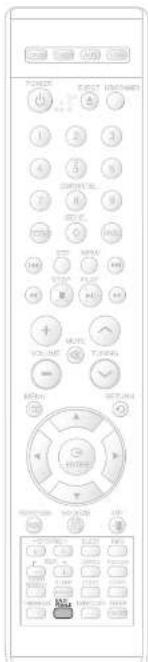

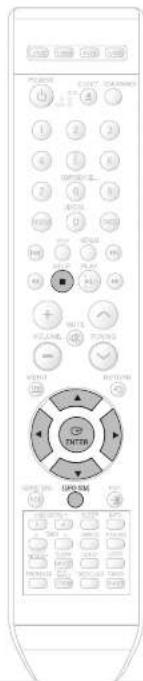

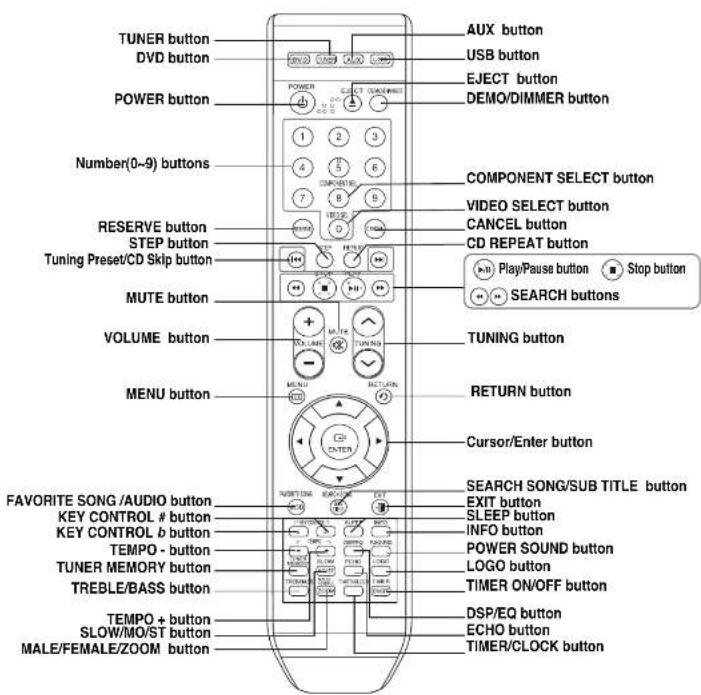

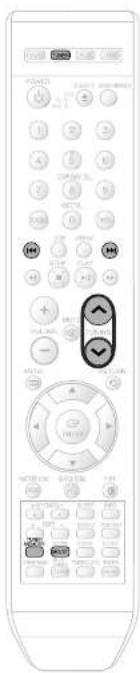

—Remote Control—

Insert Remote Batteries

1

Remove the battery cover in the direction of the arrow.

2

Insert two 1.5V AAA batteries, paying attention to the correct polarities (+ and -).

3

Replace the battery cover.

Caution

Follow these precautions to avoid leaking or cracking cells:

• Place batteries in the remote control so they match the polarity:(+) to (+)and (−)to (−).
• Use the correct type of batteries. Batteries that look similar may differ in voltage.
• Always requires both batteries at the same time.
  • Always replace both batteries at the same time. • Do not expose batteries to heat or flame.

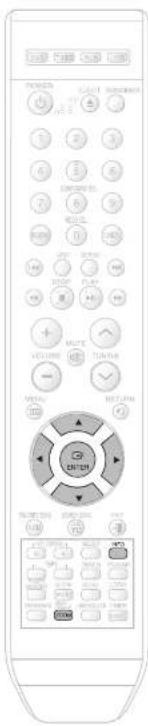

Ran

ge of Operation of the Remote Control

The remote control can be used up to approximately 23 feet/7 meters in a straight line. It can also be operated at a horizontal angle of up to 30° from the remote control sensor.

Connecting the Speakers

Before moving or installing the product, be sure to turn off the power and disconnect the power cord.

Connect the connecting jacks (2) to the back of mini-compact system.

- Make sure the polarities (+and -) are correct.

Position of the DVD Player

- Place it on a stand or cabinet shelf, or under the TV stand.

Speakers

- Place these speakers in front of your listening position, facing inwards (about 45°) toward you. - Place the speakers so that their tweeters will be at the same height as your ear.

Selecting the Listening Position

The listening position should be located about 2.5 to 3 times the distance of the TV's screen size away from the TV. Example: For 32" TVs 2\~2.4m (6\~8feet) For 55" TVs 3.5\~4m (11\~13feet)

Directions in Installing Speaker

• Installation in a place near heating apparatus, under direct lay of light or with high humidity may cause performance degradation of the speaker.
- Do not install on the wall or on a high place of pole or other unstable place to prevent any safety accident caused by falling of the speaker.
- Do not take the speaker near from TV or computer monitor. The speaker near the TV or computer monitor may influence the quality of the screen display.

Connecting the Video Out to your TV

Choose one of the four methods for connecting to a TV.

METHOD 1 : HDMI ..... (Best Quality)

Connect the HDMI cable(not supplied) from the HDMI OUT jack on the back of the DVD Player to the HDMI IN jack on your TV.

METHOD 2 : Component Video ..... (Better Quality)

If your television is equipped with Component Video inputs, connect a Component video cable (not supplied) from the Component Video Output (Pr, Pb and Y) jacks on the back of the DVD Player to the Component Video Input jacks on your TV.

COMPONENT SELECT Function

1. With the main unit turned off, press and hold the COMPONENT SEL button on the remote control for over 5 seconds. • Pr> and will appear in the display.
2. Press the COMPONENT SEL button shortly to select to set the main unit to COMPONENT mode.

Connecting the Video Out to your TV

METHOD 3 : Scart ..... (Better Quality)

If your television is equipped with an SCART input, connect an Scarl Jack (not supplied) from the AV OUT jack on

the back panel of the main unit to the SCART IN jack on your television.

1. With the main unit turned off, press and hold the COMPONENT SEL button on the remote control for over 5 seconds.

• and will appear in the display.

1. Press the COMPONENT SEL button shortly to select to set SCART mode.

VIDEO SELECT Function

Press and hold the VIDEO SEL. button on the remote control for over 5 seconds.

- or will appear in the display. At this time, press the VIDEO SEL button shortly to select between

and

- If Scart (RGB Input) is equipped for your TV, press the VIDEO SEL button to select RGB mode.

You can get a better picture quality by using Start setting.

- If Scart (RGB input) is not equipped for your TV, press the VIDEO SEL button to select COMPOSITE mode.

METHOD 4 : Composite Video ..... (Good Quality)

Connect the supplied Video cable from the VIDEO OUT jack on the back of the DVD Player to the VIDEO IN jack on your TV.

- This product operates in Interface scan mode (576i) for component output.

• VIDEO SEL option works only when COMPONENT SEL mode is installed in GRB.

HDMI Function

What is HDMI (High Definition Multimedia Interface)?

This device transmits a DVD video signal digitally without the process of converting to analog. You will get sharper digital pictures when using an HDMI connection.

• Resolutions available for the HDMI output are 576p.

- If the TV does not support the configured resolution, you will not be able to see the picture properly.

- When an HDMI cable is connected, composite component video and scar1 signals are not output.

- See your TV owner's manual for more information on how to select the TV's Video Input source.

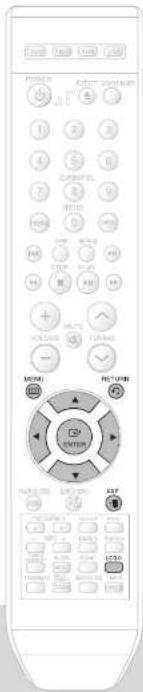

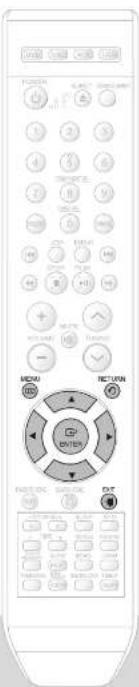

Setting the HDMI Audio

The audio signals transmitted over the HDMI Cable can be toggled ON/OFF.

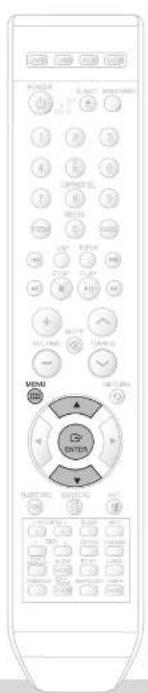

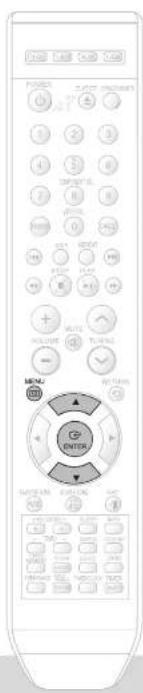

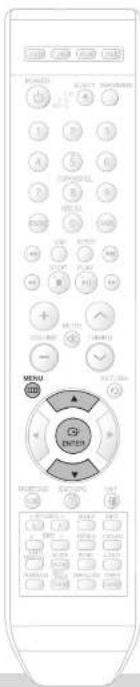

1 In Stop mode, press the MENU button.
2 Press the Cursor ▼ button to move to

• ON: Both video and audio signals are transmitted over the HDMI connection cable, and audio is output through your TV speakers only.
  • OFF: Video is transmitted over the HDMI connection cable only, and audio is output through the home theater speakers only.

The default setting of this function is HDW-AUDIO-OFF

• HDMI AUDIO is automatically down-mixed to 2ch for TV speakers
• BASS/TREBLE/ECHOKEY CONTROL SOUND/EQ/DSP function is not available when
HDMI AUDIO is ON.
- MIC output is not available while HDMI AUDIO ON

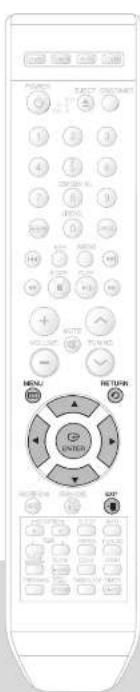

➢ Press the RETURN button to return to the previous level.
➢ Press the EXIT button to exit the setup screen.

Connecting External Components

Connecting an External Analog Component

Example: Analog signal components such as a VCR, Camcorder, and TV.

1 Connect Audio In on the DVD player to Audio Out on the external analog component.
- Be sure to match connector colors.
2 Press AUX to select AUX.
- 'AUX' appears in the display.

Connecting the FM Antennas

FM antenna connection

1. Connect the FM antenna supplied to the FM 75Ω COAXIAL terminal as a temporary measure.
2. Slowly move the antenna wire around until you find a location where reception is good, then fasten it to a wall or other rigid surface.
3. If reception is poor, connect an outdoor antenna. Before attaching a 75 coaxial cable (with a standard type connector), disconnect the supplied FM antenna.

Cooling Fan

The cooling fan dissipates the heat generated inside the unit so that the unit can be operated normally. The cooling fan is activated automatically to supply cool air to the unit.

Please observe the following cautions for your safety.

• Make sure the unit is well-ventilated. If the unit has poor ventilation, the temperature inside the unit could rise and may damage it.
• Do not obstruct the cooling fan or ventilation holes. (If the cooling fan or ventilation holes are covered with a newspaper or cloth, heat may build up inside the unit and fire may result.)

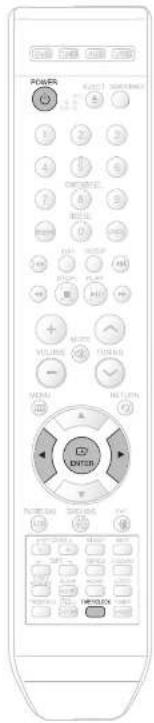

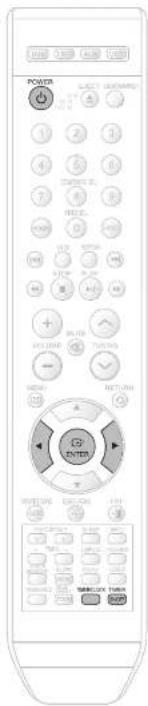

Setting the Clock

For each step, you have a few seconds to set the required options. If you exceed this time, you must start again.

1 Switch the system on by pressing POWER button.

2 Press TIMER/CLOCK twice.

• CLOCK is displayed.

3 Press ENTER. The hour flashes.

• Increase the hours : ▶
• Decrease the hours :

4 When the correct hour is displayed, press ENTER. The minutes flash.

• Increase the minutes:
  • Decrease the minutes :

5 When the correct time is displayed, press ENTER.

• "TIMER" appears in the display.
• The current time is now set.

Note

- You can display the time, even when you are using another function, by pressing TIMER/CLOCK once.

Note

.You can also use Multi-Jog or ◀◀◀▶▶ button on the panel front instead of ◀◀,▶ buttons in step 3.4.

Before Reading the User's Manual

Make sure to check the following terms before reading the user manual.

Icons that will be used in manual

Icon Term Definition
	DVD	This involves a function available with DVD or DVD-R/DVD-RW discs that have been recorded and finalized in Video Mode.
	CD	This involves a function available with a data CD (CD-R or CD-RW).
	MP3	This involves a function available with CD-R/-RW discs.
	JPEG	This involves a function available with CD-R/-RW discs.
	DivX	This involves a function available with MPEG4 discs. (DVD & RW , CD-R or CD-RW)
	CAUTION	This involves a case where a function does not operate or settings may be cancelled.
	NOTE	This involves tips or Instructions on the page that help each function operate.

• In this manual, the instructions marked with "DVD ( [ ] )" are applicable to DVD-VIDEO and DVD-R/-RW discs that have been recorded in Video Mode and then finalized. Where a particular DVD type is mentioned, it is indicated separately.
• If a DVD-R/-RW disc has not been recorded properly in DVD Video format, it will not be playable.
  " are applicable to DVD-VIDEO and DVD-R/-RW alized.Where a particular DVD type is

Disc Playback

1

Load a disc.

- Insert a disc that the disc's label facing up.

2

To eject the disc, press EJECT button

DVD

- Playback starts automatically.

MP3

- Playback starts automatically.

- If the TV is on, a list of MP3s on the CD will appear on the TV screen.

Note

- Depending on the content of the disc, the initial screen may appear different.

- Depending on the recording mode, some MP3-CDs cannot be played.

- Table of contents of a MP3-CD varies depending on the MP3 track format recorded on the disc.

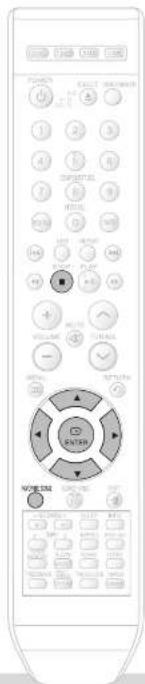

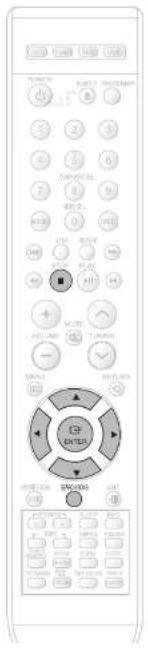

To stop playback, press STOP during playback.

- If pressed once, "PRESS PLAY" is displayed and the stop position will be stored in memory. If PLAY/PAUSE (▶II) button or ENTER button is pressed, playback resumes from the stop position. (This function works only with DVDs.)

- If pressed twice, "STOP" is displayed, and if PLAY/PAUSE (▶||) button is pressed, playback starts from the beginning.

To temporarily pause playback, press

PLAY/PAUSE during playback.

• To resume playback, press PLAY/PAUSE button again.

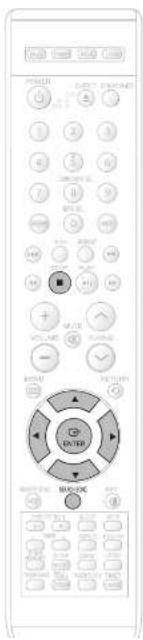

MP3/WMA-CD Playback

1 Load the MP3/WMA disc.

• The MP3/WMA menu screen will appear and playback will start.
• The appearance of the menu depends
on the MP3/WMA disc.
• WMA-DRM files cannot be played.

2 In Stop mode, use ◀▶▲▼ to select the album, and then press the ENTER button.

- Use ▲▼to select the track.

To change the album, use ◀▶▲▼to select another album in Stop mode, and then press the ENTER button.

• To select another album and track, repeat Steps 2 and 3 above.

4 Press the STOP button to stop playback.

Note

- Depending on the recording mode, some MP3/WMA-CDs may not play. - Table of contents of a MP3-CD varies depending on the MP3/WMA trac format recorded on the disc.

To play a file icon in the screen,

Press the ◀ ▶ ▲ ▼button when it is in stop status and select a desired icon from the top part of the menu.

• To play music files only, select the 🎯 Icon.
• To view image files only, select the Icon.
• To view movie files only, select the icon.
• To select all files select the All Icon.

• Music File Icon
• Image File Icon
- Image The look
• Movie File Icon
All File Icon

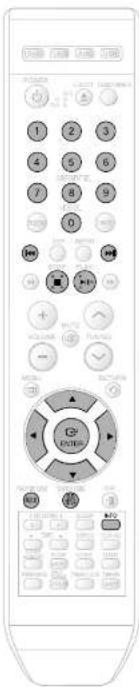

DivX Playback

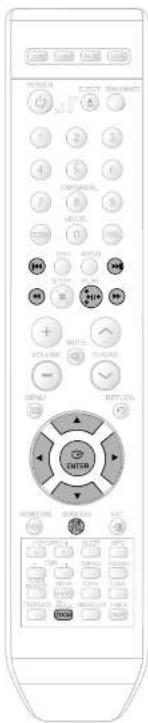

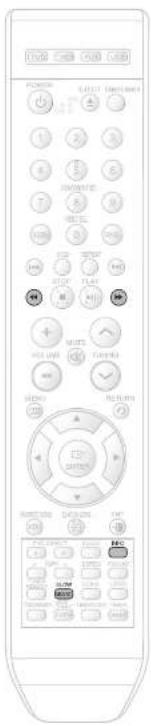

Skip Forward/Back

During playback, press the ◀◀◀▶▶ button.

• Go to the next file whenever you press ▶▶1 button, if there are over 2 files in the disk.
• Go to the previous file whenever you press 🔊 button, if there are over 2 files in the disk.

Fast playback

Press and hold ◀◀▶▶ button.
• Each time the button is held down during playback. the playback speed changes as follows:

Zoom Function

1 Press ZOOM button.

• Each time you press the button, your selection will toggle between 'ZOOM X2' and 'ZOOM OFF'.

2 Press Cursor ▲, ▼, ◀, ▶ buttons to move to the area you want to enlarge.

Note

- DivX files can be played in Zoom X2 mode only.

5 Minute Skip function

During playback, press the ◀, ► button.

• Go to the screen about 5 minutes after whenever you press ▶ button.
• Go to the screen about 5 minutes earlier whenever you press ◀ button.

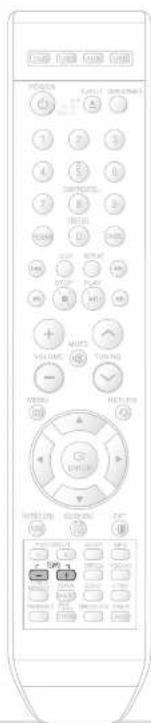

Subtitle Display

Press the SUBTITLE button.

• Each time you press the button, your selection will toggle between "SUBTITLE ON" and "SUBTITLE OFF".
- If the disc has only one subtitle file, it will be played automatically.
- Up to 8 subtitle languages are supported.

If the disc has more than one subtitle file

If the disc has more than one subtitle file, the default subtitle may not match the movie and you will have select your subtitle language as follows:

In Play mode, press the ▲▼,▲button, select the desired subtitle (☐) from the TV screen, and then press the ENTER button.

When you select the desired DivX file from the TV screen, the movie will be played normally.

DivX Feature Table

DivX Supported

Avi files are used to contain the audio and video data; these must be stored on CD in the ISO 9680 format.

		SPEC
VIDEO Compatibility DivX3.11 Up to the latest VERSION
	WMV WMV V1/V2/V3/V7
AUDIO Compatibility MP3 CBR: 80kbps~384kbps
	AC3 CBR 128kbps~364kbps
	WMA CBR: 56kbps~128kbps

MPEGs containing DivX can be divided into Video and Audio.
• Video compatibility : All versions of DivX later than 3.11 (including
the latest 5.1) are supported. In addition, XviD is supported.
For WMV. V1, V2, V3, and V7 formats are possible.
The initial resolution is 720X480 and may support up to 720X576.
• Audio compatibility : MP3s encoded at bitrates from 80kbps to
364kbps, AC3s from 126kbps to 364kbps, and WMAs from 56kbps
to 128kbps are supported.
- In addition, for subtitles, this unit will support Text format (SMI).

Note

• When playing the DivX disk, you can play the file with extension of AVI only.
• Among the available DivX audio formats, DTS Audio is not supported.
• WMV V8 is not supported for WMV files.
• When burning a subtitle file to a CD-ROM with your PC, be sure to burn it as an SMI file.
• Divx Disc does not playing when its sampling frequency is lower than 32KHz.
  • Some of the discs recorded in DivX or XviD depending on the way of recording could be played back not
  correctly or couldn't be played back at all.
• MP3 file support: MPEG1 LAYER3 (BITRATE : 128KBPS\~320KBPS, SAMPLING FREQ.: 32K/44.1K/46KHz)
  • Some DivX.XviD files depending on doding mode and used codec.

may be displayed not correct. For example, not in full size.

Playing Media Files using the USB feature

You can connect and play files from external USB storage devices such as MP3 players, USB flash memory, etc. using the player's USB function.

1 connect the USB cable.

2 Press the USB button on the main unit or the USB button on the remote control to select the USB mode.

• "USB" appears on the display screen and then disappear.
• USB SORTING screen appears on the TV screen and the saved file is played.

To stop playback, press the STOP ( ■ ) button.

Note

• Video files (DivX, WMV, MPEG, etc.) are supported.
- To prevent the loss of data saved in the USB device, please turn the unit off or switch it to another mode before disconnecting the USB cable.

Skip Forward/Back

During playback, press the ◀◀▶▶button.

• When there is more than a file, when you press the ▶▶button, the next file is selected.
• When there is more than a file, when you press the ◀◀button, the previous file is selected.
• When there is more than a file, when you press the ◀◀button, the previous file is selected.

Fast playback

To playback the disc at a faster speed, press and hold ◀ or ▶ during playback.

• Each time you press and hold either button, the playback speed will change as follows: 2x 4x 8x 32x Normal.

Compatible Devices

1. USB devices that support USB Mass Storage v1.0.
   (USB devices that operate as a removable disk in Windows (2000 or later) without additional driver installation.)
2. MP3 Player: HDD and flash type MP3 player.
3. Digital camera: PTP protocol is not supported.

- Devices which require additional program installation when you have connected it to a computer, are not supported.

1. USB HDD and USB Flash Drive: Devices that support USB2.0 or USB1.1.

2. You may experience a difference in playback quality when you connect a USB1.1 device.

3. For a USB HDD, make sure to connect an auxiliary power cord to the USB HDD for proper operation.

4. USB card Reader: One slot USB card reader and Multi slot USB card reader

5. Depending on the manufacturer, the USB card reader may not be supported.

6. If you install multiple memory devices into a multi card reader, you may experience problems.

• Supported Formats

	File name	File extension Frequency	Bit rate Version Pixel			Sampling
Still Picture	PG.JPG.JPEG--640*480
Music	MP3.MP3 80-384kbps		--44.1kHz
	WMA	.WMA	56~128kbps	V8	-	44.1kHz
Movie	VCD	MPO.MPEG.DAT	1.5Mbps	VCD1.1,VCD2.0	320*480	44.1KHz
	WMV	.WMV	4Mbps	V1.V2.V3.V7(V9 is not applicable)	720*480	44.1KHz~48KHz
	DivX	.AVI.,ASF	4Mbps	DivX3.11-CDivX5.1,Xivc	720*480	44.1KHz~48KHz

• A device using NTFS file system is not supported.(Only FAT file system is supported.)

The USB host function of this product does not support all USB devices. For the information on the supported devices, pls see the P76.

Displaying Disc Information

You can view playback information on the disc on the TV screen.

Press INFO button on the remote control.

• Each time the button is pressed, the display changes as follows:

↓

↓
Display disappears

↓
Display disappears Display disappears

↓

Note

• Depending on the disc, the disc information display may appear different.

• What is a Title?

A movie contained in a DVD disc.

• What Is a Chapter?

Each title on a DVD disc is divided into several smaller sections called "chapters".

^1 appears on the TV screen!

If this symbol appears on the TV screen while buttons are being operated, that operation is not possible with the disc currently being played.

• What is a Track (File)?

A section of video or a music file recorded on a CD or MP3-CD.

Screen Display

DVD DVD display

CD display

MP3 CD display

RACK [FILE] display

AUDIO LANGUAGE display

BY| COLBY DIGITAL display

DivX DivX display

TITLE display

RACK (FILE) display

SUBTITLE display

ANGLE display

CHAPTER display

LR STEREO (LR) display

Fast/Slow Playback

Fast Playback

Press and hold ◀◀▶▶.

• Each time the button is held down during playback, the playback speed changes as follows:

Slow Playback

Press SLOW button.

• Each time the button is pressed during playback, the playback speed changes as follows:

DVD

DivX

- Reverse slow playback does not work with D-vX.

- No sound is heard during slow playback and also motion playback.

Skipping Scenes/Songs

DVD N 3

Briefly press ◀◀◀▶▶.

- Each time the button is pressed briefly during playback, the previous or next chapter, track, or directory (file) will be played.

- But, you cannot skip chapters consecutively.

DVD

[Non-Text]

Step Function

DVD

Press STEP button.

- The picture moves forward one frame each time the button is pressed during playback.

- No sound is heard during slow playback and step motion playback.

Angle Function

This function allows you to view the same scene in different angles.

DVD

1 Press INFO button.

2 Press Cursor ▶ button to move to ANGLE display.

3 Press Cursor ▲, ▼ buttons or numeric buttons to select the desired angle.

• Each time the button is pressed, the angle changes as follows:

Note

• The Angle function works only with discs on which multiple angles have been recorded.

Repeat Playback

Repeat playback allows you to repeatedly play a chapler. tille, track (song), or directory (MP3 file).

DVD CD MP3 J EG

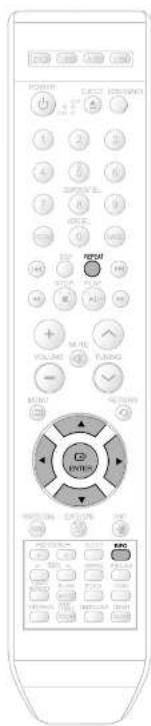

Press CD REPEAT button.

• Each time the button is pressed during playback, the repeat playback mode changes as follows:

Repeat Playback Options

CHAPTER

Repeatedly plays the selected chapter.

TITLE

Repeatedly plays the selected title.

RANDOM

Plays tracks in random order.

(A track that has already been played

may be played again.)

TRACK

Repeatedly plays the selected track.

DIR

Repeatedly plays all tracks in the

selected folder.

DISC

Repeatedly plays the entire disc.

OFF

Cancels Repeat Playback.

DVD CD

To Select a Repeat Playback Mode in the Disc Information Screen

- For CD,Press INFO button once.
DVD EN 1/3 OFF/oz OFF
OFF

2 Press Cursor ▶ button to move to REPEAT PLAYBACK display.

3 button to select the desired Repeat Playback mode.

Note

- For MP3 and JPEG discs, you cannot select Repeat Play from the information display screen.

A B Repeat Playback

1 Press the INFO button twice.

2 Press the Cursor button to move to the REPEAT PLAYBACK () display.

3 Press the Cursor ▲, ▼ button to select and then press the ENTER button at the beginning of the desired segment.

- When the ENTER button is pressed, the selected position will be stored in memory.

4 Press the ENTER button at the end of the desired segment.

• The specified segment will be played repeatedly

To return to normal playback, press the Cursor ▶ button to select ◎ OFF.

• The A-B Repeat function does not operate with DivX, MP3 or JPEG discs

Zoom Function

This function allows you to enlarge a particular area of the displayed image.

Zoom (Screen Enlarge) Function

1 Press ZOOM button.

2 Press Cursor ▲, ▼, ◀, ▶ buttons to move to the area you want to enlarge.

3 Press ENTER button.

• Each time the button is pressed, the zoom level changes as follows:

JPEG File Playback

Images captured with a digital camera or camcorder, or JPEG files on a PC can be stored on a CD and then played back with this DVD player.

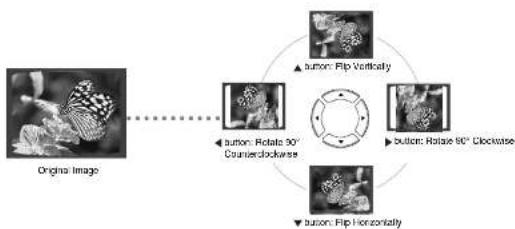

Rotate/Flip Function

Press Cursor ▲, ▼, ◀, ▶ buttons during playback.

Selecting Audio Subtitle Language

Audio Language Selection Function

DVD

1

Press INFO button twice.

2

Press Cursor ▲, ▼ buttons or numeric buttons to select the desired audio language.

DVD

EN 12 活动 OFF 02 OFF

• Depending on the number of languages on a DVD disc, a different audio language (ENGLISH, SPAIN, JAPANESE, etc.) is selected each time the button is pressed.

Subtitle Language Selection Function

DVD

1

Press INFO button twice.

2

Press Cursor ▶ button to move to SUBTITLE display.

nvc

EN 10 OFF 02 OFF

[Unreadable]

OFF 02

3

Press Cursor ▼ button or numeric buttons to select the desired subtitle.

Note

• You can use the SUBTITLE button on the remote control to select a subtitle language.
• Depending on the disc, the Subtitle and Audio Language functions may not work.

Moving Directly to a Scene/Song

DVD

[NO TEXT]

1

Press INFO button.

Moving to a Title/Track

2 Press Cursor ▲,▼ buttons or numeric buttons to select the desired title/track and then press ENTER button.

Moving to a Chapter

3

Press Cursor ◀▶ buttons to move to Chapter display.

D+0

P

0,

其中

10

3.12

[Unreadable]

The image is too blurry to recognize any text content.

-

图

p

叫

0

201

BUI

+

[Unreadable]

图

2

15

2-1

c:

81

图

Moving to a Chapter

4

Press Cursor ▲, ▼ buttons or numeric buttons to select the desired chapter and then press ENTER button.

Moving to a Specific Time

5

Press Cursor◀, ▶ buttons to move to time display.

Moving to a Specific Time

6

Press the numeric buttons to select the desired time and then press ENTER button.

图

D.

中

12

201

项目

[Unreadable]

4

图

p

001

0

H1/2

750

T.

图

D:

5

011

MP3J

EG

Press the numeric buttons.

- The selected file will be played. - A MP3 or JPEG disc cannot be moved from the disc information screen. - When playing a MP3 or JEPG disc, you cannot use ▲, ▼ to move a folder. To move a folder, press ■ (Stop) and then press ▲, ▼.

Note

• You can press ◀◀▶▶ on the remote control to move directly to the desired title, chapter, or track.
• Depending on the disc, you may not be able to move to the selected title or time.

Using Disc Menu

You can use the menus for the audio language, subtitle language, profile, etc. DVD menu contents differ from disc to disc.

DVD

1 In stop mode, Press MENU button.

2 Press Cursor ▲,▼buttons to move to 'DISC MENU' and then press ENTER button.

- When you select the disc menu that is not supported by the disc, the 'This menu is not supported' message appears on the screen.

For DVDs containing multiple titles, you can view the title of each movie. Depending on the disc, this function may either not work at all or may work differently.

DVD

1 In stop mode Press MENU button.

2 Press Cursor ▲, ▼ button to move to 'Title Menu'.

3 Press ENTER button.

• The title menu appears.

Press EXIT button to exit the setup screen.

Setting the Language

OSD language is set to English by default.

1 In stop mode, Press MENU button.

4 Press Cursor ▲,▼ button to select the desired item and then press ENTER button.

Selecting the OSD Language

2 Press Cursor ▼ button to move to 'Setup' and then press ENTER button.

5 Press Cursor ▲,▼ button to select the desired language and then press ENTER button.

- Once the setup is complete. If the language was set to English, OSD will be displayed in English.

Selecting the Audio Language (recorded on the disc)

Selecting the Subtitle Language (recorded on the disc)

3 Press ENTER button.

Note

• To select other language, select OTHER and enter the language code of your country. (See 36 page for language code of countries) AUDIO, SUB TITLE and DISC MENU language can be selected.

Selecting the Disc Menu Language (recorded on the disc)

If the language you selected is not recorded on the disc, menu language will not change even if you set it to your desired language.

37

ss EXIT button to exit the setup screen.

ss RETURN button to return to the previous level.

Language Code List

Enter the appropriate code number for the initial settings "Disc Audio", "Disc Subtitle" and/or "Disc Menu" (See page 37).

Code Language Code Language Code Language Code Language
1027 Afar 1181 Frisian 1334 Latvian, Lettish 1506 Slovenian
1028	Abkhazlan	1183	Irish	1345	Malagasy	1507	Samoan
1032	Afrikaans	1186	Scotts Gaelic	1347	Maori	1508	Shona
1039	Amharic	1194	Galician	1349	Macedonian	1509	Somali
1044	Arabic	1196	Guarani	1350	Malayalam	1511	Albanian
1045	Assamese	1203	Gujarali	1352	Mongolian	1512	Serbian
1051	Aymara	1209	Hausa	1353	Moldavian	1513	Siswati
1052	Azerbaijani	1217	Hindi	1356	Marathi	1514	Sesolho
1053	Bashkir	1226	Croatian	1357	Malay	1515	Sundanese
1057	Byelorussian	1229	Hungarian	1358	Maltese	1516	Swedish
1059	Bulgarian	1233	Armenian	1363	Burmese	1517	Swahili
1060	Bihari	1235	Interlingua	1385	Nauru	1521	Tamil
1069	Bislama	1239	Interlingue	1389	Nepali	1525	Tegulu
1066	Bengali; Bangla	1245	Inupiak	1376	Dutch	1527	Tajik
1067	Tibetan	1248	Indonesian	1379	Norwegian	1528	Thal
1070	Breton	1253	Icelandic	1393	Occitan	1529	Tigrinya
1079	Catalan	1254	Italian	1403	(JAlan) Oromo	1531	Turkmen
1093	Corsican	1257	Hebrew	1408	Oriya	1532	Tagalog
1097	Czech	1261	Japanese	1417	Punjabi	1534	Selswana
1103	Welsh	1269	Yiddish	1428	Polish	1535	Tonga
1105	Danish	1283	Javanese	1435	Pashto, Pushto	1538	Turkish
1109	German	1287	Georgian	1436	Portuguese	1539	Tsonga
1130	Bhutani	1297	Kazakh	1463	Quechua	1540	Tatar
1142	Greek	1298	Greenlandic	1481	Rhaeto-Romance	1543	Twi
1144	English	1299	Cambodian	1482	Kirundi	1557	Ukrainian
1145	Esperanto	1300	Kannada	1483	Romanian	1564	Urdu
1149	Spanish	1301	Korean	1489	Russian	1572	Uzbek
1150	Estonian	1305	Kashmirli	1491	Kinyarwanda	1581	Vietnamese
1151	Basque	1307	Kurdish	1495	Sanakrit	1587	Volapuk
1157	Persian	1311	Kirgni2	1498	Sindhli	1613	Wolof
1165	Finnish	1313	Latin	1501	Sangro	1632	Xhosa
1166	Fiji	1326	Lingala	1502	Serbo-Croatian	1665	Yoruba
1171	Faeroese	1327	Laothian	1503	Singhalese	1684	Chinese
1174	French	1332	Lithuanian	1505	Slovak	1697	Zulu

Setting TV Screen type

1 In stop mode, Press MENU button.

2 Press Cursor ▼ button to move to 'Setup' and then press ENTER button.

3 Press Cursor ▼ button to move to 'TV DISPLAY' and then press ENTER button.

4 Press Cursor ▲,▼ button to select the desired item and then press ENTER button.

- Once the setup is complete, you will be taken to the previous screen.

Adjusting the TV Aspect Ratio (Screen Size)

The horizontal to vertical screen size ratio of conventional TVs is 4.3, while that of widescreen and high definition TVs is 16.9. This ratio is called the aspect ratio. When playing DVDs recorded in different screen sizes, you should adjust the aspect ratio to fit your TV or monitor.

For a standard TV, select either <4.3PS> or <4.3LB> option according to personal preference. Select if you have a widescreen TV.

4:3PS (4:3 Pan&Scan)

Select this to play a 16:3 picture in the pan & scan mode on a conventional TV.

- You can see the central portion of the screen only (with the sides of the 16.9 picture cut off).

4:3LB (4:3 Letterbox)

Select this to play a 16:9 picture in the letter box mode on a conventional TV.

- Black bars will appear at the top and bottom of the screen.

WIDE/HOTY

Select this to view a 16.9 picture in the full-screen mode on your widescreen TV.

- You can enjoy the widescreen aspect.

- If a DVD is in the 4:3 ratio, you cannot view it in widescreen.

- Since DVD discs are recorded in various image formats, they will look different depending on the software,

the type of TV, and the TV aspect ratio setting.

- When using HDMI, the screen is automatically converted to Wide mode.

Press RETURN button to return to the previous level.

Press EXIT button to exit the setup screen.

Setting Parental Controls (Rating Level)

Use this to restrict playback of adult or violent DVDs you do not want children to view.

Setting the Password

You can set the password for the Parental (rating level) setting.

1 in stop mode, Press MENU button.

2 Press Cursor ▼ button to move to 'Setup' and then press ENTER button.

3 Press Cursor ▼ button to move to 'PARENTAL' and then press ENTER button.

4 Press Cursor ▲, ▼ button to select the desired rating level and then press ENTER button.

• If you have selected Level 6, you cannot view DVDs with Level 7 or higher.
  • The higher the level, the closer the content is to violent or adult material.

5 Enter the password and then press ENTER button.

- The password is set to "7890" by default. - Once the setup is complete, you will be taken to the previous screen.

Note

- This function works only if a DVD disc contains the rating level information.

1 Press MENU button.

2 Press Cursor ▼ button to move to 'Setup' and then press ENTER button.

3 Press Cursor ▼ button to move to 'PASSWORD' and then press ENTER button.

4 Press ENTER button.

5 Enter the password and then press ENTER button.

- Enter the old password, a new password, and confirm new password. - The setting is complete.

• The password is set to "7890" by default.
  Press RETURN button to return to the previous level.
  Press CANCEL button to cancel the error numeric when you inputting password.
  Press EXIT button to exit the setup screen.

Press RETURN button to return to the previous level.

Press EXIT button to exit the setup screen.

Setting the Wallpaper

While watching a DVD or JPEG CD, you can set the image you like as a wallpaper.

Setting the Wallpaper

1 During playback, press PLAY/PAUSE button when the image you like comes up.

2 Press LOGO button.

- "COPY LOGO DATA" will be displayed on the TV screen.

Note

• The selected wallpaper will be displayed.
- You can repeat Steps 1 and 2 to set up to 3 wallpapers.
- The power will turn off and turn on automatically and back on the display mode.

Select this to set the Samsung Logo image as your wallpaper.

Select this to set the desired image as your wallpaper.

To Change the Wallpaper

1

Press MENU button.

2

Press Cursor ▼ button to move to 'Setup' and then press ENTER button.

3

Press Cursor ▼ button to move to 'LOGO' and then press ENTER button.

4

Press ▼ to select the desired 'USER', and then press ENTER.

5

Press EXIT button to exit the setup screen.

Press RETURN button to return to the previous level.

Press EXIT button to exit the setup screen.

Setting the DRC (Dynamic Range Compression)

You can use this function to enjoy Dolby Digital sound when watching movies at low volume at night.

1 Press MENU button.

2 Press Cursor ▼ button to move to 'Audio' and then press ENTER button.

3 If "DRC" is selected, press ENTER.

4 Press Cursor ▲,▼ to adjust the 'DRC'.

- The more times the Cursor ▲ button is pressed, the greater the effect, and the more times Cursor ▼ button is pressed, the smaller the effect.

AV SYNC Setup

Video may look slower than the audio if it is connected with digital TV. In this case, adjust the delay time of audio to optimal status to fit the video.

1 Press the MENU button.

- Setup menu appears.

2 Press Cursor ▲, ▼ buttons to move to 'Audio' and then press ENTER button.

• 'Audio' menu appears.

3 Press Cursor ▲, ▼ buttons to move to 'AV-SYNC' and then press ENTER button.

• AV-SYNC screen appears.

4 Press Cursor ▲, ▼ buttons to select the Delay Time of AV-SYNC and then press the ENTER button.

- You can set the audio delay time between 0 ms and 300 ms. Set it to the optimal status.

Press RETURN button to return to the previous level.

Press EXIT button to exit the setup screen.

Press RETURN button to return to the previous level.

Press EXIT button to exit the setup screen.

Playing DVD-OK Discs

You can enjoy the feeling of a karaoke bar in the comfort of your home. Watch the video and sing along the lyrics displayed on the TV screen against the accompaniment.

Setting the Shadow

You can set the lyrics to be displayed in the black strips.

1 Use the NUMERIC (0\~9) buttons to select the song you want to play back.

2 Press the PLAY/PAUSE(▶/II) button or the ENTER button.

- The numeric and title of the song will be displayed and the accompaniment starts.

To Clear Incorrectly Entered Song Numeric

- Press the STOP button.

To Stop During Accompaniment

- Press the STOP button.

1 Load a DVD-OK discs.

2 Press MENU button.

3 Press Cursor ▲,▼ button to move to 'Shadow'.

4 Press ENTER button to select the desired item.

• Each time the button is pressed, the selection changes as follows: ON → OFF.

Note

- When playing DVD-OK Discs, only DVD-Ok verison 6 disk is availabel.

Reserving Accompaniment Music

While the accompaniment is playing, you can reserve the next song you want to sing.

Priority Playing Accompaniment Music

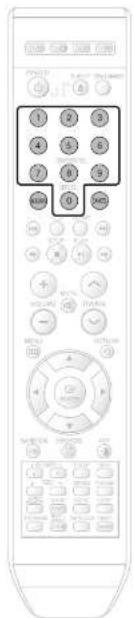

1 Press the NUMERIC (0\~9) buttons to select the song you want to reserve.

2 Press the RESERVE button.

• The song is reserved.

To Cancel the Reservation

1 Enter the numeric of the song you have reserved.

2 Press the CANCEL button.

1 In Stop mode, press the NUMERIC (0\~9) buttons to select the song you want to play back.

2 Press the PLAY/PAUSE(▶/II) button

DVD-OK Repeat Play

Press the REPEAT button.

• Each time the button is pressed, the selection changes as follows: REPEAT OFF → REPEAT ONE → REPEAT ALL → RANDOM.

Note

- RESERVE function will not operate if REPEAT function is set while DVD-OK is played.

Note

- REPEAT function will not operate if RESERVE function is set while DVD-OK is played.

Favorite Song Function

You can save 50 songs you like or sing often each in FAVORITE1, 2, 3, a total of 150 songs to easily find and sing a your favorite song.

Saving FAVORITE SONG

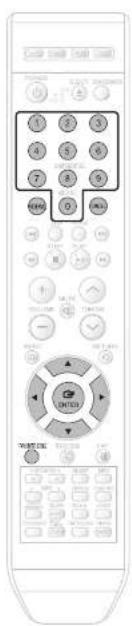

1 During the stop mode, press the FAVORITE SONG button.

2 Press ◀, ▶ button to select the location to save among FAVORITE1, 2, 3.

3 Press the number (0\~9) button to enter the song you want.

4 Press the RESERVE button to save it.

Deleting FAVORITE SONG

1. During the stop mode, press the FAVORITE SONG button.
2. Press ▲, ▼ button to select the song to delete.
3. Press the CANCEL button.

Singing FAVORITE SONG

1 During the stop mode, press the FAVORITE SONG button.

2 Press ◀, ► button to select the location of song among FAVORITE 1, 2, 3.

3 Press ▲, ▼ button to select the song you want.

4 Press the ENTER button to play back selected song.

To Exit FAVORITE SONG Screen

- Press ■ (STOP) button or FAVORITE SONG button.

Search Song Function

You can easily do song search on screen without viewing the song list book.

Structure of Song Search

Items Detailed Items Alphabet
RUSSIA	NAME/SINGER	A~R
ENGLISH	NAME/SINGER	A~Z
UKRAINE	NAME/SINGER	A~R
DUET SONG	-
GENRE	ROCK CHANSON FOLK BARD ROMANCES
HITS SONGS	MODERN 30-60S 70S/80S CHILDREN ARMY

Search by Language

1 pre bu

During the stop mode, press the SEARCH SONG button and then press ▲,▼ button to select the language you want.

• You can select the language among RUSSIA → ENGLISH → UKLAINE.
- At this time, press ◀ button to move to the song list on the bottom.

2

Press ▶ button to move to the detailed items and then press ▲, ▼ button to select the NAME or SINGER.

- Press ◀ button if you want to move to the previous stage.

3

Press ▶ button to move to alphabet and press ▲,▼ button to select it.

- Press ◀ button if you want to move to the previous stage.

4

Press ▶ button to move to the song list on the bottom and then press ▲, ▼ button to select the song you want.

- Press ◀ button if you want to move to the previous stage.

5

Press the ENTER button to play back selected song.

To Ex

Exit Search Song Screen

- Press

(STOP) button or SEARCH SONG button.

Search Song Function

You can easily do song search on screen without viewing the song list book.

Searching DUET SONG

1 During the stop mode, press the SEARCH SONG button and then press ▲, ▼ button to select the DUET SONG.

2 Press ◀, ▶ button to move to the song list on the bottom.

3 Press ▲, ▼ button to select the song you want.

4 Press the ENTER button to play back selected song.

- Press ← button if you want to move to the previous stage.

To Exit Search Song Screen

- Press ■ (STOP) button or SEARCH SONG button.

Searching by Genre

1 During the stop mode, press the SEARCH SONG button and then press ▲,▼ button to select the GENRE.

- At this time, press ◀ button to move to the song list on the bottom.

2 Press ▶ button to move to the detailed items and then press ◀, ▶ button to select the genre you want.

- You can select the genre among ROCK → CHANSON → FOLK → BARD → ROMANCES. - Press ◀ button if you want to move to the previous stage.

3 to the song list on the bottom and then press ▲, ▼ button to select the song you want.

- Press ← button if you want to move to the previous stage.

4 Press the ENTER button to play back selected song.

To Exit Search Song Screen

- Press ■ (STOP) button or SEARCH SONG button.

Search Song Function

You can easily do song search on screen without viewing the song list book.

Tempo Control

You can easily do song search on screen without viewing the song list book.

Searching by HITS SONGS

During the stop mode, press the SEARCH SONG button and then press ▲, ▼ button to select the HITS SONGS.

- At this time, press ◀ button to move to the song list on the bottom.

2 Press ▶ button to move to the detailed items and then press ▲, ▼ button to select the hits song.

- You can select the song among MODERN → 30-60S → 70S/80S → CHILDREN → ARMY.

- Press ◀ button if you want to move to the previous stage.

Press ▶ button to move to the song list on the bottom and then press ▲, ▼ button to select the song you want.

- Press ◀ button if you want to move to the previous stage.

4 Press the ENTER button to play back selected song.

Tempo Control

During the playback, press the TEMPO buttons.

- Each time + button is pressed, the tempo gets faster, and each time - button is pressed the tempo gets slower.

To Exit Search Song Screen

- Press ■ (STOP) button or SEARCH SONG button.

Male-Female Key Control

Male-Female Key Control

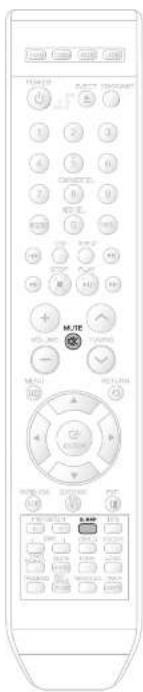

During the playback, press the FEMALE(MALE) button.

• Each time the button is pressed, this selection alternates between Male and Female. • Select Male when singing in male voice and select Female when singing in female voice.

Setting the Chorus

You can set the chorus to ON or OFF.

1 Load a DVD-OK discs.

2 Press MENU button.

3 Press Cursor ▲,▼ button to move to 'Chorus'.

4 Press ENTER button to select the desired item.

Note

- Chorus function may not work depending on information recorded in the disk.

Setting the Fanfare

You can set Fanfare to come out after singing a song.

Setting the Average Score

You can set the grade of scores displayed in the screen in advance.

1 Load a DVD-OK discs.

2 Press MENU button.

3 Press Cursor ▲,▼ button to move to 'Fanfare'.

4 Press ENTER button to select the desired item.

• Each time the button is pressed, the selection changes as follows: ON • OFF.

1 Load a DVD-OK discs.

2 Press MENU button.

3 Press Cursor ▲,▼ button to move to 'Average Score'.

4 Press ENTER button to select the desired item.

• Each time the button is pressed, the selection changes as follows: LOW • MIDDLE • HIGH →RANDOM→ OFF.

Listening to Radio

Presetting Stations

You can store up to:

+15 FM stations

Remote Control

1 Press the TUNER button to select the FM band.
2 Tune in to the desired station.

■ Automatic Tuning 1: When the button is pressed, a preset broadcast station is selected.

■ Automatic Turing 2: Press and hold the bolten to automatically search for active

broadcasting stations.

■ Manual Tuning : Briefly press the bolten to increase or decrease the frequency incrementally.

Main Unit

1 Press the FUNCTION button to select the FM band.
2 Select a broadcast station.

■ Automatic Tuning 1: Press the STOP (■) button to select and then press the button to select the preset station.
■ Automatic Tuning 2: Press the STOP (■) button to select and then press and hold the button to automatically search the band.
- Manual Tuning: Press the STOP (■) button to select and then briefly press the 📄→to tune in to a lower or higher frequency.

➢ Press the MO/ST button to listen in Mono/Stereo.

■ Each time the button is pressed, the sound switches between and .
- In a poor reception area, select MONO for a clear, interference-free broadcast.

Example : Presetting FM 89.10 in the memory

1 Press the TUNER button to select the FM band.
2 Press the button to select <89.10>.

3 Press the TUNER MEMORY button.

■ flashes in the display

4 Press the button to select preset number.

■ You can select between 1 and 15 presets.

5 Press the TUNER MEMORY button again.

■ Press the TUNER MEMORY button before disappears from the display.
- disappears from the display and the station is stored in memory.

6 To preset another station, repeat steps 2 to 5.

To tune in to a preset station, press the button on the remote control to select a channel.

• This unit does not receive AM broadcasts.

Timer Function

• The timer enables you to switch the system on or off at specific times.
- If you no longer want the system to be switched on or off automatically, you must cancel the timer.
• Before setting the timer, check that the current time is correct.
- For each step, you have a few seconds to set the required options.
If you exceed this time, you must start again.

Example: You wish to wake up to music every morning.

1 Switch the system on by pressing POWER.

2 Press TIMER/CLOCK until TIMER is displayed.

3 Press the ENTER button.

- ON TIME is displayed (instead of the equalizer symbols) for a few seconds, followed by any switch-on time already set: you can set the timer switch-on time.

4 Set the timer switch-on time.

a. Set the hour by pressing ◀ or ▶ button.

b. Press ENTER

• The minutes flash.

c. Set the minutes by pressing ◀ or ▶ button.

d. Press ENTER

- OFF TIME is displayed (instead of the equalizer symbols) for a few seconds, followed by any switch-off time already set; you can now set the timer switch-off time.

5 Set the timer switch-off time.

a. Set the hour by pressing ◀ or ▶ button.

b. Press ENTER.

• The minutes flash.

c. Set the minutes by pressing ◀ or ▶ button.

d. Press ENTER.

• VOL 10 is displayed, where 10 corresponds to the volume already set.

6 Press ▶ or ▶ button to adjust the volume level and press ENTER.

• The source to be selected is displayed.

7 Press ◀ or ▶ button to select the source to be played when the system switches on.

• TUNER (radio) : a Press ENTER. b Select a preset station by pressing

• DVD/CD (compact disc) : Load on a disc.

- USB :Insert a USB.

8 Press ENTER to confirm the timer.

9 Press POWER to set the system to standby mode.

- ① is displayed to the top right of the time, indicating that the timer has been set.

• The system will switch on and off automatically at the required times.

Note

If the timer switch on and off times are identical, the word ERROR is displayed.

- You can also use Multi Jog or ◀◀▶ button on the front panel to instead ◀. ▶ button on the remote control in step 4,5,6,7.

Canceling the Timer

After having set the timer, it will start automatically as shown by the TIMER indication on the display. If you no longer wish to use the timer, you must cancel it.

To cancel the timer, press TIMER ON/OFF once.

- no longer displayed.

To resume the timer, press TIMER ON/OFF again.

- is displayed again.

Note

- You can cancel the timer while the power is on or while the player is in standby.

POWER SOUND and sound field(DSP/EQ) Function

P.SOUND Function

Your mini-compact system is equipped with the function of Power Sound. The function of Power Sound amplifies bass and improves high key or bass twice as much for you to appreciate powerful real sound.

Press the P.SOUND button on the front panel.

Result: Press P.SOUND button on the front panel. To cancel this function, press P.SOUND button again.

DSP/EQ Function

Your mini-compact system is equipped with a preset equalizer that allows you to choose the most appropriate balance between treble and bass frequencies, according to the type of music you are listening to.

Turn DSP/EQ on the front panel or Press DSP/EQ on the remote control until the required option is selected.

- Press the button repeatedly to select "PASS →POPS →JAZZ→ROCK→STUDIO→CLUB→HALL→MOVIE→CTIURCH→PASS".

Sleep Timer Function / Mute Function

Sleep Timer Function

You can set the time that the DVD player will shut itself off.

Press SLEEP button.

• Each time the button is pressed, the selection changes as follows: 90 MIN → 60 MIN → 45 MIN → 30 MIN → 15 MIN → OFF.

To confirm the sleep timer setting, press SLEEP button.

- The remaining time before the DVD player will shut itself off is displayed. - Pressing the button again changes the sleep time from what you have set earlier.

To cancel the sleep timer, press SLEEP button until OFF appears on the display.

Mute Function

This is useful when answering a doorbell or telephone call.

Press MUTE button.

- 'MUTE' appears in the display. - To turn off mute, press the button again.

DEMO Function / DIMMER Function/ ECO Function

DEMO Function

You can view the various functions available on your system.

Press DEMO/DIMMER button.

• The various functions available are listed in turn on the display.
• All these functions are described in detail in this booklet. For instructions on how to use them, refer to the appropriate sections.

DIMMER Function

You can adjust the brightness of the display on the main unit so it won't interfere with your movie viewing.

Press DEMO/DIMMER button.

• Each time the button is press, the brightness changes as follows: DIMMER ON(Dim) → DIMMER OFF(Bright).
  To cancel this function, press DEMO/DIMMER again.

ECO Mode Function

You can save the power consumption while the unit is turned off(on standby).

• To activate the ECO mode, Press POWER while the unit is turned off (on standby). The display illumination (including the display demonstration) disappears.
• While ECO mode is activated, the display demonstration is canceled temporarily.
• ECO mode is the energy saving mode.

Bass/Treble Level Function

BASS Level Function

BASS function stresses low tones providing thudding sound effects.

1 Press BASS button and Turn MULTI JOG knob on the front panel to select from BASS -08 to BASS +08, total 9 steps.

2 You can select the level of low tones you desire.

TREBLE Level Function

Treble function stresses high tones providing thudding sound effects.

1 Press TREBLE button and Turn MULTI JOG knob on the front panel to select from TRE -08 to TRE +08, total 9 steps.

2 You can select the level of high tones you desire.

Connecting Headphones/Microphone(option)

You can connect a set of headphones to your micro component system so that you can listen to music or radio programmers without disturbing other people in the room. The earphones must have a 3.50 jack or an appropriate adapter.

Connect the headphones to the PHONES jack on the front panel.

• The loudspeakers are no longer used to output the sound.

Note

- Prolonged use of headphones at a high volume may damage your hearing. - HDMI AUDIO ON is converted to OFF when connected the headphones.

Plug the microphone with a 6.3ø MIC jack into microphone terminal.

• Connect the Microphone.
• Turn the MIC LEVEL knob to adjust the MIC level.
• Press the ECHO button to select ECHO1.ECHO2, and ECHO OFF.
• During using the microphone, you can press the REC/PAUSE button to record your favorite.
• When connected a MIC.HDMI output is not available.

Key Control

You can easily do song search on screen without viewing the song list book.

Press the KEY CONTROL button to adjust the key to your voice. The (-3\~+3)7 steps key control you can select.

Result: Each time the KEY CONTROL #, b button is pressed. the following appears on the TV screen:

b: Low-Pitched

: High-Pitched

• Each time # button is pressed, the key is increased, and each
time b button is pressed, the key is decreased.
• The function only can available for DVD-OK disc.
- The function for "key control" can not disappear immediately if you unplugged MIC.

- You can press this button "KEY CONTROL" on the main panel, then use "MULTI JOG CONTROL" or [◀◀ ▶▶] button to complete this operation.

Cautions on Handling and Storing Discs

Small scratches on the disc may reduce sound and picture quality or cause breaks in playback. Be especially careful not to scratch discs when handling them.

Handling discs

Do not touch the playback side of the disc. Hold the disc by the edges so that fingerprints will not get on the surface. Do not stick paper or tape on the disc.

Handling and Storing Discs

When you get fingerprints or dirt on the disc, clean it with a mild detergent diluted in water and wipe with a soft cloth.

- When cleaning, wipe gently from the inside to the outside of the disc.

Note

Condensation may form if warm air comes into contact with cold parts inside the player. When condensation forms inside the player, the player may not operate correctly. If this occurs, remove the disc and let the player stand for 1 or 2 hours with the power on.

Before Calling for Service

Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed below or if the instruction below does not help, turn off the unit, disconnect the power cord, and contact the nearest authorized dealer or Samsung Electronics Service Center.

Symptom Check/Remedy

I can't eject the disc.	• Is the power cord plugged securely into the outlet?• Turn off the power and then turn it back on.
Playback does not start.	• Check the region number of the DVD.DVD discs purchased from abroad may not be playable.• CD-ROMs and DVD-ROMs cannot be played on this DVD player.• Make sure that the rating level is correct.
The remote control does not work.	• Is the remote control being operated within its operation range of angle and distance?• Are the batteries exhausted?
Playback does not start immediately when the Play/Pause button is pressed.	• Are you using a deformed disc or a disc with scratches on the surface?• Wipe the disc clean.
Sound is not produced.	• No sound is heard during fast playback, slow playback, and step motion playback.• Are the speakers connected properly? Is the speaker setup correctly customized?• Is the disc severely damaged?
Picture does not appear, sound is not produced, or the disc tray opens 2 to 5 seconds later.	• Was the DVD player suddenly moved from a cold place to a warm one? When condensation forms inside the player, remove the disc and let the player stand for 1 or 2 hours with the power on. (You can use the player again after condensation disappears.)
• Disc is rotating but no picture is produced.• Picture quality is poor and picture is shaking.	• Is the TV power on?• Are the video cables connected properly?• Is the disc dirty or damaged?• A poorly manufactured disc may not be playable.

Symptom Check/Remedy

Audio language and subtitles do not work.	• Audio language and subtitles will not work for DVDs not containing them. And depending on the disc, they may work differently.
Menu screen does not appear even when the menu function is selected.	• Are you using a disc that does not conlain menus?
Aspect ratio cannot be changed.	• You can play 16:9 DVDs in 16:9 WIDE mode, 4:3 LETTER BOX mode, or 4:3 PAN SCAN mode, but 4:3 DVDs can be seen in 4:3 ratio only. Refer to the DVD disc jacket and then select the appropriate function.
Can't receive radio broadcast.	• Is the antenna connected properly?• If the antenna's input signal is weak, install an external FM antenna in an area with good reception.
• The main unit is not working.(Example: The power goes out or strange noise is heard.)• The DVD player is not working normally.	• Turn off the power and hold the STOP button on the main unit for longer than 5 seconds.Using the RESET function will erase all stored settings.Do not use this unless necessary.
The password for rating level has been forgotten.	• While the player is in “NO DISC” mode, hold the main unit's TUNING MODE: Button for longer than 5 seconds. “INITIAL” appears on the display and all settings will return to the default values.• Press the POWER button.Using the RESET function will erase all stored settings.Do not use this unless necessary.

Specifications

RADIO

FM

Signal/nose ratio 55 dB

Usable sensitivity 10 dB

Total harmonic distortion 0.6 %

COMPACT DISC PLAYER

Capacity 1 disc

Frequency range 20 Hz - 20 KHz (± 1 dB)

Signal/noise ratio 85 dB (at 1 KHz) with filter

Distortion 0.05 % (at 1 KHz)

Channel separation 75 dB

Disc sizes Diameter: 120 or 80 mm. Thickness: 1.2 mm

AMPLIFIER

Output power

Front Speaker(4 Ω) 100W/CH RMS,IEC (total harmonic distortion: 10 %)

Channel separation 40 dB

Signal/noise ratio 75 dB

GENERAL

Power consumption 80W

Dimensions 346(D) x 387 (H) x 192 (W) mm

Weights 5.1Kg

USB Feature Supported Player

Digital Camera

Product	Company	Type
Phiexp A3400 FBJ Digital Camera
Phiexp-F51C RJ Digital Camera
Phiexp-F51C RJ Digital Camera
Phiexp-F50C RJ Digital Camera
Phiexp 57000 FBJ Digital Camera
Phiexp 431C RJ Digital Camera
KD-31/27 Kcnice	Digital Camera
Phoscam S.30CR	Kyocoris	Digital Camera
Phoscam S.30CR	Kyocoris	Digital Camera
Phoscam SCR	Kyocoris	Digital Camera
Phoscam X	Kyocoris	Digital Camera
Dinage Z1	Kinota	Digital Camera
Dinage Z1	Kinota	Digital Camera
Dinage X21	Kinota	Digital Camera
Codex4209	Nikon	Digital Camera
Codex4309	Nikon	Digital Camera
Codex 2200	Nikon	Digital Camera
Codex 5500	Nikon	Digital Camera
Codex 3700	Nikon	Digital Camera
Codex 4100	Nikon	Digital Camera
Codex 3200	Nikon	Digital Camera
Sylvus 4100 capital	Olympus	Digital Camera
D30 capital	Olympus	Digital Camera
U300 Olympus	Digital Camera
X-850	Olympus	Digital Camera
C-780	Olympus	Digital Camera
C-5000	Olympus	Digital Camera
X1	Olympus	Digital Camera
U-min	Olympus	Digital Camera
Lumix F220	Panasonic	Digital Camera
DMC-TX7GD	Panasonic	Digital Camera
Lumix LC88	Panasonic	Digital Camera
LUMX DMC-FI	Panasonic	Digital Camera
Cpic 540	Pentax	Digital Camera
Cpic 550	Pentax	Digital Camera
Cpic 35LF	Pentax	Digital Camera
Cpic MX	Pentax	Digital Camera
Digmax-420	Samsung	Digital Camera
Digmax-400	Samsung	Digital Camera
Satic PD4-130	Toshiba	Digital Camera
Codex 5300	Nikon	Digital Camera
Codex 31	Nikon	Digital Camera
Codex 7000	Nikon	Digital Camera
DMC-FX7	Panasonic	Digital Camera
Dinage XI Mincha	Digital Camera
AZ-1	Olympus	Digital Camera

USB Flash Disc

Product	Company	Type
Chrome Video	SandsX	USB 2.0 USB Flash Drive 128M
Chrome VRH	SandsX	USB 2.0 128M
Chrome VRH	SandsX	USB 2.0 258M
SDNV Micro Vault	Sony	USB 2.0 54MB
FLEX DRIVE	Santech	USB 2.0 32MB
ArgiDrive	A.I. Tech	USB 2.0 128MB
XTICK	LG	USB 2.0 128M
Micro Mini	kmcgs	USB 2.0 128M
iFlash	lindan	USB 2.0 54M
LG	XTOCKMI	USB 2.0 54M
RiDATA	E2D Max	USB 2.0 54M

MP3 Player

Product	Company	Type
Creative NVAC NXT28M	Creative	125 ME MPS Player
Ever X620	Ever	250 HDO MPS Player
YH-920	Samsung	250 HDO MPS Player
YP-T7	Samsung	MP3 Player
YH-976	Samsung	MP3 Player
YH-78	Samsung	MP3 Player
YH-33	Samsung	MP3 Player
YH-315	Samsung	MP3 Player
YH-T3	Samsung	MP3 Player
YH-38	Samsung	MP3 Player
YH-700	Samsung	MP3 Player
YH-35	Samsung	MP3 Player
YH-35	Samsung	MP3 Player
AUDIO U2	Covon MPS Player
AUDIO GS	Covon MPS Player
Audio MD	Covon	HDC MPS Player
SHMXWL	Sharp	250KB MPS Player
H10	Intron	MP3 Player
YH-T5 V3	Samsung	MP3 Player
YH-33	Samsung	250KB MPS Player

USB External HDD

Product	Company	Type
MONCEAY UX2	Dvca	USB 2.0

Notes on Terminology

ANGLE	Recorded onto some DVD discs are scenes which have been simultaneously shot from a number of different angles (the same scene is shot from the front, from the left , from the right , etc.). With such discs, the Angle button can be used to change the angle of view for specific scenes.
CHAPTER NUMBER	These numbers are recorded on DVD discs. A Title is subdivided into many sections, each of which is numbered, and specific parts of the video can be searched quickly using these numbers.
DVD	A high-density optical disc on which high-quality pictures and sound have been recorded by means of digital signals. Incorporating a new video compression technology (MPEG-2) and high-density recording technology, a DVD disc comprises two 0.6 mm thick discs bonded together.
REGION NUMBER	Both the DVD player and DVD discs are encoded with a region number. If the region number on the DVD disc does not correspond to the region number of the DVD player, the player cannot play the disc.
SUBTITLES	Translated appearing at the bottom of the screen. A DVD disc can contain up to 32 subtitle languages.
TITLE NUMBER	These numbers are recorded on DVD discs. When a disc contains two or more movies, these movies are numbered as Title 1, Title 2, etc.
TRACK NUMBER	These numbers are assigned to the tracks which are recorded on video and audio CDs. They enable specific tracks to be located quickly.
DOLBY DIGITAL	5.1 (or 6) Channel Digital Surround sound reproduced from DVDs and LDs recorded as a digital signals (with disc marking). With better sound quality, dynamic range, and directionality than traditional Dolby surround technology, you can enjoy dynamic, realistic sound.

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. Si tiene pregunlas o comentarios sobre productos Samsung, contacte con el centro de atención al cliente de SAMSUNG.

Region Country Customer Care Center Web Site
North America	CANADA	1-800-SAMSUNG (726/7864)	www.samsung.com/ca
	MEXICO	01-800-SAMSUNG (726/7864)	www.samsung.com/mx
	U.S.A	1-800-SAMSUNG (726/7864)	www.samsung.com
	ARGENTINE	0800-333 3733	www.samsung.com/ar
	BRAZIL	0800-124-4214004-0000	www.samsung.com/br
	CHILE	800-726-7864 (SAMSUNG)	www.samsung.com/cl
	COSTA RICA	0-800-507-7267	www.samsung.com/atin
	ECUADOR	1-800-10 7267	www.samsung.com/atin
	EL SALVADOR	800-6225	www.samsung.com/atin
	GUATEMALA	1-800-299-0013	www.samsung.com/atin
	JAMAICA	1-800-234-7267	www.samsung.com/atin
	PANAMA	800-7267	www.samsung.com/atin
	PUERTO RICO	1-800-682-3180	www.samsung.com/atin
	REP DOMINICA	1-800-751-2676	www.samsung.com/atin
	TRINIDAD & TOBAGO	1-800-7267-864	www.samsung.com/atin
	VENEZUELA	0-800-100-5303	www.samsung.com/atin
	COLOMBA	01-8000112112	www.samsung.com.co
Europe	BELGIUM	02-201 2418	www.samsung.com/be
	CZECH REPUBLIC	844 000 844Distributor pro Českou republiku :Samsung Zrt, Česka organizacini sležkaVyskovičova 4, 14600 Praha 4	www.samsung.com/cz
	DENMARK	70 70 19 70	www.samsung.com/dk
	FINLAND	030-6227 515	www.samsung.com/fi
	FRANCE	3260 SAMSUNG or08.25 08.65 65 (€ 0,15/Min)	www.samsung.com/fr
	GERMANY	01805 - 121213 (€ 0,14/Min)	www.samsung.de
	HUNGARY	06-80-SAMSUNG (726/7864)	www.samsung.com/hu
	ITALIA	800 SAMSUNG (726/7864)	www.samsung.com/it
	LUXEMBURG	0032 0102 201 24 18	www.samsung.li
	NETHERLANDS	0900-20 200 88 (€ 0,10/Min)	www.samsung.com/nl
	NORWAY	815 56 480	www.samsung.com/no
	POLAND	0 801 801 881	www.samsung.com/pl
	PORTUGAL	80 8 200 128	www.samsung.com/pt
	SLOVAKIA	0800-SAMSUNG (726/786)	www.samsung.com/sk
	SPAIN	902 10 11 30	www.samsung.com/es
	SWEDEN	0771-400 200	www.samsung.com/se
	U.K.	0870 SAMSUNG (726/7864)	www.samsung.com/uk
	Republic of Ireland	0818 717 100	www.samsung.com/uk
	Switzerland	0800-7267864	www.samsung.com/ch
	RUSSIA	8-800-200-0400	www.samsung.ru
	KAZAKISTAN	8-800-080-1188	www.samsung.kz
	UZBEKISTAN	8-800-120-0400	www.samsung.iz
	UKRAINE	8-800-502-0000	www.samsung.com/ur
	LITHUANJA	8-800-77777	www.samsung.it
	LATVIA	800-7267	www.samsung.com/v/index.htm
	ESTONIA	800-7267	www.samsung.ee
Asia Pacific	AUSTRALIA	1300 362 603	www.samsung.com/au
	CHINA	800-810-5858, 010-6475 1880	www.samsung.com.cn
	HONG KONG	3698 - 4698	www.samsung.com/nk
	INDIA	3030 82821800 110011	www.samsung.com/in
	INDONESIA	0800-112-8888	www.samsung.com/id
	JAPAN	0120-327-527	www.samsung.com/jp
	MALAYSIA	1800-88-9999	www.samsung.com/my
	PHILIPPINES	1800-10-SAMSUNG (726/7864)	www.samsung.com/ph
	SINGAPORE	1800 SAMSUNG (726/7864)	www.samsung.com/sg
	THAILAND	1800-29-323202-689-3232	www.samsung.com/th
	TAIWAN	0800-329-999	www.samsung.com/tw
	VIETNAM	1 800 588 889	www.samsung.com/vn
Middle East & Africa	SOUTH AFRICA	0860 7267864 (SAMSUNG)	www.samsung.com/za
	U.A.E	800SAMSUNG (7267864)8000-4726	www.samsung.com/mea
