MiniPRO TC605N - Curling iron Conair - Free user manual and instructions

Product Type	Curling Iron
Model	MiniPRO TC605N
Brand	Conair
Barrel Diameter	1/2 inch (13 mm)
Barrel Material	Tourmaline ceramic
Temperature Settings	25 heat settings via dial
Maximum Temperature	400°F (200°C)
Heat-Up Time	30 seconds
Auto Shut-Off	After 60 minutes
Dual Voltage	Yes (120-240V) for worldwide use
Power Source	Electric corded
Power Cord Length	6 feet swivel cord
Dimensions (L x W x H)	10.5 x 2 x 2 inches
Weight	0.5 lbs
Safety Features	Cool tip, auto shut-off, heat-resistant mat (not included)
Maintenance	Unplug and wipe with damp cloth; do not submerge
Warranty	Limited 2-year warranty

Frequently Asked Questions - MiniPRO TC605N Conair

What is the barrel size of the Conair MiniPRO TC605N?

The barrel diameter is 1/2 inch, perfect for tight curls and small sections.

Does the MiniPRO TC605N have adjustable temperature?

Yes, it features 25 heat settings controlled by a dial, ranging up to 400°F.

Is this curling iron suitable for travel?

It has dual voltage (120-240V) and a swivel cord, but you may need a plug adapter.

How long does it take to heat up?

The iron heats up in 30 seconds for quick styling.

Does it have an automatic shut-off?

Yes, it automatically shuts off after 60 minutes for safety.

What material is the barrel made of?

The barrel is tourmaline ceramic for even heat and reduced frizz.

How do I clean the curling iron?

Unplug the iron and wipe with a damp cloth. Do not immerse in water.

Can I use it on wet hair?

No, always use on dry hair to prevent damage and ensure safety.

What is the warranty period?

Conair offers a limited 2-year warranty against defects.

Does it come with a heat-resistant glove?

No, but it has a cool tip for safe handling. Consider using a heat glove separately.

USER MANUAL MiniPRO TC605N Conair

IMPORTANT SAFETY INSTRUCTIONS

DANGER — Extremely flammable. This appliance is not a toy. Keep away from children.

CAUTION — Contents under pressure. Contains butane. Do not puncture or incinerate, even after use. Do not use near sparks or open flames. Do not store above 120°F or expose to sunlight.

WARNING — Inhaling the contents can be harmful or fatal. Do not misuse. If inhaled, contact a doctor immediately for assistance.

Butane cartridges other than ThermaCELL ^® will not work in this appliance. Seller will not be held responsible for damage, injury or poor performance caused by use of other butane cartridges.

SAVE THESE INSTRUCTIONS

OPERATING INSTRUCTIONS

FEATURES OF YOUR NEW CURLING IRON:

Cordless: No plugs or batteries needed. Use styler anywhere. The replaceable ThermaCELL ^® butane gas cartridge lasts for months, depending upon use.

Compact: The stylist's neat, portable size makes it easy to store away or pack up for travel in its own carrying case.

Heats Up Fast: No waiting! Iron reaches ideal curling temperature in only 2 minutes.

Cartridge Included: No messy refilling. Lasts for months, depending upon use. Replacement cartridges are available from your favorite local retailer. Use only Conair® ThermaCELL® butane cartridges in your curling iron. Model TC2N

NOTE: Do not use this styling appliance on hair extensions.

GETTING STARTED

1. Remove the protective cap from the cartridge. Keep the cap in a safe place so you can put it back on the cartridge for future storage. Push the OFF button to make sure styler is off.

2. Insert the threaded end of the cartridge into the curling iron handle and slide it in until it stops, then screw cartridge in a clockwise direction until it is secure. MAKE SURE THE SWITCH IS OFF UNTIL YOU ARE READY TO USE THE IRON, OR YOU WILL WASTE BUTANE.

3. When you are ready to use the iron to curl your hair, press the ON button.

Wait 5 seconds, then press the starter switch several times. You may hear a slight popping sound as iron starts. Look into the circular window lens at the end of the cool tip. If the iron is heating, a glowing wire will be visible. If not, press the starter switch a few more times. THE IRON WILL BE READY TO USE IN 1 OR 2 MINUTES. NEVER LEAVE THE IRON ON AND UNATTENDED.

1. After you have finished styling your hair, please remember to press the OFF button to turn off the iron. Remove the cartridge from the iron and replace the cap. Do not store the cartridge in the iron.

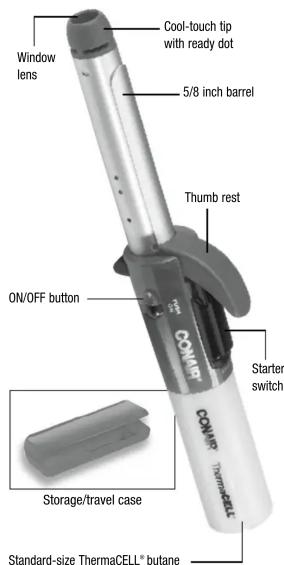

GET TO KNOW YOUR CORDLESS IRON

Standard-size ThermaCELL ^® butane
gas cartridge with an approximate life
of 2 to 3 months, depending upon use

TO CURL HAIR

1. Section dry hair evenly and comb each section before winding. Press the thumb rest to open spoon, place curling iron midway up the hair section, then spread hair evenly between spoon and barrel. Release thumb rest to hold hair in place and gently slide curling iron down to hair ends. To avoid crimped ends, make sure they are securely wound under the spoon in the direction of the desired curl.
2. Always place the spoon above the hair strand when rolling a curl under; place the spoon under the hair strand when making a flip style.
3. Wind hair up as far as you want it curled, being careful not to let the iron touch the scalp. Hold in place for 8 to 12 seconds, depending on the texture and length of your hair. For tighter, bouncier curls, roll less hair. For looser, free-flowing curls, roll more hair.
4. To remove iron, unwind the hair strand and press the thumb rest. To set the curl, do not comb or brush hair until it cools. If you want a natural, ropey, "beachy" new look, just finger-comb strands, first rubbing a tiny bit of gel on your fingertips.
5. After you have finished styling your hair, please remember to press the OFF button to turn off the iron.

USER MAINTENANCE

Your iron is virtually maintenance free. No lubrication is needed. If cleaning becomes necessary, make sure the unit is off and the iron is cool. Wipe exterior with a cloth. If any abnormal condition occurs during use, turn off the iron, allow it to cool and return it for repair to an authorized service center only. No repairs should be attempted by the consumer.

STORAGE

When not in use, your stylist is easy to store. Allow appliance to cool, then simply store out of reach of children in a safe, dry location.

To purchase cartridge refills

visit www.conair.com or

call 1-800-3-CONAIR.

Ask for Model TC2N

LIMITED ONE YEAR WARRANTY (U.S. AND CANADA ONLY)

Conair will repair or replace, at our option, your appliance free of charge for 12 months from the date of purchase if the appliance is defective in workmanship or materials.

To obtain service under this warranty, return the defective product to the service center listed, together with your sales slip. California residents need only provide proof of purchase and should call 1-800-3-CONAIR for shipping instructions. In the absence of a receipt, the warranty period shall be 12 months from the date of manufacture.

ANY IMPLIED WARRANTIES, OBLIGATIONS, OR LIABILITIES, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED IN DURATION TO THE 12-MONTH DURATION OF THIS WRITTEN, LIMITED WARRANTY. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you.

IN NO EVENT SHALL CONAIR BE LIABLE FOR ANY SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY.

EXPRESS OR IMPLIED, WHATSOEVER. Some states do not allow the exclusion or limitation of special, incidental, or consequential damages, so the above limitation may not apply to you. This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state.

ThermaCELL is a registered trademark of The Schwabel Corporation.

Made in Thailand.

Cartridge made in the Philippines.

Please register this product at www.conair.com/registration

Service Center

Conair Corporation

Service Department 7475 N. Glen Harbo

Glendale, AZ 85307

For information on any Conair or InfinitiPRO by Conair product, call 1-800-3-CONAIR or visit us on the web at www.conair.com/infiniti

©2019 Conair Corporation

19PA065447

IB-13994B

The Cordless COLLECTION

5/8 inch curling iron

Close-up of a curling iron with metallic bands and a flat base (no visible text or symbols)

Instructions & Styling Guide

For your safety and continued enjoyment of this product, always read the instruction book carefully before using.

Model TC605 - All Versions

CONAIR
