USER MANUAL IAEBT209 iLive

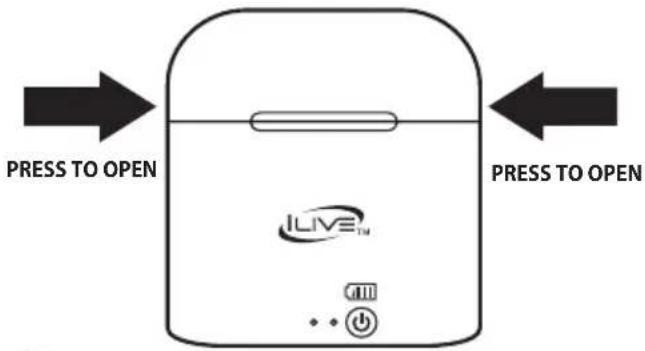

Charging the Earbuds

1. Open the cover and place the earbuds in their docking stations. Be sure to press down so the earbuds make contact with the charging tip.
2. Press the Power button on the case to power it ON and charge the earbuds.
3. When charging, the indicator LEDs on the earbuds will turn red. When charging is complete, the indicators on the earbuds will turn blue.

PRESS TO OPEN PRESS TO OPEN ILIVE™

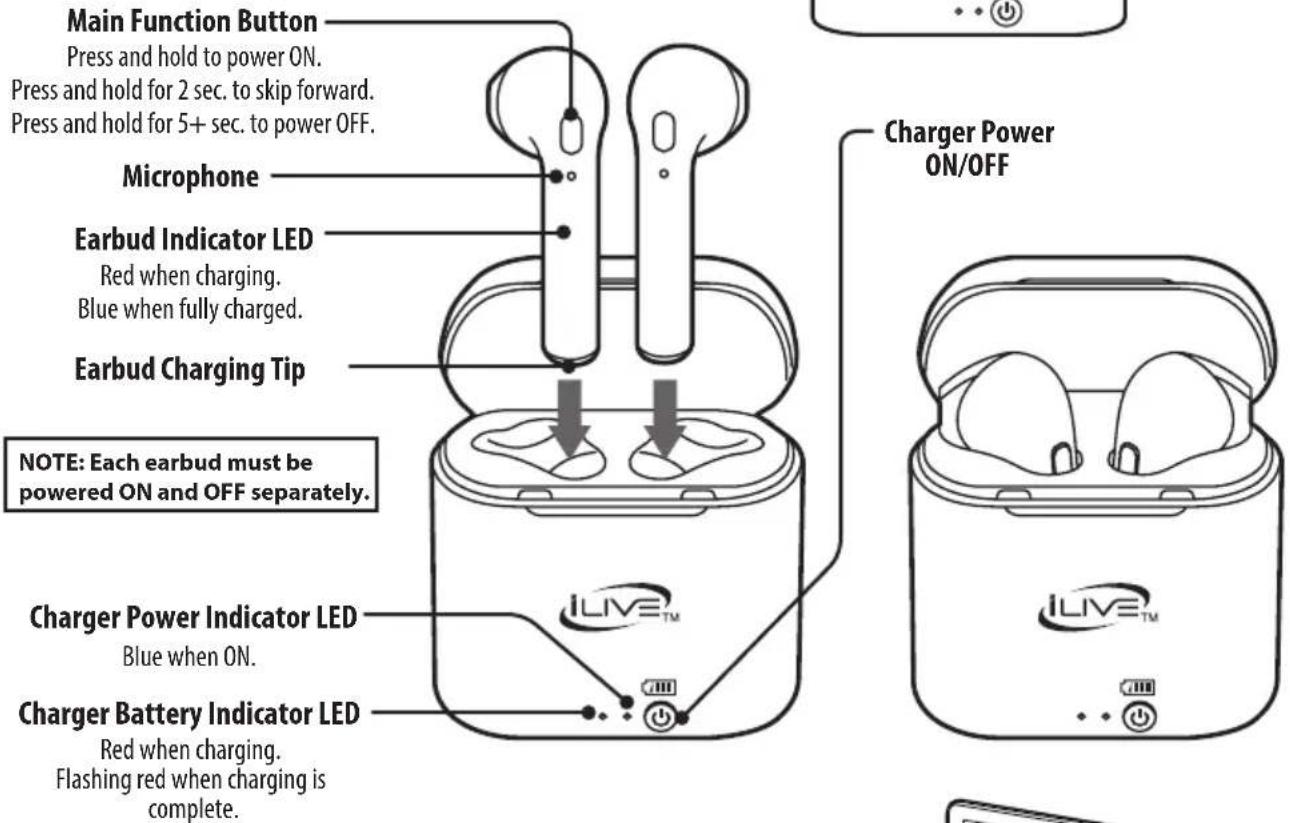

Main Function Button Press and hold to power ON. Press and hold for 2 sec. to skip forward. Press and hold for 5+ sec. to power OFF. Microphone Earbud Indicator LED Red when charging. Blue when fully charged. Earbud Charging Tip NOTE: Each earbud must be powered ON and OFF separately. Charger Power Indicator LED Blue when ON. Charger Battery Indicator LED Red when charging. Flashing red when charging is complete.

complete. DC IN SV Charging the Case Using a Micro-USB to USB cable, connect to the USB port of a powered on computer or USB power adaptor (not included) to

Charging the Case

Using a Micro-USB to USB cable, connect to the USB port of a powered on computer or USB power adaptor (not included) to charge the case.

Linking Earbuds & Pairing Bluetooth

1. To link the earbuds, press and hold the Function button on both earbuds until they start blinking blue. This will initiate automatic pairing and a voice prompt will announce the successful connection.
2. With the earbuds linked, you can now connect to your Bluetooth device. The LED indicator on one of the earbuds will flash blue and red, indicating it is ready to pair to a Bluetooth device.
3. On your Bluetooth device, access Bluetooth Settings and search for nearby devices. Select IAEBT209 when it is discovered. When successfully connected to your Bluetooth device, the LED indicator will slowly flash blue and a voice prompt will announce the connection.
4. Audio played through the connected Bluetooth device will now be heard through both earbuds. Use the controls on the connected device to play audio and adjust volume.

PLEASE NOTE: Due to the nature of truly wireless earbuds, you may experience slight interruptions with your audio in areas with multiple 2.4Ghz bands or in high wireless traffic areas.

Speakerphone

1. To accept a call, press the Function button, or use the controls on the connected phone. To end a call, press the Function button again.
2. To reject a call, press and hold the Function button.
3. If you are already answering a call and another call comes in, press the Function button to answer and hold the first call. Press again to end the second call and switch over to the first call.

Troubleshooting

If the earbuds experience any static, delay or cutting out of sound follow these steps.

• Make sure the earbuds are fully charged.
• Power the earbuds OFF, then ON again. Let them reconnect automatically and try playing audio again. Repeat if needed.

If the earbuds should become unpaired or will not connect normally, open your device's Bluetooth Settings Menu and follow these steps.

• Disconnect, then reconnect to the earbuds.
• If the problem persists, delete the earbuds from the list of available devices ("Forget This Device").
• Turn Bluetooth OFF then ON again, and repeat the Initial Bluetooth Connection steps.

Customer Support

Customer Service: 1-888-999-4215 | Email Support: [e-mail] | Email Parts: [e-mail]

For Warranty Information and the most up-to-date version of this User's Guide, go to www.iLiveElectronics.com

To download this User's Guide in English, Spanish, or French, or to get answers to frequently asked questions, visit the support section at: www.iLiveElectronics.com

Copyright © 2019 Digital Products International (DPI, Inc.) All other trademarks appearing herein are the property of their respective owners. Specifications are subject to change without notice.

FCC Warnings

WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Additional Warnings

• WARNING: To prevent fire or shock hazards, do not expose this unit to rain or moisture.
• WARNING: Where the mains plug or appliance coupler is used as the disconnect device, such disconnect device shall remain readily operable.
• Lithium batteries, like all rechargeable batteries, are recyclable and should be recycled or disposed of according to state and local guidelines. They should never be disposed of in normal household waste, and they should never be incinerated, as they might explode. Contact your local government for disposal or recycling practices in your area.
  • This product meets and complies with all Federal regulations.
• To avoid hearing damage, make sure that the volume on your music player is turned down before connecting your headphones. After placing headphones in/on your ears, gradually turn up the volume until you reach a comfortable listening level.

WARNING : This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. This product meets and complies with all Federal regulations.
