MMX1400DB - Food processor Healthy Choice - Free user manual and instructions

Product Type	Stand Mixer / Food Processor
Model	MMX1400DB
Brand	Healthy Choice
Power Consumption	400 Watts
Voltage	220-240V~, 50/60Hz
Bowl Capacity	5 Litres
Speed Settings	10 Speeds + Pulse Mode
Attachments Included	Dough hook, Paddle beater, Wire whisk
Bowl Material	Stainless Steel
Safety Features	Thermal cut-out protection, safety switches
Dishwasher Safe Parts	Bowl and wire whisk only
Usage	Household use only
Color	Black
Attachment Shaft	Single shaft for all accessories
Release Button	Yes, for tilting mixer head
Multi-function Lid	Yes, with feed chute
Maximum Dough Capacity (Dough Hook)	585g flour + 315g liquid
Maximum Dough Capacity (Paddle Beater)	660g flour + 240g liquid
Minimum Egg Whites for Whisk	3 egg whites

Frequently Asked Questions - MMX1400DB Healthy Choice

What are the attachments included with the Healthy Choice MMX1400DB?

The mixer comes with three attachments: a dough hook, a paddle beater, and a wire whisk.

How do I attach the bowl to the mixer?

Place the mixing bowl on the base and turn it clockwise until it locks securely into place.

What is the maximum capacity for making dough with the dough hook?

The maximum capacity is 585g flour and 315g liquid combined.

Can I wash the attachments in the dishwasher?

Only the stainless steel bowl and the wire whisk are dishwasher safe. Other parts, especially cast aluminium, should be washed by hand.

What safety features does this mixer have?

It includes thermal cut-out protection to prevent overheating and safety switches that prevent operation when the head is tilted.

How do I clean the body of the mixer?

Do not immerse in water. Wipe with a damp cloth. Avoid using abrasive cleaners, vinegar, or salt, as they may damage the surface.

What speeds should I use for whisking egg whites?

Use speeds 8 to 10 for whisking egg whites. Ensure at least 3 egg whites are used.

How do I release the mixer head?

Press the release button (located on the side) and lift the head with your other hand until it locks into the upright position.

Can I use this mixer for commercial purposes?

No, this mixer is intended for household use only. Using it commercially may damage the appliance and void the warranty.

What should I do if the mixer suddenly stops during use?

The thermal cut-out may have tripped. Unplug the mixer, let it cool for at least 15 minutes, then resume use. If the problem persists, contact an authorized technician.

USER MANUAL MMX1400DB Healthy Choice

Black kitchen stand mixer with whisk inside a bowl, no visible text or symbols on the device itself.

Model: MMX1200 | Batch: PR5136

HOUSEHOLD USE ONLY Carefully read all instructions before use and save for future reference.

IMPORTANT SAFEGUARDS

PLEASE READ AND SAVE THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE

1. The appliance is intended for domestic use only and should not be used for commercial purposes. It is not suitable for outdoor use (unless designed specifically for that). Keep it away from heat sources, direct sunlight, moisture (never immerse it in any liquid), and sharp objects. Do not use the appliance with wet hands, and if it becomes damp or wet, unplug it immediately.

2. Always switch off the appliance and unplug it from the power outlet (pull the plug, not the cord) when cleaning, storing, or when it is not in use. Make sure to remove any attached accessories before cleaning.

3. Do not leave the appliance running without supervision. If you need to leave the area, turn it off or unplug it (pull the plug, not the cord).

4. Regularly inspect the appliance and its cord for damage. If either is damaged, do not use the appliance. Do not attempt to repair it yourself. Contact an authorised technician. If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or a qualified person to avoid hazards.

5. Only use original spare parts for this appliance.

6. Keep all packaging materials, such as plastic bags and polystyrene, out of the reach of children. Small children should not play with plastic film, as there is a risk of suffocation.

7. When using the accessory blender or chopper, the appliance must not be used by children. Ensure the appliance and its cord are kept out of the reach of children.

8. The appliance can be used with the beater or whisk by children aged 8 and above if they have been properly supervised or instructed in safe use and understand the risks. Cleaning and user maintenance should not be performed by children under the age of 8 unless they are supervised. Ensure the appliance and cord are kept out of reach of children under 8.

9. This appliance is not a toy and should not be used for play.

10. The appliance can be used by individuals with reduced physical, sensory, or mental capabilities, or those lacking experience and knowledge, if

they have been given proper supervision or instruction on safe use and understand the potential hazards.

1. Always disconnect the appliance from the power supply when left unattended and before assembling, disassembling, or cleaning.
2. Turn off the appliance and disconnect it before changing accessories or handling any moving parts. Use the appliance only for its intended purpose.
3. To prevent a hazard caused by resetting the thermal cut-out, do not connect the appliance to an external switching device, such as a timer, or to a circuit that is switched on and off by a utility.
4. Operate the appliance only under supervision.
5. Do not tamper with any safety switches.
6. Do not insert any objects into the rotating hooks while the machine is in operation.
7. Place the appliance on a smooth, flat, and stable surface during use.
8. Do not plug the appliance into the power outlet without ensuring that all necessary accessories are correctly installed.

Technical Parameters

Voltage	220-240V~	50/60Hz
Power		400	Watts
Bowl Capacity	5 Litre
Speed Settings	10 Speeds + Puls Mode

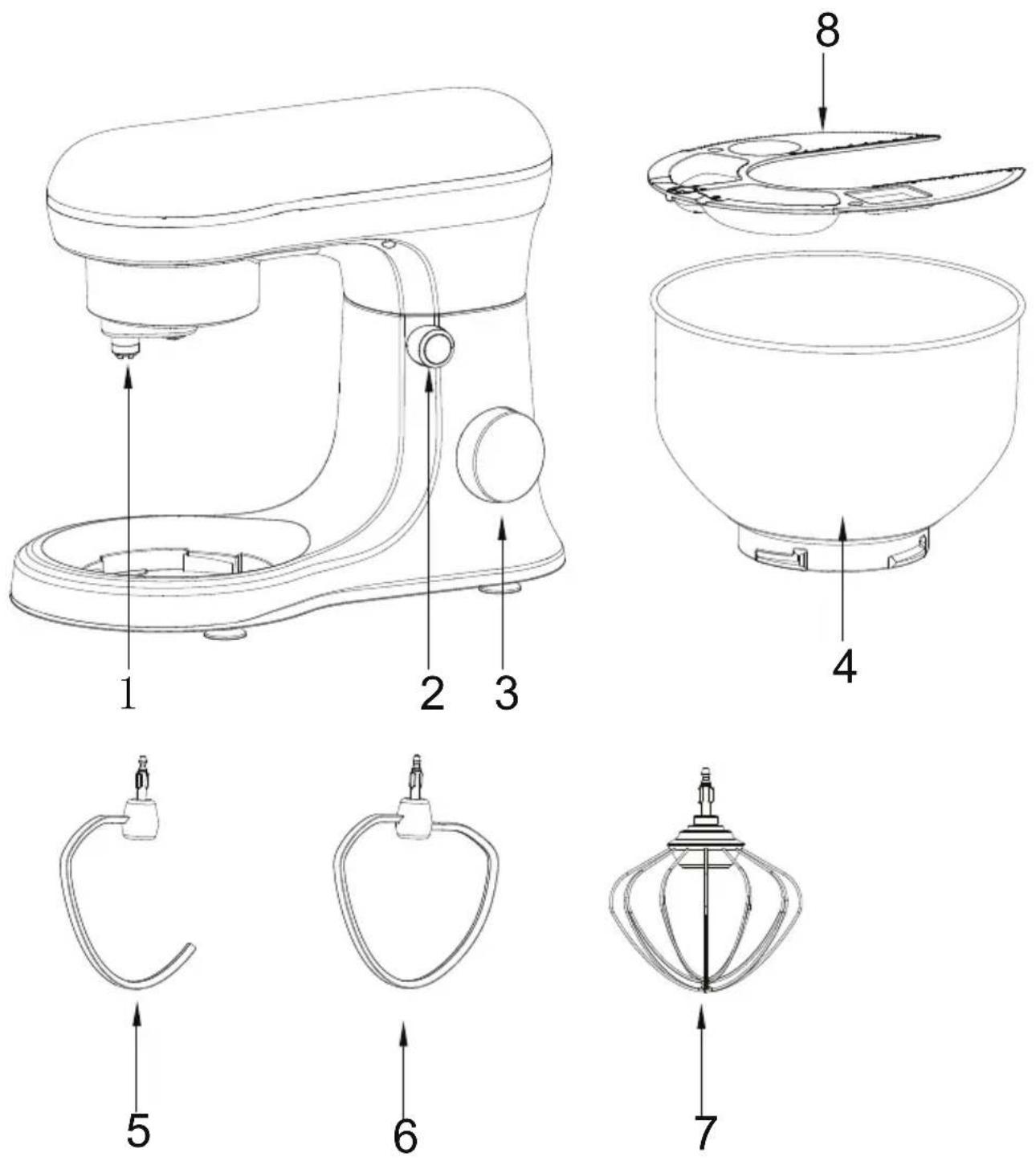

1. Attachment shaft
2. Release button
3. Speed control knob

4. Stainless steel bowl

5. Dough hook

6. Paddle beater
7. Wire whisk
8. Multifunction bowl lid

How to use the machine

1. Before first use, wash all accessories with clean water, rinse thoroughly, and dry them.

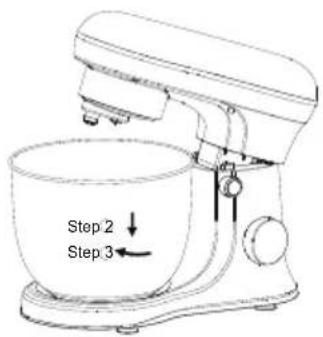

2. Place the machine on a flat, clean, and dry surface. Press the release button (2) and at the same time lift the mixer head with your other hand so that it locks into place with a click.
3. Weigh out the ingredients and place them into the mixing bowl (4). Attach the mixing bowl to the machine by turning it clockwise until it locks securely into place.

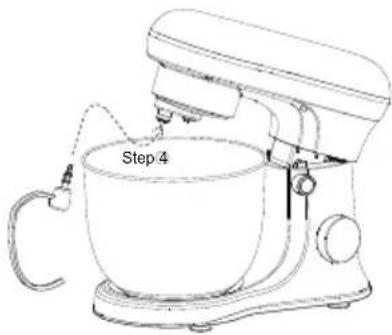

4. Install the required attachment (5), (6) or (7). Only one can be used at a time on the attachment shaft (1). Align the slots and push the accessory until it clicks into place.

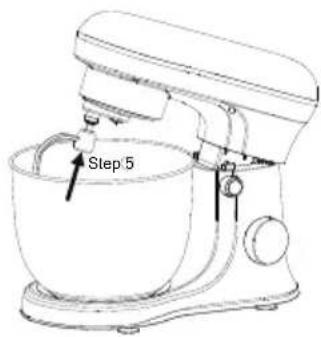

5. Fit the bowl lid onto the mixing end of the machine as shown.

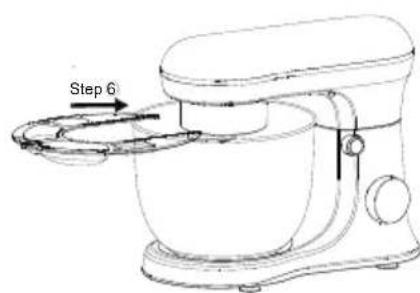

6. Press the release button and push the mixer head down until it locks into the horizontal position.
7. Plug the machine into the power outlet and switch on the power.
8. Turn the speed control knob (3) to the desired speed to start mixing.
9. Once the dough reaches the desired consistency, turn the speed control knob (3) back to the 0 position to stop mixing.
10. Press the release button (2) and lift the mixer head. Turn the mixing bowl counterclockwise to remove it and retrieve the dough.
11. Always switch off the machine and unplug it before changing accessories.

Mixer Attachment Recommendations

Attachment	Speed	Time	Max
Dough hook	1 - 6	3 - 5 min	585g flour + 315g liquid
Paddle beater	1 - 7	3 - 10 min	660g flour + 240 liquid
Wire whisk	8 - 10	3 - 10 min	min 3 egg whites

Cleaning and maintenance

Cleaning the Body

1. Do not immerse the machine in water or spray water directly on it to prevent water from entering the body, which could cause short circuits, electric shock, or rust.
2. Avoid using a dripping wet towel to clean the machine.
3. Do not use corrosive, acidic, or alkaline cleaners such as detergent, vinegar, or salt, as they may damage the machine's surface.
4. Do not use sharp or abrasive tools like wire brushes to clean the accessories, as this could damage their surface.

Cleaning the Accessories

1. Do not place cast aluminium parts in the dishwasher or clean them with corrosive, acidic, or alkaline products. Only the bowl and whisk are dishwasher safe.
2. Avoid soaking accessories in detergent, salt water, or vinegar for extended periods. Clean them promptly after use.
3. After cleaning, dry all accessories thoroughly, especially internal parts.

Special Cleaning

1. The rotating output shaft may accumulate black residue due to friction during operation. Clean this area after each use and keep it dry.
2. Be cautious of sharp blades and edges on related accessories.

When not in use, cover the machine with a protective bag and store it in a dry environment, out of direct sunlight.
