Amber - Stroller Chipolino - Free user manual and instructions

Type	Stroller
Brand	Chipolino
Model	Amber
Dimensions (folded)	Approx. 90 x 60 x 100 cm
Weight	Approx. 10 kg
Maximum Recommended Weight	15 kg
Age Range	From birth to approx. 36 months
Seat Recline	Multiple positions including fully flat
Harness	5-point adjustable safety harness
Brake	Lockable rear parking brake
Canopy	Adjustable with peek-a-boo window
Storage Basket	Large under-seat basket
Handlebar	Adjustable height
Wheels	Front swivel wheels with lock, rear fixed wheels
Suspension	Front wheel suspension for smooth ride
Folding	Compact one-hand fold
Accessories Included	Rain cover, shopping basket, bumper bar
Cleaning Instructions	Wipe frame with damp cloth, spot clean fabric
Safety Standards	Complies with EN 1888 safety standard
Warranty	2 years manufacturer warranty
Spare Parts Availability	Available through Chipolino service centers

Frequently Asked Questions - Amber Chipolino

How do I assemble the Chipolino Amber stroller?

Assembly is straightforward. Attach the wheels, push the seat unit onto the frame until it clicks, and unfold the canopy. Refer to the user manual for detailed steps.

Can the seat recline fully for newborn use?

Yes, the seat reclines to a near-flat position, suitable for newborns. Use the included newborn insert if available for extra support.

How do I clean the fabric parts?

Remove the fabric seat pad and canopy if possible. Hand wash with mild soap and cold water, or machine wash on gentle cycle. Air dry only. Do not use bleach.

Is the stroller compatible with car seats?

The Amber is not designed for direct car seat attachment. However, some universal adapters may work. Check with Chipolino for compatible car seat adapters.

How do I fold the stroller?

First, recline the seat fully and press the folding button located on the handle. Push the handle forward, and the stroller will collapse. It stands when folded.

What is the maximum weight capacity?

The stroller can hold up to 15 kg (33 lbs) in the seat. The storage basket can hold up to 5 kg.

How do I adjust the safety harness?

The 5-point harness can be adjusted by sliding the shoulder straps through the slots on the seat back. Ensure the straps fit snugly but comfortably.

My stroller is making a noise. What should I do?

Check if the wheels are properly attached and lubricated. Tighten any loose screws. If noise persists, contact Chipolino customer support.

Can I use the stroller for jogging?

No, the Amber is a standard stroller and not designed for jogging or running. Use it only for walking on even surfaces.

Where can I get spare parts or replacement parts?

Spare parts are available through authorized Chipolino dealers or directly from the manufacturer. Visit the Chipolino website for parts and accessories.

USER MANUAL Amber Chipolino

Line drawing of a baby stroller with wheels and seat (no text or symbols)

This stroller is manufactured according to the requirements of the Product Safety Directive 2001/95/EU of the European Parliament and The Council and with European standards EN 1888-1:2018 Child use and care articles. Wheeled child conveyances. Part 1: Pushchairs and prams and EN 1888-2:2018 Child care articles - Wheeled child conveyances - Part 2: Pushchairs for children above 15 kg up to 22 kg and the regulations of national legislation.

FOLLOW ALL WARNINGS, INSTRUCTIONS AND RECOMMENDATIONS IN THIS MANUAL IN ORDER TO GUARANTEE THE SAFE USE OF THIS PRODUCT!

CAUTION! WARNINGS!

✿ WARNING! NEVER LEAVE YOUR CHILD UNATTENDED!
✿ WARNING! ALWAYS USE THE RESTRAINT SYSTEM (SAFETY BELTS) ONCE THE CHILD CAN SIT UNAIDED!
✿ WARNING! MAKE SURE THAT ALL LOCKING MECHANISMS ARE ENGAGED BEFORE EACH USE!
✿ WARNING! BEFORE EACH USE, CHECK THE STABILITY OF FIXING OF SEPARATE PARTS!
✿ WARNING! MAKE SURE YOUR CHILD IS AT SAFE DISTANCE AWAY FROM THE STROLLER DURING ADJUSTMENTS, FOLDING OR UNFOLDING OF THE STROLLER.
✿ WARNING! DO NOT ALLOW YOUR CHILDREN TO PLAY WITH THE STROLLER!
✿ WARNING! THIS PRODUCT IS NOT SUITABLE FOR RUNNING OR SKATING!
✿ FOR NEWBORN BABIES, USE THE MOST RECLINED POSITION OF THE BACKREST OF THE SEAT! ALWAYS ATTACH THE CANOPY TO THE BACKREST TO PREVENT THE BABY TO FALL AND INJURE!
✿ USE THE POSITION OF THE BACKREST FOR THE SITTING POSITION OF THE CHILD AFTER 6 MONTHS AGE! THE POSITION OF THE BACKREST IN "SITTING" POSITION IS NOT SUITABLE FOR CHILDREN UP TO 6 MONTHS!
DO NOT LIFT THE STROLLER BY THE SAFETY BAR!
KEEP AWAY FROM FIRE!
To be used for a child with weight up to 22 kg.
◆ Adult assembly is required!
❖ Always activate the parking device when you put the children in or out of the stroller!
Make sure the safety belts are correctly fastened and adjusted before each use.
Do not put additional mattress in the stroller!
- The maximum load for the storage basket is 3 kg!
The maximum load for the diaper bag (if you use one) must not exceed 2 kg!
Do not overload the stroller! Every load attached to the handle, bumper, and backrest or on the side of the stroller will affect its stability!

To be used for one child only at a time. Do not place two or more children in the stroller!
Only use spare parts or other components, which are recommended or supplied by the producer! In the contrary case the producer is not responsible for the product's safety.
Do not make any changes or modifications to the stroller's construction! In case of problems contact the dealer or an authorized repair service for advice and/or repair.
Do not use this stroller if you find missing or damaged parts!
Do not allow children younger than 3 years near the stroller during its assembly!
Do not attach any strings or long cords to the stroller in order to avoid risk of suffocation!
Do not use the stroller on stairs or escalators and pay attention when overcoming a curb or a step.
- Keep the plastic packaging away from children in order to avoid risk of suffocation!

Simple line drawing of a baby sitting in a seat with bandages, enclosed in a circle (no text or symbols)

Illustration of a woman and a stroller with a child, enclosed in a circle (no text or symbols)

Simple line drawing of a child in a stroller inside a circle (no text or symbols)

Line drawing of a woman pushing a stroller with a baby (no text or symbols)

Simple line drawing of a woman pushing a child in a stroller, enclosed in a circle (no text or symbols)

PRODUCT FEATURES

This stroller is intended for infants or babies under 4 years of age or weighing up to 22 kg (whichever comes first);
◆ 5-point safety harness;
Adjustable backrest;
Adjustable canopy;
◆ Adjustable leg rest;

1 - Handle
2 - Canopy
3 - Front bumper
4 – Safety belts (restraint system)
5 - Leg rest
6 - Storage basket
7 – Folding mechanism
8 – Pull handle
9 - Front wheels

ASSEMBLY INSTRUCTIONS AND FUNCTIONS

This stroller is supplied partially assembled. In order to complete the assembly, you do not need any tools.

IMPORTANT! Follow exactly the instructions given and check the pictures.

IMPORTANT! After each operation, make sure that you have followed the instructions correctly and the fixing is stable!

IMPORTANT! In most cases after the completion of an operation you will hear a clicking sound.

ASSEMBLY

The assembly, disassembly and functions are numbered from 1 to 11. Use the operations descriptions given in this manual and their matching picture.

Hold the handle with your hands and pull it up (2) until you hear a “clicking” sound and the stroller locks into the unfolded position (3).

2 - ASSEMBLY OF FRONT WHEELS

Attach the front wheel (B) to the opening (A) on the frame and install with pressure, until you hear a "click" sound. Make sure the wheel is locked as you try to pull it off the axle.

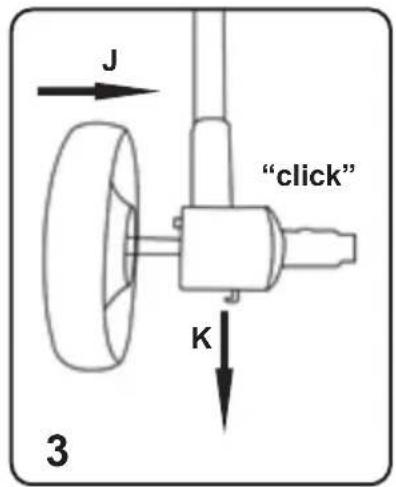

3 - ASSEMBLY AND REMOVAL OF REAR WHEELS

Place the rear wheel (J) to the opening on the rare axle and install with pressure, until you hear a "click" sound.

To remove the wheel, pull the lever„K“ and take out the wheel.

4 - ASSMEBLY OF FRONT BUMPER

Place the bumper at the front and press firmly until you hear a „click“ and bumper is fixed.

To remove the bumper, press the buttons (c) on bottom of bumper and take out the bumper.

FUNCTIONS

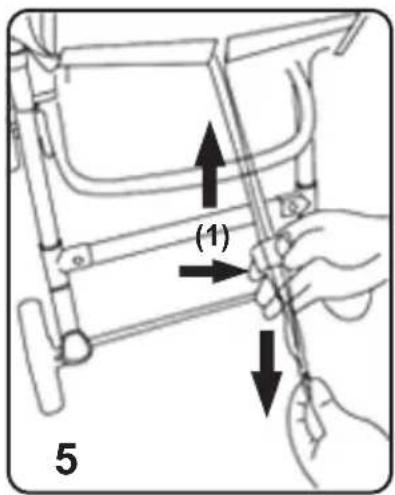

5 – ADJUSTING THE POSITION OF THE BACKREST

WARNING! BABY UNDER 6 MONTHS TO BE PLACED ON THE SEAT ONLY WITH THE BACKREST, ADJUSTED IN THE MOST RECLINED (FLAT) POSITION!

Press the button on the backrest belt (1) and move the backrest up or down.

6 - LEG REST

Lift the leg rest and pull out the pull handle under it as shown in the picture.

In order to lower the leg rest, simply retract the pull handle back and the leg rest will be down.

7 – PARKING DEVICE

Press down the parking device (N), to activate it and stop the stroller.

Lift up the parking device (M), to release it and the stroller to move again.

WARNING! Always engage the parking device, when the stroller is stationary to avoid the risk of slipping of the stroller!

8 - CANOPY

Pull the canopy to open it (1).

Push with your hand to fold the canopy (2).

WARNING! Always attach the canopy to the backrest to prevent the baby to fall and injure!

Attach the cup holder to the handle of the stroller and press, until you hear clicking sound.

9 – RESTRAINT SYSTEM (safety belts).

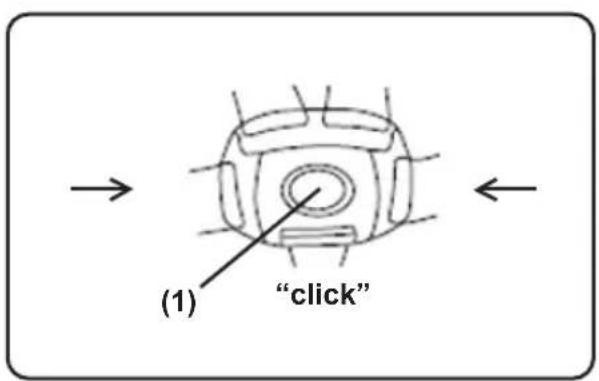

9-1 – Insert the belts in the central buckle (1), until you hear a „click“.

9-2 - To unfasten the belts press the central buckle (1).

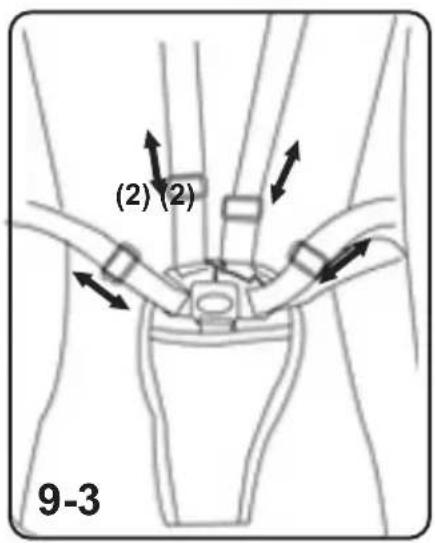

9-3 - Adjust the length of the belts by sliding the buckles (2).

Remark: Belt must be snug to child's body and must not be twisted

WARNING! Periodically check to ensure that the seat belt is securely attached to the stroller frame as well as securely fastened. The belts should not be worn or torn, and plastic buckles and fasteners must be sturdy, free of damage and secure.

WARNING! USE THE RESTRAINT SYTEM AT ALL TIMES SINCE THE BABY IS BORN! ADJUST THE BELTS LENGTH ACCORDING TO BABY'S NEEDS!

IMPORTANT! Before folding the stroller, always activate the parking device; adjust the position the backrest in the most upright position and empty the storage basket.

10-1 Press button D and then button E;

10-2 Press the handle forward (2) until the stroller get folded;

10-3 Lock the stroller with the transport hook (F).

11 - PULL HANDLE

The pull handle is located under the seat.

After the stroller is folded, pull out the handle with your hand (A). When handle is fully extended you will hear a „click“.

You can use the handle to move your stroller by pulling it.

Push the handle back (B), in order to hide it.

CARE AND MAINTENANCE GUIDELINES

The brakes and wheels wear out faster than other parts. Replace them when necessary.
- Regularly oil the moving parts. Use silicone oil or silicone spray for oiling.
- Clean and oil all dirty metal and plastic parts regularly.
- Clean the fabrics, plastic parts and metal parts with damp cotton cloth or sponge and mild soap.
Do not use aggressive detergents, solvents, bleach or spirits to clean your stroller.
Always leave the stroller to fully dry after cleaning before you use it or store it. Mold could form if you keep your stroller moist.
Always store your stroller indoors in clean and dry place. Do not expose to direct environment influence - sun, rain, moisture and high temperature intervals.
Please, contact your authorized dealer for problems connected with the use or repair of this stroller.

Fabric Composition:

Outer: 100% Polyester

Filling: 100% Polyester

LKAB02xxxxx
