| Product Type | Outdoor Television |
| Brand | Peerless-AV |
| Model | UltraView UV551 |
| Screen Size | 55 inches (diagonal) |
| Resolution | 1920 x 1080 (Full HD) |
| Aspect Ratio | 16:9 |
| Brightness | 500 cd/m² |
| Contrast Ratio | 1300:1 |
| Viewing Angle | 178° horizontal / 178° vertical |
| Response Time | 8 ms (gray to gray) |
| Refresh Rate | 60 Hz |
| IP Rating | IP55 (water and dust resistant) |
| Operating Temperature | -24°F to 122°F (-31°C to 50°C) |
| Power Requirements | 100-240 VAC, 50/60 Hz |
| Power Consumption | Not specified in manual; estimate ~150W |
| VESA Mount Pattern | 400 x 300 mm |
| Dimensions (W x H x D) | 50.4" x 29.6" x 4.15" (1280 x 752 x 105 mm) |
| Weight (Net) | 63 lbs (28.58 kg) |
| Shipping Weight | 70 lbs (31.75 kg) |
| Tuner | ATSC / NTSC / 64/256 QAM |
| Inputs | HDMI (x3), VGA, CVBS, YPbPr, Coax RF, RS-232C, 3.5mm Audio |
| Outputs | 3.5mm Headphone, S/PDIF (RCA) |
| Warranty | 2 years parts and labor |
| Included Accessories | Remote control, cord cover plate, thumb screws, dust cover |
| Recommended Cleaning | Use approved screen cleaner and microfiber cloth; avoid ammonia |
Frequently Asked Questions - UltraView UV551 Peerless-AV
User questions about UltraView UV551 Peerless-AV
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Television in PDF format for free! Find your manual UltraView UV551 - Peerless-AV and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. UltraView UV551 by Peerless-AV.
USER MANUAL UltraView UV551 Peerless-AV
www.peerless-av.com
CONTENTS
System Installation And Electrical Requirements ....3
Electrical Code 3
Power Source ....3
General Safety Precautions 4
FCC Caution....5
FCC Statement....5
Relevant Information ....5
Set Up Instructions....7
Parts List 7
Choosing your TV Location 8
Removing Cord Cover....8
Connecting Cables 8
Replacing Cord Cover 9
Connecting To The Power Source....10
Prepare Your TV For Mounting....11
Prepare The TV For Usage 12
Battery Installation And Replacement 12
Operating Instructions ....13
Power On/Off the TV 13
Onboard Controls....13
Navigating The On-Screen Menu ....14
Picture 14
Audio 14
Setup 14
Time 15
Lock 15
Channel 15
(RS-232C) Serial Control Of The TV 16
Tips 17
Troubleshooting....17
Care Of Screen 17
Mobile Telephone Warning 17
End Of Life Directives ....17
License Agreement & Trademark Notice ....17
Product Specifications ....18
TV 18
Power 18
TV Controller Features ....18
Environmental 18
Mechanical 19
Input/Output Connections ....19
Warranty 20
SYSTEM INSTALLATION AND ELECTRICAL REQUIREMENTS
Electrical Code
Note: To the display system installer: This reminder is provided to call attention to Article 820-44 of the National Electric Code that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the facility. Outlet shall be installed near the equipment and shall be easily accessible.
Note: Installation shall incorporate UL Listed external surge protection rated 2500 Vpk or less, for 150 to 300 Vac mains, installed in accordance with Article 285 of ANSI/NFPA 70 or applicable local codes.
Power Source
The TV must be connected to a main socket outlet with a protective grounding connection.
The main plug is used as the disconnect device and shall remain readily accessible.
This display operates on 100-240 volts 50-60 Hz, AC current. Insert the power cord into a 120 volts 60 Hz outlet. Never connect the TV to direct current or anything other than the specified voltage.
To prevent electric shock from the display, do not use with an extension cord, receptacle, or other outlet unless the blades and ground terminal can be fully inserted to prevent blade exposure.
WARNING
- Never remove the back cover of the TV as this can expose you to very high voltages and other hazards. If the TV does not operate properly, unplug the TV and call your authorized dealer or service center.
GENERAL SAFETY PRECAUTIONS
WARNING
RISK OF ELECTRICAL SHOCK
To reduce the risk of electric shock, do not disassemble the unit under any circumstances. No user serviceable parts inside. All product services should be done by the Peerless-AV certified service personnel.
Read before operating equipment
Thank you for purchasing our product. Before using it, please read this user manual carefully and follow the instructions correctly for safe operation. Please keep this manual handy for future reference. Also, please be sure to always include this user manual in the packaging when transferring or transporting this product to a different location.
Batteries Installed Warning
CAUTION - Danger of explosion if batteries are incorrectly replaced. Replace only with the same or equivalent type. Even through the remote is designed for outdoor usage, the batteries should not be exposed to excessive heat due to sunlight, fire or other heat sources.
CAUTION:
To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.
- Read these instructions.
- Keep these instructions.
- Heed all warnings.
- Follow all instructions.
- Do not defeat the safety purpose of the polarized or grounding type electrical plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
- Protect the electrical cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
- Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as electrical-supply cord or plug is damaged, does not operate normally, or has been dropped.
- Only use attachments/accessories specified by the manufacturer.
- In case of emergency such as fire or electric shock caused by the product, immediately contact 911 or proper emergency police/fi re service agencies in your country.
- If monitor or glass is broken, do not come in contact with the liquid crystal and handle with care.
- Follow instructions for wall, shelf or ceiling mounting as recommended by the manufacturer.

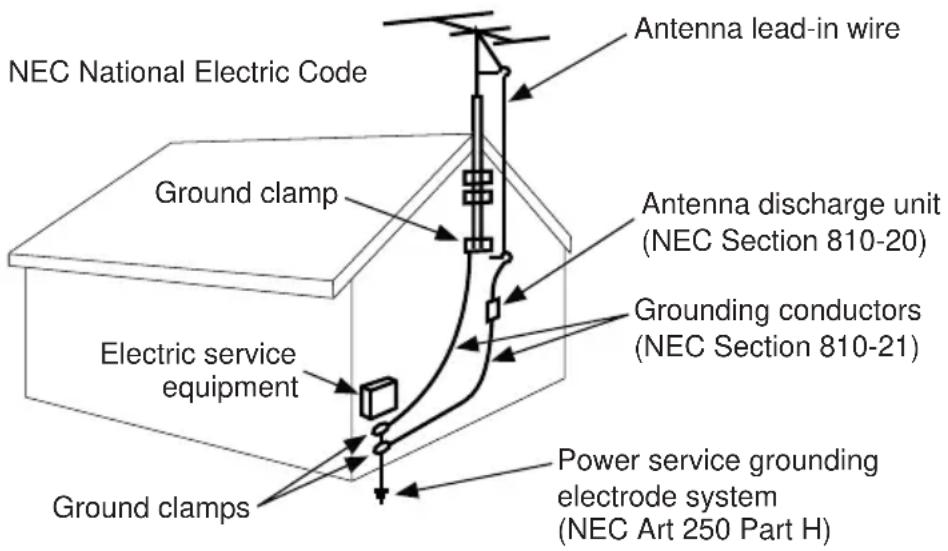

- An outdoor antenna should not be located near overhead electrical lines or any electrical circuits.
- If an outside antenna is connected to the receiver, confirm that the antenna system is grounded to protect against voltage surges and built up static charges Section 810 of the National Electric Code, ANSI/NFPA No 70-1984, provides information with respect to proper grounding for the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding connectors, location of antenna discharge unit, connection to grounding electrodes and requirements for the grounding electrode.
- Use properly rated electrical voltage. Use of non-rated voltage may cause fire, electric shock and severe damages to the product.
- Do not open the cabinet under any circumstances. High voltage inside of this product may cause electric shock.
- Do NOT climb on the product.
- Do NOT, under any circumstances, modify or disassemble this product as it may cause fire, electric shock, or severe damages to the product. Also any unauthorized modifications made to the product automatically void product warranty.
- Never touch antenna lines or wires, electrical cables or plugs when lightning or thunder is present as it may cause electric shock.
- Any severe physical impact on the product may cause certain components to fall out of place within and break, which may cause fire or electric shock. In such event, do not operate the product. Contact the manufacturer for support.
- Periodically clean dust off the electrical plug to keep it clean and dry, ensuring proper and safe operation of the product.
- Do NOT destroy, process, or place close to any heat source; do NOT bend or twist electrical cords, electrical plugs, cables, or wires with excessive force; do NOT place any heavy object on the TV as all of the above may cause damage resulting in fire or electric shock.
- Do NOT touch electrical plugs with wet hands.
• Always make sure to plug in the electrical plug firmly and completely. Incompletely placed electrical plugs may cause fire or electric shock due to built up heat emission.
- Do NOT use any non-rated electrical sockets or power strips with many other devices jointly plugged in. The wire of non-designated capacity may cause fire due to built up heat emission. Try to use a single, directly dedicated and rated GFCI electrical outlet for the product for safe operation.
- In case of product malfunction or unusual events such as electrical burning smell, smoke, or loss of content signals on TV due to internal overheating, immediately turn off and unplug the electrical cord and contact the manufacturer.
- Do NOT install the product in unstable locations or near moving objects, constantly vibrating equipment, or uneven surfaces. Follow mounting instructions properly for safe operation of the product as improper installation may cause products to fall.
- Do NOT install the product near any poisonous gas or chemically unstable atmosphere as it may cause fire.
- Do NOT submerge TV in water.
- Do NOT pressure wash TV. Although the IP55 rating protects against jets of water, high pressure force may compromise the TV.
- Do NOT install the product near any strong magnetic or electrical current field as it may cause fire, electric shock, or severe damages to the product and the product may be subject to electromagnetic radiation, causing deterioration of the picture quality.
- Do NOT leave any fire source, such as candles, close to or on the product as it may be a cause for fire or damages to the product.
- Do NOT move or transport the product with any cables (electrical cables, content connectivity cables) plugged in to the source devices. Damages may occur to the cables, plugs, or jointing connectors of the cables due to forcible bending and stress, which may cause damages to the waterproof seal of the product, making it subject to fire, electric shock, or shorted circuit.
- When unplugging the electrical plug or other cables, always pull using the plug and not the cord. Improper pulling of the cords or cables may cause damage to the waterproof seal, making it subject to fire, electric shock, or a shorted circuit.
- Outdoor TVs should always be carried and supported by at least two persons.
- Do NOT use any other electrical cords or connection cables than what is provided with the product or from the manufacturer directly. Use of untested, unauthorized, or substituted electrical cords or connection cables may be a cause for malfunction, fire, electric shock, or severe damages to the product. Also such use of improper or undesignated electrical cords or connection cables will void product warranty.
- Always leave the Power Off when plugging or unplugging the electrical cords or connection cables to avoid electric shock or damages to the product.
- Do NOT use any chemical such as paint thinner or benzene to clean the product's exterior. It may cause scratches on the surface, erasing proper indications, identification labels, or instructions on the exterior, which may be a cause for misuse and improper operation of the product.
FCC CAUTION
To assure continued compliance and possible undesirable interference, ferrite cores may be used when connecting this TV to video equipment; and maintain at least 400mm (15.75 inches) spacing to other peripheral devices.
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rule. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with these instructions, may cause harmful interference to radio communications; however, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference.
- This device must accept any interference received, including interference that may cause undesired operation.
CAUTION
- Please use the electrical cord provided with this display. If a electrical cord is not supplied with this equipment, please contact your supplier. Only plug equipment into receptacles with GFCI protection.
- Peerless-AV is not responsible for any issues created by water present at the plug/receptacle insertion point.
Relevant Information
Record your TV's model and serial number here for future reference. Keep this user manual in an accessible location in the event service is required.
Note: Your TV's serial number can be found on the box and underneath the rear cover plate.
Model Number ____
Serial Number ____
SET UP INSTRUCTIONS
CAUTION
- Never apply pressure to the exterior of the LCD screen. The manufacturer's warranty does not cover user abuse or improper installations
• All cables and cable covers MUST be connected and attached prior to installation on mount. - When routing cables through the cable entry make sure that the cables are formed in such a way as to remove any stress on the connectors.
- Electrical installation shall be in accordance with the applicable parts of Chapter 8 of ANSI/NFPA70.

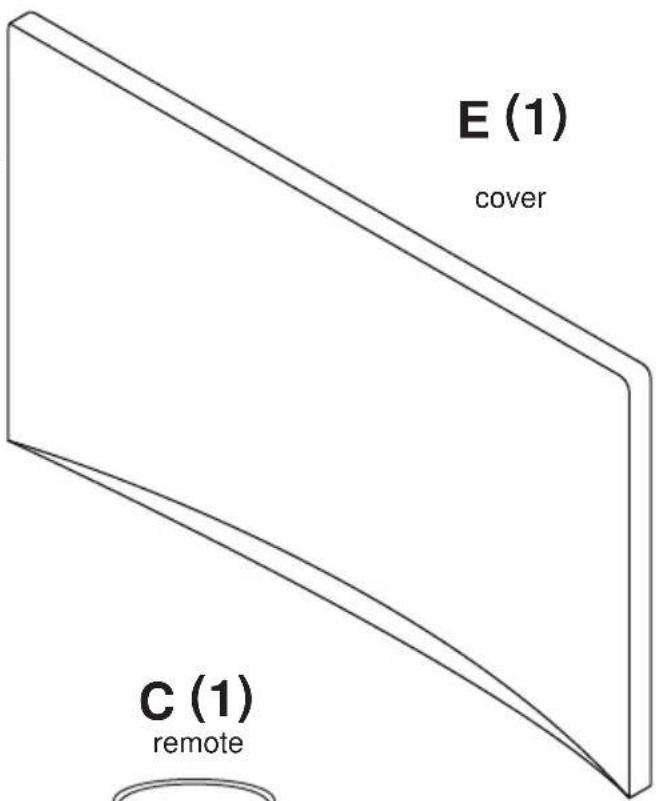

| Parts List | ||
| UV491Part # | UV551Part #Description Qty | |
| A television 1 180-W1338 180-W1339 | ||
| B cord cover plate 1 180-W1340 180-W1340 | ||
| C remote 1 410-1032 410-1032 | ||
| D thumb screw 4 560-1397 560-1397 | ||
| E display dust cover 1 591-0005 591-0006 | ||
Choose your TV location
The TV should be installed in a location where the screen will not be facing direct sunlight. Ideal TV placement is an area that is shaded by landscaping, structures, trees, awnings, or elevated patio cover. The operating temperature range of the TV is -24° to 122° F. Do NOT use the TV if ambient air temperature exceeds the operating temperature limits.
CAUTION
Do not install within 5 ft. from a body of water.
Removing Cord Cover

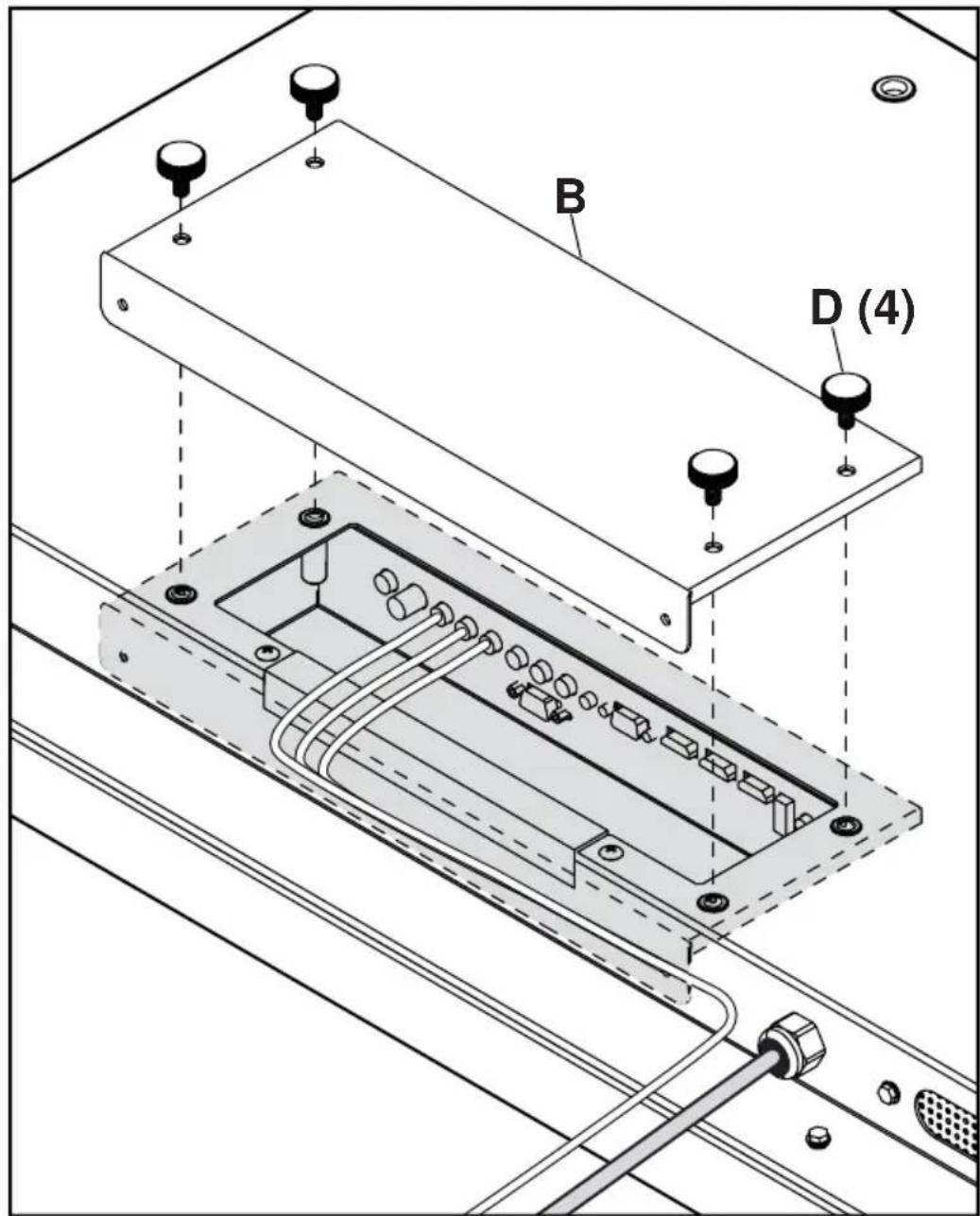

Remove (4) thumb screws (D) and cord cover (B) to access source connection panel. Do not disconnect lanyard.
Connecting Cables

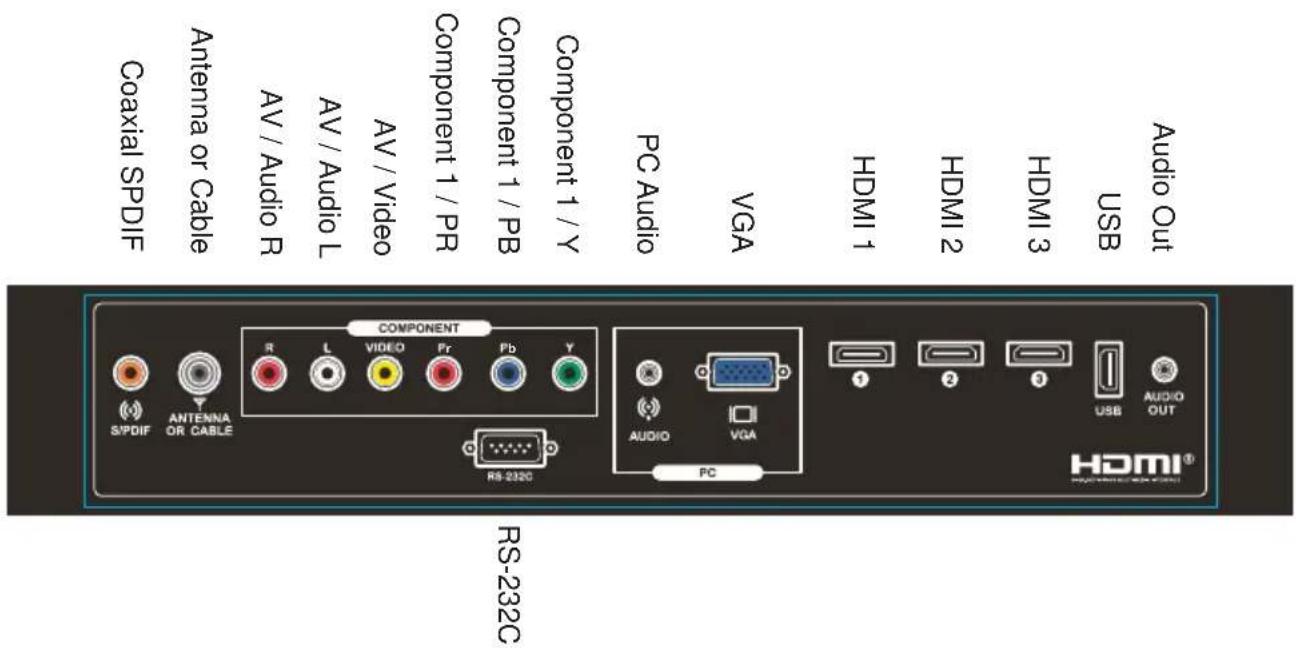

Connect cables from the source devices to their appropriate connector on the display.
Replacing Cord Cover
- Run cables across foam gasket block. Leave approximately 1/2" (13mm) between cables to ensure a proper seal.
- Replace cord cover (B) and (4) thumb screws (D). Fasten thumb screws until gasket on cord cover plate is fully compressed to back of television. Cables will seal between display's gasket and cord cover's gasket as cover is pressed into place. Route cables thought opening at end of cord cover.
CAUTION
- Ensure bend radius limits for cables do not exceed limits set by the manufacturer.
- Ensure cables are seated properly in the cable gland to avoid potential damage to cables when cord cover is installed.
- Do not remove lanyard that connects the cord cover to the display.
Connect power cord to GFCI outlet.
Prepare Your TV For Mounting
Note: Install cables prior to mounting your display. Cable entry cover may be obstructed once the display is mounted.
A mounting solution is not included and is sold separately. Contact your Peerless-AV representative for an outdoor rated mounting solution for your particular application.
For your safety, only install outdoor-rated mount that is suitable for the application and supports the weight of the display. When mounting a display outdoors, use proper environmentally rated mounts to ensure longevity in harsh environments.
Examine the chart below to determine the mounting specifications for your TV:
| Model | Mounting Hole Pattern | Required Mounting Screws |
| UV491 400x300mm | (4) M8 screws (12-20mm long) | |
| UV551 400x300mm | (4) M8 screws (12-20mm long) | |
| Model A B C D E F G H | ||||||||
| UV491 | 15.75"(400mm) | 11.81"(300mm) | 14.34"(364) | 6.56"(167mm) | 44.43"(1128mm) | 25.93"(659mm) | 3.54"(90mm) | .61"(16mm) |
| UV551 | 15.75"(400mm) | 11.81"(300mm) | 17.32"(440mm) | 8.28"(210mm) | 50.38"(1280mm) | 29.55"(751mm) | 3.54"(90mm) | .61"(16mm) |
Prepare The TV For Usage
- Clean the TV with an approved screen cleaner and microfiber cloth designated in the "Care of Screen" section. Do not use window cleaners or products containing ammonia.
Remote Control Battery Installation And Replacement
The remote control is powered by two 1.5V AAA batteries installed at the factory.
To install or replace batteries:
- To remove the battery module of the remote control, remove the two screws on the end of the battery module. Slide the battery module out of the remote control.
- Insert two new "AAA" size batteries into the battery module.
- Slide the battery module back into the remote control and reinsert the two screws in the end of the battery module.
CAUTION
Incorrect usage of batteries can result in leaks or bursting. Peerless-AV recommends the following battery use:
- Do not mix battery brands.
- Do not combine new and old batteries. This can shorten the battery life or cause liquid leakage of the batteries.
- Remove dead batteries immediately to prevent battery acid from leaking into the battery compartment.
- Do not touch exposed battery acid as it may injure skin.
- Remove the batteries if you do not intend to use the remote control for a long period of time.
OPERATING INSTRUCTIONS
Power On/Off Your New TV
Power on your TV by using the remote control or the rear power button as shown below. The TV will power on but image may not appear for a few seconds as it completes its power up sequence.

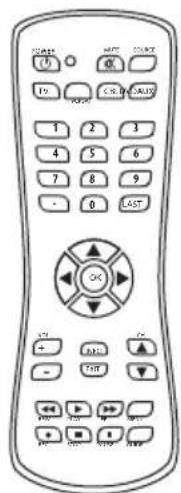

Remote control
Point the remote control at the IR sensor located behind the Peerless-AV logo at the center of the TV and press the power button
Onboard Power Button
To power on the TV, press the power button on the back of the TV.
Onboard Controls
Direct Mode: Allows for quick access to source selection, volume settings and channel selection.
Menu Mode: Press the Menu button to access Menu Mode and activate the On Screen Display (OSD). For a description of OSD operation refer to the next section.
The keypad buttons are assigned as indicated in the table below.
Navigating The On Screen Menu
Pressing the menu key on the remote or the onboard controls will cause the On Screen Display (OSD) main page to be displayed with five menu tabs: Picture, Audio, Time, Setup, Lock and Channel. Use the cursor keys to move through the various sub menus. Pressing the menu key again will move the selection back one level. Press exit to quit.
| Picture | |
| Picture Mode | StandardDynamicTheaterPersonal |
| Contrast | 50 |
| Brightness | 50 |
| Color | 50 |
| Tint | 50 |
| Sharpness | 50 |
| Color Temp. | NormalCoolWarm |
| Zoom Mode | 16:9FullZoomPoint To Point4:3 |
| 3DNR | OffWeakMiddleStrong |
| Audio | |
| Equalizer | StandardMusicMovieSportPersonal |
| 120 Hz | 50 |
| 500 Hz | 50 |
| 1.5 KHz | 50 |
| 5 KHz | 50 |
| 10 KHz | 50 |
| Audio Language | EnglishSpanishFrench |
| Digital Output (SPDIF) | PCM/Raw |
| Surround | On/Off |
| AVC | On/Off |
| Setup | |
| Menu Languages | EnglishSpanishFrench |
| Transparency (Menu Transparency) | 0%25%50%75%100% |
| Restore Defaults | Factory Reset All Options |
| Setup Wizard | |
| Software | Update (USB) |
| Blue Screen | On/Off |
| HDMI MODE | VideoPC |
Navigating The On Screen Menu
Pressing the menu key on the remote or the onboard controls will cause the On Screen Display (OSD) main page to be displayed with five menu tabs: Picture, Audio, Time, Setup, Lock and Channel. Use the cursor keys to move through the various sub menus. Pressing the menu key again will move the selection back one level. Press exit to quit.
| Time | |
| Sleep Timer off | 5min10min15min30min60min90min120min180min240min |
| Time Zone | Select time zone |
| DST | On/Off |
| Time Format | 12-hour24-hour |
| Auto Sync | On/Off |
| Clock | Enter Current Time |
| Wake Up | Enter desired time when display will turn on |
| NO SIGNAL SHUT | On/Off |
| Lock | |
| System Lock | Enter Password to lock the menu |
| Channel | |
| Air/Cable | Choose between Antenna and Cable |
| Auto Scan | Searches for available channels |
| Favorite | Shows favorite channels |
| Show/Hide | show or hide channels |
| Channel No. | Displays list of channels |
| Channel Label | Change channel names |
| DTV Signal | Displays channel info and signal strength |
Attach an RS-232C cable (straight through type) to the supplied D-Sub RS-232C for the connections.
Note: This operation system should be used by a person who is accustomed to using computers.
| Menu: | A0, F0, 55, FF, 4E, B1 |
| Right: | A0, F0, 55, FF, 05, FA |
| OK: | A0, F0, 55, FF, 02, FD |
| Down: | A0, F0, 55, FF, 0D, F2 |
| Up: | A0, F0, 55, FF, 17, E8 |
| Left: | A0, F0, 55, FF, 0C, F3 |
| Source: | A0, F0, 55, FF, 01, FE |
| (1): | A0, F0, 55, FF, 42, BD |
| (2): | A0, F0, 55, FF, 43, BC |
| (3): | A0, F0, 55, FF, 0F, F0 |
| (4): | A0, F0, 55, FF, 1E, E1 |
| (5): | A0, F0, 55, FF, 1D, E2 |
| (6): | A0, F0, 55, FF, 1C, E3 |
| (7): | A0, F0, 55, FF, 18, E7 |
| (8): | A0, F0, 55, FF, 45, BA |
| (9): | A0, F0, 55, FF, 4C, B3 |
| (0): | A0, F0, 55, FF, 56, A9 |
| Exit: | A0, F0, 55, FF, 1B, E4 |
| Power On: | A0, F0, 55, FF, AE, 51 |
| Power Off: | A0, F0, 55, FF,AD, 52 |
| Power On/Off: | A0, F0, 55, FF, 0B, F4 |
| Volume +: | A0, F0, 55, FF, 0A, F5 |
| Volume -: | A0, F0, 55, FF, 40, BF |
| Channel +: | A0, F0, 55, FF, 55, AA |
| Channel -: | A0, F0, 55, FF, 5A, A5 |
| Mute: | A0, F0, 55, FF, 14, EB |
| Sleep: | A0, F0, 55, FF, 53, AC |
| AV: | A0, F0, 55, FF, ED, 12 |
| VGA: | A0, F0, 55, FF, EA, 15 |
| HDMI Toggle: | A0, F0, 55, FF, EC, 13 |
| HDMI1: | A0, F0, 55, FF, DE, 21 |
| HDMI2: | A0, F0, 55, FF, DF, 20 |
| HDMI3: | A0, F0, 55, FF, E0, 1F |
| S-VIDEO: | A0, F0, 55, FF, E4, 1B |
| TV: | A0, F0, 55, FF, E8, 17 |
| DTV: | A0, F0, 55, FF, E9, 16 |
| Component: | A0, F0, 55, FF, E7, 18 |
| USB: | A0, F0, 55, FF, 57, A8 |
| PMODE: | A0, F0, 55, FF, 4B, B4 |
| Zoom: | A0, F0, 55, FF, 51, AE |
| Surround: | A0, F0, 55, FF, C7, 38 |
| SMODE: | A0, F0, 55, FF, 5B, A4 |
| VOL 25%: | A0, F0, 55, FF, 21, DE |
| VOL 50%: | A0, F0, 55, FF, 22, DD |
| VOL 75%: | A0, F0, 55, FF, 23, DC |
| VOL 100%: | A0, F0, 55, FF, 24, DB |
| Brightness 25%: | A0, F0, 55, FF, 26, D9 |
| Brightness 50%: | A0, F0, 55, FF, 27, D8 |
| Brightness 75%: | A0, F0, 55, FF, 28, D7 |
| Brightness 100%: | A0, F0, 55, FF, 29, D6 |
| COM Settings |
| Baud Rate 38400 |
| Data Bits 8 |
| Parity None |
| Stop Bits 1 |
TIPS
Troubleshooting
| No Picture | Check that the TV is turned on.Is the power cord inserted into a power outlet?Test the power outlet by plugging in another device into the outlet. |
| Remote Control Doesn’t Work | Make sure there is a direct path between the remote control and the IR receiver located at the Peerless-AV logo at the bottom center of the TV.Press the “TV” button on the universal remote control to select the TV as the device being controlled.Was the shipping tab removed and the battery re-installed correctly?Install new battery. |
Care Of The Screen
Do not rub or strike the screen with anything hard as this may scratch, mark, or even damage the screen permanently. Ensure that the TV is installed in a location where it will be safe from abrasives and f1 ying debris, which could damage the LCD panel.
Never use ammonia or any product containing ammonia, as it will damage the anti-glare coating on the face of the TV. Only use an approved screen cleaner to clean the display face.
Unplug the power cord before cleaning the screen. Dust the display by wiping the screen and the cabinet with a soft, clean cloth and if the screen requires additional cleaning, use a clean, damp cloth. Do not use liquid cleaners, aerosol cleaners, or solvents of any kind.
To prolong the life of the TV, install the dust cover when the TV is not is use.
Mobile Telephone Caution
Keep your mobile telephone away from your display to avoid disturbances in the picture or sound, possibly causing permanent damage to your TV.
End Of Life Directives
In an effort to produce environmentally friendly products. Your new TV contains materials that can be recycled and reused. At the end of your TV life, specialized companies can minimize TV waste by separating reusable materials from non-reusable materials. Please ensure you dispose of your TV according to local regulations.
License Agreement And Trademark Notice
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
Manufactured under license from Dolby Laboratories, Dolby and the double-D symbol are trademarks of Dolby Laboratories
PRODUCT SPECIFICATIONS
Specifications subject to change without notice
| Display | |
| Screen Size | 49", 55" diagonal |
| Aspect Ratio | 16:9 |
| Resolution | 1920 x 1080 |
| Brightness | 500 cd/m 2 |
| Contrast Ratio* | 1300:1 |
| Viewing Angle | 178° vertical/horizontal |
| Response Time | 8ms (gray to gray) |
| Refresh Rate | 60 Hz |
* Enhanced for direct sunlight usage.
| Power | |
| AC Input | 100 VAC to 240 VAC,50 to 60 Hz |
| TV Controller Features | |
| Analog TV | NTSC |
| Digital TV | ATSC/256QAM |
| Picture Adjustment | Brightness/Contrast/Tint/Sharpness/Noise reduction |
| Picture Mode | Standard, Dynamic, Theater, Personal |
| Color Temperature Adjustment | Cool, Normal, Warm |
| Screen Adjustment | 16:9/Full/Zoom/Point to Point/4:3 |
| Clock, Sleep Timer | Yes |
| MTS | Yes |
| V-chip | Yes |
| Closed Caption | Yes |
| Electronic Program Guide | Yes |
| Noise Reduction | Yes |
| 3-D Comb Filter and De-interlace | Yes |
| Mute | Yes |
| OSD Language | English, French, Spanish |
| Environmental | |
| Operating Temperature | -24°F to 122°F |
| Storage Temperature | 0°F to 124°F |
| IP Rating | IP55 |
| Safety/EMC | FCC Class B |
| Mechanical | |
| Display Size:UV491UV561 | (W x H x D)44.4" x 25.9" 4.15"(1128mm x 658mm x 105mm)50.4" x 29.6" x 4.15"(1280mm x 752mm x 105mm) |
| Enclosure Color Black | |
| VESA MountUV491UV551 | 400x300mm400x300mm |
| Net WeightUV491UV551 | 53 lbs (24.04kg)63 lbs (28.58kg) |
| Shipping SizeUV491UV551 | (W x H x D)48.38" x 29.87" x 7"(1228mm x 758mm x 178mm)54.7" x 33.4" x 7"(1389mm x 848mm x 178mm) |
| Shipping WeightUV491UV551 | 58 lbs (26.31kg)70 lbs (31.75kg) |
| Input/Output Connections | |
| TV Input | Coax (x1), 75 ohm, NTSC, ATSC, 64 QAM, 256QAM |
| VGA Input | 5 pin D-SUB (x1), Up to 1920x1080@60HZ |
| HDMI Input | HDMI (x3), 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| CVBS Input | RCA (x1) |
| YPbPr Input | RCA (x1), 480i, 480p, 720p, 1080i |
| VGA Stereo Audio Input | 3.5mm Analog Audio (x1) |
| CVBS Stereo Audio Input | RCA (x1) |
| YPbPr Stereo Audio Input | RCA (x1) |
| Audio Stereo | 3.5mm Stereo (x1) |
| Output | 3.5mm Stereo Headphone (x1) |
| RS232 Control | 9 pin D-SUB (Female) (x1) |
| S/PDIF Digital Audio Output | RCA (x1) |
LIMITED TWO-YEAR WARRANTY
TWO-YEAR PARTS & LABOR LIMITED WARRANTY
Terms of Peerless-AV®
The Peerless-AV Outdoor TV/Display is warranted to be free of defects in material and workmanship from the time of purchase by the original owner. If this product is found and proved to be defective under the terms and conditions of this warranty, Peerless-AV will repair or replace defective parts with new and/or reconditioned parts at no charge for the parts and labor to the original owner, subject to the terms and conditions of this Limited Warranty. This Limited Warranty covers failures due to defects in material and workmanship that occur during normal residential or commercial use as follows:
- Parts – the warranty period for parts is: two (2) years from the date of original purchase. During the applicable Limited Warranty period for parts, defective parts will be replaced at no charge. Parts used for the replacement will be warranted for the remainder of the original warranty period for those parts.
- Labor – the warranty period for labor is: two (2) years from the date of original purchase. During the applicable Limited Warranty period for labor, Peerless-AV will provide the labor for warranty repair at no charge for a period of two (2) years from the date of original purchase.
- Original owner must provide verification of the date of purchase when requesting Limited Warranty Services. A copy of the original Dated Sales Receipt is required together with the product to obtain service under this Limited Warranty.
- All repairs must be performed by a Peerless-AV Authorized Service Provider.
- Customer is responsible for returning (including any freight and shipping costs) defective unit to a Peerless-AV Authorized Service Provider. If the product is found to have no defects, the customer will be responsible for return shipping costs as well.
THIS LIMITED WARRANTY DOES NOT COVER:
• Labor to uninstall and reinstall the display / TV
- Shipping damage.
- Damage caused during customer unpacking, and/or removal of packing materials.
- Damage due to improper, incorrect or insufficient AC voltage.
- Damage due to power surges or lightning strikes.
• Damages which results from fire, flood, lightning, tornado, hurricane, large hail, extremely gusty winds, sand storms, vandalism, terrorism or other acts of nature.
- Any unit which has been modified or damaged due to improper installation or failure to obey the operating instructions in the User Manual.
- Any failure, loss, damage or personal injury due to accident, neglect, misuse, abuse, improper orientation, improper maintenance, improper storage, alteration to the unit, or failure by the consumer to follow operating instructions provided by the user manual.
- Any owner other than the original owner.
- Any unit purchased from an unauthorized seller.
- If the original product serial number has been removed, defaced or tampered with in any way.
- Any packaging or transportation charges incurred in connection with warranty services.
- Indirect, consequential, or special damages except as required by federal or state laws.
- Any unit tampered with, modified, adjusted or repaired by any party other than the Peerless-AV Authorized Service Provider.
- Any cosmetic damages to the surface or exterior that has been defaced or faded, or caused by normal wear and tear or exposure to chemicals, acid rain, large hail or adverse weather conditions.
- Minor cabinet blemishes or minor scratches to the exterior of the unit or other cosmetic imperfections that are not within the viewing area of the LCD
- Picture quality when installed in direct sunlight where sun is shining directly on the face of the LCD.
- Any damage, scratches or blemishes to the face of the LCD and/or exterior cabinet due to end-user cleaning.
- Dirty air waves, and/or unusual signal interference due to weak signal from multi-wire runs or weak signal from cable or satellite service providers or unusual signal interference or lack of distance when using the Digital Wireless Video/ Audio Package.
- Return shipping when no defect is found.
Peerless-AV and its representatives or agents shall in no event be liable for any general, indirect or consequential damages arising out of/or caused by the use of /or the inability to use this product.
This warranty is made in lieu of all other warranties, expressed or implied, and all other liabilities on the part of Peerless-AV. Any other warranties, including the warranties of merchantability and fitness for a particular purpose are hereby disclaimed by Peerless-AV and its representatives and/or agents.
All warranty inspections and repairs must be performed by Peerless-AV or its authorized service representations.
Customer Care: 800.865.2112 or 630.375.5100
Website: www.peerless-av.com
© 2016 Peerless Industries, Inc. All rights reserved.
peerless-AV®
Peerless-AV
2300 White Oak Circle
Aurora, IL 60502
Email: tech@peerlessmounts.com
Ph: (800) 865-2112
Fax: (800) 359-6500
www.peerless-av.com
Peerless-AV Europe
Unit 3 Watford Interchange,
Colonial Way, Watford, Herts,
WD24 4WP, United Kingdom
Customer Care
44 (0) 1923 200 100
www.peerless-av.com
Peerless-AV de Mexico
- CONTENTS
- SYSTEM INSTALLATION AND ELECTRICAL REQUIREMENTS ....3
- GENERAL SAFETY PRECAUTIONS 4
- SET UP INSTRUCTIONS....7
- OPERATING INSTRUCTIONS ....13
- (RS-232C) SERIAL CONTROL OF THE TV 16
- TIPS 17
- PRODUCT SPECIFICATIONS ....18
- WARRANTY 20
- SYSTEM INSTALLATION AND ELECTRICAL REQUIREMENTS
- ELECTRICAL CODE
- POWER SOURCE
- WARNING
- GENERAL SAFETY PRECAUTIONS
- RISK OF ELECTRICAL SHOCK
- READ BEFORE OPERATING EQUIPMENT
- BATTERIES INSTALLED WARNING
- CAUTION
- FCC CAUTION
- FCC STATEMENT
- RELEVANT INFORMATION
- SET UP INSTRUCTIONS
- CHOOSE YOUR TV LOCATION
- REMOVING CORD COVER
- CONNECTING CABLES
- REPLACING CORD COVER
- PREPARE YOUR TV FOR MOUNTING
- PREPARE THE TV FOR USAGE
- REMOTE CONTROL BATTERY INSTALLATION AND REPLACEMENT
- OPERATING INSTRUCTIONS
- POWER ON/OFF YOUR NEW TV
- REMOTE CONTROL
- ONBOARD POWER BUTTON
- ONBOARD CONTROLS
- NAVIGATING THE ON SCREEN MENU
- TIPS
- TROUBLESHOOTING
- CARE OF THE SCREEN
- MOBILE TELEPHONE CAUTION
- END OF LIFE DIRECTIVES
- LICENSE AGREEMENT AND TRADEMARK NOTICE
- PRODUCT SPECIFICATIONS
- LIMITED TWO-YEAR WARRANTY
- TWO-YEAR PARTS & LABOR LIMITED WARRANTY
- TERMS OF PEERLESS-AV®
- THIS LIMITED WARRANTY DOES NOT COVER
- PEERLESS-AV®
- PEERLESS-AV
- PEERLESS-AV EUROPE
- PEERLESS-AV DE MEXICO
Brand : Peerless-AV
Model : UltraView UV551
Category : Television
