GGSRC600S - Range hood Sôlt - Free user manual and instructions

Product Type	Range Hood
Brand	Sôlt
Model	GGSRC600S
Width	60 cm
Installation Type	Under cabinet or wall-mounted
Extraction Type	Recirculating or ducted (optional)
Number of Speeds	3
Lighting	LED, 1 or 2 lamps
Filter Type	Aluminum grease filter + optional charcoal filter
Noise Level	Approx. 55 dB (max speed)
Maximum Extraction Power	Approx. 400 m³/h
Power Supply	220-240 V, 50 Hz
Control Type	Push buttons or slide control
Weight	Approx. 12 kg
Dimensions (H x W x D)	Approx. 15 x 60 x 50 cm
Energy Class	B (typical for this model)
Grease Filter Cleaning	Wash monthly in dishwasher or by hand
Charcoal Filter Replacement	Every 3-6 months
Safety Features	Automatic shut-off timer, thermal fuse
Spare Parts Availability	Grease and charcoal filters, LED lamps
Repairability	Motor and controls replaceable by technician

Frequently Asked Questions - GGSRC600S Sôlt

How do I install the range hood?

Installation requires mounting the hood under a cabinet or against the wall, ensuring proper ducting for exhaust or using charcoal filters for recirculation. Refer to the included manual for detailed steps and safety precautions.

Can I use the hood without ducting?

Yes, the GGSRC600S can be used in recirculation mode with charcoal filters (purchased separately). The air is filtered and returned to the kitchen.

How often should I clean the grease filter?

The aluminum grease filter should be cleaned every month or more often with heavy use. It can be washed in a dishwasher or by hand with mild detergent.

How do I replace the charcoal filter?

First, remove the grease filter. Then, locate the charcoal filter (if installed) and replace it with a new one. Typically, replacement is needed every 3-6 months depending on usage.

What is the recommended height above the cooking surface?

For optimal performance, install the hood at a height of 65-75 cm above an electric hob or 75-85 cm above a gas hob.

The hood is noisy. What can I do?

Check for blockages in ducting or filters. Ensure the hood is securely mounted. If noise persists, contact a technician as the motor or fan may need service.

How do I change the LED light?

The LED light is built-in and may require professional replacement. Check the manual for specific instructions. In many models, the entire light unit must be replaced.

Does the hood have a timer function?

Yes, the GGSRC600S includes a timer that automatically shuts off the hood after a set period (e.g., 15 minutes) for convenient operation.

Can I use duct tape to seal the duct connection?

Use metal foil tape or approved duct sealant for a secure, airtight connection. Avoid standard duct tape as it may degrade over time.

Where can I purchase replacement filters?

Replacement grease and charcoal filters are available through authorized Sôlt dealers or online. Ensure you order the correct model (GGSRC600S) for compatibility.

USER MANUAL GGSRC600S Sôlt

Line drawing of a standard smoke hood with no text or symbols

60cm Canopy Rangehood Getting Started...

1. Power

Press this button to turn off the rangehood fan.

1. Low Speed

Press this button to set the extraction at the lowest speed. It is suitable for simmering and cooking without much steam.

1. Medium Speed

Press this button to set the extraction to a medium speed. It is suitable for regular cooking.

1. High Speed

Press this button to set the extraction to the highest speed. Use this fan setting for heavy smoke or steam to achieve the maximum exhaust efficiency.

1. Light

Press this button to turn the built-in lamp on and off.

12 -

For more information please call 1300 11 43 57

InstallationThe Controls

Before installing your new Canopy Rangehood, please ensure you first read all of the safety instructions contained in the provided user manual.

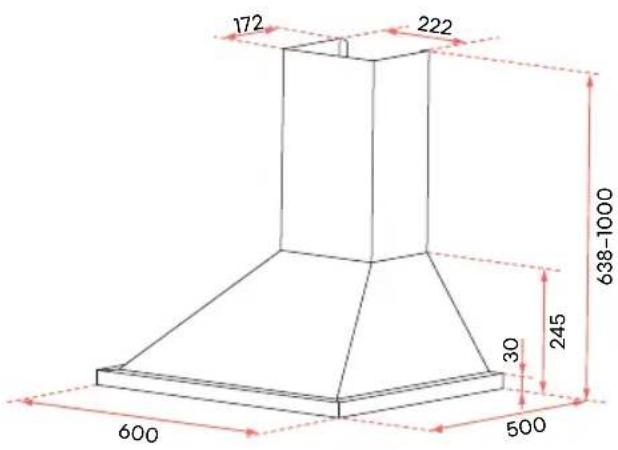

The typical installation method for your rangehood is for it to be wall-mounted. Please refer to the dimensions of your rangehood shown in the diagram below.

For safety and performance of your rangehood, adhere to the minimum and maximum distances from the rangehood base to the cooktop surface when positioning the rangehood for installation.

For a complete installation guide, refer to the user manual pages, 08–10.

172 222 638-1000 30 245 600 500
