Product Type	6" Spherical Ceiling Speaker
Brand	DAP-Audio
Model	SS-306
Dimensions (LxWxH)	375 x 375 x 300 mm
Weight	2.4 kg
Power Consumption	30W
Power Taps	7.5W / 15W / 30W
Line Voltage	100V
Impedance	7.2 Ω
Speaker Size	6 inch
Frequency Response	110 Hz – 18 kHz
Sensitivity (1W/1m)	92 dB
Horizontal Coverage	360°
Vertical Coverage	120°
Material	ABS
Color	White
Ingress Protection	IP55
Included Accessories	3 safety cables, user manual
Installation	Ceiling mount
Compliance	CE

Frequently Asked Questions - SS-306 DAP-Audio

How do I connect the speaker to a 100V line?

Connect the black wire to the COM terminal and the red wire to one of the three power taps (7.5W, 15W, or 30W) depending on your desired output. Ensure the amplifier is turned off during connection.

What is the maximum power this speaker can handle?

The speaker can handle up to 30W continuous power. It offers three selectable power taps: 7.5W, 15W, and 30W.

Can I install this speaker outdoors?

Yes, the speaker has an IP55 rating, making it resistant to dust and water jets. However, it should not be submerged or exposed to heavy rain. It is suitable for covered outdoor areas.

How do I clean the speaker?

Clean the speaker only with a dry cloth. Do not use water or cleaning solvents, as they may damage the ABS material or internal components.

What should I do if there is no sound?

First, check all cable connections and ensure the amplifier is powered on. If the problem persists, verify that the correct power tap is selected and that the speaker wires are not damaged. Refer to the troubleshooting section in the manual for further steps.

How do I select the correct power tap?

Choose the power tap (7.5W, 15W, or 30W) based on the desired volume and the amplifier's output capability. Connect the red wire to the corresponding terminal. The black wire always connects to COM.

What type of cable should I use?

Use appropriate gauge speaker wire for 100V systems, typically 2-core stranded cable. For long runs, use a thicker gauge to avoid signal loss. Ensure correct polarity throughout the system.

Can I paint the speaker?

The speaker is factory-finished in white ABS. Painting is possible but may affect performance if paint enters the grille or affects the cone. If you must paint, mask the driver and use non-conductive paint.

Does the speaker require a separate amplifier?

Yes, the speaker is passive and requires a 100V line amplifier. It is not a self-powered unit. Connect it to a compatible 100V amplifier output.

Is the speaker suitable for use in bathrooms or high humidity?

With IP55 rating, it can withstand humidity and water splashes, making it suitable for bathrooms, saunas, or covered patios. However, avoid direct water spray or immersion.

USER MANUAL SS-306 DAP-Audio

Close-up of a white spherical object with a curved top and two small protrusions, resembling a stylized hat or lamp (no text or symbols visible)

ENGLISH

SS-306

V1

Ordercode: D6565

SS-306

Table of contents

Warning 2

Unpacking Instructions....2

Safety Instructions....2

Operating Determinations....3

Return Procedure 4

Claims....4

Installation....5

Troubleshooting 5

Product Specification 6

Dimensions....6

Warning

For your own safety, please read this user manual carefully before your initial start-up!

Unpacking Instructions

Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present, and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing.

Your shipment includes:

• DAP Audio SS-306 7,5/15/30W 6" Spherical Speaker
- 3 x safety cable
- User manual

CAUTION!

Keep this device away from rain and moisture! Unplug mains lead before opening the housing!

Safety Instructions

Every person involved with the installation, operation and maintenance of this system has to:

• be qualified
  • follow the instructions of this manual

CAUTION! Be careful with your operations.

With a dangerous voltage you can suffer a dangerous electric shock when touching the wires!

Before you initial start-up, please make sure that there is no damage caused by transportation. Should there be any, consult your dealer and do not use the system.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the system are not subject to warranty.

This system contains no user-serviceable parts. Refer servicing to qualified technicians only.

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorized modification to the system.

• Never remove warning or informative labels from the unit.
• Never leave any cables lying around.
- Do not open the device and do not modify the device.
- Do not set the input signal level higher than required to drive the equipment to full output.
• Only use system indoors, avoid contact with water or other liquids.
- Avoid flames and do not put close to flammable liquids or gases.
• Make sure you do not use the wrong kind of cables or defective cables.
- Extreme frequency boosts in connection with a high input signal level may lead to overdriving your equipment. Should this occur, it is necessary to reduce the input signal level.
- If system is dropped or struck, disconnect the power supply immediately. Have a qualified engineer inspect for safety before operating.
- If the system has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your system. Leave the system switched off until it has reached room temperature.
- If your Dap Audio device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Dap Audio dealer for service.
• Repairs, servicing and electric connection must be carried out by a qualified technician.
- Keep this manual for future reference.
- Clean only with dry cloth.
- When making the hole on your ceiling to mount the SS-306, make sure there is sufficient clearance behind the ceiling (no obstructions like A/C channels, power lines etc).
- Take care of your speaker wires, they should be free of damage. Damaged speaker wires might result in poor sound quality and can damage amplifiers.
• Make sure the ceiling can support the speaker's weight.
• No main power shall be connected to the loudspeakers; doing so will damage the speaker.
• This device should only be serviced by qualified personnel. If not warranty might be void.
• Use cable of the right gauge, certainly for long runs.
• Use cables with clear color indication and maintain polarity throughout the whole system.
- Avoid loud feedback from microphones, this can damage your speaker.
- Please check the units condition after unpacking. If the outside of the carton box has been damaged, inform your shipper immediately.

Operating Determinations

If this system is operated in any other way, than the one described in this manual, the product may suffer damages and the warranty becomes void.

Any other operation may lead to dangers like short-circuit, burns, electric shock, etc.

You endanger your own safety and the safety of others!

Improper installation can cause serious injuries and damage of property!

Return Procedure

Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.

Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail [e-mail] and request an RMA prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the customer's responsibility. Highlite reserves the right to use its own discretion to repair or replace product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.

Note: If you are given an RMA number, please include the following information on a piece of paper inside the box:

01) Your name
02) Your address
03) Your phone number
04) A brief description of the symptoms

Claims

The client has the obligation to check the delivered goods immediately upon delivery for any shortcomings and/or visible defects, or perform this check after our announcement that the goods are at their disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be reported to the carrier upon receipt of merchandise.

It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is damaged due to shipping. Transportation damage has to be reported to us within one day after receipt of the delivery.

Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless otherwise agreed in writing.

Complaints against us must be made known in writing or by fax within 10 working days after receipt of the invoice. After this period complaints will not be handled anymore.

Complaints will only then be considered if the client has so far complied with all parts of the agreement, regardless of the agreement of which the obligation is resulting.

Installation

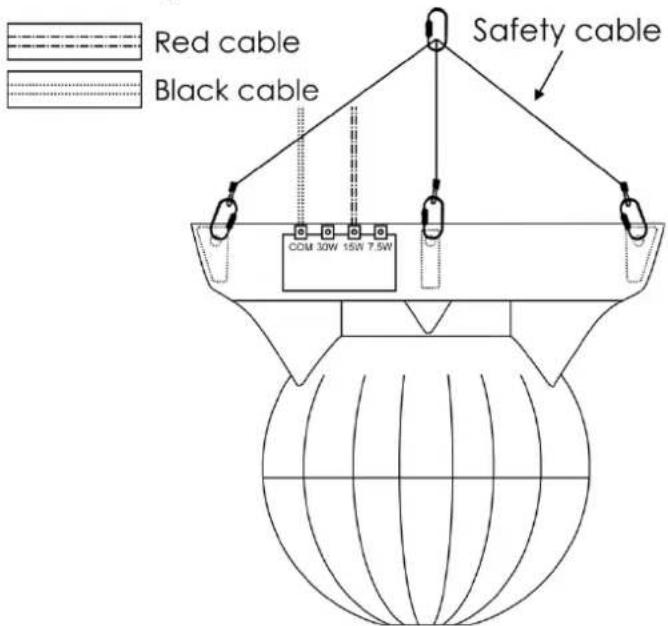

01) Attach the included safety cables to the speaker.

02) Connect the power supply to the speaker. Make sure that you connect the cable with the right color to the appropriate connector. (The black cable to COM connector; the red cable to one of the 3 connectors: 7.5W; 15W or 30W).

03) Attach the installation to the ceiling.

Fig. 01

Troubleshooting

No Sound

Always check if all the cables and cords are connected. Always turn off power to the area before checking the wires, to prevent electric shock.

If everything works properly and there is still no sound, revisit the manufacturer's instructions to make sure they were followed during installation. If everything was installed correctly and there is still no sound, you may want to consider bringing in a professional to take a look at your speakers.

Low and Poor Sound

If your ceiling speakers are working but the sound volume coming from them is low, check the speakers to see if they are well insulated. If the speakers were installed and there was no insulation around or behind them, you are going to want to add some. Adding insulation will help to buffer the sound and stop it from going up into your attic. It will also make sure that the speakers are secure in the holes, and won't vibrate.

Uneven Sound

If you put the insulation in unevenly, then this could result in uneven sound. Make sure to put in the same amount of insulation around each speaker. If some speakers are packed tightly, while others just have the insulation loosely around them, then you will end up with different levels of sound absorption.

Sound Warping

If the sound coming out of your ceiling speakers is loud enough, but seems to be warped or distorted, your treble or bass levels may need to be adjusted.

If there are not many pieces of furniture in the room and the floor has no carpet or rug, then you will most likely have to set your treble to minus. With very little in the room to absorb the sound, too much treble can make the sound bounce off of fixtures in the room, making it tinny sounding.

With the bass, if the speakers are too close to a wall and are not aimed properly, then you will need to set the bass to minus, to stop the low tones from bouncing off of the walls or large pieces of furniture.

Product Specification

Power consumption:	30W
Power connectors:	7,5/15/30W
Line voltage:	100V
Impedance:	7,2 Ω
Speaker size:	6 inch
Frequency response:	110-18 kHz
Sensitivity:	92 dB
Horizontal dispersion:	360°
Vertical dispersion:	120°
Material:	ABS
Color:	White
IP rating:	IP 55
Dimensions (LxWxH):	375 x 375 x 300 mm (LxWxH)
Weight:	2,4 kg

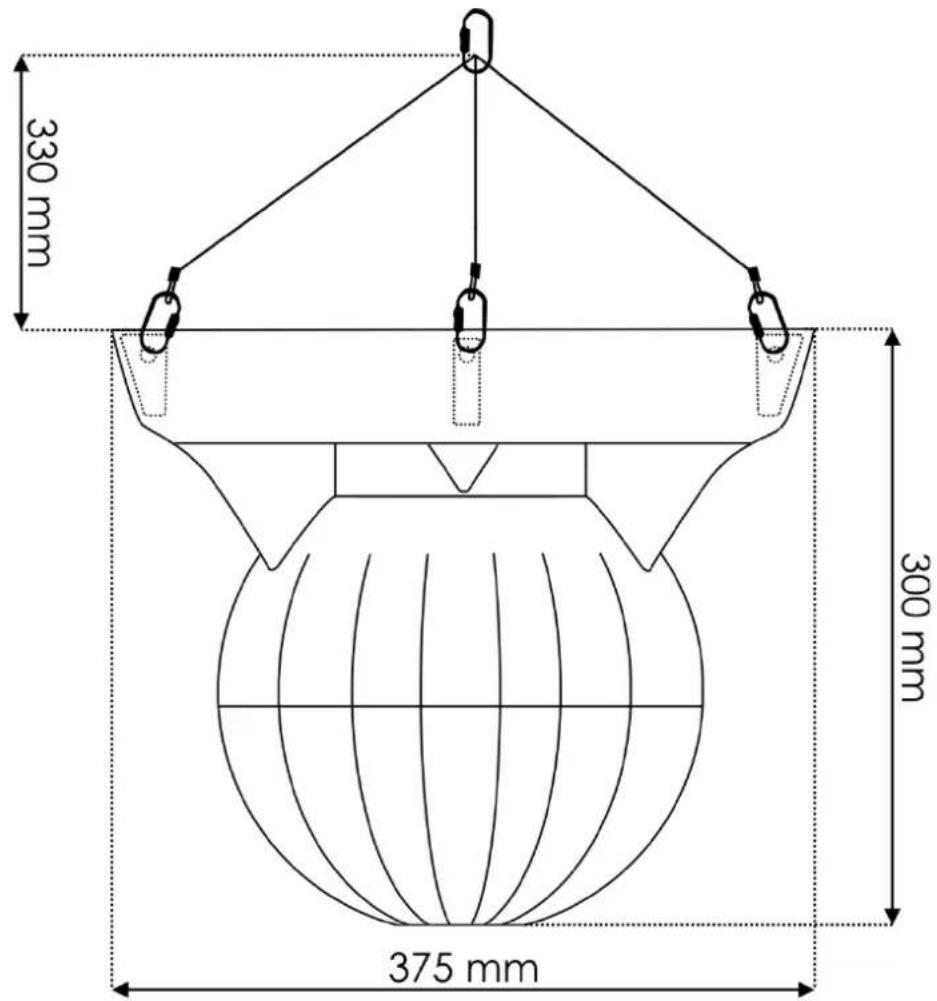

Dimensions

Design and product specifications are subject to change without prior notice.

CE

Website: www.Dap-audio.info
