Product Type	Upright Cooker (Electric Oven & Grill with Cooktop)
Brand	Euromaid
Model	CW50
Colour	White
Energy Type	Electric
Oven Type	Multi-function
Oven Functions	8 functions: 3D cooking, full grill, half grill with fan, bottom element (pizza), fan forced, fan assist, conventional, defrost
Oven Capacity	63 L (gross)
Grill Power	2.2 kW
Cooktop Type	Solid 4 burner
Cooktop Burners	Front Left: 145mm - 1000W; Rear Left: 180mm - 1500W; Front Right: 180mm - 2000W; Rear Right: 145mm - 1000W
Total Power	7.6 kW
Voltage	230-240V / 50Hz
Hardwired	32 amps
Dimensions (W x H x D)	500 x 895-910 x 600 mm
Storage Compartment	Yes, lower
Inner Door	Full glass
Closed Door Grilling	Yes, with fan
Country of Origin	Europe
Warranty	2 years parts and labour

Frequently Asked Questions - CW50 Euromaid

What is the oven capacity of the Euromaid CW50?

The oven has a gross volume of 63 litres, suitable for family-sized meals.

How many oven functions does it have and what are they?

It offers 8 functions: 3D cooking, full grill, half grill with fan, bottom element (pizza), fan forced, fan assist, conventional, and defrost.

What is the power consumption of the grill?

The grill has a power rating of 2.2 kW.

What are the dimensions of the Euromaid CW50?

The dimensions are 500mm width, 895-910mm height, and 600mm depth.

Is the cooktop electric or gas?

The cooktop is electric with solid 4 burners, each with different wattages.

Does the oven have a storage compartment?

Yes, it includes a lower storage compartment for pans or trays.

What is the warranty period?

The oven comes with a 2-year parts and labour warranty.

What is the total power requirement?

Total power is 7.6 kW, requiring a 32 amp hardwired connection at 230-240V.

Can I use aluminium foil in this oven?

Yes, but avoid covering the oven floor or blocking vents. Always refer to the manual for safety guidelines.

Where is the Euromaid CW50 manufactured?

It is European made.

USER MANUAL CW50 Euromaid

500mm White Upright Cooker

Euromaid

made for you.

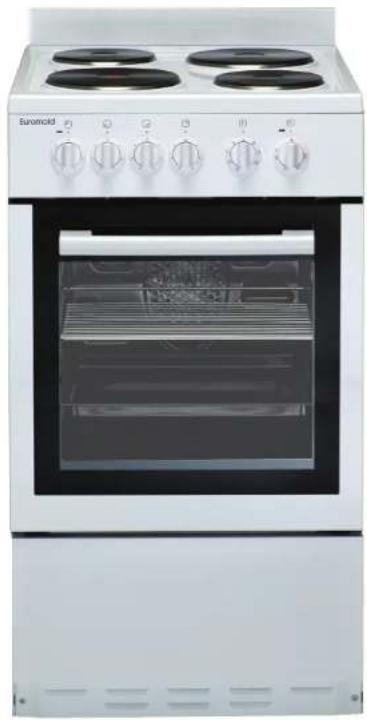

Exterior view of a modern white electric oven with four stovels and control knobs (no visible text or symbols)

Features

Electric Oven & Grill

Solid 4 burner cooktop

Multi 8 function oven: 3D cooking, full grill.

half grill with fan, bottom element (pizza),

fan forced, fan assist, conventional and defrost

63L gross oven volume

Closed door grilling with fan

Lower storage compartment

Full inner glass door

European made

Total Power

Total Power: 7.6 kW

Grill Wattage: 2.2 kw

Direct Wired: 32 amps hardwired

Power: 230 - 240 volt/50Hz

Cooktop Power

Front Left: 145mm - 1000W

Rear Left: 180mm - 1500W

Front Right: 180mm - 2000W

Rear Right: 145mm - 1000W

EW50

Dimensions & Installation

Euromaid

made for you.

Product Dimensions

500mm (W) x 895-910mm (H) x 600mm (D)

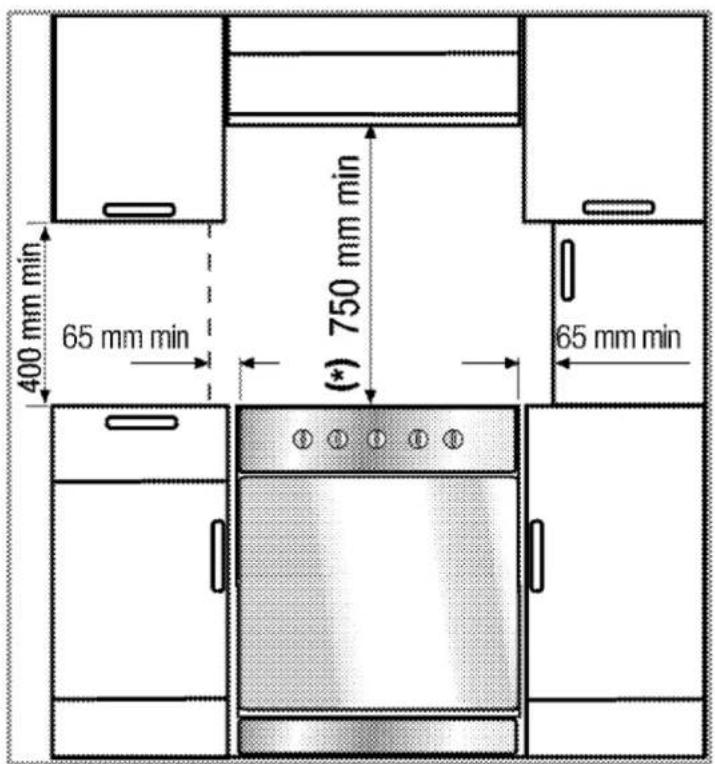

Minimum requirements for installation with cabinets

Warranty
2 year Parts and Labour
