AquaRain 1019-CH - Shower system Pulse ShowerSpas - Free user manual and instructions

Product Type	Shower System
Brand	Pulse ShowerSpas
Model	AquaRain 1019-CH
Material	Chrome-plated brass
Showerhead Diameter	10 inches
Hose Length	60 inches (5 feet)
Water Flow Rate	2.5 GPM (9.5 L/min)
Spray Settings	Rain, Massage, Mist, Pause
Temperature Control	Single-handle ceramic cartridge
Installation Type	Wall-mounted
Dimensions (H x W x D)	15 x 10 x 4 inches
Weight	8 lbs
Power Supply	None (manual operation)
Water Pressure Range	20-80 PSI
Connection Size	1/2 inch NPT
Cleaning Instructions	Wipe with a soft cloth and mild soap; avoid abrasive cleaners
Maintenance	Periodically clean nozzles to prevent mineral buildup
Safety Features	Anti-scald technology (thermostatic valve)
Replaceable Parts	Hose, showerhead, cartridge
Warranty	Limited lifetime warranty
Certifications	cUPC, NSF 61
Included Accessories	Showerhead, handle, hose, mounting hardware, manual

Frequently Asked Questions - AquaRain 1019-CH Pulse ShowerSpas

How do I install the AquaRain 1019-CH shower system?

How can I clean the showerhead?

What should I do if water pressure is low?

How do I switch between spray modes?

Does the shower system include anti-scald protection?

Can I replace the hose or showerhead?

How often should I maintain the system?

What tools are needed for installation?

Is the shower system compatible with all water heaters?

What is the warranty coverage?

USER MANUAL AquaRain 1019-CH Pulse ShowerSpas

Two identical stainless steel showerheads with adjustable arm and feet, shown from different angles (no text or symbols visible)

AquaRain Parts Legend

1. Shower Head

2. Slide Bar

3. Tapered Nylon Sleeve

4. Screen Washer

5. Slide Bar Mounts .....(2)

6. Soap Dish

7. AquaRain Body

8. Screw 3.375" .....(2)

9. Handshower

10. Escutcheon

11. Mount Covers....(2)

12. Rubber Washer

13. Set Screw

14. Wall Anchors .....(2)

15. Handshower Hose

Technical diagram of a hair dryer with numbered parts for identification and assembly reference.

Installation Instructions

Thank you for choosing the AquaRain Shower System by PULSE ShowerSpas!

Assembly and installation of the AquaRain Shower System is designed to be quick and easy. If you have installation questions or performance problems, call PULSE Customer Service toll free at 888-785-7320 or visit www.pulseshowerspas.com.

Please read instructions carefully, become familiar with all parts, installation procedures and tools required. Follow steps in order presented to help avoid mistakes.

FOR NEW CONSTRUCTION OR COMPLETE REMODEL

- A hot/cold mixing valve is required (NOT INCLUDED)

TOOLS REQUIRED

Drill (preferably cordless), (1/4") 6mm masonry/tile drill bit, Phillips screwdriver, pipe wrench.

ASSEMBLY

1. Remove existing shower head and shower arm.
2. Wrap threads of shower pipe with Teflon tape and/or pipe sealant to ensure no leaks. (Diagram A)
3. Slide escutcheon over threaded shower pipe. (Diagram B)
4. Insert threaded pipe into female wall fitting and tighten securely. Use diverter body to tighten by hand or use a pipe wrench on inlet pipe closest to wall. (Diagram C)

CAUTION—DO NOT USE SHOWER ARM TO TIGHTEN

1. While gently pushing up on connection between shower arm and top tee to ensure AquaRain is level, slide escutch-eon against wall. (Diagram E) Secure set screw. (Diagram F)

CAUTION—DO NOT OVER-TIGHTEN SET SCREW

1. Insert rubber washer in shower head and secure shower head to shower arm.

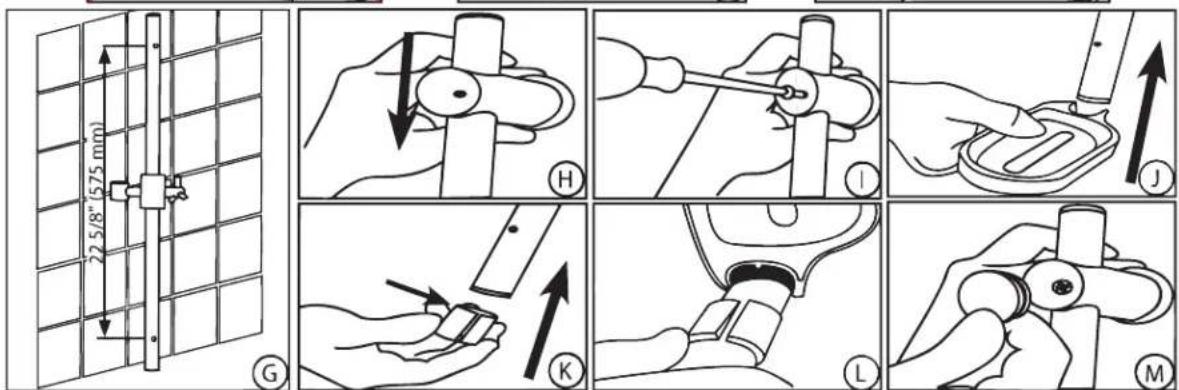

2. Hold Adjustable Slide Bar (6) in desired mounting location. Evaluate range of adjustment and potential interference of handshower hose (15) (Diagram G).
3. Mark wall for two mounting holes. Before drilling ensure no live plumbing can be damaged.
4. Slowly drill 1/4" (6mm) wide by 1" (25mm) deep holes 22 5/8 inch (575mm) apart. Make sure holes are plumb.

IMPORTANT: Supplied anchors are for solid surface only i.e. tile, marble etc. If mounting to hollow or fiberglass wall, a different anchor/screw and hole size may be required.

1. Insert wall anchors (10) until flush with wall. Slide top mount (7) over slide bar (Diagram H) and secure with screw (8) (Diagram I). Slide plastic soap dish (12) (Diagram J) onto slide bar followed by narrow end of tapered nylon sleeve (11) (Diagram K). Align tab on soap dish with slot on sleeve and push soap dish down until flush. (Diagram L)
2. Slide lower mount (7) over slide bar and secure screw (8).
3. Press covers (9) into mounts (7) (Diagram M).
4. Place washer (14) in hex head of hose (15) and connect to diverter outlet. Place washer (14) in tapered end of hose and connect handshower (13). Place hand shower into holder.

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a hand holding a tool with a spring scale, intersected by two diagonal lines (no text or symbols)

Illustration of a hand using a tool to adjust a mechanical component (no text or symbols visible)

Diagram of a hand holding a tool with directional arrows indicating motion (no text or symbols)

Simple line drawing of a hand holding a curved pipe with a valve and circular base (no text or symbols)

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

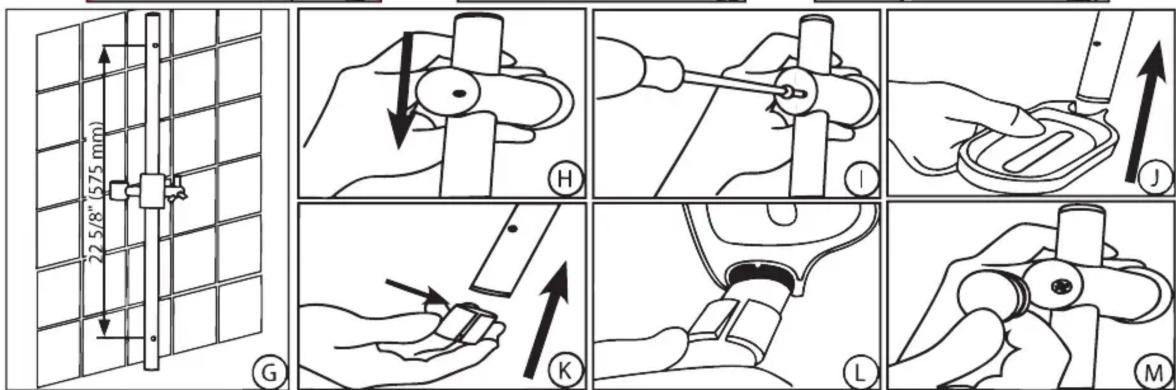

22.5/8" (575 mm) G H I J K L M

Usage

Diverter control switches from the shower head and hand shower functionality.

Turn face of hand shower to switch settings.

Adjust the hand shower position by loosening the hand shower hanger and sliding up or down.

Always turn cold water on first to help prevent any accidental burning or scalding; especially for children and elderly.

DO NOT use any part of the AquaRain Shower System as a support device.

Care and Maintenance

To keep your ShowerSpa looking new, wipe down after each use with a soft cotton cloth.

Protect your ShowerSpa from hard water stains and mineral deposits by periodically using an auto spray wax.

Clean using mild liquid soap and a non-abrasive sponge or cloth. Rinse with clean water.

Do Not Use Any Kind Of Chemicals Or Abrasives!

Lifetime Limited Warranty

1. Defects Covered; Warranty Period. Pulse Shower Spas, Inc. ("Pulse") warrants to the original consumer purchaser who purchases this shower spa (the "Product") for use in his or her own home, that the Product will be free from defects in material and manufacturing workmanship for as long as the original consumer purchaser owns that same home. For all other purchasers (including, but not limited to purchasers for industrial, commercial and business use), the above warranty will apply for a period of 5 years from the original date of purchase.
2. Remedy. If the Product does not conform to the above warranty, Pulse, at its option, will repair or replace the Product, free of charge, or refund your purchase price. For warranty claims, please visit www.pulseshowerspas.com/index.php/warranty. Pulse may require that you return the Product to Pulse, shipping prepaid, in which case Pulse will provide you with a return materials authorization number (RMA). Pulse may also require that you provide evidence of the date you purchased the Product. Pulse will ship a new or repaired Product to you, at the expense of Pulse, or refund your purchase price. Service labor performed by you or others in connection with the removal or replacement of the Product will not be reimbursed by Pulse.
3. Exclusions. Pulse shall not be responsible for failure of the Product, and the above warranties will not apply, if the Product fails as a result of improper installation, improper use, modifications or repairs by anyone other than Pulse, or accident or abuse (including damage during shipment).

4. Warranty on Repairs and Replacements. For consumer purchasers who purchased the Product for home use, repaired or replacement Products will continue to be covered under this warranty for as long as he or she owns that same home. For other purchasers, repaired or replacement Products will be covered for the balance of the original warranty period.

5. No Other Warranties; Limitation of Liability. OTHER THAN THE LIFETIME LIMITED WARRANTY STATED ABOVE, PULSE DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, TO THE EXTENT PERMITTED BY APPLICABLE LAW. THE REMEDIES STATED ABOVE ARE YOUR SOLE REMEDIES IN CONNECTION WITH THIS WARRANTY. IN NO EVENT WILL PULSE BE LIABLE TO YOU FOR ANY DAMAGES, WHETHER DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL, INCLUDING BUT NOT LIMITED TO LOST PROFITS OR BUSINESS INTERRUPTION, ARISING OUT OF OR RELATING TO THE PRODUCT OR ITS USE, WHETHER UNDER A CONTRACT, WARRANTY, TORT, OR ANY OTHER CAUSE OF ACTION, EVEN IF PULSE HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOTWITHSTANDING THE TERM OF ANY LIMITED OR IMPLIED WARRANTY, OR IN THE EVENT THAT ANY LIMITED WARRANTY FAILS OF ITS ESSENTIAL PURPOSE, IN NO EVENT WILL PULSE'S ENTIRE LIABILITY EXCEED THE PURCHASE PRICE OF THE PRODUCT. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE AND PROVINCE TO PROVINCE.
