Product Type	Range Hood
Brand	Robinhood
Model	RSA2CL9SS
Dimensions (W x D x H)	30 x 17 x 6 inches (76.2 x 43.2 x 15.2 cm)
Weight	22 lbs (10 kg)
Power Supply	120V~ 60Hz, 2.5A
Number of Fan Speeds	3
Maximum Airflow	400 CFM (cubic feet per minute)
Noise Level	65 dB (max speed)
Lighting	2 x 20W halogen bulbs (G4)
Filter Type	Aluminum mesh filter, dishwasher safe
Venting Type	Ducted or recirculating (with charcoal filter)
Duct Size	6 inches (15.2 cm) round
Control Type	Push buttons
Material	Stainless steel
Installation Type	Under cabinet or wall mount
Energy Star Rated	Yes
Motor Type	Centrifugal motor
Cleaning Indicator	No
Remote Control	No
Warranty	2 years limited

Frequently Asked Questions - RSA2CL9SS Robinhood

How often should I clean the aluminum mesh filter?

Clean the aluminum mesh filter every month for optimal performance. It is dishwasher safe or can be hand washed with mild detergent.

Can this range hood be used without ducting?

Yes, the RSA2CL9SS can be used in recirculation mode with a charcoal filter (sold separately) to filter smoke and odors back into the kitchen.

What type of light bulbs does the hood use?

It uses two G4 halogen bulbs (20W each). You can replace them with compatible LED G4 bulbs.

How do I reset the filter cleaning reminder?

This model does not have a filter cleaning indicator. Simply clean the filter regularly based on usage.

Is the hood hardwired or plug-in?

It is hardwired. Professional installation is recommended for electrical connection.

What is the minimum clearance required above the cooktop?

A minimum of 24 inches (61 cm) for electric cooktops and 30 inches (76 cm) for gas cooktops.

Can I install this hood under a cabinet with a 30-inch width?

Yes, the hood is designed to fit under a 30-inch wide cabinet.

How loud is the hood at maximum speed?

The noise level is approximately 65 dB, which is comparable to a normal conversation.

What is the warranty period?

Robinhood offers a 2-year limited warranty covering defects in materials and workmanship.

Where can I find replacement charcoal filters?

Charcoal filters can be purchased from Robinhood or authorized parts dealers. Use model number RSA2CL9SS-CHAR.

USER MANUAL RSA2CL9SS Robinhood

Description: ROBINHOOD SLIDEOUTS

Model RSA2CL6SS

Numbers: RSA2CL9SS

Exterior view of a modern kitchen air conditioner unit with ventilation grilles and ventilation duct (no text or symbols visible)

RSA2CL6SS model pictured

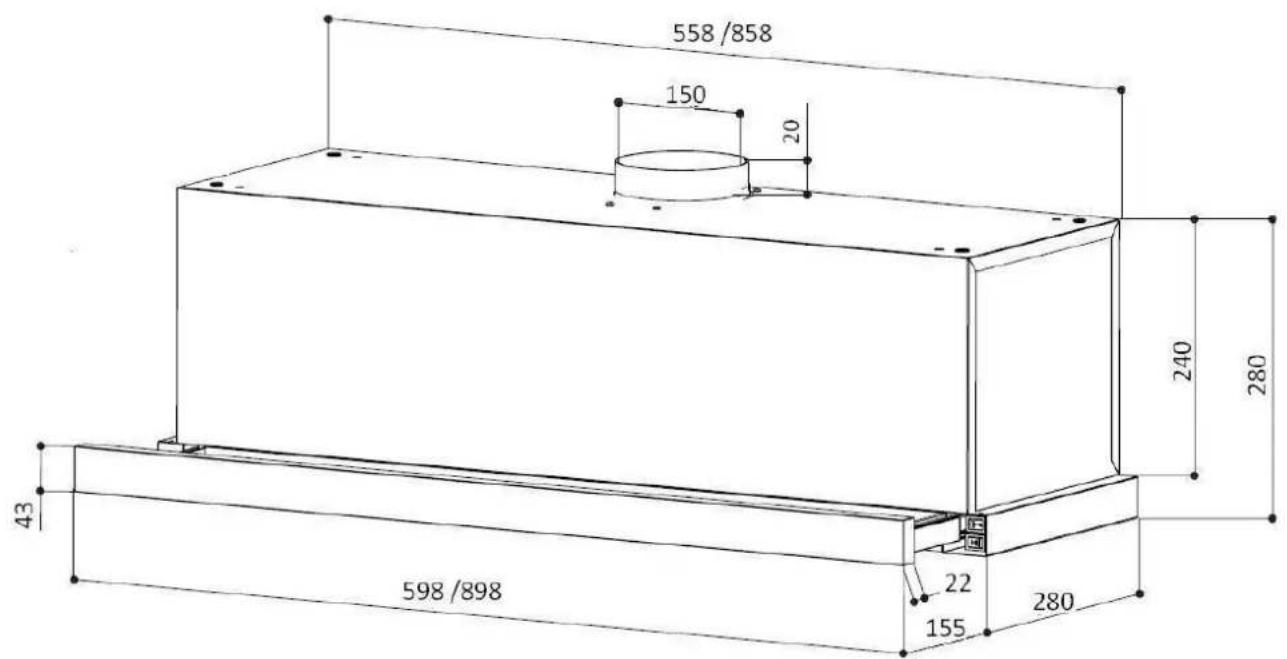

Overview

558/858 150 20 43 598/898 22 155 280 240 280

* All dimensions shown above are in mm and apply to 600mm and 900mm models

Pre-installation

Thank you for purchasing a quality Robinhood rangehood. Robinhood has a high standard of quality control and every rangehood is tested and approved before it leaves the factory.

Important:

• Please read the entire instructions before installing the rangehood.
• Always switch power off prior to installation.
• Stainless steel or powder coat is very easily damaged during installation if abraded or knocked by tools. Protect the rangehood with the cardboard box or plastic bag during installation.
• All electrical work must be done in accordance with local and national electrical codes as applicable.
• For safety, this product must be earthed.
  ○ A power outlet should be within 1000mm of the power cord exit from the rangehood.
• The socket must be accessible and enable the end user to isolate the rangehood from the power for the purpose of internal cleaning or maintenance.
• All ducting must comply with local requirements and building codes.
• Suitable fixings will be required to mount this rangehood.
• See Ducting options next page.

Contents of packaging:

1 x rangehood
1 x Installation sheet
1 x Installation kit

Typical equipment required:

o electric drill
- screwdriver
- tape measure
○ spirit level
- duct tape
- jig saw
- ladder

Pre-Installation - continued

Ducting Options

The method of ducting should be carefully considered before installing the rangehood. The guide below recommends the ducting components to use for all common ducting configurations - through the top of the home (for the roof and soffit) and through the rear of the home.

150mm round ducting should be used in conjunction with this model rangehood.

Due to the high airflow with this rangehood there is not a re-circulating option available.

Duct mounting option

Rear Top (roof) Top (soffit/eave)

Uniduct item numbers

Uniduct Kit

UTWSR150

UHRS150

USSR150

It is recommended that ∅150mm ducting is to be used, however a reducer from ∅150mm to ∅125mm is included with the Uniduct kit should ∅125mm ducting be required.

Extra lengths and/or bends may be required, depending on the length required and whether there is any structural material in the run e.g. rafters. For best performance the maximum distance between coupling and discharge outlet should not exceed 3 metres, with one 90 degree bend.

Some authorities require rangehoods to be vented outside. Ducted models should comply with this requirement in every respect.

Please note that this chart is designed as a guide. Please consult Robinhood customer services if unsure.

For NZ phone [phone] or www.robinhood.co.nz. For AUS phone [phone] or www.robinhood.com.au.

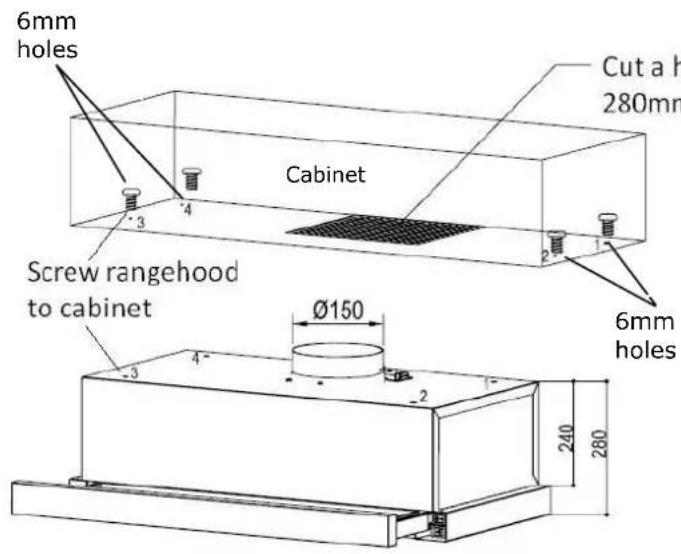

Installation continued

6mm holes Cabinet Cut a h 280mm 3 4 2 Screw rangehood to cabinet Ø150 2 6mm holes 3 4 240 280

70 900mm model 70 55 600mm model 55 32 217 Power cord 32 217

* All dimensions shown above are in mm

TO INSTALL

To install the rangehood you will need to drill four 6mm holes into the base of the cabinet to correspond with the existing holes in the rangehood as shown in the drawing above.

To allow the ducting vent and power cord to fit into the cabinet, you will need to cut a 280mm x 200mm hole into the base of the cabinet as shown in the diagram above.

PLEASE NOTE: Using the incorrect screws for the installed mounting method as per these instructions may cause damage to the product. This damage may lead to failure of the anchor points and this would not be covered by the warranty.

Operating instructions

Light

The light can be operated independently from the fan and is controlled in accordance with the graphics printed on the control panel.

Automatic function will turn the fan and lights on when the slide out is pulled out.

Switch functions Low— Off— High— Fan Light — On — Off — Auto

Fan

The fan can be run at different speeds depending on the cooking requirements and is controlled in accordance with the graphics printed on the control panel.

Cleaning and maintenance

General Maintenance

Switch off the rangehood before cleaning or maintenance. To prevent surface damage never use abrasive or oil based liquid cleaners. To clean the surfaces of the appliance, use mild deterger and warm water. In areas of high humidity and coastal environments cleaning should be carried out frequently.

Warning: a build up of oil may occur if the compact canopy is not cleaned regularly.

Filter Maintenance

To maintain efficiency, the filters should be removed regularly (approximately monthly), and washed using hot soapy water or the dishwasher. Note - some discolouration of the frame may occur if washed in the dishwasher.

To remove the filters from their locations you will need to release the anchoring points as shown below, to install is the reverse of the removal.

Technical line drawing of a rectangular panel with mesh pattern and two side handles (no text or symbols)

Filter release catches, pull catch inwards to release each filter.

Replacement of LED Lamps - RSA2CL6SS & RSA2CL9SS models

To replace a lamp, first disconnect the rangehood from the power supply and ensure the lamp has had time to cool down before touching.

Remove the filters as described above and unclip the cable connector and squeeze the two clips holding the lamp in place and remove. Installation is reverse of this process.

squeeze metal clips to remove assembly

Parts and Accessories list

• LED Light Assembly

114542

For any other problems please call help line on NZ 0800 760 667 or AUS 1800 648 556

Product approvals and ratings

Product approval number	SGS/100427
Product rating	202W Max at 220-240V 50Hz
Electric approval	AS/NZS 60335.2.31:2004, +A1:2006+A2:2007+A3:2009
EMC approval	AS/NZS CISPR 14.1:2010
Performance tested	IEC61591

Important safety information

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Young children should be supervised to ensure that they do not play with the appliance.
• There shall be adequate ventilation of the room when the rangehood is used at the same time as appliances burning gas or other fuels.
• You must read the details concerning the method and frequency of cleaning.
• There is a fire risk if cleaning is not carried out in accordance with the instructions.
• Do not flambé under the rangehood.
• Exhaust air must not be discharged into an existing flue which is used for exhausting fumes from appliances burning gas or other fuels.
• The minimum distance between the hob surface and the lowest part of the rangehood is 600mm. This distance shall be at least 650mm, if the rangehood is installed over a gas hob. If the instructions for the gas hob specify a greater distance, this has to be taken into account.
• Attention should be given to ensure that any applicable regulations concerning the discharge of exhaust air is fulfilled.
• If the supply cord of this equipment is damaged, it must only be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

Warranty Certificate (New Zealand)

Terms and Conditions

The following conditions apply in respect of the warranty given in this certificate:

1. Parbury Pty Limited ("Parbury") warrants the following Robinhood products against manufacturing defects and faulty materials, under normal use and subject to the exclusions in this certificate, for a period of:

Rangehood - 24 months from date of original purchase for domestic use.

Supertub - 5 years on stainless bowl, 24 months on Tap, Cabinet and other components from the date of original purchase for domestic use.

Ironing centre - 12 months from date of original purchase for domestic use.

Uniduct - 12 months from date of original purchase for domestic use.

Waste disposal - 24 months from date of original purchase for domestic use.

"Original purchase", when used in this certificate, means purchase by the customer directly from Parbury or one of its approved suppliers.

1. This warranty is limited to the repair or replacement, at our option, within the warranty period of any component part which we at our discretion determines to contain faulty materials or a manufacturing defect in breach of this warranty. This warranty is subject to terms and conditions set out in this certificate.

2. The warranty only applies within New Zealand.

3. The customer must produce the original invoice or other purchase documentation as proof of the original purchase date.

Warranty exclusions

1. The warranty does not apply where, in Parbury's opinion:

The defect is caused by misuse, wear and tear, dirt, fire or accidental damage.

The product has been repaired or serviced by an unauthorised person.

The product was not installed in accordance with our instructions.

The product was purchased overseas or was not designed for use in New Zealand.

The product was not used, cleaned or cared for in accordance with our instructions.

The product was used outdoors.

All Robinhood rangehoods are suitable for indoor use only, and not suitable over BBQs or charcoal cookers designed for outdoor use.

1. In addition, this warranty does not extend to damage or defects which in our opinion, directly or indirectly arise from or Exposing the product to acidic or corrosive materials or chemicals such as dyes, solvents, denture cleaner or acetone; Using inappropriate household cleaning products such as abrasive cream or powder cleansers, furniture polish, bleach, mentholated spirits, drain cleaners, sugar soap, metal pads and strongly alkaline or acidic cleaners; Heat damage, including from washing the product at high temperatures;

Impact or mishandling the product, including the impact caused by objects scraped along, thrown or dropped on the surface or excessive weight being placed on the product;

Structural or support changes in or affecting the building or the application where the product has been installed; Failure to clean or maintain the product as recommended; or

Any other causes specified in the product information as being excluded from this warranty.

1. Variations with the colour or gloss within the product or any ageing or fading of colour, shine or gloss level over time are not covered by this warranty. The warranty does not cover visual imperfections or blemishes in the surface and edges of product that were not brought to your supplier's attention at the time you inspected the product.

2. Costs incurred on installation or removal of a product, or any reinstallation of a product, or any associated costs, are not covered by this warranty.

3. Parbury will not be liable for consequential or indirect loss or damage whatsoever and however arising out of or in with the supply, performance or removal of the product, including (but not limited to) loss of profit, loss of revenue, loss of contract, loss of goodwill or increased cost of workings, even if due to the negligence of Parbury or any of its approved suppliers, employees or agents.

4. Charcoal filters and light bulbs are not covered by this warranty

5. This warranty and the statements contained in this certificate or other documents given to you do not exclude, restrict or modify the application of any term implied into this warranty by statute, provided that (to the extent any statutory permits Parbury to limit its liability for a breach of an implied condition or warranty) Parbury's liability for such breach is to the payment of the cost of replacing the product, repairing the product or acquiring an equivalent product.

6. Subject to clause 5, our obligations under this warranty are limited to those set out in this certificate, and this warranty is expressly instead of all other warranties, express or implied, including any implied warranty of merchantability or fitness particular purpose and notwithstanding any course of dealing between the parties or custom and usage in trade to the contrary.

Should warranty service be required, please contact us:

Free Phone: [phone]

Free Fax: [phone]

Email: [e-mail]

Website: www.robinhood.co.nz

Terms and conditions are subject to change without notice

Warranty Certificate (Australia)

Terms and Conditions

The following conditions apply in respect of the warranty given in this certificate:

1. Parbury Pty Limited ("Parbury") warrants the following Robinhood products against manufacturing defects and faulty materials, under normal use and subject to the exclusions in this certificate, for a period of:

Rangehood - 24 months from date of original purchase for domestic use.

Supertub - 5 years on stainless bowl, 24 months on Tap, Cabinet and other components from the date of original purchase for domestic use.

Uniduct - 12 months from date of original purchase for domestic use.

Ironing centre - 12 months from date of original purchase for domestic use.

"Original purchase", when used in this certificate, means purchase by the customer directly from Parbury or one of its approved suppliers.

1. This warranty is limited to the repair or replacement, at our option, within the warranty period of any component part which we at our discretion determines to contain faulty materials or a manufacturing defect in breach of this warranty. This warranty is subject to terms and conditions set out in this certificate.

2. The warranty only applies within the Commonwealth of Australia.

3. The customer must produce the original invoice or other purchase documentation as proof of the original purchase date.

Warranty exclusions

1. The warranty does not apply where, in Parbury's opinion:

The defect is caused by misuse, wear and tear, dirt, fire or accidental damage.

The product has been repaired or serviced by an unauthorised person.

The product was not installed in accordance with our instructions.

The product was purchased overseas or was not designed for use in Australia.

The product was not used, cleaned or cared for in accordance with our instructions.

The product was used outdoors.

All Robinhood rangehoods are suitable for indoor use only, and not suitable over BBQs or charcoal cookers designed for outdoor use.

1. In addition, this warranty does not extend to damage or defects which in our opinion, directly or indirectly arise from or are due to:

Exposing the product to acidic or corrosive materials or chemicals such as dyes, solvents, denture cleaner or acetone;

Using inappropriate household cleaning products such as abrasive cream or powder cleansers, furniture polish, bleach, mentholated spirits, drain cleaners, sugar soap, metal pads and strongly alkaline or acidic cleaners;

Heat damage, including from washing the product at high temperatures;

Impact or mishandling the product, including the impact caused by objects scraped along, thrown or dropped on the product surface or excessive weight being placed on the product;

Structural or support changes in or affecting the building or the application where the product has been installed; Failure to clean or maintain the product as recommended; or

Any other causes specified in the product information as being excluded from this warranty.

1. Variations with the colour or gloss within the product or any ageing or fading of colour, shine or gloss level over time are not covered by this warranty. The warranty does not cover visual imperfections or blemishes in the surface and edges of the product that were not brought to your supplier's attention at the time you inspected the product.

2. Costs incurred on installation or removal of a product, or any reinstallation of a product, or any associated costs, are not covered by this warranty.

3. Parbury will not be liable for consequential or indirect loss or damage whatsoever and however arising out of or in connection with the supply, performance or removal of the product, including (but not limited to) loss of profit, loss of revenue, loss of contract, loss of goodwill or increased cost of workings, even if due to the negligence of Parbury or any of its approved suppliers, employees or agents.

4. Charcoal filters and light bulbs are not covered by this warranty

5. This warranty and the statements contained in this certificate or other documents given to you do not exclude, restrict or modify the application of any term implied into this warranty by statute, provided that (to the extent any statutory provision permits Parbury to limit its liability for a breach of an implied condition or warranty) our liability for such breach is limited to the payment of the cost of replacing the product, repairing the product or acquiring an equivalent product.

6. Subject to clause 5, our obligations under this warranty are limited to those set out in this certificate, and this warranty is expressly instead of all other warranties, express or implied, including any implied warranty of merchantability or fitness for a particular purpose and notwithstanding any course of dealing between the parties or custom and usage in trade to the contrary.

Should warranty service be required, please contact us:

Free Phone: [phone]

Free Fax: [phone]

Email: [e-mail]

Website: www.robinhood.com.au

Terms and conditions are subject to change without notice

New Zealand

Parbury Building Products (NZ)

Limited

Telephone: [phone]

Facsimile: 0800 276 246

Email: [e-mail]

www.robinhood.co.nz

Australia

Parbury Pty Limited

(ABN 83 004 568 138)

Telephone: [phone]

Facsimile: 1800 628 577

Email: [e-mail].a

www.robinhood.com.au

Robinhood
