Brand	Whynter
Model	BBR-801BG
Product Type	Beverage Refrigerator
Capacity	3.1 cu. ft. (holds up to 80 standard 12 oz cans)
Dimensions (W x D x H)	24.5 x 18.5 x 34.5 inches
Weight	70 lbs
Power Supply	115V / 60Hz / 1.5A
Energy Consumption	120 kWh/year
Temperature Range	38°F to 65°F (3°C to 18°C)
Cooling System	Compressor-based forced air circulation
Defrost Type	Automatic (frost-free)
Control Type	Digital touch panel with LED display
Shelving	5 adjustable wire shelves
Door Type	Stainless steel frame, double-pane tempered glass
Lighting	Interior LED light
Lock	Integrated key lock
Installation	Freestanding only (not built-in)
Cleaning	Unplug unit and wipe interior with mild soap and water. Clean condenser coils every 6 months.
Safety Features	Interior light auto-off when door is open, child safety lock
Spare Parts & Repairability	Replacement shelves, door gasket, and control board available. Authorized service centers for repairs.
General Info	For beverage cooling only; not suitable for perishable food storage. Quiet operation at 42 dB.

Frequently Asked Questions - BBR-801BG Whynter

How do I set the temperature on my Whynter BBR-801BG?

Press the SET button on the control panel, then use the + and - buttons to adjust the temperature. The range is 38°F to 65°F (3°C to 18°C). The display will flash the set temperature, then revert to current temperature.

What is the recommended temperature for storing beer?

For most beers, set the temperature between 38°F and 45°F (3°C to 7°C). Lagers and ales are best at 40-45°F, while stouts and porters can be slightly warmer.

How do I clean the interior of the refrigerator?

Unplug the unit. Remove all beverages. Wipe interior surfaces with a soft cloth dampened with a mixture of mild dish soap and warm water. Rinse with clean water and dry thoroughly. Do not use abrasive cleaners or solvents.

Why is my Whynter BBR-801BG making noise?

Normal operating sounds include the compressor (low hum), fan (air circulation), and occasional gurgling from refrigerant flow. If noise is excessive, check that the unit is level and not touching walls. Clean condenser coils if dusty.

Can I install the BBR-801BG under a counter?

No, this model is designed for freestanding use only. It requires 4 inches (10 cm) clearance on all sides for proper ventilation. It is not a built-in unit.

How often should I defrost the freezer?

The Whynter BBR-801BG features automatic defrost (frost-free). No manual defrosting is needed. However, if ice builds up due to excessive door openings, you may unplug and allow ice to melt.

What does the lock do on the door?

The integrated key lock secures the door to prevent unauthorized access. Insert the provided key and turn to lock or unlock. Keep the key in a safe place.

How do I replace the interior light bulb?

The unit uses an LED light that is integrated and not user-replaceable. If the light fails, contact Whynter customer service for assistance.

What is the warranty for Whynter BBR-801BG?

Whynter offers a 1-year limited warranty on parts and labor. Additional warranty options may be available upon registration. Keep your purchase receipt for service.

Can I store food in this refrigerator?

This unit is intended for beverage storage only. It does not maintain the precise temperature and humidity required for perishable food. Do not store raw meat, dairy, or produce.

USER MANUAL BBR-801BG Whynter

Whynter Built-in Black Glass 80-can capacity 3.0 cu ft. Beverage Refrigerator

Model #: BBR-801BG

INSTRUCTION MANUAL

Exterior view of a black double-decker refrigerator with glass doors and side shelves (no visible text or symbols)

Congratulations on your new Whynter product. To ensure proper operation, please read this Instruction Manual carefully before using this product. Keep this manual in a safe place for future reference.

	PAGE
Safety Precautions	3 - 4
Parts	5
Product Features	6
Installation	7 - 9
Operation and Controls	10 - 12
Storage	13
Care and Maintenance	14
Troubleshooting	15 - 16
Warranty Information	17

APPLIANCE SAFETY

Your safety and the safety of others are very important to us.

To reduce the risk of fire, electrical shock, or injury when using your appliance, follow these basic precautions

This is the Safety Alert Symbol. This symbol alerts you to potential hazards that may result in serious injury. All safety messages will follow the Safety Alert Symbol and either the words" DANGER" or "WARNING".

DANGER

Danger means that failure to heed this safety statement may result in severe injury or death.

WARNING!

Warning means that failure to heed this safety statement may result in extensive product damage, serious injury, or death.

CAUTION

Caution means that failure to heed this safety statement may result in minor or moderate injury, or property or equipment damage.

All safety messages will alert you to know what the potential hazard is, tell you how to reduce the chance of injury, and let you know what can happen if the instructions are not followed.

IMPORTANT SAFEGUIDES

Before the appliance is used, it must be properly positioned and installed as described in this manual, please read the manual carefully. To reduce the risk of fire, electrical shock or injury when using the appliance, follow basic precaution, including the following:

DANGER

• Plug into a grounded 3-prong outlet, do not remove grounding prong, do not use an adapter, and do not use an extension cord.
• Do not use if the power supply cord is damaged. If damaged, it must be replaced by a qualified electrician.
• It is recommended that a separate circuit, serving only your appliance be provided. Use receptacles that cannot be turned off by a switch or pull chain.
• Never clean appliance parts with flammable fluids or harsh chemicals. These fumes can create a fire hazard or explosion.
• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of the appliance or any other appliance.
• Before proceeding with cleaning and maintenance operations, make sure to unplug the appliance.
• Do not connect or disconnect the electric plug with wet hands.
• Do not attempt to repair or replace any part of your appliance unless it is specifically recommended in this manual. All other servicing should be referred to a qualified technician.

- This appliance is CFC- and HFC-free and contains small quantities of Isobutane (R134A) which is environmentally friendly, but flammable. It does not damage the ozone layer, nor does it increase the greenhouse effect. Care must be taken during transportation and setting up of the appliance that no parts of the cooling system are damaged. Leaking coolant can ignite and may damage the eyes.

In the event of leakage:

• Avoid open flames and anything which creates a spark
• Disconnect from the mains
• Air the room in which the appliance is located for several minutes and contact the Service Department for advice

WARNING

• Use two or more people to move and install the appliance. Failure to do so can result in injury.
- To ensure proper ventilation for your appliance, the front of the appliance must be completely unobstructed. Choose a well-ventilated area with temperatures above 60^ F ( 16^ C) and below 90^ F ( 32^ C). This appliance must be installed in an area protected from the element, such as wind, rain, water spray or drips.
- The appliance should not be located next to ovens, grills or other sources of high heat.
• The appliance must be installed with all electrical connections in accordance with state and local codes.
- The fuse (or circuit breaker) size should be 15 amperes.
- It is important for the appliance to be leveled in order to work properly. For a stable installation, make sure the appliance is placed on a flat, level and solid surface.
- Ensure that the surface on which the appliance is placed is strong enough to hold the appliance and the items stored inside.
- This appliance is not intended for use by young children or physically-challenged persons without supervision/assistance. Young children must be supervised to ensure safety around this or any appliance.
- Do not use solvent-based cleaning agents of abrasives on the interior. These cleaners may damage or discolor the interior.
- Keep fingers out of the "pinch point" areas. Clearance between the door and between the doors and cabinet are necessarily small. Be careful closing doors when children are in the area.
- This beverage refrigerator is designed for storing and cooling beverages. If food is stored inside, ensure that there is sufficient airflow between items. Please note that the temperature range for this beverage refrigerator is optimized for beverage storage. Perishable food items may require a different storage environment.
- Do not place hot food or beverages into the appliance.
- Close the beverage refrigerator door immediately after putting in any items to keep the internal temperature relatively constant.
- Avoid placing any objects on top of the appliance.
- This is an electrical appliance, to avoid injury from electrical shock do not operate the unit with wet hands, while standing on a wet surface or while standing in water. Do not use outdoors or in wet conditions.
- When positioning or moving the appliance, ensure that it is not turned up side down or unleveled greater than 45^
• Never pull the power cord to disconnect it from the outlet. Grasp the plug and pull it from the outlet.
- Never lift, carry or drag the appliance by the power cord.
• This appliance is designed for household, non-commercial use only. Any other use will void the warranty.
- Do not plug into the power outlet before set up is completed.
- Do not move this appliance without emptying it and securing the door in a closed position.

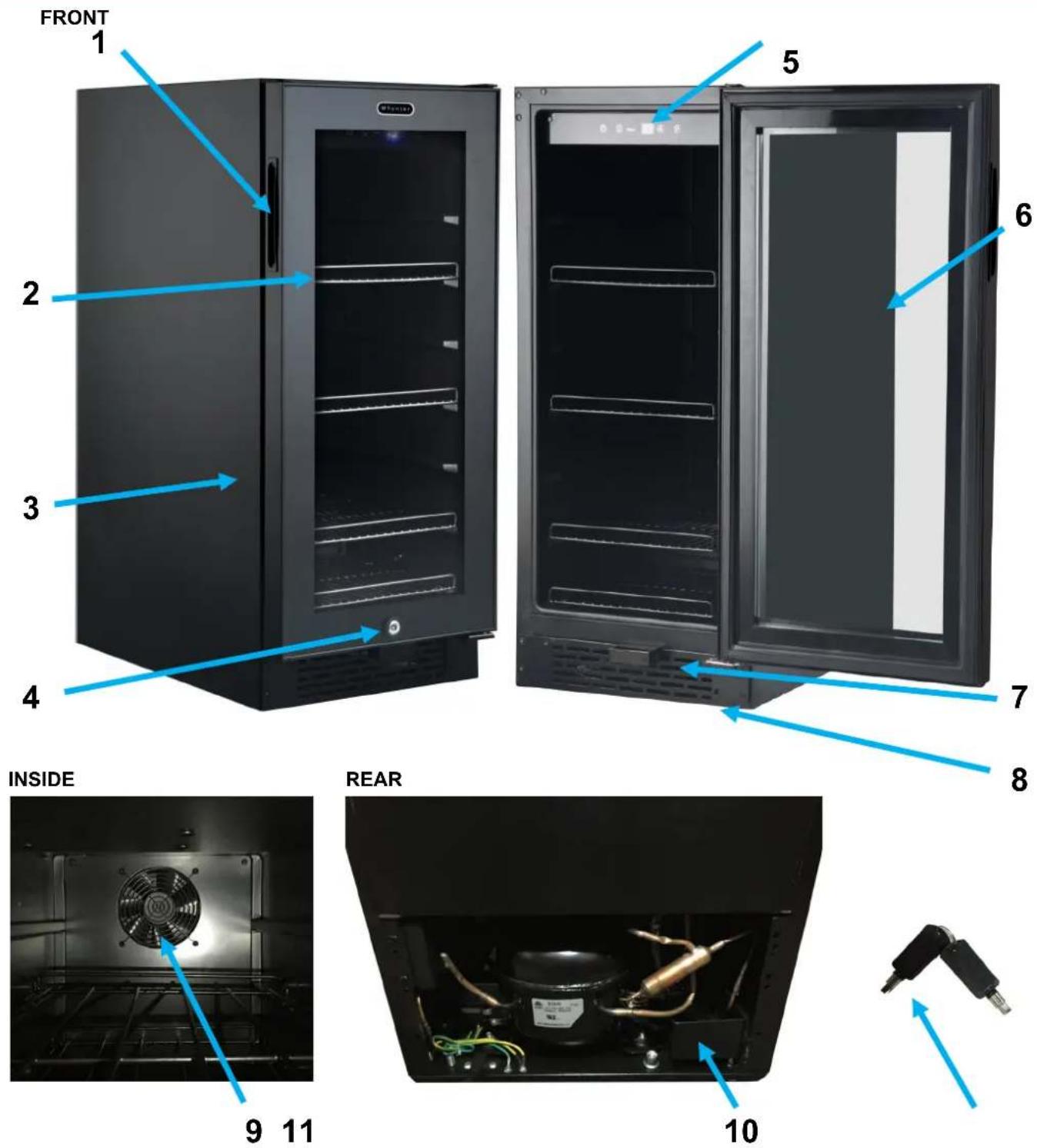

Parts

1. Recessed Handle 5. Control Panel 9. Internal Fan
2. Shelves (4) 6. Glass Door 10. Drip Tray
3. Cabinet 7. Bottom Grille 11. Keys
4. Cylinder Lock 8. Leveling Legs (4 under the unit)

Unlike many beverage refrigerators, the Whynter Built-in Black Glass 80-can capacity 3.0 cu ft. Beverage Refrigerator utilizes premium features and design to provide a sleek showcase that will be centerpiece of any space. With its powerful compressor and internal air-cooled system, this beverage refrigerator creates an evenly-cooled space ensuring consistent temperatures throughout the beverage refrigerator.

With its sleek black trimmed glass door and soft LED lighting, the BBR-801BG allows you to see view the contents while maintaining internal temperatures and increasing energy efficiency. This unit is also equipped with a lock to keep your beverages safe and secure. The door swing direction is also reversible for customization to your specific requirements.

• 80 standard 12 oz. can
• Built-in or Freestanding installation
- Sleek black cabinet and interior
• Environmentally friendly refrigerant
• Tempered double pane gray-smoked glass for enhanced UV protection
- Soft interior LED lighting with on/off switch
• Powerful fan-circulated compressor cooling ensures even temperature distribution
- Auto defrost
- Cylinder lock and two keys
- Reversible door swing
• Fahrenheit and Celsius degree temperature indicators
- 4 removable flat slide out shelves

TECHNICAL DATA

MODEL : BBR-801BG
Capacity 80 standard 12 oz. can
Voltage 115V/60Hz
Current 1.0A
Input Power 80W
Power Consumption 1.05 kWh/24h
Temperature Control Range	34°F-54°F / 1°C-12°C
Net Weight 68 lbs
Gross Weight 73 lbs
Unit Dimensions 33.75" H x 15" W x 22.5" D
Packaging Dimensions 40" H x 19" W x 28" D
Refrigerant R600A

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electrical shock, or injury when using your appliance, follow these basic precautions:

• Read all instructions before using the appliance.
• DANGER or WARNING: An empty beverage refrigerator can be a hazardous for children or small pets. If disposing of the beverage refrigerator, remove gasket seals, latches, lids or the entire door from your unused appliance, or take other action to ensure the beverage refrigerator is harmless.
• Never allow children to operate, play with, or crawl inside the appliance.
• Never clean appliance parts with flammable fluids or harsh chemicals. The fumes can create a fire hazard or explosion.
• Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.

INSTALLATION INSTRUCTIONS

BEFORE USING YOUR APPLIANCE

• Remove the exterior and interior packing.
• Before connecting the appliance to the power source, let it stand upright for approximately 4 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.
• Clean the interior surface with lukewarm water using a soft cloth.
  • Install the handle on the door.

INSTALLATION OF YOUR APPLIANCE

• The appliance is designed for built-in, recessed or free standing installation.
• WARNING: Do not store or install the appliance outdoors.
• CAUTION: This appliance is designed. This beverage refrigerator is designed for storing and cooling beverages. Do not store perishable food, medicine or other medical products.
• Place your appliance on a hard and level floor that is strong enough to support it when it is fully loaded.
  • We do not recommend installing the appliance on carpet.
• To level your appliance, adjust the leveling legs at the bottom of the appliance if needed.

- For free standing installation, 5 inches (127mm) of space between the back and sides of the appliance are suggested, which allows the proper air circulation to cool the compressor and condenser. Even for built-in installation, it is a must to keep a 14 " (6.35mm) space on each side and at the top. And the air vent at the front of the appliance must never be covered or blocked in any way.

- NOTE: Do NOT install the appliance near an oven or other heating source. Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. For best performance, do not install the appliance behind a cabinet door or block the base grille.

- Avoid locating the appliance in area that may be exposed to excessive moisture.

- Plug in the appliance into an exclusive, grounded wall power outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a qualified electrician or an authorized service center.

BUILT-IN CABINET INSTRUCTIONS

These appliances are designed for both built-in or free standing installation. For built-in installation, ensure proper service access and ventilation, allow at least 14 " space on each side and at the top.

CABINET OPENING DIMENSIONS (minimum)
Width	15"
Depth	23 14 "
Height	35 1/4"

ELECTRICAL CONNECTION

WARNING: Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by a qualified electrician or contact Whynter Service Department

This appliance requires a standard 115/120 Volt AC \~/60Hz electrical ground outlet with three-prong. Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded. The cord should be secured behind the appliance and not left exposed or dangling to prevent accidental injury.

The appliance should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating label on the appliance. This provides the best performance and also prevent over-loading house wiring circuits that could cause a fire hazard from overheated. Never unplug the appliance by pulling the power cord. Always grip the plug firmly and pull straight out from the receptacle. Repair or replace immediately all power cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end. When moving the appliance, be careful not to damage the power cord.

EXTENSION CORD

Because of potential safety hazards, it is strongly recommended that you do not use an extension cord with this appliance. However, if you must use an extension cord, it is absolutely necessary that it be a UL/CUL-Listed, 3-wire grounding type appliance extension cord having a grounding type plug and outlet and that the electrical rating of the cord be 115 volts and at least 10 amperes.

REVERSING THE DOOR SWING OF YOUR BEVERAGE REFRIGERATOR

Note: All parts removed must be saved for proper reinstallation of the door.

This appliance has the capability of the door opening from either the left or right side. The appliance is delivered to you with the door opening from the left side. Should you desire to reverse the opening direction, please follow the following reversal instructions.

1. Remove the front ventilation grille (2) and the adjustable ventilation grille (1) by unscrewing the screws (3) & (4). (Figure 1)
2. Remove the bottom hinge plate (5) by unscrewing the four lock screws (6). Be careful to hold the glass door firmly after removing the screws. (Figure 2)
3. Gently pull down to remove the glass door from the right top hinge and place it on a padded surface to avoid the risk of damage, then remove the right top hinge (7). (Figures 3 & 4)
4. Unscrew and transfer the hinge pin of the bottom hinge plate (5) to the opposite side.
5. Pop out the cover caps on the upper left side corner of the inside cabinet and use them to cover the screw holes on the right hand side.
6. Screw the alternative left top hinge (9), included in the fittings, on the left hand side of cabinet. (Figure 4)
7. Rotate the door 180° and then relocate the door to the designated position. Then screw the bottom hinge assembly on the left designated position and tighten it after the door is leveled. (Figure 2)
8. Reassemble the ventilation grilles.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

It is recommended you install the appliance in a place where the ambient temperature is between 72^-78^/23^-26^ . If the ambient temperature is above or below recommended temperatures, the performance of the beverage refrigerator may be affected. For example, placing your appliance in extreme cold or hot conditions may cause interior temperatures to fluctuate.

NOTE:

- When using the beverage refrigerator for the first time or restarting after being shut off for a long period of time, there may be a few degree variance between the set temperature and the LED readout. This is normal due the length of activation time. The unit should return to normal after running for a few hours. This unit will not raise its internal temperature if the ambient temperature where the unit is located is lower than the set temperature.

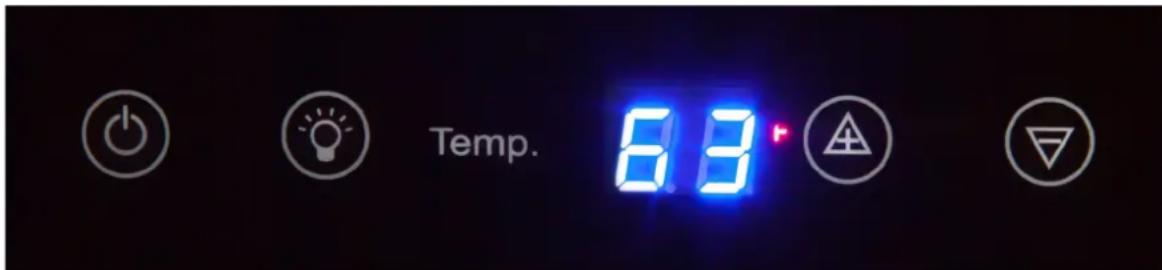

CONTROL PANEL GUIDE

- POWER

To turn the appliance on/off, press and hold the power key for 5 seconds.

- UP

To increase (warm) the set temperature by 1^ C or 1^ F.

- DOWN

To decrease (cool) the set temperature by 1^ C or 1^ F.

- LIGHT

Used to turn the internal light on/off.

°F/°C SELECTOR

Select the temperature display setting in Fahrenheit or Celsius degree. To change the temperature from Fahrenheit to Celsius or from Celsius to Fahrenheit, press and hold the LIGHT key for 5 seconds.

NOTE: If the appliance is unplugged, encounter power interruption, or turned off, you must wait 3 -5 minutes before restarting the appliance. If attempted to restart before this time delay, the appliance may not start.

SETTING THE TEMPERATURE CONTROL

• During normal operation, the temperature display on the control panel shows the temperature inside the appliance.
• When the unit is plugged in for the first time, the unit will power up automatically to the preset defaults. The preset temperature is 40^ F ( 4^ C).
• You can press the UP and DOWN keys to control the internal temperature of the appliance.
• The temperature that you desire to set will increase 1^ C or 1^ F if you press the UP key once and will decrease 1^ C or 1^ F if you press the DOWN key once. The display flashes while you make the setting.
• After the temperature has been set, the display will flash four times before it shows the current internal temperature of the particular temperature zone.
• To view the set temperature at any time, press the UP or DOWN key, the set temperature will temporarily flash in the display for 5 seconds. Then the display shows the current internal temperature again.

TEMPERATURE MEMORY FUNCTION

In the event of a power interruption (power surge, breaker switch, etc.), the unit can remember the previous temperature settings. When the power has restored, the temperature display will show the current cabinet temperature.

INTERIOR LIGHT

The interior light makes it easy to view your beverage labels and enhances the display of your collection. The light can be turned on or off pressing the light button on the display.

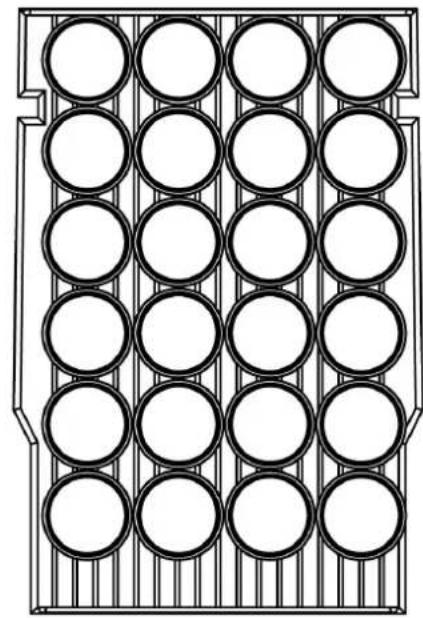

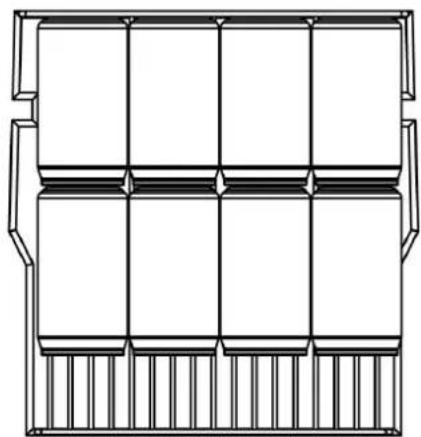

CABINET SHELVES

NOTE: Do not cover any part of the shelves with aluminum foil or any other material that will prevent adequate air circulation within the cabinet.

This appliance is equipped with removable shelves. To prevent damage to the door gasket, make sure the door is opened completely before pulling the shelves out.

• For easy access of the beverage cans, you must pull the shelves approximately 13 out of the railing.
• The shelves are designed with an emergency stop to prevent them being removed too far when loaded.
• When removing the shelves out of the railing, make sure to remove all items first.
• To remove the shelves, pull the shelf forward until the notch aligns with the plastic post. Lift the shelf and continue to pull the shelf forward until it is completely removed from the internal compartment.

NORMAL SOUNDS

The unit is cooled by a compressor. The compressor pumps coolant through the cooling system, producing operating noise. Even when the compressor cuts out, noises caused by changes in temperature and pressure are unavoidable. Operating noise will be most audible immediately after the compressor comes on. It becomes quieter as the operating period continues.

The following noises are normal and occur from time to time:

• Gurgling sound, caused by the refrigerant flowing through the appliance's coils,
• Humming noise made by the compressor. This noise can get louder for brief periods when the motor is switching on.
• Cracking/popping sounds, resulting from the materials contraction and expansion due to temperature variations,
  • Fan operating sound, to circulate the air within the beverage cabinet.
• Unusual noise is normally the result of improper installation.
• Where the unit is installed in open-plan kitchen or in partition walls, the level of operating noise will be heard more acutely. However, this is due to the surrounding architecture and not to the unit.

NOTE: An individual's perception of noise is directly linked to the environment in which the unit is located, as well the specific type of models. Our appliances are in line with international standards for such appliance and in line with the latest technical developments. Please remember that the noise of the compressor and the coolant circulating in the system is unavoidable.

DEFROSTING AND VENTILATION

Your beverage refrigerator is designed with an automatic defrost system. During off-cycle, the evaporator behind the rear wall of the unit defrosts automatically. Condensation is collected in the drain at the back of the unit and flows through the drainage hole into the drip tray above the compressor. The heat is transferred from compressor and evaporates any condensation that has collected in the drip tray. Part of the remaining water within the beverage refrigerator is collected for humidity purposes.

NOTE: Frost may accumulate on the evaporator if the unit is repeatedly opened in a high heat or high humidity location. If this frost pattern does not clear within 24 hours, your unit will require manual defrosting.

STORAGE

Shelves 1 - 3

Pure diagram of a grid-like structure with circular elements, no text or symbols present

Technical line drawing of a multi-tiered server rack unit with multiple compartments and ventilation grilles (no text or symbols)

Bottom Shelf

Technical line drawing of a multi-panel storage or rack system (no text or symbols)

Storage

Beverage cans may differ in size and dimensions so the actual number of cans can be stored may vary. The 80-can capacity is the approximate maximum when storing traditional 12 oz. cans and includes bulk storage.

You may load your beverage cans in single row or by stacking while taking note of the following: if you do not have enough cans to fill your beverage refrigerator, it is better to distribute the load throughout the beverage refrigerator so as to avoid "all on top" or "all below" type loads.

• You can remove or relocate adjustable shelves to accommodate larger type of bottles (see removing shelves)
• Keep small gaps between the walls and the bottles to allow air circulation.
• Do not over load your beverage refrigerator
• Avoid obstructing the internal fans (located inside on the back panel of the beverage refrigerator).
• Do not try to slide the shelves outwards beyond the fixed position to prevent the bottles from falling.
• Do not pull out more than one loaded shelf at a time as this may cause the beverage refrigerator to tilt forward if not properly installed.

REMOVING SHELVES

- To remove any of the shelves from the rail compartment, move the shelf to the position where the notch of shelf is exactly under the plastic post and then lift it up and out.

- In order to replace the shelf, repeat steps described above in reverse. And make sure to engage the shelves with the small pegs of the extended rails when the model is equipped with roller system.

Technical diagram of a mechanical assembly with an inset showing a magnified view of a component (no text or symbols present)

CAUTION: Failure to unplug the appliance during service could result in electrical shock or personal injury.

CLEANING YOUR APPLIANCE

• Turn off the power, unplug the appliance, and remove all items including shelves.
• Wipe the interior with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to one quart of water.
• Wipe the shelves with a mild detergent solution.
• Wipe the outside cabinet with warm water and mild liquid detergent.
• Do not use steel wool or steel brush on the stainless steel. These will erode the stainless steel and rusting may occur.

CAUTION: Failure to unplug the appliance could result in electric shock or personal injury

PREMISES POWER FAILURE

• In the event of a power interruption, all previous temperature settings are automatically memorized. If power is interrupted (power surge, breaker switch, etc.) and then powered up again, the unit will operate with the last temperature set-point.
• Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimize the number of times the door is opened. If the power is going to be off for a longer period of time, you need to take the proper steps to protect your contents.

VACATION TIME

• Short vacations: Leave the appliance operating during vacations of less than two days
• Long vacations: If the appliance will not be used for an extended period, remove all items and turn off the appliance. Clean and dry the interior thoroughly.

MOVING YOUR APPLIANCE

• Remove all items inside the appliance.
• Securely tape down (we recommend using painter's tape) all loose items (shelves) inside your appliance.
• Turn the adjustable leg up to the base to avoid damage.
• Tape (we recommend using painter's tape) the door shut.
• Be sure the appliance stays secure in the upright position during transportation and protect the exterior of appliance with a blanket, or similar item.

ENERGY SAVING TIPS

• The appliance should be located in the coolest area of the room, away from heat producing appliances, and out of any direct sunlight.
• Ensure that the appliance is adequately ventilated. Never obstruct the air vents.
• Close the door tightly and do not open the appliance too frequently or for a long period of time.
• Store the content in an organized way
• Do not over-fill the appliance to allow air to circulate

Problem Possible Causes Solutions
The appliance does not operate	There is a power failureThe appliance is not plugged inA house fuse has blown or the circuit breaker is tripped	Ensure the appliance is plugged in and the power outlet has powerReplace the broken fuse or reset the breaker
The appliance is not cold enough	The set temperature too highThe appliance is placed too close to a heat sourceThe door is opened too oftenThe door is not closed completelyThe door gasket does not seal properlyThe front bottom grille does not have sufficient ventilation	Adjust the set temperatureKeep the appliance away from sun-shine or other heat sourcesClose the door tightly and do not open the door too frequently or for a long period of timeEnsure the door gasket is not loose.The front bottom grille must be completely unobstructed
The appliance turns itself on and off frequently	The ambient (room) temperature is too low or highA large amount of contents has been added to the applianceThe door is opened too oftenThe door is not closed completelyThe door gasket does not seal properly	Decrease or increase the ambient (room) temperatureTo minimize internal temperature fluctuation, do not add large amount of contents at onceClose the door tightly and do not open the door too frequently or for a long period of timeEnsure the door gasket is not loose
The appliance makes too much noise	The noise may come from the flow of the refrigerant and expansion of the inside walls may cause popping and crackling noisesContraction and expansion of the inside walls may cause popping and crackling noisesThe appliance is not level	It is normal that as each cooling cycle ends, you may hear rattling or gurgling sounds caused by the flow of refrigerant in the appliance. The high efficiency compressor may make a pulsating or high pitched soundSome popping or cracking noises are normal. They are caused by expansion and contraction of the inside walls due to temperature changesMake sure the unit is on a hard and level surface. Do not place the appliance on carpetSee Operating Noises
The door does not close properly	The appliance is not levelThe door was reversed and not properly installedThe shelves are out of position	Make sure the beverage refrigerator is on a hard and level surface. Avoid placing the appliance on a carpeted or soft surfaceCorrectly install the shelves
Problem Possible Causes Solutions
Display “E0”, “E1”. “E2”, “E3”, “E4”, “E5” or “E7”	“E0” indicates the communication error“E1” or “E2” indicates that the air temperature sensor is failed“E3” or “E4” indicates that the defrost sensor in the evaporator is failedE5” indicates the defrost heater failureE7” indicates the door switch failure	Call for service
The icon “--” is lit up and flashing in the temperature display	The display temperature is out of the range	Only temperatures within the range 16~99°F/-9~37°C the appliance can display will be shown. If the temperature is not within this range, the icon “--” will be displayed instead. That is normal

ONE YEAR LIMITED WARRANTY

This WHYNTER Beverage Refrigerator is warranted, to the original owner within the 48 continental states, for one year from the date of purchase against defects in material and workmanship under normal use and service. When making a warranty claim, please have the original bill or invoice of purchase with purchase date available. Should your WHYNTER Beverage Refrigerator prove defective within one year from the date of purchase, return the defective part or unit, freight prepaid (within two months of purchase; after two months to one year, customer will be responsible for freight cost to Whynter's service department), along with an explanation of the claim to Whynter LLC. A return authorization number issued by Whynter is required for all warranty claims and returns. Please package the WHYNTER Beverage Refrigerator carefully in its original packaging material to avoid damage in transit. The original box and packaging material should be retained, as Whynter is not responsible for the cost of replacement packaging. Under this warranty, Whynter will repair or replace any parts found defective at our discretion. This warranty is not transferable. After the expiration of the warranty, the cost of labor and parts will be the responsibility of the original owner of the unit.

THIS WARRANTY DOES NOT COVER:

• Acts of God, such as fire, flood, hurricanes, earthquakes and tornadoes.
• Improper power supply such as power surge, low voltage, defective household wiring or inadequate fuses.
  • Use in commercial or industrial applications
• Damage, accidental or otherwise, to the WHYNTER Beverage Refrigerator while in the possession of a consumer not caused by a defect in material or workmanship;
• Damage caused by consumer misuse, tampering, or failure to follow the care and special handling provisions in the instructions.
• Damage to the finish of the case, or other appearance parts caused by wear.
• Damage caused by repairs or alterations to the product by anyone other than authorized by the manufacturer.
• Removal, Replacement Packaging, Freight and Insurance cost for the warranty service.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. WHYNTER SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT AL-LOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRIT-TEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.

Please retain the original proof of purchase in order to obtain warranty services. Warranty begins from the original date of purchase.

To obtain service or information, contact

Whynter LLC via email at [e-mail] or call

866-WHYNTER.

Product contents and specifications may change without notice.

Copyright © 2023 Whynter LLC

WWW.WHYNTER.COM
