BWR-1002SD - Wine cellar Whynter - Free user manual and instructions
Find the device manual for free BWR-1002SD Whynter in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Dual Zone Wine Cooler |
| Brand | Whynter |
| Model | BWR-1002SD |

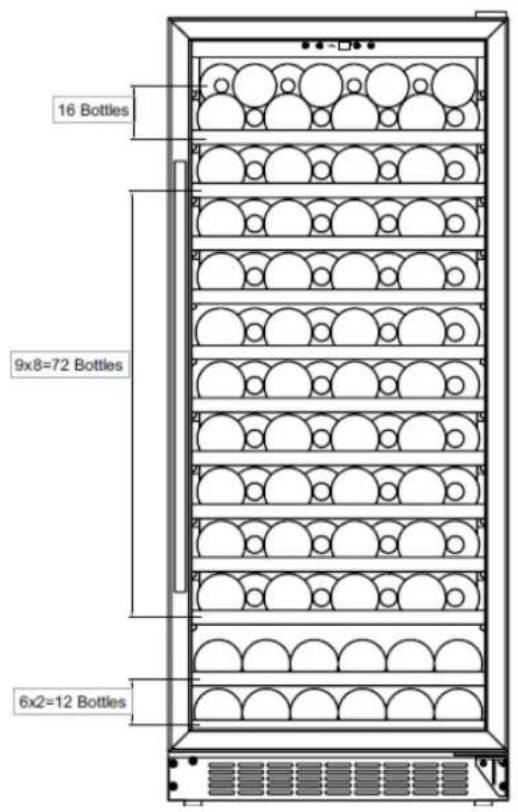

| Capacity | 100 bottles (standard 750ml) |
| Dimensions (H x W x D) | 34.0 x 23.6 x 25.6 inches |
| Weight | 100 lbs |
| Power Supply | 120V / 60Hz |
| Power Consumption | 150 kWh/year |
| Temperature Range Upper Zone | 40°F – 50°F (4°C – 10°C) |
| Temperature Range Lower Zone | 50°F – 65°F (10°C – 18°C) |
| Number of Zones | 2 (Dual Zone) |
| Cooling System | Compressor-based with digital thermostat |
| Door Type | UV-protected double-pane tempered glass |
| Interior Light | LED lighting with on/off switch |

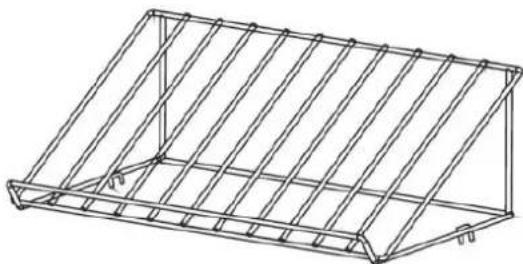

| Shelving | 8 slide-out chrome wire shelves |
| Lock | Front door lock with key |
| Defrost | Automatic defrost |
| Freon Type | R600a (eco-friendly) |
| Noise Level | ≤ 39 dB |
| Cleaning | Unplug unit, clean interior with mild detergent and soft cloth, avoid abrasive cleaners |
| Energy Star | Not specified (typically not Energy Star rated) |
| Warranty | 1 year limited warranty (parts and labor) |
Frequently Asked Questions - BWR-1002SD Whynter
What are the ideal temperature settings for red and white wines in the Whynter BWR-1002SD?
The upper zone is designed for white wines (40°F–50°F / 4°C–10°C) and the lower zone for red wines (50°F–65°F / 10°C–18°C). Adjust the digital thermostat to your preference within these ranges.
How do I install the wine cooler?
Place the unit on a level, sturdy surface away from direct sunlight and heat sources. Allow at least 4 inches of clearance on all sides for ventilation. Let the cooler stand upright for 24 hours before plugging it in.
Can I use an extension cord?
No. Plug the wine cooler directly into a grounded 120V outlet. Using an extension cord may cause voltage drop or overheating.
Why is my wine cooler not cooling properly?
Check that the door is fully closed and not blocked by bottles. Ensure the temperature settings are correct. Clean the condenser coils if dusty. Allow 24 hours for the temperature to stabilize after initial setup.
How do I change the interior light bulb?
The LED light is long-lasting and cannot be replaced by the user. If it fails, contact Whynter customer service.
How often should I clean the wine cooler?
Clean the interior every few months with a mild detergent and soft cloth. Wipe the door seal regularly to prevent mold. Vacuum the condenser coils every six months.
Is the Whynter BWR-1002SD freestanding or built-in?
It is designed for freestanding installation only. Do not install it in a built-in cabinet without proper ventilation.
Can I store Champagne bottles in this cooler?
Yes, the shelves accommodate standard 750ml bottles, including Champagne bottles. The maximum bottle height is about 12 inches.
What should I do if the wine cooler is too loud?
Ensure the unit is level and not in contact with walls. Normal compressor operation is around 39 dB. If it becomes louder, check for loose components or contact support.
How do I lock and unlock the door?
The door has a key lock. Insert the key and turn clockwise to lock, counterclockwise to unlock. Keep the key in a safe place.
