USER MANUAL 5M14V Daytronic

The Model 5M14(V) is a precision conditioner designed for TC-based temperature measurements requiring high input isolation. With built-in reference-junction compensation, it accepts up to four independent temperature signals from Types E, J, K, N, R, S, and T Thermocouples. All four thermocouple inputs must be of the same type. Sensors may be grounded or ungrounded, in any desired mix. An amplifier-per-channel design with chopper stabilization and active low-pass filtering allows highly responsive, amplified analog signals with or without linearization correction.

For the Model 5M14, the analog output signal is 5 Vdc and the 5M14V is 10 Vdc. These are nominal full scale voltages since the Module is based on a millivolt per degree C value. All setup of the module is accomplished via the front panel configuration switch settings - polarity over-range, TC type, filter setting, extended gain, and linearized or non-linearized output.

Model 5M14 Thermocouple Module

Access switch settings via the front panel of the 5M14 by gently pulling the clear plastic cover (from the bottom side) so the cover rotates open from the top. Use a small tool or finger to place the switches to the left or right position as you face the front of the module. This process can be done with or without power to the unit. Once completed, return the cover to the original position.

Open Thermocouple Detection (OTC)

Can be set per individual TC input to saturate the analog output signal full-scale positive or negative.

Note: when this condition exists the analog output can be as much as 12 Vdc. When an OTC condition occurs, the yellow LED indicator on the front of the module will illuminate.

View of Side Label of the Model 5M14 Thermocouple Module

WARNING

Death, serious injury, or fire hazard could result from improper connection of this instrument. Read and understand this manual before connecting this instrument. Follow all installation and operating instructions while using this instrument.

Connection of this instrument must be performed in compliance with the National Electrical Code (ANSI/NFPA 70-2014) of USA and any additional safety requirements applicable to your installation.

Installation, operation, and maintenance of this instrument must be performed by qualified personnel only. The National Electrical Code defines a qualified person as “one who has demonstrated the skills and knowledge related to the construction and operation of the electrical equipment and installations, and who has received safety training on the hazards involved.”

Qualified personnel who work on or near exposed energized electrical conductors must follow applicable safety related work practices and procedures including appropriate personal protective equipment in compliance with the Standard for Electrical Safety Requirements for Employee Workplaces (ANSI/NFPA 70E-2012) of USA and any additional workplace safety requirements applicable to your installation.

ADVERTENCIA

The following safety precautions must be followed whenever any type of voltage or current connection is being made to the instrument.

Before connecting to electric circuits or pulse initiating equipment, open their related breakers or disconnects. It is recommended NOT TO install any connection of the instrument on live power lines. Only Qualified Service personnel that have demonstrated the abilities and received the proper safety training are capable of connecting to live circuits.
- Connections must be made to the instrument first, then connect to the circuit to be monitored.
- Wear proper personal protective equipment, including safety glasses and insulated gloves when making connections to power circuits.
- Hands, shoes and floor must be dry when making any connection to a power line.
Before each use, inspect all cables for breaks or cracks in the insulation. Replace immediately if defective.
If the equipment is used in a manner not specified in this user's guide, the protection provided by the equipment may be impaired.

Standard Accessories

Standard accessories

The following table lists the 5M standard accessories.

Description Part Number
Manual & Operating instruction	Resource CD

5M 14 (V) SPECIFICATIONS

Measurement Range and Resolution: See Table 1, below; switch selected—

Linearization: Internal analog compensated; maximum error: ±0.05°C

Reference-Junction Compensation: Internal, using a built-in precision thermistor

Thermocouple Break Detection (per channel): Selectable, Off-scale negative or positive with front panel indication

Amplifier (per channel)

Normal - Mode Range: ±80 mV operating; ±240 V without instrument damage

Common-Mode Range: ±1000 V (rms) operating and without instrument damage

Common-Mode Rejection Ratio: DC and at 60Hz -154 dB

Input Impedance: Differential: 10 MΩ; Common-Mode: >500 M ohms

Offset: Initial: ±5 μV; vs. Temperature: ±0.1 μV/°C; vs. Time: ±25 ppm/month

Gain Accuracy: ±0.02% of absolute mV input range of -10 to +80 mV

Gain Stability : vs. Temperature: ±25 ppm/°C; vs. Time: ±25 ppm/month

Filter (per module): 3-pole modified Butterworth; 3 dB down at 4 Hz or 20 Hz; selectable

Step-Response Settling Time (Full-Scale Output @ 4 Hz)

To 1% of final value: 0.450 sec; (0.060 sec @ 20 Hz)

To 0.1% of final value: 0.600 sec; (0.080 sec @ 20 Hz)

To 0.02% of final value: 0.750 sec; (0.125 sec @ 20 Hz)

Total Accuracy : 0.05% full scale, including linearzaton, compensation and amplification

Analog Output : Reference Table 1 below, millivolt or fixed gain per Degree C, selectable

Power Supply: 24 Vdc +/- 10% regulated; 110 mA nominal, 150 mA max.

Operating Temperature: -10 to +70 Degrees C, 5 to 95% relative humidity, non-condensing

Table 1 Thermocouple Ranges for the Model 5M14 (V)

TC Type	Standard Range	mV/ Degree C	5 Vdc Unit/ FS	10 Vdc Unit/ FS
E	-200°C to +1000°C	5.00 mv/°C	5.000 Vdc	10.000 Vdc
J	-200°C to +1200°C	4.00	4.800	9.600
K	-200°C to +1372°C	4.00	5.488	10.976
N	-180°C to +1300°C	4.00	5.200	10.400
R	-50°C to +1768°C	2.00	3.536	7.072
S	-50°C to +1768°C	2.00	3.536	7.072
T	-200°C to +400°C	12.50	5.000	10.000
TC Type	Reduced TC Range	mV/ Degree C	5 Vdc Unit/ FS	10 Vdc Unit/ FS
Jr	-200°C to +250°C	20.00 mv/°C	5.000 Vdc	10.000 Vdc
Er	-200°C to +250°C	20.00	5.000	10.000
Kr	-200°C to +250°C	20.00	5.000	10.000
Nr	-180°C to +250°C	20.00	5.000	10.000
TC Type	Non-Linearized CJC Range	mV Gain/ TC output	5 Vdc Unit/ FS	10 Vdc Unit/ FS
JI	-200°C to +1000°C	65.0	4.964 Vdc	9.928 Vdc
EI	-200°C to +1200°C	65.0	4.521	9.042
KI	-200°C to +1372°C	90.0	4.940	9.880
NI	-180°C to +400°C	90.0	1.878	3.757

ref @ 0 degree C

2

TRANSDUCER CONNECTIONS

The Model 5M14(V) I/O CONNECTIONS are via non-removable screw terminals which will accept wire sizes from AWG 12 to 26. NOTE: unused thermocouple inputs should have their individual channels + and - terminals shorted together to prevent over-range LED light indication. Thermocouple wire should be directly attached to its corresponding screw terminals - never solder or use copper wire extensions which will cause cold junction compensation errors. Table 2 denotes screw terminal assignments.

Table 2 Model 5M14 Pin Assignments

I/O Connector Conditioner ConditionerPin Screw Channel Line
Number	Terminal	Number	Function
Top Rear 1 1(+) 1 +SIGNAL TC Input
Top Rear 2 2(-) 1 -SIGNAL TC Input
Top Rear 3 3(+)	2	+SIGNAL TC Input
Top Rear 4 4(-)	2 -SIGNAL TC Input
Top Front 1	1(+)	3	+SIGNAL TC Input
Top Front 2	2(-) 3 -SIGNAL TC Input
Top Front 3	3(+)	4	+SIGNAL TC Input
Top Front 4	4(-)	4	-SIGNAL TC Input
Bottom Front 1	1	all	+SIGNAL Output
Bottom Front 2	2	n/a	+SIGNAL Output
Bottom Front 3	3	n/a	+SIGNAL Output
Bottom Front 4	4	all	+SIGNAL Output
Bottom Rear 1	1	1	Analog Common
Bottom Rear 2	2	2	Power Common
Bottom Rear 3	3	3	24 Vdc Power
Bottom Rear 4	4	4	Shield

Fig. 1 Model 5M14 Transducer Cabling

3 CALIBRATION

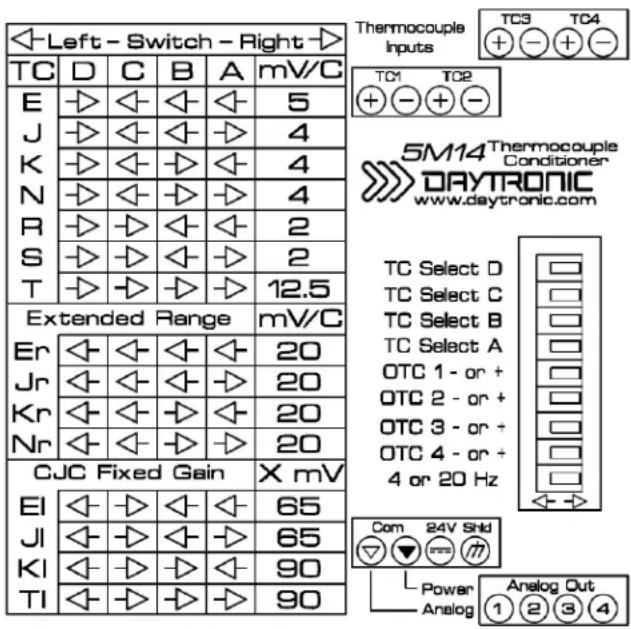

The Model 5M14(V) does not require field calibration. Front panel selector switches, as shown below, will enable the correct linearization and cold junction temperature compensation to the thermocouple connected to the unit. All four thermocouples will be conditioned and linearized for the thermocouple type selected. Note: Depending on the switch selection, the conditioned output of the thermocouple signal(s) will be -1) Normal gain through-out the thermocouple's temperature specification to NIST tables. 2) Extended gain if the user desires amplification in a restricted temperature range. 3) Non-linearized which enables the Cold Junction Compensation and gain amplification only. In this mode it is expected that the external readout device connected to the 5M14(V) will perform the correct linearization operation for the application and connected thermocouple sensor(s).

Switch 1 - TC Select D - selects thermocouple type, see chart 1

Switch 2 - TC Select C - selects thermocouple type, see chart 1

Switch 3 - TC Select B - selects thermocouple type, see chart 1

Switch 4 - TC Select A - selects thermocouple type, see chart 1

Switch 5 - OTC 1 - selects positive or negative open thermocouple on channel 1

Switch 6 - OTC 2 - selects positive or negative open thermocouple on channel 2

Switch 7 - OTC 3 - selects positive or negative open thermocouple on channel 3

Switch 8 - OTC 4 - selects positive or negative open thermocouple on channel 4

Switch 9 - Filter - selects 4 Hz or 20 Hz for all four thermocouple analog signals

OTC - indicates an open thermocouple condition, analog signal saturates positive or negative pending switch condition of associated channel

Power - indicates the power input voltage is ON

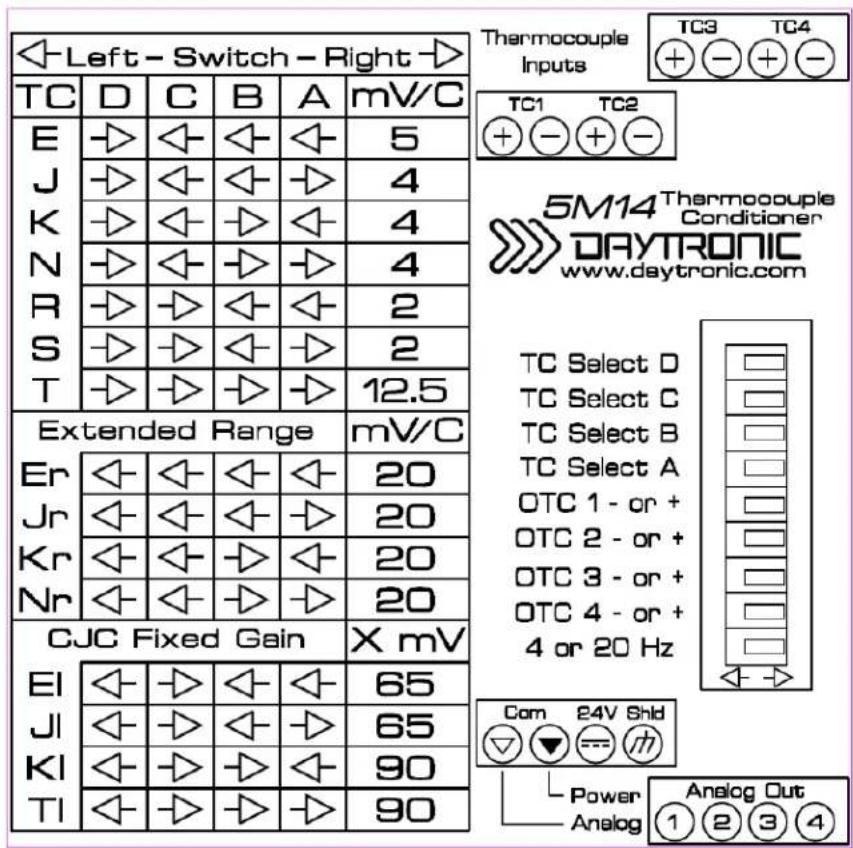

TC Switch Select Chart

Dimensions

Housing height : 114.5 mm Housing depth : 99 mm Housing width : 22.5 mm
