BPS-E650C - Loudspeaker BLAUPUNKT - Free user manual and instructions

Product Type	2-Way Coaxial Car Speaker
Speaker Size	6.5 inches (165 mm)
Impedance	4 Ohms
RMS Power Handling	50 Watts
Peak Power Handling	150 Watts
Sensitivity	90 dB (1W/1m)
Frequency Response	50 Hz – 20 kHz
Tweeter Type	Piezo or Soft Dome (typical)
Magnet Weight	Approx. 10 oz (283 g)
Mounting Depth	2.2 inches (56 mm)
Cutout Diameter	5.6 inches (142 mm)
Grille Included	Yes (mesh grille)
Weight (per speaker)	1.5 lbs (0.68 kg)
Water Resistance	Not rated (indoor/vehicle use)
Warranty	1 year limited
Cleaning Instructions	Wipe with dry cloth; do not use liquids
Safety Precautions	Handle with care; avoid overdriving
Spare Parts Availability	Grilles and mounting hardware available
Repairability	User-replaceable fuses; cone repair recommended by professional
General Information	Designed for car audio; compatible with most vehicles

Frequently Asked Questions - BPS-E650C BLAUPUNKT

What are the dimensions of the Blaupunkt BPS-E650C speaker?

The speaker size is 6.5 inches (165 mm) with a mounting depth of approximately 2.2 inches (56 mm) and a cutout diameter of 5.6 inches (142 mm).

What is the power handling of this speaker?

The RMS power handling is 50 Watts per speaker, with a peak power handling of 150 Watts.

Is the BPS-E650C a coaxial or component speaker?

It is a 2-way coaxial speaker, meaning a tweeter is mounted on top of the woofer for easy installation.

What is the impedance and sensitivity?

The impedance is 4 Ohms and the sensitivity is 90 dB (1W/1m), making it compatible with most car amplifiers.

Can I use these speakers in my door panel?

Yes, they are designed for car door or rear deck installation, provided the mounting depth fits.

Does the speaker come with a grille?

Yes, it includes a protective mesh grille.

What tools do I need for installation?

You will need screwdrivers, wire cutters, electrical tape, and possibly a drill for new mounting holes.

How do I clean the speaker?

Use a soft dry cloth to wipe the grille and cone. Avoid liquids or abrasive cleaners.

What is the warranty period?

The speaker comes with a 1-year limited warranty covering manufacturing defects.

Where can I find spare parts?

Spare grilles and mounting hardware are available through Blaupunkt dealers or online retailers.

USER MANUAL BPS-E650C BLAUPUNKT

Recommended Amplifier Power [Watts RMS]	30V	35V
Effective Frequency Range [Hz]	55~20000Hz	50~20000Hz
Worfer Mounting Hole Diameter [in., mm]	5.59in 142mm	5.59in 142mm
Top Mount depth [in., mm]	1.01in 28mm 1.26in 32mm
Bottom Mount Depth [in., mm]	2.28in 58mm 2.28in 58mm	2.09in 53mm 2.09in 53mm
Flush Mounting Tweeter Hole Diameter	0.91in 23mm 0.91in 23mm	0.91in 23mm
High Pass [dB] @ Hz	1.2dB, 4000Hz	1.2dB, 4000Hz
Low Pass [dB] @ Hz	1.2dB, 4000Hz	1.2dB, 4000Hz
High Frequency Output Attenuation [dB]	0, 386	0, 386
Zn [J]	4,10mm	40mm
Re [JL]	3,20mm	3,70mm
Spio [dB] @ 1V, 1M	85,1dB	88,2dB

BLAUPUNKT

Model: BPS-ES50C

BP Americas Corp. 9590 NW 40th St Road Doral, FL 33178

X-Series BPS-X65P

E-Series BPS-ES50C

Component Speakers System

BLAUPUNT

WIRING / CABLEADO:

One component set per channel

At least two amplifier channels are needed for stereo operation Total Impedance: 4 ohms

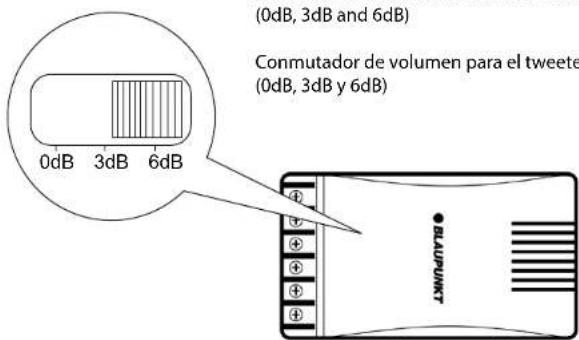

Attenuation switch for the tweeter volume (0dB, 3dB and 6dB)

NOTE: BLAUPUNKT strongly recommends that you operate your system at low volume levels prior to the complete installation of your BLAUPUNKT speakers.

CAUTION: Make sure that all of the speaker wiring is fully protected from cuts, tears or possible wear. Any short circuit caused from cuts, tears or wears, could severely damage the source unit or amplifier. Make sure all speaker wires easily reach the speaker terminals with no stress on the wires or connectors.

IMPORTANT: Never cut any metal that is an integral part of the vehicle's safety or structural support system. If you are unsure of the importance of any components of your vehicle, it is recommended that you have your speaker professionally installed.

CHOOSING A LOCATION: It is always best to plan the complete installation prior to attempting to install any product. The routing of wires, power connections, and mounting location, should be planned first. As with any car stereo installation, all work performance should be checked throughly and carefully prior to the operation of the system.

BLAUPUNKT Speakers are designed to fit in almost any factory location. If at all possible, it is recommended that you use factory locations. This applies mostly to later model cars. For those earlier model cars, that do not have factory location or are limited to just front speakers, it is recommended that you choose a location with a sufficient amount of air space.

If there's not enough air space, the woofer of the speaker may not reproduce low frequencies very well. It is recommended to mount the speakers in the door panels, kick panels, rear deck, etc. Ideally, the speakers should be mounted where it will be in an enclosed airspace. This allows for an extended bass response.
