Product Type	Subwoofer
Brand	Rockford Fosgate
Model	Punch P210S4
Size	10 inches
Impedance	4 ohms
Power Handling (RMS)	250 Watts
Power Handling (Peak)	500 Watts
Frequency Response	30 - 250 Hz
Sensitivity	86 dB
Mounting Depth	5.6 inches
Mounting Diameter	9.3 inches
Voice Coil	Single 4-ohm
Cone Material	Injection Molded Polypropylene
Surround Material	Santoprene Rubber
Recommended Enclosure Sealed	0.75 - 1.25 cu. ft.
Recommended Enclosure Ported	1.0 - 1.5 cu. ft.
Woofer Displacement	0.04 cu. ft.
Net Weight	11 lbs
Warranty	1 Year
Mounting Hardware Included	Yes
Recommended Amplifier Power	200 - 500 Watts RMS

Frequently Asked Questions - Punch P210S4 Rockford Fosgate

What is the power handling of the Rockford Fosgate Punch P210S4?

The RMS power handling is 250 Watts, with a peak handling of 500 Watts. This subwoofer works best with an amplifier delivering between 200 and 500 Watts RMS.

What is the impedance of the Punch P210S4?

This subwoofer has a single 4-ohm voice coil, making it a 4-ohm SVC (Single Voice Coil) subwoofer.

What size enclosure does the P210S4 need?

For a sealed enclosure, use 0.75 to 1.25 cubic feet. For a ported enclosure, use 1.0 to 1.5 cubic feet. The subwoofer displacement is 0.04 cubic feet.

What is the mounting depth of the Rockford Fosgate P210S4?

The mounting depth is 5.6 inches, and the mounting diameter is 9.3 inches. Make sure your enclosure has enough clearance.

Can I use this subwoofer in a truck or under-seat application?

Yes, but you'll need a shallow enclosure. The mounting depth is 5.6 inches, so consider a custom enclosure if space is limited.

What type of music works best with the P210S4?

The frequency response of 30-250 Hz is ideal for deep bass in electronic, hip-hop, rock, and metal. It reproduces kick drums and bass lines cleanly.

Is the P210S4 compatible with 2-ohm amplifiers?

No, this subwoofer is 4 ohms. To use a 2-ohm stable amplifier, you would need two 4-ohm subwoofers wired in parallel or a different impedance model.

What is the sensitivity of the Punch P210S4?

The sensitivity is 86 dB, which is average for a 10-inch subwoofer. Pair with a quality amplifier for best performance.

Does Rockford Fosgate include a warranty?

Yes, a 1-year limited warranty is included. Retain your receipt for warranty service.

How do I clean and maintain my P210S4?

Use a dry cloth to wipe dust from the cone and surround. Avoid liquids or solvents. Ensure no debris in the magnetic gap. Check mounting screws periodically.

USER MANUAL Punch P210S4 Rockford Fosgate

SVC - SINGLE VOICE COIL WOOFERS

PI8S4

PI8S8

PII0S4

PII0S8

PII2S4

PII2S8

PII5S4

PII5S8

P28S4

P28S8

P210S4

P210S8

P2I2S4

P2I2S8

P2I5S4

P215S8

Installation & Operation

CAUTION: Before installation, disconnect the battery negative (-) terminal to prevent damage to the unit, fire and/or possible injury.

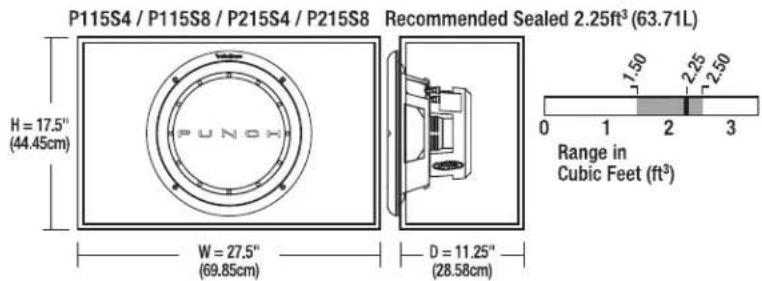

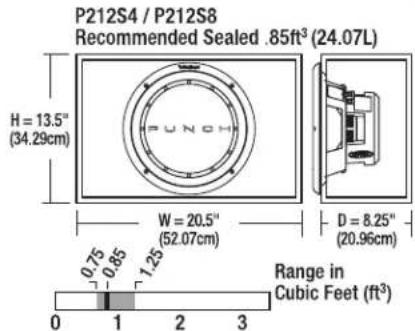

CALCULATING VOLUMES

Calculating volume is merely a matter of measuring the internal dimensions in inches and using the formula:

Box Volume = Height " x Width" x Depth"

(cubic feet) 1728

FRANÇAIS

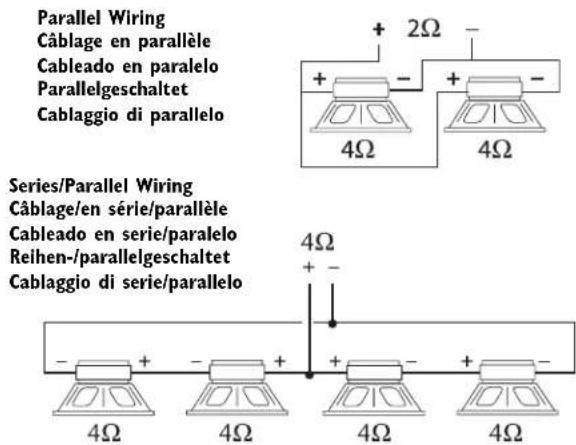

WIRING CONFIGURATIONS

Check our website for updates on your products.

www.RockfordFosgate.com

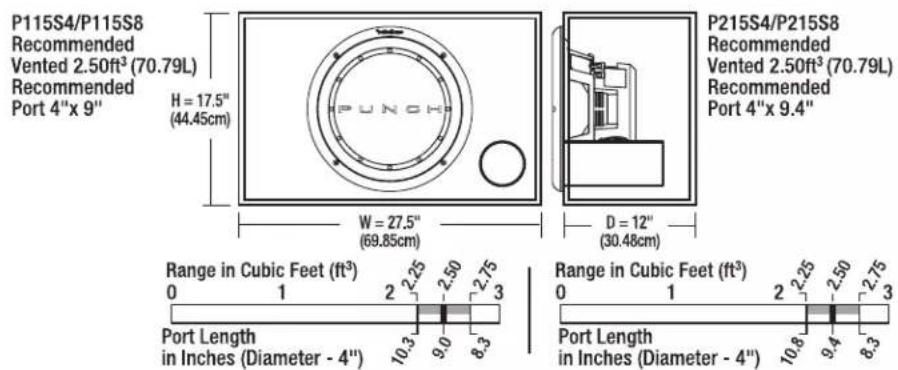

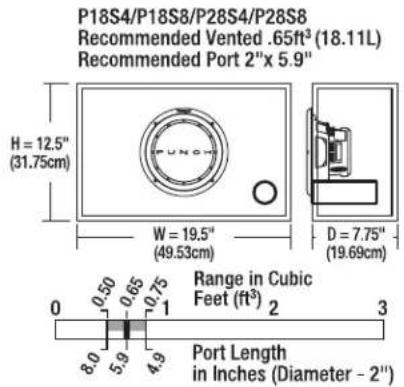

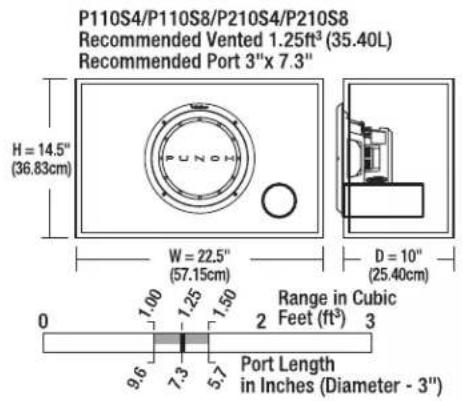

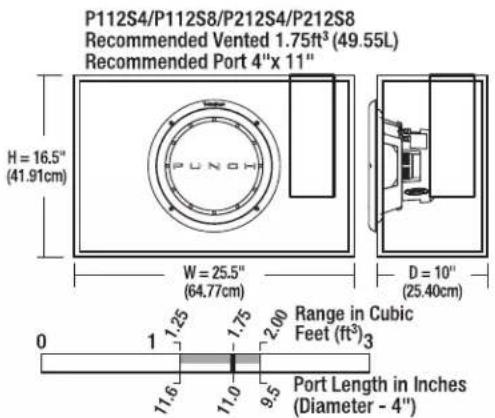

VENTED ENCLOSURES

NOTE: All recommended volumes are TOTAL internal volume, before any speaker and/or port displacement. All external dimensions were based on the use of 3/4" materials.
NOTE: When using enclosures other than specified, call Technical Support for correct application.

SPECIFICATIONS

Model - Punch SVC PI8S4 PI8S8 PI10S4 PI10S8 PI12S4 PI12S8 PI15S4 PI15S8
Nominal Impedance (ohms) 4	8	4	8	4	8	4	8
Voice Coil Diameter-inch (mm) 1.5 (38.1) 1.5 (38.1) 1.5 (38.1) 1.5 (38.1) 1.5 (38.1) 1.5 (38.1) 2.0 (50.8) 2.0 (50.8)
FS (Hz)	35	36	30	31	25	26	22	23
QTS	0.518	0.538	0.513	0.524	0.594	0.624	0.680	0.697
VAS-cu.ft. (liter)	0.565 (16)	0.565 (16)	1.766 (50)	1.766 (50)	3.779 (107)	3.779 (107)	8.829 (250)	8.829 (250)
Xmax-inch (mm)	0.276 (7.0)	0.276 (7.0)	0.303 (7.7)	0.303 (7.7)	0.303 (7.7)	0.303 (7.7)	0.315 (8.0)	0.315 (8.0)
SPL (dB @ 1w/1m)	83.0	83.0	85.5	85.5	86.0	86.0	87.0	87.0
Power Handling (RMS)	150	150	150	150	150	150	200	200
Power Handling (Max)	300	300	300	300	300	300	400	400
Mounting Dia.-inch (mm)	7-1/16 (179.38)	7-1/16 (179.38)	9-1/4 (234.95)	9-1/4 (234.95)	11-1/8 (282.58)	11-1/8 (282.58)	13-7/8 (352.43)	13-7/8 (352.43)
Mounting Depth-inch (mm)	4-1/16 (103.19)	4-1/16 (103.19)	5-3/16 (131.76)	5-3/16 (131.76)	5-5/8 (142.88)	5-5/8 (142.88)	7-1/8 (180.98)	7-1/8 (180.98)
Speaker Dis.-cu. ft. (liter)	0.020 (0.508)	0.020 (0.508)	0.034 (0.864)	0.034 (0.864)	0.042 (1.067)	0.042 (1.067)	0.077 (1.956)	0.077 (1.956)
Sealed Box Vol.-cu. ft. (liter)	0.25 (7.08)	0.25 (7.08)	0.65 (18.41)	0.65 (18.41)	1.25 (35.40)	1.25 (35.40)	2.25 (63.71)	2.25 (63.71)
Vented Box Vol.-cu. ft. (liter)	0.65 (18.41)	0.65 (18.41)	1.25 (35.40)	1.25 (35.40)	1.75 (49.55)	1.75 (49.55)	2.50 (70.79)	2.50 (70.79)
Port Diameter & Length (in.)	(1) 2 x 5.9	(1) 2 x 5.9	(1) 3 x 7.3	(1) 3 x 7.3	(1) 4 x 11	(1) 4 x 11	(1) 4 x 9	(1) 4 x 9
Port Diameter & Length (cm)	(1) 5.08 x 14.99	(1) 5.08 x 14.99	(1) 7.62 x 18.54	(1) 7.62 x 18.54	(1) 10.16 x 27.94	(1) 10.16 x 27.94	(1) 10.16 x 22.86	(1) 10.16 x 22.86

Number of ports noted in ( )
Specifications subject to change without notice

Model - Punch SVC	P28S4	P28S8	P210S4	P210S8	P212S4	P212S8	P215S4	P215S8
Nominal Impedance (ohms) 4		8	4	8	4	8	4	8
Voice Coil Diameter-inch (mm)	2.0 (50.8)	2.0 (50.8)	2.0 (50.8)	2.0 (50.8)	2.0 (50.8)	2.0 (50.8)	2.0 (50.8)	2.0 (50.8)
FS (Hz)	35	36	28	29	25	26	21	22
QTS	0.491	0.515	0.437	0.500	0.488	0.526	0.560	0.578
VAS-cu.ft. (liter)	0.565 (16)	0.565 (16)	1.483 (42)	1.483 (42)	3.426 (97)	3.426 (97)	8.829 (250)	8.829 (250)
Xmax-inch (mm)	0.315 (8.0)	0.315 (8.0)	0.433 (11.0)	0.433 (11.0)	0.433 (11.0)	0.433 (11.0)	0.433 (11.0)	0.433 (11.0)
SPL (dB @ 1w/1m)	84.0	84.0	85.8	85.8	86.0	86.0	87.5	87.5
Power Handling (RMS)	200	200	200	200	200	200	250	250
Power Handling (Max)	400	400	400	400	400	400	500	500
Mounting Dia.-inch (mm)	7-1/16 (179.38)	7-1/16 (179.38)	9-1/4 (234.95)	9-1/4 (234.95)	11-1/8 (282.58)	11-1/8 (282.58)	13-7/8 (352.43)	13-7/8 (352.43)
Mounting Depth-inch (mm)	4 (101.60)	4 (101.60)	5-5/8 (142.88)	5-5/8 (142.88)	6-1/16 (153.98)	6-1/16 (153.98)	7-3/8 (187.33)	7-3/8 (187.33)
Speaker Dis.-cu. ft. (liter)	0.024 (0.610)	0.024 (0.610)	0.040 (1.016)	0.040 (1.016)	0.049 (1.245)	0.049 (1.245)	0.076 (1.930)	0.076 (1.930)
Sealed Box Vol.-cu. ft. (liter)	0.25 (7.08)	0.25 (7.08)	0.65 (18.41)	0.65 (18.41)	0.85 (24.07)	0.85 (24.07)	2.25 (63.71)	2.25 (63.71)
Vented Box Vol.-cu. ft. (liter)	0.65 (18.41)	0.65 (18.41)	1.25 (35.40)	1.25 (35.40)	1.75 (49.55)	1.75 (49.55)	2.50 (70.79)	2.50 (70.79)
Port Diameter & Length (in.)	(1) 2 x 5.9	(1) 2 x 5.9	(1) 3 x 7.3	(1) 3 x 7.3	(1) 4 x 11	(1) 4 x 11	(1) 4 x 9.4	(1) 4 x 9.4
Port Diameter & Length (cm)	(1) 5.08 x 14.99	(1) 5.08 x 14.99	(1) 7.62 x 18.54	(1) 7.62 x 18.54	(1) 10.16 x 27.94	(1) 10.16 x 27.94	(1) 10.16 x 23.88	(1) 10.16 x 23.88

Number of ports noted in ( )
Specifications subject to change without notice

Rockford Fosgate®

Rockford Corporation offers a limited warranty on Rockford Fosgate products on the following terms:

Length of Warranty

Source Units, Speakers, Signal Processors and PUNCH Amplifiers – 1 Year

POWER Amplifiers – 2 Years Type RF Amplifiers – 3 Years

Any Factory Refurbished Product – 90 days (receipt required)

What is Covered

This warranty applies only to Rockford Fosgate products sold to consumers by Authorized Rockford Fosgate Dealers in the United States of America or its possessions. Product purchased by consumers from an Authorized Rockford Fosgate Dealer in another country are covered only by that country's Distributor and not by Rockford Corporation.

Who is Covered

This warranty covers only the original purchaser of Rockford product purchased from an Authorized Rockford Fosgate Dealer in the United States. In order to receive service, the purchaser must provide Rockford with a copy of the receipt stating the customer name, dealer name, product purchased and date of purchase.

Products found to be defective during the warranty period will be repaired or replaced (with a product deemed to be equivalent) at Rockford's discretion.

What is Not Covered

I. Damage caused by accident, abuse, improper operations, water, theft, shipping
2. Any cost or expense related to the removal or reinstallation of product
3. Service performed by anyone other than Rockford or an Authorized Rockford Fosgate Service Center
4. Any product which has had the serial number defaced, altered, or removed
5. Subsequent damage to other components
6. Any product purchased outside the U.S.
7. Any product not purchased from an Authorized Rockford Fosgate Dealer

Limit on Implied Warranties

Any implied warranties including warranties of fitness for use and merchantability are limited in duration to the period of the express warranty set forth above. Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for Rockford Fosgate any other liability in connection with the sale of the product.

How to Obtain Service

Contact the Authorized Rockford Fosgate Dealer you purchased this product from.

If you need further assistance, call 1-800-669-9899 for Rockford Customer Service. You must obtain an RA# (Return Authorization number) to return any product to Rockford Fosgate. You are responsible for shipment of product to Rockford.

EU Warranty

This product meets the current EU warranty requirements, see your Authorized dealer for details.

Ship to: Electronics

Rockford Corporation

Warranty Repair Department

2055 E. 5th Street

Tempe,AZ 85281

10/04 B.M.

1230-50197-B Printed in U.S.A.

Ship to: Speakers

Rockford Acoustic Design

Speaker Returns

3056 Walker Ridge Dr. Suite G.

Walker, MI 49544

RA#:
