Product Type	Washing Machine
Brand	Seiki
Model	SC-600AU9FLMK2
Capacity	6 kg
Dimensions (H x W x D)	85 cm x 60 cm x 55 cm
Weight	65 kg
Power Supply	220-240 V, 50 Hz
Energy Efficiency Class	A+
Spin Speed	1000 rpm
Programs	Cotton, Synthetic, Delicate, Quick Wash, Wool, Rinse & Spin
Water Consumption	45 L per cycle
Noise Level (Wash/Spin)	58 dB / 75 dB
Display	LED
Delay Start	Up to 24 hours
Child Lock	Yes
Overflow Protection	Yes
Self-Cleaning	Drum Clean program
Spare Parts Availability	Available for 10 years
Repairability Index	7.5/10
Installation Type	Freestanding

Frequently Asked Questions - SC-600AU9FLMK2 Seiki

What is the capacity of the Seiki SC-600AU9FLMK2 washing machine?

The Seiki SC-600AU9FLMK2 has a 6 kg capacity, suitable for small households.

How do I clean the drum of this washing machine?

Use the Drum Clean program with a washing machine cleaner or white vinegar. Run the program without laundry.

What should I do if the machine does not drain?

Check the drain filter for blockages and ensure the drain hose is not kinked. Clean the filter regularly.

Can I use this machine with an extension cord?

It is not recommended. Plug the machine directly into a grounded socket to avoid electrical hazards.

How do I activate the child lock?

Press and hold the Child Lock button for 3 seconds until the indicator lights up. Repeat to deactivate.

What is the maximum spin speed?

The maximum spin speed is 1000 rpm, reducing drying time for most fabrics.

Why is the machine vibrating excessively?

Ensure the machine is level using the adjustable feet and remove the transport bolts before use.

How do I set a delayed start?

Use the Delay Start button to set a delay from 1 to 24 hours. The machine will start automatically.

What does the 'Error E01' code mean?

Error E01 indicates a water supply issue. Turn off the water tap, clean the inlet filter, and reconnect.

Are spare parts available for this model?

Yes, spare parts are available for up to 10 years after purchase through the manufacturer.

USER MANUAL SC-600AU9FLMK2 Seiki

Please read this manual carefully before using, and keep it for future reference.

CONTENTS

General	Safety					4
Product	Overview
	Accessories					8
	Control	Panel
Getting	Started					10
	Unpackaging					10
Transportation and removal of Transport Bolts			10
	Levelling	the	appliance
Connecting the water inlet hose			12
	Connecting	the	Drain	Hose
Instructions
	Before	First	Use
	Wash	Care	Symbols
	Detergent	Dispenser
Wash	Programs					18
Cleaning	and	Maintenance
FAQs						24
ERROR	CODES
Specifications						26
Customer	Helpline					Last

GENERAL SAFETY

IMPORTANT INFORMATION

Read this manual thoroughly before you start using the Front Load Washing Machine.

The safety precautions instructions reduces the risk of fire, electric shock and injury when correctly complied to.

Please follow all instructions and take notice of all warnings.

Pay close attention to messages that follow this safety alert symbol or the words DANGER, WARNING or CAUTION. These words will be used to alert you of potential hazards that and injure you and others. Following these instruction will tell you how to reduce the chance of injury and the possible dangers if instructions aren't followed.

WARNING

This symbol indicates when there is a serious risk of injury if you do not pay attention to the warnings.

CAUTION

This symbol indicates when to be careful to avoid a serious risk of injury to oneself or damage to property.

GENERAL SAFETY INSTRUCTIONS (Cont.)

ELECTRICAL SAFETY

• Voltage: Plug the appliance to a 220-240V, 50Hz, properly earthed power outlet, it must be in good working order.
• Power connection: Do not use an adaptor or an extension cord.

Plug the power plug directly into a separate power point that cannot be accidentally turned off, and that is easily accessible so you can switch it off if needed.

• Power cord: Do not kink or damage the power supply cord. Make sure it is behind the appliance so no one can step on or place anything on the power supply cord or against it. A damaged power plug may overheat and cause a fire.
• Damaged cord: Do not use a cord that shows cracks or damage. Any damage to the cord may cause a short circuit, fire and/or electric shock.

Contact our support centre on [e-mail] for advice

• Disconnection: Never pull the power cord to unplug appliance. Grip the plug and pull straight out from the power point.
• Electrical work: If the installation of this appliance requires any electrical work, make sure it is carried out by an electrician.

To reduce risk of fire, electric shock or injury, always follow these basic precautions and accident prevention measures when using this appliance, including the below:

NOTE: This appliance should be installed by an authorised technician else warranty will be void.

INSTALLATION

• The product is heavy, be careful when moving it. To avoid back or other injury, have 2 people lift or mechanical aid when installing.
• When unboxing, thoroughly inspect the appliance carefully for any damage. If there is any damage, do not install the appliance. Contact our support centre on [e-mail] for advice.
• While installing the appliance make sure that the power cord is not bent or flattened.
• Make sure to remove all packaging materials such as foams and tapes before installing the appliance.
• Make sure if the machine is to be placed on carpet that the ventilation openings in the base are not obstructed
  • Install the washing machine on a flat level and stable ground.

GENERAL SAFETY INSTRUCTIONS (Cont.)

USAGE CONDITIONS AND RESTRICTIONS

• Supervision over children is to ensure that they do not play with the appliance. Never allow them to use, play with or crawl inside the appliance. Cleaning and maintenance must not be done by children.
• This appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they are being supervised or been given instructions on how to use of the appliance in a safe way and understand the hazards with using this appliance incorrectly.
• Only for indoor domestic use only. It is not to be used for industrial or commercial use.
• Do not use this product for anything other than its intended purpose, and only use it as described in this manual. Do not attempt to alter or modify this appliance.
• In the process of a hot wash, the door window can become hot. Make sure not to touch it or that no children or pets come into contact with the door window.
• Ensure that emptying all pockets of every item to make sure that there is no hard, sharp objects such as coins, safety pins, bra wires, nails or screws can cause damage to the appliance and has a chance to block the pump.
• Damage or malfunction caused from foreign objects is not covered by your warranty to the appliance.
• Do not operate this appliance outdoors.
• Incorrect use can result in property damage, injury or death. We assume no liability for misuse of the appliance or noncompliance with these instructions.
  • Maximum load of dry clothes is 6kg

GENERAL SAFETY INSTRUCTIONS (Cont.)

CLEANING AND MAINTENANCE

• Before cleaning or maintenance, always unplug the appliance from the power socket. Make sure you pull by the plug, not the cord as this can damage the power cord and cause a hazard.
• Only the filter requires regular cleaning, everything else is non user-serviceable parts. Do not try to repair, disassemble or modify the appliance.
• Check and clean the lint filter on a regular basis
• Service: Never try to repair, modify or replace any part of the appliance, unless this manual says you can do so. All other servicing is to be done by a qualified technician, or contact our support centre on [e-mail] for advice.

PRODUCT OVERVIEW

ACCESSORIES

instruction	water supply hose	wrench	transportation bolt caps

PRODUCT OVERVIEW (Cont.)

CONTROL PANEL

1. START/PAUSE

2. FUNCTION

Select between extra rinse or standard.

3. PRE DELAY

When using Pre-Delay, you can delay washing of up to 24 hours.

4. SPEED SETTINGS

5. WASH PROGRAM DIAL

6. OFF (located at top of dial)

CHILD LOCK

Press and hold *Pre Delay for 3 seconds to activate child lock, follow same sequence to unlock.

GETTING STARTED

Before installing your appliance, read all safety instructions in this manual, especially the sections on electrical safety and installation.

UNPACKING

- When unpacking the appliance, be sure to keep all the packaging materials until you have made sure your new appliance is undamaged and in good working order. Plastic can be a suffocation hazard for babies and young children, make sure the materials are out of their reach.

TRANSPORTATION

- CAUTION: VERY HEAVY! Be sure to team lift the appliance with someone or mechanical aid is required when moving the appliance. Keep the appliance upright as possible when moving the appliance.

REMOVE TRANSPORT BOLTS

- IMPORTANT! Make sure before you install the appliance, you must remove the transit bolts from the back of the appliance and cover the holes with the hole covers provided. A spanner is required to remove the bolts.

NOTE: Keep the transit bolts for future needs if you are going to move the appliance again to another location. The bolts hold the drum in place during transportation but MUST be removed before use so the drum can move during a wash. Leaving the bolts in can result in strong shock, noise and malfunction.

Diagram of a hand using a tool to adjust or install a mechanical component, showing no text or symbols present.

GETTING STARTED (Cont.)

LEVELLING THE APPLIANCE

IMPORTANT! Make sure to level the appliance carefully with a spirit level to ensure the most accurate levelling of the appliance. This is a must if your floor in unbalanced to level the washing machine.

- Make sure to position the appliance on a level and stable ground. If the floor is uneven you can adjust the feet by twisting foot then with a spanner you twist the lock nut to the top to lock it in place.

- By placing a spirit level on top of the appliance you can check correctly to aid you in adjusting the feet levelling nuts to adjust the appliance to be completely level.

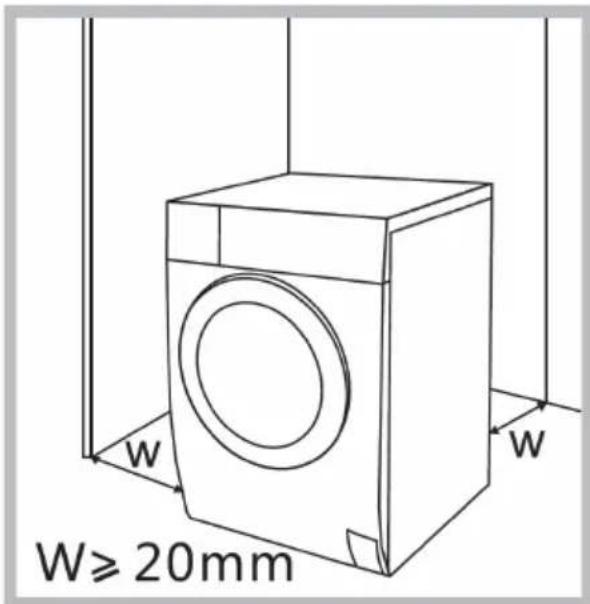

INSTALLATION AREA

IMPORTANT! When installing the appliance the spacing on the side and behind the appliance must not be less the 20mm to allow proper ventilation.

Note: Make sure to avoid direct sunlight onto the appliance.

GETTING STARTED (Cont.)

CONNECTING THE WATER INLET HOSE

IMPORTANT! To prevent leakage or water damage please follow the below instructions. Do not kink, crush, modify or sever the water inlet hose.

Minimum Inlet Water Pressure: 0.03MPa/Maximum Inlet Water Pressure: 1MPa

Be sure to only use new hose sets when connecting the washing machine. Do not re-use old hoses.

INSTALL INLET PIPE

1. Connect the elbow to tap and fasten it clockwise.
2. Connect the other end of inlet pipe to the inlet valve at the backside of washing machine and fasten the pipe tightly clockwise.

Notes: If there is any leakage with hose after connecting, then repeat the steps to connect inlet pipe. The most common type of tap shall be used to supply water. If the tap is square or too big, then the tap should be changed to a standard one.

PLACE OUTLET HOSE

There is 1 way to place the end of outlet hose:

- Put it beside the water trough.

Connect the other end of the inlet pipe to the inlet valve on the back of the appliance and fasten the pipe tightly clockwise.

Line drawing of a bathtub with a piping bag inserted into it, no text or symbols present

GETTING STARTED (Cont.)

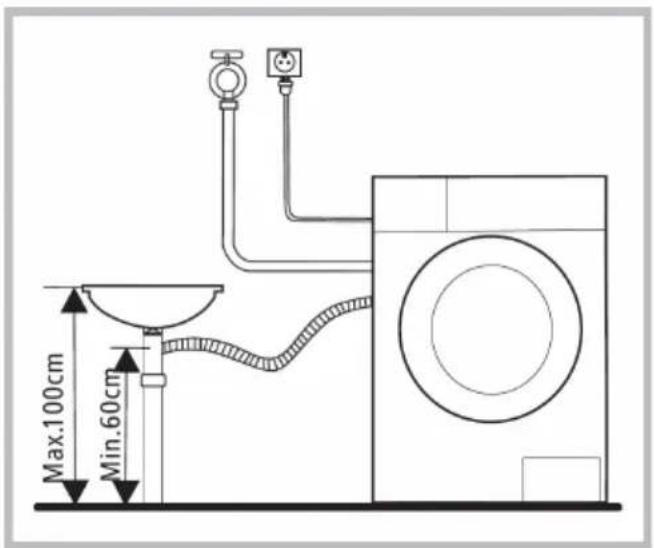

CONNECTING THE DRAIN HOSE

Do not kink or protract the drain hose. Position the drain hose correctly otherwise damage will result in water leakage.

There are two ways to place the end of drain hose:

1. Put it through the water trough.
2. Connect it to the branch drain pipe.

When installing the drain hose into the laundry sink, make sure it is properly fitted with rope to hold it in place. If the hose is too long, do not try to push the end were it comes from the appliance in to shorten length, this can damage it.

Line drawing of a kitchen sink with faucet and chain, no text or symbols present

WARNING

• Make sure that the hose is not higher then 120cm above the ground, otherwise appliance will not drain the water well.
• Never lay down the drain hose otherwise water will pour out.
  • Make sure the hose has no kinks so it can drain properly.

INSTRUCTIONS

BEFORE FIRST USE

- Before any first wash make sure everything is installed correctly. Make sure to do one wash with no items inside to clean out the tube before your first loaded wash.

After the above steps have been completed, In a few simple steps shown below you can select the type of wash you want and get started.

Hand pointing at a button labeled 'I' on a square button (no text or symbols beyond the number 1)

Power On

Simple diagram showing two concentric circles with curved arrows indicating rotation or direction (no text or symbols)

Select Programme

Select function or default

Hand pressing a button with a play symbol (no text or numbers visible)

Start up

INSTRUCTIONS (Cont.)

• Make sure that the appliance is in a correct working temperature (0-40°C). If the appliance is used under 0°C the inlet valve and draining system may be damaged.
  • Make sure that all labels are checked on items if they can be washed.
• Use non-foaming or less-foaming detergents which are more suitable for washing machines to wash correctly.

Line drawing of a sweater with a tag and patterned collar (no text or symbols)

Check the label

Take out the items out of the pockets

Line drawing of two bags with circular designs, no text or symbols present

Knot the long strips,zip or button

Simple line drawing of a bag with an open lid and a small object inside (no text or symbols)

Put small clothes into the pillow slip

Line drawing of a T-shirt with patterned fabric (no text or symbols)

Turn easy-pilling and long-pile fabric inside out

Simple line drawing of a bag being folded into a basket (no text or symbols)

Separate clothes with different textures

WARNING

• Never use the washing machine to wash a single item at any given time, if you need to urgently wash an item, we suggest placing a few clothing items in there.
  • Make sure that all labels are checked on items if they can be washed.
• Use non-foaming or less-foaming detergents which are more suitable for washing machines to wash correctly.

INSTRUCTIONS (Cont.)

WASH CARE SYMBOLS

When choosing a wash program, check for any labels on your clothes and follow the instructions. below are some commonly used symbols.

INSTRUCTIONS (Cont.)

DETERGENT DISPENSER

Only use low-subsiding detergents and clothing care preparations that are for use in a front load washing machine.

3D diagram of a washing machine interior with blue internal structure and fan-shaped components (no text or symbols)

SYNTHETIC DETERGENT POWDER

Please make sure it is powdered detergent that can dissolve and not soap pieces places into this dispenser. (LEFT compartment indicated above)

LIQUID BLEACH

Bleach can be placed into this dispenser compartment when washing whites.

PREWASHING DETERGENT

If you want additional cleaning of your clothes, add pre-wash detergent to this compartment. (RIGHT compartment indicated above)

SOFTENER

Place fabric softener into this compartment, make sure not to exceed MAX marking. (MIDDLE compartment indicated above)

INSTRUCTIONS (Cont.)

WASHING PROGRAMS TABLE

Programmes
Cotton	Hard-wearing textiles, heat-resistant textiles made of cotton or linen.
Heat Wash 90°C	Washing the baby's clothes, it can make the baby's wear cleaner and make the rinse performance better to protect the baby skin.
Rapid 45'	Washing few and not very dirty clothes quickly.
Mix	Mixed load consisting of textiles made of cotton and synthetics.
Jeans	Specially for jeans.
Quick 15'	Extra short programme approx, suitable for lightly soiled washing as a small amounts of laundry.
Spin Only	Extra spin with selectable spin speed.
Rinse&Spin	Extra rinse with spin.
Cotton ECO	To increase the washing effects, washing time is increased.
Delicate	For delicate, washable textiles, e.g. made of silk, satin, synthetic fibres or blended fabrics.

• Energy test program: Cotton ECO Program; Other as the default.
- “Cotton ECO” is the standard washing programs to which the information in the label relates, and they are suitable to clean normal soiled cotton laundry and they are the most efficient programs in terms of energy and water consumption for washing that type of cotton laundry, the actual water temperature may differ from the declared cycle temperature.

INSTRUCTIONS (Cont.)

WASHING PROGRAMS TABLE

Programme	Load(kg)	Temp.(°C)	Default Time
	6.0	Default	6.0
Cotton(Cold)	6.0	Cold	2:20
Cotton (20°C)	6.0	20	2:20
Cotton (40°C)	6.0	40	2:40
Cotton( 60°C)	6.0	60	2:45
Jeans	6.0	60	1:45
Delicate	3.0	30	0:50
Cotton ECO	6.0	30	0:59
Spin Only	6.0	--	0:12
Rinse&Spin	6.0	--	0:20
Heat Wash 90°C	6.0	90	2:17
Mix( 60°C)	6.0	60	1:30
Mix( 40°C)	6.0	40	1:20
Mix( 20°C)	6.0	20	1:00
Rapid 45'	2.0	40	0:45
Quick 15'	2.0	--	0:15

• Energy test program: Cotton ECO.

Speed: the highest speed; Other as the default.

Half load for 6.0 kg machine:3.0

• "Cotton ECO" is the standard washing programs to which the information in the label and the fiche relates, and they are suitable to clean normally soiled cotton laundry and that they are the most efficient programmes in terms of combined energy and water consumptions for washing that type of cotton laundry, that the actual watertemperature may differ from the declared cycle temperature.

CLEANING AND MAINTENANCE

WARNING:

- Before starting maintenance, ensure that the appliance is unplugged and close the tap.

CLEANING THE CABINET

Proper maintenance on the washing machine can extend its working life.

The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. If there is any water overflow, use a wet cloth to wipe it off immediately. Make sure no sharp items are used to clean the appliance.

Line drawing of a hand cleaning a washing machine with a cloth (no text or symbols)

CLEANING THE DOOR SEAL AND GLASS

Wipe the glass and seal after each wash to remove lint and stains. If lint builds up it can eventually cause leaks. Remove any coins, buttons or other objects from the seal (if any) after each wash.

Line drawing of a hand gripping a curved object, possibly a tool or device (no text or symbols present)

CLEANING AND MAINTENANCE (Cont.)

CLEANING THE INLET FILTER

Washing the filter in the tap

1 Close the tap
2 Remove the water supply hose from the tap
3 Clean the filter
4 Reconnect the water supply hose

Diagram of a faucet with rotating arrows indicating clockwise motion (no text or symbols)

Line drawing of a hand holding a connector with a cable, no text or symbols present

Washing the filter in the washing machine

1 Screw off the inlet pipe from the back of appliance
2 Pull out the filter with long nose pliers and reinstall after being washed
3 Use the brush to clean the filter
4 Reconnect the inlet pipe and turn on the tap

Hand inserting a device into a box, showing the internal mechanism with an arrow (no text or symbols present)

Line drawing of a hand using a tool to insert a component into a device (no text or symbols present)

CLEANING AND MAINTENANCE (Cont.)

CLEANING THE DETERGENT DISPENSER

1 Press down the arrow location on the softener cover inside the washing machine dispenser.
2 Lift the clip up and take out the softener cover and wash all the grooves with water.
3 Restore the softener cover and push the drawer into position.

Line drawing of a mechanical component with internal channels and a labeled arrow (no text or symbols)

Pull out the dispenser drawer with press the A

Line drawing of a mechanical device with a lever and internal components (no text or symbols)

Clean the dispenser drawer under water

Line drawing of a hand inserting a component into a wall-mounted device (no text or symbols)

Clean inside the recess with an old toothbrush

Line drawing of a mechanical or electronic component with internal compartments and a directional arrow (no text or symbols)

Insert the dispenser drawer

NOTE

Do not use alcohol, solvents or chemical products to clean the machine.

CLEANING AND MAINTENANCE (Cont.)

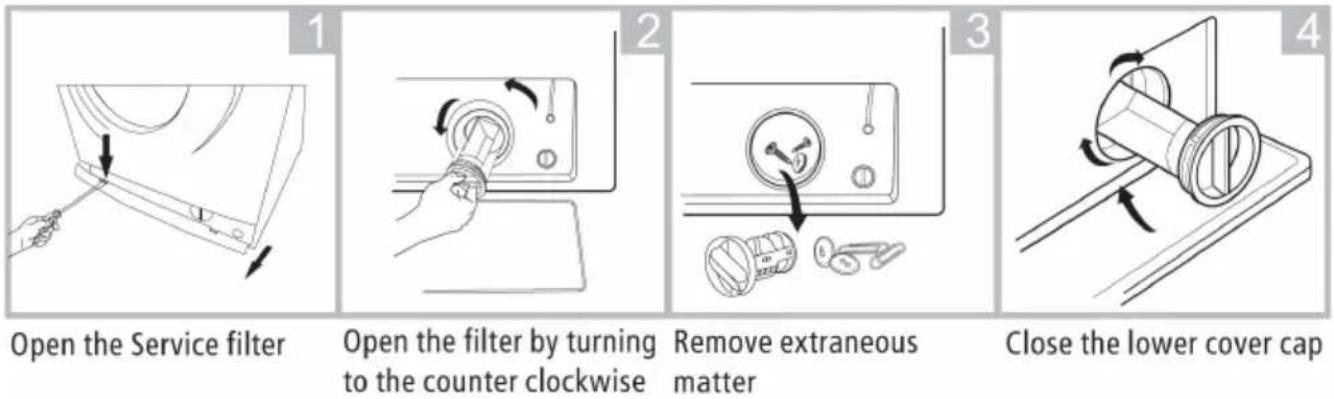

CLEANING THE DRAIN PUMP FILTER

1 Be careful of the hot water.
2 Allow the detergent solution to cool down.
3 Drain pump filter can filter the yarns and small foreign matters from the washing.
4 Clean the filter periodically to ensure the washing machine operates normally.

CAUTION

• Make sure that the valve cap is reinstalled properly.
  Cap plates should be inserted aligning to hole plates otherwise water may leak.
• When the appliance is in use and depending on the program selected there can be hot water in the pump.

Never remove the pump cover during a wash cycle, always wait until the appliance has finished the cycle and is empty. When replacing the cover ensure it is tightly secured.

FAQs

Problem Possible Cause Solution
Washing machine is not starting	Door is not closed properly	Restart after the door is closed, check if the clothes are stuck
Door can't be opened	Washer's safety protection is active	Disconnect the power and restart the appliance
Water Leakage	The connection between inlet pipe or outlet hose is not tight	check and fasten water pipes.Clean up outlet hose.
Detergent residues are in the dispenser	detergent might be dampened	Clean and wipe the detergent dispenser
Indicator or display isnt working	Disconnect the power, PC board or harness may have a connection problem.	Check if the power is on and the power plug is connected correctly.
Abnormal Noise		Check if the Transport bolts at the back of the appliance have been removed.Check it's installed on a level and solid floor.

ERROR CODES

E30	Door is not closed properly	Restart after the door is closedCheck if the clothes is stuck
E10	Water injecting problem while washing	Check if the water pressure is too lowStraighten the water pipeCheck if the inlet valve filter is blocked
E21	Overtime water draining	Check if the drain hose is blocked
E12	Water overflow	Restart the washer
EXX	Others	Please try again first, call up service line if there are still troubles

CUSTOMER SERVICE ON [e-mail] IF THERE ARE ANY OTHER ISSUES.

SPECIFICATIONS

Power Supply 220-240V~50Hz
Standard Water Pressure 0.05MPa~1MPa
Washing Capacity 6KG
Rated Power 2050W
Dimensions 595 (w) x 400 (d) x 850 (h) mm
Weight Net: 55 kg / Gross: 58 kg

SEIKI

SHOME

CUSTOMER HELPLINE:

[e-mail]

DISTRIBUTED BY:

Ayonz Pty Ltd
