USER MANUAL ThinkVision LS2223 LENOVO

Abstract grayscale illustration of a computer monitor and keyboard with stylized geometric shapes (no text or symbols)

lenovo

Abstract grayscale illustration of overlapping geometric shapes and devices (no text or symbols)

LS2223 Wide Monitor

User's Guide

LENOVO (BEIJING) LIMITED

Product numbers 3783-HB2

First Edition (July 2012)

© Copyright Lenovo 2012. All rights reserved.

LENOVO products, data, computer software, and services have been developed exclusively at private expense and are sold to governmental entities as commercial items as defined by 48 C.F.R. 2.101 with limited and restricted rights to use, reproduction and disclosure.

LIMITED AND RESTRICTED RIGHTS NOTICE: If products, data, computer software, or services are delivered pursuant a General Services Administration "GSA" contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No. GS-35F-05925.

Contents

Safety information .... iii

Chapter 1. Getting started.... 1-1

Shipping contents 1-1

Attaching the base and handling your monitor 1-1

Product overview 1-2

Types of adjustments 1-2

User controls 1-2

Cable lock slot 1-3

Setting up your monitor 1-3

Connecting and turning on your monitor 1-3

Registering your option 1-6

Chapter 2. Adjusting and using your monitor 2-1

Comfort and accessibility 2-1

Arranging your work area 2-1

Positioning and viewing your monitor 2-1

Quick tips for healthy work habits 2-2

Accessibility information....2-2

Adjusting your monitor image 2-3

Using the direct access controls 2-3

Using the On-Screen Display (OSD) controls 2-3

Selecting a supported display mode 2-5

Understanding power management 2-6

Caring for your monitor 2-7

Preparing the monitor for wall-mounting....2-8

Chapter 3. Reference information .... 3-1

Monitor specifications .... 3-1

Troubleshooting 3-3

Manual image setup 3-4

Installing the monitor driver in Windows Vista....3-5

Installing the monitor driver in Windows XP....3-6

Installing the monitor driver in Windows 7....3-7

Service information....3-8

Customer responsibilities 3-8

Service parts 3-8

Appendix A. Service and Support ...... A-1

Registering your option A-1

Online technical support ...... A-1

Telephone technical support A-1

Appendix B. Notices......B-1

Recycling information B-2

Trademarks B-3

Safety information

For tips to help you use your computer safely, go to:

http:www.lenovo.com/safety

Before installing this product, read the Safety information.

Make sure the AC jack is located downside when using VESA Mount setup.

Laying the display monitor down flat is prohibited under normal conditions of use!

Chapter 1. Getting started

This User's Guide contains detailed information on the Flat Panel Monitor. For a quick overview, please see the Setup Poster that was shipped with your monitor.

Shipping contents

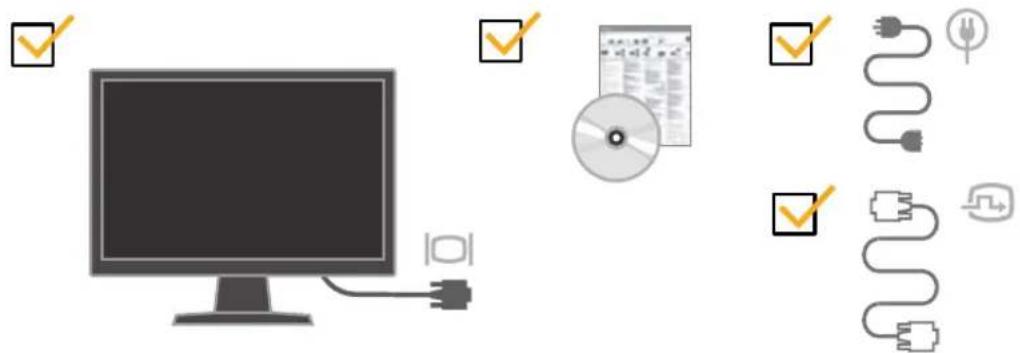

The product package should include the following items:

• Setup Poster
  • Reference and Driver CD
• Flat Panel Monitor
• Power Cord
  • Analog Signal Cable - Attached to monitor
  • Digital Signal Cable

Attaching the base and handling your monitor

To set up your monitor, please see the illustrations below.

Note: Do not touch the monitor within the screen area. The screen area is glass and can be damaged by rough handling or excessive pressure.


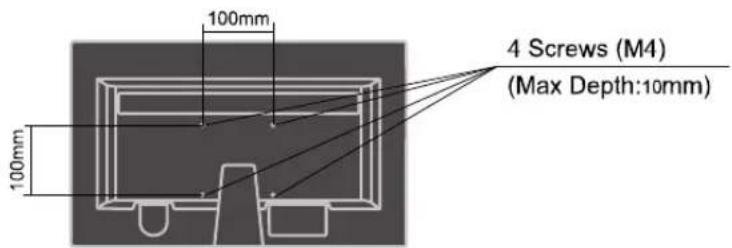

Note: To attach a VESA mount, please see "Detaching the monitor stand" on page 2-8.

Product overview

This section will provide information on adjusting monitor positions, setting user controls, and using the cable lock slot.

Types of adjustments

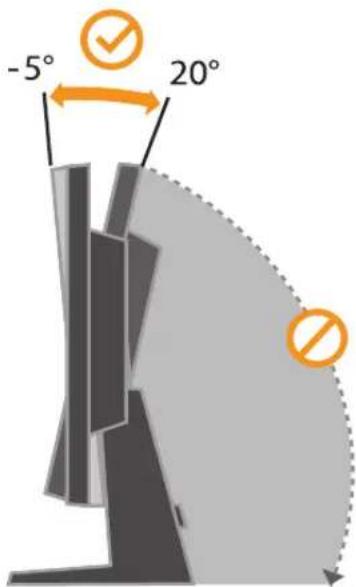

Please see the illustration below for an example of the tilt range.

User controls

Your monitor has controls on the front which are used to adjust the display.

For information on how to use these controls, please see "Adjusting your monitor image" on page 2-3.

Cable lock slot

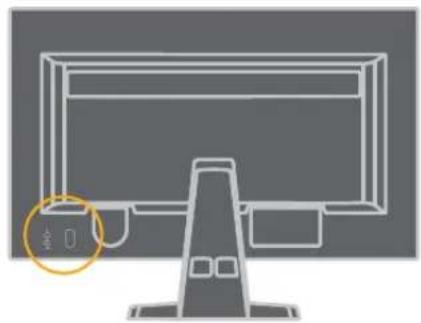

Your monitor is equipped with a cable lock slot located on the rear of your monitor (in the lower left corner). Please follow the instructions that came with the cable lock to attach it.

Line drawing of a computer monitor with a stand and a small icon highlighting the front panel (no text or symbols present)

Circular icon with a battery symbol and a small square, no text or numbers present.

Setting up your monitor

This section provides information to help you set up your monitor.

Connecting and turning on your monitor

1. Power off your computer and all attached devices, and unplug the computer power cord.

Simple diagram showing a plug connected to a grid of four buttons with an arrow indicating direction (no text or symbols)

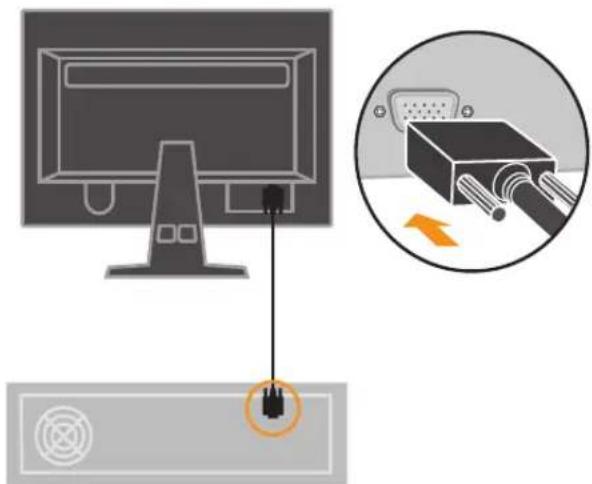

1. Connect the analog signal cable to the video port on the back of the computer.

Note: One end of the signal cable is already pre-attached to your monitor.

Diagram showing a computer monitor connected to a USB cable and a magnified view of the device's internal structure (no text or symbols)

1. Connect the digital cable to the DVI connector of the monitor and the other end on the back of the computer.

1. Plug the monitor power cord and the computer cord into grounded electrical outlets. Note: A certified power supply cord has to be used with this equipment. The relevant national installation and/or equipment regulations shall be considered. A certified power supply cord not lighter than ordinary polyvinyl chloride flexible cord according to IEC 60227 (designation H05VV-F 3G 0.75mm² or H05VVH2-F2 3G 0.75mm²) shall be used. Alternative a flexible cord be of synthetic rubber according to IEC 60245 (designation H05RR-F 3G 0.75mm²) shall be used.

1. Power on the monitor and the computer.

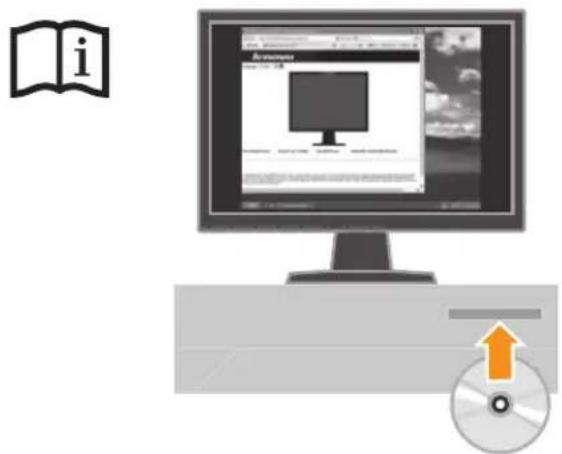

1. To install the monitor driver, insert the Reference and Driver CD, click Install driver, and follow the on-screen instructions.

1. To optimize your monitor image, if using the analog cable, press the Automatic Image Setup key. Automatic image setup requires that the monitor is warmed up for at least 15 minutes. This is not required if you are using the DVI cable.

Close-up of a finger pressing down on a brick wall with an orange arrow indicating left motion (no text or symbols)

Note: If automatic image setup does not establish the image that you prefer, perform manual image setup. See “Manual image setup” on page 3-4.

Registering your option

Thank you for purchasing this Lenovo ^® product. Please take a few moments to register your product and provide us with information that will help Lenovo to better serve you in the future. Your feedback is valuable to us in developing products and services that are important to you, as well as in developing better ways to communicate with you. Register your option on the following Web site:

http://www.lenovo.com/register

Lenovo will send you information and updates on your registered product unless you indicate on the Web site questionnaire that you do not want to receive further information.

Chapter 2. Adjusting and using your monitor

This section will give you information on adjusting and using your monitor.

Comfort and accessibility

Good ergonomic practice is important to get the most from your personal computer and to avoid discomfort. Arrange your workplace and the equipment you use to suit your individual needs and the kind of work that you perform. In addition, use healthy work habits to maximize your performance and comfort while using your computer.

For more detailed information on any of these topics, visit the Healthy Computing Web site at: http://www.ibm.com/pc/ww/healthycomputing

Arranging your work area

Use a work surface of appropriate height and available working area to allow you to work in comfort.

Organize your work area to match the way you use materials and equipment. Keep your work area clean and clear for the materials that you typically use and place the items that you use most frequently, such as the computer mouse or telephone, within the easiest reach.

Equipment layout and setup play a large role in your working posture. The following topics describe how to optimize equipment setup to achieve and maintain good working posture.

Positioning and viewing your monitor

Position and adjust your computer monitor for comfortable viewing by considering the following items:

- Viewing distance: Optimal viewing distances for monitors range from approximately 510mm to 760mm (20 in to 30 in) and can vary depending on ambient light and time of day. You can achieve different viewing distances by repositioning your monitor or by modifying your posture or chair position. Use a viewing distance that is most comfortable for you.

- Monitor height: Position the monitor so your head and neck are in a comfortable and neutral (vertical, or upright) position. If your monitor does not have height adjustments, you might have to place books or other sturdy objects under the base of the monitor to achieve the desired height. A general guideline is to position the monitor such that the top of the screen is at or slightly below your eye-height when you are comfortably seated. However, be sure to optimize your monitor height so the line of site between your eyes and the center the monitor suits your preferences for visual distance and comfortable viewing when your eye muscles are in a relaxed state.

• Tilt: Adjust the tilt of your monitor to optimize the appearance of the screen content and to accommodate your preferred head and neck posture.
• General location: Position your monitor to avoid glare or reflections on the screen from overhead lighting or nearby windows.

The following are some other tips for comfortable viewing of your monitor:

• Use adequate lighting for the type of work you are performing.
• Use the monitor brightness, contrast, and image adjustment controls, if equipped, to optimize the image on your screen to meet your visual preferences.
• Keep your monitor screen clean so you can focus on the screen's contents.

Any concentrated and sustained visual activity can be tiring for your eyes. Be sure to periodically look away from your monitor screen and focus on a far object to allow your eye muscles to relax. If you have questions on eye fatigue or visual discomfort, consult a vision care specialist for advice.

Quick tips for healthy work habits

The following information is a summary of some important factors to consider to help you remain comfortable and productive while you use your computer.

• Good posture starts with equipment setup: The layout of your work area and the setup of your computer equipment have a large effect on your posture while using your computer. Be sure to optimize the position and orientation of your equipment by following the tips outlined in “Arranging your work area” on page 2-1 so you can maintain a comfortable and productive posture. Also, be sure to use the adjustment capabilities of your computer components and office furniture to best suit your preferences now and as your preferences change over time.
• Minor changes in posture can help avoid discomfort: The longer you sit and work with your computer, the more important it is to observe your working posture. Avoid assuming any one posture for an extended period of time. Periodically make minor modifications in your posture to help deter any discomforts that might arise. Make use of any adjustments that your office furniture or equipment provide to accommodate changes in posture
• Short, periodic breaks help ensure healthy computing: Because computing is primarily a static activity, it is particularly important to take short breaks from your work. Periodically, stand up from your work area, stretch, walk for a drink of water, or otherwise take a short break from using your computer. A short break from work gives your body a welcome change in posture and helps to ensure you remain comfortable and productive while you do work.

Accessibility information

Lenovo is committed to providing greater access to information and technology to people with disabilities. With assistive technologies, users can access information in the way most appropriate to their disability. Some of these technologies are already provided in your operating system; others can be purchased through vendors or accessed at:

https://www-03.ibm.com/research/accessibility/requests/accypat.nsf/lenovo-bidx?OpenForm

Adjusting your monitor image

This section describes the user control features used to adjust your monitor image.

Using the direct access controls

The direct access controls can be used when the On Screen Display (OSD) is not displayed.

Table 2-1. Direct access controls

Icon	Control	Description
	Image Setup	Activates automatic image adjustment.
	Brightness	Direct access to Brightness adjustment.
	Input Change	Switches the video input source.

To use other direct access controls:

1. Press and hold for 10 seconds to lock the OSD. This will prevent accidental adjustments to the OSD. Press and hold for 10 seconds to unlock the OSD and allow adjustments to the OSD.
2. Enables DDC/CI by default. Use OSD Exit Key, Press and hold the button for 10 seconds to disable / enable DDC/CI function. The words "DDC/CI Disable" or "DDC/CI Enable" will be displayed.

Using the On-Screen Display (OSD) controls

The settings adjustable with the user controls are viewed through the On-Screen Display (OSD), as shown below.

To use the controls:

1. Press ← to open the main OSD menu.
2. Use ← or → to move among the icons. Select an icon and press ← to access that function. If there is a sub-menu, you can move between options using ← or →, then press ← to select that function. Use ← or → to make adjustments. Press ← to save.
3. Press to move backwards through the sub-menus and exit from the OSD.

Table 2-2. OSD functions

OSD Icon on Main Menu	Submenu	Description	Controls and Adjustments (Analog)		Controls and Adjustments (Digital)
[7XW]Brightness-/Contrast	[ZG2D]Brightness	Adjusts overall brightness			Same as Analog
	Contrast	Adjusts difference between light and dark areas
Image Position	Horizontal Position	Moves the image left or right.			ControlsLocked not required for digital input
	Vertical Position	Moves the image up or down.
Image Setup	[SZT5]Automatic	Automatically optimizes the image.
	Manual	Manually optimizes the image. See "Manual mage setup" [WT28] 3-4. · Clock · Phase · Save
Image Properties	Color	Adjusts intensity of red, green, and blue.			Same as Analog
	Pres ode	· Reddish · sRGB * · Neutral · Bl
	C n	· Red: Increases or decreases the saturation of "red" in the image. · Green: Increases or decreases the saturation of "green" in the image. · Blue: Increases or decreases the saturation of "blue" in the image. · Save: Saves the custom color choices.
	Input Signal	This monitor can accept video signals through two different connectors. Most desktop computers use a D-SUB connector. Select digital among OSD Controls when you use DVI connector. · Selects D-SUB (Analog) · Selects DVI (Digital)
	[HRTH]Scaling	Expends image size to full screen. · Off (Original AR): same Aspect Ratio with input signal. · On (Full): Expends image size to full screen.
Options	[TT06]Information	Shows resolution, refresh rate, and product details. Note: This screen does not allow any changes to the settings.			Same as Analog
	[328C]Menu Language	This section lists the languages supported by your monitor. Note: The language chosen only affects the language of the OSD. It has no effect on any software running on the computer.

* Note: Brightness and Contrast can not be adjusted in sRGB mode.

Table 2-2. OSD functions (continued)

OSD Icon on Main Menu	Submenu	Description	Controls and Adjustments (Analog)	Controls and Adjustments (Digital)
Options	Mcni	Adjusts menu location on the screen.		Same as Analog
	Default	Returns the menu position to the default settings. · Horizontal: Changes the horizontal position of the OSD. · Vertical: Changes the vertical position of the OSD. · Save
	Custom
	[4YAB] Factory Default	· Cancel · Reset Resets monitor to the original factory settings.
	Accessibility	Change button repeat rate and menu time-out settings. Button repeat rate: Select← or → to change. · Off · Default · Slow ☑ Menu time out: Sets the length of time the OSD will remain active after the last time a button is pressed.
Exit		Exit the main menu		Same as Analog

Selecting a supported display mode

The display mode the monitor uses is controlled by the computer. Therefore, refer to your computer documentation for details on how to change display modes.

The image size, position and shape might change when the display mode changes. This is normal and the image can be readjusted using automatic image setup and the image controls.

Unlike CRT monitors, which require a high refresh rate to minimize flicker, LCD or Flat Panel technology is inherently flicker-free.

Note: If your system has previously been used with a CRT monitor and is currently configured to a display mode outside the range of this monitor, you may need to re-attach the CRT monitor temporarily until you have re-configured the system; preferably to 1920 x 1080 at 60 Hz, which is the Native Resolution Display mode.

The display modes shown below have been optimized at the factory.

Table 2-3. Factory set display modes

Addressability	Refresh rate
640 x 480	60 Hz, 72 Hz, 75 Hz
720 x 400	70 Hz
800 x 600	56 Hz, 60 Hz, 72 Hz, 75 Hz
832 x 624	75 Hz
1024 x 768	60 Hz, 70 Hz, 75 Hz
1152 x 864	75 Hz
1280 x 720	60 Hz
1280 x 800	60 Hz
1280 x 1024	60 Hz, 75 Hz
1440 x 900	60 Hz
1600 x 900	60 Hz, 75 Hz
1680 x 1050	60 Hz,
1920 x 1080	60 Hz

Understanding power management

Power management is invoked when the computer recognizes that you have not used your mouse or keyboard for a user-definable period. There are several states as described in the table below.

For optimal performance, switch off your monitor at the end of each working day, or whenever you expect to leave it unused for long periods during the day.

Table 2-4. Power indicator

State	Power Indicator	Screen	Restoring Operation	Compliance
On	Steady green	Normal
Standby/Suspend	Steady orange	Blank	Press a key or move the mouseThere may be a slight delay before the image reappears.Note: Standby also occurs if there is no image output to the monitor.	ENERGY STAR
Off	Off	Blank		ENERGY STAR

Caring for your monitor

Be sure to turn off the power before you perform any maintenance on the monitor.

Do not:

• Apply water or liquid directly to your monitor.
  • Use solvents or abrasives.
• Use flammable cleaning materials to clean your monitor or any other electrical equipment.
• Touch the screen area of your monitor with sharp or abrasive items. This type of contact may cause permanent damage to your screen.
• Use any cleaner which contains an anti-static solution or similar additives. This may harm the coating of the screen area.

Do:

• Lightly dampen a soft cloth with water and use this to gently wipe the covers and the screen.
• Remove grease or finger marks with a damp cloth and a little mild detergent.

Preparing the monitor for wall-mounting

WARNING: To reduce the risk of personal injury or of damage to the equipment, check that the wall-mounting fixture is adequately installed and secured before attaching the monitor. Refer to the instructions supplied with the wall-mounting fixture and check that it is capable of supporting the monitor.

1. Disconnect the power cable and any other cables from the monitor.
2. Place the monitor face down on a flat, protected surface.
3. Remove the monitor base from stand.

Three-step diagram showing a hand cleaning a clean material, then handling a device with a mesh structure, and finally disassembly into a final container (no text or symbols)

1. Remove the monitor stand cover by pushing the top surface of the cover.
2. Remove the three screws in the monitor stand. Lift the monitor stand off the monitor.

Three-step diagram showing a mechanical assembly with highlighted components and directional arrows (no text or symbols)

1. Four threaded holes are exposed. These holes are for screws to attach the swing arm or other mounting fixture to the back of the monitor.

1. Follow the instructions included with the mounting fixture to ensure that the monitor is safely attached.
2. Attach a swing arm or other mounting fixture.

NOTE: For use only with UL(expand UL) Listed Wall Mount Bracket with minimum weight/load bearing capacity of 3.5 kg.

Chapter 3. Reference information

This section contains monitor specifications, instructions to manually install the monitor driver, troubleshooting information, and service information.

Monitor specifications

Table 3-1. Monitor specifications for type-model 3783-HB2

Dimensions	Height	383.0 mm (15.08 in.)
	Depth	157.4 mm (6.20 in.)
	Width	508.0 mm (20.0 in.)
Panel	Size	21.5 in.
	Backlight LED
	Aspect Ratio	16:9
Stand	Tilt range	Range: -5°, +20°
VESA mount	Supported	100 mm (3.94 in.)
Image	Viewable image size	546.1 mm (21.5 in.)
	Maximum height	267.8 mm (10.54 in.)
	Maximum width	476.2 mm (18.74 in.)
	Pixel pitch	0.248 mm (.0098 in.) (V)
Power input	Supply voltage	100 - 240 V~AC, 50/60 Hz
	Max supply current	1.5 A
Power consumptionNote: Power consumption figures are for the monitor and the power supply combined.	Max Consumption(Including USB hub)	< 25 W
	Typical Consumption	< 22 W
	Standby/SuspendOff< 0.5 W	< 0.5 W (Analog and Digital)
Video input (Analog)	Input signal	Analog Direct Drive, 75 ohm 0.7 V
	Horizontal addressability	1920 pixels (max)
	Vertical addressability	1080 lines (max)
	Clock frequency	205 MHz
Video input (Digital)	Interface	DV1
	Input Signal	VESA TMDS (Panel Link.)
	Horizontal addressability	1920 pixels (max)
	Vertical addressability	1080 lines (max)
	Clock frequency	165 MHz
Communications	VESA DDC	CI
Supported Display Modes(VESA Standard modesbetween noted ranges)	Horizontal frequencyVertical frequency	30 kHz - 83 kHz50 Hz - 76 Hz
	Native Resolution	1920 x 1080 at 60 Hz
Temperature	OperatingStorageShipping	0^ to 40^ C( 32^ to104^ F) - 20^ to 60^ C( -4^ to140^ F) - 20^ to 60^ C( -4^ to140^ F)
Humidity	OperatingStorageShipping	8% to 80%5% to 95%5% to 95%

Troubleshooting

If you have a problem setting up or using your monitor, you might be able to solve it yourself. Before calling your dealer or Lenovo, try the suggested actions that are appropriate to your problem.

Table 3-2. Troubleshooting

Problem	Possible cause	Suggested action	Reference
The words "Out of Range" are shown on the screen, and the power indicator is flashing green.	The system is set to a display mode which is not supported by the monitor.	· If you are replacing an old monitor, reconnect it and adjust the display mode to within the specified range for your new monitor.· If using a Windows system, restart the system in safe mode, then select a supported display mode for your computer.· If these options do not work, contact the Support Center.	"Selecting a supported display mode" on page 2-5
The image quality is unacceptable.	The video signal cable is not connected with the monitor or system completely.	Be sure the signal cable is firmly plugged into the system and monitor.	"Connecting and turning on your monitor" on Page 1-3
	The color settings may be incorrect.	Select another color setting from the OSD menu.	"Adjusting your monitor image" on page 2-3
	The automatic image setup function was not performed.	Perform automatic image setup.	"Adjusting your monitor image"" on page 2-3
The power indicator is not lit and there is no image.	· The monitors power switch is not switched on.· The power cord is loose or disconnected.· There is no power at the outlet.	· Be sure the power cord is connected properly.· Be sure the outlet has power.· Power on the monitor.· Try using another power cord.· Try using another electrical outlet.	"Connecting and turning on your monitor" on Page 1-3
Screen is blank and power indicator is steady amber or flashing green	The monitor is in Standby/Suspend mode	Press any key on the keyboard or move the mouse to restore operation.Check the Power Options settings on your computer.	"Understanding power management" on Page 2-6
The power indicator is green, but there is no image.	The video signal cable is loose or disconnected from the system or monitor.	Be sure the video cable is connected with the system properly.	"Connecting and turning on your monitor" on Page 1-3
	The monitor brightness and contrast are at the lowest setting.	Adjust the brightness and contrast setting on the OSD menu.	"Adjusting your monitor image" on page 2-3
One or more of the pixels appear discolored	This is a characteristic of the LCD technology and is not an LCD defect.	If there are more than five pixels missing, contact the Lenovo Support Center.	Appendix A, "Service and Support," on page A-1
Fuzzy lines in text or a blurry image.Horizontal or vertical lines through the image.	Image setup has not been optimizedYour systemDisplay Properties setting have not been optimized.	Adjust the resolution settings on your system to match the native resolution for this monitor: 1920 x 1080 at 60 Hz.	"Adjusting your monitor image" on page 2-3"Manual image setup"
		Perform automatic image setup.If automatic image setup does not help, perform manual image setup.	"Selecting a supported display mode" on page 2-5
		When working in the native resolution, you may find additional improvements by adjusting the Dots Per Inch (DPT) setting on your system.	See the Advanced section of your systems display properties.

Manual image setup

If automatic image setup does not establish the image that you prefer, perform manual image setup.

Note: Have your monitor powered on for about 15 minutes, until the monitor warms up.

1. Press ← at the bottom of the monitor to open the OSD menu.
2. Use or to select ☐ and press to access.

3. Use or to select Clock and Phase adjustment.

4. Clock (pixel frequency) adjusts the number of pixels scanned by one horizontal sweep. If the frequency is not correct, the screen shows vertical stripes and the picture does not have the correct width.

5. Phase adjusts the phase of the pixel clock signal. With a wrong phase adjustment, the picture has horizontal disturbances in light picture.
6. When the image no longer looks distorted, save the Clock and Phase adjustments.
7. Press → to leave the OSD menu.

Installing the monitor driver in Windows Vista

To install the monitor driver in Microsoft® Windows Vista, do the following:

1. Turn off the computer and all attached devices.
2. Ensure that the monitor is connected correctly.

3. Turn on the monitor and then the system unit. Allow the system to boot into Windows Vista operating system.

4. Click Start → Control Panel, and then click the Hardware and Sound icon.

5. Click the Personalization icon.

6. Click the Display Settings icon.

7. Click the Advanced Settings button.

8. Click the Monitor tab.

9. Click the Properties button.

10. If the "Windows needs your permission to continue" window appears, click on Continue button. Then click the Driver tab.

11. Open the “Update Driver Software-Generic PnP Monitor” window by clicking on Update Driver. and then click the “Browse my computer for driver software” button.

12. Select "Let me pick from a list of device drivers on my computer".

13. Insert Lenovo Monitor CD into the CD drive and click the Have Disk button.Click on the Browse button and navigate to the following directory:

X:\Monitor Drivers

(where X is the drive letter designator for the CD-ROM drive).

1. Select the "LS2223wC.inf" file and click the Open button. Click the OK button.

2. Select Lenovo LS2223wC and click Next. The files will be copied from the CD to your hard disk drive.

3. Close all open windows and remove the CD.

4. Restart the system.

Note: On LCD monitors, unlike CRTs, a faster refresh rate does not improve display quality. Lenovo recommends using either 1920 x 1080 at a refresh rate of 60 Hz, or 640 x 480 at a refresh rate of 60 Hz.

Installing the monitor driver in Windows XP

To install the monitor driver in Microsoft® Windows XP, do the following:

1. Turn off the computer and all attached devices.
2. Ensure that the monitor is connected correctly.
3. Turn on the monitor and then the system unit. Allow the system to boot into Windows XP.
4. Open the Display Properties window by clicking Start → Settings → Control Panel, select/enter into the Display control panel.
5. Click the Settings tab.
6. Click the Advanced button.
7. Click the Monitor tab.
8. Click the Properties button.

9. Click the Drivers tab. → Settings →

10. Open the Hardware Update Wizard window by clicking on the Update Driver, If appears “Can Windows connect to Windows Update...” window, please select “No, not this time” option. and then click Next.

11. Select "Install from a list or Specific location(Advanced)", and then click Next.

12. Select "Don't search. I will choose the driver to install" option, and then click Next.

13. Click the Have Disk button. Click on the Browse button and navigate to the following directory:

X:\Monitor Drivers

(where X is the drive letter designator for the CD-ROM drive).

1. Select the "LS2223wC.inf" file and click the Open button. Click on the OK button.

2. Select Lenovo LS2223wC and click Next. The files will be copied from the CD to your hard disk drive.

3. Close all open windows and remove the CD.

4. Restart the system.

Note: On LCD monitors, unlike CRTs, a faster refresh rate does not improve display quality. Lenovo recommends using either 1920 x 1080 at a refresh rate of 60 Hz, or 640 x 480 at a refresh rate of 60 Hz.

Installing the monitor driver in Windows 7

Note: This section must be completed before continuing with the Windows 7 automatic image setup.

1. Turn off the computer and all attached devices.
2. Ensure that the monitor is connected correctly.
3. Turn on the monitor and then the system unit. Allow the system to boot into Windows 7.
4. Click Start→ Control Panel→ Display→ Change Display Settings.
5. Click the Advanced Settings.
6. Click the Monitor tab.
7. Click the Properties button.
8. Click the Drivers tab.
9. Click the Update Driver.
10. Select "Browse my computer for driver software" option.
11. Click on the Browse button and navigate to the following directory:

X:\Monitor Drivers

(where X is the drive letter designator for the CD-ROM drive).

1. Select the "LS2223wC.inf" file and click the Open button. Click on the OK button.

2. Select Lenovo LS2223wC and click Next. The files will be copied from the CD to your hard disk drive.

3. Close all open windows and remove the CD.

4. Restart the system.

Note: On LCD monitors, unlike CRTs, a faster refresh rate does not improve display quality. Lenovo recommends using either 1920 x 1080 at a refresh rate of 60 Hz, or 640 x 480 at a refresh rate of 60 Hz.

Service information

Customer responsibilities

The warranty does not apply to a product which has been damaged due to accident, misuse, abuse, improper installation, usage not in accordance with product specifications and instructions, natural or personal disaster, or unauthorized alterations, repairs or modifications.

The following are examples of misuse or abuse and not covered by warranty:

• Images burned onto the screen of a CRT monitor. Burned image is preventable by utilizing a moving screen saver or power management.
  • Physical damage to covers, bezel, base and cables.
• Scratches or punctures on monitor screens.

Service parts

The following parts are for use by Lenovo service, or Lenovo authorized dealers, to support the customer warranty. Parts are for service use only. The table below shows information for model 3783-HB2.

Table 3-3. List of service parts

FRU (Field Replaceable Unit) Part number	Description	Color	Machine Type Model (MTM)
03X7963	Monitor_LS2223wC	Business Black	3783-HB2
03X7964	Signal cable (Analog)	Business Black	3783-HB2
03X7965	Signal cable (Digital)	Business Black	3783-HB2
03X7966	Stand & Base	Business Black	3783-HB2

Appendix A. Service and Support

The following information describes the technical support that is available for your product, during the warranty period or throughout the life of your product. Refer to the Lenovo Limited Warranty for a full explanation of Lenovo warranty terms.

Registering your option

Register to receive product service and support updates, as well as free and discounted computer accessories and content. Go to: http://www.lenovo.com/register

Online technical support

Online technical support is available during the lifetime of a product at: http://www.lenovo.com/support

Product replacement assistance or exchange of defective components also is available during the warranty period. In addition, if your option is installed in a Lenovo computer, you might be entitled to service at your location. A Lenovo technical support representative can help you determine the best alternative.

Telephone technical support

Installation and configuration support through the Customer Support Center will be available until 90 days after the option has been withdrawn from marketing. After that time, the support is cancelled, or made available for a fee, at Lenovo's discretion. Additional support is also available for a nominal fee.

Before contacting a Lenovo technical support representative, please have the following information available: option name and number, proof of purchase, computer manufacturer, model, serial number and manual, the exact wording of any error message, description of the problem, and the hardware and software configuration information for your system.

Your technical support representative might want to walk you through the problem while you are at your computer during the call.

Telephone numbers are subject to change without notice. The most up-to-date telephone list for Lenovo Support is always available at: http://www.lenovo.com/support/phone

Country or Region	Telephone Number
Africa	Africa: [phone]South Africa: [phone] and 0800110756Central Africa: Contact the nears Lenovo Business Partner
Argentina	0800-666-0011 (Spanish)
Australia	131-426 (English)
Austria	Warranty service and support: 01-211-454-610 (German)
Belgium	Warranty service and support: 02-225-3611 (Dutch, French)
Bolivia	0800-10-0189 (Spanish)
Brazil	Sao Paulo region: (11) 3889-8986Outside Sao Paulo region: 0800-701-4815(Brazilian Portuguese)
Brunci	801-1041 (English, Bahasa Mclayu)
Canada	Toronto: 416-383-3344Outside Toronto: 1-800-565-3344(English, French)
Chile	Toll Free: 188-800-442-488800-361-213(Spanish)
China	86-10-58851110800-990-8888(Mandarin)
China(Hong Kong S.A.R.)	ThinkCentre® Commercial PC: 8205-0333Multimedia Home PC: 800-938-228(Cantonese, English, Mandarin)
China(Macau S.A.R.)	ThinkCentre Commercial PC: 795-9892Multimedia Home PC: 0800-336(Cantonese, English, Mandarin)
Colombia	1-800-912-3021 (Spanish)
Costa Rica	0-800-011-1029 (Spanish)
Croatia	0800-0426
Cyprus	[phone]
Czech Republic	[phone]
Denmark	Warranty service and support: 7010-5150 (Danish)
Dominican Republic	1-866-434-2080 (Spanish)
Ecuador	1-800-426911 (Spanish)
Egypt	[phone]
El Salvador	800-6264 (Spanish)
Estonia	[phone]+372 66 00 800
Finland	Warranty service and support: [phone] (Finnish)
France	Warranty service and support (hardware): 0810-631-213Warranty service and support (software): 0810-631-020(French)
Germany	Warranty service and support: 01805-00-46-18 (German)
Greece	[phone]
Guatemala	1800-624-0051 (Spanish)
Honduras	Tegucigalpa: 232-4222San Pedro Sula: 552-2234(Spanish)
Hungary	[phone]+36-1-382-5720(English, Hungarian)
India	1800-425-2666+91-80-2535-9182(English)
Indonesia	021 5238 823Local number only: 001-803-606-282DID (Direct Inward Dialing): [phone](English, Bahasa, Indonesia)
Ireland	Warranty service and support: 01-881-1444 (English)
Israel	Givat Shmuel Service Center: [phone] (Hebrew, English)
Italy	Warranty service and support: [phone] (Italian)
Japan	Toll Free: 0120-20-5550International: [phone]The above numbers will be answered with a Japanese language voice prompt. For telephone support in English, please wait for the Japanese voice prompt to end, and an operator will answer. Please say "English support please," and your call will be transferred to an English-speaking operator.PC software: 0120-558-695Overseas calls: [phone](Japanese)
Korea	1588-6782 (Korean)
Latvia	[phone]
Lithuania	[phone]
Luxembourg	[phone] (French)
Malaysia	Local number only: 1800-88-1889DID: [phone](English, Bahasa Mclayu)
Malta	[phone]
Mexico	001-866-434-2080 (Spanish)
Middle East	[phone]
Netherlands	[phone] (Dutch)
New Zealand	0800-733-222 (English)
Nicaragua	001-800-220-1830 (Spanish)
Norway	Warranty service and support: 8152-1550 (Norwegian)
Panama	Lenovo Customer Support Center: 001-866-434-2080 (Toll Free)206-6047(Spanish)
Peru	0-800-50-866 (Spanish)
Philippines	1800-1601-0033 (English, Filipino)
Poland	[phone] (Polski)
Portugal	[phone] (Portuguese)
Romania	[phone]
Russia	Moscow: [phone]Toll Free: [phone](Russian)
Singapore	Local number only: 800-6011-343DID: [phone] (English)
Slovakia	[phone]
Slovenia	[phone] (Slovenian)
Spain	91-714-79830901-100-000(Spanish)
Sri Lanka	[phone]+9411 2493548(English)
Sweden	Warranty service and support: 077-117-1040 (Swedish)
Switzerland	Warranty service and support: 0800-55-54-54(German, French, Italian)
Taiwan	886-2-8723-97990800-000-700(Mandarin)
Thailand	Local number only: 1-800-060-06666 2273 4088DID: [phone] (Thai, English)
Turkey	00800-4463-2041 (Turkish)
United Kingdom	Standard warranty support: 08705-500-900 (English)
United States	1-800-426-7378 (English)
Uruguay	000-411-005-6649 (Spanish)
Venezuela	0-800-100-2011 (Spanish)
Vietnam	For Northern Area and Hanoi City:844 3 946 2000 or 844 3 942 6457For Southern Area and Ho Chi Minh City:848 3 829 5160 or 844 3 942 6457(Vietnamese, English)

Appendix B. Notices

Lenovo may not offer the products, services, or features discussed in this document in all countries. Consult your local Lenovo representative for information on the products and services currently available in your area. Any reference to a Lenovo product, program, or service is not intended to state or imply that only that Lenovo product, program, or service may be used. Any functionally equivalent product, program, or service that does not infringe any Lenovo intellectual property right may be used instead. However, it is the user's responsibility to evaluate and verify the operation of any other product, program, or service.

Lenovo may have patents or pending patent applications covering subject matter described in this document. The furnishing of this document does not give you any license to these patents. You can send license inquiries, in writing, to:

Lenovo (United States), Inc.

1009 Think Place - Building One

Morrisville, NC 27560

U.S.A.

Attention: Lenovo Director of Licensing

LENOVO PROVIDES THIS PUBLICATION “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore, this statement may not apply to you.

This information could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these changes will be incorporated in new editions of the publication. Lenovo may make improvements and/or changes in the product(s) and/or the program(s) described in this publication at any time without notice.

The products described in this document are not intended for use in implantation or other life support applications where malfunction may result in injury or death to persons. The information contained in this document does not affect or change Lenovo product specifications or warranties. Nothing in this document shall operate as an express or implied license or indemnity under the intellectual property rights of Lenovo or third parties. All information contained in this document was obtained in specific environments and is presented as an illustration. The result obtained in other operating environments may vary.

Lenovo may use or distribute any of the information you supply in any way it believes appropriate without incurring any obligation to you.

Any references in this publication to non-Lenovo Web sites are provided for convenience only and do not in any manner serve as an endorsement of those Web sites. The materials at those Web sites are not part of the materials for this Lenovo product, and use of those Web sites is at your own risk.

Any performance data contained herein was determined in a controlled environment. Therefore, the result obtained in other operating environments may vary significantly. Some measurements may have been made on development-level systems and there is no guarantee that these measurements will be the same on generally available systems. Furthermore, some measurements may have been estimated through extrapolation. Actual results may vary. Users of this document should verify the applicable data for their specific environment.

Recycling information

Lenovo encourages owners of information technology (IT) equipment to responsibly recycle their equipment when it is no longer needed. Lenovo offers a variety of programs and services to assist equipment owners in recycling their IT products. For information on recycling Lenovo products, go to: http://www.lenovo.com/lenovo/environment/recycling

環境配慮に関して

Collecting and recycling a disused Lenovo computer or monitor

If you are a company employee and need to dispose of a Lenovo computer or monitor that is the property of the company, you must do so in accordance with the Law for Promotion of Effective Utilization of Resources. Computers and monitors are categorized as industrial waste and should be properly disposed of by an industrial

waste disposal contractor certified by a local government. In accordance with the Law for Promotion of Effective Utilization of Resources, Lenovo Japan provides, through its PC Collecting and Recycling Services, for the collecting, reuse, and recycling of disused computers and monitors. For details, visit the Lenovo Web site at www.ibm.com/jp/pc/service/recycle/pcrecycle/. Pursuant to the Law for Promotion of Effective Utilization of Resources, the collecting and recycling of home-used computers and monitors by the manufacturer was begun on October 1, 2003. This service is provided free of charge for home-used computers sold after October 1, 2003. For details, visit the Lenovo Web site at www.ibm.com/jp/pc/service/recycle/personal/.

Disposing of Lenovo computer components

Some Lenovo computer products sold in Japan may have components that contain heavy metals or other environmental sensitive substances. To properly dispose of disused components, such as a printed circuit board or drive, use the methods described above for collecting and recycling a disused computer or monitor.

Trademarks

The following terms are trademarks of Lenovo in the United States, other countries, or both:

Lenovo

The Lenovo logo

ThinkCentre

Microsoft, Windows, and Windows NT are trademarks of the Microsoft group of companies.

Other company, product, or service names may be trademarks or service marks of others.

Turkish statement of compliance

The Lenovo product meets the requirements of the Republic of Turkey Directive on the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment (EEE).

Lenovo and the Lenovo logo are trademarks of Lenovo in the United States, other countries, or both.

Ukraine RoHS
