T7010 - Electrical Transformer Speco Technologies - Free user manual and instructions

Product Type	Audio Transformer
Brand	Speco Technologies
Model	T7010
Application	Converts 8 Ohm speakers to 70V/25V constant voltage systems
Input Impedance (Speaker Side)	8 Ohms
Output Voltage Options	70V or 25V
Power Taps Available	10W, 5W, 2.5W, 1.25W, 0.6W, 0.25W
Wiring (Speaker Side)	Red (+) and Black (-) wires; install within 10 ft of speaker
Wiring (Amplifier Side)	Black (-) common; colored wires for power taps; longer runs allowed
Maximum Total Power	Do not exceed 80% of amplifier rated power
Daisy Chaining	Keep all positives together and negatives together for proper phase
Unused Wires	Cut and insulate with electrical tape or wire nuts
Warranty	1 year limited against manufacturing defects
Dimensions (Approx.)	3 x 2 x 2 inches
Weight (Approx.)	0.5 lbs
Compliance	For use with 70V or 25V amplifiers only
Installation Requirement	Close to speaker on 8 Ohm side; longer runs on 70V side

Frequently Asked Questions - T7010 Speco Technologies

How do I connect the T7010 transformer to my speaker?

On the 8 Ohm side, connect the red wire to the speaker's positive (+) terminal and the black wire to the negative (-) terminal. Keep the transformer within 10 feet of the speaker to avoid power loss.

How do I select the correct power tap on the 70V side?

The 70V side has colored wires. Choose the wire corresponding to the desired wattage (e.g., 10W, 5W, etc.). Connect that wire to the positive terminal of your amplifier via speaker wire. The black wire is common/negative.

Can I use the T7010 with a 25V amplifier?

Yes, but you must use the 25V taps only. Using 70V taps on a 25V system will damage equipment. Speco Technologies is not responsible for improper installation.

What is the maximum total wattage I can connect to my amplifier?

The total power of all selected taps should not exceed 80% of the amplifier's rated power. For example, a 100W amp can support a maximum of 80W of speakers.

How do I daisy chain multiple T7010 transformers?

Ensure proper phase by connecting all positive terminals together and all negative terminals together. This keeps speakers in phase.

What should I do with unused wires on the 70V side?

Cut off the bare portion of unused leads and insulate them with electrical tape or wire nuts to prevent short circuits.

What is the warranty for the T7010?

Speco Technologies provides a 1-year limited warranty against manufacturing defects. It does not cover misuse, improper installation, or unauthorized repairs.

Can I extend the speaker wires on the 8 Ohm side?

No. The transformer should be installed within 10 feet of the speaker. Longer distances will result in power loss.

What tools do I need for installation?

Basic tools like wire strippers, screwdrivers, and electrical tape or wire nuts. No soldering is required.

Is the T7010 compatible with any 8 Ohm speaker?

Yes, the T7010 is designed to convert any 8 Ohm residential speaker to a constant voltage 70V or 25V system for commercial use.

USER MANUAL T7010 Speco Technologies

Thank you for your choice of Speco Technologies' T7010 transformer. This unit is ideal for converting 8 Ohms, residential style speakers to a constant voltage 70V format for use in commercial installations. With this accessory, literally any 8 Ohms speaker could potentially be used in a 70V system.

INSTALLATION INSTRUCTIONS:

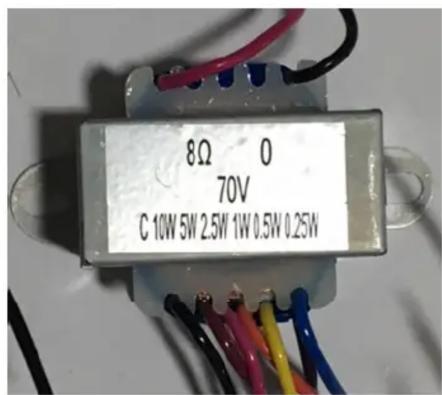

1) The label on the top of the transformer indicates whether those corresponding wires are for use with the 8 Ohms, or speaker, side, and 70V, or amplifier, side.
2) On the 8 Ohms side, there is a red and a black wire. The red wire should be connected to the positive (+) terminal on your speaker. The black, or common, wire should be connected to the negative (-) terminal on your speaker. PLEASE NOTE THAT THIS TRANSFORMER SHOULD BE INSTALLED AS CLOSE TO THE SPEAKER AS IS REALISTIC. DISTANCES FURTHER THAN 10' WILL RESULT IN A LOSS OF POWER TO THE SPEAKER.

3) On the 70V side, there are 7 cables of varying colors. The black (leftmost wire) is the negative/common wire and should be connected to the negative/common output on your amplifier. You can connect speaker wire in between your amplifier and your transformer and the distance is not as important as it is on the 8 Ohms side.

4) The power taps range from 10W down to 0.25W. Choose the color cable that corresponds with the desired power, and via speaker wire, connect that to the positive terminal on your amplifier.

5) IMPORTANT: Ensure the total power of all wattage taps selected on all transformers running from this amplifier does not exceed 80% of the rated power of the amplifier. (e.g., if the amp rated power is 100W, do not put more than 80W of speakers on it). Speco Technologies is NOT responsible for damage to equipment due to improper installation.

6) IMPORTANT: Ensure you are wiring the proper voltage. Only use 70V taps with a 70V amplifier, and 25V taps with a 25V amplifier. Speco Technologies is NOT responsible for damage to equipment due to improper installation.

7) If daisy chaining speakers, ensure speakers remain in phase by keeping all the positives wired together and all the negatives wired together.

8) Cutoff bare portion of unused leads and terminate with electrical tape or wire nuts.

WARRANTY INFORMATION:

We warranty this product to be free from any manufacturing or material defects for one (1) year from the date of purchase.

This warranty will not extend to any products which have been subjected to misuse, neglect, accident, or improper installation, used in violation of instructions furnished by us; or to units which have been repaired or altered outside of the factory. This limited warranty does not apply to broken cases, batteries, or other physically damaged parts. If a Speco Technologies product is purchased from an unauthorized distributor or other source, including RETAILERS, MAIL ORDER SELLERS and ONLINE SELLERS, it will not be honored or serviced under existing Speco Technologies warranty policy. Any sale of products by an unauthorized source or other manner not authorized by Speco Technologies will void the warranty on the applicable product.

Upon request by customer, Speco Technologies ("The Company") will, at customer's expense, repackage merchandise in new cartons, replace missing accessories, and return in resalable condition. Unless requested, the company will replace and return all merchandise in the packaging in which it was received. This warranty is in lieu of all expressed warranties, expressed or implied, and of all obligations or liability on our part, and we neither assume nor authorize any representative or other person to assume for us any obligation or liability. In no event shall we be liable for incidental or consequential damages arising from the use of the product, or for any delay in the use of this product due to causes beyond our control. Some states do not allow limitations of how long an implied warranty lasts and/or do not allow the exclusion or limitation of consequential damages. The above limitations on implied warranty and consequential damages may not apply to you. This warranty gives you specific legal rights. You may have other rights which vary from state to state. This limited warranty extends to products listed in the company's current price schedule.
