Product Type	Car Seat
Brand	InfaSecure
Model	Momentum More
Dimensions (H x W x D)	25.6 x 18.1 x 16.9 inches (65 x 46 x 43 cm)
Weight	12.5 lbs (5.7 kg)
Age Range	0 to 8 years (approx.)
Height Limit	49 inches (125 cm)
Weight Limit (Rear-facing)	5–40 lbs (2.3–18.1 kg)
Weight Limit (Forward-facing)	22–65 lbs (10–29.5 kg)
Installation Method	Vehicle seat belt or LATCH system
Safety Features	Side impact protection, 5-point harness, energy-absorbing foam
Harness Type	5-point adjustable harness
Crotch Buckle	Adjustable crotch buckle positions
Recline Positions	Multiple recline positions for rear and forward facing
Headrest Adjustment	Adjustable headrest with 7 positions
Harness Height Adjustment	No-rethread harness adjustment
Cup Holder	Removable cup holder included
Cover Material	Fabric, removable and machine washable
Cleaning Instructions	Remove cover and wash on gentle cycle; air dry. Wipe plastic parts with damp cloth.
Expiration Date	10 years from date of manufacture
Certifications	Meets FMVSS 213 standard
Warranty	1 year limited warranty

Frequently Asked Questions - Momentum More InfaSecure

What are the height and weight limits for rear-facing use?

The InfaSecure Momentum More allows rear-facing from 5 to 40 lbs and up to 40 inches in height. Keep your child rear-facing as long as possible.

Can this car seat be installed without the base?

Yes, the seat can be installed using the vehicle seat belt without the base. Always follow the manual for correct routing.

How do I clean the car seat cover?

Remove the fabric cover by unthreading the harness. Machine wash on gentle cycle in cold water, then air dry only. Do not bleach or iron.

What is the expiration date of this car seat?

The seat expires 10 years from the date of manufacture. Check the sticker on the seat shell for exact date.

Is the Momentum More suitable for newborns?

Yes, it accommodates infants from 5 lbs and includes an infant insert for proper positioning of small babies.

Can I use the LATCH system for forward-facing installation?

Yes, LATCH can be used for forward-facing up to 65 lbs. However, always check your vehicle's LATCH weight limits.

How do I adjust the harness height?

The harness adjusts without rethreading. Simply move the headrest up or down to align the harness with your child's shoulders.

Is the seat cushion removable?

The body padding and headrest cover are removable but the main seat foam is not. Spot clean if needed.

What safety certifications does this car seat have?

It meets or exceeds FMVSS 213 standards for crash testing and side impact protection.

How tight should the harness be?

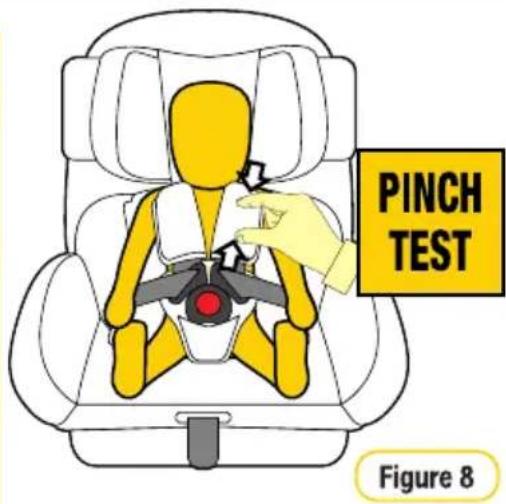

The harness should be snug – you should not be able to pinch any slack at the chest clip. Use the pinch test.

USER MANUAL Momentum More InfaSecure

Infant To Child Convertible Car Seat

CS8813/CS8913 Type A4/B

0 Months to 4 Years

(Rearward Facing) Suitable for children from birth to approximately 30 months* of age.

(Forward Facing) Suitable for children from 6 months to approximately 4 years* of age.

IMPORTANT: KEEP THIS BOOKLET IN THE PLACE PROVIDED ON CHILD RESTRAINT.

Certified Product

Australian

Standard

AS/NZS: 1754:2013

Licence No. 25324-2

SAI Global

Rearward Facing Mode Seat Belt Installation (Use For Infant)

SETUP
REFER TO PAGES 11 - 19

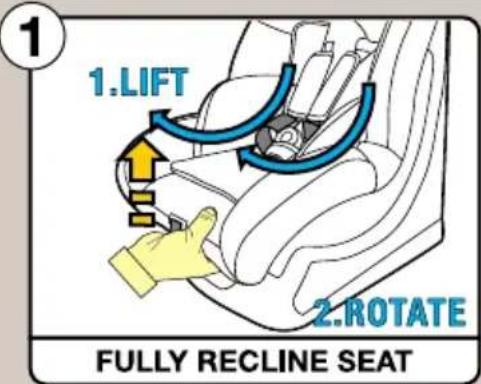

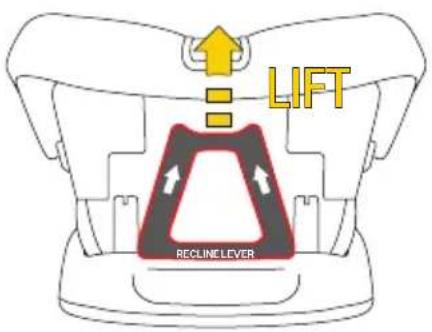

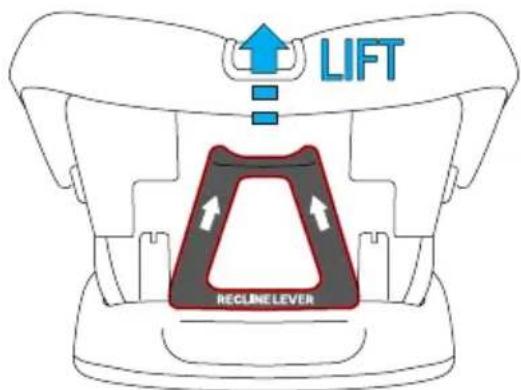

1 1.LIFT 2.ROTATE FULLY RECLINE SEAT

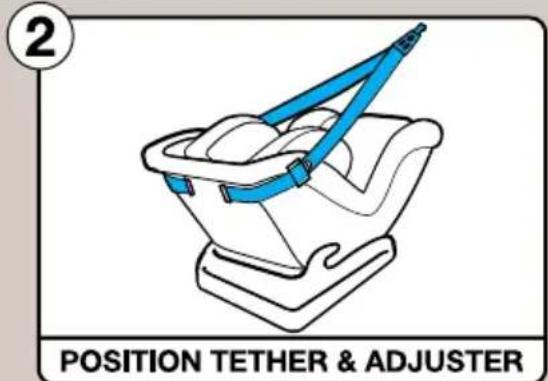

2 POSITION TETHER & ADJUSTER

REFER TO PAGES 16 - 18

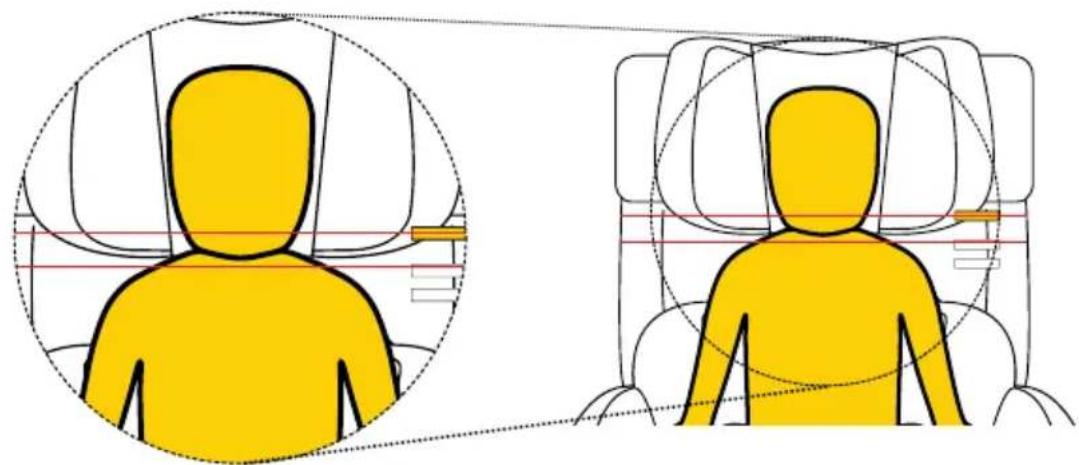

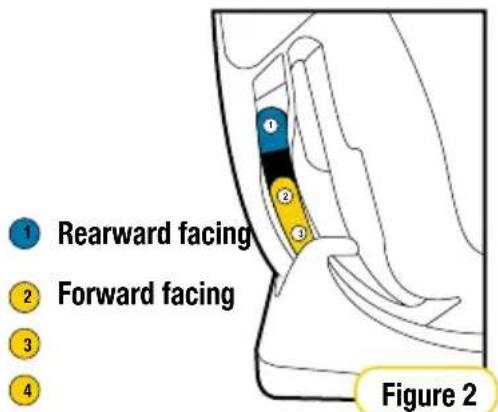

SLOT SELECTION

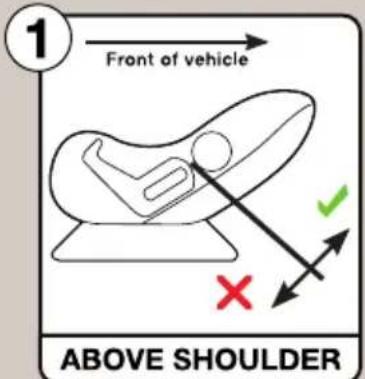

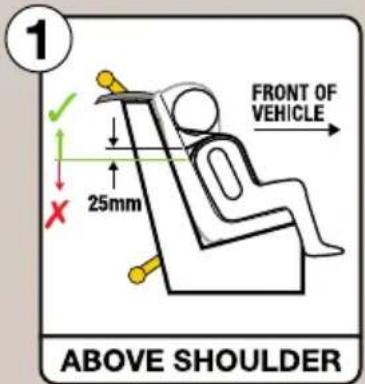

1 Front of vehicle ✓ × ABOVE SHOULDER

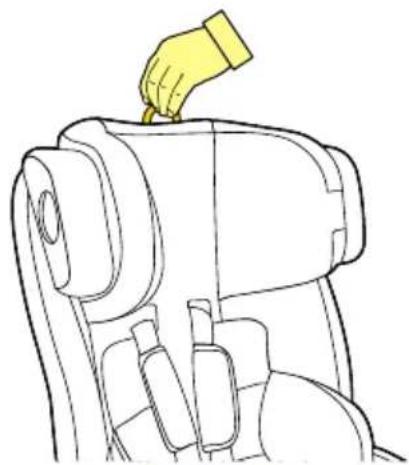

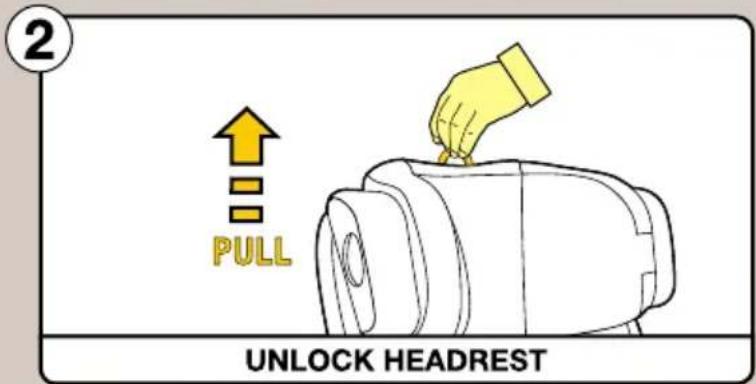

2 PULL UNLOCK HEADREST

3 "RAISE" "LOWER" ADJUST HEADREST

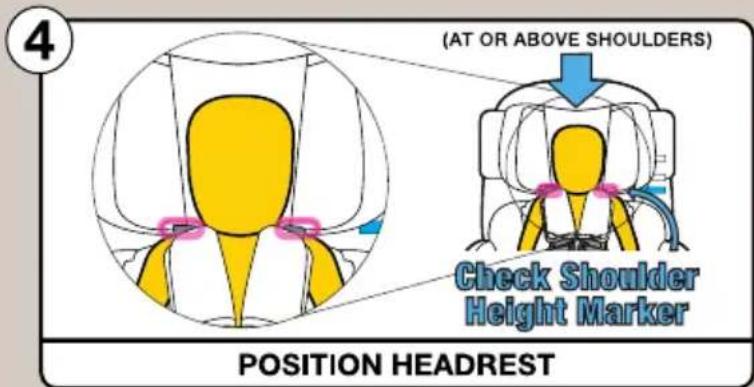

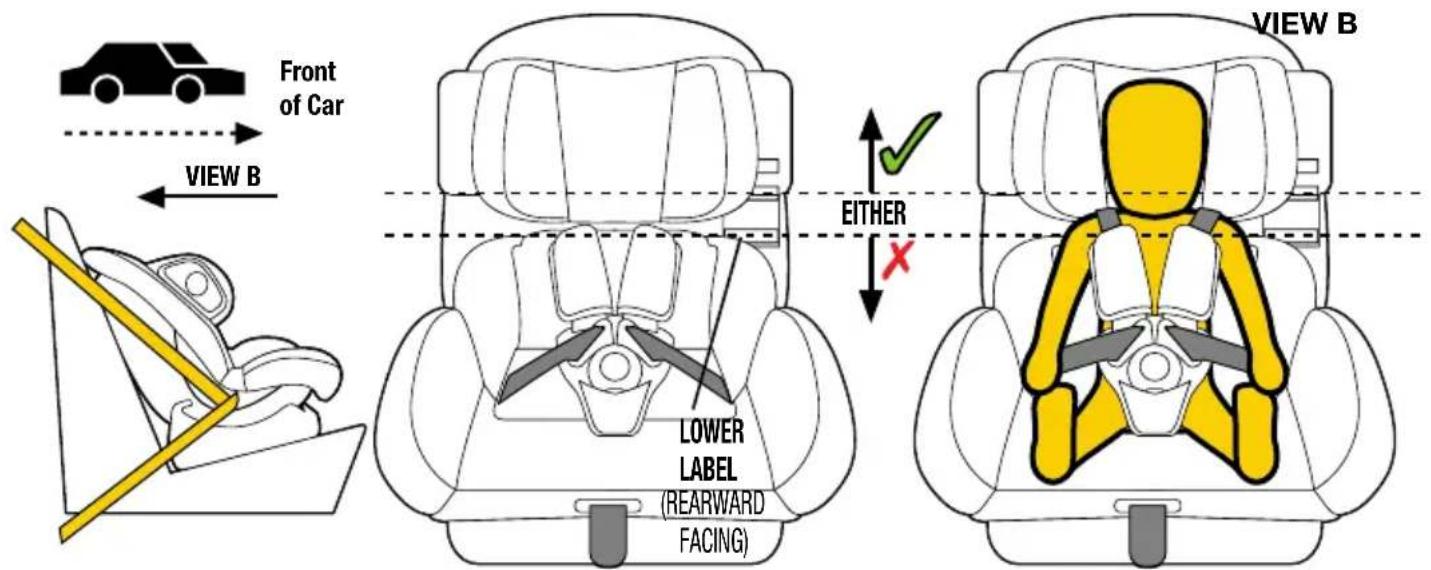

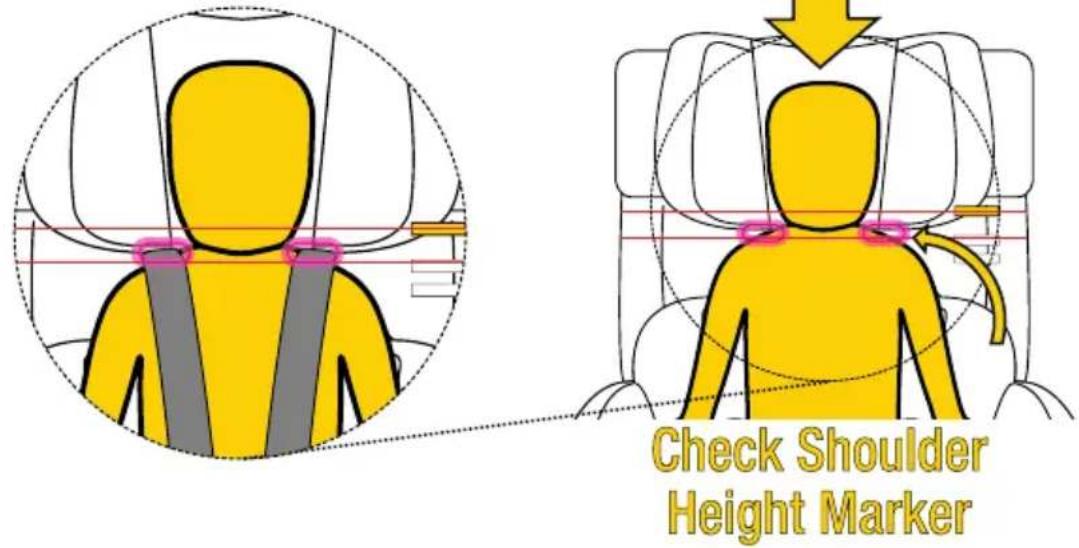

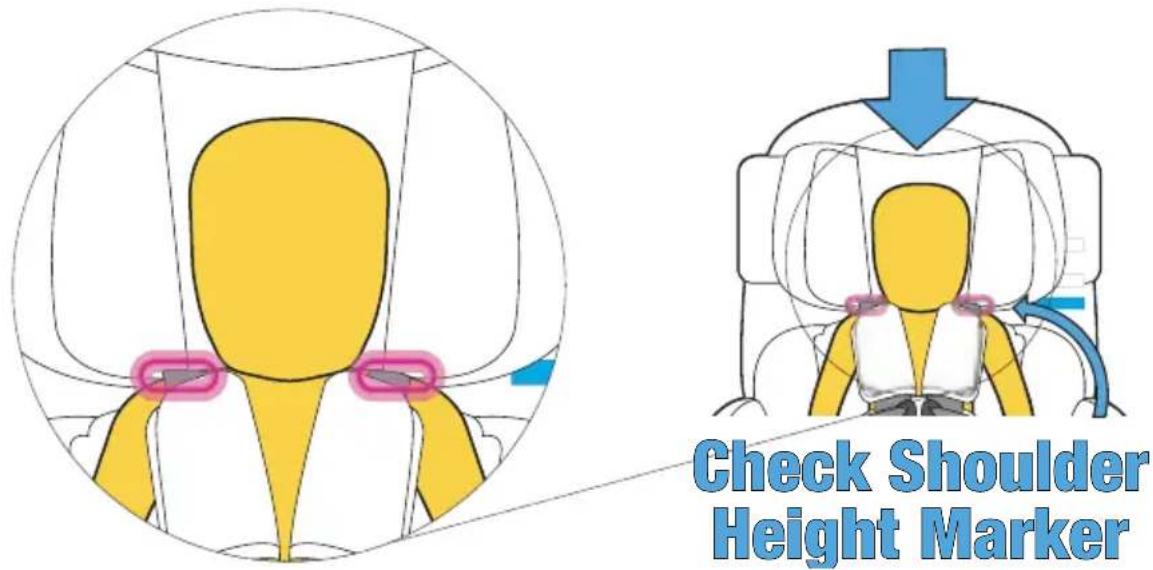

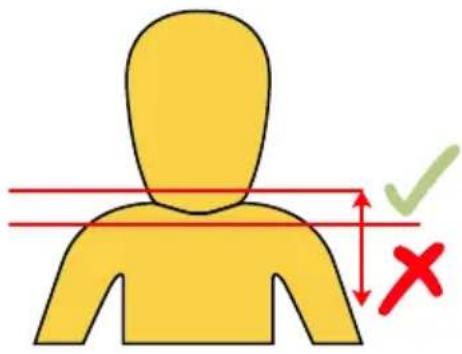

(AT OR ABOVE SHOULDERS) Check Shoulder Height Marker POSITION HEADREST

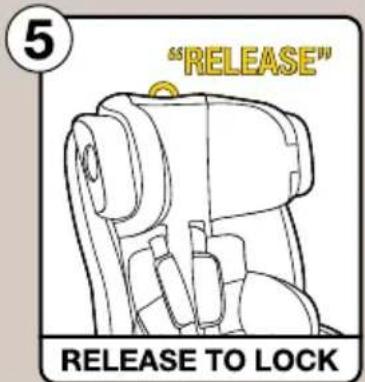

5 "RELEASE" RELEASE TO LOCK

6 "CHECK" CHECK HEADREST IS LOCKED IN POSITION

Rearward Facing Mode Seat Belt Installation (Use For Infant)

INSTALLATION

REFER TO PAGES 20 - 23

1

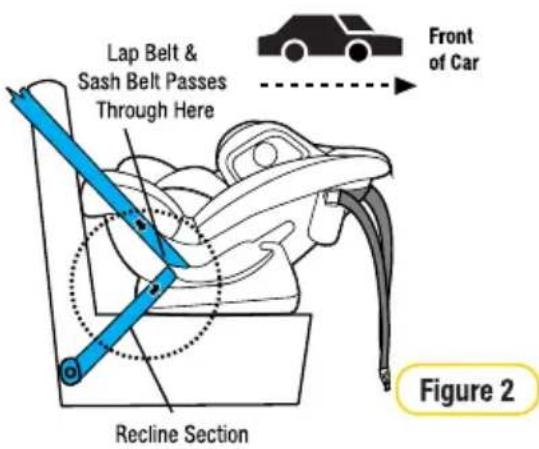

EXPOSE SEATBELT PATH

2

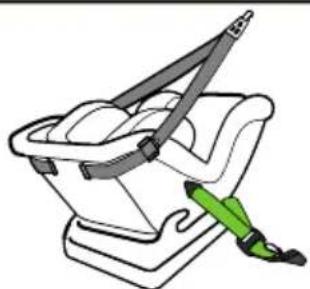

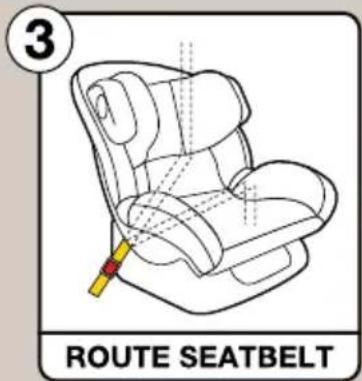

2 轮椅架 ROUTE SEATBELT

3

"CLICK" CLICK SEATBELT

4

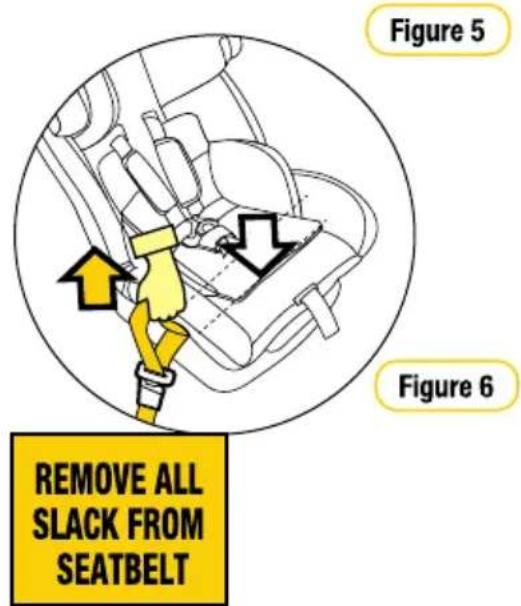

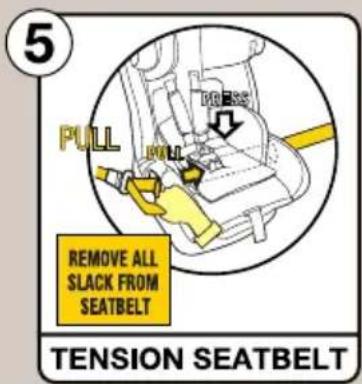

4 REMOVE ALL SLACK FROM SEATBELT TENSION SEATBELT

5

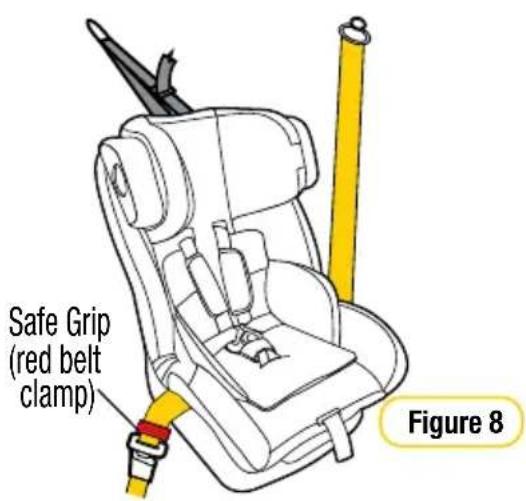

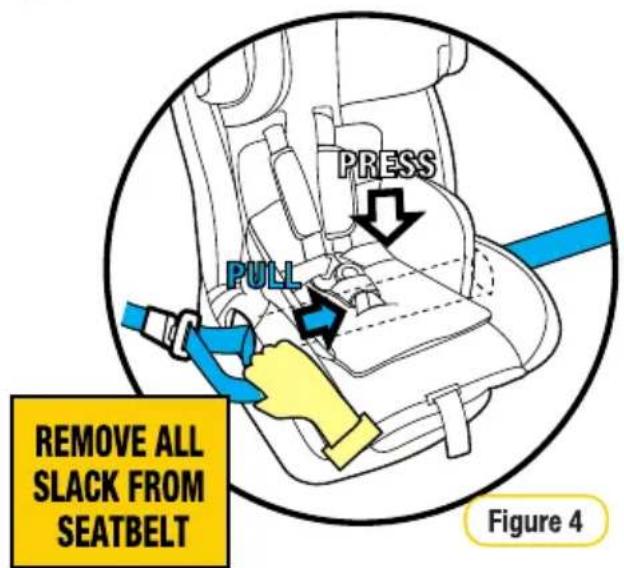

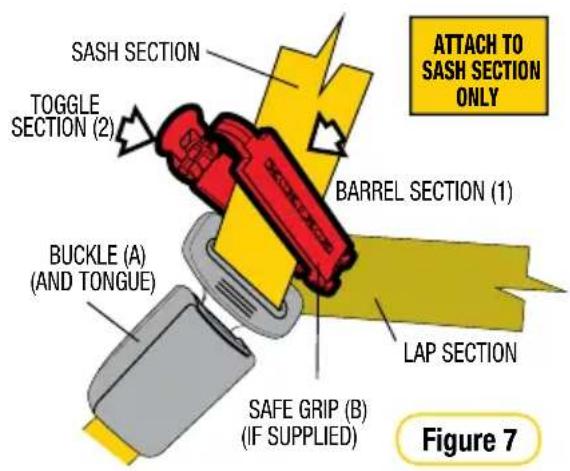

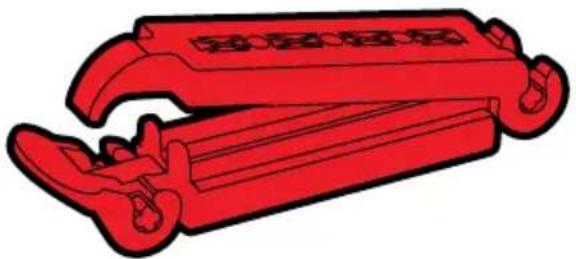

SASH SECTION ATTACH TO SASH SECTION ONLY LAP SECTION SAFE GRIP (IF SUPPLIED) LOCKING CLIP

6

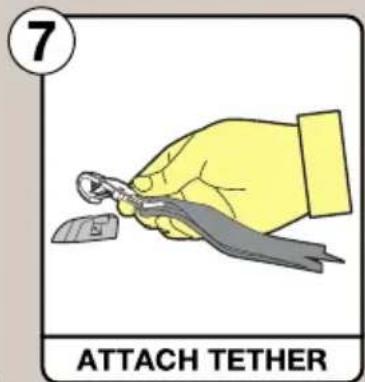

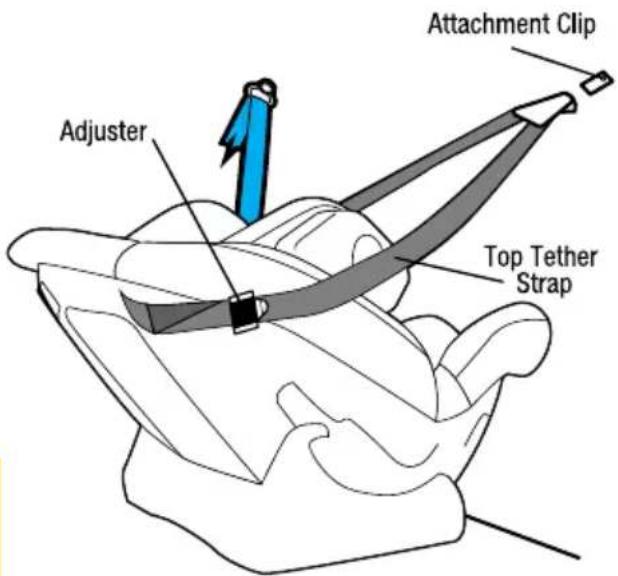

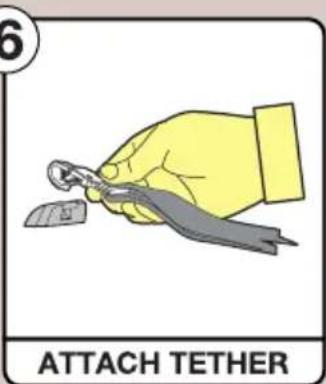

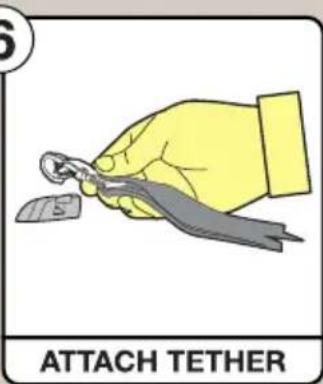

ATTACH TETHER

7

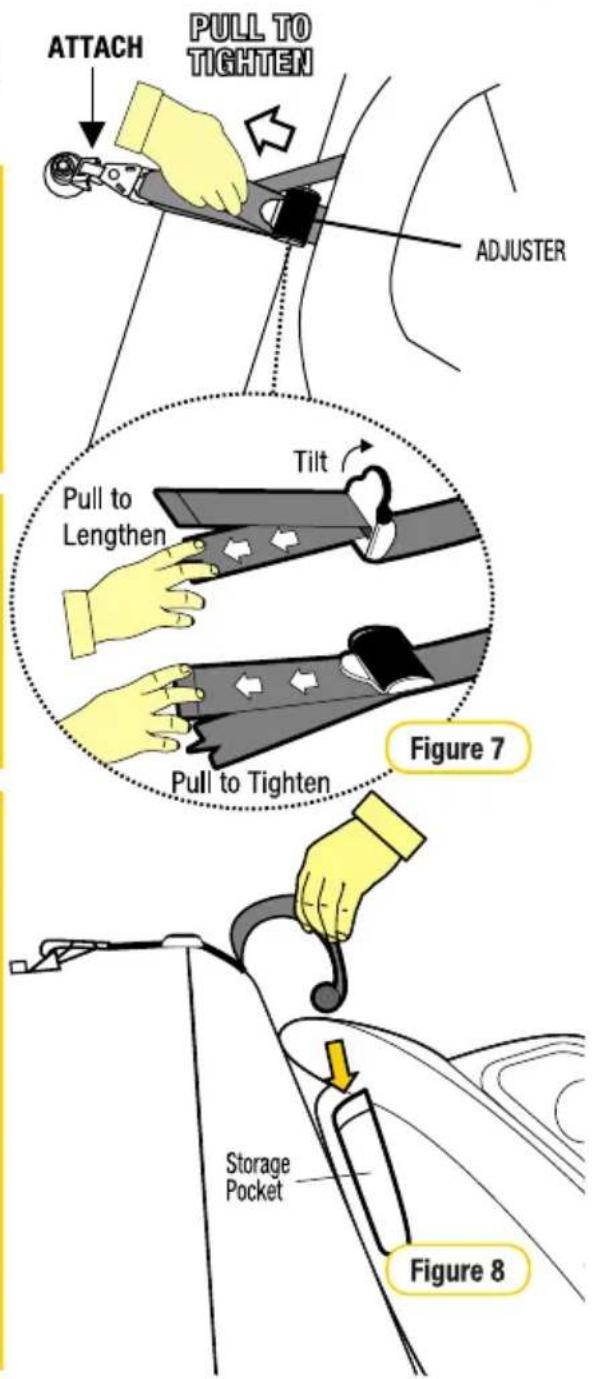

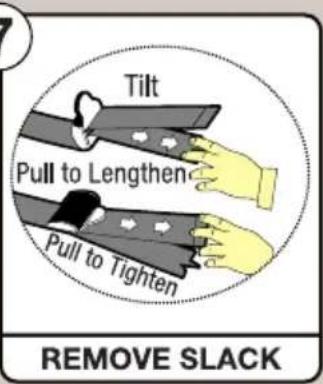

Tilt Pull to Lengthen Pull to Tighten REMOVE SLACK

8

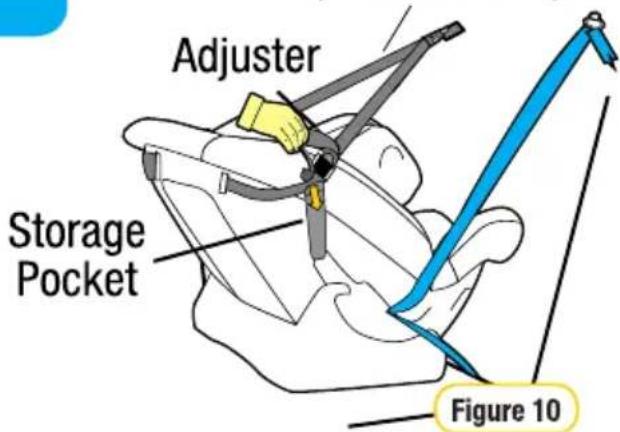

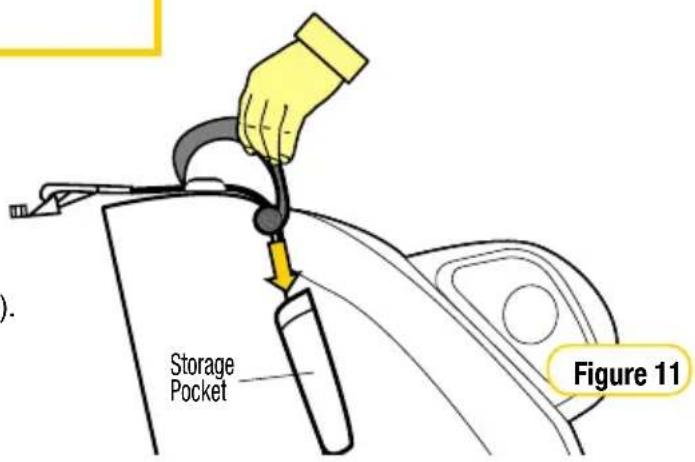

STORE TETHER

ISOFIX Rearward Facing Mode (Use For Infant)

INSTALLATION

REFER TO PAGES 24 - 28

1

Illustration of a car seatbelt device with a yellow handle and green belt (no text or symbols)

LIFT COVER TO LOCATE ISOFIX STRAPS

2

Line drawing of a car seatbelt with a green handle (no text or symbols)

RELEASE ISOFIX

3

PUSH PUSH

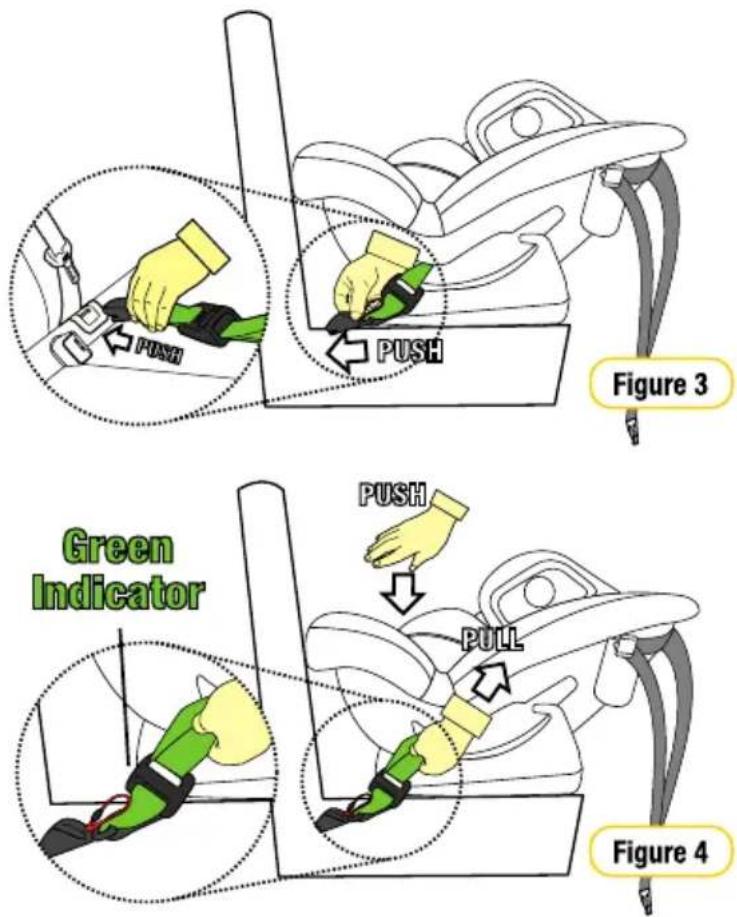

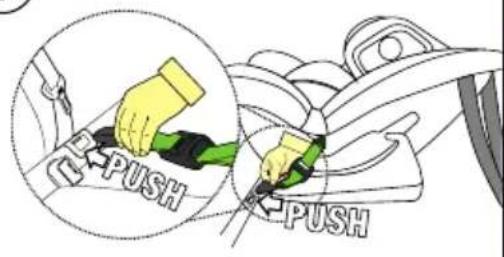

ATTACH ISOFIX

4
PUSH ON SEAT

LAC Strap

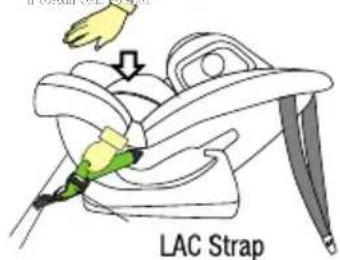

TENSION

5

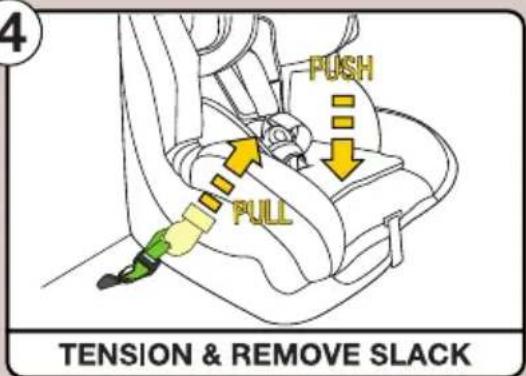

Green Indicator PULL REMOVE ALL SLACK FROM SEATBELT LAC Strap

REMOVE SLACK

6

Illustration of a hand holding a key with a ribbon, no text or symbols present

ATTACH TETHER

7

Tilt Pull to Lengthen Pull to Tighten

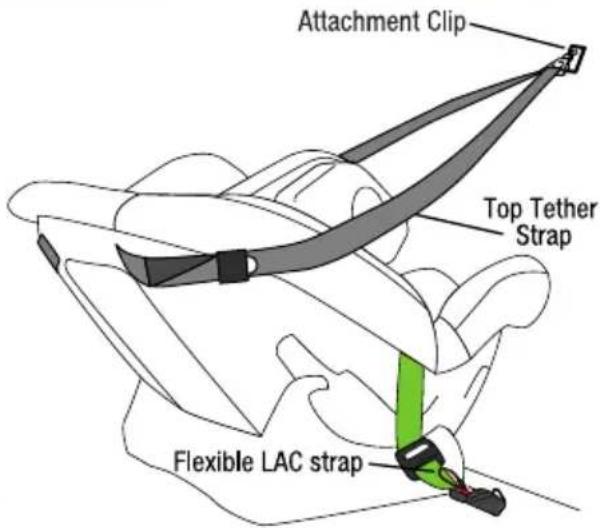

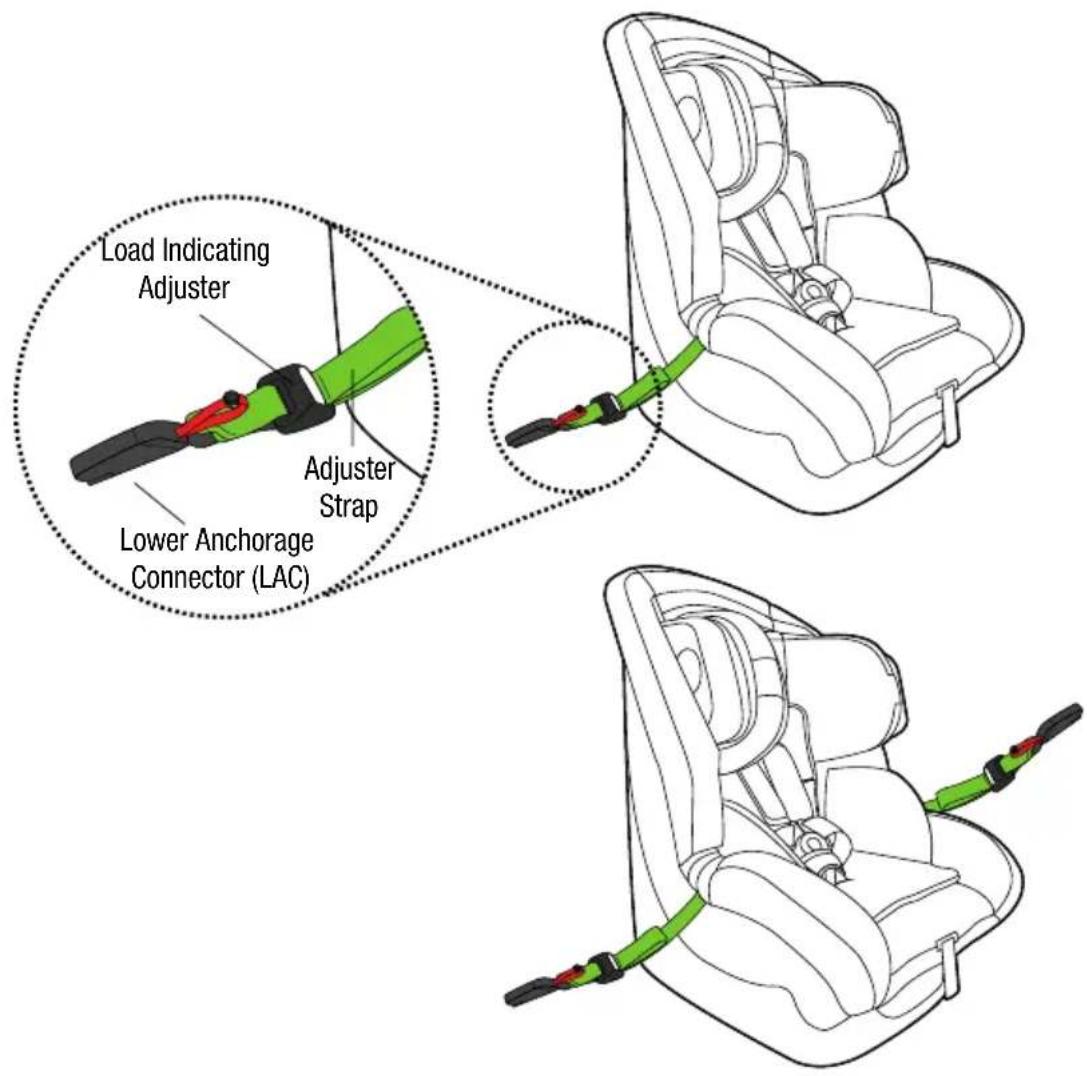

Top Tether Strap Adjuster Storage Pocket Flexible LAC strap

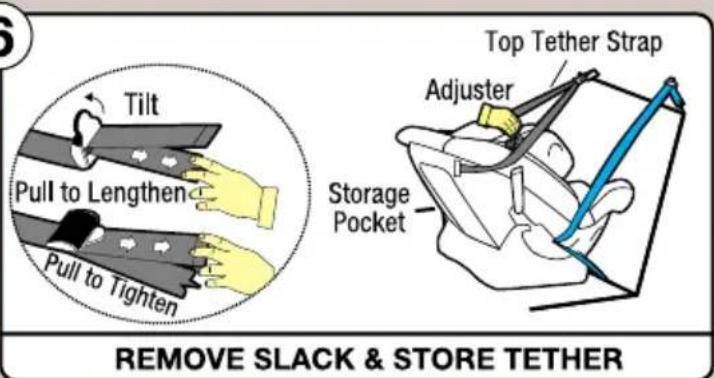

REMOVE SLACK & STORE EXCESS TETHER

Rearward Facing Mode Seat Belt Installation (Use For Infant)

REFER TO PAGES 29 - 32

USE

1

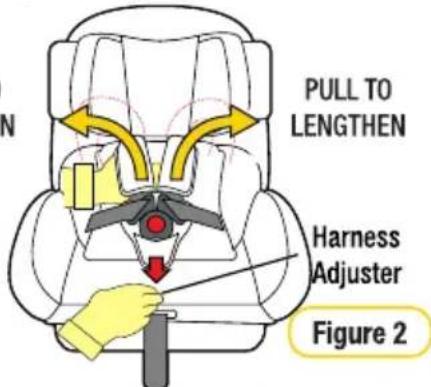

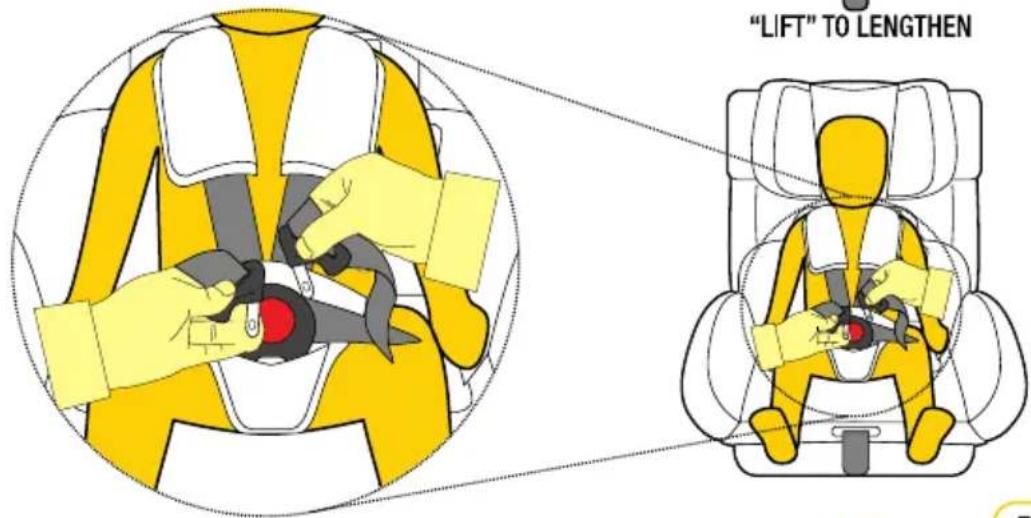

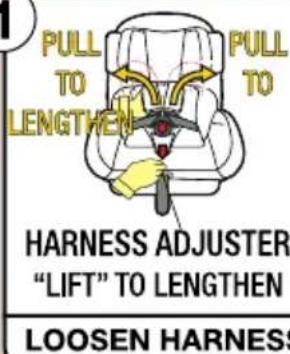

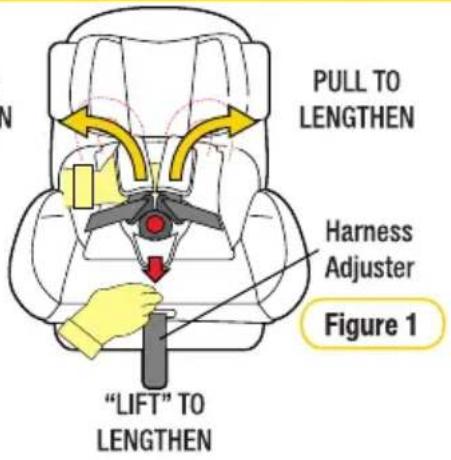

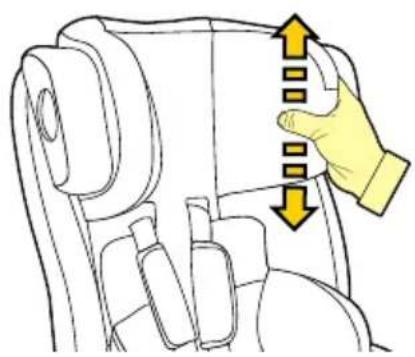

PULL TO LENGTH PULL TO LENGTH HARNESS ADJUSTER "LIFT" TO LENGTHEN LOOSEN HARNESS

2

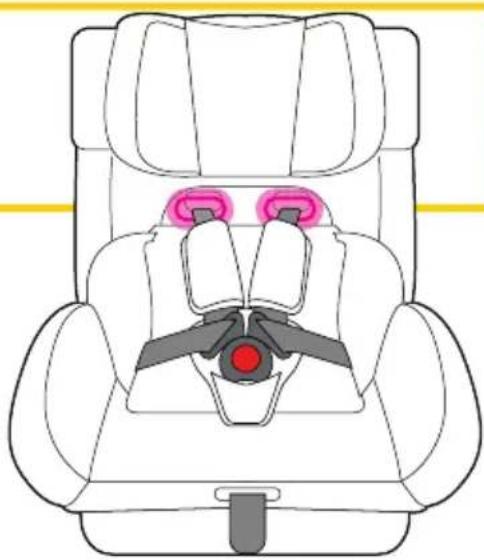

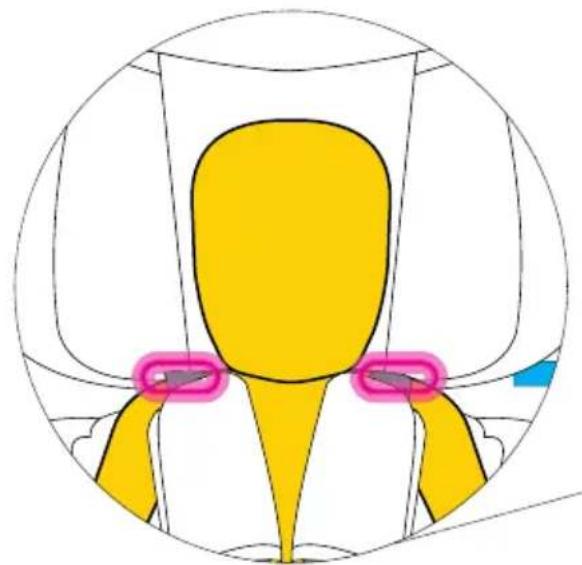

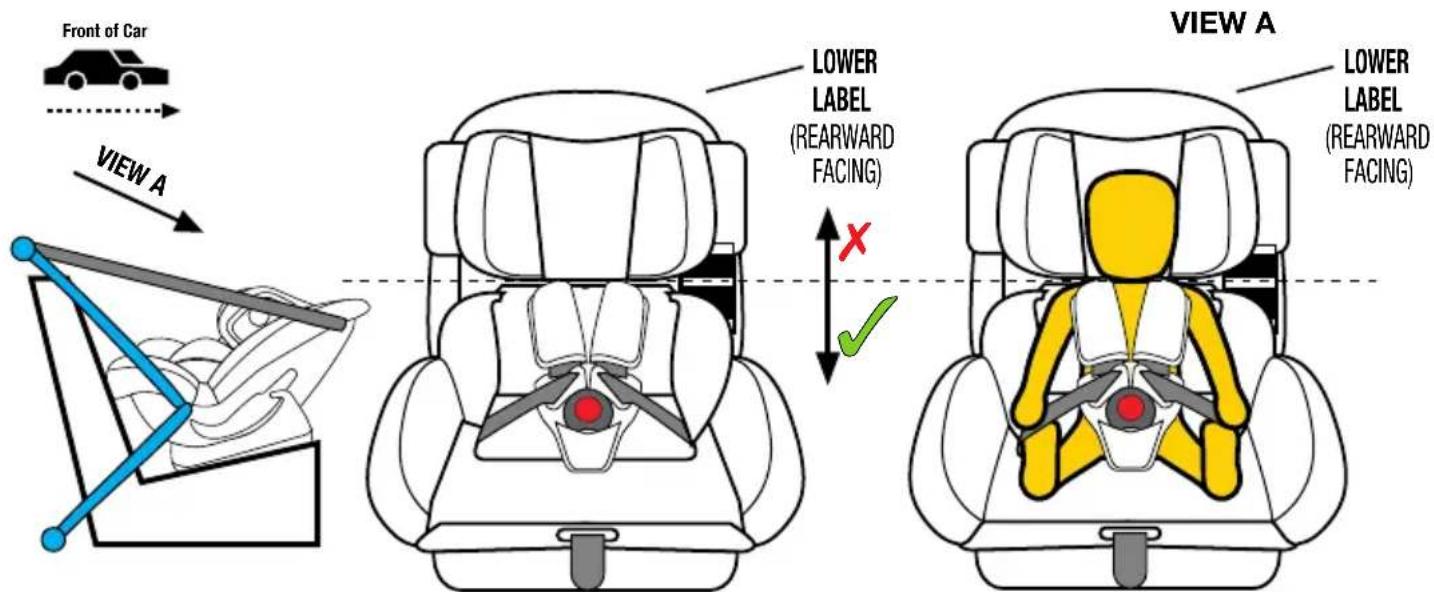

CHECK HEADREST / SLOT POSITION Check Shoulder Height Marker

3

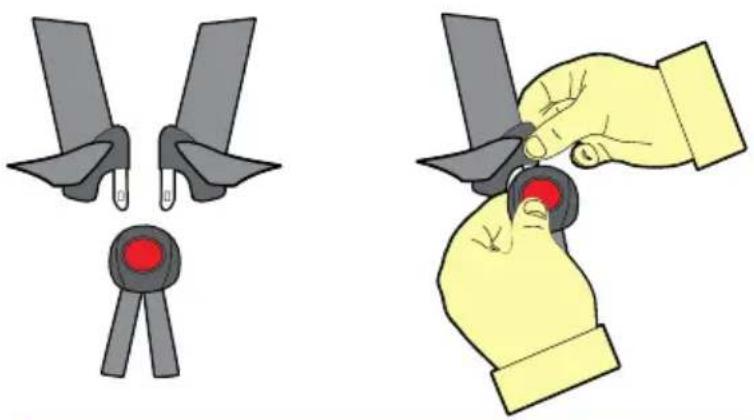

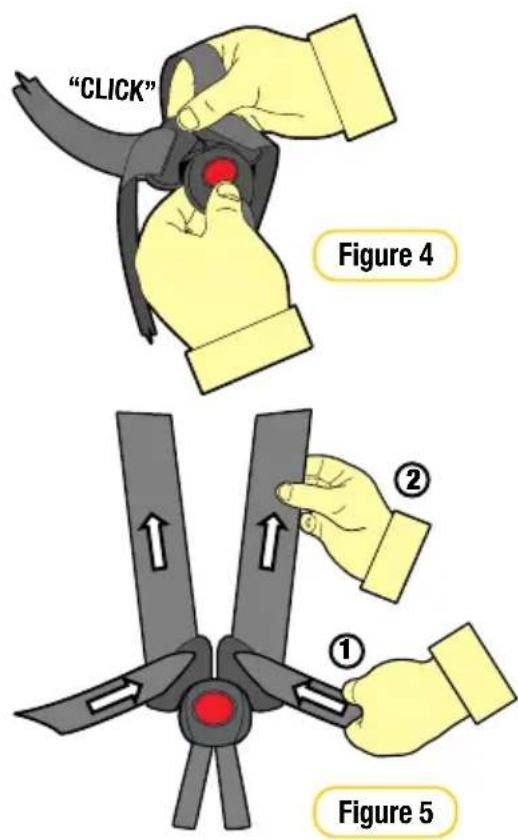

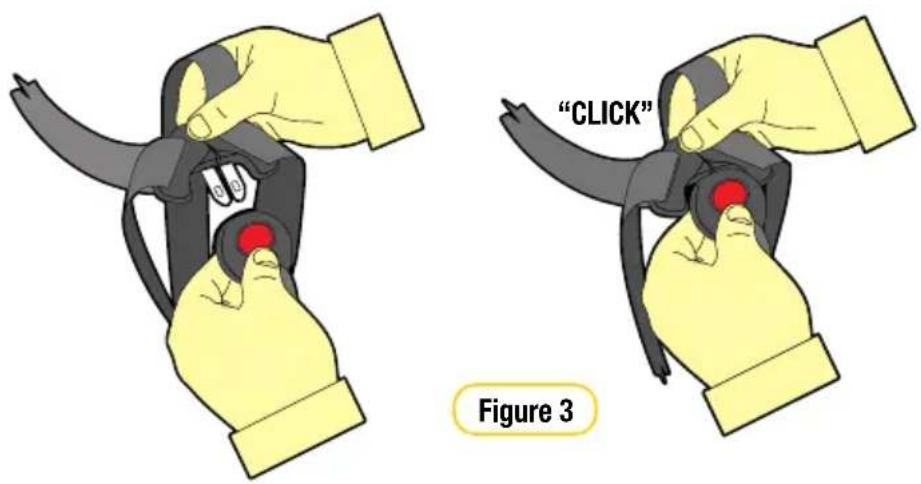

3 CONNECT TONGUES & BUCKLE POSITION CHILD & CLIP BUCKLE

4

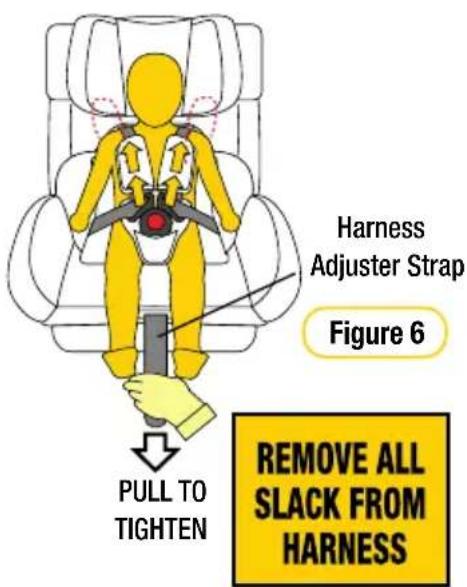

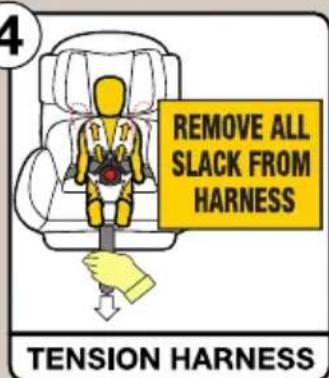

REMOVE ALL SLACK FROM HARNESS TENSION HARNESS

5

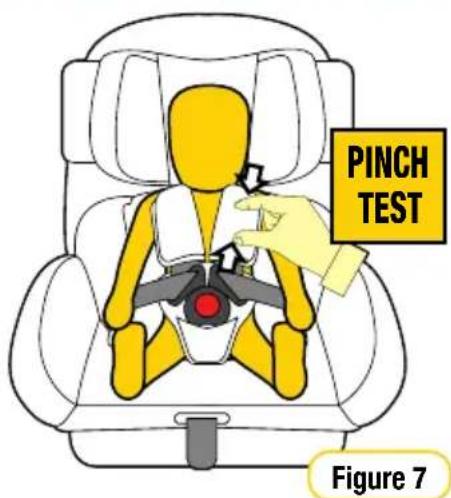

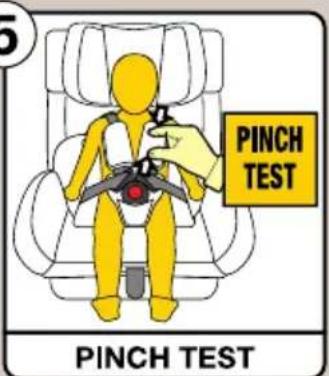

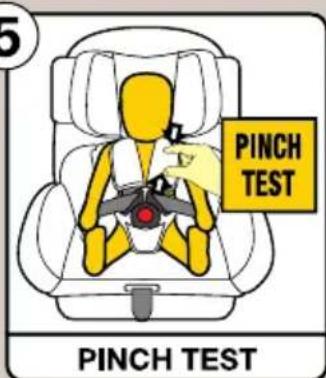

5 PINCH TEST PINCH TEST

6

Tilt Pull to Lengthen Pull to Tighten Top Tether Strap Adjuster Storage Pocket REMOVE SLACK & STORE TETHER

ISOFIX Forward Facing Mode (Use For Child)

SETUP
REFER TO PAGES 38 - 42

1 LIFT RELEASE

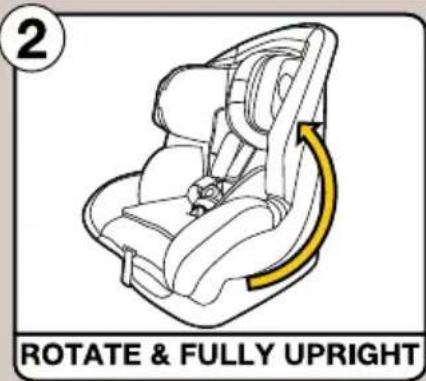

2 ROTATE & FULLY UPRIGHT

3 Rearward facing Forward facing SELECT RECLINE ANGLE

SLOT SELECTION

REFER TO PAGES 39 - 41

1 25mm FRONT OF VEHICLE ABOVE SHOULDER

2 PULL UNLOCK HEADREST

3 "RAISE" "LOWER" ADJUST HEADREST

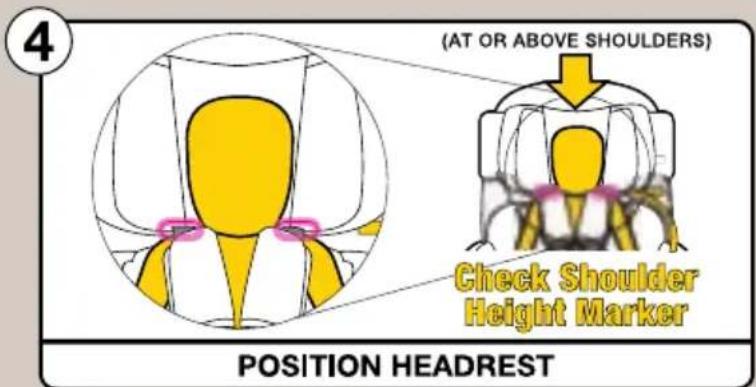

(AT OR ABOVE SHOULDERS) Check Shoulder Height Marker POSITION HEADREST

5 "RELEASE" RELEASE TO LOCK

6 "CHECK" CHECK HEADREST IS LOCKED IN POSITION

Forward Facing Mode (Use For Child)

INSTALLATION

REFER TO PAGES 43 - 46

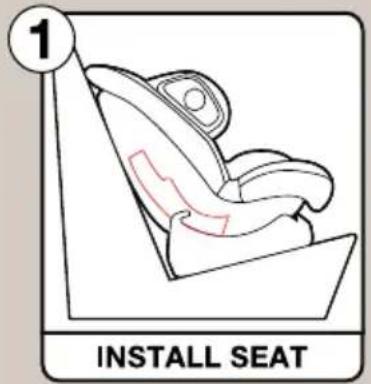

1 INSTALL SEAT

2 SEATBELT PATH

3 ROUTE SEATBELT

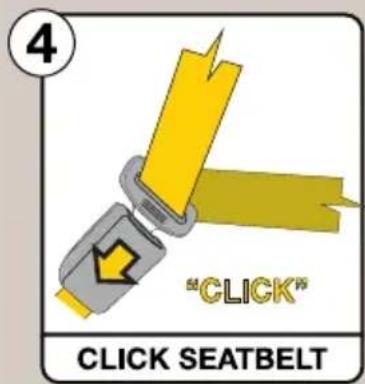

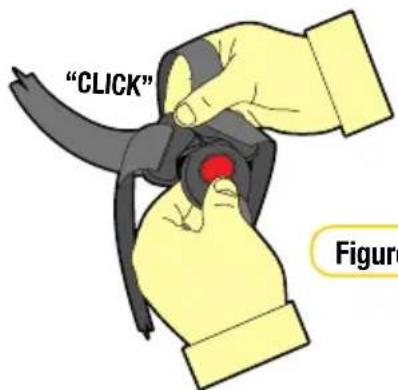

4 "CLICK" CLICK SEATBELT

5 PULL PULL PRESS REMOVE ALL SLACK FROM SEATBELT TENSION SEATBELT

6 SASH SECTION ATTACH TO SASH SECTION ONLY LAP SECTION SAFE GRIP (IF SUPPLIED) LOCKING CLIP

7 ATTACH TETHER

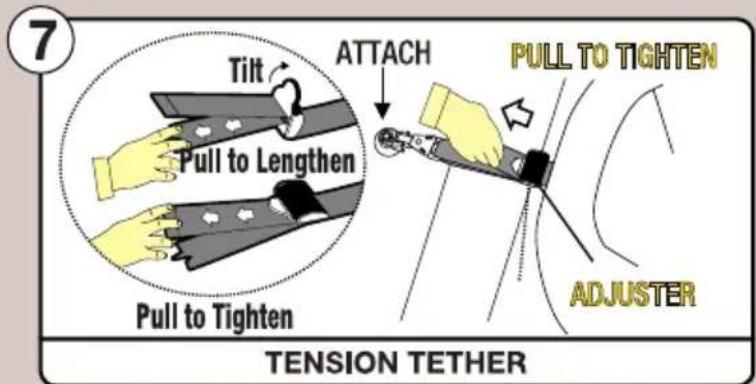

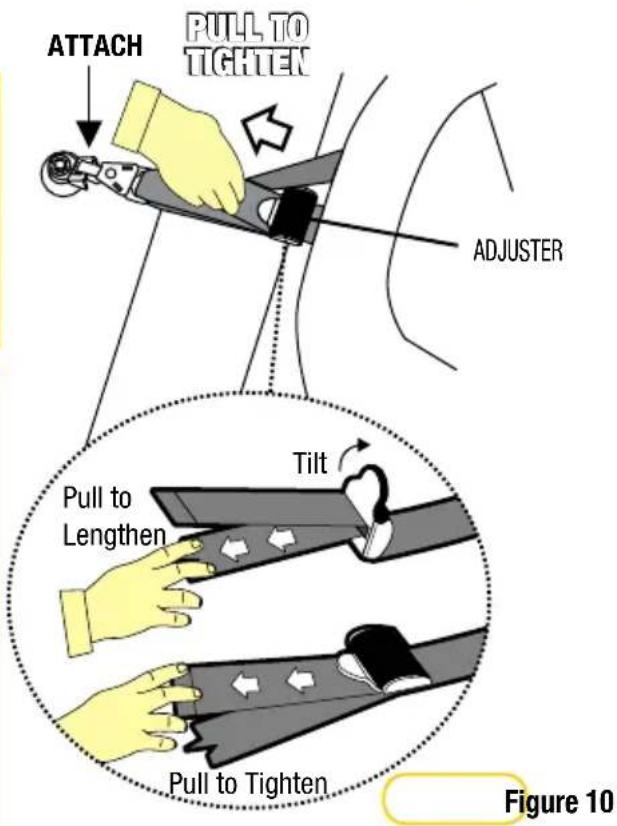

8 ATTACH PULL TO TIGHTEN ADJUSTER Pull to Lengthen Tilt Pull to Tighten TENSION TETHER

ISOFIX Forward Facing Mode (Use For Child)

INSTALLATION

REFER TO PAGES 47 - 50

1

INSTALL SEAT

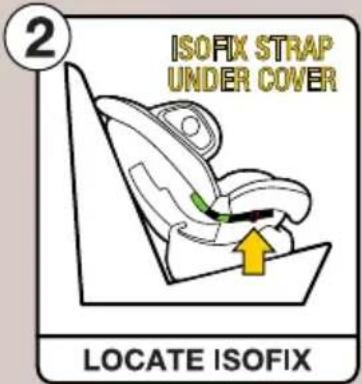

2 ISOFIX STRAP UNDER COVER LOCATE ISOFIX

3 PUSH ATTACH ISOFIX

4

4 PUSH PULL TENSION & REMOVE SLACK

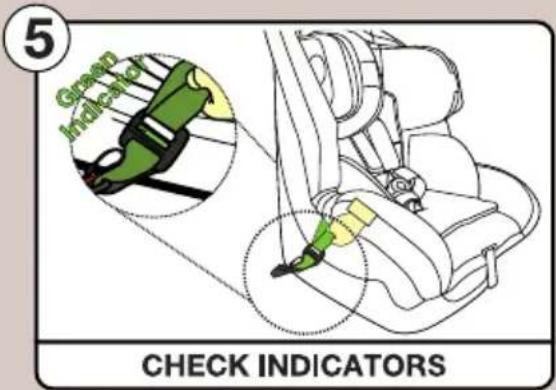

5 Green Indicator CHECK INDICATORS

6

6 ATTACH TETHER

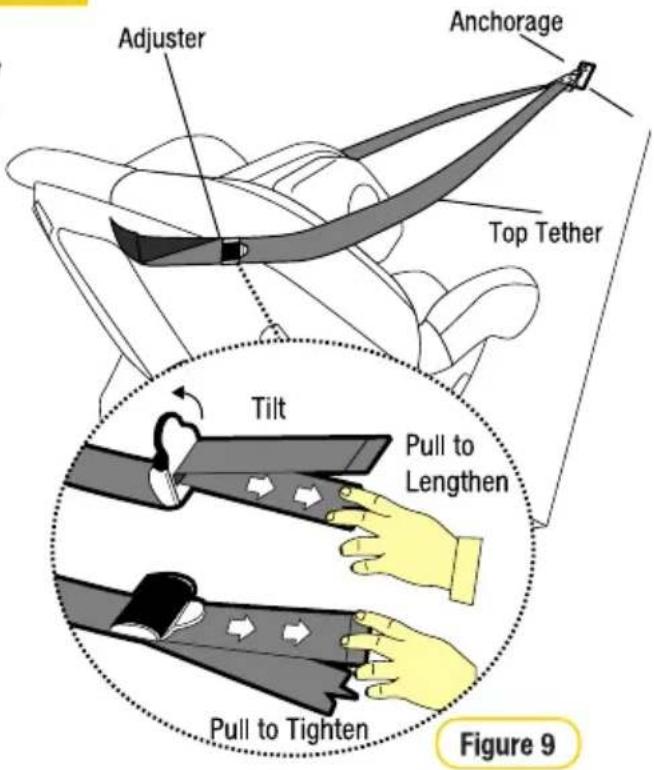

7 Tilt ATTACH Pull to Lengthen PULL TO TIGHTEN PULL to Tighten ADJUSTER TENSION TETHER

Forward Facing Mode Seat Belt Installation (Use For Child)

USE

REFER TO PAGES 51 - 53

1

PULL TO LENGTHEN PULL TO HARNESS ADJUSTER "LIFT" TO LENGTHEN LOOSEN HARNESS

2

Check Shoulder Height Marker CHECK HEADREST / SLOT POSITION

3

3 POSITION CHILD & CLIP BUCKLE

4

4 REMOVE ALL SLACK FROM HARNESS TENSION HARNESS

5

5 PINCH TEST PINCH TEST

6

TILT ATTACH PULL TO TIGHTEN Pull to Lengthen PULL TO TIGHEN ADJUSTER TENSION TETHER

Contents

Contents 1

Information 2

Warnings 3

Restraint Guide 5

Padding - Combination Guide 6

Infant Seat

Information 7

CS8813/CS8913 Child Restraints (Itemised List) 8

Shoulder Height Markers 9

Setup

• General 11
• Selection of Appropriate Padding Combinations 12
• Converting to Infant Seat 12
• Recline Angle 15
• Shoulder Height 16

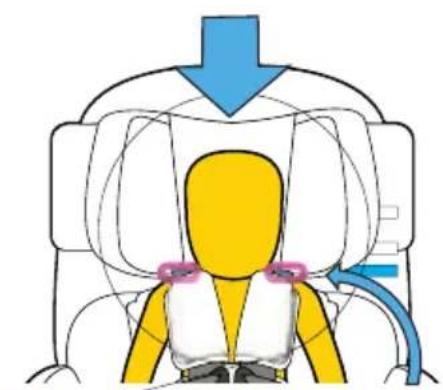

• Headrest & Harness Strap Height Adjustment 17
• Buckle Height Adjustment 19

Installation

- Installing Using Vehicle Seatbelts 20

ISOFIX Compatible Restraint

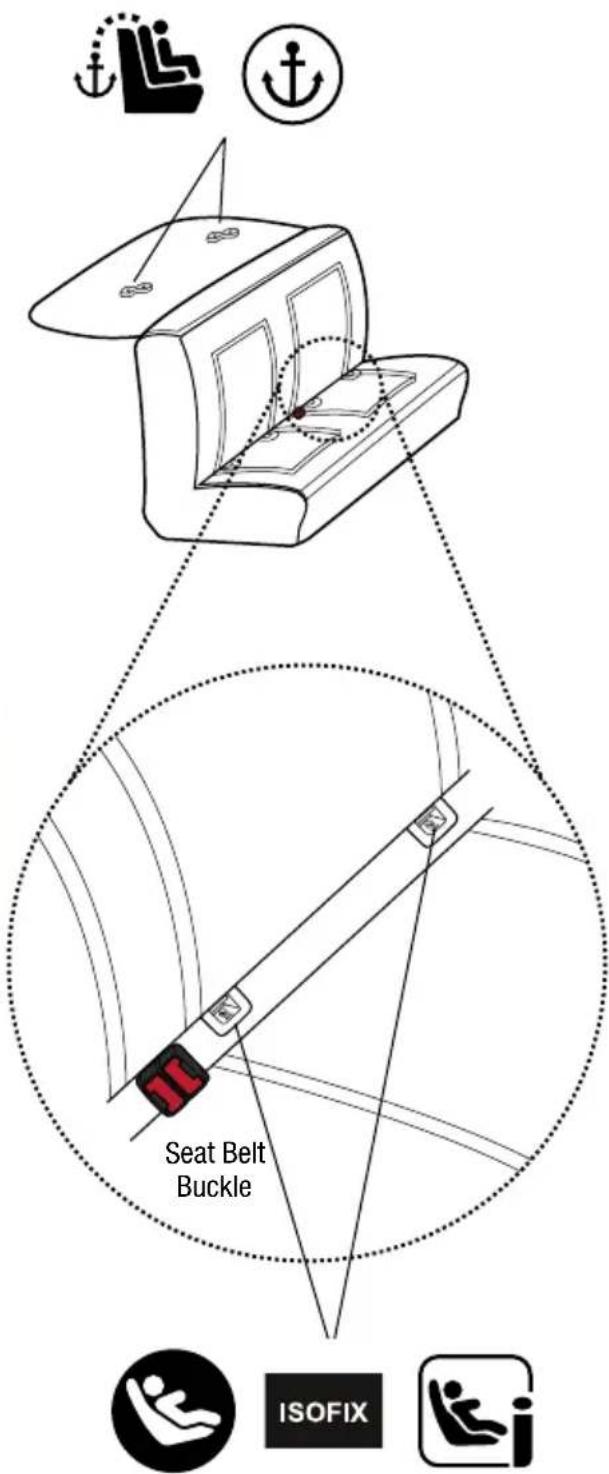

• ISOFIX Lower Anchorages 24
• Accessing the Flexible ISOFIX Lower Anchorage Connectors 25
• Installing using Flexible ISOFIX Lower Anchorage Connectors 26
• Using Inbuilt Harness 29

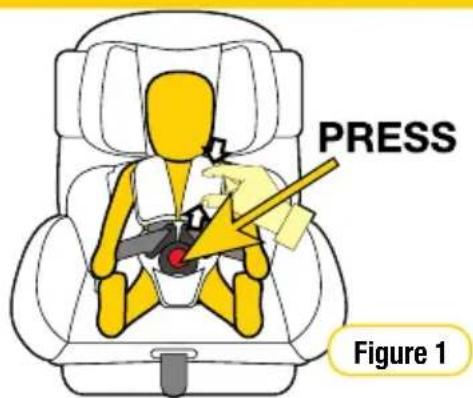

• To Release Infant 32

Use

Child Car Seat

Information 33

CS8013 Child Restraints (Itemised List) 34

Shoulder Height Markers 35

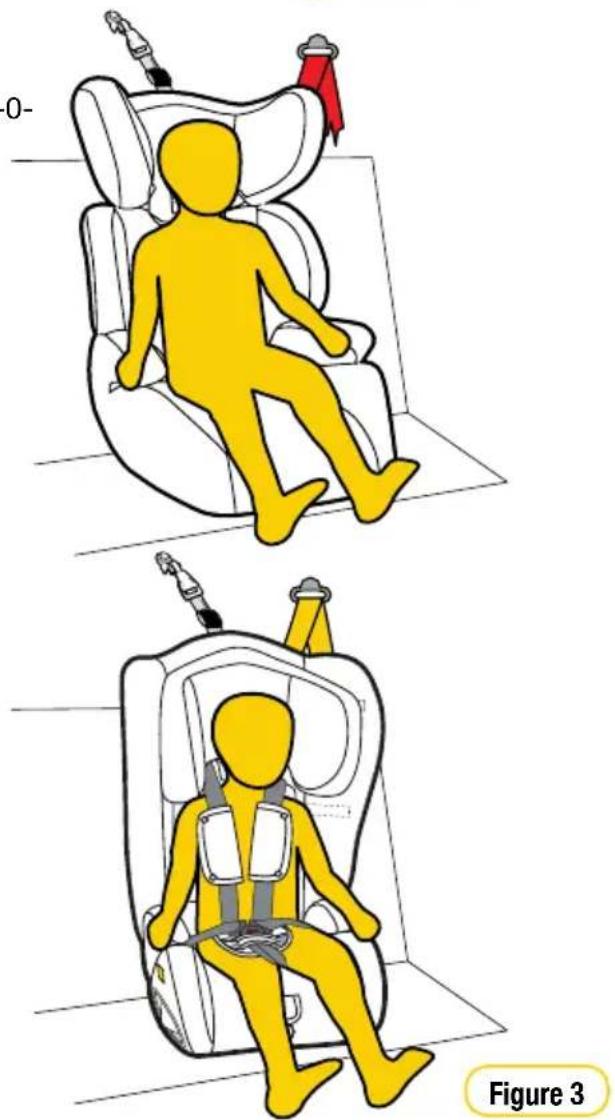

Next Restraint 37

Setup

• Selection of Appropriate Padding Combinations 38
• Converting to Child Car Seat 38
• Shoulder Height 40
• Headrest & Harness Strap Height Adjustment 40

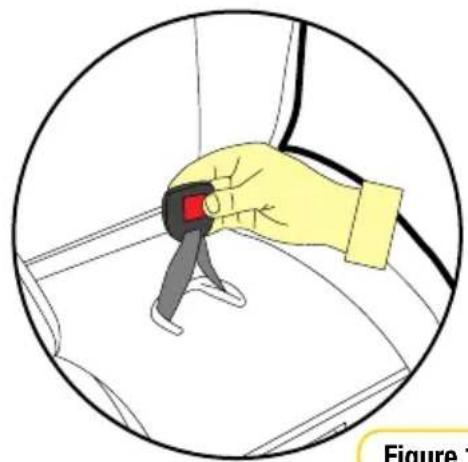

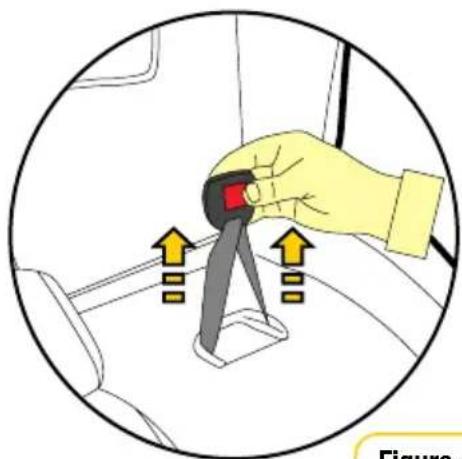

• Buckle Height Adjustment 42

Installation

- Installing Using Vehicle Seatbelt 43

ISOFIX Compatible Restraint

- ISOFIX Lower Anchorages 47

- Accessing the Flexible ISOFIX Lower Anchorage Connectors 48

- Installing using Flexible ISOFIX Lower Anchorage Connectors 49

Use

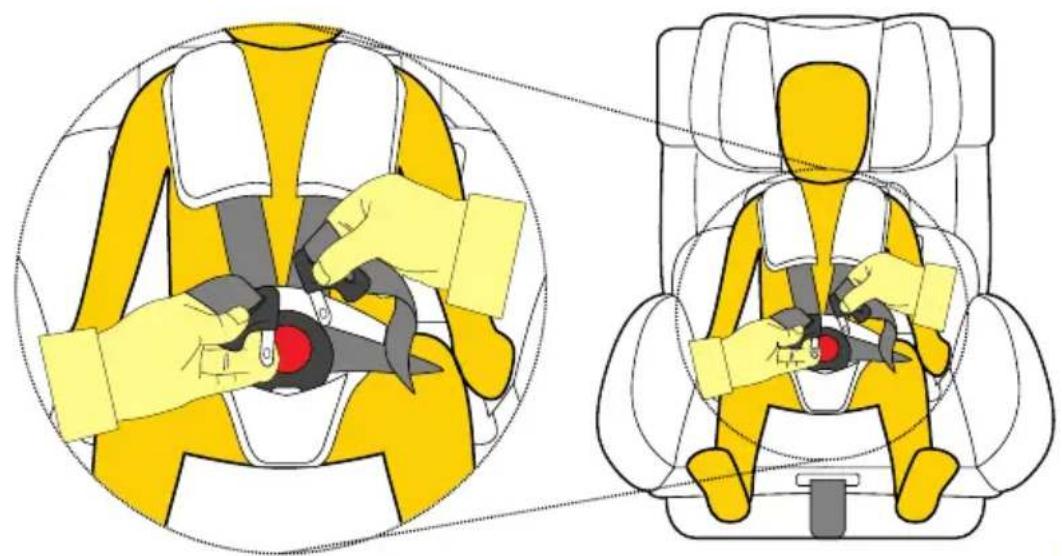

• Using Inbuilt Harness 51
• To Release Child 53

Care of Restraint

- Care and Maintenance 54

- Cleaning 55

Remove & Replace Covers 57

Extension Straps 58

Accessories 59

Anchorage Fittings 62

Insurers Information 64

Lifetime Warranty 70

Information

This instruction manual covers various models under the Model number CS8813/CS8913. These child restraints are installed in the rear of the vehicle and can only be used rearward-facing which offers the best level of protection for your child in a vehicle crash. They can either be installed in vehicle using the vehicle seatbelt & top tether strap, or if applicable, the Flexible ISOFIX attached to the vehicles ISOFIX anchor & top tether strap. This Convertible Car Seat is designed to be used by children from birth up to approximately 4 years of age.

CS8813 Series

The CS8813 Series takes some of our best selling features in an all encompassing 0-4 child restraint. As a compact convertible A4/B child restraint, the CS8813 provides an excellent array of product and safety features including ABC*, HIP, Lift & Adjust and ISOFIX*. Being an extended rearward facing restraint, the Momentum offers best practise protection for longer. It's compact design allows for greater fitment in more vehicles and is ideal for 3 across in the back seat.

Air Barrier Cushion (A.B.C)\*

Air Barrier Cushion (or A.B.C) is safety technology integrated directly into the car seat headrest. It is designed to offer advanced side impact management and optimal protection of your child's head in the event of an accident. It adds additional air cushioning between your child's head and the impact point, keeping them as far from harm as possible.

Head impact Protection (H.I.P)

Head Impact Protection (or H.I.P) is a specialised EPS foam that is designed to attenuate energy in the event of an impact. Energy attenuation is where the material absorbs crash energy away from the child, offering them ultimate protection against injury to the head.

Lift & Adjust

Lift & Adjust allows for one-handed adjustment of the headrest and shoulder slots from the top of the restraint. Simply lift the ring to adjust the head rest up or down, into your desired position, ensuring that the head rest and harness height is at the optimal position for your child.

ISOFIX Compatible\*

ISOFIX allows you to use your vehicle's ISOFIX compatible anchorage points for easy installation. Our ISOFIX connectors feature a unique pull-loop release. This makes uninstalling the restraint so much easier. When not in use, you can store the ISOFIX Compatible connectors to the side of the seat for easy access or stowaway.

*Model Dependant

AIR BARRIER CUSHION

HEAD IMPACT PROTECTION

AUSTRALIAN DESIGNED & FAMILY OWNED

WARNINGS

• Use the restraint exactly as shown in the instructions.
  • Supervision of children is needed because they may be able to undo buckles.
  • DO NOT LEAVE CHILDREN UNATTENDED IN THE CAR.
• Do not alter or modify this restraint.
  • Repairs must only be done by the manufacturers or agent.
• Do not allow the restraint to come into contact with polishes, oils, bleach and other chemicals.
• Destroy the restraint if it has been in a severe crash, even if no damage is visible.
  • DO NOT USE THIS RESTRAINT WITHOUT THE COVER.
• To ensure infant's back is evenly supported, do not put more than one nappy on the baby and make sure the nappy is not thickly folded at the back.
• DO NOT USE A REAR-FACING CHILD RESTRAINT WHERE AN AIRBAG IS FITTED IN FRONT OF THE SEATING POSITION.
  • Fit the restraint firmly to the car seat.
  • Fit the harness firmly to the child.
• A loose restraint or harness is dangerous.
• Do not harness an infant wrapped in a blanket or swaddled. Any blanket or wrap must only be placed over the harness and infant.

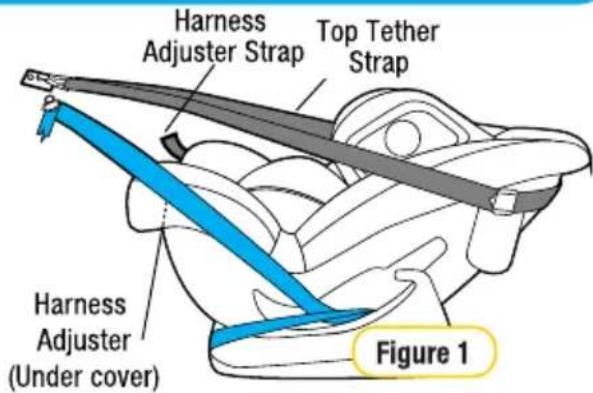

• Always secure the loose end of the top tether strap. Do not use the child restraint where this strap may fall into a split in the seat back or off the side of the seat.
  • ALWAYS ATTACH HOOK AND REMOVE SLACK.

For use in other countries other than Australia and New Zealand

- The child restraint may not be accepted for use in cars.

- Consult the country's local authorities, car hire companies, car insurance companies, etc. for advice.

Please read carefully the whole of the instructions for installation and, in the event of doubt about the method of installation, to consult Infa Group or agent, or a child restraint fitter, or in New Zealand, to consult the agent for the vehicle.

WARNINGS

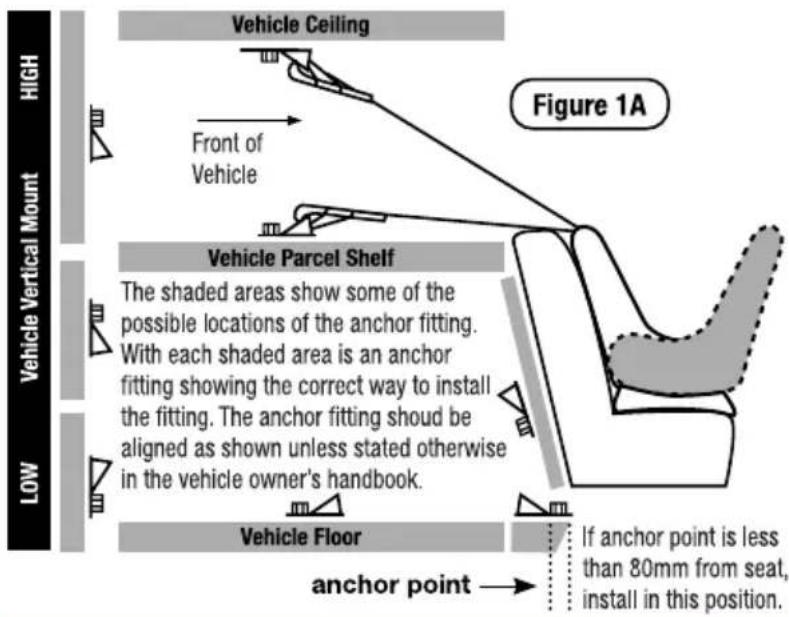

• THIS RESTRAINT IS NOT SUITABLE FOR USE WHERE THE TOP TETHER STRAP MAY FALL INTO A SPLIT IN THE SEAT BACK OR OFF THE SIDE OF THE SEAT.

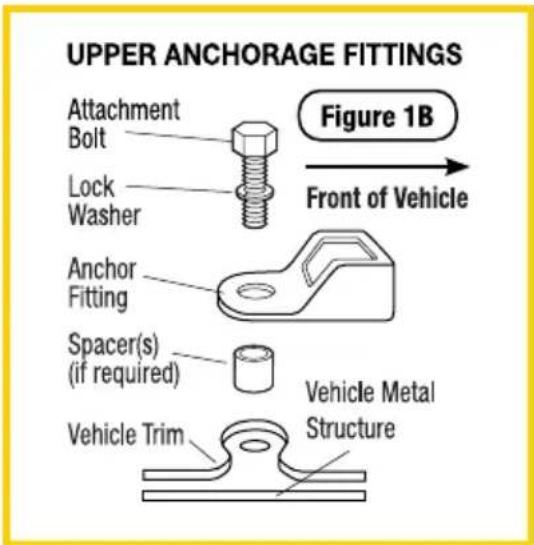

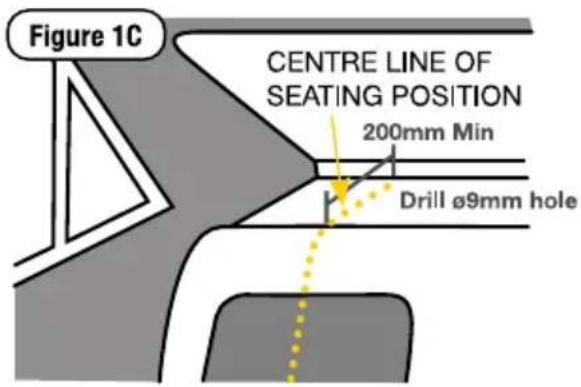

• THIS RESTRAINT MUST BE ATTACHED TO A CHILD RESTRAINT UPPER ANCHORAGE POINT IN THE CAR. REFER TO CAR OWNER'S HANDBOOK FOR LOCATION OF ANCHORAGE POINTS. REFER TO A CHILD RESTRAINT FITTING STATION IF NO ANCHORAGE POINTS ARE IN THE MOTOR CAR.
• Always secure the loose end of the top tether strap to prevent it hanging out of the car or being accessible by the child. Do not use the child restraint where this strap may fall into a split into the seat back or off the side of the seat.
• IF AN AIR BAG IS FITTED IN THE SEATING POSITION WHERE THE CHILD RESTRAINT IS TO BE FITTED, FOLLOW THE VEHICLE MANUFACTURER'S WARNINGS AND INSTRUCTIONS.

IMPORTANT

Do not attach the lower attachment connectors of two separate child restraints to the same ISOFIX low anchorages in your car.

Always attach the top tether strap to the child restraint upper anchorage in your car. Child restraint lower attachment connectors and the ISOFIX low anchorages in you car are designed to withstand only those loads imposed by a correctly fitted child restraint.

WARNING

DO NOT LEAVE CHILDREN UNATTENDED IN THE CAR.

CS8813 CONVERTIBLE CAR SEAT either seatbelt or ISOFIX compatible installations. CS8913 CONVERTIBLE CAR SEAT seatbelt installation only.

IMPORTANT

There is a real potential for an infant to be ejected and killed if the baby is wrapped in a blanket or swaddled. The harness need to fit the baby firmly and any blanket or other covering may only be placed over the harness after the harness is adjusted firmly. Please ensure the baby's arms and legs are not bound or wrapped together.

Restraint Guide

IMPORTANT: Research has shown that the likelihood of an accessory child safety harness being used incorrectly is very high and the risk of injuries when incorrectly used is much higher compared to a lap-sash seat belt. Infa Group recommend that an accessory child safety harness should only be used if a lap-only seat belt is all that is available.

Padding / Inserts

Combination Guide

Line drawing of a car safety seat with adjustable seat, no text or symbols present

Line drawing of a car seat with rear seats and seatbelt (no text or symbols)

MODE

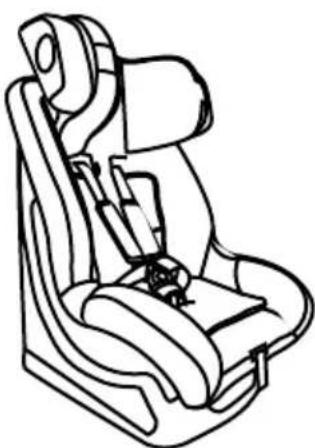

INFANT SEAT

(Small Infant)

REARWARD FACING

INFANT SEAT

(Large Infant)

REARWARD FACING

Line drawing of a car seat with adjustable seat and seatbelt (no text or symbols)

CHILD SEAT

FORWARD FACING

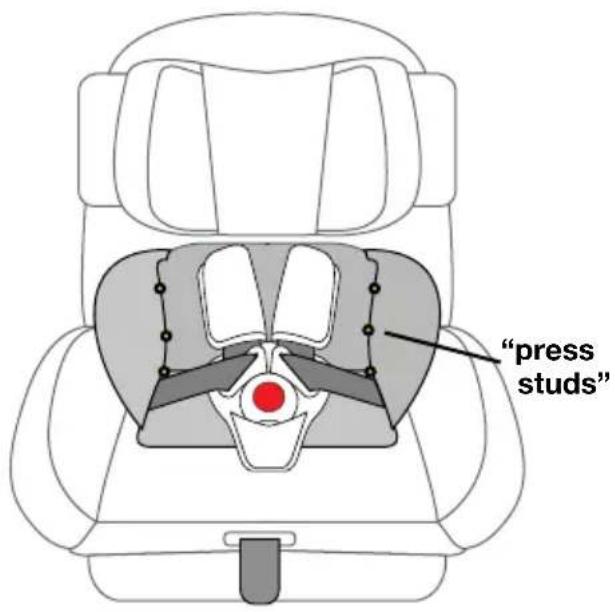

The Padded Insert/s (if fitted) are designed to provide extra support and comfort for small babies. Discontinue use when the insert is a tight fit or creates discomfort for larger babies/children.

• Diagrams are indicative of type of paddings and inserts and may not resemble the actual product.
- Padded inserts can vary according to model.
• We reserve the right to alter this product without notice.

THE SUITABILITY OF THE CHILD RESTRAINT TO GROUPS OF CHILDREN

TYPE A4

To be used only in a rearward-facing position until the infant's shoulders either reach the lower shoulder height marker (approximately 12 months of age) or reach the middle height marker (approx 2 to 3 years of age).

TYPE B

Then to be used in a forward-facing position until the child's shoulders reach the upper shoulder height marker (approximately 4 years of age).

Continue to use this child restraint until the child reaches this limit.

Do not use forward-facing until child's shoulders are above the lower shoulder height marker.

Infants are at risk of serious injury if they face forward too early.

Children are at risk of serious injury if they move to booster seats too early.

Children who have outgrown this restraint are safest in a larger child restraint with an in-built harness or a booster seat until their shoulders reach the upper shoulder height marker of the restraint.

CS8813 ISOFIX COMPATIBLE INSTALLATION TO BE USED WITH A LAP-SASH/LAP-ONLY BELTH OR ISOFIX LOW ANCHORAGES IN THE BACK OF THE MOST CARS WITH FORWARD FACING SEATS.

CS8913 SEATBELT ONLY INSTALLATION TO BE USED WITH A LAP-SASH/LAP-ONLY BELTH IN THE BACK OF MOST CARS WITH FORWARD FACING SEATS.

The use of child restraints in the front seat may be restricted for children of specific ages by local legislation. Please check with your local Department of Transport for the specific seating locations of children using child restraints for their given ages.

IMPORTANT

• ONLY USE RESTRAINT REARWARD-FACING
- Do not use the restraint without the upper anchorage strap correctly attached.
- DO NOT USE A REAR-FACING CHILD RESTRAINT WHERE AN AIRBAG IS FITTED IN THE FRONT OF THE SEATING POSITION.
- Do not use on any vehicle seat which faces sideways or rearward.
- Do not use the child restraint facing forward.
- Do not use excessively upright or reclined.
- For a vehicle without a fixed parcel shelf an extension strap(s) may be needed. If so ring 1300 92 4632 (AU) or 067 590 870 (NZ) for nearest supply location (refer to page 57).
- Seatbelt extenders are not recommended to be used if the seatbelt is not long enough to secure the child restraint. If seatbelts are too short then advice should be sought from a child restraint fitter and their recommendation be considered before using a seatbelt extender.

1 2 3 4 5 6 7 8 9 10

11 12 13 14 Seatbelt VIEW A VIEW A 15 ISOFIX Compatible

CS8813 CONVERTIBLE CAR SEAT either seatbelt or ISOFIX compatible installations. CS8913 CONVERTIBLE CAR SEAT seatbelt installation only.

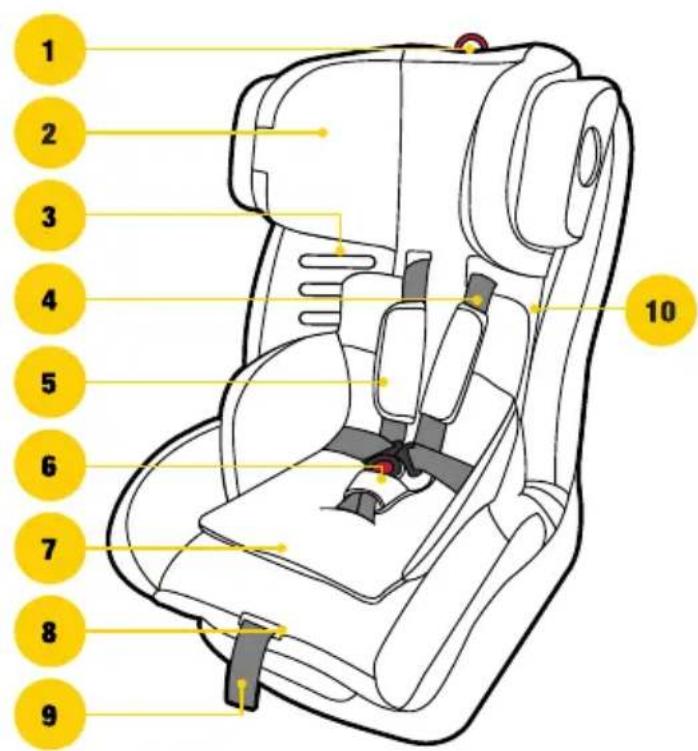

1. Headrest + Harness adjustment system
2. Adjustable Headrest
3. Shoulder Height Markers
4. Harness Straps

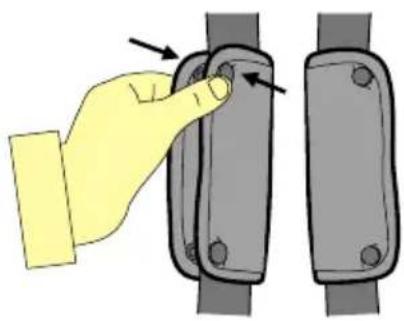

5. Shoulder Pads
6. Buckle Pad
7. Padded Insert (if fitted)
8. Harness Adjuster
9. Harness Adjustment Strap

10. Comfort Cover

11. Top Tether Assembly

12. Tether Strap
13. Adjuster
14. Attachment Clip

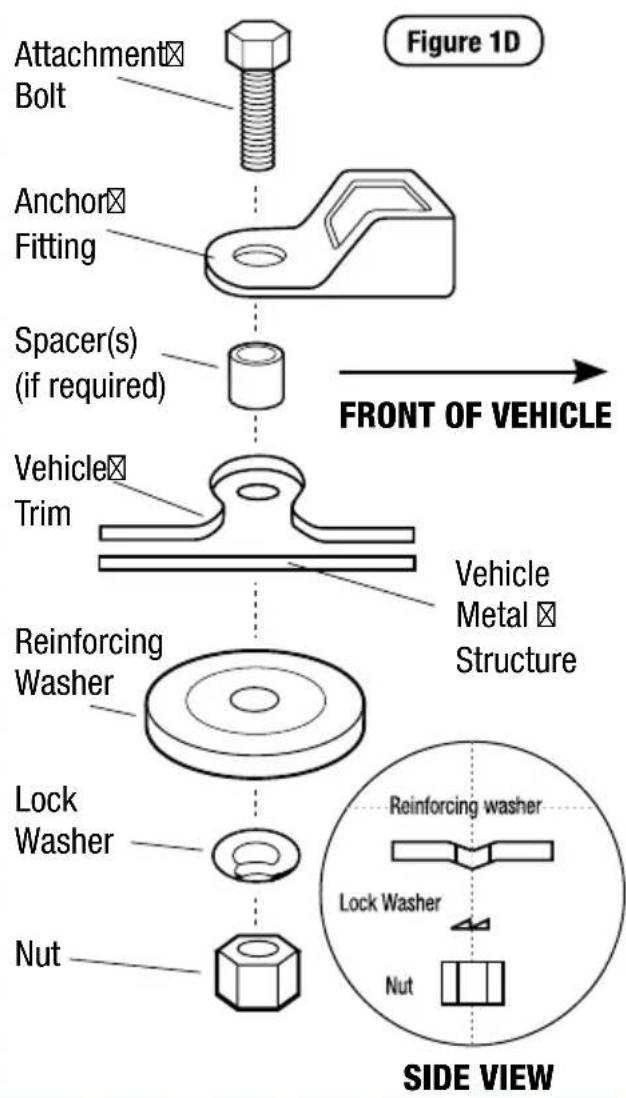

15. Anchor Fitting + Attachment Hardware

16. "REARWARD-FACING SEAT BELT PATH" Marker (each side of restraint - coloured blue)

17. Safe Grip Red Belt Clamp (if supplied with restraint)

18. Vehicle Seat belt

19. ISOFIX Compatible Lower attachment Connectors (LAC)

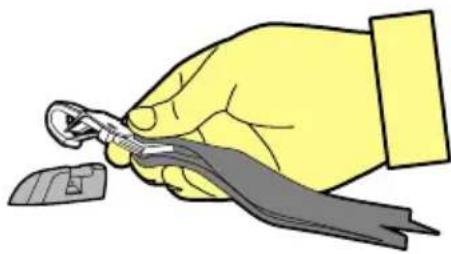

NOTE: Padded inserts can vary according to model. For detailed description and method of attachment for padded accessories refer to Accessories on page 58.

Shoulder Height Markers

Infant (Rearward Facing Mode)

Shoulder height markers are provided on this restraint for a visual indication that the child is safe to travel in this infra

Do not turn to forward facing until the child's shoulder reaches the lower label.

Front of Car VIEW A LOWER LABEL (REARWARD FACING) VIEW A LOWER LABEL (REARWARD FACING)

Shoulder height markers may be hidden under a pillow in the lowest position

To be used only in a rearward-facing position for an infant until their shoulders REACHREACH the Lower shoulder height marker (approximately 12 months of age).

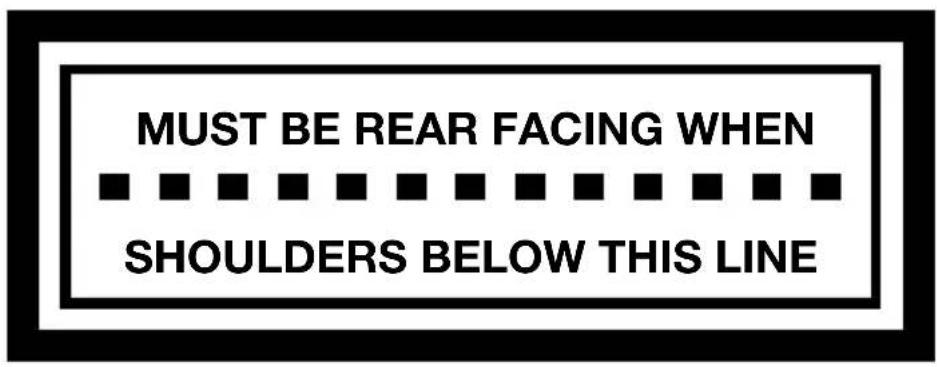

LOWER LABEL (Rearward-Facing)

MUST BE REAR FACING WHEN

SHOULDERS BELOW THIS LINE

IMPORTANT

Ensure that you continue to use this child restraint in rearward facing positions whilst the infants shoulders are below this shoulder height marker (Lower label).

Infants are at risk of serious injury if they face forward too early.

If the infants shoulders are below the lower label or if the baby's neck muscles are unable to support their head, then the infant should remain rear facing. When the child's shoulder reach the lower label, the child restraint may be turned to face towards the front of the car (refer page 33 Child Seat section).

Shoulder Height Markers

Infant (Rearward Facing Mode)

This restraint must remain rear facing until the child reaches the lower shoulder height marker (approx 12 months old). Once the child's shoulders reached the lower shoulder height marker the restaint can either

• Remain REARWARD FACING until the middle shoulder height marker is reached (approx 2 to 3 years) or
• Change to FORWARD FACING until the upper shoulder height marker is reached (approx 4 years old).

Front of Car VIEW A LOWER LABEL (REARWARD /FACING) EITHER MIDDLE LABEL (REARWARD or /FORWARD FACING) VIEW A

InfaSecure recommends to use this restraint in REARWARD FACING mode as long as possible.

General

• The CS8813/CS8913 Child restraint has been designed and tested to meet the joint Australian/New Zealand Standard with an inbuilt anti rebound feature and does not require additional anti rebound bars or mechanisms to fulfil these requirements.
• The CS8813/CS8913 Child restraint has also been designed to be a compact restraint to enable multiple restraints to be used in the rear of most vehicles.

IMPORTANT

• Care and attention should be given to ensure that the baby has adequate ventilation and shading when in the restraint.
• To achieve the necessary distribution of deceleration forces during a vehicle impact, ensure the child is seated correctly in the child restraint and the harness is fitted and adjusted as per these instructions.
• Ensure the child restraint and child are rearward facing.

If the baby's neck muscles are unable to support their head, then the infant should remain rear facing.

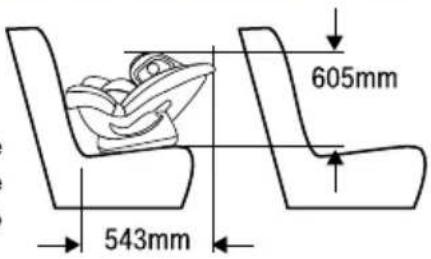

The purchaser should check the measurement between the front of the seat back of the rear seat and all front seats in the car in which the child restraint is intended to be used, to ensure that the space is sufficient.

605mm 543mm

CS8813 CONVERTIBLE CAR SEAT either seatbelt or ISOFIX compatible installations. CS8913 CONVERTIBLE CAR SEAT seatbelt installation only.

WARNING

• ONLY USE RESTRAINT IN REARWARD-FACING MODE WITH RESTRAINT FULLY RECLINED.
• Do not use the restraint without the upper anchorage strap correctly attached.
  • DO NOT USE A REAR-FACING CHILD RESTRAINT WHERE AN AIRBAG IS FITTED IN THE FRONT OF THE SEATING POSITION.
  • Do not use on any vehicle seat which faces sideways or rearward.

Setup

Selection of Appropriate Padding Combinations

Step 1: Determine whether your infant/child requires the additional padding provided with this restraint, to ensure a safe and snug fit in the restraint. Refer to page 6 for suggested padding combinations.

WARNING

- To ensure baby's back is evenly supported, do not put more than one nappy on the baby and make sure the nappy is not thickly folded at the back.

Converting to Infant Seat

Reclined Position

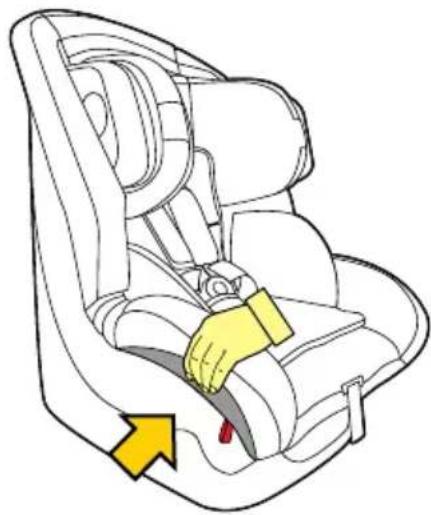

Step 1: At the front of the restraint is a GREY* lever. Lift the lever to recline. (refer figure 1) *Colour may vary

Step 2: Rotate the restraint into the desired recline angle. (refer Figure 2) Ensure the restraint is fully reclined (as Far as possible). Note: Rearward Facing recline indicator is visible (refer Figure 3).

Step 3: Ensure the In-built harness "Shoulder straps" are positioned at the appropriate heights.

IMPORTANT

• Refer to the shoulder height labels (As shown on pages 9 & 10).
• For Correct shoulder strap slot refer to page 16 - 18.

LIFT RECLINE LEVER

Diagram of a car interior showing hand placement and directional arrows (no text or labels)

Figure 1

ROTATE

Figure 2

Anatomical line drawing of a human head and neck region with a blue highlighted area (no text or labels)

Setup

Converting to Infant Seat

Reclined Position

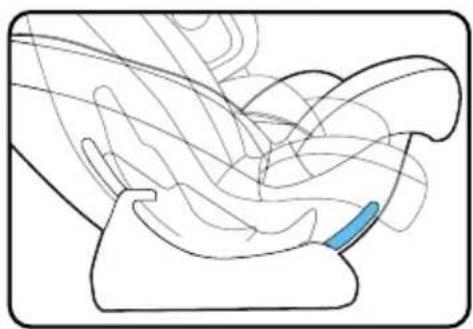

More Recline

NOTE: If you require more recline, place firm packing between the vehicle seat and the underside of the restraint.

We recommend using the Infa Group TA601 Recline Foam Bar to prop the child restraint when attempting to increase recline.

(Packing could also be achieved by using a firmly rolled towel).

Adjuster Assembly Location

The position of the adjuster (top tether strap) has been factory set to enable installation in the Rear Passenger Side position.

Diagram of a mechanical component with a blue tool interacting with it, no visible text or symbols

Figure 1

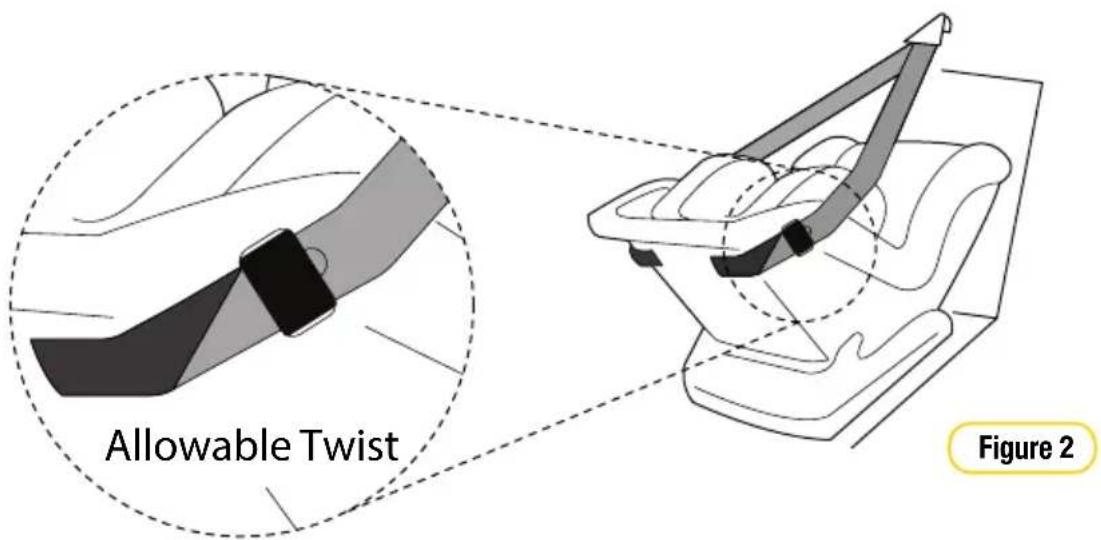

Allowable Twist Figure 2

Step 1. The top tether will require a twist in the tether strap (refer to figure 2).

Step 2. The adjuster is positioned to enable the adjuster to face the rear passenger side door (refer to figure 2 and 3).

Line drawing of a car seatbelt with black band (no text or symbols)

Figure 3

Infant Car Seat

Adjuster Assembly Location

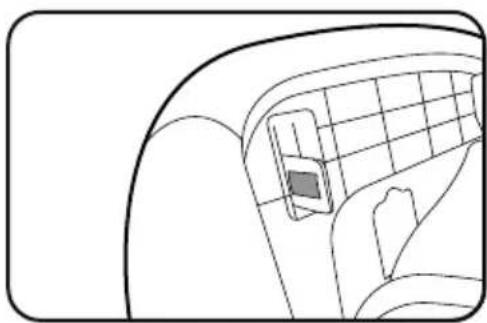

Change Adjuster Position

Step 1: Lower the headrest.

Step 2: Fold the cover forward expose the tether anchor plates.

Step 3: From the inside of the shell, pull the 3 bar plate and push through the slot.

Step 4: Repeat of the other side.

Note: You can switch the top tether to position the adjuster on the other side of the vehicle which will provide you with convenient access to adjuster.

Step 5: Insert the plates back into the shell and ensure the tether plates are attached as shown in Figure 2.

Step 6: Reposition the cover.

Note: The position of the adjuster (Top Tether Strap) can be changed to either side of the child restraint in rearward facing mode.

Note: The tether will "hang" as shown below.

Diagram of a car seatbelt buckle with a V-shaped seatbelt and handle (no text or symbols)

Line drawing of a car seat assembly (no text or symbols)

Figure 1

FOLD

Figure 2

Line drawing of a car interior showing the window and seat area (no text or symbols)

Figure 3

Recline Angle

The vehicle installation is controlled by the angle of the vehicle seat, and these angles vary greatly between vehicles. The vehicle seat angle or the contours of the vehicle seat could place the child restraint either too upright or too recline. A rearward facing restraint should always be installed so that the back surface is reclined just enough to allow the infant's head to lie back comfortably. This measurement is taken when your infant is laying in the child restraint and is in direct contact with this back surface, so it's extremely important to maintain the required angle.

IMPORTANT

Your infant should NEVER be too upright or too recline.

TOO UPRIGHT could lead to the infants head flopping forward and potentially pinching off the airway.

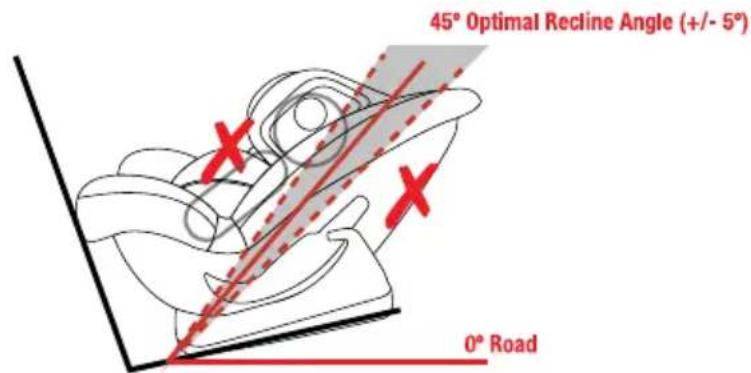

45° Optimal Recline Angle (+/- 5°) 0° Road

TOO RECLINED could lead to the force to restrain the infant starts to be exceeded by the force to project the infant towards the front of the vehicle (their body wants to slide up towards the top of the shell).

NOTE: An accurate method of measuring the recline angle of your infant is to use a smart phone with an application that can measure angles but if using this method ensure the car is on a level surface.

Shoulder Height

Zone

The child's shoulder region.

Diagram showing human body with measurement lines and checkmark indicators, likely for scoring or validation purposes.

Slot Position

Nearest to the child's shoulders. Level with or just above the child's shoulders but not lower.

ower.

Headrest Position

Position the headrest above the shoulders, to ensure the shoulder strap are nearest to the child's shoulders.

Check Shoulder Height Marker

Setup

Shoulder Height

The correct height for the shoulder straps is very important for the optimum performance of the restraint.

IMPORTANT

The shoulder straps must be in the slots which are nearest to the child's shoulders, but not lower than the child's shoulders.

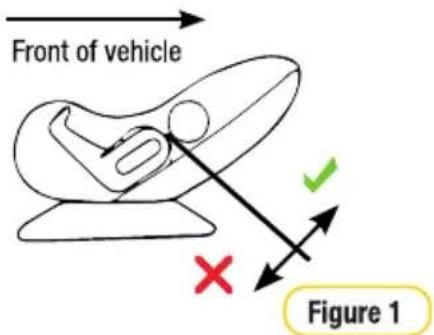

Front of vehicle Figure 1

There is only one set of slots so the seat will always have the shoulder straps in place once the headrest is positioned correctly, just above the infant's shoulders.

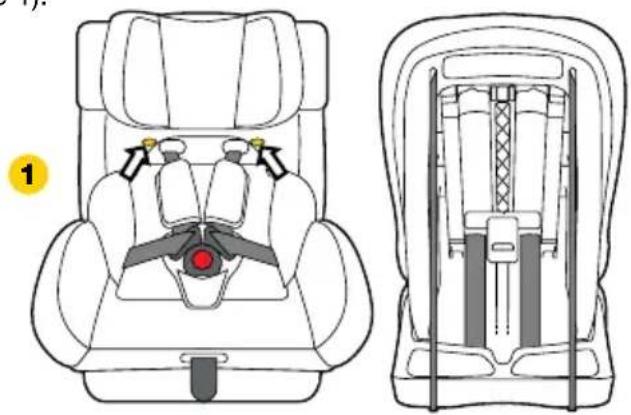

Headrest & Harness Strap Height Adjustment

Step 1: Loosen the harness straps before adjusting the headrest (refer "Using Inbuilt Harness" page 28).

You do not need to remove the restraint from the vehicle to adjust the harness or headrest positions.

Step 2: To adjust headrest, pull the "LIFT" ring on the headrest (refer Figure 1).

Step 3: Lift the headrest up or down so that the shoulder strap slots are level with or slightly above your child's shoulders. If the headrest is just above the shoulders, then the harness level will be correct (refer Figure 2)

Step 4: Release the "LIFT" ring so that it locks into position. Ensure that the headrest is locked in position by gently pushing down on the headrest. (refer Figure 2)

IMPORTANT

• For comfort ensure the bottom edges of the headrest are not contacting the child's shoulders.
• When lowering the headrest ensure the headrest apron does not bunch up behind the child's neck.

Line drawing of a hand placing a gold coin on top of a car seat (no text or symbols)

Figure 1

Diagram of a car seatbelt with hand pointing to seatbelt area (no text or symbols)

Figure 2

Headrest & Harness Strap Height Adjustment

Illustration of a human head with yellow body and pink circular elements, no text or symbols present

Diagram of a human car seat with airflow arrows indicating movement (no text or symbols)

Check Shoulder Check Height Marker

IMPORTANT

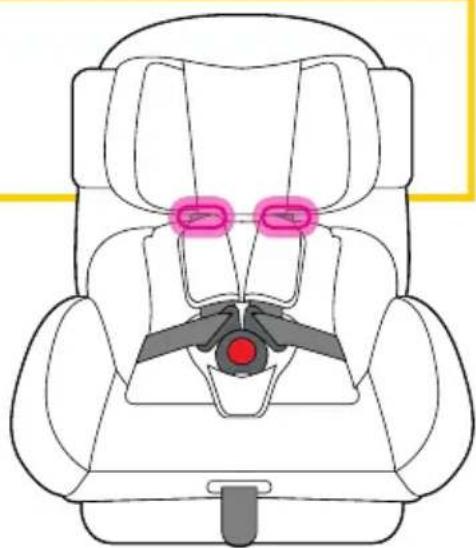

ENSURE THE HARNESS STRAPS ARE ALWAYS THREADED THROUGH THE HEADREST.

Correct fitment of the harness is very important as it restrains the child in the restraint. The harness must fit firmly around the upper torso of the child and be positioned to ensure the child's arms and legs are free.

Line drawing of a car seat with pink eyeglasses and a red headrest (no text or symbols)

IMPORTANT

• IF THE CHILD'S SHOULDERS TOUCH THE BOTTOM EDGES OF THE HEADREST SIDE WINGS, RAISE THE HEADREST TO THE NEXT HEADREST POSITION.
• THIS CHILD RESTRAINT DOES NOT REQUIRE THE STRAPS TO BE DISCONNECTED TO ADJUST THEIR HEIGHT, ONLY THE HEADREST NEEDS TO BE MOVED TO ADJUST THE SHOULDER STRAP POSITIONS.

Setup

Buckle Height Adjustment

The buckle is supplied in a shortened position, if you want to alter the buckle height the following steps are required.

Step 1: Lift the buckle and determine the required buckle height (refer Figure 1).
Step 2: Fold the buckle flap forward (and foam if applicable) forward, exposing the central plate (refer Figure 2).
Step 3: Grab the central 3 bar plate and lift up to allow access to the 3 bar plate (refer Figure 3).
Step 4: Adjust the webbing through the central plate.

-To shorten the buckle 'Pull' excess webbing through the central plate.
-To lengthen the buckle 'Push' excess webbing through the central 3 bar plate (refer Figure 3).

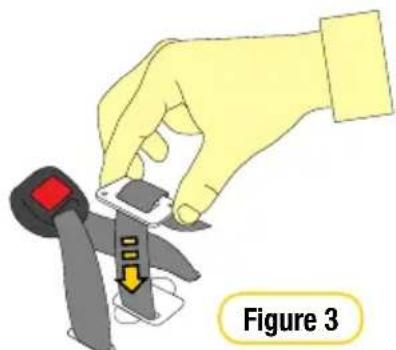

Step 5: Lift the buckle to verify the buckle height (refer Figure 4) try to keep the buckle height "low".

Note: When shortening the buckle ensure the buckle tongues have clearance above the upper thigh.

TO SHORTEN

upper thigh. INDICATOR MARK

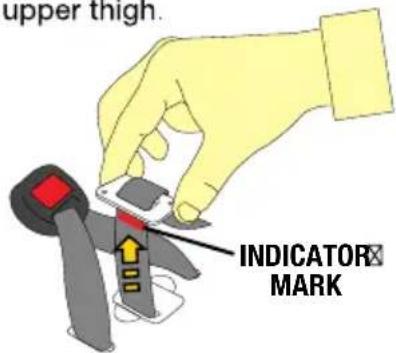

Note: Do not shorten the buckle strap beyond the indicator mark on the strap.

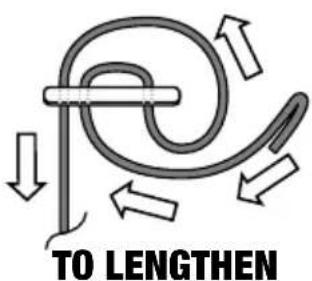

TO LENGTHEN

Illustration of a hand holding a device with a yellow arrow and label 'Figure 3' (no text or symbols on the diagram itself)

Illustration of a hand holding a small red object inside a circular frame (no text or symbols)

Figure 1

Illustration of a hand using a cable to lift a car seatbelt, with a curved arrow indicating rotation (no text or symbols)

Figure 2

Illustration of a hand using a belt switch to lift a car seatbelt, with arrows indicating direction (no text or symbols)

Figure 4

CS8813 CONVERTIBLE CAR SEAT either seatbelt or ISOFIX compatible installations. CS8913 CONVERTIBLE CAR SEAT seatbelt installation only.

Installing Using Vehicle Seatbelts

Step 1: Place the child restraint on the vehicle seat. Ensure the restraint is fully reclined with the restraint directly in line with anchorage point.

Make sure top tether strap is as in illustration (Figures 1 Step 2: and 2) i.e. position the adjuster at the desired side.

IMPORTANT

Ensure that you use the REARWARD-FACING BELT PATH identified by the following label.

REARWARD FACING BELT PATH

Step 3: Feed adult lap or lap/sash belt through the belt path opening. Ensure the lap/sash seatbelt is outside the restraint harness.

Engage the buckle and tongue assembly (listen for a "CLICK"). Check the buckle engagement with a gentle pull.

Adjuster Buckle Assembly Top Tether Strap

Figure 1

Lap Belt & Sash Belt Passes Through Here Front of Car Recline Section Figure 2

Installation

Installing Using Vehicle Seatbelts

Step 4: Push down on the base of the restraint (with knee or hand) whilst pulling the sash section of the vehicle belt firmly up in direction of the blue arrow in Figure 4. (This will tighten the lap belt across the restraint base).

Step 5: Ensure the excess slack in the sash belt, is fed back towards the seat belt.

Ensure there are no twists in the seatbelt.

Pass lap and sash belt through the seat. Note: Ensure the belts are under foam padding.

"CLICK" Buckle & Tongue Assembly

Diagram illustrating seatbelt usage mechanism with labeled components and directional arrows

Lap Belt & Sash Belt
Figure 3

Safe Grip (If Supplied)

*Can be purchased separately visit https://infagroup.com.au/

SAFE GRIP BELT CLAMP

The Safe Grip (red belt clamp) locks the lap belt to ensure a firm installation, and avoids slack in the lap belt.

Red cartoon-style illustration of a mechanical device with no visible text or symbols

To install the Safe Grip (red belt clamp), open it and clamp the "sash section" ONLY of the vehicle seat belt by closing the barrel section of the red belt clamp in the direction of arrow 1 in Figure 5 and then locking with the toggle section by pushing in the direction of arrow 2 in Figure 5 when the Safe Grip (red belt clamp) is secured in place, the lap section is now tightly holding your child restraint in place, independent of the sash section. The Safe Grip (red belt clamp) must be removed when the child restraint is not installed to allow other users to use the seat belt as a lap/sash seat belt. Always keep the Safe Grip (red belt clamp) in pocket provided when not in use.

NOTE: Do not place the Safe Grip (red belt clamp) around both the lap and sash sections of the belt. This could cause the Safe Grip (red belt clamp) to break.

PRESS FULL REMOVE ALL SLACK FROM SEATBELT Figure 4

SASH SECTION TOGGLE SECTION (2) BUCKLE (A) (AND TONGUE) SALAW LINE BARREL SECTION (1) LAP SECTION SAFE GRIP (B) (IF SUPPLIED) ATTACH TO SASH SECTION ONLY Figure 5

Installation

Installing Using Vehicle Seatbelts

Note: If no upper anchorage fitting is available refer to pages 62-63.

Step 6: Locate the adjuster at the side of the restraint and secure. (refer Figure 6).

Step 7: Hook the attachment clip to the upper anchor fitting.

IMPORTANT

• The purchaser should check the measurements between the front of the seat back of the rear seat and all front seats in the car in which the child restraint is intended to be used, to ensure that the space is sufficient.
• Care and attention should be given to sufficient ventilation and shading of the baby.
  Always secure the loose end of the top tether strap to prevent it hanging out of the car or being accessible by the child.

Adjuster Attachment Clip Top Tether Strap

Figure 6

Illustration of a hand holding a key with a ribbon, no text or symbols present

Figure 7

WARNING

• DO NOT USE REAR FACING CHILD RESTRAINT WHERE AN AIRBAG IS FITTED IN FRONT OF THE SEATING POSITION.
  • Fit the restraint firmly to the car seat.
• THIS TETHER STRAP MUST ALWAYS BE FITTED WHEN THE CHILD RESTRAINT IS USED IN A VEHICLE.

Installation

Installing Using Vehicle Seatbelts

Step 8: Pull to tighten to remove all the slack, from the upper anchorage strap. Do not overtighten as this could cause the restraint to lift off the vehicle seat (refer Figure 8).

IMPORTANT

• Tighten till slack is removed.
• In certain vehicles an extension strap may be needed.
• Do not overtighten top tether strap.

NOTE

FOLLOWING THE INSTALLATION OF THE CHILD RESTRAINT A SMALL AMOUNT OF MOVEMENT IS DEEMED ACCEPTABLE.

CAUTION: CHILDREN CAN BE INJURED OR RESTRAINTS AND TOP TETHER STRAP DAMAGED BY UNSECURED CARGO IN A COLLISION. SECURE OR REMOVE HAZARDOUS CARGO BEFORE USING THIS CHILD RESTRAINT.

Always secure the loose end of the top tether strap to prevent it hanging out of the car or being accessible by the child.

Adjuster Anchorage Top Tether Tilt Pull to Lengthen Pull to Tighten Figure 8

Top Tether Strap

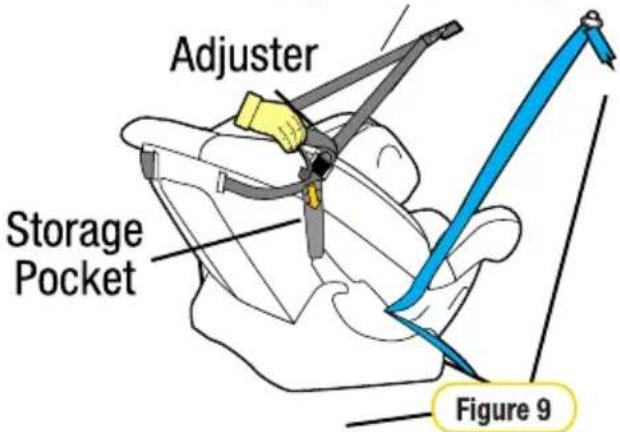

Adjuster Storage Pocket Figure 9

Tether Storage

Store any excess webbing, from the top tether strap, in the storage pocket provided on the restraint (refer Figure 9).

ISOFIX Compatible Restraint

ISOFIX Lower Anchorages

Newer vehicles have one or more seating positions with ISOFIX anchorages. If the vehicle is equipped with ISOFIX anchorage, the lower anchor points may be visible at the vehicle seat bight. If not visible, they may be marked with this symbol.

See your vehicle owner's manual for exact locations, anchor identification, and requirements for use with a child restraint.

Check vehicle owner's manual for vehicle top tether anchor locations. They may be identified using one of the anchor symbols as shown.

IMPORTANT

ONLY use flexible LAC straps on the child restraint in a seating position recommended by vehicle manufacturer.

This CS8813 restraint uses Flexible Lower Anchor-age Connector Straps. Flexible connectors: A pair of flexible straps with connectors are located at the base of the child restraint which connect to the vehicle's ISOFIX low anchorages. The flexible connectors are then adjusted to secure the child restraint firmly to the vehicle. The top tether strap must be anchored to the vehicle. The vehicle seatbelt must NOT be used when the flexible connectors are being used.

ISOFIX low anchorages are built in to the vehicle at the time of manufacture, if the vehicle manufacturer chooses to provide them. The number of ISOFIX low anchorages will depend on the design of the vehicle. Generally, ISOFIX low anchorages are located on the two outer seating positions in the second row, and not in the middle seating position.

If you wish to use the middle seating position in the second row, you may still fit an ISOFIX compatible child restraint by using the vehicle seatbelt and top tether strap.

Seat Belt Buckle ISOFIX

Infant Seat

Access The flexible ISOFIX Lower Anchorage Connectors (LAC)

IMPORTANT

The straps for the flexible ISOFIX Lower Anchorage Connectors (LAC) are stored under the cover, located each side of the restraint.

Step 1: Locate the flexible ISOFIX straps, under the cover on each side of the seat, and "PULL" the red strap to release the ISOFIX Straps.

Step 2: Flexible ISOFIX straps are now ready for use.

Line drawing of a car seat with a yellow belt and red grip, showing no text or symbols

Load Indicating Adjuster Adjuster Strap Lower Anchorage Connector (LAC)

ISOFIX Compatible Restraint

Installing using Flexible ISOFIX Lower Anchorage Connectors (LAC)

Rearward - Facing Mode

Fully recline the restraint

Step 1: Release the recline mechanism (refer Figure 1)

Step 2: Rotate the restraint to fully reclined position (refer Figure 2)

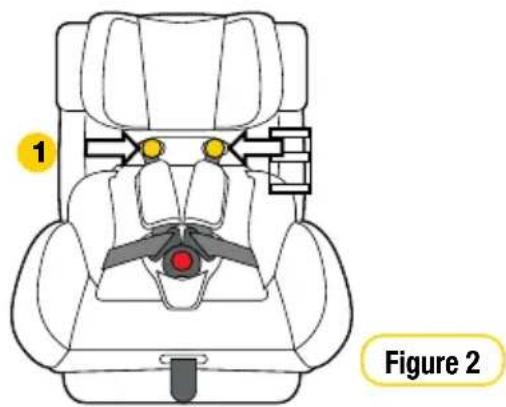

ROTATE Figure 1 Figure 2

Install The Restraint On The Vehicle Seat

Step 1: Locate the ISOFIX lower anchorage points in the vehicle. Usually in the vehical seat bight (refer page 24)

Step 2: Insert the flexible LAC into the vehicle ISOFIX anchorage points. You may need to "PUSH" into the seat bight where the ISOFIX symbols indicate. Give a "PULL" to check for positive engagement (refer Figure 3).

Step 3: Push down on the restraint (with one knee or hand). Remove all slack from the LAC straps by pulling the adjuster strap firmly. The GREEN indication is activated (refer Figure 4).

Step 4: Repeat for both sides of the restraint.

PUSH PUSH Figure 3 Green Indicator PUSH PULL Figure 4

REMOVE ALL SLACK FROM LAC STRAP

PULL LAC Strap Figure 5

ISOFIX Compatible Restraint

Installing using Flexible ISOFIX Lower Anchorage Connectors (LAC)

Note: If no upper anchorage fitting is available refer to pages 62-63.

Step 5: Position the top tether adjuster at the desired side of the seat. (refer Adjuster Assembly Location Page 13-14)

Step 6: Hook the attachment clip to the upper anchor fitting (refer Figure 6).

IMPORTANT

• The purchaser should check the measurements between the front of the seat back of the rear seat and all front seats in the car in which the child restraint is intended to be used, to ensure that the space is sufficient.
  Care and attention should be given to sufficient ventilation and shading of the baby.
  • Always secure the loose end of the top tether strap to prevent it hanging out of the car or being accessible by the child.

Attachment Clip Top Tether Strap Flexible LAC strap

Figure 6

Illustration of a hand holding a key with a string, no text or symbols present

Figure 7

IMPORTANT

For removal of LAC straps from vehicle 'PULL' the red strap to detach from anchorage point and store in the location on the side of the seat.

ISOFIX Compatible Restraint

Installing using Flexible ISOFIX Lower Anchorage Connectors (LAC)

Step 7: Pull to tighten to remove all the slack, from the upper anchorage strap. Do not overtighten as this could cause the restraint to lift off the vehicle seat (refer to Figure 8).

IMPORTANT

• Tighten till slack is removed.
• In certain vehicles an extension strap may be needed.
• Do not overtighten top tether strap.

Step 8: Store any excess webbing from the top tether strap, in the storage pocket provided on the restraint (refer Figure 9).

NOTE

FOLLOWING THE INSTALLATION OF THE CHILD RESTRAINT A SMALL AMOUNT OF MOVEMENT IS DEEMED ACCEPTABLE.

CAUTION: CHILDREN CAN BE INJURED OR RESTRAINTS AND TOP TETHER STRAP DAMAGED BY UNSECURED CARGO IN A COLLISION. SECURE OR REMOVE HAZARDOUS CARGO BEFORE USING THIS CHILD RESTRAINT.

Always secure the loose end of the top tether strap to prevent it hanging out of the car or being accessible by the child.

Top Tether Strap Guide Adjuster Anchorage Point Top Tether Strap Tilt Pull to Lengthen Pull to Tighten

Figure 8

Top Tether Strap Adjuster Storage Pocket Flexible LAC strap

Figure 9

Using Inbuilt Harness

Step 1: Ensure the restraint has been set up and installed as per "Setup" and "Installation" (refer page 11-27).

Step 2: To lengthen the harness "LIFT" the harness adjuster (refer Figure 2) whilst grasping both shoulder harness straps and pulling. Ensure shoulder straps are pulled equally on each side.

WARNING

To ensure infant's back is evenly supported, do not put more than one nappy on the baby and make sure the nappy is not thickly folded at the back.

Step 3: Place the child in the restraint with legs either side of the buckle, place the harness over the shoulders and hips (refer Figure 3).

Harness Adjuster Strap Top Tether Strap Harness Adjuster (Under cover) Figure 1

PULL TO LENGTHEN

PULL TO LENGTHEN Harness Adjuster Figure 2

"LIFT" TO LENGTHEN

NOTE: To change the buckle height refer to "Buckle Height Adjustment" (refer page 19).

IMPORTANT

KEEP BUCKLE LOW AS POSSIBLE

Always ensure buckle has clearance from the upper thighs (see indicated area Figure 4).

Figure 3 Figure 4

Using Inbuilt Harness

Step 4: Insert either tongue into the buckle until a "CLICK" is heard. Ensure secure engagement by pulling the harness strap (refer Figure 5).

Illustration of two gray mechanical components with a red circular indicator light at the bottom (no text or symbols)

Illustration of two hands holding a small object with a red circular highlight (no text or symbols)

IMPORTANT

If no “Click” can be heard or a secure engagement cannot be achieved refer to “Cleaning Buckle Harness” page 57.

Step 5: Remove all of the slack for the harness lap straps by pulling shoulder straps (refer Figure 6), then pull the harness adjustment strap to adjust harness to a comfortable but firm fit (refer Figure 6 & 7).

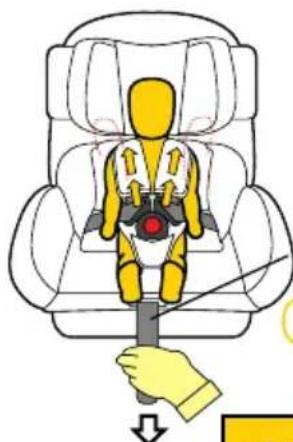

WARNINGS

• DO NOT LEAVE CHILDREN UNATTENDED IN THE CAR.
• Fit the harness firmly to the child.
• A LOOSE HARNESS IS DANGEROUS.

"CLICK" Figure

Figure 5

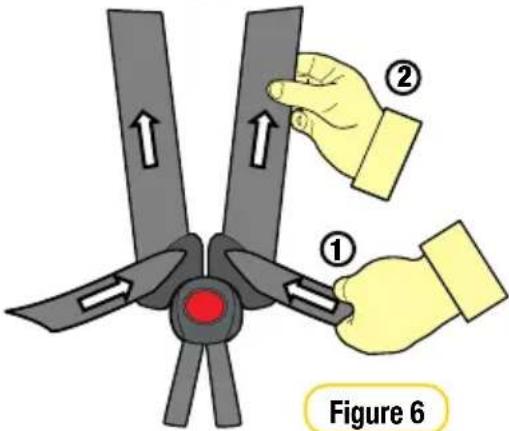

Figure 6

Illustration of a yellow car seatbelt with a hand holding the seatbelt, no text or symbols present

Harness
Adjuster Strap
Figure 7
PULL TO TIGHTEN
REMOVE ALL SLACK FROM HARNESS

Using Inbuilt Harness

IMPORTANT

• The Padded Insert/s (if fitted) are designed to provide extra support and comfort for small babies. Discontinue use when the insert is a tight fit or creates discomfort for larger babies/children.
• Always adjust the height of the shoulder straps as the child grows.

PINCH TEST Figure 8

NOTE: If top tether strap has been loosened to allow easier placing of the baby in the restraint, tighten the upper anchorage strap so it has no slack in it. DO NOT TIGHTEN EXCESSIVELY.

Step 6: Check the harness tightness by the PINCH TEST, this is achieved by pinching the harness webbing at the shoulders (refer Figure 8).

• If you can pinch the harness strap, tighten more.
• If your fingers slip off, then the harness is tight enough.
  If required repeat Step 5.

NOTE: Pinch test is conducted only on harness webbing (not over shoulder pads).

Step 7: Pull to tighten to remove all the slack, from the upper anchorage strap. Do not overtighten as this could cause the restraint to lift off the vehicle seat (refer Figure 9).

Adjuster Anchorage Top Tether Tilt Pull to Lengthen Pull to Tighten Figure 9

Tether Storage

Store any excess webbing from the top tether strap, in the storage pocket provided on the restraint (refer Figure 10).

Otherwise secure to the top tether by using the velcro connectors.

Top Tether Strap

Adjuster Storage Pocket Figure 10

To Release Infant

Step 1: Harness straps should be loosened prior to disengaging the buckle.

Step 2: To release your child from the restraint simply press the red button on the harness buckle and carefully remove your child from the restraint (refer Figure 1).

NOTE: If top tether strap has been loosened to allow easier placing of the baby in the restraint, always retighten the top tether strap so it has no slack in it. DO NOT OVERTIGHTEN.

For Ease Of Use

No need to disconnect the Upper Anchorage Strap from the vehicle.

To access your baby simply;

- Loosen upper anchorage strap (refer Figure 2).

- Lower strap out of way (refer Figure 3).

Reverse procedure when reseating the baby.

WARNING

• Always use a lap or lap-sash seat belt and Top Tether strap to attach the child restraint to the vehicle or Top Tether & ISOFIX connectors.
• Do not use the restraint without the Top Tether strap correctly attached and adjusted.
• Do not use on any vehicle seat which faces sideways or rearwards.
• IF AN AIRBAG IS FITTED IN THE SEATING POSITION WHERE THE CHILD RESTRAINT IS TO BE FITTED, FOLLOW THE VEHICLE MANUFACTURER'S WARNINGS AND INSTRUCTIONS.
• Do not use the restraint if the buckle is sluggish or does not provide an audible "Click" refer to "Cleaning Instructions" on page 57.

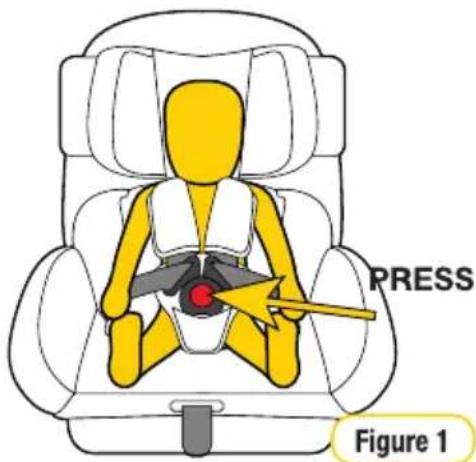

PRESS Figure 1

Top Tether Strap

Figure 2

Top Tether Strap LOWER OUT OF WAY

Figure 3

THE SUITABILITY OF THE CHILD RESTRAINT TO GROUPS OF CHILDREN

TYPE A4

To be used only in a rearward-facing position until the child's shoulders reach the lower shoulder height marker (approximately 12 months of age) or reach the middle marker (approx 2 to 3 years of age).

TYPE B

Then to be used in forward-facing position until child's shoulders reach upper shoulder height marker (approximately 4 years of age).

Continue to use this child restraint until child's shoulders are above the lower shoulder height marker.

Infants are at risk of serious injury if they face forward too early.

Children are at risk of serious injury if they move to booster seat too early.

Children who have outgrown this restraint are safest in a large child restraint with an in-built harness or a booster seat until their shoulders reach the upper shoulders height marker of the restraint.

CS8813 ISOFIX COMPATIBLE INSTALLATION TO BE USED WITH A LAP-SASH/LAP-ONLY BELTH OR ISOFIX LOW ANCHORAGES IN THE BACK OF THE MOST CARS WITH FORWARD FACING SEATS.

CS8913 SEATBELT ONLY INSTALLATION TO BE USED WITH A LAP-SASH/LAP-ONLY BELTH IN THE BACK OF MOST CARS WITH FORWARD FACING SEATS.

The use of the child restraints in the front seat may be restricted for children of specific ages by local legislation. Please check with your local Department of Transport for the specific seating locations of the children using child restraint for their given ages.

IMPORTANT

• For a vehicle without a fixed parcel shelf an extension strap(s) may be needed. If so ring 1300 92 4632 (AU) or [phone] (NZ) for nearest supply location (refer page 57).
• Seatbelt extenders are not recommended to be used if the seatbelt is not long enough to secure the child restraint. If seatbelt are too short then advice should be sought from a child restrain fitter and their recommendation be considered before using a seatbelt extender.

Shoulder height markers may be hidden under a headrest 1 2 3 4 5 6 7 8 9 10

11 12 13 14

ISOFIX Compatible 15

CS8813 CONVERTIBLE CAR SEAT either seatbelt or ISOFIX compatible installations. CS8913 CONVERTIBLE CAR SEAT seatbelt installation only.

1. Shoulder Height Markers
2. Headrest Assembly
3. Headrest + Harness adjustment system
4. Harness Straps
5. Shoulder Pads
6. Harness Straps Buckle Pad
7. Padded Insert (if fitted)
8. Harness Adjuster
9. Harness Adjustment Strap

10. Comfort Cover Harness Adjustment Strap

11. Top Tether Assembly

12. Tether Strap
13. Adjuster
14. Attachment Clip

15. Anchor Fitting + Attachment Hardware

16. "FORWARD-FACING SEAT BELT PATH" Marker (each side of restraint - coloured yellow)

Safe Grip Red Belt Clamp (if supplied with restraint)13.

1. Vehicle Seat belt

2. ISOFIX Compatible Lower attachment Connectors (LAC)

NOTE: Padded inserts can vary according to model. For detailed description and method of attachment for padded accessories refer to Accessories on page 58.

Shoulder Height Marker

Smaller Child (Using Inbuilt Harness)

Once the child's shoulders reached the lower shoulder height marker the restaint can either

• Remain REARWARD FACING until the middle shoulder height marker is reached (approx 2 to 3 years) or
• Change to FORWARD FACING until the upper shoulder height marker is reached (approx 4 years old).

Front of Car VIEW B LOWER LABEL (REARWARD FACING) EITHER X VIEW B

Smaller Child from
approximately 12 months of age

Do not use as a forward-facing child restraint until the child's shoulders are ABOVE Lower shoulder height marker (Lower label).

When the child's shoulders reach the lower shoulder height marker, the child restraint MAY be turned forward facing. (approximately 12 months of age).

When the child's shoulders reach the middle shoulder height marker, the seat MUST be turned into the forward facing mode (approximately 30 months of age).

Shoulder Height Marker

Taller Child (Using Inbuilt Harness)

Do not continue to use the restraint if the child's shoulder are above the Upper Label.

Front of Car VIEW B Taller Child to approximately 4 years of age UPPER LABEL LOWER LABEL VIEW B LOWER LABEL

Continue to use this forward-facing child restraint until the child's shoulders REACH the Upper shoulder height marker (Upper Label).

UPPER LABEL (Forward-Facing)

SHOULDERS MUST BE BELOW THIS LINE

Children are at risk of serious injury if they move to booster seats too early.

Children that have outgrown the forward-facing child restraint are safest in a booster seat until their shoulders reach the upper shoulder height marker of the booster seat.

The child restraint is unsuitable for the occupant when the shoulders are above the upper marker. The child needs to be moved into the next form of child restraint eg. Type G, Type E booster seat or Type F booster seat when they reach the top shoulder height marker.

For the next child restraint refer to the "Restraint Guide" on page 5 and 37.

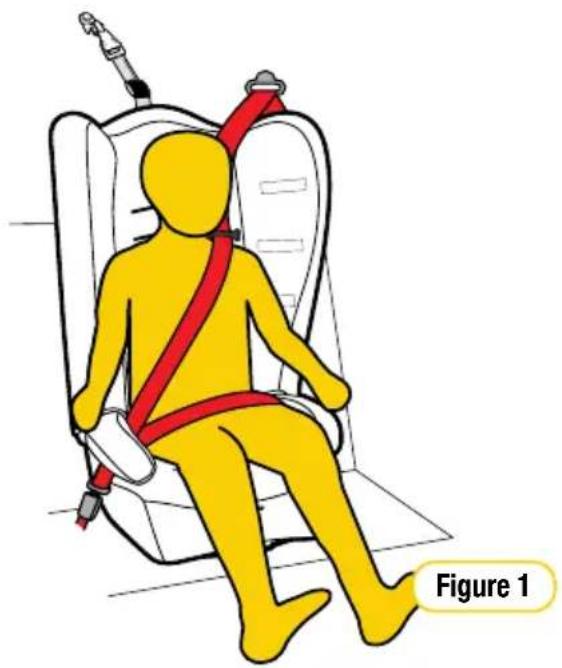

Next Restraint

Next Type of Restraint

Refer to the ‘RESTRAINT GUIDE’ for the selection for the most appropriate next restraint (refer page 6). When the child has outgrown the child restraint, then you can use either of the following;

• Convertible booster seat - Type (B/E) internal harness until approx 4 years old and then as a booster seat with vehicle lap-sash seatbelt.
• Booster seat - Larger Type (E) or Type (F) booster seat with vehicle lap-sash seatbelt. suitable to 8 years. Suitable to 10 years.
• Child Car Seat - Type (G) harnessed child restraint suitable approx 6 months to 8 years.

For more information visit: infagroup.com.au/collections/convertible-car-seat-0-4

Illustration of a person in a yellow seatbelt using a red harness, no text or symbols present

Illustration of a yellow human figure seated in a car seat, with no visible text or symbols on the diagram itself.

Setup

CS8813 Convertible Car Seat ISOFIX and seatbelt compatible CS8913 Convertible Car Seat seatbelt compatible

Selection of Appropriate Padding Combinations

Step 1: Determine whether your child requires the additional padding provided with this restraint, to ensure a safe and snug fit in the restraint. Refer to page 6 for suggested padding combinations.

Converting to Child Car Seat

Reclined Position

Step 1: Under the front of the restraint is a *GREY lever. Lift the the lever to recline. (refer Figure 1) *Colour may vary

Step 2: Rotate the restraint into the appropriate recline angle. There are 3 Recline angles for Forward Facing. NOTE: Forward Facing recline indicator is visible (refer Figure 2)

IMPORTANT

Refer to the shoulder height labels (As shown on pages 34 and 35). For Correct shoulder strap slot height refer to pages 40 - 42.

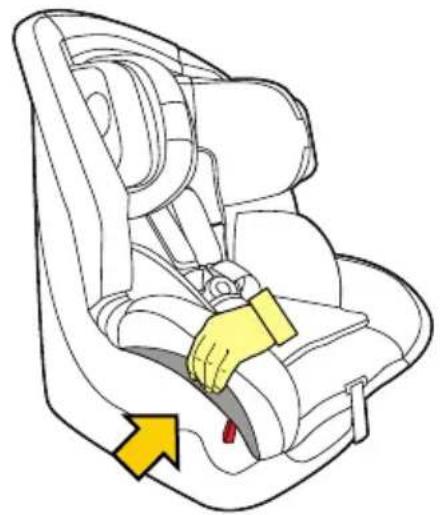

LIFT RECLINE LEVER

Line drawing of a hand pressing down on a seated object (no text or symbols)

Figure 1

1 Rearward facing 2 Forward facing 3 4 Figure 2

Setup

Shoulder Height

Zone

The child's shoulder region.

Diagram showing human body posture with red measurement lines and checkmark indicating correct and incorrect positions

Slot Position

Nearest to the child's shoulders, but not more than 25mm below the child's shoulders.

Diagram showing two human figures seated in a seat, one highlighted with dashed lines and red horizontal bars (no text or symbols present)

Headrest Position

Position the headrest above the shoulders, to ensure the straps are nearest to but not more than 25mm below the child's shoulders.

Check Shoulder Height Marker

Setup

Shoulder Height

The correct height for the shoulder straps is very important for the optimum performance of the restraint.

IMPORTANT

The shoulder straps must be positioned nearest to the child's shoulders, but not more than 25mm below the child's shoulders.

FRONT OF VEHICLE 25mm

There is only one set of slots so the seat will always have the shoulder straps in place once the headrest is positioned correctly, just above the child's shoulders.

Headrest & Harness Strap Height Adjustment

Step 1: Loosen the harness straps before adjusting the headrest (refer "Using Inbuilt Harness" page 28).

You do not need to remove the restraint from the vehicle to adjust the harness or headrest positions.

Step 2: To adjust headrest, pull the "LIFT" ring on the headrest (refer iFigure 1).

Step 3: Lift the headrest up or down so that the shoulder strap slots are level with or slightly above your child's shoulders. If the headrest is just above the shoulders, then the harness level will be correct (refer Figure 2)

Step 4: Release the "LIFT" ring so that it locks into position. Ensure that the headrest is locked in position by gently pushing down on the headrest. (refer Figure 2)

IMPORTANT

• For comfort ensure the bottom edges of the headrest are not contacting the child's shoulders.
• When lowering the headrest ensure the headrest apron does not bunch up behind the child's neck.

Line drawing of a hand placing a coin on top of a car seat (no text or symbols)

Figure 1

Diagram showing car seatbelt adjustment with hand pointing to upper and lower buttons, indicating left or right movement.

Figure 2

Setup

Headrest & Harness Strap Height Adjustment

Check Shoulder Height Marker

IMPORTANT

ENSURE THE HARNESS STRAPS ARE ALWAYS THREADED THROUGH THE HEADREST.

Correct fitment of the harness is very important as it restrains the child in the restraint. The harness must fit firmly around the upper torso of the child and be positioned to ensure the the child's arms and legs are free.

Line drawing of a car seat with two pink buttons and a red belt (no text or symbols)

IMPORTANT

• IF THE CHILD'S SHOULDERS TOUCH THE BOTTOM EDGES OF THE HEADREST SIDE WINGS, RAISE THE HEADREST TO THE NEXT HEADREST POSITION.
• THIS CHILD RESTRAINT DOES NOT REQUIRE THE STRAPS TO BE DISCONNECTED TO ADJUST THEIR HEIGHT, ONLY THE HEADREST NEEDS TO BE MOVED TO ADJUST THE SHOULDER STRAP POSITIONS.

Setup

Buckle Height Adjustment

The buckle is supplied in a shortened position, if you want to alter the buckle height the following steps are required.

Step 1: Lift the buckle and determine the required buckle height (refer Figure 1).

Step 2: Fold the buckle flap forward (and foam if applicable) forward, exposing the central plate (refer Figure 2).

Step 3: Grab the central 3 bar plate and lift up to allow access to the 3 bar plate (refer Figure 3).

Step 4: Adjust the webbing through the central plate.

-To shorten the buckle 'Pull' excess webbing through the central plate.

-To lengthen the buckle 'Push' excess webbing through the central 3 bar plate (refer Figure 3).

Step 5: Lift the buckle to verify the buckle height (refer Figure 4) try to keep the buckle height "low".

Note: When shortening the buckle ensure the buckle tongues have clearance above the upper thigh.

Diagram of a rope or rope being pulled with directional arrows, no text or symbols present

TO SHORTEN

upper thigh. INDICATOR MARK

Note: Do not shorten the buckle strap beyond the indicator mark on the strap.

Diagram of a rope being pulled with directional arrows indicating motion (no text or symbols)

TO LENGTHEN

Illustration of a hand holding a device with a red button and yellow handle, labeled 'Figure 3' (no text or symbols on the diagram itself)

Illustration of a hand holding a small red object inside a circular frame, with no visible text or symbols.

Figure 1

Illustration of a hand inserting a red belt into a car seatbelt, with a yellow cable and arrow indicating rotation (no text or symbols)

Figure 2

Illustration of a hand using a belt switch to adjust seatbelt, showing arrows indicating movement (no text or symbols)

Figure 4

Installation

Installing Using Vehicle Seatbelt

Step 1: Place the restraint in desired upright or reclined position, with the back against the back of the vehicle seat, directly in line with the anchorage point (refer Figure 1).

IMPORTANT

Ensure that you use the FORWARD-FACING BELT PATH identified by the following label.

FORWARD FACING BELT PATH

Line drawing of a car seat with a highlighted orange band (no text or symbols)

Illustration of a car seat with a yellow rod inserted, showing the seat area highlighted in pink (no text or symbols present)

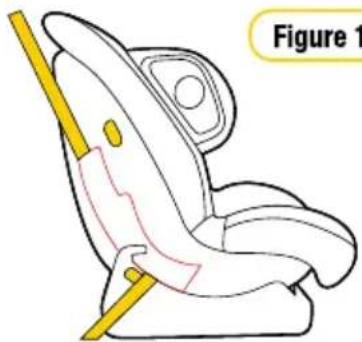

Figure 2

Illustration of a car seat with yellow belt and orange buttons, no text or symbols present

Figure 3

Installing Using Vehicle Seatbelt

Step 2: Feed adult lap or lap/sash belt through the belt path opening base. (refer Figure 2 & 3)

Engage the buckle and tongue assembly (listen for a "CLICK"). Check the buckle engagement with a gentle pull.

WARNING

• Always use Top Tether strap to attach the child restraint to the vehicle.
- Do not use the restraint without the Top Tether strap correctly attached and adjusted.
- Do not use on any vehicle seat which faces sideways or rearwards.
- IF AN AIRBAG IS FITTED IN THE SEATING POSITION WHERE THE CHILD RESTRAINT IS TO BE FITTED, FOLLOW THE VEHICLE MANUFACTURER'S WARNINGS AND INSTRUCTIONS.
• Fit the restraint firmly to the car seat.

NOTE: Ensure the belts are under foam padding

Pass lap and sash belt through the seat.

o belt seat.

Figure 4

Buckle & Tongue Assembly "CLICK"

Lap and sash belts pass across the base

Step 3: Push down on the base of the restraint (with knee or hand) whilst pulling the sash section of the vehicle belt firmly up in direction of the yellow arrow in Figure 4. (This will tighten the lap belt across the restraint base).

Step 4: Ensure the excess slack in the sash belt, is fed back towards the seat belt.

Figure 5 Figure 6 REMOVE ALL SLACK FROM SEATBELT

Installation

Installing Using Vehicle Seatbelt

Safe Grip (If Supplied)

*Can be purchased separately visit https://infagroup.com.au/

SAFE GRIP BELT CLAMP

The Safe Grip (red belt clamp) locks the lap belt to ensure a firm installation, and avoids slack in the lap belt.

Red stylized illustration of a mechanical device with no visible text or symbols

To install the Safe Grip (red belt clamp), open it and clamp the "sash section" ONLY of the vehicle seat belt by closing the barrel section of the red belt clamp in the direction of arrow 1 in Figure 5 and then locking with the toggle section by pushing in the direction of arrow 2 in Figure 5 when the Safe Grip (red belt clamp) is secured in place, the lap section is now tightly holding your child restraint in place, independent of the sash section. The Safe Grip (red belt clamp) must be removed when the child restraint is not installed to allow other users to use the seat belt as a lap/sash seat belt. Always keep the Safe Grip (red belt clamp) in pocket provided when not in use.

NOTE: Do not place the Safe Grip (red belt clamp) around both the lap and sash sections of the belt. This could cause the Safe Grip (red belt clamp) to break.

Adjusting Recline Angle

NOTE: To adjust the recline angle of the child restraint refer to "Converting to Child Car Seat" on page 38.

SASH SECTION TOGGLE SECTION (2) Buckle (A) (AND TONGUE) SAFE GRIP (B) (IF SUPPLIED) BARREL SECTION (1) LAP SECTION ATTACH TO SASH SECTION ONLY Figure 7

Safe Grip (red belt clamp) Figure 8

Installation

Installing Using Vehicle Seatbelt

Note: If no upper anchorage fitting is available refer to pages 62 & 63.

Step 5: Hook the attachment clip to the anchor fitting. Ensure there are no twists in the top tether strap (refer to Figure 7).

Step 6: Pull to tighten to remove all the slack, from the upper anchorage strap. Create a firm installation by tightening the upper anchorage strap (refer to Figure 8).

NOTE

FOLLOWING THE INSTALLATION OF THE CHILD RESTRAINT A SMALL AMOUNT OF MOVEMENT IS DEEMED ACCEPTABLE.

CAUTION: CHILDREN CAN BE INJURED OR RESTRAINTS AND TOP TETHER STRAP DAMAGED BY UNSECURED CARGO IN A COLLISION. SECURE OR REMOVE HAZARDOUS CARGO BEFORE USING THIS CHILD RESTRAINT.

Always secure the loose end of the top tether strap to prevent it hanging out of the car or being accessible by the child.

Illustration of a hand holding a tool with a clip, no text or symbols present

Figure 9

ATTACH PULL TO TIGHTEN ADJUSTER Tilt Pull to Lengthen Pull to Tighten Figure 10

Tether Storage

Store any excess webbing, from the top tether strap in the storage pocket provided on the restraint (refer to Figure 9).

Storage Pocket Figure 11

ISOFIX Compatible Restraint

ISOFIX Lower Anchorages

Newer vehicles have one or more seating positions with ISOFIX anchorages. If the vehicle is equipped with ISOFIX anchorage, the lower anchor points may be visible at the vehicle seat bight. If not visible, they may be marked with this symbol.

See your vehicle owner's manual for exact locations, anchor identification, and requirements for use with a child restraint.

Check vehicle owner's manual for vehicle top tether anchor locations. They may be identified using one of the anchor symbols as shown.

IMPORTANT

ONLY use flexible LAC straps on the child restraint in a seating position recommended by vehicle manufacturer.

This CS8813 restraint uses Flexible Lower Anchor-age Connector Straps. Flexible connectors: A pair of flexible straps with connectors are located at the base of the child restraint which connect to the vehicle's ISOFIX low anchorages. The flexible connectors are then adjusted to secure the child restraint firmly to the vehicle. The top tether strap must be anchored to the vehicle. The vehicle seatbelt must NOT be used when the flexible connectors are being used.

ISOFIX low anchorages are built in to the vehicle at the time of manufacture, if the vehicle manufacturer chooses to provide them. The number of ISOFIX low anchorages will depend on the design of the vehicle. Generally, ISOFIX low anchorages are located on the two outer seating positions in the second row, and not in the middle seating position.

If you wish to use the middle seating position in the second row, you may still fit an ISOFIX compatible child restraint by using the vehicle seatbelt and top tether strap.

Seat Belt Buckle ISOFIX

Access The flexible ISOFIX Lower Anchorage Connectors (LAC)

IMPORTANT

The straps for the flexible ISOFIX Lower Anchorage Connectors (LAC) are stored under the cover, located each side of the restraint.

Step 1: Locate the flexible ISOFIX straps, under the cover on each side of the seat, and "PULL" the red strap to release the ISOFIX Straps.

Step 2: Flexible ISOFIX straps are now ready for use.

Illustration of a car seatbelt buckle with a yellow bandage and red grip, no text or symbols present

Load Indicating Adjuster Lower Anchorage Connector (LAC) Adjuster Strap

ISOFIX Compatible Restraint

Installing using Flexible ISOFIX Lower Anchorage Connectors (LAC)

Forward facing mode

Step 1: Under the front of the restraint is a *GREY lever. Lift the the lever to recline. (refer Figure 1) *Colour may vary

Step 2: Rotate the restraint into the appropriate recline angle. There are 3 Recline angles for Forward Facing. NOTE: Forward Facing recline indicator is visible (refer Figure 2)

Install the restraint on the vehicle seat

Locate the ISOFIX lower

Step 1: anchorage points in the vehicle. Usually in the vehicle seat blight (refer to page 24).

Step 2: Insert the flexible LAC into the vehicle ISOFIX anchorage points. You may need to "PUSH" into the seat bight where the ISOFIX symbols indicate. Give a "PULL" to check for positive engagement (refer to Figure 3).

Step 3: Push down on the restraint (with knee or hand). Remove all slack from the LAC straps by pulling the adjuster strap firmly. The GREEN indication is activated (refer Figure 4).

Step 4: Repeat for both sides of the restraint.

Installing using Flexible ISOFIX Lower Anchorage Connectors (LAC)

Note: If no upper anchorage fitting is available refer to pages 62 & 63.

Step 5: Hook the attachment clip to the anchor fitting. Ensure there are no twists in the top tether strap (refer to Figure 5).

Step 6: Pull to tighten to remove all the slack, from the upper anchorage strap. Create a firm installation by tightening the upper anchorage strap (refer to Figure 6).

Step 7: Store any excess webbing, from the top tether strap, in the storage pocket provided on the restraint (refer to Figure 7).

IMPORTANT

For removal of LAC straps from vehicle 'PULL' the red strap to detach from anchorage point and store in the compartment beneath the seat.

NOTE

FOLLOWING THE INSTALLATION OF THE CHILD RESTRAINT A SMALL AMOUNT OF MOVEMENT IS DEEMED ACCEPTABLE.

CAUTION: CHILDREN CAN BE INJURED OR RESTRAINTS AND TOP TETHER STRAP DAMAGED BY UNSECURED CARGO IN A COLLISION. SECURE OR REMOVE HAZARDOUS CARGO BEFORE USING THIS CHILD RESTRAINT.

Always secure the loose end of the top tether strap to prevent it hanging out of the car or being accessible by the child.

Illustration of a hand holding a tool with a clip, no text or symbols present

Figure 6

ATTACH PULL TO TIGHTEN ADJUSTER Tilt Pull to Lengthen Figure 7 Pull to Tighten Storage Pocket Figure 8

Using Inbuilt Harness

Step 1: Ensure the restraint has been set up and installed as per "Setup" and "Installation" (refer page 38-50).

Step 2: To lengthen the harness "LIFT" the harness adjuster (refer Figure 1) whilst grasping both shoulder harness straps and pulling. Ensure shoulder straps are pulled equally on each side.

Step 3: Place the child in the restraint with legs either side of the buckle, place the harness over the shoulders and hips (refer Figure 2).

PULL TO LENGTHEN

PULL TO LENGTHEN Harness Adjuster Figure 1 "LIFT" TO LENGTHEN

Diagram showing car seatbelting technique with magnified view of seatbelting details

Figure 2
NOTE: To change the buckle height refer to "Buckle Height Adjustment" (refer page 43).

IMPORTANT

KEEP BUCKLE LOW AS POSSIBLE

Always ensure buckle has clearance from the upper thighs (see indicated area Figure 3).

Illustration of a human pelvic anatomy with highlighted vertebrae and shoulder muscles (no text or symbols)

Using Inbuilt Harness

Step 4: Insert either tongue into the buckle until a "CLICK" is heard. Ensure secure engagement by pulling the harness strap (refer Figure 4).

Illustration showing two hand positions: one with a tool and red circular button, the other with a yellow-handled grip (no text or symbols)

IMPORTANT

If no "Click" can be heard or a secure engagement cannot be achieved refer to "Cleaning Buckle Harness" page 56.

Step 5: Remove all of the slack for the harness lap straps by pulling shoulder straps (refer Figure 5), then pull the harness adjustment strap to adjust harness to a comfortable but firm fit (refer to Figure 5 & 6).

! WARNINGS

• DO NOT LEAVE CHILDREN UNATTENDED IN THE CAR.
• Fit the harness firmly to the child.
• A LOOSE HARNESS IS DANGEROUS

"CLICK" Figure 4 ① Figure 5

Harness Adjuster Strap Figure 6 PULL TO TIGHTEN REMOVE ALL SLACK FROM HARNESS

Using Inbuilt Harness

Step 6: Check the harness tightness by the PINCH TEST, this is achieved by pinching the harness webbing at the shoulders (refer Figure 7).

• If you can pinch the harness strap, tighten more.
• If your ngers slip off, then the harness is tight enough.

If required repeat Step 5.

NOTE: Pinch test is conducted only on harness webbing (not over shoulder pads).

IMPORTANT

• The Padded Insert/s (if fitted) are designed to provide extra support and comfort for small babies. Discontinue use when the insert is a tight fit or creates discomfort for larger babies/children.
• Always adjust the height of the shoulder straps as the child grows.

PINCH TEST Figure 7

Adjusting Recline Angle

NOTE: To adjust the recline angle of the child seat refer to "Converting to Child Car Seat" on page 38.

Step 1: First loosen the seatbelt assembly, the Safe Grip Belt Clamp may need to be removed & loosen the top tether strap.
Step 2: At the front of the restraint is a GREY* lever. Pull the red* lever forward and slide the restraint to obtain the desired upright or reclined angle (refer Figure 1). *Colour may vary.
Step 3: Reinstall the seatbelt and Safe Grip Belt Clamp if supplied. (refer page 48) and retention both seatbelt & top tether.

To Release Child

Step 1: Harness straps should be loosened prior to disengaging the buckle.
Step 2: To release your child from the restraint simply press the harness buckle and carefully remove your child from the restraint (refer Figure 1).

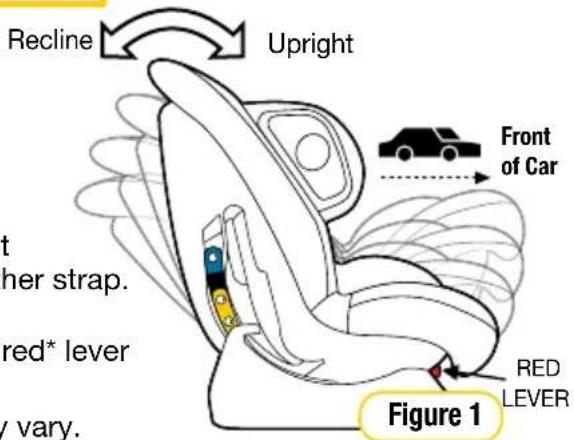

Recline Upright Front of Car t her strap. red* lever / vary. Figure 1 RED LEVER

PRESS Figure 1

Care of Restraint

The child restraint cover has been manufactured to meet the Australian Standards requirements for flammability and toxicity to ensure your child's safety. The cover has also been designed to provide your child with comfort and support.

1 2 3 4 5 1 Main Seat

1. Main Cover

2. Head Rest Cover

3. Insert

4. Shoulder Pads

5. Buckle Pad

VERY IMPORTANT

Only replace the cover with a InfaSecure supplied replacement cover ☒ with identical shoulder height markers or a replacement cover ☒ meeting AS/NZS 8005.

Care and Maintenance

Regular care of the restraint will ensure safety of your child.

• Check the webbing for fraying.
• Check the upper anchorage attachment clip to ensure anchor hook keeper clip is still present.
• Ensure there are no cracks in moulding or the plastic moulding.
• Check the buckles "click" when you engage tongues and is not sluggish or sticky in operation.
• Ensure the buckle is free of fluff, liquid, or other matter that may enter the buckle slots. Clean the buckle if it is sluggish to engage (refer Cleaning Buckle page 57).
• Check the harness adjuster is operating and is clamping the webbing.
• If any part of the restraint is cracked or broken, seek repair immediately or replace the child restraint.

Cleaning

IMPORTANT

Use only mild soap and water to clean all parts of the CS8813/CS9813 Convertible Car Seat.

Do not use chemicals or cleaning agents

Cold water only to be used and to be rinsed well

Do not dry clean or tumble dry

Do not bleach.

Covers

The restraint has a flame retardant cover which is removable for cleaning. Cleaning instructions are on the care label attached to the cover. If a fluffy cover is fitted, then washing the cover prior to use will remove excess fluff.

The cover has been designed to protect your child when seated in the restraint.

Care should be taken, if children either eat or drink while in the restraint, as some food or drink products may cause damage or marking to the cover. Wash or clean immediately. Do not pull sticky items from covers as the cover may be damaged - soak in water and gently remove.

Only machine wash on gentle cycle (hand washing is recommended). When washing the covers, ensure the hook and loop attachment strips are connected to eliminate other materials or garments being caught. Ensure that the hook and loop attachment strips are free of lint, this will ensure a positive engagement.

IMPORTANT

For Velour or Leatherette fabric only sponge clean with a damp cloth.

Seat + Hardware

Use only mild soap and water to clean all webbing, metal and plastic parts of the restraint using a damp cloth.

Do not use chemicals or cleaning agents.

Harness Straps

Use only mild soap and water to clean all straps, using a damp cloth the harness straps can be soaked, however they must be thoroughly dried without excessive heat (never tumble dry). The harness straps should not be placed in a washing machine as this may cause damage to the stitching or even damage your washing machine.

Do not use chemicals or cleaning agents.

Cleaning

Harness Buckle

If sticky liquids such as baby formula, fruit juice, etc. get inside your Harness Buckle, it may become sluggish. An indication of a sluggish Harness Buckle is that you cannot hear a "CLICK" when engaging the Harness Tongues. To restore the Harness Buckle to good working order it needs to be cleaned as follows:

Step 1: From the underside of the restraint pull each crotch 3-bar slide then turn 3-bar slide and push through each slot to remove the Harness Buckle from the restraint (refer Figure 1).

Step 2: Place the Harness Buckle under warm (max. 40 degrees Celsius) running water as shown below. Let the water run through the mouth of the buckle for five minutes (refer Figure 2).

Step 3: Engage and disengage the Harness Tongues and Buckles several times until a strong audible "CLICK" is heard when inserting the last tongue (refer Figure 3).

Step 4: If you still cannot hear a strong audible click after engaging the Harness Tongues and Buckle, then repeat cleaning several times. If the Harness Buckle cannot be returned to its original working condition then contact INFA GROUP Customer Care: AU: 1300 92 4632 NZ: [phone]

Step 5: Refit the harness buckle to the restraint with the red button facing out and feeding each 3-bar slide through appropriate slot. Always ensure the webbing crotch straps are thoroughly dried before installing.

Two diagrams showing a folded paper or document being inserted, with arrows indicating direction of movement (no text or symbols present)

Illustration of a hand pressing down on a car sink with a red circular mark, labeled Figure 2 (no text or symbols on the diagram itself)

"CLICK" Figure 3

Remove & Replace Covers

Headrest

Step 1: Raise the headrest to highest position (refer Figure 1).

Step 2: Unclip the press studs which attach to the apron:

1 either side of slots.

Step 3: Remove cover

Diagram showing car seat assembly with labeled parts and directional arrows indicating steering or positioning.

Figure 1

Apron

Step 1: Unclip the press studs location 1 (refer Figure 2).

Step 2: Remove apron and headrest cover as one piece.

1 Figure 2

Extension Straps

If required contact Infa Group for nearest supply location. Extension straps, not included in this package, may be required for vehicles without a fixed parcel shelf.

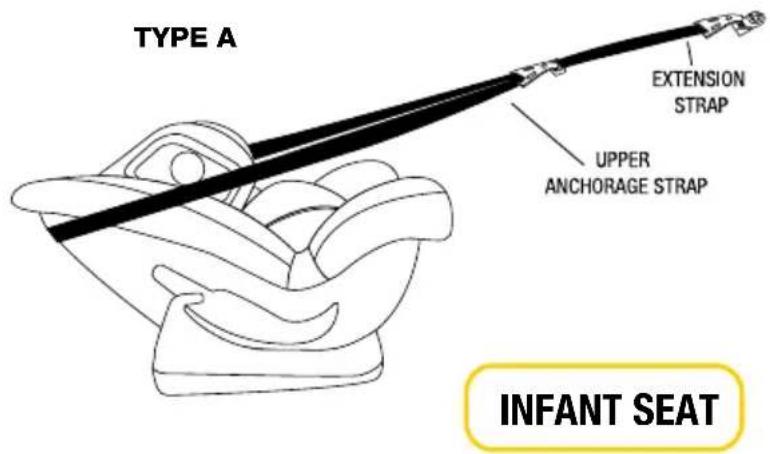

TYPE A EXTENSION STRAP UPPER ANCHORAGE STRAP INFANT SEAT

Re order Line Numbers

CS111 300mm Length

CS112 600mm Length

CS113 200mm - 900mm

Adjustable Length

If required contact INFA GROUP Customer Care 1300 92 4632 (AU) or 067 590 870 (NZ) for nearest supply location.

TYPE B UPPER ANCHORAGE STRAP EXTENSION STRAP CHILD SEAT

CHILD SEAT

Accessories

Follow the instructions covering the use of accessories provided with this child restraint or spare parts provided by InfaSecure for this restraint.

IMPORTANT

Use of unauthorised aftermarket accessories (i.e items not provided in this box with the child restraint), can reduce the safety provided by the child restraint and may cause injury or death.

PADDED INSERTS (if fitted)

The padded inserts are designed to add extra comfort for your child.

Step 1: Press to release Buckle tongues.

Step 2: Open the "press studs" and position the padded insert in the restraint.

Step 3: Pass the harness straps over the insert and connect the "press studs".

Step 4: Pull the Buckle and leg straps through the slot or opening in the insert.

Step 5: Connect both tongues into the buckle.

"press studs"

BUCKLE PAD (if fitted)

The buckle pad is designed to add extra comfort for baby or child.

Step 1: Position the buckle pad behind the buckle and clip in the front. The release button should be clearly visible.

Stud ads.

Press Stud Type Pads.

Accessories

SHOULDER PADS (if fitted)

Alternative Pads

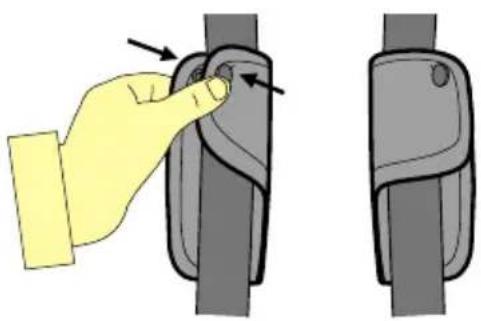

Step 1: Separate press-studs and remove the shoulder pads from harness

Step 2: To attach shoulder pads, ensure press studs face away from the child and re-attach.

Two gray rectangular objects with rounded edges, resembling mechanical or ergonomic components (no text or symbols)

Illustration of a hand adjusting a mechanical component with arrows indicating movement (no text or symbols)

Illustration of a hand adjusting a cable buckle with arrows indicating the adjustment point (no text or symbols present)

Accessories

SEAT PROTECTOR (if fitted)

The seat protector is designed to protect your car's seat.

STANDARD

Step 1: Position the front flap with pockets, at the front of the rear seat and position the mat rearwards to obtain a flat fit.

FULL LENGTH

Step 1: Position the front flap with pockets, at the front of the rear seat and position the mat rearwards to obtain a flat fit. (If required an additional flap has been provided to tuck in between the seat back & cushion)

Step 2: Position the back section up the seat back and use the plastic buckle & webbing strap to attach around the vehicle seat headrest (if the rear vehicle seat does not have a headrest then the strap could be used to attach around the child seats top tether after you have installed the child seat).

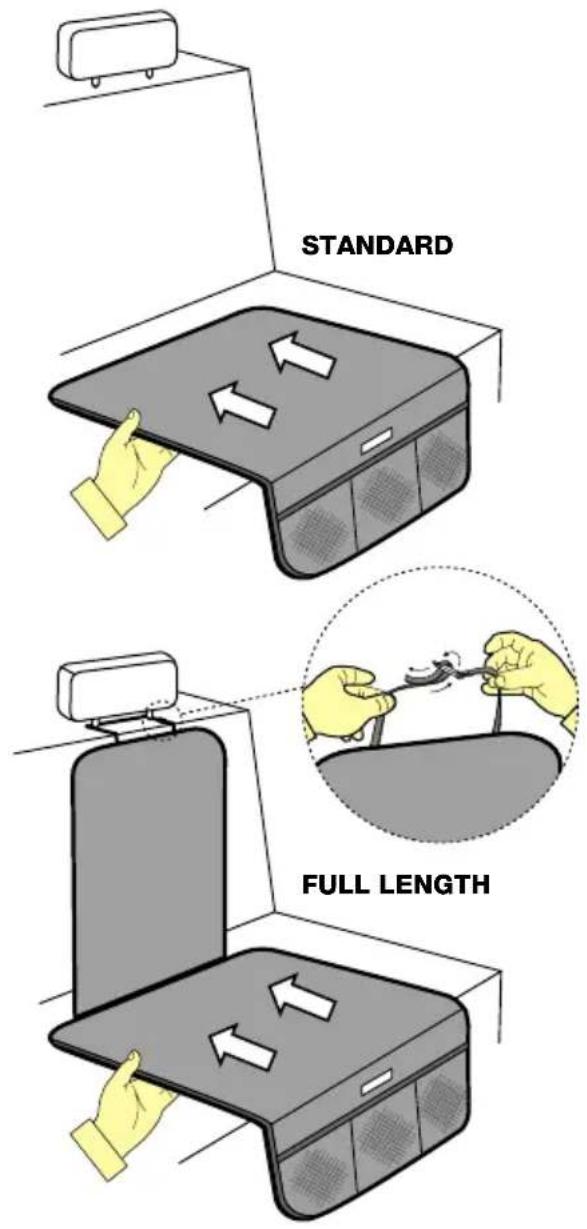

STANDARD FULL LENGTH

*Diagrams used in this accessories section of the manual are indicative of types of cover, pads, inserts & seat protectors and may not resemble the actual product.

*Accessories can vary according to model.

Anchorage Fittings

Some vehicles may have an anchor fitting already fitted by the vehicle manufacturer.

If no anchorage points can be found refer to the vehicle manufacturer, or an authorised child restraint fitting station for the best location of an anchorage point.

Refer to the vehicle owners handbook or child restraint fitting station for the possible use of spacers.

Some vehicles may require the use of additional extension straps (not supplied with this child restraint)

If so ring INFA GROUP on 1300 92 4632 (AU) or 067 590 870 (NZ) for nearest supply location. ADDITIONAL EXTENSION STRAPS AVAILABLE: CS111 300mm Extension strap CS112 600mm Extension strap CS113 200 - 900mm Adjustable Extension strap

WARNINGS

• Top tether strap and attachment clip must always be used
  • Always ensure that the upper attachment clip is correctly engaged to the anchor fitting
• THIS RESTRAINT MUST BE ATTACHED TO A CHILD RESTRAINT ANCHORAGE POINT IN THE CAR. REFER TO CAR OWNER'S HANDBOOK FOR LOCATION OF ANCHORAGE POINTS. REFER TO A CHILD RESTRAINT FITTING STATION IF NO CAR ANCHORAGE POINTS ARE IN THE MOTOR CAR.
• THIS RESTRAINT IS NOT SUITABLE FOR USE WHERE TOP TETHER STRAP MAY FALL INTO A SPLIT IN THE SEAT BACK OR OFF THE SIDE OF THE SEAT.

For cars fitted with a child restraint anchorage point

THIS RESTRAINT MUST BE ATTACHED TO A CHILD RESTRAINT ANCHORAGE POINT IN THE CAR. LOCATE THE ANCHORAGE POINT BEHIND THE REAR SEATING POSITION CONSULT THE CAR OWNER'S HANDBOOK FOR LOCATION OF ANCHORAGE POINTS. REMOVE THE THREAD PLUG FROM THE PARCEL SHELF/FLOOR/ROOF AND INSTALL THE ATTACHMENT BOLT AS SHOWN IN FIGURE 1A & 1B.

Vehicle Ceiling Front of Vehicle Figure 1A High Vehicle Vertical Mount Vehicle Parcel Shelf The shaded areas show some of the possible locations of the anchor fitting. With each shaded area is an anchor fitting showing the correct way to install the fitting. The anchor fitting should be aligned as shown unless stated otherwise in the vehicle owner's handbook. Low Vehicle Floor anchor point If anchor point is less than 80mm from seat, install in this position.

CAUTION: DO NOT OVERTIGHTEN ATTACHMENT BOLT. MAXIMUM TORQUE IS 20NM.

WARNING: If A.D.R. anchorage point is recessed, spacer(s) may be required. Spacer Part No's are as follows:

10mm - CCS001; 5mm - CCS002

UPPER ANCHORAGE FITTINGS Figure 1B Front of Vehicle Attachment Bolt Lock Washer Anchor Fitting Spacer(s) (if required) Vehicle Metal Structure Vehicle Trim

Anchorage Fittings

For cars not fitted with a child restraint anchorage point

For Sedans Only

Drill a 9mm diameter hole in the parcel shelf on the centre line of the seating position as shown in Figure 1C. Hole must be no closer than 200mm from the front of the back seat. Install the anchor bolt as shown in Figure 1D.

Note to Queensland purchases: The installation of anchorage points must be approved by authorised officers appointed by Queensland Transport. Authorised officers can be sourced from all Queensland Transport Customer Service and Queensland Ambulance Service Centres.

For Vehicles other than Sedans

In Australia, consult your nearest child restraint fitting station of traffic authority for vehicle inspection to find the best, correct position for the placement of the anchorage point, and for the correct attachment bolt length use of spacers.

In New Zealand consult the agent of the vehicle.

WARNINGS

CHILD RESTRAINTS MUST NOT BE ATTACHED TO UNSOUND METAL OR WOOD OR SYNTHETIC STRUCTURES. WHEN DRILLING THE 9MM HOLE DO NOT DRILL THROUGH FUEL LINES, FUEL TANKS, ELECTRICAL WIRING OR RADIO SPEAKERS. WEBBING STRAPS MUST BE PROTECTED FROM SHARP CORNERS AND EDGES.

THE ANCHOR FITTING MUST BE USED ONLY AS DESCRIBED ABOVE. IT MUST NOT BE HOOKED ONTO ANY OTHER OBJECT.

Figure 1C CENTRE LINE OF SEATING POSITION 200mm Min Drill ø9mm hole

UPPER ANCHORAGE FITTINGS ☒ FOR SEDANS ONLY

Attachment Bolt Anchor Fitting Spacer(s) (if required) FRONT OF VEHICLE Vehicle Trim Vehicle Metal Structure Reinforcing Washer Lock Washer Nut Reinforcing washer Lock Washer Nut SIDE VIEW

Insurers Information

If your restraint has been involved in a severe crash, you should destroy the restraint even if no damage is obvious. Some insurance companies offer vehicle insurance which covers or partially covers the replacement of your child restraint. Contact your insurance company for further details.

Your insurance company may require you to keep the child restraint for assessment, but do not use the child restraint after a severe crash. To assist you in making an accident insurance claim cut the following statement and include it with your claim.

NOTICE TO INSURANCE COMPANY CHILD RESTRAINT INVOLVED IN AN ACCIDENT

All Infa Group child restraints are manufactured to Australian/New Zealand Standards AS/NZS1754 which requires us to advise users of child restraints to "Destroy the entire restraint if it has been in use in a severe crash, even if no damage is obvious".

The Australian/New Zealand Standards committee, advise that this statement applies whether a child was in the child restraint or not. We consider a "severe crash" as being one where the main body structure of the vehicle is distorted.

There is no method of determining if the restraint has been damaged and we concur with the Australian/New Zealand Standards in recommending destruction of the child restraint.

This notice is to advise you of the requirements of the Australian/New Zealand Standards and our obligation in complying with the standards.

Please assist the owner of this restraint in their claim.

INFA GROUP PTY LTD ABN: 52 149 173 660

Head Office and Registered Address

110-114 Old Bathurst Rd, Emu Plains, NSW 2750

P.O. Box 487, Emu Plains, NSW 2750

Customer Care

AU: 1300 92 4632

NZ: 067 590 870

www.infagroup.com.au

Notes:

Notes:

Notes:

Notes:

Notes:

Register your product to receive lifetime warranty*, product updates and information.

Please visit https://infagroup.com.au/pages/warranty-information to register your product.

InfaGroup Warranty

InfaGroup Pty Ltd warrants this product for twelve months from the date of purchase against failure due to manufacturing faults or faulty materials. Misuse, accidental damages, normal wear and tear are not covered by this warranty.

When used for commercial use the period is limited to six months. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.Ó

Additional Warranty on Child Restraints

Our child restraints are covered against faulty materials and manufacturing when used under normal conditions and according to the instructions.

In the unlikely case that you do have a fault in relation to material quality or manufacturing that restricts your ability to use your Child Restraint normally, we will repair or replace the product within the following warranty periods from date of purchase:

¥ 12 month warranty for material and fabrics
¥ 2 year warranty for straps and webbing
¥ 5 year warranty for hardware and fittings
¥ Lifetime warranty* on the manufacturing of the seat moulding

Please read your instruction manual carefully before using any of our products.

The above express warranties do not apply where a failure or defect results from improper care, misuse or from normal wear and tear.

Refer to website for more details: www.infagroup.com.au

INFA SECURE®

BY INFA GROUP

INFA GROUP PTY LTD

ABN:52149173660

HEAD OFFICE

110 - 114 Old Bathurst Rd,

Emu Plains 2750, NSW, Australia

P.O Box 487,Emu Plains 2750,NSW Australia

CUSTOMER CARE

AU 1300 92 4632

NZ 067 590 870

[e-mail]

SOCIAL MEDIA

infagroup.com.au | @instagram.com/infagroup_

tiktok.com/@infa_group | f facebook.com/infagroup

Certified Product

Australian Standard

AS/NZS: 1754:2013

Licence No. 25324-2

SAI Global

ISSUE STATUS: E
