Product Type	Kitchen Sink
Brand	Sani-Lav
Model	5040
Material	Stainless Steel
Finish	Brushed Satin
Shape	Rectangular
Bowl Configuration	Single Bowl
Overall Dimensions	22" x 19" x 8"
Cutout Dimensions	20-3/4" x 17-3/4"
Weight	12 lbs
Installation Type	Drop-in / Top-mount
Drain Hole Diameter	3.5 inches
Number of Faucet Holes	1
Soundproofing	Sound-dampening undercoating
Included Hardware	Mounting clips, cutout template
Care Instructions	Clean with mild soap and water; avoid abrasive cleaners
Safety	Edges may be sharp; handle with care
Spare Parts	Drain assembly, mounting clips
Warranty	Limited lifetime warranty

Frequently Asked Questions - 5040 Sani-Lav

Can I install this sink myself?

Yes, with basic DIY skills and proper tools. The sink is designed for drop-in installation. Follow the included template for cutting the countertop.

What tools are needed for installation?

You will need a jigsaw or hole saw, drill, screwdriver, silicone caulk, and a level. Mounting clips are included.

How do I clean my stainless steel sink?

Use mild soap and water or a dedicated stainless steel cleaner. Avoid abrasive pads or bleach to prevent scratches.

Will it fit my standard 33" cabinet?

Yes, the sink dimensions are 22x19 inches, suitable for a standard 33-inch base cabinet with ample space.

Is the sink resistant to scratches?

The brushed finish helps hide minor scratches, but the sink can still be scratched by sharp objects. Use a cutting board.

Can I use bleach on the sink?

No, bleach can damage the stainless steel finish. Stick to mild cleaners and rinse thoroughly.

What type of faucet is compatible?

Any standard kitchen faucet with a 1-hole or 3-hole setup (cover plates available). The sink has one pre-drilled faucet hole.

How do I remove the old sink?

Disconnect plumbing, cut the caulk seal, and remove mounting clips. Then lift the sink out. Use caution to avoid damaging countertops.

Is the sink dishwasher safe?

No, the sink itself is not designed for a dishwasher. Hand wash dishes directly in the sink.

Does it come with a drain assembly?

No, the drain assembly is not included. You will need to purchase a standard 3.5-inch kitchen sink drain separately.

USER MANUAL 5040 Sani-Lav

SANI-LAV® COLUMBIA PRODUCTS

Wall Mount Stainless Steel Sink

Model 5040

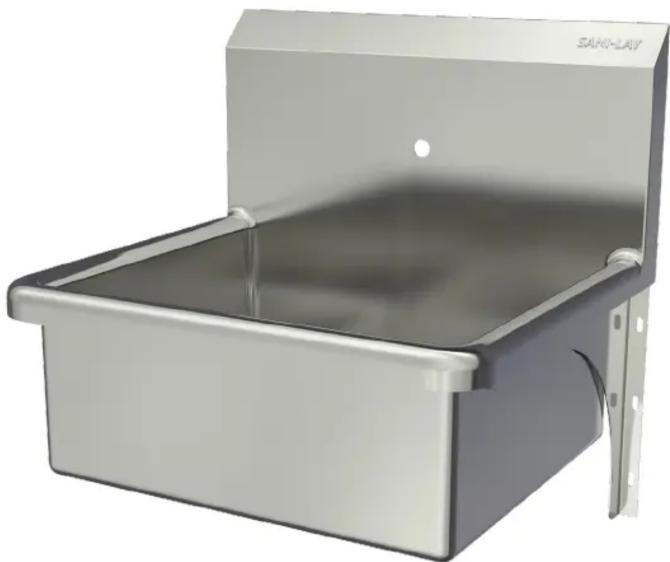

3D rendering of a stainless steel wall-mounted appliance with a label 'SAN-HAY' on the top (no other text or symbols visible)

Columbia does not recommend use with harsh chemicals.

Product Compliance

NSF/ANSI 2 Food Equipment

COLUMBIA SPECIFICATIONS

WALL MOUNT SINK

Parts List

□(1) Wall mount sink
□(1) Wall-mounting bracket
□(2) Support brackets
☐ (4) Support bracket mounting bolts and washers
☐ (1) Strainer assembly with basket

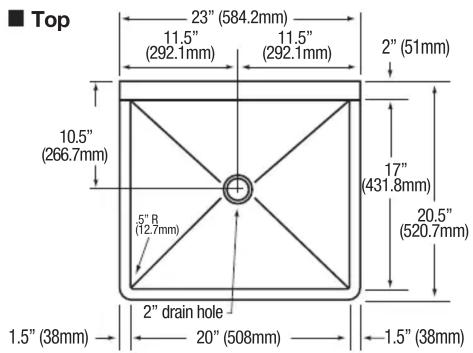

■ Hole Configuration

■Wall Mounting Detail

Care and Maintenance

Regular cleaning will preserve the appearance and integrity of the surface. Stainless steel can easily be cleaned and kept stain-free using various methods.

Recommendations:

• Clean with an abrasive cleaner like, Bon-Ami or Zud weekly or bi-weekly. Always scrub in the direction of the grain or polish lines. Another option is to use Baking soda. Make sure to rinse well and dry. Illustration A
• Most soaps and detergents contain chlorides, we recommend rinsing the stainless-steel sink with hot water after use, to prevent corrosion. Illustration B
• Regularly dry your sink to prevent water and surface rust marks. Illustration C
• Do not leave salt in the sink or near a saltwater environment.
• Use a quality stainless steel cleaner and follow cleaner instructions. Wipe along the grain (NOT against). Illustration D

Things to Avoid:

• Avoid harsh abrasive cleaners and corrosive chemicals.
• Avoid abrasive scouring pads, carbon steel brushes and steel wool for cleaning as iron particles left behind can lead to rust.
• Avoid the use of oily rags or greasy cloths when wiping the surface. To avoid water spots, wipe dry after use.

Additional Tips:

• Regularly drying your sink works wonders to prevent water and surface rust marks.
• Wear rubber gloves when working with cleaners to protect your hands.
• Never mix cleaners. Some products react to create dangerous gases.
• There are thousands of blended or compound cleaners on the market. Users are advised to contact suppliers of solvents for information on their applications on stainless steel.
• DO NOT USE SOLVENTS in closed spaces or while smoking.
  • Note: Columbia does not recommend use with harsh chemicals.

Close-up of a circular mechanical component with internal grooves and water droplets, no visible text or symbols

Illustration A

Close-up of a pipe spraying liquid in a container (no visible text or symbols)

Illustration B

Close-up of a hand cleaning a stainless steel faucet with a cloth (no text or symbols visible)

Illustration C

Hand cleaning a surface with a cloth, next to a stainless steel faucet (no text or symbols visible)

Illustration D

COLUMBIA PRODUCTS

800.626.2117 • columbiasinks.com • [e-mail]
