Product Type	Kitchen Sink
Brand	Sani-Lav
Model	6081
Material	Stainless Steel
Finish	Satin
Number of Bowls	Single
Overall Dimensions (L x W x H)	80 cm x 45 cm x 20 cm
Bowl Dimensions (L x W x D)	75 cm x 40 cm x 18 cm
Weight	10 kg
Installation Type	Drop-in / Top mount
Cutout Dimensions (L x W)	78 cm x 43 cm
Drain Opening Size	Standard 3.5 inches (90 mm)
Included Accessories	Drain kit, mounting clips, template
Sound Dampening	Yes, with undercoating
Maintenance	Clean with mild detergent and soft cloth
Safety Features	Rounded corners, no sharp edges
Spare Parts Available	Drain assembly, clips, basket strainer
Repairability	Modular design, easy to replace parts
Warranty	1 year limited
Certifications	cUPC, ASME A112.19.3

Frequently Asked Questions - 6081 Sani-Lav

What are the dimensions of the Sani-Lav 6081 kitchen sink?

The overall dimensions are approximately 80 cm x 45 cm x 20 cm, with a bowl size of 75 cm x 40 cm x 18 cm. Always verify with the cutout template before installation.

Is the sink made of stainless steel?

Yes, the Sani-Lav 6081 is constructed from high-quality stainless steel with a satin finish for durability and easy cleaning.

Can this sink be installed as an undermount?

The Sani-Lav 6081 is designed for drop-in (top mount) installation. It is not recommended for undermount installation.

What is the drain size?

The sink features a standard 3.5-inch (90 mm) drain opening, compatible with most kitchen sink drain assemblies.

Does the sink include sound-dampening padding?

Yes, the sink has an undercoating that reduces noise and vibration from running water and dishes.

How do I clean the sink?

Clean the sink with a mild detergent and a soft cloth or sponge. Avoid abrasive cleaners that may scratch the surface.

Are spare parts available?

Yes, spare parts such as the drain assembly, mounting clips, and basket strainer are available for replacement.

What is the recommended cutout size?

The recommended cutout size is approximately 78 cm x 43 cm. Use the provided template for precise measurements.

Is the sink scratch-resistant?

The stainless steel surface is resistant to scratches but can be marked with heavy use. Use cutting boards to prevent scratches.

Does the sink come with a warranty?

The sink includes a 1-year limited warranty against manufacturing defects. Keep your receipt for warranty claims.

USER MANUAL 6081 Sani-Lav

SANI-LAV® COLUMBIA PRODUCTS

Operating Manual for Hands-Free Wall Mount Stainless Steel Sink

Models 6081 and 6081-0.5

Exterior view of a stainless steel SAMI-LAY water supply sink with handle and faucet (no text or symbols visible)

Columbia does not recommend use with harsh chemicals.

Product Compliance

NSF/ANSI 2 Food Equipment, NSF/ANSI 372 Low-Lead

COLUMBIA SPECIFICATIONS

HANDS-FREE WALL MOUNT SINK

Parts List

□(1) Wall mount sink
□ (1) Single knee pedal valve
□(2) Valve mounting nuts
☐ (1) Swivel gooseneck spout with aerator
☐ (1) Connecting tube for valve to spout connection
☐ (2) Fittings, brass, 0.375" male compression and 0.375" male NPT
□(1) Mixing check valve
□(1) Wall-mounting bracket
□(2) Support brackets
□(4) Support bracket mounting bolts and washers
□(1) Strainer assembly with basket

Tools Required

□ Tape measure
□ Adjustable wrench
□ Drill motor and drill bits
□ Pipe wrench
□ Level
□ Safety glasses
□ Screw drivers: phillips and standard
□ Pencil
□ Socket wrench

Installation Instructions

Step 1

1. Establish sink location on the wall.
2. Determine desired height for the top of the backsplash from finished floor and draw a level line which will be the top edge of the wall mounting bracket.
3. Hold the wall mounting bracket against the wall and mark the wall where the holes are. Drill holes and secure bracket to the wall as shown in illustration A. Screws are not provided.
4. Position the sink onto wall bracket.
5. Mark holes for fastening side mounting brackets as shown in illustration B.
6. Remove sink from the wall bracket.
7. Drill holes in wall for securing sink to wall. Screws are not provided.

Step 2

1. Install strainer assembly at the drain hole.
2. Install spout assembly using mounting nut provided.
3. Attach the elbow fitting to the back of spout.
4. Attach the connecting tube to spout.
5. Secure sink to wall.

Step 3

1. Connect waste line or drain pipe to the strainer assembly.
2. Connect mixing check valve to valve inlet.
3. Mount valve under sink using mounting nuts provided.
4. Attach the elbow fitting to the bottom of the valve.
5. Attach the connecting tube from spout to valve.
6. Connect hot and cold water supply to mixing check valve.

Step 4

1. Remove aerator from the spout and flush water system.
2. Check connections for leaks.
3. Replace aerator onto the spout.
4. We recommend sealing top of backsplash to wall as shown in illustration C.

Go to columbiasinks.com for more information on replacement parts and installation videos.

Close-up of a hand holding a small white object over a metal surface next to a ruler (no visible text or symbols)

Illustration A

Close-up of a hand holding a pen, pointing at a window (no visible text or symbols)

Illustration B

Close-up of a stainless steel faucet with a piping bag attached, no visible text or symbols

Illustration C

Notice for California Consumers

WARNING: This product can expose you to chemicals including Chromium (hexavalent compounds), Lead, and Phthalates (DEHP) which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

NOTE: Lead content originates from Brass components in valves and faucets and is certified under NSF/ANSI 372 as containing less than 0.25% lead in wetted surfaces.

COLUMBIA PRODUCTS

800.626.2117 • columbiasinks.com • [e-mail]

Trouble Shooting Guide

Problem Possible Cause	To Diagnose Remedy
Water drips from spout or valve stem assembly.	Flat washer on the stem/plunger is worn.	To determine if the leak source is from the hot or cold side shut cold water source off. See if water still leaks from the spout. If leak continues then repair hot side if not repair cold side	We recommend installing valve repair kit.
Water leaks from the front of the valve.	O-Rings on the plunger are worn out.	Visually determine whether the cold or hot side is leaking. We recommend replacing threaded insert, plunger assembly & spring. See illustrations below.

Valve Repair Instructions

Note: Valves are designed to be repaired without having to be disconnected from mount or plumbing.

1. Tum off water source. Do not remove valve from sink.

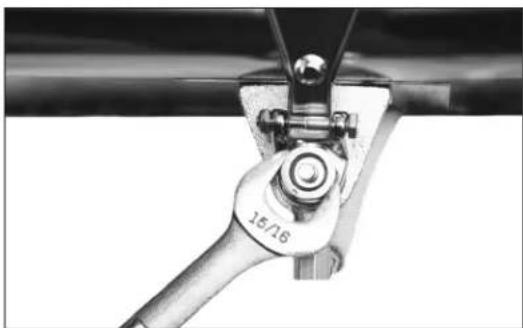

2. Remove pedal assembly using a 15/16" open end wrench or socket wrench. As shown in illustration A.

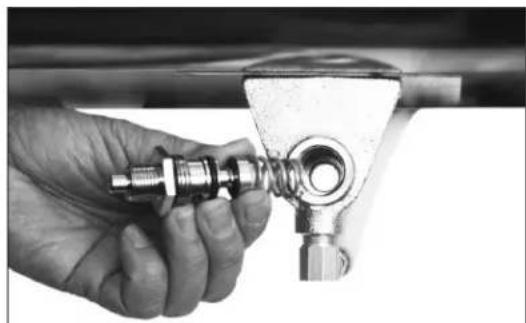

3. Using a 1" deep socket wrench or closed end wrench remove insert assembly as shown in illustration B.
4. Replace with new repair kit as shown on illustration C.
5. Reinstall pedal assembly and turn water source on.

Close-up of a hand holding a mechanical clamp or wrench, no visible text or symbols

Illustration A

Close-up of a mechanical tool with a metallic handle and bolted joint (no visible text or symbols)

Illustration B

Close-up of a hand holding a metallic mechanical component with threaded connectors (no visible text or symbols)

Illustration C

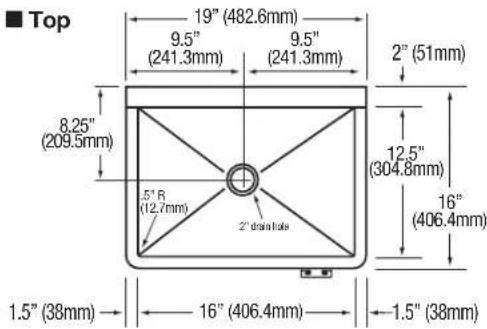

COLUMBIA SPECIFICATIONS

HANDS-FREE WALL MOUNT SINK

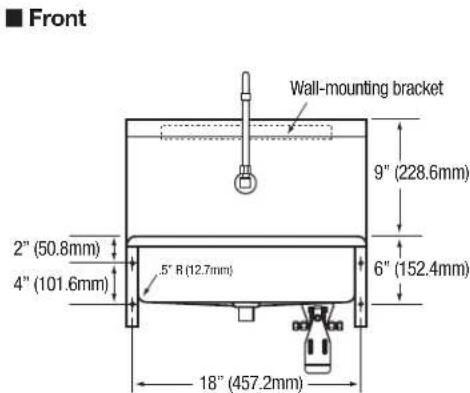

■ Wall Mounting Detail

■ Supply Line Detail

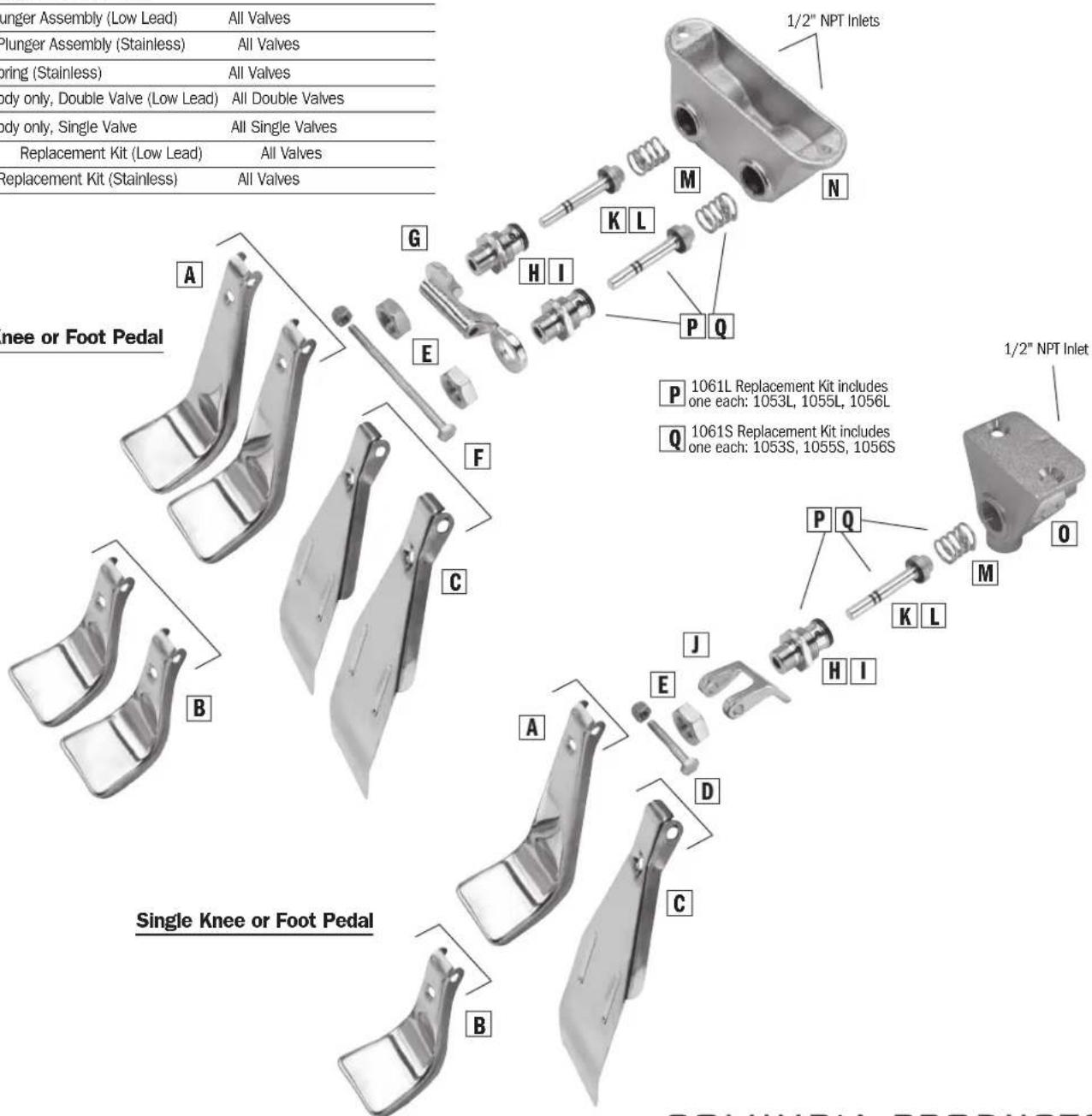

Replacement Parts

Part No. Description Application

A	1041 Operated, Long Foot 103/104/105/106 (S) (L)
B	1042 Operated, Short Foot 101/102 (S) (L)
C	1043 Operated, Knee 109/110/111/112 (S) (L)
D	1049 Bolt & Nut Set (Stainless) All Single Valves
E	1050 Jam Nut (Stainless) All Valves
F	1051 Bolt & Nut Set (Stainless) All Double Valves
G	1052 Bracket All Double Valves
H	1053 Threaded Insert (Low Lead) All Valves
I	1053S Threaded Insert (Stainless) All Valves
J	1054 Bracket All Single Valves
K	1055 Plunger Assembly (Low Lead) All Valves
L	1055S Plunger Assembly (Stainless) All Valves
M	1056 Spring (Stainless) All Valves
N	1057 Body only, Double Valve (Low Lead) All Double Valves
O	1058 Body only, Single Valve All Single Valves
P	1061L Replacement Kit (Low Lead) All Valves
Q	1061S Replacement Kit (Stainless) All Valves

Double Knee or Foot Pedal

COLUMBIA PRODUCTS

800.626.2117 • columbiasinks.com • [e-mail]

Care and Maintenance

Regular cleaning will preserve the appearance and integrity of the surface. Stainless steel can easily be cleaned and kept stain-free using various methods.

Recommendations:

• Clean with an abrasive cleaner like, Bon-Ami or Zud weekly or bi-weekly. Always scrub in the direction of the grain or polish lines. Another option is to use Baking soda. Make sure to rinse well and dry. Illustration A
• Most soaps and detergents contain chlorides, we recommend rinsing the stainless-steel sink with hot water after use, to prevent corrosion. Illustration B
  • Regularly dry your sink to prevent water and surface rust marks. Illustration C
• Do not leave salt in the sink or near a saltwater environment.
• Use a quality stainless steel cleaner and follow cleaner instructions. Wipe along the grain (NOT against). Illustration D

Things to Avoid:

• Avoid harsh abrasive cleaners and corrosive chemicals.
• Avoid abrasive scouring pads, carbon steel brushes and steel wool for cleaning as iron particles left behind can lead to rust.
• Avoid the use of oily rags or greasy cloths when wiping the surface. To avoid water spots, wipe dry after use.

Additional Tips:

• Regularly drying your sink works wonders to prevent water and surface rust marks.
- Wear rubber gloves when working with cleaners to protect your hands.
- Never mix cleaners. Some products react to create dangerous gases.
- There are thousands of blended or compound cleaners on the market. Users are advised to contact suppliers of solvents for information on their applications on stainless steel.
• DO NOT USE SOLVENTS in closed spaces or while smoking.
• Note: Columbia does not recommend use with harsh chemicals.

Close-up of a circular mechanical component with internal grooves and water droplets (no text or symbols visible)

Illustration A

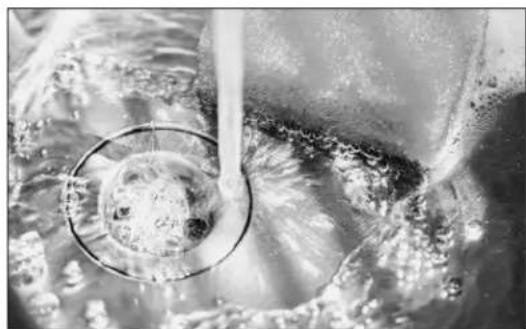

Close-up of a pipe passing through a container with bubbles rising, showing fluid and bubbles (no text or symbols visible)

Illustration B

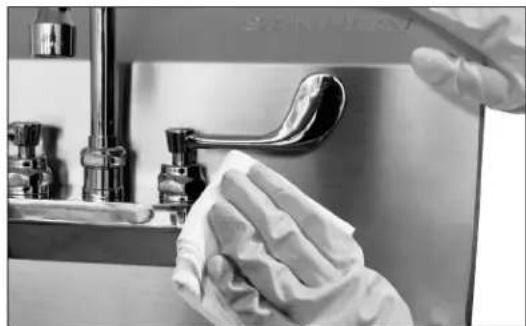

Close-up of a hand cleaning a stainless steel faucet with a cloth (no text or symbols visible)

Illustration C

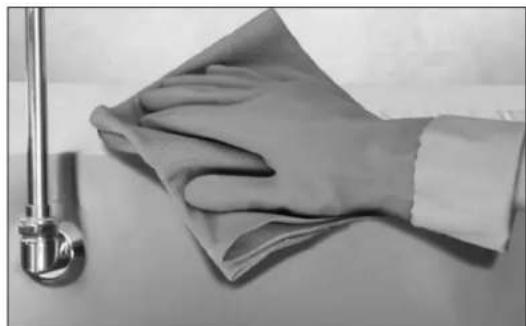

Hand cleaning a surface with a cloth, next to a stainless steel pipe (no text or symbols visible)

Illustration D
