Product Type	Guitar Boost/Overdrive Pedal
Brand	Mooer
Model	Flex Boost
Category	Guitar Amplifier Accessory
Dimensions	93.5 mm (D) × 42 mm (W) × 52 mm (H)
Weight	160 g
Power Supply	9V DC, center negative, 6 mA
Input Impedance	1 MΩ (1/4-inch mono jack)
Output Impedance	10 kΩ (1/4-inch mono jack)
True Bypass	Yes
Controls	Volume, Bass, Treble, Gain knobs
Footswitch	True Bypass footswitch
LED Indicator	ON/OFF status LED
Housing Material	Full metal shell
Accessories Included	Owner's Manual
Cleaning	Soft dry cloth; no solvents
Safety Precautions	Use correct AC adapter; avoid moisture, heat, shocks
Operating Temperature	0°C to 40°C (estimated)
Warranty	Check manufacturer's policy

Frequently Asked Questions - Flex Boost Mooer

How do I power the Mooer Flex Boost?

Use a 9V DC regulated AC adapter with center negative polarity. The recommended adapter is Mooer Micro Power. Current draw is 6 mA. Do not exceed 12V.

What does True Bypass mean?

True Bypass means that when the effect is off, the signal passes directly from input to output without any coloration, preserving your guitar's pure tone.

How do I connect the pedal?

Connect your guitar to the INPUT jack (1/4-inch mono) and connect the OUTPUT jack to your amplifier. Always power off all equipment before making connections.

What controls are available on the Flex Boost?

The pedal has VOLUME, BASS, TREBLE, and GAIN knobs. Use them to shape your boost or overdrive tone.

What does the LED indicate?

When the LED is lit, the effect is active. When off, the pedal is in bypass mode.

Can I use the Flex Boost as an overdrive?

Yes, with a wide gain range, it can serve as a clean boost or a light overdrive depending on the GAIN setting.

Does the pedal run on batteries?

No, the Flex Boost is designed for external AC adapter only (9V DC). It does not have a battery compartment.

How do I clean the pedal?

Use a soft, dry cloth. If needed, slightly dampen the cloth. Do not use abrasive cleaners, alcohol, thinners, or solvents.

What are the safety precautions?

Avoid direct sunlight, magnetic fields, dust, vibrations, shocks, extreme temperatures, and moisture. Unplug during storms. Use only the specified power adapter.

What is the warranty for the Mooer Flex Boost?

Warranty details are not provided in the manual. Contact Mooer support or check the packaging for warranty period and conditions.

USER MANUAL Flex Boost Mooer

Please connect the designated AC adapter to an AC outlet of the correct voltage. Please be sure to use only an AC adapter which supplies 9V (+/-10%) DC, center minus. The maximum working voltage shall not exceed 12V, otherwise may be dangerous equipment damage, fire or other problems.

Unplug the AC power adapter when not using or during electrical storms.

Connections

Always turn off the power of this and all other equipment before connecting or disconnecting, this will help prevent malfunction and / or damage to other devices. Also make sure to disconnect all connection cables and the power cord before moving this unit.

Handling

Do not apply excessive force to the switches or controls.

Do not let paper, metallic, or other objects into this unit.

Take care not to drop the unit, and do not subject it to shock or excessive pressure.

Cleaning

Clean only with a soft, dry cloth. If necessary, slightly moisten the cloth. Do not use abrasive cleanser, cleaning alcohol, paint thinners, wax, solvents, cleaning fluids, or chemical-impregnated wiping cloths.

Interference with other electrical devices

Radios and televisions placed nearby may experience reception interference. Operate this unit at a suitable distance from radios and televisions.

Location

To avoid deformation, discoloration, or other serious damage, do not expose this unit to the following conditions:

- Direct sunlight

• Magnetic fields

• Excessive dusty or dirty location

• Strong vibrations or shocks

• Heat sources
  • Extreme temperature or humidity
  • High humidity or moisture

• Wide gain range boost, enough working along as a best overdrive
• Full metal shell
  • Very small and exquisite
• True bypass
  • DC 9V Adapter power supply

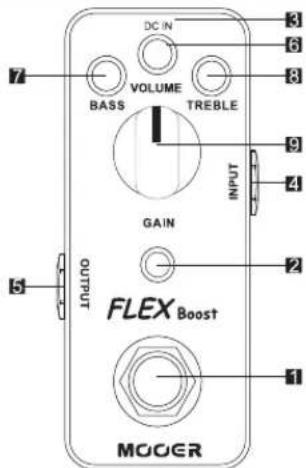

Panel Instruction

1. TRUE BYPASS Footswitch: Push down the footswitch to switch between effects and bypass status.
2. ON/OFF LED: Instructs effects or bypass status of FLEX Boost, when the LED is lit up, the effects is on.
3. DC IN Power Jack: For power supply, use a 9-volt DC regulated AC adapter(plug polarity is positive on the barrel and negative in the center).
4. INPUT Jack: 1/4" mono audio jack, for connecting guitar.

5. OUTPUT Jack: 1/4" mono audio jack, outputs the signal.

6. VOLUME Knob:

Adjust the output volume.

7. BÁSS Knob:

Adjust the level of low frequency.

1. TREBLE Knob:

Adjust the level of high frequency.

1. GAIN Knob:

Adjust the gain.

Specification

Input: 1/4" monaural jack (impedance: 1M Ohms)

Output: 1/4" monaural jack (impedance: 10k Ohms)

Power Requirements: AC adapter 9V DC (center minus plug)

Current Draw: 6 mA

Dimensions: 93.5mm (D) × 42mm (W) × 52mm (H)

Weight: 160g

Accessories: Owner's Manual

Disclaimer: Any specification's update won't be amended in this manual.

MOOER

FLEX Boost

Boost Pedal

Owner's Manual

Precautions

お使いになる前にお読みください。

電源

Input: 1/4" monaural jack (impedance: 1M Ohms)
Output: 1/4" monaural jack (impedance: 10k Ohms)
Power Requirements: AC adapter 9V DC (center minus plug), recommended to use Mooer Micro Power
Current Draw: 6 mA
Dimensions: 93.5mm (D) × 42mm (W) × 52mm (H)
Weight: 160g

Accessories: Owner's Manual
