USER MANUAL Gold Slate InfaSecure

Convertible Car Seat

INFANT SEAT TO BOOSTER SEAT CS4313

Line drawing of a car comfort seat with seatbelt and seat, no text or symbols present

Infant Seat

Child Car Seat

Booster Seat

• (Rearward Facing) Suitable for children from birth to approximately 12 months* of age.
- (Forward Facing) Suitable for children from 12 months of age to approximately 4 years* of age.
- (Booster Seat) Suitable for children from 4 to 8 years* of age.

Instruction Manual

IMPORTANT

KEEP THIS BOOKLET IN THE PLACE PROVIDED ON THE CHILD RESTRAINT.

All references to age are to an average proportioned child. Children vary in shapes and sizes. The ages above is an approximation only.

The photo displayed is indicative of the type of restraint and may vary slightly depending on the model.

Certified Product

Australian Standard

AS/NZS: 1754:2013 Licence No. 25324-1 SAI Global

Rear Facing Mode (Used for infants)

SET-UP
REFER TO PAGES 11 - 20

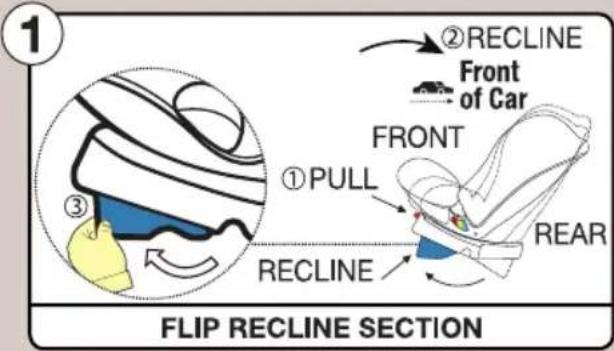

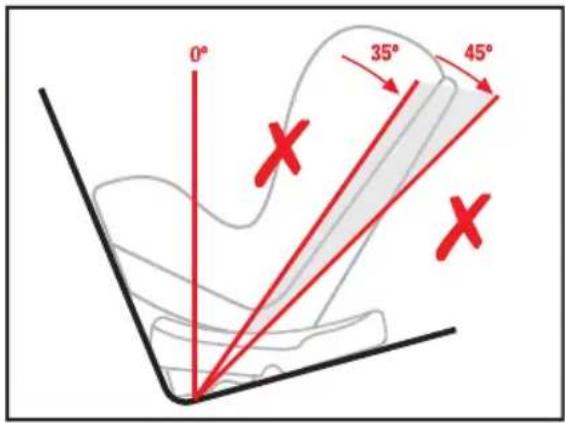

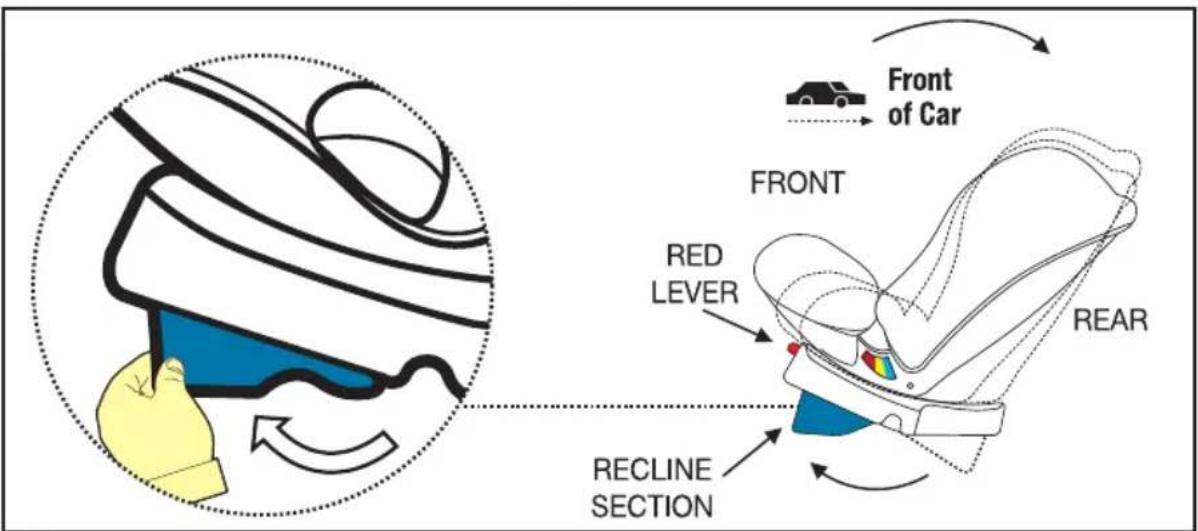

① ②RECLINE Front of Car FRONT ①PULL RECLINE REAR FLIP RECLINE SECTION

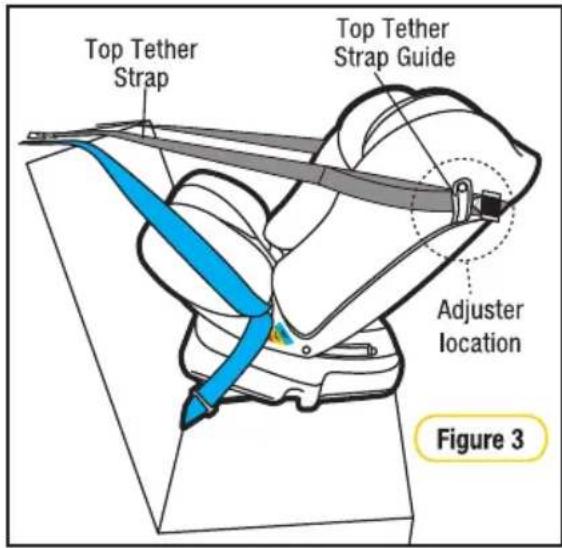

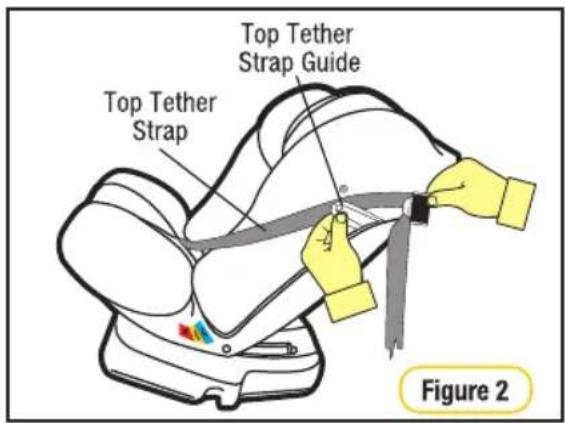

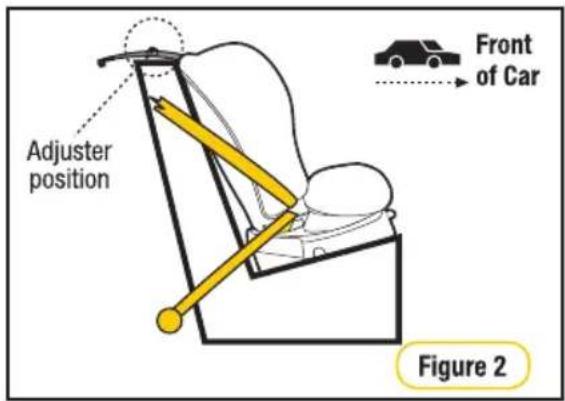

2 Top Tether Strap Top Tether Strap Guide TETHER STRAP POSITION

SLOT SELECTION

REFER TO PAGES 17 - 19

1 Front of vehicle ABOVE SHOULDER

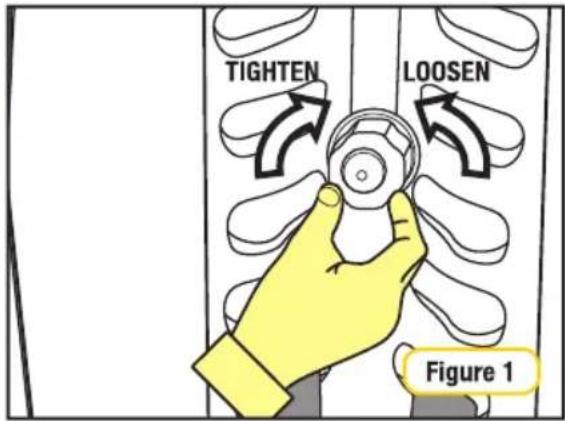

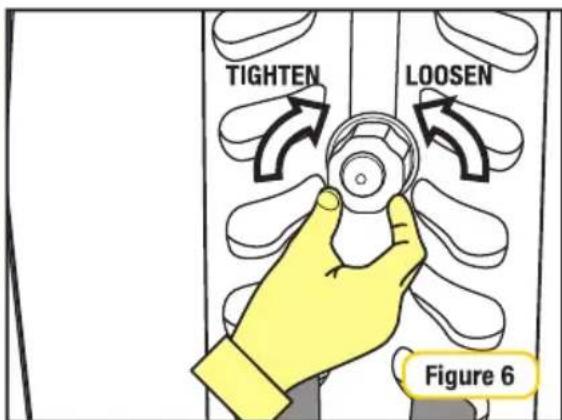

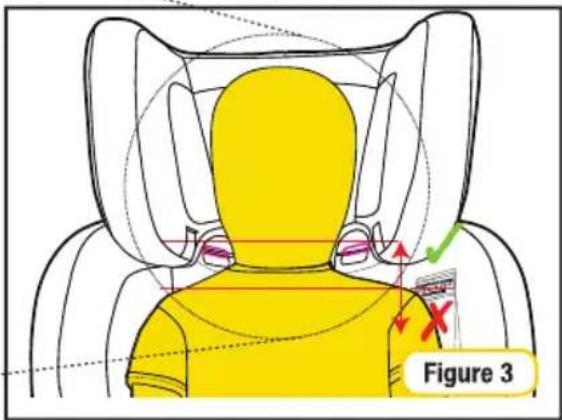

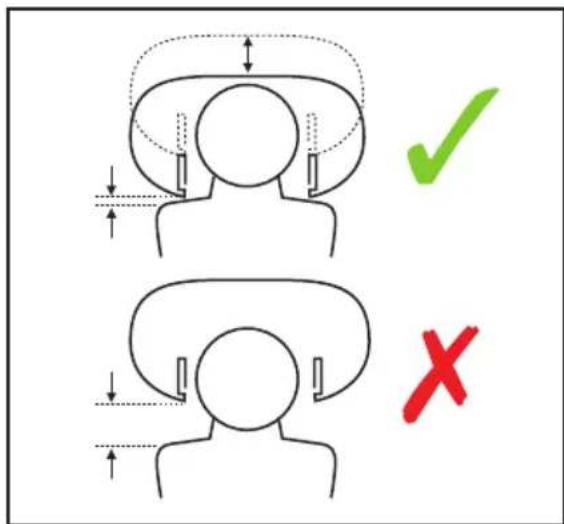

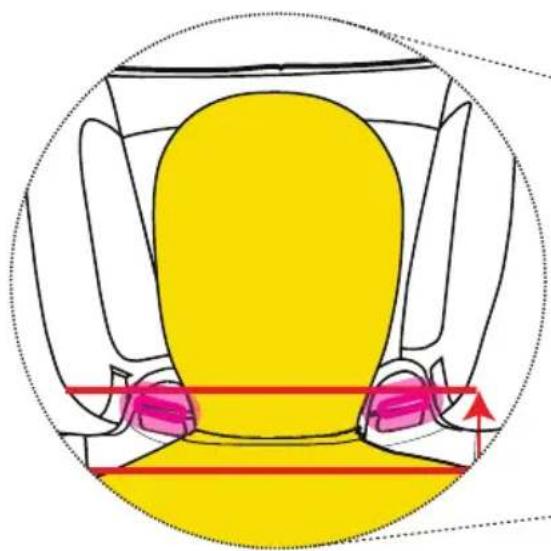

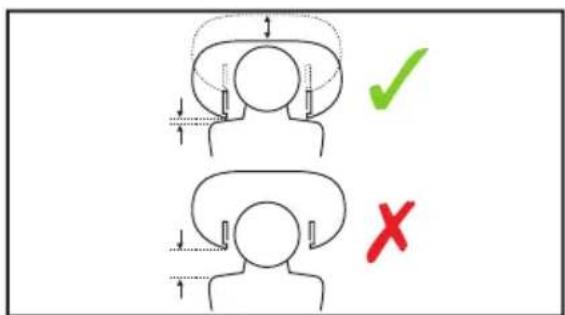

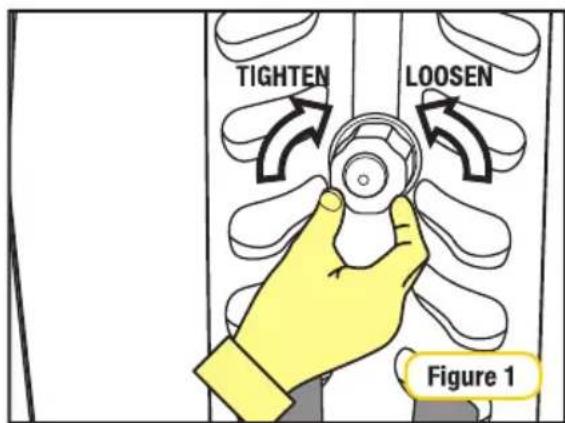

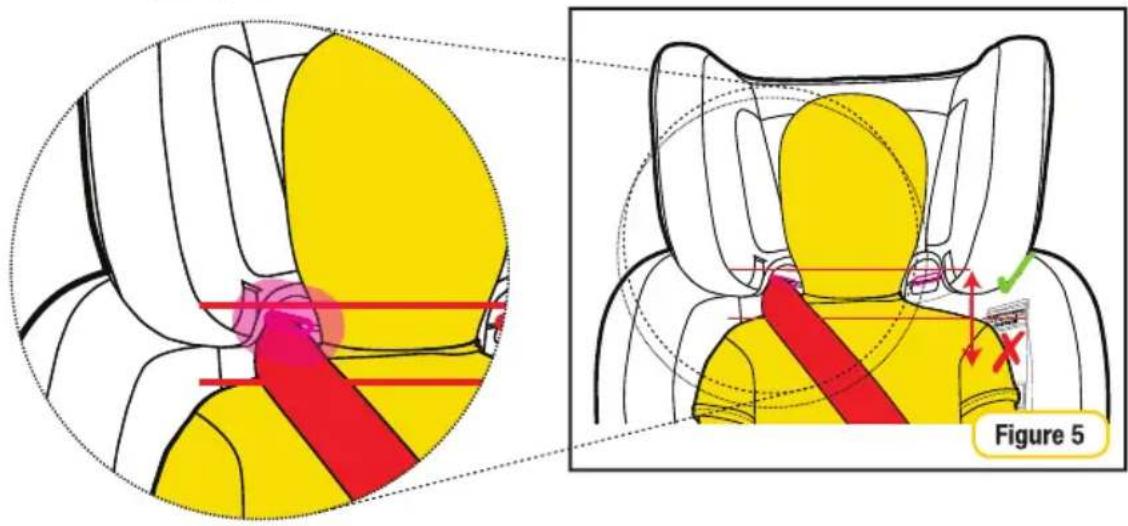

2 LOOSEN HEADREST

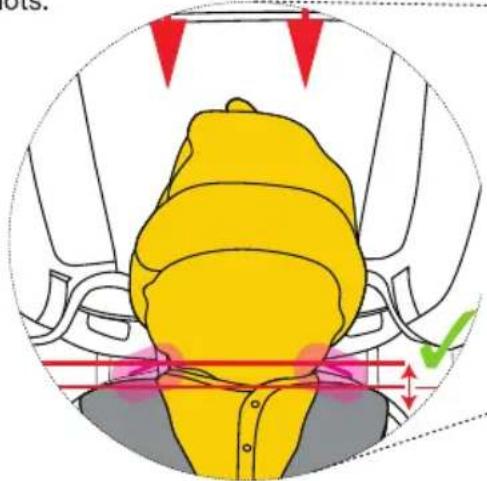

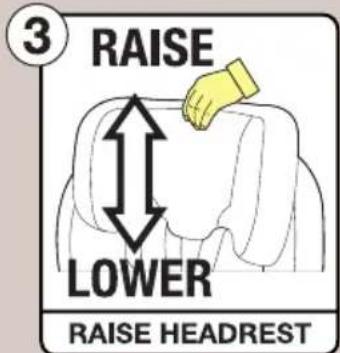

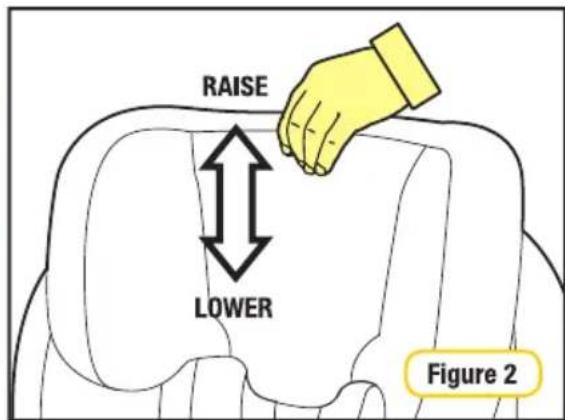

3 RAISE LOWER RAISE HEADREST

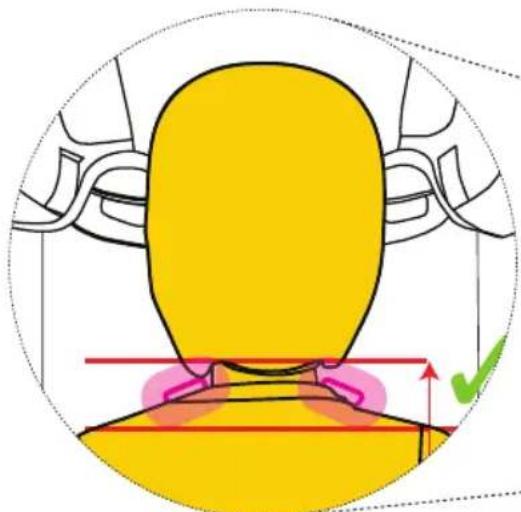

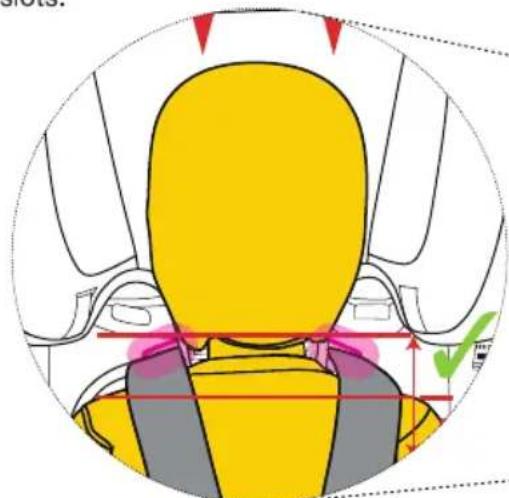

SELECT SHOULDER SLOT

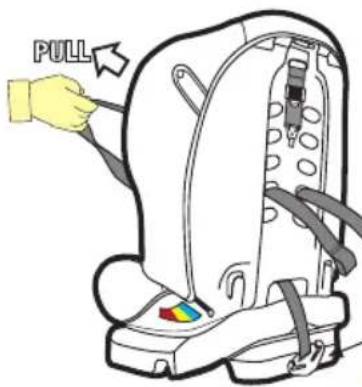

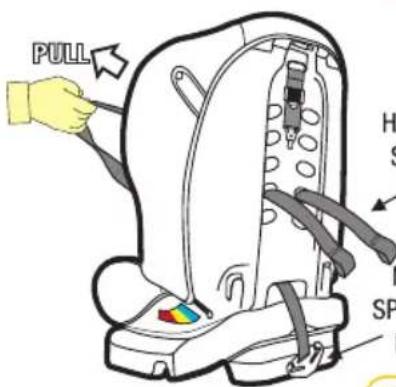

5 PULL HARNESS STRAPS METAL SPREADER PLATE ADJUST HARNESS

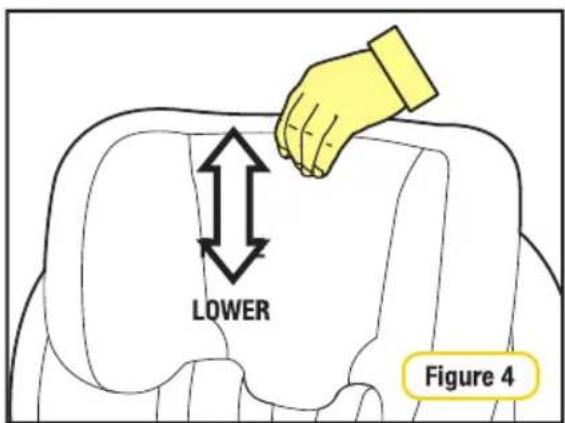

6 LOWER HEADREST

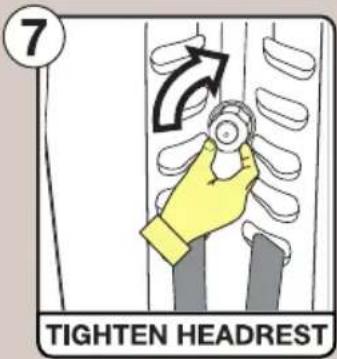

7 TIGHTEN HEADREST

Rear Facing Mode (Use for infants)

INSTALLATION

REFER TO PAGES 21 - 24

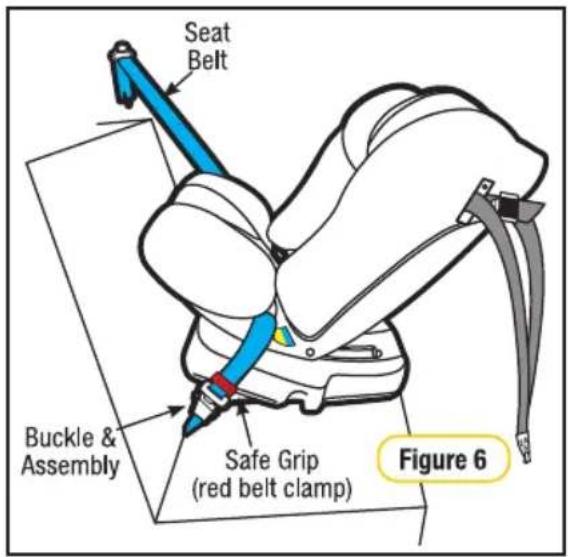

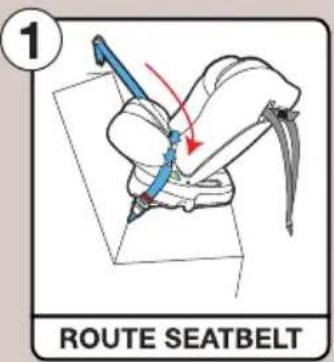

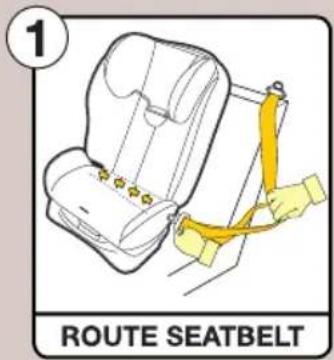

1 ROUTE SEATBELT

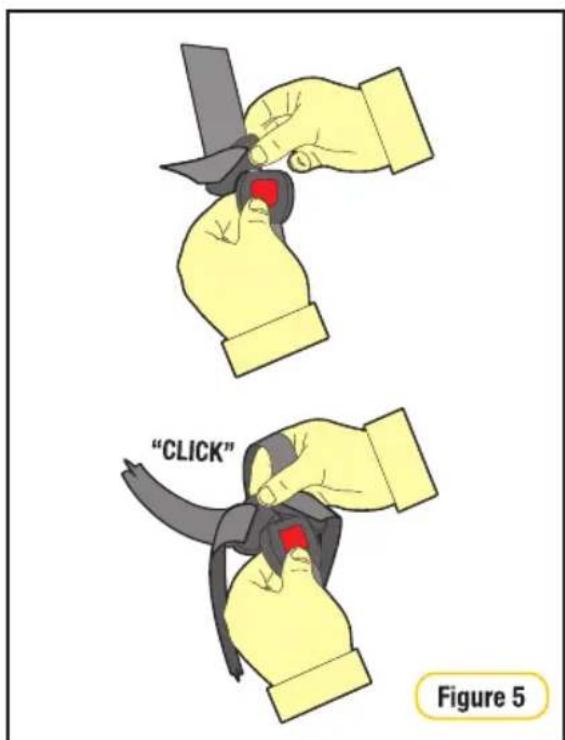

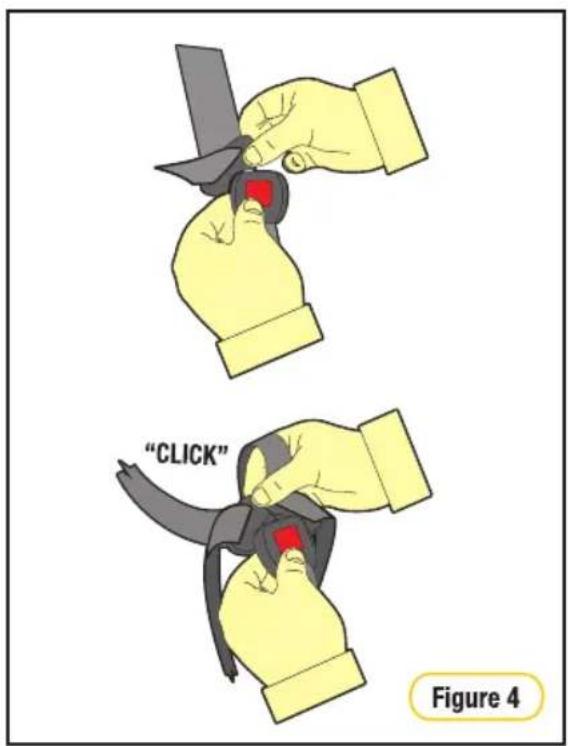

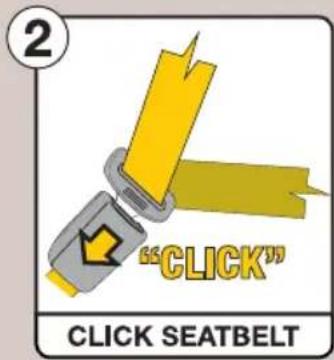

2 "CLICK" CLICK SEATBELT

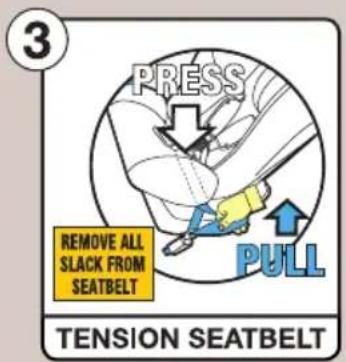

3 PRESS REMOVE ALL SLACK FROM SEATBELT PULL TENSION SEATBELT

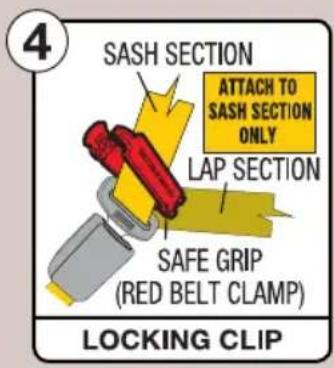

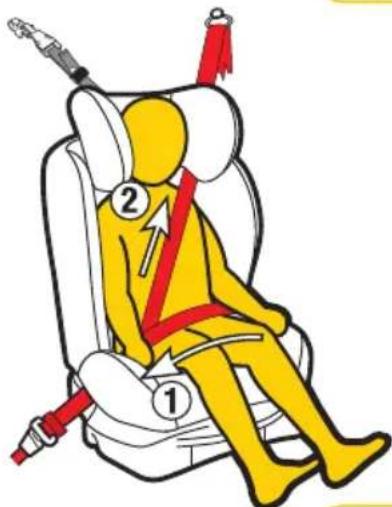

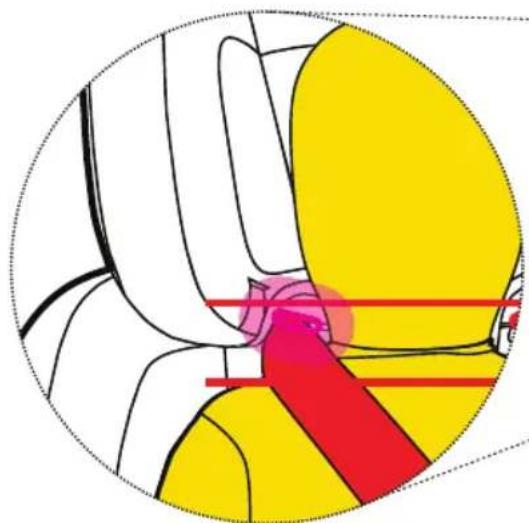

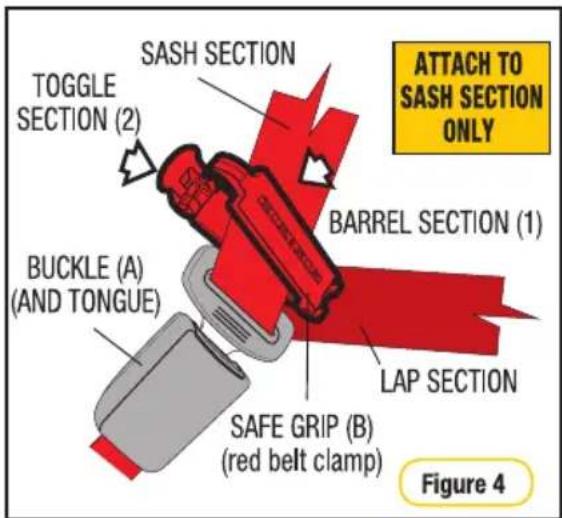

SASH SECTION ATTACH TO SASH SECTION ONLY LAP SECTION SAFE GRIP (RED BELT CLAMP) LOCKING CLIP

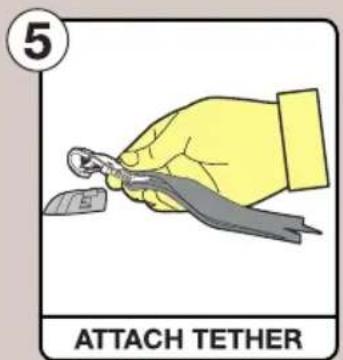

5 ATTACH TETHER

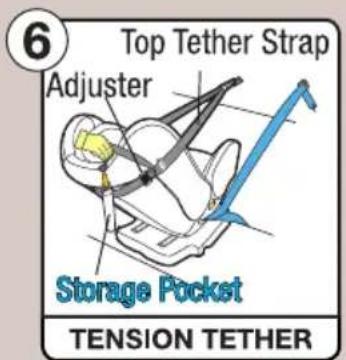

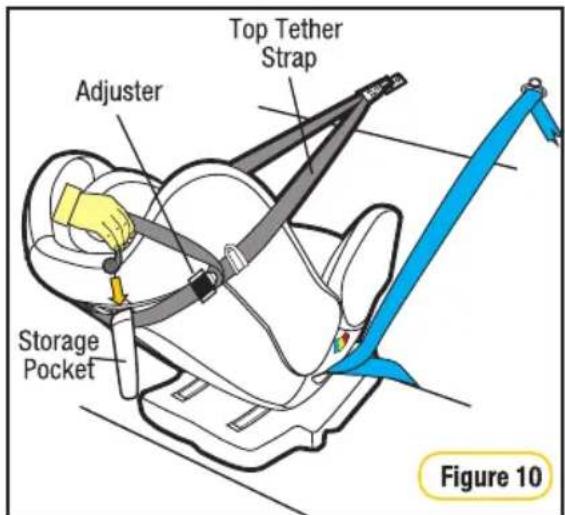

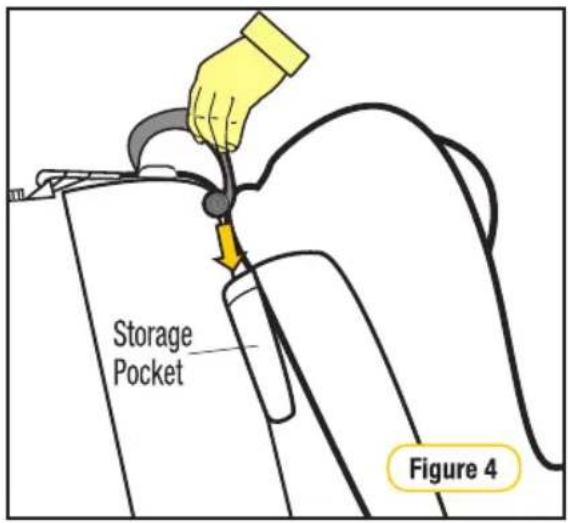

6 Top Tether Strap Adjuster Storage Pocket TENSION TETHER

USE

REFER TO PAGES 25 - 28

1 PULL TO LENGTH PULL TO LENGTHEN "LIFT" LOOSEN HARNESS

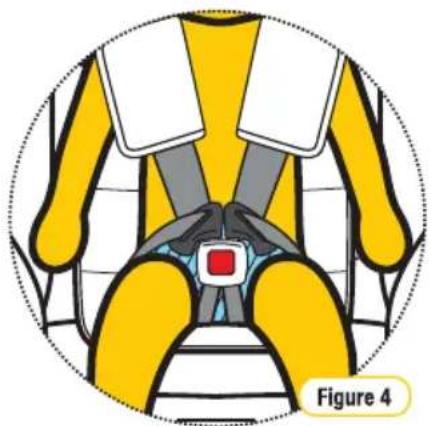

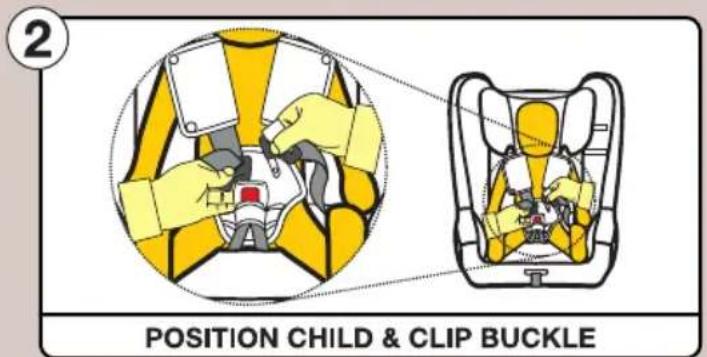

2 POSITION CHILD & CLIP BUCKLE

3 REMOVE ALL SLACK FROM HARNESS PULL TO TIGHTEN TENSION

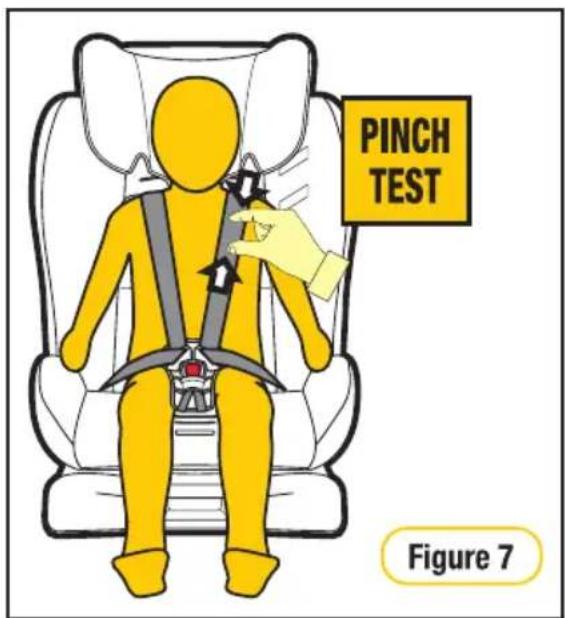

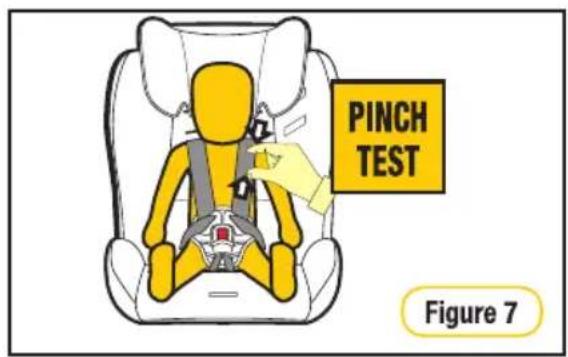

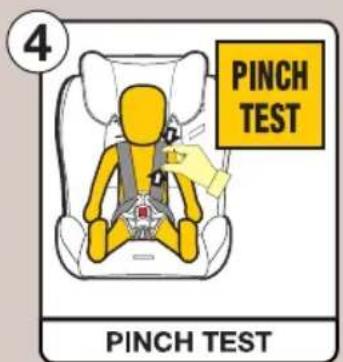

4 PINCH TEST PINCH TEST

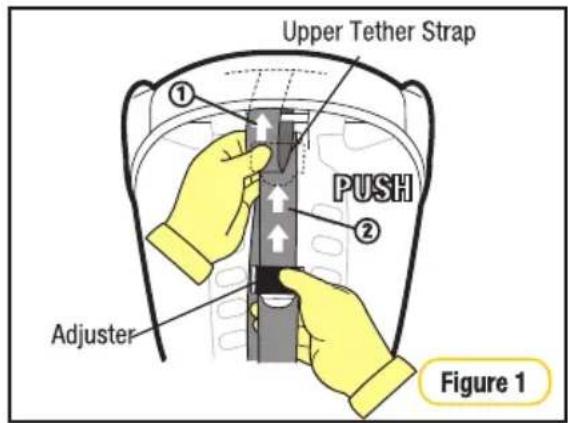

5 Top Tether Top Tether Strap Guide Strap TIGHTEN TETHER

Forward Facing Mode (Use for toddlers)

SET-UP
REFER TO PAGES 33 - 38

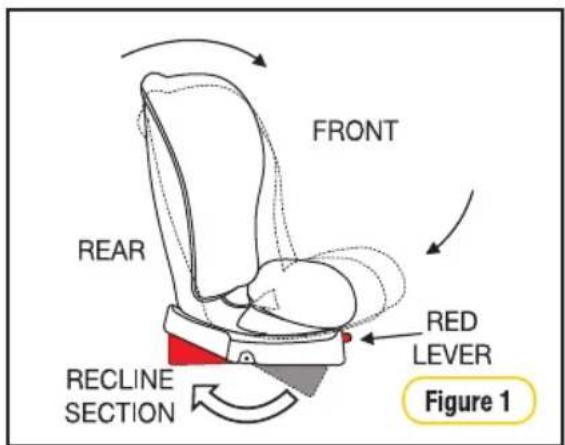

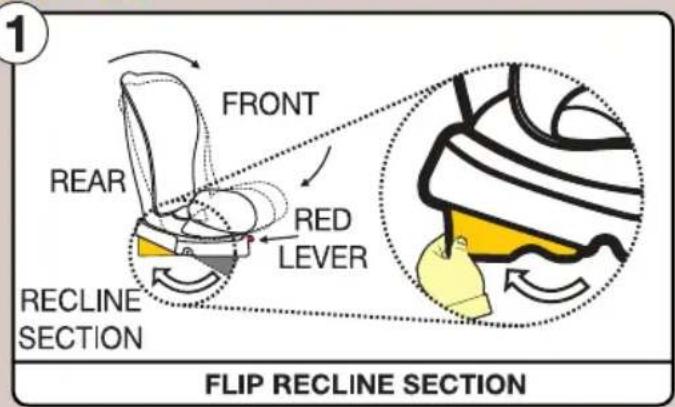

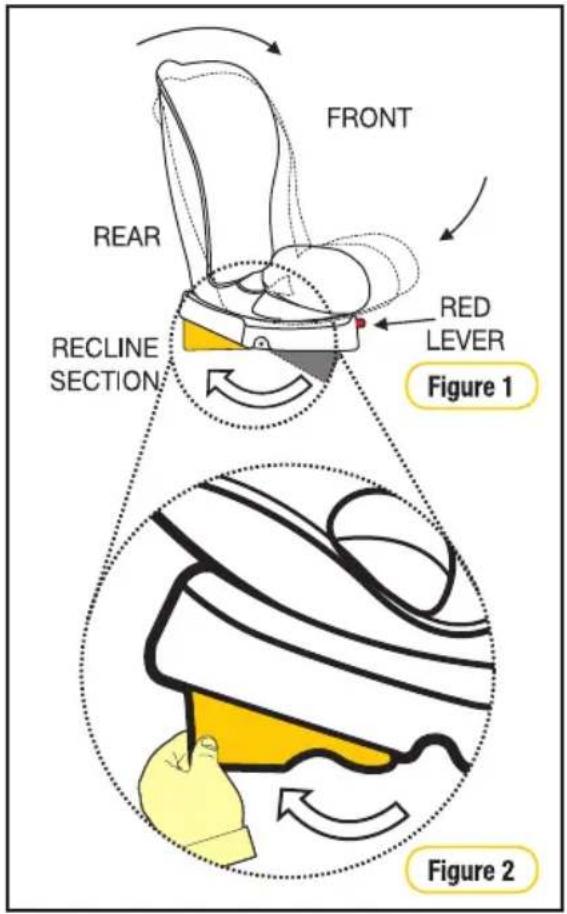

FRONT REAR RED LEVER RECLINE SECTION FLIP RECLINE SECTION

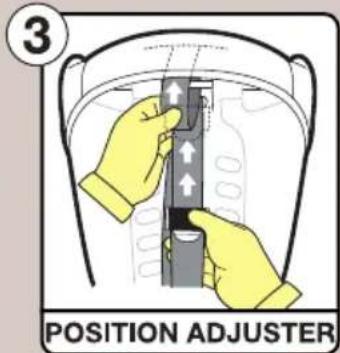

2 POSITION ADJUSTER

REFER TO PAGES 34 - 37

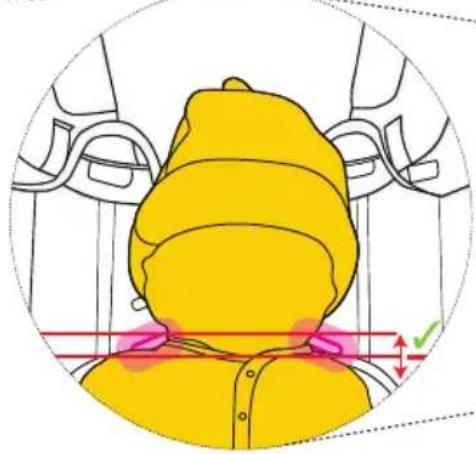

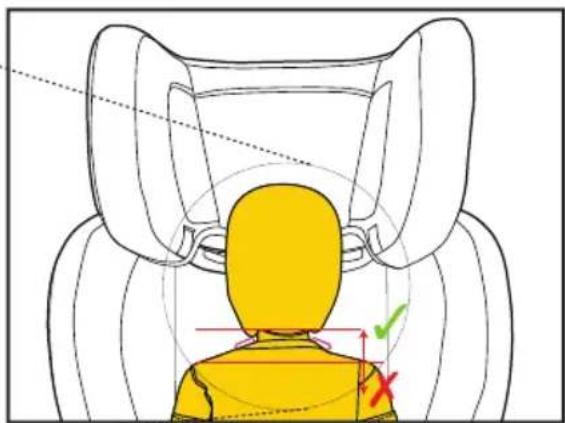

SLOT SELECTION

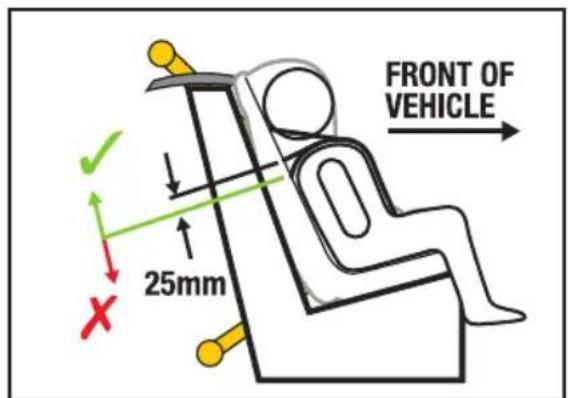

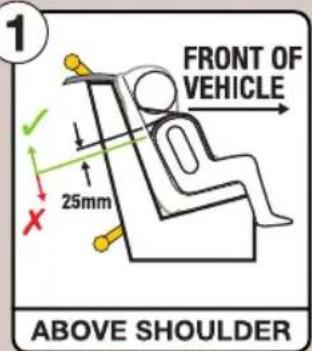

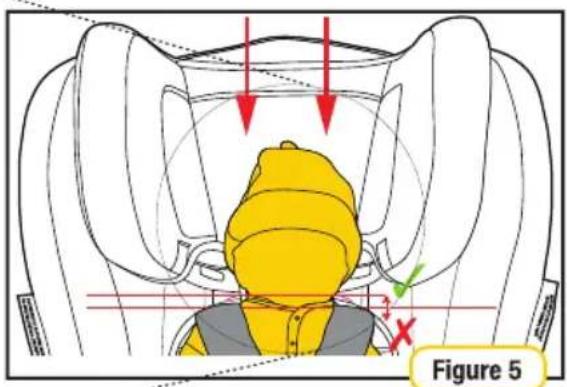

1 FRONT OF VEHICLE 25mm ABOVE SHOULDER

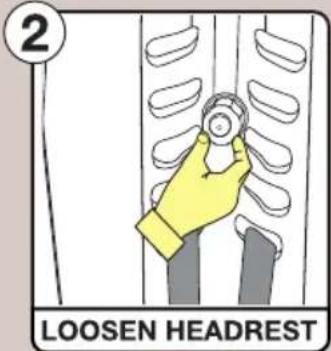

2 LOOSEN HEADREST

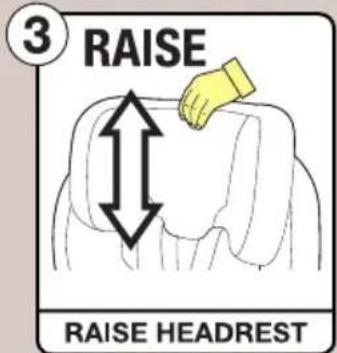

3 RAISE RAISE HEADREST

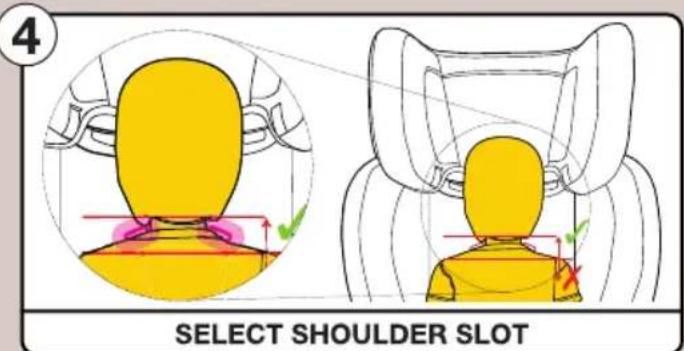

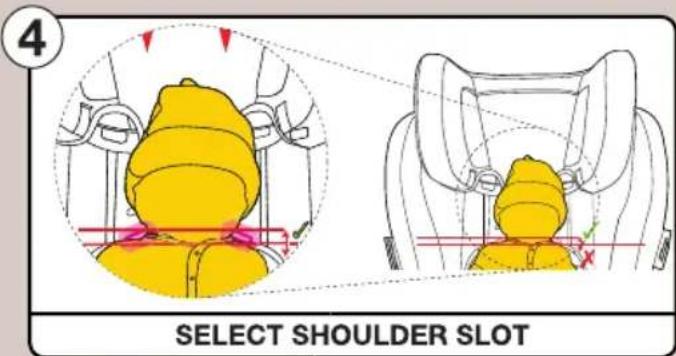

4 SELECT SHOULDER SLOT

5 PULL HARNESS STRAPS METAL SPREADER PLATE ADJUST HARNESS

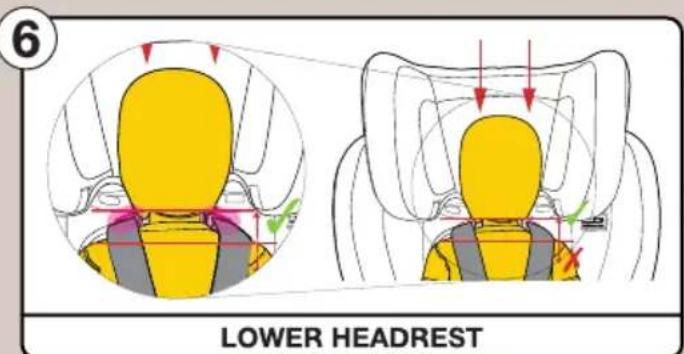

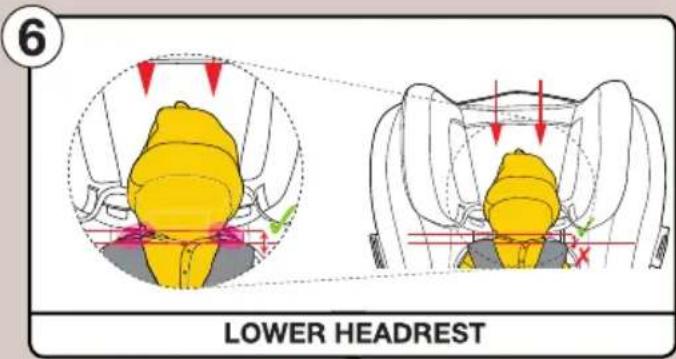

6 LOWER HEADREST

7 TIGHTEN HEADREST

Forward Facing Mode (Use for toddlers)

INSTALLATION

REFER TO PAGES 39 - 42

1 ROUTE SEATBELT

2 "CLICK" CLICK SEATBELT

3 REMOVE ALL SLACK FROM SEATBELT TENSION SEATBELT

4 SASH SECTION ATTACH TO SASH SECTION ONLY LAP SECTION SAFE GRIP (RED BELT CLAMP) LOCKING CLIP

5 ATTACH TETHER

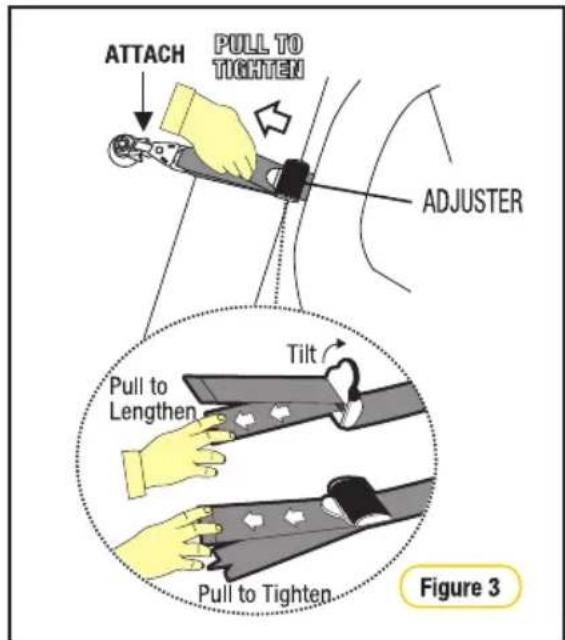

6 ATTACH PULL TO TIGHTEN ADJUSTER Pull to Lengthen Tilt Pull to Tighten TENSION TETHER

USE

REFER TO PAGES 43 - 46

1 PULL TO LENGTH PULL TO LENGTH "LIFT" LOOSEN HARNESS

2 POSITION CHILD & CLIP BUCKLE

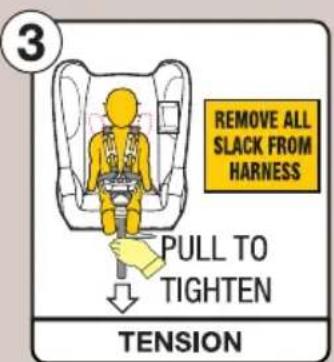

3 REMOVE ALL SLACK FROM HARNESS PULL TO TIGHTEN HARNESS ADJUSTER STRAP TENSION

4 PINCH TEST PINCH TEST

Forward Facing Mode (Use for toddlers)

SET-UP

REFER TO PAGES 52 - 56

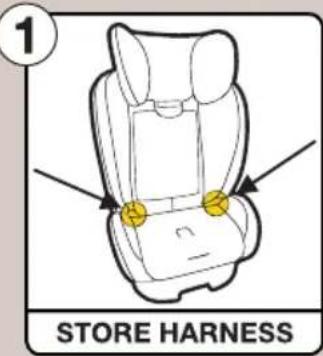

1 STORE HARNESS

2 FRONT REAR RED LEVER RECLINE SECTION FLIP UNDER BASE

3 POSITION ADJUSTER

SASH GUIDE POSITION

REFER TO PAGE 54 - 56

1 LOOSEN HEADREST

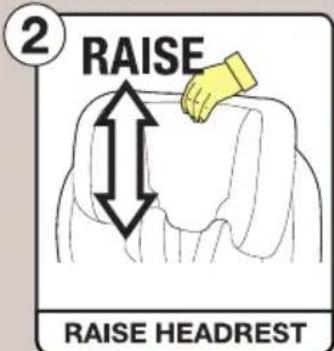

2 RAISE RAISE HEADREST

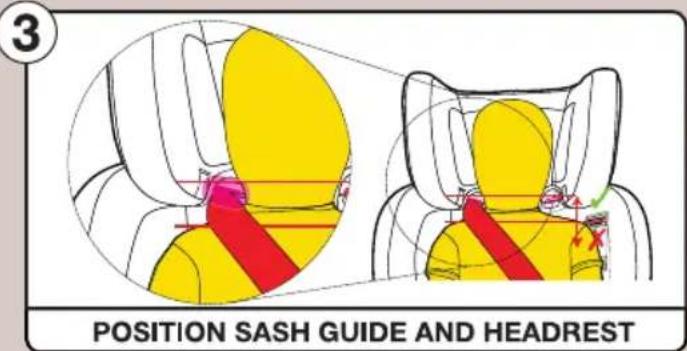

3 POSITION SASH GUIDE AND HEADREST

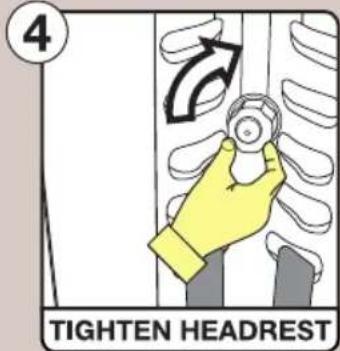

4 TIGHTEN HEADREST

Booster Seat Mode (Use for children)

INSTALLATION
REFER TO PAGES 57 - 58

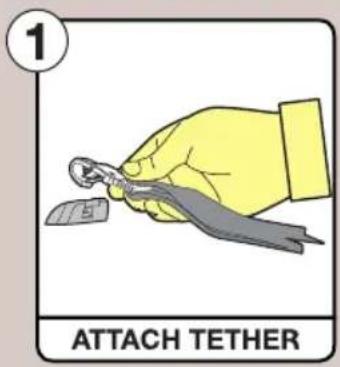

1 ATTACH TETHER

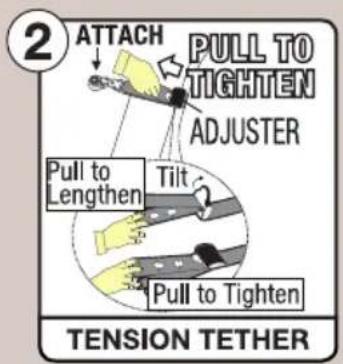

2 ATTACH PULL TO TIGHTEN ADJUSTER Pull to Lengthen Tilt Pull to Tighten TENSION TETHER

REFER TO PAGES 59 - 62

USE

1 ROUTE SEATBELT

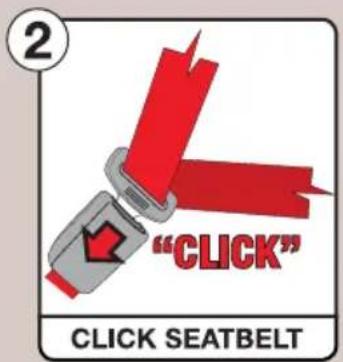

2 "CLICK" CLICK SEATBELT

3 TIGHTEN SEATBELT

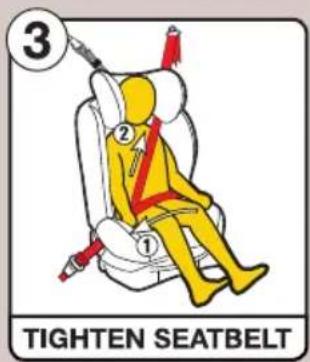

4 SASH SECTION ATTACH TO SASH SECTION ONLY LAP SECTION SAFE GRIP (RED BELT CLAMP) LOCKING CLIP

5 SASH GUIDE CHECK SASH GUIDE HEIGHT

Contents

Contents 1

Information 2

Warnings 3

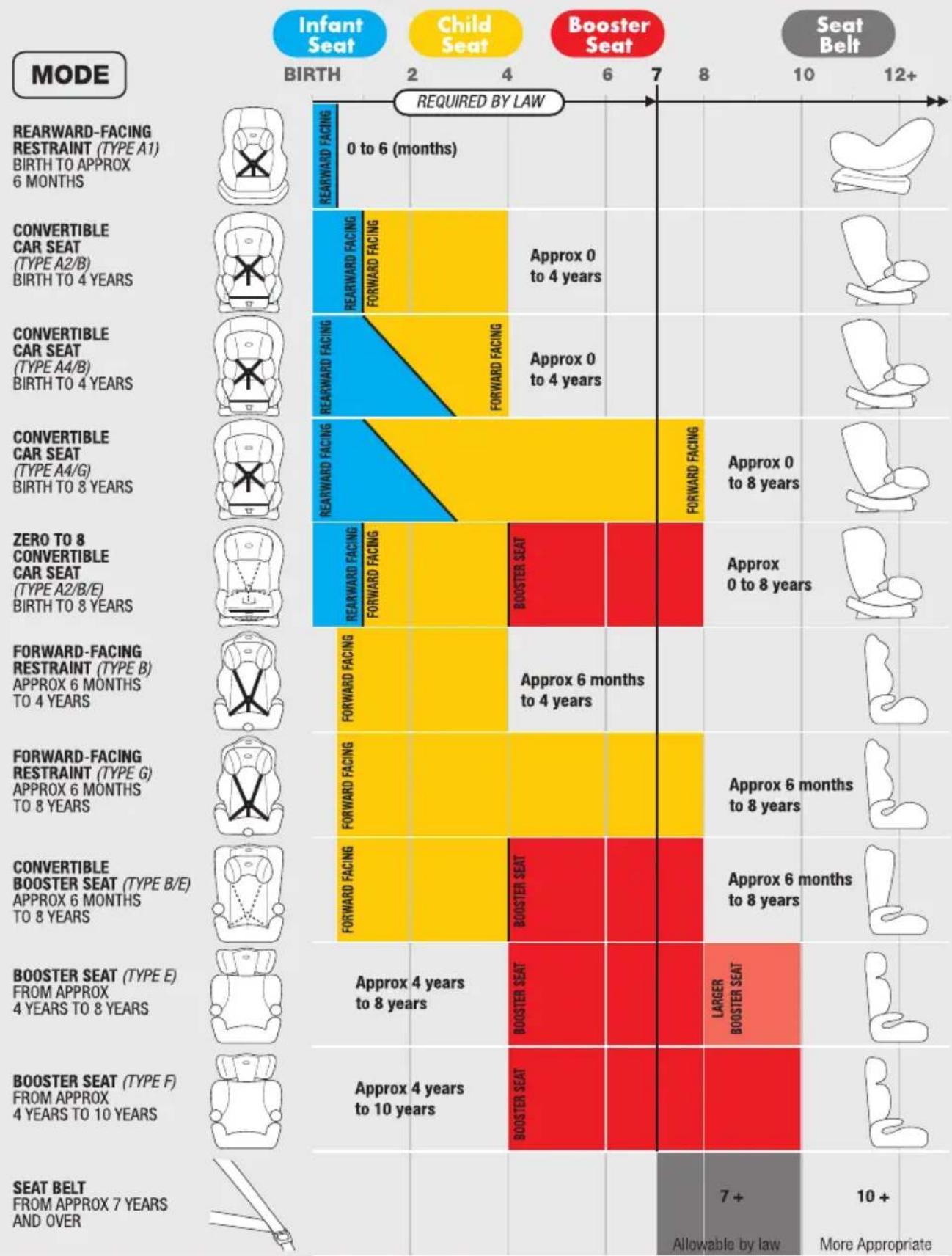

Restraint Guide 5

Padding - Combination Guide ____ 6

Infant Seat

Information 7

CS4313 Child Restraints (Itemised list)_ 9

Shoulder Height Marker 10

Set Up

• General 11
• Selection of Appropriate Padding Combination ____ 12
• Converting to Infant Seat 12

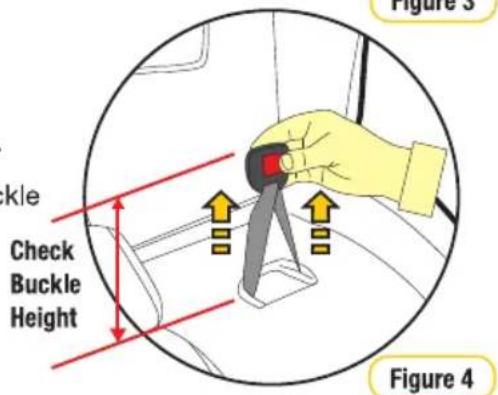

• Buckle Height Adjustment ____ 14
• Recline Angle 15
• Shoulder Height 16
  -Adjusting the Headrest 17
• Slot Height Selection 18
• Adjusting Harness Strap Positioning 20

Installation

- Installing using Vehicle seatbelt ____ 21

Use

- Using Inbuilt Harness 25

- To Release Infant 28

Child Seat

Information 29

CS4313 Child Restraints (Itemised list)_ 30

Shoulder Height Marker 31

Set Up

• Selection of Appropriate Padding Combination 33
• Converting to Child Seat ____ 33
• Shoulder Height 34
• Slot Height Selection 36
• Adjusting Harness Strap Positioning 38

Installation

- Installing using Vehicle seatbelt ____ 39

Use

-Adjusting Recline Angle 43
- Using Inbuilt Harness 44
- To Release Child 46

Booster Seat

Information 47

Shoulder Height Marker 48

CS4313 Child Restraints (Itemised list) _ 50

Next Restraint

• Next Type of Restraint ____ 51
• Five Step Test ____ 51

Set Up

• Selection of Appropriate Padding Combination 52
• Converting to a Booster Seat ____ 52
• Sash Guide Location 54
  -Adjusting the Headrest 55
• Installing in Vehicle 57

Use

• Using lap-sash belt 59
• Sash Guide 61
• To Release Child 62

Care of Restraint

• Care and Maintenance 63
• Cleaning 65
  Remove & Replace Covers 66
  Extension Straps 67
  Accessories 68
  Anchorage Fittings 71
  Insurers Information 74
  Notes 75
  Lifetime Warranty 76

Information

This instruction manual covers various models under the Model number CS4313. These child restraints are installed in the rear of the vehicle and can be used either rearward-facing, forward-facing or booster seat. They are installed in the vehicle using the vehicle seatbelt & the top tether strap. This Convertible Car Seat is designed to be used by children from approximately 0 months of age up to approximately 8 years of age.

Air Cocoon Technology™ - A Protective Embrace

Air Cocoon Technology™ (A.C.T.) enhances protection by dramatically reducing the impact forces during a crash. A.C.T. utilises a layer of air held inside the entirety of the child restraint shell, offering an increased level of protection across the entire surface area of the restraint. Your child is quite literally cradled in a cocoon of air, offering a true 180 degrees of protection to your child's vital organs.

Secur-air

Secur-air works hand in hand with Air Cocoon Technology to dramatically reduce crash energy to the child's head. Together they reduce crash energy more than five times lower than the level required by the Australian Standard.

Child Restraints

No child restraint can guarantee absolute protection from injury in every crash. However, to ensure that your child gets all the protection designed into the restraint please read and follow the instructions exactly and use only InfaSecure recommended parts and accessories.

Family Business

InfaSecure is an Australian owned and operated family business, which can trace it's roots back over 60 years in business, becoming the single largest Australian owned and operated child restraint company in the country. Today, we are still growing, continuing to innovate and provide high quality products at an affordable price.

ACT. TM AIR COCOON TECHNOLOGY

secur-air™

AUSTRALIAN DESIGNED & FAMILY OWNED

Warnings

WARNING

• Use the restraint exactly as shown in the instructions.
  • Supervision of children is needed because they may be able to undo buckles.
  • DO NOT LEAVE CHILDREN UNATTENDED IN THE CAR.
• Do not alter or modify this restraint.
  • Repairs must only be done by the manufacturers or agent.
• Do not allow the restraint to come into contact with polishes, oils, bleach and other chemicals.
• Destroy the restraint if it has been in a severe crash, even if no damage is visible.
  • DO NOT USE THIS RESTRAINT WITHOUT THE COVER.
• To ensure infant's back is evenly supported, do not put more than one nappy on the baby and make sure the nappy is not thickly folded at the back.
• DO NOT USE A REAR-FACING CHILD RESTRAINT WHERE AN AIRBAG IS FITTED IN FRONT OF THE SEATING POSITION.
  • Fit the restraint firmly to the car seat.
  • Fit the harness firmly to the child.
• A loose restraint or harness is dangerous.
• Do not harness an infant wrapped in a blanket or swaddled. Any blanket or wrap must only be placed over the harness and infant.

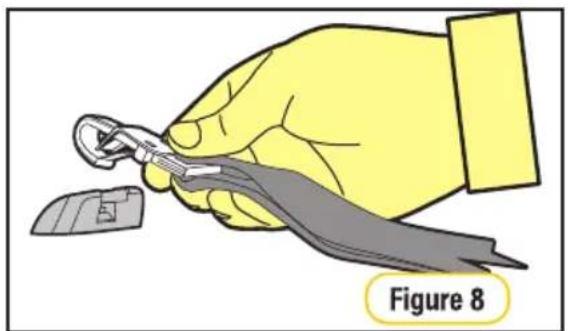

• Always secure the loose end of the top tether strap. Do not use the child restraint where this strap may fall into a split in the seat back or off the side of the seat.
  • ALWAYS ATTACH HOOK AND REMOVE SLACK.

IMPORTANT

Please read carefully the whole of the instructions for installation and, in the event of doubt about the method of installation, to consult InfaSecure or agent, or a child restraint fitter, or in New Zealand, to consult the agent for the vehicle.

Warnings

WARNINGS

• THIS RESTRAINT IS NOT SUITABLE FOR USE WHERE THE TOP TETHER STRAP MAY FALL INTO A SPLIT IN THE SEAT BACK OR OFF THE SIDE OF THE SEAT.
• THIS RESTRAINT MUST BE ATTACHED TO A CHILD RESTRAINT UPPER ANCHORAGE POINT IN THE CAR. REFER TO CAR OWNER'S HANDBOOK FOR LOCATION OF ANCHORAGE POINTS. REFER TO A CHILD RESTRAINT FITTING STATION IF NO ANCHORAGE POINTS ARE IN THE MOTOR CAR.
• Always secure the loose end of the top tether strap to prevent it hanging out of the car or being accessible by the child. Do not use the child restraint where this strap may fall into a split into the seat back or off the side of the seat.
• IF AN AIRBAG IS FITTED IN THE SEATING POSITION WHERE THE CHILD RESTRAINT IS TO BE FITTED, FOLLOW THE VEHICLE MANUFACTURER'S WARNINGS AND INSTRUCTIONS.
• THIS CHILD RESTRAINT IS NOT APPROVED FOR USE WITH ANY CONNECTORS THAT CONNECT TO THE CARS ISOFIX LOW ANCHORAGES.

WARNING

DO NOT LEAVE CHILDREN UNATTENDED IN THE CAR.

IMPORTANT

There is a real potential for an infant to be ejected and killed if the baby is wrapped in a blanket or swaddled. The harness needs to fit the baby firmly and any blanket or other covering may only be placed over the harness after the harness is adjusted firmly. Please ensure the baby's arms and legs are not bound or wrapped together.

Restraint Guide

IMPORTANT: Research has shown that the likelihood of an accessory child safety harness being used incorrectly is very high and the risk of injuries when incorrectly used is much higher compared to a lap-sash seat belt. InfaSecure recommend that an accessory child safety harness should only be used if a lap-only seat belt is all that is available.

Padding / Inserts

Combination Guide

Line drawing of a car seat with yellow and black buttons (no text or symbols)

Insert

Line drawing of a chair with folded edges and horizontal stripes (no text or symbols)

Mode
INFANT SEAT
(Small Infant)
REARWARD FACING

Illustration of a person sitting in a car seat with a red belt (no text or symbols)

INFANT SEAT

REARWARD FACING

FORWARD FACING

CHILD SEAT

Illustration of a person sitting in a car seat with a red belt symbol (no text or symbols present)

BOOSTER SEAT
FORWARD FACING

The Padded Insert/s (if fitted) are designed to provide extra support and comfort for small babies. Discontinue use when the insert is a tight fit or creates discomfort for larger babies/children.

Diagrams are indicative of type of paddings and inserts and may not resemble the actual product.

Padded inserts can vary according to model.

We reserve the right to alter this product without notice.

*For detailed description and method of attachment for padded accessories refer to Accessories on page 68.

Infant Seat

Rearward Facing

THE SUITABILITY OF THE CHILD RESTRAINT TO GROUPS OF CHILDREN

TYPE A2

To be used only in a rearward-facing position with built-in harness until the infant's shoulders reach the lower shoulder height marker (approximately 12 months of age).

TYPE B

Then to be used in a forward-facing position with built-in harness until the child's shoulders are above the middle shoulder height marker (approximately 4 years of age).

TYPE E

Finally, to be used with a lap-sash seatbelt until the child's shoulders reach the upper shoulder height marker (approximately 6 to 8 years of age).

Continue to use this child restraint until the child reaches this limit

Do not use forward-facing until child's shoulders are above the lower shoulder height marker.

Infants are at risk of serious injury if they face forward too early.

If the child's knees do not bend in front of the vehicle seat cushion, continue to use a booster seat.

Children are safest in the child restraint in the booster seat mode until their shoulders reach the upper shoulder height marker of the booster seat.

Just using a seatbelt is not recommended for children that have outgrown this seat. Use a larger booster seat.

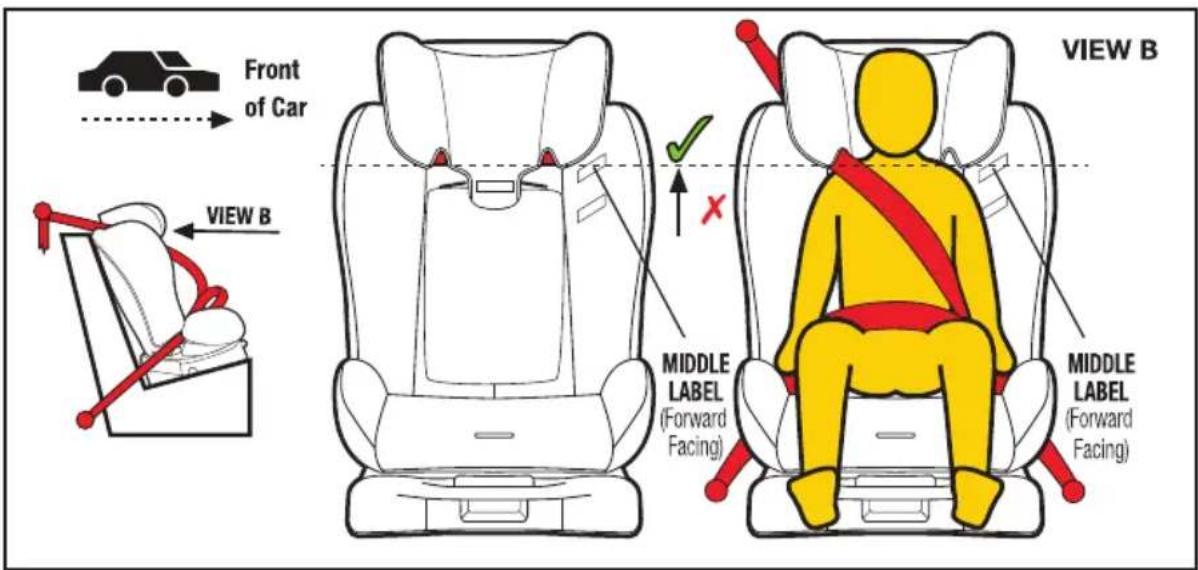

TO BE USED WITH A LAP-SASH/LAP-ONLY SEATBELT IN THE BACK OF MOST CARS WITH FORWARD FACING SEATS.

The use of child restraints in the front seat may be restricted for children of specific ages by local legislation. Please check with your local Department of Transport for the specific seating locations of children using child restraints for their given ages.

IMPORTANT

• For a vehicle without a fixed parcel shelf an extension strap(s) may be needed. If so ring 1300 92 4632 (AU) or [phone] (NZ) for nearest supply location (refer to page 67).
• Seatbelt extenders are not recommended to be used if the seatbelt is not long enough to secure the child restraint. If seatbelts are too short then advice should be sought from a child restraint fitter and their recommendation be considered before using a seatbelt extender.

Rearward Facing

IMPORTANT

• ONLY USE RESTRAINT REARWARD-FACING and in accordance with these instructions.
• Do not use the restraint without the upper anchorage strap correctly attached.
• DO NOT USE A REAR-FACING CHILD RESTRAINT WHERE AN AIRBAG IS FITTED IN THE FRONT OF THE SEATING POSITION.
• Do not use on any vehicle seat which faces sideways or rearward. Do not use excessively upright or reclined.

IMPORTANT MESSAGE

BOOSTER SEAT between these lines.

InfaSecure recommends to use this restraint, as long as possible in each mode.

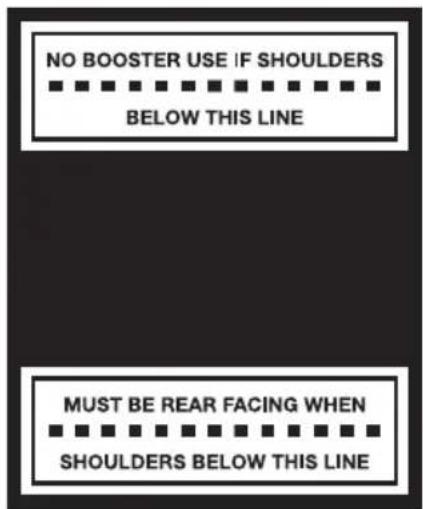

NO BOOSTER USE IF SHOULDERS BELOW THIS LINE MUST BE REAR FACING WHEN SHOULDERS BELOW THIS LINE

FORWARD FACING between these lines.

REARWARD FACING below this line

Rearward Facing

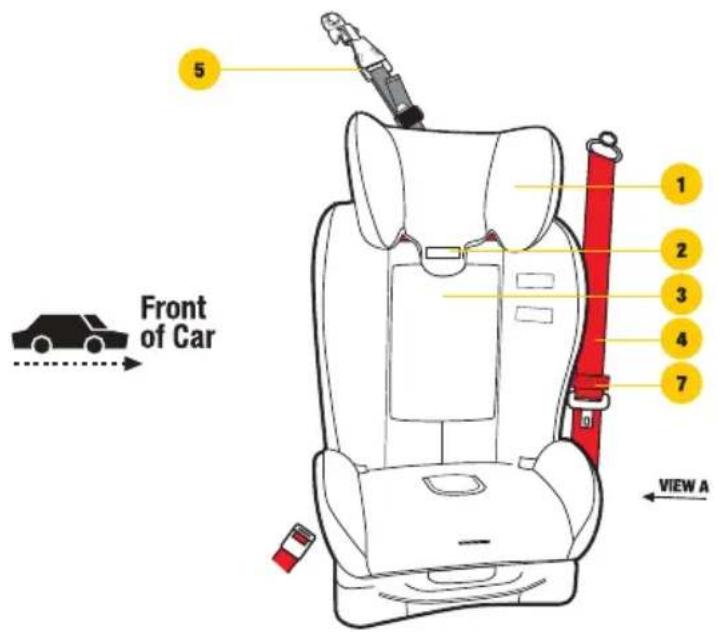

Front of Car VIEW A 12 11 10 9 VIEW A 1 2 3 4 5 6 7 8 VIEW B 13 SEAT BELT PATH NOTE: Ensure the seat belts are under the foam padding and cover

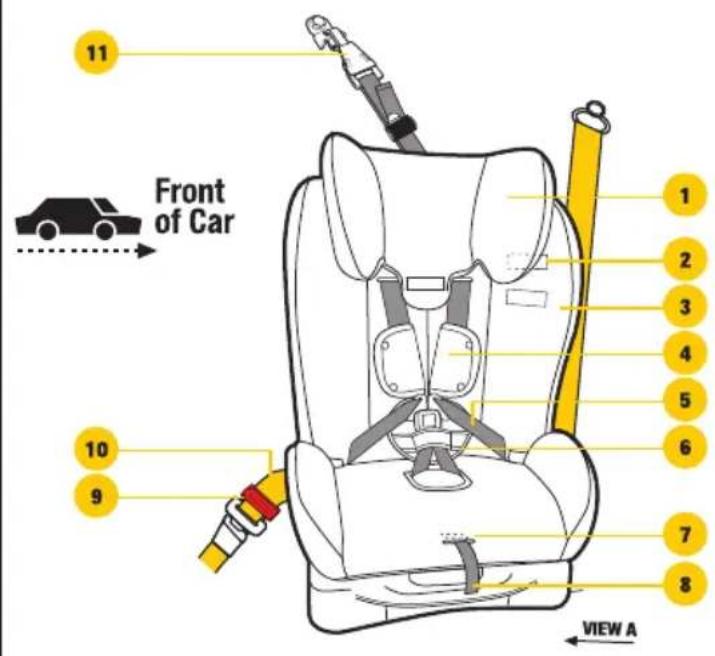

1. Shoulder Height Markers
2. Cover
3. Harness Straps

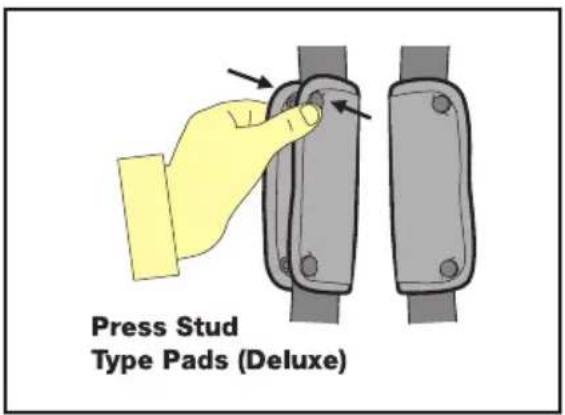

4. Shoulder Pads

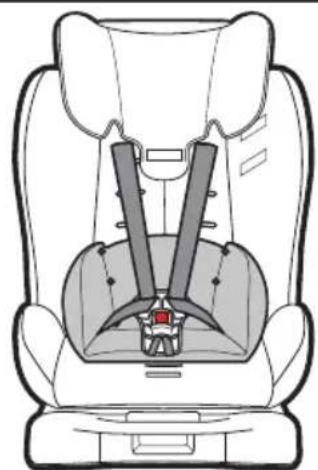

5. Buckle Pad
6. Padded Insert (if fitted)
7. Harness Adjuster
8. Harness Adjustment Strap

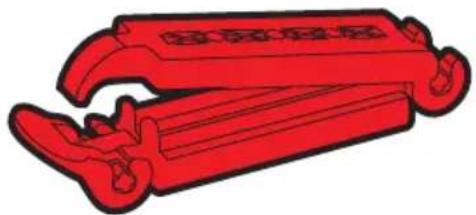

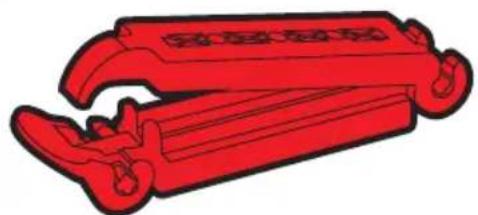

9. Safe Grip Red Belt Clamp (if supplied with restraint)
10. Vehicle Seat belt

11. Top Tether Guide

12. Top Tether Assembly

13. Tether Strap

14. Adjuster
15. Attachment Clip

16. Anchor Fitting + Attachment Hardware

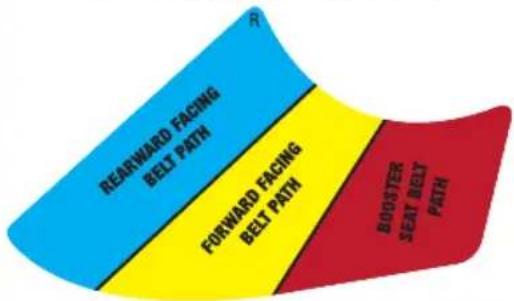

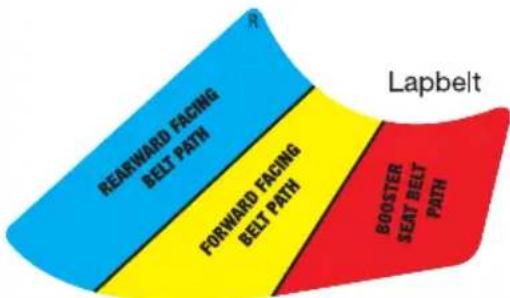

17. "REARWARD-FACING SEAT BELT PATH" Marker (each side of restraint - coloured blue)

NOTE: Padded inserts can vary according to model. For detailed description and method of attachment for padded accessories refer to Accessories on page 68-70.

Shoulder Height Markers

Infant (Rearward Facing Mode)

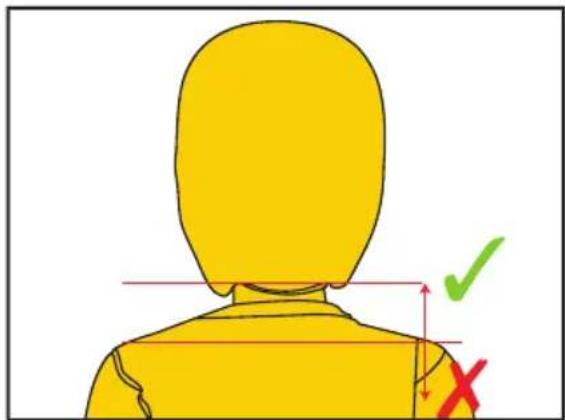

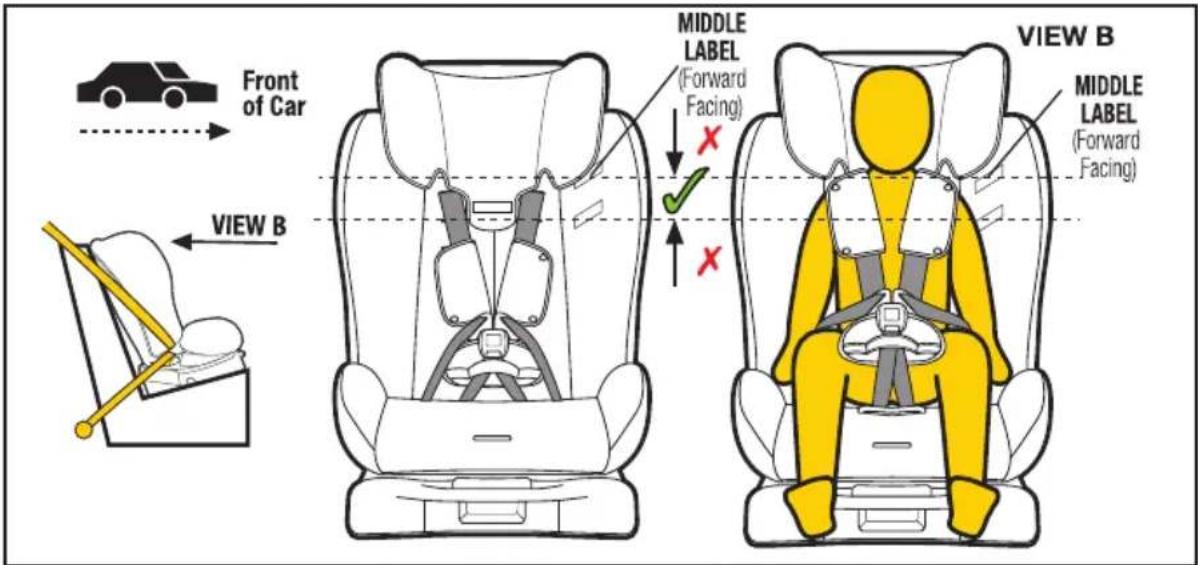

Shoulder height markers are provided on this restraint for a visual indication that the child is safe to travel in this restraint.

Do not turn to forward facing until the child's shoulder reaches the lower label.

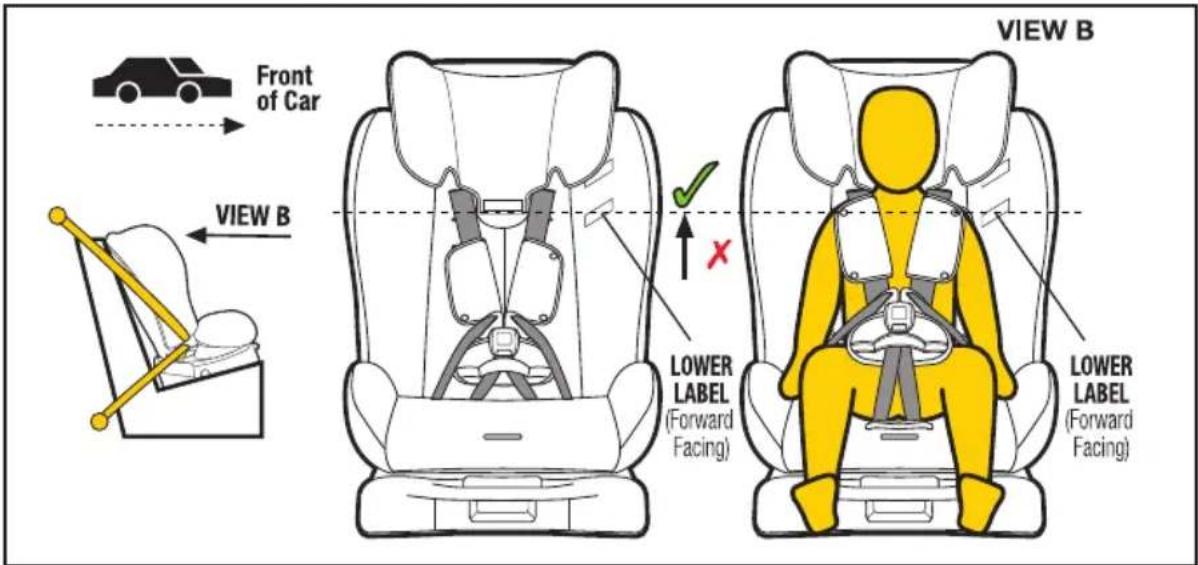

Front of Car VIEW A VIEW A LOWER LABEL (Rearward Facing) X LOWER LABEL (Rearward Facing)

To be used only in a rearward-facing position for an infant until their shoulders REACH the Lower shoulder height marker (approximately 12 months of age).

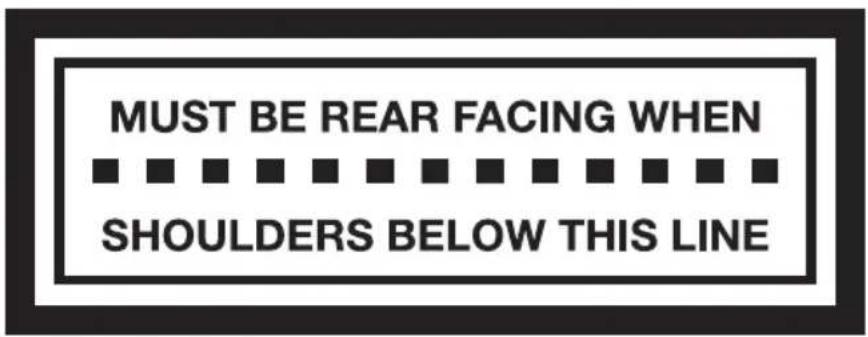

LOWER LABEL (Rearward-Facing)

Ensure that you continue to use this child restraint in rearward facing positions whilst the infants shoulders are below this shoulder height marker (Lower label).

Infants are at risk of serious injury if they face forward too early.

If the infants shoulders are below the lower label or if the baby's neck muscles are unable to support their head, then the infant should remain rear facing. When the child's shoulder reaches the lower label, the child restraint may be turned to face towards the front of the car (refer page 29 Child Seat section).

Set Up

General

• The CS4313 Child restraint has been designed and tested to meet the joint Australian/New Zealand Standard with an inbuilt anti rebound feature and does not require additional anti rebound bars or mechanisms to fulfil these requirements.
• The CS4313 Child restraint has also been designed to be a compact restraint to enable multiple restraints to be used in the rear of most vehicles.

IMPORTANT

• Care and attention should be given to ensure that the baby has adequate ventilation and shading when in the restraint.
• To achieve the necessary distribution of deceleration forces during a vehicle impact, ensure the child is seated correctly in the child restraint and the harness is fitted and adjusted as per these instructions.
• Ensure the child restraint and child are rearward facing.

If the baby's neck muscles are unable to support their head, then the infant should remain rear facing.

The Purchaser should check the measurement between the front of the seat back of the rear seat and all front seats in the car in which the child restraint is intended to be used, to ensure that the space is sufficient.

520mm 660mm

WARNING

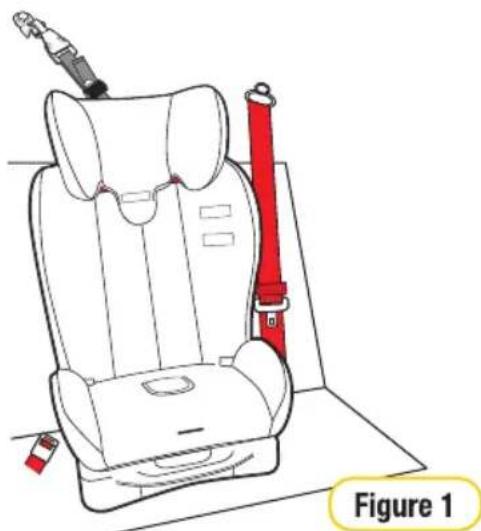

• ONLY USE RESTRAINT IN REARWARD-FACING MODE WITH "RECLINE SECTION" SWUNG FORWARD AND RESTRAINT FULLY RECLINED.
• Do not use the restraint without the upper anchorage strap correctly attached.
• DO NOT USE A REAR-FACING CHILD RESTRAINT WHERE AN AIRBAG IS FITTED IN THE FRONT OF THE SEATING POSITION.
• Do not use on any vehicle seat which faces sideways or rearward.

Set Up

Selection of Appropriate Padding Combinations

Step 1: Determine whether your infant/child requires the additional padding provided with this restraint, to ensure a safe and snug fit in the restraint. Refer to page 6 for suggested padding combinations.

WARNING

- To ensure baby's back is evenly supported, do not put more than one nappy on the baby and make sure the nappy is not thickly folded at the back.

Converting to Infant Seat

Reclined Position

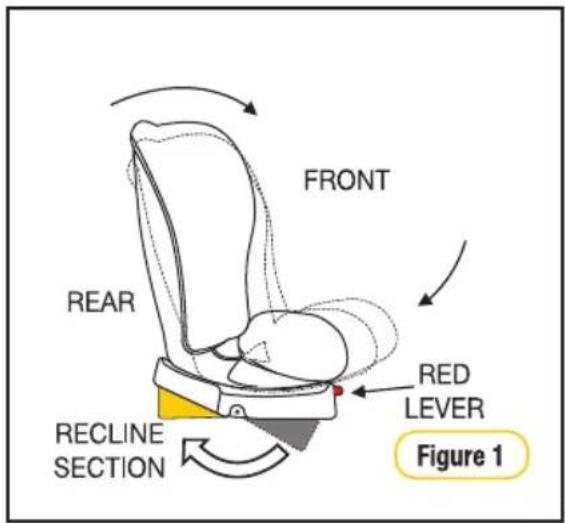

Step 1: At the front of the restraint is a red* lever. Pull red* lever forward and recline the restraint as far as possible.*Colour may vary
Step 2: Ensure the recline section is swung forward.

Front of Car FRONT RED LEVER RECLINE SECTION REAR

More Recline

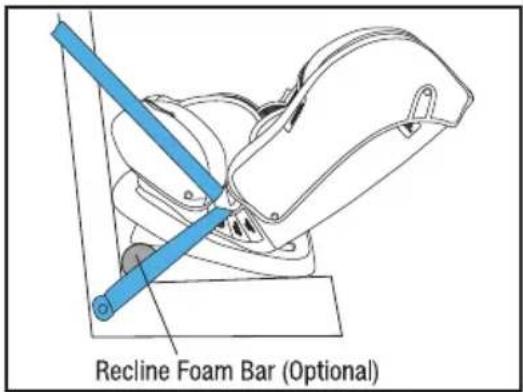

NOTE: If you require more recline place a firm packing between the vehicle seat and the underside of the restraint.

We recommend using a TA601 Recline Foam Bar to prop the child restraint, if more recline is required. (packing could also be achieved by using a firmly rolled up towel.

Recline Foam Bar (Optional)

Set Up

Converting to Infant Seat

Adjuster assembly location

The position of the Adjuster (Top Tether strap) is adjustable for ease of installation and ease of use.

Rearward Facing (Type A)

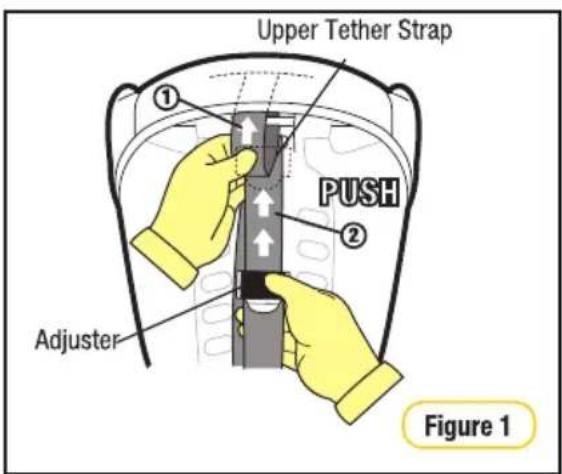

Step 1: Pull adjuster and strap to extend the location of the adjuster assembly (refer Figure 1).

Step 2: Continue to extend until the adjuster has reached the desired location at the side of the restraint (refer Figure 2).

Top Tether Strap PULL Adjuster Figure 1

Top Tether Strap Top Tether Strap Guide Figure 2

Step 3: Locate the adjuster at the side of the restraint and secure using the Top Tether Strap Guide (refer Figure 3).

IMPORTANT

EASE OF USE: It is recommended to position the adjuster at the side of the restraint which is towards the access door (rear passenger side).

Top Tether Strap Top Tether Strap Guide Adjuster location Figure 3

Set Up

Buckle Height Adjustment

The buckle is supplied in a shortened position, if you want to alter the buckle height the following steps are required.

Step 1: Lift the buckle and determine the required buckle height (refer Figure 1).

Step 2: To alter the buckle height - Turn the Child Restraint upside down, to access from the bottom (refer Figure 2).

Step 3: Remove the screw and lift the 3 bar plate (refer Figure 2 and 3).

Step 4: Rethread the webbing. - To shorten the buckle 'Pull' excess webbing through the 3 bar plate. - To lengthen the buckle 'Push' excess webbing through the 3 bar plate.

Note: Do noy shorten the buckle strap beyond the indicator mark on the strap.

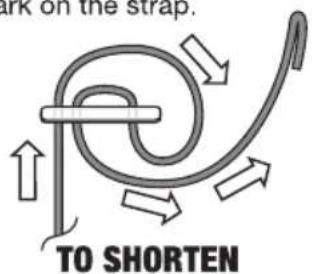

To SHORTEN

Note: When shortening the buckle ensure the buckle tongues have clearance above the upper thigh (refer Page 25).

TO LENGTHEN

Step 5: Replace the 3 bar plate, and screw into position.

Step 6: Turn seat back to upright position & recheck buckle height (refer Figure 4).

Check Buckle Height Figure 1

Technical line drawing of a mechanical component with a screw and base plate, labeled Figure 2 (no text or symbols on the diagram itself)

Hand holding a tool inside a circular frame, no text or symbols visible

Figure 3 Angle Check Buckle Height Figure 4

Set Up

Recline Angle

The vehicle installation is controlled by the angle of the vehicle seat, and these angles vary greatly between vehicles. The vehicle seat angle or the contours of the vehicle seat could place the child restraint either too upright or too recline. A rearward facing restraint should always be installed so that the back surface is reclined just enough to allow the infant's head to lie back comfortably, but not more than 45^ from vertical. This measurement is taken when your infant is laying in the child restraint and is in direct contact with this back surface, so it's extremely important to maintain the required angle.

IMPORTANT

Your infant should NEVER be too upright or too reclined.

TOO UPRIGHT (less than 35° from vertical) could lead to the infants head flopping forward and potentially pinching off the airway.

TOO RECLINED (greater than 45° from vertical) could lead to the infants body sliding 'up' towards the top of the restraint. Which could promote a compressive load on the spine and/or an extension load on the neck.

0° 35° 45° X X

NOTE: An accurate method of measuring the recline angle of your infant is to use a smart phone with an application that can measure angles, but if using this method ensure the car is on a level surface.

Set Up

Shoulder Height

Zone

The child's shoulder region.

Diagram showing a yellow figure with a checkmark and red X mark indicating alignment or error, with horizontal lines and arrows.

Slot Selection

Nearest to the child's shoulders. Level with or just above the child's shoulders but not lower.

Illustration of a yellow helmet with red arrows indicating measurement or alignment points (no text or symbols)

Diagram of a person wearing a yellow helmet and cap, viewed from inside a car seat (no text or symbols)

Headrest Position

Headrest positioned above the shoulder slots.

Diagram of a person wearing a yellow helmet and safety vest, with red arrows indicating motion or force vectors (no text or symbols)

Diagram of a car seat with safety symbols and directional arrows indicating movement or force, including a worker in yellow gear.

Set Up

Shoulder Height

The correct height for the shoulder straps is very important for the optimum performance of the restraint.

With the child correctly sitting in the restraint, check which set of slots (in the plastic shell of the restraint) are level with or just above the infant's shoulders.

If the harness straps are located in those slots, then the you can proceed with using the restraint (see section "USE" on page 25). If not then adjust the shoulder straps (refer page 20).

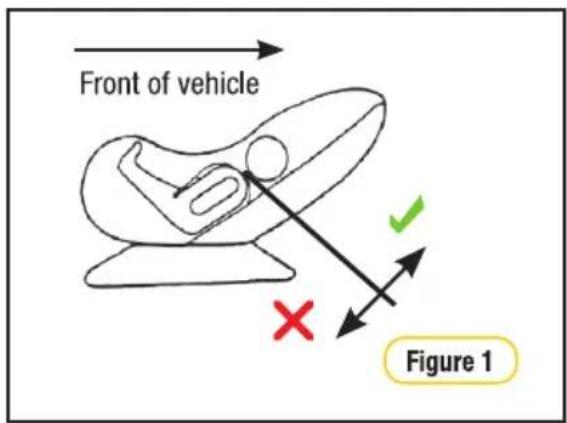

Front of vehicle Figure 1

IMPORTANT

The shoulder straps must be in the slots which are nearest to the child's shoulders, but not be lower than the childs shoulders.

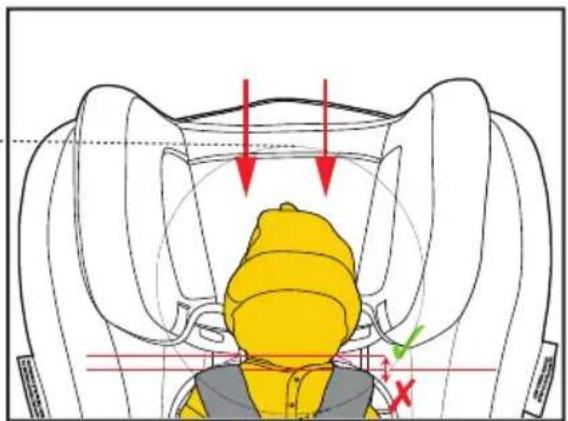

Adjusting the Headrest

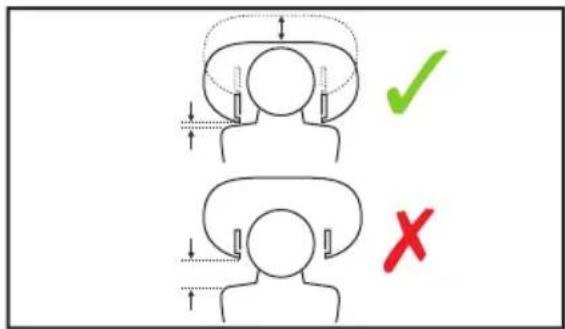

The headrest can be adjusted to different heights to best suit your child. The headrest has a locking nut on the rear of the restraint. Loosen the nut to then raise or lower the headrest as required.

IMPORTANT

Refer to shoulder height marker (As shown on page 10). For the correct shoulder strap slot height refer to pages 18-20.

Diagram illustrating correct and incorrect posture with checkmark and cross symbols indicating correct and incorrect states

Set Up

Slot Height Selection

Step 1: Undo the adjustment nut which is located at the back of the restraint, raise the headrest out of the way (refer Figure 1 & 2).

Step 2: Place child into the restraint and select the appropriate shoulder slots nearest or above the child's shoulder.

Step 3: If required (see Adjusting Harness Strap Position page 20).

IMPORTANT

The shoulder straps must be in the slots which are nearest to the child's shoulders, but not be lower than the childs shoulders.

IMPORTANT

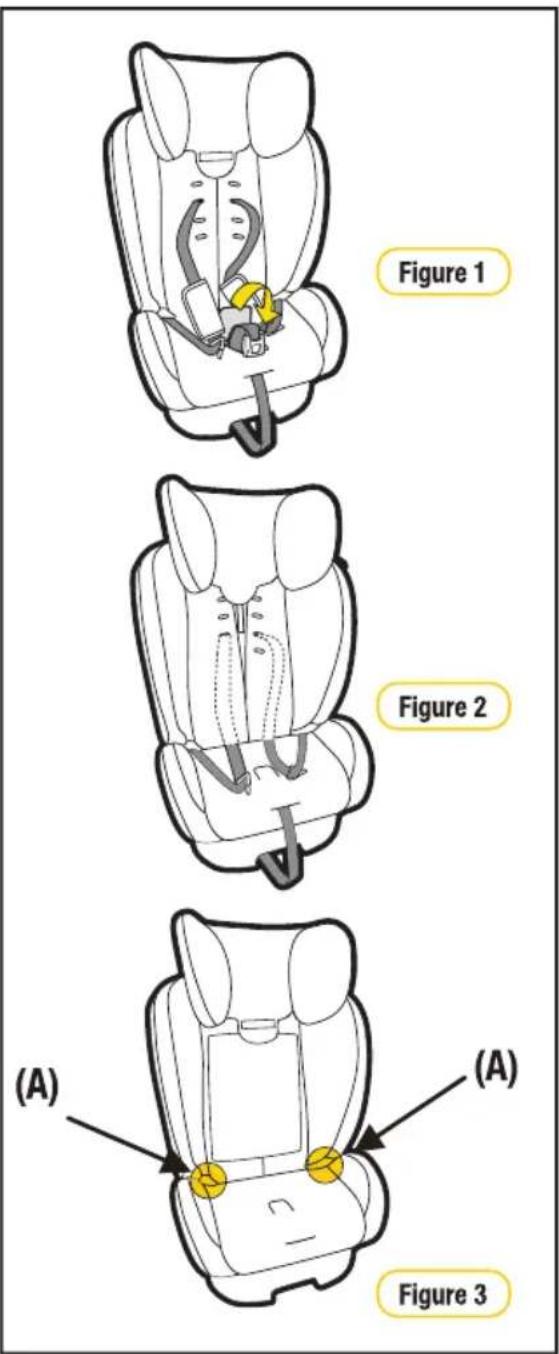

ENSURE THE HARNESS STRAPS ARE ALWAYS THREADED THROUGH THE BACK SHELL AND BELOW THE HEADREST.

NOTE: With reference to Figure 3 you should visually see the slots at or above the child's shoulder.

TIGHTEN LOOSEN Figure 1

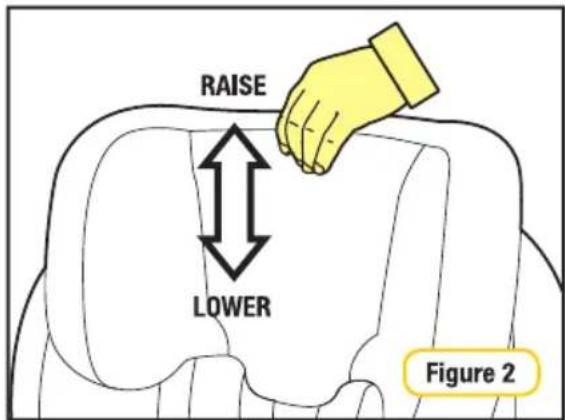

RAISE LOWER Figure 2

Figure 3 18

Set Up

Slot Height Selection

Step 4: Adjust the headrest height so that the bottom of the headrest is located just above the shoulder slots.

Step 5: Once the headrest is in the correct position tighten the adjustment nut and check the headrest is locked into place.

Step 6: Check to sight the location of the appropriate shoulder slots (in main shell), refer Figure 5.

Diagram of a yellow helmet with red arrows indicating motion or force directions, enclosed in a circular frame (no text or symbols)

RAISE LOWER Figure 4

Figure 5

IMPORTANT

Slot Selection

• Nearest to the child's shoulders

Headrest Position

• Above the slot Selection

TIGHTEN LOOSEN Figure 6

Set Up

Adjusting Harness Strap Position

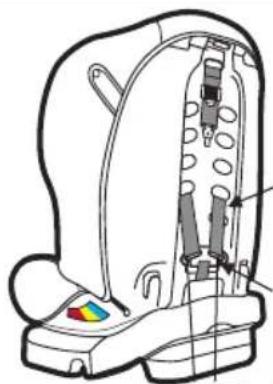

• Loosen harness to allow spreader plate to rise from under the restraint. Turn the restraint so that the back of the restraint is facing you (refer Figure 2 page 25).
• Remove each shoulder harness through the gates in the spreader plate (see Figure 1.1 & 1.4).
  • Pull the shoulder harness straps through the shoulder slot holes in the restraint body and cover. They are now loose in the front of the seat.
• Push the ends of the shoulder harness straps through the appropriate shoulder slot holes in the cover and restraint body for the child's shoulder height.

NOTE: Ensure the harness straps are not twisted.

- The shoulder harness straps go directly from the shoulder slot holes to the spreader plate. Thread each shoulder harness strap back onto the metal spreader plate through the gate (see Figure 1.4).

IMPORTANT

• The shoulder straps must be in the slots which are nearest to the child's shoulders, but not lower than the child's shoulders.
  • Always adjust the height of the shoulder straps as the child grows

Technical line drawing of a car seat assembly (no text or symbols)

GATES

HARNESS STRAPS

METAL SPREADER PLATE

Figure 1.1

PULL H S I SP

HARNESS STRAPS

METAL SPREADER PLATE

Figure 1.2

Technical line drawing of a car seat assembly (no text or symbols)

GATES

HARNESS STRAPS

METAL SPREADER PLATE

Figure 1.3

Illustration of a hand pressing down on a cylindrical object with directional arrows indicating motion (no text or symbols)

Figure 1.4

Installation

Installing Using Vehicle Seatbelts

Step 1: Place the child restraint on the vehicle seat. Ensure recline section is swung forward and the restraint is fully reclined with the restraint directly in line with anchorage point, refer to Recline Angle page 15.

Step 2: Make sure Top Tether strap is as per illustration (Figures 1 and 2) i.e. positioned around restraint back.

IMPORTANT

Ensure that you use the REARWARD-FACING BELT PATH indicators, marked in "blue".

REARWARD FACING BELT PATH FORWARD FACING BELT PATH BOOSTER SEAT BELT PATH

Step 3: Feed adult lap or lap/sash belts through the belt path opening, ensure the seat belt is under the cover & between the layer of foam and the plastic seat base.

Engage the buckle and tongue assembly (listen for a "CLICK"). Check the buckle engagement with a gentle pull.

Seat Belt Adjuster Top Tether Strap Buckle Assembly Figure 1 Lap Belt & Sash Belt Passes Through Here Recline Section Figure 2 Recline Section (Swung Forward) & child restraint fully reclined.

Installation

Installing Using Vehicle Seatbelts

Step 4: Push down on the base of the restraint (with knee or hand) whilst pulling the sash section of the vehicle belt firmly up in direction of the blue arrow in Figure 4. (This will tighten the lap belt across the restraint base).

Step 5: Ensure the excess slack in the sash belt is fed back towards the seat belt.

Safe Grip (if supplied)

* The Safe Grip may not be supplied with all models. It can be purchased separately; visit http://store.infasecure.com.au

SAFE GRIP BELT CLAMP

The Safe Grip (red belt clamp) locks the lap belt to ensure a firm installation, and avoids slack in the lap belt.

Red stylized illustration of a mechanical device with no visible text or symbols

To install the Safe Grip (red belt clamp), open it and clamp the "sash section" ONLY of the vehicle seat belt by closing the barrel section of the red belt clamp in the direction of arrow 1 in Figure 5 and then locking with the toggle section by pushing in the direction of arrow 2 in Figure 5 when the Safe Grip (red belt clamp) is secured in place, the lap section is now tightly holding your child restraint in place, independent of the sash section. The Safe Grip (red belt clamp) must be removed when the child restraint is not installed to allow other users to use the seat belt as a lap/sash seat belt. Always keep the Safe Grip (red belt clamp) in pocket provided when not in use.

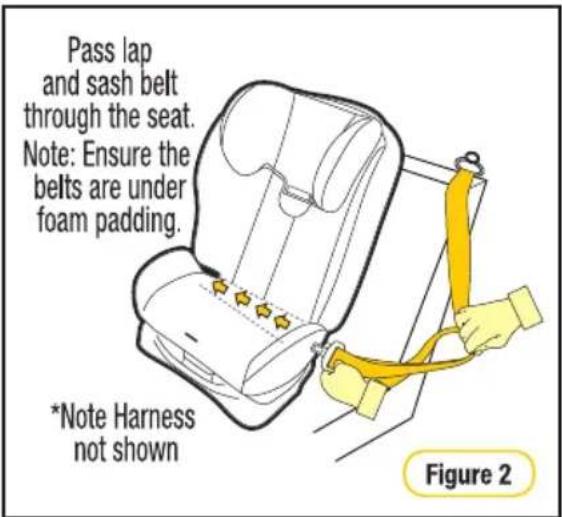

Seat Belt Pass lap and sash belt through the seat. Note: Ensure the belts are under foam padding. Buckle & Assembly Lap Belt & Sash Belt Figure 3 PRESS PULL REMOVE ALL SLACK FROM SEATBELT Figure 4 ATTACH TO SASH SECTION ONLY SASH SECTION TOGGLE SECTION (2) BARREL SECTION (1) BUCKLE (A) (AND TONGUE) LAP SECTION SAFE GRIP (B) (red belt clamp) Figure 5

Installation

Installing Using Vehicle Seatbelts

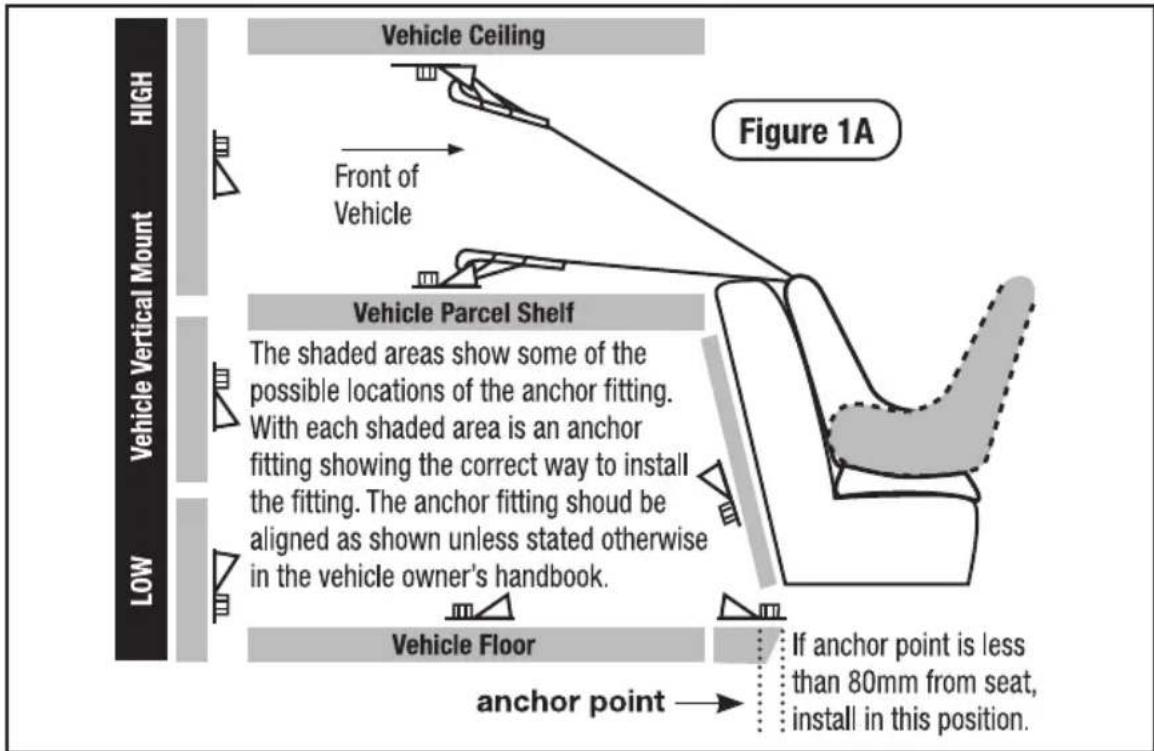

Note: If no upper anchorage fitting is available refer to pages 71-73.

Step 5: Locate the adjuster at the side of the restraint and secure using the Top Tether Strap Guide (refer Figure 6 & 7).

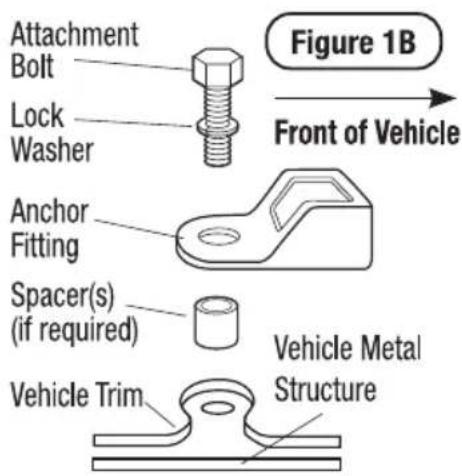

Step 6: Hook the attachment clip to the upper anchor fitting (refer Figure 8).

IMPORTANT

• The purchaser should check the measurements between the front of the seat back of the rear seat and all front seats in the car in which the child restraint is intended to be used, to ensure that the space is sufficient.
• Care and attention should be given to sufficient ventilation and shading of the baby. Always secure the loose end of the top tether strap to prevent it hanging out of the car or being accessible by the child.

WARNING

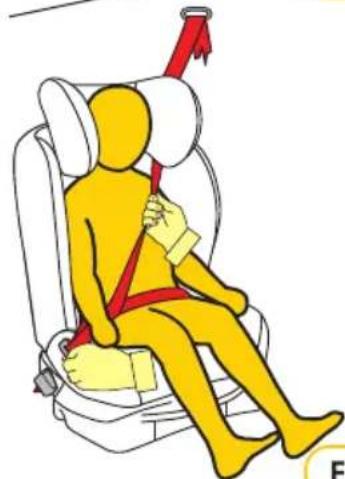

• DO NOT USE REAR FACING CHILD RESTRAINT WHERE AN AIRBAG IS FITTED IN FRONT OF THE SEATING POSITION.
• Fit the restraint firmly to the vehicle seat.
• THIS TETHER STRAP MUST ALWAYS BE FITTED WHEN THE CHILD RESTRAINT IS USED IN A VEHICLE.

Seat Belt Buckle & Assembly Safe Grip (red belt clamp) Figure 6

Top Tether Strap Guide Top Tether Strap Figure 7

Illustration of a hand holding a key with a blue clip, labeled Figure 8 (no text or symbols on the diagram itself)

Installation

Installing Using Vehicle Seatbelts

Step 7: Pull to tighten to remove all the slack from the upper anchorage strap. Do not overtighten as this could cause the restraint to lift off the vehicle seat (refer to Figure 9).

IMPORTANT

• Tighten till slack is removed.
• In certain vehicles an extension strap may be needed.
• Do not overtighten Top Tether strap.
• Ensure Top Tether strap is passed through the Top Tether Strap Guide.

Tether Storage

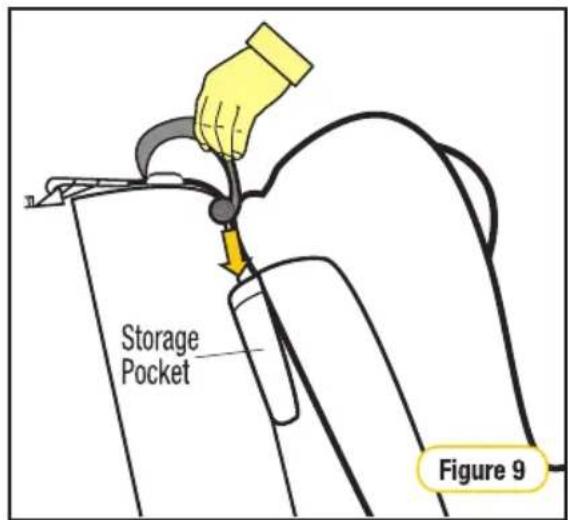

After correctly installing the restraint in your car, roll up and place any excess tether strap in the storage pocket provided (refer Figure 10).

CAUTION: CHILDREN CAN BE INJURED OR RESTRAINTS AND TOP TETHER STRAP DAMAGED BY UNSECURED CARGO IN A COLLISION. SECURE OR REMOVE HAZARDOUS CARGO BEFORE USING THIS CHILD RESTRAINT.

Always secure the loose end of the top tether strap to prevent it hanging out of the car or being accessible by the child.

Adjuster Top Tether Strap Guide Tether Point Top Tether Strap Tilt Pull to Lengthen Pull to Tighten Figure 9

Top Tether Strap Adjuster Storage Pocket Figure 10

NOTE

FOLLOWING THE INSTALLATION OF THE CHILD RESTRAINT A SMALL AMOUNT OF MOVEMENT IS DEEMED ACCEPTABLE.

Use

Using Inbuilt Harness

Step 1: Ensure the restraint has been installed and set up as per "Set Up" and "Installation" (refer pages 11-24)

Step 2: To lengthen the harness "LIFT" the harness adjuster (refer Figure 2) whilst grasping both shoulder harness straps and pulling. Ensure shoulder straps are pulled equally on each side.

WARNING

To ensure infant's back is evenly supported, do not put more than one nappy on the baby and make sure the nappy is not thickly folded at the back.

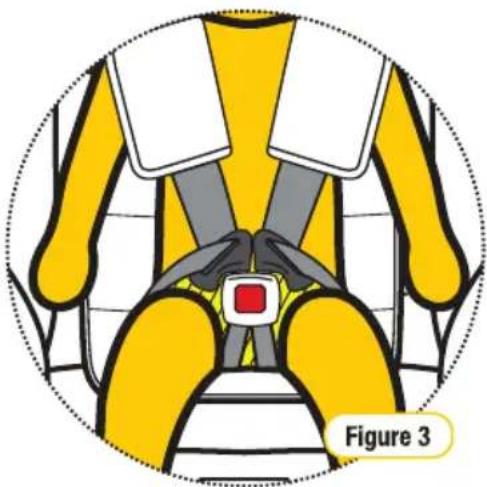

Step 3: Place child in restraint with legs either side of the buckle, place harness over the shoulders and hips (refer Figure 3).

Harness Adjuster Strip Top Tether Strap Harness Adjuster (Under cover) Figure 1

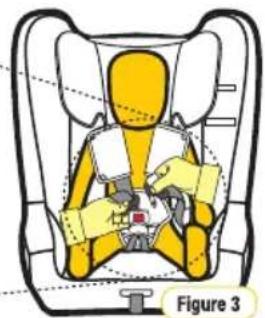

PULL TO LENGTHEN PULL TO LENGTHEN "LIFT" Figure 2

Illustration of hands adjusting a seatbelt inside a vehicle (no text or symbols)

NOTE: To change the buckle height refer to Buckle Height Adjustment (refer page 14)

Diagram of a person in a car seat with yellow safety belt and seatbelt, labeled Figure 3 (no text or symbols on diagram itself)

IMPORTANT

KEEP BUCKLE LOW AS POSSIBLE

Always ensure buckle has clearance from the upper thighs (see indicated area Figure 4).

Illustration of a yellow and gray car seat with a red square button, labeled 'Figure 4' (no text or symbols on the diagram itself)

Use

Using Inbuilt Harness

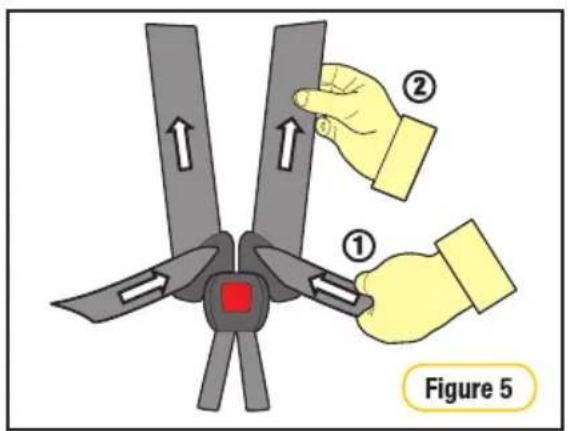

Step 4: Insert either tongue into the buckle followed by the other tongue until a "CLICK" is heard. Should the second tongue not insert, press the red button and reinsert the tongues. Ensure secure engagement by pulling the harness strap (refer Figure 5).

IMPORTANT

If no "Click" can be heard or a secure engagement cannot be achieved refer to Cleaning Buckle Harness page 65.

Step 5: Remove all of the slack for the harness lap straps by pulling shoulder straps (refer Figure 6), then pull the harness adjustment strap to adjust harness to a comfortable but firm fit (refer Figure 6 & 7).

"CLICK" Figure 5

WARNINGS

• DO NOT LEAVE CHILDREN UNATTENDED IN THE CAR.
• Fit the harness firmly to the child.
• A LOOSE HARNESS IS DANGEROUS.

Figure 6

Using Inbuilt Harness

IMPORTANT

• The Padded Insert/s (if fitted) are designed to provide extra support and comfort for small babies. Discontinue use when the insert is a tight fit or creates discomfort for larger babies/children.
  • Always adjust the height of the shoulder straps as the child grows.

REMOVE ALL SLACK FROM HARNESS Harness Adjuster Strap PULL TO TIGHTEN Figure 6

Step 6: Check the harness tightness by the

PINCH TEST, this is achieved by pinching the harness webbing at the shoulders (refer Figure 8)

• If you can pinch the harness strap, tighten more.
• If your fingers slip off, then the harness is tight enough.

PINCH TEST Figure 7

If required repeat Step 5.

Use

To Release Infant

Step 1: To release your infant from the restraint simply press the harness buckle and carefully remove your infant from the restraint (refer Figure 1).

NOTE: If Top Tether strap has been loosened to allow easier placing of the infant in the restraint, always retighten the Top Tether strap so it has no slack in it. DO NOT OVERTIGHTEN.

For Ease Of Use

No need to disconnect the Upper Anchorage Strap. To access your infant simply;

• Loosen upper tether strap (refer Figure 2).
• Lower strap out of way (refer Figure 3).

Reverse procedure when reseating the infant.

WARNING

• Always use a lap or lap-sash seat belt and top tether strap to attach the child restraint to the vehicle.
- Do not use the restraint without the top tether strap correctly attached and adjusted.
- Do not use on any vehicle seat which faces sideways or rearwards.
- IF AN AIRBAG IS FITTED IN THE SEATING POSITION WHERE THE CHILD RESTRAINT IS TO BE FITTED, FOLLOW THE VEHICLE MANUFACTURER'S WARNINGS AND INSTRUCTIONS.
- Do not use the restraint if the buckle is sluggish or does not provide an audible "Click" refer to Cleaning Instructions on page 65.

PRESS Figure 1

Top Tether Strap Top Tether Strap Guide Figure 2

Top Tether Strap LOWER OUT OF WAY Figure 3

Child Car Seat

Forward Facing

THE SUITABILITY OF THE CHILD RESTRAINT TO GROUPS OF CHILDREN

TYPE A2

To be used only in a rearward-facing position with built-in harness until the infant's shoulders reach the lower shoulder height marker (approximately 12 months of age).

TYPE B

Then to be used in a forward-facing position with built-in harness until the child's shoulders are above the middle shoulder height marker (approximately 4 years of age).

TYPE E

Finally, to be used with a lap-sash seatbelt until the child's shoulders reach the upper shoulder height marker (approximately 6 to 8 years of age).

Continue to use this child restraint until the child reaches this limit

Do not use forward-facing until child's shoulders are above the lower shoulder height marker.

Infants are at risk of serious injury if they face forward too early.

If the child's knees do not bend in front of the vehicle seat cushion, continue to use a booster seat.

Children are safest in the child restraint in the booster seat mode until their shoulders reach the upper shoulder height marker of the booster seat.

Just using a seatbelt is not recommended for children that have outgrown this seat. Use a larger booster seat.

TO BE USED WITH A LAP-SASH/LAP-ONLY SEATBELT IN THE BACK OF MOST CARS WITH FORWARD FACING SEATS.

The use of child restraints in the front seat may be restricted for children of specific ages by local legislation. Please check with your local Department of Transport for the specific seating locations of children using child restraints for their given ages.

IMPORTANT

• For a vehicle without a fixed parcel shelf an extension strap(s) may be needed. If so ring 1300 92 4632 (AU) or [phone] (NZ) for nearest supply location. (Refer page 67)
• Seatbelt extenders are not recommended to be used if the seatbelt is not long enough to secure the child restraint. If seatbelts are too short then advice should be sought from a child restraint fitter and their recommendation be considered before using a seatbelt extender.

Forward Facing

11 Front of Car 1 2 3 4 5 6 7 8 9 10 VIEW A

VIEW A 12 SEAT BELT PATH

NOTE: Ensure the seat belts are under the foam padding and cover

1. Headrest
2. Shoulder Height Markers
3. Comfort Cover
4. Shoulder Pads
5. Harness Straps
6. Buckle Pad
7. Harness Adjuster
8. Harness Adjustment Strap
9. Safe Grip Red Belt Clamp (if supplied with restraint)

10. Vehicle Seat Belt

11. Top Tether Assembly

12. Tether Strap

13. Adjuster
14. Attachment Clip

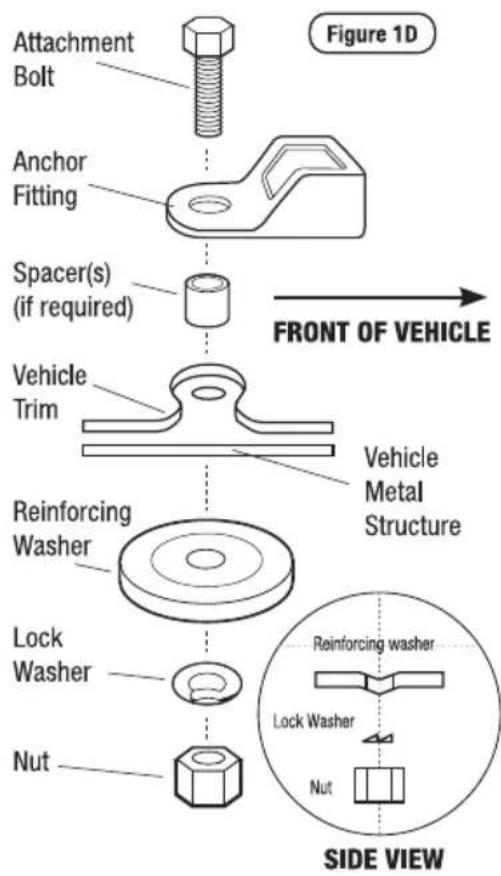

15. Anchor Fitting + Attachment Hardware

16. "FORWARD-FACING SEAT BELT

PATH" Marker (each side of restraint - coloured Yellow)

NOTE: Padded inserts can vary according to model. For detailed description and method of attachment for padded accessories refer to Accessories on page 68-70.

Shoulder Height Marker

Smaller Toddler (using inbuilt harness)

Shoulder height markers are provided on this restraint for a visual indication that the child is safe to travel in this restraint.

Front of Car VIEW B LOWER LABEL (Forward Facing) VIEW B LOWER LABEL (Forward Facing)

Smaller Toddler from approximately 12 months of age

Do not use as a forward-facing child restraint until the child's shoulders are ABOVE the Lower shoulder height marker (Lower label).

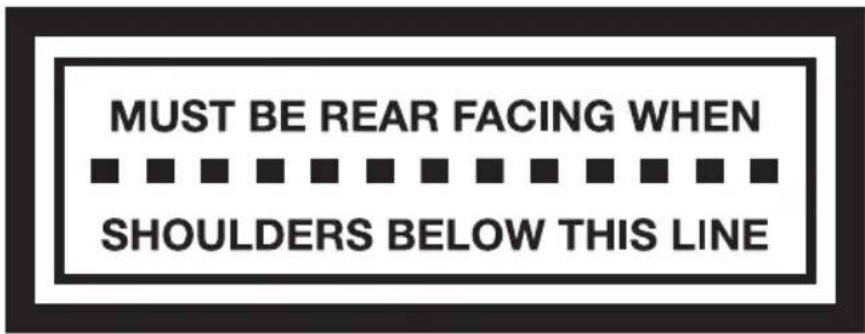

LOWER LABEL

When using the inbuilt harness the child's shoulders must be in-line or above this marker

If moving a child from rearward-facing child restraint, to forward facing child restraint the child's shoulders will need to be inline or above the lower label. If the child's shoulders are below the lower label or if the baby's neck muscles are unable to support their head, then the child should remain rearward-facing.

Shoulder Height Marker

Taller Toddler (using inbuilt harness)

Shoulder height markers are provided on this restraint for a visual indication that the child is safe to travel in this restraint.

Front of Car VIEW B MIDDLE LABEL (Forward Facing) MIDDLE LABEL (Forward Facing) VIEW B

Taller Toddler to approximately 4 years of age

Continue to use as a forward-facing child restraint until the child's shoulders REACH the middle shoulder height marker (Middle label).

MIDDLE LABEL (Forward-Facing)

NO BOOSTER USE IF SHOULDERS BELOW THIS LINE

IMPORTANT

When the child's shoulders reach the shoulder height marker (Middle Label), convert the child restraint to booster seat mode and use with a lap sash seat belt.

Children are at risk of serious injury if they move to booster seats too early.

Children that have outgrown the forward-facing child restraint are safest in a booster seat until their shoulders reach the upper shoulder height marker of the booster seat.

Set Up

Selection of appropriate padding combinations

Step 1: Determine whether your child requires the additional padding provided with this restraint, to ensure a safe and snug fit in the restraint. Refer to page 6 for suggested padding combinations.

Converting To Child Seat

Reclined Position

Step 1: Ensure the recline section is swung rearward (see Figure 1 & 2).

Step 2: At the front of the restraint is a red* lever. Pull red* lever forward and slide the seat to obtain the desired upright or reclined angle.

*Colour may vary

FRONT REAR RED LEVER RECLINE SECTION Figure 1 Figure 2

Set Up

Adjuster Assembly Location

Forward Facing (Type B)

Step 1: Pull excess strap through the top section (1) whilst feeding the adjuster section (2) towards the seat (See Figure 1).

Upper Tether Strap ① PUSH ② Adjuster Figure 1

Forward Facing (Type B)

Step 2: Continue to shorten until you have reached the desired position at the rear of the restraint (See Figure 2).

Adjuster position Front of Car Figure 2

Shoulder Height

The correct height for the shoulder straps is very important for the optimum performance of the restraint. The shoulder strap slots used in forward facing position are the upper and middle positions.

FRONT OF VEHICLE 25mm

IMPORTANT

The shoulder straps must be in the slots which are nearest to the child's shoulders, but not more than 25mm below the child's shoulders.

Set Up

Shoulder Height

Zone

The child's shoulder region.

Diagram showing a person's head with measurement lines and checkmark indicators, including a green checkmark and red X mark.

Slot Selection

Nearest to the child's shoulders, but not more than 25mm below the child's shoulders.

Diagram of a human head with yellow body and red/green measurement lines, no text or symbols present

Diagram of a person seated in a car seat with directional arrows and checkmark indicators (no text or symbols)

Headrest Position

Headrest positioned above the shoulder slots.

Diagram illustrating vehicle seat positioning with red arrows indicating direction and green checkmark highlighting a specific seat.

Diagram illustrating vehicle safety instructions with arrows and safety symbols on a person wearing a yellow helmet.

Set Up

Slot Height Selection

The headrest can be adjusted to different heights to best suit your child. The headrest has a locking nut on the rear of the restraint. This can be done with the child in the restraint.

Loosen the nut to then raise or lower the headrest as required.

Step 1: Undo the adjustment nut which is located at the back of the restraint, raise the headrest out of the way (refer Figure 1 & 2).

IMPORTANT

- The shoulder straps must be in the slots which are nearest to the child's shoulders, but not more than 25mm below the child's shoulders.

Step 2: Place child into the restraint and select the appropriate shoulder slots nearest or above the child's shoulder.

NOTE: With reference to Figure 3 you should visually see the slots at or above the child's shoulder.

Step 3: If required, now adjust the harness strap position using these slots (see Adjusting Harness Strap Position page 38)

age 38)

Diagram illustrating correct and incorrect ways to perform a human headbell, with checkmark and cross symbols indicating performance status.

TIGHTEN LOOSEN Figure 1

RAISE LOWER Figure 2

Figure 3

Set Up

Slot Height Selection

Step 4: Adjust the headrest height so that the bottom of the headrest is located just above the shoulder slots.

Step 5: Once the headrest is in the correct position tighten the adjustment nut and check the headrest is locked into place.

Step 6: Check to sight the location of the appropriate shoulder slots (in main shell), refer Figure 5.

IMPORTANT

ENSURE THE HARNESS STRAPS ARE ALWAYS THREADED THROUGH THE BACK SHELL AND BELOW THE HEADREST.

LOWER Figure 4

Diagram showing a person's seat with red arrows indicating direction and a green checkmark highlighting the seat.

Figure 5

IMPORTANT

Slot Selection

• Nearest to the child's shoulders
• Above the slot Selection

Headrest Position

TIGHTEN LOOSEN Figure 6

Set Up

Adjusting Harness Strap Position

• Loosen harness to allow spreader plate to rise from under the restraint. Turn the restraint so that the back of the restraint is facing you. (refer Figure 2 page 44)
• Remove each shoulder harness through the gates in the spreader plate (see Figure 1.1 & 1.4).
  • Pull the shoulder harness straps through the shoulder slot holes in the restraint body and cover. They are now loose in the front of the restraint.
• Push the ends of the shoulder harness straps through the appropriate shoulder slot holes in the cover and restraint body for the child's shoulder height.

NOTE: Ensure the harness straps are not twisted.

- The shoulder harness straps go directly from the shoulder slot holes to the spreader plate. Thread each shoulder harness strap back onto the metal spreader plate through the gate (see Figure 1.4).

IMPORTANT

• The shoulder straps must be in the slots which are nearest to the child's shoulders, but not more than 25mm below the child's shoulders.
  • Always adjust the height of the shoulder straps as the child grows.

Technical line drawing of a car seat assembly (no text or symbols)

GATES

HARNESS STRAPS

METAL SPREADER PLATE

Figure 1.1

PULL

HARNESS STRAPS

METAL SPREADER PLATE

Figure 1.2

Technical line drawing of a car seat assembly (no text or symbols)

GATES

HARNESS STRAPS

METAL SPREADER PLATE

Figure 1.3

Illustration of a hand holding a tool with directional arrows indicating movement or force (no text or symbols)

Figure 1.4

Installation

Installing Using Vehicle Seatbelt

Step 1: Place the restraint in desired upright or reclined position, with the back against the back of the vehicle seat, directly in line with the anchorage point (refer Figure 1).

IMPORTANT

Ensure that you use the FORWARD-FACING BELT PATH indicators, marked in "yellow"

REARWARD FACING BELT PATH FORWARD FACING BELT PATH BOOSTER SEAT BELT PATH

Step 2: Feed adult lap or lap/sash belts through the belt path opening, ensure the seat belt is under the cover & between the layer of foam and the plastic restraint base. (refer Figure 2 & 3)

Engage the buckle and tongue assembly (listen for a "CLICK"). Check the buckle engagement with a gentle pull.

Illustration of a car seat assembly with safety straps and a yellow vertical pole, labeled Figure 1 (no text or symbols on the diagram itself)

Pass lap and sash belt through the seat. Note: Ensure the belts are under foam padding. *Note Harness not shown Figure 2

Buckle & Tongue Assembly "CLICK" Pass lap and sash belt through the seat. Note: Ensure the belts are under foam padding. Figure 3

Installation

Installing Using Vehicle Seatbelt

WARNING

• Always use upper anchorage strap to attach the child restraint to the vehicle.
- Do not use the restraint without the upper anchorage strap correctly attached and adjusted.
- Do not use on any vehicle seat which faces sideways or rearwards.
- IF AN AIRBAG IS FITTED IN THE SEATING POSITION WHERE THE CHILD RESTRAINT IS TO BE FITTED, FOLLOW THE VEHICLE MANUFACTURER'S WARNINGS AND INSTRUCTIONS.
• Fit the restraint firmly to the car seat.

REMOVE ALL SLACK FROM SEATBELT Figure 4

Step 3: Push down on the base of the restraint (with knee or hand) whilst pulling the sash section of the vehicle belt firmly up in the direction of the yellow arrow in Figure 4. (This will tighten the lap belt across the seat base). Whilst continuing to pull the sash section up, attach the Safe Grip red belt clamp on the sash section ONLY as close as possible above the buckle tongue assembly. (Refer to Figure 5 and Instruction for installing the Safe Grip red clamp below)

Step 4: Ensure the excess slack in the sash belt, is fed back towards the seat belt

Installation

Installing Using Vehicle Seatbelt

Safe Grip (if supplied)

* The Safe Grip may not be supplied with all models. It can be purchased separately; visit http://store.infasecure.com.au

SAFE GRIP BELT CLAMP

The Safe Grip (red belt clamp) locks the lap belt to ensure a firm installation, and avoids slack in the lap belt.

Red stylized illustration of a mechanical device with no visible text or symbols

To install the Safe Grip (red belt clamp), open it and clamp the "sash section" ONLY of the vehicle seat belt by closing the barrel section of the red belt clamp in the direction of arrow 1 in Figure 5 and then locking with the toggle section by pushing in the direction of arrow 2 in Figure 5 when the Safe Grip (red belt clamp) is secured in place, the lap section is now tightly holding your child restraint in place, independent of the sash section. The Safe Grip (red belt clamp) must be removed when the child restraint is not installed to allow other users to use the seat belt as a lap/sash seat belt. Always keep the Safe Grip (red belt clamp) in pocket provided when not in use.

SASH SECTION TOGGLE SECTION (2) Buckle (A) (AND TONGUE) SAFE GRIP (B) (red belt clamp) BARREL SECTION (1) LAP SECTION ATTACH TO SASH SECTION ONLY Figure 5

Safe Grip (red belt clamp) Figure 6

Installation

Installing Using Vehicle Seatbelt

Note: If no upper anchorage fitting is available refer to pages 71-73.

Step 5: Hook the attachment clip to the anchor fitting. Ensure there are no twists in the top tether strap (Refer to Figure 7)

Step 6: Pull to tighten to remove all the slack, from the upper anchorage strap. Do not overtighten as this could cause the restraint to lift off the vehicle seat (Refer to Figure 8).

Tether Storage

After correctly installing the restraint in your car, roll up and place any excess tether strap in the storage pocket provided (refer Figure 9)

NOTE

FOLLOWING THE INSTALLATION OF THE CHILD RESTRAINT A SMALL AMOUNT OF MOVEMENT IS DEEMED ACCEPTABLE.

CAUTION: CHILDREN CAN BE INJURED OR RESTRAINTS AND TOP TETHER STRAP DAMAGED BY UNSECURED CARGO IN A COLLISION. SECURE OR REMOVE HAZARDOUS CARGO BEFORE USING THIS CHILD RESTRAINT.

Always secure the loose end of the top tether strap to prevent it hanging out of the car or being accessible by the child.

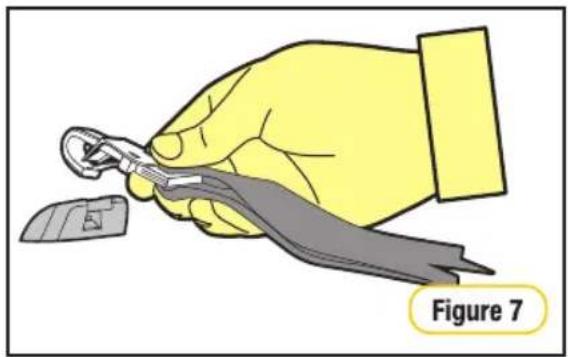

Illustration of a hand holding a tool with a clip, labeled Figure 7 (no text or symbols on the diagram itself)

ATTACH PULL TO TIGHTEN ADJUSTER Pull to Lengthen Tilt Pull to Tighten Figure 8

Storage Pocket Figure 9

Use

Adjusting Recline Angle

NOTE: To adjust the recline angle of the restraint, refer to "Converting to Child Seat" on page 33.

Step 1: First loosen the seatbelt assembly, the Safe Grip Belt Clamp may need to be removed.

Step 2: At the front of the restraint is a red* lever. Pull red* lever forward and slide the restraint to obtain the desired upright or reclined angle (refer Figure 1)

Step 3: Reinstall the seatbelt and Safe Grip Belt Clamp (refer pages 39-42).

*Colour may vary

FRONT REAR RED LEVER RECLINE SECTION Figure 1

Use

Using Inbuilt Harness

Step 1: Ensure the restraint has been installed and set up as per "Set Up" and "Installation" (refer pages 33-42)

Step 2: To lengthen the harness "LIFT" the harness adjuster (refer Figure 1) whilst grasping both shoulder harness straps and pulling. Ensure shoulder straps are pulled equally on each side.

Step 3: Place child in restraint with legs either side of the buckle, place harness over the shoulders and hips (refer Figure 2).

PULL TO LENGTHEN PULL TO LENGTHEN "LIFT" Figure 1

Figure 2

NOTE: To change the buckle height refer to Buckle Height Adjustment (refer page 14)

IMPORTANT

KEEP BUCKLE LOW AS POSSIBLE

Always ensure buckle has clearance from the upper thighs (see indicated area Figure 3).

Illustration of a yellow and gray car seat with a red button, labeled 'Figure 3' (no text or symbols on the diagram itself)

Installation

Using Inbuilt Harness

Step 4: Insert either tongue into the buckle followed by the other tongue until a "CLICK" is heard. Should the second tongue not insert, press the red button and reinsert the tongues. Ensure secure engagement by pulling the harness strap (refer Figure 4).

IMPORTANT

If no "Click" can be heard or a secure engagement cannot be achieved refer to Cleaning Buckle Harness page 65.

Step 5: Remove all of the slack from the harness lap straps by pulling shoulder straps (refer Figure 5), then pull the harness adjustment strap to adjust harness to a comfortable but firm fit (refer Figure 5 & 6).

WARNINGS

• DO NOT LEAVE CHILDREN UNATTENDED IN THE CAR.
• Fit the harness firmly to the child.
• A LOOSE HARNESS IS DANGEROUS.

"CLICK" Figure 4

Figure 5

REMOVE ALL SLACK FROM HARNESS Harness Adjuster Strap PULL TO TIGHTEN Figure 6

Use

Using Inbuilt Harness

IMPORTANT

• The Padded Insert/s (if fitted) are designed to provide extra support and comfort for small babies. Discontinue use when the insert is a tight fit or creates discomfort for larger babies/children.
  • Always adjust the height of the shoulder straps as the child grows.

PINCH TEST Figure 7

Step 6: Check the harness tightness by the

PINCH TEST, this is achieved by

pinching the harness webbing at the shoulders (refer Figure 7)

• If you can pinch the harness strap, tighten more.
• If your fingers slip off, then the harness is tight enough.

If required repeat Step 5.

To Release Child

Step 1: To release your child from the restraint simply press the harness buckle and carefully remove your child from the restraint (refer Figure 1).

PRESS Figure 1

Booster Seat

Forward Facing

THE SUITABILITY OF THE CHILD RESTRAINT TO GROUPS OF CHILDREN

TYPE A2

To be used only in a rearward-facing position with built-in harness until the infant's shoulders reach the lower shoulder height marker (approximately 12 months of age).

TYPE B

Then to be used in a forward-facing position with built-in harness until the child's shoulders are above the middle shoulder height marker (approximately 4 years of age).

TYPE E

Finally, to be used with a lap-sash seatbelt until the child's shoulders reach the upper shoulder height marker (approximately 6 to 8 years of age).

Continue to use this child restraint until the child reaches this limit

Do not use forward-facing until child's shoulders are above the lower shoulder height marker.

Infants are at risk of serious injury if they face forward too early.

If the child's knees do not bend in front of the vehicle seat cushion, continue to use a booster seat.

Children are safest in the child restraint in the booster seat mode until their shoulders reach the upper shoulder height marker of the booster seat.

Just using a seatbelt is not recommended for children that have outgrown this seat. Use a larger booster seat.

THIS RESTRAINT MUST BE USED IN CARS WITH FORWARD-FACING SEATS WITH A LAP-SASH SEATBELT. THIS BOOSTER SEAT IS NOT SUITABLE FOR USE WITH A CHILD HARNESS.

The use of child restraints in the front seat may be restricted for children of specific ages by local legislation. Please check with your local Department of Transport for the specific seating locations of children using child restraints for their given ages.

WARNING

• DO NOT USE WITH JUST A LAP BELT. You must use with a lap-sash seatbelt.
• The lap part of the seatbelt must be firmly across the thighs and the sash belt fitted diagonally across the chest and on the shoulder.

Shoulder Height Marker

Smaller Child (using lap-sash seatbelt)

Shoulder height markers are provided on this restraint for a visual indication that the child is safe to travel in this restraint.

Front of Car VIEW B MIDDLE LABEL (Forward Facing) MIDDLE LABEL (Forward Facing) VIEW B

Smaller Child from approximately 4 years of age

Do not use as a booster seat until the child's shoulders are ABOVE the middle shoulder height marker (Middle label).

MIDDLE LABEL (Forward-Facing)

NO BOOSTER USE IF SHOULDERS BELOW THIS LINE

IMPORTANT

When the child's shoulders reach the shoulder height marker (Middle Label), convert the child restraint to booster seat mode and use with a lap sash seat belt.

If moving a child from forward-facing child restraint, to a booster seat the child's shoulders will need to be in-line or above the middle label. If the child's shoulders are below the middle label, then the child should remain forward-facing using internal harness.

Shoulder Height Marker

Taller Child (using lap-sash seatbelt)

Do not continue to use the restraint if the child's shoulder are above the Upper Label.

Front of Car VIEW B UPPER LABEL (Behind Child's Neck) VIEW B UPPER LABEL (Behind Child's Neck)

Taller Child from approximately 8 years of age

Continue to use as a booster seat until the child's shoulders are REACH the upper shoulder height marker (Upper label).

UPPER LABEL (Forward-Facing)

Children are at risk of serious injury if they move to booster seats too early.

Children that have outgrown the forward-facing child restraint are safest in a booster seat until their shoulders reach the upper shoulder height marker of the booster seat.

The child restraint is unsuitable for the occupant when the shoulders are above the upper marker. The child needs to be moved into the next form of child restraint e.g. Larger Type E booster seat or Type F booster seat when they reach the top shoulder height marker.

For the next child restraint refer to the Restraint Guide on pages 5 and 51.

Forward Facing

5 Front of Car 1 2 3 4 7 VIEW A

VIEW A 6 SEAT BELT PATH

NOTE: Ensure the seat belts are under the foam padding and cover

1. Headrest
2. Shoulder Height Markers
3. Comfort Cover

4. Vehicle Seatbelt

5. Top Tether Assembly

6. Tether Strap

7. Adjuster

8. Attachment Clip
   • Anchor Fitting + Attachment Hardware

9. "Booster Seat Belt Path" Marker (Each side of restraint - Coloured Red)

10. Safe Grip Red Belt Clamp (if supplied with restraint)

IMPORTANT

• For a vehicle without a fixed parcel shelf, an extension strap(s) may be needed. If so ring 1300 92 4632 (AU) or [phone] (NZ) for nearest supply location (refer to page 67).
• Seatbelt extenders are not recommended to be used if the seatbelt is not long enough to secure the child restraint. If seatbelts are too short then advice should be sought from a child restraint fitter and their recommendation be considered before using a seatbelt extender.

Next Restraint

Next Type of Restraint

Refer to the 'RESTRAINT GUIDE' for the selection for the most appropriate next restraint (refer page 5). When the child has outgrown the booster seat, then you can use either of the following;

• Large Booster Seat – Larger type E or Type F Booster seat.
• Vehicle Seat Belt – check the "Five Step Test" for suitability.

Five Step Test

Step 1: Can the child sit with their back against the vehicle seat back? (refer Figure 1).

Step 2: Do the child's knees bend in front of the edge of the seat? (refer Figure 2).

Step 3: Does the sash (shoulder) belt sit across the middle of the shoulder, not on the neck or out near the arm? (refer Figure 3).

Step 4: Is the lap belt sitting low across the hips touching the thighs? (refer Figure 4).

Step 5: Can the child stay seated like this for the whole trip? (refer Figure 5).

Set Up

Selection of appropriate padding combinations

Determine whether your child requires the additional padding provided with this restraint, to ensure a safe and snug fit in the restraint. Refer to page 6 for suggested padding combinations.

Converting to a booster seat

IMPORTANT

FOR USE OF THIS RESTRAINT AS A BOOSTER SEAT THE HARNESS MUST BE STORED BEHIND THE COVER. THE FOLLOWING STEPS EXPLAIN HOW THIS IS TO BE DONE.

Step 1: Disengage the buckle, undo the cover flap located between the leg straps and place the buckle in the recessed section of the plastic base. Close the flap in the cover (Refer to Figure 1 & 2).

Step 2: Disengage shoulder straps from spreader plate as shown on pages 20 & 38. (To change the shoulder slot height, steps 1 to 5). Remove shoulder pads & buckle pads and store in a safe place for keeping. Place the shoulder straps behind the cover, thread through the backrest shoulder slots and reconnect to the metal spreader plate. Tightening the harness with harness adjuster strap located at the front of the seat. Place the two buckle tongues in the recess in the plastic base at point (A) in Figure 3.

The harness is now behind the seat cover for storage until needed as a car seat.

Figure 1 Figure 2 (A) (A) Figure 3

Set Up

Converting to a booster seat

Reclined Position

Ensure the recline section is swung rearward (see Figure 1). At the front of the restraint is a red* lever. Pull red* lever forward and slide the restraint to obtain the desired upright or reclined angle.

*Colour may vary

FRONT REAR RED LEVER RECLINE SECTION Figure 1

Adjuster Assembly Location

Booster (Type E)

Step 1: Pull excess strap through the top section (1) whilst feeding the adjuster section (2) towards the seat (see Figure 1).

Step 2: Continue to shorten until you have reached the desired position at the rear of the restraint (see Figure 2).

Upper Tether Strap ① PUSH ② Adjuster Figure 1

Adjuster position Front of Car Figure 2

Set Up

Sash Guide Location

Zone

The child's shoulder region.

Diagram showing a person's back with measurement lines and directional arrows, including checkmark and X symbols

Sash guide location by altering the headrest position

Cross-sectional diagram of a biological structure with yellow and red regions, no visible text or labels

Diagram of a car seat with highlighted seatbelt and directional arrows indicating movement or force

Set Up

Adjusting the Headrest

The headrest can be adjusted to different heights to best suit your child. The headrest has a locking nut on the rear of the restraint.

Step 1: Undo the adjustment nut which is located at the back of the restraint, to move the headrest either up or down (refer Figure 1 & 2).

Diagram illustrating correct and incorrect ways to perform a human headbell, with checkmark and cross symbols indicating performance status.

TIGHTEN LOOSEN Figure 1

Step 2: Adjust the headrest height so that the bottom of the headrest is located level with or just above the child's shoulder (refer Figure 3).

RAISE LOWER Figure 2

Diagram of a human head with yellow body and red horizontal lines indicating anatomical or structural features (no text or labels)

Figure 3

Set Up

Adjusting the Headrest

Step 3: Once the headrest is in the correct position tighten the adjustment nut and check the headrest is locked into place.

TIGHTEN LOOSEN Figure 4

Step 4: Place the seatbelt sash through the sash guide. Ensure the sash guide is positioned as per Figure 5.

Figure 5

Installation

Installing in Vehicle

Step 1: Ensure the restraint is set up in booster seat mode (refer pages 51-56).

Step 2: Place the restraint in desired upright or reclined position, with the back against the back of the vehicle seat, directly in line with the anchorage point (refer Figure 1).

Step 3: If required, install the upper anchorage fitting as shown on pages 71-73 of these instructions

Step 4: Hook the attachment clip to the anchor fitting. Ensure there are no twists in the top tether strap (Refer to Figure 2)

Step 5: Pull to tighten and remove all the slack, from the top tether strap (refer to Figure 3). Do not overtighten as this could cause the restraint to lift off the vehicle seat.

Line drawing of a car seat with red belt and seatbelt, labeled Figure 1 (no text or symbols on the diagram itself)

Illustration of a hand holding a key with a tag, labeled Figure 2 (no text or symbols on the diagram itself)

ATTACH PULL TO TIGHTEN ADJUSTER Tilt Pull to Lengthen Pull to Tighten Figure 3

Installation

Installing in Vehicle

CAUTION: CHILDREN CAN BE INJURED OR RESTRAINTS AND TOP TETHER STRAP DAMAGED BY UNSECURED CARGO IN A COLLISION. SECURE OR REMOVE HAZARDOUS CARGO BEFORE USING THIS CHILD RESTRAINT.

Always secure the loose end of the top tether strap to prevent it hanging out of the car or being accessible by the child.

Storage Pocket Figure 4

IMPORTANT

• Tighten till slack is removed.
• In certain vehicles an extension strap may be needed.
• Do not overtighten Top Tether strap.
  • Always secure the loose end of the top tether strap to prevent it hanging out of the car or being accessible by the child.

Tether Storage

After correctly installing the restraint in your car, roll up and place any excess tether strap in the storage pocket provided (refer Figure 4)

Use

Using lap-sash seat belt

Step 1: Ensure the restraint has been installed as per "INSTALLING IN VEHICLE" (refer Figure 1, pages 57 & 58).

Step 2: Sit your child in the restraint with their back against the backrest (refer Figure 2).

IMPORTANT

Ensure that you use the BOOSTER SEAT BELT PATH indicators, marked in "red".

BOOSTER SEATBELT PATH ALWAYS USE THIS SASH GUIDE

Sashbelt

REARWARD FACING BELT PATH FORWARD FACING BELT PATH BOOSTER SEAT BELT PATH Lapbelt

Step 3: Position the lap section of the vehicle seatbelt across the child's lap then insert the buckle tongue in to the belt buckle until you hear "CLICK". Ensuring the lap portion is positioned through the booster seatbelt path and over the child's thighs (refer Figure 3).

WARNING

• DO NOT USE WITH JUST A LAP BELT. You must use a lap-sash seat belt.

Step 4: Pull the lap belt tight by first pulling on the lap belt in the direction of arrow 1 (refer Figure 3). Pull the sash belt tight in the direction of arrow 2.

Line drawing of a car seat with red and gray safety belt, labeled Figure 1 (no text or symbols on the diagram itself)

Illustration of a person sitting in a car seat with a red belt and seatbelt, no text or symbols present.

Figure 2

Diagram of a car crash test setup with labeled components and red warning arrows indicating safety risk.

Figure 3

Use

Safe Grip (if supplied)

* The Safe Grip may not be supplied with all models. It can be purchased separately; visit http://store.infasecure.com.au

SAFE GRIP BELT CLAMP

It is important that the lap belt must be firmly across the thighs. The Safe Grip locks the lap belt to ensure a firm fit across the thighs, and avoids slack in the lap belt. This fit ensures that the lap belt does not ride up into the soft abdominal region of the child, which may cause internal injury.

Red stylized illustration of a mechanical device with no visible text or symbols

To install the Safe Grip (red belt clamp); Continue from Step 6: while holding the belts tight open the Safe Grip and clamp the "sash section" of the vehicle seat belt by closing the barrel section of the red belt clamp in the direction of arrow 1 (refer Figure 4) and then locking with the toggle section by pushing in the direction of arrow 2 (refer Figure 4) Note: Positioned as close as possible to the buckle and tongue. When the Safe Grip (red belt clamp) is secured in place, the lap section is now tightly holding your child in place, independent of the sash section. The Safe Grip (red belt clamp) can be left located on the sash belt when the child is removed from the booster. It is then ready for the next use. Repositioning of the Safe Grip (red belt clamp) may be required as the child grows. The Safe Grip (red belt clamp) must be removed when the child restraint is not installed to allow other users to use the seat belt as a lap/sash seat belt. Always keep the Safe Grip (red belt clamp) in pocket provided when not in use.

SASH SECTION TOGGLE SECTION (2) Buckle (A) (AND TONGUE) SAFE GRIP (B) (red belt clamp) BARREL SECTION (1) LAP SECTION ATTACH TO SASH SECTION ONLY Figure 4

Use

Sash Guide

Step 5: Pass the shoulder belt through the belt sash guide built into the headrest (refer Figure 6).

WARNING

• DO NOT LEAVE CHILDREN UNATTENDED IN THE CAR
• Fit the seat belt firmly to the child.

SASH GUIDE Figure 5

BOOSTER MODE ONLY

WARNING

• ALWAYS USE THE SASH GUIDE

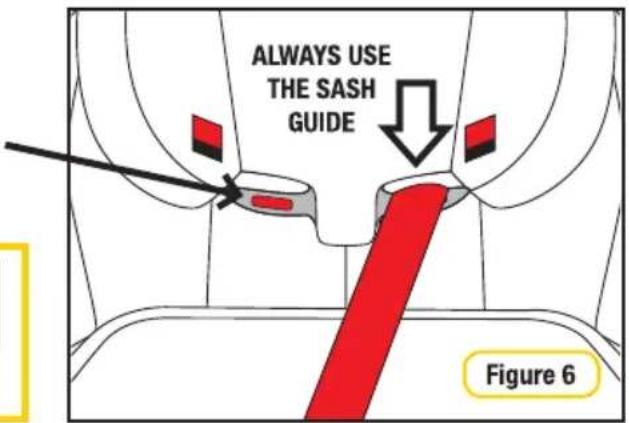

ALWAYS USE THE SASH GUIDE Figure 6

Safety Warning

WARNING

Step 1: To release your child from the restraint simply press the belt buckle and carefully remove your child from the restraint. It is not necessary to release the red belt clamp, to remove your child.

When the restraint is not in use, the seat belt should be fastened around it and engaged.

WARNING

• Always use lap-sash seat belt and upper anchorage strap to attach the child restraint to the vehicle.
- Do not use the restraint without the upper anchorage strap correctly attached and adjusted.
- Do not use on any vehicle seat which faces sideways or rearwards.
- IF AN AIRBAG IS FITTED IN THE SEATING POSITION WHERE THE CHILD RESTRAINT IS TO BE FITTED, FOLLOW THE VEHICLE MANUFACTURER'S WARNINGS AND INSTRUCTIONS.
• DO NOT USE WITH JUST A LAP BELT. You must use with a lap-sash seat belt.
- Ensure the lap belt is correctly positioned on the child's thighs and hips.
- Do not place the seat belt sash under the arm or behind the back of the child.

PRESS

Care of Restraint

The child restraint cover has been manufactured to meet the Australian Standards requirements for flammability and toxicity to ensure your child's safety. The cover has also been designed to provide your child with comfort and support.

1 2 3 R

Diagram of a mechanical component with two yellow circular elements and internal structure (no text or symbols)

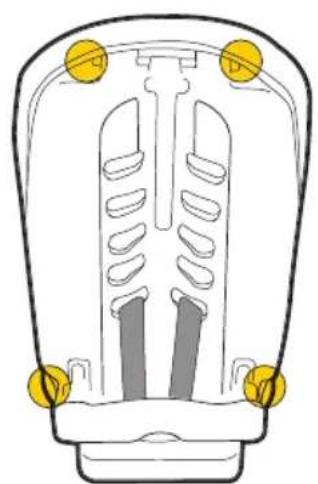

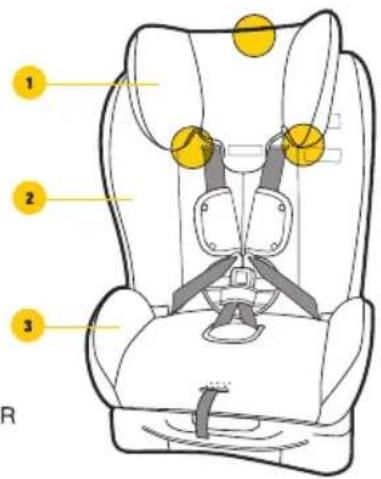

1. HEAD REST COVER
2. BACKREST
3. BASE COVER

VERY IMPORTANT

Only replace the cover with a InfaSecure supplied replacement cover with identical shoulder height markers or a replacement cover meeting AS/NZS 8005.

Care and Maintenance

Regular care of the restraint will ensure safety of your child.

• Check the webbing for fraying.
• Check the upper anchorage attachment clip to ensure retainer clip is still present.
• Ensure there are no cracks in the plastic moulding.
• Check the buckles "click" when you engage tongues and is not sluggish or sticky in operation.
• Ensure the buckle is free of fluff, liquid, or other matter that may enter the buckle slots. Clean the buckle if it is sluggish to engage (refer Cleaning Buckle Page 65)
• Check the harness adjuster is operating and is clamping the webbing
• If any part of the restraint is cracked or broken, seek repair immediately or replace the child restraint.

Care of Restraint

IMPORTANT

Use only mild soap and water to clean all parts of the CS4313 Convertible Car Seat.

Do not use chemicals or cleaning agents

Cold water only to be used and to be rinsed well

Do not dry clean or tumble dry

Do not bleach.

Care and Maintenance

The restraint has a flame retardant cover which is removable for cleaning. Cleaning instructions are on the care label attached to the cover. If a fluffy cover is fitted, then washing the cover prior to use will remove excess fluff.

The cover has been designed to protect your child when seated in the restraint. Care should be taken, if children either eat or drink while in the restraint, as some food or drink products may cause damage or marking to the cover. Wash or clean immediately.

Do not pull sticky items from covers as the cover may be damaged - soak in water and gently remove. Only machine wash on gentle cycle (hand washing is recommended). When washing the covers, ensure the hook and loop attachment strips are connected to eliminate other materials or garments being caught. Ensure that the hook and loop attachment strips are free of lint, this will ensure a positive engagement.

IMPORTANT

For Velour or Leatherette fabric only sponge clean with a damp cloth.

Seat & Hardware

Use only mild soap and water to clean all webbing, metal and plastic parts of the restraint using a damp cloth.

Do not use chemicals or cleaning agents.

Harness Straps

Use only mild soap and water to clean all straps, using a damp cloth, you should avoid soaking the harness straps however they must be thoroughly dried (without excessive heat or never tumble dry). The harness straps should not be placed in a washing machine as this may cause damage to the stitching or even damage your washing machine.

Do not use chemicals or cleaning agents.

Cleaning

Harness Buckle

If sticky liquids such as baby formula, fruit juice, etc. get inside your Harness Buckle, it may become sluggish. An indication of a sluggish Harness Buckle is that you cannot hear a "CLICK" when engaging the Harness Tongues. To restore the Harness Buckle to good working order it needs to be cleaned as follows:

Step 1: From the underside of the restraint pull each crotch 3-bar slide then turn 3-bar slide and push through each slot to remove the Harness Buckle from the restraint (refer Figure 1).

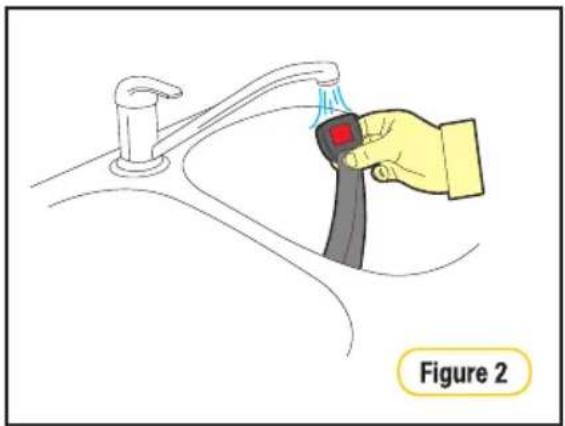

Step 2: Place the Harness Buckle under warm (max. 40 degrees Celsius) running water as shown below. Let the water run through the mouth of the buckle for five minutes (refer Figure 2).

Step 3: Engage and disengage the Harness Tongues and Buckles several times until a strong audible "CLICK" is heard when inserting the last tongue (refer Figure 3).

Step 4: If you still cannot hear a strong audible click after engaging the Harness Tongues and Buckle, then repeat cleaning several times. If the Harness Buckle cannot be returned to its original working condition then contact InfaSecure Customer Care AU - 1300 92 4632; NZ - [phone].

Step 5: Refit the harness buckle to the restraint with the red button facing out and feeding each 3-bar slide through appropriate slot. Always ensure the webbing crotch straps are thoroughly dried before installing.

QR code image containing encoded data, no visible human-readable text

Harness Buckle Care

Diagram showing two mechanical assembly steps with arrows indicating direction of movement (no text or symbols)

Illustration of a hand adjusting a car seatbelt on a sink, labeled as Figure 2 (no text or symbols on the diagram itself)

"CLICK" Figure 3

Cleaning

Remove covers

Step 1: To remove headrest cover unclip 4 press studs located on the headrest.

Step 2: Slide the harness shoulder straps out through the gates in the metal spreader plate.

Pull the harness shoulder straps through the shoulder slots to the front of the restraint.

Step 3: Disengage the buckle and tongues. Push the buckle through the crotch slot in the cover.

Step 4: To remove restraint back cover, first unclip the 2 press studs located either side of the seat and 2 press studs behind the headrest also 2 elastic loops at the back of the cover. Do NOT remove the harness from under the restraint. (Centre slot will enable removal over headrest).

Step 5: To remove restraint base cover, first unclip the 2 press studs located either side of the restraint cover.

Step 6: Once cover is removed, "click" the buckle tongue back into the buckle for safe keeping.

Replace covers

Step 1: Reverse the 'Remove Covers' process

HARNESS STRAPS METAL SPREADER PLATE GATES Figure 1 PULL HARNESS STRAPS METAL SPREADER PLATE Figure 2 Figure 3

Extension Straps

If required contact InfaSecure for nearest supply location. Extension straps, not included in this package, may be required for vehicles without a fixed parcel shelf.

Re order Line Numbers

CS111 300mm Length

CS112 600mm Length

CS113 200mm - 900mm

Adjustable Length

If required contact InfaSecure Customer Care 1300 92 4632 (AU) or [phone] (NZ) for nearest supply location.

TYPE A INTFANT SEAT TYPE B & E CHILD SEAT AND BOOSTER SEAT ANCHORAGE STRAP EXTENSION STRAP BOOSTER UPPER ANCHORAGE STRAP EXTENSION STRAP

Accessories

Follow the instructions covering the use of accessories provided with this child restraint or spare parts provided by InfaSecure for this restraint.

IMPORTANT

Use of unauthorised aftermarket accessories (i.e items not provided in this box with the child restraint), can reduce the safety provided by the child restraint and may cause injury or death.

PADDED INSERTS (if fitted)

The padded inserts are designed to add extra comfort for your child.

Step 1: Press to release Buckle tongues.

Step 2: Open the "press studs" and position the padded insert in the seat.

Step 3: Pass the harness straps over the insert and connect the "press studs".

Step 4: Pull the Buckle and leg straps through the slot or opening in the insert.

Step 5: Connect both tongues into the buckle.

BUCKLE PAD (if fitted)

The buckle pad is designed to add extra comfort for baby or child.

Step 1: Position the buckle pad behind the buckle and clip in the front. The release button should be clearly visible.

Line drawing of a car seat with two straps and a red button (no text or symbols)

Illustration of a hand holding a small mechanical component with a red indicator light, no text or symbols present.

Sewn Type (Classic)

Press Stud Type Pads (Deluxe)

Accessories

SHOULDER PADS (if fitted)

The shoulder pads are designed to add extra comfort for baby or child.

Classic

Step 1: Loosen harness to allow spreader plate to rise from under the restraint. Turn the restraint so that the back of the restraint is facing you (refer page 25 Figure 2).

Step 2: Remove each shoulder harness through the gates in the spreader plate (refer Figure 1 & 2).

Step 3: Pull the shoulder harness straps through the shoulder slot holes in the restraint body and cover. They are now loose in the front of the restraint (refer Figure 2).

Step 4: To attach shoulder pads, slide the shoulder pad over the harness straps (refer Figure 3).

Step 5: Rethread harness straps (in applicable slots) as per Steps 1 to 3 above.

Figure 1 PULL HARNESS STRAPS METAL SPREADER PLATE Figure 2 Figure 3 Tube Type Pads (Classic)

Accessories

SHOULDER PADS (if fitted)

Deluxe

Step 1: Separate press-studs and remove the shoulder pads from harness

Step 2: To attach shoulder pads, ensure press studs face away from the child and re-attach.

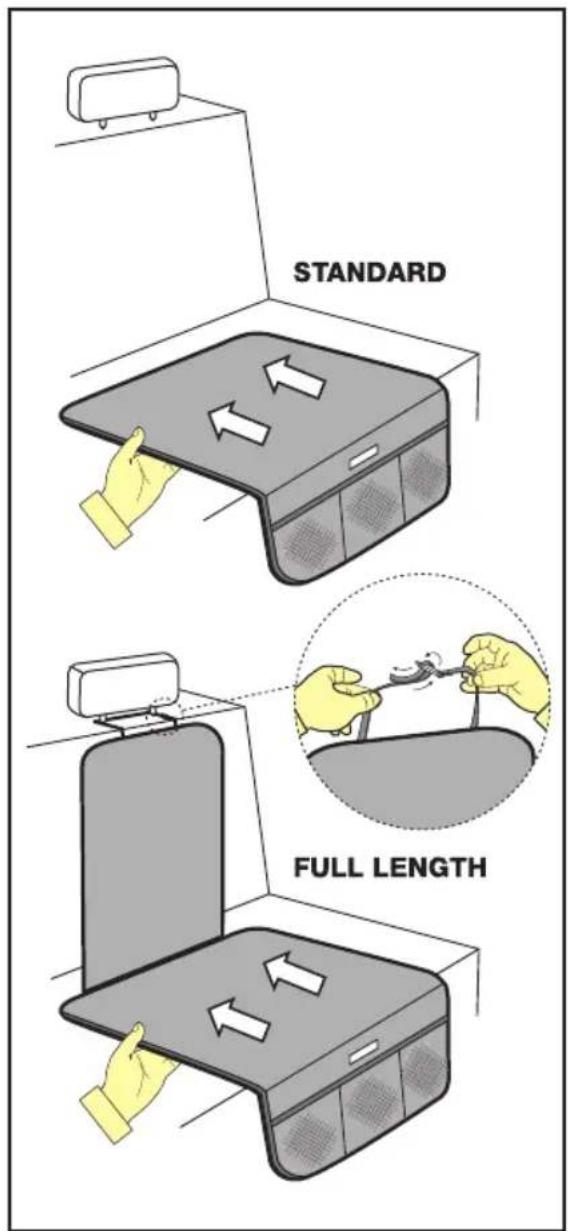

SEAT PROTECTOR (if fitted)

The seat protector is designed to protect your car's seat.

STANDARD

Step 1: Position the front flap with pockets, at the front of the rear seat and position the mat rearwards to obtain a flat fit.

FULL LENGTH

Step 1: Position the front flap with pockets, at the front of the rear seat and position the mat rearwards to obtain a flat fit. (If required an additional flap has been provided to tuck in between the seat back & cushion)

Step 2: Position the back section up the seat back and use the plastic buckle & webbing strap to attach around the vehicle seat headrest (if the rear vehicle seat does not have a headrest then the strap could be used to attach around the child seats top tether after you have installed the child seat).

Press Stud Type Pads (Deluxe)

STANDARD FULL LENGTH

Anchorage Fittings

Some vehicles may have an anchor fitting already fitted by the vehicle manufacturer.

If no anchorage points can be found refer to the vehicle manufacturer, or an authorised child restraint fitting station for the best location of an anchorage point.

Refer to the vehicle owners handbook or child restraint fitting station for the possible use of spacers.

Some vehicles may require the use of additional extension straps (not supplied with this child restraint)

If so ring InfaSecure on 1300 92 4632 (AU) or [phone] (NZ) for nearest supply location.

ADDITIONAL EXTENSION STRAPS AVAILABLE:

• CS111 300mm Extension strap
• CS112 600mm Extension strap
• CS113 200 - 900mm Adjustable Extension strap

WARNING

• Top tether strap and attachment clip must always be used
  • Always ensure that the upper attachment clip is correctly engaged to the anchor fitting
• THIS RESTRAINT MUST BE ATTACHED TO A CHILD RESTRAINT ANCHORAGE POINT IN THE CAR. REFER TO CAR OWNER'S HANDBOOK FOR LOCATION OF ANCHORAGE POINTS. REFER TO A CHILD RESTRAINT FITTING STATION IF NO CAR ANCHORAGE POINTS ARE IN THE MOTOR CAR.
• THIS RESTRAINT IS NOT SUITABLE FOR USE WHERE TOP TETHER STRAP MAY FALL INTO A SPLIT IN THE SEAT BACK OR OFF THE SIDE OF THE SEAT.

Anchorage Fittings

For cars fitted with a child restraint anchorage point

THIS RESTRAINT MUST BE ATTACHED TO A CHILD RESTRAINT ANCHORAGE POINT IN THE CAR.

LOCATE THE ANCHORAGE POINT BEHIND THE REAR SEATING POSITION.

CONSULT THE CAR OWNER'S HANDBOOK FOR LOCATION OF ANCHORAGE POINTS.

REMOVE THE THREAD PLUG FROM THE PARCEL SHELF/FLOOR/ROOF AND INSTALL THE ATTACHMENT BOLT AS SHOWN IN FIGURE 1A & 1B.

Vehicle Ceiling Front of Vehicle Figure 1A High Vehicle Vertical Mount Vehicle Parcel Shelf The shaded areas show some of the possible locations of the anchor fitting. With each shaded area is an anchor fitting showing the correct way to install the fitting. The anchor fitting should be aligned as shown unless stated otherwise in the vehicle owner's handbook. Low Vehicle Floor anchor point If anchor point is less than 80mm from seat, install in this position.

CAUTION: DO NOT OVERTIGHTEN ATTACHMENT BOLT. MAXIMUM TORQUE IS 20NM.

WARNING: If A.D.R. anchorage point is recessed, spacer(s) may be required. Spacer Part No's are as follows:

• 10mm - CCS001
• 5mm - CCS002

UPPER ANCHORAGE FITTINGS

Attachment Bolt Lock Washer Anchor Fitting Spacer(s) (if required) Vehicle Metal Structure Vehicle Trim Front of Vehicle Figure 1B

Anchorage Fittings

For cars not fitted with a child restraint anchorage point

For Sedans Only

Drill a 9mm diameter hole in the parcel shelf on the centre line of the seating position as shown in Figure 1C. Hole must be no closer than 200mm from the front of the back seat. Install the anchor bolt as shown in Figure 1D.

Note to Queensland purchases: The installation of anchorage points must be approved by authorised officers appointed by Queensland Transport. Authorised officers can be sourced from all Queensland Transport Customer Service and Queensland Ambulance Service Centres.

For Vehicles other than Sedans

In Australia, consult your nearest child restraint fitting station of traffic authority for vehicle inspection to find the best, correct position for the placement of the anchorage point, and for the correct attachment bolt length use of spacers.

In New Zealand consult the agent of the vehicle.

WARNINGS

CHILD RESTRAINTS MUST NOT BE ATTACHED TO UNSOUND METAL OR WOOD OR SYNTHETIC STRUCTURES. WHEN DRILLING THE 9MM HOLE DO NOT DRILL THROUGH FUEL LINES, FUEL TANKS, ELECTRICAL WIRING OR RADIO SPEAKERS. WEBBING STRAPS MUST BE PROTECTED FROM SHARP CORNERS AND EDGES.

THE ANCHOR FITTING MUST BE USED ONLY AS DESCRIBED ABOVE. IT MUST NOT BE HOOKED ONTO ANY OTHER OBJECT.

Figure 1C CENTRE LINE OF SEATING POSITION 200mm Min Drill ø9mm hole

UPPER ANCHORAGE FITTINGS FOR SEDANS ONLY

Attachment Bolt Anchor Fitting Spacer(s) (if required) FRONT OF VEHICLE Vehicle Trim Vehicle Metal Structure Reinforcing Washer Lock Washer Nut Reinforcing washer Lock Washer Nut SIDE VIEW

Insurers Information

If your restraint has been involved in a severe crash, you should destroy the restraint even if no damage is obvious. Some insurance companies offer vehicle insurance which covers or partially covers the replacement of your child restraint. Contact your insurance company for further details.

Your insurance company may require you to keep the child restraint for assessment, but do not use the child restraint after a severe crash. To assist you in making an accident insurance claim cut the following statement and include it with your claim.

NOTICE TO INSURANCE COMPANY CHILD RESTRAINT INVOLVED IN AN ACCIDENT

All InfaSecure child restraints are manufactured to Australian/New Zealand Standards AS/NZS1754 which requires us to advise users of child restraints to "Destroy the entire restraint if it has been in use in a severe crash, even if no damage is obvious". The Australian/New Zealand Standards committee, advise that this statement applies whether a child was in the child restraint or not. We consider a "severe crash" as being one where the main body structure of the vehicle is distorted. There is no method of determining if the restraint has been damaged and we concur with the Australian/New Zealand Standards in recommending destruction of the child restraint. This notice is to advise you of the requirements of the Australian/New Zealand Standards and our obligation in complying with the standards. Please assist the owner of this restraint in their claim.

INFASECURE PTY LTD ABN: 52 149 173 660

Head Office and Registered Address

110-114 Old Bathurst Rd, Emu Plains, NSW 2750

P.O. Box 487, Emu Plains, NSW 2750

Customer Care

AU: 1300 92 4632

NZ: [phone]

www.infasecure.com.au

Notes:

LIFETIME ★ WARRANTY

ON SUPER STRONG BLOW MOULDED SHELL PRODUCTS

Register your product to receive lifetime warranty*, product updates and information.

Please visit infasecure.com.au/warranty-registration to register your product.

InfaSecure Warranty

InfaSecure Pty Ltd warrants this product for twelve months from the date of purchase against failure due to manufacturing faults or faulty materials. Misuse, accidental damages, normal wear and tear are not covered by this warranty. When used for commercial use the period is limited to six months. "Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure."

Additional Warranty on Blow Moulded Child Restraints

Our blow moulded child restraints are covered against faulty materials and manufacturing when used under normal conditions and according to the instructions.

In the unlikely case that you do have a fault in relation to material quality or manufacturing that restricts your ability to use your Child Restraint normally, we will repair or replace the product within the following warranty periods from date of purchase:

• 12 month warranty for material and fabrics
• 2 year warranty for straps and webbing
- 5 year warranty for hardware and fittings
- Lifetime warranty* on the manufacturing of the seat moulding

Please read your instruction manual carefully before using any of our products. The above express warranties do not apply where a failure or defect results from improper care, misuse or from normal wear and tear.

Refer to website for more details: www.infasecure.com.au

*Lifetime warranty refers to the life span of the seat which is 10 years from the Date of Purchase.

The Wiggles

CHILD RESTRAINT SAFETY PARTNER

infasecure

We are proud to be working with The Wiggles. With their help, we are able to reach more young families with much needed information and advice to keep our little ones safe.

INFASECURE PTY LTD ABN: 52 149 173 660

Head Office and Registered Address

110-114 Old Bathurst Rd,

Emu Plains, NSW 2750

P.O. Box 487,Emu Plains,NSW 2750

CUSTOMER CARE

AU - 1300 92 4632 NZ - [phone] Email - [e-mail]

infasecure.com.au f facebook.com/infasecure

instagram.com/infasecure YouTube.com/infasecure

Australian Standard

AS/NZS: 1754:2013 Licence No. 25324-1 SAI Global
