Product Type	Ceiling Fan
Brand	Casablanca
Model	Stealth 59105
Blade Span	52 inches (typical)
Number of Blades	5
Motor Type	Reversible AC motor
Mounting Options	Standard, Low-Profile, Angled (up to 34°)
Downrod Length	Standard for 8-10 ft ceilings; longer downrods sold separately
Weight	Approximately 15-20 lbs (7-9 kg)
Power Supply	120V AC, 60Hz
Speed Settings	6 speeds (1-6)
Control Type	Remote control with wall cradle
Light Kit	Included, uses halogen bulb (type and wattage not specified)
Remote Battery	A23 or MN21 alkaline battery
Reversible Airflow	Yes
Safety Certification	UL Standard 507, FCC Class B
Cleaning	Use a soft brush or cloth; avoid harsh chemicals
Warranty	Limited lifetime motor warranty (typical Casablanca)

Frequently Asked Questions - Stealth 59105 Casablanca

How do I pair the remote with the fan?

Turn on the power and within 60 seconds, press and hold the Set button on the remote for 5 seconds. The LED will flash twice to confirm pairing. This is only required once after initial installation.

What should I do if the fan doesn't work?

First, press a fan speed button (1-4). Check the circuit breaker to ensure power is on. Replace the remote battery. Verify the remote is paired. Make sure blades spin freely. If still not working, turn off power and check all wiring connections according to the diagram in the manual.

How can I fix excessive wobbling?

Tighten all blade screws until snug. Turn off power and ensure the hanger ball is properly seated in the ceiling bracket. Use the provided balancing kit and instructions to balance the fan.

How do I change the remote control battery?

Remove the battery door on the remote. Replace with a new A23 or MN21 alkaline battery, observing proper polarity. Replace the door.

Why is my fan noisy?

Tighten all blade and blade iron screws. Check for cracked blades and replace if necessary. Ensure no foreign objects are interfering with the blades.

How do I calibrate the fan speeds?

After any AC power reset, run the fan on speed 6 for at least 90 seconds. The LED will flash, and the fan will automatically calibrate the speed settings.

Can I use a longer downrod with this fan?

Yes, longer downrods are sold separately for ceilings 10 feet or higher. For angled ceilings greater than 34°, an Angled Mounting Kit is also required.

How should I clean my ceiling fan?

Use a soft brush or cloth to gently wipe the fan. Avoid using harsh cleaning products that may damage the finish. Do not bend the blade brackets.

What type of bulb does the light kit use?

The light kit uses a halogen bulb. Replace with bulbs of the same type and wattage (wattage not specified in manual).

What if my remote still doesn't work after pairing?

Install a fresh battery in the remote. Ensure the dip switches on the remote and fan are set correctly if there are multiple fans. Repeat the pairing process. If issues persist, contact Casablanca technical support at 1-888-227-2178.

USER MANUAL Stealth 59105 Casablanca

Congratulations on purchasing your new Casablanca® ceiling fan! It will provide comfort and performance in your home or office for many years. This installation and operation manual contains complete instructions for installing and operating your fan.

We are proud of our work and appreciate the opportunity to supply you with the best ceiling fan available anywhere in the world.

To register your fan, please visit: www.CasablancaFanCo.com/register

Save your receipt for proof of purchase.

What to Expect with Your Installation

Tools Needed

Mounting Options

Ceiling Bracket

Wiring CanopyDownrod

Blades

Remote Control

Operation, Maintenance & Cleaning

TroubleshootingLight Kit

M8517-01·11/11/13·Casablanca Fan Company

What to Expect with Your Installation

www.CasablancaFanCo.com

1.888.227.2178

Pure technical diagram of a mechanical component with no visible text, numbers, or symbols

Must be able to

secure the fan to

building structure or

fan-rated outlet box

If you are unfamiliar with wiring, use a qualified electrician.

Know your wiring

Assess location

Read and Save These Instructions

This product conforms to UL Standard 507.

WARNINGS

w.1 - To reduce the risk of fire, electrical shock, or personal injury, mount fan directly from building structure and/or an outlet box marked acceptable for fan support of 70 lbs (31.8 kg) and use the mounting screws provided with the outlet box.
w.2 - To avoid possible electrical shock, before installing or servicing your fan, disconnect the power by turning off the circuit breakers to the outlet box and associated wall switch location. If you cannot lock the circuit breakers in the off position, securely fasten a prominent warning device, such as a tag, to the service panel.
w.3 - To reduce the risk of fire, electrical shock, or motor damage, use only Casablanca Solid State Speed Controls.
w.4 - To reduce the risk of personal injury, do not bend the blade brackets when installing the blade brackets, balancing the blades, or cleaning the fan. Do not insert foreign objects in between rotating fan blades.

CAUTIONS

c.1 - All wiring must be in accordance with national and local electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualified electrician.
c.2 - Use only Casablanca replacement parts.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions may cause harmful interference to radio communications.

You may need a friend to help you.

Check box to see

fan weight

Ceiling angles greater than 34^irc will require an Angled Mounting Kit. See page 4 for details.

Assess ceiling angle

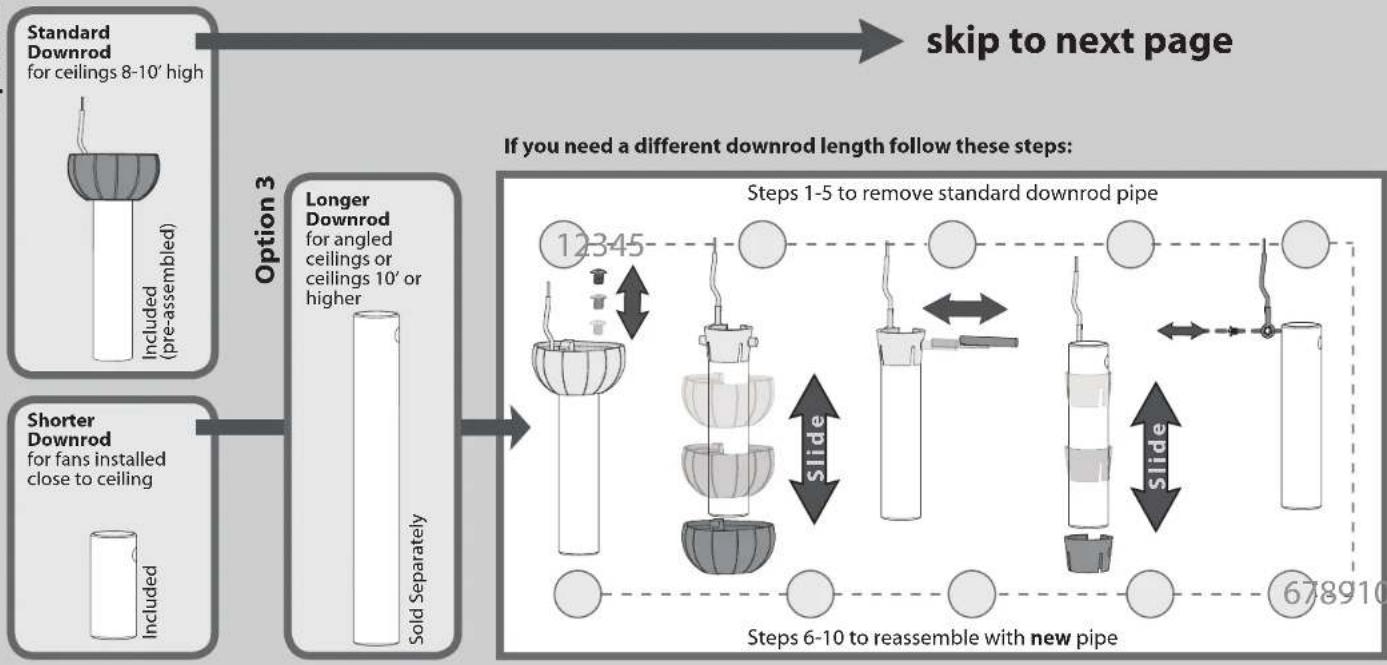

Standard Downrod

for ceilings 8-10 feet high

Shorter Downrod

for fans installed close to ceiling

Longer Downrod

for ceilings 10 feet or higher

Select a downrod length

M8517-01 · 11/11/13 · © Casablanca Fan Company

Tools Needed

www.CasablancaFanCo.com

1.888.227.2178

Simple line drawing of a ladder with a checkmark label (no text or symbols on the ladder itself)

Illustration of a pliers wire stripper tool (no text or symbols on the tool itself)

Illustration of a pair of metal pliers with a checkmark indicating selection (no text or symbols on the pliers themselves)

If mounting to a support structure, you will also need these tools.

M8517-01·11/11/13·Casablanca Fan Company

CEILING

If you have a flat ceiling:

Hang your fan by a standard downrod (included).

OPTION 1

If you have an angled ceiling:

1. You will need a longer downrod (sold separately).
2. If your ceiling angle is greater than 34^irc , you will also need an Angled Mounting Kit (sold separately).

OPTION 2

Use the three steps below to determine if your ceiling angle is greater than 34°

Mounting Options
1.888.227.2178

Use Standard Mounting or Low-Profile Mounting to hang the fan from a flat ceiling.

Use Angled Mounting
to hang the fan from a
vaulted or angled ceiling.

M8517-01·11/11/13·Casablanca Fan Company

Technical illustration of a screw and a washer (no text or symbols)

Illustration of a dog with a hand holding a bird, showing anatomical positioning (no text or symbols)

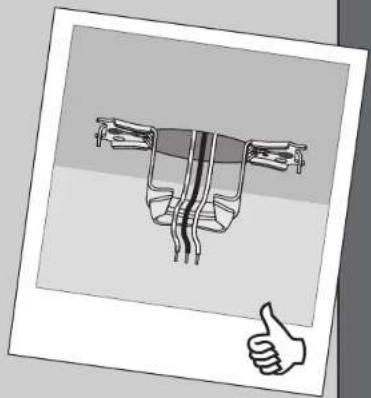

Make sure all four bumpers are still attached.

If you are unable to do this, call Technical Support at 1-888-277-2178.

Diagram of a mechanical device with a thumbs-up gesture, no visible text or symbols

To avoid possible electrical shock, before installing your fan, disconnect the power by turning off the circuit breakers to the outlet box associated with the wall switch location.

Refer to warning w.1 on pg. 2

M8517-01·11/11/13·Casablanca Fan Company

M8517-01·11/11/13·Casablanca Fan Company

www.CasablancaFanCo.com

1.888.227.2178

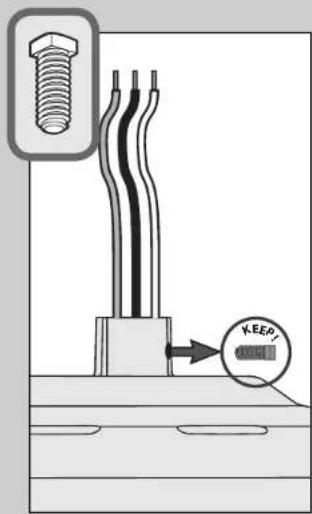

Remove the pre-installed setscrew so that the downrod can be inserted.

Diagram of a mechanical or electrical component with multiple curved wires and a base, no visible text or symbols.

Hand tighten the downrod (at least 4-5 full turns) until it stops.

The wires can be cut, but leave at least 8" extending from the top of the downrod.

Tighten the setscrew with pliers. DO NOT HAND TIGHTEN.

8"

3/8"

M8517-01·11/11/13·© Casablanca Fan Company

If the setscrew is not tightened securely, the fan may fall.

Downrod (continued)

www.CasablancaFanCo.com

1.888.227.2178

Diagram of a steaming bowl with three handles, emitting steam from a downward arrow (no text or symbols)

Put the wires and downrod through the canopy. Let the canopy sit loosely on top of the fan.

Line drawing of a steam fan with cooling tower and fan base (no text or symbols)

DO NOT PICK THE FAN UP BY THE CANOPY OR WIRES. Place the downrod ball into the slot in the ceiling bracket.

Line drawing of a submarine with a hand giving a thumbs-up gesture (no text or symbols)

M8517-01·11/11/13·Casablanca Fan Company

Wiring

Using an orange wire connector from the ★ hardware bag, connect the three grounding wires (green, green/yellow stripe, or bare copper) coming from the ceiling, downrod, and hanging bracket.

Note: To connect the wires, hold the bare metal leads together and place a wire connector over them, then twist clockwise until tight.

Using orange wire connectors from the ★ hardware bag, connect the black wire (ungrounded) from the ceiling to the black wire from the fan. Connect the white wire (grounded) from the ceiling to the white wire from the fan.

Refer to CAUTION c.1 on pg. 2

M8517-01·11/11/13·Casablanca Fan Company

Turn the splices upward and push them carefully back through the hanger bracket into the outlet box. Spread the wires apart, with the grounded wires on one side of the outlet box and the ungrounded wires on the other side of the outlet box.

Canopy

www.CasablancaFanCo.com

1.888.227.2178

Technical line drawing of a mechanical component with concentric circular layers and a central hexagonal base (no text or symbols)

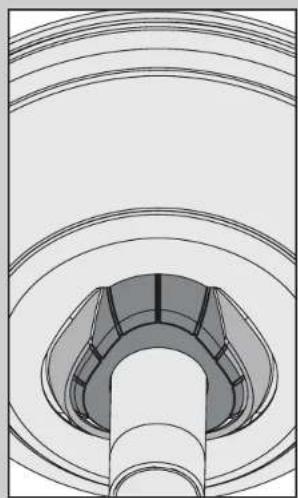

Position the canopy so that, when lifted into place, the canopy fits into the hanging bracket as shown.

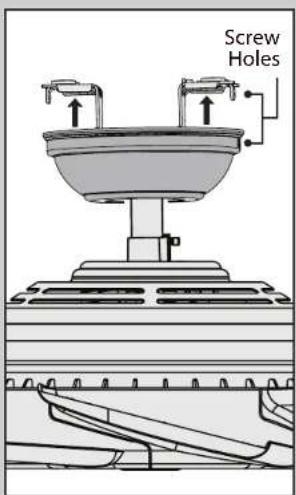

Lift the canopy into place so that the screw holes are aligned.

Diagram of a toilet with screwdriver and screw holder, no text or symbols present

Insert the two canopy screws found in the ● hardware bag.

Line drawing of a mechanical device with a handle and base, accompanied by a thumbs-up icon (no text or symbols)

Note: Fan style may vary.

M8517-01·11/11/13·Casablanca Fan Company

Blades

www.CasablancaFanCo.com

1.888.227.2178

Illustration of a stylized flag with a circular emblem and a thumbs-up gesture (no text or symbols)

M8517-01·11/11/13·Casablanca Fan Company

Light Kit

www.CasablancaFanCo.com

1.888.227.2178

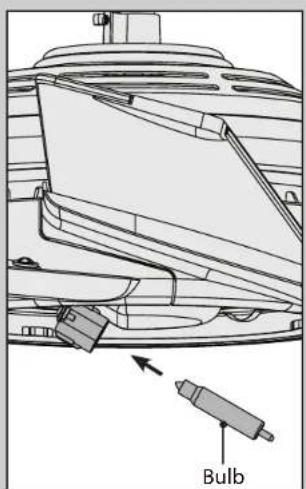

Install a halogen bulb in the light socket. When necessary, replace with bulbs of the same type and wattage.

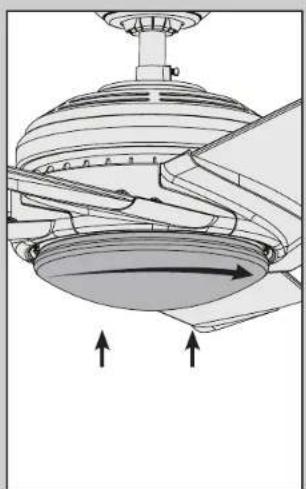

Position the notches in the outer rim of the globe so they line up with the tabs on the inside of the rim on the light kit.

Diagram of a ceiling fan with directional arrows indicating airflow or movement (no text or symbols)

Carefully lift the globe up inside the light kit as far as it will go, then rotate the globe clockwise until it is held tightly in place by the four tabs.

See next page for fan operation instructions.

M8517-01·11/11/13·Casablanca Fan Company

Remote Control

www.CasablancaFanCo.com

1.888.227.2178

Once the power is turned on, the remote must be paired within 60 seconds. Pairing is only required once after initial installation.

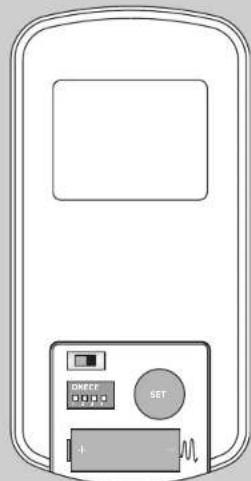

Remove battery door. Change the dip switch settings if the frequency matches a previously installed remote transmitter. Install A23 or MN21 alkaline battery in the proper polarity and replace the battery door. To pair the remote, hold down the Set button for 5 seconds. Pairing is complete when LED button flashes twice.

If a light kit is installed on your fan, choose the light bulb mode by moving the toggle switch. For halogen bulbs, set the switch to "ON." Replace the battery door.

Diagram showing screw and tool components with alignment lines, no text or symbols present

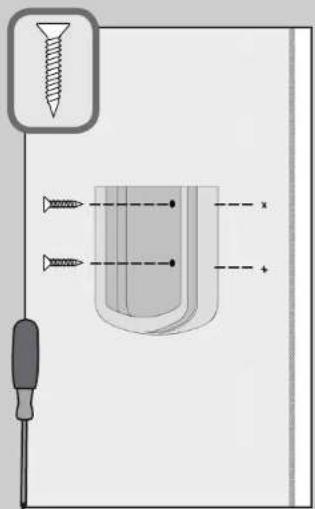

To install the transmitter cradle, hand-tighten the provided screws to mount the cradle to the wall.

M8517-01·11/11/13·Casablanca Fan Company

Operation, Maintenance & Cleaning

www.CasablancaFanCo.com

1.888.227.2178

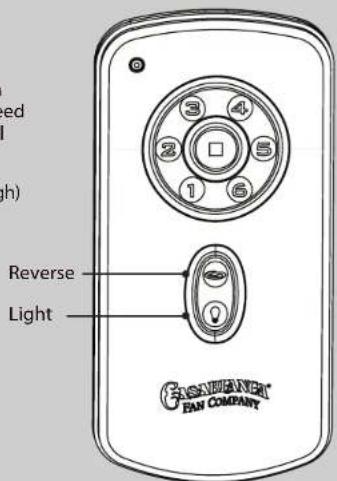

To select fan speed press one of the numbers on the Fan Speed Dial. To calibrate the fan speed, run the fan on "6" for 90 seconds after each AC power reset. The LED light flashes to indicate a signal has been sent to the fan.
Fan Speed Dial (High)

To reverse the air flow direction, press the Reverse button while fan is running. Press Light button to turn lights off/on. To dim the lights, press the light button for more than one second. Light will cycle from brightest to dimmest. Release the light button when desired brightness is achieved.

Front view of a device casing with control panel and buttons (no text or symbols visible)

To change the battery, remove the battery door. Remove battery and replace with A23 or MN21 alkaline battery. Please observe proper polarity placement.

Line drawing of a hand holding a ribbon over a folded document or folder (no text or symbols visible)

For cleaning the fan, use soft brushes or cloths to prevent scratching. Cleaning products may damage the finishes.

M8517-01·11/11/13·Casablanca Fan Company

Troubleshooting

www.CasablancaFanCo.com

1.888.227.2178

Fan doesn't work

• Press a fan speed button (1-4).
• Check the circuit breaker to ensure the power is turned on.
• Check the wall control battery.
  • Make sure that you have paired the wall control.
  • Make sure the blades spin freely.
• Turn off power from the circuit breaker, then loosen the canopy and check all the connections according to the wiring diagram on page 9.

Excessive wobbling

• Tighten all of the blade screws until they are snug.
• Turn the power off, support the fan carefully, and check that the hanger ball is properly seated.
• Use the provided balancing kit and instructions to balance the fan.

Remote doesn't work

• Install a fresh battery in the wall control.
• Make sure you have paired the remote.

Noisy Operation

• Tighten the blade and blade iron screws until they are snug.
• Check to see if any of the blades are cracked. If so, replace all of the blades.

Fan speeds are incorrect

- Turn power from the circuit breaker off and back on, then run the fan on speed "6" for at least 90 seconds and check the fan speeds again.

AUTHORIZED SERVICE CENTERS

For the most updated list of Casablanca Authorized Service Centers, visit www.CasablancaFanCo.com or call toll free 1-888-227-2178.
