WFR028RCNR - Refrigerator WINIA - Free user manual and instructions
Find the device manual for free WFR028RCNR WINIA in PDF.
| Product Type | Refrigerator |
| Model | WFR028RCNR (also WFR028RCNW, WFR028RCNM) |
| Storage Capacity | 2.8 cu. ft |
| Product Weight | 56 lb |
| Shipping Weight | 60 lb |
| Dimensions (W x D x H) | 19.3 x 21.5 x 28.3 inches |
| Refrigerant Type | R-600a or R-134a (check rating label) |
| Insulation Blowing Agent | Cyclopentane (C-Pentane) |
| Temperature Control | Manual thermostat dial (Min to Max) |
| Defrost Method | Manual (set dial to OFF, remove food, leave door open) |
| Interior Features | Adjustable shelf, door racks, bottle rack, case draw, vegetable case |
| Door Seal | Magnetic door seal |
| Installation Clearance | 5 inches between side and wall; not for recessed installation |
| Leveling | Adjustable legs at front; slight tilt backward recommended |
| Power Supply | Standard household outlet (110-120V, 60Hz) |
| Power Cord Length | Not specified in manual |
| Ambient Temperature Range (Temperature Class) | SN (50-89.6°F), N (60.8-89.6°F), ST (60.8-100.4°F), T (60.8-109.4°F) |
| Cleaning Instructions | Use mild soapy water or baking soda solution; avoid harsh cleaners |
| Safety Features | Grounding required, child lock (key not near appliance), overload protection |
| Warranty | 1 year parts and labor; 5 years on compressor |
| Accessories Included | Not specified; shelves and racks are part of unit |
| Energy Consumption | Not specified in manual |
| Noise Level | Not specified in manual |
| Repair Service | Phone 1-877-DWE-ASC5 or 1-877-DWE-SVC3 |
Frequently Asked Questions - WFR028RCNR WINIA
User questions about WFR028RCNR WINIA
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Refrigerator in PDF format for free! Find your manual WFR028RCNR - WINIA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. WFR028RCNR by WINIA.
USER MANUAL WFR028RCNR WINIA
REFRIGERATOR
INSTRUCTION MANUAL
Model No.
WFR028RCNW
WFR028RCNM
WFR028RCNR

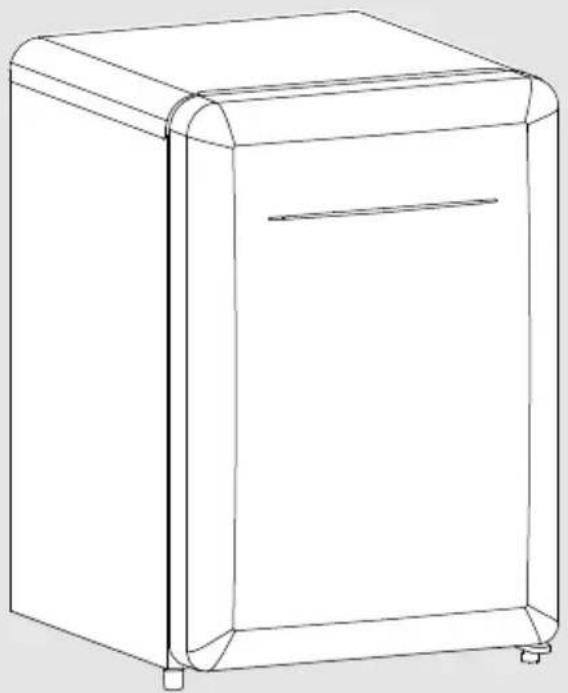

■ Blowing Agent : CYCLO-PENTANE.
WARNING/SAFETY PRECAUTIONS
To avoid any risk of personal injury, material damage or incorrect use of the appliance, be sure to observe the following safety precautions. (After reading these owner's instructions, please keep them in a safe place for reference).
Remember to hand them over to any subsequent owner.
 WARNING | Indicates that a danger of death or serious injury exists |
 CAUTION | Indicates that risk of personal injury or material damage exists |
WARNING
Do not plug several appliances into the same sockets.
• This could cause overheating and the risk of fire.
Keep the power plug away from the rear of the fridge.
• A damaged power plug may cause fire due to overheating.
Do not directly spray water inside or outside the fridge.
• There is a risk of fire or electric shock.
Do not bend the power cord excessively or place heavy articles on it.
- This constitutes a fire hazard. If the power cord is damaged, have it replaced immediately by the manufacturer, its service agent or a similarly qualified person.
Do not insert the power plug with wet hands.
- You may receive an electric shock.
Do not put a container filled with water on top of the appliance.
- If the water spills on to any electrical parts, it may lead to fire or electric shock.
Do not store volatile and flammable substances in the refrigerator.
• The storage of benzene, thinner, alcohol, ether, LP gas or other such substances may cause an explosion.
Do not disassemble, repair or alter the appliance.
- It may cause fire or abnormal operations, which may lead to injury.
Pull the power plug out of the socket before replacing the interior light in the refrigerator.
- Otherwise, there is a risk of electric shock.
- Only the customer service Approved Repair Agent may change the power cord and carry out any other repairs. Improper Installations and repairs may put the user at considerable risk.
Be sure to earth the appliance.
- Otherwise, it may cause material damage and electric shock.
If you wish to dispose of the fridge, throw it away after removing the door or its seals.
Keep ventilation openings in the appliance enclosure or in the built-in structure, clear of obstruction.
Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
CAUTION
Do not store too much food in the appliance.
- When you open the door, an item may fall out and cause personal injury or material damage.
If the wall socket is loose, do not insert the power plug.
- It may cause electric shock or fire.
Do not disconnect the power cord by pulling on it.
- You may disconnect a wire and cause a short circuit.
Do not store pharmaceutical products, scientific material or other temperature-sensitive products in the refrigerator.
- Products that require strict temperature controls must not be stored in the refrigerator.
Do not let a child hang from the door.
- It may cause injury or damage the appliance.
Remove any foreign matter from the power plug pins.
- Otherwise, there is a risk of fire.
Do not put your hand into the bottom area of appliance.
- Any sharp edges may cause personal injury.
After unplugging the appliance, wait for at least five minutes before plugging it again to the wall socket.
- It may cause abnormal operation.
If the appliance is not be used for a long period of time, pull out the power plug.
- Any deterioration in the insulation may cause fire.
CAUTION
- R-600a or R-134a is used as a refrigerant. Check the compressor label or the rating label to see which refrigerant is used for your refrigerator.
When this product contains flammable gas(R-600a), please be aware of followings;
- Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
- Do not damage the refrigerant circuit.
And contact your local authorities in regard to the safe disposal of this product.
Ensure that none of the pipes on the back of the appliance are damaged prior to disposal.
- Do not allow children to play with this appliance.
• C-Pentane is used as an insulation blowing gas.
The flammable insulation blowing gases require special disposal procedure. Please contact your local authorities in regard to the environmentally safe disposal of this product.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
NAMES OF THE PARTS
1. CONTROL BOX
Regulates the operation of the motor and controls the inside temperature of the refrigerator.
2. SHELF
Has full width and can slide out.
3. MAGNETIC DOOR SEAL
Keeps the refrigerator virtually airtight all along the edge, but is nevertheless easy to open.
-
USABLE RACK for cans or jars.
-
BOTTLE RACK for bottles, cans or jars.
6. COVER CASE DRAW
-
CASE DRAW for bottles, cans or jars
-
CASE VEGETABLE for vegetables.
HOW TO OPERATE
Starting your new Refrigerator
-
Clean the refrigerator thoroughly. Wipe the outside with a soft dry cloth, the inside with a damp cloth.
-
Keep the door open and insert the power supply cord into the socket.
-
Turn the thermostat dial to "Max".
Close the door and let the refrigerator operate for 15-20 minutes.
Temperature control
You can control the inside temperature by turning the thermostat dial.
"Max" means greater cooling power.
"Min" means less cooling power.
The dial does not have to be set exactly on the letters, but can be any place in between.
NOTE : Wait 3 to 5 minutes before restarting if you unplug the machine. Unit may fail to operate properly if restarted too quickly.
How to defrost
Defrost the refrigerator when the frost accumulated on the inside surface of the refrigerator is about 5mm(1/5inch) thick.
Set the thermostat dial to "OFF". Remove foods. Defrosting usually takes a few hours. To defrost quickly remove all foods from the refrigerator and leave door open. Never use a knife or other metal instrument to remove ice/frost from the inside surface of the refrigerator.
After defrosting, return the thermostat dial to the desired position to start refrigerating again.
HOW TO CLEAN
Cleaners: The cleaners noted below are available.
Never use harsh, abrasive cleaners, heavy-duty cleaners, or solvents on any surface.
Exterior: Wipe with damp, sudsy cloth, rinse and dry.
For stubborn stains and for periodic waxing, use silicon wax.
Refrigeration Section: Wash shelves and other removable parts in warm sudsy water, rinse and dry.
Wash interior with baking soda solution (3 table spoons to one quart of water) or warm sudsy water, rinse and dry.
Magnetic Door Seals: Wash with warm sudsy water.
The Finishing Touch: Replace all parts and return thermostat dial to desired setting.
HOW TO INSTALL
• Install refrigerator in a convenient location away from extreme heat and cold. Allow sufficient clearance between the refrigerator and side wall so the door will open for a fully usable interior. Refrigerator is not designed for recessed installation.
- Select a place with strong level floor.
- Allow 5 inches of space between the refrigerator's side and the wall.
HOW TO LEVEL
If the front of the appliance is slightly higher than the rear, the door can be opened and closed more easily.
- The appliance tilts up to the left.
Turn the left adjusting leg in the direction of the arrow until the appliance is level.
- The appliance tilts down to the right.
Turn the right adjusting leg in the direction of the arrow until the appliance is level.
WHAT TO DO...
1. When out of operating for a long time:
- Remove the power supply cord.
- Dry your refrigerator opening the door for 2-3 days.
2. When you get ready to move:
- Securely fasten removable interior parts (or move and package them separately)
- Do not lay your refrigerator horizontally, or compressor may be damaged.
When you need service: Before you call for service make sure you need it, check a few things noted below for yourself first.
If refrigerator is not operating:
• Is the power supply cord unplugged?
• Is home fuse blown or circuit breaker off?
If refrigerator is warmer than usual:
- Has the door been open frequently or for a long period?
• Is refrigerator overcrowded-preventing good air circulation?
• Is the hot thing stored without cooling? - Is the clearance between refrigerator's side and the wall allowed sufficiently?
If there are unusual sounds:
• Is refrigerator placed on the level?
- Are foreign objects behind the refrigerator?
- Are dishes on refrigerator shelves vibrating? If so, rearrange the dishes.
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

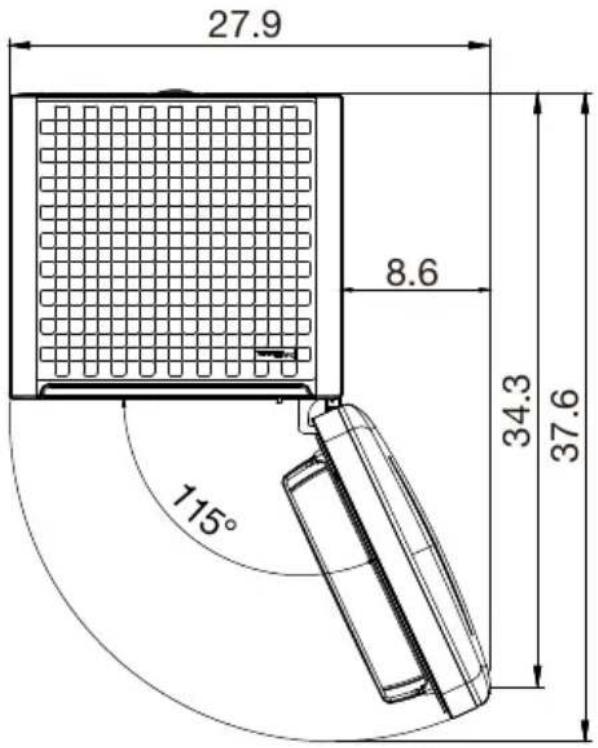

DIMENSIONS
| Storage | 2.8 cu. ft |
| Weight | Product: 56 lb / Packing: 60 lb |
| Size (W X D X H) | 19.3 X 21.5X 28.3 inch |
Ambient Room Temperature Limits
This appliance is designed to operate in ambient temperature specified by its temperature class marked on the rating plate.
| Temperature Class | Symbol | Range of Ambient Temperature F |
| Extended Temperate | SN | +50 to +89.6 |
| Temperate | N | +60.8 to +89.6 |
| Subtropical | ST | +60.8 to +100.4 |
| Tropical | T | +60.8 to +109.4 |
NOTE : The internal temperature may be affected by such factors as the location of the appliance, ambient temperature and the frequency with which you open the doors. Adjust the temperature as required to compensate for these factors.
Put the newly introduced food inside.
Most power failures that are corrected in an hour and two will not affect your refrigerator temperatures. However, you should minimize the number of door openings while the power is off. But should the power failure last more than 24 hours, remove all frozen food.
When you plan not to operate(during average length vacations), remove all food, disconnect the power cord, clean the interior thoroughly, and leave each door OPEN to prevent door formation.
Option: The keys are kept out of the reach of children and not in the vicinity of the refrigerating appliance, in order to prevent children from being locked inside
Limited Warranty
WINIA
Winiadaewoo Electronics America, Inc. warrants the following Refrigerators to be free from defective material and workmanship and agrees to remedy any such defect or to furnish a new part (at the Company's option) in exchange for any part of any unit of its manufacture which under normal installation, use and service disclosed such defect, provided the unit is delivered by the owner to us or to our authorized distributor form whom purchased or authorized service station, intact, for our examination with all transportation charges prepaid to our factory. To establish and receive warranty service at our factory or authorized service facilities, a sales receipt or bill of sales is required for proof of purchase.
Written authorization must be obtained before any merchandise is returned to the factory.
This warranty does not extend to any of our electronic products which have been subjected to misuse, neglect, accident, incorrect wiring not our own, improper installation, unauthorized modification, or to use in violation of instructions furnished by us, nor units which have been repaired or altered outside of our factory, nor to cases where the serial number there of has removed, defaced, or changed.
This warranty is in lieu of all warranties expressed or implied and no representative or person is authorized to assume for us any other liability in connection with the sales of our electronic products.
For units that are initially defective.
Initial defective is described as when the dealer opens the unit and finds that it is inoperative or an individual customer opening a new unit and finding that it is initially defective. This unit may be returned to the factory by the dealer for exchange. Under no circumstances will an individual customer be permitted to return defective unit directly to factory. Exchange must be directly with the dealer. When this unit is returned to dealer, a copy of the purchase evidence stating the date of purchase is to be put in the individual box for dealer's further control with the factory.
MODEL
Refrigerator
PARTS
1 year
LABOR
1year
COMPRESSOR
5years
Model : WFR028RCNW/WFR028RCNM/WFR028RCNR
Note: For Service or Assistance, please call : 1-877-DWE-ASC5, 1-877-DWE-SVC3
