USER MANUAL Ice KMC-H-322-LA Avantco

Exterior view of three modern ice cream machines (no signage or text visible on the main body)

Modular Ice Machine User's Manual

194MCF322A, 194MCH322A, 194MCF422A, 194MCH422A, 194MCF530A, 194MCH530A, 194KMCF322BA, 194KMCH322BA, 194KMCF422BA, 194KMCH422BA, 194KMCF530BA, 194KMCH530BA, 194BIN23022, 194BIN27530, 194KMCF322LA, 194KMCH322LA, 194KMCF422LA, 194KMCH422LA, 194KMCF530LA, 194KMCH530LA, 194BIN40022, 194BIN54030, 194KMCF322HA, 194KMCH322HA, 194KMCF422HA, 194KMCH422HA, 194KMCF530HA, 194KMCH530HA, 194HBN12022, 194HBN18030

Please read the manual thoroughly prior to equipment set-up, operation and maintenance.

User Manual

ICE MACHINES AVANTCO

Table of Contents

1. Modular Ice Machine and Bin User's Manual

a. Warning and Safety....3
b. Installation....4
c. Startup and Operation....7
d. Maintenance....12
e. Clean Function....13
f. Manual Cleaning & Sanitizing....14
g. Service Call....17
h. Troubleshooting....18

2. Hotel Ice Dispenser User's Manual

a. General Description....21
b. Basic Specifications & Dimensioned Illustrations....21
c. Unpacking....26
d. Installation....27
e. Final Check List/Initial Start Up....29
f. Use....30
g. General Care and Cleaning....31
h. Maintenance....33
i. Adjustments....34
j. Service Diagnosis....35

3. Warranty

Warning and Safety

DANGER – RISK OF FIRE OR EXPLOSION. FLAMMABLE REFRIGERANT USED. TO BE REPAIRED ONLY BY TRAINED SERVICE PERSONNEL. DO NOT PUNCTURE REFRIGERANT TUBING.

PELIGRO - RIESGO DE INCENDIO O EXPLOSION. REFRIGERANTE INFLAMABLE UTILIZADO. PARA SER REPARADO SOLAMENTE POR PERSONAL DE SERVICIO CALIFICADO. NO PINCHAR LA TUBERÍA REFRIGERANTE.

DANGER – RISQUE DE FEU OU D'EXPLOSION. LE FRIGORIGÈNE EST INFLAMMABLE. CONFIER LES RÉPARATIONS À UN TECHNICIEN SPÉCIALISÉ. NE PAS PERFORER LA TUBULURE CONTENANT LE FRIGORIGENE.

CAUTION – RISK OF FIRE OR EXPLOSION. FLAMMABLE REFRIGERANT USED. CONSULT REPAIR MANUAL/OWNER'S GUIDE BEFORE ATTEMPTING TO SERVICE THIS PRODUCT. ALL SAFETY PRECAUTIONS MUST BE FOLLOWED.

This product cannot be used in outdoor environments. Not intended for use by children, persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge.

• The installation, repair or maintenance of this ice machine must be carried out by professional and qualified personnel. Electric shock, fire, personal injury may result from incorrect operation.
• After the ice machine is delivered, please keep the machine upright for at least 24 hours to have the refrigerant be fully precipitated before startup. Otherwise the compressor may be damaged.
• When handling, keep the cabinet upright with the inclination not exceeding 45 degrees. Do not invert the machine or lay it horizontally.
  • This ice machine should not be placed in wet or easily splashed areas.
• The grounding of this ice machine cannot be connected to a gas pipe, water pipe, telephone line or lightning rods, etc.
• There are rotating components in this ice machine. Do not insert slim objects into ventilation or exhaust ports, or serious mechanical damage and injury may occur.
• Do not store volatile or flammable substances in this ice machine or it may result in an explosion or fire.
• Do not store any sundries or freeze any food in the storage bin. Keep the ice scoop clean.
• The ice machine must be placed on a floor sufficient enough to support its weight. An insufficient base may cause the equipment to fall over and cause injury.
• There should be sufficient ventilation space around the ice machine. See page 5 for clearance requirements.
• Only the power supply specified on the machine nameplate can be used with this ice machine.
  • This ice machine cannot be connected to hot water.
• Outlet for this ice maker must be reliably grounded with leakage protection.
• The ice machine must be disconnected from power before manual cleaning, repairing and maintenance.
• Before cleaning, repairing and maintenance, the remaining ice in the ice bin should be removed from the ice machine to avoid contamination to ice.
• Do not splash water directly onto the surface of the ice machine during the cleaning process; otherwise it may cause short circuit, leakage or other faults.
• Flammable foaming agent is used during the foaming process. The ice maker should be disposed of and recycled by qualified personnel and institutions.
• The ice machine should be properly managed to ensure that children will not play with the machine.
• When the ice machine malfunctions, turn off the power and contact professional personnel to be repaired.

User Manual

AVANTCO ICE MACHINES

This ice machine is fully automatic. With proper installation and connection to potable water and power source, the ice making will start properly. When the ice cubes fill up the storage bin, the machine will automatically stop. The ice machine is generally used in the following and similar occasions:

• Indoor, ambient controlled environments only.
• The kitchen area of a store, office or other workplace;
  • Hotel and restaurant;
• Catering and similar non-retail occasions;
• This ice machine is not intended for residential use

Food Service Water Filtration

C Pure creates specialty water filters to be used with common restaurant equipment, ensuring that the water utilized by the equipment is both clean and clear. These filters are easily installed into water lines, and their cartridges can be quickly swapped out for fast, easy and efficient replacements. The water filters below are approved for use with Avantco Ice Machines. Failure to use and maintain an appropriate water filter will void warranty coverage on your Avantco Ice Machine. For installation instructions, refer to the C Pure water filtration manual or contact a C Pure water filtration dealer.

Modular Ice Machine

Item Number Ice Shape Ice ProductionPer 24 Hrs.			Recommended Water Filtration System	Replacement Cartridge
194MCF322A	Full Dice	350 lbs.	790OCLOKITM	790OCLOCARTM
194MCH322A	Half Dice	350 lbs.	790OCLOKITM	790OCLOCARTM
194MCF422A	Full Dice	420 lbs.	790OCLOKITM	790OCLOCARTM
194MCH422A	Half Dice	420 lbs.	790OCLOKITM	790OCLOCARTM
194MCF530A	Full Dice	500 lbs.	790OCLOKITM	790OCLOCARTM
194MCH530A	Half Dice	500 lbs.	790OCLOKITM	790OCLOCARTM

User Manual

ICE MACHINES AVANTCO

Modular & Bin

Item Number Ice Shape Ice ProductionPer 24 Hrs.			Recommended Water Filtration System	Replacement Cartridge
194KMCF322BA	Full Dice 350	Ibs. 790OCLOKITM	790OCLOCARTM
194KMCH322BA	Half Dice 350	Ibs. 790OCLOKITM	790OCLOCARTM
194KMCF422BA	Full Dice 420	Ibs. 790OCLOKITM	790OCLOCARTM
194KMCH422BA	Half Dice 420	Ibs. 790OCLOKITM	790OCLOCARTM
194KMCF530BA	Full Dice 500	Ibs. 790OCLOKITM	790OCLOCARTM
194KMCH530BA	Half Dice 500	Ibs. 790OCLOKITM	790OCLOCARTM
194KMCF322LA	Full Dice	350 Ibs. 790OCLOKITM	790OCLOCARTM
194KMCH322LA	Half Dice	350 Ibs. 790OCLOKITM	790OCLOCARTM
194KMCF422LA	Full Dice	420 Ibs. 790OCLOKITM	790OCLOCARTM
194KMCH422LA	Half Dice	420 Ibs. 790OCLOKITM	790OCLOCARTM
194KMCF530LA	Full Dice	500 Ibs. 790OCLOKITM	790OCLOCARTM
194KMCH530LA	Half Dice	500 Ibs. 790OCLOKITM	790OCLOCARTM

Modular & Hotel Dispenser

Item Number Ice Shape Ice ProductionPer 24 Hrs.				Recommended Water Filtration System	Replacement Cartridge
194KMCF322HA	Full Dice	350 lbs.	790OCLOKITM	790OCLOCARTM
194KMCH322HA	Half Dice	350 lbs.	790OCLOKITM	790OCLOCARTM
194KMCF422HA	Full Dice	420 lbs.	790OCLOKITM	790OCLOCARTM
194KMCH422HA	Half Dice	420 lbs.	790OCLOKITM	790OCLOCARTM
194KMCF530HA	Full Dice	500 lbs.	790OCLOKITM	790OCLOCARTM
194KMCH530HA	Half Dice	500 lbs.	790OCLOKITM	790OCLOCARTM

User Manual

Installation

The ice machine should be installed in a proper location meeting the following conditions:

• Indoors, ambient temperature: 40-90°F;
  • Power supply: the rated voltage indicated on the machine nameplate ±6%;
• Water source: potable water, with water pressure from 18.75 psi to 80 psi; water temperature: 40-90°F;
• The ice machine should be kept away from heat sources, and should be prohibited to use in an extremely high or low temperature environment, and should avoid direct sunlight.
• There should be sufficient ventilation space around the ice machine; the distance from the ice maker to the wall should be no less than 12" for the front, 6" for the sides, and 8" for the rear.
  • The ice machine must be placed on a floor sufficient to support its weight;
• The socket for the ice maker must be reliably grounded and have leakage protection;

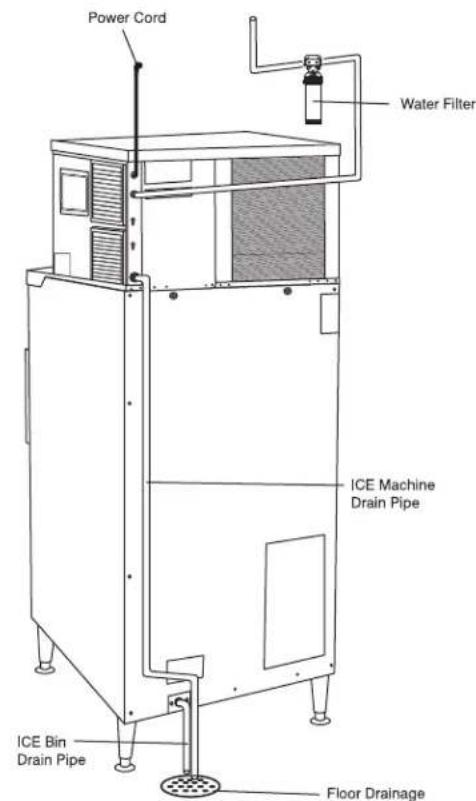

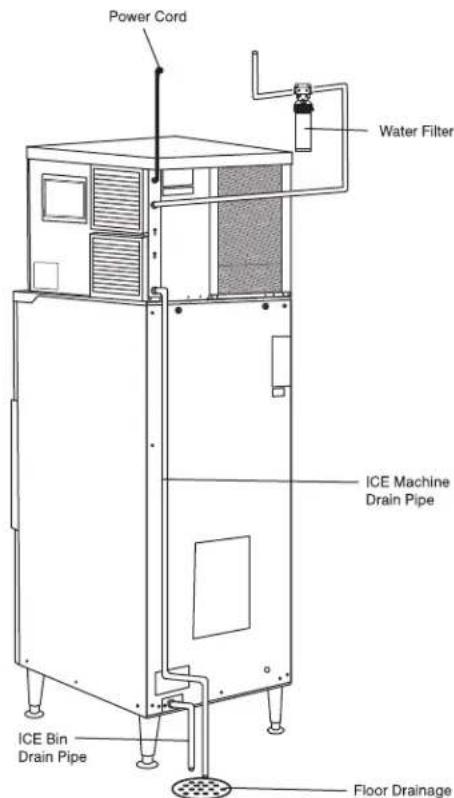

  • Proper floor drainage must be provided near the installation location of the ice machine.

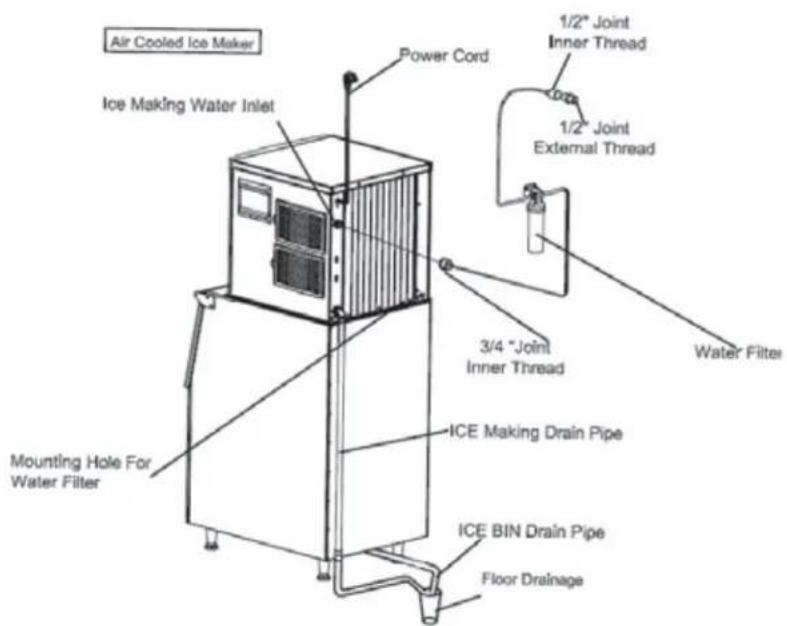

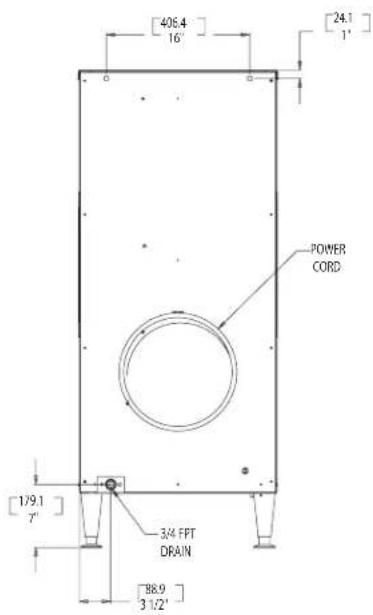

Schematic Diagram

User Manual

Installation Steps

1. Check to see if the ice machine is in good condition and the accessories are all present; check the machine model and the machine nameplate.
2. Clean the ice storage bin and the food area inside with a sponge soaked in warm water and soap. Then rinse with potable water and dry.
3. Place the ice machine in the operation area; ensure that the machine is placed on a leveled floor so the water flows evenly into the evaporator.
4. The compressor chamber is located below the front of the ice bin where the compressor and condenser are installed. It requires good ventilation so the ice maker must have ventilation space of more than 8" in the rear, 6" on the sides, and 12" in the front.
5. The bottom of the ice machine is equipped with adjustable legs for level adjustment and clearance for floor cleaning.
6. Connect the machine's inlet water filter and water line referring to the installation instructions of your water filter brand; if the installation site is already equipped with a drinking water system, the water filter may not be needed.
7. Connect the machine to the water supply using the 3/4" inlet fitting supplied with the machine. It is recommended to install a water ball valve (not supplied with this machine) on the water supply line.
8. Connect the drain line to the drain connector. To achieve a proper draining, it is recommended that the drain pipe should have a difference in level of more than 1" per 3'; and confirm that the drain line is not blocked. It is recommended that the drain line be connected to an open drainage port.
9. Any joint in the drain line must not be higher than the machine drainage port; any joint in the drain line cannot be higher than the previous joint.
10. Confirm the power requirements stated in the machine's nameplate; ensure that the power supply meets the requirements.
    11.A circuit breaker or switch with leakage protector and reliable grounding is required.
11. Turn off the switch on the power line and connect the machine to the power source.

NOTE: the filter flow direction should be correctly installed as per the direction marker on the filter head cover or the filter body. The filter cartridge should be replaced every 3 to 6 months.

Startup and Operation

1. Before you start up the machine, please check and confirm:

• T hat the packaging tape inside the ice machine has been removed;
• The accessories or items in the ice bin have been taken out;
• The ice machine has been adjusted to a leveled state;
- The water line has been connected and the water valve is open;
- The plug has been connected to the power supply and the power switch is off.
- The ambient temperature, water temperature, and pressure of the water supply meet the above requirements.

1. Start up: turn on the power switch. After power-on, the machine begins to make ice automatically.

2. For normal operation, please confirm:

• There is water in the water trough and no overflow occurs;
- The pump is working properly and water is flowing evenly in the evaporator;
- The compressor is running normally, the temperature of the evaporator and the ice making water is gradually decreasing;
- For air cooled machines, make sure the fan is running normally, and there is stable air flow in the inlet and outlet of the ice machine;
• The ice machine has no abnormal noise;
• The ice machine has no abnormal vibration;
- It takes about 10 to 20 minutes to make one batch of ice, depending on the ambient temperature and the temperature of the water. The higher the temperature is, the longer the ice making will take;
• Ice cubes can be properly harvested from the machine.

User Manual

Operation Instructions

• Startup: after proper installation, connect the water source and turn on the power supply to turn on the machine. Please confirm that the machine is operating normally when you turn it on for the first time.
• Self-check: with power on for the first time, the ice maker will do a self-check and pump out any remaining water.
• Preparing: after the ice machine has finished the self-check, the inlet valve opens and the inlet water will flow in until it reaches the set level; then the ice maker will defrost one time.
• Ice making: after pre-cooling for 30 seconds, the water pump starts, the water flows through the evaporator smoothly and evenly, the ice cubes are gradually formed in the ice cube tray.
• Ice Harvest (Drop): after the ice making process finishes and the water pump is turned off, the defrosting valve is turned on. After the hot gas enters into the evaporator for about 1-2 minutes the ice cubes slide from the evaporator into the storage bin.

Warning: Do not put your hand into the ice storage bin during the ice-falling process to prevent the ice from hitting your hand!

- Shutdown: The ice maker will stop working when you push the "on/off" button on the control panel during the running process.

- Bin full stop: Once the ice storage bin is filled to a certain height, the ice making process will stop after 40 seconds. There is a sensor at the top of the bin which will trigger this stop in production. In order to maximize the bin space make sure to spread around the ice that piles up in front of the sensor

- Repeat ice-making: When the ice cubes triggering this sensor are moved or taken away, the ice maker will go back to the ice making process within seconds

User Manual

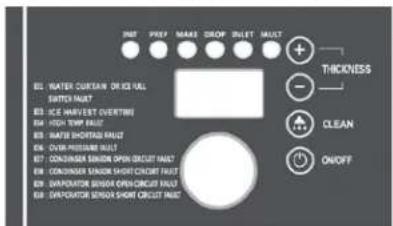

Control Panel

1. LED Display:

• Self-check: Display "ini" code.
• Preparing: Counts (in seconds) forwards.

- Ice making: Counts (in seconds) forwards prior to the water reaching 32 degrees F. Counts seconds backwards to 0 seconds afterwards.

• Ice Harvest: Counts (in seconds) forwards.

- Clean: Display "CLE" during cleaning and descaling; Display "STL" during sanitizing; Display "RIN" during rinsing.

1. LED Lamps: Turns lights on/off

2. Ice cube thickness adjustment: During the ice making process, if you are not satisfied with the ice thickness, press the ice cube “-” button for 3 seconds, then click the button “+” or “-” on the panel to adjust the thickness of ice cube.

- Note: By clicking the "+" or "-" button one time, the ice making time is extended or shortened by 1.5 minutes.

User Manual

1. Cleaning: During the normal operation, hold the cleaning button for 3 seconds to enter the cleaning process. During the entire cleaning process, cleaning agents and disinfectants need to be put into the water trough. When the cleaning process is finished, the ice maker will go to the ice making process.

Note: All cleaning and sanitizing chemicals used must be nickel safe

1. ON/OFF: Press this button to switch the machine OFF/ON.
2. Please open and close the storage bin door gently. Do not slam the door. Keep door closed when not removing ice.
3. If the ice maker is not in use for a long time, it should be energized and run for 2 to 4 hours every 2 months.

Other Special Protection - Shutdown

• If the ice machine has not detected ice harvest in three cycles, it will shut down for safety and protection. The ice maker needs to be checked.
• If the ice machine detects that the ambient temperature is too high it will stop for safety and protection.

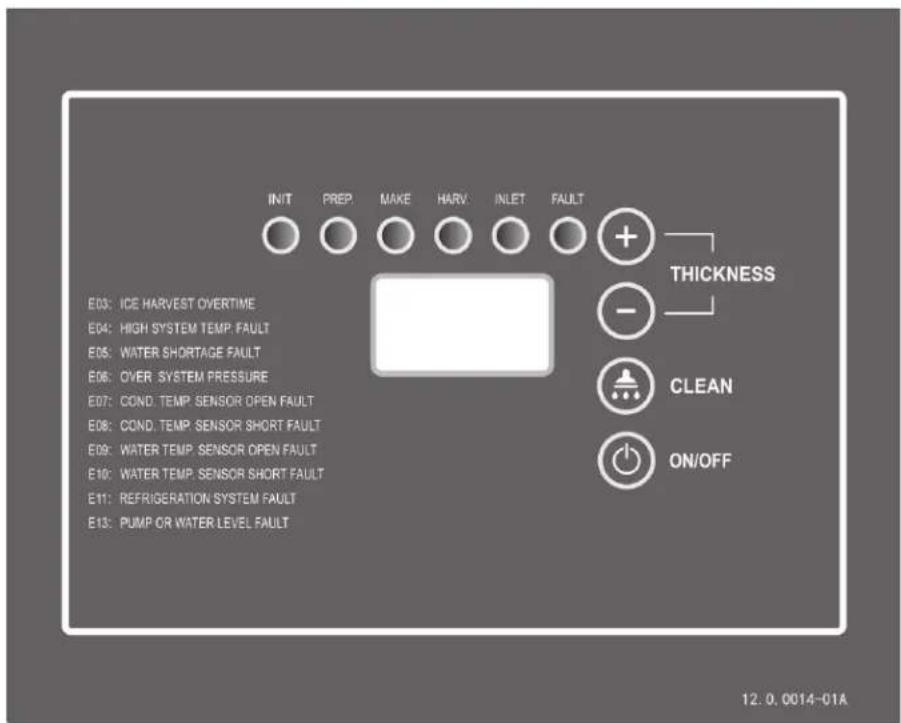

  • The fault code and its comments are displayed as follows:

Code	Comments Machine Action
E01	Evaporator failure	Protective shutdown
E02	Ice making time out	Protective shutdown
E03	Overtime of ice making	Protective shutdown
E04	High temperature	Protective shutdown
E05	Water shortage	Protective shutdown
E06	High pressure	Protective shutdown
E07	Condensation sensor open circuit	Does not shutdown, Error LED light on every 5 seconds
E08	Condensation sensor short circuit	Does not shutdown, Error LED light on every 5 seconds
E09	Evaporator sensor open circuit	Does not shutdown
E10	Evaporator sensor short circuit fault	Does not shutdown
E11	Refrigeration system failure	Protective shutdown
E12	Water level control fault	Protective shutdown
E13	Pump or water level fault	Protective shutdown

Noble Chemical offers a full line of products to clean and sanitize your commercial ice machine. These chemicals are approved for use with Avantco Ice Machines. Failure to regularly clean and sanitize your Avantco Ice Machine will void warranty coverage. For information and instructions, contact a Noble Chemical dealer. The ice machine needs to be cleaned every other month, or once a month for high yeast environments.

Cleaners

Item Number Size Type
147ARCTIC 16 oz. Concentrate
147ARCTICRPT 16 oz. Ready to use
147ARCTICR1G 1 Gallon Ready to use

Sanitizers

Item Number Size Type
147QKSANICE 12 Pack/16 oz. Bottles Concentrate
999QKSANICE 16 oz. Concentrate

Maintenance

NOTE: Maintenance must be done by a qualified technician.

WARNING: Before maintenance or manual cleaning, be sure to shut off the water source and power supply.

Exterior Cleaning

• Frequently clean the environment around the ice machine to keep it clean.
  Do not block the vents.
• The outer enclosure should be cleaned with a mild detergent and then wiped clean.
  If necessary, use commercial stainless steel cleaners and polishes.

NOTE: Stainless steel may rust without proper maintenance.

Inlet Water Filter

- The water filter should be inspected regularly. It is recommended to replace the filter cartridge every 3 to 6 months.

Interior Cleaning

• The inside of the ice storage bin can be washed with water and cleaner solution.
  Rinse thoroughly with water. Repeat this process with a water and sanitizer solution.
  • Note: Check and confirm the water pressure is lower than the maximum allowed pressure.
  Do not flush the part above the water pump or the evaporator directly for water protection.

Condenser

• For the air-cooled ice maker, the condenser should be cleaned every three weeks. Use a soft brush or a vacuum cleaner with a brush to brush it up and down along the fin direction, to avoid damage to the fins and further affecting the cooling effect.
• The condenser filter should be cleaned every 2 weeks.

NOTE: Be careful when cleaning the condenser as the edges of the fins are sharp.

Water Line

• In order to ensure food safety, the water line of the ice machine should be cleaned regularly.

Winterizing

- Turn off the water and power supply, drain the residual water from the water trough inlet pipe and drain pipe.

NOTE: The maintenance of the ice machine is not covered by the manufacturer's warranty!

User Manual

Clean Function

NOTE: Please empty the bin of ice in advance.

NOTE: Please clean and sanitize the bin and do a complete rinsing.

NOTE: Please clean and sanitize the ice sliding board, water distribution line, water supply line, water pump, then do a complete rinsing.

• Turn on the ice maker; push “clean” button for 3 seconds, the ice maker will begin the cleaning process. Put in the proper amount of cleaning solution manually into the water trough until it reaches the normal operating water level.
• Push the "clean" button. The ice maker will do auto clean for about 15 minutes. Please spray the evaporator with the cleaning solution in the meantime to ensure a complete clean. When finished, the LED display will flash "Clean" slowly again.
• Put in the proper amount of sanitizing solution manually into the water trough followed by the clean and sanitizing process instruction. Push the “clean” button again, the ice maker will do auto sanitizing for about 15 minutes. Please spray the evaporator with the sanitizing solution in the meantime to ensure complete sanitization. When finished, the ice maker will go into the rinsing process, this process will take about 5 minutes, and do 5 rinsing cycles. Refer to your cleaner and sanitizer for proper mixing & coding instructions.
• The ice maker will go back to making ice as soon as the cleaning process ends.
• Please throw away the next batch of ice in case of residual cleaner.

Manual Cleaning & Sanitizing

Cleaning Instructions

Two-panel image showing a lab device on a blue surface and a close-up of its tip, with no visible text or symbols.

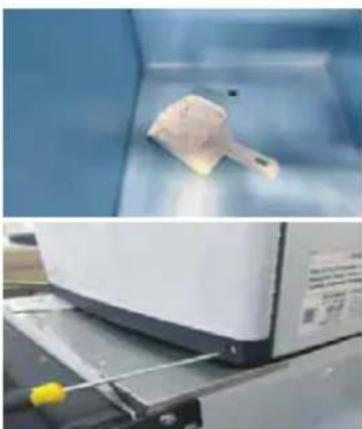

1. Remove all ice from the ice bin to avoid contamination.

2. Remove the 4 screws from the top and bottom of the ice machine's front panel and remove the front panel.

3. To empty the water from the tank while the machine is running, press and hold the "Clean" button for 3 seconds and enter the cleaning mode to display CLE. In the cleaning mode, press the "-" button for 3 seconds to drain.

Note: Cut off the power supply after draining

User Manual

ICE MACHINES AVANTCO

1. Make sure the power supply is cut off. Remove the water curtain.

2. Remove the 2 screws which are securing the spray pipe and remove it.

3. Remove the 2 screws which are securing the water pump.

Close-up of a hand pressing a small electronic component with a red circle highlighting the part (no visible text or symbols)

Person in camouflage uniform holding a tool near a white panel with a red circle highlighting the tool (no visible text or symbols)

Two-panel photo showing a white industrial machine with black cables and wiring, no visible text or symbols

1. Pull out the pump and sensor wiring harness.

2. Pull out inlet water pipe.

3. Pull out the hose hoop of the upper water pipe.

Close-up of a hand holding a small white connector with black wires, no visible text or symbols

Close-up of hands holding a tool with a red circle highlighting a specific area (no visible text or symbols)

Close-up of a mechanical component with a red-circled annotation highlighting a specific area (no visible text or symbols)

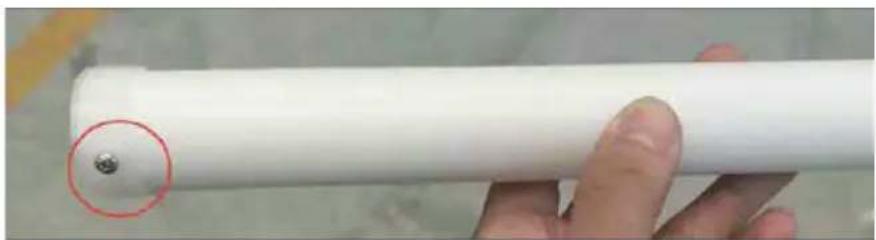

1. Disassemble fixed screws which are in the spray pipe. Dismantle the spray pipe.

Hand holding a white cylindrical object with a small dark spot, circled in red (no text or symbols visible)

Close-up of a white cylindrical object with a red oval highlight, possibly a mechanical or electronic component (no visible text or symbols)

1. After soaking, scrub the spray pipe, water curtain and pump base bracket with cleaning solution, and rinse with clean water.

Close-up of gloved hands holding a small bowl with a pen inserted, no visible text or symbols

Hand cleaning a green surface with a white plastic sheet (no text or symbols visible)

Close-up of hands cleaning a green bucket with a white plastic container (no text or symbols visible)

Person washing a green water bottle with a white plastic container (no text or symbols visible)

User Manual

AVANTCO ICE MACHINES

12.

Sanitizing Instructions

1. Mix a solution of sanitizer and water according to your ice machine sanitizer instructions. Ensure the sanitizer dissolves completely. Soak the water pipe, inner and outer spray pipe, head spray pipe fixing seat and screws, etc. in the solution for 5 minutes. If using a no-rinse sanitizer, there is no need to rinse.

Close-up of a transparent cylindrical container with a white liquid inside, no visible text or symbols.

Close-up of a hand holding a white plastic sheet with a grid pattern above, no visible text or symbols

User Manual

AVANTCO ICE MACHINES

Service Call

If the ice machine works abnormally, please confirm below before making a service call:

1. Check the water supply

• Whether there is water in the water trough;
- Whether the water pressure is 18.75 psi to 80 psi; the water temperature is 40 - 90^ ;
• Whether the water valve is open;
• Whether there is no water leakage;

2. Check the power

• Whether the indicator on the display panel is ON;
- Whether the panel display does not display the OFF standby state;
- If the LED on the display panel is not ON, check whether the plug and socket are normal, and whether the power supply switch is ON.

3. Check nameplate and serial number

- Check the nameplate located on the side or back of the ice machine and record the model and series number of the ice machine.

Note: If the machine fails due to the user's faults, such as failure to use and maintain a water filter, no supply of water, electricity or environmental factors, rather than the fault of the ice maker, the door-to-door service will be charged.

User Manual

ICE MACHINES AVANTCO

Troubleshooting

Fault	Potential Cause	Troubleshooting
Not working	Power switch not turned on	Turn on the power switch
Indicator is OFF	Plug is loose	Check plug and socket
Shutdown every 3 minutes after startup;	The ambient temperature is too high	Normal working temperature range of 41-95°F
The display shows E04 high temperature	Condenser is dirty and blocked High pressure switch wires fallen off	Clean the condenser
The display shows E06 high pressure protection	Fan does not start	Check and correct high pressure switch wiresCheck and correct the fan
Ice defrost abnormal	Ambient temperature too low	Normal working temperature range of 41-95°F
	Defrost valve does not start normally	Check and correct the defrosting valve
	Ice thickness too thin or too thick	Check and correct ice thickness setting

User Manual

ICE MACHINES AVANTCO

Poor transparency of ice cubes; ice cubes too thin or incomplete	Ice thickness is too thin	Check and correct ice thickness setting
	Water pressure is too low	Check that the water supply pressure is 1.3 bar to 5.5 bar
	Water temperature is too high	Normal working temperature range of 41-95°F
	Inlet water valve does not work Check and correct the inlet water valve	Check and correct the inlet water valve
	Inlet water valve is dirty and blocked	Check whether water leaks and correct
	Water leaking Check and correct the inlet water filter and water connection	the inlet water filter and water connection
	Inlet water filter has not been replaced for a long time
Too slow in ice making The condenser or air filter is dirty Clean the condenser and filter screen
Too much noise The ice machine is not placed in a leveled foundation or the ice maker is not leveled		Level the ice machine

ICE MACHINES AVANTCO

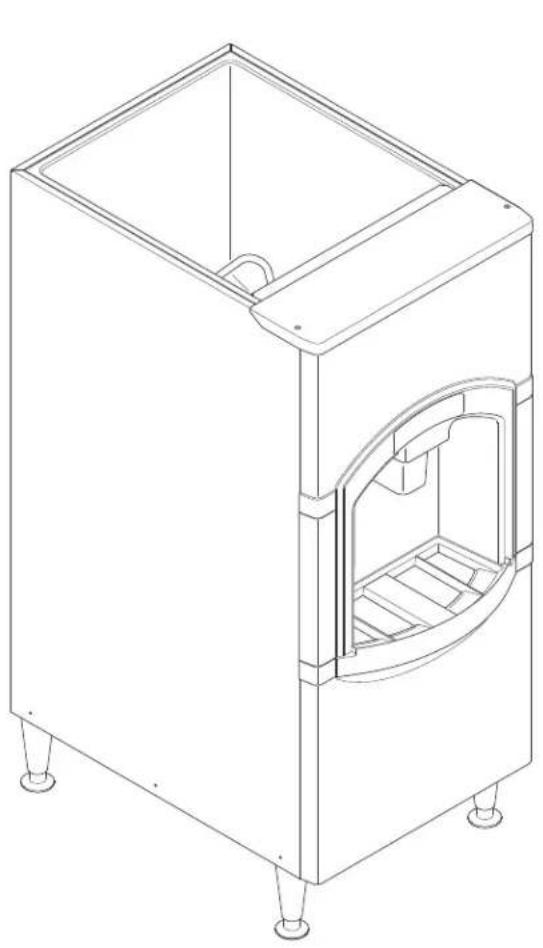

Hotel Ice Dispenser User's Manual

Models: 194HBN12022, 194HBN18030

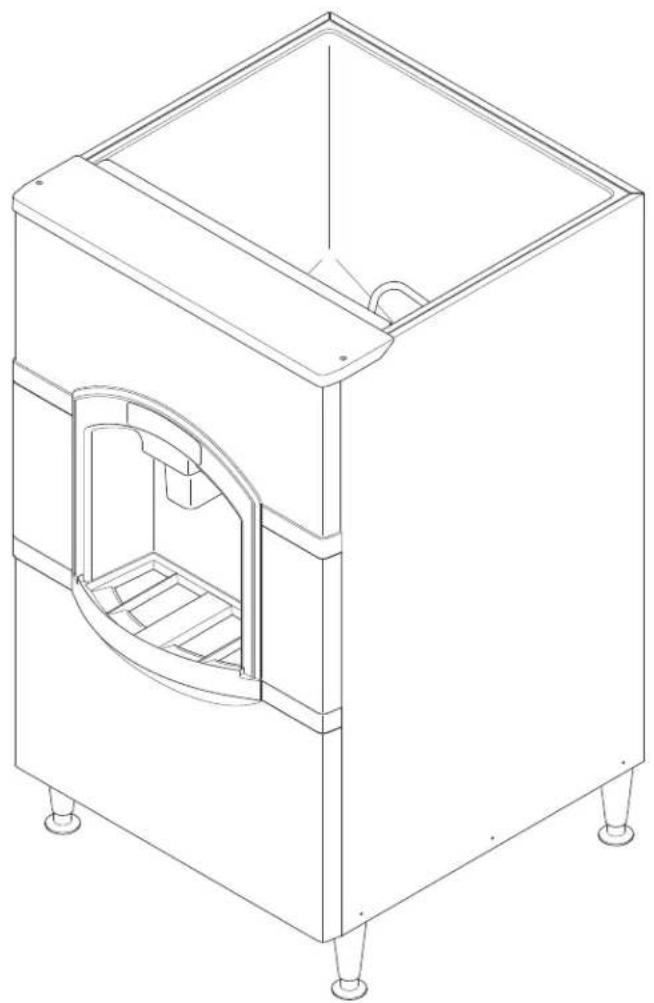

Technical line drawing of a rectangular industrial machine with internal compartments and mounting feet (no text or symbols)

Technical line drawing of a rectangular industrial machine with internal compartments and mounting feet (no text or symbols)

User Manual

AVANTCO ICE MACHINES

General Information

The 194HBN12022 22"W and is designed to use an Avantco Ice 194MC35022HA/FA or 194MC42022HA/FA cube ice machine as the source for ice production.

The 194HBN18030 is 30"W and designed to use an Avantco Ice 194MC50030HA/FA cube ice machine as the source for ice production.

Ice from the cuber falls into the insulated hopper, where it is stored until needed. When a user pushes the dispense chute a rotating wheel scoops the ice up to the top front of the hopper where there is an outlet to the ice chute.

Cuber Model Fits Dispenser Adapter
194MCF322A/194MCH322A 194HBN12022	194BKTHBN
194MCF422A/194MCH422A 194HBN12022		194BKTHBN
194MCH530A/194MCF530A 194HBN18030		194BKTHBN

Basic Specifications

Model Dimensionsw”xh”xd”with6”leg	BasicElectricalvolts/hertz/phase	Model Description	BinStorageCapacity
194HBN12022 22 x 53 x 33 1⁄2 115/60/1 Basic	22" model 60 Hz 120 lb
194HBN18030 30 x 53 x 33 1⁄2 115/60/1 Basic	30" model 60 Hz 180 lb

User Manual

AVANTCO ICE MACHINES

Specifications & Limitations

This ice dispenser is designed to be installed and operated indoors in a controlled environment. Follow the Installation Instructions in the Ice Machine Manual to ensure the ice machine has been installed properly.

	Minimum	Maximum
Air Temp	50 °F.	100 °F.
Voltage 60 Hz	104	126

Check the nameplate, located on the back of the cabinet for specific information.

Avantco Ice Machines assumes no liability or responsibility of any kind for products manufactured by Avantco Ice Machines that have been altered in any way, including the use of any parts and/or other components not specifically approved by Avantco Ice Machines.

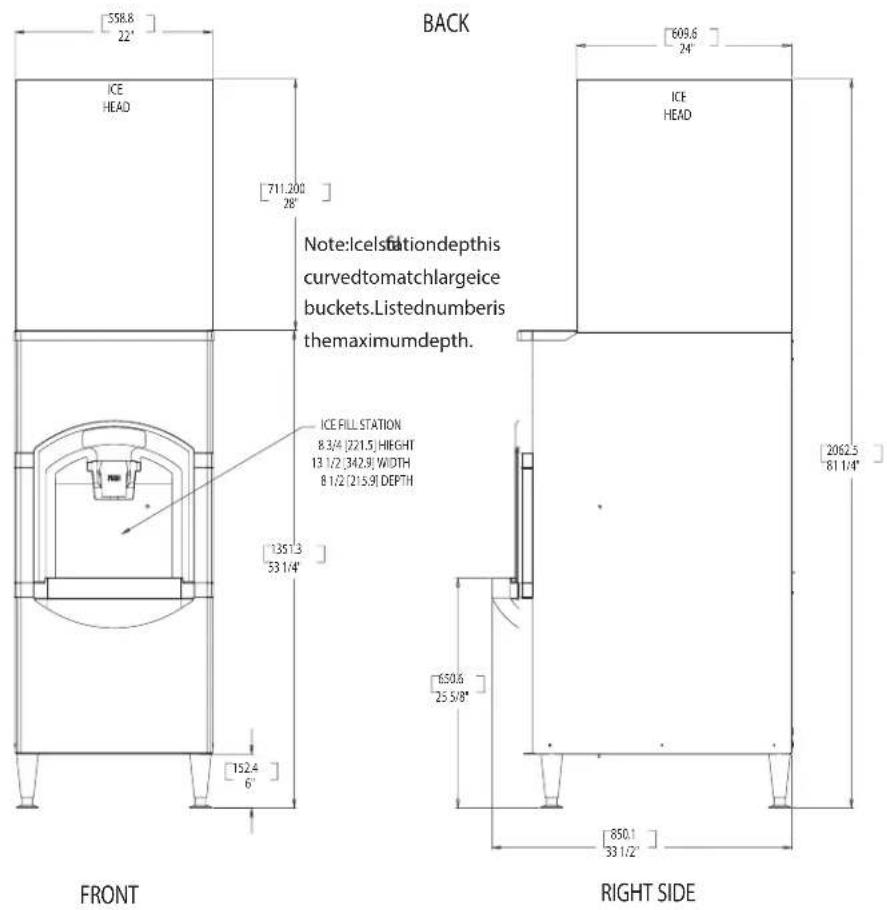

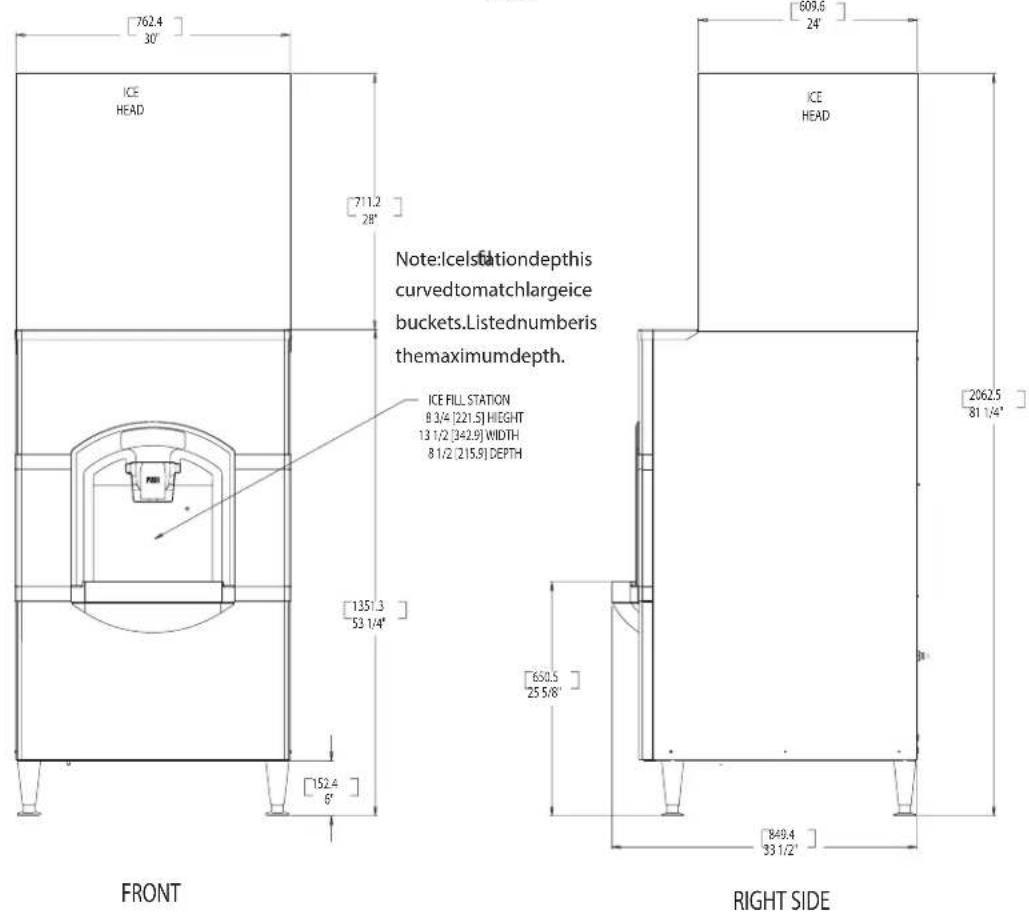

194HBN18030 Dimensioned Illustration

User Manual

194HBN12022 Dimensioned Illustration

User Manual

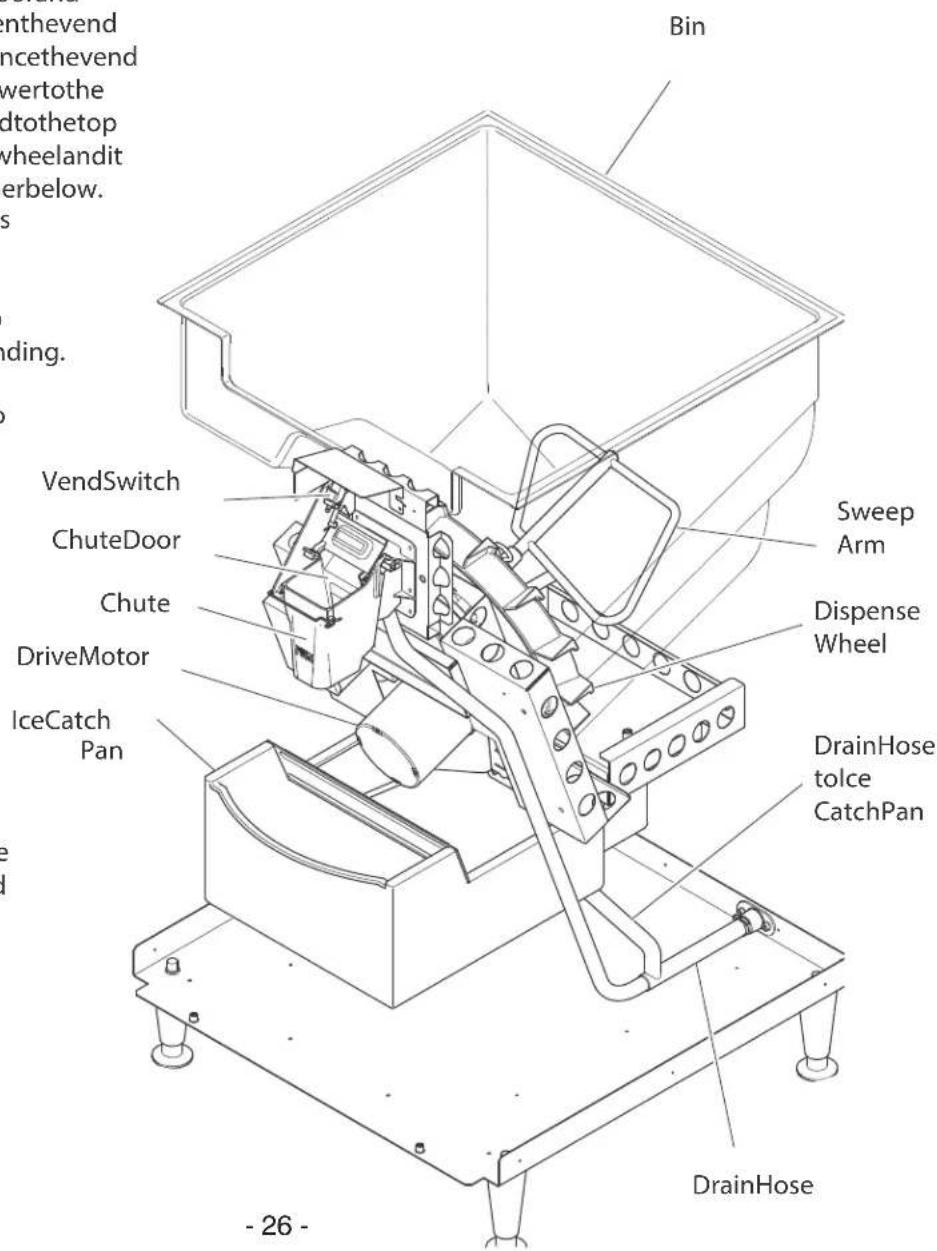

Product Description

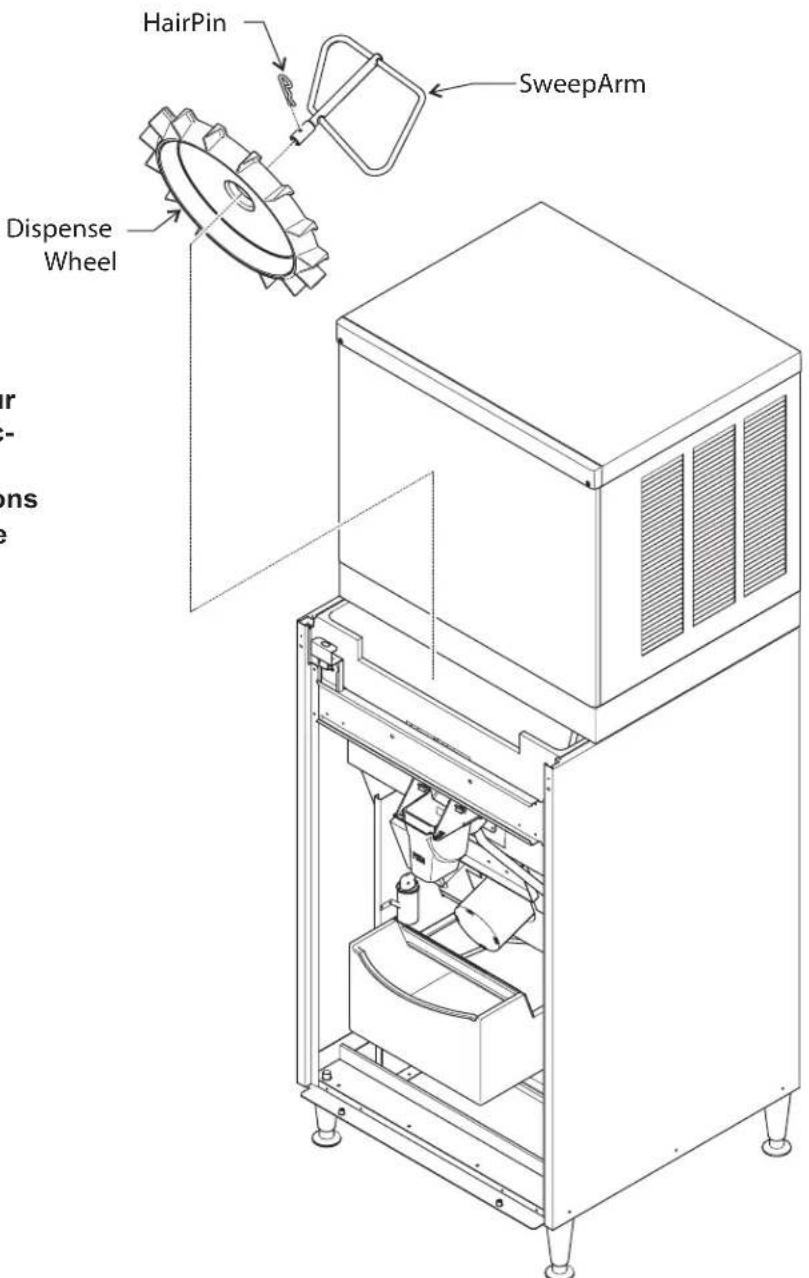

Allmodelsconsistofaplasticlined,insulated hoppermountedtoametalbase.Thehopper containsa15bladeplasticdispensewheelanda stainlesssteelsweeparm.Thetopfrontofthe hopperhasaremovabledoortofacilitate maintenanceandcleaningofthehopperwithout removaloftheicemachine.

Thedispensewheelandsweeparmrotatewhen thedispensedrivemotorisactuated. Thedrive motorsactuationiscontrolledbytheagitationtimer orthevendswitch. Whentheicedispensechuteis pushedbackitmovestheactuationleverup. The actuationleverreleasesthechutedoorand pushesthevendswitcharmup. Whenthevend switcharmhasmovedapresetdistancethevend switchcontactsclose, providingpowertothe dispensedrivemotor. Ice deliveredtothetop endoftheicechutebythedispensewheelandit slidesdownthechutetothecontainerbelow. Thecontainerrestsonagrill, thegrills openingsareovertheicecatchpan, andanyspilledicegoesthere. The grillhasa flangeatthefronttohelp containtheicei fitspillsduringvending. Aftertheicedispensechuteis released, theicechutedoorclosesto stopice flow. Iceinthechutewill eventuallymelt. Meltedicewater isroutedtothedrainthrougha hoseattachedtothebottomof thechute.Spillediceis containedinaninsulatedice catchpan. Meltedicewater fromtheicecatchpanis routedtothedrain.User debrisiskeptawayfromthe draininthecatchpanbya slottedshield.

Thesideandfrontexteriorpanelsare stainlesssteel. Thevendingarea and toppanelaremadeofplastic.

User Manual

AVANTCO ICE MACHINES

Unpacking

Afterremovingthecarton,checkforthe loose-shippedpartspackedinthestoragebin.The partswillincludeacartonwithfourlegs.Remove thelegcartonandanyotherloose-shippeditems.

Toremovetheskid,placepartofthecartonbehind theunitandtiptheunitonitsback.Removethe boltsholdingtheskidtothebaseoftheHBN dispenserandseparatetheskidfromtheunit.

Installthelegsintothebaseoftheunit,usingthe holeswheretheskidboltswere.Turntheleg levelerpartofthelegsinalltheway,adjustthem lateraftertheunitisinits finalinstalledposition.

Movethedispensertoanuprightpositionandsetitinthelocationwhereitwillbeinstalled.Notewhere drainlinesandelectricalconnectionswillbemade.

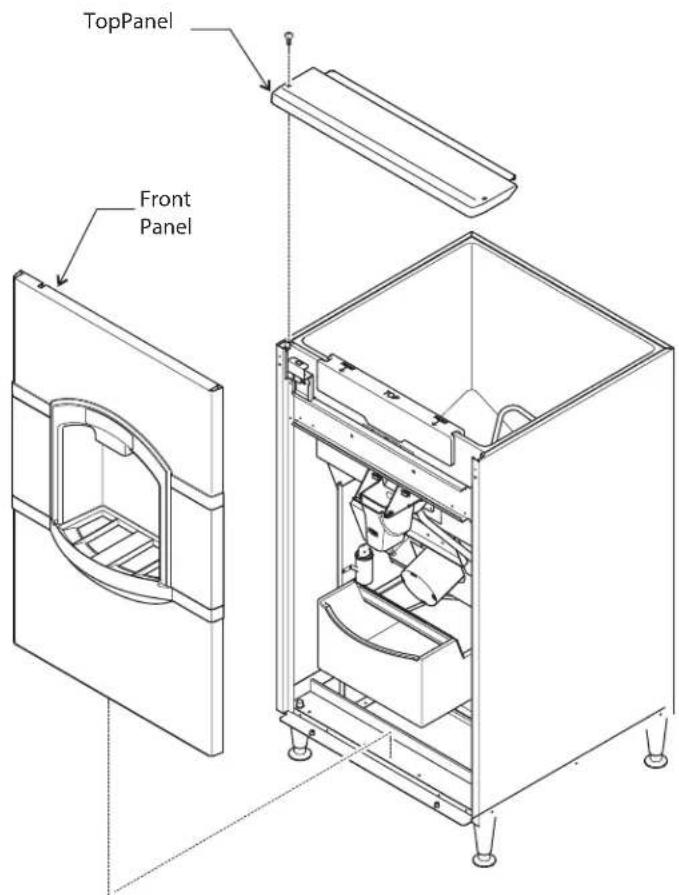

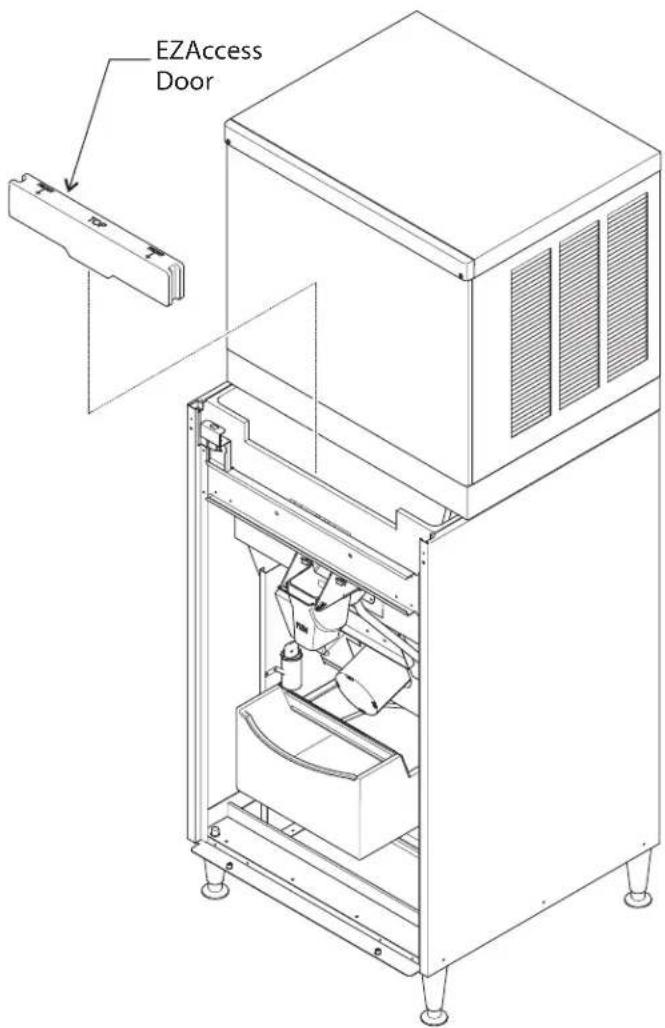

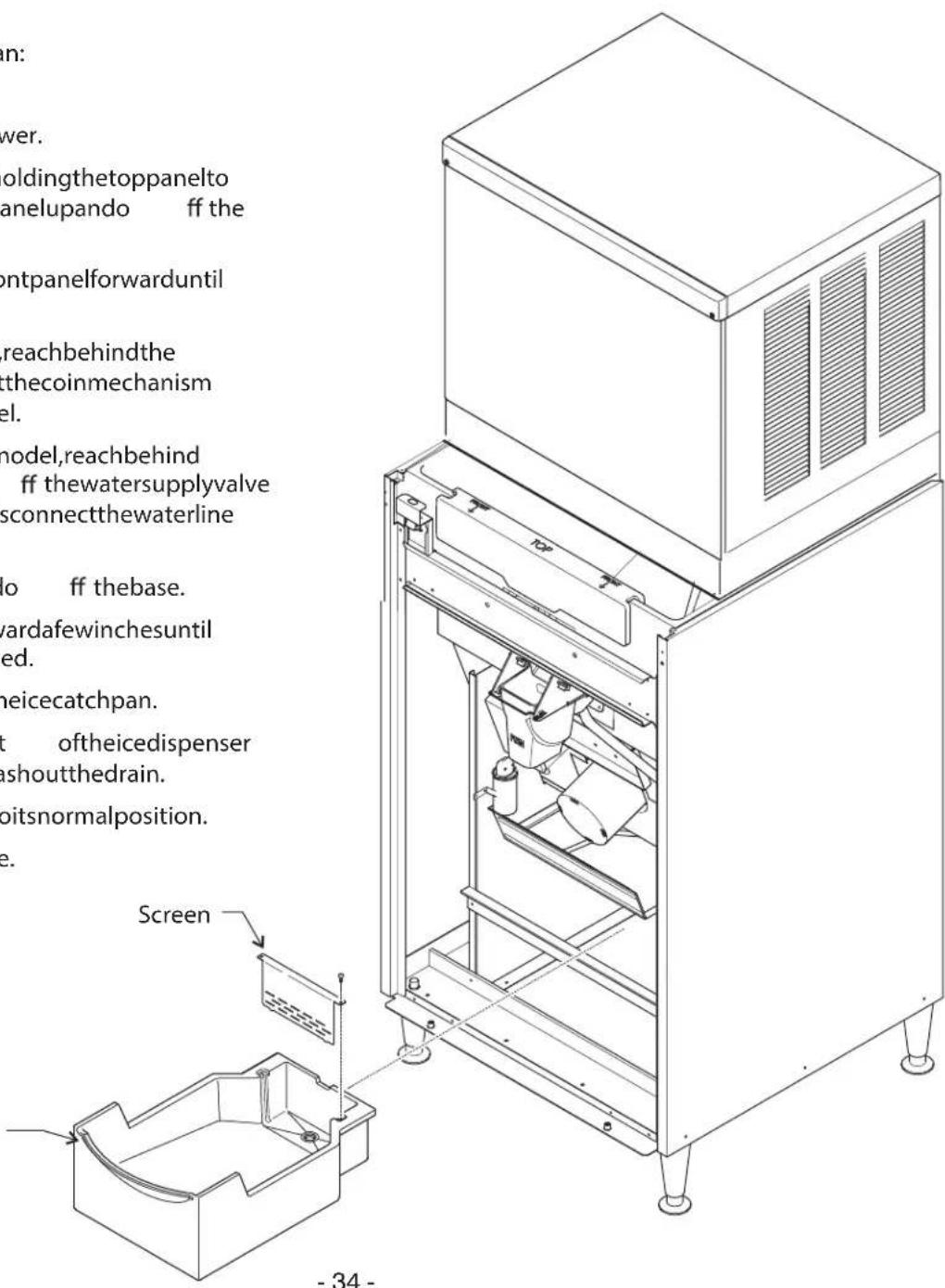

FrontPanelRemoval

Thefrontpanelrestsonthebaseandislocated withpinsthatstickupfromthebase.Itisretained tothesidepanelsbystrikesandlatches.Thetop panelkeepsthefrontpanelfrommovingforward.

Toremove:

1. Disconnectelectricalpower.

2. Removethetwoscrewsholdingthetoppanelto thedispenser. Liftthetoppanelupando ff the dispenser.

3. Pullthetopedgeofthefrontpanelforwarduntil thetwosnapsdisengage.

4.Liftthefrontpanelupando ff thebase.

User Manual

AVANTCO ICE MACHINES

Installation-Plumbing

Drain:

Allmodelsofthedispenserhavea3/4"FPTdrain fittingatthebottomofthebackpanel.Connect3/4" rigidtubingtothisconnection,aventis recommendedformostinstallations.Routethe draintubingtothebuildingdrain.

Note: Draing materialisplastic. If using

copper,sweatthecoppertubetocopper fitting togetherbeforeinstallingonthedispenser.

Note: Keep PVC solvent away from all plastic parts of the dispenser.

Followallapplicableplumbingcodes.

Becausethedraintubingwillbeverycold, insulationisrecommendedforthetubing.

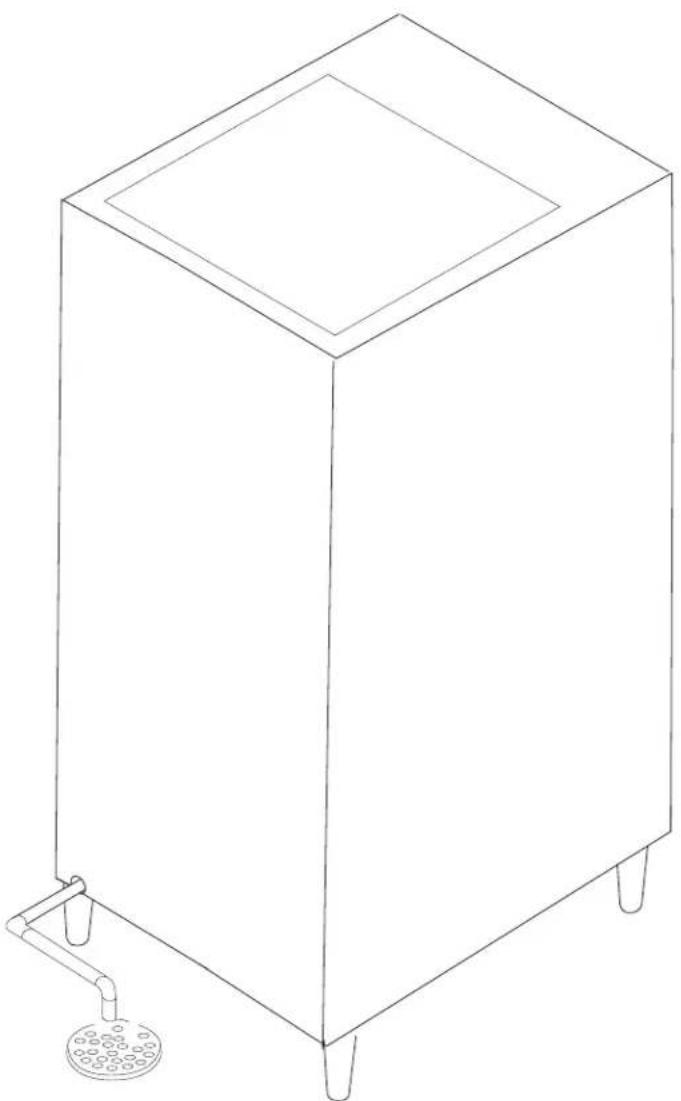

Line drawing of a rectangular industrial machine with a central square top and four base legs, no text or symbols present.

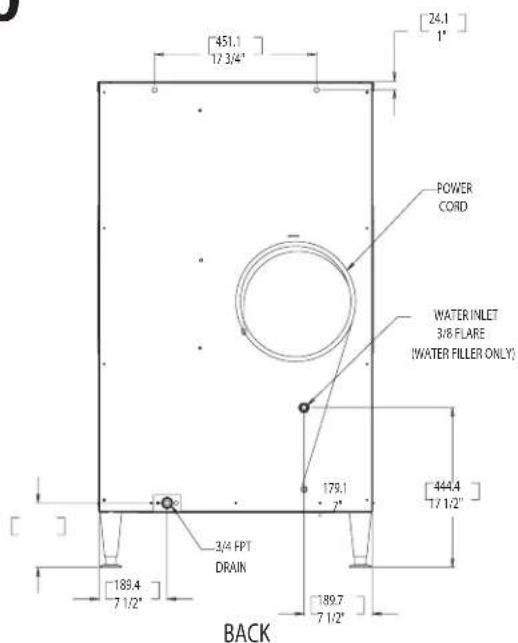

DrainConnection, BackViewofDispenser

Installation-Electrical and Ice Machine Assembly

The dispenser is supplied with a power cord. Do not use with an extension cord. The unit must be plugged into a properly grounded outlet.

The dispenser must be installed so that it is a separate piece of equipment from the ice machine. The drains and electrical supply must be separate.

FollowAllLocalStateandNationalCodes

IceMachine

All models: Place the dispenser in the location where it will be used. Level the top edge of the dispenser front to back and left to right ensuring a seal between ice machine and dispenser.

Sanitizethedispenserbinwithalocally approvedsanitizer.See page 11.

Place the ice machine on the dispenser and secure it to the dispenser with the hardware from 194BKTHBN Kit.

If using a compatible Oceanloch filter system, use the included M4 bolts from 194BKTHBN Kit to attach filter system to the ice machine through the the brackets provided holes.

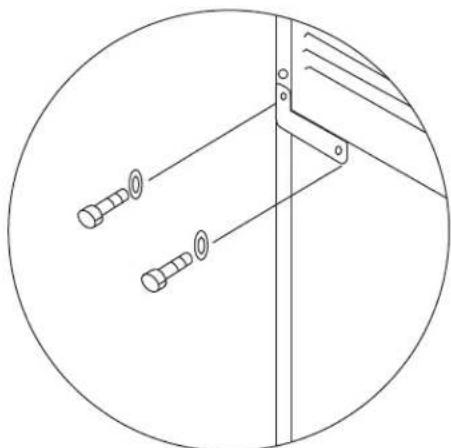

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Fasten Ice Machine to Dispenser

Back View of 194HBN18030 Installation

Back View of 194HBN12022 Installation

User Manual

Final Check List/Initial StartUp

1. Check that electrical power has been supplied.
2. Check that a drain, separate from the ice machine, insulated and made of frigid tubing, has been connected to the dispensers.
3. Check that the icemachine has been properly installed per the icemachines installation directions.
4. Check that the icemachine/dispenser assembly is level front to back and left to right.

ToStart:

1. Connectelectrical power. Thedispensing system will cycle on for a few seconds.
2. Gothruicemachinestartupprocedures. Letice machinemaketwoharvests.

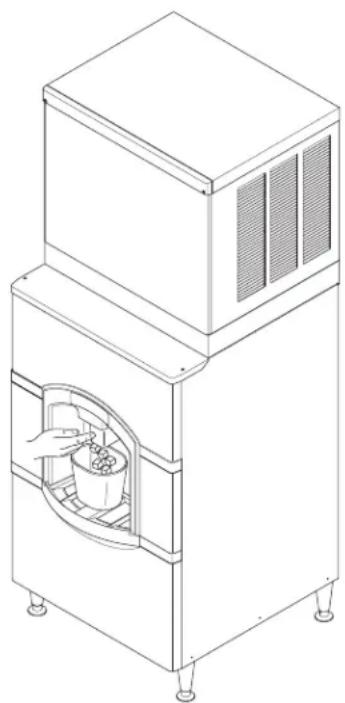

Line drawing of a two-tiered industrial machine with a potted plant inside, no text or symbols present

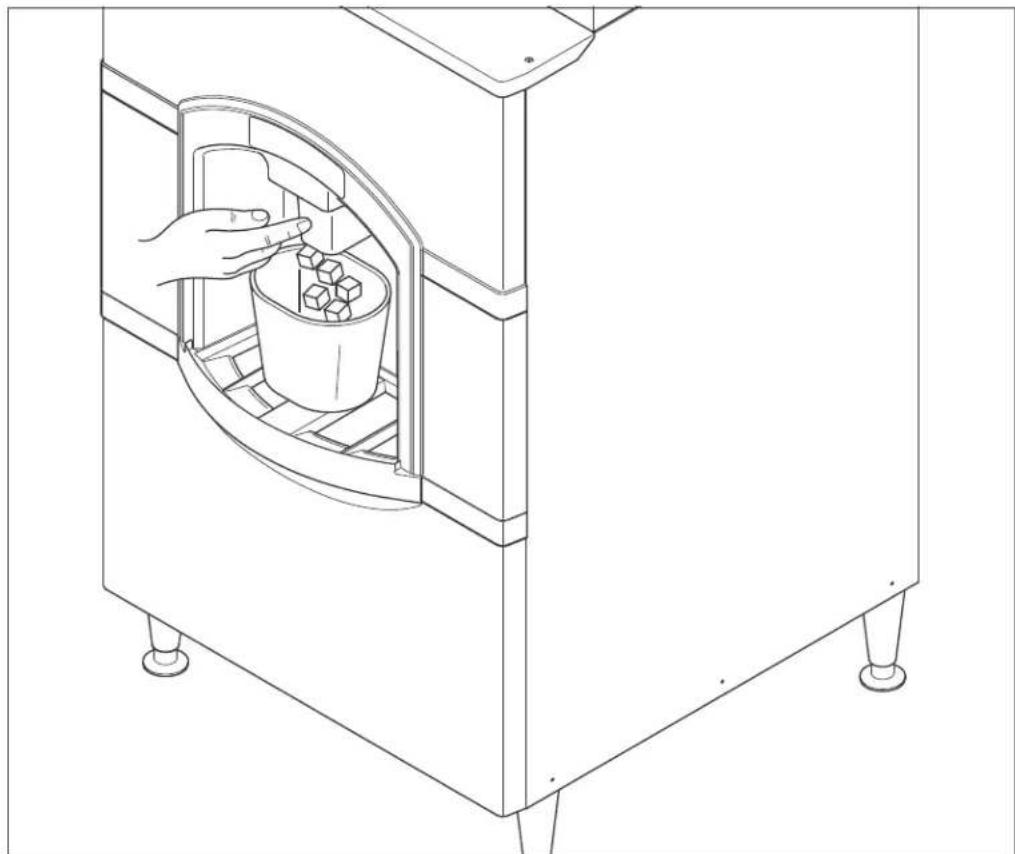

1. Pushtheicechutein.
2. Dispensewheelturns.
3. Ice will bed dispensed from mice chute.
   6.Givetheoperatoranykeysandtheinstructions ontheoperationandmaintenanceoftheproduct.

Check that the operator knows what to call for service, and has the product or servicemanuals for themachines.

ElectricalSequence

Pushingtheicechuteclosesacontacttothegear motor.

The gear motor will have power and the dispenser will continue to operate as long as the ice chute is pushed in. This model also has a agitation cycle of 3 second every 6 hours. Since the ice chute is not pushed during agitation noice is dispensed.

User Manual

AVANTCO ICE MACHINES

Use

No ice is dispensed.

Line drawing of a hand placing a container into a cooling unit with a curved lid (no text or symbols)

Pushthechutebacktodispenseice

User Manual

AVANTCO ICE MACHINES

General Care and Cleaning

Periodicallyinspectandcleantheicedispenserto keepitoperatingatpeakperformance.

Washtheoutsideofthedispenserwithwarmwater andsoap.Rinseo ff andwipedry.

CleaningandSanitizingofthelceStorageBin:

Theminerals, chlorine and other impurities in the waterarerejected from the water during the freeze cycle of the icemachine. These mineral will collect in the storage bin. The icestorage bin should be cleaned and sanitized every 90 days.

1. Remove all of the icestored insidethedispenser bin and shuto ff the icemaker.
2. Disconnectelectrical power to the dispensers.

Black-and-white illustration of a hand with a lightning bolt and smoke trail, symbolizing electrical hazard (no text or symbols)

WARNING

ElectricalShock and MovingParts Hazard

DisconnectElectrical PowerBefore BeginningServiceor Maintenance Procedures.

3.Removetopfrontpanel(infronto ficemachine).
4. Removethefrontpanel.

User Manual

General Care And Cleaning-Continued

1. Rinseallareas washed with clean, freshwater.
2. Using the icemachine cleanings solution, clean the ice grill, sink, sweep armand dispense wheel. Rinset these part with clean, freshwater.
   12.Tosanitize:Usealocallyapprovedsanitizer.A possiblesanitizer:Mixasolutiono ficemachine sanitizerandwater:1ounceofhouseholdbleach to2gallonsof(95 °F.-115 °F.)water.Wash allinteriorsurfaces,thesweeparmand thedispensewheelwiththesanitizer solution.Useacleancloth.
3. Allow the part stoair dry.
4. Reassemblewheelandsweep armontodriveshaft. Besureto reinserthairpin.
   15.Replaceallpanels.
5. Reconnectpower, besure icemachineisswitchedbackon.

Be sure to clean and sanitize your ice machine following the instructions that came with your ice machine. The cleaning instructions in this manual are only for the ice dispenser.

User Manual

Maintenance

Spillediceanduserdebriswillcollectintheice catchpan,locatedjustbelowthesinkgrill. Occasionallythedebriswillneedtoberemoved andthedrain flushedouttopreventwaterback ups.

Note: Failure to clean out the ice catch plan will likely result in a water leak, on that is NOT covered by warranty.

Tocleanouttheicecatchpan:

1. Removethefrontpanel.
   2.Disconnectelectricalpower.
2. Removethetwoscrewsholdingthetoppanelto thedispenser. Liftthetoppanelupando ff the dispenser.
3. Pullthetopedgeofthefrontpanelforwarduntil thetwosnapsdisengage.

If the unitisacoinopmodel, reach behind the frontpanel and disconnect the coin mechanism harness from the front panel.

If the unitisawaterstation model, reach behind the front panel land shuto ff the watersupply valve to the waterfaucet. Thendisconnect the waterline from the shuto ff valve.

5.Liftthefrontpanelupando ff thebase.

1. Pull the ice catch pan forward a few inches until the rainhose can be reached.

2. Pullthedrainhose from the ice catchpan.

8.Slidetheicecatchpanout oftheicedispenser andclearitofanydebris.Washoutthedrain.

1. Return the ice catch panto its normal position.

10.Re-attachthedrainhose.

IceCatchPan

User Manual

AVANTCO ICE MACHINES

Adjustments

Thedispenserispresetatthefactory.Adjustments arerarelyneeded.

AgitationTimeRecommendations:

Thestandardtimeis3secondsonevery6hours.

Adjusttoagitatemorefrequentlyiftheunitis installedinalowtemperatureenvironment.

However, if the ice being produced by the ice machine is cloudy and crumble easily, adjust to agitate less frequently.

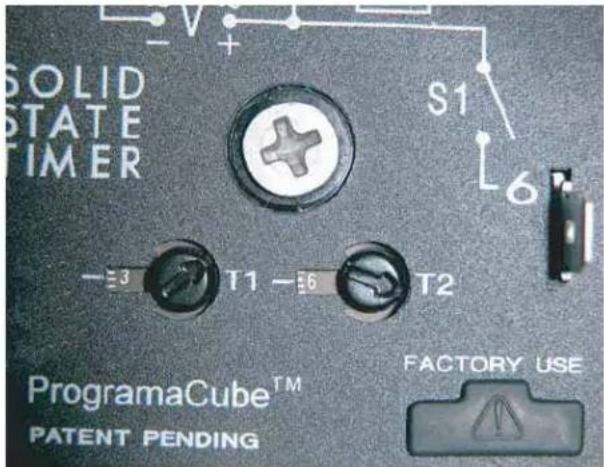

AgitationTimer, ShownPre-setto3seconds every6hours

User Manual

Service Diagnosis

	P r o b a	b IS R#p#ub#e#n
No ice is dispensed	No power to dispenser	Check for proper power, is dispenser plugged in?
	eNo	n#h
	Vend switch does not close	Check vend switchCheck chute for proper motion
	Chute cannot be pushed back	Check door lock for proper operation
	Interlock switch open	Check interlock switch, be sure top panel is in place
	Drive motor windings open	Check drive motor
	Drive gears failed	Check gear reducer
No ice is dispensed	Same as above plus coin switch does not close	Check coin switch
	Vend timer does not work	Connect power to post 6 of coin mech timer, timer should activate, ready light should be on and pushing the chute should start the gear motor, if not replace the vend timer
Only dispenses small amount ofice	Sweep arm damaged	Check/replace sweep arm
No water is dispensed		shut off valve inside cabinet
	kæl r æ'w a	ugdniaD
	Ice catch pan has overfilled	Remove excess ice
	Ice catch pan screen is plugged	Clean screen
	Seal between ice machine and dispenser is leaking	Remove ice machine and replace gasket tape
Water drip from spout	Some dripping is normal, but if severe	Check spout drain for restriction
"Ready" light is on all the time	Resistor is open	Replace resistors (15K, 2 watt in parallel)
