Product Type	Carpet Extractor
Brand	Tornado
Model	Marathon 350
Dimensions (L x W x H)	30 x 22 x 38 inches
Weight	55 lbs
Power Supply	120V, 60 Hz, 10 Amps
Motor Power	1.5 HP
Solution Tank Capacity	5 gallons
Recovery Tank Capacity	4 gallons
Cleaning Width	14 inches
Main Functions	Water and dust vacuum, solution spray, carpet extraction
Maintenance	Clean filters after each use, check hoses for clogs
Safety Features	Automatic shut-off when recovery tank is full
Spare Parts	Filters, spray nozzles, vacuum hose, squeegee
Repairability	Modular design for easy access to components; serviceable by authorized technicians
Color	Blue and gray
Material	High-density polyethylene tank, aluminum frame

Frequently Asked Questions - Marathon 350 TORNADO

How do I use the Tornado Marathon 350 carpet extractor?

Fill the solution tank with water and appropriate cleaning solution. Plug the machine in, turn it on using the switch, and squeeze the trigger to spray the solution while moving forward. Release the trigger and pull backward to vacuum the dirty water. Empty the recovery tank after use and clean the filters.

What cleaning solutions can I use with the Marathon 350?

Use only low-foam carpet cleaning solutions recommended by Tornado. Avoid using household detergents or bleach as they can damage the machine and void the warranty.

How often should I clean the filters?

Clean the vacuum filters after each use to maintain optimal suction. Remove the filter, rinse it with water, and let it dry completely before reinstalling. Replace filters if damaged.

Why is the suction weak?

Weak suction can be due to a full recovery tank, clogged filter, or blockage in the hose. Empty the tank, clean the filter, and check the hose for obstructions. Also ensure the tank lid is sealed properly.

Can I use the Marathon 350 on upholstery?

Yes, but you need to attach the upholstery tool (sold separately). Reduce the solution flow for delicate fabrics. Test on an inconspicuous area first.

How do I empty the recovery tank?

Turn off and unplug the machine. Remove the recovery tank lid, lift the tank out, and pour the dirty water into a drain. Rinse the tank with clean water and replace it securely.

What does the automatic shut-off feature do?

The automatic shut-off activates when the recovery tank reaches its maximum capacity, stopping the vacuum to prevent overflow. You will need to empty the tank to resume operation.

Where can I purchase replacement parts?

Replacement parts are available through authorized Tornado dealers or online parts retailers. Use only genuine Tornado parts to ensure compatibility and performance.

How do I store the carpet extractor?

After use, empty both tanks, rinse them, and allow to dry. Wrap the power cord around the cord hooks. Store in a cool, dry place away from direct sunlight. Do not store with water in the tanks.

What should I do if the machine won't start?

Check that the power cord is plugged in and the outlet is working. Ensure the on/off switch is in the ON position. Also check the circuit breaker (if equipped). If the problem persists, contact customer service.

USER MANUAL Marathon 350 TORNADO

Operations & Maintenance Manual For Commercial Use Only

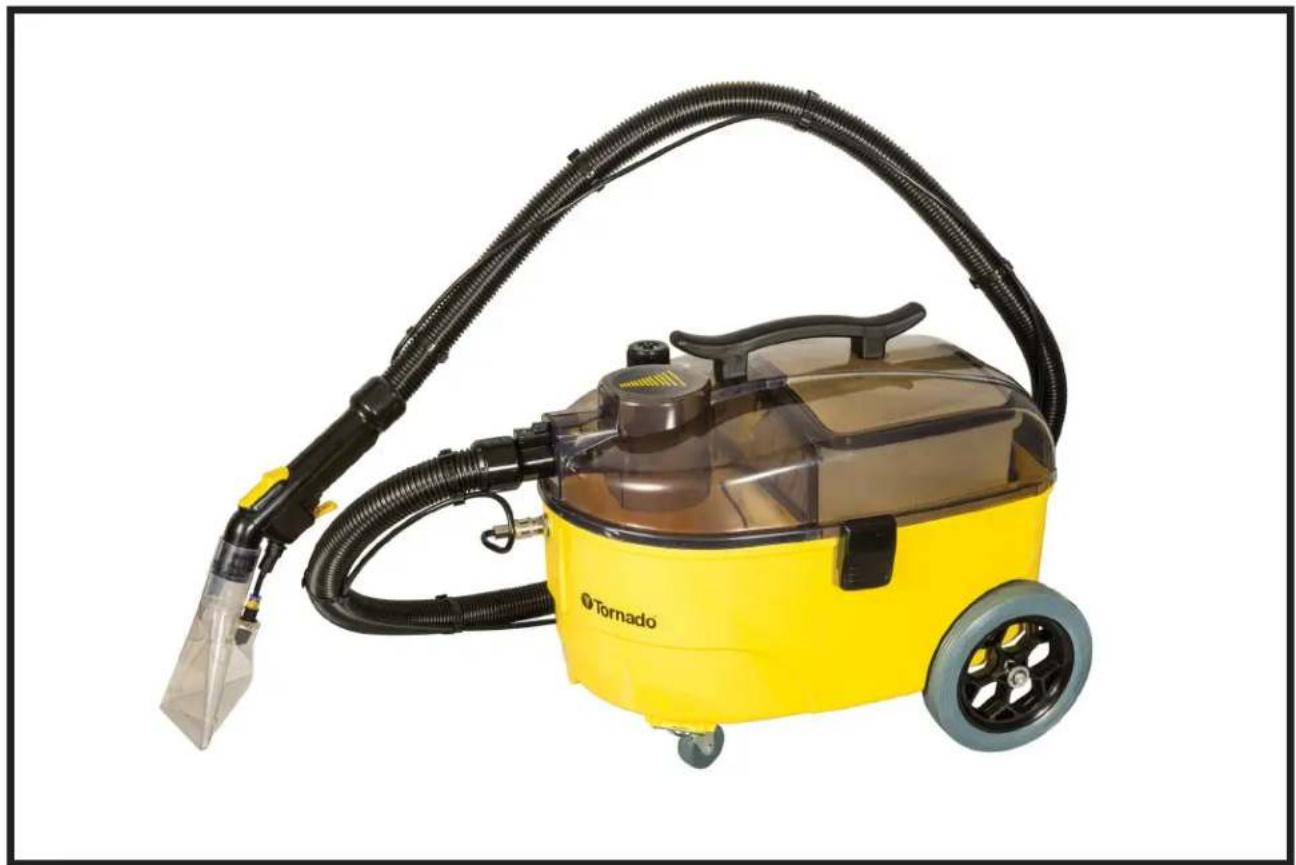

Yellow Tornado vacuum cleaner with black hose and wheels, no visible text or symbols on device body

MARATHON 350 CARPET EXTRACTOR MODEL NO: 98132

NOTES

Symbol of a trash bin crossed with no text or labels

PROTECT THE ENVIROMENT

Please dispose of packaging materials in an environmentally safe way according to local waste disposal regulations.

Green recycling symbol with three chasing arrows forming a triangle (no text or symbols)

Always remember to recycle.

Within 30 days, to activate the warranty, go to; https://tornadovac.com/services/warranty-registration-form.aspx

For warranty information go to www.tornadovac.com

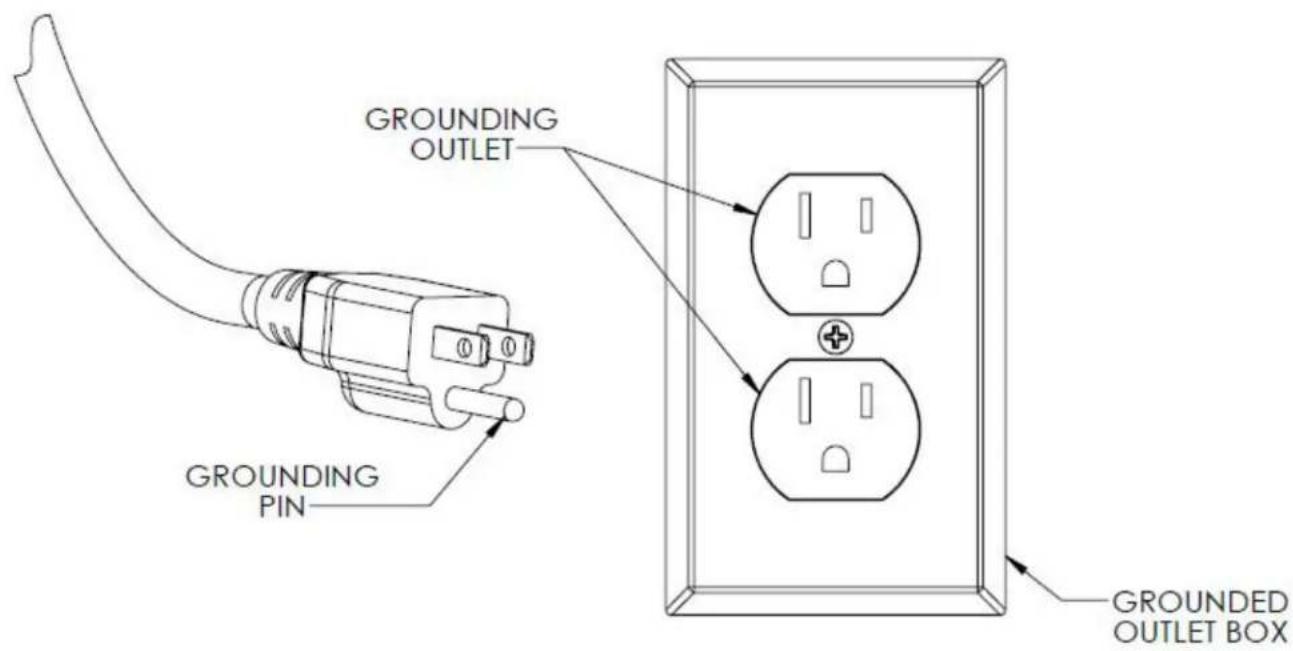

GROUNDING INSTRUCTIONS

This appliance must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk electric shock. This machine is equipped with a cord having an equipment -grounding conductor and grounding plug. The plug must be inserted into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

WARNING: Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service person if you are in doubt as to whether the outlet is properly grounded. Do not modify the plug provided with the appliance - if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

This appliance is for use on a nominal 115-volt circuit, and has a grounding plug that looks like the plug illustrated in sketch A.

A

General Information

The Marathon 350 carpet soil extraction machine is designed for the efficient cleaning of carpets and upholstery. It has been designed for the professional user to ensure long service life and safe operation.

We recommend that any user not familiar with carpet cleaning should read these instructions fully before using the machine. Please contact Tornado Industries for questions on the contact details provided at the back.

This machine must only be used for the manufacturer's approved application. The Marathon 350 is designed for the cleaning and removal of normal carpet soil. Do not use the machine where it is suspected that the carpet or upholstery contains health endangering dust or debris such as asbestos or chemical waste. If this is suspected, do not proceed. Contact your supervisor or Tornado Industries for advice.

The following instructions contain important information about the machine and safety advice of the operator.

Equipment must be operated, serviced and maintained in accordance with the manufacturer's instructions. If in doubt, contact the supplier of your machine.

Important Safety Advice

When using electrical equipment basic safety precautions should be followed including the following.

- Read all instructions carefully before use.

- Keep children and unauthorized persons away from the machine when in use.

- Do not leave the machine connected to the electricity supply when not in use; always remove the plug from the socket-outlet.

- Switch off the machine before removing the plug

- When unplugging, pull the plug and not the supply cord.

- Do not operate switches or touch the main plug with wet hands as this may cause electric shock.

- Do not operate the machine with a damaged supply cord or plug, or after the machine malfunctions or is damaged in any way.

Contact an authorized Service Agent for repair or adjustment.

- The plug of the power supply cord must be removed from the socket-outlet before commencing cleaning of the machine or undertaking maintenance operations.

- The power supply cord must be regularly inspected for signs of damage. If the power supply cord is damaged, it must be replaced.

- Do not use where hazardous dust is present.

- Do not use in an explosive atmosphere.

- Do not pick up oil or other flammable material with the machine.

• Take care when using the machine near the top of stairs.

Guidelines for The Operator

- Operators must be fully trained in the use of the machine in accordance with these instructions, able to perform user maintenance and the correct selection of accessories.

- Operators should be physically capable to maneuver, transport and operate the machine.

- Operators should be able to recognize unusual operation of the machine and report any problems.

- Wear suitable footwear to avoid slipping.

- Wear suitable clothing to keep dry and warm.

- Where possible, implement job rotation and adequate rest periods to avoid continuous use of the same muscles.

- Do not leave the machine running unattended.

- Do not allow children to crawl on carpets until it is thoroughly dry.

- Keep cleaning solutions away from children and pets at all times.

- Do not smoke when using the machine.

- Caution – This machine is for indoor use only and should not be used or stored outdoors or in wet conditions.

- Warning – Should water emit from the machine exhaust, switch off immediately and refer to instructions for “Using the Machine”.

Transporting the Machine

When transporting the machine ensure that all components, tanks and removable parts are securely fastened, and that the supply cord and plug are not trailing. Detach hose and wand from machine for ease of carriage.

Do not lift or transport the machine when it contains liquid, as it will add considerable weight. Take extreme care when moving the machine up and down the stairs.

Caution – Incorrect lifting techniques may result in personal injury. We advice that the manual handling regulations are followed.

Electrical Connection

- Before connecting the machine to the power supply, check that your supply voltage corresponds with that marked on the rating label on the rear of the machine.

- IMPORTANT – If the supply cord is damaged, it must only be replaced by a special cord available from the manufacturer or an authorized service agent.

Should an extension cord be used, ensure cord rating is adequate for the equipment. Do not use extension cord in coiled condition as this could result in overheating of the cord.

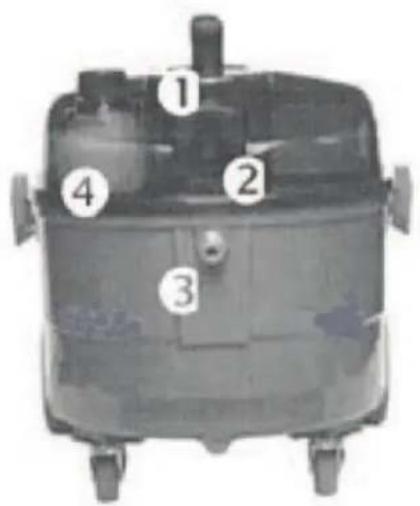

Controls

Black industrial vacuum cleaner with seven numbered parts (no visible text or symbols)

Cartoon-style toy car with two boxes on top, labeled 8 and 9 (no text or symbols on the cart itself)

1. Hose release catch
2. Vacuum hose
3. Solution outlet
4. Anti-foam tank
5. Solution pump switch
6. Vacuum switch
7. Machine cover
8. Removable solution tank
9. Removable recovery tank

Preparing for Use

• Make sure both tanks are clean before use.
• Connect the flexible vacuum hose onto the vacuum hose inlet and the high-pressure spray hose onto the solution outlet. (fig. 1)
• Connect the vacuum hose and the high-pressure spray hose to the carpet cleaning wand or the upholstery tool.
• Fill the clean water tank with detergent and water. Use the correct dilution rate for the detergent.
• Fill the anti-foam tank with an appropriate de-foamer solution.
• Important – Always use low foaming carpet cleaning chemicals. If using foaming carpet cleaning chemical, or if foam develops due to residues in the carpet, ensure that an appropriate de-foamer is used in the anti-foam tank. Incorrect chemicals could cause damage to the carpets being cleaned or cause the machine to malfunction.

Never over fill.

Fig 1

Close-up of a mechanical device with a lever and cable (no visible text or symbols)

Operation

Starting the Machine

• Connect the cable to main power.
• Ensure the slider on top of the trigger unit is in the closed position
• Switch on the unit spray and/or vacuum.
• Squeeze the trigger to spray solution onto the carpet/ upholstery. Maintain a constant pressure of the wand/tool onto the surface to be cleaned. (fig. 2)

Using the Machine

- To dry the surface being cleaned, complete the cleaning with a second pass with the vacuum (and no spray).

- Never soak the textile being cleaned while spraying.

Cleaning Carpet

Color Fastness – Before using cleaning solution or pre-spotter, test carpet for color fastness on an inconspicuous area. Apply solution to a small piece of clean white material or tissue, and then rub on carpet vigorously. Excessive amounts of dye showing on the material indicate that the color is not fast, and the carpet should not be wet cleaned.

- Move furniture around to give a clear working area. Cover bottoms of furniture legs where necessary (aluminum cooking foil is ideal). Pin up curtains and drapes.

• Vacuum carpet thoroughly to remove any residual dust or debris.

- Areas of heavy carpet soiling can be removed more easily if first treated with a concentrated cleaning solution or pre-spotting solution.

- Rate of cleaning will depend upon the thickness of the carpet and the degree of dirt in the area being cleaned.

- Do not clean any more than twice. Carpets may shrink if they are over-wet or not properly fixed down.

Cleaning Stairs

CAUTION – When cleaning on stairs take great care to ensure that machine is stable, otherwise it may cause injury to either the operator or a third party. Use the stair/upholstery tool for cleaning in place of the wand assembly.

Cleaning Upholstery

This is done in the same way as carpet cleaning except using the upholstery tool in place of the wand assembly. Cleaning is achieved using a gentle dragging motion of the upholstery tool over the material.

• An inconspicuous area of the item to be cleaned should always be tested for color fastness prior to cleaning. Should doubt exist as to the suitability of the fabric for wet cleaning, the chemical manufacturer should be consulted for advice.
• Loose cushions should be removed and cleaned separately.
• Care should be taken to avoid over-wetting the fabric.

When Cleaning is Finished

Draining and Cleaning

• Before removing the spray hose, pressure in the system must be released. With the pump switched off, hold the spray nozzle over the removable recovery tank and squeeze the spray trigger until the remaining solution has been released. The spray hose can now be disconnected.
  • After use, check that both solution tanks are empty.
  • Empty the solution tank and rinse.
  • Empty the recovery tank and rinse clean.
• Rinse both tanks out with clean water before storing the machine.
• Clean nozzles and hoses.

Storage

• Always unplug, empty, wipe down and dry the machine after use.

- Wrap supply cord around the handle of the machine ensuring that the plug is not trailing on the floor. Store the machine in a dry indoor area only.

Maintenance

WARNING – Before undertaking maintenance operations or adjustments, switch off machine and unplug from the electricity supply.

The machine requires minimum maintenance apart from the following checks by the operator.

- Supply cord – Regularly inspect sheath, plug and cord anchorage for damage or loose connection.

- Solution tank – Check filters are clean and undamaged. A damaged or missing filter must be replaced or damage to pump head and spray jet may occur.

- Vacuum filter – Check the vacuum filter is cleaned and replaced as appropriate.

- Vacuum head – Check and remove and debris or lint build-up from the head.

- Spray jet – Check jet for blockage and full spray pattern. Blow through jet to clean. Do not use a pin, as this could damage the jet.

IMPORTANT – All other servicing and repairs should only be performed by a Tornado engineer or an Authorized Service Agent.

IMPORTANT – Should the machine fail to operate please refer to the fault diagnosis section in the back of the instruction manual. If the problem/remedy is not listed, please contact Tornado Customer Service Department.

Technical Specification
Model Marathon 350
Voltage V 110
Pump Type Magnet
Pump Power W 50
Pump Pressure Bar/psi 4/58
Flow Rate gal/min .5
Vac Hose Length ft 8
Vac Motor W 1100
Water Lift mm/kPa 2000/20
Airflow gal/sec 10.14
Solution Tank Capacity gallon 1.5
Recovery Tank Capacity	gallon 1.5
Sound Pressure Level	dB(A)	78
Size (L x W x H)	inches 21 x 15 x 17
Cable Length	ft 15
Weight	lbs.	22

Fault Diagnosis

Problem	Reason	Remedy
The spray pump and vacuum does not work	Power failure	Check the main fuse*, the power supply cord and the plug
No spray or the spray is not even	Spray nozzle is blockedSolution tank is emptySolution feed filter blockage	Check the spray pipe and nozzleIs there water in the tank? If there is water in the tank, wait for a couple of seconds for the pump to build up pressureIf the tank is empty, fill it as indicatedThe filter in the clean water tank, the pipe or the nozzle may be blocked. Switch off the unit and perform maintenance.
The vacuum power fails	The recovery tank may full	Empty recovery tank

*If the fuse blows several times, the machine should be checked by an authorized Service Agent.

TORNADO®

Form No. L9728 EB 09/20
