CPL 4T - Loudspeaker CREST AUDIO - Free user manual and instructions

Product Type	Ceiling Speaker
Brand	Crest Audio
Model	CPL 4T
Frequency Response	65 Hz - 11.8 kHz (-10 dB)
Power Handling	40 W @ 8 Ω
Nominal Sensitivity	86 dB ±3 dB (1W/1m)
Transformer Taps (100V)	15W, 7.5W, 3.75W, 1.9W, 1W
70V Capable	Yes
Component	4" woofer (PP cone, rubber surround), 3/4" soft dome tweeter
Crossover Frequency	4 kHz (24 dB/oct Linkwitz-Riley)
Recommended High-Pass Filter	80 Hz (24 dB/oct Linkwitz-Riley)
Outside Dimensions	275 mm x 170 mm
Cutout Diameter	243 mm
Weight	1.81 kg (4 lbs)
Magnetic Suction Grille	Easy to disassemble and clean
Rotatable Logo	360° rotation
Fireproof Cover	Ultrathin fireproof design
Steel Dome	Integrated steel fire dome
Tweeter Aiming	Adjustable for optimal coverage
Packaging	Carton boxed, 4 units per case
Warranty Registration	Online at peaveycommercialaudio.com/warranty

Frequently Asked Questions - CPL 4T CREST AUDIO

How do I install the CPL 4T ceiling speaker?

Use the cutout template to mark and cut a 243 mm hole in the ceiling. Connect speaker wire to the 4-position screw-terminal barrier strip, then attach a secondary support line from the seismic tab. Insert the speaker, tighten the four dog-leg screws to clamp it, and attach the magnetic grille.

How do I set the transformer tap for a 70V or 100V system?

Remove the grille to access the rotary tap selector switch. Turn it to the desired power setting: 15W, 7.5W, 3.75W, 1.9W, or 1W for 100V systems. For 70V, the same taps are available.

Can I aim the tweeter for better sound coverage?

Yes, gently grasp the tweeter flange and rotate it to point toward the desired listening area. Do not apply excessive force to avoid damaging the mounting post.

What is the recommended high-pass filter setting?

Use a 24 dB/oct Linkwitz-Riley high-pass filter at 80 Hz to optimize performance and protect the speaker from low frequencies.

What is the power handling at 8 ohms?

The speaker can handle up to 40 W at 8 Ω in low-impedance mode.

What are the outside dimensions and cutout size?

Outside dimensions are 275 mm x 170 mm. The required cutout diameter is 243 mm.

Is the grille removable for cleaning?

Yes, the grille is magnetic and can be easily removed for cleaning or access to the rotary tap switch.

What is included in the package?

Each speaker comes individually packaged; however, the unit is sold in a carton box containing 4 speakers. The package includes the speaker, cutout template, and mounting hardware (screws and dog legs).

How do I register the warranty?

U.S. customers can register online at www.peaveycommercialaudio.com/warranty or scan the QR code provided in the manual.

Can the logo be rotated?

Yes, the Crest Audio logo can be rotated 360 degrees to align with the installation orientation.

USER MANUAL CPL 4T CREST AUDIO

Close-up of a white and black circular speaker with textured grille, partially visible against white background (no text or symbols)

Operating

Manual

Frame Construction Ceiling Installation

1

Take the cutout template from the packaging box and punch out along the larger perforated circle. Place the cutout template against the bottom of the ceiling and trace the inside of it. Carefully cut out the ceiling material along the circle.

2

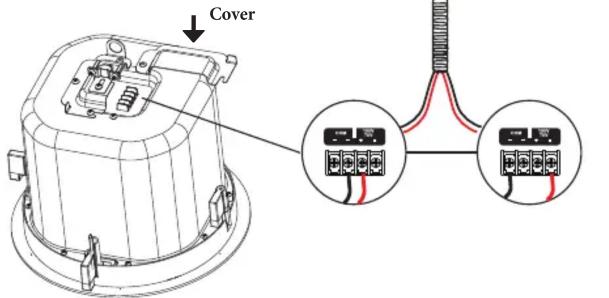

Remove the top cover to contact the 4-position screw-terminal barrier strip on the back of the speaker. Connect the speaker wire to the 4-position screw-terminal barrier strip. Install the catheter and secure the connection.

2
Enlarged to Show Detail
From → Power Amplifier

3

Replace the top cover and tighten the screws. connector a secondary support line from the seismic tab to a secure support point.

Parallel Hookup Wiring Diagram

3

4

Remove the grille and set the rotary tap selector switch. insert the speaker through the bottom of the hole in the ceiling.

4

Adjusting the tap selector

Line drawing of two hands holding a circular device with internal components, no text or symbols present

5

Loosen the four screws on the front baffle (counter clockwise) 1/2 turn. Then tighten the screws (clockwise) until the dog legs clamp the speaker to the ceiling. Then install the speaker grille. CAUTION Do not over tighten screws.

5

Crest Audio CPL4T Ceiling Speaker Specifications

Frequency Response ......65Hz - 11.8kHz,-10dB

Power Handling ...... 40W @8Ω......

Nominal Sensitivity...... 86dB ±3dB ,1m,1W..

Transformer Taps....15W, 7.5W, 3.75W, 1.9W, 1W, (100V) 70V capable

Component......4" woofer, PP cone and rubber surround 3/4" soft dome tweeter

Crossover Frequency 4kHz......

Recommended filter type and point: 24 dB/oct.

Linkwitz-Riley at 80 Hz.

Outside Dimensions.275mm x 170mm

Cutout Diameter.....243mm

Weight....1.81kg/4 lbs

The CPL4T tweeter can be aimed toward a desired listening area, so the clarity of the announcements or music can be improved. Carefully but firmly grasp the tweeter flange and aim the tweeter in the desired angle.

DO NOT APPLY EXCESSIVE FORCE, OR THE TWEETER MOUNTING POST MIGHT GET DAMAGED.

FEATURES:

• Ultrathin fireproof cover design.
- Magnetic suction type grille, easy to disassemble.
- Integrated design used in various places.
- Wide dynamic range can keep in large volume output without distortion.
• The logo can rotate 360 degrees.
- With steel fire dome.

PACKAGING:

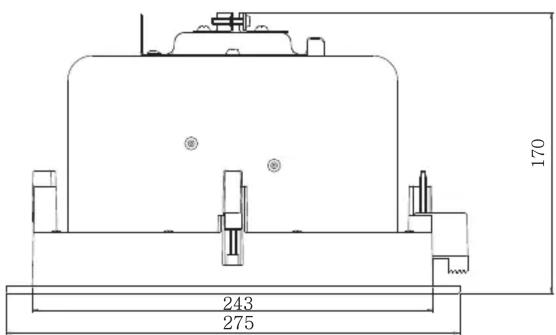

Product size diagram:

Unit: mm

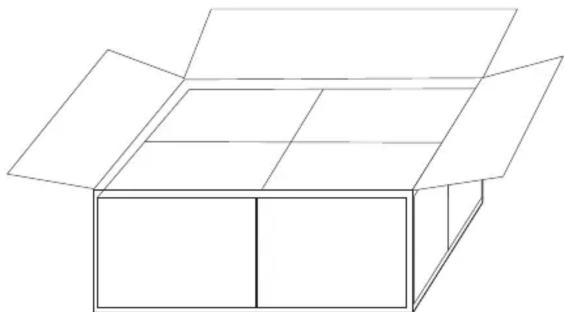

Line drawing of an open cardboard box with visible compartments (no text or symbols)

An carton boxed 4 units

www.peaveycommercialaudio.com

Warranty registration and information for U.S. customers available online at

www.peaveycommercialaudio.com/warranty

or use the QR tag below

Features and specifications subject to change without notice.
