Product Type	Hot Dog Roller Grill
Brand	Nemco
Model	80435-45W-SLT
Dimensions (W x D x H)	Approximately 20 x 12 x 15 inches
Weight	Approximately 30 lbs
Power Supply	120V, 60Hz, 1500W
Material	Stainless steel housing and rollers
Roller Count	5 rollers
Temperature Control	Adjustable thermostat with red control panel
Heating Element	Internal heating elements in each roller
Divider Kit Included	Yes, front bracket and dividers for separating hot dogs
Drip Pan	Removable rear drip pan for grease collection
Cooling System	Side-mounted cooling fins to dissipate heat
Installation	Countertop; require 6-inch clearance from walls
Cleaning	Hand wash removable parts; wipe rollers with damp cloth
Safety Features	Cool-touch housing, grounded power cord, overheat protection
Spare Parts Available	Dividers, brackets, rollers, drip pan, control knobs
Repairability	Modular design; parts replaceable by qualified technician
Warranty	1 year limited warranty on parts and labor

Frequently Asked Questions - 80435-45W-SLT Nemco

How do I install the divider kit on my Nemco 80435-45W-SLT?

Attach the front bracket to the front of the grill as shown in the manual. Insert the divider into the front bracket slots, then lower the back of the divider so it rests on the back of the roller grill. Ensure the divider does not rest on the drip pan. Repeat for all dividers.

Why do I need to install dividers?

Dividers keep hot dogs separated during cooking, preventing them from sticking together and ensuring even heating. They also help organize different types or sizes of hot dogs.

How do I clean the roller grill?

Unplug the unit and allow it to cool completely. Remove the drip pan and wash it with warm soapy water. Wipe the rollers and interior with a damp cloth. Do not immerse the unit in water. Dry all parts before reassembly.

What should I do if the rollers are not heating?

Check that the unit is plugged into a working outlet and the power switch is on. Verify the thermostat is set to a temperature above ambient. If still not heating, contact a qualified technician; internal heating elements may need replacement.

Can I use the grill without the drip pan?

No, the drip pan is essential for collecting grease and preventing spills. Operating without it may cause fire or damage to the unit.

What is the recommended cooking temperature for hot dogs?

Set the thermostat to between 300°F and 350°F (150°C to 175°C). Adjust based on desired browning and throughput.

How many hot dogs can I cook at once?

The grill has 5 rollers; each roller can hold approximately 3-4 hot dogs, so you can cook about 15-20 hot dogs per batch, depending on size.

Is the roller grill suitable for other foods?

Yes, you can also heat sausages, bratwurst, or even buns (in a separate warmer) but ensure foods are compatible with roller cooking temperature.

How do I adjust the temperature?

Turn the thermostat knob on the red control panel to the desired setting. A indicator light may show when heating. Allow 10-15 minutes to preheat.

Where can I purchase replacement dividers or brackets?

Contact Nemco customer service or authorized dealers. Use genuine Nemco parts to ensure proper fit and safety.

USER MANUAL 80435-45W-SLT Nemco

Hand placing a cylindrical object into a metal grater rack (no visible text or symbols)

Hand placing a white object onto a metal grill with a red control panel (no visible text or symbols)

Hand placing a flat grater into a horizontal bar, with a NEMCO brand logo visible on the side (no text or symbols on the grater itself)

Industrial conveyor system with rollers and a close-up inset showing internal components (no visible text or symbols)

Exterior view of a modern stainless steel hot dog grater with side-mounted cooling fins (no visible text or symbols)

80435- ( ) Divider Kit Instruction Sheet

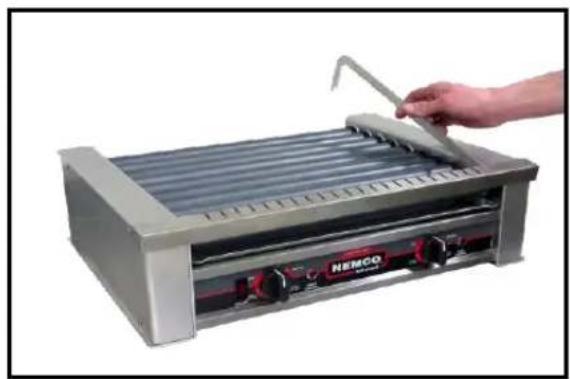

1.) Put bracket on the front of the grill as shown.

2.) Insert divider into the front bracket slots as shown.

3.) Lower the back of the divider so that it rests on the back on the rollergrill. IMPORTANT: Be sure that the divider is not resting on the drip pan.

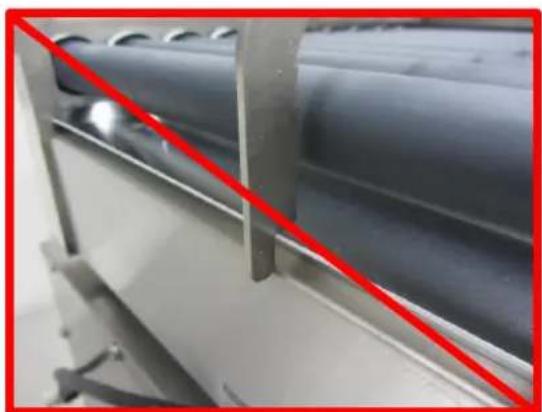

Industrial machinery with a red diagonal line overlay, showing layered metal components (no text or symbols visible)

INCORRECT!

4.) Repeat steps 2 & 3 until all the dividers are installed.
