Product Type	RAM (Memory Module)
Brand	Crucial
Model	CT32G4SFD832A
Memory Type	DDR4
Form Factor	SODIMM (Small Outline Dual In-line Memory Module)
Capacity	32 GB (1 x 32 GB)
Speed	3200 MHz (PC4-25600)
CAS Latency	CL22
Voltage	1.2 V
ECC	Non-ECC (Unbuffered)
Pin Count	260-pin
Dimensions	67.6 mm x 30 mm x 3.8 mm
Weight	12 g
Power Consumption	Typical 1.2W under load
Operating Temperature	0°C to 85°C
Storage Temperature	-40°C to 85°C
Key Features	High-speed DDR4 SODIMM, plug-and-play, compatible with Intel & AMD platforms
Maintenance	Handle by edges, avoid static discharge, do not clean with liquids
Safety	Use ESD wrist strap, install in properly grounded system
Warranty	Limited Lifetime Warranty (check Crucial for details)

Frequently Asked Questions - CT32G4SFD832A Crucial

Is the Crucial CT32G4SFD832A compatible with my laptop?

This module is a DDR4 SODIMM designed for laptops and small form factor systems. Check that your motherboard supports DDR4, 3200 MHz, and has a free SODIMM slot. Consult your laptop's manual for compatibility.

What is the difference between SODIMM and DIMM?

SODIMM (Small Outline DIMM) is a smaller form factor used in laptops and compact devices. DIMM is larger and used in desktop motherboards. This model is SODIMM.

Can I use this RAM with an AMD system?

Yes, this memory is compatible with both Intel and AMD platforms that support DDR4 SODIMM modules at 3200 MHz.

How do I install the Crucial CT32G4SFD832A?

Power off your device, disconnect battery if possible. Insert the module at a 45-degree angle into the SODIMM slot, then press down until it clicks into place. Ensure the notch aligns correctly. Refer to your device manual.

Do I need to change BIOS settings?

Most systems automatically detect and configure the memory at its rated speed. If not, you may need to enable XMP or DOCP in BIOS to run at 3200 MHz.

Is this RAM dual-channel capable?

Yes, this is a single module. To run in dual-channel, pair it with another identical module (same capacity, speed, timings). Install in matching slots (often slots 1 and 3 or 2 and 4).

What is the CAS latency of this memory?

The CAS latency is 22 (CL22) at 3200 MHz, which is standard for this speed grade.

Can I mix this module with an existing RAM stick?

Mixing different capacities, speeds, or brands may work but can cause instability or reduced performance. It's recommended to use identical modules for best compatibility.

How much power does this RAM consume?

DDR4 SODIMM typically consumes about 1.2W under load, operating at 1.2V. It is energy-efficient compared to older DDR3.

What should I do if my system doesn't boot after installation?

First, ensure the module is fully seated. Reset BIOS by removing the CMOS battery for a few seconds. Try booting with only the new RAM. If still failing, test the module in another slot or system. Contact Crucial support if defective.

USER MANUAL CT32G4SFD832A Crucial

Isometric illustration of a dual-chamber computer RAM module with multiple square slots (no text or symbols)

Install Guide

Memory Module Installation

Equipment needed

• Memory module(s)
  • Non-magnetic-tip screwdriver (for removing the cover on your computer)
• Your system's owner's manual

Installation process

1. Make sure that you are working in a static-safe environment. Remove any plastic bags or papers from your work space.

2. Shut down your system and make sure the power is completely off before unplugging the power cable from your computer. For laptops, then remove the battery.

3. Hold the power button for 3–5 seconds to discharge residual electricity.

4. Remove your computer's cover. Refer to your owner's manual for how to do this.

5. To protect your new memory modules and your system's components from static damage during the installation process, touch any of the unpainted metal surfaces on your computer's frame before handling and installing memory.

6. Using your system's owner's manual, locate your computer's memory expansion slots. Do not use any tools in the removal or installation of memory modules.

7. Insert your new memory module(s) in accordance with the illustrations in this guide. Align the notch(es) on the module with the notch(es) in the slot, and then press the module down until the clips on the slot snap into place. (It can take 20 to 30 pounds of pressure to install a module.) Fill the memory slots on your computer starting with the highest density (i.e. put the highest density module in bank 0).

8. Once the module(s) have been installed, replace the cover on your computer and reconnect the power cord or battery. Installation is now complete.

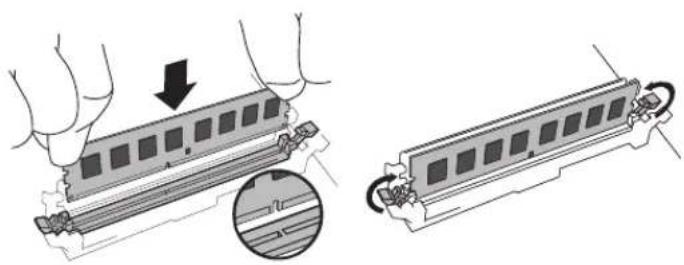

DIMM installation

Diagram showing a hand pressing down on a train track with a magnified inset illustrating the motion of the motion (no text or symbols present)

Using firm, even pressure, push DIMM into slot until clips snap into place. Do not assist clips.

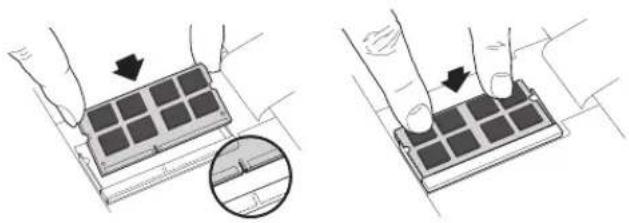

SODIMM installation

Two-step diagram showing hands installing a grid device on a base, with an arrow indicating the process (no text or symbols present)

Firmly push the SODIMM in at a 45-degree angle, and then push down until clips snap into place. When it is fully seated in the slot, one-sixteenth of an inch or less of the gold pins will be visible.

Helpful hints & troubleshooting tips

If your system does not boot, check the following:

1. If you receive an error message or hear a series of beeps, your system may not be recognizing the new memory. Remove and reinstall the modules to ensure they are securely seated in the slots.
2. If your system won't boot, check all of the connections inside your computer. It is easy to bump a cable and pull it out of its connector, disabling devices such as your hard drive or CD-ROM. If your system still won't reboot, contact Crucial Technical Support.
3. When restarting your system, you may get a message prompting you to update the configuration settings. Refer to your owner's manual for information. If you are still unsure, please call Crucial Technical Support for assistance.
4. If you get a memory mismatch message, follow the prompts to enter the Setup menu, and then select Save and Exit. (This is not an error—some systems must do this to update the system settings.)

If you have any issues with installation, contact Crucial support with any questions or concerns.

Helpful Memory Support Resources

North and South America

http://www.crucial.com/usa/en/support-memory

Europe

United Kingdom:

http://uk.crucial.com/gbr/en/support-memory

European Union:

http://eu.crucial.com/eur/en/support-memory

France:

http://www.crucial.com/usa/en/support-memory

China:

http://www.crucial.cn/安装指南

Japan:

http://www.crucial.jp/jpn/ja/support-memory
