USER MANUAL XIS4000-L Dahua Technology

Handheld Bottled Liquid Scanner

User's manual

Foreword

This manual introduces the installation, functions and operations of the Handheld Bottled Liquid Scanner (hereinafter referred to as "the Device"). Read carefully before using the device, and keep the manual safe for future reference.

Model

DH-XIS-L311

Safety Instructions

The following categorized signal words with defined meaning might appear in the manual.

Signal Words		Description
	DANGER	Indicates a high potential hazard which, if not avoided, will result in death or serious injury.
	WARNING	Indicates a medium or low potential hazard which, if not avoided, could result in slight or moderate injury.
	CAUTION	Indicates a potential risk which, if not avoided, could result in property damage, data loss, lower performance, or unpredictable result.
	ESD PROTECTION	Indicates electrostatic sensitive equipment.
	WARNING ELECTRIC SHOCK	Indicates high voltage danger.
	LASER RADIATION	Indicates strong laser radiation.
	FAN WARNING	Indicates dangerous moving parts, please stay away from moving fan blades.
	WARNING MECHANICAL INJURY	Indicates that equipment parts will cause mechanical wounding to people.
	S	Provides methods to help you solve a problem or save you time.
	E	Provides additional information as the emphasis and supplement to the text.

Revision History

Version	Revision Content	Release date
V1.0.0	First release.	2021.11

Privacy Protection Notice

As the device user or data controller, you might collect the personal data of others such as their face, fingerprints, and license plate number. You need to be in compliance with your local privacy protection laws and regulations to protect the legitimate rights and interests of other people by implementing measures which include but are not limited: Providing clear and visible identification to inform people of the existence of the surveillance area and provide required contact information.

About the Manual

- The manual is for reference only. Slight differences might be found between the manual and the product.

- We are not liable for losses incurred due to operating the product in ways that are not in compliance with the manual.

- The manual will be updated according to the latest laws and regulations of related jurisdictions. For detailed information, see the paper user's manual, use our CD-ROM, scan the QR code or visit our official website. The manual is for reference only. Slight differences might be found between the electronic version and the paper version.

- All designs and software are subject to change without prior written notice. Product updates might result in some differences appearing between the actual product and the manual. Please contact customer service for the latest program and supplementary documentation.

- There might be errors in the print or deviations in the description of the functions operations and technical data. If there is any doubt or dispute, we reserve the right of final explanation.

- Upgrade the reader software or try other mainstream reader software if the manual (in PDF format) cannot be opened.

- All trademarks, registered trademarks and company names in the manual are properties of their respective owners.

- Please visit our website, contact the supplier or customer service if any problems occur while using the device.

- If there is any uncertainty or controversy, we reserve the right of final explanation.

Important Safeguards and Warnings

This chapter describes the contents covering proper handling of the Device, hazard prevention, and prevention of property damage. Read these contents carefully before using the Device, comply with them when using, and keep the manual well for future reference.

Transportation Requirements

Transport the Device under the allowed humidity and temperature conditions.

Storage Requirements

Store the Device under the allowed humidity and temperature conditions.

Electrical Safety

!

• Do not connect the power adapter to the Device after powering on. Connect the power adapter to the Device when the power is off.
• Conform to the local electrical safety standards strictly to ensure that the ambient voltage is stable and meets the Device power supply requirements.
• Do not provide two or more power supply methods to the device simultaneously, otherwise, it may cause Device damages or safety risks.

!

• Safety helmets, safety belts, and protective measures are required for personnel working at heights to ensure personal safety.
• Do not place and install the Device in direct sunlight or near heating devices.
• Do not install the Device in a humid, dusty or soot place.
  • Install the Device in a well-ventilated place, and do not block its vents.
• Use the adapter or chassis power supply provided by the product manufacturer.
• The power source shall conform to the requirements of the Safety Extra Low Voltage (SELV) standard, and supply power with rated voltage which conforms to Limited power Source requirement according to GB8898 (IEC60065) or GB4943.1 (IEC60950-1). Please note that the power supply requirements are subject to the device label.
• Connect the I-type structure to the power socket with protective earthing.

Operation Requirements

!

- Check the power supply correct or not before the Device operation.

• Do not unplug the power cable on the Device side when adapter is being powered.
• Operate the Device within the rated range of power input and output.
  • Use the Device under the allowed humidity and temperature conditions.

Maintenance Requirements

• Do not drop or splash liquid onto the Device, and make sure that there is no object filled with liquid on the Device to prevent liquid from flowing into the Device.
• Do not disassemble the Device.

Contents

Foreword....I

Important Safeguards and Warnings....III

1 Overview....1

1.1 Introduction ...... 1
1.2 Product Appearance .... 1
1.3 Packing List .... 1

2 Basic Operations....2

2.1 Structure Diagram.... 2

3 Charging....3

3.1 Charging by USB Cable 3
3.1.1 Charging Procedures 3
3.2 Charging by Charger 5

4 Configuration....6

4.1 Alarm Sound Switch 6
4.2 Calibration....6

5 Daily Maintenance and Troubleshooting....8

5.1 Daily Maintenance....8
5.2 Faults and Troubleshooting....8

Appendix 1 Cybersecurity Recommendations....9

1 Overview

1.1 Introduction

The Handheld Bottled Liquid Scanner can quickly judge whether the inspected liquid is dangerous goods without opening the container, which has the advantages of easy operation, high safety performance and affordable human resource and more.

It is suitable for traffic departments, government departments, public places and other scenarios.

• Traffic departments: subway, station, airport, railway, etc.
• Government departments: embassies, police stations, fire stations, courts, inspection bureaus, etc.
  • Public places: large conference venues, stadiums, theaters, shopping malls, etc.

1.2 Product Appearance

Figure 1-1 Product Appearance

1.3 Packing List

Table 1-1 Packing list

Name	Quantity
Host	1
Pedestal	1
1.5-Meter USB cable	1
Warranty Card, product certificate	1
PC CD	1
User's manual	1
Lanyard	1
AA battery charging kit(charger, 4 rechargeable batteries)	1
Phillips screwdriver	1

2 Basic Operations

2.1 Structure Diagram

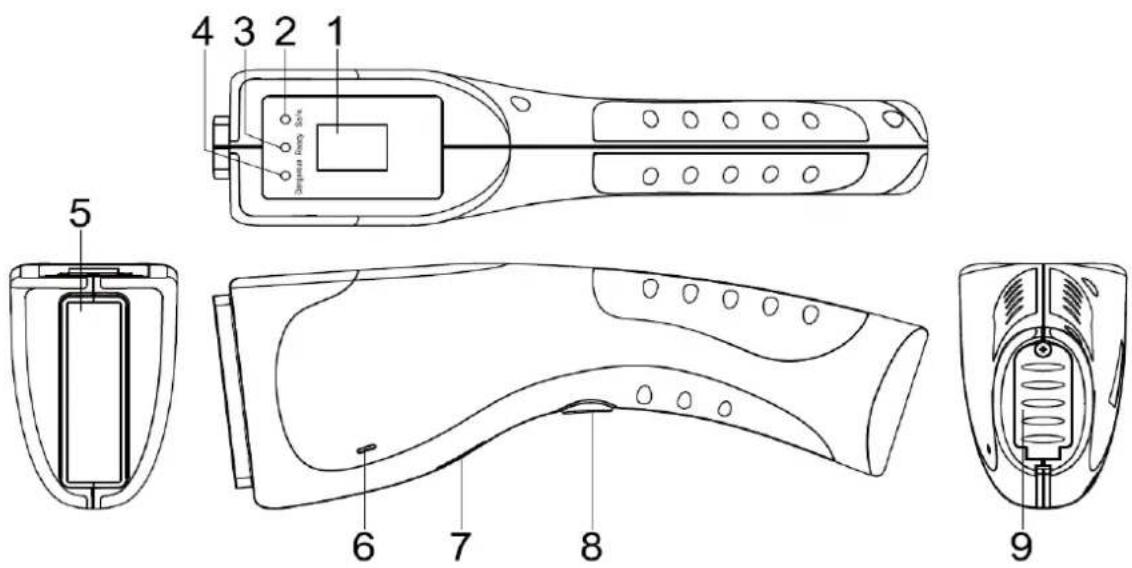

Figure 2-1 Structure Diagram

Table 2-1 Descriptions of structure diagram

No.	Name	Description
1	LCD	It displays the working status of the Device.
2	Safe Indicator	When the bottled liquid is detected out to be a safe liquid, the green indicator lights up.
3	Ready Indicator	When press the start button, the yellow indicator will keep on when the detection is pending or performing without inspected objects, which indicates whether the Device is in normal working status or not.
4	Dangerous Indicator	When the bottled liquid is detected out to be a hazardous liquid, the red indicator lights up.
5	Detection Area	The square detection surface area of the device is the key part for liquid detection.
6	Speaker	The sounding part of alarm and more.
7	USB Port	By connecting the USB cable, the port can communicate with the PC software, and can also be used to charge the rechargeable battery.
8	Power Switch	Click the power switch, start the Device to detect the liquid. If the device is in the same status (ready, safe or dangerous) for 10 seconds, the Device will shut down automatically and immediately. During this period (within 10 seconds), if you click the power switch, the Device will shut down after another 10 seconds.Press and hold the power switch for 10 seconds to perform calibration.Press and hold the power switch for 3 seconds to turn on or off the alarm sound.
9	Battery	It requires two 1.5V AA dry batteries or AA batteries with the capacity not less than 1300mAh.

3 Charging

3.1 Charging by USB Cable

When the Device is being charged, LCD display area turns off; when not being charged, 3 indicators flashes alternately; when fully charged, all indicators turn off.

• Use USB cables to connect the Device with an external power or a computer host to charge the batteries.
  When the Device is being charged, LCD display area turns off.
• Only after installing the rechargeable batteries can the USB charging be used.
  • After fully charged, cut off the charging power and unplug the USB cable in time.
• In the charging state, press the power button, the LCD display area can be used for detection after it lights up, and the screen turns off after 10 seconds. After the screen turns off, you need to press the power switch to light up the LCD area before detection.

3.1.1 Charging Procedures

Step 1 Open the USB rubber plug of the USB port.

Figure 3-1 Open the USB rubber plug.

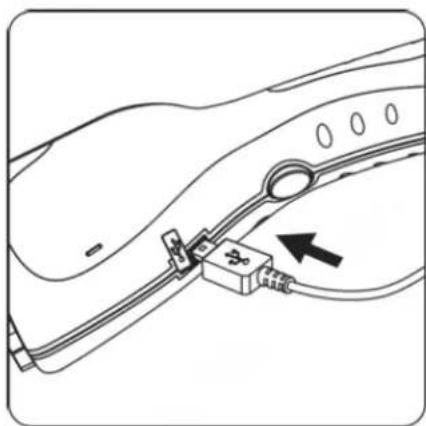

Step 2 Connect the Mini B type' 5Pin port with USB cables with the Device.

Figure 3-2 USB connection

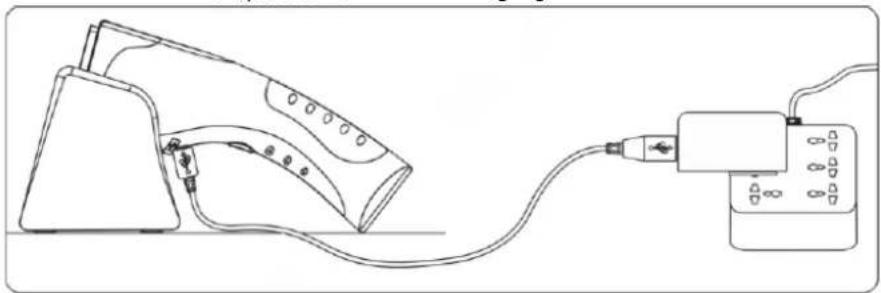

Step 3 Connect A type male port with the USB adapter and connect the alternating current.

Figure 3-3 Connect the power.

Step 4 Charging connection

Figure 3-4 Device charging

Step 5 When the Device is being charged, LCD display area turns off.

Figure 3-5 Display Screen in charging status

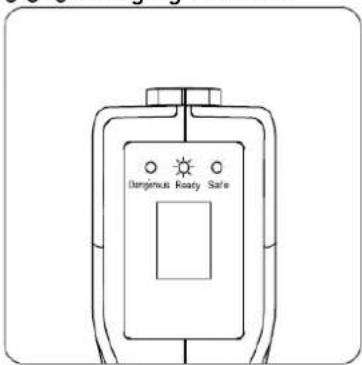

Step 6 When fully charged, all indicators turn off.

Figure 3-6 Charging finished.

3.2 Charging by Charger

• When the Device is not used for a long time, remove the batteries to prevent battery leakage and other damage to the battery and the Device.
• Store the Device in a cool, dry place. There must be no corrosive components in the air where the Device is stored.
• Charging with dry batteries may cause battery leakage, battery damage and even Device damage.

When the battery is low, take out the rechargeable battery and use a qualified external charger of AA batteries to charge the rechargeable battery.

When the rechargeable battery is fully charged, remove the rechargeable battery from the charger.

4 Configuration

4.1 Alarm Sound Switch

To turn the alarm sound on or off, perform the following procedures:

In the ready state, press and hold the power switch button for 3 seconds until a black dot appears and flashes on the upper right of the screen.

Release the button before the black dot disappears (The black dot continuously flashes for 3 seconds before disappears).

• The operation succeeded if a small green dot appears at the top right of the screen.
• The operation failed if no small green dot appears at the top right of the screen, and the above procedures needs to be done again.

Alarm sound on by default. Perform the above procedures to turn off the alarm sound when the alarm sound is on; perform the above procedures to turn on the alarm sound when the alarm sound is off.

Figure 4-1 Turn on/off the alarm sound

4.2 Calibration

After starting the Device and the device is idling, if there appears Safe or Dangerous on the screen for a long time instead of Ready, calibrate the Device to ensure the detection accuracy.

After the Device has been used for a period of time, if it is found that the detection accuracy has decreased, calibrate the Device. The procedures are as follows:

In the ready state, press and hold the power switch for 10 seconds until a red dot appears and flashes on the upper right of the screen. And quickly press the power switch three times (it must be done before the red dot flashing disappears).

☐ The red dots will no longer flash until the green dots appear, and the calibration successes. If the yellow dots appear, the calibration fails. If you do not press the power button three times when the red dot appears, it will not enter the calibration mode.

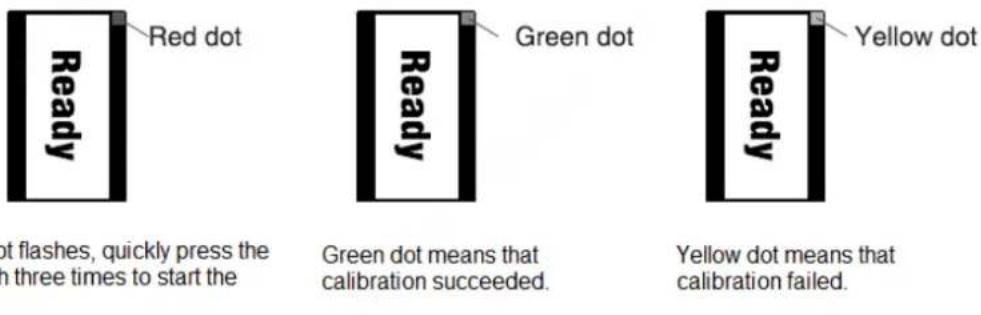

Figure 4-2 Device calibration

5 Daily Maintenance and Troubleshooting

5.1 Daily Maintenance

Use and store the Device according in the environment required by the Device regulations.

5.2 Faults and Troubleshooting

Table 5-1 Common faults

No.	Faults	Possible cause	Troubleshooting
1	The power indicator does not light up and the Device has no response.	No power supply / damaged power adapter	Check the power supply/contact the manufacturer to replace the adapter.
2	Fail to pass the POST(power-on self test), and then fails to enter the detection interface.	Damaged circuit hardware	Contact the manufacturer for maintenance.
3	Abnormal detection of hazardous goods.	Lost Device parameters Damaged circuit	Recalibration Contact the manufacturer.

Appendix 1 Cybersecurity Recommendations

Cybersecurity is more than just a buzzword: it's something that pertains to every device that is connected to the internet. IP video surveillance is not immune to cyber risks, but taking basic steps toward protecting and strengthening networks and networked appliances will make them less susceptible to attacks. Below are some tips and recommendations from Dahua on how to create a more secured security system.

Mandatory actions to be taken for basic device network security:

1. Use Strong Passwords

Please refer to the following suggestions to set passwords.

• The length should not be less than 8 characters.
• Include at least two types of characters; character types include upper and lower case letters, numbers and symbols.
• Do not contain the account name or the account name in reverse order.
• Do not use continuous characters, such as 123, abc, etc.
• Do not use overlapped characters, such as 111, aaa, etc.

2. Update Firmware and Client Software in Time

- According to the standard procedure in Tech-industry, we recommend to keep your device (such as NVR, DVR, IP camera, etc.) firmware up-to-date to ensure the system is equipped with the latest security patches and fixes. When the device is connected to the public network, it is recommended to enable the "auto-check for updates" function to obtain timely information of firmware updates released by the manufacturer.

- We suggest that you download and use the latest version of client software.

"Nice to have" recommendations to improve your device network security:

1. Physical Protection

We suggest that you perform physical protection to device, especially storage devices. For example, place the device in a special computer room and cabinet, and implement well-done access control permission and key management to prevent unauthorized personnel from carrying out physical contacts such as damaging hardware, unauthorized connection of removable device (such as USB flash disk, serial port), etc.

2. Change Passwords Regularly

We suggest that you change passwords regularly to reduce the risk of being guessed or cracked.

3. Set and Update Passwords Reset Information Timely

The device supports password reset function. Please set up related information for password reset in time, including the end user's mailbox and password protection questions. If the information changes, please modify it in time. When setting password protection questions, it is suggested not to use those that can be easily guessed.

4. Enable Account Lock

The account lock feature is enabled by default, and we recommend you to keep it on to guarantee the account security. If an attacker attempts to log in with the wrong password several times, the corresponding account and the source IP address will be locked.

1. Change Default HTTP and Other Service Ports

We suggest you to change default HTTP and other service ports into any set of numbers between 1024–65535, reducing the risk of outsiders being able to guess which ports you are using.

1. Enable HTTPS

We suggest you to enable HTTPS, so that you visit Web service through a secure communication channel.

1. MAC Address Binding

We recommend you to bind the IP and MAC address of the gateway to the device, thus reducing the risk of ARP spoofing.

1. Assign Accounts and Privileges Reasonably

According to business and management requirements, reasonably add users and assign a minimum set of permissions to them.

1. Disable Unnecessary Services and Choose Secure Modes

If not needed, it is recommended to turn off some services such as SNMP, SMTP, UPnP, etc., to reduce risks.

If necessary, it is highly recommended that you use safe modes, including but not limited to the following services:

- SNMP: Choose SNMP v3, and set up strong encryption passwords and authentication passwords.

- SMTP: Choose TLS to access mailbox server.

- FTP: Choose SFTP, and set up strong passwords.

- AP hotspot: Choose WPA2-PSK encryption mode, and set up strong passwords.

1. Audio and Video Encrypted Transmission

If your audio and video data contents are very important or sensitive, we recommend that you use encrypted transmission function, to reduce the risk of audio and video data being stolen during transmission.

Reminder: encrypted transmission will cause some loss in transmission efficiency.

1. Secure Auditing

- Check online users: we suggest that you check online users regularly to see if the device is logged in without authorization.

- Check device log: By viewing the logs, you can know the IP addresses that were used to log in to your devices and their key operations.

1. Network Log

Due to the limited storage capacity of the device, the stored log is limited. If you need to save the log for a long time, it is recommended that you enable the network log function to ensure that the critical logs are synchronized to the network log server for tracing.

1. Construct a Safe Network Environment

In order to better ensure the safety of device and reduce potential cyber risks, we recommend:

- Disable the port mapping function of the router to avoid direct access to the intranet devices from external network.

- The network should be partitioned and isolated according to the actual network needs. If there are no communication requirements between two sub networks, it is

suggested to use VLAN, network GAP and other technologies to partition the network, so as to achieve the network isolation effect.

- Establish the 802.1x access authentication system to reduce the risk of unauthorized access to private networks.

- Enable IP/MAC address filtering function to limit the range of hosts allowed to access the device.

More information

Please visit Dahua official website security emergency response center for security announcements and the latest security recommendations.

ENABLING A SAFER SOCIETY AND SMARTER LIVING
