DM520P - Microphone Speco Technologies - Free user manual and instructions

Brand	Speco Technologies
Model	DM520P
Product Type	Microphone
Polar Pattern	Cardioid
Frequency Response	50 Hz – 15 kHz
Impedance	600 Ω
Output Connector	XLR (3-pin)
Power Requirement	None (dynamic)
Dimensions (approx.)	6.5 x 2.5 x 2.5 inches
Weight (approx.)	0.7 lbs (320 g)
Housing Material	Die-cast metal
Finish	Non-reflective matte black
On/Off Switch	Yes (push-to-talk or lock)
LED Indicator	Power/status LED when active
Cable Included	Yes, 15 ft (4.6 m) XLR cable
Warranty	1 year limited warranty
Cleaning Instructions	Wipe with a dry cloth; avoid moisture
Safety Notice	Keep away from heat sources; do not disassemble
Spare Parts Availability	Contact Speco Technologies customer support
Compatibility	Standard XLR microphone inputs

Frequently Asked Questions - DM520P Speco Technologies

What type of microphone is the DM520P?

The DM520P is a dynamic microphone with a cardioid polar pattern, ideal for vocal and paging applications.

Does the DM520P require phantom power?

No, the DM520P is a dynamic microphone and does not require phantom power. It works with a standard XLR input.

What is the frequency response of the DM520P?

The frequency response is 50 Hz – 15 kHz, which covers the typical vocal range.

Can I use the DM520P with a computer?

Yes, but you will need an audio interface or mixer with XLR input that provides the appropriate gain.

How do I clean the DM520P microphone?

Wipe the exterior with a soft, dry cloth. Avoid getting moisture into the grille or connector.

Does the DM520P have an on/off switch?

Yes, it has a push-to-talk or lockable on/off switch for convenience.

What is the warranty for the DM520P?

Speco Technologies offers a 1-year limited warranty against defects in materials and workmanship.

What cable is included with the DM520P?

The microphone comes with a 15 ft (4.6 m) XLR male to XLR female cable.

Can I replace the grille or spare parts?

For spare parts, please contact Speco Technologies customer support. Grille replacement may be possible.

Is the DM520P suitable for outdoor use?

The DM520P is designed for indoor use. Avoid exposing it to rain, humidity, or extreme temperatures.

USER MANUAL DM520P Speco Technologies

Thank you for your choice of Speco Technologies' DM520P handheld microphone. This unit is designed and manufactured to provide an economical solution for CB and professional communications. The sturdy, ergonomic construction ensures a long and versatile life.

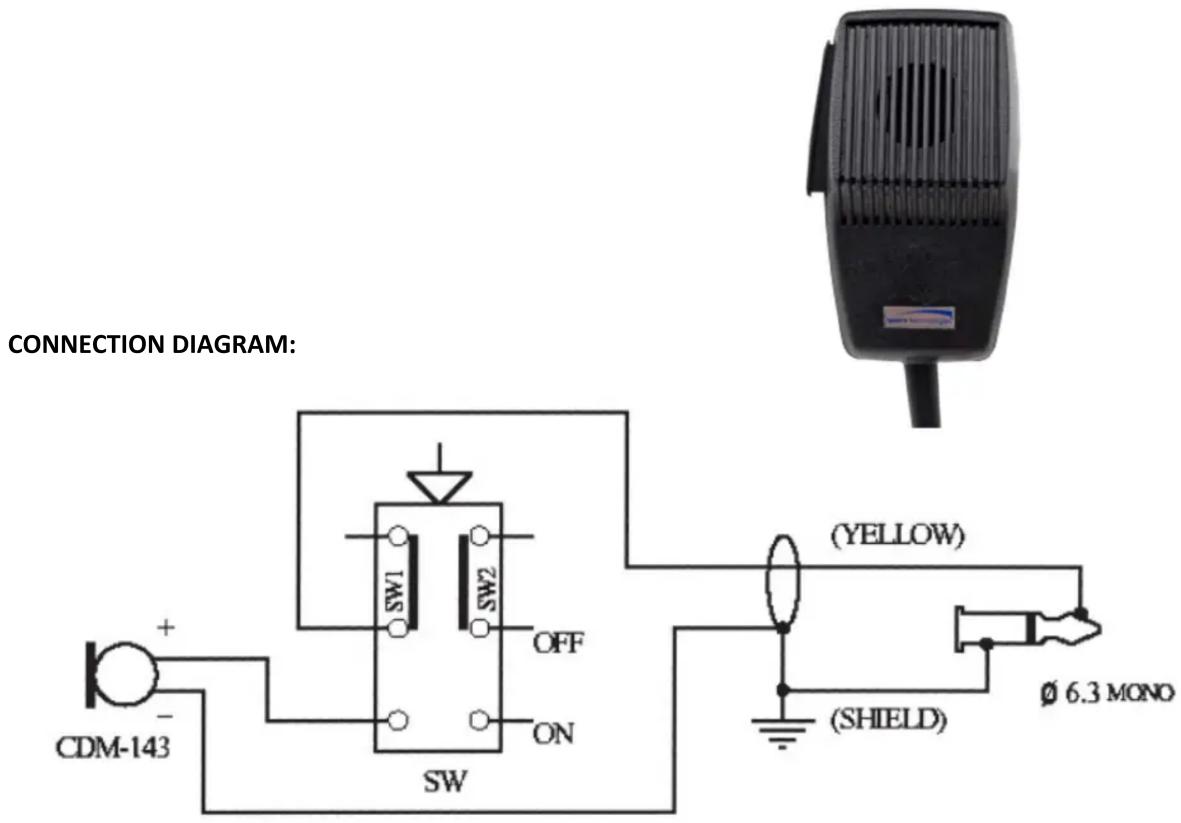

NOTE ON SWITCH TIMING: When Push to talk switch is pressed, SW2 contact closes before SW1 contact closes.

SPECIFICATIONS:

• Type: Dynamic Microphone
• Directivity: Omni-directional
• Impedance: 600 Ohms @ 1kHz (tolerance ±30%)
• Sensitivity: -78±3dB @ 1kHz re 1V/ μ bar
  • Frequency Response: 100 \~ 10kHz
• Connector: 14 " unbalanced (TS) phono plug
• Dimensions: 2.4" (W) x 2" (D) x 4" (H) + 6' coiled cable
• Warranty: 2 Years (see Web Site for full terms and restrictions)

Speco Technologies is constantly developing and improving products.

We reserve the right to modify product design and specifications without notice and without incurring any obligation.

Speco Technologies . 200 New Highway . Amityville . NY . 11701 . www.specotech.com
