USER MANUAL N8WNRE Speco Technologies

NRE (8/16/32 Channel) User Manual

speco technologies® NRE HDD LAN PWR

N8NRE

Front view of a network equipment rack with ports, connectors, and indicator lights (no readable text or symbols)

N16NRE

Front view of a network equipment rack with multiple Ethernet ports and connectors (no visible text or labels)

N32NRE

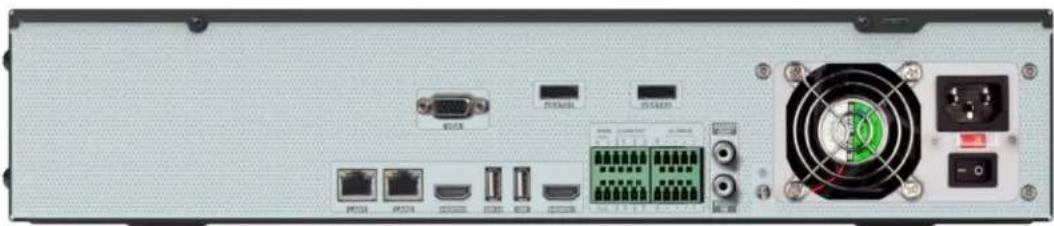

Back view of a server rack with ports, connectors, and a power outlet (no visible text or symbols)

Version 1.0

Notes

• Please read this user manual carefully to ensure that you can use the device correctly and safely.
• There may be several technically incorrect places or printing errors in this manual. The updates will be added into the new version of this manual. The contents of this manual are subject to change without notice.
• This device should be operated only from the type of power source indicated on the marking label. The voltage of the power must be verified before using the same. Kindly remove the cables from the power source if the device is not to be used for a long period of time.
• Do not install this device near any heat sources such as radiators, heat registers, stoves or other devices that produce heat.
• Do not install this device near water. Clean only with a dry cloth.
• Do not block any ventilation openings and ensure proper ventilation around the machine.
• Do not power off the device at normal recording condition.
• This machine is for indoor use only. Do not expose the machine in rain or moist environment. In case any solid or liquid get inside the machine's case, please turn off the device immediately and get it checked by a qualified technician.
• Do not try to repair the device by yourself without technical aid or approval.

Contents

1 Introduction....1

1.1 Welcome .... 1
1.2 Features.... 1
1.3 Front Panel Descriptions .... 3
1.4 Rear Panel Descriptions....3
1.5 Connections....3

2 Basic Operation Guide ....4

2.1 Startup & Shutdown 4

2.1.1 Startup....4
2.1.2 Shutdown 4

2.2 Remote Control 4

2.3 Mouse Control....5

2.4 Text-input Instruction 5

2.5 Common Button Operation....6

3 EZ Setup & Main Interface 7

3.1 EZ Setup....7
3.2 Main Interface 10

3.2.1 Main Interface Introduction ...... 10
3.2.2 Setup Panel....12
3.2.3 Main Functions....12

4 Camera Management 14

4.1 Add/Edit Camera 14

4.1.1 Add Camera 14
4.1.2 Edit Camera 15

4.2 Add/Edit Camera Group 16

4.2.1 Add Camera Group 16
4.2.2 Edit Camera Group 16
4.2.3 IP Planning....17

5 Live View Introduction....18

5.1 Live View Interface Introduction ...... 18
5.2 View Mode 19

5.2.1 Display Mode.... 19
5.2.2 Quick Sequence View 20
5.2.3 Camera Group View In Sequence 20
5.2.4 Scheme View In Sequence.... 21

5.3 Image Configuration 21

5.3.1 OSD Settings 21
5.3.2 Image Settings 22
5.3.3 Mask Settings 22
5.3.4 Image Adjustment 23

5.3.5 Fisheye Settings....24

6 PTZ 25

6.1 PTZ Control Interface Introduction....25
6.2 Preset Setting 28
6.3 Cruise Setting 29
6.4 Cruise Group Settings 30
6.5 Trace Settings 30
6.6 Task Settings....31

7 Record & Disk Management....32

7.1 Record Configuration....32

7.1.1 Mode Configuration 32
7.1.2 Schedule Settings 33
7.1.3 Advanced Configuration 35

7.2 Encode Parameters Setting 35

7.3 Record Mode 35

7.3.1 Manual Recording 35
7.3.2 Timing Recording.... 36
7.3.3 Motion Based Recording 36
7.3.4 Sensor Based Recording 36
7.3.5 AI Event Recording.... 36

7.4 Disk....36

7.4.1 Disk Management 36
7.4.2 Storage Mode Configuration 38
7.4.3 View Disk and S.M.A.R.T. Information 39

8 Playback & Backup....40

8.1 Instant Playback 40
8.2 Playback Interface Introduction 40
8.3 Smart Playback....42

8.3.1 Smart Playback Settings 43
8.3.2 Smart Playback Based on Motion Detection 43
8.3.3 Smart Playback by Face Search....43
8.3.4 Smart Search by License Plate 44

8.4 Record Search, Playback & Export 45

8.4.1 EZ Search 45
8.4.2 Time Search 46
8.4.3 Event Search 47
8.4.4 Bookmark Search....47
8.4.5 Snapshots 48
8.4.6 View Export Status 48

9 AI Event Management....49

9.1 Face Recognition 49

9.1.1 Face Detection Settings 49
9.1.2 Face Database Management 50
9.1.3 Face Recognition Settings....52

9.2 License Plate Recognition....54

9.2.1 License Plate Detection Settings....54
9.2.2 Plate Database Management 55
9.2.3 License Plate Recognition Settings 55

9.3 Tripwire 56
9.4 Intrusion Detection 57
9.5 Abandoned/Missing Object Detection 57
9.6 Crowd Density Detection....58
9.7 Line Crossing Counting 59
9.8 Tampering Detection....60

10 Intelligent Analytics....61

10.1.1 Human Body/Vehicle Detection View 61
10.1.2 Face Detection/Match View 61
10.1.3 License Plate Detection/Recognition View 64

10.1 Target Detection View 61
10.2 Smart Search 65

10.2.1 Face Search....65
10.2.2 Track Playback 69
10.2.3 Face Search by Snapshot 70
10.2.4 Human Body Search 71
10.2.5 Vehicle Search 71
10.2.6 Combination Search 72

10.3 View Statistical Information 73
10.4 Face Attendance 73
10.5 Face Check-In 74

11 General Event Management....76

11.1 Sensor Alarm 76
11.2 Motion Alarm 77

11.2.1 Motion Configuration 77
11.2.2 Motion Alarm Handling Configuration 77

11.3 Combination Alarm 78

11.4 IPC Offline Settings 78
11.5 Exception Alarm Settings....78
11.6 Alarm Event Notification 79

11.6.1 Alarm-out 79
11.6.2 E-mail....79
11.6.3 Display 79
11.6.4 Buzzer 79
11.6.5 Push Message 79
11.6.6 Digital Deterrent 80
11.6.7 Light....81
11.6.8 Alarm Server 81

11.7 Manual Alarm....81
11.8 View Alarm Status 81

12 Account & Permission Management 83

12.1 Account Management....83

12.1.1 Add User 83
12.1.2 Edit User 83

12.2 User Login & Logout 85

12.3 Permission Management....85

12.3.1 Add Permission Group 85
12.3.2 Edit Permission Group 86

12.4 Block and Allow List....86

12.5 Preview On Logout 86
12.6 Network Security 87
12.7 Password Security 87
12.8 View Online User 87

13 Device Management 88

13.1 Network Configuration 88

13.1.1 TCP/IP Configuration 88
13.1.2 Port Configuration 88
13.1.3 PPPoE Configuration....90
13.1.4 DDNS Configuration....91
13.1.5 E-mail Configuration....91
13.1.6 UPnP Configuration 92
13.1.7 802.1X 92
13.1.8 NAT Configuration 93
13.1.9 View Network Status 93

13.2 Basic Configuration....93

13.2.1 General Configuration 93
13.2.2 Date and Time Configuration....94
13.2.3 Recorder OSD Settings....94

13.3 Factory Default 95

13.4 Device Software Upgrade....95
13.5 Backup and Restore 95
13.6 Restart Automatically 95
13.7 View Log 96
13.8 View System Information 96

14 Remote Surveillance 97

14.1 Mobile Client Surveillance 97
14.2 Web LAN Access 97
14.3 Web WAN Access 97
14.4 Web Remote Control....98

14.4.1 Remote Preview 98
14.4.2 Remote Playback.... 101
14.4.3 Remote Export.... 101
14.4.4 Intelligent Analysis.... 102
14.4.5 Remote Configuration 102

Appendix A FAQ 103

Appendix B Calculate Recording Capacity....107

Appendix C Specifications....108

1 Introduction

1.1 Welcome

Thank you for purchasing this NVR.

If technical assistance is needed, please contact Speco Technologies Technical Support.

Phone: [phone] option 3

Email: [e-mail]

1.2 Features

Basic Functions

● Supports network device access including IP camera/dome and the third party IP cameras
● The NVR supports the latest H.265 video coding stream and a mixture input of H.265 and H.264 IP cameras
● Supports standard ONVIF protocol
● Supports dual stream recording of each camera
● Supports IP cameras to be added quickly or manually
● Supports collective or individual configuration of the cameras' OSD, video parameters, mask, motion and so on
● Supports a maximum of 8 user permission groups including Administrator, Advanced and Common which are the default permission groups of the system
- Supports a maximum of 16 users to be created, multiple web clients login by using one username at the same time and the user's permission control to be enabled or disabled
● Supports multiple web clients login at the same time

Live View

● Supports 4K×2K/1920×1080/1280×1024 HDMI and 1920×1080/1280×1024 VGA high definition synchronous display
● Supports multi-screen modes such as 1/4/6/8/16/32
- Supports auto adjustment of the camera's image display proportion
● Supports audio monitoring of the camera to be enabled or disabled
● Supports manual snapshot of the camera
● Supports the sequence of the cameras to be adjusted
● Supports display mode to be added and saved and the saved modes can be called directly
● Supports quick tool bar operation of the preview window
● Supports camera group view and scheme view in sequence, quick sequence view and dwell time setting
● Supports motion detection and video mask
● Supports multiple popular P.T.Z. control protocol and setup of the preset and cruise
● Supports direct mouse control of the IP dome including rotating, zoom, focusing and so on
● Supports single camera image to be zoomed by sliding the scroll wheel of the mouse
● Supports any area of the image to be zoomed in to a maximum of 16 times of the current size
● Supports image and lens adjustment (only available for some cameras)
● Supports quick camera adding in the camera window of the live view interface
- The live camera sequence of the web client will keep consistent with that of the NVR after adjusting the live camera sequence of the NVR, but the live camera sequence of the NVR will not be changed if that of the web client is changed

Disk Management

● N8NRE supports 1 SATA HDD: N16NRE supports 2 SATA HDDs; N32NRE supports 8 SATA HDDs and 2 3-SATA HDDs
● Each SATA interface of the NVR supports the HDDs with max 14TB storage capacity
● Supports disk group configuration and management and each camera can be added into different disk groups with different storage capacity
● Supports disk information and disk working status viewing

Record Configuration

● Supports main stream and sub stream recording at the same time and collective or individual configuration of the record stream
● Supports manual and auto record modes
● Supports schedule recording, sensor alarm recording and motion detection recording, etc
● Supports schedule recording and event recording setting with different record streams
● Supports record schedule setting and recycle recording
● Supports pre recording and delay recording configuration of the event recording

Record Playback

● Supports time scale operation in quick playback and the playback date and time can be set randomly by scrolling the mouse; the time interval of the time scale can be zoomed
● Supports record searching by time slice/time/event/tag
● Supports time view and camera view in searching by EZ mode
● Supports EZ search by month, by day, by hour and by minute and time slice to be displayed with camera thumbnail
● Supports a maximum of 4/8/16 cameras to be searched by time
● Supports event search by manual/motion/sensor/intelligent events
● Supports bookmark search by the manual added bookmarks
● Supports instant playback of the selected camera in the live view interface
● Supports a maximum of 8 synchronous playback cameras
- Supports acceleration(maximum 32 times of the normal speed), deceleration (minimum 1/32 times of the normal speed) and 30s' addition or reduction to current playing time

Record Export

● Supports record to be exported through USB (U disk, mobile HDD).
● Supports record to be exported by time/event/image search
● Supports record cutting for exporting when playing back
● Supports a maximum of 10 export tasks in background and export status viewing

Alarm Management

● Supports alarm schedule setting

● Supports enabling or disabling of the motion detection, external sensor alarm input, intelligence alarm and exception alarms including IP address conflict alarm, disk IO error alarm, disk full alarm, no disk alarm, illegal access alarm, network disconnection alarm, IPC offline alarm and so on, alarm trigger configuration supportable

● Supports IPC offline alarm trigger configuration of PTZ, snapshot, pop-up video, etc.
● Supports event notification modes of alarm-out, pop-up video, pop-up message box, buzzer, e-mail and so on
● The captured images can be attached into the e-mail when alarm linkage is triggered
● Supports alarm status view of alarm-in, alarm-out, motion detection and exception alarm
● Supports alarm to be triggered and cleared manually
● Supports system auto reboot when exception happens
● Supports face detection and face match alarm

Face Function

● Supports adding 10000 face pictures to the target database
● Supports image search by image, track playback and database management
● Supports face attendance and face check in
● Supports face information statistics
● Supports face match alarm

LPR Function

● Support 50,000 license plate register
● Support license plate detection, match and search
● Support vehicle information statistics
● Support license plate match alarm

Network Functions

● Supports TCP/IP and PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP protocol and so on
● Supports allow and block list function and the allow and block IP address/IP segment address can be set
● Supports multiple browsers including IE8/9/10/11, Firefox, Opera, Chrome (available only for the versions lower than 45) and Safari in MAC system
● Supports remote achievement, configuration, import and export of the NVR parameters and other system maintenance operations including remote upgrading and system restart

● Supports remote camera configuration of the NVR including video parameters, image quality and so on

● Supports remote search, playback and export of the NVR

● Supports manual alarm to be triggered and cleared remotely

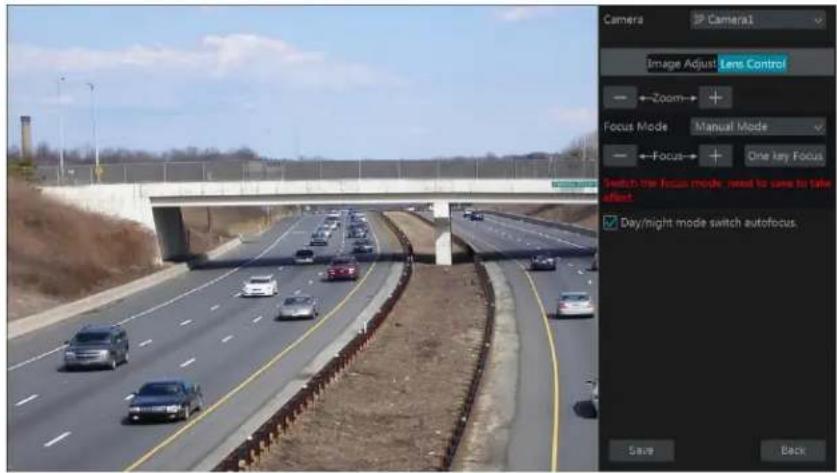

● The motorized zoom camera can be adjusted through web client (Supports zoom in/out, but one key focus is not currently supported)

● Supports NVMS or other platform management software to access the NVR and manage it

● Supports NAT function and QRCode scanning by mobile phone and PAD

● Supports mobile surveillance by phones or PADs with iOS or Android OS

● Supports NVR to be accessed remotely through telnet and the telnet function can be enabled or disabled

- If one camera recording is enabled or disabled manually through web client, it will be simultaneously enabled or disabled in the NVR

Other Functions

● The NVR can be controlled and operated by the buttons on the front panel, the remote controller and the mouse
- Setting interfaces can be switched to one another conveniently by clicking the main menus on the top of the setting interfaces
● Supports NVR information viewing including basic, camera status, alarm status, record status, network status, disk and export status
● Supports factory restoring, import and export of the system configuration, log view and export and local upgrading by USB mobile device
● Supports auto recognition of the displayer's resolution
● You can click the right mouse button at any interface to go back to the upper interface
● You can click the mouse wheel at any interface to go to the live view interface
● The display language and video format of the NVR will not be changed and the system logs will be reserved if you reset the NVR to factory default
- Press and hold the right mouse button for 5 seconds in any interface to switch the output to VGA and the NVR will display the video at the lowest resolution which the NVR supports

1.3 Front Panel Descriptions

The following descriptions are for reference only.

Name	Descriptions
REC	When recording, the light is blue
Net	When access to network, the light is blue
Power	Power indicator, when connection, the light is blue

1.4 Rear Panel Descriptions

To quickly get started, connect the following to your recorder in the following order, please refer to the following figure (N8NRE shown for reference).

Diagram of a network device rear panel with labeled ports, connectors, and hardware components including VGA or HDMI

1. Connect IP cameras to the PoE ports of the recorder.
2. Connect a monitor to the recorder via VGA or HDMI cable (not included).
3. Connect the included optical mouse into any USB port of the recorder.
4. Connect the power adapter to the recorder and plug power cord into a 120VAC 50/60Hz outlet.
5. Connect recorder to network (optional)
6. Turn on power switch and allow recorder to boot up.

1.5 Connections

- Video Connections

Video Output: Supports VGA/HDMI video output. You can connect to monitor through these video output interfaces simultaneously or independently.

● Audio Connections

Audio Input: Connect to microphone, pickup, etc.

Audio Output: Connect to headphone, sound box or other audio output devices.

2 Basic Operation Guide

2.1 Startup & Shutdown

Please make sure all the connections are done properly before you power on the unit. Proper startup and shutdown are crucial to expending the life of your device.

2.1.1 Startup

① Connect the output display device to the VGA/HDMI interface of the NVR.
② Connect with the mouse and power. The device will boot and the power LED would turn blue.
③ EZ setup window will pop up (you should select the display language the first time you use the NVR). Refer to 3.1 EZ Setup for details.

2.1.2 Shutdown

You can power off the device by using remote control or mouse.

By remote control:

① Press Power button. This will take you to a shutdown window. The unit will power off after a while by clicking "OK" button.
② Disconnect the power.

By mouse:

① Click Start→Shutdown to pop up the Shutdown window. Select "Shutdown" in the window. The unit will power off after a while by clicking "OK" button.
② Disconnect the power.

2.2 Remote Control

① It uses two AAA size batteries.
② Open the battery cover of the remote control.
③ Place batteries. Please take care the polarity (+ and -).
④ Replace the battery cover.

Key points to check in case the remote doesn't work.

1. Check batteries polarity.
2. Check the remaining charge in the batteries.
3. Check IR controller sensor for any masking.

If it still doesn't work, please change a new remote control to try, or contact your dealers. You can just turn the IR sensor of the remote control towards the IR receiver of the NVR to control it when you are controlling multiple devices by remote control.

The interface of remote controller is shown as below.

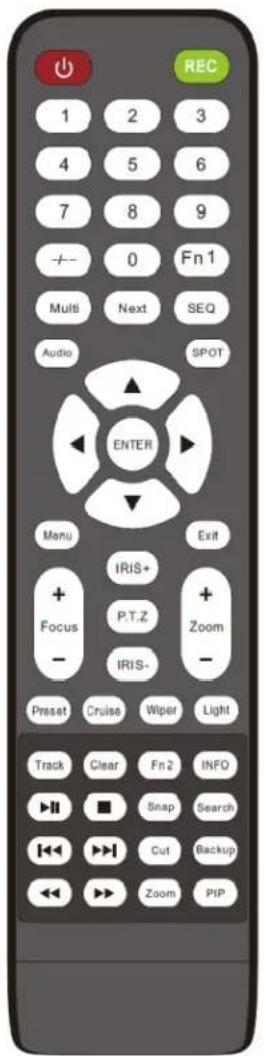

There are two kinds of remote controller. The interface of remote controller is shown as below.

REC Search MENU Exit ENTER ZOM POP Multi Next SEQ INFO

Button	Function
REC	Record manually
Search	To enter search mode
MEUN	To enter menu
Exit	To exit the current interface
ENTER	To confirm the choice or setup
Direction button	To move cursor in setup
ZOOM	To zoom in
PIP	No function temporarily
	To control playback. Play(Pause)/Next Frame/Speed Up/Stop/Previous Frame/Speed Down
Multi	To choose multi screen display mode
Next	To switch the live image
SEQ	To go to sequence view mode
INFO	Get information about the device

REC 1 2 3 4 5 6 7 8 9 + - 0 Fn1 Multi Next SEQ Audio SPOT ENTER Menu Exit + IRIS+ Focus P.T.Z + - IRIS- Zoom - Preset Cruise Wiper Light Track Clear Fn2 INFO ▶▶ ■ Snap Search ◀◀ ▶ Cut Backup ◀◀ ▶ Zoom PIP

Button	Function
	Switch off—to stop the device
Record Button	To start recording
-/-- /0-9	Input number or choose camera
Fn1 Button	Unavailable temporarily
Multi Button	To choose multi screen display mode
Next Button	To switch the live image
SEQ	To go to sequence view mode
Audio	To enable audio output in live mode
Switch	No function temporarily
Direction button	To move cursor in setup or pan/title PTZ
Enter Button	To confirm the choice or setup
Menu Button	To go to menu
Exit Button	To exit the current interface

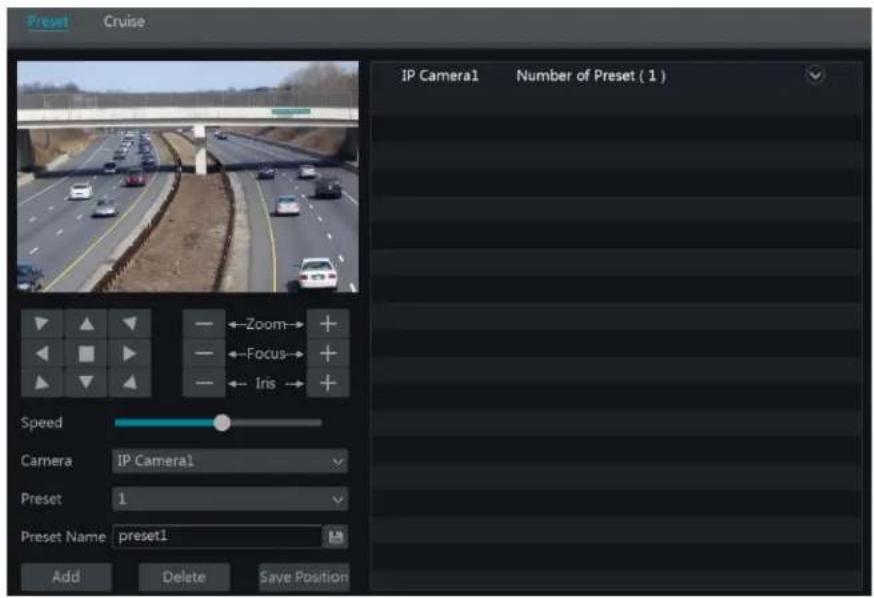

Focus/IRIS/Zoom/PTZ	To control PTZ camera
Preset Button	To enter into preset setting in PTZ mode
Cruise Button	To go to cruise setting in PTZ mode
Track Button	No track function temporarily
Wiper Button	No function temporarily
Light Button	No function temporarily
Clear Button	No function temporarily
Fn2 Button	No function temporarily
Info Button	Get information about the device
	To control playback. Play (Pause)/Stop/Previous Frame/Next Frame/Speed Down/Speed Up
Snap Button	To take snapshots manually
Search Button	To go to search mode
Cut Button	No function temporarily
Backup Button	To go to backup mode
Zoom Button	To zoom in the images
PIP Button	Not active

2.3 Mouse Control

Mouse control in Live Display & Playback interface

In the live display & playback interface, double click on any camera window to show the window in single screen mode; double click the window again to restore it to the previous size.

In the live display & playback interface, if the interfaces display in full screen, move the mouse to the bottom of the interface to pop up a tool bar. The tool bar will disappear automatically after you move the mouse away from it for some time; move the mouse to the right side of the interface to pop up a panel and the panel will disappear automatically after you move the mouse away from it.

Mouse control in text-input

Move the mouse to the text-input box and then click the box. The input keyboard will pop up automatically.

Note: Mouse is the default tool for all operations unless an exception as indicated.

2.4 Text-input Instruction

1 2 3 4 5 6 DEL 7 8 9 0 .

1 2 3 4 5 6 7 8 9 0 q w e r t y u i o p a s d f g h j k l ↑ z x c v b n m EN/CN @ . #?!

The system includes two input boxes. Refer to the above pictures. The left box is the number input box and the right box is the input box which provides inputs of numbers, letters and punctuation characters. The introductions of keys on the input boxes are shown below.

Button	Meaning	Button	Meaning
	Backspace key		Switch key of punctuation character
	Delete Key		Enter key
	Switch key between upper and lower letter		Space key
EN/CN	Switch key of language

2.5 Common Button Operation

Button	Meaning
	Click it to show the menu list.
	Click it to change the sequence of the list.
	Click it to change the camera displaying mode.
	Click it to close the current interface.
Earliest	Click it to go to the earliest date of camera recording.
Latest	Click it to go to the latest date of camera recording.

3 EZ Setup & Main Interface

3.1 EZ Setup

The disk icons will be shown on the top of the startup interface. You can view the number and status of each disk quickly and conveniently through these icons (☐: no disk; ☐: unavailable disk; ☑: RW available disk).

You can quickly configure the NVR by clicking "OK" to make the NVR work normally. You must configure the wizard if you start the NVR for the first time (or click "Skip" to cancel the EZ Setup next time).

EZ Setup OK Enable EZ setup next time. Skip

Click "OK" to start wizard. The setting steps are as follows.

① System Login. Set your own password when you use the wizard for the first time (the default username of the system is admin); select the login username and enter the password you set by yourself.

EZ Setup Admin Password Setup Username New Password Enter Password Confirm Password ✓ Display Password ✓ Log In Automatically Pattern Lock ✓ Enable ✓ Log 1.8 to 16 characters 2. Contains numbers/lowercase/uppercase letters/symbols of three or more Next

Click "Edit Security Question" to set questions and answers for password security of admin. If you forget the password, please refer to Q4 in Appendix A FAQ for details.

Click "Next" to continue or click "Cancel" to exit the wizard.

② Date & Time. When booting up for the first time, the device will prompt you for time settings or go to Settings→System→Date and Time for details.

System Time: Set the time and date format of the system

DST: Toggle Daylight Saving Time On or Off

Time format: Choose between 24-hour mode and 12-hour mode.

NTP: Specify an NTP server to synchronize the time (optional).

EZ Setup Time Zone GMT-85 New York, Toronto, Washington System Time 05/08/2018 18:29:22 Date Format Month/Day/Year Time Format 24-Hour DST OFF Synchronous Manual NTP Server time.windows.pup Previous Next Cancel

③ Disk Settings. You can view the disk number, disk capacity of the NVR and serial number, R&W status of the disk. Click "Format" to format the disk. Click "Next" to continue. Then click "EZ Setup".
④ Network Settings. Select the network work pattern as required. Check "Obtain an IP address automatically" and "Obtain DNS automatically" to get the IP address and DNS automatically (the DHCP function of the router in the same LAN should also be enabled), or manually enter them. Enter the HTTP port, RTSP port and Server port (please see 13.1.2 Port Configuration for details). Click "Next" to continue.

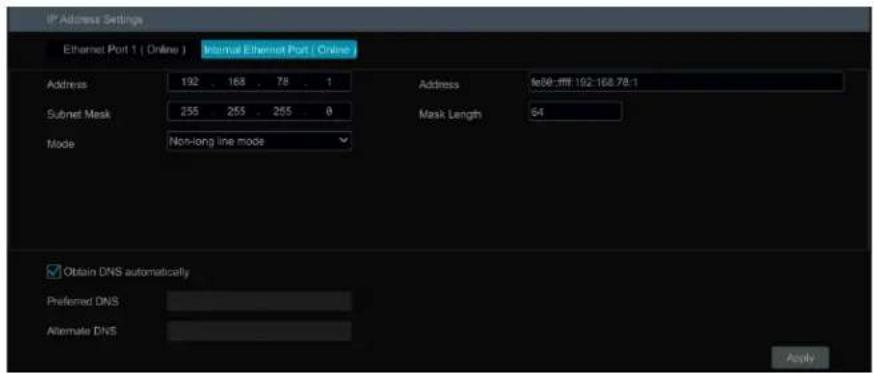

Network Settings > Ethernet Port 1 ( Online ) Obtain an IP address automatically Address 10 10 13 259 Subnet Mask 255 255 248 0 Gateway 10 10 0 1 Obtain DNS automatically Preferred DNS Alternate DNS HTTP Port 88 HTTPS Port 443 Internal Ethernet Port 1 ( Online ) Address 10 10 12 5 Subnet Mask 255 255 248 0 RTSP Port 554 Server Port 6036 Previous Next Cancel

If you use the NVR with the PoE network ports, the online state of the internal Ethernet port will be shown on the interface.

If the NVR has two network ports or above, you can select the network work pattern as required. Network Fault Tolerance and Multiple Address Setting are available.

⑤ Other Network Settings.

UPnP settings: Check "Enable" in the interface and enter the port of external and then click "Test" to test the effectiveness of the input information. If the UPnP status were "Invalid UPnP", the port number may be wrong. Click to modify the port until the UPnP status turns to "Valid UPnP". Refer to the following picture. You can view the external IP address of the NVR. Enter the external IP address plus port in the address bar of your browser to access the NVR. (please see 13.1.6 UPnP Configuration for details).
➢ DDNS Settings: Check "Enable" and then select the DDNS type. Enter the server address, domain name, username and password according to the selected DDNS type. And then click "Register" or "Test" to test the effectiveness of the domain name. If it is effective, you can enter the domain name in the address bar of your browser to access the NVR. (please see 13.1.4 DDNS Configuration for details).

Note: Make sure the router supports UPnP function and the UPnP is enabled in the router. Set the NVR's IP address, subnet mask and gateway and so on corresponding to the router.

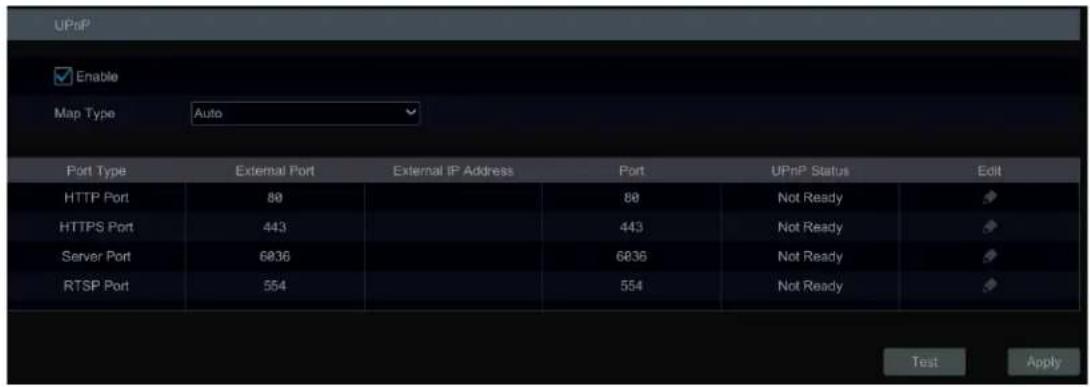

EZ Setup EZ Network > Other Network Settings > UFPN Enable Map Type Audio Add Internet Internet / Options Add Internet HTTP Type 80 30 HTTPS Type 021 480 Server Type 0026 6336 HTTP Type 154 154 DDR5 Enable DDR5 Type system主机 Server Address user address Domain Name system_name - system主机 Username Password Add Previous Next Cancel

⑥ Add Camera. Add cameras via PoE first before adding any cameras from the LAN. Speco cameras added via the PoE ports will automatically be added to the corresponding channel. To add cameras from the LAN, make sure all cameras are set to DHCP. Click "Refresh" to refresh the list of online IP cameras which are in the same local network with NVR and then click + to add the searched camera. Click "Add All" to add all the cameras in the list. Click 📋 to delete the added camera. Click "Delete All" to delete all the added cameras.

EZ Setup EZ Network - Other Network Settings - EZ Camera > 192.168.78.191 No. Address Edit Part Protocol Model Version Add 1 192.168.56.51 8200 SPECO OZVLD5 + 2 192.168.56.181 86 SPECO Spoco Cl... 3 192.168.56.180 554 Space OHVLB5 4.1.3.8 + 4 192.168.56.180 86 SPECO JVN Wall + 5 192.168.56.187 86 SPECO OBD2M + 6 192.168.56.118 86 SPECO Eddie-O2 + 7 192.168.56.128 84 SPECO OZIDSM + 8 192.168.56.129 86 SPECO DAFDSM + 9 192.168.56.128 84 SPECO QDMDD1 + Refresh Add All Delete All Remain Bandwidth: 185 / 112 Mb No. IP Camera Name Address Protocol Status Edit Delete 1 |PCE1@36m 192.168.78.191 Spoco Online

Click to edit the searched IP camera as shown on the below left. Enter the new IP address, subnet mask, gateway, username and the password of the camera. You can check "Sync to IPC" to modify the IP address of the IPC via different network segments for being in the same network segment with the NVR. Click "OK" to save the settings.

Edit IP MAC Address 00 16 18 23 25 29 Address 192 168 2 269 Submit Mask 255 255 255 0 Gateway 192 196 2 1 Username Password ******** OK Cancel

Edit Camera Camera Name: IP Camera1 Address: 54 147 2 30 4 Port: 98.0 Protocol: IP Camera1 Model: size: 2 Username: size: 1 Password: ******** OK Cancel

Click to edit the added camera as shown on the above right. Enter the new camera name, IP address, port, username and the password of the camera. You can click "Test" to test the effectiveness of the input information. Click "OK" to save the settings. You can change the IP camera name only when the added camera is online. Click "Next" to continue.

⑦ Record Settings. Two record modes are available: auto and manual.

Auto: Select one auto mode in the interface as shown below and then click "Next" button to save the settings. Click "Advanced" to self-define record mode. See 7.1.1 Mode Configuration for details.

EZ Setup EZ Network > Other Network Settings > EZ Camera > EZ Record > OPC code Mode Auto Motion Record Sensor Record Motion Record+Sensor Record Continuous Record+Motion Record Continuous Record+Sensor Record Continuous Record+Motion Record+Sensor Record Continuous Record+Motion Record+Sensor Record+AI Record Advanced Previous Next Cancel

Manual: Set the "Sensor Record", "Motion Record" and "Schedule Record" of each camera. Click "OK" to save. See 7.1.1 Mode Configuration for details.

EZ Setup EZ Network > Other Network Settings > EZ Camera > EZ Record > Mode Customization Camera Name Sensor Record Motion Record All Record POS Record Schedule Record Custom Schedule Previous Next Cancel

⑧ QRCode. Enable the NAT function in the interface or set it in the network configuration after exiting the wizard (please refer to 13.1.8 NAT Configuration for details). You can scan the QRCode through the SpecoBlue App available for iOS and Android to easily and securely view your cameras. Please refer to 14.1 Mobile Client Surveillance for details. Click "OK" to save the settings.

3.2 Main Interface

3.2.1 Main Interface Introduction

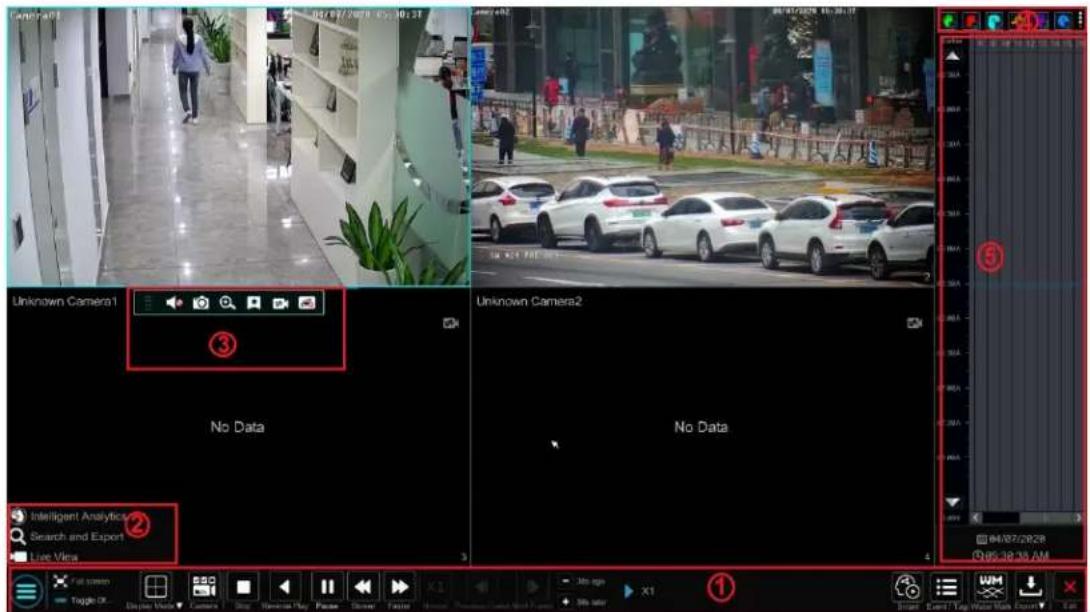

Camera Target Deviation 3 Attention Investigent Analysis Search and Export Playbox Settings Logprint Shutdown EZ Setup 01/07/2020 84.31:54 AM ② ① ② Hill, 100% Saturn History

The buttons in area ① are introduced in the table below.

Button		Meaning
		Start button. Click it to pop up area 3.
		Full screen button. Click it to show full screen; click it again to exit the full screen.
		Screen mode button.
		Dwell button (see 5.2.2 Quick Sequence View and 5.2.4 Scheme View In Sequence for details).
		Click it to enable OSD; click again to disable OSD.
		Click to set the default playback time before starting instant playback (8.1 Instant Playback) or going to the playback interface for playback operations (8.2 Playback Interface Introduction); click to go to the playback interface. For instance, if you choose “5 minutes ago” as the default playback time, you can playback the record from the past five minutes.
	[806W]	Manual record button. Click it to enable/disable record.
	[DSBY]	Manual alarm button. Click it to trigger or clear the alarm-out manually in the popup window.
		Record status button. Click it to view the record status.
	[HA07]	Alarm status button. Click it to view the alarm status.
		Disk status button. Click it to view the disk status and RAID status.
	[YZ06]	Network status button. Click it to view the network status.
	[ABDX]	Information button. Click it to view system information.

Introduction of area ②:

Click "Camera" to view all the added cameras in the camera list. Select one camera window on the left side of the interface and then double click one camera in the list to preview the camera image in the selected window.

Click "Single Channel Sequences" to view all the added groups in the group list; click one group in the list to view all the added cameras in the group (refer to 4.2 Add/Edit Camera Group for detail configuration of the camera group). Select one camera window on the left side of the interface and then double click one group in the group list to preview the cameras' images one by one in the selected window.

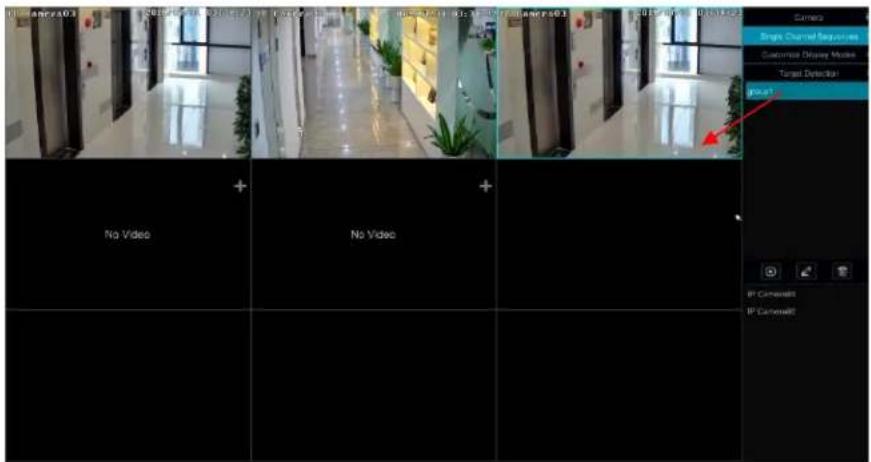

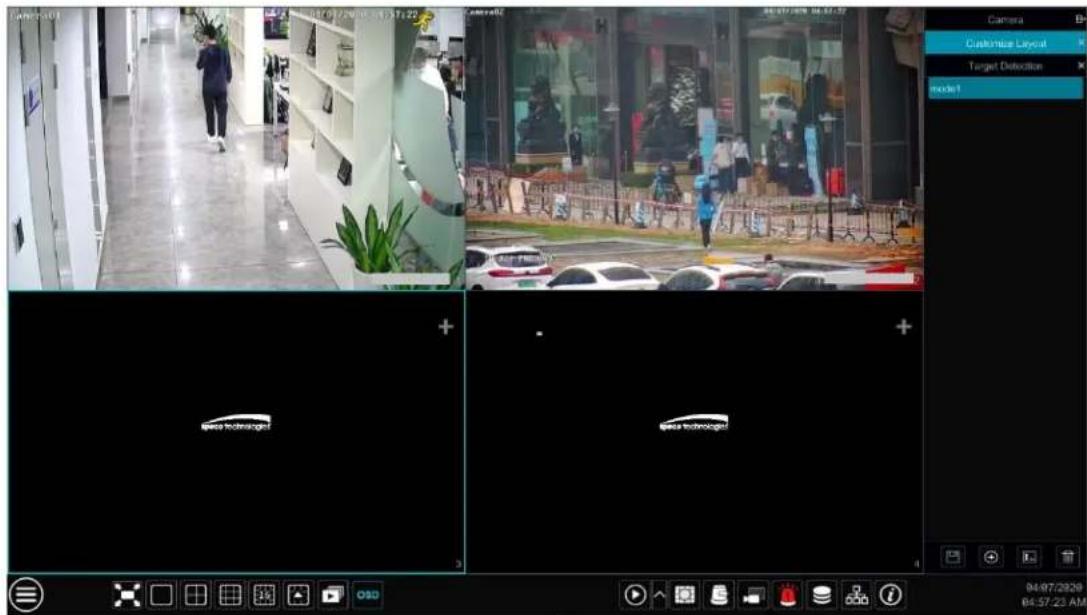

Click "Customize Layout" to view all the display modes in the display mode list (refer to 5.2.1 Display Mode for detail configuration of the display mode). Double click one display mode in the list to switch to the display mode for previewing.

Introduction of area ③:

Icon / Button	Meaning
	It shows the current login user.

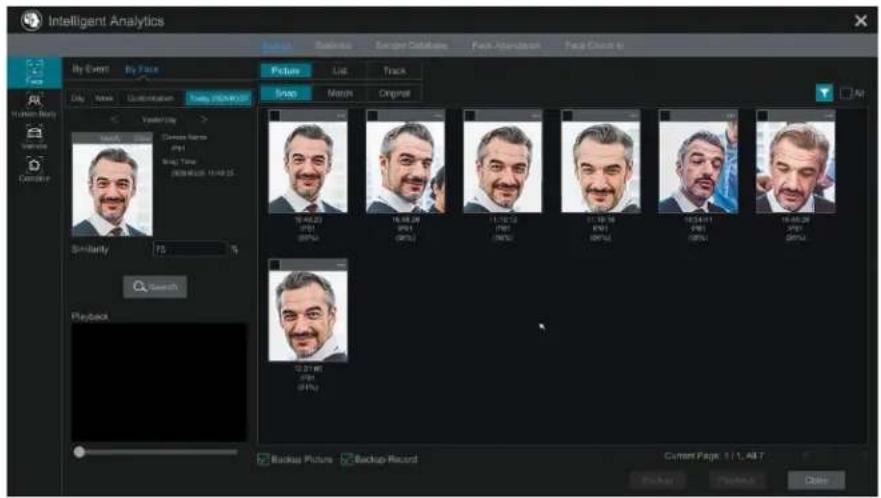

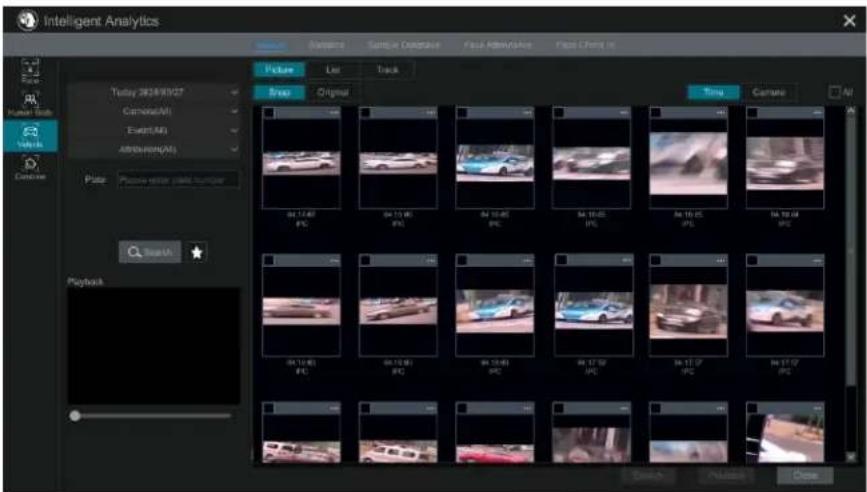

	Click it to go to the intelligent analytics interface.
Search and Export	Click it to go to record search and export interface, see 8.4 Record Search, Playback & Export for details.

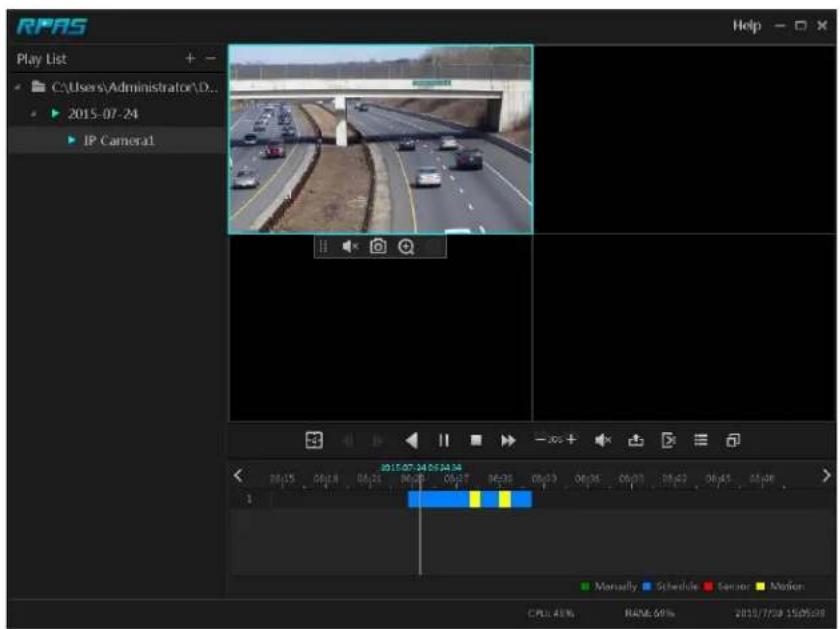

	Click it to go to playback interface (click on the tool bar at the bottom of the live view interface to set the default playback time), see 8.2 Playback Interface Introduction for details.
	Click it to pop up the setup panel, see 3.2.2 Setup Panel for details.
	Click it to log out the system.
	Click it and then select “Logout”, “Reboot” or “Shutdown” in the popup window.
	Click it to go to the EZ setup.

3.2.2 Setup Panel

Click Start→Settings to pop up the setup panel as shown below.

Camera Target Desktop Camers Add Camera | Edit Camera Image Settings | Motion | PTZ Record Music Settings | Encaps Parameters Record Status AI / Event Face Recognition | JPR Photo/Vehicle Partners | Sensor Image Altered | Voxel Alarm Disk Dial Management On Page Mouse Network TOPSP Part | Email Network Bonus Account and Authority Add User | Edit User Mobile Partners | Pattern Link System Basic Settings | View Log Backup and Pression adden Intelligent Analytics Search and Excel Playback Settings Logout Shutdown E2 Setup 3 Next Start Right 94/07/2020 04:31:54 A9

The setup panel includes seven modules. Each module provides some function entries with links for convenient operation.

Here we take Camera module as an example. The Camera module provides convenient links such as "Add Camera", "Edit Camera", "Image Settings", "Motion", "Intelligence Analysis" and "PTZ". Click Camera to go to the camera management interface as shown below.

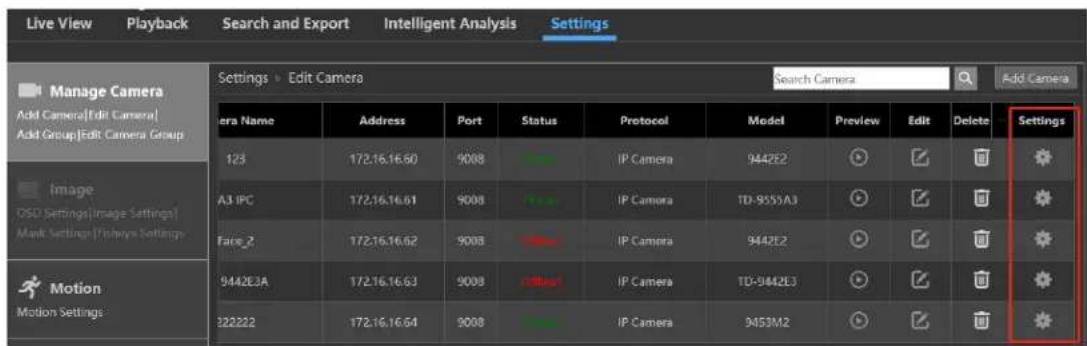

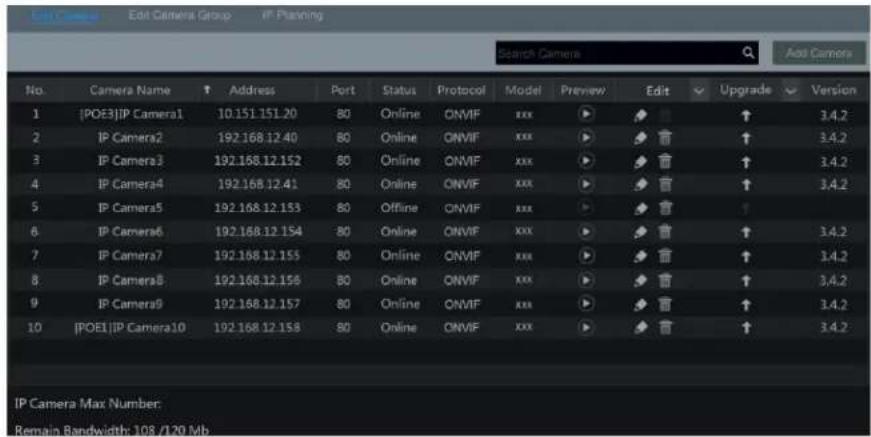

Edit Camera Edit Camera Group IP Permiting Search Camera Add Camera No Camera Name Address Port Status Protocols Model Preview Edit Upgrade Version 1 IP Camera1 16.10.7.189 9368 Online IP Camera 9583E2 4.1.8.8

There are some function items on the left side of the camera management interface. Click each item to go to corresponding interface or window. For instance, click "Add Camera" to pop up the window as shown below.

Add Camera Add Manually No. 1 Address Port Edit Subnet Mask Protocol Model 1 10.20.17.9 9008 255.255.0.0 IP Camera 2 10.20.17.10 9008 255.255.0.0 IP Camera 3 10.20.18.4 9008 255.255.0.0 IP Camera 4 10.20.18.8 9008 255.255.0.0 IP Camera 5 10.20.18.15 9008 255.255.0.0 IP Camera 6 10.20.18.22 9008 255.255.0.0 IP Camera Selected: 0 / 23 Refresh Add Delete All No. IP Camera Name Address Protocol Status Edit Delete 1 IPC 10.20 14.194 IP Camera Offline! 2 IPC 192.168.226.203 IP Camera Offline! Remain Bandwidth, 46 / 50 Mb Advanced Cancel

Click the main menus on the top of the camera management interface to go to corresponding interfaces. Refer to the picture below. For instance, you can go to the system setup interface by clicking "System" tag.

Live View Camera Record AI / Event Disk Network Account and Authority System

3.2.3 Main Functions

Camera

The module covers the functions such as Camera Management (see Chapter 4 Camera Management for details), Image Settings (see 5.3 Image

Configuration for details), Motion (see 11.2.1 Motion Configuration for details), and PTZ (see Chapter 6 PTZ for details) and so on.

Record

The module covers the functions such as Encode Parameters and Record Schedule and so on. Please see Chapter 7 Record & Disk Management for details.

AI/Event

The module covers the functions such as Sensor and Motion Alarm Handling and Alarm Out Settings. Please see Chapter 9 AI Event Management and Chapter 11 General Event Management for details.

Disk

The module covers the functions such as Disk Management, Storage Mode and Disk Information and so on. Please see Chapter 7 Record & Disk Management for details.

Network

The module covers the functions such as TCP/IP, DDNS, Port, E-mail and Network Status and so on. Please see 13.1 Network Configuration for details.

Account and Authority

The module covers the functions such as Account Management (see 12.1 Account Management for details) and Permission Management (see 12.3 Permission Management for details) and so on.

System

The module covers the functions such as Basic Configuration (see 13.2 Basic Configuration for details), Device Information (see 13.8 View System Information for details), Log Information (see 13.7 View Log for details) and Configuration File Import&Export (see 13.5 Backup and Restore for details) and so on.

4 Camera Management

4.1 Add/Edit Camera

4.1.1 Add Camera

The network of the NVR should be set before adding IP camera (see 13.1.1 TCP/IP Configuration for details).

Refer to the pictures below. Click Add Camera in the setup panel or + in the top right corner of the preview window to pop up the "Add Camera" window as shown below. You can quickly add or add the IP camera manually.

Camera Add Camera Edit Camera Image Settings | Motion | PTZ Click it to add camera No Video Single Channel Sequences Customize Layout PC PC Add Camera Quickly Add Add Manually Add Recorder No Address Port Edit Subset Mask Protocol Model 1 10.20.17.9 9008 255.255.0.0 IP Camera 2 10.20.17.10 9008 255.255.0.0 IP Camera 3 10.20.18.4 9008 255.255.0.0 IP Camera 4 10.20.18.8 9008 255.255.0.0 IP Camera 5 10.20.18.15 9008 255.255.0.0 IP Camera 6 10.20.18.22 9008 255.255.0.0 IP Camera Selected: 0 / 23 Refresh Add Delete All Top IP Camera Name Address Protocol Status Edit Delete 1 IPC 10.20.14.194 IP Camera Offline! 2 IPC 262.168.226.201 IP Camera Offline! Remain Bandwidth: 46 / 50 Mb Advanced Cancel

Quickly Add

Check the cameras and then click "Add" to add cameras. Click 📄 to edit the camera's IP address, username and password and so on. Click "Default Password" to set the default username and password of each camera.

Add Camera Quickly Add Add Manualsly Add Recorder Address Port---------------------------- Employee Password Protocol Text Delete 0.0.0.0 9008 admin IP Camera Set Add Delete Add No. IP Camera Name Address Protocol Status Edit Delete 1 IPC 10.20.14.194 IP Camera Offline 2 IPC 192.168.226.201 IP Camera Offline Remain Bandwidth: 310 / $20 Mb Advanced Cancel

Add Manually

Enter the IP address or domain name (click in the IP address column to pop up the domain name input window, enter the domain name of the IPC in the window and then click "OK" button), port, username and password of the camera and then select the protocol. Click "Test" to test the effectiveness of the input information and then click "Add" button (you can input one camera's information or above such as IP address, username

and password before clicking "Add" button). Click 📄 to delete the camera. Click "Default Password" to set the default username and password of each camera.

Note: Some models may not support this function.

Click Start→Settings→System→Basic→General Settings to check "Enable Add IPC by Zero Operation". If the NVR has unoccupied channels, it can add IPC without any operation by restarting.

Add Recorder

Add Camera Quickly Add Add Manually Add Recorder Address Port---------------------------- Employee Password Protocol Text Delete Add Delete As No.IP Camera Name Address Protocol Status Update Delete 1.IPC 10.20.14.194.IP Camera Offline ✓ ✓ 2.IPC 192.168.226.201.IP Camera Offline ✓ ✓ Remain Bandwidth: 310 / 320 Mb Advanced Manual Add Cancel

• Quickly Add: Select the searched NVR/DVR and the click "Add" to add NVR in the same local network.
• Manually Add: Click "Manual Add" and then enter the IP address or domain name, port, username and password of the NVR/DVR. Check the added remote channel number and click "Test" to test the effectiveness of the input information. Then click "OK" button to return to the previous interface.

Add Recorder Channel Address 192 168 12 35 Domain Name Server Port 40.36 HTTP Port 80 Channels 8 Username admin Password ****** Remote Channel No. Camera Name Model 1 2 3 4 5 6 7 8 Selected: 0 / 8 Test OK Cancel

Note: Only the local NVR has unoccupied channels, may the IPC of other NVR/DVR in the same local network be added. And the added IPC supports previewing and recording.

4.1.2 Edit Camera

Click "Edit Camera" in the setup panel to go to the interface as shown below. Click 🖼️ to view the live image of the camera in the popup window. Click 🔒 to edit the camera (see Add camera in 3.1 Startup Wizard for details). Click 🔒 to delete the camera. Click √ in the "Operation" header line and then click "Modify IPC Password" to pop up a window(check the IPCs in the window, set the new password and then click "OK" button; only the online IPCs' passwords can be modified and a batch of IPCs' passwords can be modified at the same time). Click ↑ to upgrade an online IPC (or click √ in the "Upgrade" header line and then click "IPC Batch Upgrade" to upgrade a batch of IPCs), select the device which stores the upgrade file in the "Device Name" item of the popup window and the upgrade file in the list(you should select the upgrade IPC model in the window if a batch of IPCs' passwords need to be modified) and then click "Upgrade" button to start upgrading(the IPC will restart automatically after the upgrade is completed successfully).

Edit Camera Edit Camera Group IP Planning Search Camera Add Camera No. Camera Name ↑ Address Port Status Protocol Model Preview Edit Upgrade Version 1 |POE3|IP Camera1 10.151.151.20 80 Online ONVIF xxx ▶ ♦ ↑ 3.4.2 2 IP Camera2 192.168.12.40 80 Online ONVIF xxx ▶ ♦ 言 ↑ 3.4.2 3 IP Camera3 192.168.12.152 80 Online ONVIF xxx ▶ ♦ 言 ↑ 3.4.2 4 IP Camera4 192.168.12.41 80 Online ONVIF xxx ▶ ♦ 言 ↑ 3.4.2 5 IP Camera5 192.168.12.153 80 Offline ONVIF xxx ▶ ♦ 言 ↑ 6 IP Camera6 192.168.12.154 80 Online ONVIF xxx ▶ ♦ 言 ↑ 3.4.2 7 IP Camera7 192.168.12.155 80 Online ONVIF xxx ▶ ♦ 言 ↑ 3.4.2 8 IP Camera8 192.168.12.156 80 Online ONVIF xxx ▶ ♦ 言 ↑ 3.4.2 9 IP Camera9 192.168.12.157 80 Online ONVIF xxx ▶ ♦ 言 ↑ 3.4.2 10 |POE1|IP Camera10 192.168.12.158 80 Online ONVIF xxx ▶ ♦ 言 ↑ 3.4.2 IP Camera Max Number: Remain Bandwidth: 108 /120 Mb

The IP cameras with PoE function which directly connect to the PoE port of the NVR will be displayed automatically in the camera list. Refer to the picture below. The IP camera which occupies the PoE resource has a prefix shown before its camera name. The prefix consists of PoE plus PoE port number. The IP camera which connects to the PoE port cannot be deleted from the camera list manually.

● The IP camera which directly connects to the PoE port of the NVR through private protocol will be shown automatically in the camera list.
- One of the two conditions must be met if the IP camera which directly connects to the PoE port of the NVR through ONVIF protocol should be shown automatically in the camera list.

√ The IP camera which directly connects to the PoE port is in the same network segment with the internal Ethernet port.

√ The DHCP (obtain an IP address automatically) of the IP camera which directly connects to the PoE port is enabled.

If the IP camera which connects to the PoE port cannot be displayed automatically in the camera list, please refer to Q6 in Appendix A FAQ for details.

4.2 Add/Edit Camera Group

4.2.1 Add Camera Group

Click "Edit Camera Group" in the above interface to go to the interface as shown below.

Edit Camera Edit Camera Group IP Planning Group1 Dwell Time ( 10 Secs ) Number of Cameras( 2 ) Group2 Dwell Time ( 10 Secs ) Number of Cameras( 2 )

Click + to pop up the window as shown below. Set the group name and dwell time (the dwell time of the camera group sequence view) in the window. Check the cameras and then click "Add" to add group. Click √ to view the cameras in the group after adding group.

Add Group Group Name Enter Group Name Dwell Time 10 Secs Search Camera All IP Camera1 IP Camera2 IP Camera3 IP Camera4 Selected: 0 / 4 Add Cancel

4.2.2 Edit Camera Group

Edit Camera Edit Camera Group IP Planning Group1 Dwell Time ( 10 Secs ) Number of Cameras( 2 ) IP Camera1 IP Camera2 + Group2 Dwell Time ( 10 Secs ) Number of Cameras( 2 ) IP Camera3 IP Camera4 +

Click ☑ modify the group information such as group name and dwell time. Click to do the group.

4.2.3 IP Planning

Some models may not support this function.

Click "IP Planning" to go to the interface as shown below. This function supports searching other NVRs/DVRs that is in the same local network as the local NVR. The user may add camera channels of other NVRs/DVRs into the unoccupied channels of the local NVR.

Device Name (Local) 192.168.12.20D B/B IF Camera 1 IF Camera 2 IF Camera 3 IF Camera 4 IF Camera 5 IF Camera 6 IF Camera 7 Recunder 1 IF Camera 6 (72.16.29.20) Protocol : DVIF Model : xxx Device Name(NVR) 192.168.12.198 1/4 No. ↑ Address Edit ✓ Add ✓ Protocol Model 1 192.168.12.30 + XXX XX

Click to edit the IP address, user name or password and other information of the NVRs. Click behind "Add" button to add the camera channels selected and the user may edit the IP address, user name or password by clicking behind "Edit" button.

5 Live View Introduction

5.1 Live View Interface Introduction

You should add camera first after logging on to the system (see 4.1.1 Add Camera for details). Refer to the interface as shown below, drag one camera in the preview window to another window for camera window exchanging.

The record symbols with different colors in the live view window refer to different record types when recording: green stands for manual record, red stands for sensor based record, yellow stands for motion based record, blue stands for schedule record and cyan stands for intelligence record.

Camera Target Decision Cameraell 84:92:29 AM spere technologies spere technology spere technology Real Time History 04/07/2020 64:58:51 AM

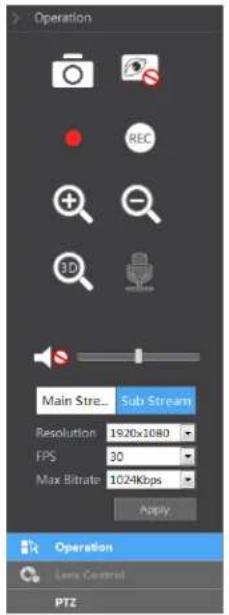

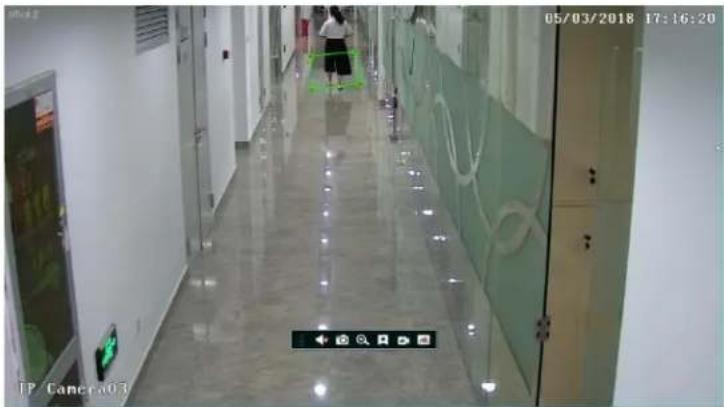

Click the preview window to show the tool bar as shown in area ①; right click the preview window to show the menu list. The tool bar and menu list are introduced in the table below.

Button	Menu List	Meaning
	--	Move tool. Click it to move the tool bar anywhere.
	Manually Record On	Click it to start recording.

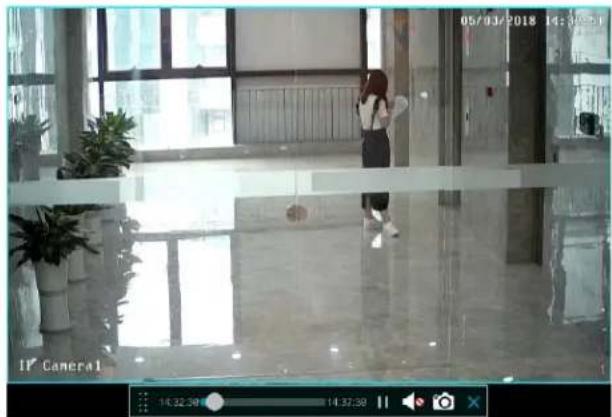

	Instant Playback	Click ▶ to playback the record; click “Instant Playback” to select or self-define the instant playback time. See 8.1 Instant Playback for details.
	Enable Audio	Click it to enable audio. You can listen to the camera audio by enabling audio.

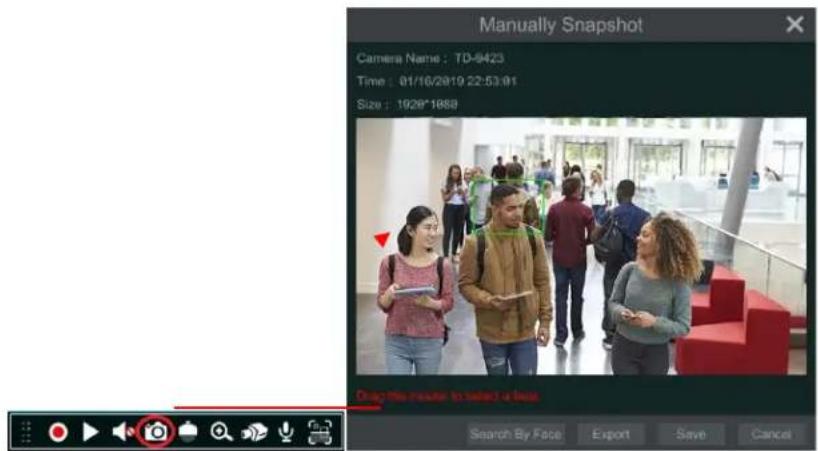

	Snap	Click it to pop up the snap window. Click “Save” in the window to save the image. Click “Export” to export the image.
	PTZ Control	Click it to go to PTZ control interface. See Chapter 6 PTZ for details.
	Zoom In	Click it to go to single channel amplification interface.
	--	Click it to go to image adjustment interface. Refer to 5.3.4 Image Adjustment for details.
	Target detection	Click it to go to single channel target detection interface; the target includes faces, human bodies and vehicles.
--	Camera Info	Click it to view the camera information.

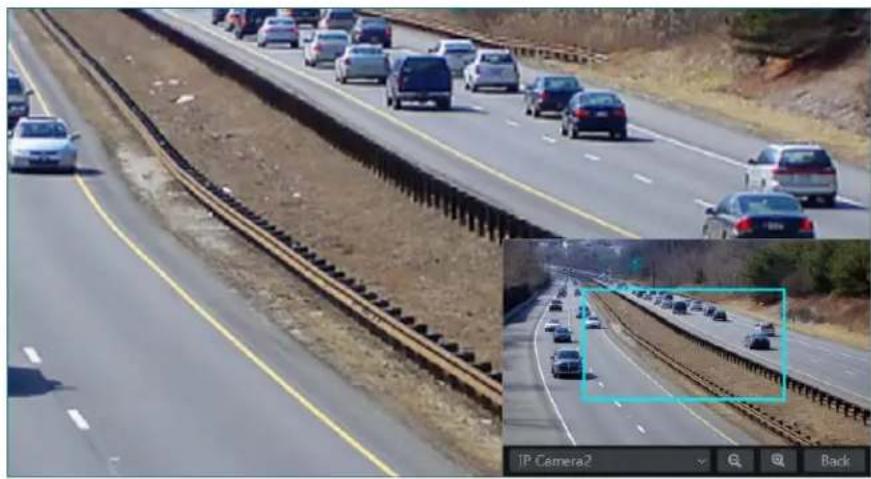

The single channel amplification interface is as shown below. Press and drag the blue box to select the zoom in area. Click / to zoom the image. Click the camera selection box to select other cameras for amplification. Click "Back" to return to the live view interface.

Highway traffic scene with multiple cars on elevated tracks and a close-up inset showing a detailed lane view of lanes (no visible text or symbols)

5.2 View Mode

5.2.1 Display Mode

Set different screen modes and cameras' display sequences as needed and then save the display modes classified by surveillance areas, priorities and so on. Refer to the picture below. Double click one display mode in the display mode list to view the live images in this mode.

Camera Customize Layout Target Detection model1 + - space technology space technology 04/07/2029 04:57:23 AM

Add Display Mode

Method One:

① Click "Customize Display Modes" in the above interface
② Click add a display mode name and then set the screen mode.
③ Add the cameras and adjust the cameras' display sequence as required.
④ Click ▼er the display mode list.

Method Two:

① Click Start→Settings→System→Basic→Output Settings to go to the interface and then set the screen mode.
② Double click the camera or camera group in the list to add them to the selected window.
③ Click ★ to save the current display mode (refer to 5.2.4 Scheme View in Sequence for detail configurations). The display mode will be saved and displayed in the display mode list in the live preview interface.

Edit Display Mode

Click "Customize Display Modes" tab in the live preview interface and then select one display mode in the list. Click to edit the display mode

name; click delete the display mode.

5.2.2 Quick Sequence View

You can start quick sequence view if the scheme has not been created. If the scheme has been created, please refer to 5.2.4 Scheme View in Sequence for details.

Security camera interface screenshot showing a security camera with a person wearing a mask, alongside a surveillance camera view of a building with cars and signage.

Go to the live view interface and then click 📋 to pop up a little window. Set the dwell time in the window and then click 📋 to view the live group by group according to the camera number of the current screen mode. Double click the sequence view interface to pause the view; double click again to restore the view. Click 📋 stop the view.

5.2.3 Camera Group View In Sequence

You can start camera group view in sequence if camera group has been created (see 4.2.1 Add Camera Group for details). ① Go to the live view interface and then select a camera window.

Camera Single Channel Sequences Customize Disney Mode Target Detector View1 No Video No Video IP Carwell IP Carwell

② Double click one camera group on the right side of the interface. The cameras in the group will start camera group view one by one in the selected camera window.

You can also drag the group directly to any preview window. Right click on the group view window and then click "Close Dwell" button to stop the view.

You can also add camera group in the live view interface. Select "Single Channel Sequences" and then click to add camera group. Click

to modify the group name and sequence interval. Click delete the group.

5.2.4 Scheme View In Sequence

Click Start→Settings→System→Basic→Output Settings to go to the interface as shown below.

Area ① displays all the dwell schemes; area ② shows the detailed information of the scheme; area ③ displays all the cameras and groups; area ④ is the tool bar (☐: clear button; ★: favorite button, click it to pop up a window, enter the display mode name in the window and then click "OK" to save the current display mode; other buttons are screen mode buttons).

Main Output Sequence 1 IP Camera1 Camera Single Channel Sequences IP Camera1 IP Camera2 IP Camera3 IP Camera4 ① ② ③ Apply

Add Scheme

Click + in area ① to create a new scheme. Click ✗ on the top right corner of the scheme to delete it.

Configure Scheme

a) Select a scheme in area ① and then click the screen mode button on the tool bar to set the screen mode of the scheme.
b) Select a camera window in area ② and then double click the camera or group in area ③. The camera or group will be added into the selected window. One camera in the same scheme cannot repeat. You can click the right-click menu "Clear" in area ② to remove a single camera or click to remove all the cameras.
c) Click "Apply" to save the settings.

Start Sequence View

Go to the live view interface and then click 📋 to open a window. Set the dwell time in the window and then click 📋 to start scheme view in sequence. Double click the sequence view interface to pause the view; double click again to restore the view. Click 📋 to stop the view.

5.3 Image Configuration

5.3.1 OSD Settings

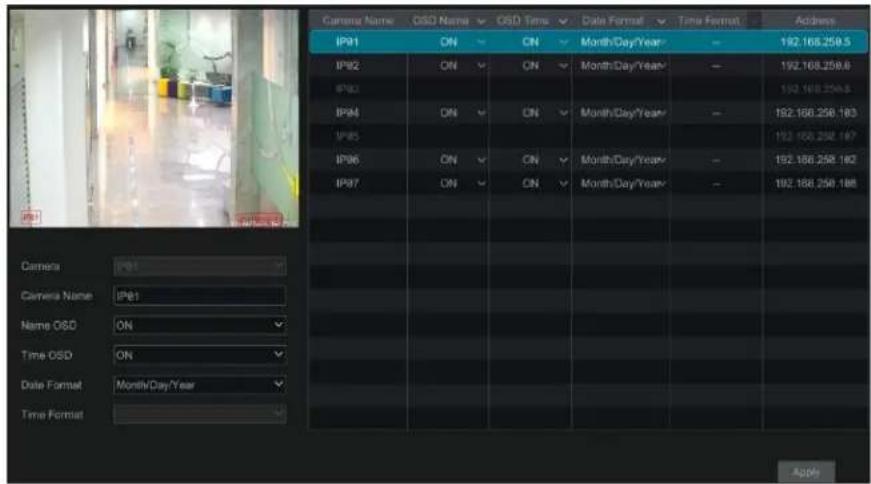

Click Start→Settings→Camera→Image→OSD Settings to go to the interface as shown below. Select the camera, enter the camera name (or double click the camera name in the camera list to change the camera name), enable or disable the name and time OSDs (if enabled, drag the red name and time OSDs directly in the image view area to change the OSDs' display position) and select the date and time formats. Click "Apply" to save the settings.

Camera Name OSD Name OSD Time Date Format Time Format Address IP91 ON ON Month/Day/Year - 192.168.258.5 IP92 ON ON Month/Day/Year - 192.168.258.6 IP93 IP94 ON ON Month/Day/Year - 192.168.258.6 IP95 IP96 ON ON Month/Day/Year - 192.168.258.193 IP97 ON ON Month/Day/Year - 192.168.258.197 Camera IP91 Camera Name IP91 Name OSD ON Time OSD ON Date Format Month/Day/Year Time Format Apply

5.3.2 Image Settings

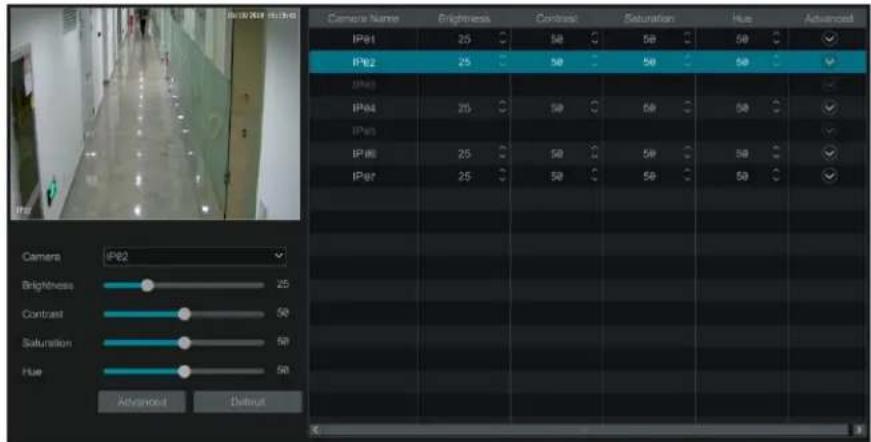

Click Start→Settings→Camera→Image→Image Settings to go to the following interface. Select the camera and then set the brightness, contrast, saturation and hue of the camera. Click "Advanced" button or in the camera list on the right side of the interface to pop up "Image Adjust" interface and then set the relevant setting items. Please refer to 5.3.4 Image Adjustment for detailed introductions of these items. You can click "Default" to restore the image settings to the default factory settings.

Camera Name Brightness Contrast Saturation Hue Advanced IP61 25 50 50 50 IP62 25 50 50 50 IP63 25 50 50 50 IP64 25 50 50 50 IP65 25 50 50 50 IP66 25 50 50 50 Advanced Camera IP62 Brightness 25 Contrast 50 Saturation 50 Hue Advanced Default

5.3.3 Mask Settings

Some areas of the image can be masked for privacy. Up to four mask areas can be set for each camera. Click Start→Settings→Camera→Image→Mask Settings to go to the interface as shown below. Select the camera and enable the mask. Click "Draw" button and then drag the mouse on the image area to set the mask area; click "Delete" button to delete the mask areas; click "Apply" to save the settings.

Camera Name Mask Color IP81 OFF Black IP82 OFF Black IP83 OFF Black IP84 OFF Black IP85 OFF Black IP86 OFF Black IP87 OFF Black Draw Downs Camera IP81 Mask OFF Apply

5.3.4 Image Adjustment

Go to the live view interface and then click button on the tool bar under the camera window to go to the image adjustment interface.

Camera IP Camera4 Image Adjust Lens Control Brightness Contrast Saturation Hue Sharpness Wide Dynamic Denoise Image Shift Background Default Back

Image Adjustment

Select the camera and then click "Image Adjustment" to go to image adjustment tab. Refer to the above picture. Drag the slider to set the camera's brightness, contrast, saturation and hue value. Check sharpen, wide dynamic and denoise and then drag the slider to set the value. Click "Default" button to set these parameters to default values.

The introductions of these parameters are as follows:

Parameter	Meaning
Brightness	It is the brightness level of the camera's image.
Contrast	It is the color difference between the brightest and darkest parts.
Saturation	It is the degree of color purity. The color is purer, the image is brighter.
Hue	It relates to the total color degree of the image.
Sharpen	It relates to the resolution level of the image plane and the sharpness level of the image edge.
Wide Dynamic	The wide dynamic range (WDR) function helps the camera provide clear images even under back light circumstances. When there are both very bright and very dark areas simultaneously in the field of view, WDR balances the brightness level of the whole image and provide clear images with details.
Denoise	Decrease the noise and make the image more thorough. Increasing the value will make the noise reduction effect better but it will reduce the image resolution.
White Balance	Adjust the color temperature according to the environment automatically.
BLC	HLC: lowers the brightness of the entire image by suppressing the brightness of the image's bright area and reducing the size of the halo area.BLC: If enabled, the auto exposure will activate according to the scene so that the object of the image in the darkest area will be seen clearly.
Corridor Pattern	0°, 90°, 180° or 270° can be selected. (Only some cameras support this pattern)
Image Mirror	Turn the current video image horizontally.
Image Flip	Turn the current video image vertically.
High FPS Mode	High frame rate mode, if is it enabled, the frame rate of the camera's main stream can be set to 1080P/720P @60fps/50fps. (Only some cameras support this mode)

Note: The above-mentioned descriptions of the image parameters are for reference only. The cameras made by different manufacturers may have different parameter settings.

Lens Control

Select the camera and then click "Lens Control" to go to lens control tab. Click - or + to adjust the zoom and focus parameters of the camera's lens. Click "Save" to save the settings.

Camera Camera1 Image Adjust Lens Control ←Zoom→ + Focus Mode Manual Mode ←Focus→ + One key Focus Switch the focus mode, need to save to take effect. Day/night mode switch autofocus. Save Back

The introductions of these parameters and buttons are as follows.

Button/Parameter	Meaning
	Click /to zoom in/out the image.
Focus Mode	If manual mode is selected, focus button & “One Key Focus” & “Day/night mode switch autofocus” will be available; if auto mode is selected, the time interval setup will be available.
	Click /to increase/decrease the focal length.
	Click it to focus instantly.
Day/night mode switch autofocus	If checked, the lens will focus automatically when the camera is switching day/night mode.
Time Interval	It is the time interval when camera lens is auto-focusing. The interval can be set in the drop-down list.

Note: This function is only available for motorized zoom camera, or the settings here are ineffective.

5.3.5 Fisheye Settings

Some models may not support this function.

Click Start→Settings→Camera→Image→Fisheye Settings to go to the interface as shown below. Select the camera and the mode of fisheye and installation.

Camera Name Fisheye Mode Installation Mode Enable Camera01 Fisheye+4PTZ Desktop Camera Camera01 Fisheye Mode Fisheye+4PTZ Installation Mode Desktop Enable Apply

6 PTZ

6.1 PTZ Control Interface Introduction

You can control the IP dome or PTZ which connects to the IP camera for PTZ control.

Click on the tool bar at the bottom of the live preview window to go to the PTZ control interface as shown below.

PTZ Control Zoom → + Focus → + Ins → + Speed

The direction, zoom, focus, iris and speed can be controlled in the small PTZ control window.

Right click the PTZ/speed dome camera window and select "PTZ Control" to go to the PTZ control panel as shown below.

Security camera screenshot showing a person standing at a checkpoint with red arrows and a target symbol, alongside parked cars and a video editing interface.

Introductions of the buttons on the bottom right of the interface:

Button	Meaning
	Click / / / / / / / / / / to rotate the dome. Click to stop rotating the dome.
	Click / to zoom in / out the camera image.
	Click / to increase / decrease the focal length.
	Click / to increase / decrease the iris of the dome.
	Drag the slider to adjust the rotating speed of the dome.
	Click / to stop recording.
	Click / to show / show the analog joystick.
[05+1]	Click it to return to the live view interface.

▶ Analog Joystick Control

The analog joystick on the left side of the interface provides quick PTZ control. The dome or PTZ will rotate when you drag the analog joystick. The farther you drag the analog joystick from the middle of the image, the faster the dome or PTZ rotates. The dome or PTZ will stop rotating when you

stop dragging the analog joystick.

3D Control

Click the camera image on any area and then the image will be centered on the clicked point.

Refer to the picture as shown below. Drag the mouse from A to B to get a green rectangle and the rectangle area will be zoomed in.

A Zoom is B

Refer to the picture as shown below. Drag the mouse from C to D to get a green rectangle and the rectangle area will be zoomed out.

Zoom Out

Advanced 3D Control

Double click the left button of the mouse on any area of the camera image and then the image size will be doubled and centered on the clicked point. Press and hold the left button of the mouse on any area of the camera image to zoom in the image; press and hold the right button to zoom out the image.

Move the cursor of the mouse to the camera image and then slide the scroll wheel of the mouse forward to zoom in the image, slide the scroll wheel of the mouse backward to zoom out the image.

Preset Setting

Click "Preset" to go to preset operation tab and then click "Add" button to pop up a window as shown below. Select the preset and then enter the preset name in the window; finally click "OK" button to save the settings. You can add 255 presets for each dome at most.

Add Preset Preset 2 Preset Name preset2 OK Cancel

Adjust the dome's direction and then click "Save Position" to save the current preset position (you can also click another preset in the preset list and then save the preset position after adjusting the dome's direction); click 📋 in the preset list to call the preset; click "Delete" button to delete the selected preset.

You can also go to preset setting interface for preset setting, see 6.2 Preset Setting for details.

Cruise Setting

Click "Cruise" to go to cruise operation tab and then click "Add" button to pop up a window as shown below left. You can add 8 cruises for each dome at most.

Add Cruise Cruise Name: cruise1 Present Paste Name Speed Time Edit Delete Add Preset Add Preset Preset Name Time 5 Secs Speed 5 OK Cancel

① Enter the cruise name in the "Add Cruise" window and then click "Add preset" to pop up the "Add Preset" window (Before adding preset to the cruise, please add preset of the dome first).
② In the "Add Preset" window, select the preset name, preset time and preset speed and then click "OK" button.
③ In the "Add Cruise" window, you can click to reselect the preset, then change the preset time and speed. Click to delete the preset. Click "Add" button to save the cruise.

Click ▶ to start the cruise and click ▶ to stop the cruise in the cruise list of the cruise operation tab; click "Delete" button to delete the selected cruise.

You can also go to cruise setting interface for cruise setting, see 6.3 Cruise Setting for details.

Cruise Group Settings

On the right panel, click ▶ to go to the cruise group setting tab. Click "Add" to add a cruise group as shown below.

CORNER NEWS GROCERY STORE Add Cruise Name: OK Cancel Apply Delete Paste Edit Save Edit Group Delete Create Name: Delete

In the "Add Cruise" window, select the cruise line name. After that, click "Play" to play the cruise lines in sequence.

Trace Settings

On the right panel, click ▶ to go to the trace setting tab. Click "Add" to add the trace name. Then click "OK" to save this name. Please refer to the following picture.

Add Trace Turn Right (View2) OK Cancel Add Turn Right Speed

After that, click "Start Record" to record the trace. Then click "Stop Record" to finish recording. Click to play the recorded trace. Click to delete the trace.

6.2 Preset Setting

Click Start→Settings→Camera→PTZ→Preset to go to the interface as shown below.

Preset Cruise IP Camera1 Number of Preset ( 1 ) ←Zoom→ + ←Focus→ + ←Iris→ + Speed Camera IP Camera1 Preset 1 Preset Name preset1 Add Delete Save Position

Add preset

Select camera and then click "Add" button to add preset; or click in the camera list on the right side of the interface to display the preset information of the dome and then click + to add preset. The operations of the "Add Preset" window are similar to that of the PTZ control interface; please see 6.1 PTZ Control Interface Introduction for details.

Edit preset

Select camera and preset. You can enter the new name of the preset and then click to save the new preset name. Adjust the rotating speed, position, zoom, focus and iris of the preset and then click "Save Position" to save the preset.

Delete Preset

Select camera and preset and then click "Delete" to delete the preset.

6.3 Cruise Setting

Click Start→Settings→Camera→PTZ→Cruise to go to the interface as shown below.

Preset Cruise Camera IP Camera1 Cruise cruise1 Cruise Name cruise1 Preset Preset Name Speed Time Edit 1 preset1 5 5 Secs 2 preset2 5 5 Secs Add Preset IP Camera1 Number of Cruise(1) cruise1

Add Cruise

Click in the camera list on the right side of the interface to display the cruise information of the dome and then click + to add cruise. The operations of the "Add Cruise" window are similar to that of the PTZ control interface; please see 6.1 PTZ Control Interface Introduction for

details.

Edit Cruise

Select the camera and cruise in the "Cruise" interface. Enter the new cruise name and then click to save the cruise name. Click "Add Preset" to add preset to the cruise. Click to edit the preset. Click to delete the preset from the cruise. Click one preset in the preset list and then click to move down the preset and click to move up the preset. Click to start the cruise and click to stop it.

Delete Cruise

Click in the camera list on the right side of the interface to display the cruise information of the dome and then click on the top right corner of the cruise to delete the cruise.

6.4 Cruise Group Settings

Click Start→Settings→Camera→PTZ→Cruise Group to go to the interface as shown below.

Add Cruise Name cruise1 OK Cancel Cruise Group(1) Cruise1 + 91 Cruise Group(8) (3) Cruise Group(9) Cruise Group Cruise Group File Stop Cruise Cruise Name Exit 1 cruise1 Add Cruise

Add Cruise Group

Click "Add Cruise" to add the cruise, or click 📋 to extend the cruise list and then click + to add the cruise. After that, click "Play" on the left panel as shown below to play the cruise lines in sequence.

Delete Cruise

In the cruise list, click to delete the cruise.

6.5 Trace Settings

Click Start→Settings→Camera→PTZ→Trace to go to the interface as shown below.

Trace Record

Select the PTZ camera and then click "Add" or extend the IPC information by clicking √ and then click + to add a trace name. After that, click "Start Record" and move the speed dome to change its position and set its trace. Then click "Stop Record" to complete the trace record.

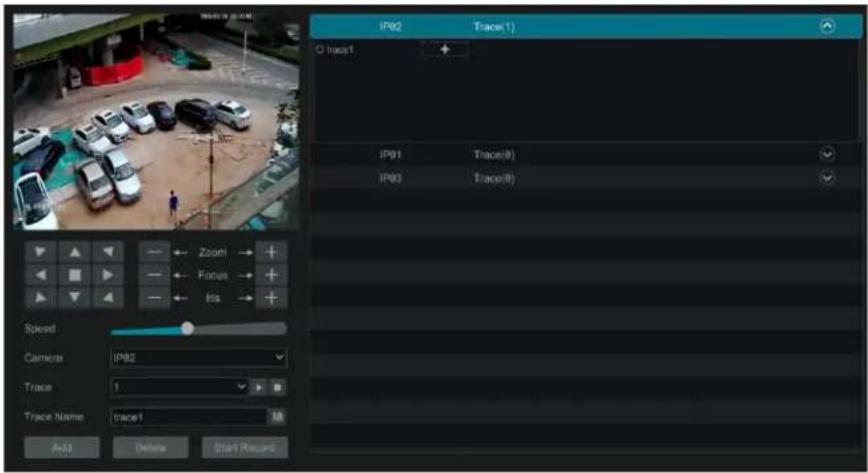

IP82 Trace(1) C trace1 IP81 Trace(8) IP83 Trace(9) Speed Camera IP82 Trace 1 Trace Name: trace1 Add Delete Start Record

Play or Stop Trace

Select the trace and click to play the trace; click to stop the trace.

Modify the Trace Name

On the left panel, enter new trace name and click to modify and save the trace name.

Delete the Trace

Click 📄 to delete the trace. Or put the cursor on the trace name (right panel) and then ✗ will appear on the right corner of the trace name; click it to delete this trace.

6.6 Task Settings

Click Start→Settings→Camera→PTZ→Task to go to the interface as shown below.

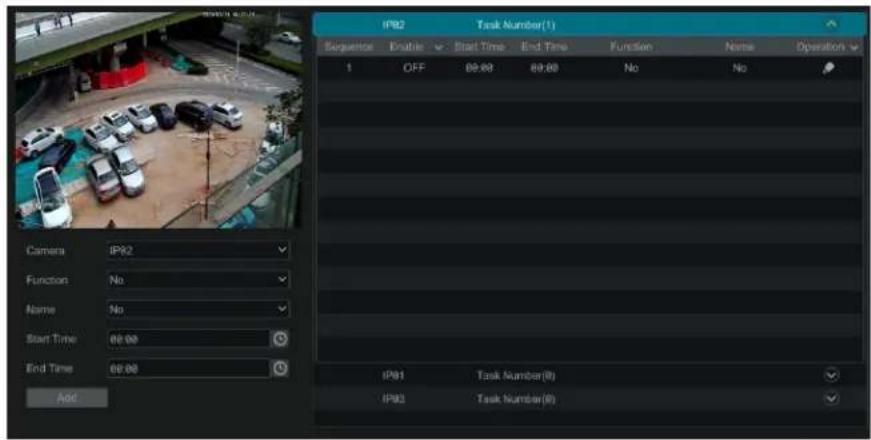

IPB2 Task Number(1) Sequence Enable Start Time End Time Function Name Operation 1 OFF 09:00 09:00 No No Camera IPB2 Function No Name No Start Time 09:00 End Time 09:00 Add IPB1 Task Number(8) IPB3 Task Number(8)

① Select a PTZ camera.
② Select function, such as preset, cruise, trace, random scanning, etc.
③ Select a name, such as preset name, cruise name, etc.
④ Select the start and end time.
⑤ Click "Add" to add the task.
⑥ Click ▼ to extend the tasks of the PTZ camera. Click ▼ beside "Enable" to enable the task. After the task is enabled, the PTZ camera will start the specific task at the specified time.

7 Record & Disk Management

7.1 Record Configuration

7.1.1 Mode Configuration

Please format the HDDs before recording (refer to 7.4 Disk Management for details). Click Start→Settings→Record→Mode Settings to go to the mode settings interface. You can set the record time under the "Manual Record Settings" and then click "Apply" to save the settings. There are two record modes: auto mode and manual mode.

Record Mode Mode Motion Record Sensor Record Motion Record+Sensor Record Continuous Record-Motion Record Continuous Record-Sensor Record Continuous Record-Motion Record+Sensor Record Continuous Record-Motion Record+Sensor Record+AI Record Advanced Manual Record Settings Record Time Manual Apply

Auto Mode

Motion Record: Motion alarm record will be enabled when motion alarm happens.

Sensor Record: Sensor alarm record will be enabled when sensor alarm happens.

Motion Record+Sensor Record: Motion/sensor alarm record will be enabled when motion/sensor alarm happens.

Continuous Record+Motion Record: Normal record is enabled all the time; motion alarm record will be started when motion alarm happens.

Continuous Record+Sensor Record: Normal record is enabled all the time; sensor alarm record will be started when sensor alarm happens.

Continuous Record+Motion Record+Sensor Record: Normal record is enabled all the time; motion/sensor alarm record will be enabled when motion/sensor alarm happens.

Continuous Record+Motion Record+Sensor Record+ AI Record: Normal record is enabled all the time; motion/sensor/analytics alarm record will be enabled when motion/sensor/intelligence analytics alarm happens.

You can add more auto modes on intelligence record. Click "Advanced" button to pop up a window as shown below. Check the modes in the window and then click "Add" button to show the modes in the record mode list (in the window, the checked modes can be showed in the record mode list while the unchecked modes cannot; you shall check "AI Record").

Add Record Mode Motion Record Sensor Record Continuous Record AI Record Add Cancel

Select one auto mode to pop up the corresponding window. Set the encode, GOP, resolution, FPS, bitrate type, quality, max bitrate and audio of each camera and then click "OK" to save the settings. Please adjust the parameters according to the actual condition.

Continuous Record+Sensor Record Schedule Record Sensor Record Camera Name Stream Type Encode Resolution FPS Bitrate Type Quality Max Bitrate Bitrate Limit Recommended Range Audio GDP Camera81 Main Stream H.265 1928x1668 30 VBR Higher 2840Kbps 2838-4716Kbps ON 68 Camera82 Main Stream H.265 2568x1448 30 VBR Higher 3872Kbps 5994-8490Kbps ON 68 Remain Bandwidth: 249 / 256 Mb Predict Record Time-8 Day OK Cancel

Video Encode: the available options will be H.265 and H.264 if the connected IP camera supports H.265, or the option will be H.264 only. GOP: group of pictures.

Resolution: the higher the resolution is, the clearer the image is.

FPS: the higher the frame rate is, the more fluency the video is. However, more storage room will be taken up.

Bitrate Type: CBR and VBR are optional. CBR means that no matter how much change is seen in the video scene, the compression bitrate will be kept constant. VBR means that the compression bitrate will be adjusted according to scene changes. For example, for scenes that do not have much movement, the bitrate will be kept at a lower value. This will help to optimize the network bandwidth.

Quality: When VBR is selected, you need to choose image quality. The higher the image quality you choose, the more bitrate will be required.

Max Bitrate: 32Kbps \~10240Kbps are optional.

Customization Mode

If the customization mode is selected, you need to set the record schedules of each camera. See 7.1.2 Schedule Settings for details.

7.1.2 Schedule Settings

Add Schedule

Click Start→Settings→Record→Mode Setting to go to the mode setting interface. Then select "Customization" mode and click "Schedule Management" to set the schedule as shown below. "24 x 7", "24 x 5" and "24 x 2" are the default schedules; you cannot edit or delete "24 x 7" while "24 x 5" and "24 x 2" can be edited and deleted. Click the schedule name to display the detailed schedule information on the left side of the interface. The seven rows stand for the seven days in a week and each row stands for 24 hours in a day. Blue stands for the selected time and gray stands for unselected time.

Schedule Management Schedule "24x2" Add Name Edit Delete 24x7 24x5 24x2 00:00 - 24:00 16 24x2 00:00 - 24:00 24x7 24x5 24x2 00:00 - 24:00 16 24x2 00:00 - 24:00 24x7 24x5 24x2 00:00 - 24:00 16 24x2 00:00 - 24:00 16 24x2 00:00 - 24:00 24x7 24x5 24x2 00:00 - 24:00 16 24x2 00:00 - 24:00 16 24x2 00.00 - 24.00 Close

Click "Add" to add a new schedule. Refer to the picture below.

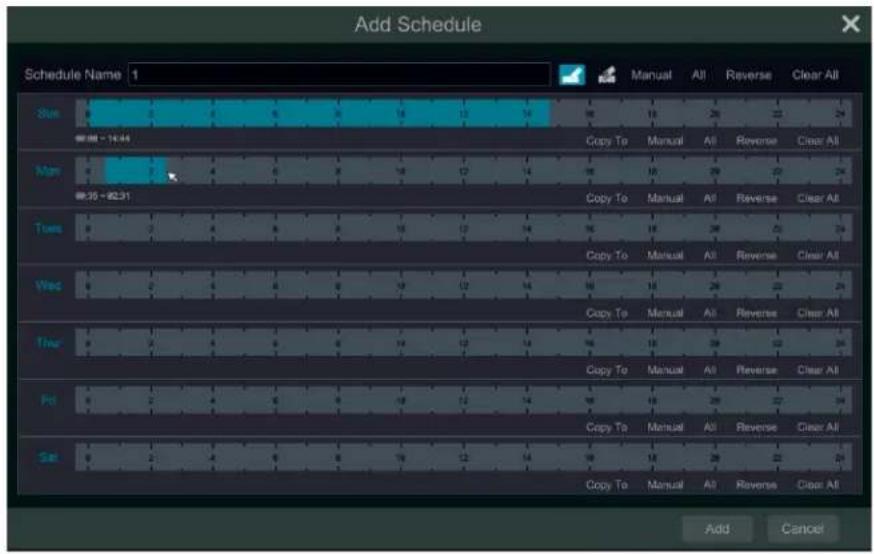

Add Schedule Schedule Name 1 2008 - 16:44 Man 35 - 92:31 Tues 16 Wes 16 True 16 Ptl 16 Sat 16 Manual All Reverse Clear All Copy To Manual All Reverse Clear All Copy To Manual All Reverse Clear All Copy To Manual All Reverse Clear All Copy To Manual All Reverse Clear All Copy To Manual All Reverse Clear All Add Cancel

Set the schedule name and schedule time and then click "Add" to save the schedule. You can set day schedule or week schedule. Add button; delete button.

Set Day Schedule

Click and then drag the cursor on the time scale to set record time; click and then drag the cursor on the time scale to delete the selected area.

You can manually set the record start time and end time. Click 📄 or 📋 and then click "Manual" on each day to pop up a window as shown below. Set the start and end time in the window and then click "OK" to save the settings.

Added time manually Start Time: 19:48 End Time: 28:48 OK Cancel

Click "All" to set all day recording; click "Reverse" to swap the selected and unselected time in a day; click "Clear All" to clear all the selected area in a day.

Click "Copy To" to copy the schedule of the day to other days. Refer to the picture below. Check the days in the window and then click "OK" to save the settings.

Copy To ✓ Mon ✓ Tues ✓ Wed ✓ Thur ✓ Fri ✓ Sat OK Cancel

Set Week Schedule

Click or and then click "Manual" beside to set the week schedule. Refer to the picture below. Set the start and end time, check the days in the window and then click "OK" to save the settings.

Added time manually Start Time 19:48 End Time 20:48 Sun Mon Tues Wed Thur Fri Sat OK Cancel

Click "All" to set all week recording; click "Reverse" to swap the selected and unselected time in a week; click "Clear All" to clear all the selected area in a week.

7.1.3 Advanced Configuration

Click Start→Settings→Record→Advanced to go to the following interface. Enable or disable cycle record (cycle record: the earliest record data will be replaced by the latest when the disks are full). Choose the record stream. Set the pre-alarm record time, post-alarm record time and expiration time of each camera and then click "Apply" to save the settings.

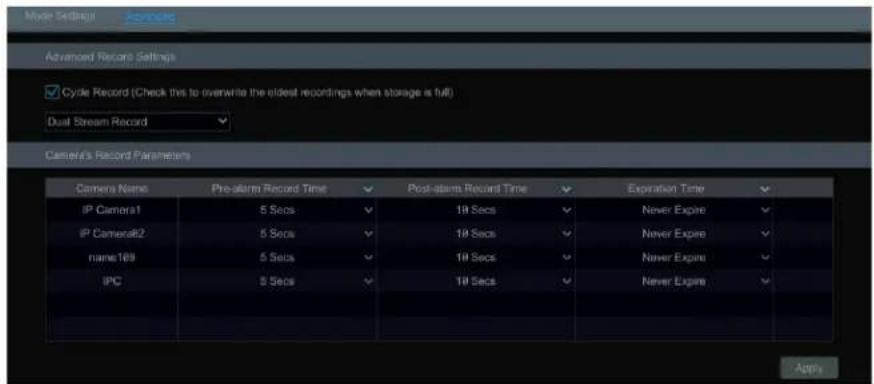

Myo Settings Advanced Record Settings ✓ Cycle Record (Check this to overwrite the oldest recordings when storage is full) Dual Stream Record Camera's Record Parameters Camera Name Pre-alarm Record Time Post-alarm Record Time Expiration Time IP Camera1 5 Secs ✓ 18 Secs ✓ Never Expire ✓ IP Camera82 5 Secs ✓ 18 Secs ✓ Never Expire ✓ name169 5 Secs ✓ 18 Secs ✓ Never Expire ✓ IPC 5 Secs ✓ 18 Secs ✓ Never Expire ✓ Apply

Pre-alarm Record Time: set the time to record before the actual recording begins.

Post-alarm Record Time: set the time to record after the actual recording is finished.

Expiration Time: set the expiration time for recorded video. If the set date is overdue, the recorded data will be deleted automatically.

7.2 Encode Parameters Setting

Click Start→Settings→Record→Encode Parameters to go to the interface as shown below. Set the encode, resolution, FPS, GOP, bitrate type, quality, max bitrate and audio of main stream for each camera in "Event Recording Settings" and "Schedule Recording Settings" interfaces. Click "Apply" to save the settings. You can set the record stream of each camera one by one or batch set them for all cameras.

Audio Parameters Settings Schedule Recording Settings Camera Name Stream Type Encode Resolution FPS Bitrate Type Quality Max Bitrate Bitrate Limit Recommendation IP Camera1 Main Stream H.265 384kb2168 38 VBR Higher 512kbps 5632-19338Kbps IP CameraB2 Main Stream H.265 216kb2168 38 VBR Higher 3872Kbps 5632-18948Kbps Remain Bandwidth: 246 / 256 Mb Predict Record Time if Day Apply

7.3 Record Mode

7.3.1 Manual Recording

Method One: Click

on the tool bar at the bottom of the live view interface to enable recording of the camera.

Method Two: Go to the live view interface and then click the right-click menu "Manually Record On" in the camera window or click on the tool bar under the camera window to start recording.

Note: Click Start→Settings→Record→Mode Settings and then set the manual record time in the interface. Click "Apply" to save the settings.

7.3.2 Timing Recording

Timing Recording: the system will record automatically according to the schedule.

Set the timing record schedule of each camera. See 7.1.2 Schedule Settings for details.

7.3.3 Motion Based Recording

Motion Based Recording: the system will start motion based recording when the motion object appears in the setup schedule. The setup steps are as follows:

① Set the motion based recording schedule of each camera. See 7.1.2 Schedule Settings for details, for details.
② Enable the motion and set the motion area of each camera. See 11.2 Motion Alarm for details.

The camera will start motion based recording once you finish the above settings.

7.3.4 Sensor Based Recording

① Set the sensor based recording schedule of each camera. See 7.1.2 Schedule Settings for details.
② Set the NO/NC type of the sensor, enable the sensor alarm and then check and configure the "Record". See 11.1 Sensor Alarm for details.

7.3.5 AI Event Recording

① Set the analytics recording schedule of each IP camera. See 7.1.2 Schedule Settings for details.
② Enable the intelligence alarm detection (object detection, exception, tripwire or intrusion) and draw alert surface or warning area of each IP camera. See 9 AI Event Management for details.

The camera will start analytics recording once you finish the above settings. This function is only available for some IPCs.

7.4 Disk

7.4.1 Disk Management

Disk Management

Click Start→Settings→Disk→Disk Management to go to disk management interface. You can view the NVR's disk number and disk status and so on in the interface. Click "Format" button to format the HDD.

Disk Free/Capacity/OBI Disk Serial No. Disk Model Status Type Overwrite info... Record Period Disk4 985/931 WD-WCC4J3HNXF9L WDC WD1@PURX-64D... RW(Encrypted) Ordinary PI... ON 83/17/2019-83/24/2019 Disk8 925/931 WD-WCC4J3231549 WDC WD1@EURX-63C... RW(Encrypted) Ordinary PI... ON Data Encrypt

Data Encryption:

① Click "Data Encrypt".
② Enter the username and password used to log in the NVR. This username and password shall have the permission of disk management.
③ Check the disk you want to encrypt and then enter the password.

After you encrypt the data of a disk, this disk cannot be read by other NVRs unless it is unlocked.

Data Decryption:

① Click "Change Encrypt".
② Enter the username and password used to log in the NVR. This user shall have the permission of disk management.
③ Check the disk you want to decrypt and then empty the password.
④ Click "Close Encrypt".

Unlock the disk: when one encrypted disk is transferred from another NVR to this NVR, it will be in locked status. Then you can select this locked disk and click "Unlock". After you enter the password of its data encryption, its status will be "Read Only". Now you can read the data of this disk but it cannot be written anything.

Some models may not support RAID function. The settings of RAID are as followings. Please skip the settings of physical disk, array and disk mode if the NVR doesn't support this function.

RAID

① Enable RAID

(Go to Start→Settings→Disk→Disk Mode)

Disk Management Physical Disk Array Disk Mode Enable RAID

② Create an array. (Go to Start→Settings→Disk→Physical Disk)

a. Click "Physical Disk" tab and then click "Create an array".
b. Enter the user name and password which has the authority of Disk Management. If you don't have one, you can use the user name and password that you login system (the default username: admin; the default password:123456).

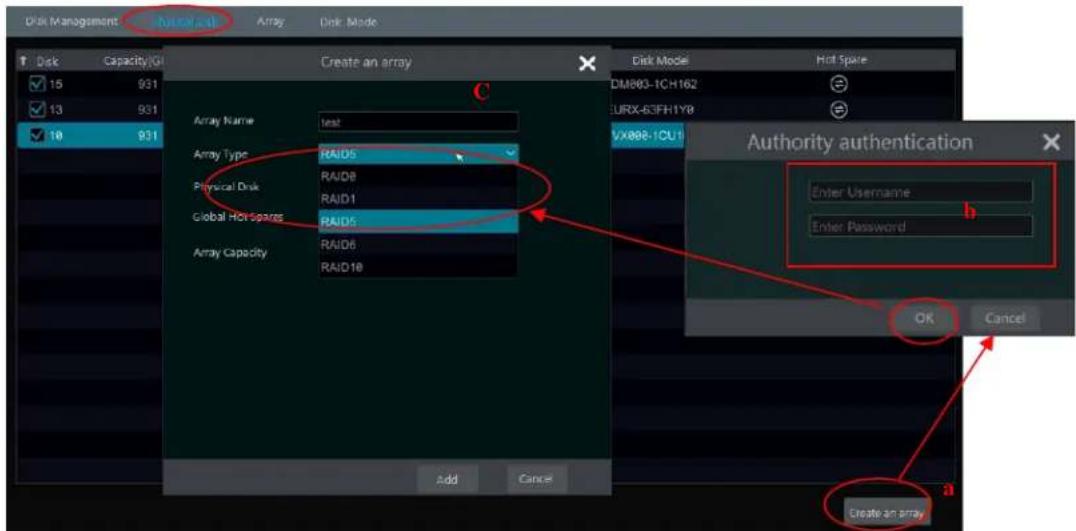

c. Enter array name and select array type (like RAID5).

Disk Management Typical Data Array Disk Mode Disk Capacity/GI Create an array Disk Mode Hot Space DM803-1CH162 URX-63FH1Y8 VX008-ICU1 Array Name test Array Type RAID5 Physical Disk RAID8 RAID1 Global Hot spares RAID5 Array Capacity RAID6 RAID18 Authority authentication Enter Username Enter Password OK Cancel a Create an array Add Cancel

d. Select physical disk.

If you have 16 disks, please check 15 disks. The remaining one should be set to a hot spare.

If higher data security is needed, you can decrease physic disks and increase hot spare disks. Please set them as needed.

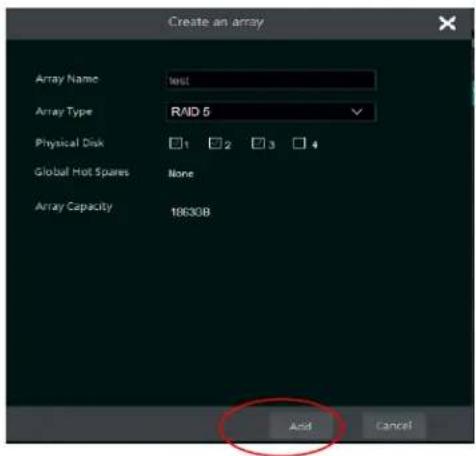

Create an array Array Name test Array Type RAID 5 Physical Disk 1 2 3 4 Global Hot Spares None Array Capacity 10630B Add Cancel

e. Select a hot spare. In the physical disk interface, select the disk that is not in the array and click

as shown in the following pictures.

Disk Capacity[GB] Array Type Status Disk Model Hot Spare 1 931 test Array disk Normal xxxxxx 2 931 test Array disk Normal xxxxxx 3 931 test Array disk Normal xxxxxx 4 831 Ordinary pane Normal xxxx Authority authentication Enter Username Enter Password OK Cancel Question Disk set to global hot spare clears disk data. OK to continue? OK Cancel

- RAID Rebuilding

If one of your disks is broken, the disk indicator on the front panel will turn red. Of course, a warning tip will pop up if the relevant HDD exception alarm is set. You need to rebuild the RAID after you replace the broken disk with a new one.

Disk Management Physical Disk Array Disk Mode No. Name Capacity[GB] Physical Disk Hot Spare Position Status Type Rebuild 1 test 1862 23 4 Downgrade RA ID5

Click the above circled icon and then select the physical disk to rebuild.

Rebuilding an array Array name test Array Type RAID 5 Array disk 2 3 Physical Disk @ 1 OK Cancel

7.4.2 Storage Mode Configuration

Click Start→Settings→Disk→Storage Mode to go to the interface as shown below.

Storage Mode Storage Mode Group Group Disk (Capacity: 931GB) 1 Disk(1 ) Camera(4) 2 Disk(0 ) Camera(0) 3 Disk(0 ) Camera(0) 4 Disk(0 ) Camera(0) Disk2 + Camera IP Camera1 IP Camera2 IP Camera3 IP Camera4

By using disk group, you can correspond the camera to disk (the record data of the camera in the group will be stored into the disks in the same group). The NVR with e-SATA interface supports e-SATA recording.

The added disks and cameras will be added into group one automatically. The disks and cameras in the groups can be deleted except group one (select a disk group and then click ✗ on the top right corner of the added disk or camera to delete it from the group). The deleted disks and cameras will be moved into group one automatically.

Each group can add the disks and cameras from other groups. Each disk and camera can only be added into one group. Select a disk group and then click + in the disk or camera row to pop up a window. Check the disks or cameras in the window and then click "Add".

For the model with 2 or 4 HDD slots, BK group can be added.

Click + to add the backup HDD. After account verification, select a HDD and then this HDD will be removed from the normal group to the backup group. Simultaneously, it will be formatted. Please back up all data of this HDD in advance when you want to remove it to the backup group. You can add cameras to this HDD. The added cameras can exist and be recorded both in one HDD of the normal group and the backup group. Note: Each HDD only can exist in one group.

7.4.3 View Disk and S.M.A.R.T. Information

Click Start→Settings→Disk→View Disk Information to view the HDD information; click "S.M.A.R.T. Information" to view the working status of the HDD. Refer to the picture below.

Disk Disk Management Disk Management Storage Mode Storage Mode Settings Disk View Disk Information S.M.A.R.T. Information Disk S.M.A.R.T Status Normal ID Attribution Value Worst Value Threshold Raw Value Status 0x01 Read Error Rate 100 100 62 0 Normal 0x02 Throughput Performance 100 100 40 0 Normal 0x03 Spin-Up Time 234 234 33 1 Normal 0x04 Start/Stop Count 100 100 0 96 Normal 0x05 Reallocated Sector Count 100 100 5 0 Normal 0x07 Seek Error Rate 100 100 67 0 Normal 0x08 Seek Time Performance 100 100 40 0 Normal 0x09 Power Dis Hours 99 99 0 724 Normal 0x0a Spin Retry Count 100 100 60 0 Normal 0x0b Power Cycle Count 100 100 0 93 Normal 0xbf G sense Error Rate 100 100 0 0 Normal 0xc0 Power-off Retract Count 100 100 0 56 Normal 0xc1 Load Cycle Count 100 100 0 8815 Normal 0xc2 Temperature 187 187 0 1658432 Normal 0xc4 Reallocation Event Count 100 100 0 0 Normal 0xc5 Current Pending Sector Count 100 100 0 0 Normal 0xc6 Uncorrectable Sector Count 100 100 0 0 Normal 0xc7 UltraDMA CRC Error Count 200 200 0 0 Normal 0xc8 Load/Unload Retry Count 100 100 0 0 Normal

8 Playback & Backup

8.1 Instant Playback

Click ▶ on the tool bar at the bottom of the preview camera window to play back the record (click 🔒 on the tool bar at the bottom of the live view interface to set the default playback time). Refer to the picture below. Drag the playback progress bar to change the playback time. You can also click the right-click menu "Instant Playback" in the camera window and then set the instant playback time to play back the record.

Interior view of a modern building with large windows and potted plants, no visible text or symbols

8.2 Playback Interface Introduction

Click 📋 on the tool bar at the bottom of the live view interface or click Start→Playback to go to the playback interface as shown below (click on the tool bar at the bottom of the live view interface to set the default playback time).

Unknown Camera1 ③ Unknown Camera2 No Data No Data ① Intelligent Analytics Search and Export Live Vire Fall screen Toggle Dr Camera 1 Watch on Play Pause Slower Factor Home, Business, Game And Paper 30 ago X1 Smart Event 1: Log Window Maps Open 45:38:38 AM

On panel on the right will show you're the channel number and their recorded data coded by color. The bar that runs across them represents the playback time being viewed. You can move this bar around. To export, highlight a section of the desired recording, click export and follow the prompts. You can export single or multiple channels at the same time.

The added cameras will playback their records in the playback interface automatically. You can also add the playback camera manually. Click + in the playback window to pop up the "Add Camera" window. Check the cameras in the window and then click "Add" to add playback camera. The system supports a maximum of 16 synchronous playback cameras.

The buttons on the tool bar (area ①) at the bottom of the playback interface are introduced in the table below.

Button	Meaning
	Start button. Click it to pop up area 2.
	Full screen button. Click it to show full screen; click it again to exit the full screen.
	Screen mode button.
	OSD ON button. Click it to enable OSD; click it again to disable OSD.
	Quick channel selection button
	Stop button.
	Rewind button. Click it to play video backward.
	Play button. Click it to play video forward.
	Pause button.
	Deceleration button. Click it to decrease the playing speed.
	Acceleration button. Click it to increase the playing speed.
	Previous frame button. It works only when the forward playing is paused in single screen mode.
	Next frame button. It works only when the forward playing is paused in single screen mode.
	Click step backward 30s and click to forward 30s.
	Click it to enter the smart playback interface
	Event list/tag button. Click it to view the event record of manual/schedule/sensor/ motion and the tag information.
	Watermark button. Click it to enable watermark; click it again to disable watermark.

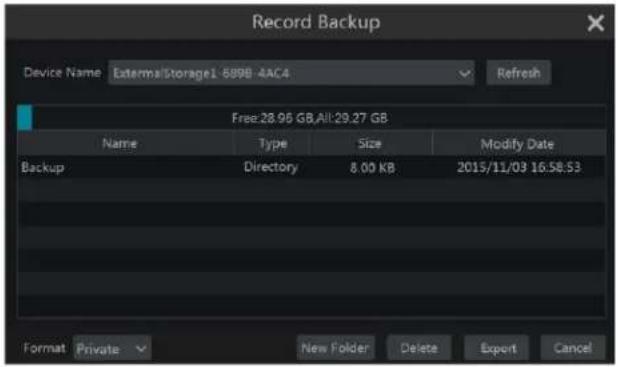

	Backup button. Drag the mouse on the time scale to select the time periods and cameras, and then click the button to back up the record. Backup status button. Click it to view the backup status.
	Back button. Click it to return.

Introduction of area ②:

Button	Meaning
	Click it to go to record search and export interface; see8.4 Record Search,Playback & Backup for details.
	Click it to Go to the live view interface; seeChapter 5 Live ViewIntroductionfor details.

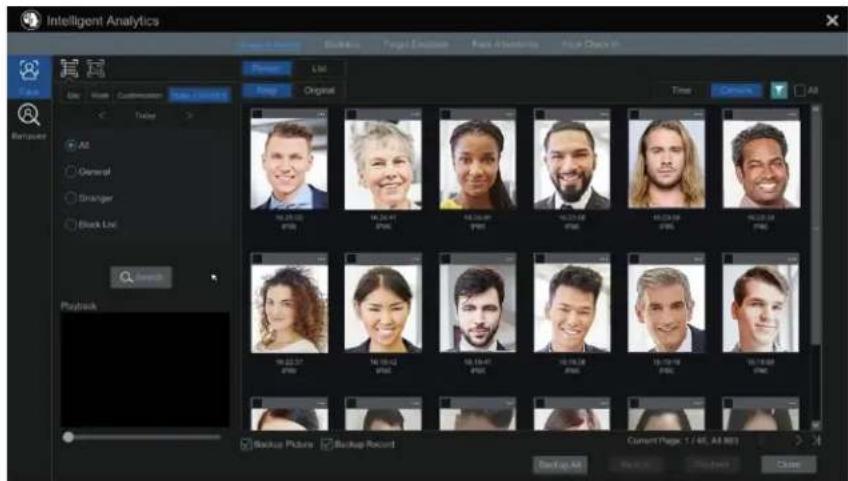

	Click it to go to the intelligent analytics interface.

Click on the playback window to show the tool bar as shown in area ③; right click on the window to show the menu list. The tool bar and menu list are introduced in the table below.

Button	Menu List	Meaning
		Move tool. Click it to move the tool bar anywhere.
		Click it to enable audio. You can listen to the camera audio by enabling audio.
		Click it to snap.
		Click it to go to the zoom in interface. The zoom in interface is similar to that of the camera window in the live view interface.Click to pause the record playing; click to play the record. When the record is paused in forward playing mode, you can click to view the previous frame and click to view the next frame.
		Click it to add tag. You can play back the record by searching the added tag. Click it and then enter the tag name in the popup window. Click "Add" to add tag.
		Click it to switch the playback camera. Click it and then check the camera in the popup window. Click "OK" to change the camera.
	Close Camera	Click it to close the playback camera.

Introduction of area ④:

Click 📄 to set the date; click 🔒 to set the time and then the playback camera will play the record from the time you set. You can check the record type as required for record playback; first you should click 📄 on the tool bar at the bottom of the interface to clear all the playback camera, then check the record type ( ✉: manual record; 📄: sensor based record; 📄: motion based record; 📄: schedule record; 📄: AI record; 📄: POS record, if you want view the detailed smart playback icons, click 📄 to switch). Finally, click + in the playback window to add camera for playback (the record time scale will show the record data of the checked record type only after the above operations).

Introduction of the record time scale (area ⑤):

Click 📄 to set the date; click 🔒 to set the time and then the playback camera will play the record from the time you set.

A tool bar will appear after moving the mouse to the record time scale. Click / to zoom the timeline; click to recover the timeline to 24 hours' ratio. Drag the timeline or slide the scroll wheel of the mouse on the time scale to show the hidden time on the top or bottom of the timeline. You can also click to show the hidden time on the top of the timeline or click to show the hidden time on the bottom of the timeline. Drag the slider at the bottom of the time scale to show the hidden playback cameras.

The record time scale shows different record types with different colors. The green block stands for manual record, red block stands for sensor based record, yellow block stands for motion based record, blue block stands for schedule record and cyan block stands for intelligence record. Click the record block to set the time and then the playback camera will play the record from the time you set.

Drag the color block on the time scale to select the backup area and then right click the area or click 🔒 to pop up an export information window. Click 🔒 button in the window to pop up the export window. Select the device, export path and format and then click "Export" button to start the backup.

8.3 Smart Playback

In the playback interface, click 📄 go to the smart playback interface as shown below.

04/19/2018 08:30:58 Smart Playback Settings Skip non-extended video Speed of non-extended video Speed of wireless video Invasion Percentage 1% OK Cancel Go Le Normal Playback Smart Playback

The descriptions of buttons in the smart playback interface

按钮			Description
			Full screen motion button.
			Draw grid. You can search the record of motion detection in the pre-defined area.
			Draw line. You can search the record of crossing the line after drawing the line.
			Draw quadrilateral. You can search the record in this quadrilateral after drawing it.
			Search by face
			Search by license plate number
	[4YKZ]		Playback settings button
			Return button. Click to return to the previous interface.

8.3.1 Smart Playback Settings

Click to set the speed of non-interest video (Please skip this one if you click "Skip non-interest video"), "Speed of interest video" and "Intrusion percentage".

You can disable "Non-Focus" to view the video you interest in the right corner of the smart playback interface.

Playback Settings Speed of non-interest video 1 Speed of interest video 1 OK Cancel

8.3.2 Smart Playback Based on Motion Detection

● Smart Playback by Drawing Grid

Click 📄 and draw a rectangle in the desired area. Then the system will automatically search the record files of this area. The cyan blocks indicate that there are intelligent recording files. Move the cursor to such block and click to play the record.

● Smart Playback by Drawing Line

Click 📄 and draw a line in the desired area. Then the system will automatically search the record files about crossing this line. The cyan blocks indicate that there are intelligent recording files. Move the cursor to such block and click to play the record.

Interior view of a modern building hallway with glass floors and potted plants, featuring a person walking through the corridor (no visible text or symbols)

● Smart Playback by Drawing Quadrilateral

Click and draw a quadrangle in the desired area. Then the system will automatically search the record files of this area. The cyan blocks indicate that there are intelligent recording files. Move the cursor to such block and click to play the record.

05/03/2018 17:16:20 IP/Cancer.003

8.3.3 Smart Playback by Face Search

Before starting this function, the face recognition function shall be enabled. Please see Face Recognition for details. If your device doesn't support such function, please skip the following instructions.

① In the smart playback interface, click 📄 to pop up the following window.

Camera01 Select Similarity 75 % Recent Face Database Snapshot Gallery External faces Time Today Day Week Month Customization Today 04/07/2020 Camera All Camera01,Camera02, @Removed Channel Search Selected items Already Selected @ Pictures(s) Current Page: 1 / 6, All 124 Source By Case Search By Face Ext 04/07/2020 @85:45:28 AM

① Set similarity. The higher the sensitivity value is, the lower the searching accuracy is, and vice versa.
② Select targets. You can select targets from recent, face database, snapshot gallery or external faces.
③ Select search mode. There are two search modes: search by group and search by face.
Search by group: Choose "Face Database" and then click "More" to choose one or more groups.
Move the cursor to the time block where the record exists and click to play those records.

8.3.4 Smart Search by License Plate

Before starting smart search by plates, please add ANPR cameras first and enable the LPR function. Please refer to License Plate Recognition for details.

Click Button to go to the following interface.

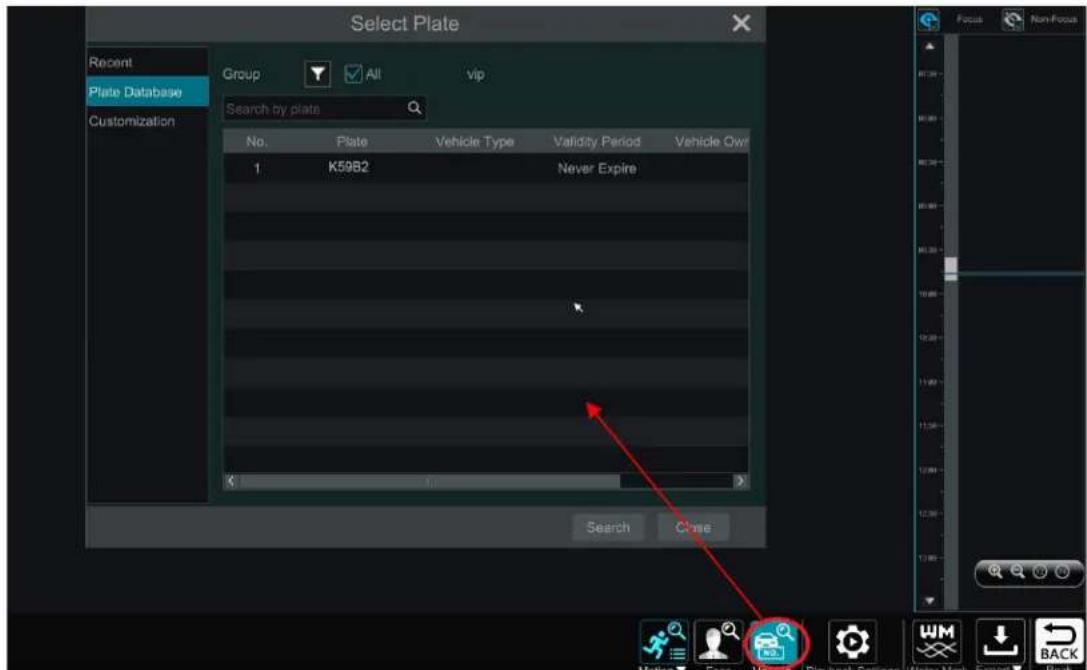

Select Plate Recent Plate Database Group All vip Search by plate Customization No. Plate Vehicle Type Validity Period Vehicle Own 1 K59B2 Never Expire Search Close Focus Non-Focus VM ↓ BACK

Select the plate from "Recent", "Plate Database" or "Customization" and then click "Search" to search recorded files and play. Here we take an example of search plate from "Plate Database".

Click to choose a group. Then plates will be listed in the table automatically. Click "Search" to play.

IP03 2019/12/25 11:27:28 2019/12/25 11:27:27 Full time Toyota PC S90 X1 BACK

8.4 Record Search, Playback & Export

The record data and the captured pictures can be exported through network, USB (U disk or USB mobile HDD). The file system of the export devices should be FAT32 format.

8.4.1 EZ Search

① Click Start→Search and Export→EZ Search to go to the "EZ Search" tab. There are two view modes: by time and by camera. In the time view mode, a maximum of 64 camera thumbnails can be showed. If the camera thumbnail number is more than 64, the cameras will be listed directly by their camera name, not the thumbnail. A maximum of 196 camera names can be listed. If the camera name number is more than 196, the time view mode will be disabled and the camera view mode will be available only.

Search and Export 22:00:00 Time Search Event Search Bookmarks Inspection Export Status Camera Thumbnails View Mode Time 04/07/2020 CameraA1 CameraB2 Unknown Camera1 Unknown Camera2 Unknown Camera3 04/06/2020 CameraA1 CameraB2 Unknown Camera1 Unknown Camera2 Unknown Camera3 04/05/2020 CameraA1 CameraB2 Unknown Camera1 Unknown Camera2 Unknown Camera3 04/04/2020 Open Exit

② Select one camera in the interface and then click "Open" button.

③ Click the image box to play the record in the small playback box on the left side of the interface (the box which has image inside indicates that the record data exist).
④ Refer to the picture below. Drag the color blocks on the time scale to select the record data and then click "Export" button to pop up the "Record Backup" window as shown below. Select the device name, backup format and path and then click "Export" button to start the backup.

Record Backup Device Name ExternalStorage1 689B 4AC4 Refresh Free:28.96 GB,All:29.27 GB Name Type Size Modify Date Backup Directory 8.00 KB 2015/11/03 16:58:53 Format Private New Folder Delete Export Cancel

Note: If you back up the record in private format, the system will back up a RPAS player to USB device automatically. The private format record can be played by RPAS player only.

⑤ Click "Playback" button to play the record in the playback interface (refer to 8.2 Playback Interface Introduction for details). Click "Exit" to exit the interface.

Search and Export Playback Set Radius Time Minimize Search Tire Search Furus Search Audiovisual Soundhairs Expert format Picture: Hour #24

Time Slice Search:

Method One: Click "Year", "Month" or "Day" button under the record time scale to select the time slice mode. In "Day" mode, click / on the left/right side of the time scale to view the record of the last/next day; click "Minute" in the "Picture" option under the time scale to select "Minute" mode (in "Minute" mode, click the time scale to change the time of the 60 display windows) and click "Hour" to select "Hour" mode.

Method Two: Click > beside "Camera Thumbnail" on the left top corner of the interface to select the time slice mode.

Method Three: Right-click the mouse on any area of the time-sliced interface to go back to the upper interface.

8.4.2 Time Search

① Click Start→Search and Export→Time Search to go to the "Time Search" tab as shown below.
② Click + on the bottom of the interface to add playback camera. A maximum of 16 cameras can be added for playback. Click "Modify" on the top right corner of the camera window to change the camera and click "Clear" to remove the camera.
③ Click the camera window to play the record in the small playback box on the left side of the interface. You can set the date on the top left of the interface, check the event type as required and click the time scale or click under the time scale to set the time. The camera window will play the record according to the time and event type you set.
④ Drag the color blocks on the time scale to select the record data (or click "Set Backup Time" button on the bottom left corner of the interface to

set the backup start time and end time) and then click "Export" button for record backup. Click "Playback" button to play the record in the playback interface.

Search and Export App 26.20 Sun Mode Type Wind Mon Ret Sat 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 Playback Playback Set Backup Time LC Search Image Search Event Search Bookmarks Settings Export Status 04/07/2020 08:13:22 PM Playback Playback AI Master PCB Schedule 04/07/2020 08:13:22 PM Playback Playback Playback Playback Playback Playback Playback Playback Playback Playback Playback Playback Playback Playback Playback Playback Playback Playback Playback Playback Playback Playback Playback Playback Playback Playback Playback Playback Playback Playback Playback Playback Playback Playback

8.4.3 Event Search

① Click Start→Search and Export→Event Search to go to "Event Search" tab as shown below.

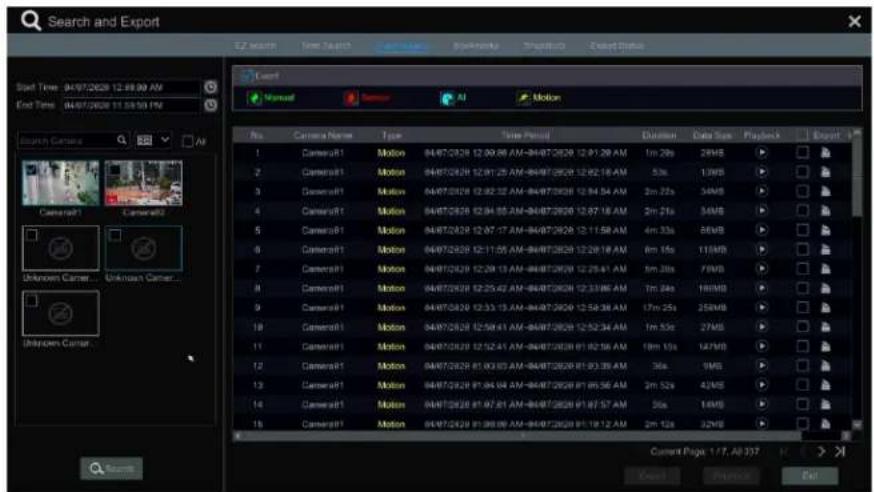

Search and Export Spot Time: 04/07/2028 12:09:00 AM End Time: 04/07/2028 11:33:50 PM Search Camera CameraR1 CameraR2 Unknown Camera... Unknown Camera... CameraR1 CameraR2 CameraR1 CameraR2 CameraR1 CameraR2 CameraR1 CameraR2 CameraR1 CameraR2 CameraR1 CameraR2 CameraR1 CameraR2 CameraR1 CameraR2 CameraR1 CameraR2 CameraR1 CameraR2 CameraR1 CameraR2 CameraR1 CameraR2 CameraR1 CameraR2 CameraR1

② Check the event type in the interface as required.
③ Click to set the start time and end time on the top left of the interface.
④ Check cameras on the left side of the interface or check "All" to select all the cameras and then click record will be displayed in the list.
⑤ Click ▶ in the list to play back the record in the popup window. Click 📋 to back up one record data or check multiple record data in the list and then click "Backup" button for record batch backup.
⑥ Select one record data in the list and then click "Playback" button to play the record in the playback interface.

8.4.4 Bookmark Search

Only if you add the tags can you play the record by tag search. Click Start→Playback to go to the playback interface and then click 📄 on the bottom of the camera window to add bookmarks when you want to mark the playback time point of the selected camera.

Click Start→Search and Export→Bookmarks to go to "Bookmarks" tab.

Search and Export No. Name Camera Name Tools Platform Edit Delete 1 Camptall 2630M40721481 Camptall 94072809 89:14:01 PM Current Page 1 / 1 All

Click the interface to play the record. Click to e the tag name. Click to delete tag.

8.4.5 Snapshots

Click Start→Search and Export→Snapshots to go to "Snapshots" tab. The system will display all the captured images automatically in the list.

Search and Export No Camera Name Snapshot Mode Snapshot Time Creator Browser Export Delete 1 Camera82 Alarm 04/07/2020 09:24:46 PM Camera82 Camera82 2 Camera82 Alarm 04/07/2020 09:24:46 PM Camera82 Camera82 3 Camera82 Alarm 04/07/2020 09:23:41 PM Camera82 Camera82

Click 📄 to delete the image. Click 📄 to pop up the "Export" window. Select the device name and save path in the window and then click "Save" button.

Click to pop up the "View Image" window. Click to export the image. Click to view the previous image; click to view the next image; click delete the image; click to play all the images.

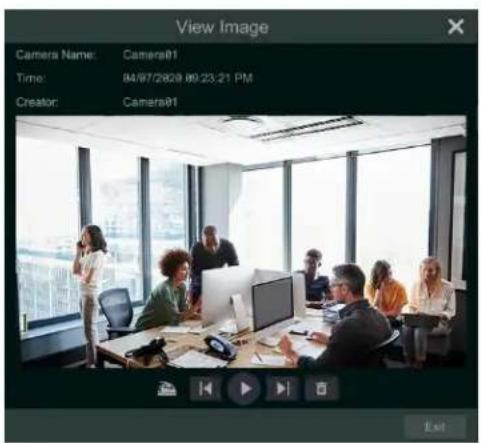

View Image Camera Name: Camera01 Time: 04/07/26/09 09:23:21 PM Creator: Camera01

8.4.6 View Export Status

Click Start→Search and Export→Export Status or click 📄 on the tool bar at the bottom of the playback interface to view the export status.

9 AI Event Management

9.1 Face Recognition

Please set face recognition function according to the following procedures for the first time.

9.1.1 Face Detection Settings

Face Detection: Alarms will be triggered if someone intrudes into the pre-defined alarm areas.

① Click Start→Settings→AI/Event→AI Event→Face Recognition→Detection to go to the following interface.

Camera Name Camera81 Face Recognition Detection Recognition Face Database LPR Detection Recognition Plate Database People/Vehicle Perimeter Detection Tripsite Minution More Object Abandoned Missing Low Crossing Counting Crowd Density Tampering Enable Detection by IPC Parameter Settings Trigger Mode Rule Duration 20 Secs Snapshot Interval 38 Secs Snapshot Number 3 Face exposure 50 Face Size(Range : 3%~50%) Max 50 Min 7 Display range Draw Clear Camera storage Save original picture Save target picture White light mode setting White light mode OFF White Strength Start Time End Time Exit Apply

② Select the camera, check "Enable Detection by IPC" and set the duration.
③ Set the snapshot interval and snapshot number. The snapshot interval refers to the time interval that the camera captures the same face during its continuous tracking period. The snapshot number refers to the picture number of the same face captured during its continuous tracking period (For example: the snapshot interval is set to "30 seconds" and the snapshot number is set to "3"; then the camera will capture the same face once every 30 seconds and it will capture this face 3 times at most during its continuous tracking period).
④ Enable face match exposure as need. When the brightness of the captured face is not enough, it can be enabled. (Only some IPCs support this function)
⑤ Set the alarm area. Click "Draw" and then drag the mouse to draw a detection area. Click "Clear" to delete the alarm area. Then set the detectable face size by defining the maximum value and the minimum value (The default size range of a single face image occupies from 3% to 50% of the entire image).

Rule Duration 20 Secs Snapshot Interval 30 Secs Snapshot Number 3 Face exposure 50 Face Size(Range : 3%-50%) Max 50 % Min 7 % Display range Draw Clear

⑥ Enable "Save Source Information" or/and "Save Face Information" as needed. If enabled, the system will automatically save the corresponding images on the SD card. For the models with LED light, white light mode also can be set.

⑦ Click "Apply" to save the settings.

⑧ Click "Trigger Mode" to go to face detection alarm linkage setting interface:

Parameter Settings Trigger Mode Trigger General Record Configure Alarm-out Configure Camera Name Preset Name Snapshot IP81 Push Buzzer Pop-up Video E-mail IP82 None IP81 None IP83 None Apply

Face Detection Alarm Linkage Configuration:

① Trigger "Record", "Snapshot", "Push", "Alarm-out", "Preset", "Buzzer", "Pop-up Video" and "E-mail" as needed.

Record: Click the "Configure" button to pop up the window. Select camera on the left side and then click to set the camera as the trigger camera. Select trigger camera on the right side and then click to cancel the trigger camera. Click "OK" to save the settings. The trigger cameras will record automatically when faces are detected.

Alarm-out: Click the "Configure" button to pop up the window. Then the "Trigger Alarm-out" window will pop up automatically. Configure the trigger alarm-out in the window. The system will trigger the alarm-out automatically when faces are detected. You need to set the delay time and the schedule of the alarm outputs. See 11.6.1 Alarm-out for details.

Preset: Click ▼ and then select the preset for each camera. To add presets, please see 6.2 Preset Setting for details.

Snapshot: check it. The current camera will capture images automatically when faces are detected.

Push: If it is enabled, the system will send messages when faces are detected.

Buzzer: if it is enabled, the system will begin to buzz when faces are detected. To set the delay time of the buzzer, please see 11.6.4 Buzzer for details. Pop-up Video: if it is enabled, the system will pop up the corresponding video automatically when faces are detected. To set the duration time of the video, please see 11.6.3 Display for details.

E-mail: if it is enabled, the system will send an e-mail when faces are detected. Before you enable the email, please configure the recipient's e-mail address first (see 11.6.2 E-mail Configuration for details).

⑨ Click "Apply" to save the settings.

9.1.2 Face Database Management

① Click Start→Settings→AI/Event→AI Event→Face Recognition→Face Database to go to the following interface as shown below.

Add Group Group Frame: 100 OK Cancel Add Group Import and Export

For the first time, you can click "+" or "Add Group" to add groups.

② To add targets for each group.
② Select a list and then click ▼ to expand the list as shown below.

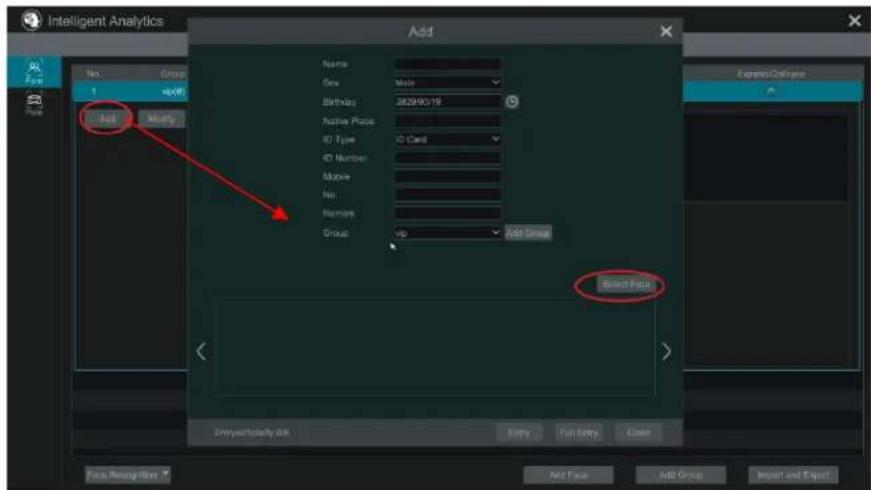

Intelligent Analytics Add Add Focus Select Focus Entry densely dlt Entry Full Entry Case Add Focus Add Group Export/Export Name Sex Male Birthday J82910116 Native Place ID Type ID Card ID Number Above No. Names Group Add Group Add Focus

③ Click "Add" and then click "Select Face" to add face images. You can add faces from snapshot gallery or external faces.

Adding faces from snapshot gallery: Select search time or self define the search time and then click "Search" to search target faces. Then select the desired faces and click "Select".

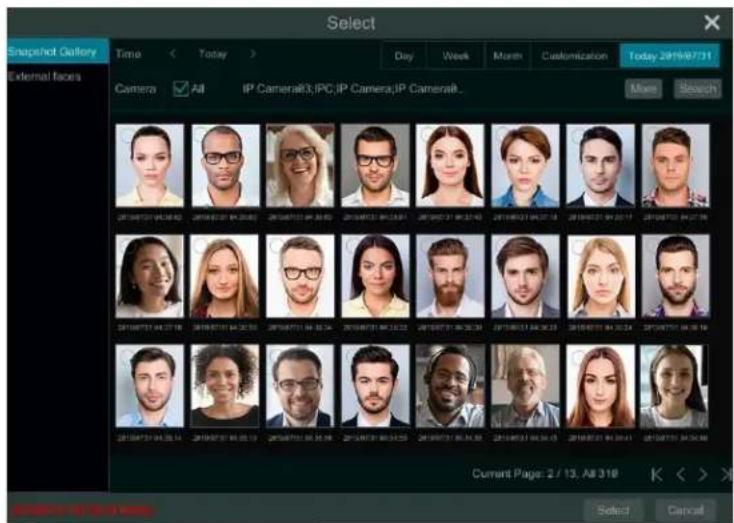

Select SnapNet Gallery Time Today Day Week Month Customization Today 2019/07/11 External faces Camera All IP Camera83; IPC; IP Camera; IP Camera8. More Search Current Page: 2 / 13, All 318 K < > > Select Cancel

Add external faces

Save the face pictures in your USB storage device and then insert the USB storage device into the USB port of the NVR.

Go to the face database interface. Click √ to expand the group and then click "Add". Select "External faces" to select face pictures. You can select one face to add or multiple faces to add.

To add multiple faces: a. put face pictures and the description file (.csv or .txt) to one specific folder (please edit the detailed descriptions of these pictures according to the personal information description); b. click "All" to select all face pictures; c. click "Full Entry".

Note: the added image must be less than 70KB and the image format shall be ".jpg" and ".jpeg".

④ After that, add the corresponding information, like name, gender, birthday, ID number, phone number and so on.

Having saved the target image, click the image and then the detailed information will be listed on the right.

Face Recognition Add Face Add Group Import and Export Name: 1 Birthday: 2028/03/19 Native Place ID Type: ID Card ID Number: Mobile: No. Research:

⑤ Import and Export Face database

Insert your mobile storage device into the USB interface of the NVR and then click "Import and Export" to import or export the face database settings.

9.1.3 Face Recognition Settings

After the face database and face pictures are added, click "Face Recognition" to return to the face recognition setting interface. Click the "Recognition" tab to go to the following interface.

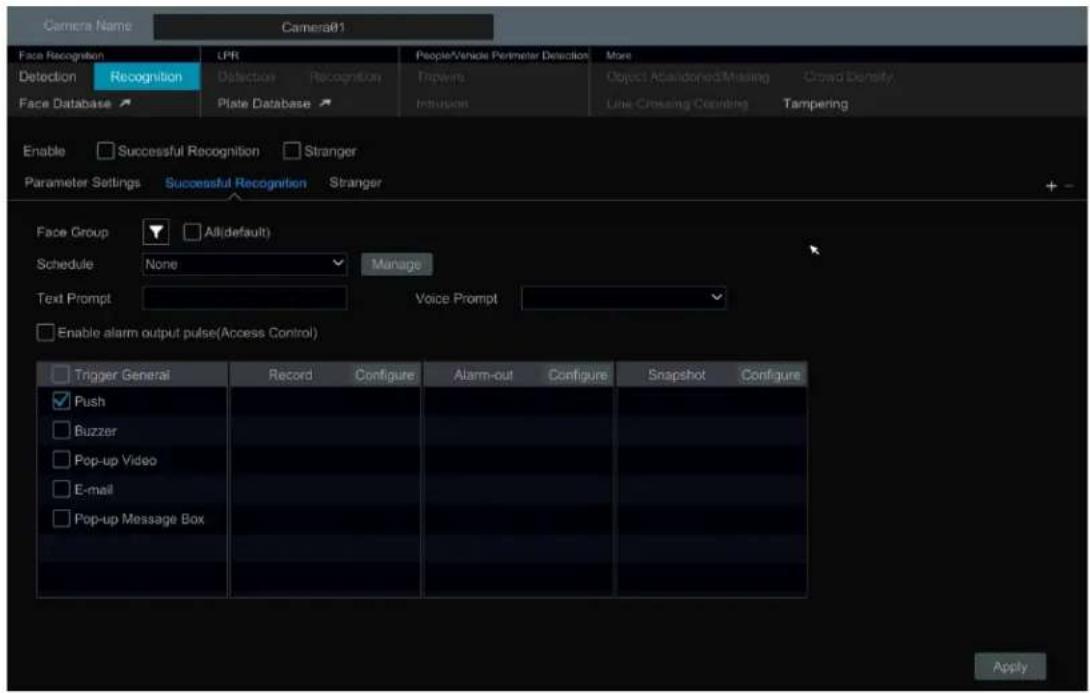

Camera Name Camera81 Face Recognition LPR People/Vehicle Perimeter Detection More Detection Recognition Detection Recognition Trapins Object Abandoned/Missing Crowd Density Face Database Plate Database Intusion Line Crossing Counting Tampering Enable Successful Recognition Stranger Parameter Settings Successful Recognition Stranger Face Group All(default) Schedule None Manage Text Prompt Voice Prompt Enable alarm output pulse(Access Control) Trigger General Record Configure Alarm-out Configure Snapshot Configure Push Buzzer Pop-up Video E-mail Pop-up Message Box Apply

① Enable "Successful Recognition" or "Stranger". Click "Parameter Settings" to set the similarity of the matching face group. Disable live display: if checked, the live view interface (target detection tab) will not display captured faces in real time.
② Set the alarm linkage items of successful recognition.

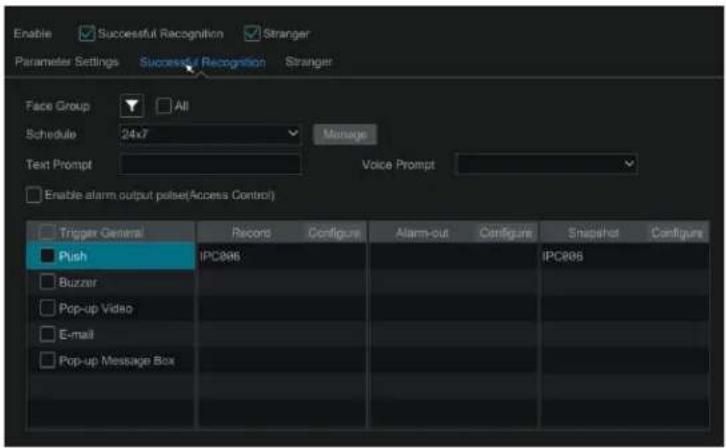

Enable Successful Recognition Stranger Parameter Settings Successful Recognition Stranger Face Group All Schedule 24x7 Manage Text Prompt Voice Prompt Enable alarm output pulse(Access Control) Trigger General Record Configure Alarm-out Configure Snapshot Configure Push IPC886 Buzzer Pop-up Video E-mail Pop-up Message Box IPC886 IPC886

• Select one or more face groups and then choose the schedule. Click "Manage" to set the schedule.
• Set the text prompt and voice prompt. When the captured face is matched successfully, the text will appear on the right of the live view interface and broadcast the audio.
  ● Enable alarm output pulse (access control).
• Trigger record, snapshot, alarm-out, buzzer, push, pop-up video, E-mail and pop-up message box as needed. The alarm linkage settings are similar to the face detection alarm (see 9.1.1 Face Detection Settings for details).
• Click "Apply" to save the settings.

③ Set the stranger alarm linkage items. When the captured face picture doesn't match the face pictures in the face database or their similarity is lower than the set value, the captured person will be regarded as a stranger.

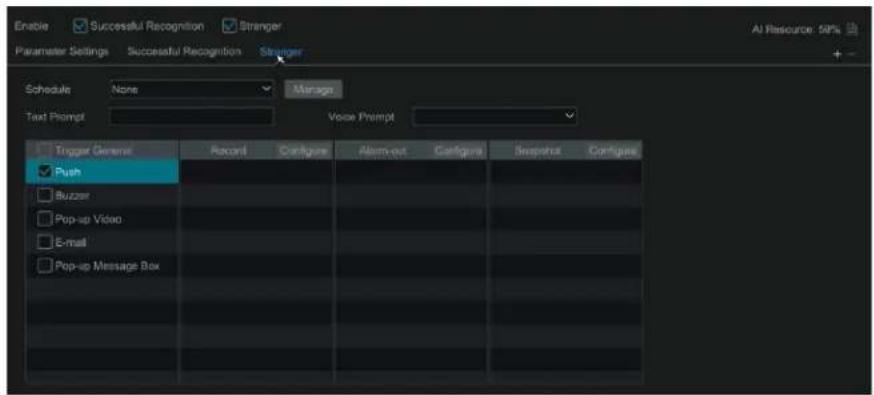

Enable Successful Recognition Stranger Parameter Settings Successful Recognition Stranger Schedule None Manage Text Prompt Voice Prompt Trigger General Record Configure Alarm-out Configure Respinet Configure Push Buzzer Pop-up Video E-mail Pop-up Message Box AI Resource: 50%

• Configure the schedule
• Set the text prompt and voice prompt. The text will show on the captured picture and the voice will be broadcasted when detecting a stranger.
• Trigger record, snapshot, alarm-out, buzzer, push, pop-up video, E-mail and pop-up message box as needed. The alarm linkage settings are similar to the face detection alarm (See 9.1.1 Face Detection Settings for details).
• Click "Apply" to save the settings.

④ Click "+" to add more successful recognition tasks. Select the added task and then click "-" to delete it.

9.2 License Plate Recognition

Please add the ANPR camera before you using this function. If your camera doesn't support this function, please skip the following instruction. Please set face recognition function according to the following procedures for the first time.

9.2.1 License Plate Detection Settings

Click Start→AI/Event→AI Event→LPR to go to the following interface. Select an ANPR camera and click the "Detection" tab as shown below. Set the plate size by defining the maximum value and the minimum value (The default size range of a single plate occupies from 5% to 50% of the entire image).

Display range: if enabled, the set maximum detection box and the minimum detection box can be displayed on the left window. Please select the entrance and exit according to the actual scene.

Camera Name IPC806 Face Recognition LPR Detection Recognition Detection Recognition Face Database Plate Database Enable Parameter Settings Plate Size(Range : 5%~58%) Min 10 % Max 50 % Display range Entrance And Leave None Entry Leave None Draw Clear

Set the alarm area. Click "Draw" and then drag the mouse to draw a detection area. Click "Clear" to delete the alarm area.

9.2.2 Plate Database Management

In the LPR interface, click the "Plate Database" tab to go to the plate database management interface as shown below. For the first time, you can click "+" or "Add Group" to add groups.

Add Group Group Name Add Group Imported Outlet

Add plates to each group:

① Click ▼ to extend the group. Click "Add Plate" to pop up the following window.

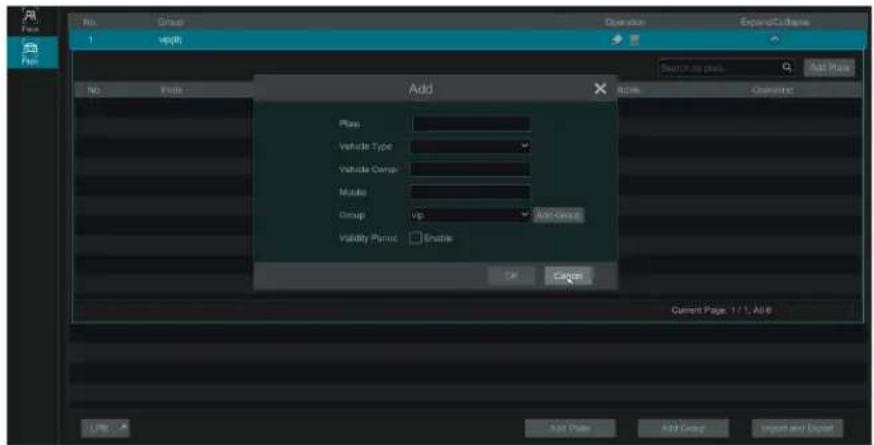

No. Group Operation ExpandCuliple 1 sep(R) Add Plan Vehicle Type Vehicle Comp Module Group Vip Add Group Validity Placed Enable OK Cancel Current Page 1/1, Add 6 Add Plate Add Group Import and Export

② Enter the plate, vehicle owner and mobile phone number.
③ Select the vehicle type and group.
④ Enable validity period to set the start and end time
⑤ Finally click "OK" to complete.

Select the added plate and then click 📄 to modify its information; click 📄 to delete this plate. The plates can be imported and exported in bulk by clicking "Import and Export". You can click "Plate Information Description" to view the detailed information about how to import or export the plate list.

9.2.3 License Plate Recognition Settings

① In the LPR interface, click the "Recognition" tab. Then enable "Successful Recognition" or "Strange Plate".

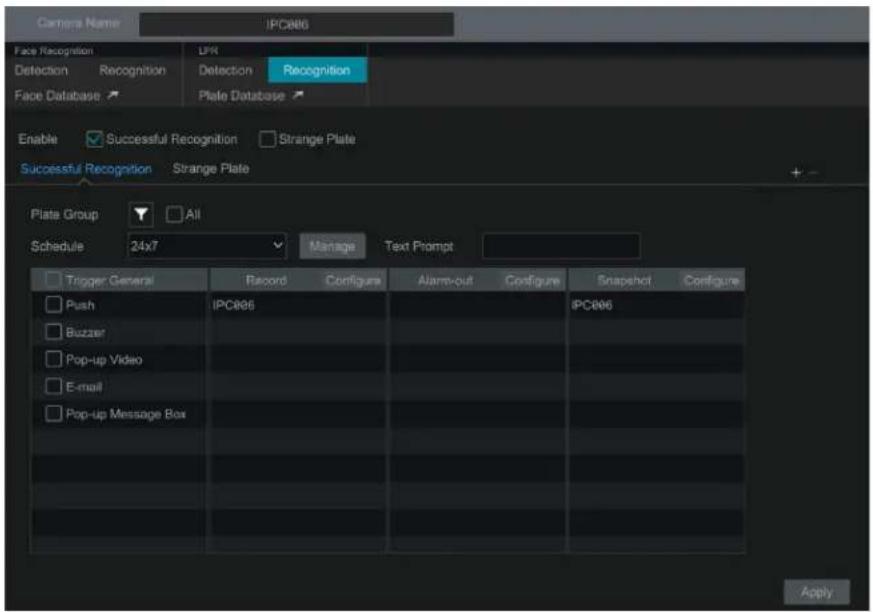

Camera Name Face Recognition Detection Face Database IPC806 LPR Detection Recognition Plate Database Enable ✓ Successful Recognition □ Strange Plate Successful Recognition Strange Plate Plate Group ✓ All Schedule 24x7 Manage Text Prompt Trigger General Record Configure Alarm-out Configure Snapshot Configure Push IPC806 IPC806 Buzzer Pop-up Video E-mail Pop-up Message Box Apply

② Set the successful recognition alarm linkage.

• Select one or more plate groups and then choose the schedule. Click "Manage" to set the schedule.
• Set the text prompt. When the captured plate is matched successfully, the text will appear on the right of the live view interface.
  ● Enable alarm output pulse (access control).
• Trigger record, snapshot, alarm-out, buzzer, push, pop-up video, E-mail and pop-up message box as needed. The alarm linkage settings are similar to the face detection alarm (See 9.1.1 Face Detection Settings for details).

③ Set the strange plate alarm linkage. When the captured plate picture doesn't match the plates in the plate database or their similarity is lower than the set value, the captured plate will be regarded as a strange plate.

9.3 Tripwire

Tripwire/Line Crossing Configuration:

Alarms will be triggered if the people or vehicles cross the pre-defined alarm line.

① Click Start→Settings→AI/Event→AI Event→Tripwire to go to the following interface.

Gatherd Name IPCABB Face Recognition LPR Face Detection Recognition Disease Recognition Face Database Plane Database People/vehicle Parameter Detection Tripwire Intrusion Enable Detection by IPC Parameter Settings Trigger Mode Rule Duration 20 Secs Line 1 Direction A->B Detection Target People Sensitivity 58 Vehicle Sensitivity 58 Non-vehicle Sensitivity 58 Draw line Clear Apply

② Select the camera, enable tripwire detection by IPC and set the duration.
Note: Some models may support tripwire detection by NVR.

③ Select the direction.

Direction: A<->B, A->B and A<-B optional. It is the crossing direction of the target that crosses over the alert line.

A<->B: the alarm triggers when the target crosses over the alert line from B to A or from A to B.

A->B: the alarm triggers when the target crosses over the alert line from A to B.

A<-B: the alarm triggers when the target crosses over the alert line from B to A.

④ Draw line. Refer to the interface as shown above. Check "Draw line" and then drag the mouse in the image to draw an alert line. Uncheck the "Draw line" if you finish the drawing. Click the "Clear" to delete the alert line.
⑤ Click "Detection Target" to choose the detection target and the sensitivity. The detection target includes people, vehicle and non-vehicle. Only some IPCs can detect human or vehicle separately. If the camera doesn't support this function, please skip this step.
⑥ Click“...”to choose “Save original picture” or “Save target picture” on the SD card of the camera. (If your camera doesn’t support this function, please skip this step).
⑦ Click "Trigger Mode" to configure tripwire alarm linkage items.
- Enable or disable "Record", "Snapshot", "Push", "Alarm-out", "Preset", "Buzzer", "Pop-up Video" and "E-mail". The alarm linkage settings are the same as the face detection alarm (see 9.1.1 Face Detection for details).
- Enable "IPC_Audio" or "IPC_Light" as needed (only some IPCs support these two functions). To set the IPC voice and its times and volume, please refer to 11.6.6 Digital Deterrent for details. To set the light flashing time and frequency of the IPC, please refer to 11.6.7 Light for details.
⑧ Click "Apply" to save the settings.

9.4 Intrusion Detection

Intrusion Detection Configuration:

Alarms will be triggered if the people or vehicles intrude into the pre-defined area.

① Click Start→Settings→AI/Event→AI Event→Intrusion to go to the following interface.
② Select the camera, enable the intrusion detection by IPC and set the duration.

Note: Some models may support tripwire detection by NVR.

③ Select regional activities. "Appear" or "Cross" can be selected (if your camera doesn't support region entrance/exiting detection, "Cross" will not be enabled). If "Cross" is selected, you can choose the crossing direction.

④ Select the alarm area. Up to 4 alarm areas can be set up.

⑤ Draw the alarm area of the intrusion detection. Refer to the interface as shown below. Check "Draw Area" and then click around the area where you want to set as the alarm area in the image (the alarm area should be a closed area). Uncheck the "Draw Area" if you finish the drawing. Click the "Clear" to delete the alarm area.

Camera Name iPOB6 Face Recognition Detection Recognition Face Database LTR Occasion Recognition Place Database People/Vehicle ParMerer Detection Tripwire Intrusion Enable Detection by IPC Parametric Settings Trigger Mode Rule Regional Activities Appear Detraction Entry Duration 5 Baccs Area 1 Detection Target People Sensitivity 50 Vehicle Sensitivity 50 Non-vehicle Sensitivity 50 Draw area Class Apply

⑥ Click "Detection Target" to choose the detection target and the sensitivity. The detection target includes people, vehicle and non-vehicle.
⑦ Click "Trigger Mode" to configure intrusion detection alarm linkage items.
- Enable or disable "Record", "Snapshot", "Push", "Alarm-out", "Preset", "Buzzer", "Pop-up Video" and "E-mail". The alarm linkage settings are the same as the face detection alarm (see 9.1.1 Face Detection Settings for details).
- Enable "IPC_Audio" or "IPC_Light" as needed. (only some IPCs support these two functions). To set the IPC voice and its times and volume, please refer to 11.6.6 Digital Deterrent for details. To set the light flashing time and frequency of the IPC, please refer to 11.6.7 Light for details.
⑧ Click "Copy To" to copy all settings to other cameras.
⑨ Click "Apply" to save the settings.

9.5 Abandoned/Missing Object Detection

① Click Start→Settings→AI/Event→AI Event→Object Abandoned/Missing to go to the following interface.
② Select the camera, enable the object detection and set the duration and detect type. There are two detection types: Abandoned object and missing object.

Abandoned object: Alarms will be triggered if there are articles left in the pre-defined detection area.

Missing object: Alarms will be triggered if there are articles missing in the detection area drew by the users.

③ Select the alarm area and area name. A maximum of 4 alarm areas can be set.
④ Draw the alarm area of the object detection. Refer to the interface as shown above. Check "Draw Area" and then click around the area where you want to set as the alarm area in the image (the alarm area should be a closed area). Uncheck the "Draw Area" if you finish the drawing. Click the "Clear" to delete the alarm area.

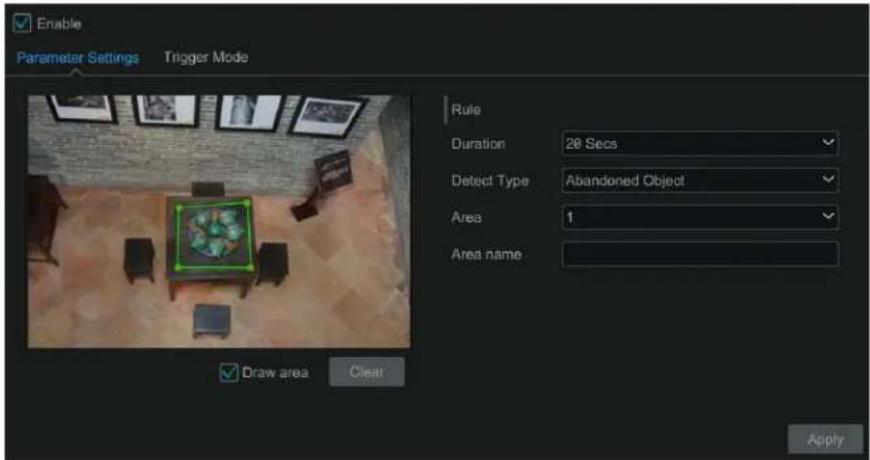

Enable Parameter Settings Trigger Mode Rule Duration 28 Secs Detect Type Abandoned Object Area 1 Area name Draw area Clear Apply

⑤ Click "Trigger Mode" to configure abandoned/missing object detection alarm linkage items. Enable or disable "Record", "Snapshot", "Push", "Alarm-out", "Preset", "Buzzer", "Pop-up Video" and "E-mail". The alarm linkage settings are the same as the face detection alarm (see 9.1.1 Face Detection Settings for details).
⑥ Click "Apply" to save the settings.

9.6 Crowd Density Detection

Only some IPCs may support this function.

Crowd Density Configuration:

Alarms will be triggered if the crowd density exceeds the set threshold value in the pre-defined area.

① Click Start→Settings→AI/Event→AI Event→Crowd Density to go to the following interface.

Enable Parameter Settings Trigger Mode Rule Duration 20 Secs Refresh Frequency 1 Sec Alarm Threshold 50 Draw area Clear Apply

② Select the camera, enable the crowd density detection and set the duration, refresh frequency and alarm threshold.

Refresh Frequency: It refers to the refresh time of the detection result report.

Alarm Threshold: Alarms will be triggered once the percentage of the crowd density in a specified area exceeds the pre-defined threshold value.

③ Select the alarm area. Draw the alarm area of the crowd density detection. Refer to the interface as shown below. Check "Draw Area" and then drag the mouse to draw a rectangle area. Uncheck the "Draw Area" if you finish the drawing. Click the "Clear" to delete the alarm area.

④ Click to configure crowd density detection alarm linkage items. Enable or disable "Record", "Snapshot", "Push", "Alarm-out", "Preset", "Buzzer", "Pop-up Video" and "E-mail". The alarm linkage settings are the same as the face detection alarm (see 9.1.1 Face Detection Settings

for details).

⑤ Click "Apply" to save the settings.

9.7 Line Crossing Counting

Only some IPCs may support this function.

● People counting in the pre-defined area:

This function is to calculate the number of people entering or exiting in the detected area on the video by detecting, tracking and counting the head shapes of people.

Note: Only some specific IPCs may support this function.

① Click Start→Settings→AI/Event→AI Event→Line Crossing Counting to go to the following interface.
② Select the camera, enable the line crossing people counting detection and set the duration, sensitivity, statistic cycle, enter threshold, departure threshold and retention threshold.

Statistic cycle: Always, daily, weekly and monthly are optional.

Manual Reset: The current number of people counting will be cleared and the statistic cycle will restart by clicking "Manual Reset" button.

③ Set the alarm area and entrance direction. Click "Draw Area" and drag the mouse to draw a rectangle area. Drag the rectangle to change its position. Uncheck the "Draw Area" if you finish the drawing. Click "Clear" to clear the area. Click and drag the arrow or the other end of the arrow line to change the people entrance direction.

Enable Rule Setting Rule Duration 20 Secs Sensitivity Medium Statistical cycle Always Enter threshold 1000 Departure threshold 1000 Retention threshold 500 Draw area Clear Manual Reset Apply

⑥ Click "Apply" to save the settings.

● Line Crossing People/Vehicle/Non-Vehicle Counting

Only some IPCs support this function. If your camera doesn't support this function, please skip the following instructions.

① Click Start→Settings→AI/Event→AI Event→Line Crossing Counting to go to the following interface.

Enable Rule Setting Detection Target Pass Line Info Alarm Line 1 Direction A->B Reset Information Auto Reset Enable Mode Daily Time 09:00:00 Statistical OSD Draw line Clear Manual Reset Apply

② Enable line crossing counting.
③ Check "Draw line" and then drag the mouse on the small window to draw the crossing line.

Uncheck "Draw line" to finish the drawing. Click "Clear" to delete the alert line.

Direction: A->B and A<-B are optional. It is the crossing direction of the target that crosses over the alert line.

④ Check "Statistical OSD", the statistical information will be displayed on the live view interface.
⑤ Set the reset information. You can set reset information manually or enable "Auto Reset" as needed.
⑥ Click the "Detection Target" tab to set the detection target, including people, vehicle and non-vehicle.
⑦ Click "Apply" to save the settings.

9.8 Tampering Detection

Tampering Detection Configuration:

① Click Start→Settings→AI/Event→AI Event→Tampering to go to the following interface.

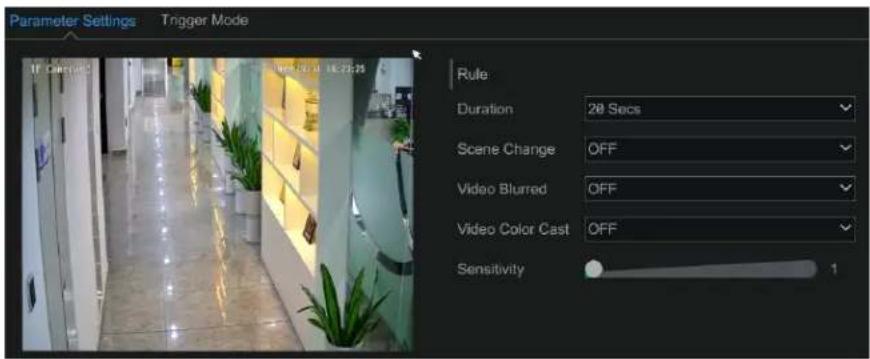

Parameter Settings Trigger Mode If Detected 16:25:25 Rule Duration 28 Secs Scene Change OFF Video Blurred OFF Video Color Cast OFF Sensitivity 1

② Select the camera and detection duration and then enable the relevant detection as needed.

Scene Change: Alarms will be triggered if the scene of the monitor video has changed.

Video Blurred: Alarms will be triggered if the video becomes blurry.

Video Color Cast: Alarms will be triggered if the video becomes obscured.

③ Set the sensitivity of the exception detection.
④ Click "Trigger Mode" to configure exception alarm linkage items. Enable or disable "Record", "Snapshot", "Push", "Alarm-out", "Preset", "Buzzer", "Pop-up Video" and "E-mail". The alarm linkage settings are the same as the face detection alarm (see 9.1.1 Face Detection Settings for details).
⑤ Click "Apply" to save the settings.

10 Intelligent Analytics

10.1 Target Detection View

10.1.1 Human Body/Vehicle Detection View

Only when the camera supports human body/vehicle detection, can you view the real-time captured people or vehicle pictures. The setting steps are as follow:

① Enable the Tripwire/Intrusion function of IPCs/NVR, draw the line or area and choose the detection target (see 9.3 Tripwire and 9.4 Intrusion Detection for details).
② Go to live view interface and then click 📄 to go to the target detection interface of this channel. In this interface, you can switch the channel on the top right. You can also click 📄 on the top right corner of the live view interface and then choose the target detection tab to go to the target detection interface of multi-channel as shown below. Click the captured picture on the right of the live interface to see the snapshot detailed information, such as snapshot time, camera, event type and target type.

Snap Detail Snap Picture Original Image Snap Information Snap Time 84/07/26:20 09:43:39 PM Camera Camera82 Event Type Intrusion Target Type People More Search Playback Previous Next Exit Export Information Camera Customize Layout Target Detection Intrusion People Camera82 09:43:08 PM Intrusion People Camera82 09:42:58 PM Intrusion People Camera82 09:42:57 PM Intrusion People Camera82 09:42:56 PM Intrusion People Settings Exit Type History 04/07/26:20 09:43:18 PM

Click "More" to bring up a dropdown list. You can export the captured pictures by clicking "Export" or view the target ID by clicking "Information". Click "Search" to go to smart human body/vehicle search interface. The system will automatically search captured people/vehicles. Click "Playback" to go to the playback interface.

10.1.2 Face Detection/Match View

Only the face recognition NVR supports the following functions. If your NVR doesn't support them, please skip the following instructions. The setting steps are as follow:

① Enable face detection function (see 9.1.1 Face Detection Settings for details).
② Enable face recognition function and set the alarm linkage items (see 9.1.3 Face Recognition Settings for details).
③ Go to live view interface and click on a face detection channel. This will bring a toolbar under the channel. Then click 📄 to go to the target detection interface of this channel. In this interface, you can switch the channel on the top right. You can also click 📄+ on the top right corner of the live view interface and then choose the target detection tab to go to the target detection interface of multi-channel as shown below.

Camera Customize Layout Target Detection CameraR1 80:44:42AM CameraR2 80:44:42AM Intusion People CameraR3 80:44:42AM CameraR4 80:44:42AM CameraR5 80:44:42AM Intusion Settings First Time History 04/07/29/26 80:44:58 AM

For unknown faces, you can select this face and click ✪ under the captured face to register this face (see the following picture); click 🔒 to quickly go to the smart face search interface where you can search the matching face information; click ▶ to quickly go to the smart face playback interface; click ⬆ view snapshot details.

Register Snap Picture Name Sex Male Birthday 2020/03/26 Native Place ID Type ID Card ID Number Mobile No. Remark Group 1 Add Group OK Cancel

Before registering target face pictures, please add groups for them in advance (see 9.1.2 Face Database Management for details).

After the face pictures are registered, the system will compare them automatically once the corresponding faces are captured next time. Refer to the following picture.

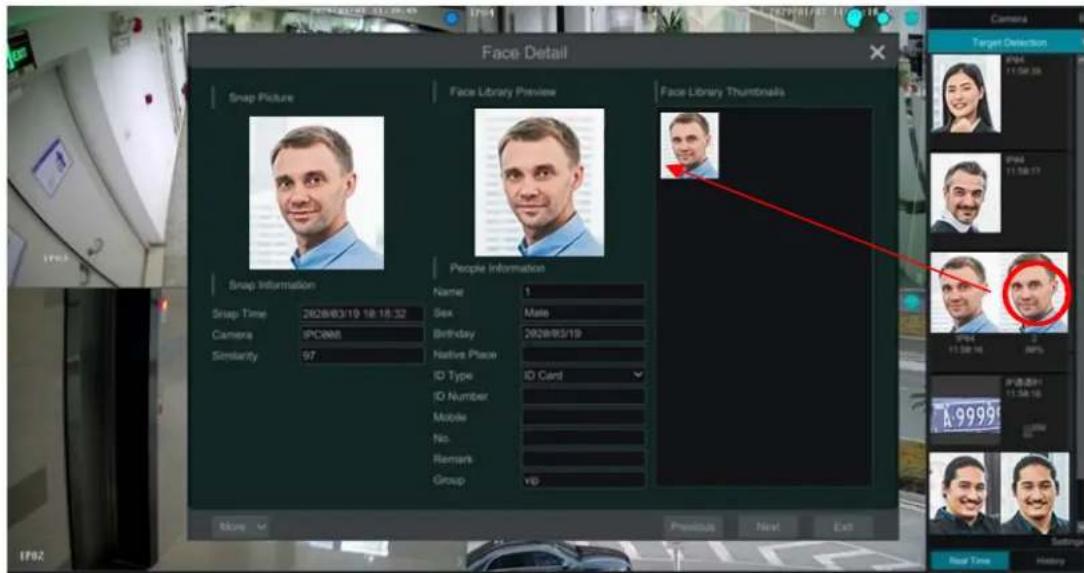

Face Detail Snap Picture Face Library Preview Face Library Thumbnails Snap Information Name 315 Sex Female Birthday 01/16/2019 Native Place ID Number Mobile No Group Snap Time 01/16/2019 22:24:48 Camera IPC Face ID 1361 Face Score 87 Similarity 88 View Original Image Search by Snapshot Playback by Snapshot Export More Previous Next Exit Customize Layout Face Match 22:24:51 316 IPC 88% 22:24:56 88 IPC 88% 22:24:59 316 IPC 88% 22:24:63 316 IPC 88% Settings History

Double click the face picture to see the snapshot details, such as snapshot picture, original image, snapshot time and camera. Click "more" and then a dropdown list will display. Click "Register" to register the current snapshot. Click "Search" to go to face search interface. Click "Playback" to go to the playback interface. Click "Export" to export this snapshot details. Click "Information" to view face ID.

In the face match interface, click "Settings" to pop up the following window.

Settings Target Detection Display ✓ Face Display Strategy Comparison Priority ✓ Human Body ✓ Vehicle Video Overlay Display ✓ Target Box ✓ Rule Line and Area OK Cancel

Target Detection Display: Face, human body and vehicle can be enabled. If disabled, the captured target picture will not be displayed under the target detection tab in the live view interface.

Display Strategy: Two options-Comparison priority and only comparison

Video Overlay Display:

If "Target box" is clicked, you will see the target traced by a little red box.

If "Rule Line and Area" is checked, you will see the rule line of tripwire detection and detection area of intrusion detection displayed on the screen.

You can select the color of the rule lien and area as needed.

Face Detail Snap Picture Face Library Preview Face Library Thumbnails Snap Information Name 1 Sex Male Camera SPC008 Birthday 2020/03/19 Similarity 97 Native Place ID Type ID Card ID Number Mobile No. Remark Group VIP Previous Next Exit Camera Target Detection IP64 11:58:25 IP64 11:58:17 IP64 11:58:16 IP64 11:58:15 A:99999 New Time History

When the captured face pictures are successfully recognized, click the picture on the right to pop up a face detail window as shown below. In this window, you can see the captured face picture, the matched picture of face library and the relevant information. You also can view the original image, search image by snapshot, play back by snapshot and export the face details by clicking "More" button.

Additionally, you can view the historical captured face pictures and face match information in the face match interface by clicking "History" tab. Besides registering face pictures in the live view interface, you can also add target face pictures in the face database interface.

10.1.3 License Plate Detection/Recognition View

Only when the ANPR camera is added and enabled, can license plates be captured and matched. The setting steps are as follows

① Enable the plate detection function (See 9.2.1 License Plate Detection Settings for details).

Then you can see the captured plates displayed in the live view interface as shown below.

Collage of surveillance cameras and vehicle detection windows showing traffic scenes, license plates, and camera interface

Put the cursor on the captured plate picture and then click register this plate as shown below.

Add Plate K4A21 Vehicle Type Vehicle Owner Mobile Group vip Add Group Validity Period Enable OK Cancel

Click to view the captured detail information. Click to quickly enter the vehicle search interface. You can search the matched plate information in this interface. Click go to the smart playback interface.

② Enable license plate recognition function and set the alarm linkage items (see 9.2.3 License Plate Recognition Settings for details).
③ Go to live view interface and click k on the top right corner of the live view interface and then choose the target detection tab to go to the target detection interface of multi-channel as shown below. When the plate is captured, it will be displayed on the right panel. If this plate is successfully matched, it will show "successful" beside the plate picture. The strange plate will show "Strange plate" beside the plate picture.

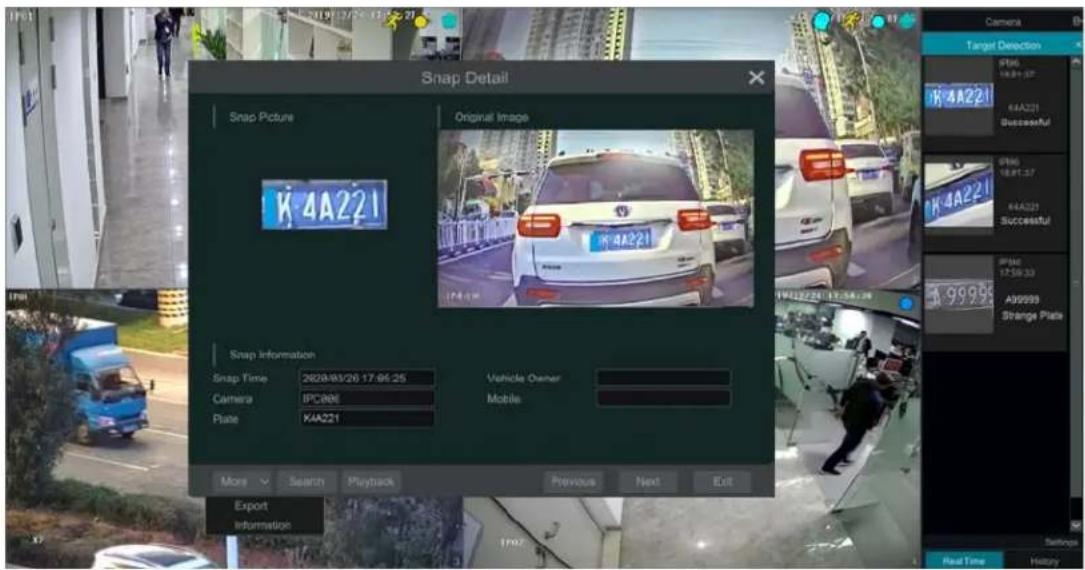

Snap Detail Snap Picture Original Image K4A221 17:4:19 Snap Information Snap Time 28/28/03/26 17:06:25 Vehicle Owner Camera IPC086 Mobile Plate KAA221 More Search Playtrack Previous Next Exit Export Information Camera Target Detection File 18.91.37 K4A221 Successful File 18.91.37 K4A221 Successful File 17:59:33 A99999 Strange Plate Read Time History

Click the captured plate picture and then it will pop up the detailed information window. You can view the snapshot picture, original picture, snapshot time, camera, etc. Click "More" to view the ID information of the target and export the captured picture. Click "Search" to go to the vehicle search interface. Click "Playback" to go to the playback interface.

10.2 Smart Search

10.2.1 Face Search

Only some models support this function. If your device doesn't support it, please skip the following instructions.

Face Search by Event

① Click Start→ Intelligent Analytics → Search→Face to go to the following interface.

Intelligent Analytics Original Profile Lfd Profile Original Time Capture All Backup Help General Stranger Black List Search Playback Backup Picture Backup Record Current Page 1 / 40, All RMS Back Up Back BackUp Back Close

② Click to choose face detection cameras.
③ Select all events, successful recognition or stranger.
④ Click "Search" to search face pictures. You can view face pictures by time or by camera.
⑤ Click the searched face picture to play in the small playback window; select a face picture and click "Backup" to export it.

Click "Original" to see the original image as shown below.

Picture Last Snap Original Time Camera All 17:26:19 #9/1 17:24:58 #9/1 17:24:50 #9/1 17:24:20 #9/1 17:23:59 #9/1 17:23:57 #9/1 Backup Picture Backup Record Current Page 1 / 116, All 2877 Backup All Backup Playbox Chase

Click "List" to view the snapshot information list. Click

to view the detail information; click

to back up the image.

Picture List No. Backup Time Remainty Downs Backup 1 2020/03/26 17:26:18 - □ 2 2020/03/26 17:24:58 - □ 3 2020/03/26 17:24:55 - □ 4 2020/03/26 17:24:59 - □ 5 2020/03/26 17:23:59 - □ 6 2020/03/26 17:23:57 - □ 7 2020/03/26 17:23:56 - □ 8 2020/03/26 17:23:54 - □ 9 2020/03/26 17:23:53 - □ 10 2020/03/26 17:23:52 - □ 11 2020/03/26 17:21:28 - □ 12 2020/03/26 17:21:17 - □ 13 2020/03/26 17:21:17 - □ 14 2020/03/26 17:21:14 - □ 15 2020/03/26 17:21:13 - □ 16 2020/03/26 17:28:57 - □ Backup Picture Backup Record Current Page: 1 / 116, All 2#7? Backup All Cancel Finish Close

Face Search by Face

In the face picture search interface, click "By Face" to go to the following interface.

① Click + to add the target face which can be searched and added from recent, face database, snapshot gallery and external faces. A single face picture or multiple face pictures can be added and searched. (Take a single face picture for example)

Select By Event By Top Face Outdoor Snapshot Gallery External Faces Selected items Already Selected (P Picture) Current Page 1 / 3, All 3 Backup Picture Backup Record Close BackUp Preview Close

To add target face from recent

a. Choose the face.
b. Click "Select Face".

To add target face from face database:

a. Click "More" to choose groups.
b. Select a target face and click "Select Face".

To add target face from snapshot gallery:

a. Select time and click "More" to choose cameras.
b. Click "Search".
c. Check a face and click "Select Face".

To add target face from external face:

a. Save the target face to the mobile storage device and then insert this device into the USB interface of NVR.
b. Select "External Face" to import the face in this interface.

② Set similarity and then click "Search".
③ Click the searched image to play records in the small window.

④ Select the searched image and click "Backup Picture" or "Backup Record". Then click "Backup" to build backups for pictures or records.

Intelligent Analytics By Event By Face Switch Balance Superior Database Face Annotation Face Connection Picture List Track Sweep Match Original All Yesterdayly Search Browse Names PPT Only Time 2008/03/16 11:49:25 Similarity 75% Playback 0.21 MB PPT 0.21 MB Backlog Picture Backup Record Current Page 1 / 1, AB T Display Preview Delete

• View Image by List

Click "List" tab to view images by time as shown below.

By Event By Face Picture List Tracks Day Week Construction Tray 00:00:00 Yesterday Ready Cres Campus Name IP61 Stop Time 2020/03/26 18:45:21 Similarity 75 Search Playback Backup Picture Backup Record Current Page 17:1, All 7 Backup Preview Close

Click the searched image to play. Click view the detail information of the compared target face.

• View Match Images

Click "Match" tab to view match images as shown below.

By Event By Face Preview Last Track Snap Match Original View/View Similarity 75 % Playback Backup Picture Backup Record Current Page 1 / 1, All 7 Balance Preview Close

10.2.2 Track Playback

Select "Track" to go to the following interface.

Intelligent Analytics Mouse Search Staticout Target Destination Force Attendance Force Click to Pension Time Trade Play Watch Composition New Computer Tobing Balance Preview Current Items and Sleep Times 19:00:2015 16:35:02 Similarity 75% Search IPOR Playback 11/04/2015 16:25:32 IPOR 18:57:32 01/10/2015 16:43:09 01/10/2015 16:43:08 01/10/2015 16:43:07 01/10/2015 11:49:44 01/10/2015 11:49:43 01/10/2015 11:49:42 01/10/2015 11:49:41 01/10/2015 11:49:40 01/10/2015 12:43:58

Note: Only when two or more cameras detect this person, can his/her track can be viewed here.

Descriptions of buttons on the track interface

		Fixed Window			Frame
		Followed Window			Fast Forward (x2;x4)
		Exchange Window		X1	Normal Speed
		Stop			Start/Stop Track
		Play			Edit Map
		Previous			Edit Color
		Next

Click on the camera name and then an event list appears. Click one item to play the record.

Click button beside the fixed window icon to show "Followed Window" and "Exchange Window" icons. The small playback window will float on the map window by clicking "Followed Window" as shown below.

Picture List Track IP65 Playback 01/18/2019 11:48:47

Click 1x to switch play speed. 1x and 2x can be switched. Click E to view event list. Click one item to play this event.

Click "Exchange Window" to switch the position of the map window and the playback window.

Click a button to go to the following interface.

Edit Map Map Map Map Map Map Map Map Map Map Map Map Map Map Map Map Map Map Map Map Map Map Map Map Map Map Map Map Map Map Map Map Map Map Map Map Map Map Map Map Map Map Map Map Map Map Map Map Map Map Map Cartoon 2008/03/27 04:55:14

Click "Load Map" to add a map. Then drag the camera names on the map to change their locations. Choose a color on the left color list to set your favorite color for camera names.

Load Map: ① Save the map to the USB storage device and then insert the USB storage device into the NVR. ② Click "Load Map" button to upload the map.

Click button to modify the colors of camera name and track line and set the line width.

10.2.3 Face Search by Snapshot

In the live or playback interface, click on a face detection camera and then select 📷 on the toolbar. This will bring the following window.

Manually Snapshot Camera Name : TD-8423 Time : 01/16/2019.22:53:01 Size : 1029*1088 Drop this mouse to select a test. Search By Face Export Save Cancel

Drag the mouse to select a face and then click "Search by Face" to go to the face search by face interface. You can see its snapshot pictures, match pictures, original pictures and so on by clicking the corresponding tab.

10.2.4 Human Body Search

Click Start→ Intelligent Analytics→Smart Search→Human Body to go to the human body search interface. Select the search time, camera and event and then click "Search" to view the searched pictures.

Intelligent Analytics Today 06/08/03/27 Camera(4) Event(5) Picture List Snap Original Time Camera All Search Playback Backup Picture Backup Record Current Page 8 / 9, All 1M BackUp Previous Save

Click the searched picture to play the record in the small window. Select pictures and check "Backup Picture" and/or "Backup Record" and then click "Backup" to back up the pictures and/or records. Click "Original" to view the captured original pictures. Click "List" to view the file list of the captured pictures.

Click and select "Add to favorite" to add a favorite group and save the current searched pictures to the favorite group. Then you can quickly view these figure pictures by clicking choosing the group name.

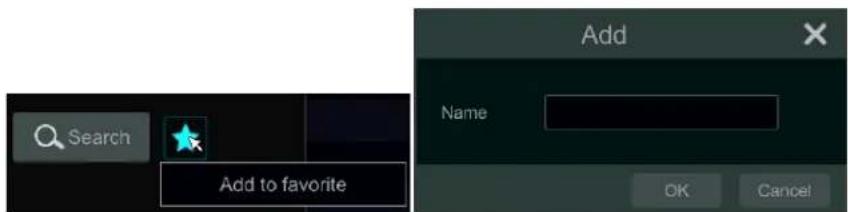

Search Add to favorite Add Name OK Cancel

10.2.5 Vehicle Search

① Click Start→ Intelligent Analytics→Smart Search→Vehicle to go to the vehicle search interface.
② Select the time, camera, event and vehicle type. Then click "Search" to search vehicles.
Event: Intrusion, Tripwire, Line Crossing Counting, Plate Detection, Plate Match-Successful Recognition and Plate Match-Strange Plate can be selected.

Attribution: Vehicle or non-vehicle can be selected. You can view face pictures by time or by camera.

Intelligent Analytics Samples Sample Durable Face Admin/Ask Face Lening in Picture List Track Snap Original Tang Caruate All Today 2028/09/27 Camera(AI) Event(AI) AIF5400(AI) Plate Photo - video pin + Snator Playback 04.13.00 04.13.00 04.13.00 04.13.00 04.13.00 04.13.00 04.13.00 04.13.00 04.13.00 04.13.00 04.13.00 04.13.00

Click a searched vehicle picture to play it in the small window. Select vehicle pictures and check "Backup Picture" and/or "Backup Record" and then click "Backup" to back up the pictures and /or records.

③ Click "Original" to see the original pictures; click "List" to view the snapshot information list. Click to view the detail information; click to back up the image.

Select "Plate Detection" or "Plate Match" to view plate image. You can also enter the plate number to search the plate pictures. Then you can view the track of this vehicle.

Picture List Track Snap Original Time Camera All Today 20/08/16 Camera, AI Euer(M) Attribution (AI) Place: Please arrive back number 19:25:00 AVG00 19:31:00 AVG00 19:37:00 AVG00 19:43:00 AVG00 19:49:00 AVG00 19:55:00 AVG00 19:61:00 AVG00 19:67:00 AVG00 19:73:00 AVG00 19:79:00 AVG00 19:85:00 AVG00 Playback Backup Picture Backup Record Current Page 1/2, AM 33 Name Playback Close

Click "Track" to view the track of the vehicle.

Note: Only one plate can be traced at a time and there must be two or more ANPR cameras detect this vehicle, thus, you can view the track of this vehicle.

The track setting steps are similar to the face track settings. Please refer to face track settings for details.

Click to add a favorite group and save the current searched pictures to the favorite group. Then you can quickly view these vehicle pictures by clicking choosing the group name.

10.2.6 Combination Search

If you want to view the human body, vehicle or face pictures simultaneously, you can choose combination search.

① Click "Combine".

② Select the search time, camera, event and vehicle as needed.

Click a searched picture to play it in the small window. Select pictures and check "Backup Picture" and/or "Backup Record" and then click "Backup" to back up the pictures and /or records.

Click

to add a favorite group and save the current searched pictures to the favorite group. Then you can quickly view these pictures by clicking

and choosing the group name.

10.3 View Statistical Information

Click Start→ Intelligent Analytics→Statistics to go to the following interface. In this interface, you can view the people and vehicle statistical information or you can customize the statistical information.

View People Information:

Note: The person information includes face information and figure information.

① Select the time.
② Select cameras.
③ Select events as needed, such as face detection, face match, intrusion and tripwire.

Note: Face match events (successful recognition & stranger) are available for some models. If Face Match-Successful Recognition event is selected, you can choose "Detail Chart" to view.

View Vehicle Information:

• Click "Vehicle"
• Select the time and cameras.
• Select events as needed.
• Select the vehicle attribution.

To customize statistical information:

Click "Combine" and then select events, people and vehicle as needed.

10.4 Face Attendance

This function is only available for some models. If your device doesn't support it, please skip the following instructions.

Click Start→Intelligent Analytics→Face Attendance to go to the following interface.

Intelligent Analytics Search Parameters Sample Details Case Details Face-Check in Camera BRA.BPC000.PC000.0P Camera01.PC Camera02 [Removed Channels] Group AI wp Date(1 Dec) 2020/8/19 Day Week Month Customization Today 2020/8/19 View Sun Star Tue Wed Thu Fri Sat Start Working 05:09:00 End Working 18:09:00 Search Export Advanced Name Type Status Last Start Call Appointment Exception No. Name Face Group Normal Late Short Early Aberrantoin Exception Default 1 wp - - - - - 10day 2 wp - - - - 10day -

To search attendance information

① Click behind camera and group to choose the desired cameras and groups.
② Set the attendance date. You can choose day, week, month and today or customize the time period.
③ Set the start time and the end time of working.
④ Click "Search" to view the attendance state.

If some specific person's attendance state needs to know, you can click "Advanced" and then enter the name and choose the type.

Camera IP85:IP87:IPCamera:IP85:IP88:IP94 Group All best prop 888.vlp Date(1 Day) < 2018/11/26 Day Week Month Customization Today 11/06/2018 Week Sun Mon Tue Wed Thu Fri Sat Start Working 05:00:00 End Working 13:00:00 Search Export Advanced Name 1 Type New Date Loss Lower Level Active Version Group view No. Name Face Group Number Late Leave Early Asset Length Conceptual Detail 1 t fast - - - - Open - 2 t fast - - - - 1Day - 3 at fast - - - - 0Day - 4 v1 fast - - - - 1Day - 5 d1 fast - - - - 1Days - 6 862 pcp - 1Day 1Day - 7 863 pcp - 1Day 1Day -

Click "Export" to export the searched attendance information.

Click to view the detailed information of attendance. In this interface, click to go to the face search interface.

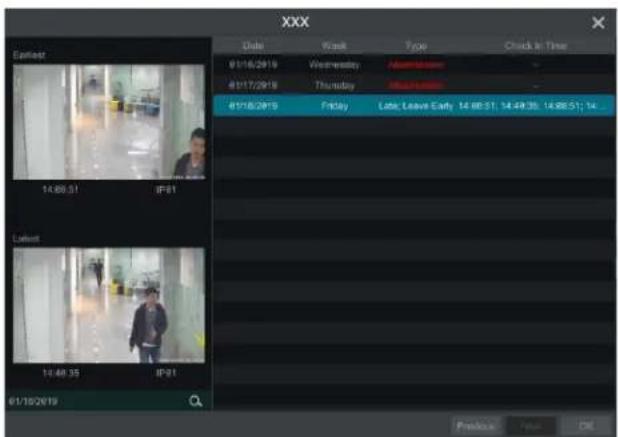

XXX Date Week Type Check In Time 01/16/2019 Wednesday Wednesday 01/17/2018 Thursday Thursday 01/18/2019 Friday Late: Leave Early 14:48:51, 14:49:35, 14:50:51; 14 earliest 14:48:51 IP-81 Latest 14:48:35 IP-81 01/19/2019 Previous New Exit

10.5 Face Check-In

Click Start→Intelligent Analytics→Face Attendance to go to the following interface.

The search steps of face check-in are as follows.

① Click ▼ behind camera and group to choose the desired cameras and groups.
② Set the check-in date. You can choose day, week, month and today or customize the time period.
③ Set the start time and the end time of face check-in.
④ Click "Search" to view the check-in state.

Intelligent Analytics Camera Group Date(1 Day) Start Time 29/18/11/26 End Time 10:00:00 Day Week Month Customization Temp 1535.2496 Refresh Export Advanced Name Type Checked Locked No. Name Focus Group Checklist Keywords Email 1 1 test - 10m 2 2 test - 10m 3 2 test - 10m 4 4 test - 10m 5 4 test - 10m 6 3 test - 10m 7 3 test - 10m 8 1 test - 10m 9 2 test - 10m 10 2 test - 10m 11 g6 test - 10m 12 g7 test

If you want to know the detailed check-in information of someone, please click "Advanced" and then enter the name and choose the type to search.

Click View the detailed information. In this interface, the checked image can be viewed.

Click to view the registered face picture of this person.

XXX Date Week Type Check In Default #1/16/2019 Wednesday Memoise - #1/17/2019 Thursday Check #1/18/2019 Friday Checked 14:08:51; 14:08:51; 14:22:16; 14: 14:30:51 IP地址(1) #1/19/2019 Previous Find CX

11 General Event Management

11.1 Sensor Alarm

To complete the entire sensor alarm settings, you should enable the sensor alarm of each camera and then set up the alarm handling of each camera. ① Click Start→Settings→Alarm→Sensor to go to the following interface.

No. Alarm Name Schedule Type Enable Duration Racers Snapshot Push Alarm-out Local-1 Sensor1 24x7 NO ON 38 Secs Configure Configura ON Control Local-2 Sensor2 24x7 NO ON 38 Secs Configure Configura ON Control Local-3 Sensor3 24x7 NO ON 38 Secs Configure Configura ON Control Local-4 Sensor4 24x7 NO ON 38 Secs Configure Configura ON Control Local-5 Sensor5 24x7 NO ON 38 Secs Configure Configura ON Control Local-6 Sensor6 24x7 NO ON 38 Secs Configure Configura ON Control Local-7 Sensor7 24x7 NO ON 38 Secs Configure Configura ON Control Local-8 Sensor8 24x7 NO ON 38 Secs Configure Configura ON Control

② Select the alarm type (NO or NC) according to trigger type of the sensor.
③ Enable the sensor alarm of each camera and select the schedule.
④ Check the "Duration", "Record", "Snapshot", "Push", "Alarm-out" and "Preset" and enable or disable the "Buzzer", "Pop-up Video", "Pop-up Message Box" and "E-mail" as required.
⑤ Click "Apply" to save the settings.

The configuration steps of the above mentioned alarm linkages are as follows.

Duration: it refers to the interval time between the adjacent motion detections. For instance, if the duration time is set to 10 seconds, once the system detects a motion, it will go to alarm and would not detect any other motion (specific to camera) in 10 seconds. If there is another motion detected during this period, it will be considered as continuous movement; otherwise it will be considered as a single motion.

Record: check it and then the "Trigger Record" window will pop up automatically (you can also click the "Configure" button to pop up the window).

Select camera on the left side and then click to set the camera as the trigger camera. Select trigger camera on the right side and then click

to cancel the trigger camera. Click "OK" to save the settings. The trigger cameras will record automatically when the sensor alarm is triggered.

Snapshot: check it and then the "Trigger Snapshot" window will pop up automatically. Configure the trigger camera in the window. The trigger cameras will capture images automatically when the sensor alarm is triggered.

Push: check it and choose ON or OFF. If it is ON, the system will send messages when the sensor alarm is triggered.

Alarm-out: check it and then the "Trigger Alarm-out" window will pop up automatically. Configure the trigger alarm-out in the window. The system will trigger the alarm-out automatically when the sensor alarm is triggered. You need to set the delay time and the schedule of the alarm outputs. See 11.6.1 Alarm-out for details.

Preset: check it and then the "Trigger Preset" window will pop up automatically. Configure the trigger preset of each camera. To add presets, please see 6.2 Preset Setting for details.

Buzzer: if enabled, the system will begin to buzz when the sensor alarm is triggered. To set the delay time of the buzzer, please see 11.6.4 Buzzer for details.

Pop-up Video: After camera setting, the system will pop up the corresponding video automatically when the sensor alarm is triggered. To set the duration time of the video, please see 11.6.3 Display for details.

Pop-up Message Box: if enabled, the system will pop up the corresponding alarm message box automatically when the sensor alarm is triggered. To set the duration time of the message box, please see 11.6.3 Display for details.

E-mail: if enabled, the system will send an e-mail when the sensor alarm is triggered. Before you enable the email, please configure the recipient's e-mail address first (see 13.1.5 E-mail Configuration for details).

11.2 Motion Alarm

Motion Alarm: when the motion object appears in the specified area, it will trigger the alarm. You should enable the motion of each camera first and then set the alarm handling of the camera to complete the whole configuration of the motion alarm.

11.2.1 Motion Configuration

① Click Start→Settings→Camera→Motion Settings to go to the following interface.

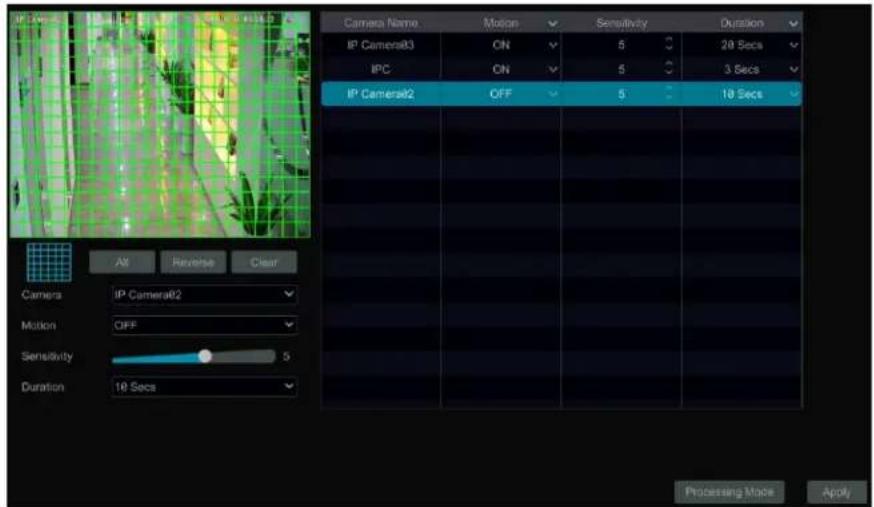

Camera Name Motion Sensitivity Duration IP Camera83 ON 5 20 Secs IPC ON 5 3 Secs IP Camera82 OFF 5 10 Secs All Reverse Clear Camers IP Camera82 Motion OFF Sensitivity 5 Duration 10 Secs Processing Mode Apply

② Select the camera, enable the motion and set the sensitivity and duration of the camera.

Sensitivity: the higher the value is, the more sensitive it is to motion. You should adjust the value according to the practical conditions since the sensitivity is influenced by color and time (day or night).

Duration: it refers to the interval time between the adjacent motion detections. For instance, if the duration time is set to 10 seconds, once the system detects a motion, it will go to alarm and would not detect any other motion (specific to camera) in 10 seconds. If there is another motion detected during this period, it will be considered as continuous movement; otherwise it will be considered as a single motion.

③ Drag the camera image to set the motion area. You can set more than one motion area. Click "All" to set the whole camera image as the motion area. Click "Reverse" to swap the motion area and the non-motion area. Click "Clear" to clear all the motion areas.
④ Click "Apply" to save the settings. Click "Processing Mode" to go to the alarm handling configuration interface of the motion alarm.

11.2.2 Motion Alarm Handling Configuration

① Click Start→Settings→Alarm→Motion Alarm to go to the following interface.

Buzzer Pop-up Video E-mail Camera Name Schedule Record Snapshot Push Alarm-out Preset (X) IPCamera 24x7 Configure Configure ON Configure Confound OFF OFF OFF Motion Settings Apply

② Enable or disable "Record", "Snapshot", "Push", "Alarm-out", "Preset", "Buzzer", "Pop-up Video" and "E-mail". The alarm handling setting of motion alarm is similar to that of the sensor alarm (see 11.1 Sensor Alarm for details).
③ Click "Apply" to save the settings. You can click "Motion Settings" to go to the motion configuration interface.

11.3 Combination Alarm

① Click Start→Settings→Alarm→Combination Alarm to go to the following interface.
② Customize combination alarm. Set alarm name and click "Configure" under the Combined Alarm Configuration item. Then select alarm type and alarm source. Finally, click "OK" to save the settings.
③ Enable or disable "Record", "Snapshot", "Push", "Alarm-out", "Preset", "Buzzer", "Pop-up Video" and "E-mail". The alarm handling setting of combination alarm is similar to that of the sensor alarm (see 11.1 Sensor Alarm for details).
④ Click "Apply" to save the settings.

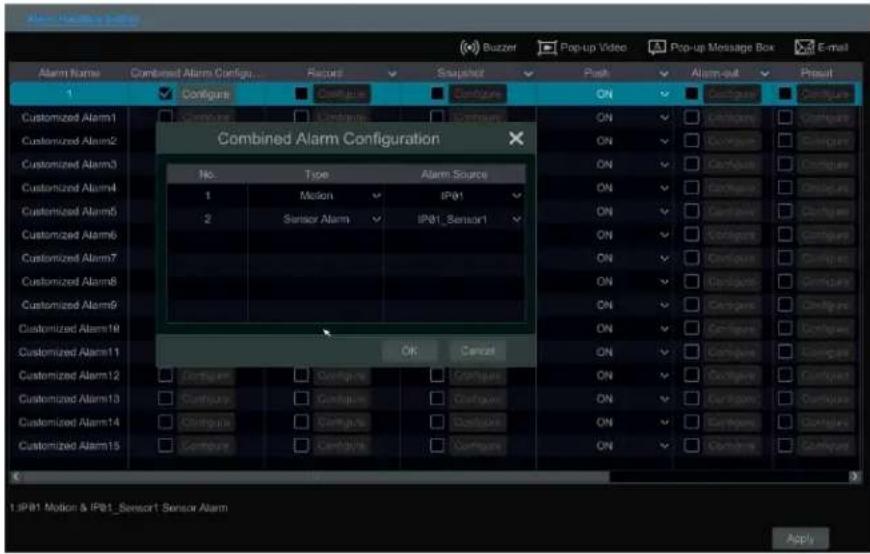

Alarm Name Combined Alarm Configu... Configure Configure Configure ON Configure Configure Customized Alarm1 Customized Alarm2 Customized Alarm3 Customized Alarm4 Customized Alarm5 Customized Alarm6 Customized Alarm7 Customized Alarm8 Customized Alarm9 Customized Alarm10 Customized Alarm11 Customized Alarm12 Customized Alarm13 Customized Alarm14 Customized Alarm15 Combined Alarm Configuration No. Type Alarm Source 1 Motion IP@1 2 Sensor Alarm IP@1_Sensor1 ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON OK Cancel Cancel Configure Configure Configure Configure Configure Configure Configure Configure Configure Configure Configure Configure Configure Configure

11.4 IPC Offline Settings

① Click Start→Settings→AI/Event→IPC Offline Settings to go to the interface as shown below.
② Enable or disable "Snapshot", "Push", "Alarm-out", "Preset", "Buzzer", "Pop-up Video", "Pop-up Message Box" and "E-mail". The IPC Offline Settings are similar to that of the sensor alarm (see 11.1 Sensor Alarm for details).
③ Click "Apply" to save the settings.

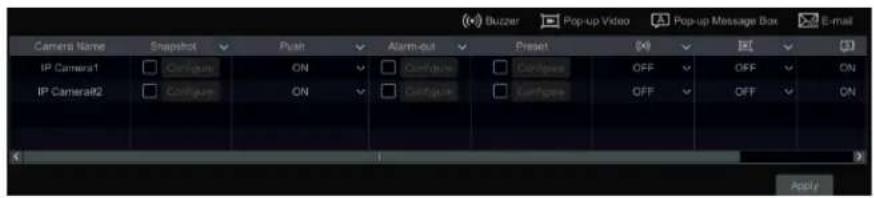

Buzzer Pop-up Video Pop-up Message Box E-mail Camera Name Snapshot Push Alarm-out Preset IP Camera1 Configure ON Configure Configure OFF OFF ON IP Camera2 Configure ON Configure Configure OFF OFF ON Apply

11.5 Exception Alarm Settings

① Click Start→Settings→AI/Event→Exception Alarm to go to the interface as shown below.

Event Type Push Alarm-out ON ON ON ON OFF IP Address Conflict ON Conkurs ON ON OFF Disk IO Error ON Conkurs ON ON OFF Disk Pull ON Conkurs ON ON OFF No Disk ON Conkurs ON ON OFF Illegal Access ON Conkurs ON ON OFF Network Disconnection ON Conkurs ON ON OFF HDD is pulled out ON Conkurs ON ON OFF Alarm Server Offline ON Conkurs ON ON OFF

② Enable or disable "Push", "Alarm-out", "Buzzer", "Pop-up Message Box" and "E-mail". The exception handling settings are similar to that of the sensor alarm (see 11.1 Sensor Alarm for details).

③ Click "Apply" to save the settings.

11.6 Alarm Event Notification

11.6.1 Alarm-out

① Click Start→Settings→AI/Event→Event Notification to go to the following interface.

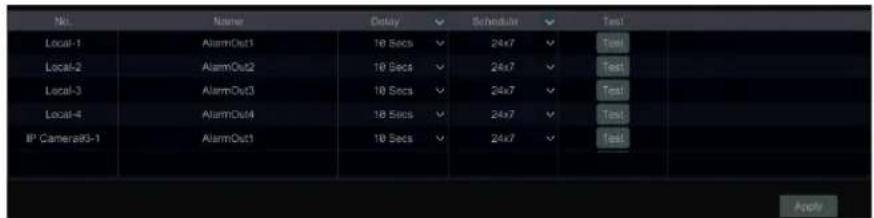

No. Name Delay Schedule Test Local-1 AlarmOut1 18 Secs 24x7 Test Local-2 AlarmOut2 18 Secs 24x7 Test Local-3 AlarmOut3 18 Secs 24x7 Test Local-4 AlarmOut4 18 Secs 24x7 Test IP Camera93-1 AlarmOut1 18 Secs 24x7 Test Apply

② Set the delay time and the schedule of each alarm-out. You can click "Edit Schedules" to edit the schedules (see 7.1.2 Schedule Settings for details).
③ Click "Apply" to save the settings. You can click "Test" to test the alarm output.

11.6.2 E-mail

Click Start→Settings→AI/Event→Event Notification→E-mail to go to the e-mail configuration interface. Set the e-mail address of the recipients. See 13.1.5 E-mail Configuration for details.

11.6.3 Display

Click Start→Settings→AI/Event→Event Notification→Display to go to the display configuration interface. Set the duration time of the pop-up video and the pop-up message box. If you device support two outputs, please set the output of the pop-up video as needed. After that, click "Apply" to save the settings.

Pop-up Video Duration 10 Secs Output Main Output Pop-up Message Box Don't show later Duration 10 Secs Apply

11.6.4 Buzzer

Click Start→Settings→AI/Event→Event Notification→Buzzer to go to the buzzer configuration interface. Set the delay time of the buzzer and then click "Apply" to save the setting. You can click "Test" to test the buzzer.

Buzzer Delay 5 Secs Test Apply

11.6.5 Push Message

Click Start→Settings→AI/Event→Event Notification→Push Message to go to the interface as shown below. Check "Enable" and then click "Apply" to save the settings. If Push Server is online, it will push messages to the mobile clients.

Push Message Enable Push Schedule 24x7 Push Server Status: Disable Test Apply

11.6.6 Digital Deterrent

Click Start→Settings→AI/Event→Event Notification→Digital Deterrent to go to the interface as shown below.

Camera Audio Voice Broadcast Audio Device Camera Voice Times Volume Language English Add Create Listen Apply

Camera audio settings:

For perimeter alert cameras, voice broadcast can be set up. Select the camera, voice, broadcast times, volume and language. Then click "Apply" to save the settings. When an alarm is triggered, camera will broadcast the voice you set.

Voice: click "Add" to add the alarm voice in wav. format. Click "Listen" to listen to the uploaded audio.

Click "Audio Device" to set the audio of the camera.

Camera Audio Voice Broadcast Audio Device Camera IP Camera01 Audio Device Enable Aduioln Device MIC(builtin) LIN(outlay) Speaker(builtin) Alaram Play Device TalkBack Device LOUT(outlay) Alaram Play Device TalkBack Device Aduioln Encode G711A Apply

Select the camera and then enable audio device.

Audio In Device: Please select it according to the actual device configuration.

Speaker (built-in): Please select its function as needed.

LOUT: external audio output device, please select its function as needed.

Audio Input Encode: G711A/G711U

Local Audio Alarm

Set the audio alarm of local NVR.

Local Audio Alarm Volume 65 File List File Name Add Listen Delete

In this interface, you can set the volume of local audio. Click "Add" to upload the audio file. Choose the uploaded audio file and then click "Listen" to listen to it; click "Delete" to delete this file.

11.6.7 Light

Click Start→Settings→Alarm→Event Notification→Light to go to the interface as shown below. In this interface, you can set the light flashing time and frequency when an alarm is triggered.

Camera IPC 20 Low Flashing Time Flashing Frequency

11.6.8 Alarm Server

Go to Alarm→Alarm Server interface as shown below.

Enable the alarm server and enter server address and port of the alarm server. Then select protocol. If "Send Heartbeat" is enabled, set the interval times. After that, test the effectiveness of the alarm server. Having tested successfully, please click "Apply". When an alarm occurs, the device will transfer the alarm event to the alarm server. If an alarm server is not needed, there is no need to configure this section.

Alarm Server Enable Server Address Enter Address Port Enter Port Protocol XML Send Heartbeat Interval Time(s) For Test Apply

11.7 Manual Alarm

Click 📁 on the tool bar at the bottom of the live preview interface to pop up a window. Click "Trigger" to start alarm. Click "Clear" to stop alarm.

AlarmOut1 Name AlarmOut1 AlarmOut2 AlarmOut3 AlarmOut4 IP Camera1_AlarmOut1 IP Camera02_AlarmOut1 Status Trigger Trigger Trigger Trigger Trigger Trigger Clear Clear Clear Clear Clear Clear Clear Clear Clear Clear

11.8 View Alarm Status

Click Start→Settings→Alarm→Alarm Status or click

on the tool bar at the bottom of the live preview interface to view the alarm status.

Buzzer Clear Alarm-in Normal Alarm-out Normal Motion 2 Exception AI 1 Exception Exception Alarm Exception Combination Alarm Normal Face Match Alarm Normal Plate Match Alarm Normal Exit

Click "Clear" to stop the buzzer when the buzzer alarm happens. Click to view the detail information as shown below.

Alarm-out Motion Al Normal Normal Exception Alarm Source : Camera82 Alarm Time : 04/07/2028 18:16:22 PM Status : Intrusion Trigger Record : Camera82 Trigger Alarm-out : None Trigger Preset : None Trigger Buzzer : OFF Trigger E-mail : OFF Pop-up video : OFF Snapshot : OFF All 1. Jump to Exit

If the exception information is more than one page, you can enter the number in the box and then click to jump to the specified page. Click / to view the exception alarm information in the previous/next page

12 Account & Permission Management

12.1 Account Management

Click Start→Settings→Account and Authority→Account→Edit User to go to the interface as shown below.

User admin Permissions Settings ✓ Local Camera ✓ Remote Camera ✓ Disk ✓ AI / Event ✓ Network ✓ Schedule ✓ Record ✓ Local System ✓ Remote System ✓ Sample Database ✓ Account and Authority Function ✓ Remote Login ✓ Audio Talk Local Remote Camera Preview Search and Playback Search and Backs IP通道94 ON ON ON IPC865 ON ON ON IPC965 ON ON ON IP Camera81 ON ON ON IP Camera82 ON ON ON Search Users Username Group Edit Delete admin Administrator Modify Password Modify Pattern Lock Edit Use Edit Security Question ① ②

Area ① displays the user permissions. Area ② displays the user list. Click the user in the list to display its user permissions in area ①. There are three default permission groups ("Administrator", "Advanced" and "Common") available when adding accounts. You can manually add new permission group (see 12.3.1 Add Permission Group for details). Only admin and the users that have the "Account and Authority" permission can manage the system's accounts. Group "Administrator" owns all the permissions displayed in area ① except "Account and Authority" and its permissions cannot be changed while the permissions of "Advanced" and "Common" can be changed.

12.1.1 Add User

① Click Start→Settings→Account and Authority→Account→Add User or click + beside the search box to pop up the window as shown below.

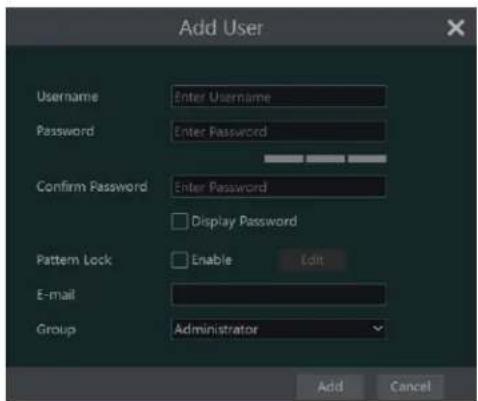

Add User Username Enter Username Password Enter Password Confirm Password Enter Password □ Display Password Pattern Lock □ Enable Edit E-mail Group Administrator Add Cancel

② Set the username, password and group. User can also set the pattern lock here. The e-mail address is optional. Click "Add" to add the user.

12.1.2 Edit User

Click Start→Settings→Account and Authority→Account→Edit User and then click in the user list or double click the user to edit the user information. Click delete the user (the user admin cannot be deleted).

Username admin Group Administrator Edit Delete Modify Password Modify Pattern Lock Edit User Edit Security Question 1 Administrator Edit User Recover Password

Edit Security Question

You can set password security only for admin. Click "Edit Security Question" and then set questions and answers in the popup window. If you forget the password for admin, please refer to Q4 in Appendix A FAQ for details. The passwords of other users can be recovered by admin or the users that have the "Account and Authority" permission.

Modify Password

Only the password of admin can be modified. Click "Modify Password" to pop up a window. Enter the current password and then set new password. Click "OK" to save the settings.

Modify Pattern Lock

Some models may not support this function.

Click "Modify Pattern Lock" to pop up a window.

Modify Pattern Lock Current Password Pattern Lock Enable Edit OK Cancel

Enter current password and then check "Enable" to input pattern lock.

Pattern Lock

Recover Password

Click "Recover Password" to reset the password to 123456.

Edit User

Click "Edit User" to pop up the window as shown below. The admin is enabled, its permission control is closed and permission group cannot be changed by default. You can enable or disable other users (if disabled, the user will be invalid), open or close their permission control (if closed, the user will get all the permissions which admin has) and set their permission groups. Click "OK" to save the settings.

Edit User Enable Username admin Close Permission Control Allow Modify Password E-mail Group Administer OK Cancel

Edit User Enable Username 1 Close Permission Control Allow Modify Password E-mail: Group Administrator OK Cancel

12.2 User Login & Logout

Login: Click Start→Login or directly click the preview interface and then select username and enter the password in the popup window. Click "Login" button to log in the system.

Logout: Click Start→Logout or click Start→Shutdown to pop up the "Shutdown" window. Select "Logout" in the window and then click "OK" button to log out the system.

12.3 Permission Management

12.3.1 Add Permission Group

Click Start→Settings→Account and Authority→Account→Edit Permission Group to go to the interface as shown below.

Group Administrator Permissions Settings ✓ Local Camera ✓ Remote Camera ✓ Disk ✓ AI / Event ✓ Network ✓ Schedule ✓ Record ✓ Local System ✓ Remote System ✓ Sample Database Function ✓ Remote Login ✓ Audio Talk Local Remote Camera Preview Search and Playback Search and Backs IP通道84 ON ON ON IPC88 ON ON ON IPC086 ON ON ON IP Camera91 ON ON ON IP Camera92 ON ON ON

Click + to add permission group. Set the group name, check the permissions as needed and then set the "Local" and "Remote" permissions. Click "Add" to save the settings.

Add Permission Group Group Name Enter Permission Group Name Settings Local Camera Remote Camera Disk AI / Event Network Schedule Record Local System Remote System Sample Database Account and Authority Function Remote Login Audio Talk Local Remote Camera Preview Search and Playback Search and Backup Audio IP通道84 OFF OFF OFF OFF OFF IPC808 OFF OFF OFF OFF OFF IPC806 OFF OFF OFF OFF OFF IP Camera81 OFF OFF OFF OFF OFF IP Camera82 OFF OFF OFF OFF OFF Description Add Cancel

12.3.2 Edit Permission Group

Go to "Edit Permission Group" interface and then click in the group list to edit the permission group (the operations of the "Edit Permission Group" are similar to that of the "Add Permission Group", please see 12.3.1 Add Permission Group for details). Click to save the group as another group. Click to delete the permission group. The three default permission groups ("Administrator", "Advanced" and "Common") cannot be deleted.

12.4 Block and Allow List

① Click Start→Settings→Account and Authority→Security to go to the following interface.

Create Create Add List Create Break List Enable IP MING ADDRESS Add IP Enable IP IP Segment Address OK Cancel Edit IP Add New Apply

② Check "Enable" and then choose "Enable Allow List" or "Enable Block List" (the PC client of which the IP address is in the allow list can access NVR remotely while the PC client in the block list cannot).
③ Add IP/IP segment/MAC. Click "Add IP" or "Add MAC" button and then check "Enable" in the popup window (only if you check it can the IP/IP segment/MAC you add be effective). Enter the IP/IP segment/MAC and then click "OK" button. In the above interface, click to edit IP/IP segment/MAC, click to delete it. Click "Apply" to save the settings.

12.5 Preview On Logout

Click Start→Settings→Account and Authority→Security→Preview On Logout to go to the following interface.

Set a camera and then enable or disable the preview permission on logout as required. If a camera's preview permission on logout is "ON", you can view the live image of the camera when the system is logged out, or the live image of the camera cannot be seen when logged out.

Camera Name Preview Camera1 ON Camera2 ON Camera3 ON Camera4 ON Camera Camera1 Preview ON Apply

12.6 Network Security

Click Start→Settings→Account and Authority→Security→Network Security to go to the following interface. You can enable APR Guard.

Network Card ARP Guard Gateway Auto Gateway MAC Gateway MAC Destination Defense Ethernet Port 1 18.10.9.1 84.FB38.AD: 13.26 Ethernet Port 2 192.168.3.7 08.58.08.09.09.09 Auto

ARP Guard: Address Resolution Protocol Guard. This function can protect the LAN from APR attack and make the network run stably. If it is enabled, you can enable auto gateway MAC or manually set gateway MAC. Additionally, detection defense also can be enabled as needed.

12.7 Password Security

Click Start→Settings→Account and Authority→Security→Password Security to go to the following interface.

Password security Level Weak Expiration Time Never Expire External network access restrictions (administrators use the default password to preview only the field when it is logged in from the external network) Apply

In this interface, you can set the level and expiration time of the password.

12.8 View Online User

Click Start→Settings→Account and Authority→User Status to view the online user information (you can view the online user name, login type, IP address and login time; click 📋 to pop up a window showing the preview occupied channel number and playback occupied channel number).

13 Device Management

13.1 Network Configuration

13.1.1 TCP/IP Configuration

Click Start→Settings→Network→TCP/IP to go to the following interface. Check "Obtain an IPv4 address automatically", "Obtain an IPv6 address automatically" and "Obtain DNS automatically" to get the network addresses automatically, or manually enter the network addresses. You can modify the MTU value according to the network condition (MTU, Maximum Transmission Unit, can be modified according to network condition for higher network transmission efficiency). Click "Apply" to save the settings.

IP Address Settings Internet Port 1 : Online Internal Ethernet Port (Online) Obtain an IPv6 address automatically (use DHCP) Address 192 108 3 200 Subnet Mask 255 255 255 0 Gateway 192 108 3 1 MTU 1.00 Obtain an IPv6 address automatically (use DHCP) Address Mask Length Gateway Obtain DNS automatically Preferred DNS 8 5 8 8 Alternate DNS Apply

Note:

- Internal Ethernet Port

If you use the NVR with the PoE network ports, click "Internal Ethernet Port" to go to the following interface.

The internal Ethernet port is the port which connects all the PoE ports with the NVR system. The PoE ports are available if the internal Ethernet port is online; if it is offline, all the PoE ports will be unavailable, may be the internal Ethernet port is broken. The network addresses of the internal Ethernet port can be changed to make the port in the same network segment with the IP cameras which directly connect to the PoE ports of the NVR (it is not recommended to change the network addresses of the internal Ethernet port).

Mode: Non-long line mode or long line mode can be selectable. The non-line mode is the default setting. If the transmission performance of your network cables connected the PoE ports and IPC are not so good or these network cables are very long, you can choose long line mode.

IP Address Settings Ethernet Port 1 ( Online ) Internal Ethernet Port 1 ( Online ) Address 192 168 78 1 Address fe30-ffff 192-168 78:1 Subnet Mask 255 255 255 0 Mask Length 64 Mode Non-long line mode Obtain DNS automatically Preferred DNS Alternate DNS Apply

13.1.2 Port Configuration

Click Start→Settings→Network→Port to go to the interface as shown below. Enter the HTTP port, HTTPS port, server port and RTSP port of the NVR, enable "Anonymous" as needed and then click "Apply" button to save the settings.

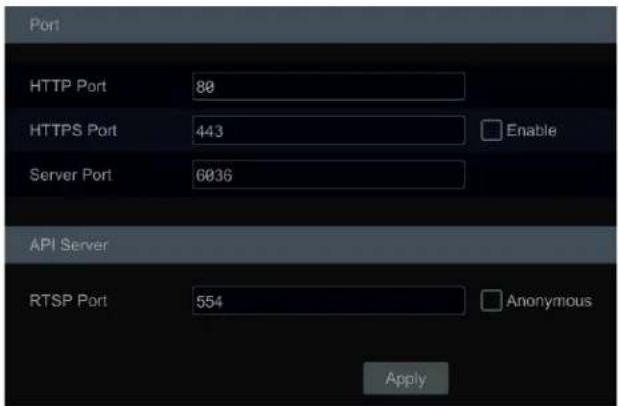

Port HTTP Port 80 HTTPS Port 443 Enable Server Port 6036 API Server RTSP Port 554 Anonymous Apply

HTTP Port: the default HTTP port of the NVR is 80. The port number can be changed to others like 81. The port is mainly used to web client access. If you want to access the NVR through a web browser, you should enter IP address plus HTTP port in the address bar of the web browser like http://192.168.11.61:81.

HTTPS Port: the default HTTPS port of the NVR is 443.

HTTPS provides authentication of the web site and protects user privacy. How to use it?

① Enter IP address plus HTTP port in the address bar of the web browser. Then enter username and password to log in. Click Functional Panel→Network→HTTPS to go to the following interface.

Function Panel • Https Enable Certificate installation Certificate installation Create a private certificate Signed certificate already available: Install directly Create a certificate request Create Apply

② Install a certificate.

* You can create a private certificate here. Click the "Create" button to create a private certificate. Enter the country (only two letters available), domain (NVR's IP address/domain), validity date, password, province/state, region and so on. Then click "OK" to save the settings.
* If there is a signed certificate, click "Browse" to select it and then click "Install" to install it.
* Click "Create a certificate request" to enter the following interface.

Enable Installation type Have signed certificate, install directly Create a private certificate Create a certificate request Create a certificate request Create Download Delete

Click "Create" to create the certificate request. Then download the certificate request and submit it to the trusted certificate authority for signature. After receiving the signed certificate, import the certificate to the device.

Enable Certificate installation Create a private certificate Signed certificate already available: Install directly Create a certificate request Create a certificate request Create a certificate request Create a certificate request Create a certificate request Create a certificate request Create a certificate request Create a certificate request Create a certificate request Create a certificate request Create a certificate request Create a certificate request Create a certificate request Create a certificate request Create a certificate request Create a certificate request Create a certificate request Create a certificate request Create a certificate request Create a certificate request Create a certificate question Create a certificate question Create a certificate question Create a certificate question Create a certificate question Create a certificate question Create a certificate question Create a certificate question Create a certificate question Create a certificate question Create a certificate question Create a certificate question Create a certificate question Create a certificate question Create a certificate question Create a certificate question Create a certificate question Create a certificate question Create a certificate question Create a certificate question Create a certificate questions Create a certificate question Create a certificate question Create a certificate question Create a certificate question Create a certificate question Create a certificate question Create a certificate question Create a certificate question Create a certificate question Create a certificate question Create a certificate question Create a certificate question Create a certificate question Create a certificate question Create a certificate question Create a certificate question Create a certificate question Create a certificate question Create a certificate question Create a certificate quantity Create a certificate quantity Create a certificate quantity Create a certificate quantity Create a certificate quantity Create a certificate quantity Create a certificate quantity Create a certificate quantity Create a certificate quantity Create a certificate quantity Create a certificate quantity Create a certificate quantity Create a certificate quantity Create a certificate quantity Create a certificate quantity Create a certificate quantity Create a certificate quantity Create a certificate quantity Create a certificate quantity Create a certificate quantity Create a certificate quantities

③ After the certificate has been installed, enable this function and apply it. Then the camera can be accessed by entering https://IP: https port via the web browser (eg. https://192.168.1.201:443).

Server Port: the default server port of the NVR is 6036. The server port number can be changed as required. The port is mainly used in network video management system.

Note: The HTTP port and server port of the NVR should be mapped to the router before you access the NVR via WAN.

API Server: You can log in the media player which supports the RTSP protocol by the username and password here. Moreover, the third-party can further develop through API service.

Tips: The username and password of API Server here cannot be used to log in NVR. It is recommended to set the password of the API server different from the password of "admin" that is used to log in NVR.

RTSP Port: RTSP real-time stream protocol can be used to control the sending of real-time data. By media player (like VLC player) which supports the RTSP real-time stream protocol, you can view the live images synchronously. The default RTSP port is 554 and it can be changed as needed. (The address format: rtsp://IP address:554/chID=1&streamType=main or rtsp://IP address:554/chID=1&streamType=sub; main indicators main stream; sub indicators sub stream; chID indicators channel ID).

Examples: ① Enable RTSP and "Anonymous". Then open the VLC player and enter the address (for example:

rtsp://192.168.1.88:554/chID=1&streamType=main) in the network address bar of the VLC player. Then you can view the video of channel 1.

② Enable RTSP and open the VLC player. After that enter the address (for example: rtsp://192.168.1.88:554/chID=1&streamType=sub) in the network address bar of the VLC player. Then a login box will pop up. Enter the username and password which shall be as the same as the username and password of API server. Then you can view the video of channel 1.

Note: only some versions may support API server function. Please skip the following instructions if your DVR doesn't support it.

If your NVR is a PoE NVR, you can also enable virtual host in the port setting interface via Web Client. After this function is enabled, the web settings interface of NVR can be jumped to the web client of the IPC. The setting steps are as follows.

1. Please login the Web Client of NVR (See 14.2 Web LAN Access or 14.3 Web WAN Access for details). Click Settings→Network→Port to go to the following page.

Settings > Port HTTP Port 80 HTTPS Port 443 Server Port 6036 RTSP Port 554 Enable virtual host Anonymous Apply

1. Check "Enable virtual host" and then click "Apply".

2. Click Camera→Edit Camera to go to the following interface.

Live View Playback Search and Export Intelligent Analysis Settings Manage Camera Add Camera Edit Camera Add Group Edit Camera Group Image OSD Settings Image Settings Mark Settings Fishery Settings Motion Motion Settings Settings Edit Camera Search Camera Add Camera era Name Address Port Status Protocol Model Preview Edit Delete Settings 123 172.16.16.60 9008 IP Camera 9442E2 A3 IPC 172.16.16.61 9008 IP Camera IP Camera TD-9555A3 Face_2 172.16.16.62 9008 IP Camera 9442E2 9442E3A 172.16.16.63 9008 IP Camera IP Camera TD-9442E3 222222 172.16.16.64 9008 IP Camera 9453M2

1. Select the camera and click

to log in the web client of the camera. Then you can set the parameters of the camera as needed.

Note: If the IPC is not directly connected to the PoE port of the NVR, the page will not be jumped by clicking

13.1.3 PPPoE Configuration

Click Start→Settings→Network→PPPoE to go to the interface as shown below. Check "Enable" in "PPPoE Settings" and then enter the username and password obtained from the dealer. Click "Apply" to save the settings.

PPPoE Settings Enable Username abc Password ****** Apply

13.1.4 DDNS Configuration

The DDNS is used to control the dynamic IP address through domain name. Speco Technologies provides free DDNS service with US-based servers. You can access to the NVR easily if the DDNS is enabled and configured. Click Start→Settings→Network→DDNS to go to the interface as shown below. The default DDNS type will be "specoddns.net". The default domain name will be shown, you can use this for your domain name or enter your own. If invalid or taken, please select another domain name. Click on test to check if ok. If so, you may now go to [your domain name].specoddns.net with Internet Explorer and access your recorder remotely.

DDNS Enable DDNS Type www.dmtydns.com Server Address Domain Name Enter Domain Name Username Enter Usomamo Password Enter Password Test Apply

13.1.5 E-mail Configuration

Click Start→Settings→Network→E-mail to go to the following interface. Enter the sender's name, e-mail address, SMTP server and SMTP port (you can click "Default" to reset the SMTP port to the default value) and then enable or disable the SSL and attaching image. Select the username (the username list will be updated automatically according to the email address you input) and enter the password of the sender and then click "Apply" to save the settings (you don't have to enter the username and password if "Anonymous Login" is enabled). Click "Test" to pop up a window. Enter the e-mail address of the recipient in the window and then click "OK" button. The e-mail address of the sender will send an e-mail to the recipient. If the e-mail is sent successfully, it indicates that the e-mail address of the sender is configured correctly.

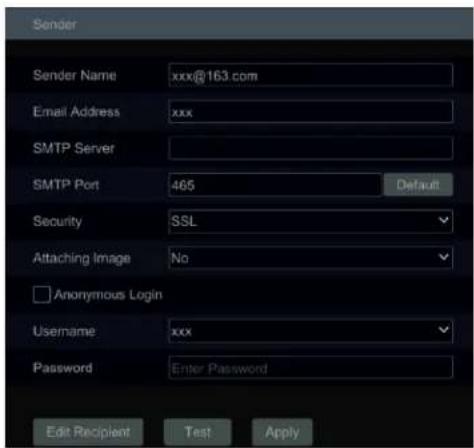

Sender Sender Name [e-mail] Email Address xxx SMTP Server SMTP Port 465 Default Security SSL Attaching Image No Anonymous Login Username xxx Password Enter Password Edit Recipient Test Apply

Click "Edit Recipient" to go to the following interface.

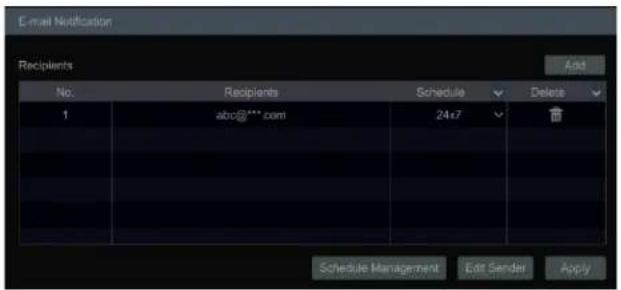

E-mail Notification Recipients Add No. Recipients Schedule Delete 1 abc@*** com 24x7 Schedule Management Edit Sender Apply

Click "Add" and then enter the recipient's e-mail address and select the schedule (if a schedule is selected, the system will send the alarm email and the recipient will receive it only in the selected schedule time) in the popup window. Click "Add" in the window to add the recipient. You can also change the recipient's receiving schedule by clicking √ in the "Schedule" column. Click 🔒 to delete the recipient in the list. Click "Apply" to save the settings. Click "Edit Sender" to go to the e-mail configuration interface of the sender.

13.1.6 UPnP Configuration

By UPnP you can access the NVR through the web client which is in WAN via router without port mapping.

① Click Start→Settings→Network→UPnP to go to the following interface.
② Make sure the router supports UPnP function and the UPnP is enabled in the router.
③ Set the NVR's IP address, subnet mask and gateway and so on corresponding to the router.
④ Check "Enable" in the interface as shown below and then click "Apply" button.

Click "Refresh" button to refresh the UPnP status. If the UPnP status were still "Invalid UPnP" after refreshing it for many times, the port number would be wrong. Please change the mapping type to "Manual" and then click 📋 to modify the port until the UPnP status turns to "Valid UPnP". Refer to the following picture. You can view the external IP address of the NVR. Enter the external IP address plus port in the address bar of your browser to access the NVR such as http://183.17.254.19:81.

UPnP Enable Map Type Auto Port Type External Port External IP Address Port UPnP Status Edit HTTP Port 80 80 Not Ready HTTPS Port 443 443 Not Ready Server Port 6836 6836 Not Ready RTSP Port 554 554 Not Ready Test Apply

13.1.7 802.1X

If it is enabled, the NVR data can be protected. When the NVR is connected to the network protected by the IEEE 802.1X, user authentication is needed.

892.1x Enable Protocol EAP MOS Eapol Version 1 Username Enter Username Password Enter Password Apply

To use this function, the NVR shall be connected to a switch supporting 802.1x protocol. The switch can be considered as an authentication system to identify the device in a local network. If the NVR connected to the network interface of the switch has passed the authentication of the switch, it can be accessed via the local network.

Protocol type and EAPOL version: Please use the default settings.

User name and password: The user name and password must be the same with the user name and password applied for and registered in the authentication server.

13.1.8 NAT Configuration

Click Start→Settings→Network→NAT to go to the interface for NAT configuration and check "Enable". Click "Apply" to save the settings and make note of the QR code number under the QR code. Via Internet Explorer, go to connect.specotech.cloud, input the QR code number, your username and password to login.

NAT Enable Access Type NAT1.0(nat.specotech.cloud) Visit Address connect.specotech.cloud NAT Status Success Apply Please use mobile client to scan QR code for adding device 0018AE005689

You can also scan the QRCode through mobile client which is installed in the mobile phone or PAD to log in the mobile client instantly.

13.1.9 View Network Status

Click Start→Settings→Network→Network Status to view the network status or click view network status conveniently.

on the tool bar at the bottom of the live view interface to

13.2 Basic Configuration

13.2.1 General Configuration

Click Start→Settings→System→Basic→General Settings to go to the following interface. Set the device name, device No., language, video format and main output. Enable or disable wizard, "Log In Automatically", "Log Out Automatically" (if checked, you can set the wait time), "App Live Self-Adaption" and "Dwell Automatically" (if checked, you can set the wait time). Click "Apply" to save the settings.

General Settings Device Name Device Name Device No. 1 Language English Video Format NTSC ✓ Fixed display resolution Main Output 1928x1080 Secondary Output 1928x1080 ✓ Enable EZ Setup ✓ Log In Automatically ✓ Log Out Automatically Wait Time 1 Min ✓ App Live Self-adaption □ Sequence Automatically Wait Time 1@ Mins Apply

Device Name: The name of the device. It may display on the client end or CMS that help user to recognize the device remotely.

Video Format: Two modes: PAL and NTSC. Select the video format according to the camera.

Sequence Automatically: Check it and set "wait time". The system will sequence automatically if it is not operated during the time you set.

13.2.2 Date and Time Configuration

Click Start→Settings→System→Basic→Date and Time to go to the interface as shown below.

Set the system time, date format, time format and time zone of the NVR. The default time zone is GMT+08 Beijing, Hong Kong, Shanghai, Taipei. If the selected time zone includes DST, the DST of the time zone will be checked by default. Click "Apply" to save the settings.

You can manually set the system time or synchronize system time with network through NTP.

Manual: select "Manual" in the "Synchronous" option and then click after the "System Time" option to set the system time.

NTP: select "NTP" in the "Synchronous" option and then enter the NTP server.

Date and Time System Time 04/07/2020 10:31:47 PM Date Format Month/Day/Year Time Format 12-Hour Sync Time With Network Synchronous Manual NTP Server time.windows.com Time Zone / DST Time Zone GMT-85 New York, Toronto, Wash DST Enable

13.2.3 Recorder OSD Settings

Click Start→Settings→System→Basic→Recorder OSD settings to go to the following interface. OSD name and icon can be enabled here.

Recorder OSD Settings Name Enable ON Icon Enable ON

13.3 Factory Default

Click Start→Settings→System→Maintenance→Factory Default and then click "Reset to factory default" button in the interface to reset to the factory default settings(check "Reset retain Network Configuration" to retain the network settings).

Note: Resetting to the factory default settings will not change time zone.

13.4 Device Software Upgrade

- Upgrade

You can click Start→Settings→System→Information→Basic to view MCU, kernel version and firmware version and so on. Before upgrade, please get the upgrade file from your dealer.

The upgrade steps are as follows:

① Copy the upgrade software into the USB storage device.
② Insert the USB storage device into the USB interface of the NVR.
③ Click Start→Settings→System→Maintenance→Upgrade to go to "Upgrade" interface. Select the USB device in "Device Name" option and go to the path where the upgrade software exists. Select the upgrade software and then click "Upgrade". The system may automatically restart during upgrading. Please wait for a while and do not power off the NVR during upgrading.

Note: The file system of the USB mobile device which is used for upgrading, backing up and restoring should be FAT32 format.

- Flash Upgrade

The upgrade steps are as follows:

① Copy the flash upgrade files into the USB storage device.
② Insert the USB storage device into the USB interface of the DVR.
③ Restart the DVR. Then the system will automatically upgrade.

13.5 Backup and Restore

You can back up the configuration file of the NVR by exporting the file to other storage devices; you can recover the configuration to other NVRs which are of the same model with the NVR by importing the configuration file to other NVRs for time saving.

Insert the USB storage device into the USB interface of the NVR and then click Start→Settings→System→Maintenance→Backup and Restore to go to the interface.

- Backup

Select the USB device in "Device Name" option; go to the path where you want to store the configuration backup file and then click "Backup" button; finally click "OK" button in the popup window.

- Recover

Select the USB device in "Device Name" option; find the configuration backup file and then click "Recover" button; finally click "OK" button in the popup window.

13.6 Restart Automatically

You can set the automatic restart time for the NVR to maintain it regularly. Click Start→Settings→System→Maintenance→Auto Maintenance to go to the interface as shown below. Enable auto maintenance, set the interval days and point of time and then click "Apply" to save the settings. The NVR will restart automatically at the pointed time every interval days.

Auto Maintenance Enable Interval Days 10 Days Point Of Time 23:59 Apply

13.7 View Log

Click Start→Settings→System→Maintenance→View Log to go to the log view interface. Select the log main type, click end time and then click "Search" button. The searched log files will be displayed in the list.

Main Type All Alarm Operation Settings Exception Start Time 04/05/2020 12:00:00 AM End Time 04/07/2020 11:59:59 PM Search Export No Main Type Log Time Content Details Play 1 Alarm 04/07/2020 10:33:52 PM Al Alarm Camera81—Face Detection 2 Alarm 04/07/2020 10:33:44 PM Motion Alarm Camera82 3 Alarm 04/07/2020 10:33:26 PM Al Alarm Camera82—Intrusion 4 Alarm 04/07/2020 10:33:16 PM Motion Alarm Camera81 5 Alarm 04/07/2020 10:33:02 PM Motion Alarm Camera82 6 Alarm 04/07/2020 10:32:46 PM Motion Alarm Camera81 7 Alarm 04/07/2020 10:32:42 PM Motion Alarm Camera82 8 Alarm 04/07/2020 10:32:84 PM Al Alarm Camera81—Face Detection 9 Alarm 04/07/2020 10:31:14 PM Motion Alarm Camera81 10 Alarm 04/07/2020 10:30:38 PM Motion Alarm Camera82 11 Alarm 04/07/2020 10:30:29 PM Al Alarm Camera81—Face Detection 12 Alarm 04/07/2020 10:30:15 PM Motion Alarm Camera82 13 Alarm 04/07/2020 10:29:54 PM Motion Alarm Camera81 14 Alarm 04/07/2020 10:29:38 PM Motion Alarm Camera82 15 Alarm 04/07/2020 10:29:14 PM Motion Alarm Camera81 16 Alarm 04/07/2020 10:29:87 PM Motion Alarm Camera82 17 Alarm 04/07/2020 10:29:82 PM Al Alarm Camera81—Face Detection Current Page: 1 / 58, All 2897 K < >

Choose the log file in the list and then click "Export" button to export the log file. Click contents in the menu list and then the log list will show the checked log contents only. Click on the "Content" title bar to pop up a menu list. Check to play the video log.

13.8 View System Information

Click Start→Settings→System→Information and then click the corresponding menu to view the "Basic", "Camera Status", "Alarm Status", "Record Status", "Network Status" and "Disk" information of the system.

14 Remote Surveillance

14.1 Mobile Client Surveillance

① Enable NAT in the NVR. Refer to 13.1.8 NAT Configuration for details.
② Scan the QRCode through the Speco Blue App available for iOS and Android to easily and securely view your cameras.
③ Run the mobile client, go to the "Add Device" interface and then click □ to scan the QRCode of the NVR (Go to Start→Settings→System→Information→Basic to view the QRCode of the NVR).
④ After scanning the QRCode successfully, enter the login password to log in mobile client.

Add Device IP/CONN/SN Nickname User Password Preview

QR Code Scanning Align QR code within frame to scan

14.2 Web LAN Access

① Click Start→Settings→Network→TCP/IP to go to the "TCP/IP" interface. Set the IP address, subnet mask, gateway, preferred DNS and alternate DNS of the NVR.
② Open the web browser on your computer, enter the IP address of the NVR in the address bar and then press enter to go to the login interface as shown below. You can change the display language on the top right corner of the login interface. Enter the username and password of the NVR in the interface and then click "Login" to go to the live view interface.

speco technologies Giving You More.

Notes: 1. Please make sure that the IP address of the NVR and the computer are both in the same local network segment. For example, supposing that the IP address of the computer is 192.168.1.41, the IP address of the NVR shall be set to 192.168.1.XXX. 2. If the HTTP port of the NVR is not 80, but other number instead, you need to input the IP address plus port number in the IE address bar when accessing the NVR over network. For example, the HTTP port is 81. You should enter http://192.168.1.42:81 in the IE address bar.

14.3 Web WAN Access

① Set the network of the NVR. Please refer to 13.1.1 TCP/IP Configuration for details.
② Click Start→Settings→Network→NAT to go to the interface for NAT configuration and check "Enable". Click "Apply" to save the settings and make note of the QR code number under the QR code. Via Internet Explorer, go to connect.specotech.cloud, input the QR code number, your username and password to login.

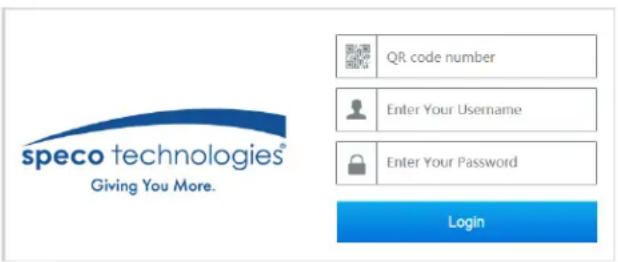

speco technologies® Giving You More. QR code number Enter Your Username Enter Your Password Login

PPPoE Access

① Click Start→Settings→Network→PPPoE to go to the "PPPoE" interface. Check "Enable" in the "PPPoE settings" and then enter the username and password you get from your ISP. Click "Apply" to save the settings.
② Click Start→Settings→Network→Network Status to view the IP address of the NVR.
③ Open the web browser on your computer, enter the IP address of the NVR like http://210.21.229.138 in the address bar and then press enter to go to the login interface. Enter the username and password of the NVR in the interface and then click "Login" to go to the live view interface.

Router Access

① Click Start→Settings→Network→TCP/IP to go to the "TCP/IP" interface. Set the IP address, subnet mask, gateway, preferred DNS and alternate DNS of the NVR.
② Set the HTTP port (it is suggested to modify the HTTP port because the default HTTP port 80 might be taken up) and enable UPnP function in both the NVR and the router. If the UPnP function is not available in the router, you need to forward the LAN IP address, HTTP port and server port of the NVR to the router. Port mapping settings may be different in different routers, so please refer to the user manual of the router for details.
③ Get the WAN IP address of the NVR from the router. Open the web browser on your computer, enter the WAN IP address plus HTTP port like http://116.30.18.215:100 in the address bar and then press enter to go to the login interface. Enter the username and password of the NVR in the interface and then click "Login" to go to the live view interface.

Note: If the WAN IP address is a dynamic IP address, it is necessary for you to use the domain name to access the NVR. Click Start→Settings→Network→DDNS to set DDNS (see 12.1.4 DDNS Configuration for details). By using DDNS function you can use the domain name plus HTTP port like http://sunshine.dvrdydns.com:100 to access the NVR via internet.

14.4 Web Remote Control

The supported browsers of the remote surveillance are IE8/9/10/11, Firefox, Opera and Chrome (available only for the versions lower than 45) in Windows system and Safari in MAC system. Here we take IE browser for example. When you access the NVR through IE for the first time, you need to download and install the relative components for normal preview and playback. Please refer to the tips in the remote interfaces for details. The buttons and icons on the top right corner of the remote interface are introduced as follows.

admin: the current login username.

Logout: click it to log out and return to the login interface.

Modify Password: click it to change the password of the current login user. Enter the current password and then set a new password in the popup window. Click "OK" button to save the new password.

Local Settings: click it to change the local settings. Set the snapshot number and click "Browse" to set the snapshot path and record path as shown below. Click "Apply" button to save the settings.

Snapshots number 5 Save snapshots to C:\Users\hj\Pictures Browse Save record files to C:\Users\hj\Videos Browse Apply

14.4.1 Remote Preview

Click "Live View" in the remote interface to go to the live view interface. The live view interface consists of the four areas marked in the following picture.

speco technologies Live View Playback Search and Export Intelligent Analysis Settings Camera (2/2) Search Camera Camera01 Camera02 Left Panel Camera01 04/07/2020 22:38:50 Preview Area Operation REC Right Panel Main Stre... Sub Stream Resolution 704x490 Operation Lens Control PTZ Fisheries Camera Single Channel Sequences Customize Layout CSD All Main Stream All Sub Stream Toolbar

Start Preview

Select a window in the preview area and then click one online camera on the left panel to preview the camera in the window. You can click in the tool bar to view all the cameras.

▶ Left Panel Introduction

Click < on the left panel to hide the panel and click > to show the panel. You can view all the added cameras and groups on the left panel.

- View Camera

Click Camera to view the cameras. You can view the number of all the added cameras and the online cameras. For instance, the left number 3 in Camera (3/4) on the left panel stands for the number of online cameras; the right number 4 stands for the number of all the added cameras. Enter the camera name in the search box and then click to search the camera. Click to refresh the camera list.

• View Group

Click to view the groups: All groups and all cameras in the group can be shown in the left panel.

- View Scheme

Click Customize Layout to view the scheme (or planning). All schemes can be shown in the left panel. Double click the scheme name to invoke it quickly

▶ Tool Bar Introduction

Button			Meaning
			Screen mode button.
			Click it to disable OSD. Click OSD \ to enable OSD.
			Click it to show full screen. Right click on the full screen to exit full screen.
	[KAH4]
All Main Str		I Sub Stream	Click “All Main Stream” or “All Sub Stream” to set the stream of all the cameras.
			Manual alarm button. Click it to pop up a window and then trigger and clear the alarm-out in the window manually.
	[003H]		Click it to preview all cameras.
			Click it to close all the preview cameras.
			Click it to start recording for all cameras to computer. Click to stop recording.
			Click it to start manual record for all cameras to the NVR. Click to stop manual record for all cameras.

Button	Meaning
	Click it to enable talk with the NVR.

Right Panel Introduction

Click < on the right panel to show the panel and click > to hide the panel. Click PTZ at the bottom of the panel to go to "PTZ" panel. Click Lens Control to go to "Lens Control". Click Operation to go to "Operation" panel.

Operation REC 3D Main Stre... Sub Stream Resolution 1920x1080 FPS 30 Max Bitrate 1024Kbps Apply Operation Lens Control PTZ

PTZ Zoom Focus Iris Operation Lens Control PTZ

Click one camera window in the preview area and then click Main Stream to set the camera's live view stream and record stream to main stream in manual record mode; click Sub-stream to set the camera's live view stream and record stream to sub stream. In sub stream tab, set the resolution, FPS and bitrate and then click "Apply" to save the settings.

Operation panel introduction:

Button		Meaning
		Click it to take snapshots.
		Click it to start recording to computer; click it again to stop recording.
		Click it to zoom in the image of the camera and then drag the mouse on the camera image to view the hidden area.
	[5K05]	Click it to zoom out the image of the camera.
		The 3D zoom in function is designed for P.T.Z. Click the button and then drag the image to zoom in or zoom out the image; click the image on different areas to view the image of the dome omni-directionally.
	[DBDX]
		Click it to start record to the NVR
		Click it to close the preview camera.
		Click it to enable audio and then drag the slider bar to adjust the volume. You can listen to the camera audio by enabling audio.

PTZ panel introduction:

Button	Meaning
	Click ▲ / ▶ / ▼ / ▼ / ▶ / ▶ / ▶ / ▶ / ▶ to rotate the dome; click to stop rotating the dome.
	Drag the slider to adjust the rotating speed of dome.
	Click 7/4 / 7/4 to zoom in/out camera image.
	Clickto increase/decrease the focal length.
	Clickto increase/decrease the iris of the dome.
	Click it to view the preset list and then click the button in the list to call the preset.
	Click it to view the cruise list and then click the corresponding buttons in the list to start or stop the cruise.

14.4.2 Remote Playback

Click "Playback" in the remote interface to go to the playback interface.

① Check the record event types and cameras on the left panel. Set the record date on the calendar beside the time scale.
② Click 🔒 to search the record data and then click 🔒 or directly click the time scale to play the record.

The operation of the playback time scale is similar to that of the time scale in the main program of the NVR. Please refer to 8.2 Playback Interface Introduction for details.

Introduction of playback control buttons:

Button	Meaning
	Stop button.
	Rewind button. Click it to play video backward.
	Play button. Click it to play video forward.
	Pause button.
	Deceleration button. Click it to decrease the playing speed.
	Acceleration button. Click it to increase the playing speed.
	Previous frame button. It works only when the forward playing is paused in single screen mode.
	Next frame button. It works only when the forward playing is paused in single screen mode.
	Click to step backward 30s and click to step forward 30s.
	Backup start time button. Click the time scale and then click it to set the backup start time.
	Backup end time button. Click the time scale and then click it to set the backup end time.
	Export button.
	Backup tasks button. Click it to view the backup status.
	Event list button. Click it to view the event record of manual/schedule/sensor/motion.

14.4.3 Remote Export

Click "Export" in the remote interface to go to the export interface. You can export the record by event search or by time search.

Event Search

Check the record type on the left side of the interface and then click to set the start time and end time; check the cameras and then click on the right side to search the record (the searched record data will be displayed in the list); check the record data in the list and then click "Export" button to export the record.

Time Search

Click to set the start time and end time on the left side of the interface; check the cameras and then click on the right side to backup the record.

Snapshots

The system will display all the captured images automatically in the list. Click to delete the image. Click to pop up the "Export" window. Click to pop up the "View Image" window. Click to export the image.

View Export Status

Click "Export Status" to view the export status. Click "Pause" to stop the export; click "Resume" to continue the export; click "Delete" to delete the task.

14.4.4 Intelligent Analysis

Click "Intelligent Analysis" in the remote interface to configure smart search, statistics, face database, face attendance and face check in. All of these settings are similar to that of the NVR. See the configurations of the NVR for details.

14.4.5 Remote Configuration

Click "Function Panel" in the remote interface and then configure the camera, record, alarm, disk, network, account and authority and system of the NVR remotely. All of these settings are the same as the settings of the NVR. See the configurations of the NVR for details.

Appendix A FAQ

Q1. Why can't I find the HDD?

a. Please check the power and SATA data cables of the HDD to make sure they are well connected.
b. For some NVRs with the 1U or small 1U case, the power of the adapter may be not enough for operating them. Please use the power adaptor supplied along with the NVR.
c. Please make sure the HDDs are compatible with the NVR. See Appendix C Compatible Device List for details.
d. The HDD could have gone bad. Change a new one.

Q2. Why are there no images output in some or all of the camera windows?

a. Please make sure the resolutions of the cameras are supported by the NVR.
b. Please make sure the network cables of the IP camera and NVR are both connected properly and the network parameters are set correctly.
c. Please make sure the network and the switch both work normally.

Q3. The screen has no output after booting the NVR normally.

a. Please make sure the screen, HDMI or VGA cables are good and well connected.
b. Please make sure the screen supports the resolution of 1280*1024, 1920*1080 or 3840*2160 (4K*2K). The NVR cannot self-adapt to the screen of which the resolution is lower than 1280*1024, and then the screen will remind you that the screen resolution is not supported by the NVR or just have no display. Please change a screen at 1280*1024, 1920*1080 or 3840*2160 resolution before booting the NVR.

Q4. Forget the passwords?

a. The password for admin can be reset through "Edit Security Question" function.

Click "Edit Security Question" button in the login window and then enter the corresponding answer of the selected question in the popup window, the password for admin will be reset to 123456 by default. If you forget the answer of the question, this way will be invalid, please contact your dealer for help.

b. The passwords of other users can be reset by admin, please refer to 12.1.2 Edit User for details.

Q5. The NVR cannot add up to the maximum number of IP cameras?

Take the 16 CH NVR as an example. Some 16 CH NVR support a maximum of 120Mbps bandwidth input (please take the real device for standard). Refer to the picture below. The remaining bandwidth should be larger than the bandwidth of the IP camera you want to add, or you would fail to add the IP camera. You should lower the added cameras' bitrate to release the bandwidth. It is recommended to add cameras by "Quickly Add" for batch adding.

Add Camera Quickly Add Add Manually Add Recorder No. Address Port Edit Subnet Mask Protocol Model Version 1 192.168.122.103 80 255.255.255.0 ONVIF xxx 4.0.0.1 0 2 192.168.226.201 80 255.255.255.0 ONVIF xxx 4.0.0.1 0 3 192.168.226.201 80 255.255.255.0 ONVIF xxx 4.0.0.1.beta1 0 Selected: 0 / 3 Remain Bandwidth: 108 / 120 Mb Default Password Add Cancel

Q6. The IP camera which connects to the PoE port of the NVR cannot be displayed automatically in the camera list, why?

a. Please check whether the resource of the PoE port is occupied by another IP camera that is added through network.
● Take the 16 CH NVR with 8 PoE ports as an example. The resource distribution of the 16 CH IP cameras is shown in the picture below.

CH1

CH2

CH3

CH4

CH5

CH6

CH7

CH8

CH9

CH10

CH11

CH12

CH13

CH14

CH15

CH16

POE-1

POE-2

POE-3

POE-4

POE-5

POE-6

POE-7

POE-8

When you add IP cameras through network, the IP cameras will occupy the resource from CH1, CH2, CH3, CH4... by the adding sequence; if you directly connect the IP cameras to the PoE ports of the NVR, the IP cameras will occupy the resource from CH9 to CH16 according to the number of the PoE port each IP camera is connecting to.

Supposing that 12 CH IP cameras have been added to the NVR through network and no IP camera has been directly connected to the PoE port. The 12 CH IP cameras occupy the 8 network resources from CH1 to CH8 and 4 PoE resources from CH9 to CH12 which are supposed to be occupied by

connecting the IP cameras directly. In this situation, if you directly connect one IP camera to PoE5, PoE6, PoE7 or PoE8, the IP camera will be displayed in the camera list automatically; if you connect it to PoE1, PoE2, PoE3 or PoE4, it won't be displayed in the camera list by showing resource conflict; if you just need to connect it to PoE1, PoE2, PoE3 or PoE4, you should first delete the IP camera which occupies the PoE port resource and then reconnect it to the PoE port.

- Take the 8 CH NVR with 8 PoE ports as another example. The resource distribution of the 8 CH IP cameras is shown in the picture below and the adding rules of the IP cameras are similar to the rules mentioned in the above. Please refer to the above for details.

CH1	CH2	CH3	CH4	CH5	CH6	CH7	CH8
POE-1	POE-2	POE-3	POE-4	POE-5	POE-6	POE-7	POE-8

b. Please make sure that the internal Ethernet port and the IP camera which directly connects to the PoE port through ONVIF protocol are in the same network segment.

The internal Ethernet port and the IP camera which directly connects to the PoE port through ONVIF protocol should be in the same network segment, or you will fail to add the IP camera. Log in the IP camera's web client and then enable DHCP (obtain an IP address automatically); or manually change the IP address of the IP camera to make it in the same network segment with the internal Ethernet port.

c. Check whether the number of the added IP camera is the maximum.

If the number of the added IP camera is the maximum, the system will show you the message that the IP camera number is beyond the maximum when you directly connect another IP camera to the available PoE port and thus you will fail to add the IP camera.

Q7. The IP camera which directly connects to the PoE port of the NVR through ONVIF protocol is shown in the camera list, but there is no image output, why?

Please make sure the username and password of the IP camera are correct. The IP camera's username and password can be modified through the two ways mentioned as below.

① Click "Edit Camera" in the Camera module of the setup panel to go to the interface as shown below. Click 📋 to modify the username and password of the IP camera (enter the correct username and password of the IP camera in the popup window and then click "OK" button).

Edit Camera Edit Camera Group IP Planning Search Camera No. Camera Name ↑ Address Port Status Protocol Model Preview Edit Upgrade Version 1 [POE3]IP Camera1 10.151.151.20 80 Online ONVIF xxx ▶ ↗ ↑ 3.4.2 2 IP Camera2 192.168.12.40 80 Online ONVIF xxx ▶ ↗ ↑ 3.4.2 3 IP Camera3 192.168.12.152 80 Online ONVIF xxx ▶ ↗ ↑ 3.4.2 4 IP Camera4 192.168.12.41 80 Online ONVIF xxx ▶ ↗ ↑ 3.4.2 5 IP Camera5 192.168.12.153 80 Offline ONVIF xxx ▶ ↗ ↑ 6 IP Camera6 192.168.12.154 80 Online ONVIF xxx ▶ ↗ ↑ 3.4.2 7 IP Camera7 192.168.12.155 80 Online ONVIF xxx ▶ ↗ ↑ 3.4.2 8 IP Camera8 192.168.12.156 80 Online ONVIF xxx ▶ ↗ ↑ 3.4.2 9 IP Camera9 192.168.12.157 80 Online ONVIF xxx ▶ ↗ ↑ 3.4.2 10 [POE1]IP Camera10 192.168.12.158 80 Online ONVIF xxx ▶ ↗ ↑ 3.4.2 IP Camera Max Number: Remain Bandwidth: 108 /120 Mb

② Go to the live view interface and then click in the preview window of the IP camera to edit the IP camera's username and password.

Q8. The system cannot record, why?

a. Make sure the HDD was formatted prior to use.
b. The record schedule has not been set in manual record mode. Please refer to 7.1.2 Schedule Settings for details.
c. Maybe HDD is full and thus the NVR is not able to record. Check HDD information from Disk Management and if required, please enable the recycle function (please see 7.1.3 Advanced Configuration for details).
d. There is no disk but cameras in the disk group, so please add at least one disk to the group. Refer to 7.4.2 Storage Mode Configuration for details.
e. The HDD could have gone bad. Please change another one.

Q9. Fail to access the NVR remotely through IE.

a. Please make sure the IE version is IE8 or above.
b. Please check whether the PC has enabled the firewall or installed the antivirus software. Please try to access the NVR again after you disable the firewall and stop the antivirus software.
c. Allow & block list may have been set in Account and Authority setting. The PC of which the IP address is in the block list or out of the allow list cannot access the NVR remotely.

Q10. ActiveX control cannot be downloaded. How can I do?

a. IE browser blocks ActiveX control. Please do setup as per the steps mentioned below.

① Open IE browser. Click →Internet Options.

Print File Zoom (100%) Safety Add site to Start menu View downloads Ctrl+J Manage add-ons F12 Developer Tools Go to pinned sites Compatibility View settings Report website problems Internet options About Internet Explorer

② Select Security→Custom Level. Refer to Fig 10-1.
③ Enable all the sub options under "ActiveX controls and plug-ins". Refer to Fig 10-2.
④ Then click "OK" to finish setup.

b. Other plug-ins or anti-virus may block ActiveX. Please disable or do the required settings.

Internet Options General Security Privacy Content Connections Programs Advanced Select a zone to view or change security settings. Internet Local intranet Trusted sites Restricted sites Internet This zone is for Internet websites, except those listed in trusted and restricted zones. Security level for this zone Allowed levels for this zone: Medium to High Medium-high • Appropriate for most websites • Prompts before downloading potentially unsafe content • Unsigned ActiveX controls will not be downloaded ■ Enable Protected Mode (requires restoring Internet Explorer) Custom level... Default level Reset all zones to default level OK Cancel Apply

Fig 10-1

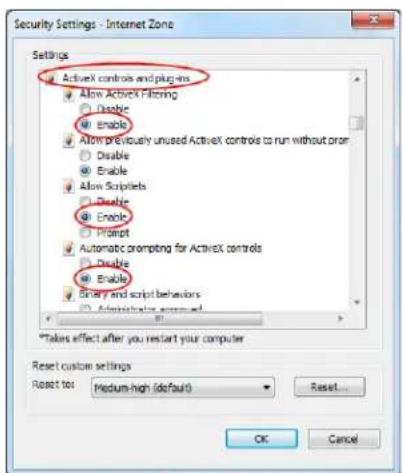

Security Settings - Internet Zone Settings ActiveX controls and plug-ins Allow ActiveX Filtering Disable Enable Allow previously unused ActiveX controls to run without order Disable Enable Allow Scriptlets Disable Enable Prompt Automatic prompting for ActiveX controls Disable Enable Binary and script behaviors Administrative approved *Tables effect after you restart your computer Reset custom settings Reset too: Medium-high (default) Reset... OK Cancel

Fig 10-2

Q11. How to play the backup file?

a. Record backed up by NVR: insert the USB device in which the record backup files is saved to the USB interface of the PC and then open the USB device path. The record can be backed up in the private format and AVI format by NVR.

- If you select the private format when backing up record by NVR, a RPAS (Recording Player Application Software) compression package will be backed up to the USB device automatically along with the record data. Uncompress the "RPAS.zip" and then click "RPAS.exe" to set up RPAS. After the setup is completed, open RPAS player and then click "Open Folder" button in the middle of the interface to select the record data. Refer to Fig 11-1.

Select camera in the resource tree on the left side of the interface to play the camera record. Click 📄 on the tool bar under the camera image to enable audio. Refer to Fig 11-2.

• If you select the AVI for

Note: The record will not have audio output if you disable the audio when recording by NVR. Please see 7.1.1 Mode Configuration and 7.2 Encode Parameters Setting for details.

player which supports this

format.

b. Record backed up through web. The record can only be backed up with AVI format through web. The record can be backed up to PC and played by the video player which supports this format.

RPAS Play List + - RPAS Open Folder CPU: 6% RAW: 40% 2015/7/30 15:30:51 Help -

Fig 11-1

RPAS Play List C:\Users\Administrator\D... 2015-07-24 IP Camera1 Help 2015-07-24 06:34:34 2015 06:18 06:21 06:24 06:27 06:30 06:33 06:36 06:39 06:42 06:45 06:48 1 Manually Schedule Sensor Motion CPU: 45% NAME: 60% 2015/7/28 15:05:08

Fig 11-2

Appendix B Calculate Recording Capacity

The recording capacity is mainly up to the record resolution, record stream and bitrate. Different image quality parameters decide different disk capacity occupation in equal times. The bigger the record resolution, record stream and record bitrate is, the more disk capacity is taken up in equal times. The calculation format of recording capacity is shown as below.

Recording Capacity(MB) = Bitrate(Kbps) ÷ 1024 ÷ 8 × 3600 × Recording hours per day × Record Storage Days × channel numbers 3600 means record for an hour(1TB=1024GB, 1GB=1024MB, 1MB=1024KB, 1Byte=8bit).

Record Bitrate (Kbps)	Used Space (MB/H)	Used Space (MB/D)
10240	4500	108000
8192	3600	86400
6144	2700	64800
4096	1800	43200
3072	1350	32400
2048	900	21600
1024	450	10800
768	337.5	8100
512	225	5400
384	168.75	4050
256	112.5	2700

The table below shows the recording capacity requirements for record storage in 30 days.

Record Bitrate (Kbps)	Recording Capacity(TB)
	1CH	4CH	8CH	16CH	32CH	64CH
10240	3.09	12.36	24.72	49.44	98.88	197.76
8192	2.48	9.89	19.78	39.56	79.11	158.21
6144	1.86	7.42	14.84	29.67	59.33	118.66
4096	1.24	4.95	9.89	19.78	39.56	79.11
3072	0.93	3.71	7.42	14.84	29.67	59.33
2048	0.62	2.48	4.95	9.89	19.78	39.56
1024	0.31	1.24	2.48	4.95	9.89	19.78
768	0.24	0.93	1.86	3.71	7.42	14.84
512	0.16	0.62	1.24	2.48	4.95	9.89
384	0.12	0.47	0.93	1.86	3.71	7.42
256	0.08	0.31	0.62	1.24	2.48	4.95

For instance, there is a 32CH NVR recording 24 hours per day and the record stores for 30 days. The NVR adopts dual stream recording. The main stream is 4096Kbps and the sub stream is 1024Kbps, then the total recording capacity is 49.45TB (39.56TB + 9.89TB). Considering the format loss of the disk is about 10% , the required disk capacity will be 55TB (49.45TB ÷ (1-10%)).

Appendix C Specifications

Model		N8NRE
System	Compression	Standard H.265
	OS	Embedded Linux
Video	IPC Input	8CH
	Network Access Bandwidth	80Mbps
	Network Access Format	8MP/6MP/5MP/4MP/3MP/1080P/960P/720P@25/30fps
	Output	HDMI×1: 4K×2K/1920×1080/1280×1024, VGA×1: 1920×1080/1280×1024
Audio	Network Input	8CH IPC audio input
	2-way Audio	RCA×1
	Local Output	RCA×1
Record	Record Stream	Dual stream recording
	Resolution	8MP/6MP/5MP/4MP/3MP/1080P/960P/720P
	Mode	Manual, schedule, motion, sensor, intelligence
Playback	Simultaneous Playback	Max 8 CH
	Search Mode	EZ search, time search, event search, bookmark search, snapshot search
	Smart Search	Highlighted color to display camera records in a certain period of time, different colors refer to different record events
	Function	Play, pause, FF, FB, etc.
Alarm	Mode	Manual, sensor, motion, exception, intelligence
	Input	8CH local alarm input; support IPC alarm input
	Output	4CH local alarm output; support IPC alarm output
	Linkage	Record, snapshot, preset, e-mail, pop-up window, etc.
Face	Face Database	32 libraries5000 face pictures
	Computing Capability	180 pictures/minute
	Face Picture Search	Yes
	Face Track	Yes
Network	Interface	RJ45 10M/100Mbps×1
	PoE Port	RJ45×8
	Protocol	TCP/IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP
	Web Client	Multiple online users
Mobile Device	OS	iOS、Android
Storage	HDD	SATA×1, max 14T per HDD
Export	Local	By U disk, USB mobile HDD
	Network	Yes
Interface	USB	USB2.0×1; USB3.0×1
	RS485	Yes (full duplex)
	Remote Controller	Yes
Others	Power Supply	DC48V2.5A
	Power Consumption	≤15W(without HDD and PoE power supply)
	Dimensions( W×D×H )	11.8" x 9.8" x 2.0" (300mm×248mm×52mm)
	Working Environment	-4~122F (-10~50°C), 10%~90% (humidity)
Model		N16NRE
System	Compression	Standard H.265
	OS	Embedded Linux
Video	IPC Input	16CH
	Network Access Bandwidth	160Mbps
	Network Access Format	8MP/6MP/5MP/4MP/3MP/1080P/960P/720P@25/30fps
	Output	HDMI×1: 4K×2K/1920×1080/1280×1024, VGA×1: 1920×1080/1280×1024
Audio	Network Input	16CH IPC audio input
	2-way Audio	RCA×1
	Local Output	RCA×1
Record	Record Stream	Dual stream recording
	Resolution	8MP/6MP/5MP/4MP/3MP/1080P/960P/720P
	Mode	Manual, schedule, motion, sensor, intelligence
Playback	Simultaneous Playback	Max 16 CH
	Search Mode	EZ search, time search, event search, bookmark search, snapshot search
	Smart Search	Highlighted color to display camera records in a certain period of time, different colors refer to different record events
	Function	Play, pause, FF, FB, etc.
Alarm	Mode	Manual, sensor, motion, exception, intelligence
	Input	8CH local alarm input; support IPC alarm input
	Output	4CH local alarm output; support IPC alarm output
	Linkage	Record, snapshot, preset, e-mail, pop-up window, etc.
Face	Face Database	32 libraries5000 face pictures
	Computing Capability	180 pictures/minute
	Face Picture Search	Yes
	Face Track	Yes
Network	Interface	RJ45 10M/100Mbps×1
	PoE Port	RJ45×16
	Protocol	TCP/IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP
	Web Client	Multiple online users
Mobile Device	OS	iOS、Android
Storage	HDD	SATA×2, max 14T per HDD
Export	Local	By U disk, USB mobile HDD
	Network	Yes
Interface	USB	USB2.0×1; USB3.0×1
	RS485	Yes (full duplex)
	Remote Controller	Yes
Others	Power Supply	DC48V/3.75A
	Power Consumption	≤15W(without HDD and PoE power supply)
	Dimensions( W×D×H )	15.0" x 10.6" x 2.0" (380mm×268mm×52mm)
	Working Environment	-4~122F (-10~50°C), 10%~90% (humidity)
Model		N32NRE
System	Compression	Standard H.265
	OS	Embedded Linux
Video	IPC Input	32CH
	Network Access Bandwidth	256Mbps
	Network Access Format	8MP/6MP/5MP/4MP/3MP/1080P/960P/720P@25/30fps
	Output	HDMI×1: 4K×2K/1920×1080/1280×1024, VGA×1: 1920×1080/1280×1024
Audio	Network Input	32CH IPC audio input
	2-way Audio	RCA×1
	Local Output	RCA×1
Record	Record Stream	Dual stream recording
	Resolution	8MP/6MP/5MP/4MP/3MP/1080P/960P/720P
	Mode	Manual, schedule, motion, sensor, intelligence
Playback	Simultaneous Playback	Max 16 CH
	Search Mode	EZ search, museum search, time search, event search, bookmark search, snapshot search
	Smart Search	Highlighted color to display camera records in a certain period of time, different colors refer to different record events
	Function	Play, pause, FF, FB, etc.
Alarm	Mode	Manual, sensor, motion, exception, intelligence
	Input	8CH local alarm input; support IPC alarm input
	Output	4CH local alarm output; Support IPC alarm output
	Linkage	Record, snapshot, preset, e-mail, pop-up window, etc.
Face	Face Database	32 libraries5000 face pictures
	Computing Capability	180 pictures/minute
	Face Picture Search	Yes
	Face Track	Yes
Network	Interface	RJ45 10M/100M/100Mbps×2
	Protocol	TCP/IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP
	Web Client	Multiple online users monitoring
Mobile Device	OS	iOS, Android
Storage	HDD	SATA×8, max 8T per HDD
	E-SATA	E-SATA×2
Export	Local	By U disk, USB mobile HDD
	Network	Yes
Interface	USB	USB2.0×2 (one in the front panel and the other in the rear panel)
	Remote Controller	Yes
Others	Power Supply	ATX
	Power Consumption	≤15W(without HDD)
	Dimensions(W×D×H)	16.9" x 17.8" x 3.5" (430mm×453mm×89mm)
	Working Environment	-4~122F (-10~50°C), 10%~90% (humidity)

Android is a trademark of Google LLC.

Model: N8NRE/N16NRE/N32NRE

Federal Communications Commission (FCC) Statements

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

FCC Responsible Party:

Speco Technologies

200 New Highway

Amityville, NY 11701

www.specotech.com
