Product Type	Digital Video Recorder (DVR)
Model	H24WHRL
Brand	Speco Technologies
Form Factor	1U Rackmount
Video Inputs	24 BNC channels
Video Compression	H.264
Recording Resolution	Up to 960H (960 x 480)
Recording Frame Rate	480 FPS total (20 FPS per channel)
Audio Inputs	4 BNC (optional)
Internal Storage	Up to 2 SATA HDDs (max 10 TB total)
Network Interface	1 x RJ-45 10/100/1000 Mbps
Remote Access	iOS and Android apps, web browser
Power Supply	100-240 VAC, 50/60 Hz, 1.5 A
Dimensions (W x D x H)	432 x 300 x 44 mm
Weight	4.5 kg (without HDDs)
Operating Temperature	0°C to 40°C
Mounting Type	Rackmount
Maintenance	Clean with dry cloth; avoid liquids
Safety Features	Password protection, motion detection alerts
Spare Parts Availability	Contact Speco support for replacement parts
General Information	Supports up to 24 cameras; H.264 compression for efficient storage

Frequently Asked Questions - H24WHRL Speco Technologies

How many cameras does the H24WHRL support?

The H24WHRL supports up to 24 analog cameras via BNC inputs.

What is the maximum hard drive capacity?

It can hold up to two SATA HDDs with a total capacity of 10 TB.

Can I view my recordings remotely?

Yes, the DVR supports remote viewing through Speco’s mobile apps (iOS/Android) and a web browser.

What video compression does it use?

It uses H.264 compression for efficient storage and bandwidth.

Is the H24WHRL rack-mountable?

Yes, it has a 1U rackmount form factor and includes rack ears.

What type of power supply does it need?

It requires a 100-240 VAC power source, 50/60 Hz, 1.5 A.

How do I reset the DVR to factory defaults?

Press and hold the reset button on the back panel for 10 seconds while the unit is powered on.

Can I record audio?

Yes, it supports 4 audio inputs (optional BNC) for simultaneous audio recording.

What is the recording resolution?

It records at up to 960H (960x480) resolution per channel.

How do I clean the DVR?

Use a soft dry cloth to wipe the exterior. Do not use liquid cleaners or spray directly.

USER MANUAL H24WHRL Speco Technologies

HRL (6/16/24 Channel DVR)

User Manual

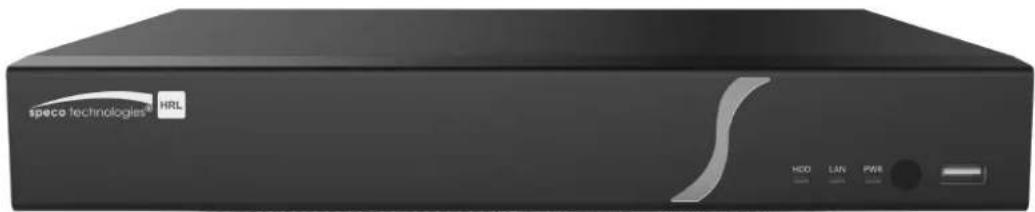

speco technologies® HRL HDD LAN PWR

H6HRL 6 Channel Hybrid Digital Video Recorder

4 Configurable Hybrid Channels (TVI or IP) plus 2 IP Channels

Front panel of a network equipment rack with labeled ports and connectors, including Ethernet, USB, and network switch.

H16HRL 16 Channel Hybrid Digital Video Recorder

8 Configurable Hybrid Channels (TVI or IP) plus 8 IP Channels

Front view of a network equipment rack with ports, connectors, and connectors (no visible text or labels)

H24HRL 24 Channel Hybrid Digital Video Recorder

8 Configurable Hybrid Channels (TVI or IP) plus 8 IP Channels, plus 8 TVI Channels

Front view of a network equipment rack with multiple ports, connectors, and external components (no visible text or labels)

Version 1.0

Features and speciaons are subject to change, please check www.specotech.com for rmware updates.

Notes

• Please read this user manual carefully to ensure that you can use the device correctly and safely.
  ● The contents of this manual are subject to change without noce.
• Do not install this device near any heat sources such as radiators, heat registers, stoves or other devices that produce heat.
• Do not install this device near water. Clean only with a dry cloth.
• Do not block any venlaon openings and ensure proper venlaon around the machine.
• Do not power o the device at normal recording condion.
• This machine is for indoor use only. Do not expose the machine in rain or moist environment. In case any solid or liquid get inside the machine's case, please turn o the device immediately and get it checked by a qualified technician.
• Do not aempt to repair this device yourself.

Contents

1 Introducon....1

1.1 Welcome .... 1
1.2 Features.... 1
1.3 Front Panel Descripons .... 4

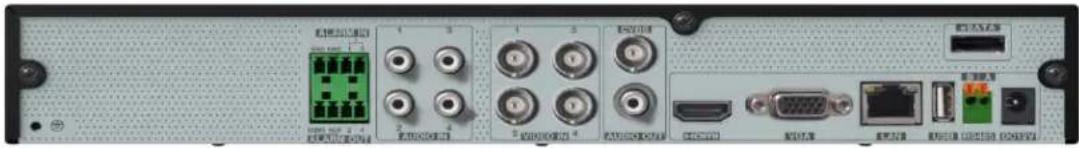

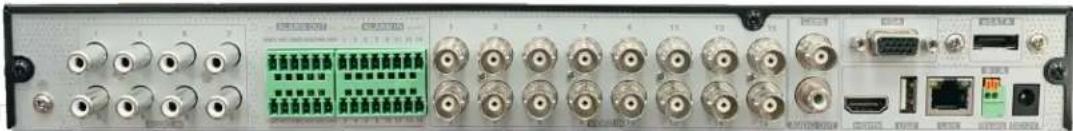

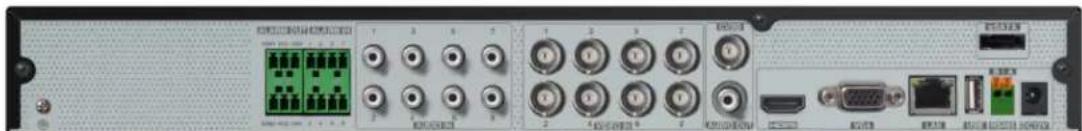

1.4 Rear Panel Descripons....4
1.5 Connecons....4

2 Basic Operaon Guide ....5

2.1 Startup & Shutdown......5
2.1.1 Startup....5
2.1.2 Shutdown 5
2.2 Remote Control 5
2.3 Mouse Control....6
2.4 Text-input Instrucon....6
2.5 Common Buon Operaon 7

3 EZ Setup & Main Interface 8

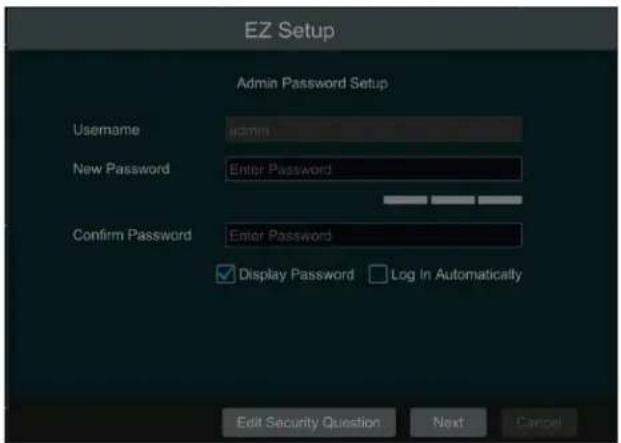

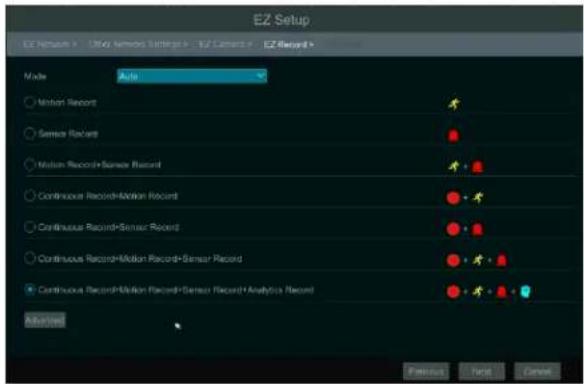

3.1 EZ Setup....8
3.2 Main Interface....12

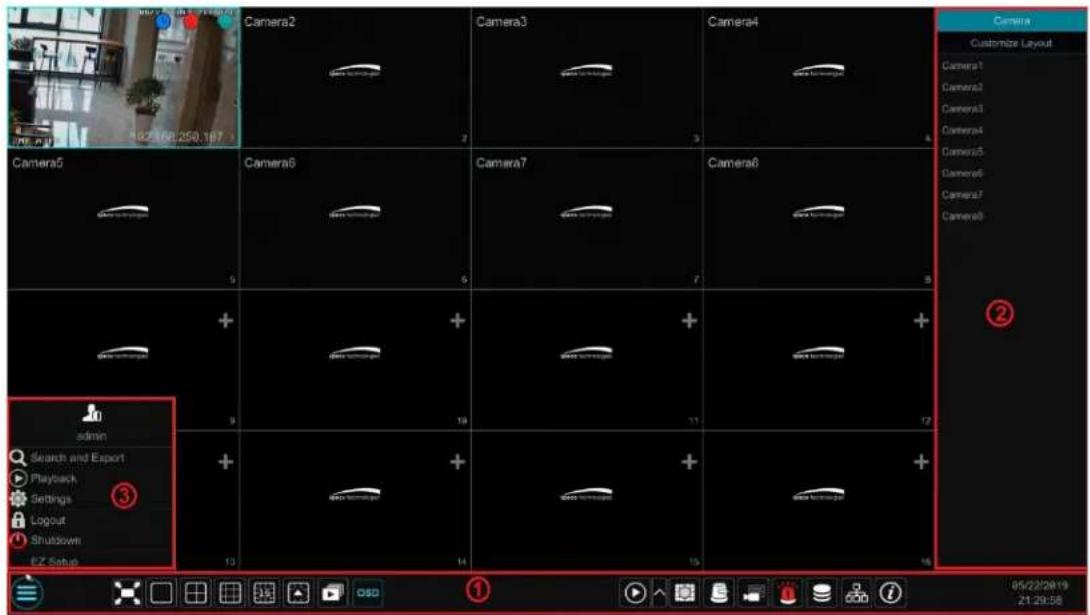

3.2.1 Main Interface Introducon 12

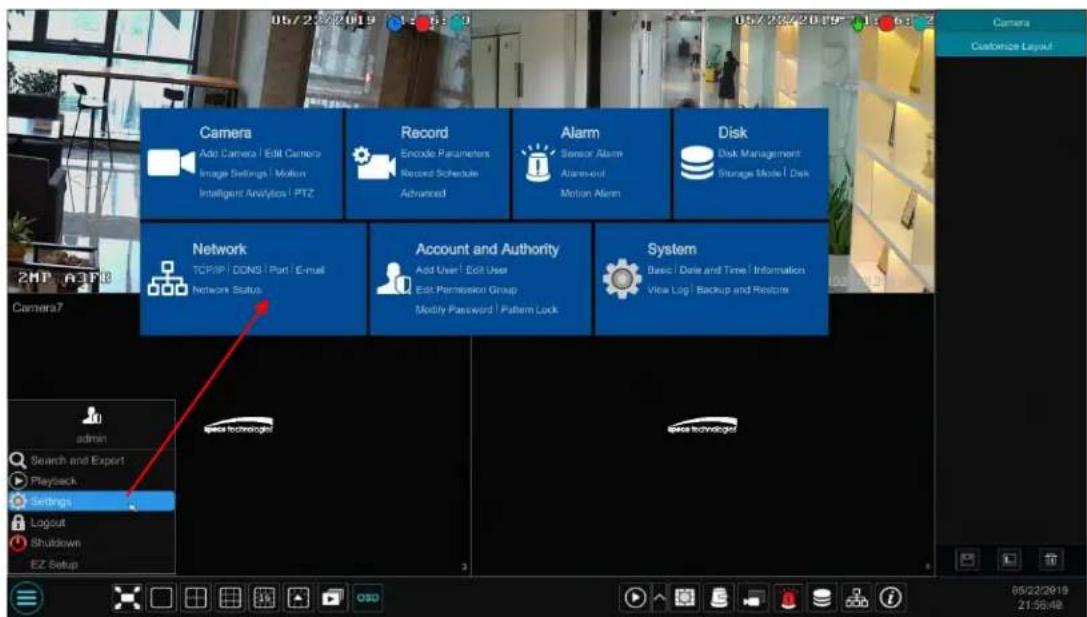

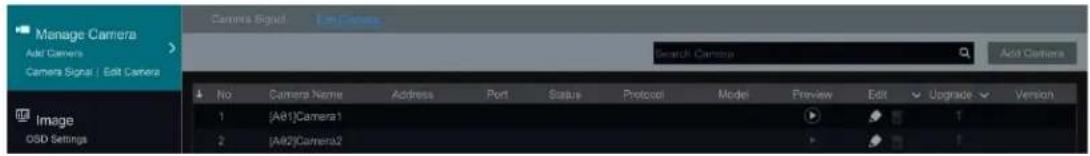

3.2.2 Setup Panel.... 14
3.2.3 Main Funcons....15

4 Camera Management ....17

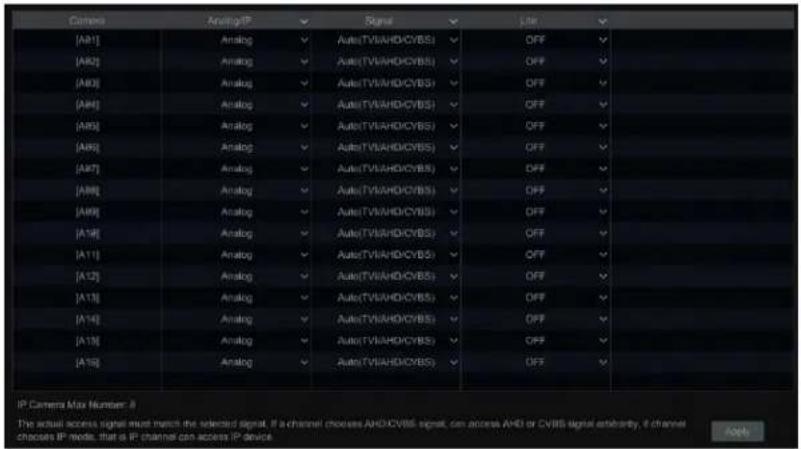

4.1 Camera Signal 17

4.2 Add/Edit Camera 17

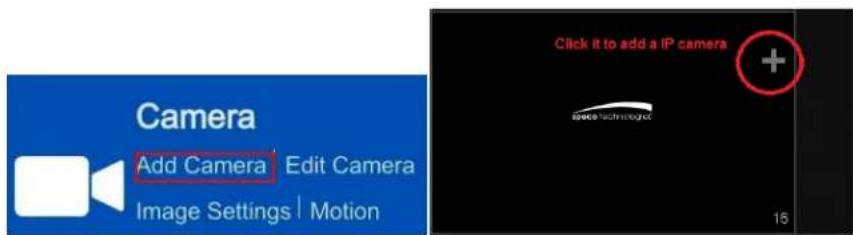

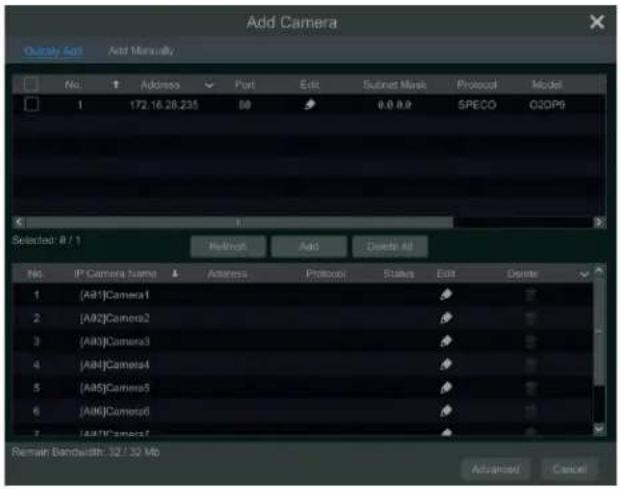

4.2.1 Add Camera 17

4.2.2 Edit Camera 18

5 Live View Introducon....20

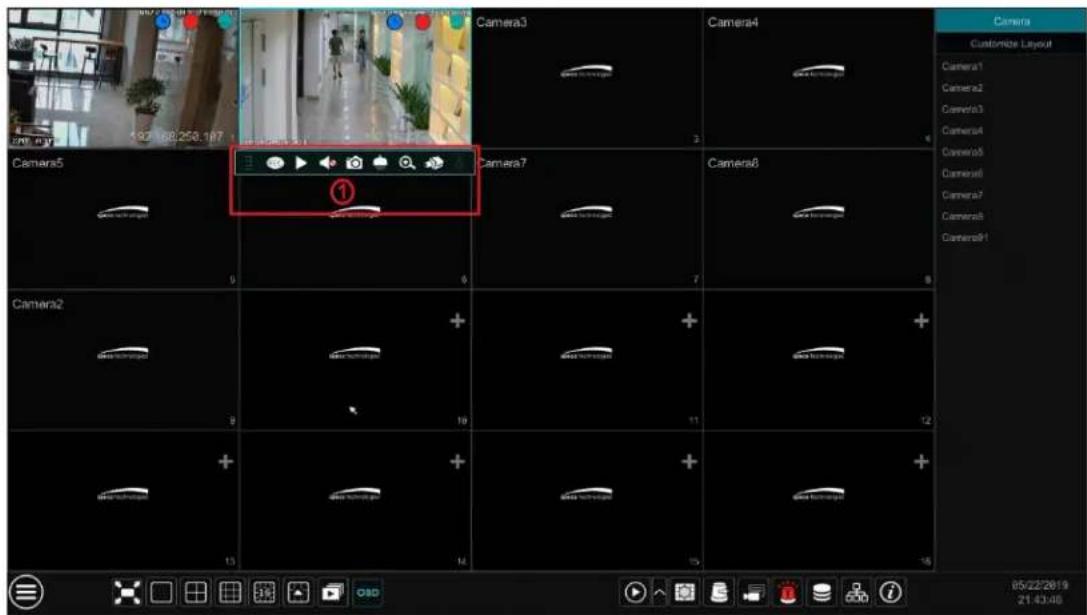

5.1 Live View Interface Introducon 20

5.2 View Mode 21

5.2.1 Display Mode.... 21

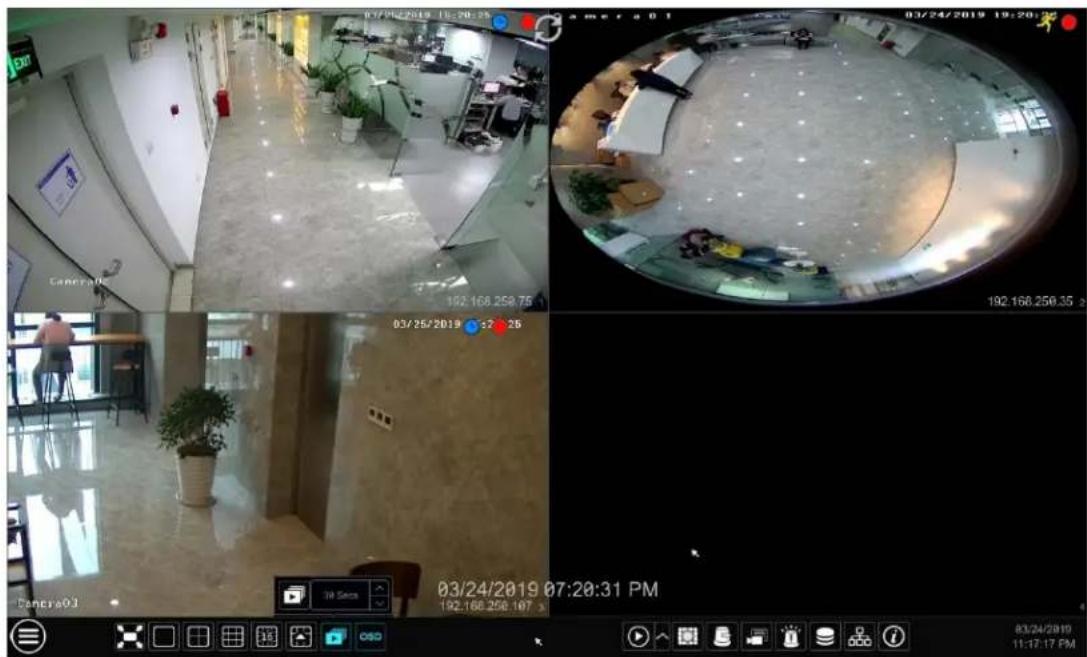

5.2.2 Quick Sequence View 22
5.2.3 Scheme View In Sequence.... 23

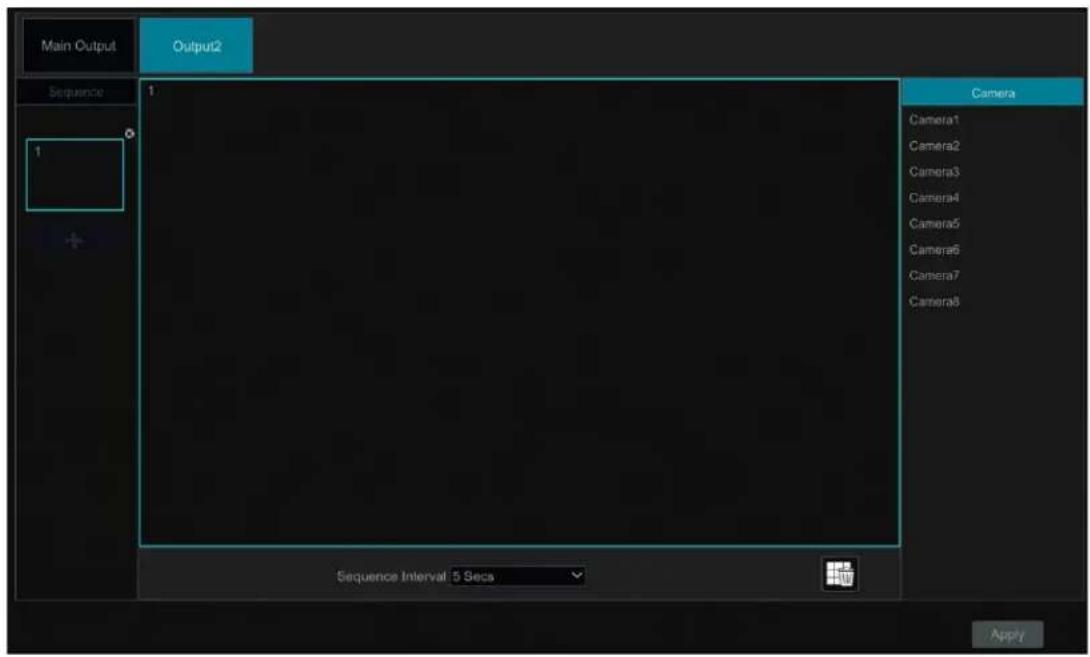

5.2.4 Spot View 23

5.3 Image Conguraon 24

5.3.1 OSD Sengs 24

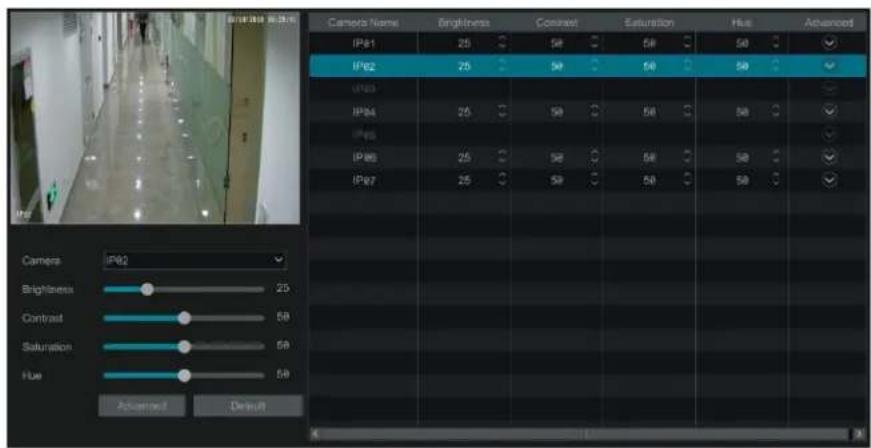

5.3.2 Image Sengs 25

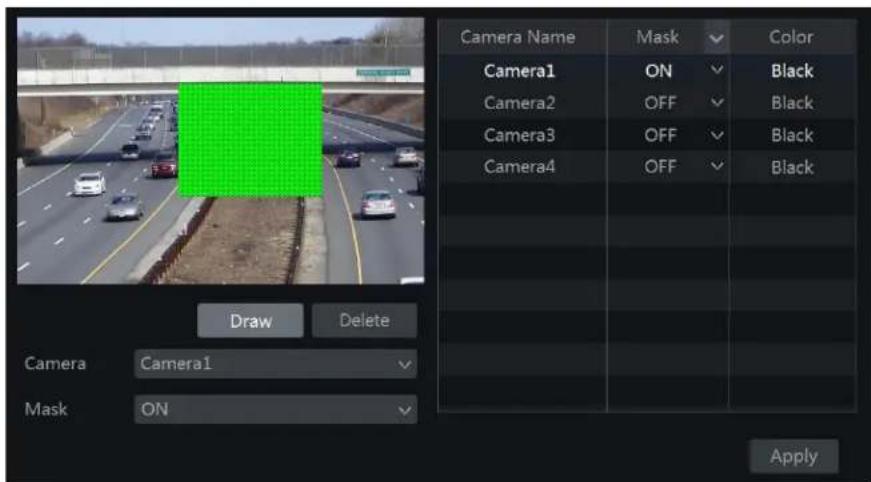

5.3.3 Mask Setngs 25

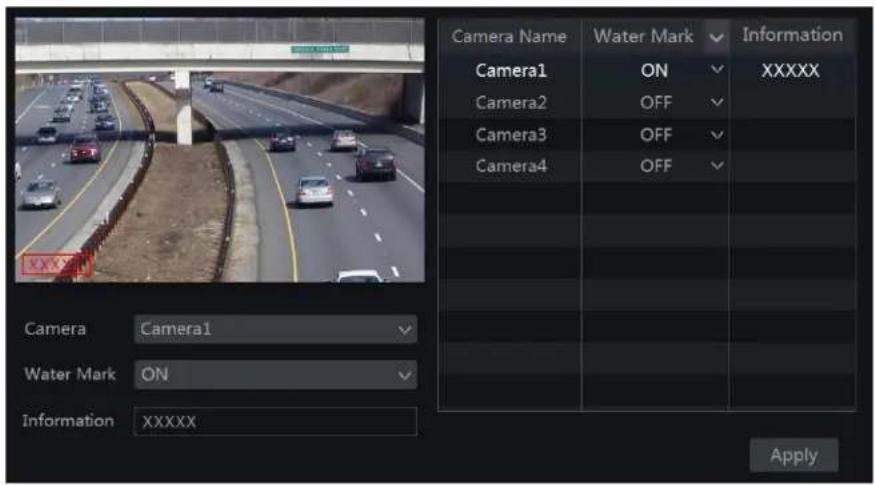

5.3.4 Water Mark Sengs....25

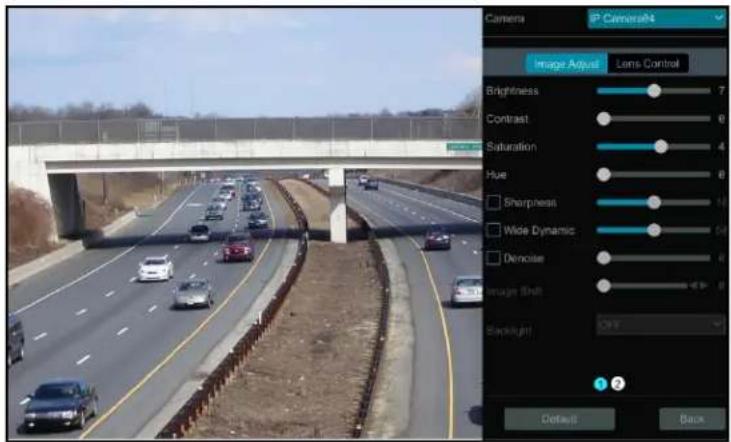

5.3.5 Image Adjustment 26

6 PTZ 29

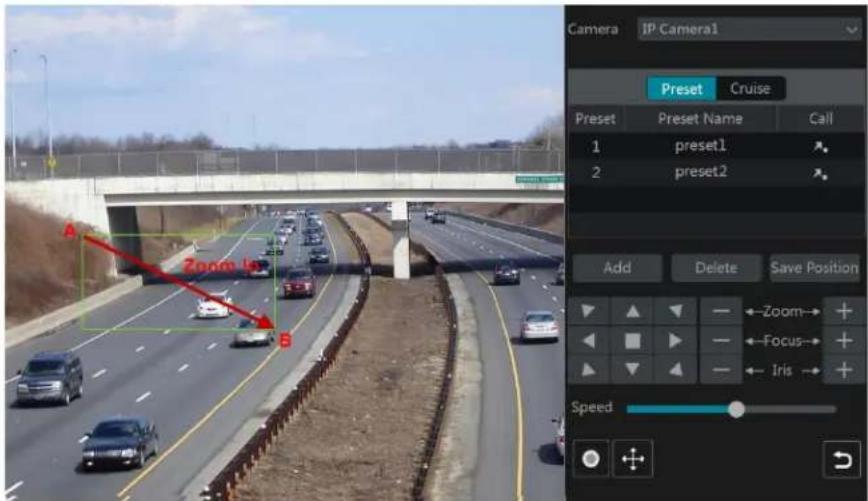

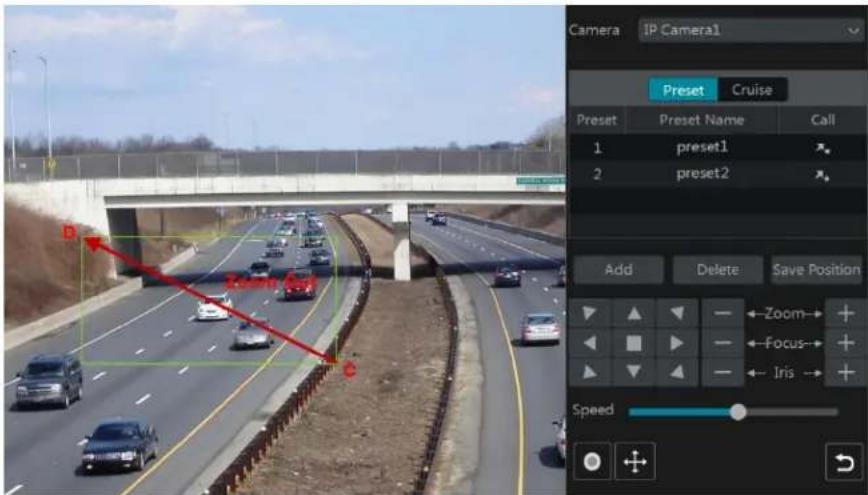

6.1 PTZ Control Interface Introducon 29

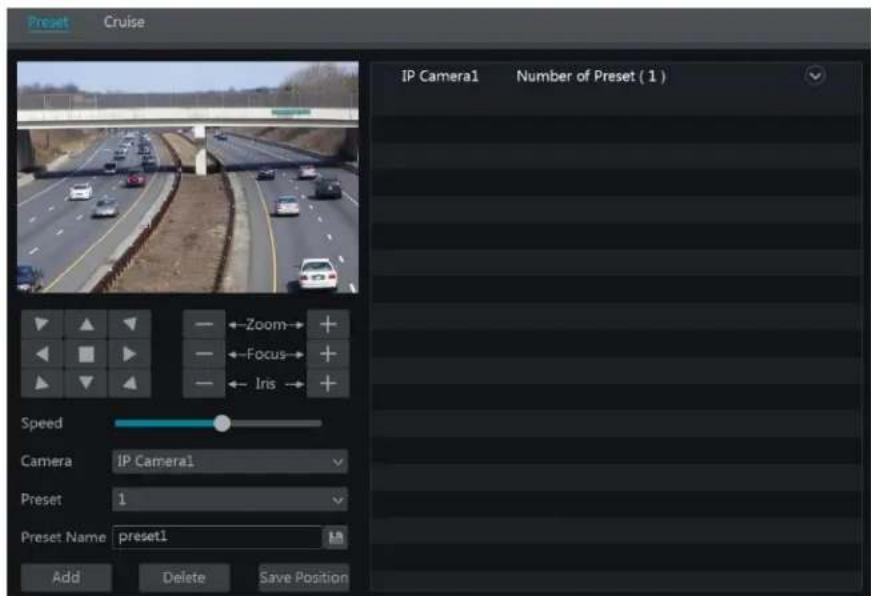

6.2 Preset Seng 32

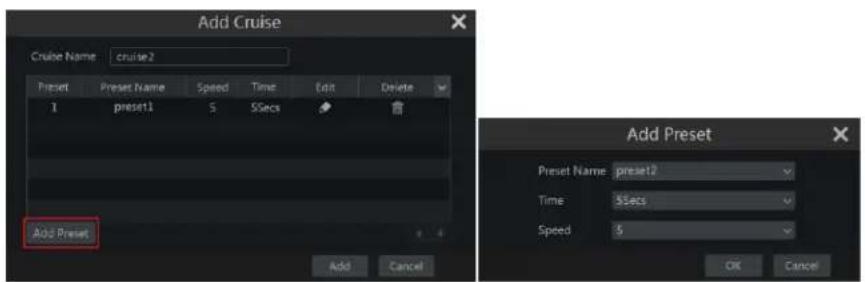

6.3 Cruise Setng 33

7 Record& Disk Management 35

7.1 Record Conguraon....35

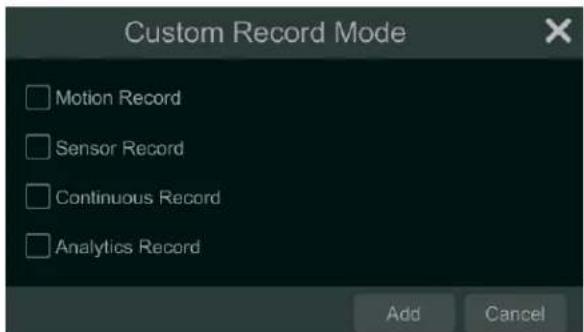

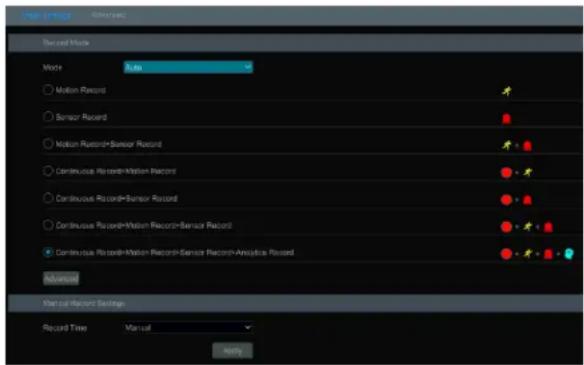

7.1.1 Mode Conguraon 35
7.1.2 Advanced Conguraon 36

7.2 Encode Parameters Setng 37
7.3 Schedule Seng 38

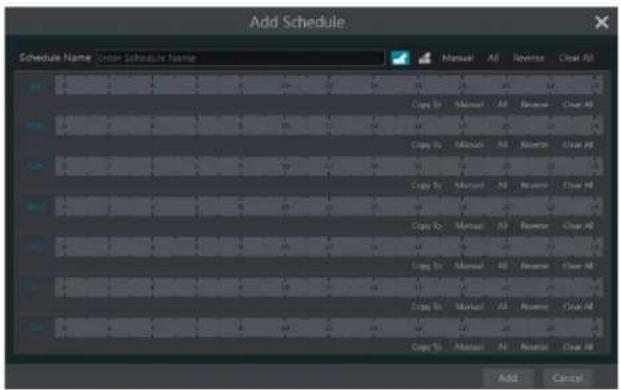

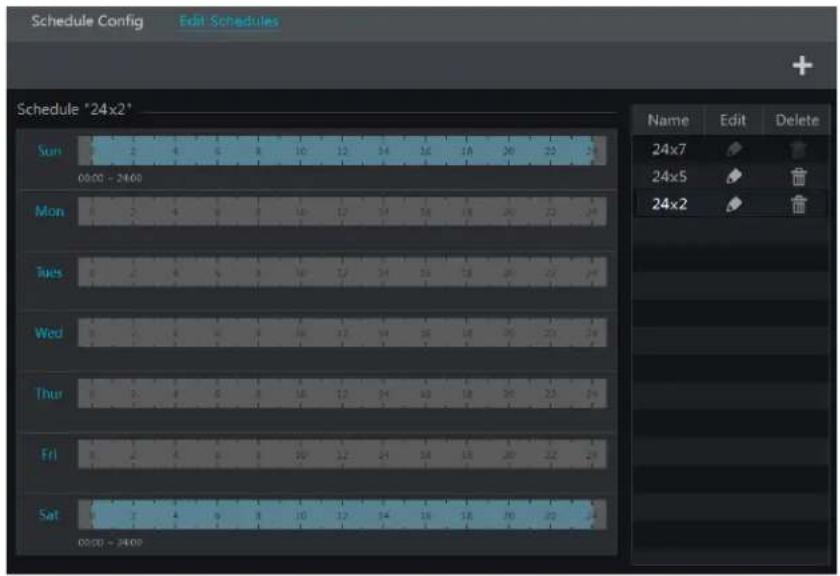

7.3.1 Add Schedule.... 38

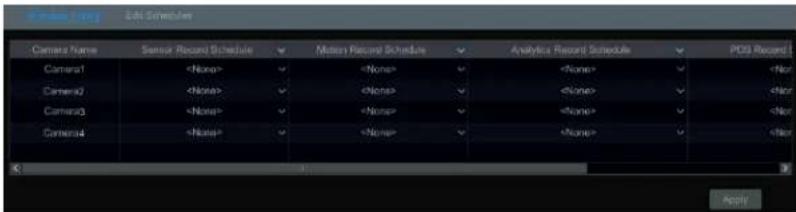

7.3.2 Record Schedule Conguraon 40

7.4 Record Mode 40

7.4.1 Manual Recording 40
7.4.2 Timing Recording....40
7.4.3 Moon Based Recording 41
7.4.4 Sensor Based Recording 41
7.4.5 Analycs Recording 41

7.5 Disk....41

7.5.1 Disk Management 41

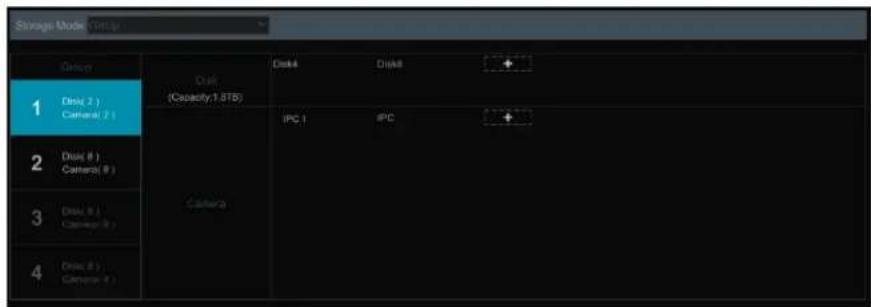

7.5.2 Storage Mode Conguraon 41
7.5.3 View Disk and S.M.A.R.T. Informaon 42

8 Playback& Backup 43

8.1 Instant Playback 43
8.2 Playback Interface Introducon 43

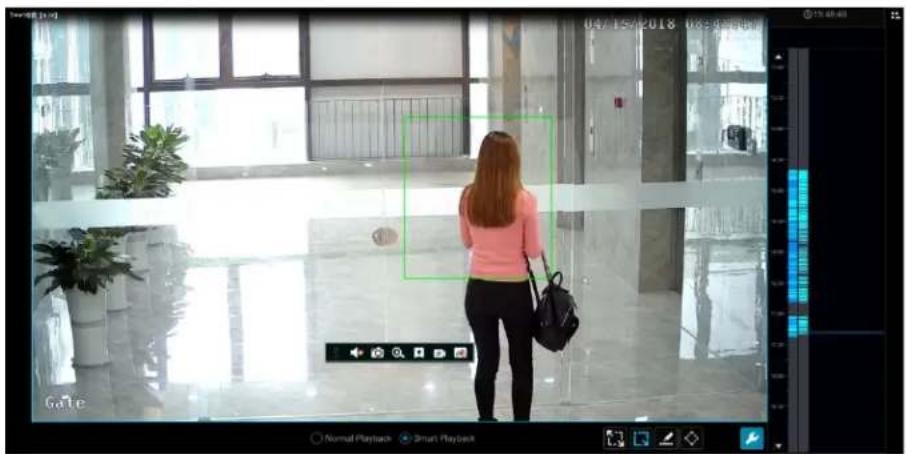

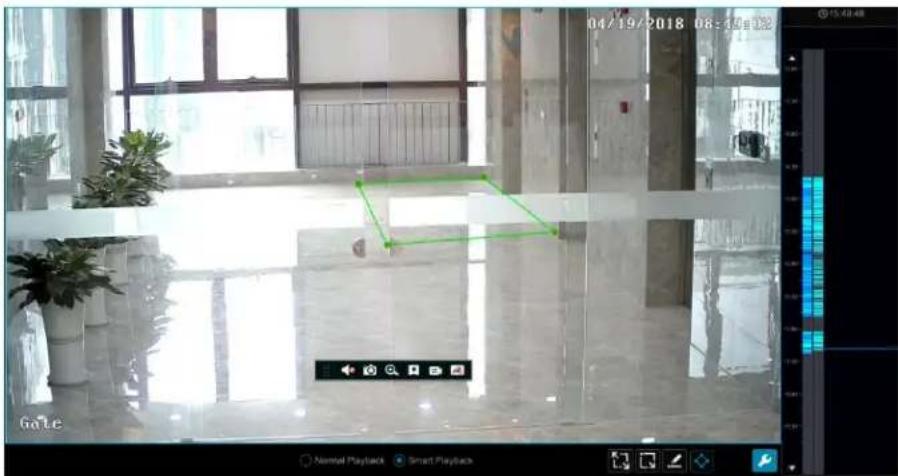

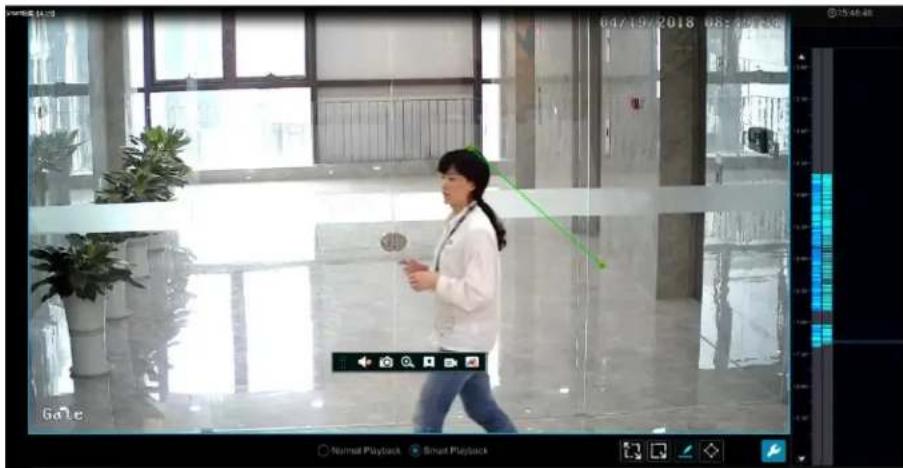

8.3 Smart Playback....46
8.4 Record Search, Playback & Export 47

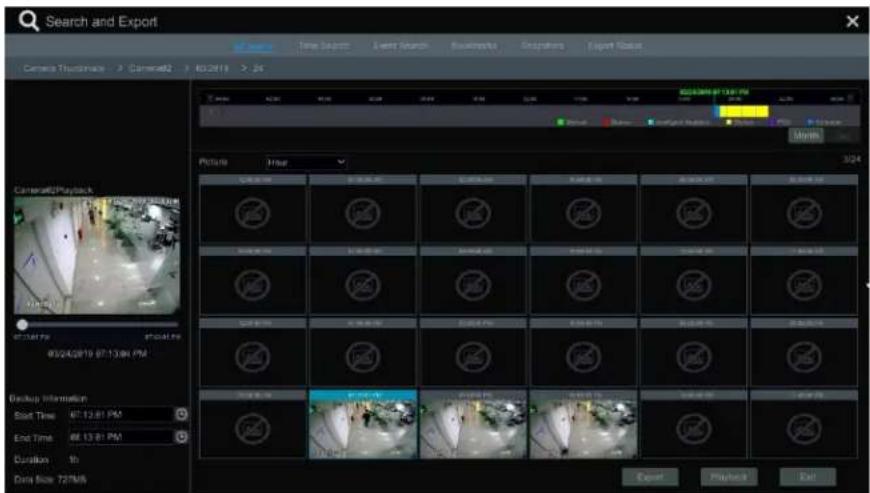

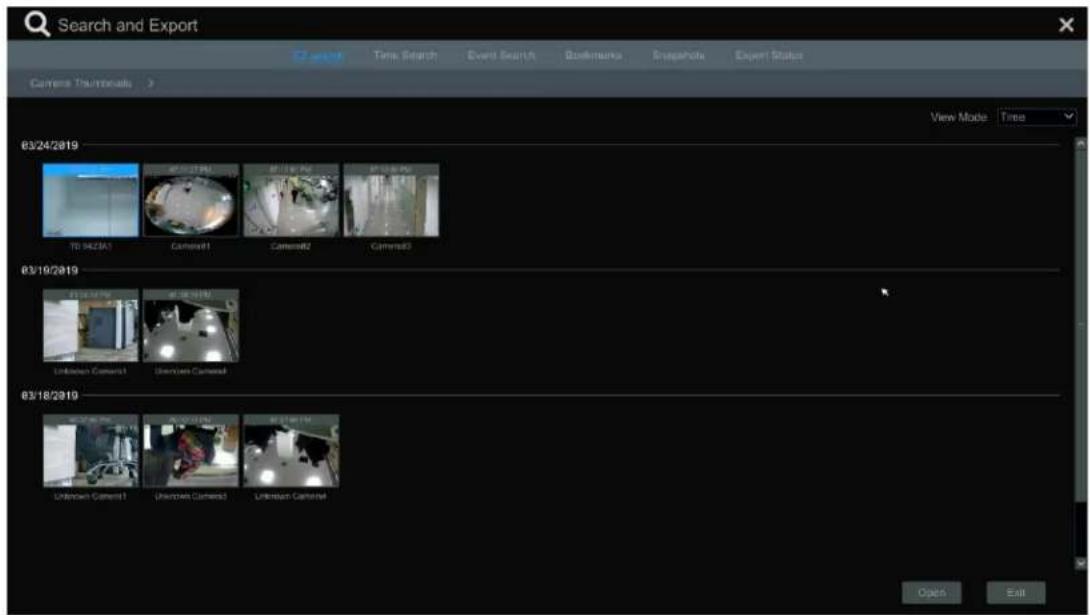

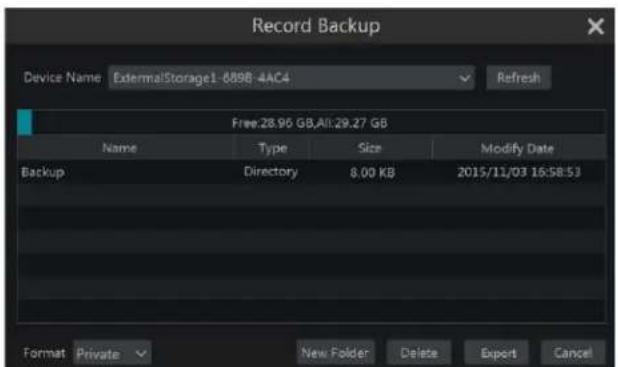

8.4.1 EZ Search 47
8.4.2 Time Search 49
8.4.3 Event Search 50

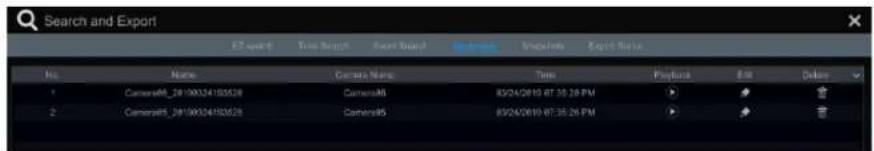

8.4.4 Bookmark Search....51

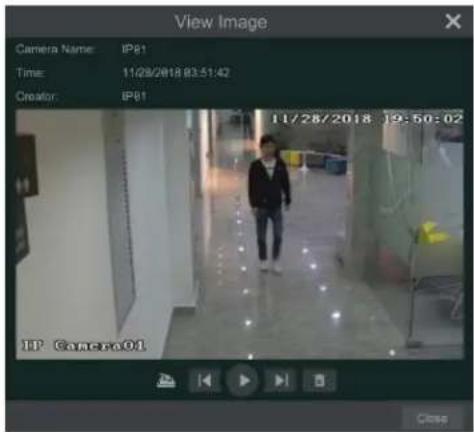

8.4.5 Snapshots 51

8.4.6 View Export Status 52

9 Alarm Management....53

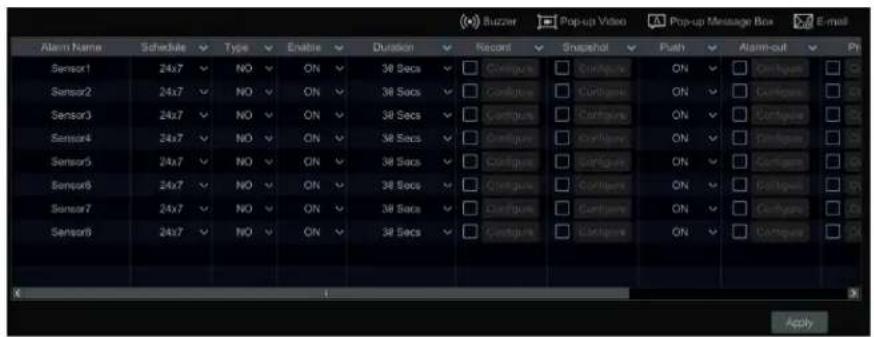

9.1 Sensor Alarm 53
9.2 Moon Alarm 54

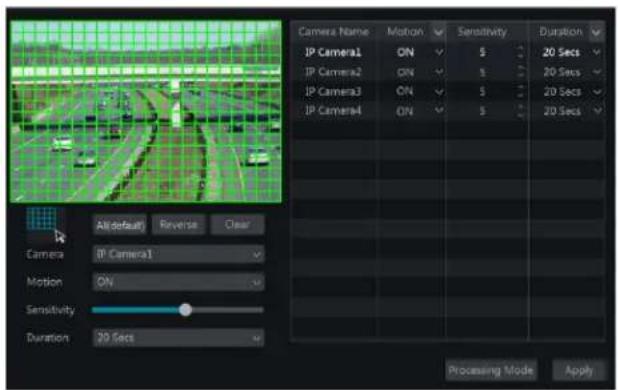

9.2.1 Moon Conguraon 54
9.2.2 Moon Alarm Handling Conguraon 54

9.3 Smart Event 55

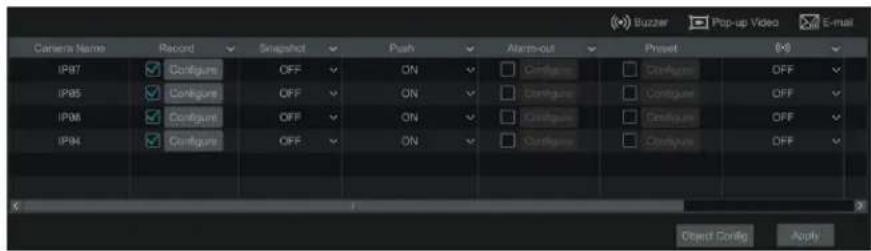

9.3.1 Object Detecon 55
9.3.2 Tampering....56
9.3.3 Tripwire....57
9.3.4 Intrusion Detecon....58

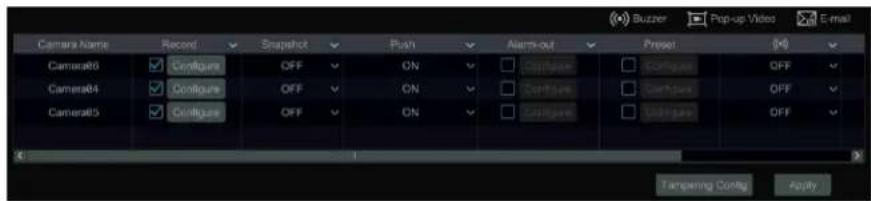

9.4 Excepon Alarm 59

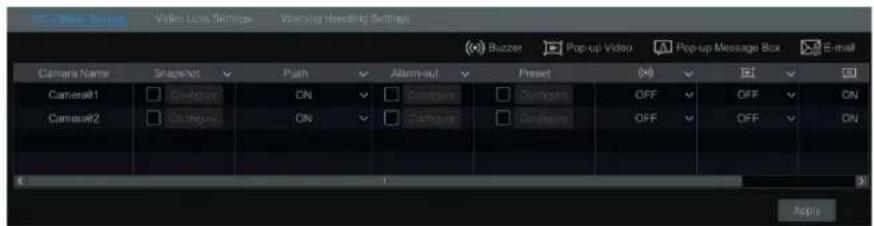

9.4.1 IPC Oine Setngs 59

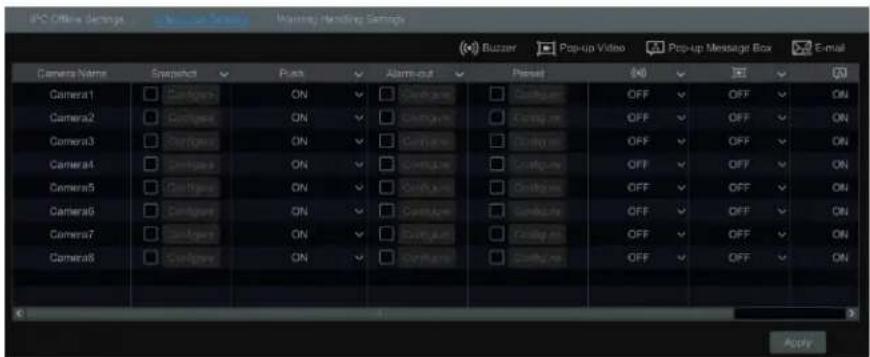

9.4.2 Video Loss Sengs 59

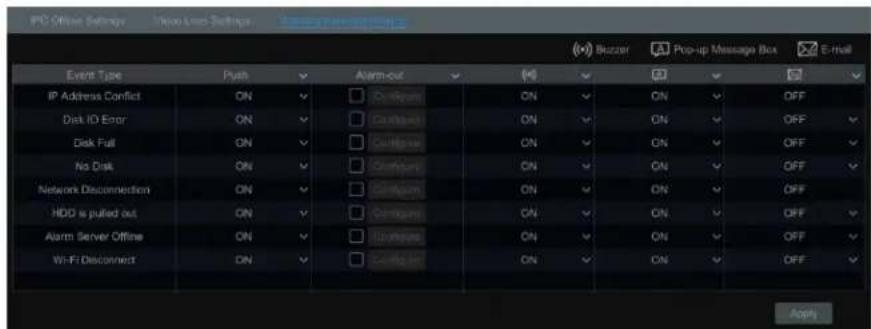

9.4.3 Warning Handling Sengs 60

9.5 Alarm Event Nocaon 60

9.5.1 Alarm-out 60

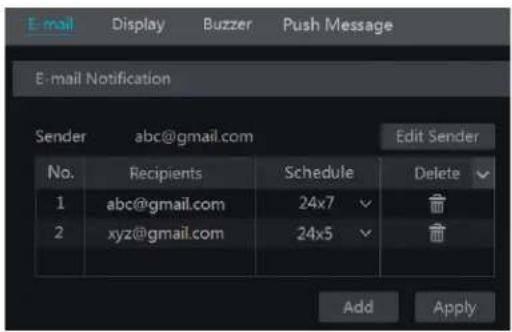

9.5.2 E-mail....61

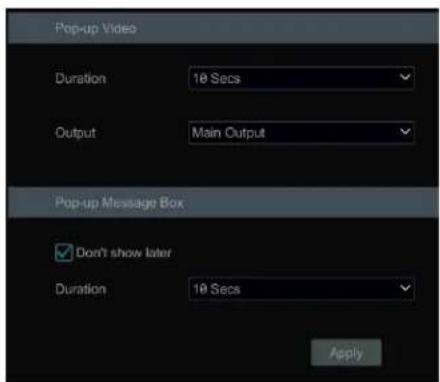

9.5.3 Display 61
9.5.4 Buzzer 61
9.5.5 Push Message....62
9.5.6 Alarm Server....62

9.6 Manual Alarm....62

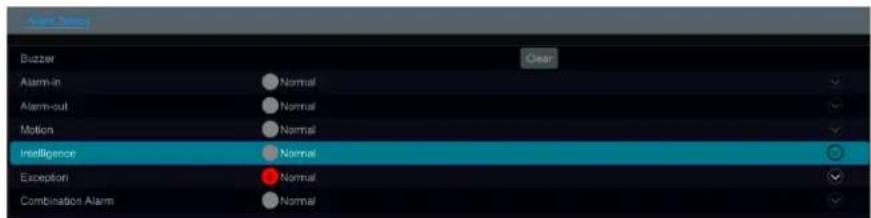

9.7 View Alarm Status 62

10 Account & Permission Management ....64

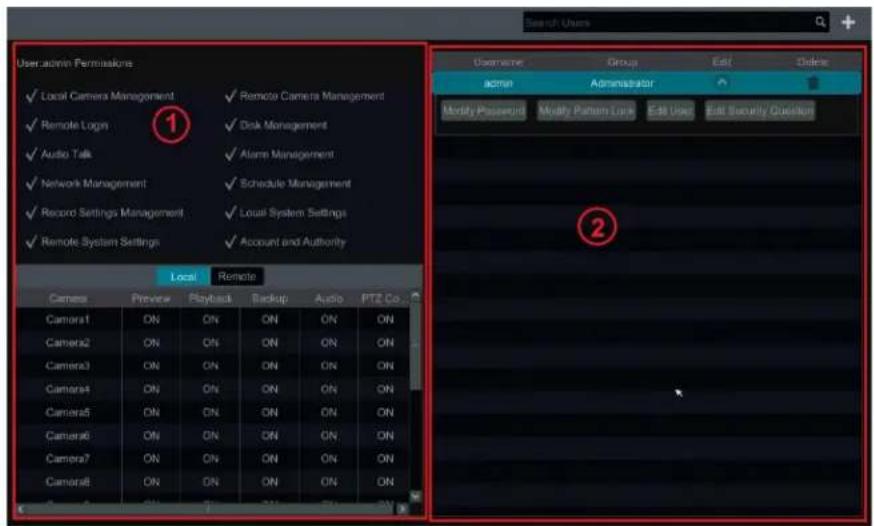

10.1 Account Management 64

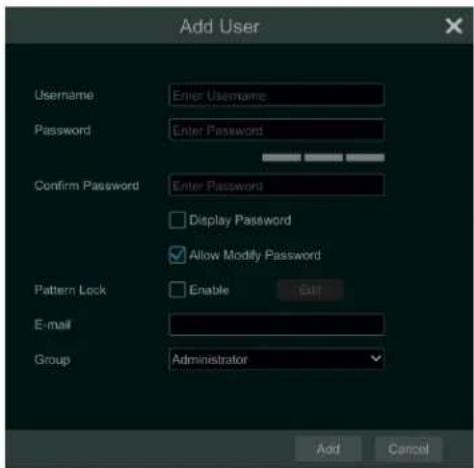

10.1.1 Add User 64

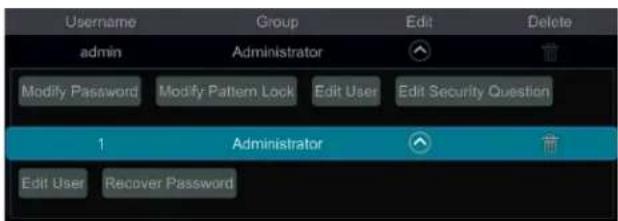

10.1.2 Edit User 65

10.2 User Login & Logout....66

10.3 Permission Management....67

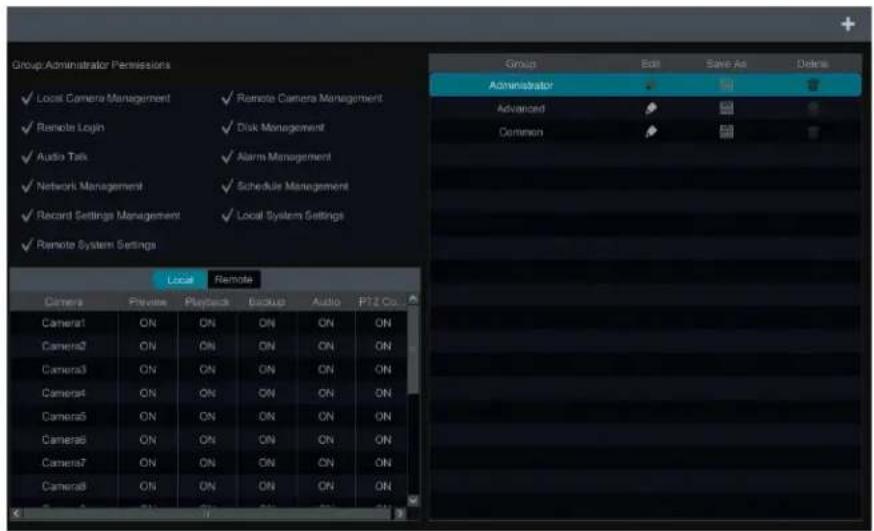

10.3.1 Add Permission Group....67
10.3.2 Edit Permission Group 67

10.4 Block and Allow List....68

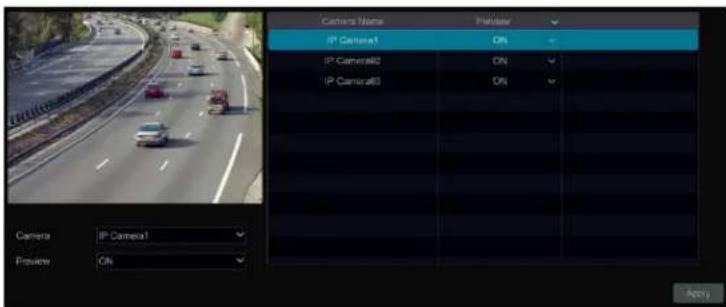

10.5 Preview On Logout....68
10.6 Password Security 68
10.7 View Online User....69

11 Device Management....70

11.1 Network Conguraon....70

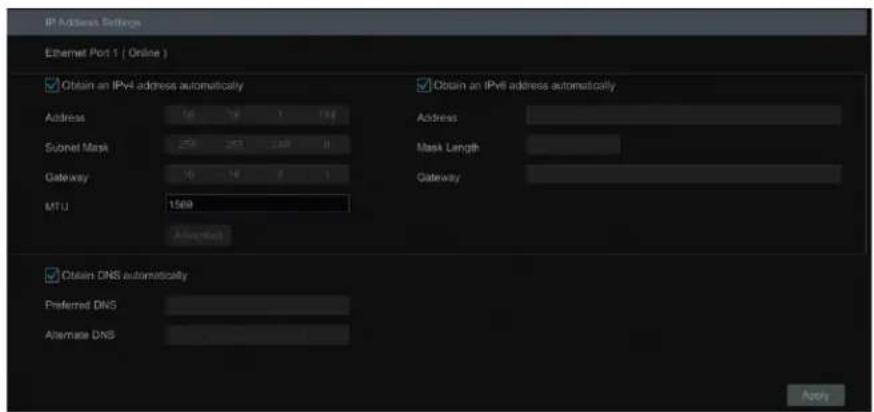

11.1.1 TCP/IP Conguraon 70

11.1.2 Port Conguraon 70

11.1.3 PPPoE Conguraon....72

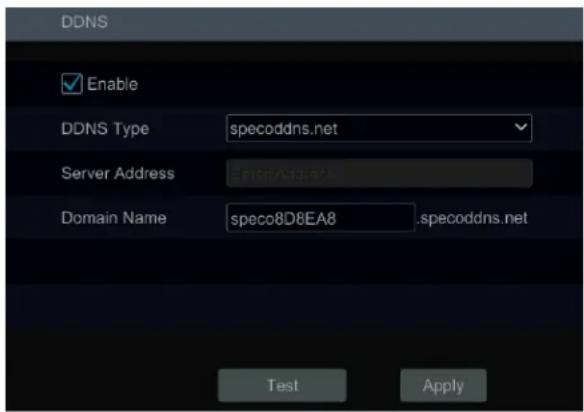

11.1.4 DDNS Conguraon....72

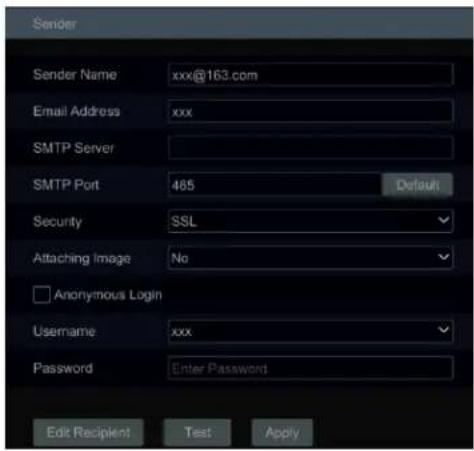

11.1.5 E-mail Conguraon 72

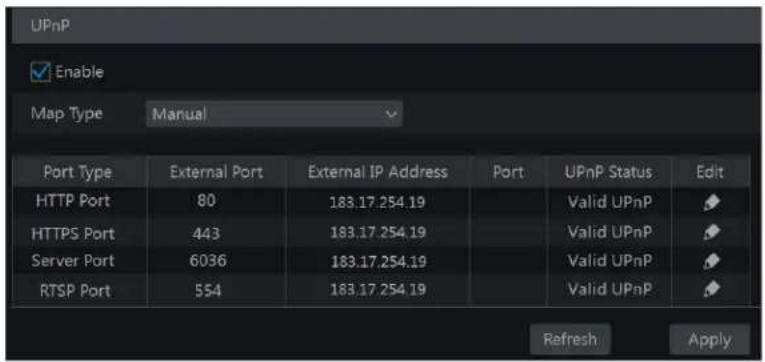

11.1.6 UPnP Conguraon 73

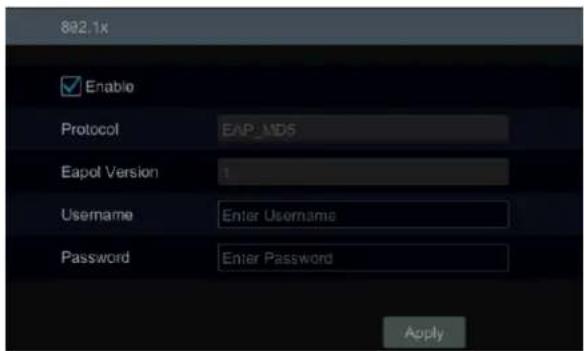

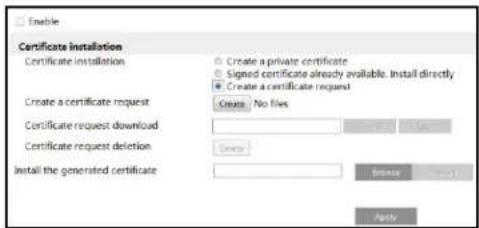

11.1.7 802.1X 74

11.1.8 NAT Conguraon 74

11.1.9 View Network Status....74

11.2 Basic Conguraon....75

11.2.1 General Conguraon 75

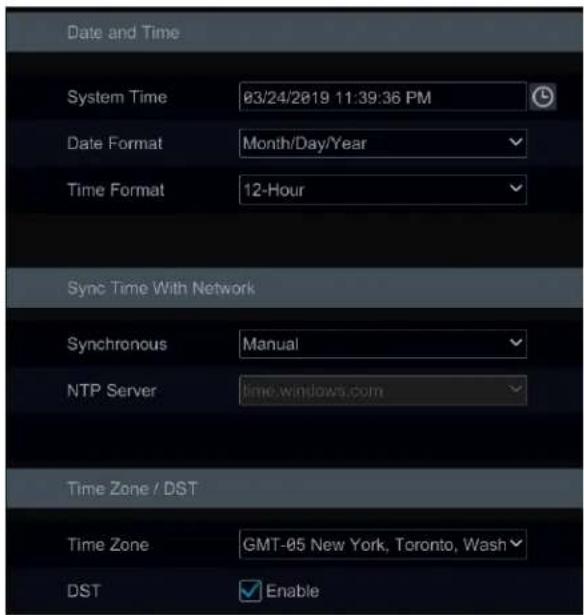

11.2.2 Date and Time Conguraon....75

11.2.3 Recorder OSD Settings....76

11.3 Factory Default 76

11.4 Device Soware Upgrade....76

11.5 Backup and Restore....77

11.6 Restart Automacally....77

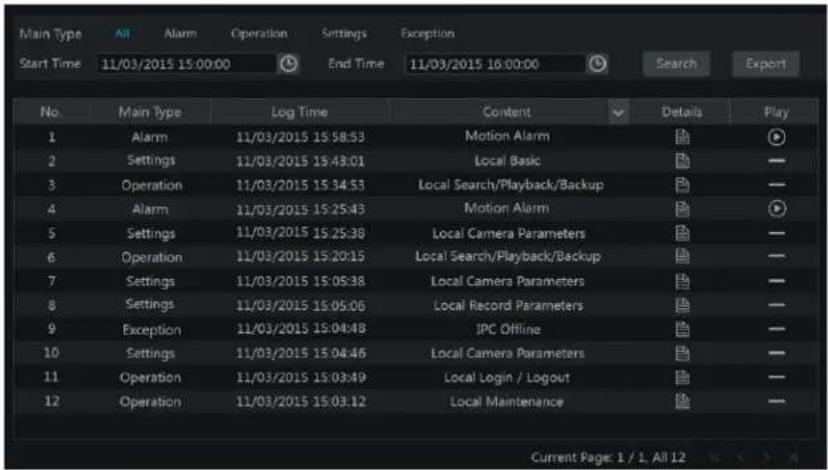

11.7 View Log 78

11.8 View System Informaon 78

12 Remote Surveillance....79

12.1 Mobile Client Surveillance....79

12.2 Web LAN Access....79

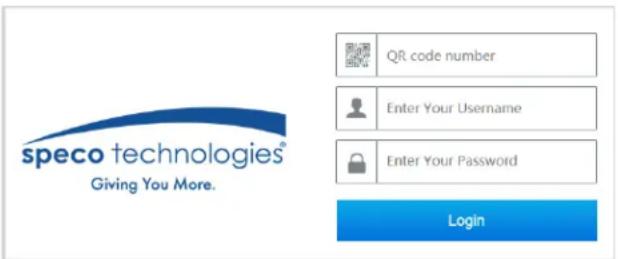

12.3 Web WAN Access 80

12.4 Web Remote Control....80

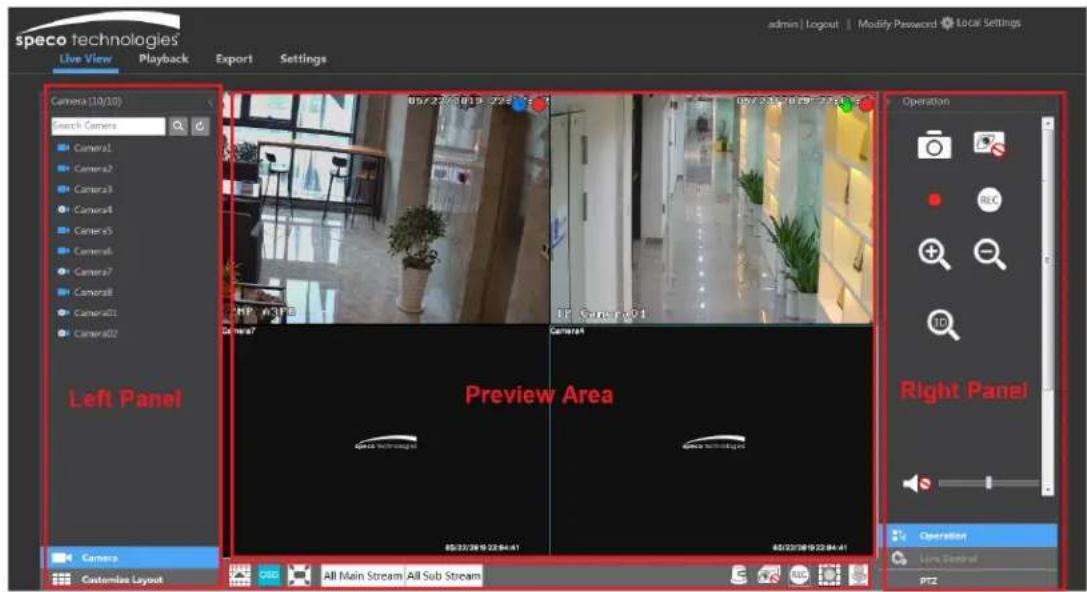

12.4.1 Remote Preview 81

12.4.2 Remote Playback 84

12.4.3 Remote Export....84

12.4.4 Intelligent Analysis....85

12.4.5 Remote Conguraon 85

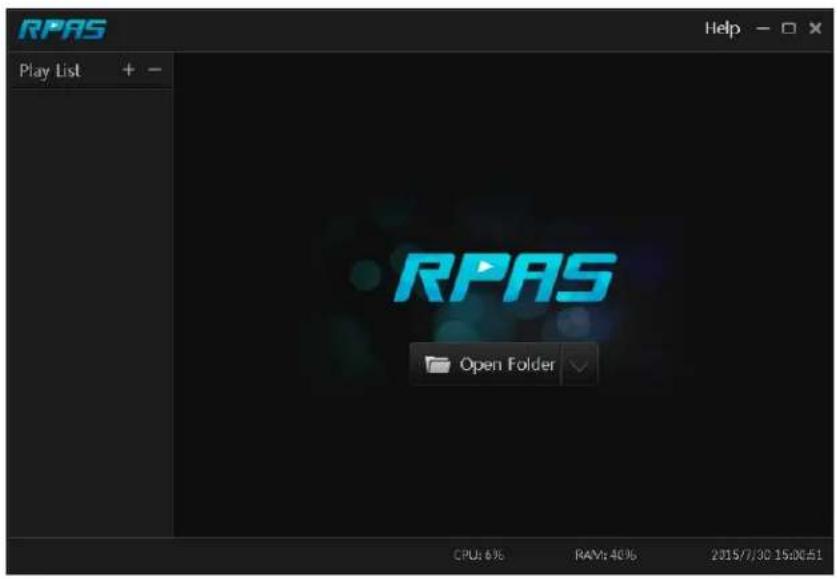

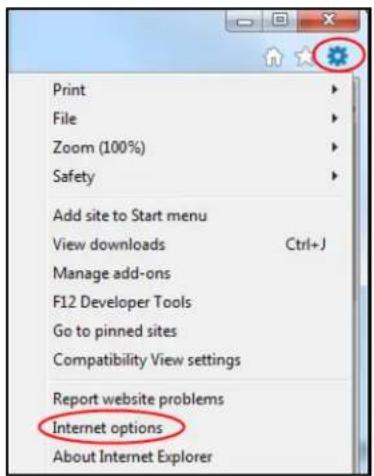

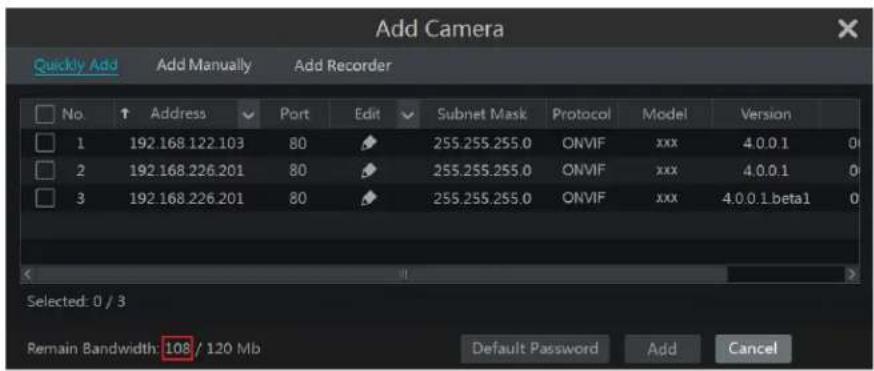

Appendix A FAQ....86

Appendix B Calculate Recording Capacity....91

Appendix C Specifications 92

1 Introducon

1.1 Welcome

Thank you for purchasing this DVR.

If technical assistance is needed, please contact Speco Technologies Technical Support.

Phone: [phone] opon 3

Email: [e-mail]

1.2 Features

Basic Funcons

● Supports network device access including IP camera/dome and the Onvif IP cameras

● The DVR supports the H.265 and H.264 IP cameras

● Supports standard ONVIF protocol

● Supports dual stream recording of each camera

● Supports IP cameras to be added quickly or manually

● Supports collective or individual conguraon of the cameras' OSD, video parameters, mask, moon and so on

● Supports a maximum of 8 user permission groups including Administrator, Advanced and Common which are the default permission groups of the system

- Supports a maximum of 16 users to be created, mulple web client login by using one username at the same me and the user's permission control to be enabled or disabled

- Supports mulple web client's login at the same me

Live View

● Supports 4K×2K/1920×1080/1280×1024 HDMI and 1920×1080/1280×1024 VGA high denion synchronous display

● Supports mul-screen modes such as 1/4/6/8/16

- Supports auto adjustment of the camera's image display proporon

● Supports audio monitoring of the camera to be enabled or disabled

● Supports manual snapshot of the camera

● Supports display mode to be added and saved and the saved modes can be called directly

● Supports quick tool bar operaon of the preview window

● Supports scheme view in sequence, quick sequence view and sequence interval setng

● Supports moon detecon and video mask

● Supports mulple popular P.T.Z. control protocol and setup of the preset and cruise

● Supports direct mouse control of the IP dome including rotang, zoom, focusing and so on

● Supports single camera image to be zoomed by sliding the scroll wheel of the mouse

● Supports any area of the image to be zoomed in to a maximum of 16 mes of the current size

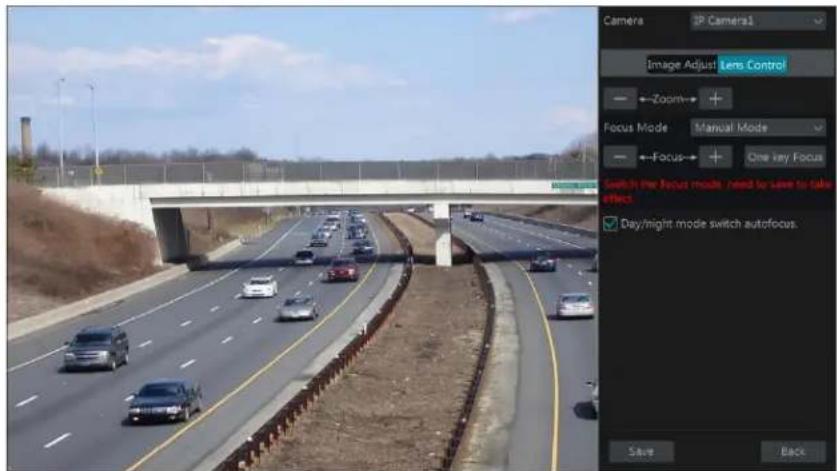

● Supports image and lens adjustment (only available for some cameras)
● Supports quick camera adding in the camera window of the live view interface

Disk Management

● H16HRL/H24HRL supports 2 SATA HDDs
● H16HRL supports 1 SATA HDD
● Supports 1 e-SATA HDD
● Each SATA interface of the DVR supports the HDDs with max 14TB storage capacity
● Supports disk group conguraon and management and each camera can be added into dierent disk groups with dierent storage capacity
● Supports disk informaon and disk working status viewing
● Supports formang disks in batch

Record Conguraon

● Supports main stream and sub stream recording at the same me and collective or individual conguraon of the record stream
● Supports manual and auto record modes
● Supports schedule recording, sensor alarm recording and moon detecon recording, etc
● Supports schedule recording and event recording seng with different record streams
● Supports record schedule seng and recycle recording
● Supports pre recording and delay recording conguraon of the event recording

Record Playback

● Supports me scale operaon in quick playback and the playback date and me can be set randomly by scrolling the mouse; the me interval of the me scale can be zoomed
● Supports record searching by me slice/me/event/tag
● Supports me view and camera view in searching by EZ mode
● Supports EZ search by month, by day, by hour and by minute and me slice to be displayed with camera thumbnail
● Supports a maximum of 16 cameras to be searched by me
● Supports event search by manual/moon/sensor/intelligent events
● Supports bookmark search by the manual added bookmarks
● Supports instant playback of the selected camera in the live view interface
● Supports a maximum of 16 synchronous playback cameras
- Supports acceleraon(maximum 32 mes of the normal speed), deceleraon (minimum 1/32 mes of the normal speed) and 30s' addition or reducon to current playing me

Record Export

● Supports record to be exported through USB (U disk, mobile HDD).
● Supports record to be exported by me/event/image search
● Supports record cung for exporng when playing back
● Supports a maximum of 10 export tasks in background and export status viewing

Alarm Management

● Supports alarm schedule seng
● Supports enabling or disabling of the moon detecon, external sensor alarm input, intelligence alarm and excepon alarms including IP address conict alarm, disk IO error alarm, disk full alarm, no disk alarm, illegal access alarm, network disconncon alarm, IPC oine alarm and so on, alarm trigger conguraon supportable
● Supports IPC oine alarm trigger conguraon of PTZ, snapshot, pop-up video, etc.
● Supports event nocaon modes of alarm-out, pop-up video, pop-up message box, buzzer, e-mail and so on
● The captured images can be aached into the e-mail when alarm linkage is triggered
● Supports alarm status view of alarm-in, alarm-out, moon detecon and excepon alarm
● Supports alarm to be triggered and cleared manually
● Supports system auto reboot when excepon happens

Network Funcons

● Supports TCP/IP and PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP protocol and so on
● Supports allow and block list funcon and the allow and block IP address/IP segment address can be set
● Supports mulple browsers including IE8/9/10/11, Firefox, Opera, Chrome (available only for the versions lower than 45) and Safari in MAC system
● Supports remote achievement, conguraon, import and export of the DVR parameters and other system maintenance operaons including remote upgrading and system restart
● Supports remote camera conguraon of the DVR including video parameters, image quality and so on
● Supports remote search, playback and export of the DVR
● Supports manual alarm to be triggered and cleared remotely
● The motorized zoom camera can be adjusted through web client (Supports zoom in/out, but one key focus is not currently supported)
● Supports NAT funcon and QR Code scanning by mobile phone and Tablet
● Supports mobile surveillance by phones or Tablets with iOS or Android OS
- If one camera recording is enabled or disabled manually through web client, it will be simultaneously enabled or disabled in the DVR

Other Funcons

● The DVR can be controlled and operated by the buons on the front panel, the remote controller and the mouse
- Seng interfaces can be switched to one another conveniently by clicking the main menus on the top of the seng interfaces
● Supports DVR informaon viewing including basic, camera status, alarm status, record status, network status, disk and export status
● Supports factory restoring, import and export of the system conguraon, log view and export and local upgrading by USB mobile device
● Supports auto recognition of the displayer's resolution
- You can click the right mouse buon at any interface to go back to the upper interface
- You can click the mouse wheel at any interface to go to the live view interface
- The display language and video format of the DVR will not be changed and the system logs will be reserved if you reset the DVR to factory default
- Press and hold the right mouse buon for 5 seconds in any interface to switch the output to VGA and the DVR will display the video at the lowest resolution which the DVR supports

1.3 Front Panel Descripons

The following descripons are for reference only.

Name	Descripons
REC	When recording, the light is blue
Net	When access to network, the light is blue
Power	Power indicator, when conncon, the light is blue

1.4 Rear Panel Descripons

To quickly get started, connect the following to your recorder in the following order, please refer to the following gure (H24HRL shown for reference).

Diagram of a network device rack with labeled ports, connectors, and internal components including computer, mouse, and power connections.

1. Connect analog cameras to the video input ports (BNC) of the recorder.
2. Connect a monitor to the recorder via VGA or HDMI cable (not included).
3. Connect the included opcal mouse into any USB port of the recorder.
4. Connect the power adapter to the recorder and plug power cord into a 120VAC 50/60Hz outlet.
5. Connect recorder to network (oponal)

1.5 Connecons

- Video Connecons

Video Input : Supports BNC video input.

Video Output: Supports CVBS/VGA/HDMI video output. You can connect to monitor through these video output interfaces simultaneously or independently.

● Audio Connecons

Audio Input: Connect to microphone, pickup, etc.

Audio Output: Connect to headphone, sound box or other audio output devices.

2 Basic Operaon Guide

2.1 Startup & Shutdown

Please make sure all the connexons are done properly before you power on the unit. Proper startup and shutdown are crucial to extending the life of your device.

2.1.1 Startup

① Connect the output display device to the VGA/HDMI interface of the DVR.
② Connect with the mouse and power. The device will boot and the power LED would turn blue.
③ EZ setup window will pop up (you should select the display language the rst me you use the DVR). Refer to 3.1 EZ Setup for details.

2.1.2 Shutdown

You can power o the device by using remote control or mouse.

By remote control:

① Press Power buon. This will take you to a shutdown window. The unit will power o aer a while by clicking the "OK" buon.
② Disconnect the power.

By mouse:

① Click Start→Shutdown to pop up the Shutdown window. Select "Shutdown" in the window. The unit will power o aer a while by clicking the "OK" buon.
② Disconnect the power.

2.2 Remote Control

① It uses two AAA size baeries.
② Open the baery cover of the remote control.
③ When adding batteries check for the polarity (+ and -).
④ Replace the baery cover.

Key points to check in case the remote doesn't work.

1. Check baeries polarity.
2. Check the remaining charge in the baeries.
3. Check IR controller sensor for any masking.

If it sll doesn't work, please contact your distributor or tech support. You can just turn the IR sensor of the remote control towards the IR receiver of the DVR to control it when you are controlling mulple devices by remote control.

The interface of remote controller is shown as below.

REC 1 2 3 4 5 6 7 8 9 + - 0 Fn1 Multi Next SEQ Audio SPOT ENTER Menu Exit + IRIS+ Focus P.T.Z + - IRIS- Zoom - Preset Cruise Wiper Light Track Clear Fn2 INFO ▶▶ ■ Snap Search ◀◀ ▶ Cut Backup ◀◀ ▶ Zoom PIP

Buon	Funcon
Power Buon	Switch o—to stop the device
Record Buon	To start recording
-/-- /0-9	Input number or choose camera
Fn1 Buon	Unavailable temporarily
Mul Buon	To choose mul screen display mode
Next Buon	To switch the live image
SEQ	To go to sequence view mode
Audio	To enable audio output in live mode
Switch	No funcon temporarily
Direcon buon	To move cursor in setup or pan/tle PTZ
Enter Buon	To conrm the choice or setup
Menu Buon	To go to menu
Exit Buon	To exit the current interface
Focus/IRIS/Zoom/PTZ	To control PTZ camera
Preset Buon	To enter into preset seng in PTZ mode
Cruise Buon	To go to cruise seng in PTZ mode
Track Buon	No track funcon temporarily
Wiper Buon	No funcon temporarily
Light Buon	No funcon temporarily
Clear Buon	No funcon temporarily
Fn2 Buon	No funcon temporarily
Info Buon	Get informaon about the device
	To control playback. Play (Pause)/Stop/Previous Frame/Next Frame/Speed Down/Speed Up
Snap Buon	To take snapshots manually
Search Buon	To go to search mode
Cut Buon	No funcon temporarily
Backup Buon	To go to backup mode
Zoom Buon	To zoom in the images
PIP Buon	Not acve

2.3 Mouse Control

➢ Mouse control in Live Display & Playback interface

In the live display & playback interface, double click on any camera window to show the window in single screen mode; double click the window again to restore it to the previous size.

In the live display & playback interface, if the interfaces display is in full screen, move the mouse to the boom of the interface to pop up a tool bar. The tool bar will disappear automatically aer you move the mouse away from it for some me; move the mouse to the right side of the interface to pop up a panel and the panel will disappear automatically aer you move the mouse away from it.

Mouse control in text-input

Move the mouse to the text-input box and then click the box. The input keyboard will pop up automatically.

Note: Mouse is the default tool for all operations unless an exception as indicated.

2.4 Text-input Instrucon

1 2 3 4 5 6 DEL 7 8 9 0 .

The system includes two input boxes. Refer to the above pictures. The le box is the number input box and the right box is the input box which provides inputs of numbers, letters and punctuaon characters. The introducons of keys on the input boxes are shown below.

Buon	Meaning	Buon	Meaning
	Backspace key		Switch key of punctuaon character
	Delete Key		Enter key
	Switch key between upper and lower leer		Space key
EN/CN	Switch key of language

2.5 Common Buon Operaon

Buon	Meaning
	Click it to show the menu list.
	Click it to change the sequence of the list.
	Click it to change the camera displaying mode.
	Click it to close the current interface.
	Click it to go to the earliest date of camera recording.
	Click it to go to the latest date of camera recording.

3 EZ Setup & Main Interface

3.1 EZ Setup

The disk icons will be shown on the top of the startup interface. You can view the number and status of each disk quickly and conveniently through these icons ( : no disk; : unavailable disk; : RW available disk).

You must conjure the wizard if you start the DVR for the rst me (or click "Skip" to cancel the EZ Setup next me).

The rst me you start up your DVR, you shall choose the language and locality as needed. Aer that, you shall congure date and me.

System Time: Set the me and date format of the system

DST: Toggle Daylight Saving Time On or O

Time format: Choose between 24-hour mode and 12-hour mode.

NTP: Specify an NTP server to synchronize the me (oponal).

EZ Setup Time Zone GMT-12 West of the International Dateline System Time 03/24/2019 03:42:44 PM Date Format Month/Day/Year Time Format 12-Hour DST OFF Synchronous Manual NTP Server time.windows.com Video Format Previous Next

Click "Next" to connue.

EZ Setup Admin Password Setup Username >0001 New Password 123456 Confirm Password 123456 ✓ Display Password □ Log In Automatically Pattern Lock □ Enable Edit Edit Security Question Previous Next

System Login. Set your own password when you use the wizard for the rst me; select the login username and enter the corresponding password next me.

Enable paern lock and click "Edit" to set the paern lock.

Pattern Lock

Click "Edit Security Queson" to set quesons and answers for password security of admin. If you forget the password, please refer to Q4 in Appendix A FAQ for details.

Click "Next" to connue.

Aer you log in, you will see an EZ setup interface as shown below.

EZ Setup OK Enable EZ setup next time. Skip

Click "OK" to start wizard. The EZ Setup steps are as follows.

① System Login. Set your own password when you use the wizard for the rst me (the default username of the system is admin); select the login username and enter the password you set by yourself.

EZ Setup Admin Password Setup Username New Password Confirm Password Enter Password Display Password Log In Automatically Edit Security Question Next Cancel

Click "Next" to connue or click "Cancel" to exit the wizard.

② Network Sengs. Select the network work paern as required. Check "Obtain an IP address automacally" and "Obtain DNS automacally" to get the IP address and DNS automacally (the DHCP funcon of the router in the same LAN should also be enabled), or manually enter them. Enter the HTTP port, RTSP port and Server port (please see 12.1.2 Port Conguraon for details). Click "Next" to connue.

EZ Setup EZ Network > Other Preferences Settings > Ethernet Port 1 ( Online ) Obtain an IP address automatically (use DHCP) Address 192 168 1 100 Submit Mini 255 255 255 0 Gateway 192 168 1 1 Obtain DNS automatically Preferred DNS 0 0 0 0 Alternate DNS HTTP Port 80 RTSP Port 554 HTTPS Port 443 Server Port 6038 Previous Next Cancel

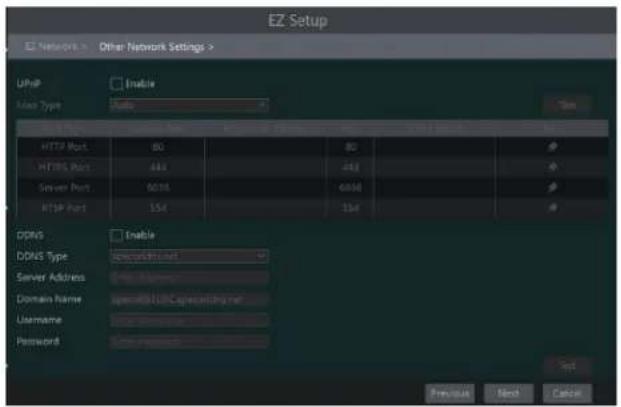

③ Other Network Sengs.

UPnP sengs: Check "Enable" in the interface and enter the port of external and then click "Test". If the UPnP status were "Invalid UPnP", the port number may be wrong. Click to modify the port until the UPnP status turns to "Valid UPnP". Refer to the following picture. You can view the external IP address of the DVR. Enter the external IP address plus port in the address bar of your browser to access the DVR. (Please see 11.1.6 UPnP Conguraon for details).
DDNS Sengs: Check "Enable" and then select the DDNS type. Enter the server address, domain name, username and password according to the selected DDNS type. And then click "Register" or "Test" to test the eecveness of the domain name. If it is eecve, you can enter the domain name in the address bar of your browser to access the DVR. (Please see 11.1.4 DDNS Conguraon for details).

Note: Make sure the router supports UPnP funcon and the UPnP is enabled in the router. Set the DVR's IP address, subnet mask and gateway and so on corresponding to the router.

EZ Setup EZ Network > Other Network Settings > UserP Enable User Type Update Win HTTP Port 80 HTTP Port 441 Server Port 6036 RTP Port 554 DDR5 Enable DDNS Type Server Address Domain Name: [e-mail] Username: Password: www.xu.hcp.com OK Previous Next Cancel

④ Add Camera. To add cameras from the LAN, make sure all cameras are set to DHCP. Click "Refresh" to refresh the list of online IP cameras which are in the same local network with DVR and then click + to add the searched camera. Click "Add All" to add all the cameras in the list. Click 🔒 to delete the added camera. Click "Delete All" to delete all the added cameras.

EZ Setup EZ Network > Other Services Settings > EZ Camera > No. ↑ Address Edit Print Preview Mode# Version Add 1 16.19.3.191 9998 SPEC0 OXVLS4 4.1.9.6 + 2 16.19.6.59 9998 SPEC0 QAVLS5 4.2.1.8 + 3 16.19.6.233 9998 SPEC0 QBDM 4.2.9.8 + 4 16.19.6.234 9998 SPEC0 IPC 4.3.9.6 + 5 16.19.7.163 9998 SPEC0 QAFDSM 4.2.1.8 + 6 16.19.7.173 9998 SPEC0 IPC 4.2.1.8 + Remain Bandwidth: 29 / 32 Mb Return Add Off Delete As No. IP Camera Name Address Print Status Edit Delete 1 [A#]Camera1 2 [A#]Camera2 3 [A#]Camera3 4 [A#]Camera4 5 [A#]Camera5 6 [A#]Camera6 Pictures Next Cancel

Click to edit the searched IP camera as shown on the below le. Enter the new IP address, subnet mask, gateway, username and the password of the camera. You can check "Sync to IPC" to modify the IP address of the IPC via dierent network segments for being in the same network segment with the DVR. Click "OK" to save the sengs.

Edit IP MAC Address 100 12 14 16 18 20 Address 192 166 2 204 Subnet Mask 259 255 255 6 Gateway 192 166 2 1 Username masked Password masked OK Cancel

Edit Camera Camera Name: IP Camera1 Address: Port: Protocol: IP Camera1 Model: Username: Password: ******** Test OK Cancel

Click to edit the added camera as shown on the above right. Enter the new camera name, IP address, port, username and the password of

the camera. You can click "Test" to test the eecveness of the input informaon. Click "OK" to save the sengs. You can change the IP camera name only when the added camera is online. Click "Next" to connue.

⑤ Disk Sengs. You can view the disk number, disk capacity of the DVR and serial number, R&W status of the disk. Click "Formang" to format the disk. Click "Next" to connue.
⑥ Record Sengs. Two record modes are available: auto and manual.

Auto: Select one auto mode in the interface as shown below and then click "Next" buon to save the settings. Click "Advanced" to self-dene record mode. See 7.1.1 Mode Conguraon for details.

EZ Setup EZ Network > Utilization Settings > EZ Camera > EZ Record > Mode Auto Motion Record Sense Record Motion Record+Sense Record Continuous Record+Motion Record Continuous Record+Sensor Record Continuous Record+Motion Record+Sensor Record Continuous Record+Motion Record+Sensor Record + Analytics Record Advanced Forward Find Cancel

Manual: Set the "Sensor Record", "Moon Record" and "Schedule Record" of each camera. Click "OK" to save. See 7.1.1 Mode Conguraon for details.

EZ Setup EZ Network > Other Network Settings < EZ Culture > Dix Settings > EZ Record > Mode Scheduled Camera Name Sensor Record Motion Record Schedule Rec Analytics Record offition

⑦ QR Code. Enable the NAT funcon in the interface or set it in the network conguraon aer exing the wizard (please refer to 11.1.8 NAT Conguraon for details). You can scan the QR Code through the Speco Blue App available for iOS and Android to easily and securely view your cameras. Please refer to 12.1 Mobile Client Surveillance for details. Click "OK" to save the settings.

3.2 Main Interface

3.2.1 Main Interface Introducon

Camera2 Camera3 Camera4 Camera5 Camera6 Camera7 Camera8 admin Search and Export Playback Settings Logout Shutdown EZ Setup 05/22/2019 21:29:58

The buons in area ① are introduced in the table below.

Buon	Meaning
	Start buon. Click it to pop up area 3.
	Full screen buon. Click it to show full screen; click it again to exit the full screen.
	Screen mode buon.
	Sequence buon (see 5.2.2 Quick Sequence View and 5.2.4 Scheme View in Sequence for details).
	Click it to enable OSD; click again to disable OSD.
	Click to set the default playback me before starng instant playback (8.1 Instant Playback) or going to the playback interface for playback operaons (8.2 Playback Interface Introducon); click to to the playback interface. For instance, if you choose “5 minutes ago” as the default playback me, you can playback the record from the past ve minutes.
	Manual record buon. Click it to enable/disable record.
	Manual alarm buon. Click it to trigger or clear the alarm-out manually in the popup window.
	Record status buon. Click it to view the record status.
	Alarm status buon. Click it to view the alarm status.
	Disk status buon. Click it to view the disk status
	Network status buon. Click it to view the network status.
	Informaon buon. Click it to view system informaon.

Introducon of area ②:

Click "Camera" to view all the added cameras in the camera list. Select one camera window on the le side of the interface and then double click

one camera in the list to preview the camera image in the selected window.

Click "Customize Layout" to view all the display modes in the display mode list (refer to 5.2.1 Display Mode for detail conguraon of the display mode). Double click one display mode in the list to switch to the display mode for previewing.

Introducon of area ③:

Icon / Buon	Meaning
	It shows the current login user.
	Click to go to record search and export interface, see 8.4 Record Search,Playback & Export for details.
	Click to go to playback interface (click on the tool bar at the boom of the live view interface to set the default playback me), see 8.2 Playback Interface Introduconfor details.
	Click to pop up the setup panel, see 3.2.2 Setup Panel for details.
	Click to log out the system.
	Click and then select “Logout”, “Reboot” or “Shutdown” in the popup window.
	Click to go to the EZ setup.

3.2.2 Setup Panel

Click Start→Sengs to bring up the setup panel as shown below.

05/22/2019 Camera Customize Layout Add Camera | Edit Camera Image Settings | Motion Intelligent Analytics | PTZ Record Encode Parameters Record Schedule Advanced Alarm Sensor Alarm Alarm-onl Motion Alarm Disk Disk Management Storage Mode | Disk Network TCP/IP | DONS | Port | E-mail Network Status Account and Authority Add User | Edit User Edit Permission Group Modify Password | Pattern Lock System Basic | Date and Time | Information View Log | Backup and Restore admin Search and Export Playback Settings Logout Shutdown EZ Setup space technology space technology

The setup panel includes seven modules. Each module provides some funcon entries with links for convenient operaon.

Here we take Camera module as an example. The Camera module provides convenient links such as "Add Camera", "Edit Camera", "Image Sengs", "Moon", "Intelligence Analys" and "PTZ". Click Camera to go to the camera management interface as shown below.

Manage Camera Add Camera Camera Signal : Edit Camera Image OSD Settings Camera Signal Search Camera Add Camera No Camera Name Address Port Status Protocol Model Preview Edit Upgrade Version 1 [A81]Camera1 2 [A82]Camera2

There are some funcon items on the le side of the camera management interface. Click each item to go to corresponding interface or window. For instance, click "Add Camera" to pop up the window as shown below.

Add Camera Add Auto Add Manually No Address Port Edit Subnet Mask Protocol Model 1 172.16.28.235 00 0.0 0.0 SPECO O2DP6 Selected: 8 / 1 Refresh Add Delete All No IP Camera Name Address Protocol Status Edit Delete 1 [AB1]Camera1 2 [AB2]Camera2 3 [AB3]Camera3 4 [AB4]Camera4 5 [AB5]Camera5 6 [AB6]Camera6 7 [AB7]Camera7 Remain Bandwidth: 32 / 32 Mb Advanced Cancel

Click the main menus on the top of the camera management interface to go to corresponding interfaces. Refer to the picture below. For instance, you can go to the system setup interface by clicking "System" tag.

Live View Camera Record Alarm Disk Network Account and Authority System

3.2.3 Main Funcons

Camera

The module covers the funcons such as Camera Management (see Chapter 4 Camera Management for details), Image Sengs (see 5.3 Image Conguraon for details), Moon (see 9.2.1 Moon Conguraon for details), and PTZ (see Chapter 6 PTZ for details) and so on.

Record

The module covers the funcons such as Encode Parameters and Record Schedule and so on. Please see Chapter 7 Record & Disk Management for details.

> Alarm

The module covers the funcons such as Sensor and Moon Alarm Handling and Alarm Out Sengs. Please see Chapter 9 Alarm Management for details.

Disk

The module covers the funcons such as Disk Management, Storage Mode and Disk Informaon and so on. Please see Chapter 7 Record & Disk Management for details.

Network

The module covers the funcons such as TCP/IP, DDNS, Port, E-mail and Network Status and so on. Please see 11.1 Network Conguraon for details.

Account and Authority

The module covers the funcons such as Account Management (see 10.1 Account Management for details) and Permission Management (see 10.3 Permission Management for details) and so on.

System

The module covers the funcons such as Basic Conguraon (see 11.2 Basic Conguraon for details), Device Informaon (see 11.8 View System Informaon for details), Log Informaon (see 11.7 View Log for details) and Conguraon File Import&Export (see 11.5 Backup and Restore for details) and so on.

4 Camera Management

4.1 Camera Signal

Click Start→Sengs→Camera→Manage Camera→Camera Signal to go to the interface as shown below.

Some models may support analog signal switching to IP signal, which means decreasing (or increasing) the number of analog channels will accordingly increase (or decrease) the number of IP channels.

The DVR device supports hybrid access of TVI, and CVBS high denion cameras. If the TVI high denion camera is accessed to the DVR, you should select TVI/CVBS in the following interface to show the camera image normally; if you select AHD/CVBS, then there will be no image or the image has no color. The default selecon of the camera signal is Auto. If you select Auto, the image of the camera will be shown normally regardless of the camera type.

[A91] Analog [AB2] Analog [AB3] Analog [AB4] Analog [AB5] Analog [AB6] Analog [AB7] Analog [AB8] Analog [AB9] Analog [A10] Analog [A11] Analog [A12] Analog [A13] Analog [A14] Analog [A15] Analog Auto(TVIAHD/CYBS) Auto(TVIAHD/CYBS) Auto(TVIAHD/CYBS) Auto(TVIAHD/CYBS) Auto(TVIAHD/CYBS) Auto(TVIAHD/CYBS) Auto(TVIAHD/CYBS) Auto(TVIAHD/CYBS) Auto(TVIAHD/CYBS) Auto(TVIAHD/CYBS) Auto(TVIAHD/CYBS) Auto(TVIAHD/CYBS) OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF

Note: You can enable "Lite" in the interface if the DVR supports "Lite" recording. It will lower the recording resolution and increase the recording frame rate. Please enable or disable the Lite as needed.

4.2 Add/Edit Camera

4.2.1 Add Camera

The network of the DVR should be set before adding IP camera (see 12.1.1 TCP/IP Conguraon for details).

Refer to the pictures below. Click Add Camera in the setup panel or + in the top right corner of the preview window to pop up the "Add Camera" window as shown below. You can quickly add or add the IP camera manually.

Camera Add Camera Edit Camera Image Settings | Motion Click it to add a IP camera +

Add Camera Query Ads Aust Manually No. 1 Address Part Exit Subred Mask Protocol Model 1 172.16.28.235 68 @0.0 SPECO Q2DP9 Selected: 8 / 1 Refresh Add Delete all No. IP Camera Name Address Protocol Status Edit Delete 1 [A01]Camera1 2 [A02]Camera2 3 [A03]Camera3 4 [A04]Camera4 5 [A05]Camera5 6 [A06]Camera6 7 [A07]Camera7 Remain Bandwidth: 32 / 32 Mb Advanced Cancel

> Quickly Add

Check the cameras and then click "Add" to add cameras. Click 📋 to edit the camera's IP address, username and password and so on. Click "Default Password" to set the default username and password of each camera.

Add Camera Quickly Add Added Myanmar Address Port Username Password Protcoo Test Delete 0.0.0 UNITS-admin ... Space Test Add Delete All No. IP Camera Name Address Protocol Status Endt Delete 1 [A81]Camera1 # 2 [A92]Camera2 # 3 [A63]Camera3 # 4 [A64]Camera4 # 5 [A95]Camera5 # 6 [A96]Camera6 # Rainfall Bandwidth: 30 / 32 Mb Advanced Cancel

Add Manually

Enter the IP address or domain name (click √ in the IP address column to pop up the domain name input window, enter the domain name of the IPC in the window and then click "OK" buon), port, username and password of the camera and then select the protocol. Click "Test" to test the eecveness of the input informaon and then click "Add" buon (you can input one camera's informaon or above such as IP address, username and password before clicking "Add" buon). Click 🔒 to delete the camera. Click "Default Password" to set the default username and password of each camera.

4.2.2 Edit Camera

Click "Edit Camera" in the setup panel to go to the interface as shown below. Click to view the live image of the camera in the popup window. Click to edit the camera (see Add camera in 3.1 Startup Wizard for details). Click to delete the camera. Click in the "Operaon"

header line and then click "Modify IPC Password" to pop up a window (check the IPCs in the window, set the new password and then click "OK" buon; only the online IPCs' passwords can be modied and a batch of IPCs' passwords can be modied at the same me). Click to upgrade an online IPC (or click in the "Upgrade" header line and then click "IPC Batch Upgrade" to upgrade a batch of IPCs), select the device which stores the upgrade le in the "Device Name" item of the popup window and the upgrade le in the list(you should select the upgrade IPC model in the window if a batch of IPCs' passwords need to be modied) and then click "Upgrade" button to start upgrading(the IPC will restart automatically aer the upgrade is completed successfully).

Camera Search Camera Alt Control No. Camera Name Assets Fold Status Pressure Model Pressure Load Unloaded Version 1 [A9]Camera1 2 [A8]Camera2 3 [A8]Camera3 4 [A8]Camera4 5 [A8]Camera6 6 [A8]Camera8 7 [A9]Camera7 8 [A8]Camera8 9 [A8]Camera9 10 [A10]Camera10 11 [A10]Camera11 12 [A12]Camera12 13 [A12]Camera13 14 [A14]Camera14 15 [A15]Camera15 16 [A16]Camera16 IP Camera Max Number: 8 Raman Bandwidth: 20 x 32 Mb

5 Live View Introducon

5.1 Live View Interface Introducon

Refer to the interface as shown below, drag one camera in the preview window to another window for camera window exchanging.

The record symbols with dierent colors in the live view window refer to dierent record types when recording: green stands for manual record, red stands for sensor based record, yellow stands for moon based record, blue stands for schedule record and cyan stands for intelligence record.

Camera Customize Layout Camera1 Camera2 Camera3 Camera4 Camera5 ① Camera7 Camera8 Camera2 Camera3 Camera4 Camera5 Camera6 Camera7 Camera8 Camera91 0 6 7 8 9 10 11 12 13 14 15 16 05/22/2019 21:43:46

Click the preview window to show the tool bar as shown in area ①; right click the preview window to show the menu list. The tool bar and menu list are introduced in the table below.

Buon	Menu List	Meaning
	--	Move tool. Click it to move the toolbar anywhere.
	Manually Record On	Click it to start recording.
	Instant Playback	Click playback the record; click “Instant Playback” to select or self-dene the instant playback me. See 8.1 Instant Playback for details.
	Enable Audio	Click it to enable audio. You can listen to the camera audio by enabling audio.
	Snap	Click it to pop up the snap window. Click “Save” in the window to save the image. Click “Export” to export the image.
	PTZ Control	Click it to go to PTZ control interface. See Chapter 6 PTZ for details.
	Zoom In	Click it to go to single channel amplicaon interface.
	--	Click it to go to image adjustment interface. Refer to 5.4.5 Image Adjustment for details.
--	Camera Info	Click it to view the camera informaon.

The single channel zoom interface is as shown below. Press and drag the blue box to select the zoom in area. Click / to zoom the

image. Click the camera selecon box to select other cameras for amplicaon. Click "Back" to return to the live view interface.

Highway traffic scene with multiple lanes and cars, inset shows a close-up of a highway with visible tracks (no text or symbols)

5.2 View Mode

5.2.1 Display Mode

Set dierent screen modes and cameras' display sequences as needed and then save the display modes classified by surveillance areas, priories and so on. Refer to the picture below. Double click one display mode in the display mode list to view the live images in this mode.

06/23/2019 2MP A3FR 192.166.258.167 UP Camera 0.1 Camera Customize Layout Camera7 Camera4 spice technology spice technology 85/22/2019 21:55:09

Add Display Mode

Method One:

① Click "Customize Display Modes" in the above interface and then set the screen mode.
② Add the cameras and adjust the cameras' display sequence as needed.

③ Click under the display mode list and then enter the display mode name in the popup window, click the "OK" buon to save the current display mode.

Method Two:

① Click Start→Sengs→System→Basic→Output Setngs to go to the interface and then set the screen mode.
② Double click the camera or camera group in the list to add them to the selected window.
③ Click ★ to save the current display mode (refer to 5.2.4 Scheme View In Sequence for detail conguraons). The display mode will be saved and displayed in the display mode list in the live view interface.

Edit Display Mode

Click "Customize Layout" tab in the live view interface and then select one display mode in the list. Click to edit the display mode name; click to delete the display mode.

5.2.2 Quick Sequence View

You can start quick sequence view if the scheme has not been created. If the scheme has been created, please refer to 5.2.4 Scheme View in Sequence for details.

03/24/2019 15:20:35 Camera01 03/24/2019 19:20:35 192.168.258.75 03/25/2019 17:25 192.168.258.35 03/24/2019 07:20:31 PM 192.168.258.167 s Camera03 30 Secs 03/24/2019 11:17:17 PM

Go to the live view interface and then click 📋 to pop up a lile window. Set the dwell me in the window and then click 📋 to view the live group by group according to the camera number of the current screen mode. Double click the sequence view interface to pause the view; double click again to restore the view. Click 📋 stop the view.

5.2.3 Scheme View In Sequence

Click Start→Sengs→System→Basic→Output Setngs to go to the interface as shown below.

Area ① displays all the sequence schemes; area ② shows the detailed informaon of the scheme; area ③ displays all the cameras and groups; area ④ is the tool bar (☐: clear buon; ★favorite buon, click it to pop up a window, enter the display mode name in the window and then click "OK" to save the current display mode; other buons are screen mode buons).

Main Output Output2 Sequence 1 ① ② ③ Camera Camera1 Camera2 Camera3 Camera4 Camera5 Camera6 Camera7 Camera8 Apply

Add Scheme

Click + in area ① to create a new scheme. Click ✗ on the top right corner of the scheme to delete it.

Congure Scheme

a) Select a scheme in area ① and then click the screen mode buon on the tool bar to set the screen mode of the scheme.
b) Select a camera window in area ② and then double click the camera or group in area ③. The camera or group will be added into the selected window. One camera in the same scheme cannot repeat. You can click the right-click menu "Clear" in area ② to remove a single camera or click remove all the cameras.
c) Click "Apply" to save the sengs.

Start Sequence View

Go to the live view interface and then click 📋 to open a window. Set the sequence interval in the window and then click 📋 to start scheme view in sequence. Double click the sequence view interface to pause the view; double click again to restore the view. Click 📋 to stop the view.

5.2.4 Spot View

Click Start→Sengs→System→Basic→Output Settings→Output 2 to go to the interface as shown below.

Click + on the le to create a new scheme. Each scheme can only add one analog camera. Select a scheme on the le and then double click or drag a camera on the right to the scheme window in the middle of the interface. Aer nishing the sengs of all the schemes, select the sequence interval and click "Apply" to start playing the schemes in sequence in output 2.

Main Output Output2 Sequence 1 1 Camera Camera1 Camera2 Camera3 Camera4 Camera5 Camera6 Camera7 Camera8 Sequence Interval: 5 Secs Apply

5.3 Image Conguraon

5.3.1 OSD Sengs

Click Start→Sengs→Camera→Image→OSD Sengs to go to the interface as shown below. Select the camera, enter the camera name (or double click the camera name in the camera list to change the camera name), enable or disable the name and me OSDs (if enabled, drag the red name and me OSDs directly in the image view area to change the OSDs' display posion) and select the date, me format and color. Click "Apply" to save the sengs.

Camera Name OSD Name OSO Time Date Format Time Format Color Camera1 ON ON Month/Day/Year 24-Hour Camera2 ON ON Month/Day/Year 24-Hour Camera3 ON ON Month/Day/Year 24-Hour Camera4 ON ON Month/Day/Year 24-Hour Camera5 ON ON Month/Day/Year 24-Hour Camera6 ON ON Month/Day/Year 24-Hour Camera7 ON ON Month/Day/Year 24-Hour Camera8 ON ON Month/Day/Year 24-Hour Camera9 ON ON Month/Day/Year 24-Hour Camera10 ON ON Month/Day/Year 24-Hour Camera11 ON ON Month/Day/Year 24-Hour Camera12 ON ON Month/Day/Year 24-Hour Camera13 ON ON Month/Day/Year 24-Hour Camera14 ON ON Month/Day/Year 24-Hour Camera15 ON ON Month/Day/Year 24-Hour Camera16 ON ON Month/Day/Year 24-Hour IP CAMERA ON ON Month/Day/Year 24-Hour

5.3.2 Image Sengs

Click Start→Setngs→Camera→Image→Image Setngs to go to the following interface. Select the camera and then set the brightness, contrast, saturon and hue of the camera. Click "Advanced" button or in the camera list on the right side of the interface to pop up "Image Adjust" interface and then set the relevant setng items. Please refer to 5.4.5 Image Adjustment for detailed introducons of these items.

You can click "Default" to restore the image sengs to the default factory sengs.

Camera Name Brightness Contrast Saturation Hue Advanced Default IP61 25 50 50 50 IP62 25 50 50 50 IP63 25 50 50 50 IP64 25 50 50 50 IP65 25 50 50 50 IP66 25 50 50 50 IP67 25 50 50 Advanced

5.3.3 Mask Sengs

Some areas of the image can be masked for privacy. Up to four mask areas can be set for each camera. Click Start→Setngs→Camera→Image→Mask Sengs to go to the interface as shown below. Select the camera and enable the mask. Click "Draw" buon and then drag the mouse on the image area to set the mask area; click "Delete" buon to delete the mask areas; click "Apply" to save the sengs.

Camera Name Mask Color Camera1 ON Black Camera2 OFF Black Camera3 OFF Black Camera4 OFF Black Draw Delete Camera Camera1 Mask ON Apply

5.3.4 Water Mark Sengs

Click Start→Sengs→Camera→Image→Water Mark Sengs to go to the interface as shown below. Select the camera and enable water mark and then enter the water mark informaon. Click "Apply" to save the settings.

Camera Name Water Mark Information Camera1 ON XXXXX Camera2 OFF Camera3 OFF Camera4 OFF Camera Camera1 Water Mark ON Information XXXXX Apply

5.3.5 Image Adjustment

Go to the live view interface and then click buon on the tool bar under the camera window to go to the image adjustment interface.

Camera P Camera4 Image Adjust Lens Control Brightness 7 Contrast 6 Saturation 4 Hue 6 Sharpness 12 Wide Dynamic 50 Denosie 6 Image Shift 49 Backlight OFF Default Back

Image Adjustment

Select the camera and then click "Image Adjustment" to go to image adjustment tab. Refer to the above picture. Drag the slider to set the camera's brightness, contrast, saturaon and hue value. Check sharpen, wide dynamic and denoise and then drag the slider to set the value. Click "Default" buon to set these parameters to default values.

The introducons of these parameters are as follows:

Parameter	Meaning
Brightness	It is the brightness level of the camera's image.
Contrast	It is the color dience between the brightest and darkest parts.
Saturaon	It is the degree of color purity. The color is purer, the image is brighter.
Hue	It relates to the total color degree of the image.
Sharpen	It relates to the resoluon level of the image plane and the sharpness level of the image edge.
Wide Dynamic	The wide dynamic range (WDR) funcon helps the camera provide clear images even unde back light circumstances. When there are both very bright and very dark areas simultaneously in the eld of view, WDR balances the brightness level of the whole image and provide clear images with details.
Denoise	Adopt the noise reducon technology to decrease the noise and make the image more thorough. Increasing the value will make the noise reducon eect beer but it will reduce the image resoluon.
White Balance	White balance is the white rendition funcon of the camera to adjust the color temperature according to the environment automacally.
BLC	HLC: lowers the brightness of the enre image by suppressing the brightness of the image's bright area and reducing the size of the halo area.BLC: If enabled, the auto exposure will acvate according to the scene so that the object of the image in the darkest area will be seen clearly.
Image Mirror	Reverse the current video image right and le.
Image Flip	Turn the current video image upside down.

Lens Control

Select the camera and then click "Lens Control" to go to lens control tab. Click - or + to adjust the zoom and focus parameters of the camera's lens. Click "Save" to save the sengs.

Camera IP Camera1 Image Adjust Lens Control ←Zoom→ + Focus Mode Manual Mode ←Focus→ + One key Focus Switch the Focus mode, need to save to take effect. Day/night mode switch autofocus. Save Back

The introducons of these parameters and buons are as follows.

Buon/Parameter	Meaning
	Click [T6A0] zoc out the image.
Focus Mode	If manual mode is selected, focus buon & “One Key Focus” & “Day/night mode switch autofocus” will be available; if auto mode is selected, the me interval setup will be available.
	Click [32WO] inc [SWHD] 'decrease the focal length.
One key Focus	Click it to focus instantly.
Day/night mode switch autofocus	If checked, the lens will focus automatically when the camera is switching day/night mode.
Time Interval	It is the me interval when camera lens is auto-focusing. The interval can be set in the drop-down list.

Note: if the lens of the camera connected to the DVR is xed, the lens control funcon is unavailable.

6 PTZ

6.1 PTZ Control Interface Introducon

You can control the IP dome or PTZ which connects to the IP camera for PTZ control.

Click on the tool bar at the boom of the live view window to go to the PTZ control interface as shown below. You can select another IP dome or PTZ which connects to the IP camera on the top right of the interface for PTZ control.

Analog Joystick Camera IP Camera1 Preset Cruise Preset Preset Name Call 1 preset1 2 preset2 Add Delete Save Position ←Zoom→ + ←Focus→ + ←Iris→ + Speed

Introducons of the buons on the boom right of the interface:

Buon		Meaning
		Click / / / / / / / / / / / to rotate the dome. Click to stop rotang the dome.
		Click / to zoom in / out the camera image.
		Click / to increase / decrease the focal length.
		Click / to increase / decrease the iris of the dome.
		Drag the slider to adjust the rotang speed of the dome.
		Click / to stop / stop recording.
		Click / to show / show the analog joysck.
		Click it to return to the live view interface.

Analog Joysck Control

The analog joysck on the le side of the interface provides quick PTZ control. The dome or PTZ will rotate when you drag the analog joysck. The

farther you drag the analog joysck from the middle of the image, the faster the dome or PTZ rotates. The dome or PTZ will stop rotang when you stop dragging the analog joysck.

3D Control

Click the camera image on any area and then the image will be centered on the clicked point.

Refer to the picture as shown below. Drag the mouse from A to B to get a green rectangle and the rectangle area will be zoomed in.

Camera IP Camera1 Preset Cruise Preset Preset Name Call 1 preset1 2 preset2 Add Delete Save Position Zoom Focus Iris Speed

Refer to the picture as shown below. Drag the mouse from C to D to get a green rectangle and the rectangle area will be zoomed out.

Camera IP Camera1 Preset Cruise Preset Preset Name Call 1 preset1 2 preset2 Add Delete Save Position Zoom→ + focus→ + Iris→ + Speed

Advanced 3D Control

Double click the le button of the mouse on any area of the camera image and then the image size will be doubled and centered on the clicked point.

Press and hold the le buon of the mouse on any area of the camera image to zoom in the image; press and hold the right buon to zoom out the image.

Move the cursor of the mouse to the camera image and then slide the scroll wheel of the mouse forward to zoom in the image, slide the scroll wheel of the mouse backward to zoom out the image.

OSD Seng

Go to PTZ protocol setng interface and then set the protocol before you bring up the OSD. Click "OSD Menu" to go to camera OSD setng interface. Click → start OSD seng. The meanings of the buons are shown in the table below.

OSD Menu Preset Cruise

Buon	Meaning
	Click it to call main menu or enter the sub menu or conrm the sengs.
	Click it to call main menu or enter the sub menu or conrm the sengs.
	Click it to change the menu mode or decrease the menu value.
	Click it to change the menu mode or increase the menu value.
	Click it to go to the previous menu.
	Click it to go to the next menu.

Preset Seng

Click "Preset" to go to preset operaon tab and then click "Add" buon to pop up a window as shown below. Select the preset and then enter the preset name in the window; nally click "OK" buon to save the sengs. You can add 255 presets for each dome at most.

Add Preset Preset 2 Preset Name preset2 OK Cancel

Adjust the dome's direcon and then click "Save Posion" to save the current preset posion (you can also click another preset in the preset list and then save the preset posion aer adjusng the dome's direcon); click the preset list to call the preset; click "Delete" buon to delete the selected preset.

You can also go to preset seng interface for preset seng, see 6.2 Preset Seng for details.

Cruise Seng

Click "Cruise" to go to cruise operaon tab and then click "Add" buon to pop up a window as shown below le. You can add 8 cruises for each dome at most.

Add Cruise Cruise Name: cruise 2 Preset Preset Name Speed Time Edit Delete 1 preset1 5 Ssecs Add Preset Add Preset Preset Name: preset2 Time: Ssecs Speed: 5 OK Cancel

① Enter the cruise name in the "Add Cruise" window and then click "Add preset" to pop up the "Add Preset" window (Before adding preset to the cruise, please add preset of the dome rst).

② In the "Add Preset" window, select the preset name, preset me and preset speed and then click "OK" button.

③ In the "Add Cruise" window, you can click to reselect the preset, then change the preset me and speed. Click to delete the preset. Click "Add" buon to save the cruise.

Click ▶ to start the cruise and click □ to stop the cruise in the cruise list of the cruise operaon tab; click "Delete" buon to delete the selected cruise.

You can also go to cruise seng interface for cruise seng, see 6.3 Cruise Seng for details.

6.2 Preset Seng

Click Start→Sengs→Camera→PTZ→Preset to go to the interface as shown below.

Preset Cruise IP Camera1 Number of Preset ( 1 ) Zoom Focus Iris Speed Camera IP Camera1 Preset 1 Preset Name preset1 Add Delete Save Position

> Add preset

Select camera and then click "Add" buon to add preset; or click in the camera list on the right side of the interface to display the preset informaon of the dome and then click + to add preset. The operaons of the "Add Preset" window are similar to that of the PTZ control interface; please see 6.1 PTZ Control Interface Introducon for details.

Edit preset

Select camera and preset. You can enter the new name of the preset and then click to save the new preset name. Adjust the rotang speed, posion, zoom, focus and iris of the preset and then click "Save Posion" to save the preset.

Delete Preset

Select camera and preset and then click "Delete" to delete the preset.

6.3 Cruise Seng

Click Start→Sengs→Camera→PTZ→Cruise to go to the interface as shown below.

Preset Cruise Camera IP Camera1 Cruise cruise1 Cruise Name cruise1 Preset Preset Name Speed Time Edit 1 preset1 5 5 Secs 2 preset2 5 5 Secs Add Preset IP Camera1 Number of Cruise( 1 ) cruise1 +

Add Cruise

Click in the camera list on the right side of the interface to display the cruise informaon of the dome and then click to add cruise. The operaons of the "Add Cruise" window is similar to that of the PTZ control interface; please see 6.1 PTZ Control Interface Introducon for details.

Edit Cruise

Select the camera and cruise in the "Cruise" interface. Enter the new cruise name and then click 📄 to save the cruise name. Click "Add Preset" to add preset to the cruise. Click 🔒 to edit the preset. Click 🔒 to delete the preset from the cruise. Click one preset in the preset list and then click 🔒 to move down the preset and click 🔒 to move up the preset. Click 🔒 to start the cruise and click 🔒 to stop it.

Delete Cruise

Click in the camera list on the right side of the interface to display the cruise informaon of the dome and then click corner of the cruise to delete the cruise.

7 Record& Disk Management

7.1 Record Conguraon

7.1.1 Mode Conguraon

Please format the HDDs before recording (refer to 7.5 Disk Management for details). Click Start→Sengs→Record→Mode Sengs to go to the mode sengs interface. You can set the record time under the "Manual Record Setngs" and then click "Apply" to save the sengs. There are two record modes: auto mode and manual mode.

Record Mode Mode: Auto Motion Record Sensor Record Motion Record+Sensor Record Continuous Record+Motion Record Continuous Record+Sensor Record Continuous Record+Motion Record+Sensor Record Continuous Record+Motion Record+Sensor Record+Analysis Record Advanced Non-cell Record Settings Record Time Manual Name

Auto Mode

Moon Record: Moon alarm record will be enabled when moon alarm happens.

Sensor Record: Sensor alarm record will be enabled when sensor alarm happens.

Moon Record+Sensor Record: Moon/sensor alarm record will be enabled when moon/sensor alarm happens.

Connnuous Record+Moon Record: Normal record is enabled all the me; moon alarm record will be started when moon alarm happens.

Connuous Record+Sensor Record: Normal record is enabled all the me; sensor alarm record will be started when sensor alarm happens.

Connuous Record+MoonRecord+Sensor Record: Normal record is enabled all the me; moon/sensor alarm record will be enabled when moon/sensor alarm happens.

Connnuous Record+MoonRecord+Sensor Record+Analycs Record: Normal record is enabled all the me; moon/sensor/analycs alarm record will be enabled when moon/sensor/intelligence analytics alarm happens.

You can add more auto modes on intelligence record. Click "Advanced" buon to pop up a window as shown below. Check the modes in the window and then click "Add" buon to show the modes in the record mode list (in the window, the checked modes can be showed in the record mode list while the unchecked modes cannot; you shall check "Analytics Record").

Custom Record Mode Motion Record Sensor Record Continuous Record Analytics Record Add Cancel

Select one auto mode to pop up the corresponding window. Set the encode, GOP, resoluon, FPS, bitrate type, quality, max bitrate and audio of each camera and then click "OK" to save the sengs. Please adjust the parameters according to the actual condition.

Continuous Record+Motion Record Normal Motion Record Camera Name Stream Type Encode Resolution FPS Bitrate Type Quality Max Bitrate Bitrate Limit Recommended Range Audio GOP 02FBRM Main Stream H.265 1928x1088 38 VBR Higher 2848Kbps 2838-4716Kbps ON 68 IPC Main Stream Remain Bandwidth: 246 / 256 Mb Predict Record Time:73 Days OK Cancel

Video Encode: the available opons will be H.265 and H.264 if the connected IP camera supports H.265, or the opon will be H.264 only.

GOP: group of pictures.

Resoluon: the higher the resoluon is, the clearer the image is.

FPS: the higher the frame rate is, the more uency the video is. However, more storage room will be taken up.

Bitrate Type: CBR and VBR are oponal. CBR means that no maer how much change is seen in the video scene, the compression bitrate will be kept constant. VBR means that the compression bitrate will be adjusted according scene changes. For example, for scenes that do not have much movement, the bitrate will be kept at a lower value. This will help to opmize the network bandwidth.

Quality: When VBR is selected, you need to choose image quality. The higher the image quality you choose, the more bitrate will be required.

Max Bitrate: 32Kbps \~10240Kbps are oponal.

Manual Mode

If the manual mode is selected, you need to set the encode parameters and record schedules of each camera. See 7.2 Encode Parameters Setng and 7.3 Schedule Seng for details.

7.1.2 Advanced Conguraon

Click Start→Sengs→Record→Advanced to go to the following interface. Enable or disable "Overwrite record" (Overwrite record: the earliest recorded data will be replaced by the latest when the disks are full). Set the pre-alarm record me, post-alarm record me and expiraon me of each camera and then click "Apply" to save the sengs.

Advanced Record Settings ✓ Cycle Record (Check this to overwrite the oldest recordings which storage is full) Dual Stream Record Camera Record Parameters Camera Name Presets Record Time Post-System Record Time Extension Time Camera1 5 Secs ✓ 16 Secs ✓ Never Escape Camera2 5 Secs ✓ 18 Secs ✓ Never Escape Camera3 5 Secs ✓ 18 Secs ✓ Never Escape Camera4 5 Secs ✓ 18 Secs ✓ Never Escape Camera5 5 Secs ✓ 18 Secs ✓ Never Escape Camera6 5 Secs ✓ 18 Secs ✓ Never Escape Camera7 5 Secs ✓ 18 Secs ✓ Never Escape Camera8 5 Secs ✓ 18 Secs ✓ Never Escape Camera9 5 Secs ✓ 18 Secs ✓ Never Escape Camera10 5 Secs ✓ 18 Secs ✓ Never Escape Camera11 5 Secs ✓ 18 Secs ✓ Never Escape Camera12 5 Secs ✓ 18 Secs ✓ Never Escape Camera13 5 Secs ✓ 18 Secs ✓ Never Escape Camera14 5 Secs ✓ 18 Secs ✓ Never Escape

Pre-alarm Record Time: set the me to record before the actual recording begins.

Post-alarm Record Time: set the me to record aer the actual recording is nished.

Expiraon Time: set the expiraon me for recorded video. If the set date is overdue, the recorded data will be deleted automatically.

7.2 Encode Parameters Seng

Click Start→Setngs→Record→Encode Parameters to go to the interface as shown below. Set the encode, resoluon, FPS, GOP, bitrate type, quality, max bitrate and audio of main stream for each camera in "Event Recording Sengs" and "Schedule Recording Sengs" interfaces. Click "Apply" to save the sengs. You can set the record stream of each camera one by one or batch set them for all cameras.

Camera Name	Stream Type	Encode	Resolution	FPS	Mode Type	Quality	Max Mbole	State Limit Recumulated Range	Audio
Camera1	Main Stream	H.265	1926x1800	34	VBR	Higherly	26410bps	5145-6570Kbps	CN
Camera2	Main Stream	H.265	794x480	7	VBR	Higherly	5120bps	268-444Kbps	CN
Camera3	Main Stream	H.265	794x480	7	VBR	Higherly	5120bps	268-444Kbps	CN
Camera4	Main Stream	H.265	794x480	7	VBR	Higherly	5120bps	268-444Kbps	CN
Camera5	Main Stream	H.265	794x480	7	VBR	Higherly	5120bps	268-444Kbps	CN
Camera6	Main Stream	H.265	794x480	7	VBR	Higherly	5120bps	268-444Kbps	CN
Camera7	Main Stream	H.265	794x480	7	VBR	Higherly	5120bps	268-444Kbps	CN
Camera8	Main Stream	H.265	794x480	7	VBR	Higherly	5120bps	268-444Kbps	CN
Camera9	Main Stream	H.265	794x480	7	VBR	Higherly	5120bps	268-444Kbps	CN
Camera10	Main Stream	H.265	794x480	7	VBR	Higherly	5120bps	268-444Kbps	CN
Camera11	Main Stream	H.265	794x480	7	VBR	Higherly	5120bps	268-444Kbps	CN
Camera12	Main Stream	H.265	794x480	7	VBR	Higherly	5120bps	268-444Kbps	CN
Camera13	Main Stream	H.265	794x480	7	VBR	Higherly	5120bps	268-444Kbps	CN
Camera14	Main Stream	H.265	794x480	7	VBR	Higherly	5120bps	268-444Kbps	CN
Camera15	Main Stream	H.265	1926x1800	39	VBR	Higherly	26410bps	5145-6570Kbps	CN
Camera16	Main Stream	H.265	794x480

Click Start→Sengs→Record→Stream Sengs to go to "Sub-stream" interface. Set the encode, resoluon, FPS, GOP, bitrate type, quality and max bitrate of sub-stream for each camera in the interface and then click "Apply" to save the sengs.

Camera Name	Stream Type	Ecosystem	Recovery	FPS	Bicycle Type	Country	Max Bicide	Saddle Unit Recommended / Range	OOR
Camera1	Sub Stream	H.205	1923e1868	39	VBR	Higher	1024bps	1924-1876bps	66
Camera2	Sub Stream	H.205	784e408	7	VBR	Higher	512Kbps	258-444Kbps	14
Camera3	Sub Stream	H.205	784e408	7	VBR	Higher	512Kbps	258-444Kbps	14
Camera4	Sub Stream	H.205	784e408	7	VBR	Higher	512Kbps	258-444Kbps	14
Camera5	Sub Stream	H.205	784e408	7	VBR	Higher	512Kbps	258-444Kbps	14
Camera6	Sub Stream	H.205	784e408	7	VBR	Higher	512Kbps	258-444Kbps	14
Camera7	Sub Stream	H.205	784e408	7	VBR	Higher	512Kbps	258-444Kbps	14
Camera8	Sub Stream	H.205	784e408	7	VBR	Higher	512Kbps	258-444Kbps	14
Camera9	Sub Stream	H.205	784e408	7	VBR	Higher	512Kbps	258-444Kbps	14
Camera10	Sub Stream	H.205	784e408	7	VBR	Higher	512Kbps	258-444Kbps	14
Camera11	Sub Stream	H.205	784e408	7	VBR	Higher	512Kbps	258-444Kbps	14
Camera12	Sub Stream	H.205	784e408	7	VBR	Higher	512Kbps	258-444Kbps	14
Camera13	Sub Stream	H.205	784e408	7	VBR	Higher	512Kbps	258-444Kbps	14
Camera14	Sub Stream	H.205	784e408	7	VBR	Higher	512Kbps	258-444Kbps	14
Camera15	Sub Stream	H.205	1926e1868	39	VBR	Higher	1024Kbps	1926-1876Kbps	66
Camera16	Sub Stream	H.205	784e408	7

7.3 Schedule Seng

7.3.1 Add Schedule

Click Start→Sengs→Record→Record Schedule→Edit Schedules to go to the interface as shown below. "24×7", "24×5" and "24×2" are the default schedules; you cannot edit or delete "24×7" while "24×5" and "24×2" can be edited and deleted. Click the schedule name to display the detailed schedule informaon on the le side of the interface. The seven rows stand for the seven days in a week and each row stands for 24 hours in a day. Blue stands for the selected me and gray stands for unselected me.

Schedule Config Edit Schedules Schedule '24x2' Sun 7 2 4 6 8 10 12 14 16 18 20 22 24 00:00 - 24:00 Mon 8 2 4 6 8 10 12 14 16 18 20 22 24 Tues 8 2 4 6 8 10 12 14 16 18 20 22 24 Wed 8 2 4 6 8 10 12 14 16 18 20 22 24 Thur 8 2 4 6 8 10 12 14 16 18 20 22 24 Fri 8 2 4 6 8 10 12 14 16 18 20 22 24 Sat 8 2 4 6 8 10 12 14 16 18 20 22 24 00:00 - 24:00 Name Edit Delete 24x7 24x5 24x2

Click +dd a new schedule. Refer to the picture below.

Add Schedule Schedule Name Order Schedule Name Manual All Reversor Clear All Copy To Manual All Reversor Clear All Copy To Manual All Reversor Clear All Copy To Manual All Reversor Clear All Copy To Manual All Reversor Clear All Copy To Manual All Reversor Clear All Copy To Manual All Reversor Clear All Copy To Manual All Reversor Clear All Copy To Manual All Reversor Clear All Copy To Manual All Reversor Clear All Copy To Manual All Reversor Clear All Copy TO Manual All Reversor Clear All Add Cancel

Set the schedule name and schedule me and then click "Add" to save the schedule. You can set day schedule or week schedule.

add buon;

delete buon.

Set Day Schedule

Click 📂 and then drag the cursor on the me scale to set record me; click selected area.

d then drag the cursor on the me scale to delete the

You can manually set the record start me and end me. Click

d then click "Manual" on each day to pop up a window as shown

below. Set the start and end me in the window and then click "OK" to save the sengs.

Added time manually Start Time 19:48 End Time 28:48 OK Cancel

Click "All" to set all day recording; click "Reverse" to swap the selected and unselected me in a day; click "Clear All" to clear all the selected area in a day.

Click "Copy To" to copy the schedule of the day to other days. Refer to the picture below. Check the days in the window and then click "OK" to save the sengs.

Copy To ✓ Mon ✓ Tues ✓ Wed ✓ Thur ✓ Fri ✓ Sat OK Cancel

Set Week Schedule

Click 📄 or 📋 and then click "Manual" beside 📋 to set the week schedule. Refer to the picture below. Set the start and end me, check the days in the window and then click "OK" to save the sengs.

Added time manually Start Time 19:48 End Time 20:48 Sun Mon Tues Wed Thur Fri Sat OK Cancel

Click "All" to set all week recording; click "Reverse" to swap the selected and unselected me in a week; click "Clear All" to clear all the selected area in a week.

7.3.2 Record Schedule Conguraon

Click Start→Sengs→Record→Record Schedule→Schedule Conguraon to go to the interface as shown below. Set the schedule of sensor record, moon record, med record and intelligence record. Click "None" in the drop-down menu to clear the schedule. Click "Apply" to save the sengs.

Camera Sync SAR Schedules Camera Name Sensor Record Schedule Master Record Schedule Analytics Record Schedule POS Record 1 Camera1 Camera2 Camera3 Camera4

Go to "Edit Schedules" interface and then click to edit the schedule. The sengs of "Edit Schedule" are similar to that of the "Add Schedule". Click to delete the schedule.

7.4 Record Mode

7.4.1 Manual Recording

Method One: Click 📋 on the tool bar at the boom of the live view interface to enable recording of the camera.

Method Two: Go to the live view interface and then click the right-click menu "Manually Record On" in the camera window or click on the tool bar under the camera window to start recording.

Note: Click Start→Settings→Record→Mode Settings and then set the manual record time in the interface. Click "Apply" to save the settings.

7.4.2 Timing Recording

Timing Recording: the system will record automacally according to the schedule.

Set the ming record schedule of each camera. See 7.3 Schedule Seng for details.

7.4.3 Moon Based Recording

Moon Based Recording: the system will start moon based recording when the moon object appears in the setup schedule. The setup steps are as follows:

① Set the moon based recording schedule of each camera. See 7.3 Schedule Setngfor details.
② Enable the moon and set the moon area of each camera. See 9.2.1 Moon Conguraon for details.

The camera will start moon based recording once you nish the above sengs.

7.4.4 Sensor Based Recording

① Set the sensor based recording schedule of each camera. See 7.3 Schedule Sengfor details.
② Set the NO/NC type of the sensor, enable the sensor alarm and then check and congure the "Record". See 9.1 Sensor Alarm for details.

7.4.5 Analycs Recording

① Set the analytics recording schedule of each IP camera. See 7.3 Schedule Seng for details.

② Enable the intelligence alarm detecon (object detecon, excepon, tripwire or intrusion) and draw alert surface or warning area of each IP camera. See Event for details.

The camera will start analytics recording once you wish the above sengs. This funcon is only available for some IPCs.

7.5 Disk

Click Start→Setngs→Disk→Disk Management to go to disk management interface. You can view the DVR's disk number and disk status and so on in the interface. Click "Formang" buon to format the HDD.

Disk Management
Disk	Capacity(GB)	Free Space(GB)	Disk Serial No.	Disk Model	Status	Type	Overwrite mode	Record Period
Disk1	465	398	WD-WMAV90D9HYM5	WDC WD5000AVDS-6...	RW	Ordinary Pi...	ON	05/15/2019-05/22/2019

7.5.2 Storage Mode Conguraon

Click Start→Sengs→Disk→Storage Mode to go to the interface as shown below.

Storage Window Control Channel 1 Dias( 2 ) Camera( 2 ) 2 Dias( 6 ) Camera( 6 ) 3 Dias( 8 ) Camera( 8 ) 4 Dias( 9 ) Camera( 9 ) Disk (Casacity:1.8TB) Disk4 Disk8 IPC 1 IPC +

There are four disk groups. By using disk group, you can correspond the camera to disk (the record data of the camera in the group will be stored into the disks in the same group). The DVR with e-SATA interface supports e-SATA recording.

The added disks and cameras will be added into group one automacally. The disks and cameras in the groups can be deleted except group one (select a disk group and then click ☒ on the top right corner of the added disk or camera to delete it from the group). The deleted disks and cameras will be moved into group one automacally.

Each group can add the disks and cameras from other groups. Each disk and camera can only be added into one group. Select a disk group and then click + in the disk or camera row to pop up a window. Check the disks or cameras in the window and then click "Add".

7.5.3 View Disk and S.M.A.R.T. Informaon

Click Start→Setngs→Disk→View Disk Informaon to view the HDD informaon; click "S.M.A.R.T. Informaon" to view the working status of the HDD. Refer to the picture below.

Disk	Disk4
Disk Serial No.	WD-WCC4J2HNXP9L
Disk Model	WDC WD18PURX-64D85Y9
Temperature	31
Power-on Time (day)	352
S.M.A.R.T. Status	Normal
IO	Attribution	Value	Worst Value	Threshold	Raw Value	Status
0x81	Read Error Rate	200	200	51	1356	Normal
0x83	Spin-Up Time	144	138	21	3756	Normal
0x84	Start/Stop Count	100	100	8	258	Normal
0x85	Reallocated Sector Count	200	200	148	#	Normal
0x87	Seek Error Rate	200	200	0	3	Normal
0x89	Power-On Hours	80	80	0	9426	Normal
0x93	Spin Retry Count	100	100	0	#	Normal
0x96	Recalibration Retrix	100	100	0	9	Normal
0x86	Power Cycle Count	100	100	0	248	Normal
0x98	Power-off Retract Count	200	200	0	194	Normal
0x51	Load Cycle Count	200	200	0	224	Normal
8x22	Temperature	112	101	0	31	Normal
8x4	Reallocation Even Count	200	200	0

8 Playback& Backup

8.1 Instant Playback

Click ▶ on the tool bar at the boom of the preview camera window to play back the recorded video (click ▶ on the tool bar at the boom of the live view interface to set the default playback me). Refer to the picture below. Drag the playback progress bar to change the playback me. You can also click the right-click menu "Instant Playback" in the camera window and then set the instant playback me to play back the record.

Interior view of a modern building with large windows and potted plants, no visible text or symbols

8.2 Playback Interface Introducon

Click 📄 on the tool bar at the boom of the live view interface or click Start→Playback to go to the playback interface as shown below (click on the tool bar at the boom of the live view interface to set the default playback me).

Camera7 ③ Camera4 Search and Export Live Work Normal Playback Smart Playback 05/22/28/19:23:26:48 05/22/28/19:23:26:48 05/22/28/19:23:26:48 05/22/28/19:23:26:48 05/22/28/19:23:26:48

On the panel on the right you will see the channel number and the recorded data coded by color. The bar that runs across them represents the playback me being viewed. You can move this bar around to export, highlight a secon of the desired recording, click export and follow the prompts. You can export single or mulple channels at the same me.

The added cameras will playback their records in the playback interface automatically. You can also add the playback camera manually. Click

the playback window to pop up the "Add Camera" window. Check the cameras in the window and then click "Add" to add playback camera. The system supports a maximum of 16 synchronous playback cameras.

The buons on the tool bar (area ①) at the boom of the playback interface are introduced in the table below.

Buon	Meaning
	Start buon. Click it to pop up area 2.
	Full screen buon. Click it to show full screen; click it again to exit the full screen.
	Screen mode buon.
	OSD ON buon. Click it to enable OSD; click it again to disable OSD.
	Stop buon.
	Rewind buon. Click it to play video backward.
	Play buon. Click it to play video forward.
	Pause buon.
	Deceleraon buon. Click it to decrease the playing speed.
	Acceleraon buon. Click it to increase the playing speed.
	Previous frame buon. It works only when the forward playing is paused in single screen mode.
	Next frame buon. It works only when the forward playing is paused in single screen mode.
	Click step backward 30s and click to forward 30s.
	Click it to show the water mark on the image; click hide the water mark.
	Event list/tag buon. Click it to view the event record of manual/schedule/sensor/ moon and the tag informaon.
	Backup buon. Drag the mouse on the me scale to select the me periods and cameras, and then click the buon to back up the record.
	Backup status buon. Click it to view the backup status.
	Back buon. Click it to return.
	Full screen moon buon.
	Moon buon.
	Draw line buon. You can search the record of crossing the line aer drawing the line.
	Draw quadrilateral. You can search the record in this quadrilateral aer drawing it.
	Smart playback sengs. Click it to set smart playback.

Introducon of area ②:

Buon	Meaning
	Click it to go to record search and export interface; see 8.4 Record Search,Playback & Backup for details.
	Click it to Go to the live view interface; see Chapter 5 Live View Introducon for details.

Click on the playback window to show the tool bar as shown in area ③; right click on the window to show the menu list. The tool bar and menu list are introduced in the table below.

Buon	Menu List	Meaning
[3ZZS]	--	Move tool. Click it to move the tool bar anywhere.
	Enable Audio	Click it to enable audio. You can listen to the camera audio by enabling audio.
	Snapshot	Click it to snap.
	Zoom In	Click it to go to the zoom in interface. The zoom in interface is similar to that of the camera window in the live view interface.Click to pause the record playing; click to play the record. When the record is paused in forward playing mode, you can click to view the previous frame and click to view the next frame.
	Add Tag	Click it to add tag. You can play back the record by searching the added tag. Click it and then enter the tag name in the popup window. Click “Add” to add tag.
	Switch Camera	Click it to switch the playback camera. Click it and then check the camera in the popup window. Click “OK” to change the camera.
	Close Camera	Click it to close the playback camera.

Introducon of area ④:

You can check the record type as required for record playback; rst you should click ☐ on the tool bar at the boom of the interface to clear all the playback camera, then check the record type (☐: manual record; ☐: sensor based record; ☐: moon based record; ☐: schedule record; ☐: analycs record; and nally click ☐ the playback window to add camera for playback (the record me scale will show the record data of the checked record type only aer the above operaons).

Introducon of the record me scale (area ⑤):

Click 📋 to set the date; click 🔒 to set the me and then the playback camera will play the record from the me you set.

A tool bar will appear aer moving the mouse to the record me scale. Click zoom to zoom the meline; click recover the meline to 24 hours' rao. Drag the meline or slide the scroll wheel of the mouse on the me scale to show the hidden me on the top or boom of the meline. You can also click to show the hidden me on the top of the meline or click to show the hidden me on the boom of the meline. Drag the slider at the boom of the me scale to show the hidden playback cameras.

The record me scale shows dierent record types with dierent colors. The green block stands for manual record, red block stands for sensor based record, yellow block stands for moon based record, blue block stands for schedule record and cyan block stands for intelligence record. Click the record block to set the me and then the playback camera will play the record from the me you set.

Drag the color block on the me scale to select the backup area and then right click the area or click 📄 to pop up an export informaon window. Click ↓ buon in the window to pop up the export window. Select the device, export path and format and then click "Export" buon to start the backup.

8.3 Smart Playback

Smart Playback Sengs

Click to go to the following interface. Set the value of "Speed of non-interest video" (Please skip this one if you click "Skip non-interest video"), "Speed of interest video" and "Intrusion percentage".

04/19/2018 08:43:54 Smart Playback Settings Disp non-interest video Event of non-interest video Event of evented video Inflation Percentages OK Cancel Gate Normal Playback SmartPlayback

● Smart Playback by Drawing Rectangle

04/15/2018 06:39 Gale Normal Playback Smart Playback

Click 📄 and draw a rectangle in the desired area. Then the system will automatically search the record les of this area. The cyan blocks indicate that there are intelligent recording les. Move the cursor to such block and click to play the record.

● Smart Playback by Drawing Line

Click and draw a line in the desired area. Then the system will automatically search the record les about crossing this line. The cyan blocks indicate that there are intelligent recording les. Move the cursor to such block and click to play the record.

04/19/2018 08:57:56 15:46:48 Go le Normal Playback Smart Playback

● Smart Playback by Drawing Quadrilateral

Click and draw a quadrangle in the desired area. Then the system will automatically search the record les of this area. The cyan blocks indicate that there are intelligent recording les. Move the cursor to such block and click to play the record.

04/19/2018 08:46:00 Gate Normal Playback Smart Playback

8.4 Record Search, Playback & Export

The record data and the captured pictures can be exported through network, USB (U disk or USB mobile HDD). The le system of the export devices should be FAT32 format.

8.4.1 EZ Search 2.0

① Click Start→Search and Export→EZ Search to go to the "EZ Search" tab. There are two view modes: by me and by camera. In the me view mode, a maximum of 64 camera thumbnails can be shown. If the camera thumbnail number is more than 64, the cameras will be listed directly by their camera name, not the thumbnail. A maximum of 196 camera names can be listed. If the camera name number is more than 196, the me view mode will be disabled and the camera view mode will be available only.

Search and Export Time Search Event Search Bookmarks Snuganola Export Status Camera Thumbnails View Mode Time 03/24/2019 TB 9425A1 Camera01 Camera02 Camera03 03/10/2019 Unknown Camera01 Unknown Camera01 03/18/2019 Unknown Camera01 Unknown Camera01 Unknown Camera01 Open 6 Exit

② Select one camera in the interface and then click "Open" button.
③ Click the image box to play the record in the small playback box on the le side of the interface (the box which has image inside indicates that the record data exist).
④ Refer to the picture below. Drag the color blocks on the me scale to select the record data and then click "Export" buon to pop up the "Record Backup" window as shown below. Select the device name, backup format and path and then click "Export" buon to start the backup.

Record Backup Device Name ExternalStorage1-6898 4AC4 Refresh Free:28.95 GB,All:29.27 GB Name Type Size Modify Date Backup Directory 8.00 KB 2015/11/03 16:58:53 Format Private New Folder Delete Export Cancel

Note: If you back up the record in private format, the system will back up a RPAS player to USB device automatically. The private format record can be played by RPAS player only.

⑤ Click "Playback" buon to play the record in the playback interface (refer to 8.2 Playback Interface Introducon for details). Click "Exit" to exit the interface.

Search and Export Camera Throughtime > Camera02 > 80:2019 > 24 Camera02/Playback 80/24/2019 07:13:00 PM Backup Information Start Time 87:13:01 PM End Time 88:13:01 PM Duration 1h Data Size: 727MB Picture View 3/24 Export Playback Exit

Time Slice Search:

Method One: Click "Year", "Month" or "Day" buon under the record me scale to select the me slice mode. In "Day" mode, click on the le/right side of the me scale to view the record of the last/next day; click "Minute" in the "Picture" opon under the me scale to select "Minute" mode (in "Minute" mode, click the me scale to change the me of the 60 display windows) and click "Hour" to select "Hour" mode.

Method Two: Click > beside "Camera Thumbnail" on the le top corner of the interface to select the me slice mode.

Method Three: Right-click the mouse on any area of the me-sliced interface to go back to the upper interface.

8.4.2 Time Search

① Click Start→Search and Export→Time Search to go to the "Time Search" tab as shown below.
② Click + on the boom of the interface to add playback camera. A maximum of 16 cameras can be added for playback. Click "Modify" on the top right corner of the camera window to change the camera and click "Clear" to remove the camera.
③ Click the camera window to play the record in the small playback box on the le side of the interface. You can set the date on the top le of the interface, check the event type as required and click the me scale or click under the me scale to set the me. The camera window will play the record according to the me and event type you set.
④ Drag the color blocks on the time scale to select the record data (or click "Set Backup Time" buon on the boom le corner of the interface to set the backup start time and end me) and then click "Export" button for record backup. Click "Playback" buon to play the record in the playback interface.

Search and Export 5x search Event Search Event Search Event Search Export Status 2015 Sun Time Hour Doc Vol Out 8 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 10:00:00:00 10:00:00:00 10:00:00:00 10:00:00:00 10:00:00:00 10:00:00:00 10:00:00:00 10:00:00:00 10:00:00:00 11:00:00:00 11:00:00:00 11:00:00:00 11:00:00:00 11:00:00:00 11:00:00:00 11:00:00:00 11:00:00:00 11:33:33 PM 11:33:33 PM 11:33:33 PM 11:33:33 PM 11:33:33 PM 11:33:33 PM 11:33:33 PM 11:33:33 PM 11:33:33 PM 11:33:33 PM 11:33:33PM 11:33:33 PM 11:33:33 PM 11:33:33 PM 11:33:33 PM 11:33:33 PM 11:33:33 PM 11:33:33 PM 11:33:33 PM 11:33:33 PM 11:33:33 PPM 11:33:33 PPM 11:33:33 PPM 11:33:33 PPM 11:33:33 PPM 11:33:33 PPM 11:33:33 PPM 11:33:33 PPM 11:33:33 PPM 11:33:33 PPM

8.4.3 Event Search

① Click Start→Search and Export→Event Search to go to "Event Search" tab as shown below.

Search and Export Start Time 63/24/2019 12:88:00 AM End Time 63/24/2019 11:59:59 PM Event Manual Server Intelligent Analytics Motion POS No. Camera Name Type1 Time Period Duration Data Size Playback Export 1 Camera81 Motion @3/24/2019 07:11:27 PM-83/24/2019 07:15:46 PM 4m 18s 85MB 2 Camera81 Motion @3/24/2019 07:15:54 PM-83/24/2019 07:38:36 PM 22m 42s 445MB 3 Camera82 Manual @3/24/2019 07:24:07 PM-83/24/2019 07:24:22 PM 15s 3MB 4 Camera82 Motion @3/24/2019 07:24:53 PM-83/24/2019 07:27:53 PM 3m 38MB 5 Camera82 Motion @3/24/2019 07:27:58 PM-83/24/2019 07:28:49 PM 51s 11MB 6 Camera82 Motion @3/24/2019 07:28:51 PM-83/24/2019 07:32:53 PM 4m 2s 51MB 7 Camera82 Motion @3/24/2019 07:32:59 PM-83/24/2019 07:38:36 PM 5m 37s 71MB 8 Camera86 Motion @3/24/2019 07:19:41 PM-83/24/2019 07:28:02 PM 21s 7MB 9 Camera86 Motion @3/24/2019 07:21:09 PM-83/24/2019 07:21:29 PM 26s 7MB 10 Camera86 Motion @3/24/2019 07:21:45 PM-83/24/2019 07:22:09 PM 24s 6MB 11 Camera86 Motion @3/24/2019 07:22:41 PM-83/24/2019 07:23:19 PM 36s 12MB 12 Camera86 Motion @3/24/2019 07:25:33 PM-83/24/2019 07:26:03 PM 38s 16MB 13 Camera86 Motion @3/24/2019 07:26:22 PM-83/24/2019 07:26:45 PM 23s 6MB 14 Camera86 Motion @3/24/2019 07:27:05 PM-83/24/2019 07:29:19 PM 2m 5s 46MB 15 Camera86 Intelligent ... @3/24/2019 07:27:45 PM-83/24/2019 07:30:56 PM 3m 11s 52MB POS pre playback 5 Secs Current Page 1 / 1. All 19 POS deferred playback 18 Secs Export Playback Exit

② Check the event type in the interface as required.
③ Click to set the start me and end me on the top le of the interface.
④ Check cameras on the le side of the interface or check "All" to select all the cameras and then click searched record will be displayed in the list.
⑤ Click ▶ in the list to play back the record in the popup window. Click ▶ to back up one record data or check mulple record data in the list and then click "Backup" buon for record batch backup.
⑥ Select one record data in the list and then click "Playback" buon to play the record in the playback interface.

8.4.4 Bookmark Search

Only if you add the tags can you play the record by tag search. Click Start→Playback to go to the playback interface and then click 📄 on the boom of the camera window to add bookmarks when you want to mark the playback me point of the selected camera.

Click Start→Search and Export→Bookmarks to go to "Bookmarks" tab.

Search and Export No. Name Camera Name Time Playback Edit Preview 1 CameraM_28190034193528 CameraM 8524/2019 67:35:28 PM 2 CameraM_28190034193528 CameraM 8524/2019 67:35:28 PM

Click the interface to play the record. Click to e the tag name. Click to delete tag.

8.4.5 Snapshots

Click Start→Search and Export→Snapshots to go to "Snapshots" tab. The system will display all the captured images automatically in the list.

Search and Export No. Camera Name Snapshot Mode Selecting Time Cursor Browse Export Defaults 1 CameraShift Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt | 2 CameraShift Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt | 3 CameraShift Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj Adj | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | 6 CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift | CameraShift |

Click 📄 to delete the image. Click 🔒 to pop up the "Export" window. Select the device name and save path in the window and then click "Save" buon.

Click 📄 to pop up the "View Image" window. Click 🔒 to export the image. Click 🔒 to view the previous image; click 🔒 to view the next image; click 🔒 to delete the image; click 🔒 to play all the images.

View Image Camera Name: IP61 Time: 11/28/2018 03:51:42 Creator: IP61 11/28/2018 19:50:02 IP Camera01 Close

8.4.6 View Export Status

Click Start→Search and Export→Export Status or click 📄 on the tool bar at the boom of the playback interface to view the export status.

9 Alarm Management

9.1 Sensor Alarm

To complete the enre sensor alarm settings, you should enable the sensor alarm of each camera and then set up the alarm handling of each camera.

① Click Start→Sengs→Alarm→Sensor Alarm to go to the following interface.

Buzzer Pop-up Video Pop-up Message Box E-mail Alarm Name Schedule Type Enable Duration Record Snapshot Push Alarm-out Pr Sensor1 24x7 NO ON 38 Secs Configure Configure ON Configure Configure Sensor2 24x7 NO ON 38 Secs Configure Configure ON Configure Configure Sensor3 24x7 NO ON 38 Secs Configure Configure ON Configure Configure Sensor4 24x7 NO ON 38 Secs Configure Configure ON Configure Configure Sensor5 24x7 NO ON 38 Secs Configure Configure ON Configure Configure Sensor6 24x7 NO ON 38 Secs Configure Configure ON Configure Configure Sensor7 24x7 NO ON 38 Secs Configure Configure ON Configure Configure Sensor8 24x7 NO ON 38 Secs Configure Configure ON

② Select schedule and the alarm type (NO or NC) according to trigger type of the sensor.
③ Enable the sensor alarm of each camera.
④ Check the "Duraon", "Record", "Snapshot", "Push", "Alarm-out" and "Preset" and enable or disable the "Buzzer", "Pop-up Video", "Pop-up Message Box" and "E-mail" as required.
⑤ Click "Apply" to save the sengs.

The conguraon steps of the above menoned alarm linkages are as follows.

Duraon: it refers to the interval me between the adjacent moon detecons. For instance, if the duraon me is set to 10 seconds, once the system detects a moon, it will go to alarm and would not detect any other moon (specific to camera) in 10 seconds. If there is another moon detected during this period, it will be considered as connuous movement; otherwise it will be considered as a single moon.

Record: check it and then the "Trigger Record" window will pop up automatically (you can also click "Congure" button to pop up the window). Select camera on the le side and then click to set the camera as the trigger camera. Select trigger camera on the right side and then click to cancel the trigger camera. Click "OK" buon to save the sengs. The trigger cameras will record automatically when the sensor alarm is triggered.

Snapshot: check it and then the "Trigger Snapshot" window will pop up automacally. Congure the trigger camera in the window. The trigger cameras will snap automacally when the sensor alarm is triggered.

Push: check it and choose ON or OFF. If it is ON, the system will send messages when the sensor alarm is triggered.

Alarm-out: check it and then the "Trigger Alarm-out" window will pop up automacally. Congure the trigger alarm-out in the window. The system will trigger the alarm-out automacally when the sensor alarm is triggered. You need to set the delay me and the schedule of the alarm outputs. See 9.5.1 Alarm-out for details.

Preset: check it and then the "Trigger Preset" window will pop up automatically. Congure the trigger preset of each camera. To add presets, please see 6.2 Preset Seng for details.

Buzzer: if enabled, the system will begin to buzz when the sensor alarm is triggered. To set the delay me of the buzzer, please see 9.5.4 Buzzer for details.

Pop-up Video: Aer camera seng, the system will pop up the corresponding video automatically when the sensor alarm is triggered. To set the duraon me of the video, please see 9.5.3 Display for details.

Pop-up Message Box: if enabled, the system will pop up the corresponding alarm message box automatically when the sensor alarm is triggered. To set the duraon me of the message box, please see 9.5.3 Display for details.

E-mail: if enabled, the system will send an e-mail when the sensor alarm is triggered. Before you enable the email, please conjure the recipient's e-mail address rst (see 11.1.5 E-mail Conguraon for details).

9.2 Moon Alarm

Moon Alarm: when the moon object appears in the specied area, it will trigger the alarm. You should enable the moon of each camera rst and then set the alarm handling of the camera to complete the whole conguraon of the moon alarm.

9.2.1 Moon Conguraon

① Click Start→Sengs→Camera→Moon to go to the following interface.

Camera Name IP Camera1 IP Camera2 IP Camera3 IP Camera4 Altdefault Reverse Clear Camera IP Camera1 Motion ON Sensitivity Duration 20 Secs 5 5 5 5 5 5 5 5 Processing Mode Apply

② Select the camera, enable the moon and set the sensitivity and duraon of the camera.

Sensitivity: the higher the value is, the more sensitive it is to moon. You should adjust the value according to the praccal conditions since the sensitivity is influenced by color and me (day or night).

Duraon: it refers to the interval me between the adjacent moon detecons. For instance, if the duraon me is set to 10 seconds, once the system detects a moon, it will go to alarm and would not detect any other moon (specic to camera) in 10 seconds. If there is another moon detected during this period, it will be considered as connuous movement; otherwise it will be considered as a single moon.

③ Drag the camera image to set the moon area. Click "All" to set the whole camera image as the moon area. Click "Reverse" to swap the moon area and the non-moon area. Click "Clear" to clear all the moon areas.
④ Click "Apply" to save the sengs. Click "Processing Mode" to go to the alarm handling conguraon interface of the moon alarm.

9.2.2 Moon Alarm Handling Conguraon

① Click Start→Sengs→Alarm→Moon Alarm to go to the following interface.

Camera Name Schedule Reset Snapshot Push Alarm-out Reset IPCamera 24x7 Configure Configure ON Configure Configure OFF OFF OFF Motion Settings Apply

② Enable or disable "Record", "Snapshot", "Push", "Alarm-out", "Preset", "Buzzer", "Pop-up Video" and "E-mail". The alarm handling sengs of moon alarm the same as the sensor alarm (see 9.1 Sensor Alarm for details).
③ Click "Apply" to save the settings. You can click "Moon Sengs" to go to the moon conguraon interface.

9.3 Smart Event

9.3.1 Object Detecon

Object Detecon Conguraon:

① Click Start→Sengs→Camera→Intelligent Analycs→Object Detecon to go to the following interface.
② Select the camera, enable the object detector and set the detect type. There are two detect types: Abandoned object and missing object.

Abandoned object: Alarms will be triggered if there are arcs le in the pre-dened detecon area.

Missing object: Alarms will be triggered if there are arcs missing in the detecon area drawn by the users.

③ Select the alarm area. A maximum of 4 alarm areas can be set.
④ Draw the alarm area of the object detecon. Refer to the interface as shown above. Check "Draw Area" and then click around the area where you want to set as the alarm area in the image (the alarm area should be a closed area). Uncheck the "Draw Area" if you nish the drawing. Click the "Clear" to delete the alarm area.
⑤ Click "Apply" to save the sengs.
⑥ Click "Processing Mode" to go to the alarm handling conguraon interface of object detecon.

Object Detection Detect Type Area Area name Camera Name IP87 OFF Abandoned Object IP85 OFF Abandoned Object 1 X IP86 OFF Abandoned Object 1 IP84 OFF Abandoned Object 1 Draw area Clear Processing Mode Apply

Object Detecon Alarm Handling Conguraon:

① Click Start→Sengs→Alarm→Intelligence Alarm→Object Detecon to go to the following interface.

Camera Name Record Snapshot Push Alarm-out Preset (R) IP87 Configure OFF ON Configure Configure OFF IP85 Configure OFF ON Configure Configure OFF IP96 Configure OFF ON Configure Configure OFF IP94 Configure OFF ON Configure Configure OFF Direct Config Apply

② Enable or disable "Snapshot", "Push", "Alarm-out", "Preset", "Buzzer", "Pop-up Video" and "E-mail". The alarm handling seng of object detecon alarm is similar to that of the sensor alarm (see 9.1 Sensor Alarm for details).
③ Click "Apply" to save the sengs. You can click "Object Cong" to go to the object detecon conguraon interface.

9.3.2 Tampering

Tampering Conguraon:

① Click Start→Sengs→Camera→Intelligent Analycs→Tampering to go to the following interface.

Some Change Video Blurred Video Color Cast Sensitivity Camera Name Camera85 OFF OFF OFF 1 Camera84 OFF OFF OFF 1 Camera85 OFF OFF OFF 1 Preprocessing Mode Apply

② Select the camera and enable the relevant detecon as needed.

Scene Change: Alarms will be triggered if the scene of the monitor video has changed.

Video Blurred: Alarms will be triggered if the video becomes blurry.

Video Color Cast: Alarms will be triggered if the video becomes obscured.

③ Set the sensitivity of the excepon detecon.
④ Click "Apply" to save the sengs.
⑤ Click "Processing Mode" to go to the alarm handling conguraon interface of excepon detecon.

Excepon Alarm Handling Conguraon:

① Click Start→Sengs→Alarm→Intelligence Alarm→Excepon to go to the interface.

Buzzer Pop-up Video E-mail Camera Name Record Snapshot Push Alarm-out Reset (C) Camera80 Configure OFF ON Configure Configure OFF Camera84 Configure OFF ON Configure Configure OFF Camera85 Configure OFF ON Configure Configure OFF Tampering Config Apply

② Enable or disable "Snapshot", "Push", "Alarm-out", "Preset", "Buzzer", "Pop-up Video" and "E-mail". The alarm handling seng of excepon detecon alarm is similar to that of the sensor alarm (see 9.1 Sensor Alarm for details).

③ Click "Apply" to save the sengs. You can click "Excepon Cong" to go to the excepon detecon conguraon interface.

9.3.3 Tripwire

Line Crossing Conguraon:

Alarms will be triggered if someone or something crosses the pre-dened alarm line.

① Click Start→Sengs→Camera→Intelligent Analycs→Tripwire to go to the following interface.

Tripwire Duration Line Direction Cathora Name IP94 OFF 20 Secs IP95 OFF 5 Secs 1 A<>B IP97 OFF 20 Secs IP98 OFF 20 Secs Draw line Clear Processing Mode Apply

② Select the camera, enable the line crossing detecon.

③ Select the direcon.

Direcon: A<->B, A->B and A<-B oponal. It is the crossing direcon of the intruder who crosses over the alert line.

A<->B: the alarm triggers when the intruder crosses over the alert line from B to A or from A to B.

A->B: the alarm triggers when the intruder crosses over the alert line from A to B.

A<-B: the alarm triggers when the intruder crosses over the alert line from B to A.

④ Draw line. Refer to the interface as shown above. Check "Draw line" and then drag the mouse in the image to draw an alert line. Uncheck the "Draw line" if you nish the drawing. Click the "Clear" to delete the alert line.
⑤ Click "Apply" to save the sengs.
⑥ Click "Processing Mode" to go to the alarm handling conguraon interface of line crossing detecon.

Tripwire Alarm Handling Conguraon:

① Click Start→Sengs→Alarm→Intelligence Alarm→Tripwire to go to the following interface.

Camera Name Record Snapshot Push Alarm-out Preset (M) Camera1 Configure OFF ON Configure OFF Camera2 Configure OFF ON Configure OFF Camera3 Configure OFF ON Configure OFF Camera4 Configure OFF ON Configure OFF Camera5 Configure OFF ON Configure OFF Camera6 Configure OFF ON Configure OFF Camera7 Configure OFF ON Configure OFF Camera8 Configure OFF ON Configure OFF Camera9 Configure OFF ON Configure OFF Camera10 Configure OFF ON Configure OFF Camera11 Configure OFF ON Configure OFF Camera12 Configure OFF ON Configure OFF Camera13 Configure OFF ON Configure OFF Camera14 Configure OFF ON Configure OFF Camera15 Configure OFF ON Configure OFF Camera16 Configure OFF ON Configure OFF IP CAMERA Configure OFF ON Configure OFF Crossing Config Apply

② Enable or disable "Snapshot", "Push", "Alarm-out", "Preset", "Buzzer", "Pop-up Video" and "E-mail". The alarm handling seng of line crossing alarm is similar to that of the sensor alarm (see 9.1 Sensor Alarm for details).
③ Click "Apply" to save the sengs. You can click "Crossing Cong" to go to the line crossing conguraon interface.

9.3.4 Intrusion Detecon

Intrusion Conguraon:

Alarms will be triggered if someone or something intrudes into the pre-dened area.

① Click Start→Sengs→Camera→Intelligent Analycs→Intrusion Detecon to go to the following interface.

Cathode Name Camera1 OFF 1 1% Camera2 OFF 1 1% Camera3 OFF 1 1% Camera4 OFF 1 1% Camera5 OFF 1 1% Camera6 OFF 1 1% Camera7 OFF 1 1% Camera8 OFF 1 1% Drive area Close Processing Mode Apply

② Select the camera, enable the intrusion detecon.
③ Select the alarm area. Up to 4 alarm areas can be set up.
④ Draw the alarm area of the intrusion detecon. Refer to the interface as shown below. Check "Draw Area" and then click around the area where you want to set as the alarm area in the image (the alarm area should be a closed area). Uncheck the "Draw Area" if you nish the drawing. Click the "Clear" to delete the alarm area.
⑤ Click "Apply" to save the sengs.

⑥ Click "Processing Mode" to go to the alarm handling conguraon interface of intrusion detecon.

Intrusion Detecon Alarm Handling Conguraon:

① Click Start→Sengs→Alarm→Intelligence Alarm→Intrusion to go to the following interface.

(*) buzzer Pop-up Video E-mail Camera Name Record Snapshots Push Alarm-out Preset (#) Camera1 Camera2 Camera3 Camera4 Camera5 Camera6 Camera7 Camera8 Camera9 Camera10 Camera11 Camera12 Camera13 Camera14 Camera15 Camera16 IP CAMERA CONTINUE OFF ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON OF OFF Increment Config Apply

② Enable or disable "Snapshot", "Push", "Alarm-out", "Preset", "Buzzer", "Pop-up Video" and "E-mail". The alarm handling setng of intrusion detecon alarm is similar to that of the sensor alarm (see 9.1 Sensor Alarm for details).
③ Click "Apply" to save the settings. You can click "Intrusion Cong" to go to the intrusion detection congrada on interface.

9.4 Excepon Alarm

9.4.1 IPC Oine Sengs

① Click Start→Sengs→Alarm→Excepon→IPC Oine Setngs to go to the interface as shown below.
② Enable or disable "Snapshot", "Push", "Alarm-out", "Preset", "Buzzer", "Pop-up Video", "Pop-up Message Box" and "E-mail". The IPC Oine Sengs are similar to that of the sensor alarm (see 9.1 Sensor Alarm for details).
③ Click "Apply" to save the settings.

Camera Name Snapshot Push Alarm-out Preset OK SET Camera1 CN Camera2 ON Camera3 ON Camera4 ON OFF OFF ON Camera5 ON Camera6 ON OFF OFF ON Apply

9.4.2 Video Loss Sengs

① Click Start→Sengs→Alarm→Excepon→Video Loss Setngs to go to the interface as shown below.

Camera Name Camera1 Camera2 Camera3 Camera4 Camera5 Camera6 Camera7 Camera8 Snapshot ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON ON OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF

② Enable or disable "Record", "Snapshot", "Push", "Alarm-out", "Preset", "Buzzer", "Pop-up Video", "Pop-up Message Box" and "E-mail". The Video Loss Sengs are similar to that of the sensor alarm (see9.1 Sensor Alarmfordetails).

③ Click "Apply" to save the sengs.

9.4.3 Warning Handling Sengs

① Click Start→Sengs→Alarm→Excepon→Warning Handling Sengs to go to the interface as shown below.
② Enable or disable "Push", "Alarm-out", "Buzzer", "Pop-up Message Box" and "E-mail". The exception handling sengs are similar to that of the sensor alarm (see 9.1 Sensor Alarm for details).
③ Click "Apply" to save the sengs.

IPC Office Settings New User Settings Beware Viewing Help Event Type Push Alarm-out OK ON OFF IP Address Conflict ON Done ON ON OFF Disk IO Error ON Done ON ON OFF Disk Full ON Done ON ON OFF No Disk ON Done ON ON OFF Network Disconnection ON Done ON ON OFF HDD is pulled out ON Done ON ON OFF Alarm Server Offline ON Done ON ON OFF WiFi Disconnect ON Done

9.5 Alarm Event Nocaon

9.5.1 Alarm-out

① Click Start→Sengs→Alarm→Event Nocaon to go to the following interface.

No. Name Delay Schedule Test 1 AlarmOut1 18 Secs 24x7 Test 2 AlarmOut2 18 Secs 24x7 Test 3 Camera01_AlarmOut1 18 Secs 24x7 Test 4 Camera01_AlarmOut2 18 Secs 24x7 Test 5 Camera02_AlarmOut1 18 Secs 24x7 Test Apply

② Set the delay me and the schedule of each alarm-out. You can click "Edit Schedules" to edit the schedules (see 7.3.1 Add Schedule for details).
③ Click "Apply" to save the settings. You can click "Test" to test the alarm output.

9.5.2 E-mail

Click Start→Sengs→Alarm→Event Nocaon→E-mail to go to the e-mail conguraon interface. Set the e-mail address of the recipients. See 11.1.5 E-mail Conguraon for details.

9.5.3 Display

Click Start→Sengs→Alarm→Event Nocaon→Display to go to the display conguraon interface. Set the duraon me of the pop-up video and the pop-up message box. Click "Apply" to save the sengs.

Pop-up Video Duration 10 Secs Output Main Output Pop-up Message Box Don't show later Duration 10 Secs Apply

9.5.4 Buzzer

Click Start→Sengs→Alarm→Event Nocaon→Buzzer to go to the buzzer conguraon interface. Set the delay me of the buzzer and then click "Apply" to save the seng. You can click "Test" to test the buzzer.

Buzzer Delay 5 Secs Test Apply

9.5.5 Push Message

Click Start→Setngs→Alarm→Event Nocaoon→Push Message to go to the interface as shown below. Check "Enable" and then click "Apply" buon to save the sengs. If Push Server is online, it will push messages to the mobile clients.

Push Message Enable Push Schedule 24x7 Push Server Status: Disable Test Apply

9.5.6 Alarm Server

Go to Alarm→Alarm Server interface as shown below.

Enable the alarm server and enter server address and port of the alarm server. Then select protocol. If "Send Heartbeat" is enabled, set the interval mes. Aer that, test the effectiveness of the alarm server. Having tested successfully, please click "Apply". When an alarm occurs, the device will transfer the alarm event to the alarm server. If an alarm server is not needed, there is no need to conjure this secon.

Alarm Server Enable Server Address Enter Address Port Enter Port Protocol XML Send Heartbeat Interval Time(s) 10 Test Apply

9.6 Manual Alarm

Click 📁 on the tool bar at the boom of the live view interface to pop up a window. Click "Trigger" to start alarm. Click "Clear" to stop alarm.

AlarmOut Name AlarmOut1 AlarmOut2 AlarmOut3 AlarmOut4 IP Camera1_AlarmOut1 IP Camera02_AlarmOut1 Status Trigger Clear Trigger Trigger Trigger Trigger Trigger Trigger Clear Trigger Clear Clear

9.7 View Alarm Status

Click Start→Sengs→Alarm→Alarm Status or click

the tool bar at the boom of the live view interface to view the alarm status.

Bluzzer Clear Alarm-in Normal Alarm-out Normal Motion Normal Intelligence Normal Exception Normal Combination Alarm Normal

Click "Clear" buon to stop the buzzer when the buzzer alarm happens. Click

to view the detail informaon as shown below.

Buzzer Alarm Alarm-out Motion Intelligence Exception Alarm Source : Device Name Alarm Time : 8/13/2018 16:14:45 Status : No Desk Trigger Alert-out : None Trigger Buzzer : ON Close

If the excepon informaon is more than one page, you can enter the number in the box and then click

to jump to the specied page. Click

< / > to view the excepon alarm informaon in the previous/next page. Click play the alarm record.

10 Account & Permission Management

10.1 Account Management

Click Start→Sengs→Account and Authority→Account→Edit User to go to the interface as shown below.

User admin Permissions ✓ Local Camera Management ✓ Remote Camera Management ✓ Remote Login ✓ Disk Management ✓ Audio Talk ✓ Alarm Management ✓ Network Management ✓ Schedule Management ✓ Record Settings Management ✓ Local System Settings ✓ Remote System Settings ✓ Account and Authority Local Remote Camera Preview Playback Backup Audio PTZ Co. Camera1 ON ON ON ON ON Camera2 ON ON ON ON ON Camera3 ON ON ON ON ON Camera4 ON ON ON ON ON Camera5 ON ON ON ON ON Camera6 ON ON ON ON ON Camera7 ON ON ON ON ON Camera8 ON ON ON ON ON Username Group Edit Delete admin Administrator Modify Password Modify Pattern Lock Edit User Edit Security Question 2

Area ① displays the user permissions. Area ② displays the user list. Click the user in the list to display its user permissions in area ①.

There are three default permission groups ("Administrator", "Advanced" and "Common") available when adding accounts. You can manually add new permission group (see 10.3.1 Add Permission Group for details).

Only admin and the users that have the "Account and Authority" permission can manage the system's accounts. Group "Administrator" owns all the permissions displayed in area ① except "Account and Authority" and its permissions cannot be changed while the permissions of "Advanced" and "Common" can be changed.

10.1.1 Add User

① Click Start→Sengs→Account and Authority→Account→Add User or click below.

+ beside the search box to pop up the window as shown

Add User Username Enter Username Password Enter Password Confirm Password Enter Password Display Password Allow Modify Password Pattern Lock Enable Edit E-mail Group Administrator Add Cancel

② Set the username, password and group. User can also set the paern lock here. The e-mail address is oponal. Click "Add" to add the user.

10.1.2 Edit User

Click Start→Setngs→Account and Authority→Account→Edit User and then click informaon. Click to delete the user (the user admin cannot be deleted).

in the user list or double click the user to edit the user

Username admin Group Administrator Edit Delete Modify Password Modify Pattern Lock Edit User Edit Security Question 1 Administrator Edit User Recover Password

Edit Security Queson

You can set password security only for admin. Click "Edit Security Queson" and then set quesons and answers in the popup window. If you forget the password for admin, please refer to Q4 in Appendix A FAQ for details. The passwords of other users can be recovered by admin or the users that have the "Account and Authority" permission.

Modify Password

Only the password of admin can be modified. Click "Modify Password" to pop up a window. Enter the current password and then set new password. Click "OK" to save the sengs.

Modify Paern Lock

Some models may not support this funcon.

Click "Modify Paern Lock" to pop up a window.

Modify Pattern Lock Current Password Pattern Lock Enable Edit OK Cancel

Enter current password and then check "Enable" to input paern lock.

Pattern Lock

Recover Password

Click "Recover Password" to reset the password.

Edit User

Click "Edit User" to pop up the window as shown below. The admin is enabled, its permission control is closed and permission group cannot be changed by default. You can enable or disable other users (if disabled, the user will be invalid), open or close their permission control (if closed, the user will get all the permissions which admin has) and set their permission groups. Click "OK" to save the settings.

Edit User Enable Username admin Close Permission Control Allow Modify Password E-mail Group Administrator OK Cancel

Edit User Enable Username 1 Close Permission Control Allow Modify Password E-mail Group Administrator OK Cancel

10.2 User Login & Logout

Login: Click Start→Login or directly click the preview interface and then select username and enter the password in the popup window. Click "Login" buon to log in the system.

Logout: Click Start→Logout or click Start→Shutdown to pop up the "Shutdown" window. Select "Logout" in the window and then click "OK" buon to log out the system.

10.3 Permission Management

10.3.1 Add Permission Group

Click Start→Sengs→Account and Authority→Account→Edit Permission Group to go to the interface as shown below.

Group/Administrator Permissions ✓ Local Camera Management ✓ Remote Camera Management ✓ Remote Login ✓ Disk Management ✓ Audio Talk ✓ Alarms Management ✓ Network Management ✓ Schedule Management ✓ Record Settings Management ✓ Local System Settings ✓ Remote System Settings Local Remote Camera Private Playback Backup Audio PIT2 Co. Advanced Common Group Edit Save As Delms Administrator Advanced Common

Click + to add permission group. Set the group name, check the permissions as needed and then set the "Local" and "Remote" permissions. Click "Add" to save the sengs.

Add Permission Group Group Name Enter Permission Group Name Local Camera Management Remote Login Audio Talk Network Management Record Settings Management Remote System Settings Remote Camera Management Disk Management Alarm Management Schedule Management Local System Settings Account and Authority Local Remote Camera Preview Playback Backup Audio PTZ Control Camera1 OFF OFF OFF OFF OFF Camera2 OFF OFF OFF OFF OFF Camera3 OFF OFF OFF OFF OFF Camera4 OFF OFF OFF OFF OFF Camera5 OFF OFF OFF OFF OFF Camera6 OFF OFF OFF OFF OFF Camera7 OFF OFF OFF OFF OFF Add Cancel

10.3.2 Edit Permission Group

Go to "Edit Permission Group" interface and then click in the group list to edit the permission group (the operaons of the "Edit Permission Group" are similar to that of the "Add Permission Group", please see 10.3.1 Add Permission Group for details). Click to save the group as another group. Click to delete the permission group. The three default permission groups ("Administrator", "Advanced" and "Common") cannot be deleted.

10.4 Block and Allow List

① Click Start→Sengs→Account and Authority→Security to go to the following interface.

Enable Enable Alone List Enable Block List Enable IPBMAC ADDRESS Add IP Enable IP IP Segment Address OK Cancel Add IP Add MAC Apply

② Check "Enable" and then choose "Enable Allow List" or "Enable Block List" (the PC client of which the IP address is in the allow list can access DVR remotely while the PC client in the block list cannot).
③ Add IP/IP segment/MAC. Click "Add IP" or "Add MAC" buon and then check "Enable" in the popup window (only if you check it can the IP/IP segment/MAC you add be eecve). Enter the IP/IP segment/MAC and then click "OK" buon. In the above interface, click edit IP/IP segment/MAC, click to delete it. Click "Apply" to save the sengs.

10.5 Preview On Logout

Click Start→Sengs→Account and Authority→Security→Preview on Logout to go to the following interface.

Set a camera and then enable or disable the preview permission on logout as required. If a camera's preview permission on logout is "ON", you can view the live image of the camera when the system is logged out, or the live image of the camera cannot be seen when logged out.

Camera Name Preview IP Camera1 Off IP CameraB2 Off IP CameraB3 Off Camera IP Camera1 Preview Off Array

10.6 Password Security

Click Start→Sengs→Account and Authority→Security→Password Security to go to the following interface.

Password security Level Weak Expiration Time Never Expire External network access restrictions (administrators use the default password to preview only the field when it is logged in from the external network) Apply

In this interface, you can set the level and expiraon me of the password.

10.7 View Online User

Click Start→Setngs→Account and Authority→User Status to view the online user informaon (you can view the online user name, login type, IP address and login me; click 📋 to pop up a window showing the preview occupied channel number and playback occupied channel number).

11 Device Management

11.1 Network Conguraon

11.1.1 TCP/IP Conguraon

Click Start→Setngs→Network→TCP/IP to go to the following interface. Check "Obtain an IPv4 address automacally", "Obtain an IPv6 address automacally" and "Obtain DNS automacally" to get the network addresses automacally, or manually enter the network addresses. You can modify the MTU value according to the network condion (MTU, Maximum Transmission Unit, can be modified according to network condion for higher network transmission efficiency). Click "Apply" to save the sengs.

IP Address Settings Ethernet Port 1 ( Online ) Obtain an IPv4 address automatically Address Subnet Mask Gateway MTU Obtain an IPv6 address automatically Address Mask Length Gateway Obtain DNS automatically Preferred DNS Alternate DNS Apply

11.1.2 Port Conguraon

Click Start→Sengs→Network→Port to go to the interface as shown below. Enter the HTTP port, HTTPS port, server port and RTSP port of the DVR, enable "Anonymous" as needed and then click "Apply" buon to save the sengs.

Port HTTP Port 80 HTTPS Port 443 Server Port 6036 RTSP Port 554 Anonymous Apply

HTTP Port: the default HTTP port of the DVR is 80. The port number can be changed to others like 81. The port is mainly used for web client access. If you want to access the DVR through a web browser, you should enter IP address plus HTTP port in the address bar of the web browser like hp://192.168.11.61:81.

HTTPS Port: the default HTTPS port of the DVR is 443.

HTTPS provides authencaon of the web site and protects user privacy. How to use it?

① Enter IP address plus HTTP port in the address bar of the web browser. Then enter username and password to log in. Click Functional Panel→Network→HTTPS to go to the following interface.

Function Panel • Https Enable Certificate installation Certificate installation Create a private certificate Signed certificate already available. Install directly Create a certificate request Create Apply

* You can create a private cercate here. Click the "Create" buon to create a private cercate. Enter the country (only two leers available), domain (DVR's IP address/domain), validity date, password, province/state, region and so on. Then click "OK" to save the sengs.
* If there is a signed cercate, click "Browse" to select it and then click "Install" to install it.
* Click "Create a cercate request" to enter the following interface.

Enable Installation type Have signed certificate, install directly Create a private certificate Create a certificate request Create a certificate request Create Download Delete

Click "Create" to create the cercate request. Then download the cercate request and submit it to the trusted cercate authority for signature. Aer receiving the signed cercate, import the cercate to the device.

Enable Certificate installation Create a private certificate Signed certificate already available. Install directly Create a certificate request Create No files Certificate request download Certificate request deletion Install the generated certificate Browse Apply

③ Aer the cercate has been installed, enable this funcon and apply it. Then the camera can be accessed by entering https://IP: hps port via the web browser (eg. hps://192.168.1.201:443).

Server Port: the default server port of the DVR is 6036. The server port number can be changed as required. The port is mainly used in network video management system.

Note: The HTTP port and server port of the DVR should be mapped to the router before you access the DVR via WAN.

RTSP Port: RTSP real-me stream protocol can be used to control the sending of real-me data. By media player which supports the RTSP real-me stream protocol, you can view the live images synchronously. The default RTSP port is 554 and it can be changed as needed.

11.1.3 PPPoE Conguraon

Click Start→Setngs→Network→PPPoE to go to the interface as shown below. Check "Enable" in "PPPoE Setngs" and then enter the username and password obtained from the dealer. Click "Apply" to save the sengs.

PPPoE Settings Enable Username abc Password ••••••• Apply

11.1.4 DDNS Conguraon

The DDNS is used to control the dynamic IP address through domain name. Speco Technologies provides free DDNS service with US-based servers. You can access the DVR easily if the DDNS is enabled and congured. Click Start→Sengs→Network→DDNS to go to the interface as shown below. The default DDNS type will be "specoddns.net". The default domain name will be shown. You can use this for your domain name or enter your own. If invalid or taken, please select another domain name. Click on test to check if ok. If so, you may now go to [your domain name].specoddns.net with Internet Explorer and access your recorder remotely.

DDNS Enable DDNS Type specoddns.net Server Address Domain Name speco8D8EA8 specoddns.net Test Apply

11.1.5 E-mail Conguraon

Click Start→Sengs→Network→E-mail to go to the following interface. Enter the sender's name, e-mail address, SMTP server and SMTP port (you can click "Default" to reset the SMTP port to the default value) and then enable or disable the SSL and aaching image. Select the username (the username list will be updated automatically according to the email address you input) and enter the password of the sender and then click "Apply" to save the sengs (you don't have to enter the username and password if "Anonymous Login" is enabled). Click "Test" to pop up a window. Enter the e-mail address of the recipient in the window and then click "OK" buon. The e-mail address of the sender will send an e-mail to the recipient. If the e-mail is sent successfully, it indicates that the e-mail address of the sender is congured correctly.

Sender Sender Name [e-mail] Email Address xxx SMTP Server SMTP Port 485 Default Security SSL Attaching Image No Anonymous Login Username xxx Password Enter Password Edit Recipient Test Apply

Click "Edit Recipient" to go to the following interface.

E-mail Display Buzzer Push Message E-mail Notification Sender [e-mail] Edit Sender No. Recipients Schedule Delete 1 [e-mail] 24x7 2 [e-mail] 24x5 Add Apply

Click "Add" and then enter the recipient's e-mail address and select the schedule (if a schedule is selected, the system will send the alarm email and the recipient will receive it only in the selected schedule me) in the popup window. Click "Add" in the window to add the recipient. You can also change the recipient's receiving schedule by clicking √ in the "Schedule" column. Click 🔒 to delete the recipient in the list. Click "Apply" to save the sengs. Click "Edit Sender" to go to the e-mail conguraon interface of the sender.

11.1.6 UPnP Conguraon

By UPnP you can access the DVR through the web client which is in WAN via router without port mapping.

① Click Start→Sengs→Network→UPnP to go to the following interface.
② Make sure the router supports UPnP funcon and the UPnP is enabled in the router.
③ Set the DVR's IP address, subnet mask and gateway and so on corresponding to the router.
④ Check "Enable" in the interface as shown below and then click "Apply" buon.

Click "Refresh" buon to refresh the UPnP status. If the UPnP status says "Invalid UPnP" aer refreshing it a few mes, the port number may be wrong. Please change the mapping type to "Manual" and then click 🔒 to modify the port until the UPnP status turns to "Valid UPnP". Refer to the following picture. You can view the external IP address of the DVR. Enter the external IP address plus port in the address bar of your browser to access the DVR such as hp://183.17.254.19:81.

UPnP Enable Map Type Manual Port Type External Port External IP Address Port UPnP Status Edit HTTP Port 80 183.17.254.19 Valid UPnP HTTPS Port 443 183.17.254.19 Valid UPnP Server Port 6036 183.17.254.19 Valid UPnP RTSP Port 554 183.17.254.19 Valid UPnP Refresh Apply

11.1.7 802.1X

If it is enabled, the DVR data can be protected. When the DVR is connected to the network protected by the IEEE 802.1X, user authencaon is needed.

892.1x Enable Protocol EAP-ND5 Eapol Version 1 Username Enter Username Password Enter Password Apply

To use this funcon, the DVR shall be connected to a switch supporting 802.1x protocol. The switch can be considered as an authencaon system to identify the device in a local network. If the DVR connected to the network interface of the switch has passed the authencaon of the switch, it can be accessed via the local network.

Protocol type and EAPOL version: Please use the default sengs.

User name and password: The user name and password must be the same with the user name and password applied for and registered in the authencaon server.

11.1.8 NAT Conguraon

Click Start→Setngs→Network→NAT to go to the interface for NAT conguraon and check "Enable". Click "Apply" to save the sengs and make note of the QR code number under the QR code. Via Internet Explorer, go to connect.specotech.cloud, input the QR code number, your username and password to login.

You can also scan the QR Code through the Speco Blue app on your mobile client phone or tablet to log into the recorder instantly.

11.1.9 View Network Status

Click Start→Sengs→Network→Network Status to view the network status or click to view network status conveniently.

in the tool bar at the boom of the live view interface

11.2 Basic Conguraon

11.2.1 General Conguraon

Click Start→Setngs→System→Basic→General Setngs to go to the following interface. Set the device name, device No., language, video format and main output. Enable or disable wizard, "Log In Automacally", "Log Out Automacally" (if checked, you can set the wait me), "App Live Self-Adapon" and "Sequence Automacally" (if checked, you can set the wait me). Click "Apply" to save the sengs.

General Settings Device Name Device Name Device No. 1 Language English Video Format NTSC Main Output 1928x1080 Enable EZ Setup Log In Automatically Log Out Automatically Wait Time 1 Min Spot App Live Self-adaption Sequence Automatically Wait Time 10 Mins Apply

Device Name: The name of the device. It may display on the client end or CMS that help user to recognize the device remotely.

Video Format: Two modes: PAL and NTSC. Select the video format according to the camera.

Sequence Automacally: Check it and set "wait me". The system will sequence automacally if it is not operated during the me you set.

11.2.2 Date and Time Conguraon

Click Start→Sengs→System→Basic→Date and Time to go to the interface as shown below.

Set the system me, date format, me format and me zone of the DVR. The default me zone is lled in our default info. If the selected me zone includes DST, the DST of the me zone will be checked by default. Click "Apply" to save the sengs.

You can manually set the system me or synchronize system me with network through NTP.

Manual: select "Manual" in the "Synchronous" opon and then click aer the "System Time" opon to set the system me.

NTP: select "NTP" in the "Synchronous" opon and then enter the NTP server.

Date and Time System Time 03/24/2019 11:39:36 PM Date Format Month/Day/Year Time Format 12-Hour Sync Time With Network Synchronous Manual NTP Server time.windows.com Time Zone / DST Time Zone GMT-05 New York, Toronto, Wash DST Enable

11.2.3 Recorder OSD Sengs

Click Start→Sengs→System→Basic→Recorder OSD sengs to go to the following interface. Name, icon and address OSD can be enabled here.

Recorder OSD Settings Name Enabled ON Icon Enabled ON Address Enabled ON

11.3 Factory Default

Click Start→Setngs→System→Maintenance→Factory Default and then click "Reset to factory default" buon in the interface to reset to the factory default sengs(check "Reset retain Network Conguraon" to retain the network settings).

Note: Reseng to the factory default sengs will not change me zone.

11.4 Device Soware Upgrade

- Upgrade

You can click Start→Setngs→System→Informaon→Basic to view MCU, kernel version and rmware version and so on. Before upgrade, please get the upgrade le from your dealer.

The upgrade steps are as follows:

① Copy the upgrade soware into the USB storage device.
② Insert the USB storage device into the USB interface of the DVR.
③ Click Start→Setngs→System→Maintenance→Upgrade to go to "Upgrade" interface. Select the USB device in "Device Name" opon and go

to the path where the upgrade soware exists. Select the upgrade soware and then click "Upgrade". The system may automatically restart during upgrading. Please wait for a while and do not power o the DVR during upgrading.

Note: The file system of the USB mobile device which is used for upgrading, backing up and restoring should be FAT32 format.

- Flash Upgrade

The upgrade steps are as follows:

① Copy the ash upgrade les into the USB storage device.
② Insert the USB storage device into the USB interface of the DVR.
③ Restart the DVR. Then the system will automacally upgrade.

11.5 Backup and Restore

You can back up the conguraon le of the DVR by exporng the le to other storage devices; you can recover the conguraon to other DVRs which are of the same model with the DVR by imporng the conguraon le to other DVRs for me saving.

Insert the USB storage device into the USB interface of the DVR and then click Start→Sengs→System→Maintenance→Backup and Restore to go to the interface.

- Backup

Select the USB device in "Device Name" opon; go to the path where you want to store the conguraon backup le and then click "Backup" buon; nally click "OK" buon in the popup window.

- Recover

Select the USB device in "Device Name" opon; nd the conguraon backup le and then click "Recover" buon; nally click "OK" buon in the popup window.

11.6 Restart Automacally

You can set the automac restart me for the DVR to maintain it regularly. Click Start→Setngs→System→Maintenance→Auto Maintenance to go to the interface as shown below. Enable auto maintenance, set the interval days and point of me and then click "Apply" to save the sengs. The DVR will restart automacally at the pointed me every interval days.

Auto Maintenance Enable Interval Days 10 Days Point Of Time 23 : 59 Apply

11.7 View Log

Click Start→Sengs→System→Maintenance→View Log to go to the log view interface. Select the log main type, click end me and then click "Search" buon. The searched log les will be displayed in the list.

to set start me and

Main Type All Alarm Operation Settings Exception Start Time 11/03/2015 15:00:00 End Time 11/03/2015 16:00:00 Search Export No. Main Type Log Time Content Details Play 1 Alarm 11/03/2015 15:58:53 Motion Alarm 2 Settings 11/03/2015 15:43:01 Local Basic 3 Operation 11/03/2015 15:34:53 Local Search/Playback/Backup 4 Alarm 11/03/2015 15:25:43 Motion Alarm 5 Settings 11/03/2015 15:25:38 Local Camera Parameters 6 Operation 11/03/2015 15:20:15 Local Search/Playback/Backup 7 Settings 11/03/2015 15:05:38 Local Camera Parameters 8 Settings 11/03/2015 15:05:06 Local Record Parameters 9 Exception 11/03/2015 15:04:48 IPC Offline 10 Settings 11/03/2015 15:04:46 Local Camera Parameters 11 Operation 11/03/2015 15:03:49 Local Login / Logout 12 Operation 11/03/2015 15:03:12 Local Maintenance Current Page: 1 / 1. All 12

Choose the log le in the list and then click "Export" buon to export the log le. Click on the "Content" tle bar to pop up a menu list. Check contents in the menu list and then the log list will show the checked log contents only. Click to play the video log.

11.8 View System Informaon

Click Start→Setngs→System→Informaon and then click the corresponding menu to view the "Basic", "Camera Status", "Alarm Status", "Record Status", "Network Status" and "Disk" informaon of the system.

12 Remote Surveillance

12.1 Mobile Client Surveillance

① Enable NAT in the DVR. Refer to 11.1.8 NAT Conguraon for details.
② Scan the QR Code through the Speco Blue App available for iOS and Android to easily and securely view your cameras.
③ Run the mobile client, go to the "Add Device" interface and then click ☐ to scan the QR Code of the DVR (Go to Start→Setngs→System→Informaon→Basic to view the QR Code of the DVR).
④ Aer scanning the QR Code successfully, enter the login password to log in mobile client.

Add Device IP/DDNS/SN Nickname User Password Preview QR Code Scanning Align QR code within frame to scan

12.2 Web LAN Access

① Click Start→Sengs→Network→TCP/IP to go to the "TCP/IP" interface. Set the IP address, subnet mask, gateway, preferred DNS and alternate DNS of the DVR.
② Open the web browser on your computer, enter the IP address of the DVR in the address bar and then press enter to go to the login interface as shown below. You can change the display language on the top right corner of the login interface. Enter the username and password of the DVR in the interface and then click "Login" to go to the live view interface.

speco technologies' Giving You More. admin Login

Notes: 1. Please make sure that the IP address of the DVR and the computer are both in the same local network segment. For example, supposing that the IP address of the computer is 192.168.1.41, the IP address of the DVR shall be set to 192.168.1.XXX.

1. If the HTTP port of the DVR is not 80, but other number instead, you need to input the IP address plus port number in the IE address bar when accessing the DVR over network. For example, the HTTP port is 81. You should enter http://192.168.1.42:81 in the IE address bar.

12.3 Web WAN Access

① Set the network of the DVR. Please refer to 11.1.1 TCP/IP Conguraon for details.
② Click Start→Sengs→Network→NAT to go to the interface for NAT conguraon and check "Enable". Click "Apply" to save the sengs and make note of the QR code number under the QR code. Via Internet Explorer, go to connect.specotech.cloud, input the QR code number, your username and password to login.

speco technologies® Giving You More. QR code number Enter Your Username Enter Your Password Login

PPPoE Access

① Click Start→Setngs→Network→PPPoE to go to the "PPPoE" interface. Check "Enable" in the "PPPoE sengs" and then enter the username and password you get from your ISP. Click "Apply" to save the sengs.
② Click Start→Sengs→Network→Network Status to view the IP address of the DVR.
③ Open the web browser on your computer, enter the IP address of the DVR like hp://210.21.229.138 in the address bar and then press enter to go to the login interface. Enter the username and password of the DVR in the interface and then click "Login" to go to the live view interface.

Router Access

① Click Start→Sengs→Network→TCP/IP to go to the "TCP/IP" interface. Set the IP address, subnet mask, gateway, preferred DNS and alternate DNS of the DVR.
② Set the HTTP port (it is suggested to modify the HTTP port because the default HTTP port 80 might be taken up) and enable UPnP funcon in both the DVR and the router. If the UPnP funcon is not available in the router, you need to forward the LAN IP address, HTTP port and server port of the DVR to the router. Port mapping settings may be dierent in different routers, so please refer to the user manual of the router for details.
③ Get the WAN IP address of the DVR from the router. Open the web browser on your computer, enter the WAN IP address plus HTTP port like http://116.30.18.215:100 in the address bar and then press enter to go to the login interface. Enter the username and password of the DVR in the interface and then click "Login" to go to the live view interface.

Note: If the WAN IP address is a dynamic IP address, it is necessary for you to use the domain name to access the DVR. Click Start→Sengs →Network→DDNS to set DDNS (see 12.1.4 DDNS Conguraonfor details). By using DDNS funcon you can use the domain name plus HTTP port like hp://sunshine.dvrdydns.com:100 to access the DVR via internet.

12.4 Web Remote Control

The supported browsers for remote access are IE8/9/10/11, Firefox, Opera and Chrome (available only for the versions lower than 45) in Windows system and Safari in MAC system. Here we take IE browser for example. When you access the DVR through IE for the rst me, you need to download and install the relave components for normal preview and playback. Please refer to the ps in the remote interfaces for details. The buons and icons on the top right corner of the remote interface are introduced as follows.

admin: the current login username.

Logout: click it to log out and return to the login interface.

Modify Password: click it to change the password of the current login user. Enter the current password and then set a new password in the popup window. Click "OK" buon to save the new password.

Local Sengs: click it to change the local sengs. Set the snapshot number and click "Browse" to set the snapshot path and record path as shown below. Click "Apply" buon to save the sengs.

Snapshots number Save snapshots to C:\Users\h\Pictures Browse Save record files to C:\Users\h\Videos Browse Apply

12.4.1 Remote Preview

Click "Live View" in the remote interface to go to the live view interface. The live view interface consists of the four areas marked in the following picture.

speco technologies Live View Playback Export Settings Camera (10/10) Search Camera Camera1 Camera2 Camera3 Camera4 Camera5 Camera6 Camera7 Camera8 Camera91 Camera102 Left Panel Camera Customize Layout 09/2/2010 01:22:41 09/2/2010 01:22:41 09/2/2010 01:22:41 Operation REC ID Right Panel Operation Liny Central PTZ Preview Area

Start Preview

Select a window in the preview area and then click one online camera on the le panel to preview the camera in the window. You can click the tool bar to view all the cameras.

Le Panel Introducon

Click < on the le panel to hide the panel and click > to show the panel. You can view all the added cameras and groups on the le panel.

- View Camera

Click Camera to view the cameras. You can view the number of all the added cameras and the online cameras. For instance, the le number

3 in Camera (3/4) on the le panel stands for the number of online cameras; the right number 4 stands for the number of all the added cameras. Enter the camera name in the search box and then click to search the camera. Click to refresh the camera list.

- View Scheme

Click Customize Layout to view the scheme (or planning). All schemes can be shown in the le panel. Double click the scheme name to invoke it quickly

Tool Bar Introducon

Buon		Meaning
	[26WB]	Screen mode buon.
	[ASC4]	Click it to disable OSD. Click OSD \ to enable OSD.
	[T664]	Click it to show full screen. Right click on the full screen to exit full screen.
	All Main Stream All Sub Stream	Click “All Main Stream” or “All Sub Stream” to set the stream of all the cameras.
	[4265]	Manual alarm buon. Click it to pop up a window and then trigger and clear the alarm-out in the window manually.
	[358C]	Click it to preview all cameras.
	[2866]	Click it to close all the preview cameras.
	[0776]	Click it to start recording for all cameras to computer. Click stop recording.
	[XOTS]	Click it to start manual record for all cameras to the DVR. Click stop manual record for all cameras.
	[XHXX]	Click it to enable talk with the DVR.

Right Panel Introducon

Click < on the right panel to show the panel and click > to hide the panel. Click PTZ at the boom of the panel to go to "PTZ" panel. Click Lens Control* to go to "Lens Control". Click Operation to go to "Operaon" panel.

Operation REC 3D PTZ Operation Lens Control PTZ Zoom Focus Iris Operation Lens Control PTZ

Operaon panel introducon:

Buon	Meaning
[BY40]	Click it to take snapshots.
	Click it to start recording to computer; click it again to stop recording.
[ZBY0]	Click it to zoom in the image of the camera and then drag the mouse on the camera image to view the hidden area.
	Click it to zoom out the image of the camera.
	The 3D zoom in funcon is designed for P.T.Z. Click it and then drag the image to zoom in or zoom out the image; click the image on dierent areas to view the image of the dome omni-direconally.
	Click it to start record to the DVR
[AZ50]	Click it to close the preview camera.
[GTXE]	Click it to enable audio and then drag the slider bar to adjust the volume. You can listen to the camera audio by enabling audio.

PTZ panel introducon:

Buon	Meaning
	Click ▲ / ▼ / ▼ / ▼ / ▲ / ▲ / ▲ / ▲ to rotate the dome; click to stop rotang the dome.
	Drag the slider to adjust the rotang speed of dome.Click /to zoom in/out camera image.
	Click /to increase/decrease the focal length.
	Click /to increase/decrease the iris of the dome.
	Click it to view the preset list and then click the buon in the list to call the preset.
	Click it to view the cruise list and then click the corresponding buons in the list to start or stop the cruise.

12.4.2 Remote Playback

Click "Playback" in the remote interface to go to the playback interface.

① Check the record event types and cameras on the le panel. Set the record date on the calendar beside the me scale.
② Click 🔒 to search the record data and then click 🔒 or directly click the me scale to play the record.

The operaon of the playback me scale is similar to that of the me scale in the main program of the DVR. Please refer to 8.2 Playback Interface Introducon for details.

Introducon of playback control buons:

Buon	Meaning
	Stop buon.
	Rewind buon. Click it to play video backward.
	Play buon. Click it to play video forward.
	Pause buon.
	Deceleraon buon. Click it to decrease the playing speed.
	Acceleraon buon. Click it to increase the playing speed.
	Previous frame buon. It works only when the forward playing is paused in single screen mode.
	Next frame buon. It works only when the forward playing is paused in single screen mode.
	Click to step backward 30s and click to step forward 30s.
	Backup start me buon. Click the me scale and then click it to set the backup start me.
	Backup end me buon. Click the me scale and then click it to set the backup end me.
	Export buon.
	Backup tasks buon. Click it to view the backup status.
	Event list buon. Click it to view the event record of manual/schedule/sensor/moon.

12.4.3 Remote Export

Click "Export" in the remote interface to go to the export interface. You can export the record by event search or by me search.

Event Search

Check the record type on the le side of the interface and then click to set the start me and end me; check the cameras and then click on the right side to search the record (the searched record data will be displayed in the list); check the record data in the list and then click "Export" buon to export the record.

Time Search

Click to set the start me and end me on the le side of the interface; check the cameras and then click on the right side to backup the record.

Snapshots

The system will display all the captured images automatically in the list. Click 📄 to delete the image. Click 📄 to pop up the "Export" window. Click 📄 to pop up the "View Image" window. Click 📄 to export the image.

View Export Status

Click "Export Status" to view the export status. Click "Pause" to stop the export; click "Resume" to connue the export; click "Delete" to delete the task.

12.4.4 Intelligent Analysis

Click "Intelligent Analysis" in the remote interface to congregate smart search, stascs, target database, face aendance and face check in. All of these sengs are similar to that of the DVR. See the conguraons of the DVR for details.

12.4.5 Remote Conguraon

Click "Funcon Panel" in the remote interface and then congure the camera, record, alarm, disk, network, account and authority and system of the DVR remotely. All of these sengs are the same as the sengs of the DVR. See the conguraons of the DVR for details.

Appendix A FAQ

Q1. Why can't I nd the HDD?

a. Please check the power and SATA data cables of the HDD to make sure they are well connected.
b. For some DVRs with the 1U or small 1U case, the power of the adapter may be not enough for operating them. Please use the power adaptor supplied along with the DVR.
c. Please make sure the HDDs are compatible with the DVR. See Appendix C Compatible Device List for details.
d. The HDD could have gone bad.

Q2. Why are there no images output in some or all of the camera windows?

a. Please make sure the resolutions of the cameras are supported by the DVR.
b. Please make sure the network cables of the IP camera and DVR are both connected properly and the network parameters are set correctly.
c. Please make sure the analog camera is connected properly.
d. Please make sure the network and the switch both work normally.

Q3. The screen has no output aer boong the DVR normally.

a. Please make sure the screen, HDMI or VGA cables are good and well connected.
b. Please make sure the screen supports the resoluon of 1280*1024, 1920*1080 or 3840*2160 (4K*2K). The DVR cannot self-adapt to the screen of which the resoluon is lower than 1280*1024, and then the screen will remind you that the screen resoluon is not supported by the DVR or just have no display. Please change a screen at 1280*1024, 1920*1080 or 3840*2160 resoluon before boong the DVR.

Q4. Forget your passwords?

a. The password for admin can be reset through "Edit Security Question" funcon.
Click "Edit Security Queson" buon in the login window and then enter the corresponding answer of the selected queson in the popup window, the password for admin will be reset. If you forget the answer of the queson, this way will be invalid, please contact your dealer for help.
b. The passwords of other users can be reset by admin, please refer to 10.1.2 Edit User for details.

Q5. The DVR cannot add up to the maximum number of IP cameras?

Take the 16 CH DVR as an example. Some 16 CH DVR support a maximum of 120Mbps bandwidth input (please take the real device for standard). Refer to the picture below. The remaining bandwidth should be larger than the bandwidth of the IP camera you want to add, or you would fail to add the IP camera. You should lower the added cameras' bitrate to release the bandwidth. It is recommended to add cameras by "Quickly Add" for batch adding.

Add Camera Quickly Add Add Manually Add Recorder No Address Port Edit Subnet Mask Protocol Model Version 1 192.168.122.103 80 255.255.255.0 ONVIF xxx 4.0.0.1 0 2 192.168.226.201 80 255.255.255.0 ONVIF xxx 4.0.0.1 0 3 192.168.226.201 80 255.255.255.0 ONVIF xxx 4.0.0.1.beta1 0 Selected: 0 / 3 Remain Bandwidth: 108 / 120 Mb Default Password Add Cancel

Q6. The system cannot record, why?

a. Make sure the HDD was formed prior to use.
b. The record schedule has not been set in manual record mode. Please refer to 7.3.2 Record Schedule Conguraon for details.
c. Maybe HDD is full and thus the DVR is not able to record. Check HDD informaon from Disk Management and if required, please enable the recycle funcon (please see 7.1.2 Advanced Conguraon for details).
d. There is no disk but cameras in the disk group, so please add at least one disk to the group. Refer to 7.5.1 Storage Mode Conguraon for details.
e. The HDD could have gone bad. Please contact tech support.

Q7. Fail to access the DVR remotely through IE.

a. Please make sure the IE version is IE8 or above.
b. Please check whether the PC has enabled the rewall or installed the anvirus soware. Please try to access the DVR again aer you disable the rewall and stop the anvirus soware.
c. Allow & block list may have been set in Account and Authority seng. The PC of which the IP address is in the block list or out of the allow list cannot access the DVR remotely.

Q8. AcveX control cannot be downloaded. What can I do?

a. IE browser blocks AcveX control. Please do setup as per the steps menoned below.

① Open IE browser. Click →Internet Opons.

Print File Zoom (100%) Safety Add site to Start menu View downloads Ctrl+J Manage add-ons F12 Developer Tools Go to pinned sites Compatibility View settings Report website problems Internet options About Internet Explorer

② Select Security→Custom Level. Refer to Fig 10-1.
③ Enable all the sub opons under "AcveX controls and plug-ins". Refer to Fig 10-2.
④ Then click "OK" to nish setup.

b. Other plug-ins or an-virus may block AcveX. Please disable or do the required sengs.

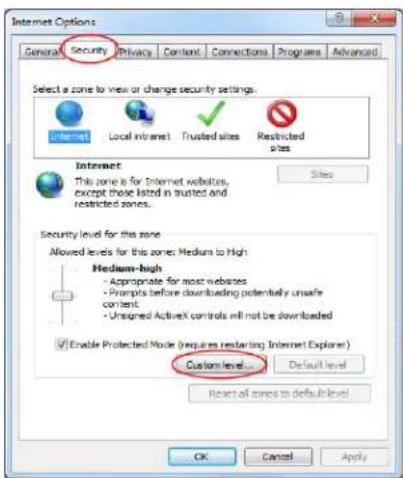

Internet Options General Security Privacy Content Connections Programs Advanced Select a zone to view or change security settings. Internet Local intranet Trusted sites Restricted sites Internet This zone is for Internet websites, except those listed in trusted and restricted zones. Security level for this zone Allowed levels for this zone: Medium to High Medium-high - Appropriate for most websites - Prompts before downloading potentially unsafe content - Unsigned ActiveX controls will not be downloaded ✓ Enable Protected Mode (requires restoring Internet Explorer) Custom level... Default level Reset of zones to default level OK Cancel Apply

Fig 10-1

Security Settings - Internet Zone Settings ActiveX controls and plugins Allow ActiveX Filtering Enable Allow previously unused ActiveX controls to run without prompt Enable Allow Scripts Enable Prompt Automatic prompting for ActiveX controls Enable Enable Binary and script behaviors Administrative approved * *Takes effect after you restart your computer Reset custom settings Reset to: Medium-high (default) Reset... OK Cancel

Fig 10-2

Q9. How to play the backup le?

a. Record backed up by DVR: insert the USB device in which the record backup les is saved to the USB interface of the PC and then open the USB device path. The record can be backed up in the private format and AVI format by DVR.
- If you select the private format when backing up record by DVR, a RPAS (Recording Player Applicaon Soware) compression package will be backed up to the USB device automatically along with the record data. Uncompress the "RPAS.zip" and then click "RPAS.exe" to set up RPAS. Aer the setup is completed, open RPAS player and then click "Open Folder" buon in the middle of the interface to select the record data. Refer to Fig 11-1.

Select camera in the resource tree on the le side of the interface to play the camera record. Click enable audio. Refer to Fig 11-2.

on the tool bar under the camera image to

Note: The record will not have audio output if you disable the audio when recording by DVR. Please see 7.1.1 Mode Configuration and 7.2 Encode Parameters Setting for details.

- If you select the AVI format when backing up recorded video by DVR, the recorded video can be played by the video player which supports this format.

b. Recorded video backed up through web. The recorded video can only be backed up with AVI format through web. The recorded video can be backed up to PC and played by the video player which supports this format.

RPAS Play List + - RPAS Open Folder CPU: 6% RAV: 40% 2015/7/30 15:00:51

Fig 11-1

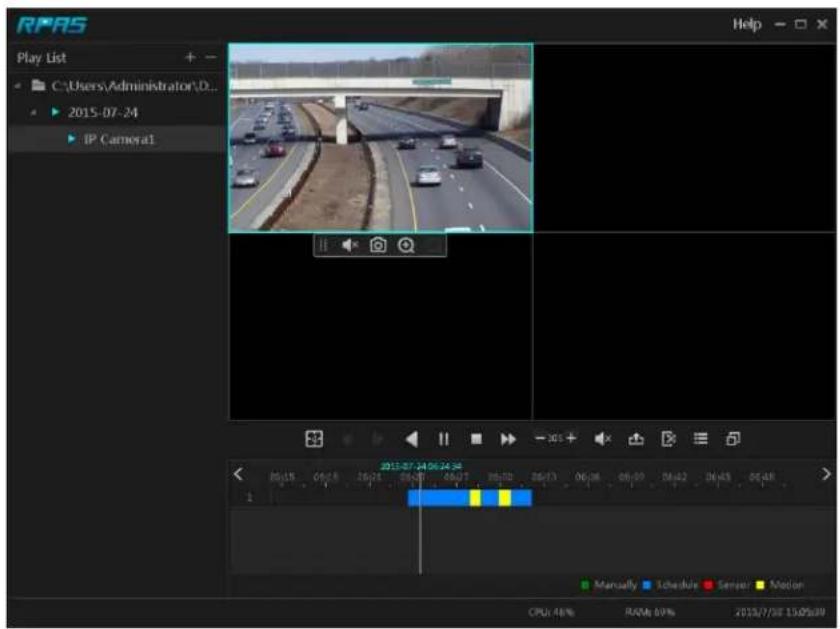

RPM5 Play List C:\Users\Administrator\D... 2015-07-24 IP Camera1 Help 2015-07-24 06:34:39 2015/07/08 15:00:39 CPU: 48% RPMs: 69%

Fig 11-2

Appendix B Calculate Recording Capacity

The recording capacity is mainly up to the record resoluon, record stream and bitrate. Dierent image quality parameters decide dierent disk capacity occupaon in equal mes. The bigger the record resoluon, record stream and record bitrate is, the more disk capacity is taken up in equal mes. The calculaon format of recording capacity is shown as below.

Recording Capacity(MB) = Bitrate(Kbps) ÷ 1024 ÷ 8 × 3600 × Recording hours per day × Record Storage Days × channel numbers

3600 means record for an hour(1TB=1024GB, 1GB=1024MB, 1MB=1024KB, 1Byte=8bit).

Record Bitrate (Kbps)	Used Space (MB/H)	Used Space (MB/D)
10240	4500	108000
8192	3600	86400
6144	2700	64800
4096	1800	43200
3072	1350	32400
2048	900	21600
1024	450	10800
768	337.5	8100
512	225	5400
384	168.75	4050
256	112.5	2700

The table below shows the recording capacity requirements for record storage in 30 days.

Record Bitrate (Kbps)	Recording Capacity (TB)
	1CH	4CH	8CH	16CH	32CH	64CH
10240	3.09	12.36	24.72	49.44	98.88	197.76
8192	2.48	9.89	19.78	39.56	79.11	158.21
6144	1.86	7.42	14.84	29.67	59.33	118.66
4096	1.24	4.95	9.89	19.78	39.56	79.11
3072	0.93	3.71	7.42	14.84	29.67	59.33
2048	0.62	2.48	4.95	9.89	19.78	39.56
1024	0.31	1.24	2.48	4.95	9.89	19.78
768	0.24	0.93	1.86	3.71	7.42	14.84
512	0.16	0.62	1.24	2.48	4.95	9.89
384	0.12	0.47	0.93	1.86	3.71	7.42
256	0.08	0.31	0.62	1.24	2.48	4.95

For instance, there is a 32CH DVR recording 24 hours per day and the record stores for 30 days. The DVR adopts dual stream recording. The main stream is 4096Kbps and the sub stream is 1024Kbps, then the total recording capacity is 49.45TB (39.56TB + 9.89TB).

Considering the format loss of the disk is about 10%, the required disk capacity will be 55TB (49.45TB ÷ (1-10%)).

Appendix C Specicaons

Model		H6HRL	H16HRL	H24HRL
System	Compression	Standard H.265
	OS	Embedded Linux
Video	Analog Input	BNC ×4	BNC ×8	BNC ×16
	IPC Input	2CH (up to 6CH)*	8CH (up to 16CH)*	8CH*
	Network Access & Transfer Bandwidth	16/40Mbps	32/96Mbps	64/192Mbps
	Network Access Format	8MP/5MP/4MP/3MP/1080P/960P/720P@25/30fps
	Output	HDMI×1: 4K×2K/1920×1080/1280×1024,VGA×1: 1920×1080/1280×1024/1024×768BNC×1: CVBS (used as the main or spot output)
Audio	Input	RCA×4	RCA×8	RCA×8
	2-way Audio	Take up channel one audio input
	Local Output	RCA×1
Record	Record Stream	Dual stream recording
	Resoluon	4K/5MP/4MP/1080P/720P/WD1
	Frame Rate	4K@6fps/7fps5MP@12fps (PAL/NTSC)4MP@12fps/15fps (PAL/NTSC)1080P/720P/WD1@25fps/30fps (PAL/NTSC)
	Bit Rate	32~8Mbps
	Mode	Manual, schedule, moon, sensor, intelligence
IP Input	Resoluon	8MP/5MP/4MP/3MP/1080P/960P/720P@25fps/30fps
Playback	Simultaneous Playback	Max 4 CH	Max 8 CH	Max 16 CH
	Search Mode	EZ search, museum search, me search, event search, bookmark search, snapshot search
	Smart Search	Highlighted color to display camera records in a certain period of me, dierent colors refer to dierent record events
	Funcon	Play, pause, FF, FB, etc.
Alarm	Mode	Manual, sensor, moon, excepon, intelligence
	Input	4CH local alarm input; support IPC alarm input	8CH local alarm input; support IPC alarm input	16CH local alarm input; support IPC alarm input
	Output	1CH local alarm output; Support IPC alarm output	2CH local alarm output; Support IPC alarm output	4CH local alarm output; Support IPC alarm output
	Linkage	Record, snapshot, preset, e-mail, pop-up window, etc.
Network	Interface	RJ45 10M/100Mbps×1	RJ45 10M/100M/100Mbps×1	RJ45 10M/100M/100Mbps×1
	Protocol	TCP/IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPS, RTSP
	Web Client	Mulple online users monitoring
Mobile Device	OS	Speco Blue iOS, Android
Storage	HDD	SATA×1, max 14TB per HDD	SATA×2, max 14TB per HDD	SATA×2, max 14TB per HDD
	E-SATA	E-SATA×1
Export	LocalNetwork	By U disk, USB mobile HDDYes
Interface	USB	USB2.0×2
	Remote Controller	Yes
Others	Power Supply	DC12V/2A	DC12V/4A	DC12V/4A
	Power Consumpon	≤10W (without HDD)	≤15W (without HDD)	≤30W (without HDD)
	Dimensions(W×D×H)	11.8" x 9.8" x 1.8"(300mm×248mm×45mm)	15" x 10.6" x 1.8"(380mm×268mm×45mm)	15" x 10.6" x 1.8"(380mm×268mm×45mm)
	Working Environment	-4~122F (-10~50°C), 10%~90% (humidity)

Note:

* 6HRL can convert all analog channels into IP input, so its total IP input is 6ch;16HRL can convert all analog channels into IP input, so its total IP input is 16ch; H24HRL can convert the last 8 analog channels into IP input, so its total IP input is 16ch.

Android is a trademark of Google LLC.

Model: H6HRL/H16HRL/H24HRL

Federal Communicaons Commission (FCC) Statements

This device complies with Part 15 of the FCC Rules. Operaon is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operaon.

FCC Responsible Party:

Speco Technologies

200 New Highway

Amityville, NY 11701

www.specotech.com
