USER MANUAL ATOM 2W AE Vornado

Exterior view of a modern office building (no signage)

model ATOM 2W AE

OSCILLATING TOWER WITH WALL MOUNT OWNER'S GUIDE

GUÍA DEL PROPIETARIO DE LA TORRE OSCILANTE CON SOPORTE DE PARED

TOUR OSCILLANTE AVEC SUPPORT MURAL GUIDE DU PROPRIÉTAIRE

vornado.com

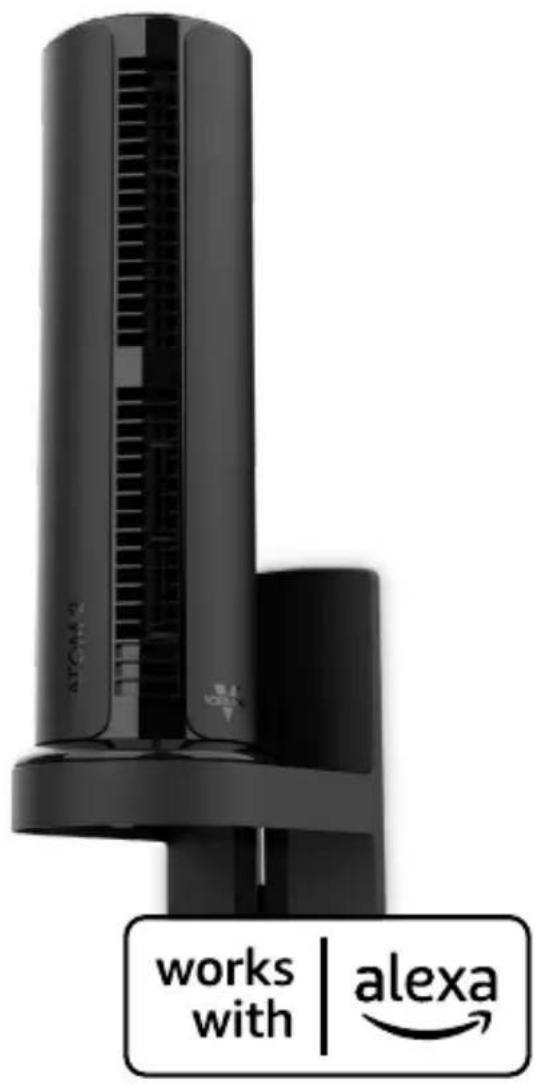

works with

alexa

We expect this product to be perfect.

If it is not, we will make it right.

vornado.com

800.234.0604

[e-mail]

CONTENTS

Important Safety Instructions....4

Features 10

Getting Started....11

How to Use 13

Getting Connected 15

Using Alexa 16

Cleaning 18

Storage....19

Troubleshooting 20

Warranty 21

Español p. 23 Français p. 47

READ AND SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

This owner's guide and any additional inserts are considered part of the product. They contain important information about safety, use and disposal. Before using the product, please familiarize yourself with all operating and safety instructions. Please keep all documents for future reference and pass these documents on, together with the product, to any future owner. See www.vornado.com to view, download and print the most current version of these instructions.

INTENDED USE: This product is intended to circulate the air in indoor living spaces only in the United States. This product is not intended for commercial or industrial use. The manufacturer assumes no responsibility for damage or injury due to unauthorized use or product modification. Failure to follow these directions will void the product warranty.

WARNING: Risk to Children and Impaired Persons

Supervision is required during the installation, operation, cleaning and maintenance of this product by children 12 years of age and younger and anyone with reduced physical, sensory or mental capabilities. Children should be supervised to ensure that they do not play with the appliance, its parts and packaging material.

INSTALLATION WARNING—To reduce risk of fire, electrical shock and injury to persons, observe the following:

• Place this product away from curtains, draperies, tablecloths and other fabrics, since they may be drawn into the product, damage the motor and/or cause a fire.
• No part of this product (the appliance, power cord, plug, packaging, etc.) should be placed near furnaces, fireplaces, stoves or other high temperature heat sources. Do not use this product in a window, on an uneven or unstable surface, or near water.
• The appliance, power supply, power cord and plug cannot come into contact with water. Do not use this product on wet surfaces. Do not use this product in a bathtub or shower or position product where it may fall into a bathtub, laundry, swimming pool or other water container. Do not use this product outdoors or expose it to weather or elements.
• Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over. The cord should not hang over edges of counters or be placed where it can be crimped or closed in doors. Place appliance near an easily accessible outlet so the product can be unplugged quickly during an emergency.

SAFE USE WARNING—To reduce risk of fire, electrical shock and injury to persons, observe the following:

- WARNING: To reduce likelihood of circuit overload, fire and electric shock, do not operate with a solid state speed device, such as a dimmer control switch.

• Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair.
• Do not operate unit if the unit has been dropped or damaged. Do not use this product if it has a damaged power cord or plug. To avoid risk of electrical shock, do not attempt to repair or replace parts. Only original replacement parts may be used. If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Contact Vornado Consumer Service at 1-800-234-0604 (phone) or [e-mail] (email) for further instructions about replacement and repair.
• Risk of fire. Your appliance is equipped with a detachable power supply. Use only the power cord and plug provided. The detachable external power supply and cord have no user replaceable parts. If the power supply or cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. Use only the detachable external power supply and cord that comes with your product.
• Before plugging power cord into electrical outlet, be sure that all electrical information on the rating label, including voltage, is compatible with your outlet's power supply.
• Do not sit or stand on product.
• Never use the cord as a handle or otherwise yank, strain or stretch the power cord.

• While the product is plugged in, do not insert or allow foreign objects to enter any input or output opening as this may cause risk of electric shock or fire, or damage the product.

• A loose fit between wall outlet (receptacle) and plug may cause overheating and distortion of the plug. Discontinue use of the product in this outlet. Contact a qualified electrician to replace loose or worn outlets.

• Before moving, repositioning, servicing, cleaning and when not in use, use the product controls to turn off the power and then unplug. Always unplug device to avoid possible injury due to remote activation of the product. To disconnect from outlet, grasp and pull only the plug. Also, power off and unplug if the product will be left unattended for an extended period of time or during electrical storms.

SERVICING WARNING—To reduce risk of fire, electrical shock and injury to persons, observe the following:

- Always unplug device before servicing or cleaning to avoid possible injury due to remote activation of the product.

- Clean your product regularly, only as is instructed in this manual. Prior to cleaning, turn off the power on your product and unplug. Do not use gasoline, thinners, solvents, ammonias or other chemicals for cleaning. Refer to the CLEANING instructions provided.

- Do not open appliance housing while product is plugged in. To avoid risk of shock, all service and/or repairs must be done by a Vornado Authorized Service Center.

FCC Compliance Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Contact Vornado Customer Service or dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

RF Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

Supplier's FCC Declaration of Conformity

Unique Identifier: Vornado Model ATOM 2W AE

Responsible Party: Vornado Air LLC

Mailing Address : 415 E. 13th St., Andover, KS 67002

Contact: www.vornado.com

SAVE THESE INSTRUCTIONS

FEATURES

FINGER FRIENDLY DESIGN

Resists curious fingers.

GESTURAL TOUCH-SENSITIVE CONTROLS

Simple controls with a sleek aesthetic.

MULTIPLE SPEEDS

4 speed settings for every comfort level.

90^/180^/270^/360^ or infinite oscillating airflow.

DC MOTOR

Quiet and energy efficient.

AUTO DIMMING DISPLAY

Reduces light pollution.

SILICONE FEET

Non-marking feet added for stability.

WALL MOUNT

8" Wall Mounted Base

(use only as intended)

10 English

GETTING STARTED

WALL ASSEMBLY Drill required. Screwdriver required.

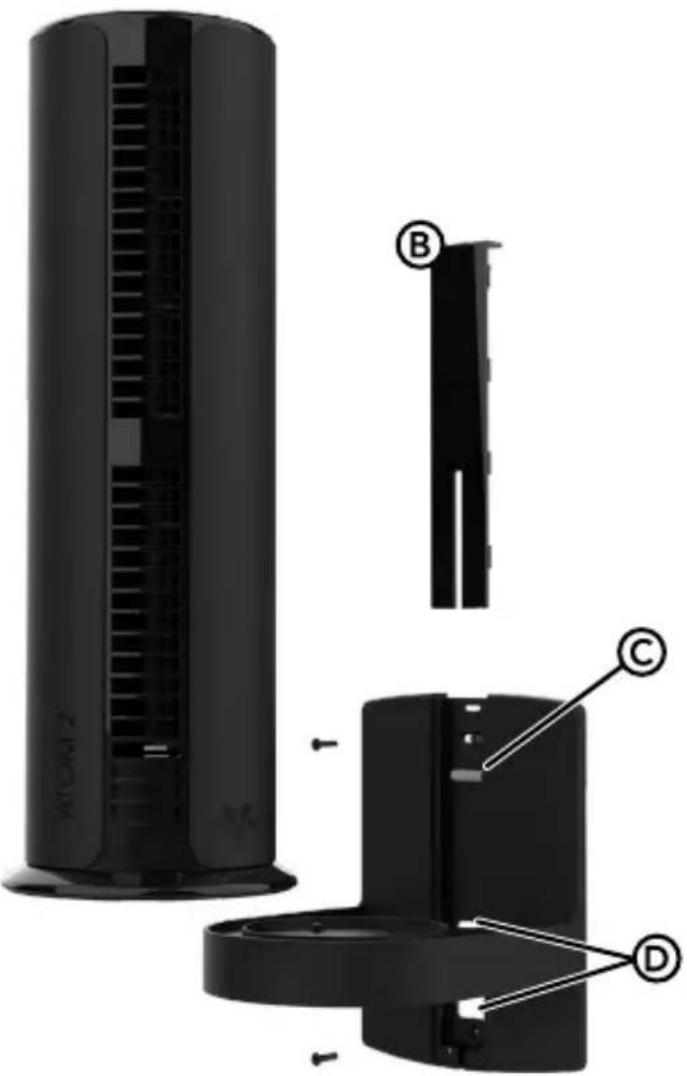

Your ATOM 2W AE comes pre-installed on the wall mount. Prior to wall mount set up, please detach your product from the wall mount by loosening the (3) captive screws (A) located on the bottom of the wall mount tray.

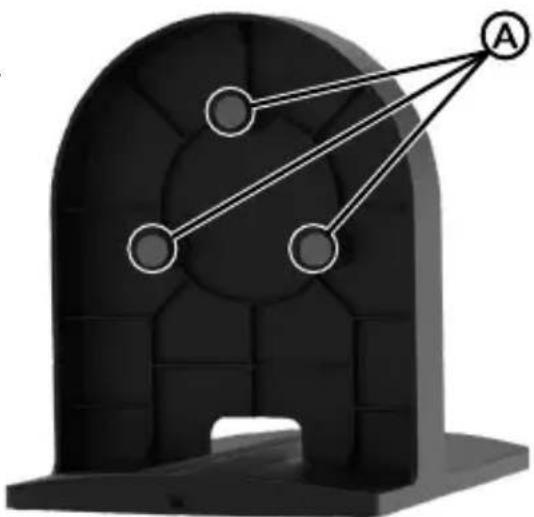

1. Remove wall mount cover (B) to identify where anchor screws will be inserted into wall. To remove wall mount cover, slide up until fully removed.

NOTE: Do not hang Wall Mount higher than 60" from floor.

3D diagram of a mechanical or electrical component with connected nodes and a labeled point A (no text or symbols beyond the label)

1. Using 7/32 drill bit (not included), drill holes into wall for (2) yellow wall anchors.

2. Insert wall anchors into wall

3. Align anchor screw locations on wall mount with wall anchors. Use integrated wall mount level (C) to ensure it is level.

4. Using Phillips head screwdriver (not included) secure (2) anchor screws into wall anchors.

5. Secure your ATOM 2W AE to the wall mount tray using the (3) captive screws

6. Feed the DC power adaptor cord connector through the hole located at the back of the wall mount (D).

7. Replace wall mount cover. It will click into place.

8. Connect DC receiver to DC power adaptor cord connector

9. Plug the power cord into a power outlet.

10. Your ATOM 2W AE is now fully assembled and ready for use.

NOTE: If using wall mount, ensure it is fully mounted and ATOM 2W AE is fully secured before use.

Choking hazard. Small parts.

Keep away from children and pets.

12 English

HOW TO USE

1. Insert power cord plug into port that extends from the bottom of the product. Plug the power cord into a power outlet.
2. Touch (to power ON or OFF. Your circulator returns to last saved memory setting.

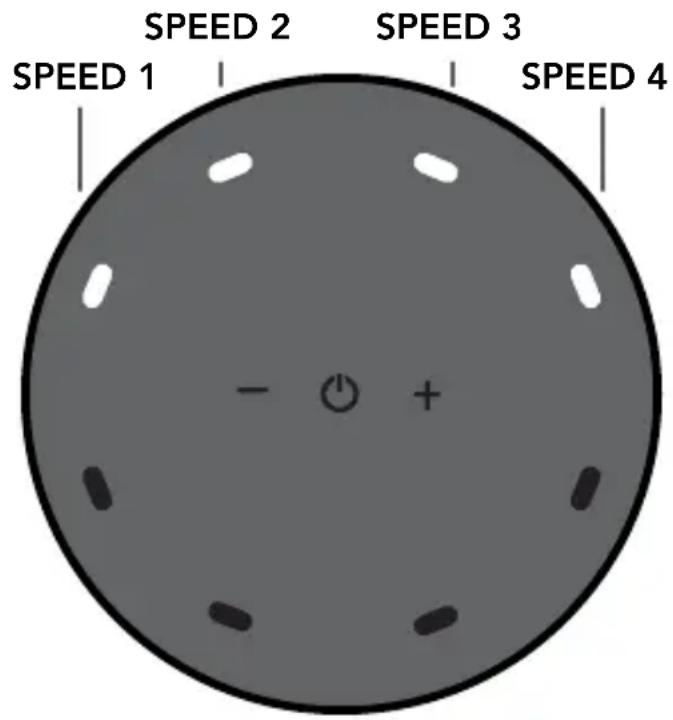

3. Select desired speed by pressing -/+ . Speed is indicated by number of white LEDS as shown on the display.
4. Double tap at any area along the control panel perimeter for targeted airflow. The airflow will then point where directed.

Want to see a demonstration? Scan here.

HOW TO USE OSCILLATION

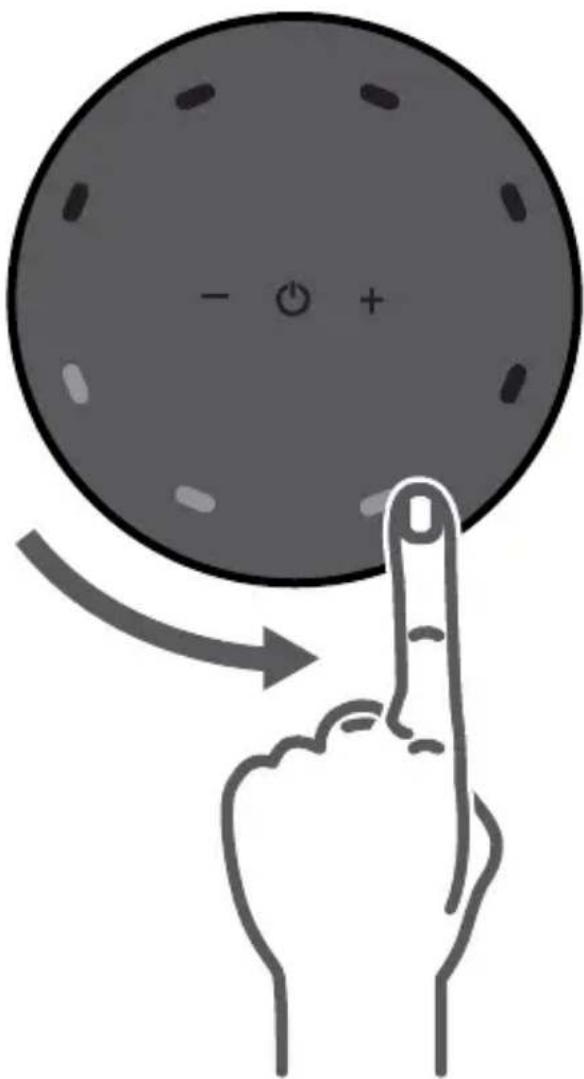

1. Tap and drag your finger along the control panel perimeter to set the desired oscillation direction and angle. The oscillation path and direction of airflow is indicated by the blue LEDs as shown on the display.

Tip: To activate infinite 360 oscillation, swipe finger along control panel perimeter in full circle and overlap where you started.

1. To change oscillation path, tap anywhere to pause current oscillation path and then drag your finger along the control panel's perimeter to create new oscillation path.

Note: The display will dim after 3 seconds of inactivity and reawaken with any touch to the control panel.

14 English

GETTING CONNECTED

Before product setup, download or update the Amazon Alexa app from your mobile device's app store and ensure your phone is connected to your 2.4 GHz WIFI network.

1. Plug in your ATOM 2W AE.
2. Open the Alexa app and tap the MORE icon to add a device. Follow the on-screen instructions. If prompted by the app, scan the 2D barcode located on the product. If 2D barcode doesn't work or you are unable to locate your 2D barcode, use the manual setup in the app.
3. Once successfully connected, a message will appear in the Amazon Alexa app and the power button on your ATOM 2W AE will be illuminated blue. Your fan is ready to use.

FACTORY RESET: If for any reason, there is a problem with your product or you wish to disconnect the product from your network you can reset it to factory settings.

Simply press and hold the POWER and SPEED “+” together for 6 seconds or until all LED lights begin to flash. To reconnect your ATOM 2W AE, follow steps above.

USING ALEXA

Once connected to Amazon Alexa, your ATOM 2W AE can be controlled via your voice with any Alexa Echo device or the Alexa App on your phone. To control your product, use simple voice controls like:

"Alexa, turn ON / OFF <>."

"Alexa, set fan speed to 1/2/3/4 on <>."

"Alexa, set fan speed to LOW / MEDIUM / HIGH / TURBO on <>."

NOTE: 1=LOW / 2=MEDIUM / 3=HIGH / 4=TURBO

Fan speed can be controlled by either voice command shown above.

"Alexa, DECREASE/INCREASE fan speed on <>."

"Alexa, set direction to 180/135/90/45/22 LEFT/RIGHT on >."

"Alexa, set direction to CENTER on <>."

"Alexa, set oscillation angle to 1-360 degrees on <>."

"Alexa, set continuous rotation to <> on <>."

USING ALEXA

Simple line drawing of a smartphone with wireless signal waves (no text or symbols)

Simple line drawing of a plug with a lightning bolt symbol above it, no text or labels present

You can also use the Amazon Alexa app as a remote control for your ATOM 2W AE. See app for details.

You can unplug fan from wall to immediately disconnect from Alexa device control. Follow FACTORY RESET instructions (page 15) to permanently disconnect device from network, if needed.

CLEANING

Because your ATOM 2W AE moves a substantial amount of air, it will need regular cleaning. The fan has no user serviceable parts inside and cannot be opened for cleaning. Never clean the product in any manner other than instructed in this owner's guide.

WARNING: Always unplug device before servicing or cleaning to avoid possible injury due to remote activation of the product.

1. Power off and unplug the unit prior to cleaning.
2. Dust or wipe the circulator with a damp cloth.
3. Use the brush attachment on your household vacuum cleaner to vacuum any accumulated dust.

Note: The motor is permanently lubricated and requires no oiling.

18 English

STORAGE

During the off-season or after extended periods of non-use, you may choose to store your circulator. To ensure long life of the product, it is recommended to store your circulator by following these instructions:

Cleaning is recommended before storage.

1. Unplug power cord and bundle loosely.
2. Cover, or place back in retail carton if available. This prevents circulator from accumulating dust over time.
3. Store circulator in cool and dry location.

TROUBLESHOOTING

POSSIBLE CAUSE AND SOLUTIONPROBLEM

The unit fails to power on.	Unit is not plugged in. Plug Power Cord into electrical outlet.Ensure unit fan speed setting is selected.Unit is damaged or in need of repair. Cease usage and unplug.Contact Consumer Service for assistance.The outlet is worn or damaged. Try another outlet or contact a qualified electrician.
Airflow is weak or slow.	Unit set to a low speed setting. Adjust to a higher speed setting.Airflow is blocked. Remove obstruction.Adjust direction of airflow towards the user.
GFCI has tripped.	Under certain conditions, it is possible for a reset GFCI (Ground Fault Circuit Interrupter) outlet to trip when the user is changing speeds on a Vornado circulator. In this event, change to an outlet that is not connected to a GFCI device. It could also indicate a weak or defective GFCI outlet. Contact a qualified electrician to check the GFCI outlet.
Cannot Connect Unit to my Amazon Alexa Account	You might be connected to a 5 GHz WiFi network. Disconnect and reconnect to a 2.4 GHz network and try the setup again.Your WiFi signal might not be strong enough. Move closer to your WiFi router and try the setup again.

WARRANTY

We expect this product to be perfect. If you're not satisfied with this product, let us know.

We're Here To Help

800.234.0604

vornado.com

[e-mail]

Vornado Air LLC ("Vornado") warrants to the original consumer or purchaser this Vornado® Whole Room Circulator ("Product") is free from defects in material or workmanship for a period of five (5) years from the date of purchase. If any such defect is discovered within the warranty period, Vornado, at its discretion, will repair or replace the Product at no cost.

For warranty service: Call 1-800-234-0604 or email [e-mail] to obtain a Return Authorization ("RA"). Please have or include your Product's model number and serial number, as well as your name, address, city, state, zip code, e-mail, and phone number when contacting Vornado for warranty service. To file a contactless warranty claim, visit vornado.com/contact-us.

After receiving the RA form, ship your Product to: Vornado Air LLC Attn: Warranty & Repair 415 East 13th Street Andover, KS 67002. For your convenience, please have your model number and serial number when contacting Vornado with service inquiries. To assure proper handling, packages must be clearly marked with the RA number. Packages not clearly marked with the RA number may be refused at the receiving dock. Please allow 2-3 weeks for warranty service and return of your Product after the Product is received.

This warranty does not apply to defects resulting from abuse of the Product, modification, alteration, mishandling, improper maintenance, commercial use or repair or service of the Product by anyone other than Vornado; damages which occur in shipment or are attributed to acts of God. Improper product use, which includes using an external device that alters or converts the voltage

Designed, engineered and supported in U.S.A.

or frequency of electricity, or shipping a Vornado product to a country not intended for use will void all warranties. Any unauthorized product modification, repair by unauthorized repair center, or use of non-approved replacement parts is not recommended and any consequences will not be covered by support services or product warranties. The product warranty will be honored only on models that are being used in the country intended. REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER. VORNADO SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. Some states do not allow the exclusion or limitation of incidental or consequential damages, or allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights that vary from state to state. The manufacturer assumes no responsibility for damage caused by failure to follow these instructions or improper product use. Any such actions will invalidate the product warranty.

All company names and product names are trademarks of their respective owners. © All rights reserved. All technical information, data, and instructions for the installation, connection, and operation contained in these instructions for use correspond to the latest available information at time of printing. The contents of this manual may differ slightly from the actual product. Observe any additional supplements.

© 2022 Vornado Air LLC Andover, KS 67002 Specifications subject to change without notice. Vornado ^® is a trademark owned by Vornado Air LLC.

VORNADO

Vornado Air, LLC

415 East 13th Street, Andover, Kansas 67002

800.234.0604 | vornado.com

Amazon, Echo, Alexa, and all related logos are trademarks of Amazon.com, Inc. or its affiliates.

CL3-0935 R-, V00
