Product Type	Air Conditioner with Smart Wi-Fi Kit
Brand	Kaden
Model	KSI24
Smart Kit Model	OSK102
Wi-Fi Standard	IEEE 802.11 b/g/n
Frequency Band	2.4 GHz (2400–2483.5 MHz)
Maximum Transmitted Power	19.8 dBm
Power Input (Smart Kit)	DC 5V / 300mA
Operating Temperature	0°C to 45°C (32°F to 113°F)
Operating Humidity	10% to 85%
Compatible Operating Systems	iOS 8.0+ and Android 4.0+
Wireless Security Encryption	WPA-PSK / WPA2-PSK or none
App Name	NetHome Plus
Network Configuration Modes	AP Mode (via remote) and QR Code scan
Main Functions via App	On/Off, Mode, Temperature, Fan Speed, Timer, Sleep, 8°C Heat, Check, Share Device
Timer Features	Timer On/Off, Weekly Schedule
Sleep Function	Customizable temperature profile over time
Check Function	Detailed status report (normal/abnormal items)
Share Device	Multi-user control via QR code sharing
FCC/IC Compliance	Part 15 of FCC Rules and RSS 210 of ISED

Frequently Asked Questions - KSI24 Kaden

How do I enter AP mode on the Kaden KSI24?

Power on the air conditioner, then continuously press the LED DISPLAY button on the remote control seven times within 10 seconds. The display will show 'AP' indicating AP mode is active.

Which app do I need to control the KSI24 via Wi-Fi?

You need the NetHome Plus app, available for iOS and Android. Download it from the App Store or Google Play.

What should I do if the app shows the device as offline after configuration?

Pull down to refresh the device list in the app. If still offline, turn the AC power off and on again. The device should appear online after a few minutes.

Can I control the KSI24 with multiple smartphones?

Yes, use the Share Device function in the app. Generate a QR code from the primary user's app, and other users can scan it after logging into their own app.

What if the remote control does not work after entering AP mode?

In AP mode, the remote control is disabled. You must either complete the network configuration, power cycle the AC, or wait 8 minutes for the AC to exit AP mode automatically.

Is the KSI24 compatible with 5 GHz Wi-Fi networks?

No, the Smart Kit supports only 2.4 GHz (IEEE 802.11 b/g/n). Ensure your router broadcasts a 2.4 GHz network.

How do I reset the Smart Kit or change the Wi-Fi network?

To reconfigure, put the AC back into AP mode (press LED DISPLAY 7 times) and repeat the network configuration process in the app. Forget the old network on your phone first.

Does the KSI24 support voice control?

The manual does not specify voice control. Voice control would depend on the capabilities of the NetHome Plus app and integration with platforms like Alexa or Google Assistant, which are not mentioned.

What does the 'Check' function do?

The Check function provides a detailed report on the AC's running status, displaying normal items, abnormal items, and other diagnostic information.

Can I schedule the AC for different times each day?

Yes, the app allows weekly scheduling with timer on/off. You can set specific times for each day of the week and repeat the schedule weekly.

USER MANUAL KSI24 Kaden

USER MANUAL OF NETHOME PLUS SMART KIT

IMPORTANT NOTE:

Read the manual carefully before installing or connecting your Smart kit (Wireless module). Make sure to save this manual for future reference.

NOTE\*

Company will not be liable for any issues and problems caused by Internet, Wi-Fi Router and Smart Devices. Please contact the original provider to get further help.

CONTENTS

1. SPECIFICATION......1
2. PRECAUTIONS ....1
3. DOWNLOAD AND INSTALLAPP......2
4. INSTALL THE SMART KIT......3
5. USER REGISTRATION 4
6. NETWORK CONFIGURATION......5
7. HOW TO USE APP....16
8. SPECIAL FUNCTIONS....18

DECLARATION OF CONFORMITY

Hereby, we declare that this Smart kit is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.

1. SPECIFICATION

Model: OSK102

Standard: IEEE 802. 11b/g/n

Antenna Type: Printed PCB Antenna Frequency

: WLAN 2400\~2483.5 MHz Operation

Temperature:0 C\~45 C/32 F\~113 F Operation

Humidity: 10%\~85%

Power Input: DC 5V/300mA

Maximum Transmitted Power: 19.8dBm Max

2. PRECAUTIONS

Applicable system: iOS, Android.

(Suggest: iOS 8.0 or later, Android 4.0 or later)

Please keep the APP up to date with the latest version.

Due to special situations may be occurred, we explicitly claims below: Not all of the Android and iOS system are compatible with APP.

Wireless safety strategy

Smart kit only support WPA-PSK/WPA2-PSK encryption and none encryption.

WPA-PSK/WPA2-PSK encryption is recommended.

Cautions

If system time-out occurs, restart the configuration process. Smart Phone camera needs to be 5 million pixels or above to make sure scan QR code well

- Due to different network situation, sometimes, request time-out could happen, thus, it is necessary to do network configuration again.

- The APP system is subject to update without prior notice for product function improvement. The actual network configurat processmay be slightly different from the manual, the actual processshallprevail.

3. DOWNLOAD AND INSTALL APP

CAUTION: The following QR Code is only available for downloading APP. It is totally different with the QR code packed with SMART KIT.

Android

iOS

• Android Phone users: scan Android QR code or go to google play, search ‘NetHome Plus” app and download it.
• iOS users: scan iOS QR code or go to APP Store, search ‘NetHome Plus” app and download it.

4. INSTALL THE SMART KIT (wireless module)

1. Remove the protective cap of the smart kit (wireless module)

Diagram of a device being inserted into a housing, showing a downward arrow indicating compression or disassembly (no text or symbols present)

1. Open the front panel and insert the smart kit (wireless module) into the reserved interface.

2. Apply the Smart Kit QR sticker from inside the box to the side of the AC unit, or in a location that can be scanned by a smart device.

NOTE: Ensure the number on the QR code sticker matches the number on the Smart Kit installed in the unit.

WARNING: This Wi-Fi interface is compatible only with the Smart Kit provided by the manufacturer.

5. USER REGISTRATION

• Please ensure your mobile device is connected to Wireless router. Also, the Wireless router has already connected to Internet before doing user registration and network configuration.
• It is better to log in your email box and activate your registration account by clicking link. This will save login details in case you forget the password.

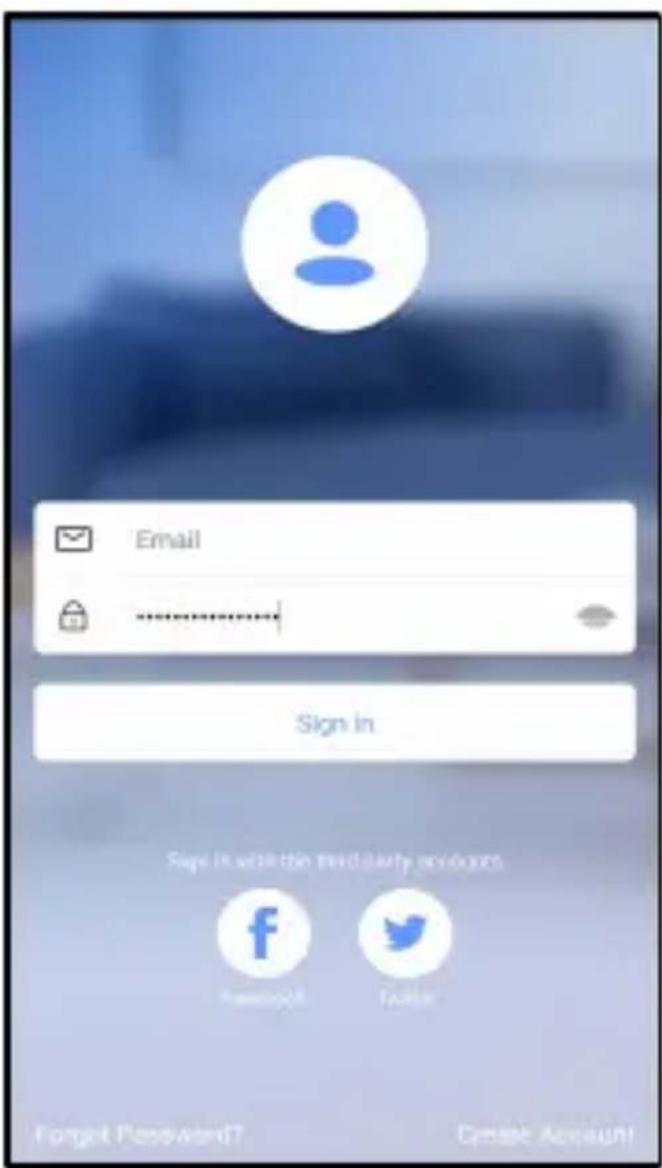

1. Click "Create Account"

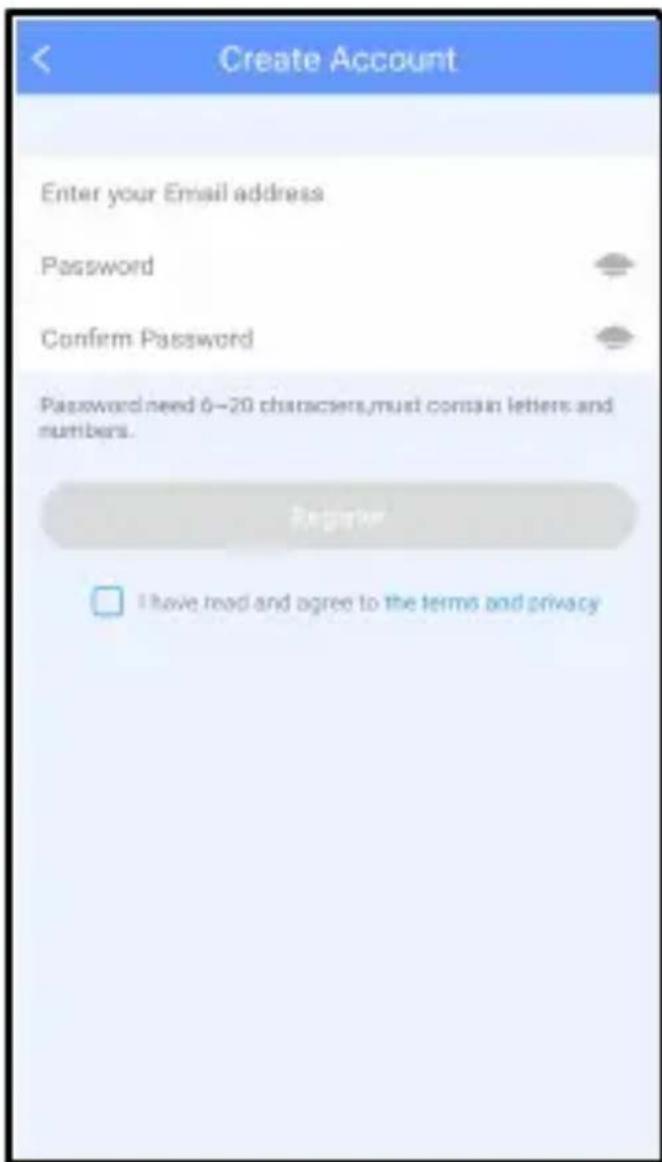

1. Enter your email address and password, confirm password and then click "Register"

6. NETWORK CONFIGURATION

Cautions

• It is necessary to forget any other around network and make sure the Android or iOS device just connects to the Wireless network you want to configure.
• Make sure the Android or iOS device Wireless function works well and can be connected back to your original Wireless network automatically.

Kindly reminder:

When AC enters into 'AP' mode, the air-conditioning remote controller can't control it. It is necessary to finish network configuration or power the AC again in order to control it. Alternatively, you need to wait 8 minutes to let the AC quit 'AP' mode automatically.

Using Android device to do network configuration

1. Make sure your mobile device has already been connected to the Wireless network which you want to use. Also, you need to forget other irrelevant Wireless network in case it influences your configuration process.

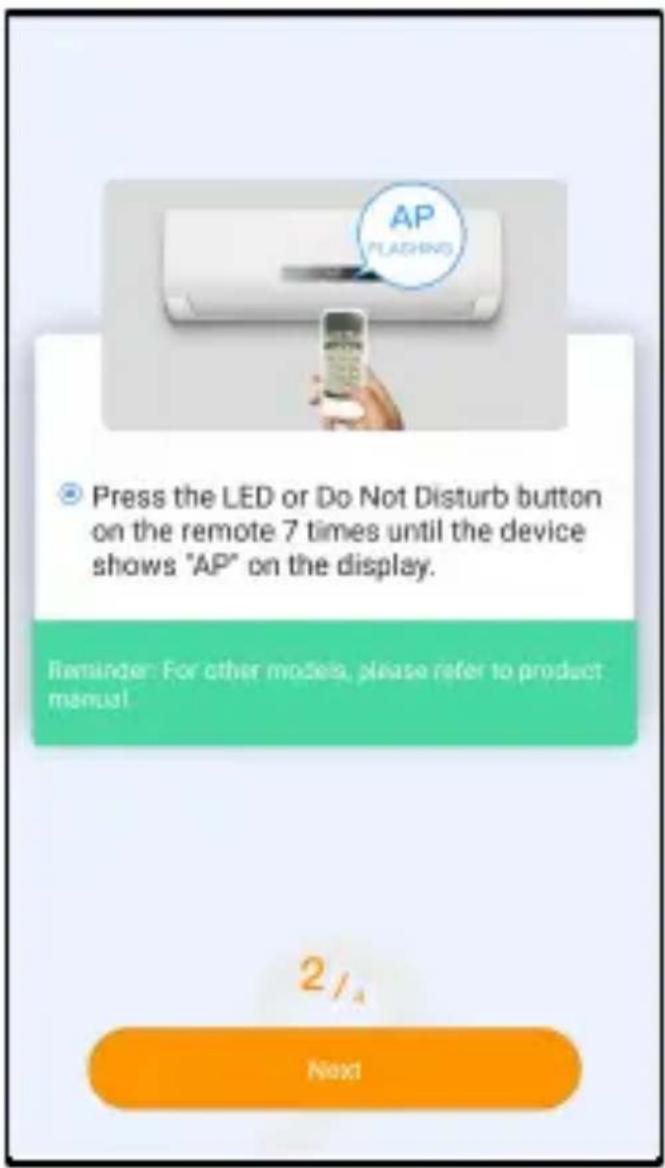

2. Power on the AC, then continuously press the “LED DISPLAY” button button on the remote seven times in 10 seconds.
3. When the AC displays “AP”, it means that the AC Wireless has already entered into “AP” Mode.

1. Press " + Add Device "

1. Select the appliance you are setting up

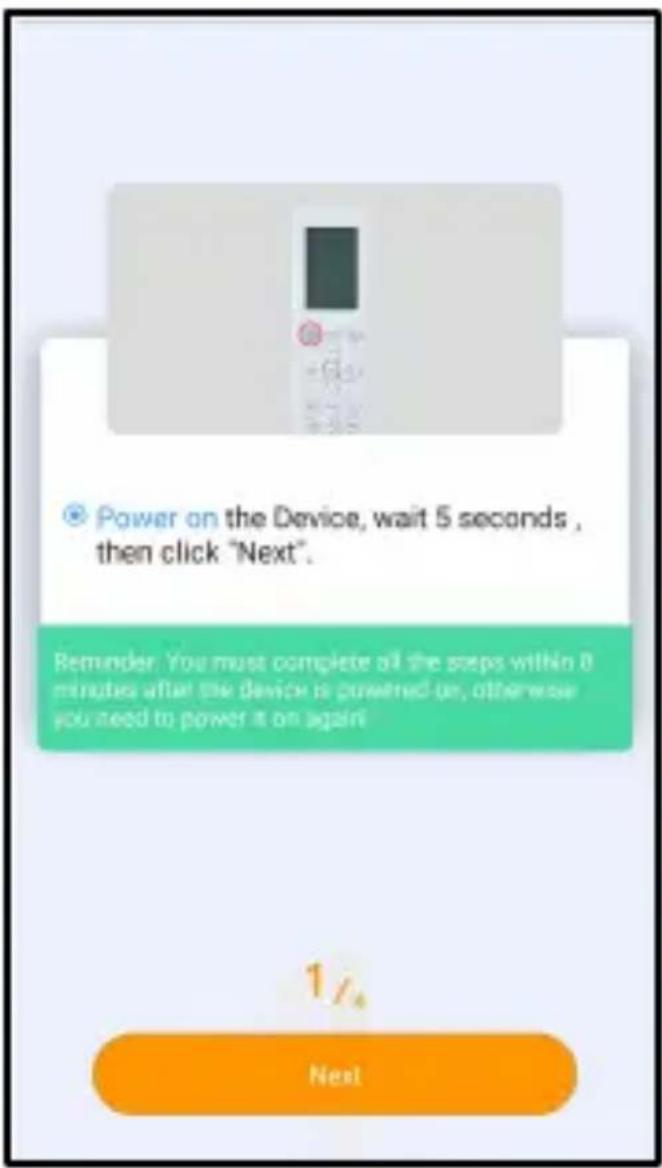

1. Follow the above steps to enter "AP" mode "

1. Choose the network configurationmethod

1. Choose the “Scan the QR code” method.

1. Or choose the "Manual Setup" method.

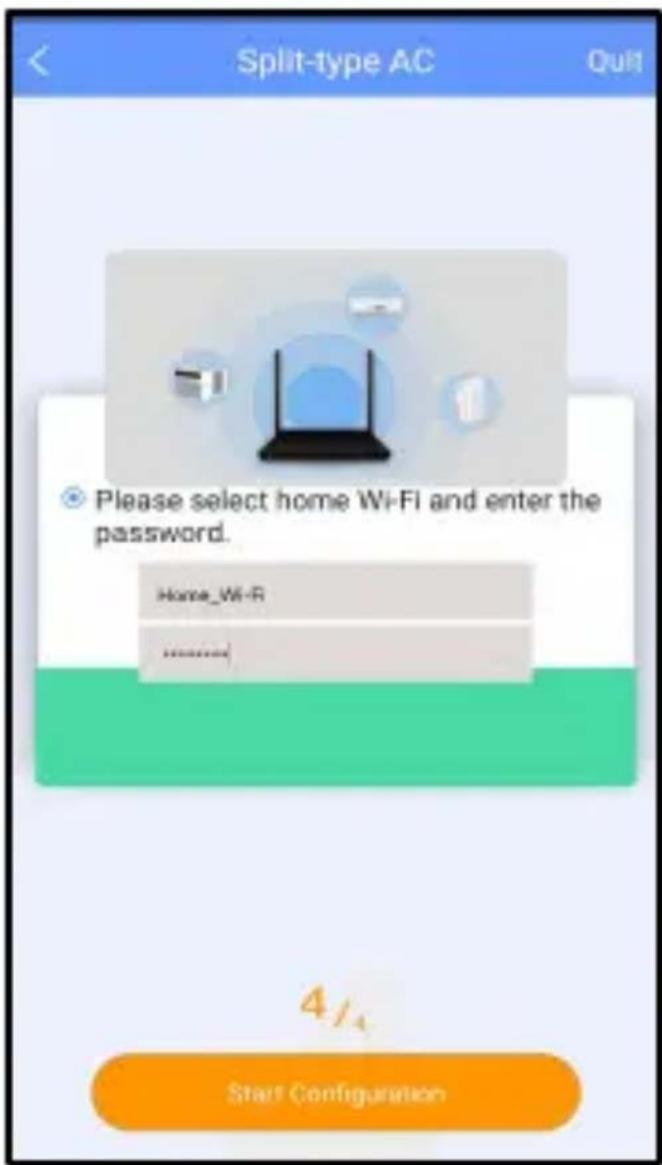

1. Please enter password

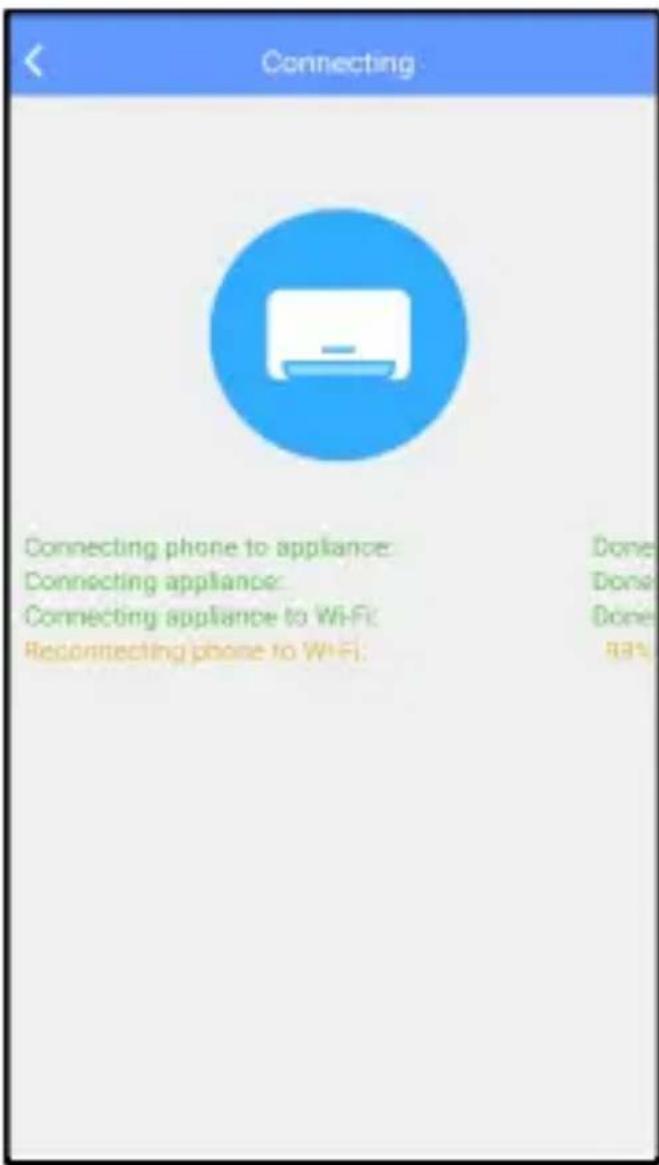

1. Network configuration is successful

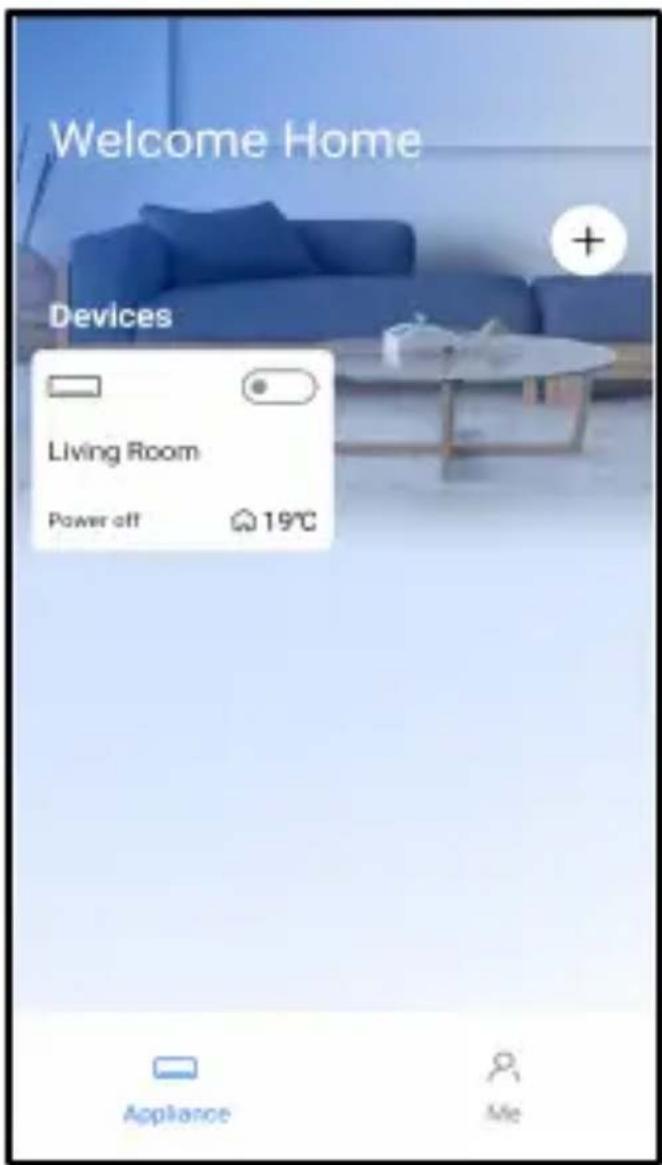

1. Configuration Success, you can see the device on the list.

Using iOS device to do network configuration

1. Make sure your mobile device has already been connected to the Wireless network which you want to use. Also, you need to forget other irrelevant Wireless network in case it influences your configuration process.
2. Power on the AC, then continuously press the “LED DISPLAY” button button on the remote seven times in 10 seconds.
3. When the AC displays “AP”, it means that the AC Wireless has already entered into “AP” Mode.

1. Press " + Add Device "

1. Select the appliance you are setting up

1. Follow the above steps to enter "AP" mode "

1. Connect to the wireless network

1. Please enter password

1. Network configuration is successful.

1. Configuration Success, you can see the device on the list.

NOTE:

• When finishing network configuration, APP will display success cue words on the screen.
• Due to different internet environment, it is possible that the device status still display “offline”. If this situation occurs, it is necessary to pull and refresh the device list on the APP and make sure the device status become “online”. Alternatively, user can turn off the AC power and turn on it again, the device status will become “online” after few minutes.

7. HOW TO USE APP

Please ensure both your mobile device and air conditioner are connected to the Internet before using app to control the air conditioner via internet, please follow the next steps:

1. Click "Sign up"

1. Choose the air conditioner

1. Thus, user can control air conditioners on/off status, operation mode, temperature, fan speed and other common functions.

NOTE: Not all the functions of the APP is available on air conditioner. For example: ECO, Turbo, Swing function, please check the user manual to find more information.

8. SPECIAL FUNCTIONS

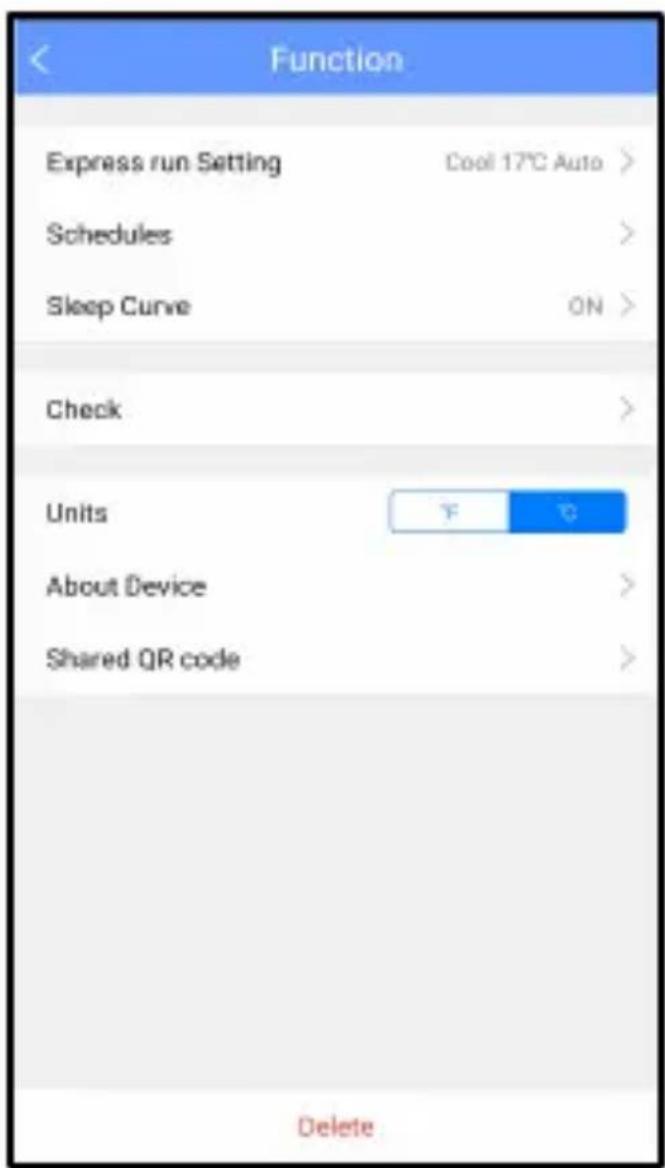

Including: Timer on, Timer off, 8°C Heat, Sleep, Check.

NOTE: If the air conditioner do not support the above function, the function will be hided from the function list.

Timer on/Timer off

Weekly user can make an appointment to turn on or off AC on specific time. User also can choose circulation to keep the AC under schedule control every week.

Sleep

User can customize their own comfortable sleep by setting target temperature.

Check

User can simply check the AC running status with this function. When finishing this procedure, it can display the normal items, abnormal items, and detail information.

Share Device

The air conditioner can be controlled by multi-users at the same time by Share Device function.

1. Click "Share QR code"

1. QR code display

1. The other user must log in "Nethome Plus" app first, then click "Add Share Device" on their own mobile.

2. Scan the QR code. Now the others can add the shared device.

CAUTIONS:

• This device complies with Part 15 of the FCC Rules and RSS 210 of Industry & Science Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
• Only operate the device in accordance with the instructions supplied. This device complies with FCC and IC radiation exposure limits set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC and IC radio frequency exposure limits, human proximity to the antenna shall not be less than 20cm (8 inches) during normal operation.
• Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
