Product Type	Audio/Video Converter
Brand	Kramer
Model	675R
Dimensions (approx.)	200 x 150 x 40 mm
Weight (approx.)	0.5 kg
Power Supply	5V DC, 1A (via USB or included adapter)
Input Interfaces	HDMI, VGA, Composite (RCA), Audio L/R
Output Interfaces	HDMI, VGA, Composite (RCA), Audio L/R
Supported Resolutions	480i/p, 576i/p, 720p, 1080i/p, up to 1920x1200
Video Conversion	Analog to Digital and vice versa, upscaling/downscaling
Audio Support	Embedded HDMI audio, stereo analog audio
EDID Emulation	Built-in for proper handshake with displays
Control	Front panel buttons, RS-232 (optional)
Enclosure Material	Metal chassis for EMI shielding
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 60°C
Humidity	10% to 90% RH (non-condensing)
Maintenance	Clean with a soft dry cloth; do not use liquids
Safety Precautions	Keep away from moisture; do not disassemble; use only supplied power adapter
Spare Parts & Repairability	Contact Kramer authorized service for repairs; no user-serviceable parts inside
Certifications	CE, FCC, RoHS
Package Contents	Main unit, power adapter, user manual (digital download)

Frequently Asked Questions - 675R Kramer

What types of video inputs does the Kramer 675R support?

The Kramer 675R supports HDMI, VGA, and composite (RCA) video inputs, allowing connection of various sources such as computers, DVD players, and cameras.

Can the 675R convert analog video to digital?

Yes, the Kramer 675R can convert analog signals (VGA, composite) to digital HDMI, and also digital to analog for integration with older displays.

What maximum resolution does the 675R support?

It supports resolutions up to 1920x1200, including 1080p, making it suitable for HD content and computer displays.

Does the 675R require external power?

Yes, it requires a 5V DC power supply (1A), typically included with the unit. It can also be powered via USB if the current is sufficient.

How do I set up the Kramer 675R?

Connect your source to the input (e.g., HDMI), then connect the output to your display. Plug in the power adapter. The unit should automatically detect and convert the signal. Use the front buttons for manual adjustments if needed.

What is EDID emulation and why is it important?

EDID emulation allows the converter to present a fixed set of supported resolutions to the source, preventing handshake issues and ensuring consistent output. The Kramer 675R includes this feature for reliable operation.

Can I use the 675R with audio?

Yes, it supports embedded audio from HDMI sources as well as separate stereo analog audio input and output via RCA connectors.

Is the Kramer 675R compatible with all displays?

It is compatible with most modern displays that have HDMI, VGA, or composite inputs. However, some older displays may not support the output format; check your display's capabilities.

How do I clean and maintain the 675R?

Use a soft, dry cloth to wipe the exterior. Avoid using any liquids or cleaning agents. Ensure the unit is unplugged during cleaning.

What should I do if the 675R does not output any signal?

First, check all cable connections. Ensure the power is on. Verify that the source is set to a compatible resolution. If the issue persists, try a different input or output cable. Contact Kramer support if the problem continues.

USER MANUAL 675R Kramer

Scan for full manual

675T/675R Quick Start Guide

This guide helps you install and use your 675T/675R for the first time.

Go to www.kramerav.com/downloads/675T to download the latest user manual and check if firmware upgrades are available.

Step 1: Check what's in the box

675T HDMI Optical Transmitter or

675R HDMI Optical Receiver

1 Power adapter and cord per device

4 Rubber feet

1 Quick start guide

1 Bracket set per device

Step 2: Get to know your 675T and 675R

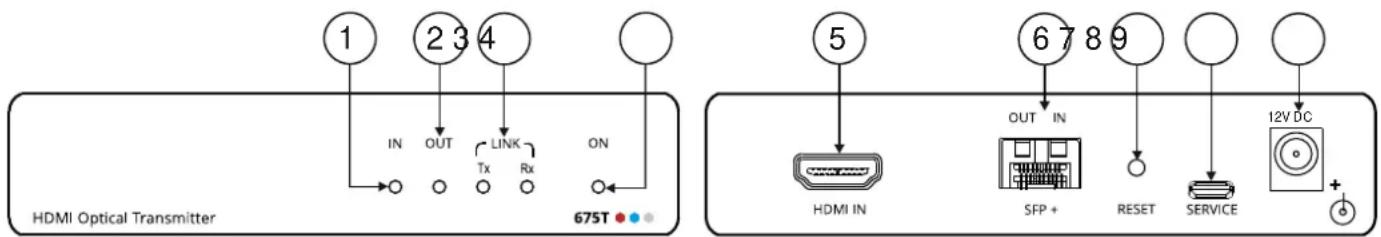

675T

# Feature Function
1	IN LED	Lights green when a connected source device (with an active HDMI signal) is detected.Flashes 4 times green when resetting the device.Off when a connected source device with an active signal is not detected.
2	OUT LED	Lights green when both a connected HDMI source (with an active HDMI signal) and a connected far-end HDMI acceptor are detected.Off if either the source or the acceptor is not connected, or an active signal is not present.
3	LINK Tx and Rx LEDs	Light green when an optical module is connected and an active optical link is detected.Light red when an optical module is connected, but an active optical link is not detected.Off when the optical module is disconnected.
4	ON LED	Lights green when the device receives power.
5	HDMI ^TM IN Connector	Connect to an HDMI source.
6	OUT IN SFP+ Connector Opening	Connect the Kramer certified optical module and connect the fiber optic cable to the module (purchased separately).
7	RESET Recessed Button	Press and hold to reset settings to factory default values.
8	SERVICE Micro USB Port	Connect to a PC to perform firmware upgrade (via K-Upload).
9	12V DC Power Connector	12V DC connector for powering the unit.

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

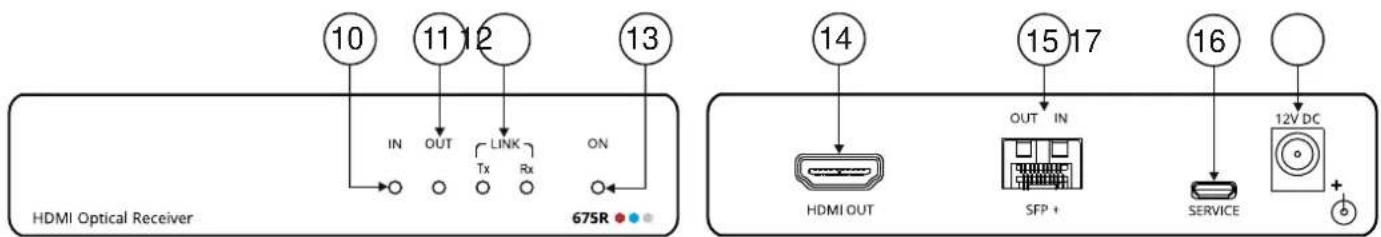

# Feature Function
10	IN LED	Lights green when a connected far-end source device (with an active HDMI signal) is detected.Off when a connected source device with an active signal is not detected.
11	OUT LED	Lights green when both a connected HDMI source (with an active HDMI signal) and a connected HDMI acceptor are detected.Off if either the source or the acceptor is not connected, or an active signal is not present.
12	LINK Tx and Rx LEDs	Light green when an optical module is connected, and an active optical link is detected.Light red when an optical module is connected but an active optical link is not detected.Off when the optical module is disconnected.
13	ON LED	Lights green when the device receives power.
14	HDMI ^TM OUT Connector	Connect to an HDMI acceptor.
15	OUT IN SFP+ Connector opening	Connect the Kramer certified optical module and connect the fiber optic cable to the module (purchased separately).
16	SERVICE Mini USB Port	Connect to a PC to perform firmware upgrade (via K-Upload).
17	12V DC Power Connector	12V DC connector for powering the unit.

Step 3: Install 675T/675R

Install 675T/675R using one of the following methods:

• Attach the rubber feet and place the unit on a flat surface.
• Fasten a bracket (included) on each side of the unit and attach it to a flat surface (see www.kramerav.com/downloads/675T).

- Mount the unit in a rack using the recommended rack adapter (see www.kramerav.com/downloads/675T).

• Ensure that the environment (e.g., maximum ambient temperature & air flow) is compatible for the device.
• Avoid uneven mechanical loading.
• Appropriate consideration of equipment nameplate ratings should be used for avoiding overloading of the circuits.
• Reliable earthing of rack-mounted equipment should be maintained.

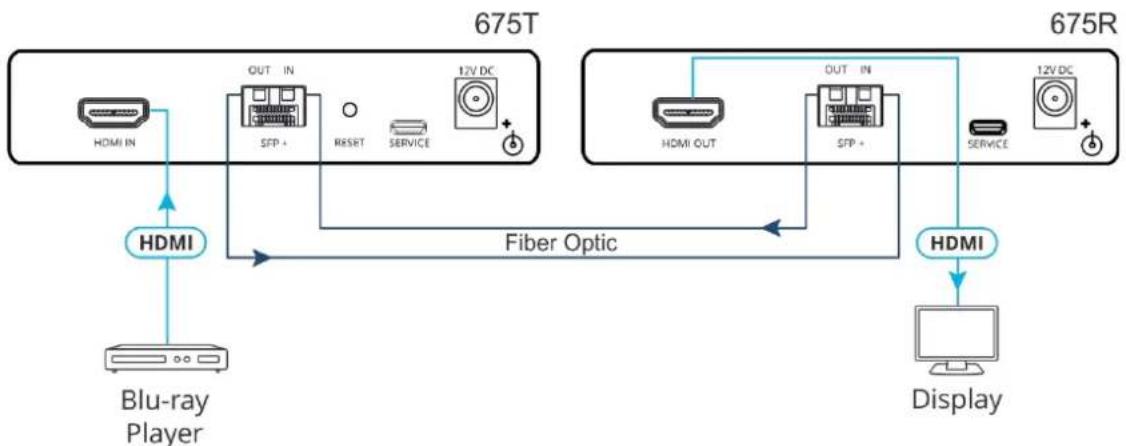

Step 4: Connect the inputs and outputs

Always switch OFF the power on each device before connecting it to your 675T/675R. For best results, we recommend that you always use Kramer high-performance cables to connect AV equipment to 675T/675R.

When using a duplex OSP SFP+ transceiver, connected with 2 fiber strands, always cross-connect the fiber connections, Rx OUT to Tx IN and Rx IN to Tx OUT, as unidirectional optical transmission is carried on simplex fiber strands.

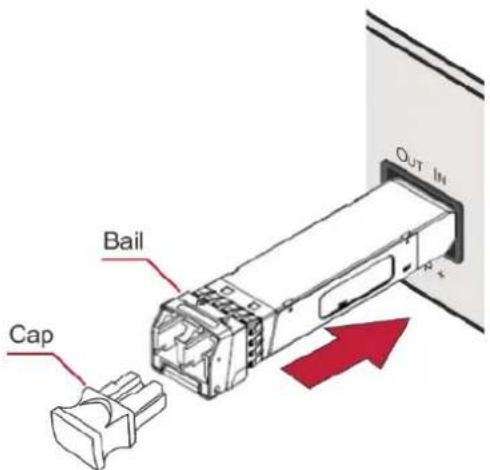

To install the OSP SFP+ transceiver (not included):

Make sure the bail is pushed up, in the closed position.

Insert the OSP SFP+ transceiver into the relevant optical device SFP+ slot and push it in until it clicks.

Remove the protective cap and store it in a safe place for future use.

Warning: Connecting the OSP SFP+ connector to an LC(APC) fiber connector may cause poor performance and damage the connector! Refer to www.kramerav.com/downloads/OSP-MM1 for more information.

Warning: Class 1 Laser Product

Invisible laser radiation present.

Avoid long-term viewing of laser.

Avoid the use of magnifying viewing aids or instruments (such as binoculars, telescopes, microscopes and magnifying lenses, but not spectacles or contact lenses).

Avoid placing optical devices in the emitted beam that could cause the concentration of the laser radiation to be increased.

Step 5: Connect the power

Connect the power cord to 675T/675R and plug it into the mains electricity.

Safety Instructions (See www.kramerav.com for updated safety information).

Caution:

- There are no operator serviceable parts inside the unit.

Warning:

• Use only the power cord that is supplied with the unit.
• Disconnect the power and unplug the unit from the wall before installing.

Technical Specifications
675T

Input	HDMI	On a female HDMI connector
Output	Fiber Optic	On LC connector(s)
Port	USB	On a female micro USB connector

675R

Input	Fiber Optic	On LC connector(s)
Output	HDMI	On a female HDMI connector
Port	USB	On a female micro USB connector

General

Video	Max Bandwidth	18Gbps
	Max Resolution	4096x2160@60Hz 4K@60 (4:4:4)
	Compliance	HDMI 2.0 and HDCP 2.2
Extension Line	Optical Fiber	Multi-mode (MM) or single-mode (SM)
	Optical Module	Kramer 10Gbps SFP+ IEEE 802.3ae compliant modules (not included)
Multi-mode Line	Compliance	G.651.1 OFNR fiber
	Max Reach over OM3 MM Fiber	3km (1.8 miles)
Single-mode Line	Compliance	G.652D OFNR fiber
	Max Reach over OS1 SM Fiber	33km (20.5 miles)
Controls	Front Panel	IN, OUT, LINK and ON LED indicators; 675T: RESET button
Power	Consumption	12V DC, 675T: 280mA; 675R: 220mA
	Source	12V DC, 2A
Environmental Conditions	Operating Temperature	0° to +40°C (32° to 104°F)
	Storage Temperature	-40° to +70°C (-40° to 158°F)
	Humidity	10% to 90%, RHL non-condensing
Regulatory Compliance	Safety	CE, UL
	Environmental	RoHs, WEEE
Enclosure	Size	Tool
	Type	Aluminum
	Cooling	Convection ventilation
Accessories	Included	1 power adapter, 1 power cord and 1 bracket set per device
Specifications are subject to change without notice at www.kramerav.com
