Product Type	Battery Grip
Model	BG-S7
Brand	Vello
Compatible Cameras	Sony Alpha mirrorless cameras (select models)
Battery Type	Two NP-FW50 rechargeable batteries
Power Supply	7.2V DC input from batteries
Dimensions (approx.)	130 x 110 x 85 mm
Weight (without batteries)	Approx. 290 g
Construction Material	High-quality plastic with rubberized grip
Functions	Extended battery life, vertical shutter release, improved handling
Shutter Button	Half-press for autofocus, full-press for capture
Control Dial	Rear dial for aperture/shutter speed adjustment
AF-ON Button	Dedicated autofocus activation
AEL Button	Auto exposure lock
Connection	Direct camera mount via tripod screw and electrical contacts
Battery Door Compatibility	Requires removal of camera's battery door
Cleaning	Wipe with dry soft cloth; avoid liquids
Storage	Dry, cool place away from direct sunlight
Safety	Use only specified batteries; avoid short circuits
Warranty	1-year limited warranty

Frequently Asked Questions - BG-S7 Vello

How do I install the BG-S7 battery grip on my camera?

First, remove the battery door from your camera. Then slide the grip into the camera's battery compartment, ensuring the electrical contacts align. Tighten the tripod screw at the bottom of the grip to secure it. Insert two NP-FW50 batteries into the grip.

Which camera models are compatible with the Vello BG-S7?

The BG-S7 is designed for Sony Alpha mirrorless cameras that use the NP-FW50 battery, such as the A6000, A6100, A6300, A6400, A6500, A6600, and others. Check the compatibility list in the manual.

Does the BG-S7 have a vertical shutter release button?

Yes, the grip includes a vertical shutter release button, along with AF-ON, AEL, and control dials for comfortable shooting in portrait orientation.

Can I use the grip without batteries?

No, the grip requires two NP-FW50 batteries to power the camera and its controls. It does not have an external power input.

How do I clean the battery grip?

Use a soft, dry cloth to wipe the exterior. Avoid using liquids or solvents. Keep the electrical contacts clean and free of dust.

What is the weight of the BG-S7 without batteries?

The grip weighs approximately 290 grams without batteries. With two NP-FW50 batteries, the total weight is about 430 grams.

Why is the camera not responding after attaching the grip?

Ensure the grip is properly attached and the tripod screw is tightened. Check that the batteries are correctly inserted and have sufficient charge. Also, clean the electrical contacts on both the camera and grip.

Can I use third-party batteries in the BG-S7?

Yes, the grip accepts any NP-FW50 compatible batteries, including third-party brands. However, for optimal performance, use genuine Sony batteries.

Does the grip have a tripod mount?

Yes, the bottom of the grip has a standard 1/4-inch tripod socket, allowing you to mount the camera and grip on a tripod.

How do I remove the grip from the camera?

Loosen the tripod screw at the bottom, then gently slide the grip off the camera. Reattach the original battery door to the camera.

USER MANUAL BG-S7 Vello

Close-up of a black leather camera body with a lock and red cable, no visible text or symbols.

BG-S7

BAT TERY GRIP

Designed for the

Sony Alpha a7R IV and a9 II

Mirrorless Cameras

VELLO®

Thank you for choosing Vello.

The Vello BG-S7 battery grip offers extended shooting time and comfort when shooting in a vertical (portrait) orientation. The grip is compatible with the Sony a7R IV and a9 II mirrorless cameras and accepts up to two Sony NP-FZ100 rechargeable batteries. It offers an alternate shutter release button, AF-ON and AEL buttons, two custom buttons, a multi-selector, and front and rear dials. This makes the grip ideal for shooting portrait photography. There is also a convenient control-lock switch to prevent unwanted triggering of the grip's controls. For connectivity, there is a mount on the bottom for standard tripods and a mount on the top for hand straps.

Close-up of a DSLR camera's front panel showing adjustment knobs and mode dial (no readable text or symbols)

Please read through this entire manual before using the BG-S7 battery grip.

Precautions

1. The BG-S7 should be used only with compatible devices specified in this manual.
2. Use only with the batteries and battery holders recommended in this manual.
3. If you notice smoke, noise, or an unusual smell from the battery pack, discontinue use immediately. Remove the batteries, and take the device to a Vello authorized reseller.

4. The battery level may not display properly if batteries are installed before mounting the grip.

5. Remove batteries from the grip when not in use.

6. Do not attempt to disassemble.
7. Avoid exposing this product to water or extreme humidity, and keep it in a cool, dry place.
8. Keep out of reach of children.
9. All images are for illustrative purposes only.

Overview

① Electrical contacts
② C2 custom button
③ C1 custom button
④ Hand strap mount
⑤ Control lock switch
6 Shutter release button
⑦ Front dial
⑧ Nonslip grip

⑨ Tripod socket
10 Battery compartment
⑪ Battery tray lock
⑫ Battery tray
13 Thumbwheel lock
14 Multi-selector
15 AF-ON / enlarge viewing
16 AEL button / preview zoom

17 Rear dial
18 Camera battery door holder
19 Mounting screw
20 Battery slot 1
21 Slot 1 contacts
② Battery slot 2
23 Slot 2 contacts

Attaching the Battery Grip

1. Ensure that the camera power is turned off.

Diagram of a mechanical component with orange arrows indicating motion or force direction (no text or symbols)

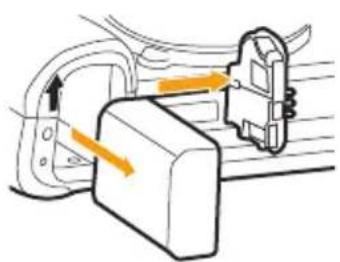

1. Open the camera's battery door, and remove the battery. Remove the camera's battery door by pulling the release latch on the inside of the door as indicated above.

Technical line drawing of a mechanical device with an orange arrow pointing to a component (no text or symbols present)

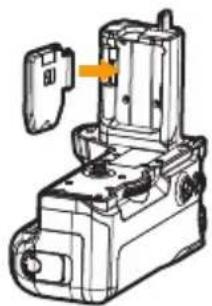

1. Store the camera's battery door in the BG-S7's battery door holder. Align the door with the compartment's slot as indicated, and slide the door in. Press the door's release latch to lock it in place.

Mechanical component diagram showing internal structure with no visible text or symbols

1. Swing and lock the door shut.

Diagram of a dual-camera digital camera with labeled ports and connectors (no text or symbols present)

1. Insert the BG-S7's electrical contacts into the camera's battery chamber, and seat the camera onto the grip's mounting screw.

Line drawing of a DSLR camera with an orange arrow indicating the lens (no text or symbols present)

1. Rotate the thumbwheel lock until secure.

Inserting the Batteries

Diagram of a mechanical device with orange arrows indicating motion or force direction (no text or symbols)

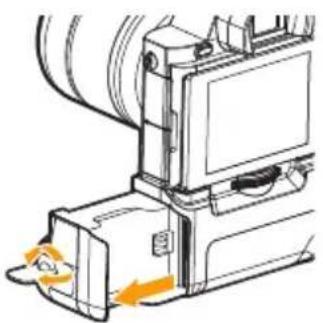

1. Turn the camera power off. Rotate the grip's battery tray lock to Open, and pull the tray out of the battery compartment.

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

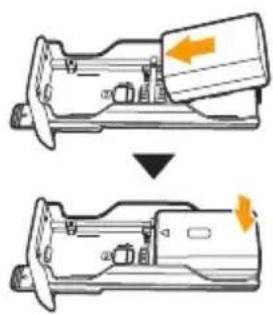

1. Align your battery's contacts with either battery tray slot 1 or 2, and insert the battery. Make sure the battery is secure.

Diagram of a mechanical device with orange arrows indicating motion or force, no visible text or symbols

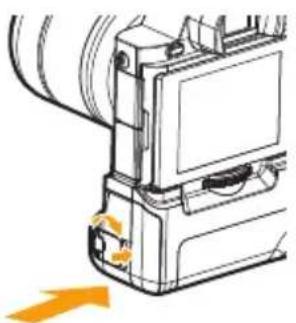

1. Slide the battery tray into the grip's battery compartment, and rotate the tray's lock to Close.

Technical line drawing of a mechanical component with no visible text or symbols

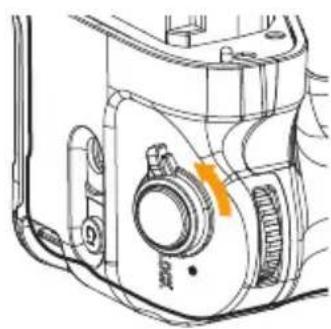

1. Turn on the camera's power, and make sure the grip's control lock switch is set to •.

Note: When removing the grip, turn off the camera power, and remove the batteries.

Battery Status

When two batteries are installed in the BG-S7, your camera will automatically select the battery with less power remaining. The battery level will appear on your camera's LCD, with the battery level percentage for only the battery in use. When the battery is depleted, your camera will switch to the other battery in the grip.

Important: When storing your Sony camera with the grip attached, turn your camera off, and turn the grip's control lock switch to the locked position.

Specifications

Power source Up to two NP-FZ100 rechargeable Li-ion batteries
Operating temperature 32°F to 104°F	(0°C to 40°C)
Dimensions (H × W × D) 4.3 × 5 × 2.55 in. (10.9 × 12.8 × 6.5 cm)
Weight 8 oz. (227 g) without batteries

ONE-YEAR LIMITED WARRANTY

This VELLO product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider's responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider's discretion, of any product that fails during normal use of this product in its intended manner and in its intended environment. Inoperability of the product or part(s) shall be determined by the warranty provider. If the product has been discontinued, the warranty provider reserves the right to replace it with a model of equivalent quality and function.

This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights that vary from state to state.

To obtain warranty coverage, contact the Vello Customer Service Department to obtain a return merchandise authorization (“RMA”) number, and return the defective product to Vello along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser’s own risk and expense.

For more information or to arrange service, visit www.vellogear.com or call Customer Service at 212-594-2353.

Product warranty provided by the Gradus Group.

www.gradusgroup.com

VELLO is a registered trademark of the Gradus Group. © 2020 Gradus Group LLC. All Rights Reserved.
