ELIT100 - Earphones TCL - Free user manual and instructions

Product Type	In-ear headphones with microphone
Brand	TCL
Model	ELIT100
Color Options	Midnight Blue, Cement Grey
Driver Size	8.6 mm
Frequency Response	9 - 40,000 Hz
Impedance	28 Ohm
Sensitivity	108 dB
Maximum Power Input	25 mW
Connectivity	Wired, 3.5 mm jack
Controls	In-line remote with microphone (play/pause, tracks, calls, voice assistant)
Noise Isolation	Yes, via oval acoustic tube and ear tips
Hi-Res Audio	Yes, certified
Ear Tip Sizes	3 sizes (S, M, L)
Included Accessories	3 sizes ear caps, protective pouch
Product Dimensions (W×H×D)	3 × 8 × 4 cm
Product Weight	13 g
Packaging Dimensions (W×H×D)	9.5 × 17.5 × 2.5 cm
Gross Weight	57 g
Net Weight	21 g
Power Source	None (wired, powered by device)
Maintenance	Clean with dry cloth; store in pouch when not in use
Safety	Do not use at high volume for extended periods; keep away from moisture
Repairability	Not user-serviceable; contact support for issues
General Information	Ergonomic design, secure-fit, suitable for continuous use

Frequently Asked Questions - ELIT100 TCL

What is the Hi-Res Audio certification for ELIT100?

The ELIT100 meets the stringent standards for Hi-Res Audio, reproducing original studio master recordings more faithfully than CD quality (16-bit/44.1kHz).

Does the ELIT100 have a built-in microphone?

Yes, it features an in-line microphone with remote control for calls and music (play/pause, track change, voice assistant activation).

How do I clean the earphones?

Gently wipe the earphones and ear tips with a soft, dry cloth. Do not use liquids or abrasive materials. Store the earphones in the included protective pouch when not in use.

Are the ear tips replaceable?

Yes, the ELIT100 comes with three sizes of ear caps (small, medium, large) to ensure a custom fit. Additional ear tips can be purchased separately if needed.

What devices are compatible with the ELIT100?

The earphones use a standard 3.5 mm jack, compatible with most smartphones, tablets, laptops, and audio players. The in-line remote works with both iOS and Android devices.

Does the ELIT100 have noise cancellation?

It features passive noise isolation through its ergonomic oval tube design and secure-fit ear caps, reducing ambient noise. It does not have active noise cancellation.

How long is the cable?

The cable length is approximately 1.2 meters (3.9 feet), suitable for comfortable use with devices carried in a pocket or bag.

What is the weight of the ELIT100 earphones?

The earphones weigh only 13 grams (0.46 oz), making them extremely lightweight and comfortable for extended wear.

Can I use the ELIT100 for gaming?

Yes, the wired connection ensures low latency audio. The built-in microphone allows for in-game chat, making it suitable for gaming on compatible devices.

What should I do if the earphones stop working?

First, check the audio source and connection. If the issue persists, contact TCL support. The earphones are not user-serviceable; do not attempt to open or modify them.

USER MANUAL ELIT100 TCL

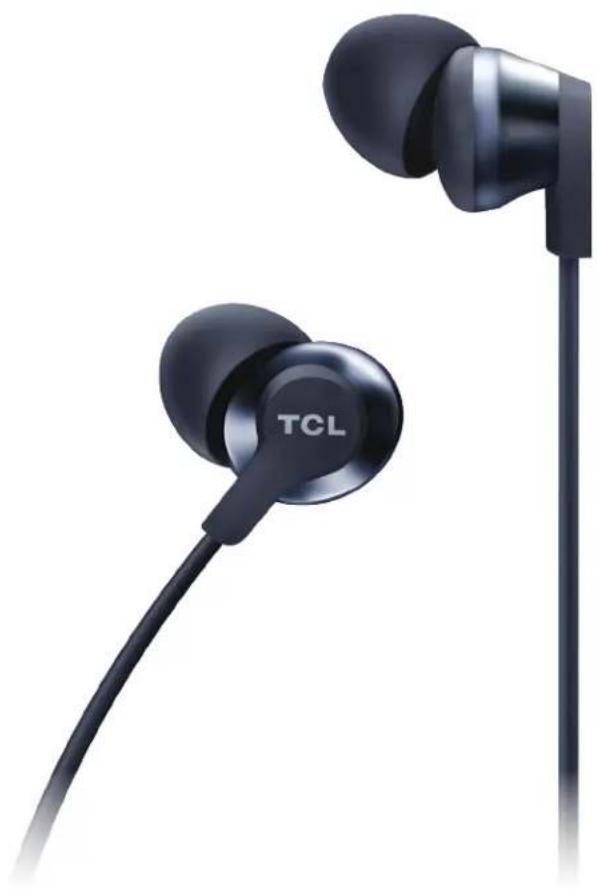

Close-up of a TCL brand earphone with black headband and extended cord (no visible text or symbols)

Close-up of a metallic TCL earbuds with earphones and a curved cord (no text or symbols visible)

BELIEVABLY SMALL UNBELIEVABLE SOUND

Noise-isolating. Comfortable. In-ear headset.

Using our precision engineered accredited Hi-Res 8.6mm audio driver the ELIT100 in-ear headset delivers a deeply powerful and thumping bass with crystal clear audio fidelity. ELIT100 also features a secure-fit in-ear design providing a natural fit, crafted based on extensive

ergonomic research, providing you with ultimate comfortable wearing for continuous and long usage. It comes with in-line microphone and remote for music and call control. 2 colors options are available.

Product Highlights

High performance sound

8.6mm speaker drivers deliver precise detail and balanced sound

Oval acoustic tube for superb comfort

Call and music control

Uncompromising Hi-Res Audio

Offers the best in audio performance, reproducing original studio master recordings more faithful than 16 bit/ 44.1kHz CD formats.

Close-up of a person's ear with a black earband, showing ear structure and ear canal (no text or symbols visible)

Ergonomic design

Noise isolation with oval acoustic tubes design for a comfortable, natural fit. So you can keep listening for hours in total comfort.

3 choices of earcaps

From small to large — so you can select the perfect fit for your ears.

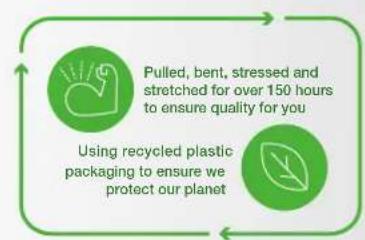


Exploded view of Hi-Res audio headphones showing ear, lens, and head components (no text or symbols on parts)

Powerful 8.6mm speaker drives

Deliver precise detailed and balanced sound. These headphones meet the stringent standards required for the Hi-Res Audio stamp of quality.

Remote with mic for music and calls control

Built-in microphone and easy-to-use remote control allows you to play or pause tracks and answer or reject calls with a simple push of a button.

Protective pouch

Delicate storage pouch keeps your headphone safe and tidy on the go.

ELIT100

In-ear headphones with mic

SPECIFICATIONS

Design

- Color: ■Midnight blue - Cement grey

Sound

• Frequency range: 9 - 40 000Hz
- Sensitivity: 108dB
- Impedance: 28Ohm
• Maximum power input: 25mW
- Speaker drivers: 8.6mm

Convenience

• In-line control for: end calls, play/pause music, change tracks, switch between music and calls
  • Voice assistant (Siri, Google Assistant, etc., mobile phones operating system dependent)

Accessories

• 3 sizes earcaps
• Protective pouch

Packaging dimensions

• Packaging dimension (WxHxD):
  9.5×17.5×2.5cm
  • Gross weight: 57g
• Net weight: 21g

ELIT100BL • EAN: 69217328 8661 5

• UPC: 846042011426

ELIT100WT • EAN: 69217328 8660 8

• UPC: 846042011433

Product dimensions

• Product dimensions (WxHxD):
  3×8×4cm
  ■ Weight: 13g

* All information and specifications are correct as of time of publication and are subject to changes as may be required and shall not form part of an offer or contract * HANDERTING AND ILLUSTRATIONS ARE ARTIST IMPRESSIONS ONLY AND CANNOT BE REARDED AS REPRESENTATIONS OF FACS

2019 © TCL Entertainment Solutions Limited.

All rights reserved. This product has been

manufactured by and is sold under the responsibility of TCL Entertainment Solutions Limited.

www.tcl.com

Issue date 2019-1-1 Version: 1.0
