Product Type	Kegerator / Beer Dispenser
Model	DP-120D-24GR
Brand	Micro Matic
Number of Taps	2
Width	24 inches (61 cm)
Depth	24 inches (61 cm)
Height	44 inches (112 cm)
Weight	Approximately 150 lbs (68 kg)
Power Supply	120V, 60Hz
Cooling Type	Forced air
Temperature Range	33-38°F (1-3°C)
Functions	Dispensing draft beer, temperature control, dual tower tap
Maintenance	Clean beer lines and couplers regularly; replace CO2 tank as needed
Safety Features	Safety pressure relief valve, grounded power cord
Spare Parts Available	Yes, through Micro Matic or authorized dealers
Repairability	Modular design for easy access to components
General Information	Designed for commercial and home use; compatible with standard kegs

Frequently Asked Questions - DP-120D-24GR Micro Matic

How do I set up my Micro Matic DP-120D-24GR kegerator?

Place the kegerator on a level surface. Connect the CO2 tank to the regulator, then attach the beer line to the coupler. Insert the keg into the kegerator and connect the coupler. Set the temperature to 33-38°F (1-3°C) and allow it to cool for at least 24 hours before serving.

How do I clean the beer lines?

Disconnect the keg and CO2. Mix a cleaning solution of warm water and a beer line cleaner (e.g., BLC). Run the solution through the lines using a cleaning pump or gravity. Let it sit for 15 minutes, then flush with clean water. Reconnect everything and purge the lines.

What is the proper temperature setting?

The optimal temperature is between 33°F and 38°F (1-3°C). This keeps the beer cold without freezing. Adjust the thermostat dial accordingly.

How often should I replace the CO2 tank?

Replace or refill the CO2 tank when the pressure drops below 500 PSI. Typical usage of a 5 lb tank lasts 2-4 weeks, depending on consumption.

Can I use this kegerator with different keg sizes?

Yes, the DP-120D-24GR can accommodate standard half-barrel, quarter-barrel, and sixth-barrel kegs. Ensure the coupler matches the keg type (D, S, or A system).

Why is my beer foamy?

Foamy beer can result from high temperature, incorrect CO2 pressure, or dirty lines. Check that the temperature is 33-38°F, adjust pressure to 12-14 PSI, and clean the lines.

How do I replace the tap tower?

Disconnect beer lines and remove the tower screws. Lift the tower off. Install the new tower by reversing the steps. Ensure the gasket seals properly to prevent leakage.

What safety precautions should I take?

Always use the safety relief valve to release excess CO2 pressure. Do not remove the grounding prong from the power cord. Keep the kegerator away from heat sources and ensure proper ventilation.

Where can I find spare parts?

Spare parts are available through Micro Matic's website or authorized dealers. Common parts include couplers, beer towers, faucets, and temperature controllers.

How do I adjust the temperature?

Locate the thermostat dial inside the kegerator (usually near the back). Turn it clockwise for colder and counterclockwise for warmer. Wait 24 hours for stabilization.

USER MANUAL DP-120D-24GR Micro Matic

• Add European style while creating dispense excitement
• Condition the glass before pouring – invert glass, push down on sprayer for cold water rinsing
• Robust 18 gauge stainless steel construction
• Welded corners, finished smooth for safety and appearance

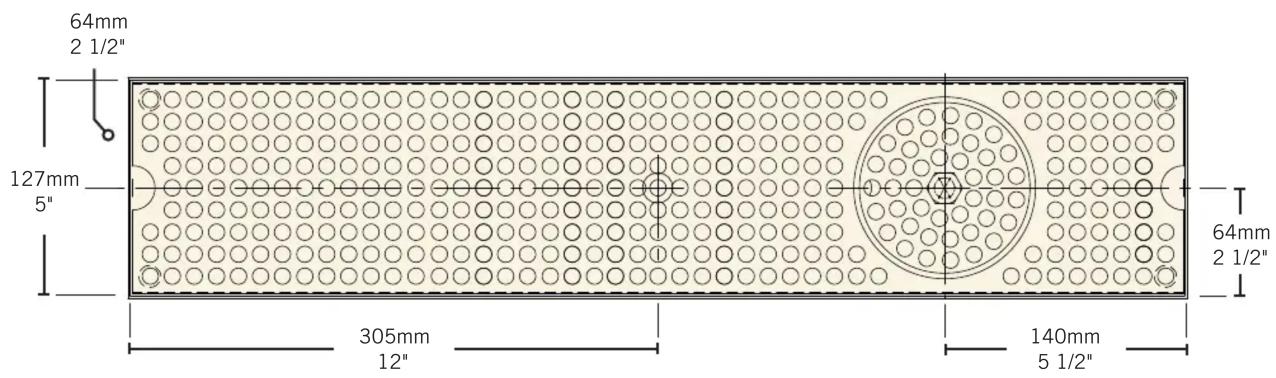

Metal perforated plate with a circular perforated component on the right side (no text or symbols visible)

DP-120D-24GR
Brushed Stainless Steel

NSF Certified

(Rinser Only)

www.micromatic.com • 1 [phone]

5" WIDTH TRAY WITH GLASS RINSER

Part No. Dimensions Description Shipping Weight Box Dimensions

DP-120D-24GR

5"W x 24"L x 3/4"H Stainless Steel TBD TBD

Rinser Water Inlet Installation

• Always check local plumbing codes first.
• Install in-line water regulator set at 15 PSI from the street water supply (no greater, perfect operating pressure).
• Install in-line one way check valve from the street water supply (prevents pressure drop which can cause leaking).
- Install in-line shut-off for the rinser system from the street water supply (this must be turned off nightly).
- If teed into soda system make sure system can handle the increased water demand. Have plumber install a 45^ 1/2'' O.D. barb for the drains if line is not hard plumbed into the system.
• Install a shut-off for the rinser water supply if line is not hard plumbed into the system.

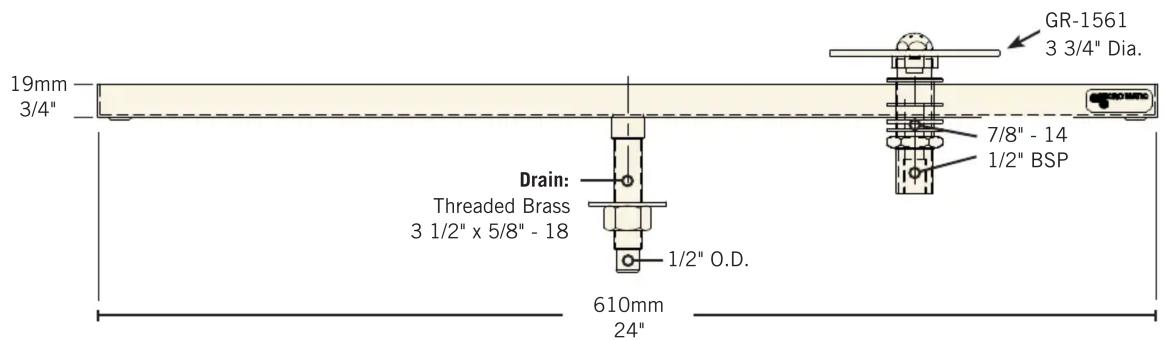

Dimensions
